1. Getting Started with CI/CD Dimitry Ushakov Melissa Kam Sabeen Syed

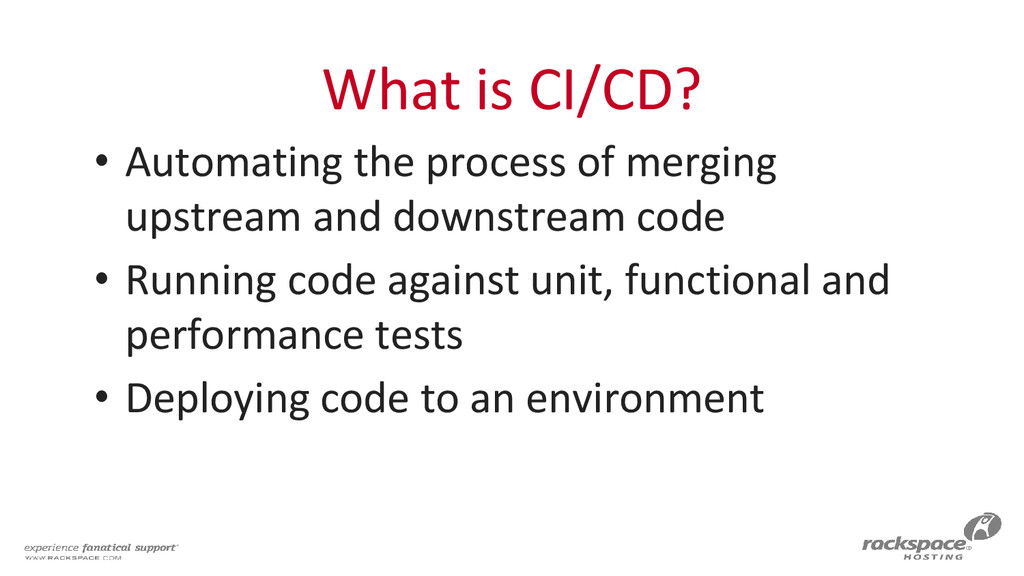

2. What is CI/CD? • Automating the process of merging upstream and downstream code • Running code against unit, functional and performance tests • Deploying code to an environment

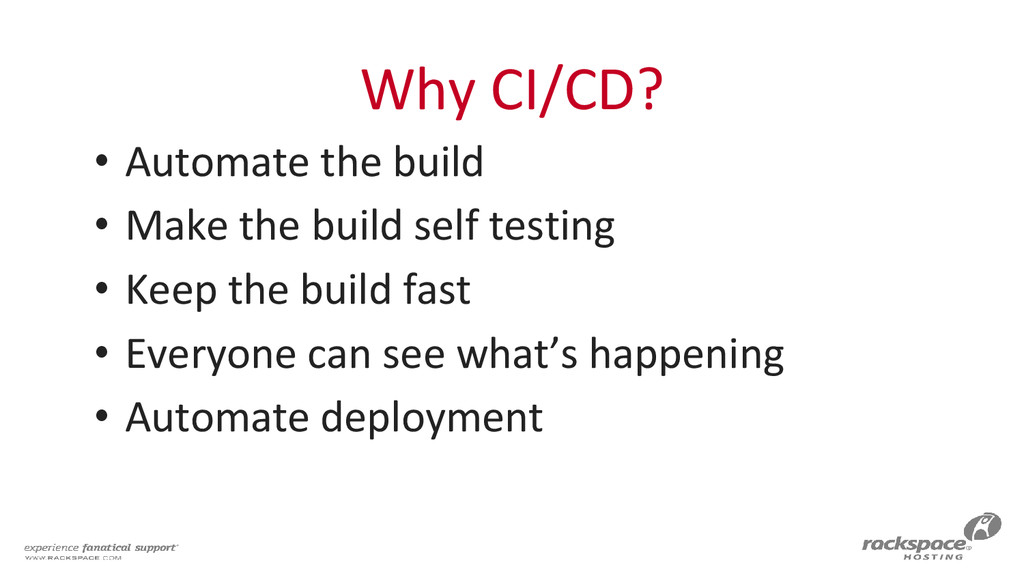

3. Why CI/CD? • Automate the build • Make the build self testing • Keep the build fast • Everyone can see what’s happening • Automate deployment

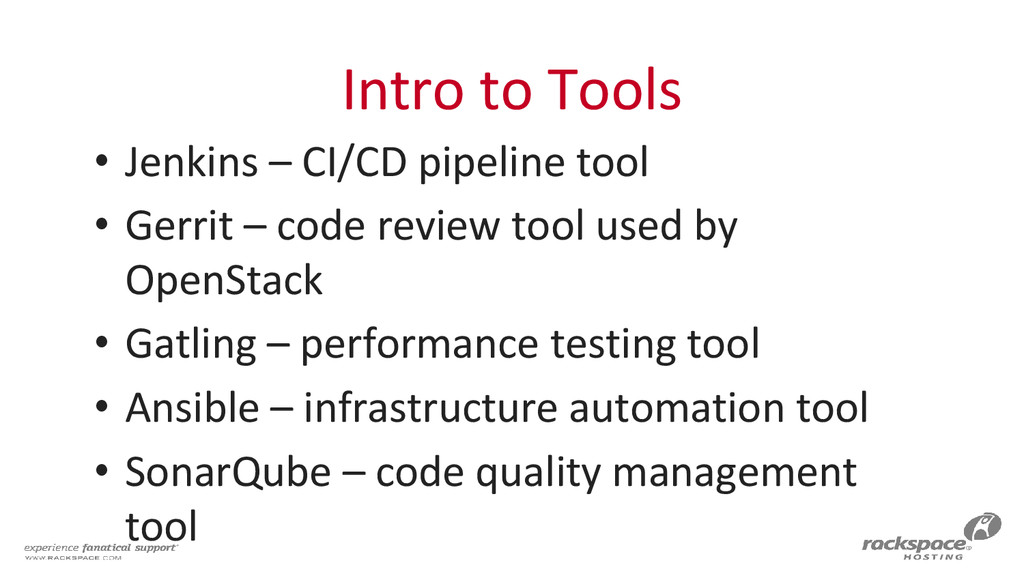

4. Intro to Tools • Jenkins – CI/CD pipeline tool • Gerrit – code review tool used by OpenStack • Gatling – performance testing tool • Ansible – infrastructure automation tool • SonarQube – code quality management tool

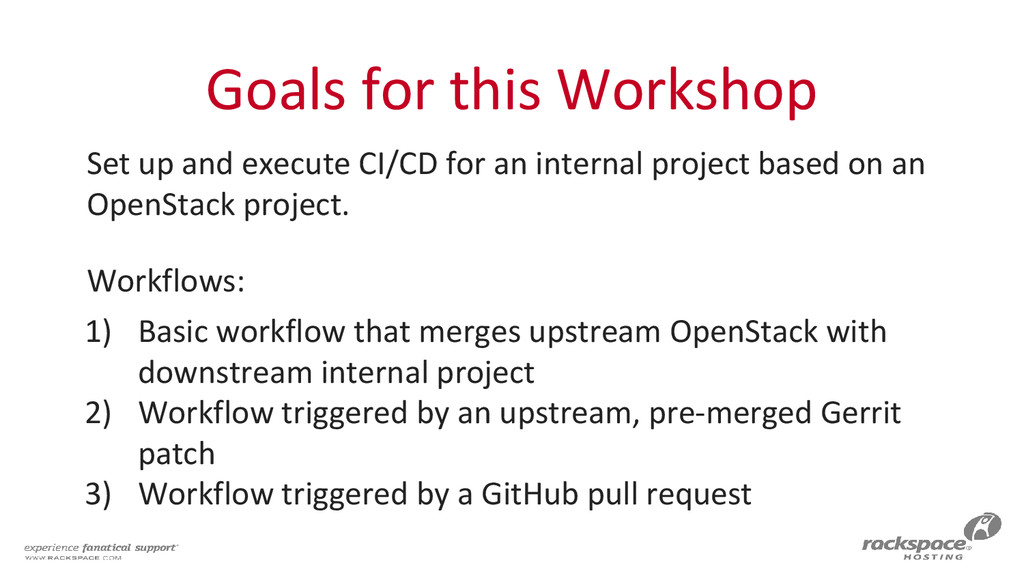

5. Goals for this Workshop Set up and execute CI/CD for an internal project based on an OpenStack project. Workflows: 1) Basic workflow that merges upstream OpenStack with downstream internal project 2) Workflow triggered by an upstream, pre-merged Gerrit patch 3) Workflow triggered by a GitHub pull request

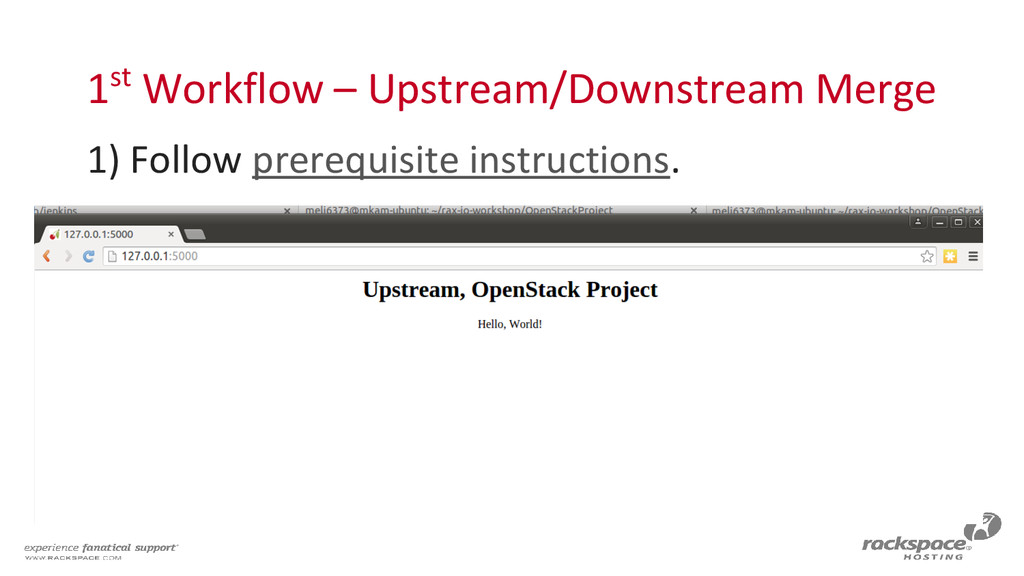

6. 1st Workflow – Upstream/Downstream Merge 1) Follow prerequisite instructions.

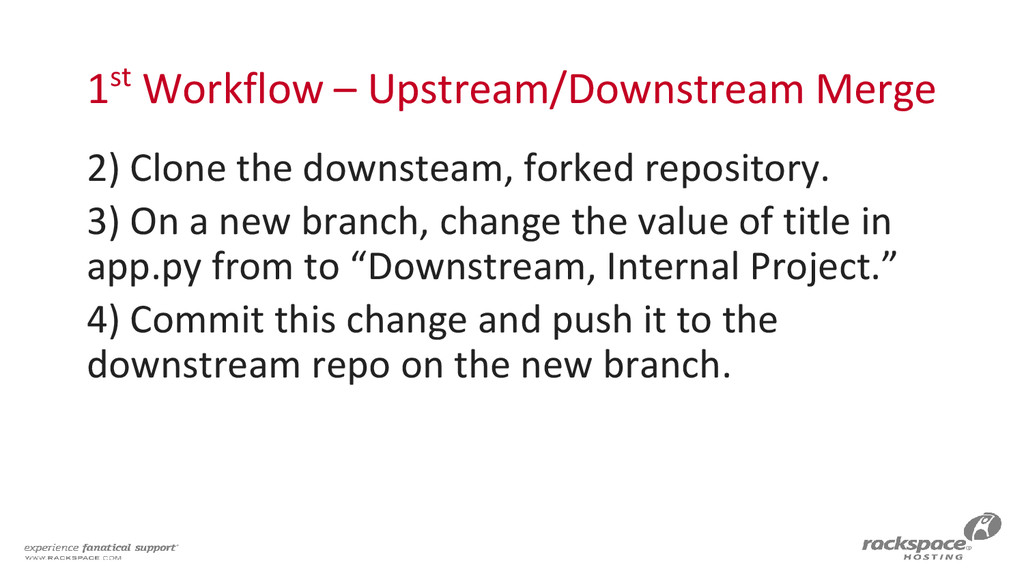

7. 1st Workflow – Upstream/Downstream Merge 2) Clone the downsteam, forked repository. 3) On a new branch, change the value of title in app.py from to “Downstream, Internal Project.” 4) Commit this change and push it to the downstream repo on the new branch.

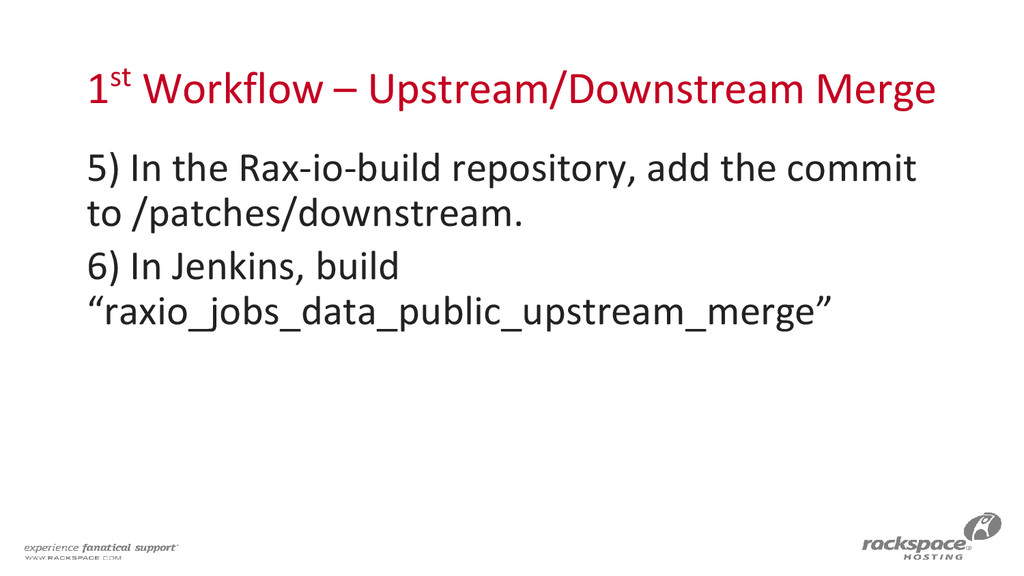

8. 1st Workflow – Upstream/Downstream Merge 5) In the Rax-io-build repository, add the commit to /patches/downstream. 6) In Jenkins, build “raxio_jobs_data_public_upstream_merge”

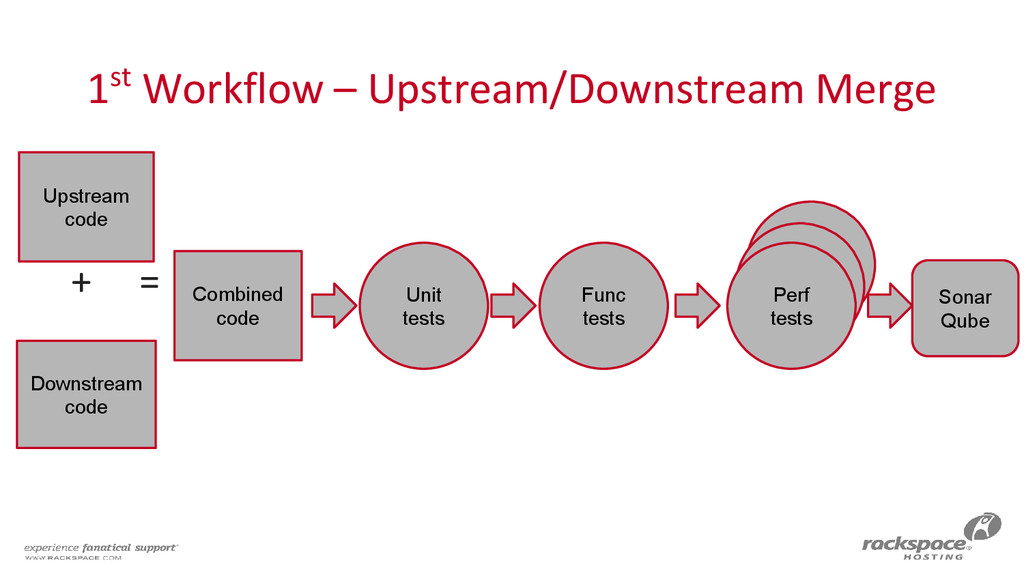

9. 1st Workflow – Upstream/Downstream Merge + = Upstream code Downstream code Combined code Unit tests Func tests Sonar Qube Perf tests Perf tests Perf tests

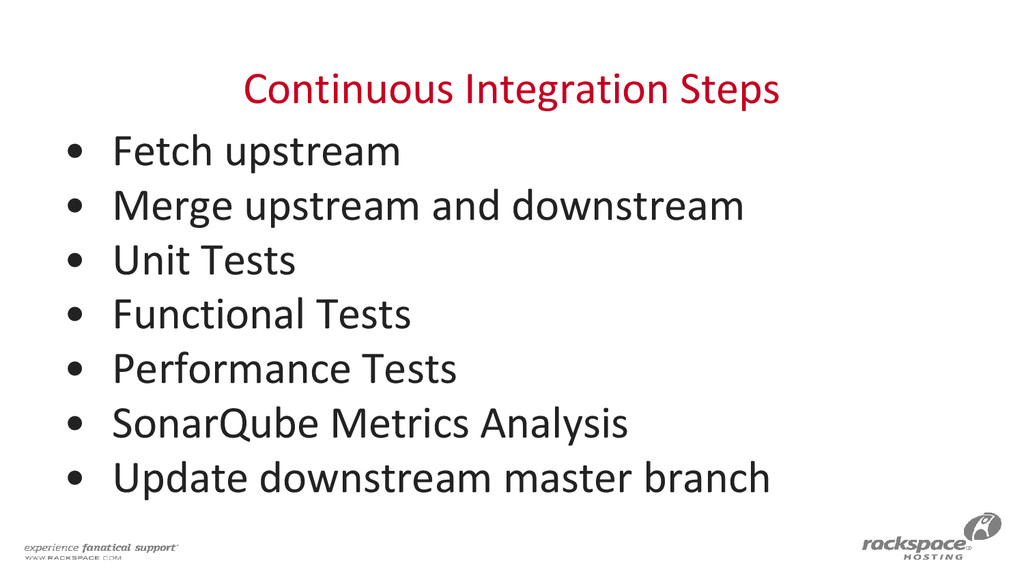

10. Continuous Integration Steps • Fetch upstream • Merge upstream and downstream • Unit Tests • Functional Tests • Performance Tests • SonarQube Metrics Analysis • Update downstream master branch

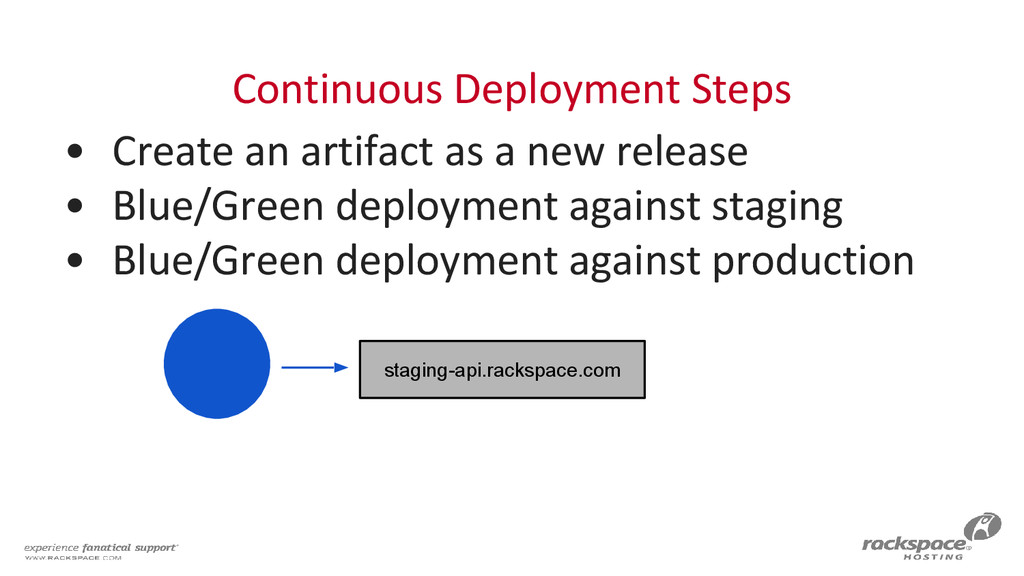

11. Continuous Deployment Steps • Create an artifact as a new release • Blue/Green deployment against staging • Blue/Green deployment against production staging-api.rackspace.com

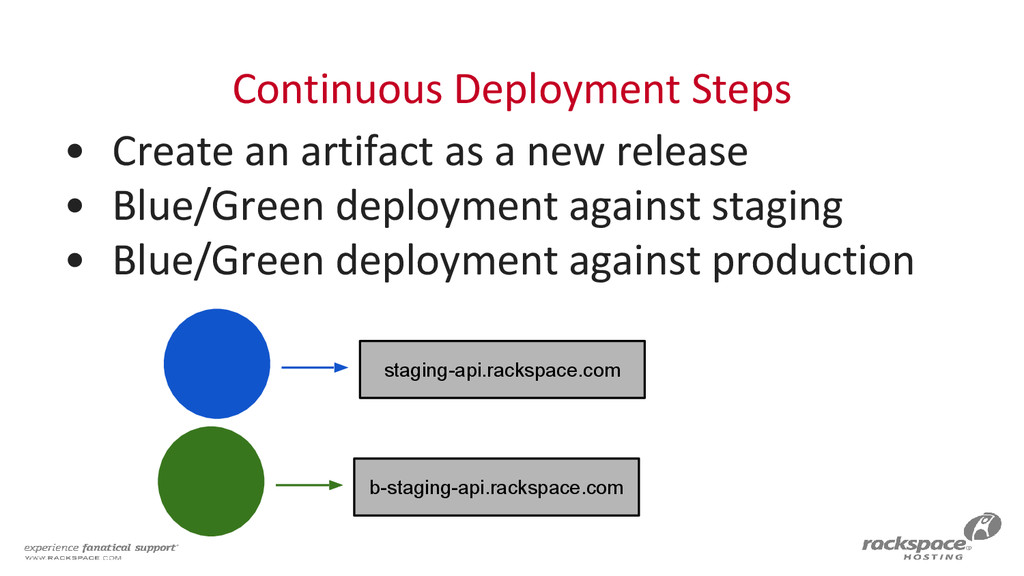

12. Continuous Deployment Steps • Create an artifact as a new release • Blue/Green deployment against staging • Blue/Green deployment against production staging-api.rackspace.com b-staging-api.rackspace.com

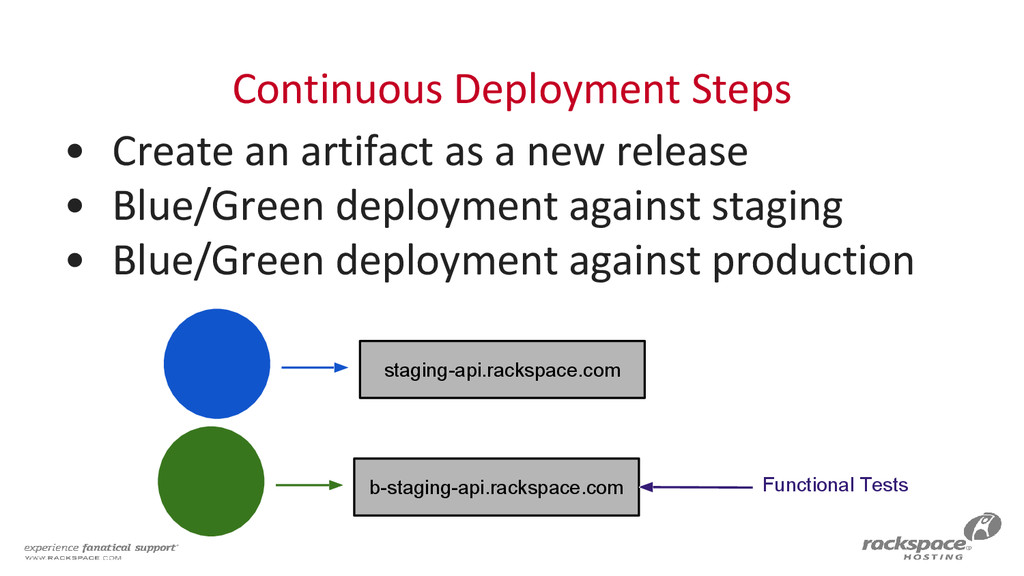

13. Continuous Deployment Steps • Create an artifact as a new release • Blue/Green deployment against staging • Blue/Green deployment against production staging-api.rackspace.com b-staging-api.rackspace.com Functional Tests

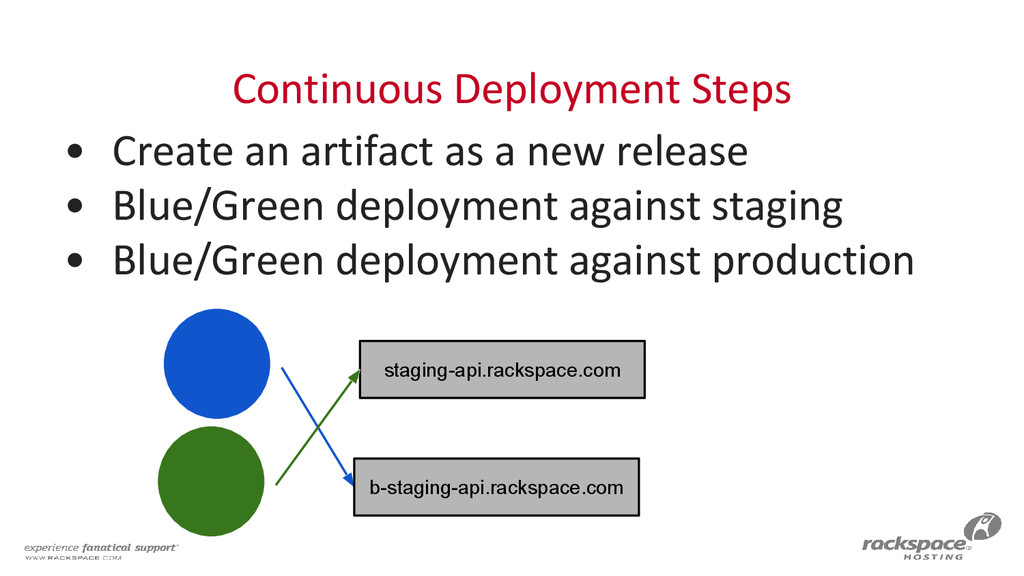

14. Continuous Deployment Steps • Create an artifact as a new release • Blue/Green deployment against staging • Blue/Green deployment against production staging-api.rackspace.com b-staging-api.rackspace.com

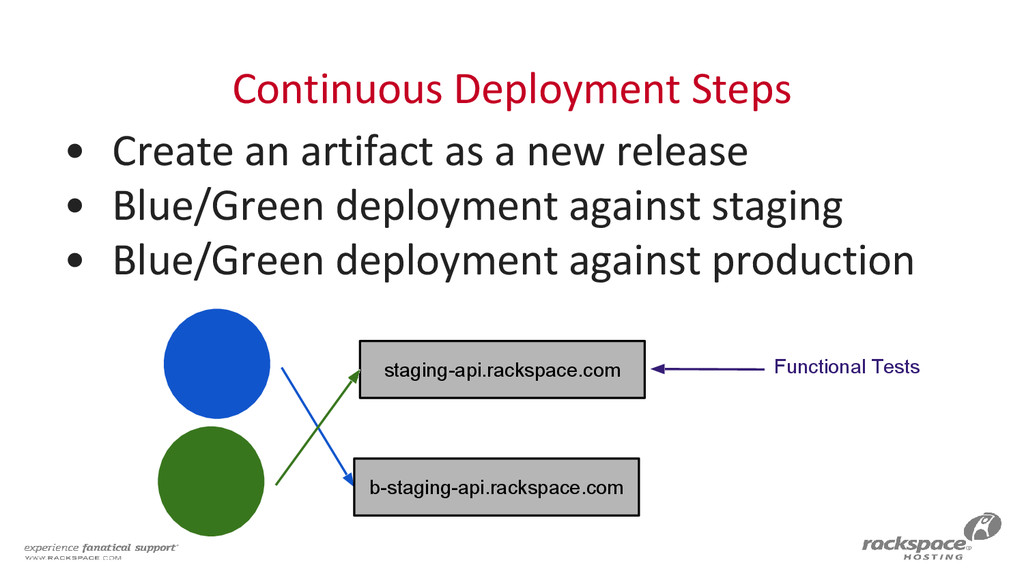

15. Continuous Deployment Steps • Create an artifact as a new release • Blue/Green deployment against staging • Blue/Green deployment against production staging-api.rackspace.com b-staging-api.rackspace.com Functional Tests

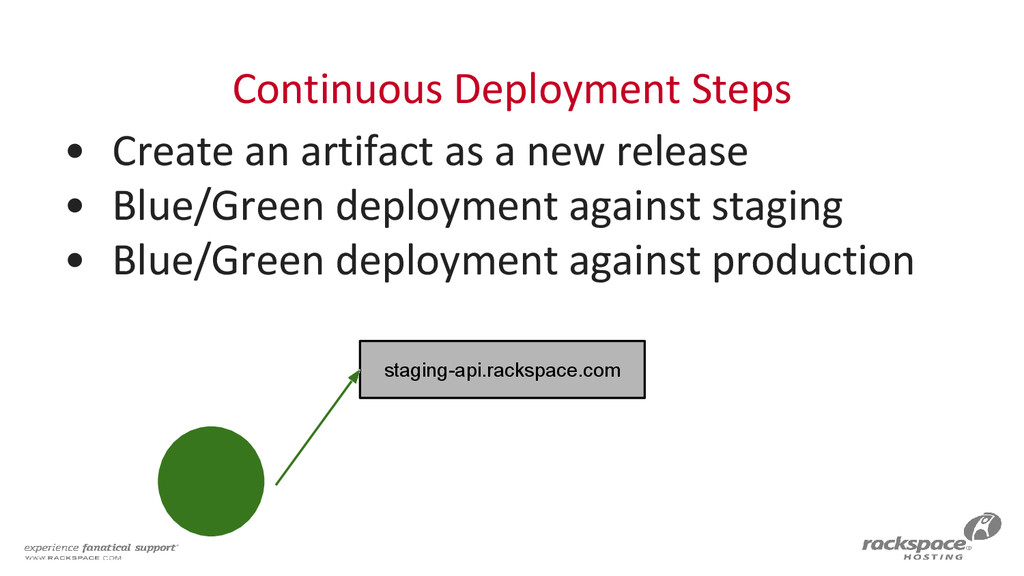

16. Continuous Deployment Steps • Create an artifact as a new release • Blue/Green deployment against staging • Blue/Green deployment against production staging-api.rackspace.com

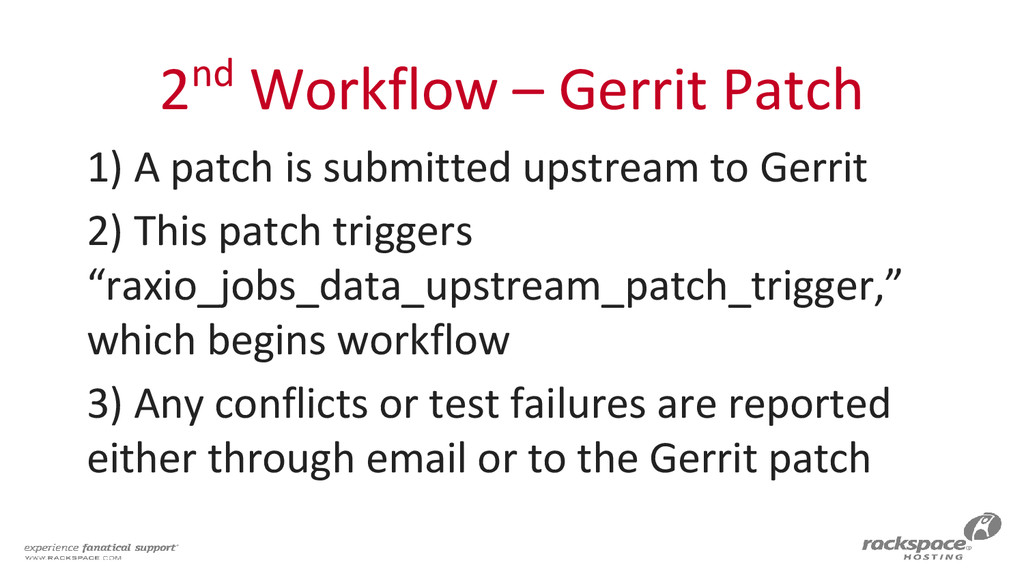

17. 2nd Workflow – Gerrit Patch 1) A patch is submitted upstream to Gerrit 2) This patch triggers “raxio_jobs_data_upstream_patch_trigger,” which begins workflow 3) Any conflicts or test failures are reported either through email or to the Gerrit patch
18. 3rd Workflow – Github PR 1) Add webhook to GitHub repository. • Under Settings -> Webhooks & Services -> Add Webhook • Payload URL: <uuid>.ngrock/ghprbhook/ • Content Type: application/x-www-form-urlencoded • Leave “Secret” blank. • Select “Let me select individual events.” ◦ Pull Requests ◦ Issue Comment ◦ Active

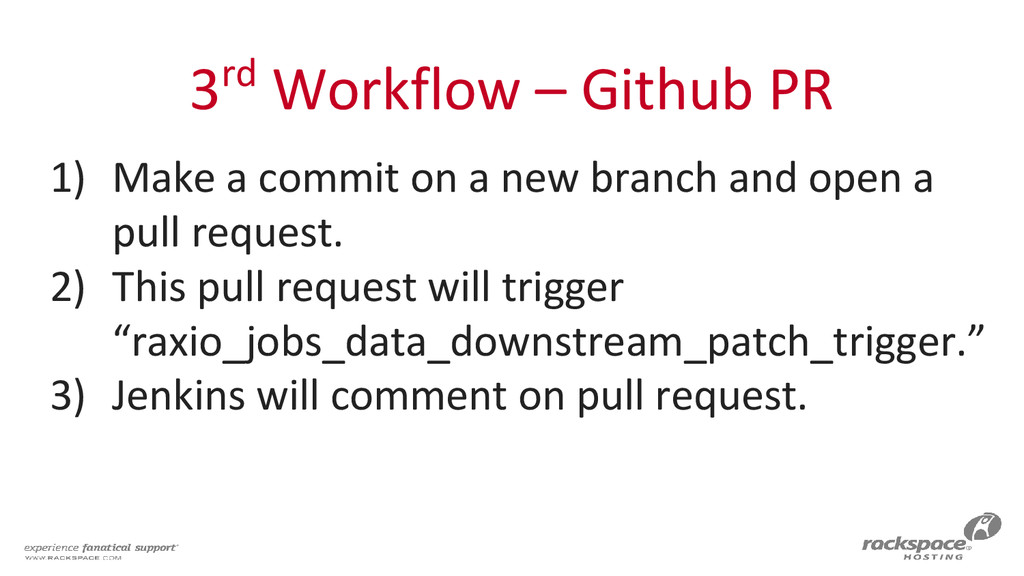

19. 3rd Workflow – Github PR 1) Make a commit on a new branch and open a pull request. 2) This pull request will trigger “raxio_jobs_data_downstream_patch_trigger.” 3) Jenkins will comment on pull request.
