Garbage collection on JVM

Talk from Austin Code Camp 2014.

Ever wondered what garbage collection is and how various JVMs clean up resources? Did you know that different JVM implementations have different GC policies? Whether you're developing in Scala, Groovy, or plain old Java, if you want to know how to speed up your application and what open source tools available to navigate the GC world, this talk is for you.
We will use a production application to navigate through these concepts with examples.

Transcript

1. Garbage Collection on JVM October 18, 2014 Dimitry Ushakov
2. Thank you to our sponsors … GOLD Bronze Happy Hour sponsor Austin .Net User Group Codecamp 2014
3. JVM? —  Java virtual machine —  Can execute any java bytecode —  Can be anything that compiles to java bytecode —  Scala, Clojure, Java, Jython, JRuby, etc.

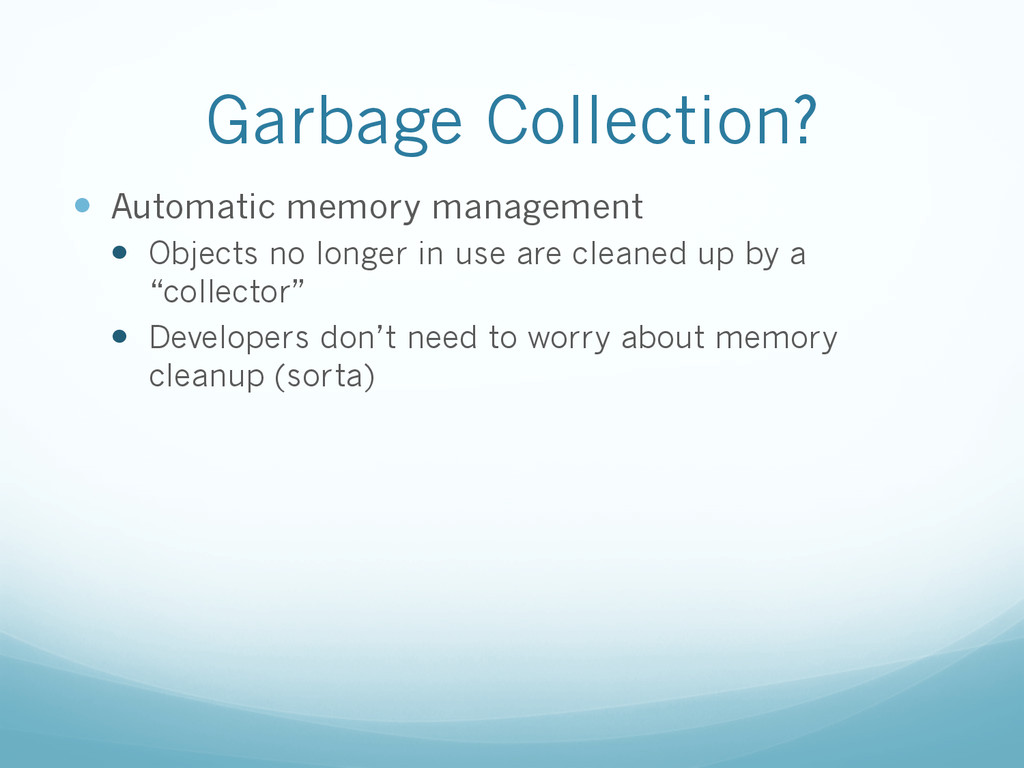

4. Garbage Collection? —  Automatic memory management —  Objects no longer in use are cleaned up by a “collector” —  Developers don’t need to worry about memory cleanup (sorta)

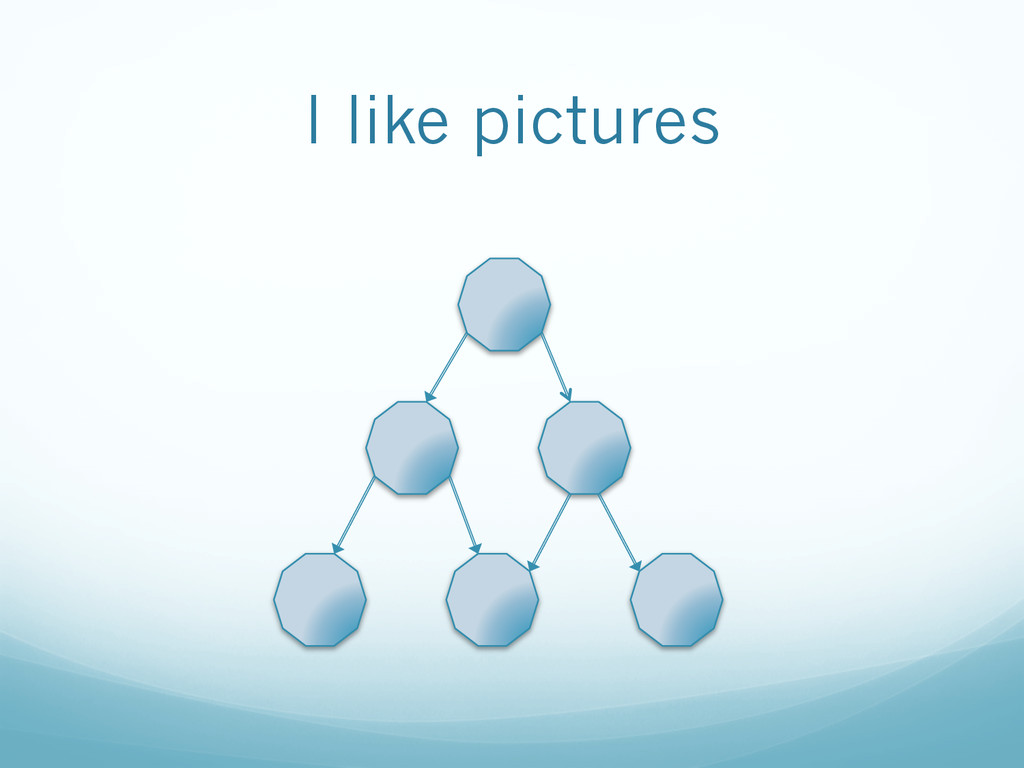

5. I like pictures
6. I like pictures

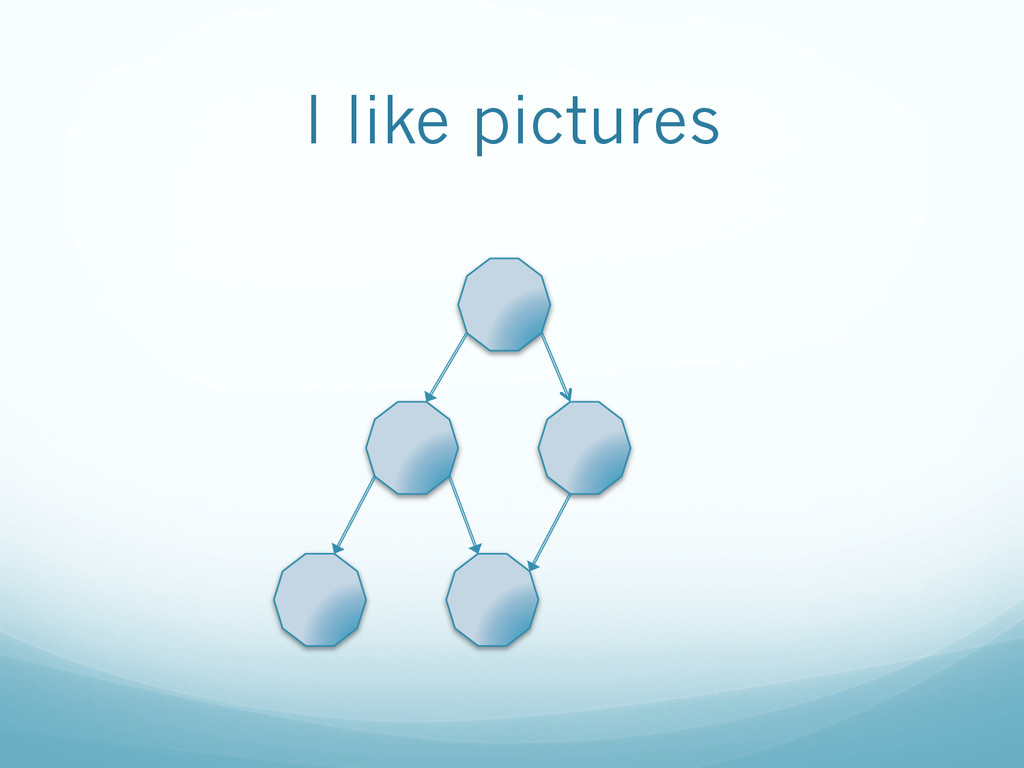

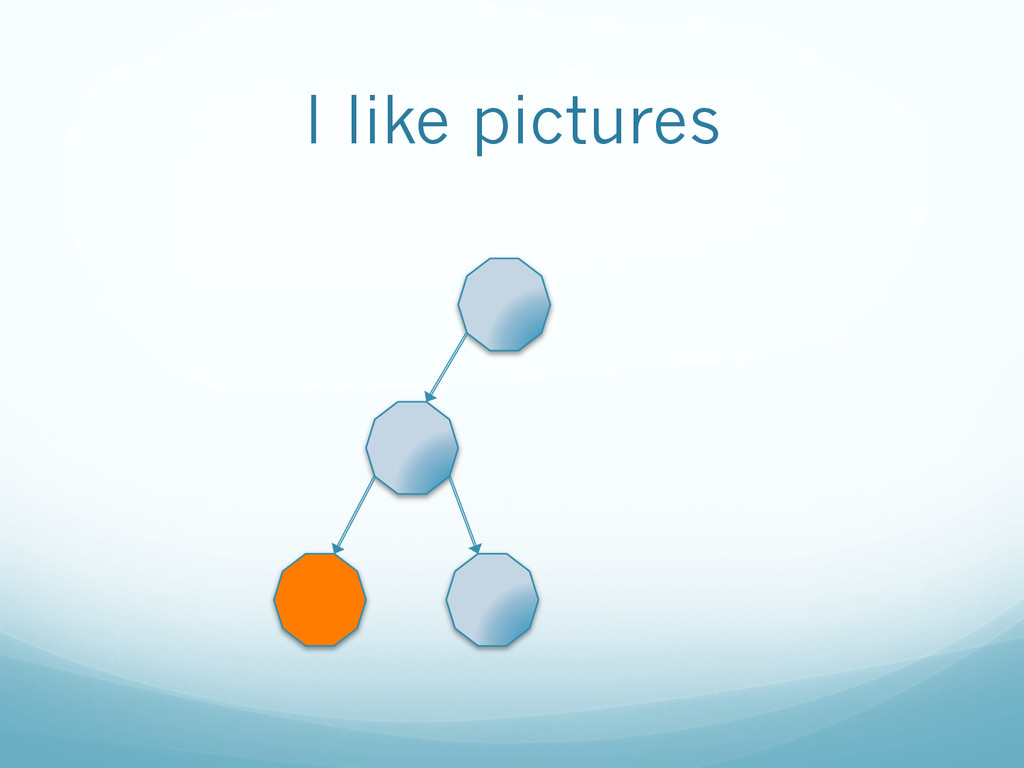

7. I like pictures
8. I like pictures

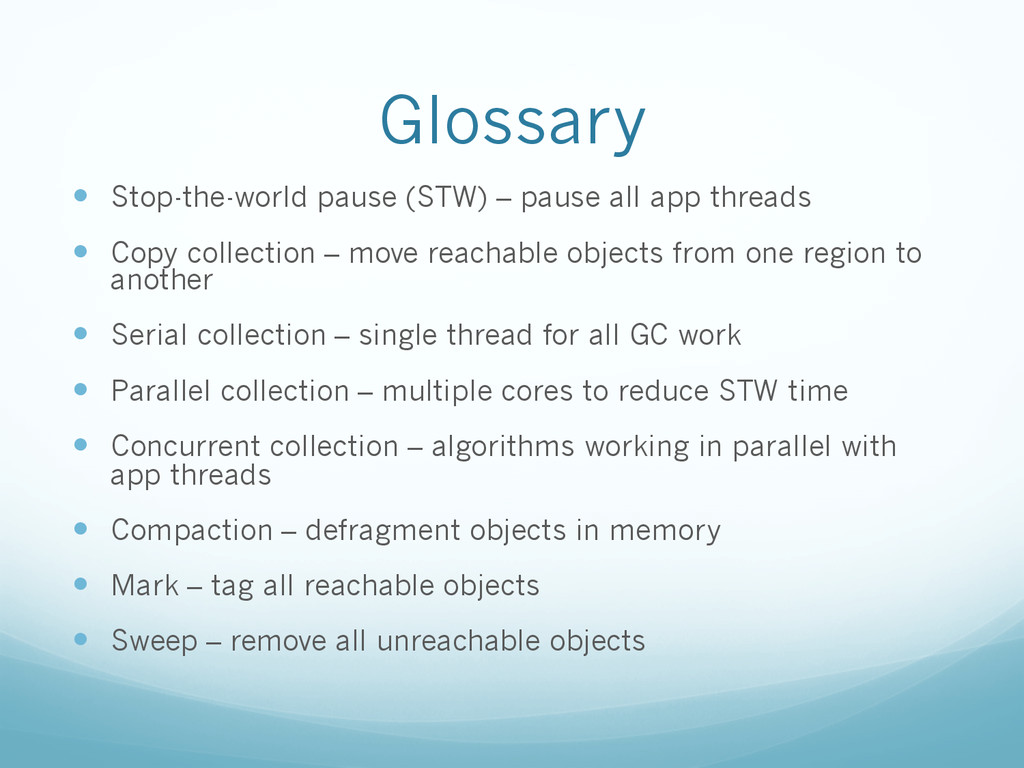

9. Glossary —  Stop-the-world pause (STW) – pause all app threads —  Copy collection – move reachable objects from one region to another —  Serial collection – single thread for all GC work —  Parallel collection – multiple cores to reduce STW time —  Concurrent collection – algorithms working in parallel with app threads —  Compaction – defragment objects in memory —  Mark – tag all reachable objects —  Sweep – remove all unreachable objects

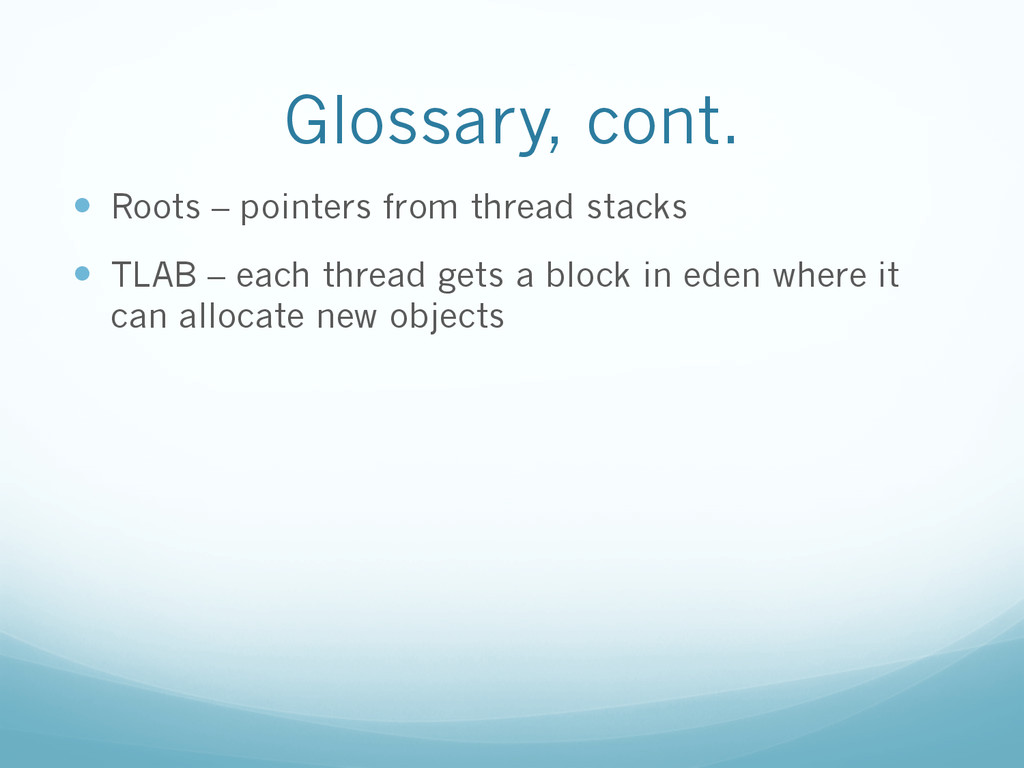

10. Glossary, cont. —  Roots – pointers from thread stacks —  TLAB – each thread gets a block in eden where it can allocate new objects

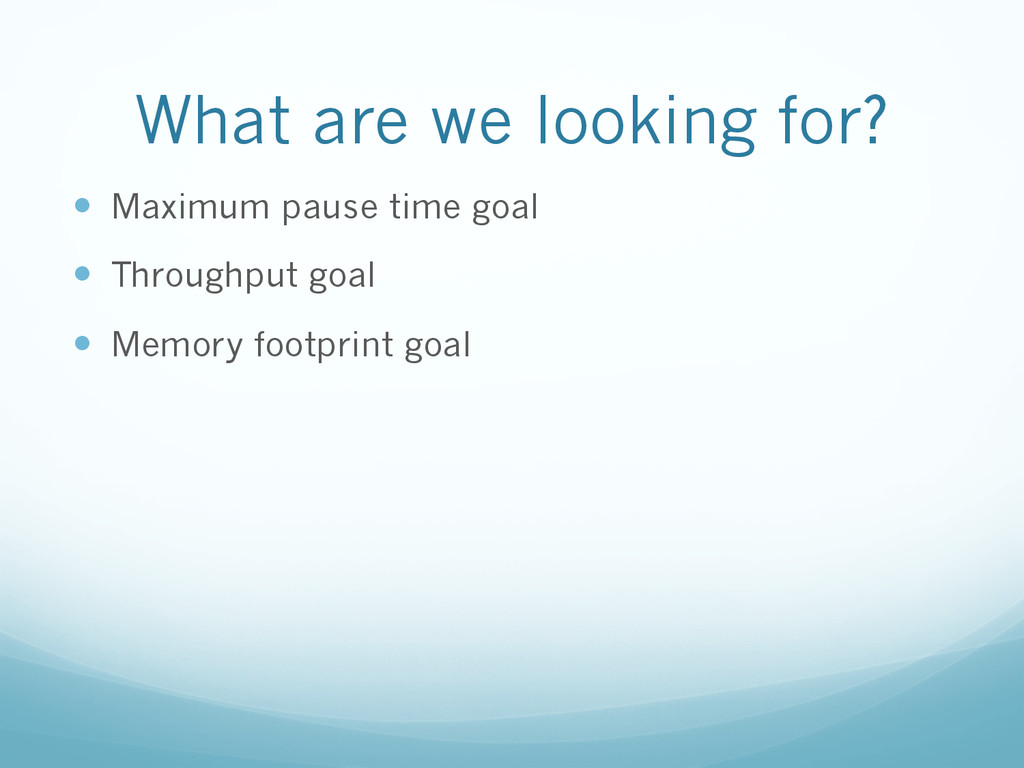

11. What are we looking for? —  Maximum pause time goal —  Throughput goal —  Memory footprint goal

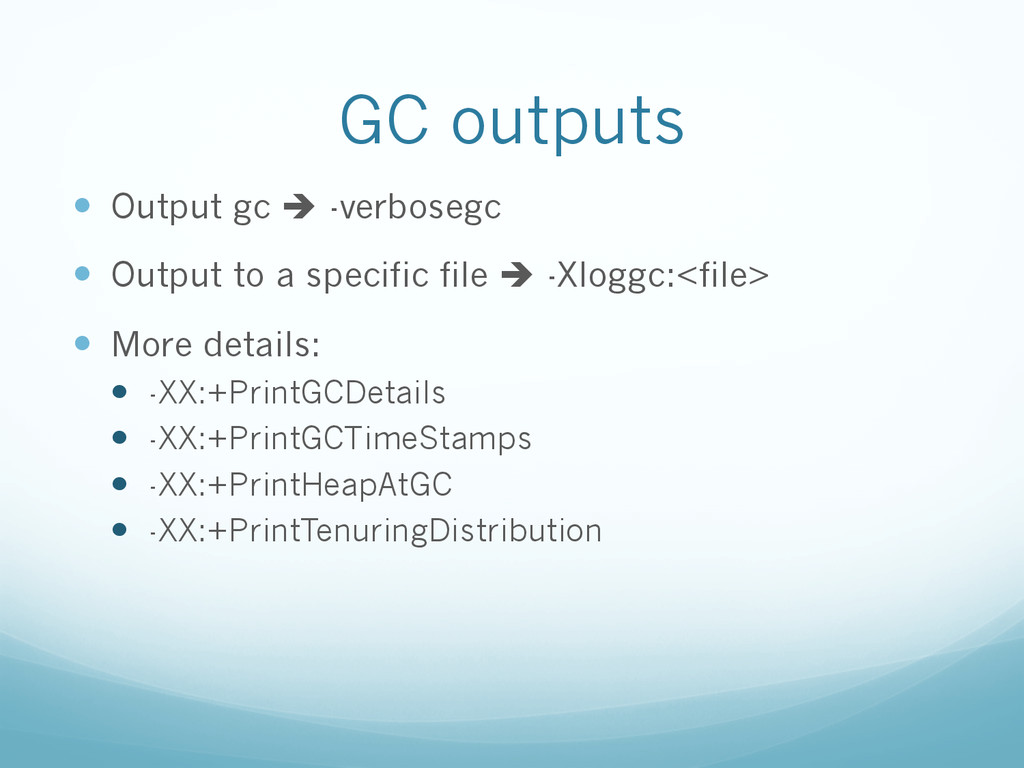

12. GC outputs —  Output gc è -verbosegc —  Output to a specific file è -Xloggc:<file> —  More details: —  -XX:+PrintGCDetails —  -XX:+PrintGCTimeStamps —  -XX:+PrintHeapAtGC —  -XX:+PrintTenuringDistribution

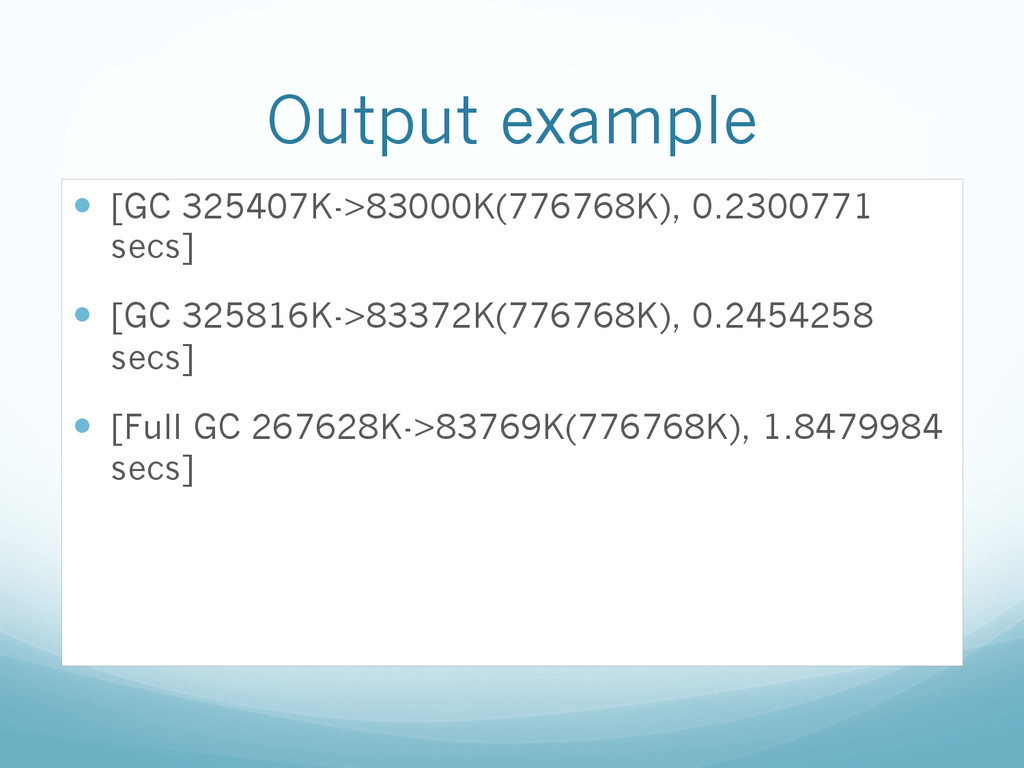

13. Output example —  [GC 325407K->83000K(776768K), 0.2300771 secs] —  [GC 325816K->83372K(776768K), 0.2454258 secs] —  [Full GC 267628K->83769K(776768K), 1.8479984 secs]

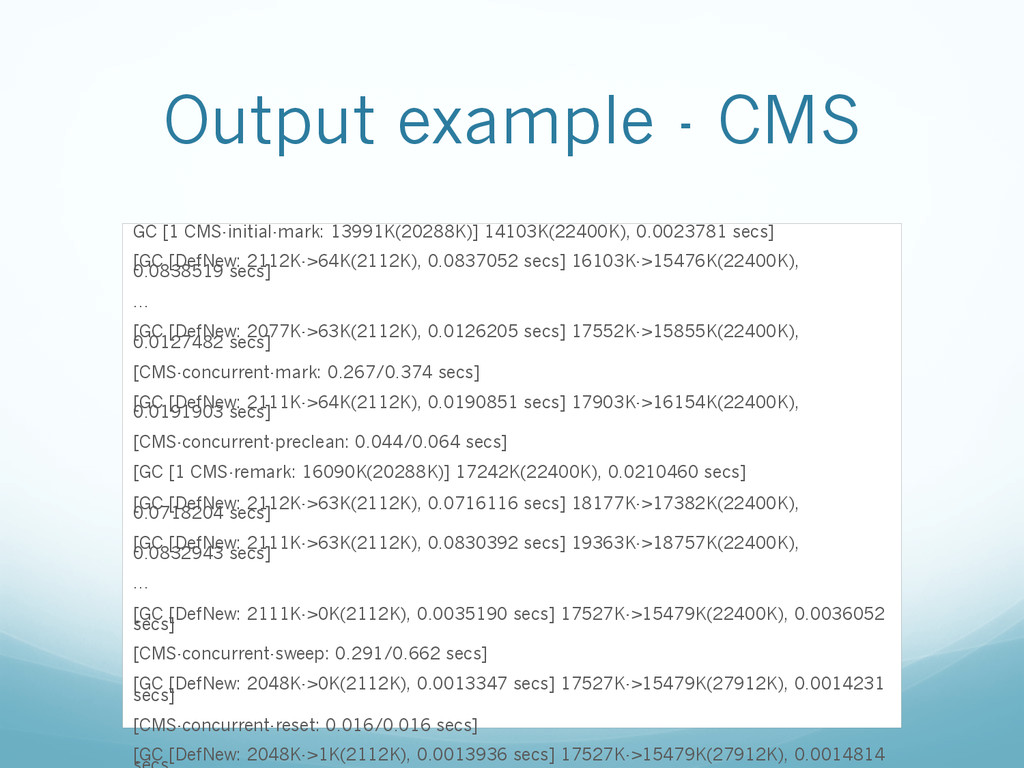

14. Output example - CMS GC [1 CMS-initial-mark: 13991K(20288K)] 14103K(22400K), 0.0023781 secs] [GC [DefNew: 2112K->64K(2112K), 0.0837052 secs] 16103K->15476K(22400K), 0.0838519 secs] ... [GC [DefNew: 2077K->63K(2112K), 0.0126205 secs] 17552K->15855K(22400K), 0.0127482 secs] [CMS-concurrent-mark: 0.267/0.374 secs] [GC [DefNew: 2111K->64K(2112K), 0.0190851 secs] 17903K->16154K(22400K), 0.0191903 secs] [CMS-concurrent-preclean: 0.044/0.064 secs] [GC [1 CMS-remark: 16090K(20288K)] 17242K(22400K), 0.0210460 secs] [GC [DefNew: 2112K->63K(2112K), 0.0716116 secs] 18177K->17382K(22400K), 0.0718204 secs] [GC [DefNew: 2111K->63K(2112K), 0.0830392 secs] 19363K->18757K(22400K), 0.0832943 secs] ... [GC [DefNew: 2111K->0K(2112K), 0.0035190 secs] 17527K->15479K(22400K), 0.0036052 secs] [CMS-concurrent-sweep: 0.291/0.662 secs] [GC [DefNew: 2048K->0K(2112K), 0.0013347 secs] 17527K->15479K(27912K), 0.0014231 secs] [CMS-concurrent-reset: 0.016/0.016 secs] [GC [DefNew: 2048K->1K(2112K), 0.0013936 secs] 17527K->15479K(27912K), 0.0014814

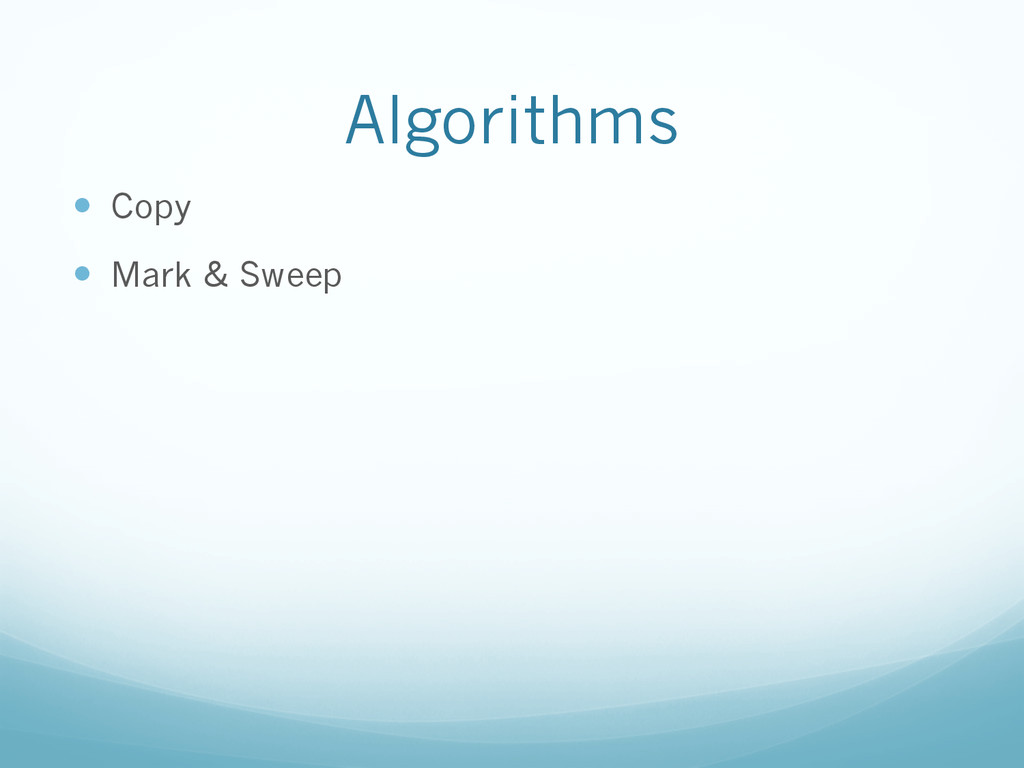

15. Algorithms —  Copy —  Mark & Sweep

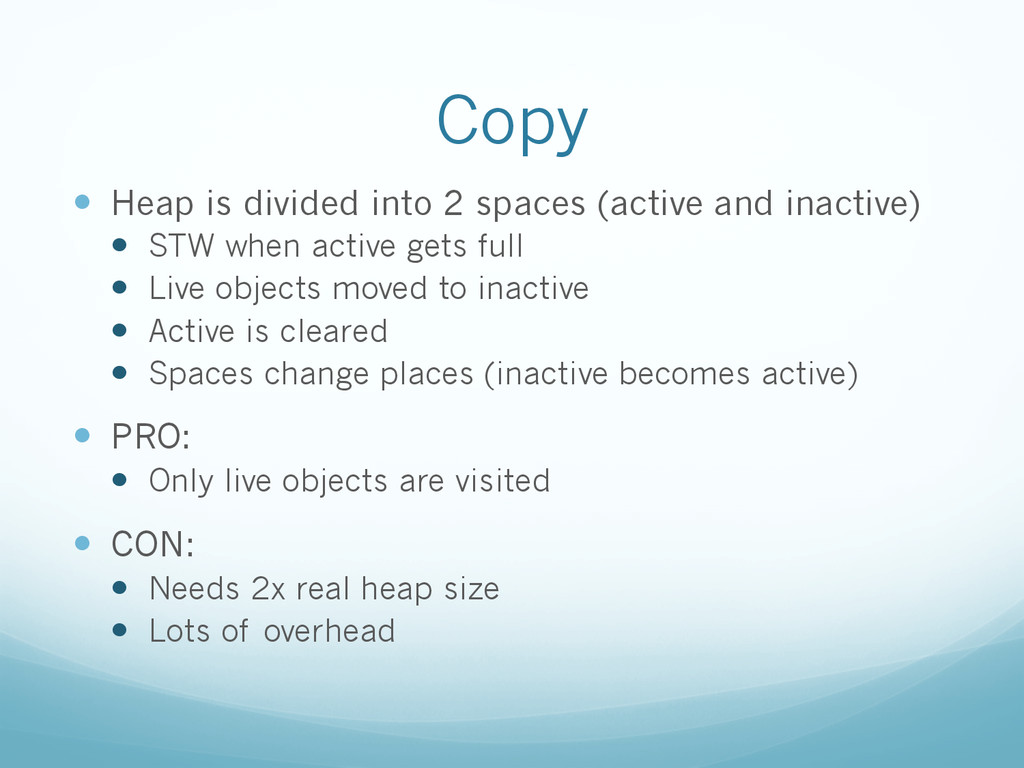

16. Copy —  Heap is divided into 2 spaces (active and inactive) —  STW when active gets full —  Live objects moved to inactive —  Active is cleared —  Spaces change places (inactive becomes active) —  PRO: —  Only live objects are visited —  CON: —  Needs 2x real heap size —  Lots of overhead

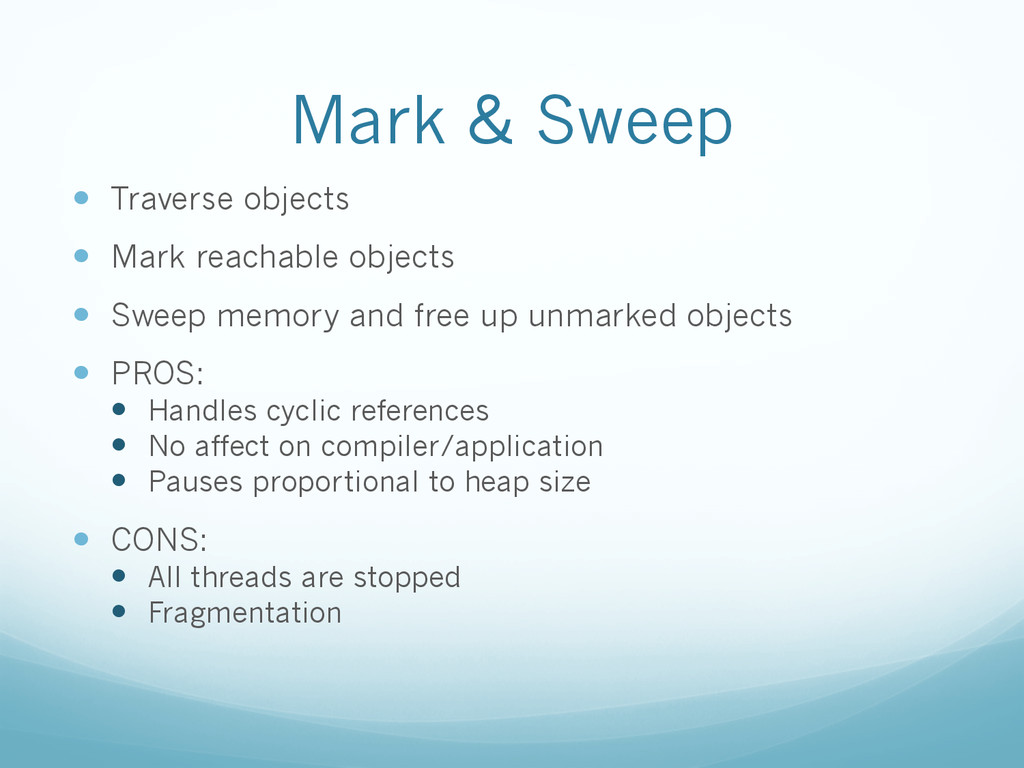

17. Mark & Sweep —  Traverse objects —  Mark reachable objects —  Sweep memory and free up unmarked objects —  PROS: —  Handles cyclic references —  No affect on compiler/application —  Pauses proportional to heap size —  CONS: —  All threads are stopped —  Fragmentation

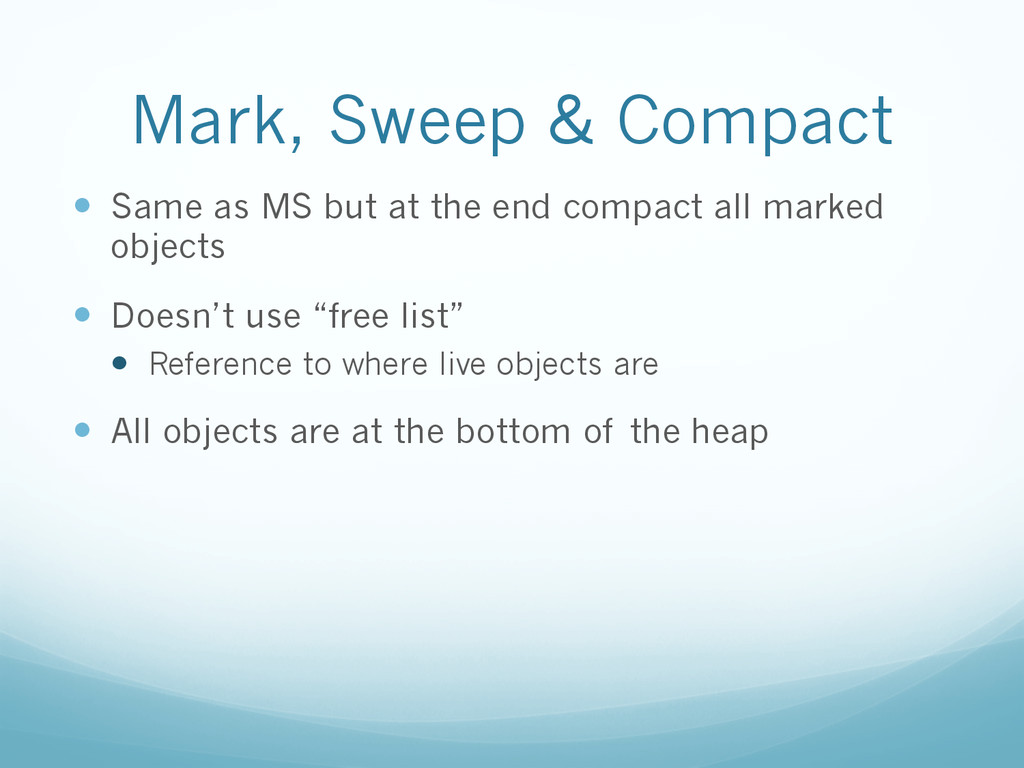

18. Mark, Sweep & Compact —  Same as MS but at the end compact all marked objects —  Doesn’t use “free list” —  Reference to where live objects are —  All objects are at the bottom of the heap

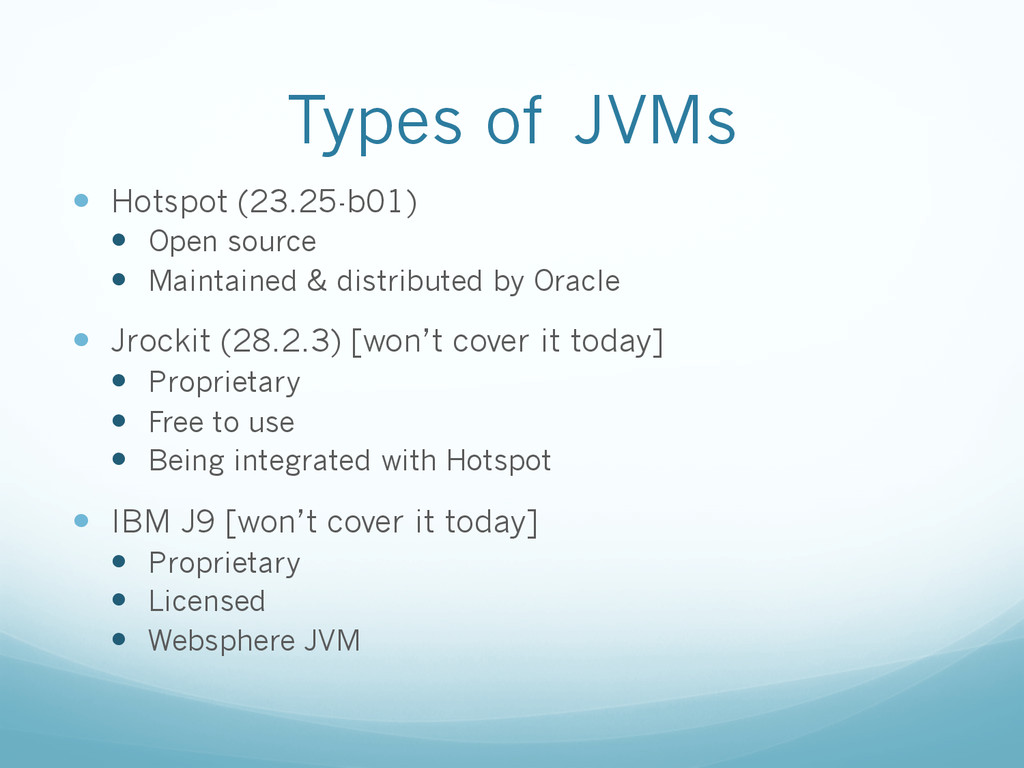

19. Types of JVMs —  Hotspot (23.25-b01) —  Open source —  Maintained & distributed by Oracle —  Jrockit (28.2.3) [won’t cover it today] —  Proprietary —  Free to use —  Being integrated with Hotspot —  IBM J9 [won’t cover it today] —  Proprietary —  Licensed —  Websphere JVM

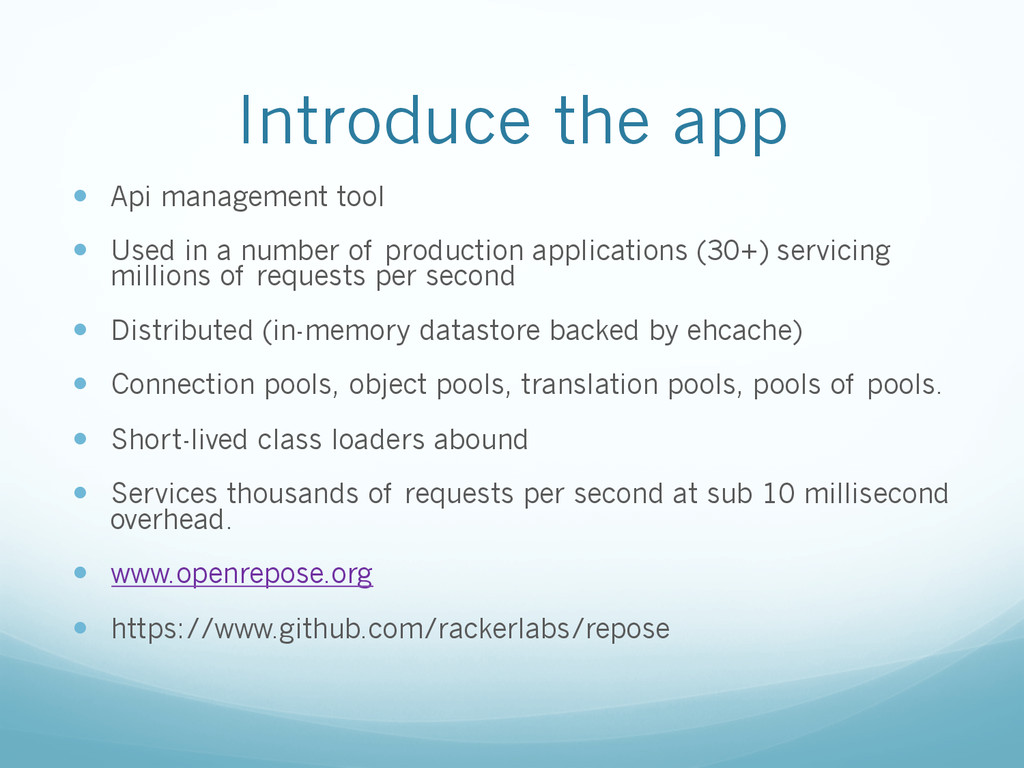

20. Introduce the app —  Api management tool —  Used in a number of production applications (30+) servicing millions of requests per second —  Distributed (in-memory datastore backed by ehcache) —  Connection pools, object pools, translation pools, pools of pools. —  Short-lived class loaders abound —  Services thousands of requests per second at sub 10 millisecond overhead. —  www.openrepose.org —  https://www.github.com/rackerlabs/repose

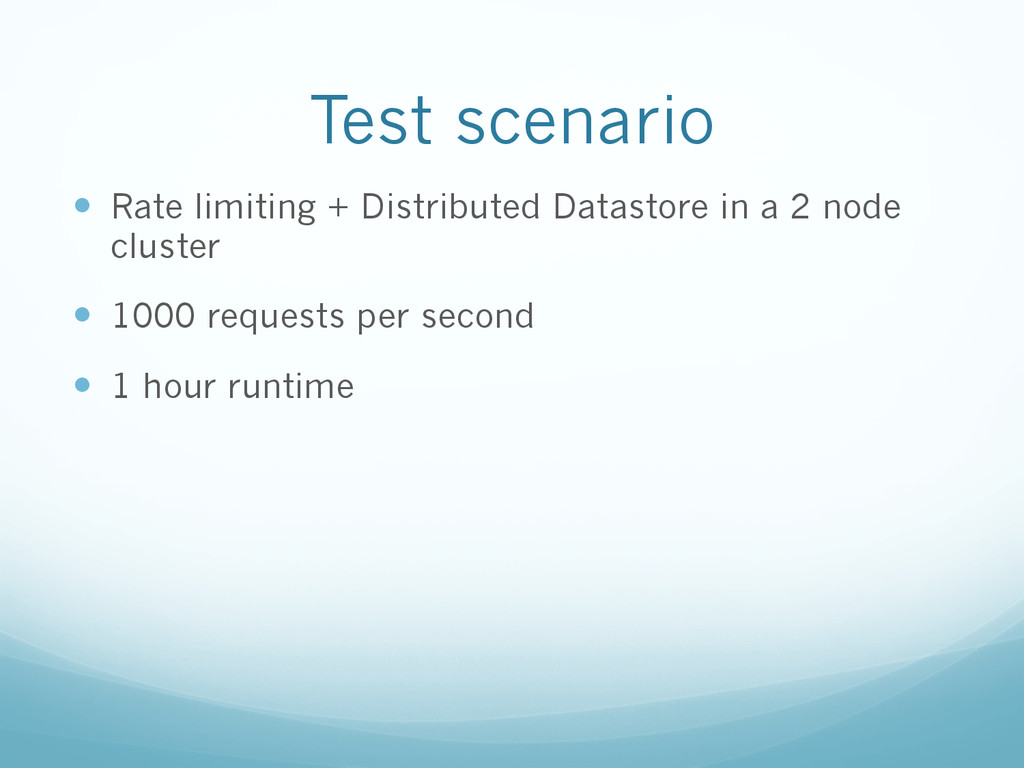

21. Test scenario —  Rate limiting + Distributed Datastore in a 2 node cluster —  1000 requests per second —  1 hour runtime

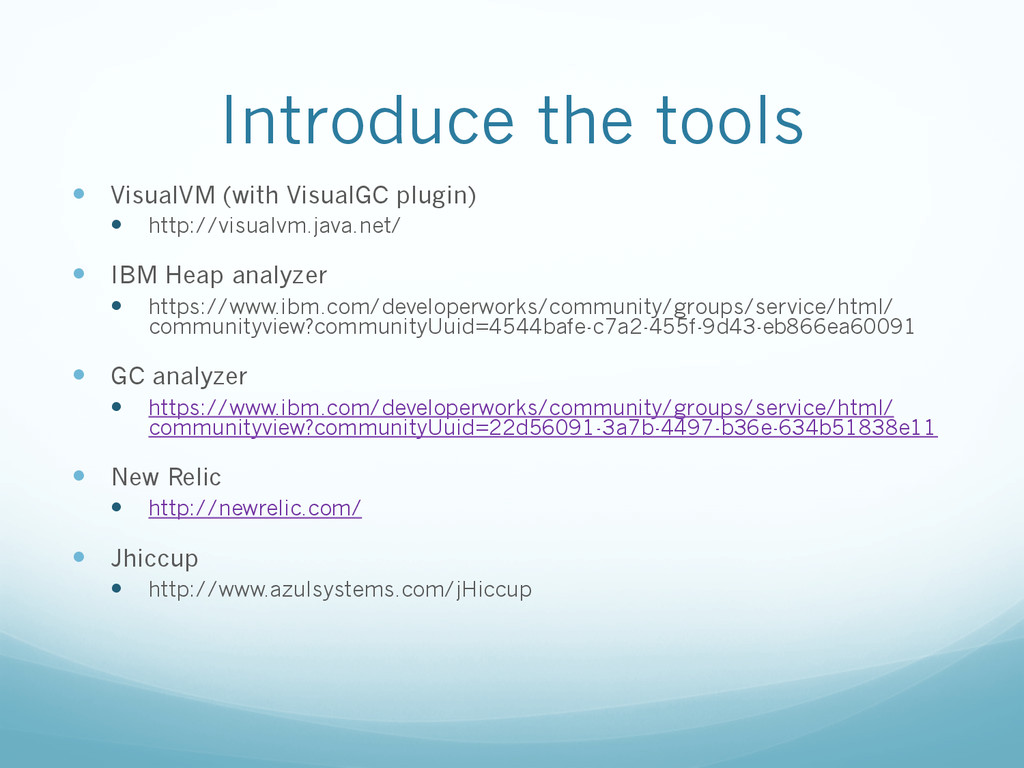

22. Introduce the tools —  VisualVM (with VisualGC plugin) —  http://visualvm.java.net/ —  IBM Heap analyzer —  https://www.ibm.com/developerworks/community/groups/service/html/ communityview?communityUuid=4544bafe-c7a2-455f-9d43-eb866ea60091 —  GC analyzer —  https://www.ibm.com/developerworks/community/groups/service/html/ communityview?communityUuid=22d56091-3a7b-4497-b36e-634b51838e11 —  New Relic —  http://newrelic.com/ —  Jhiccup —  http://www.azulsystems.com/jHiccup

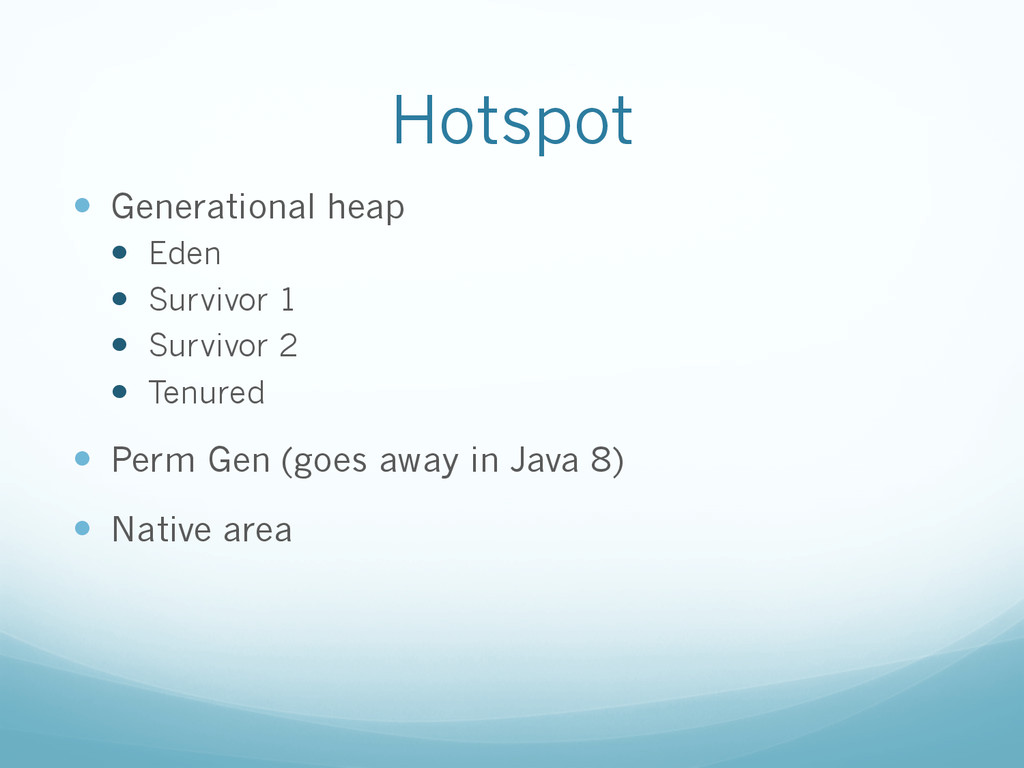

23. Hotspot —  Generational heap —  Eden —  Survivor 1 —  Survivor 2 —  Tenured —  Perm Gen (goes away in Java 8) —  Native area

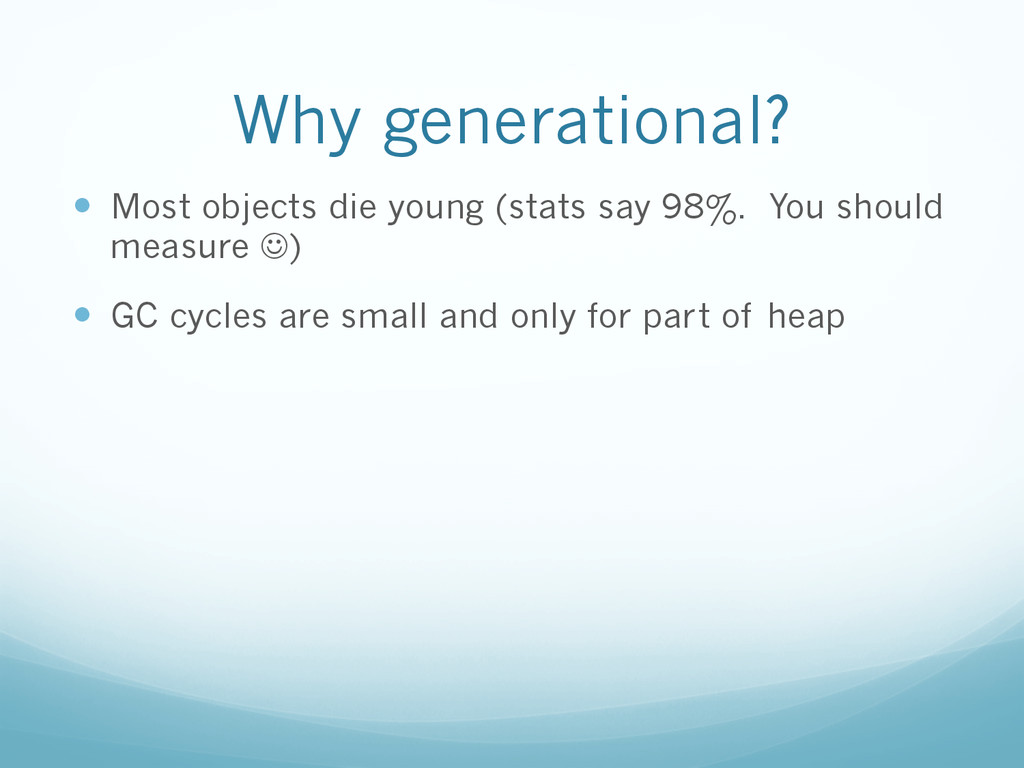

24. Why generational? —  Most objects die young (stats say 98%. You should measure J) —  GC cycles are small and only for part of heap

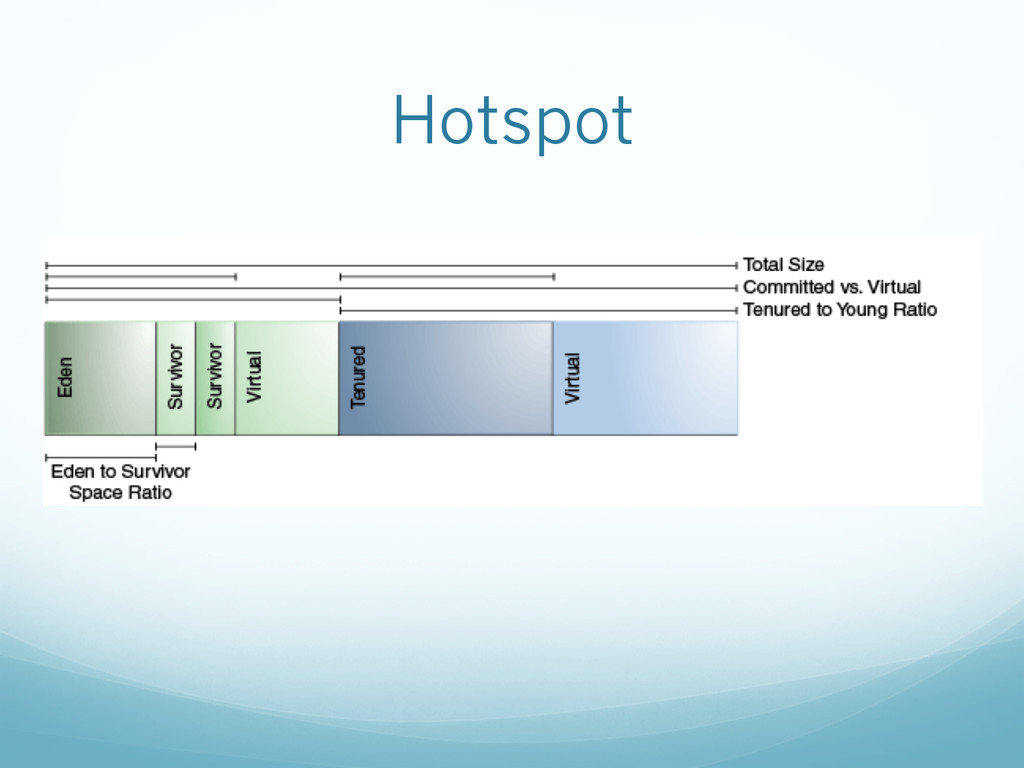

25. Hotspot

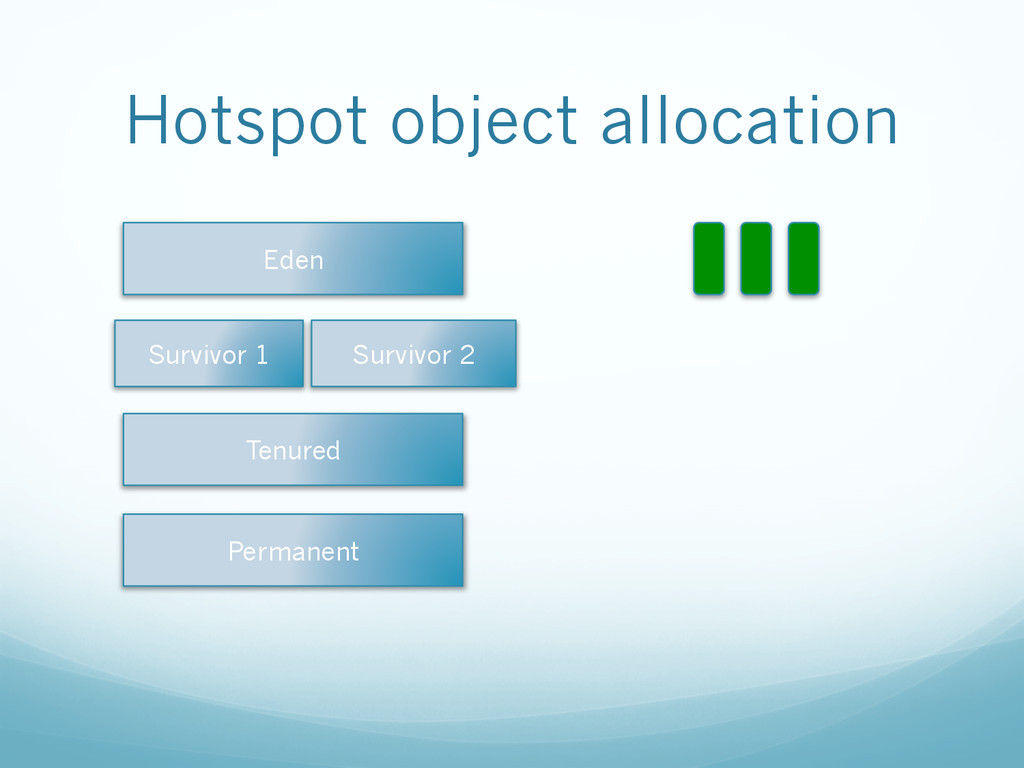

26. Eden Hotspot object allocation Survivor 1 Survivor 2 Tenured Permanent

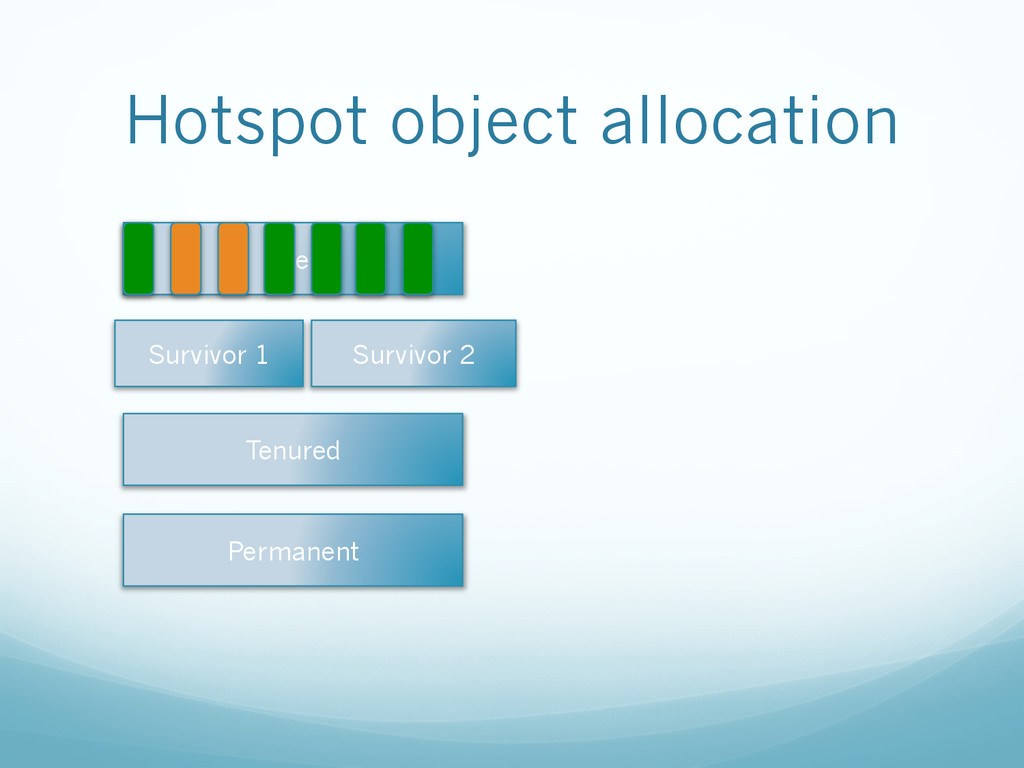

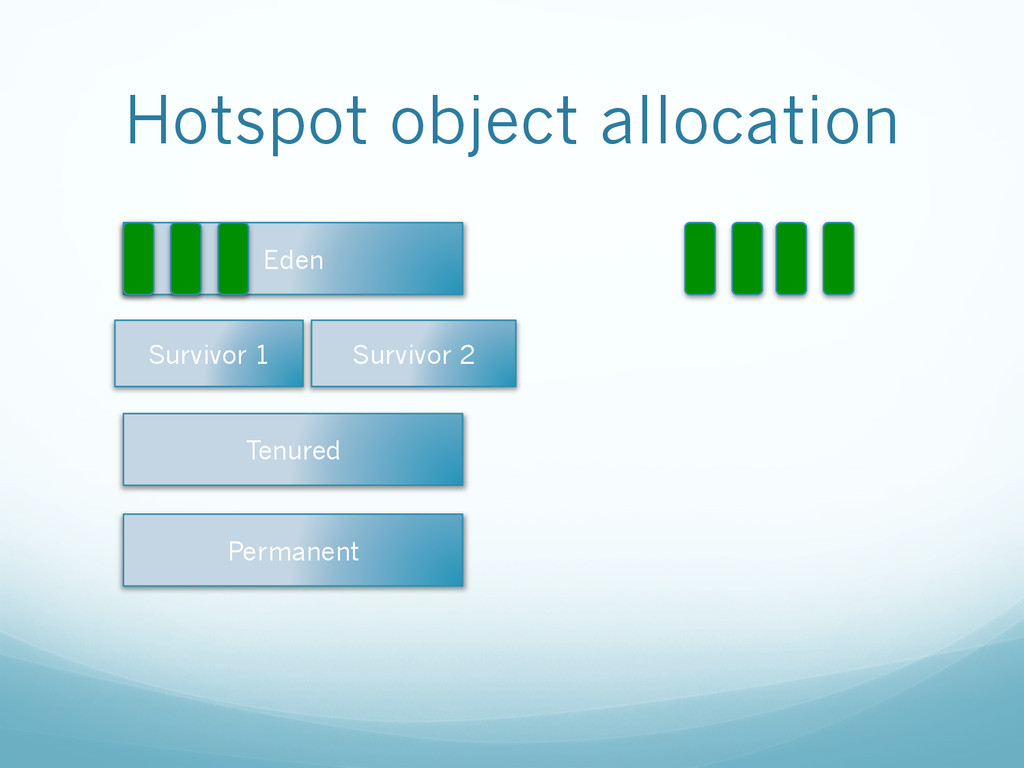

27. Survivor 1 Survivor 2 Eden Hotspot object allocation Tenured Permanent
28. Survivor 1 Hotspot object allocation Eden Tenured Permanent Survivor 2

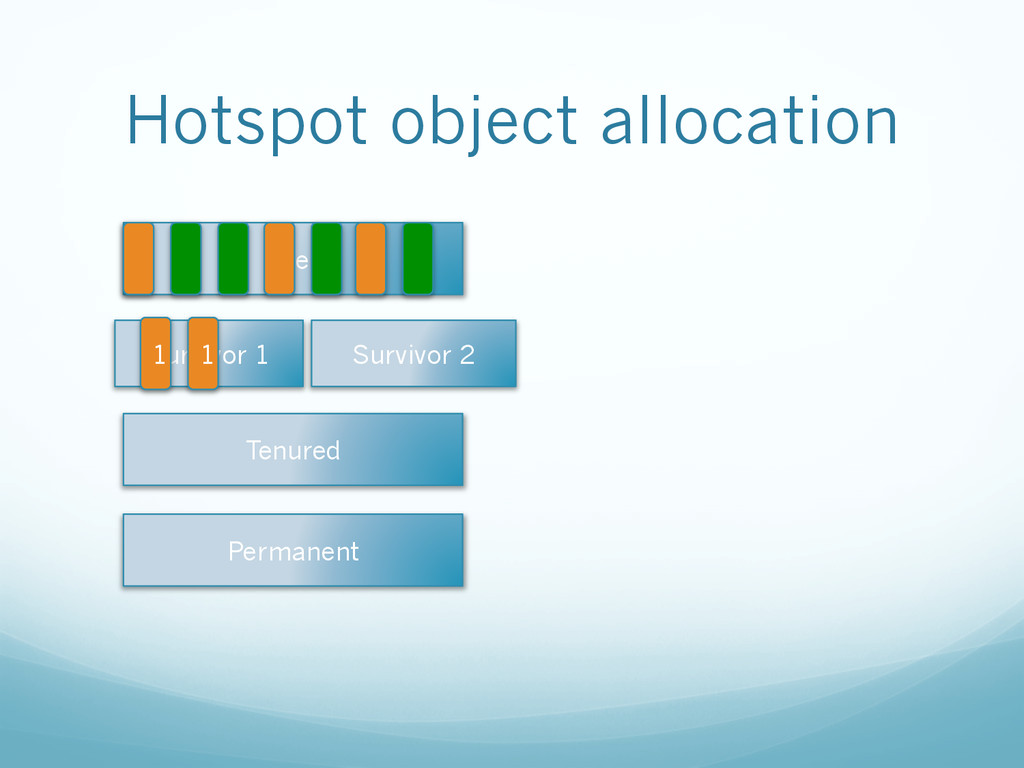

29. Hotspot object allocation Eden Survivor 1 Survivor 2 Tenured Permanent 1 1

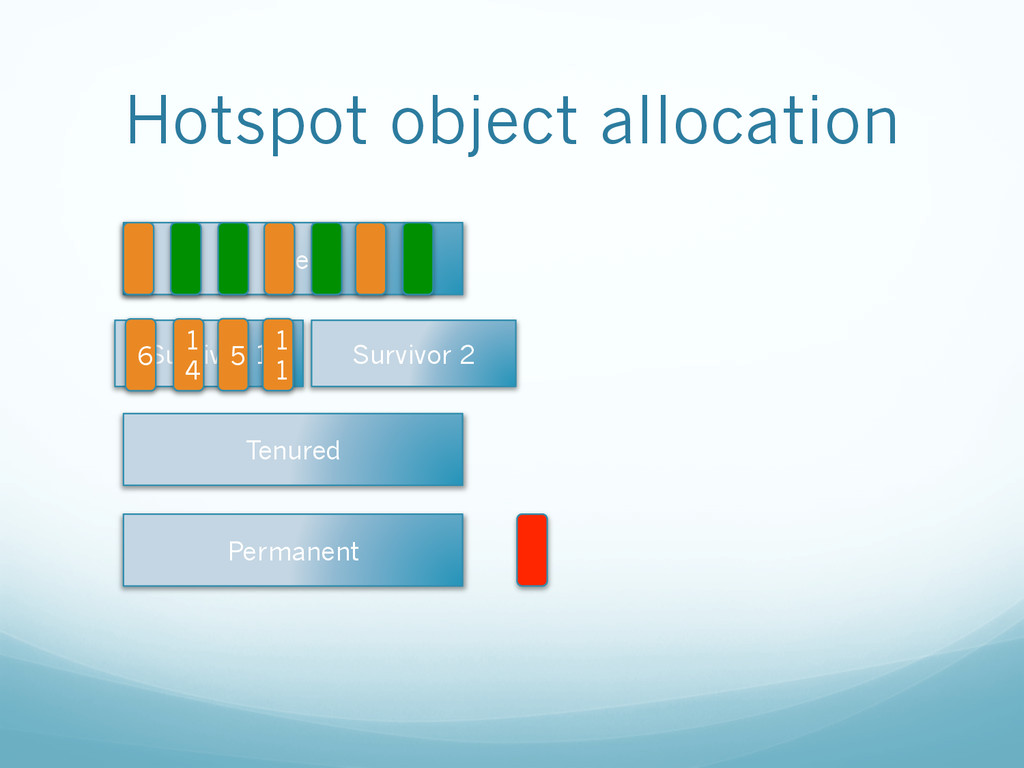

30. Hotspot object allocation Eden Survivor 1 Survivor 2 Tenured Permanent 6 1 4 5 1 1

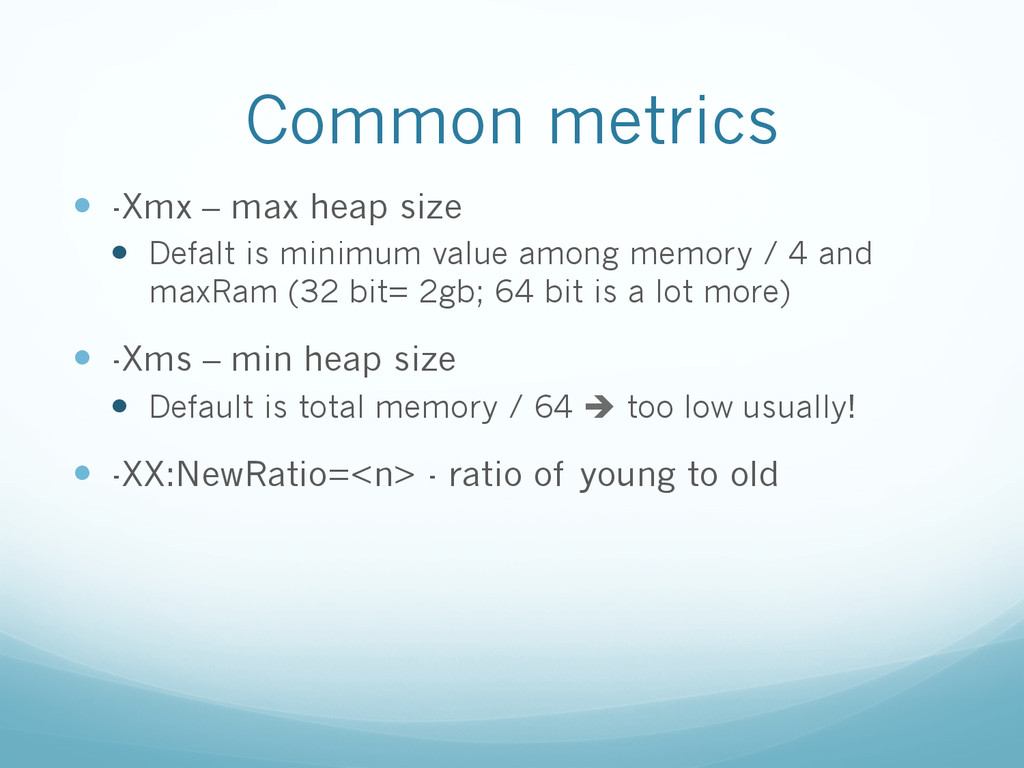

31. Common metrics —  -Xmx – max heap size —  Defalt is minimum value among memory / 4 and maxRam (32 bit= 2gb; 64 bit is a lot more) —  -Xms – min heap size —  Default is total memory / 64 è too low usually! —  -XX:NewRatio=<n> - ratio of young to old

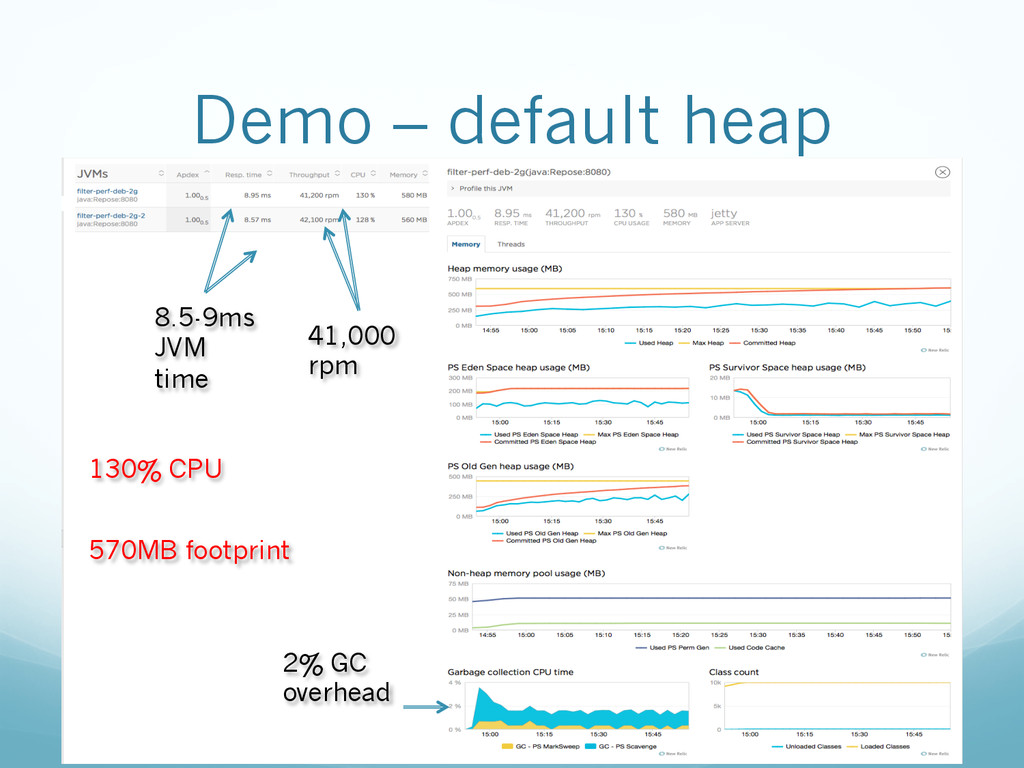

32. Demo – default heap 8.5-9ms JVM time 41,000 rpm 130% CPU 570MB footprint 2% GC overhead

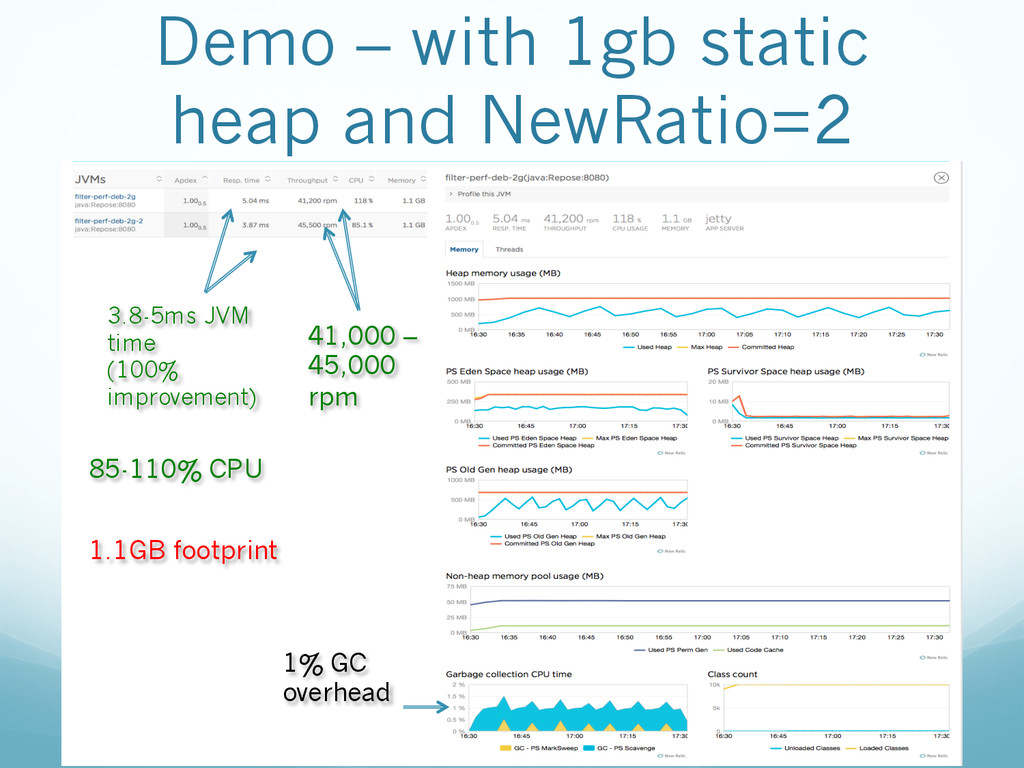

33. Demo – with 1gb static heap and NewRatio=2 3.8-5ms JVM time (100% improvement) 41,000 – 45,000 rpm 85-110% CPU 1.1GB footprint 1% GC overhead

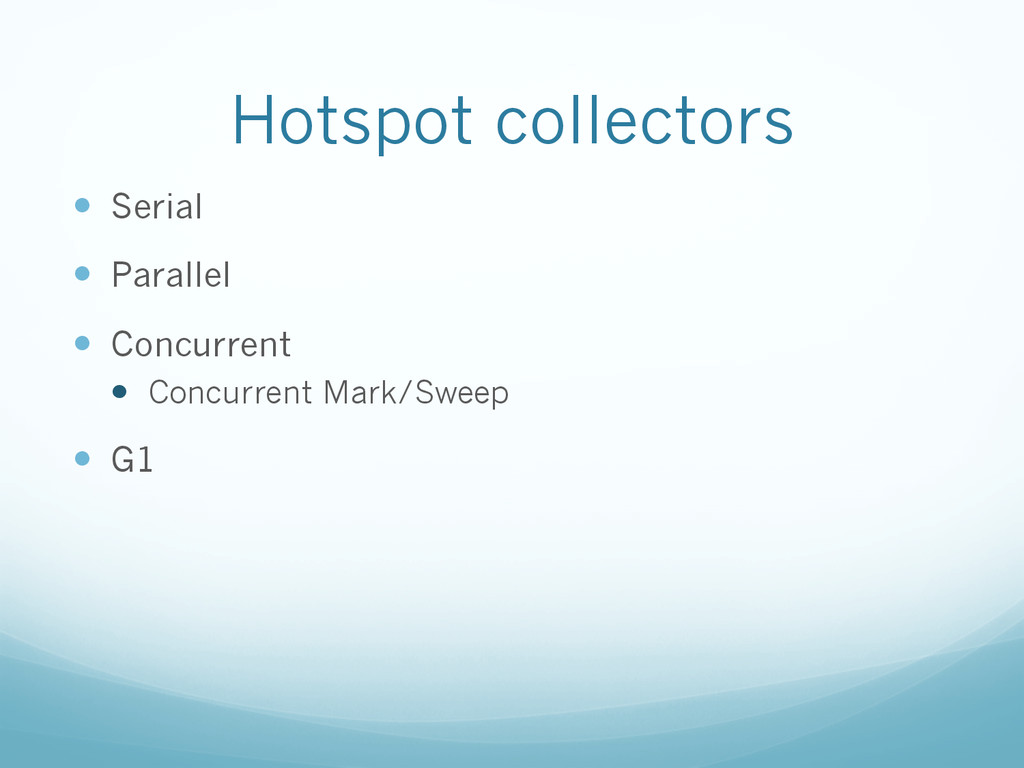

34. Hotspot collectors —  Serial —  Parallel —  Concurrent —  Concurrent Mark/Sweep —  G1

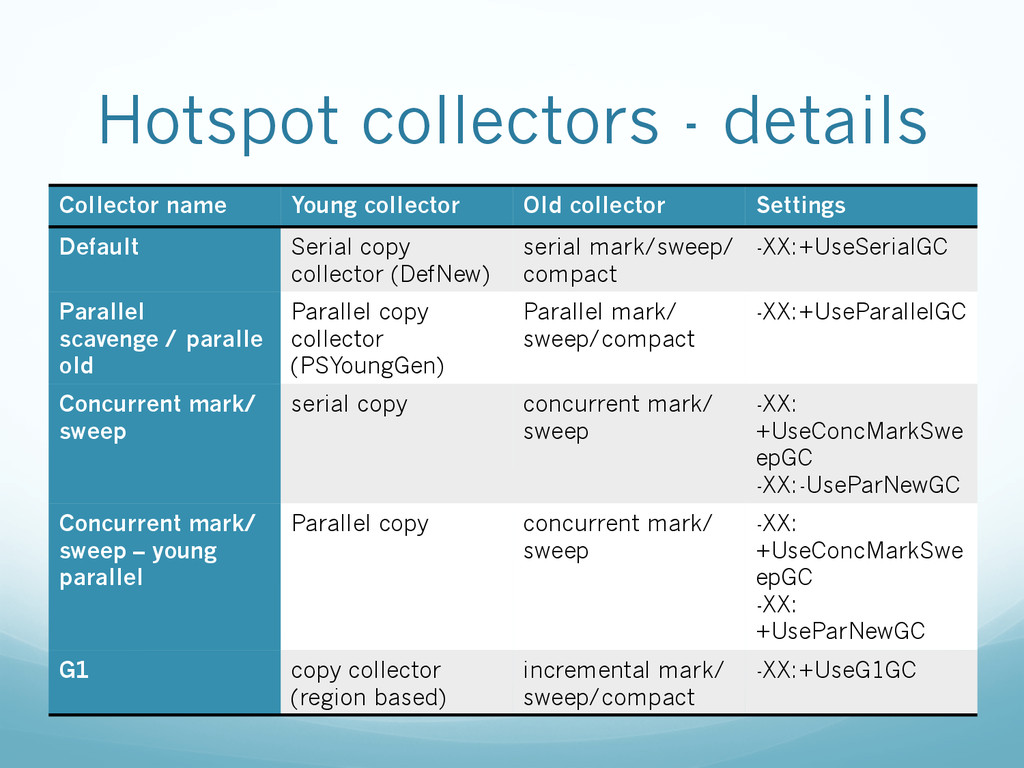

35. Hotspot collectors - details Collector name Young collector Old collector Settings Default Serial copy collector (DefNew) serial mark/sweep/ compact -XX:+UseSerialGC Parallel scavenge / paralle old Parallel copy collector (PSYoungGen) Parallel mark/ sweep/compact -XX:+UseParallelGC Concurrent mark/ sweep serial copy concurrent mark/ sweep -XX: +UseConcMarkSwe epGC -XX:-UseParNewGC Concurrent mark/ sweep – young parallel Parallel copy concurrent mark/ sweep -XX: +UseConcMarkSwe epGC -XX: +UseParNewGC G1 copy collector (region based) incremental mark/ sweep/compact -XX:+UseG1GC

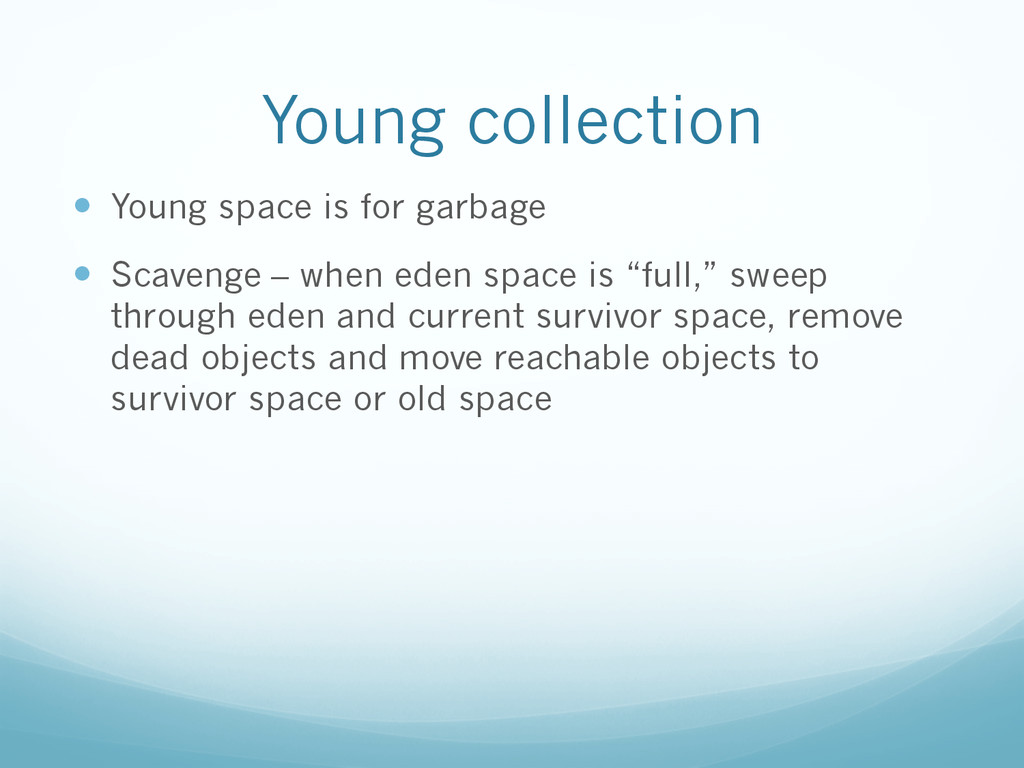

36. Young collection —  Young space is for garbage —  Scavenge – when eden space is “full,” sweep through eden and current survivor space, remove dead objects and move reachable objects to survivor space or old space

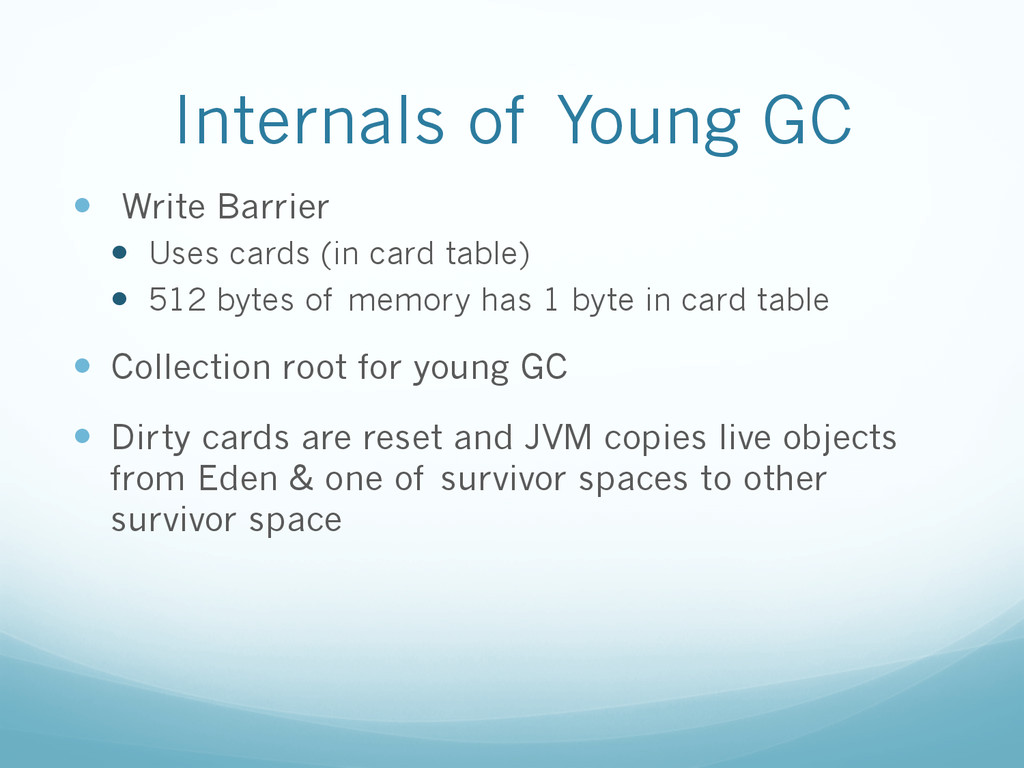

37. Internals of Young GC —  Write Barrier —  Uses cards (in card table) —  512 bytes of memory has 1 byte in card table —  Collection root for young GC —  Dirty cards are reset and JVM copies live objects from Eden & one of survivor spaces to other survivor space

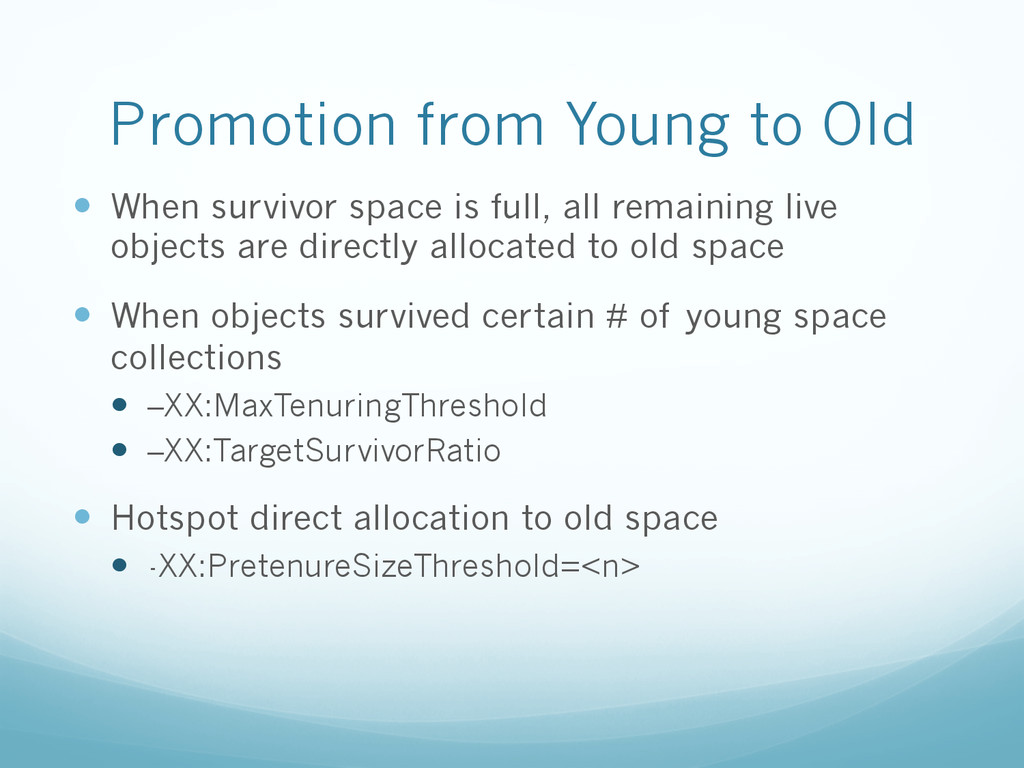

38. Promotion from Young to Old —  When survivor space is full, all remaining live objects are directly allocated to old space —  When objects survived certain # of young space collections —  –XX:MaxTenuringThreshold —  –XX:TargetSurvivorRatio —  Hotspot direct allocation to old space —  -XX:PretenureSizeThreshold=<n>

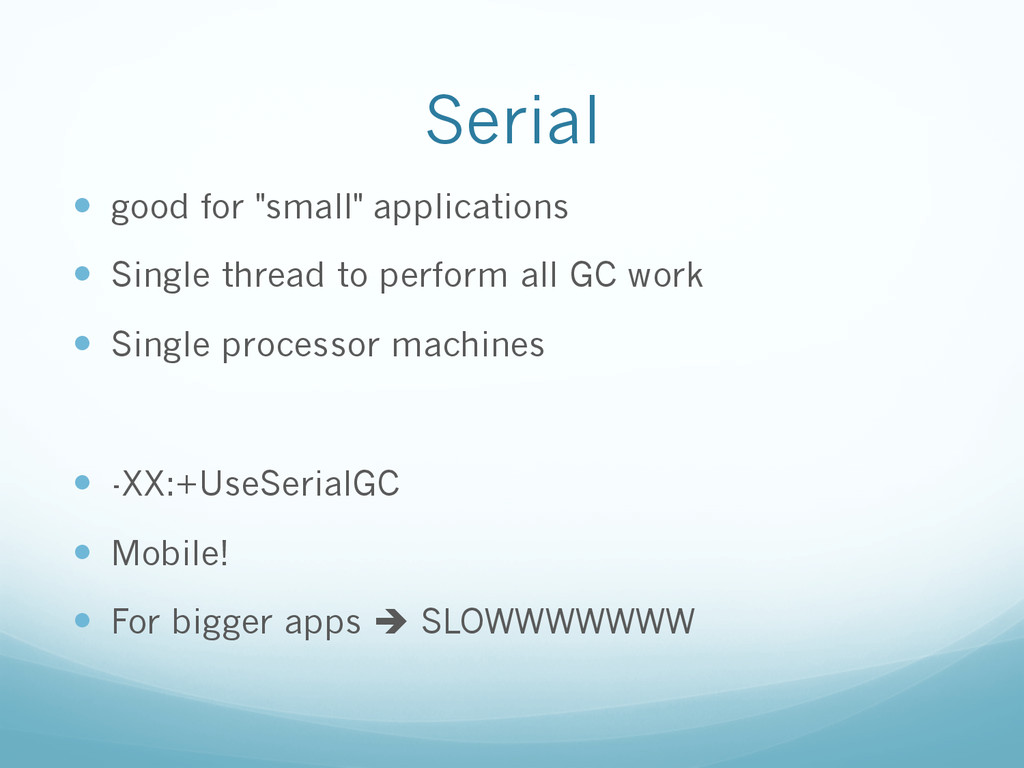

39. Serial —  good for "small" applications —  Single thread to perform all GC work —  Single processor machines —  -XX:+UseSerialGC —  Mobile! —  For bigger apps è SLOWWWWWWW

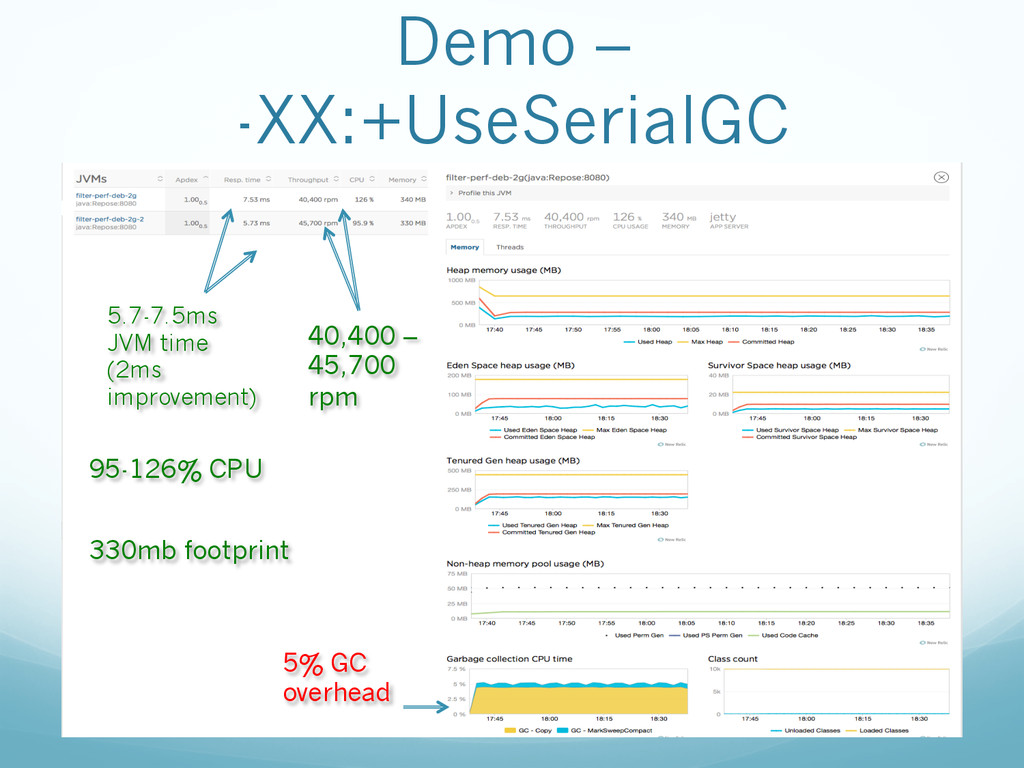

40. Demo – -XX:+UseSerialGC 5.7-7.5ms JVM time (2ms improvement) 40,400 – 45,700 rpm 95-126% CPU 330mb footprint 5% GC overhead

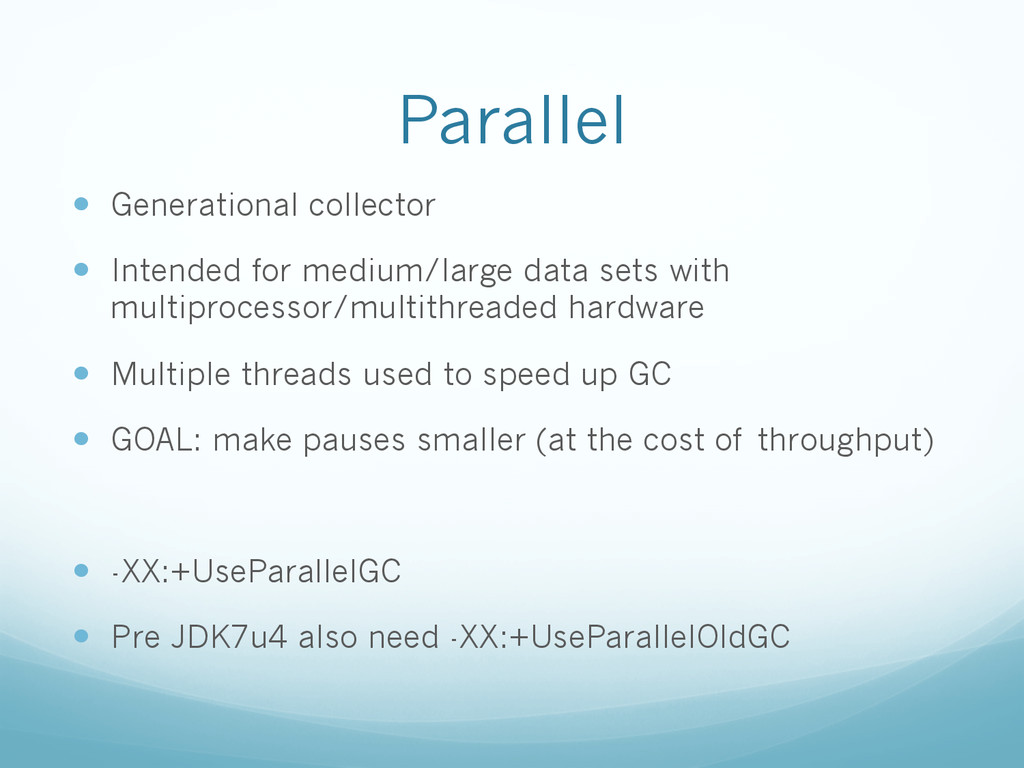

41. Parallel —  Generational collector —  Intended for medium/large data sets with multiprocessor/multithreaded hardware —  Multiple threads used to speed up GC —  GOAL: make pauses smaller (at the cost of throughput) —  -XX:+UseParallelGC —  Pre JDK7u4 also need -XX:+UseParallelOldGC
42. Parallel tips & tricks —  -XParallelGCThreads=<N> - set number of GC threads to use —  -XX:MaxGCPauseMillis=<n> - set max pause time goal (you might be forced to run GC more frequently!) —  -XX:GCTimeRatio=<n> - ratio of GC time

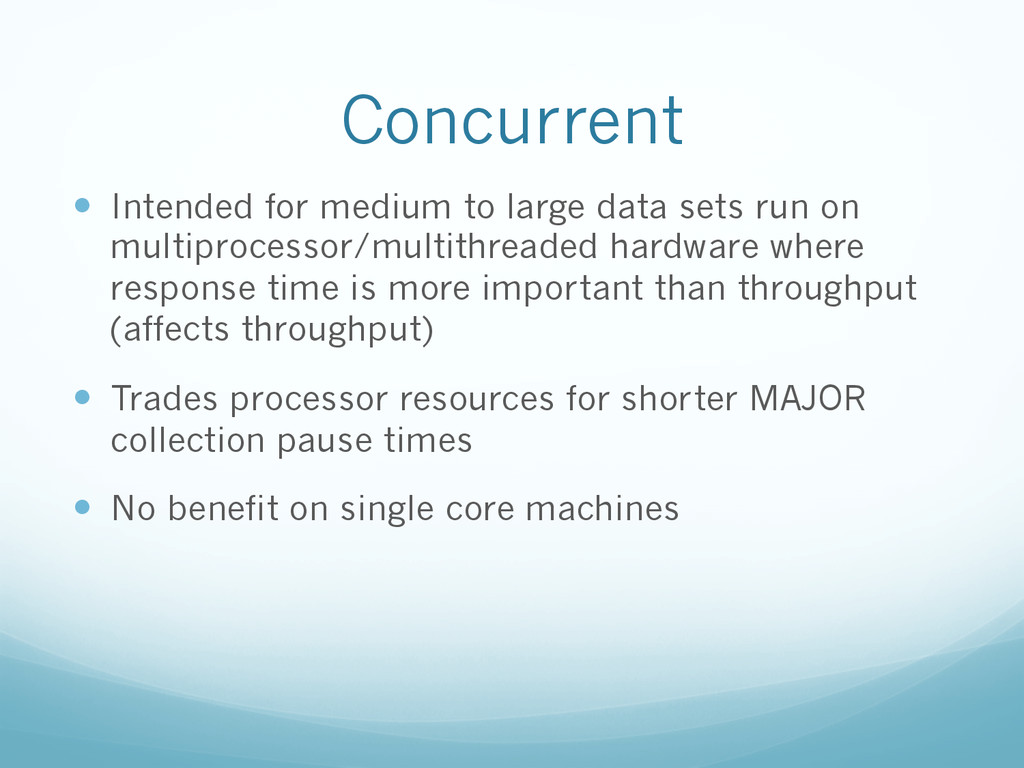

43. Concurrent —  Intended for medium to large data sets run on multiprocessor/multithreaded hardware where response time is more important than throughput (affects throughput) —  Trades processor resources for shorter MAJOR collection pause times —  No benefit on single core machines

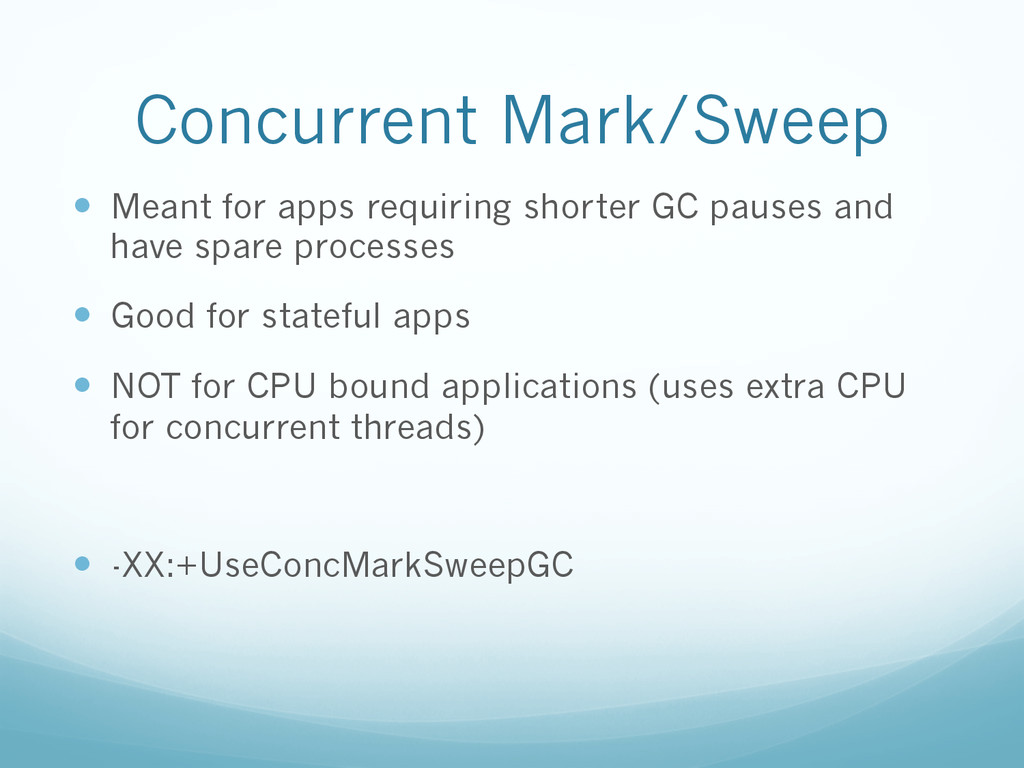

44. Concurrent Mark/Sweep —  Meant for apps requiring shorter GC pauses and have spare processes —  Good for stateful apps —  NOT for CPU bound applications (uses extra CPU for concurrent threads) —  -XX:+UseConcMarkSweepGC
45. CMS breakdown —  Initial mark – collect root references —  Stop the world BUT fast —  Concurrent mark – traverse through objects in old space marking reachables (not STW) —  Remark – accounts for references changed during mark —  Stop the world BUT even faster —  Concurrent sweep – scan through old space and reclaim unreachables (not STW)

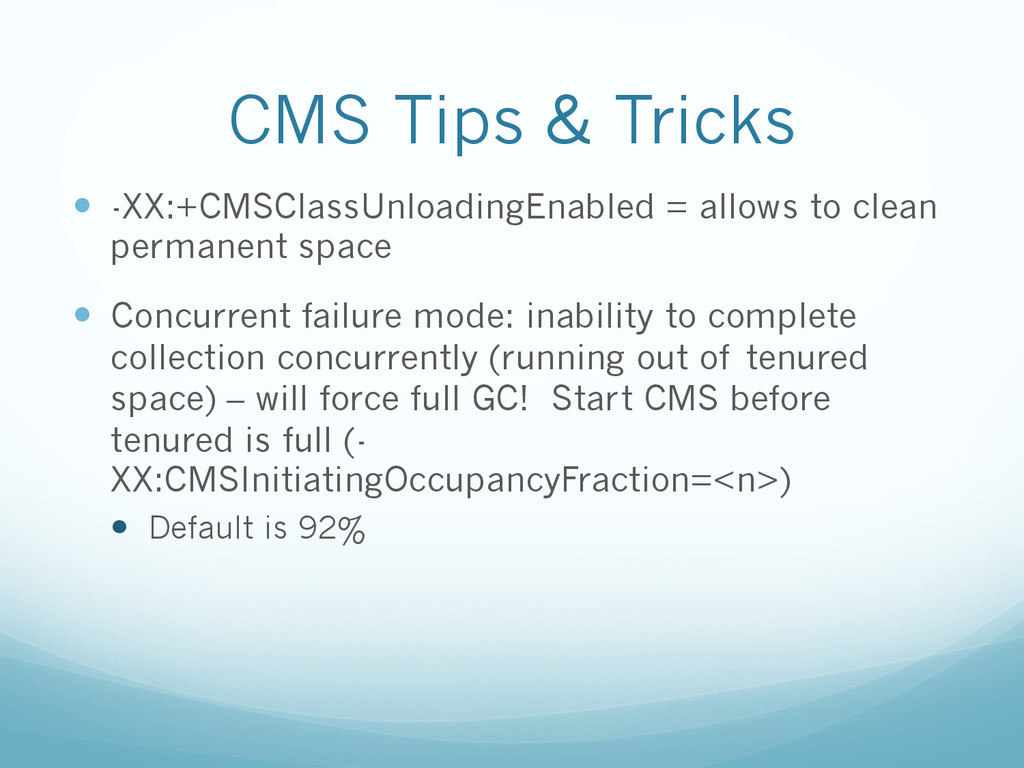

46. CMS Tips & Tricks —  -XX:+CMSClassUnloadingEnabled = allows to clean permanent space —  Concurrent failure mode: inability to complete collection concurrently (running out of tenured space) – will force full GC! Start CMS before tenured is full (- XX:CMSInitiatingOccupancyFraction=<n>) —  Default is 92%

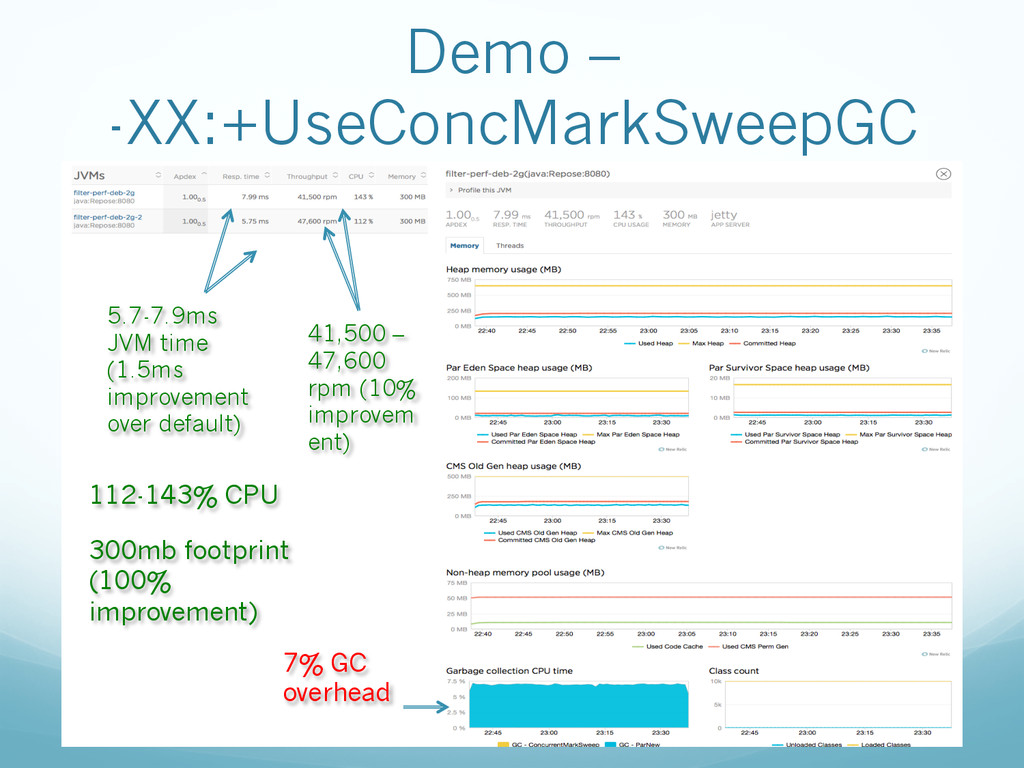

47. Demo – -XX:+UseConcMarkSweepGC 5.7-7.9ms JVM time (1.5ms improvement over default) 41,500 – 47,600 rpm (10% improvem ent) 112-143% CPU 300mb footprint (100% improvement) 7% GC overhead

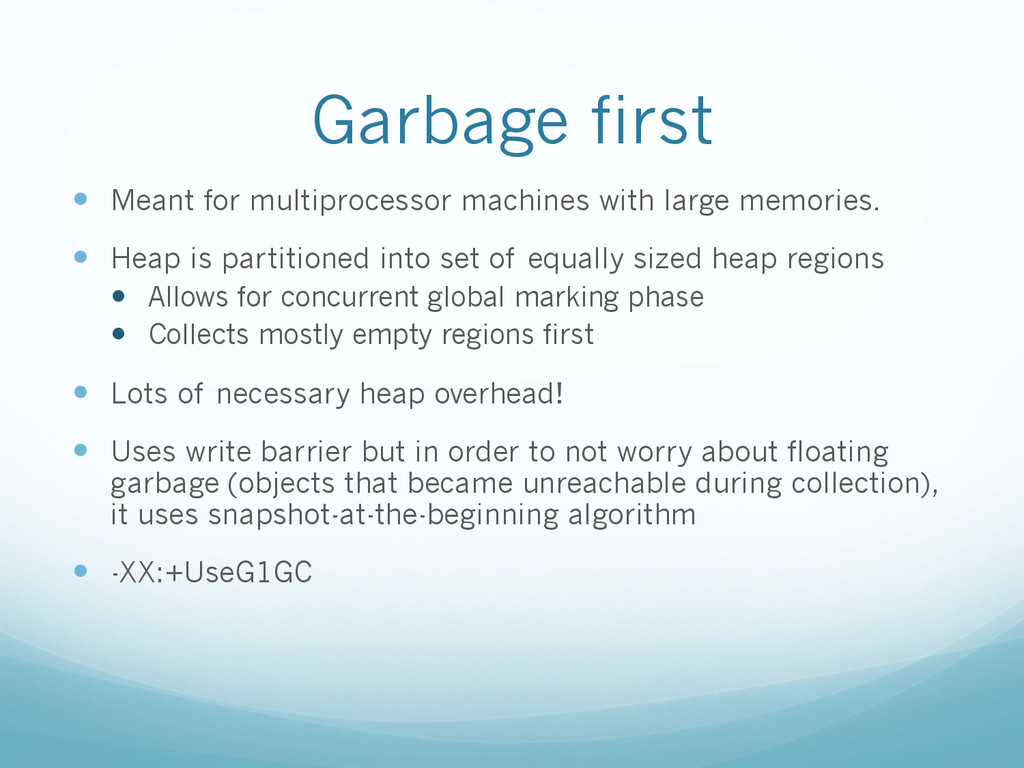

48. Garbage first —  Meant for multiprocessor machines with large memories. —  Heap is partitioned into set of equally sized heap regions —  Allows for concurrent global marking phase —  Collects mostly empty regions first —  Lots of necessary heap overhead! —  Uses write barrier but in order to not worry about floating garbage (objects that became unreachable during collection), it uses snapshot-at-the-beginning algorithm —  -XX:+UseG1GC

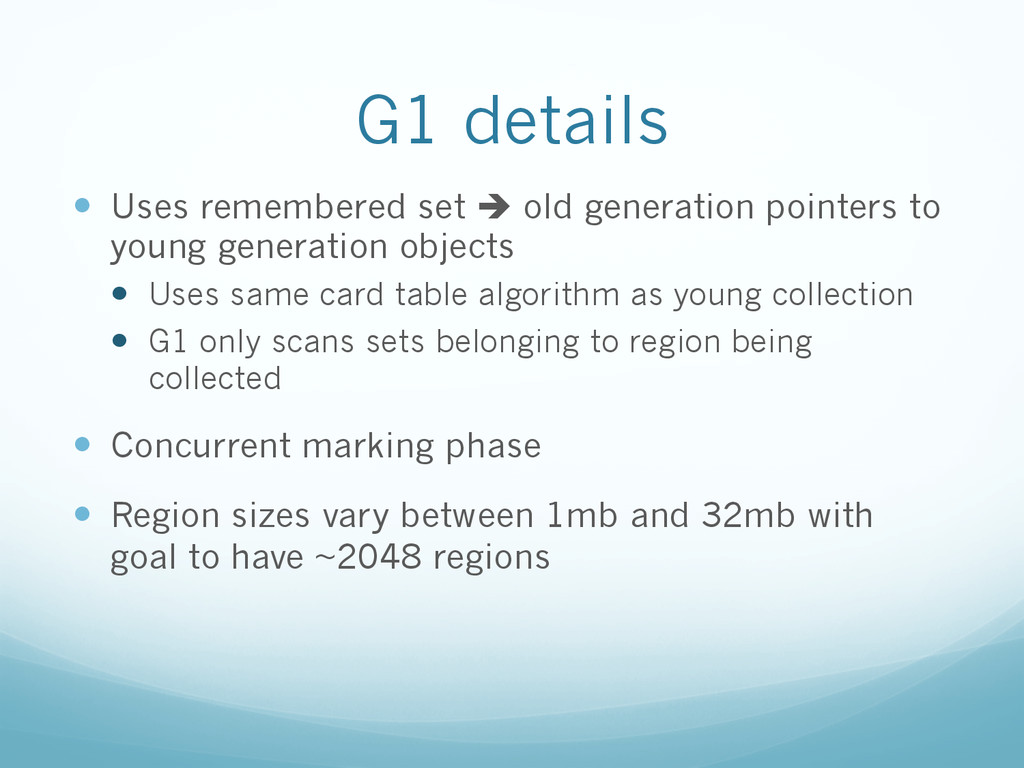

49. G1 details —  Uses remembered set è old generation pointers to young generation objects —  Uses same card table algorithm as young collection —  G1 only scans sets belonging to region being collected —  Concurrent marking phase —  Region sizes vary between 1mb and 32mb with goal to have ~2048 regions

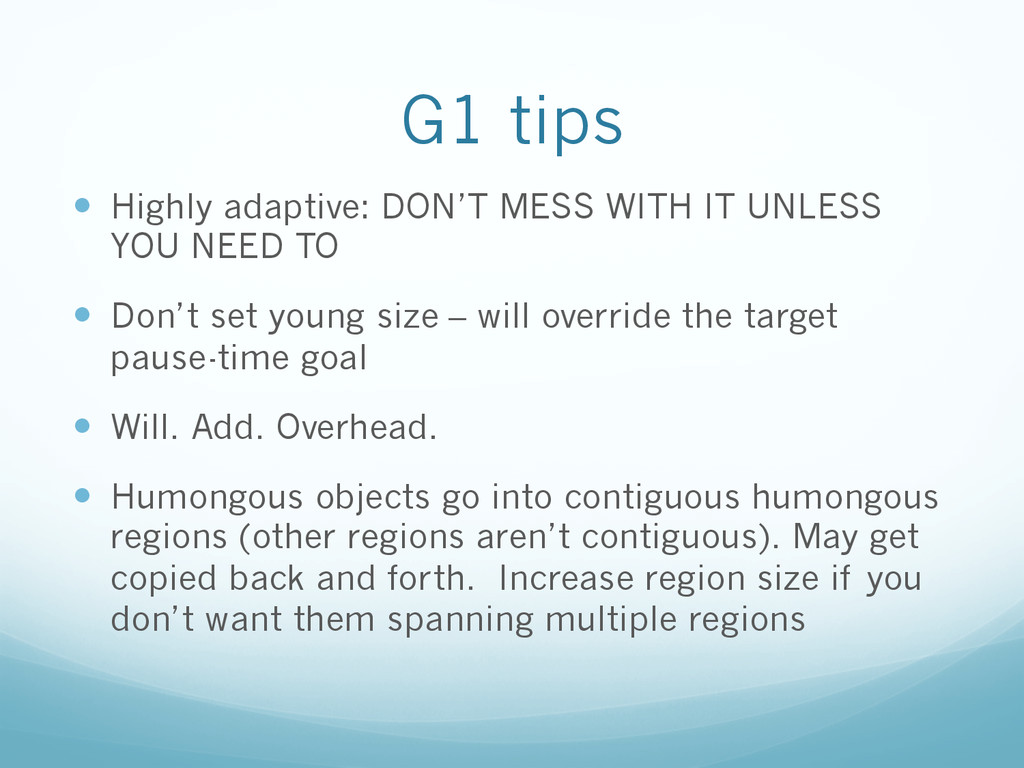

50. G1 tips —  Highly adaptive: DON’T MESS WITH IT UNLESS YOU NEED TO —  Don’t set young size – will override the target pause-time goal —  Will. Add. Overhead. —  Humongous objects go into contiguous humongous regions (other regions aren’t contiguous). May get copied back and forth. Increase region size if you don’t want them spanning multiple regions

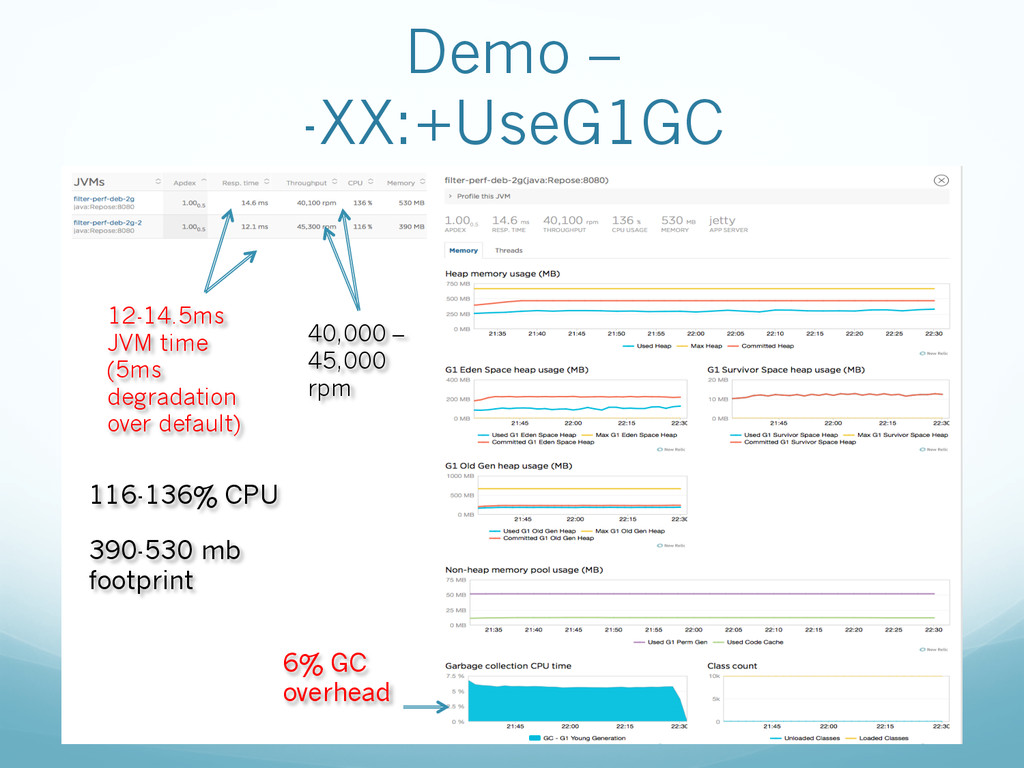

51. Demo – -XX:+UseG1GC 12-14.5ms JVM time (5ms degradation over default) 40,000 – 45,000 rpm 116-136% CPU 390-530 mb footprint 6% GC overhead

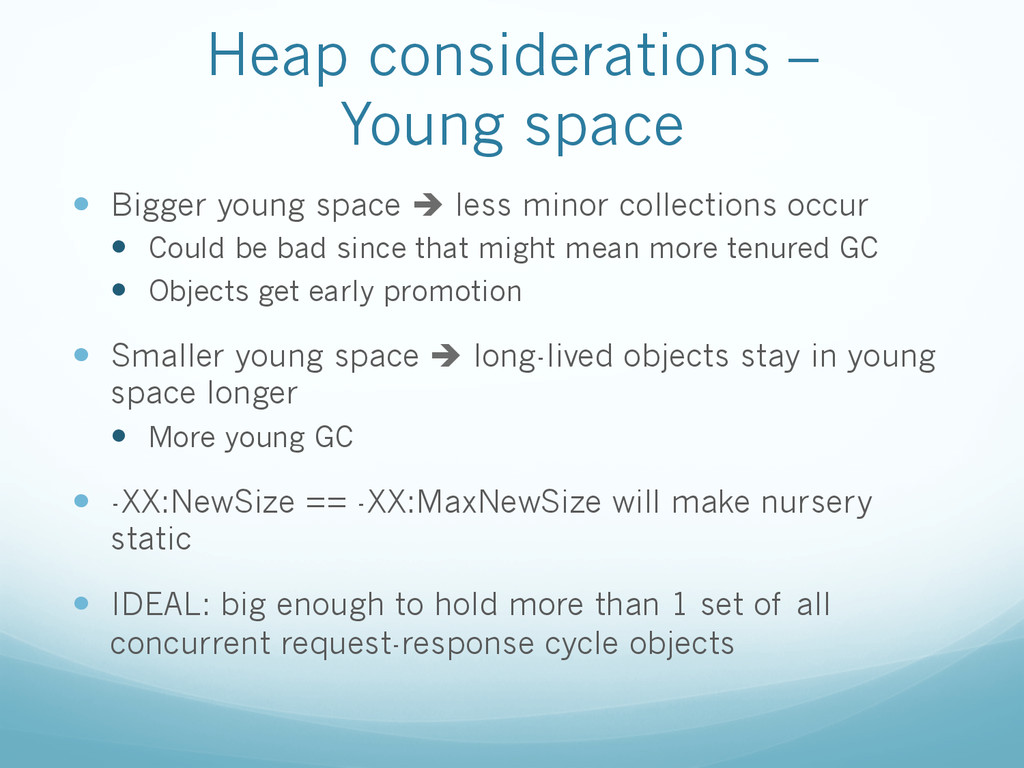

52. Heap considerations – Young space —  Bigger young space è less minor collections occur —  Could be bad since that might mean more tenured GC —  Objects get early promotion —  Smaller young space è long-lived objects stay in young space longer —  More young GC —  -XX:NewSize == -XX:MaxNewSize will make nursery static —  IDEAL: big enough to hold more than 1 set of all concurrent request-response cycle objects

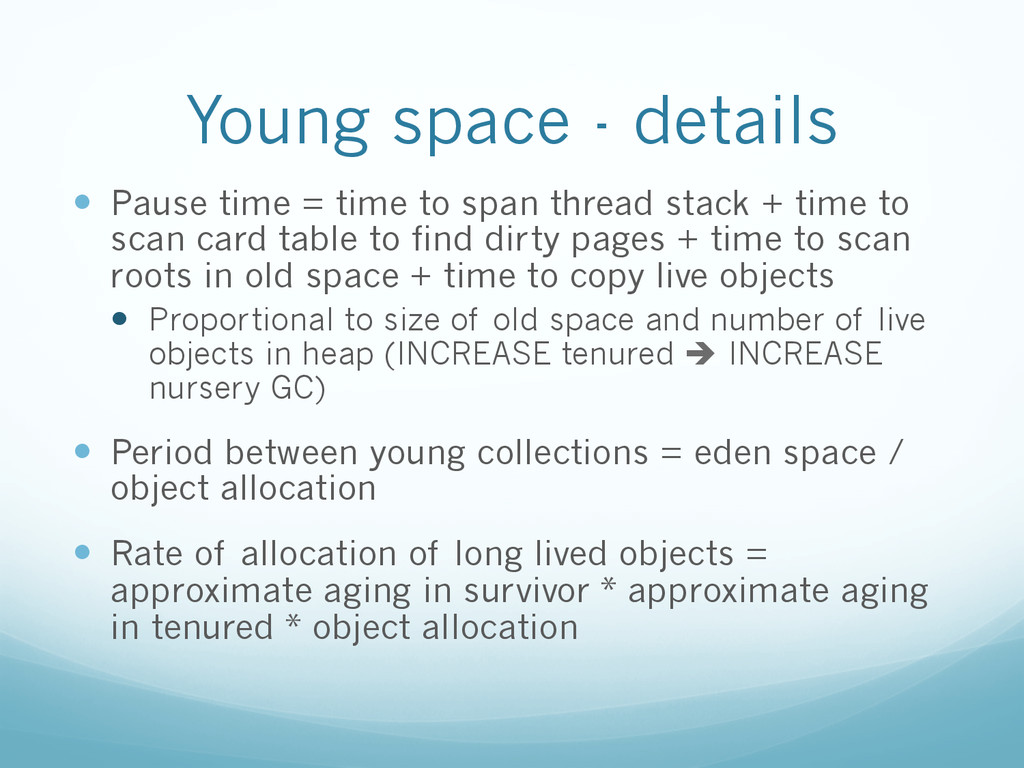

53. Young space - details —  Pause time = time to span thread stack + time to scan card table to find dirty pages + time to scan roots in old space + time to copy live objects —  Proportional to size of old space and number of live objects in heap (INCREASE tenured è INCREASE nursery GC) —  Period between young collections = eden space / object allocation —  Rate of allocation of long lived objects = approximate aging in survivor * approximate aging in tenured * object allocation

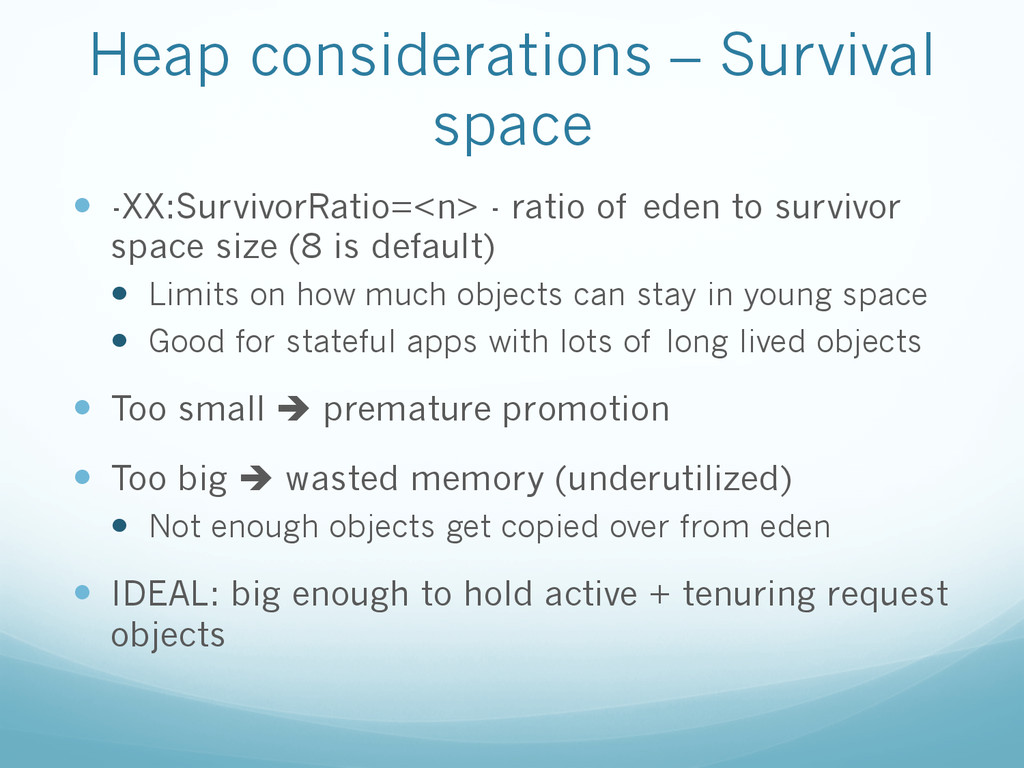

54. Heap considerations – Survival space —  -XX:SurvivorRatio=<n> - ratio of eden to survivor space size (8 is default) —  Limits on how much objects can stay in young space —  Good for stateful apps with lots of long lived objects —  Too small è premature promotion —  Too big è wasted memory (underutilized) —  Not enough objects get copied over from eden —  IDEAL: big enough to hold active + tenuring request objects

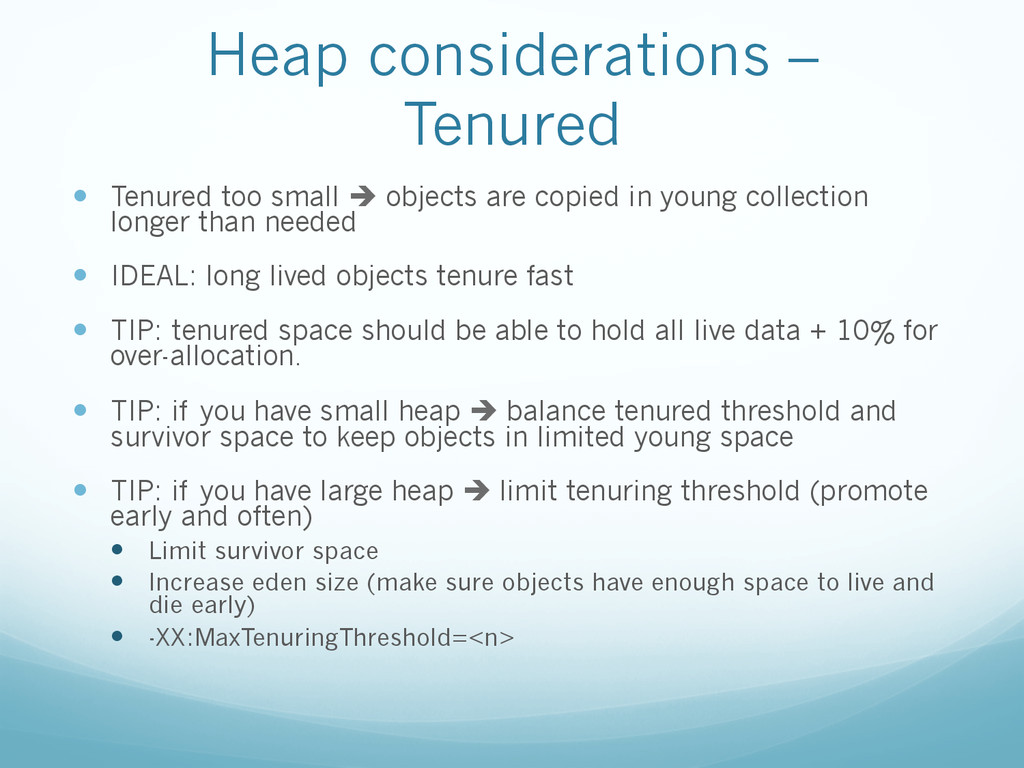

55. Heap considerations – Tenured —  Tenured too small è objects are copied in young collection longer than needed —  IDEAL: long lived objects tenure fast —  TIP: tenured space should be able to hold all live data + 10% for over-allocation. —  TIP: if you have small heap è balance tenured threshold and survivor space to keep objects in limited young space —  TIP: if you have large heap è limit tenuring threshold (promote early and often) —  Limit survivor space —  Increase eden size (make sure objects have enough space to live and die early) —  -XX:MaxTenuringThreshold=<n>

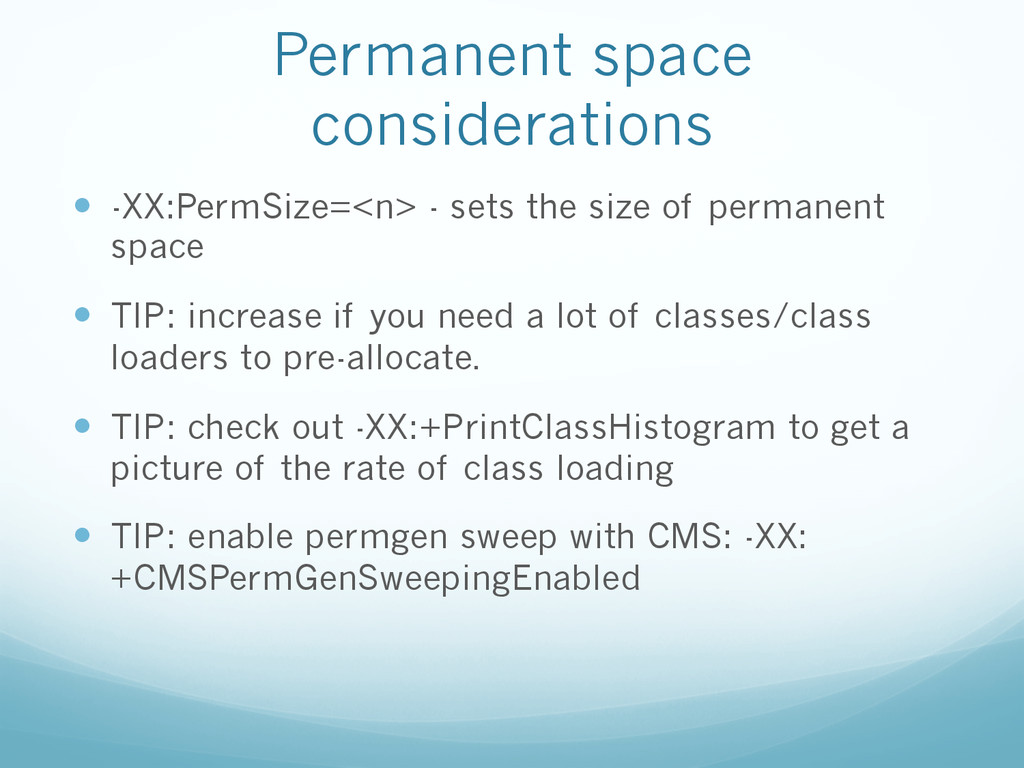

56. Permanent space considerations —  -XX:PermSize=<n> - sets the size of permanent space —  TIP: increase if you need a lot of classes/class loaders to pre-allocate. —  TIP: check out -XX:+PrintClassHistogram to get a picture of the rate of class loading —  TIP: enable permgen sweep with CMS: -XX: +CMSPermGenSweepingEnabled

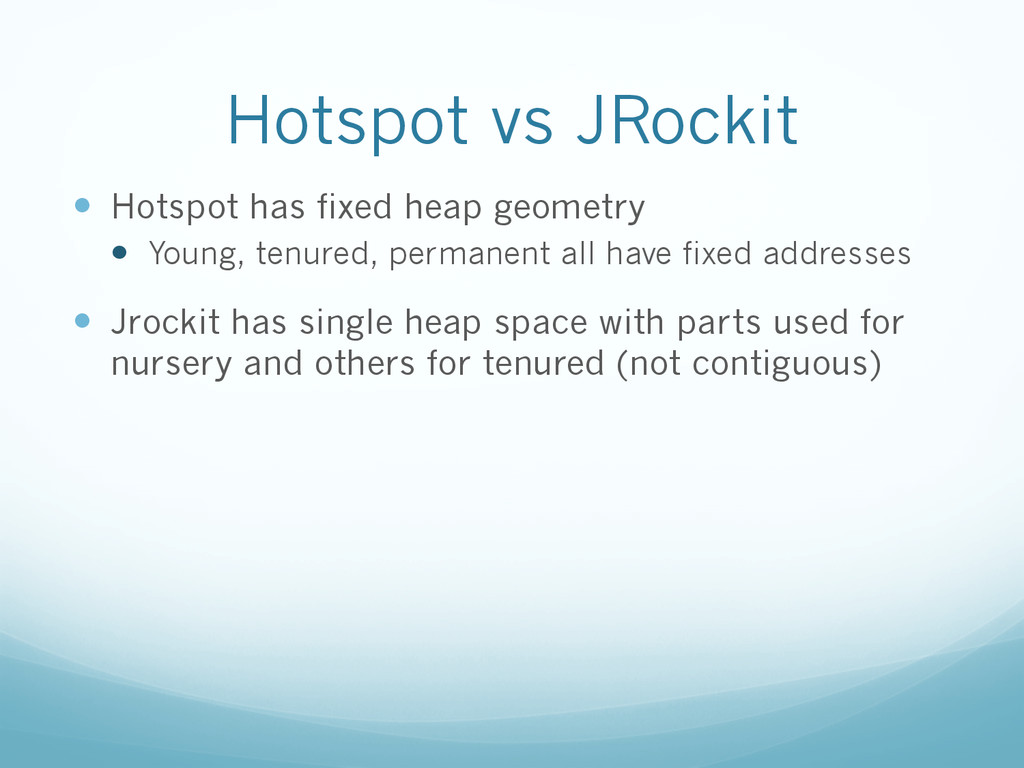

57. Hotspot vs JRockit —  Hotspot has fixed heap geometry —  Young, tenured, permanent all have fixed addresses —  Jrockit has single heap space with parts used for nursery and others for tenured (not contiguous)

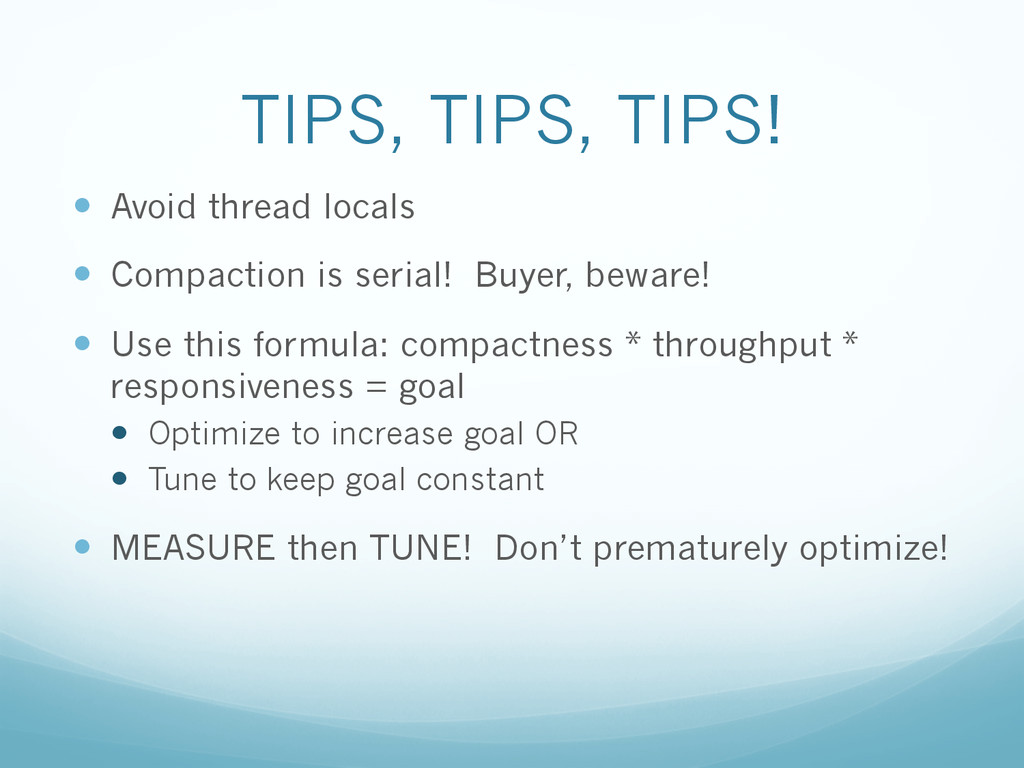

58. TIPS, TIPS, TIPS! —  Avoid thread locals —  Compaction is serial! Buyer, beware! —  Use this formula: compactness * throughput * responsiveness = goal —  Optimize to increase goal OR —  Tune to keep goal constant —  MEASURE then TUNE! Don’t prematurely optimize!

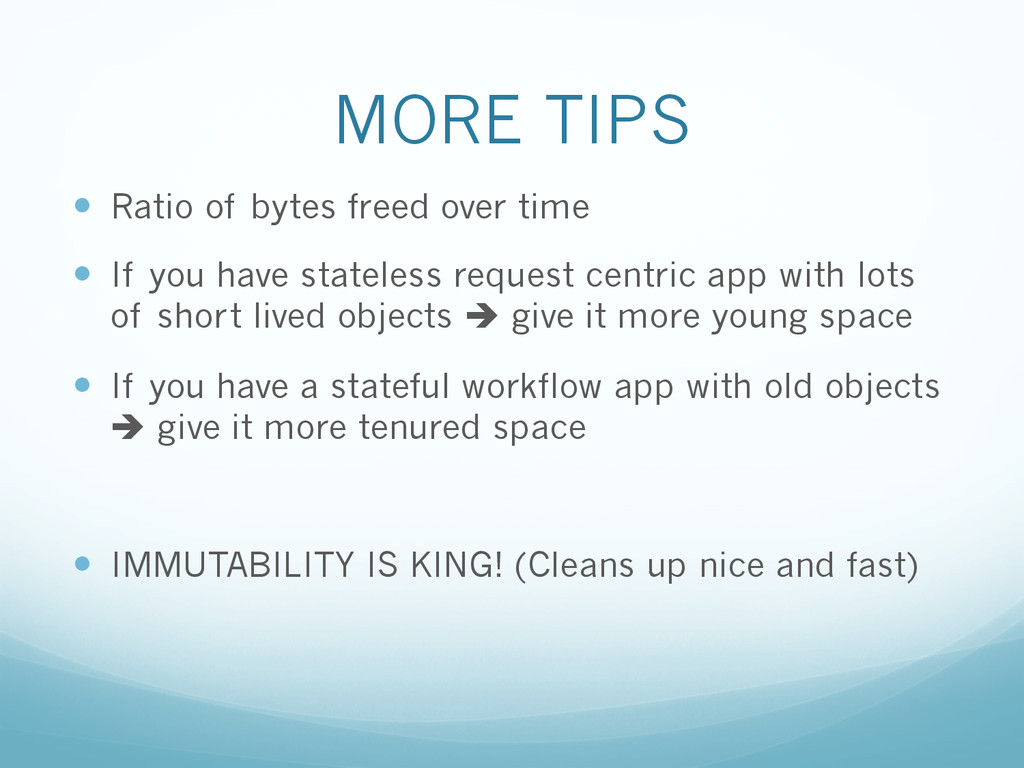

59. MORE TIPS —  Ratio of bytes freed over time —  If you have stateless request centric app with lots of short lived objects è give it more young space —  If you have a stateful workflow app with old objects è give it more tenured space —  IMMUTABILITY IS KING! (Cleans up nice and fast)

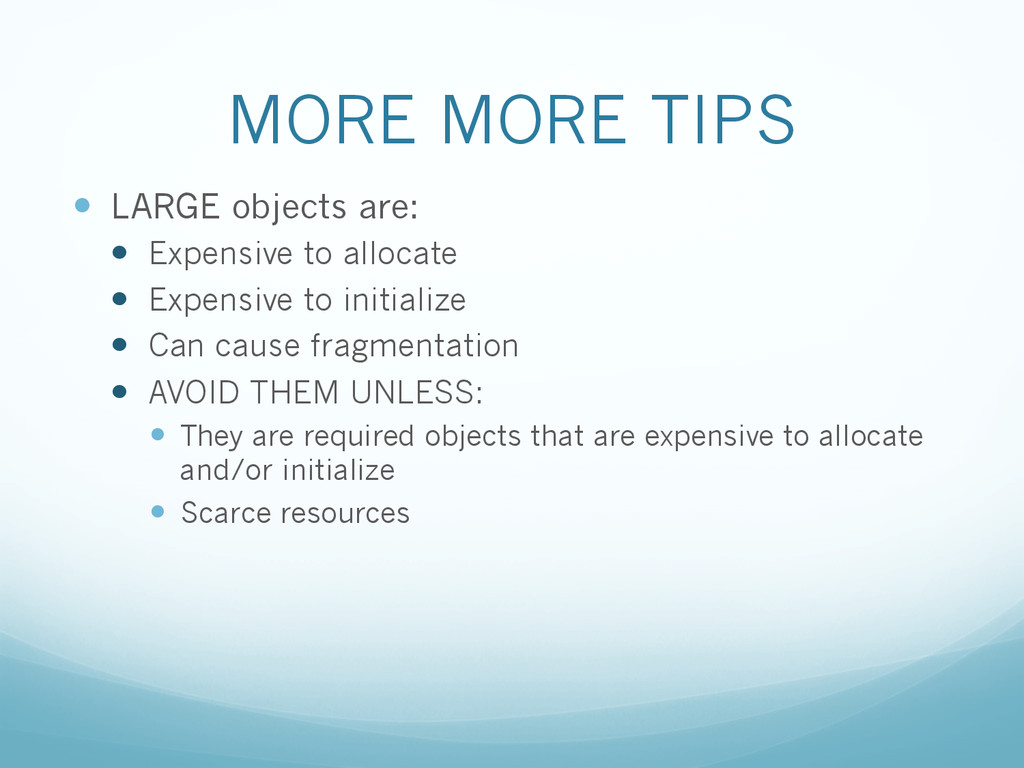

60. MORE MORE TIPS —  LARGE objects are: —  Expensive to allocate —  Expensive to initialize —  Can cause fragmentation —  AVOID THEM UNLESS: —  They are required objects that are expensive to allocate and/or initialize —  Scarce resources

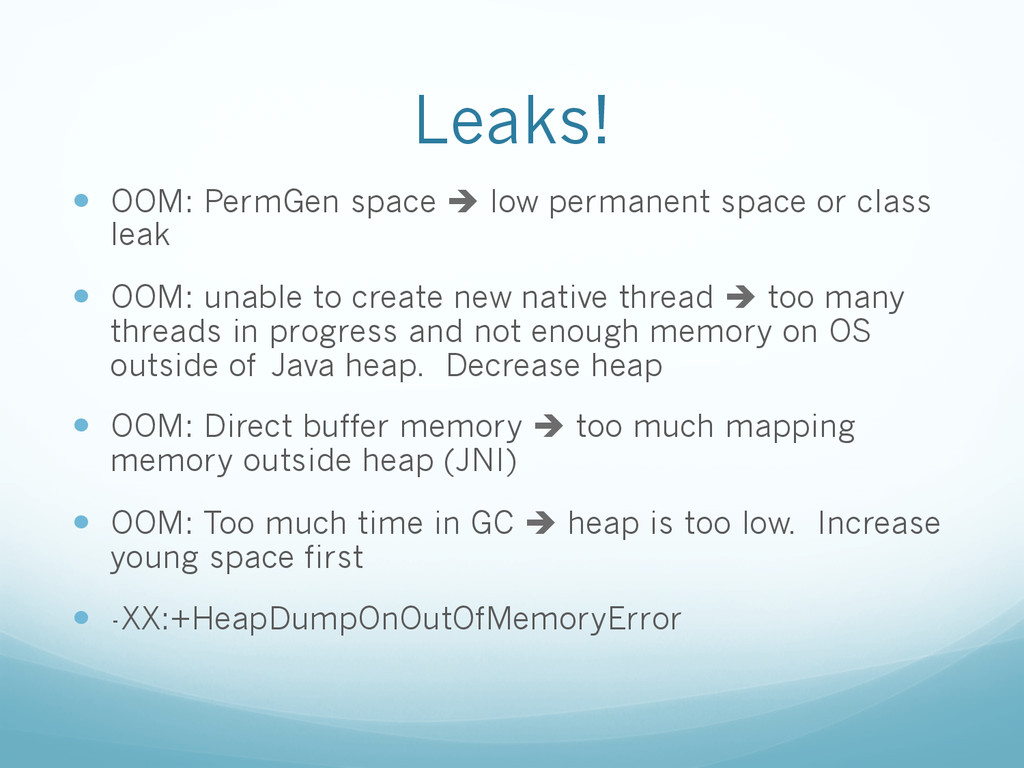

61. Leaks! —  OOM: PermGen space è low permanent space or class leak —  OOM: unable to create new native thread è too many threads in progress and not enough memory on OS outside of Java heap. Decrease heap —  OOM: Direct buffer memory è too much mapping memory outside heap (JNI) —  OOM: Too much time in GC è heap is too low. Increase young space first —  -XX:+HeapDumpOnOutOfMemoryError

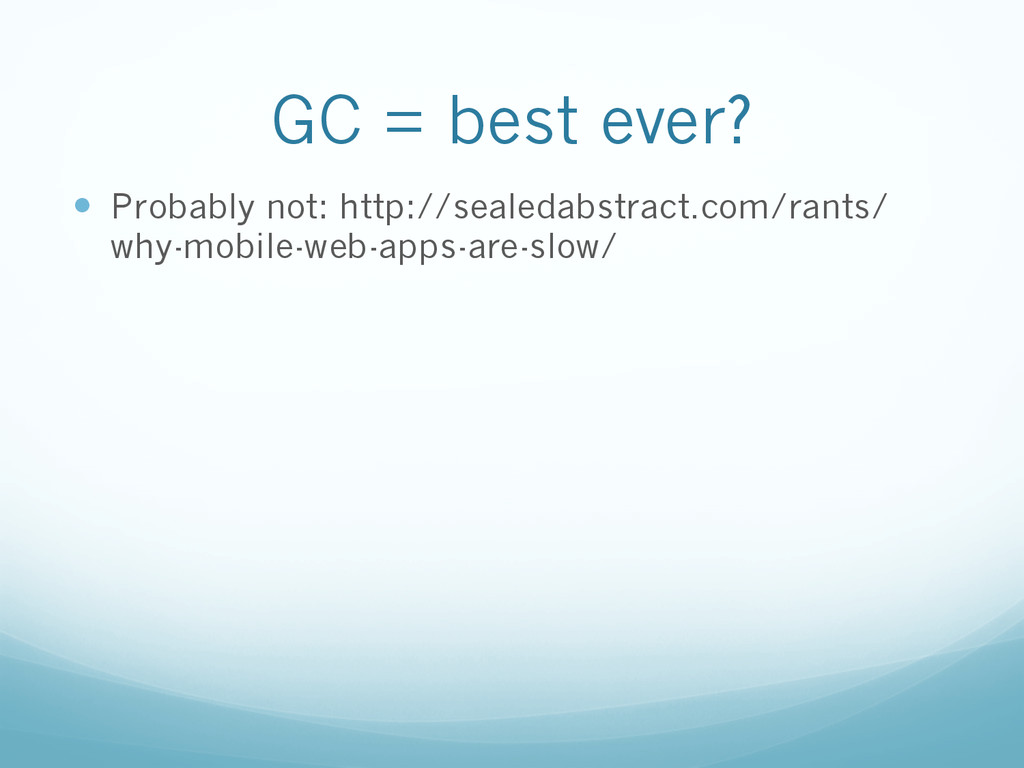

62. GC = best ever? —  Probably not: http://sealedabstract.com/rants/ why-mobile-web-apps-are-slow/
63. Thank you!
