1. .NET AND K8S ECOSYSTEM Dimitry Ushakov QE Minion
2. Why do we hope to achieve tonight? GOAL

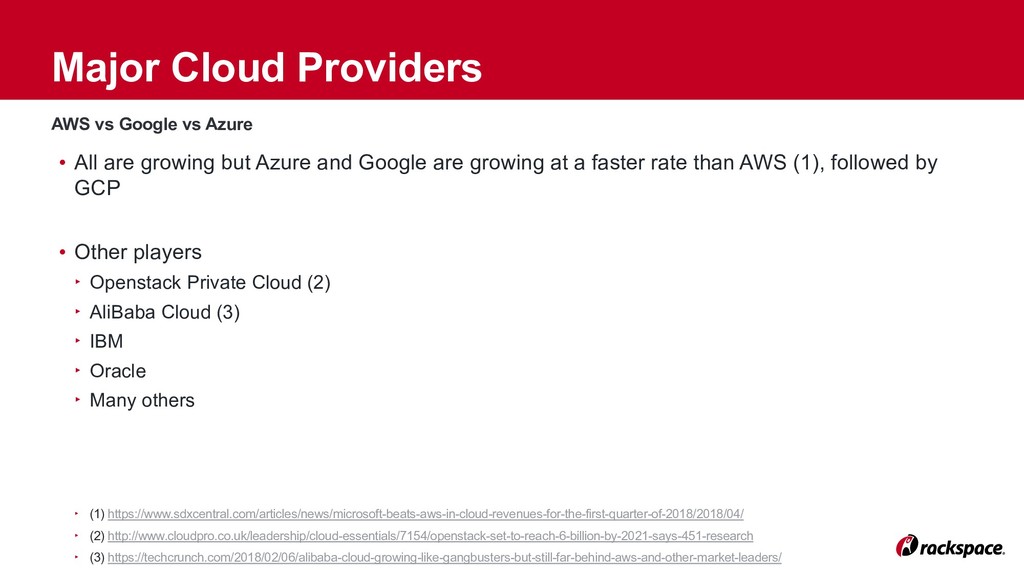

3. AWS vs Google vs Azure Major Cloud Providers • All are growing but Azure and Google are growing at a faster rate than AWS (1), followed by GCP • Other players ‣ Openstack Private Cloud (2) ‣ AliBaba Cloud (3) ‣ IBM ‣ Oracle ‣ Many others ‣ (1) https://www.sdxcentral.com/articles/news/microsoft-beats-aws-in-cloud-revenues-for-the-first-quarter-of-2018/2018/04/ ‣ (2) http://www.cloudpro.co.uk/leadership/cloud-essentials/7154/openstack-set-to-reach-6-billion-by-2021-says-451-research ‣ (3) https://techcrunch.com/2018/02/06/alibaba-cloud-growing-like-gangbusters-but-still-far-behind-aws-and-other-market-leaders/

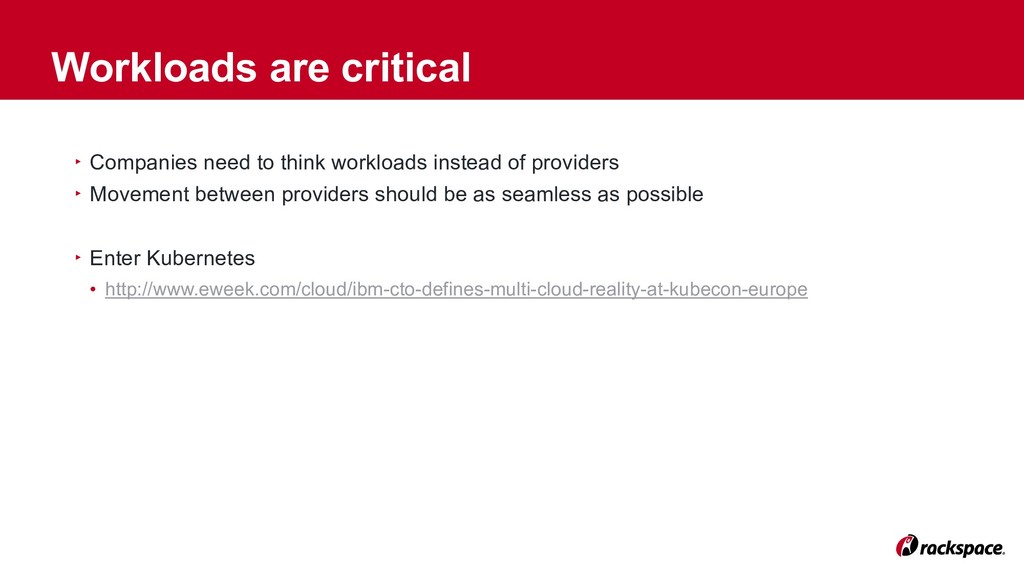

4. Workloads are critical ‣ Companies need to think workloads instead of providers ‣ Movement between providers should be as seamless as possible ‣ Enter Kubernetes • http://www.eweek.com/cloud/ibm-cto-defines-multi-cloud-reality-at-kubecon-europe

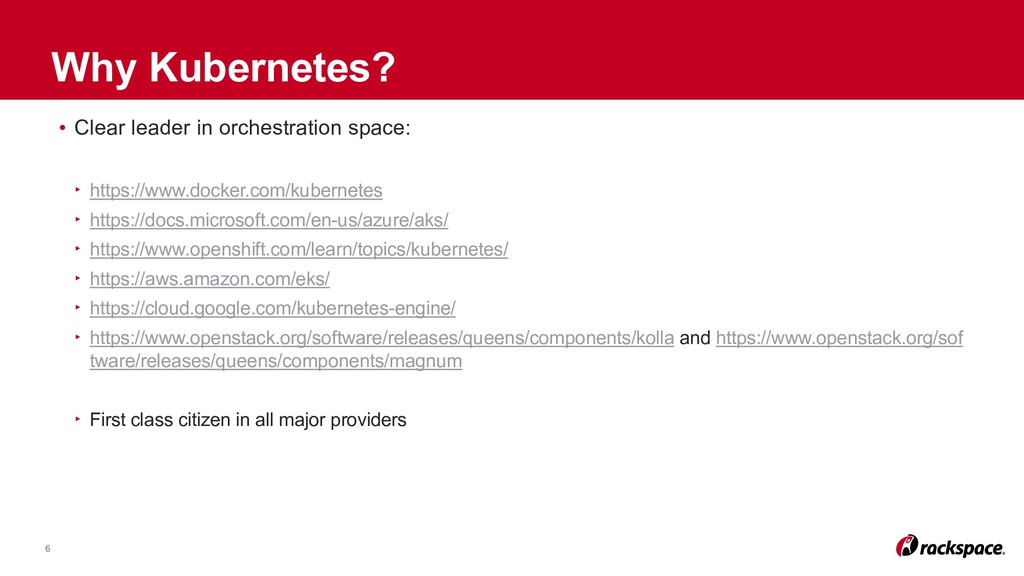

6. Why Kubernetes? 6 • Clear leader in orchestration space: ‣ https://www.docker.com/kubernetes ‣ https://docs.microsoft.com/en-us/azure/aks/ ‣ https://www.openshift.com/learn/topics/kubernetes/ ‣ https://aws.amazon.com/eks/ ‣ https://cloud.google.com/kubernetes-engine/ ‣ https://www.openstack.org/software/releases/queens/components/kolla and https://www.openstack.org/sof tware/releases/queens/components/magnum ‣ First class citizen in all major providers

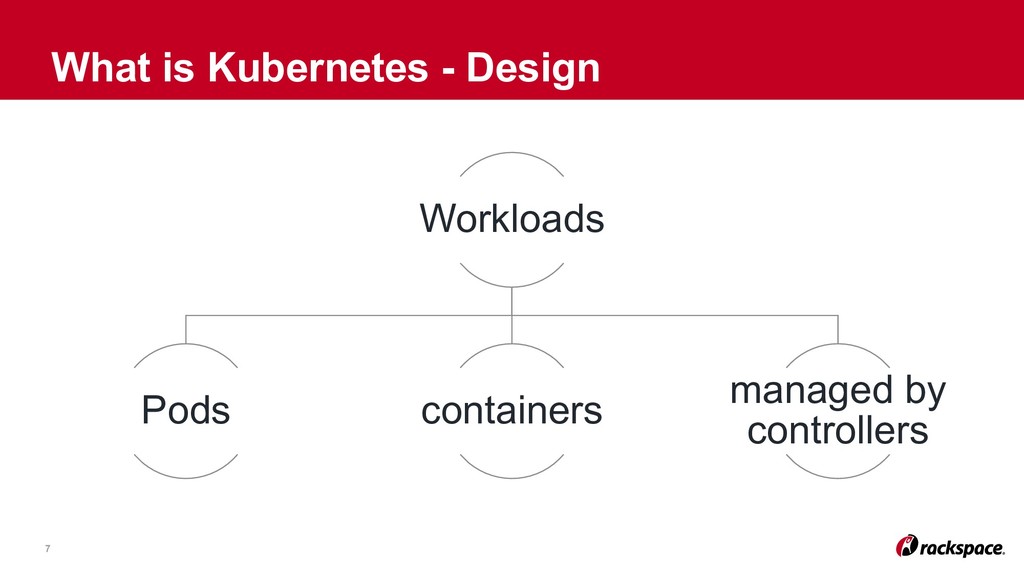

7. What is Kubernetes - Design 7 Workloads Pods containers managed by controllers

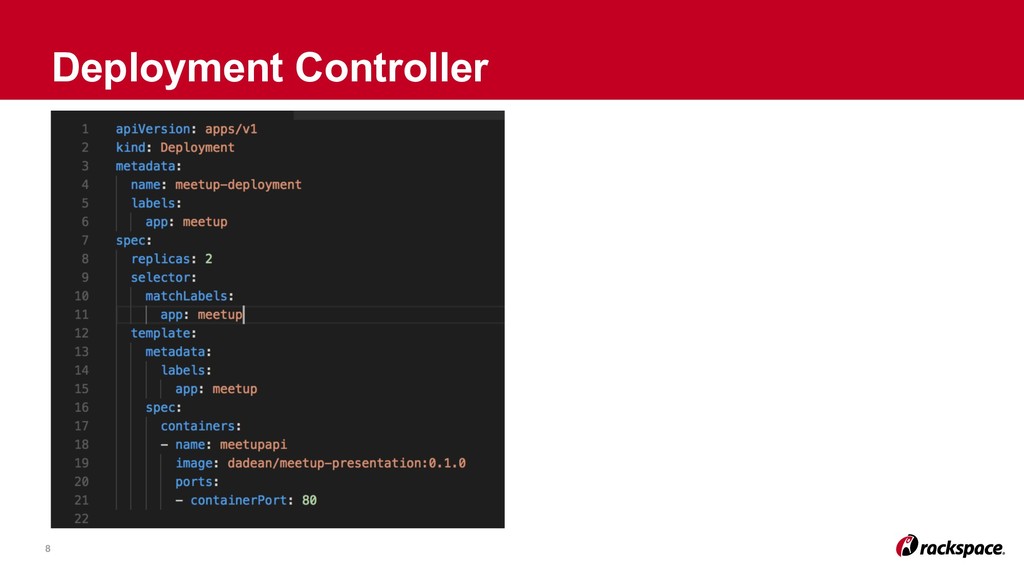

8. Deployment Controller 8

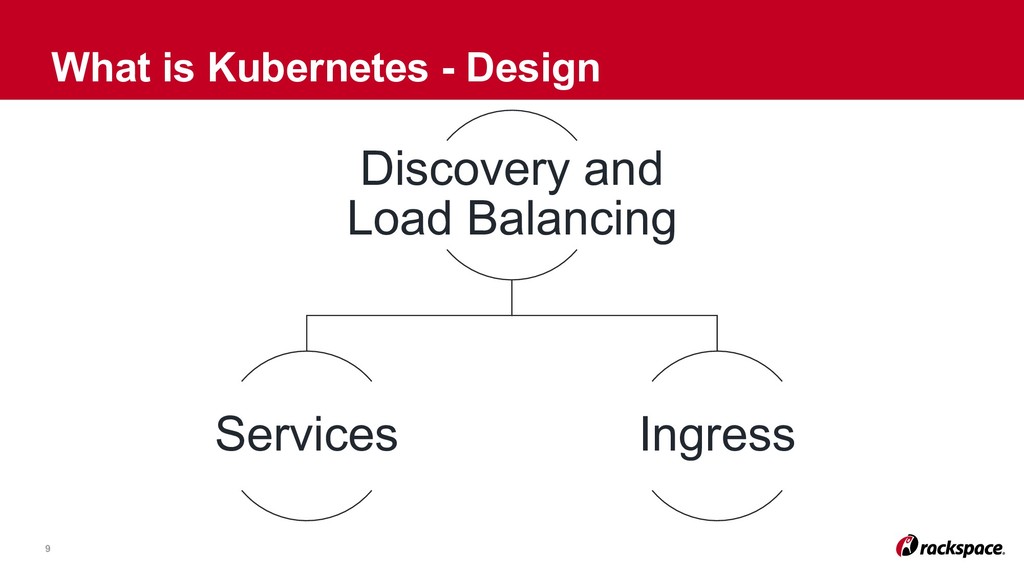

9. What is Kubernetes - Design 9 Discovery and Load Balancing Services Ingress

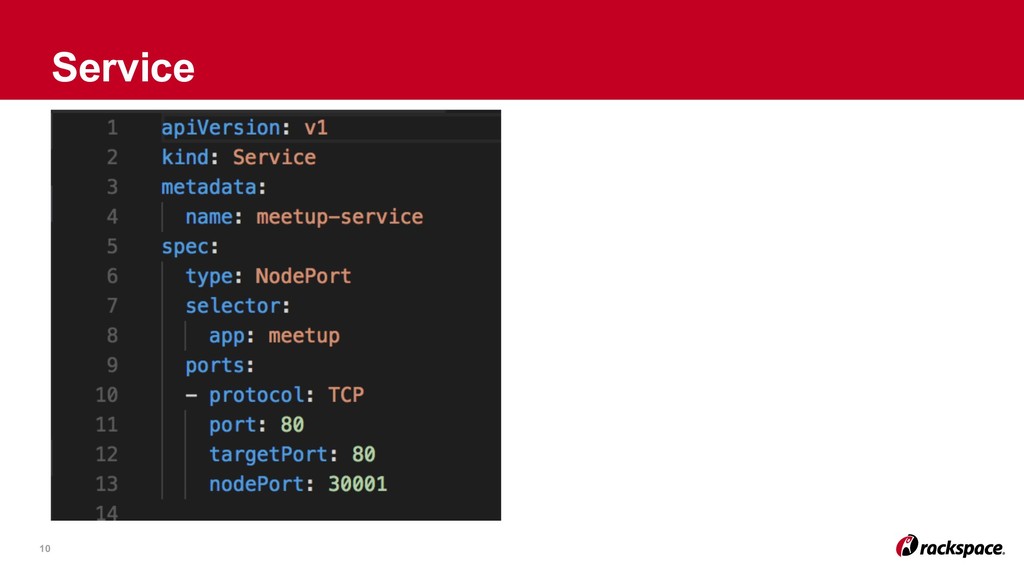

10. Service 10

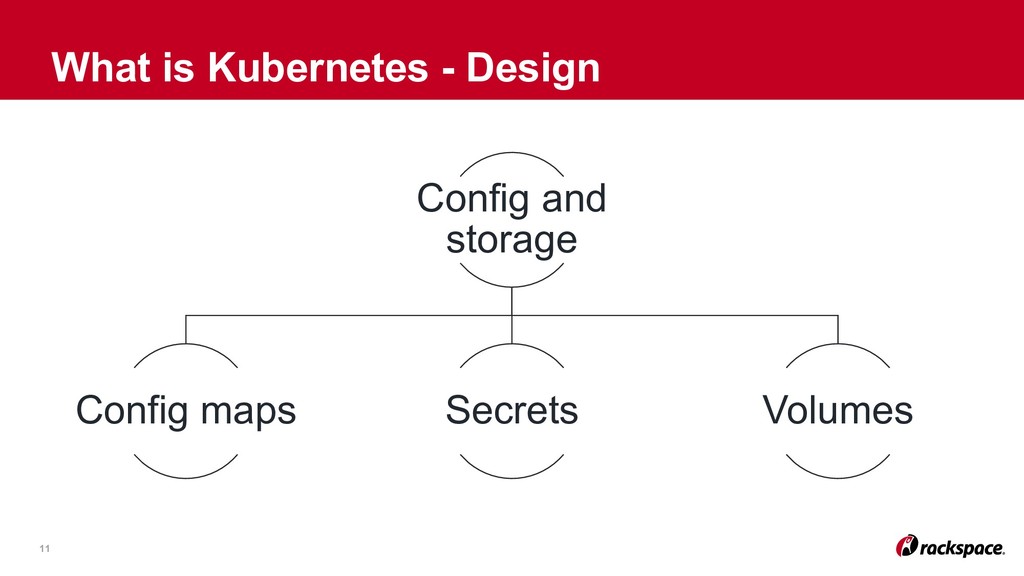

11. What is Kubernetes - Design 11 Config and storage Config maps Secrets Volumes

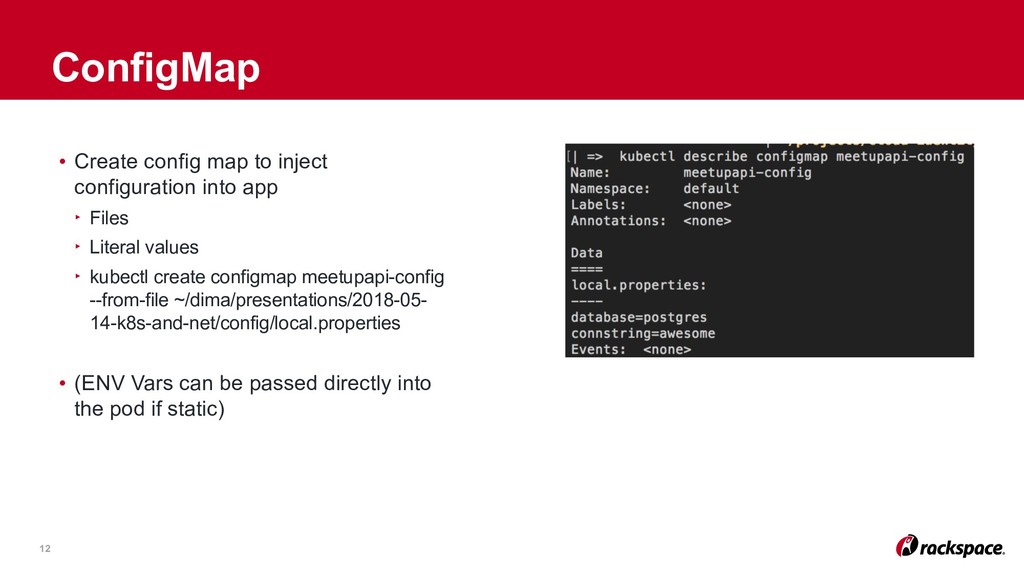

12. 12 ConfigMap • Create config map to inject configuration into app ‣ Files ‣ Literal values ‣ kubectl create configmap meetupapi-config --from-file ~/dima/presentations/2018-05- 14-k8s-and-net/config/local.properties • (ENV Vars can be passed directly into the pod if static)

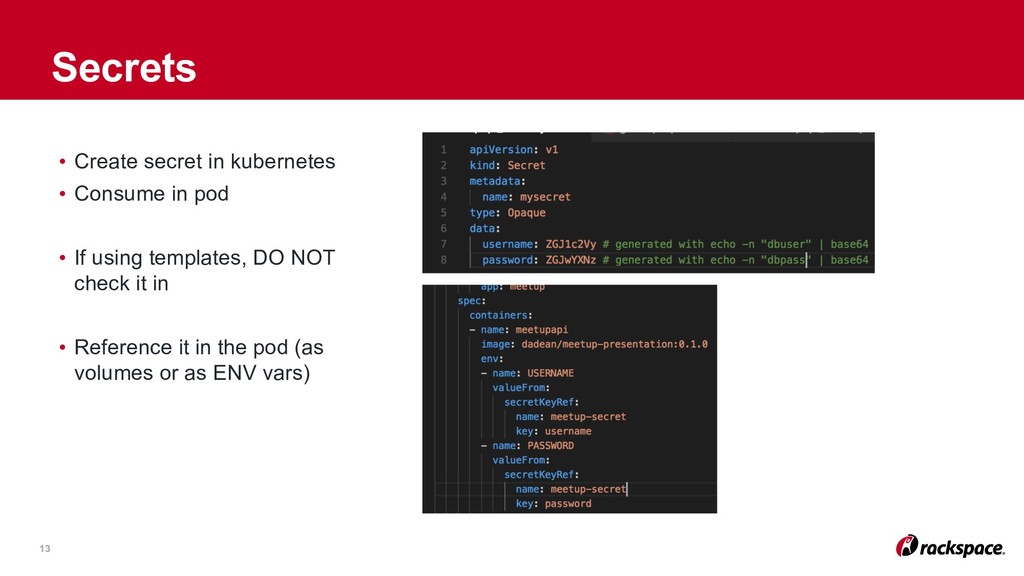

13. 13 Secrets • Create secret in kubernetes • Consume in pod • If using templates, DO NOT check it in • Reference it in the pod (as volumes or as ENV vars)

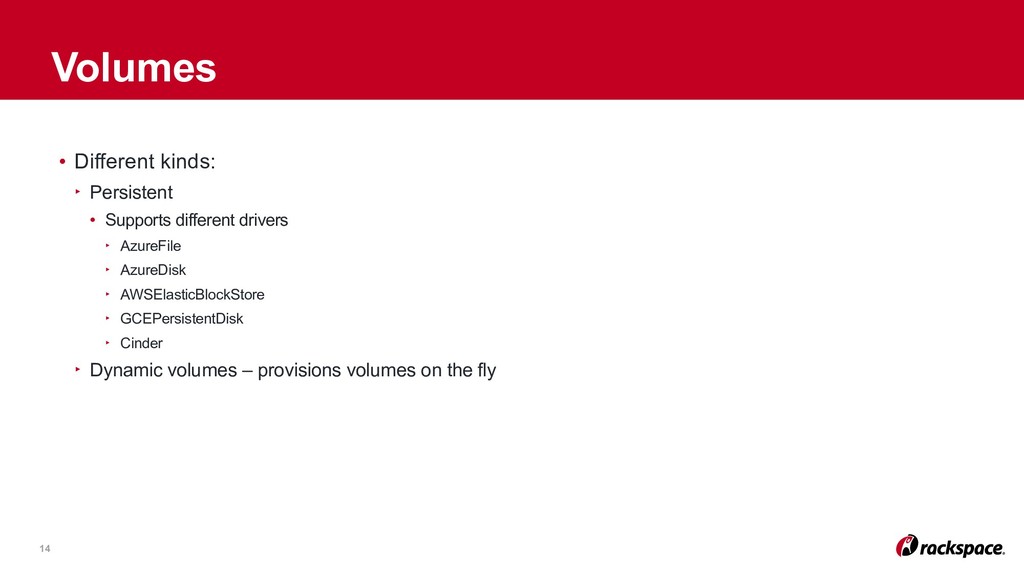

14. 14 Volumes • Different kinds: ‣ Persistent • Supports different drivers ‣ AzureFile ‣ AzureDisk ‣ AWSElasticBlockStore ‣ GCEPersistentDisk ‣ Cinder ‣ Dynamic volumes – provisions volumes on the fly

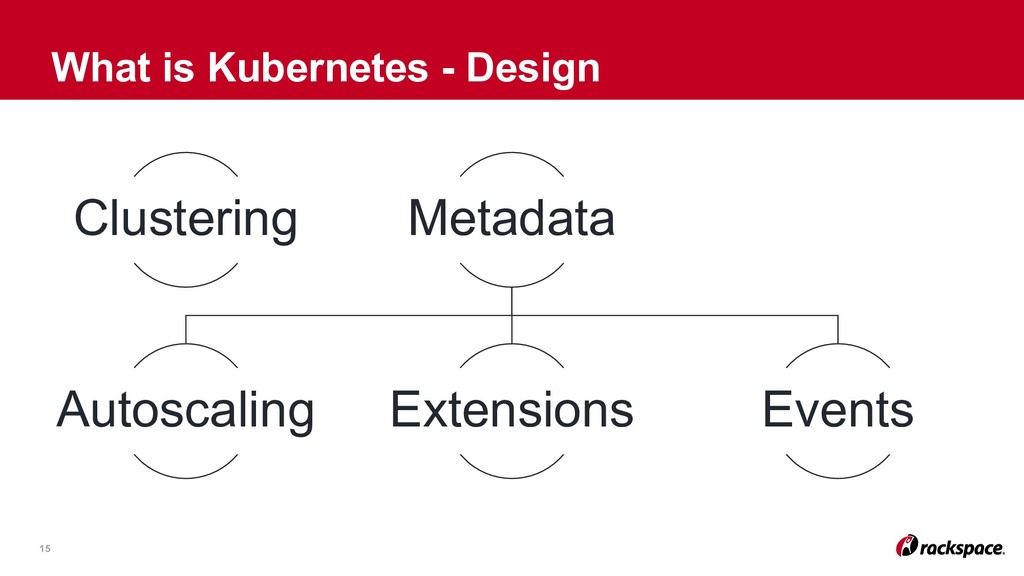

15. What is Kubernetes - Design 15 Clustering Metadata Autoscaling Extensions Events

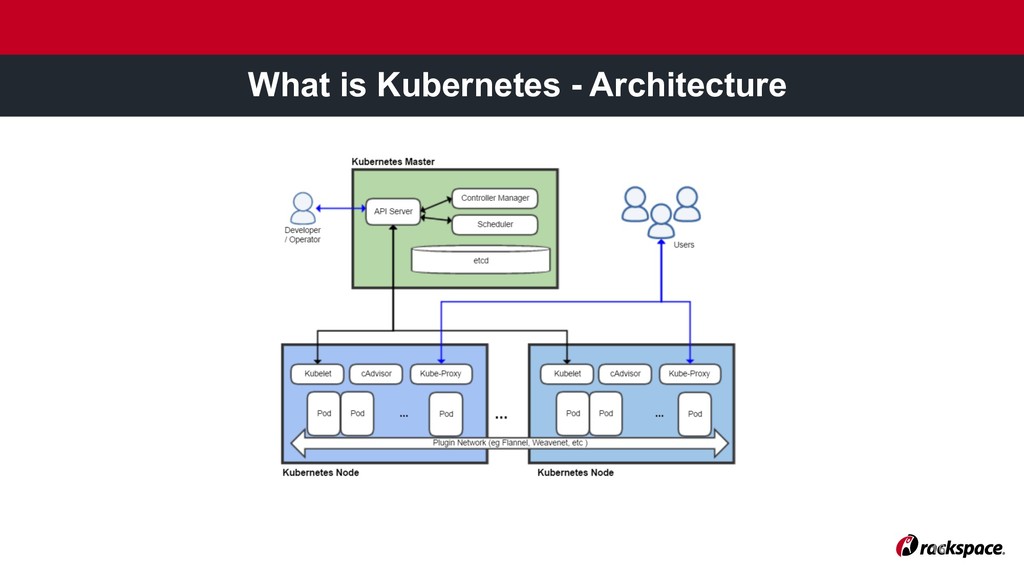

16. What is Kubernetes - Architecture 16

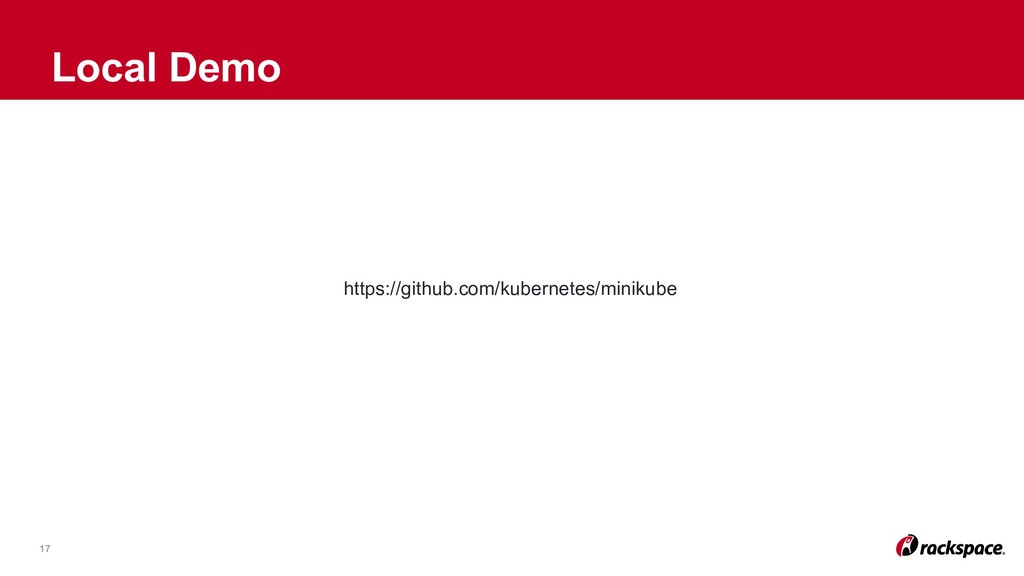

17. Local Demo 17 https://github.com/kubernetes/minikube

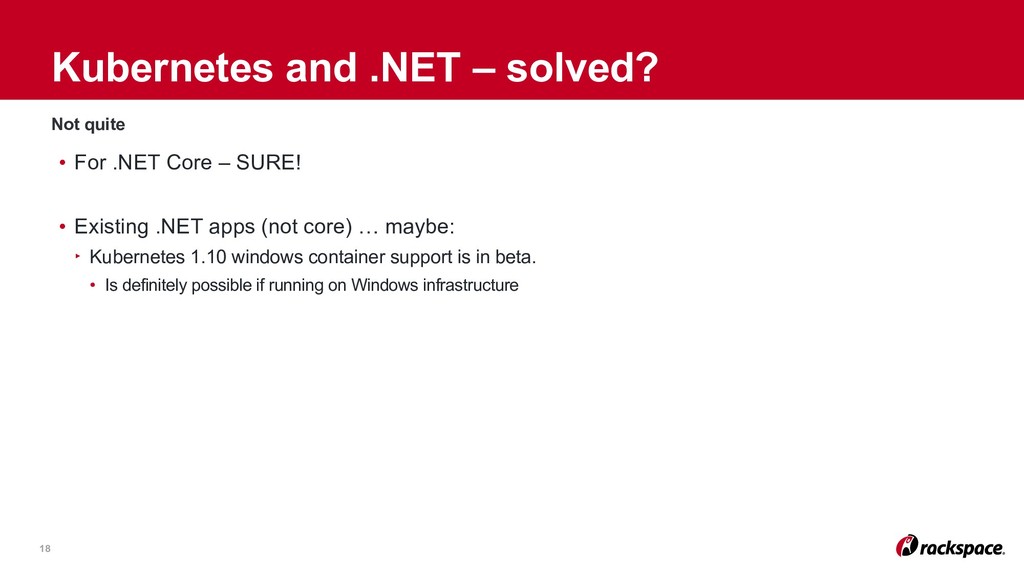

18. Not quite 18 Kubernetes and .NET – solved? • For .NET Core – SURE! • Existing .NET apps (not core) … maybe: ‣ Kubernetes 1.10 windows container support is in beta. • Is definitely possible if running on Windows infrastructure

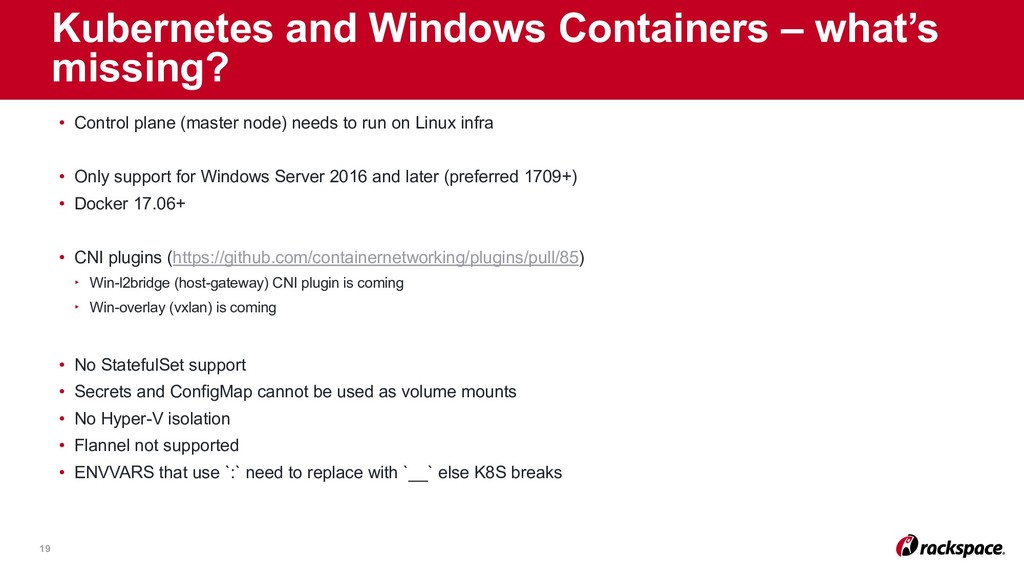

19. 19 Kubernetes and Windows Containers – what’s missing? • Control plane (master node) needs to run on Linux infra • Only support for Windows Server 2016 and later (preferred 1709+) • Docker 17.06+ • CNI plugins (https://github.com/containernetworking/plugins/pull/85) ‣ Win-l2bridge (host-gateway) CNI plugin is coming ‣ Win-overlay (vxlan) is coming • No StatefulSet support • Secrets and ConfigMap cannot be used as volume mounts • No Hyper-V isolation • Flannel not supported • ENVVARS that use `:` need to replace with `__` else K8S breaks

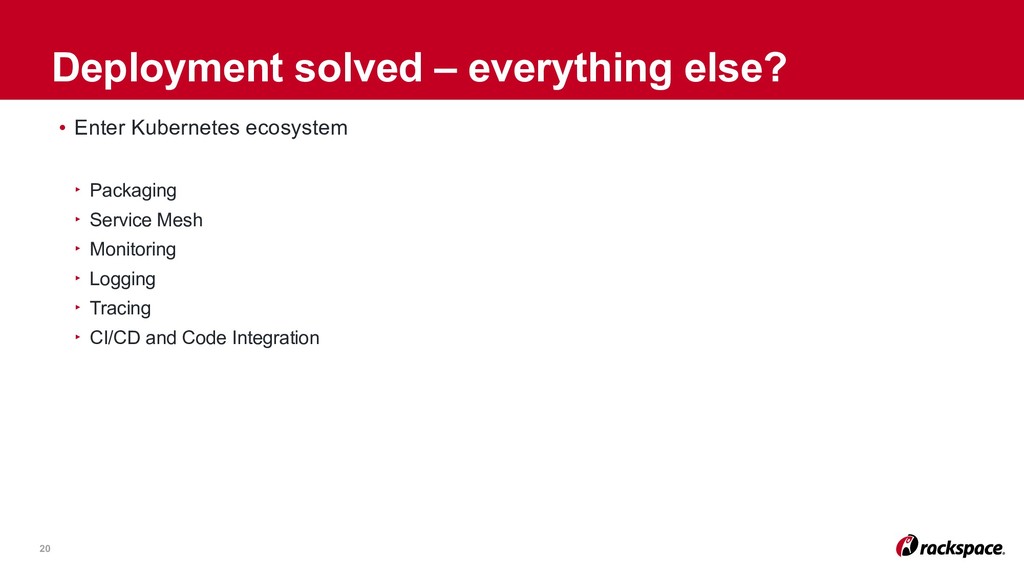

20. Deployment solved – everything else? 20 • Enter Kubernetes ecosystem ‣ Packaging ‣ Service Mesh ‣ Monitoring ‣ Logging ‣ Tracing ‣ CI/CD and Code Integration
21. Helm 21 https://helm.sh/

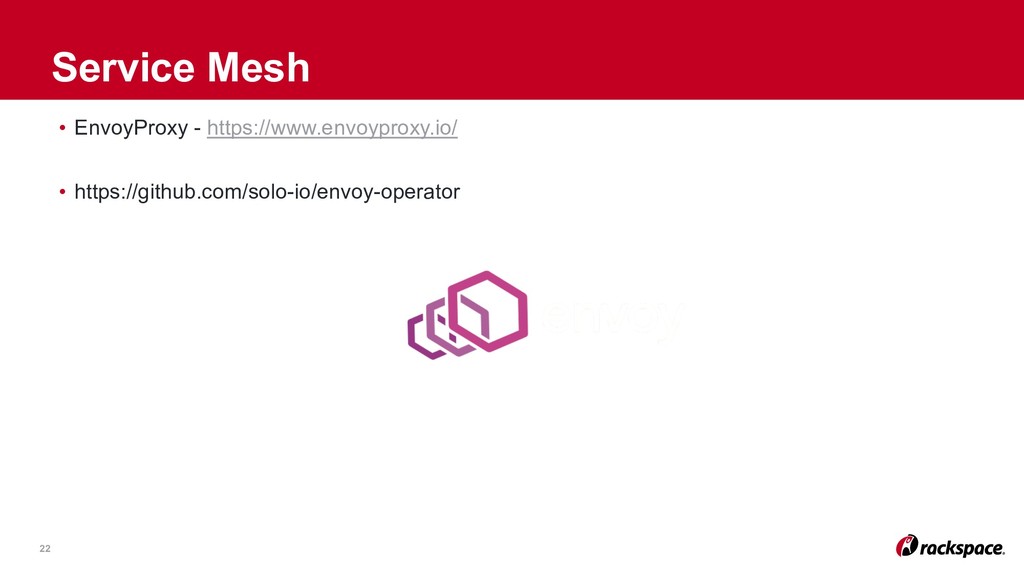

22. Service Mesh 22 • EnvoyProxy - https://www.envoyproxy.io/ • https://github.com/solo-io/envoy-operator

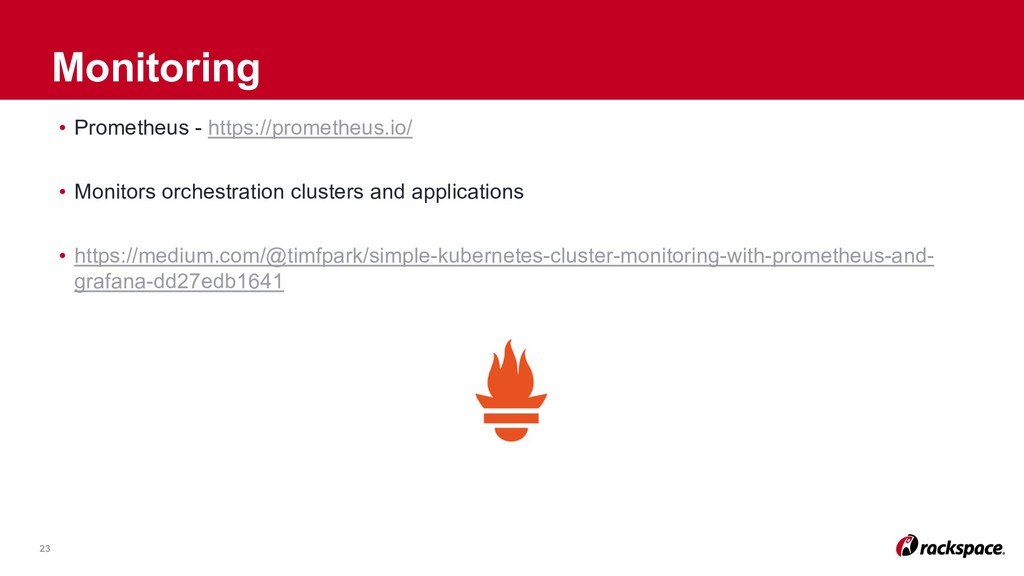

23. Monitoring 23 • Prometheus - https://prometheus.io/ • Monitors orchestration clusters and applications • https://medium.com/@timfpark/simple-kubernetes-cluster-monitoring-with-prometheus-and- grafana-dd27edb1641

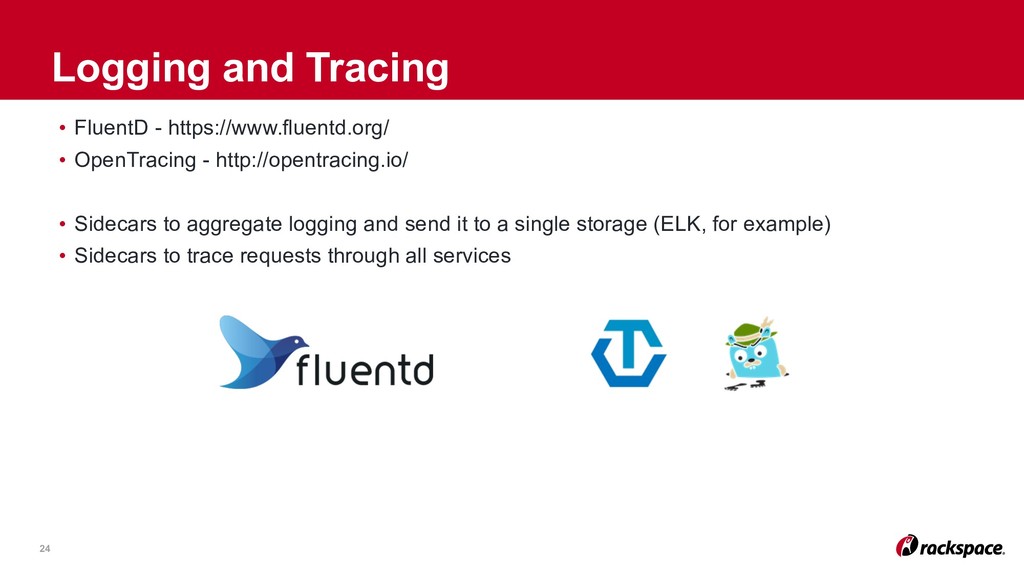

24. Logging and Tracing 24 • FluentD - https://www.fluentd.org/ • OpenTracing - http://opentracing.io/ • Sidecars to aggregate logging and send it to a single storage (ELK, for example) • Sidecars to trace requests through all services

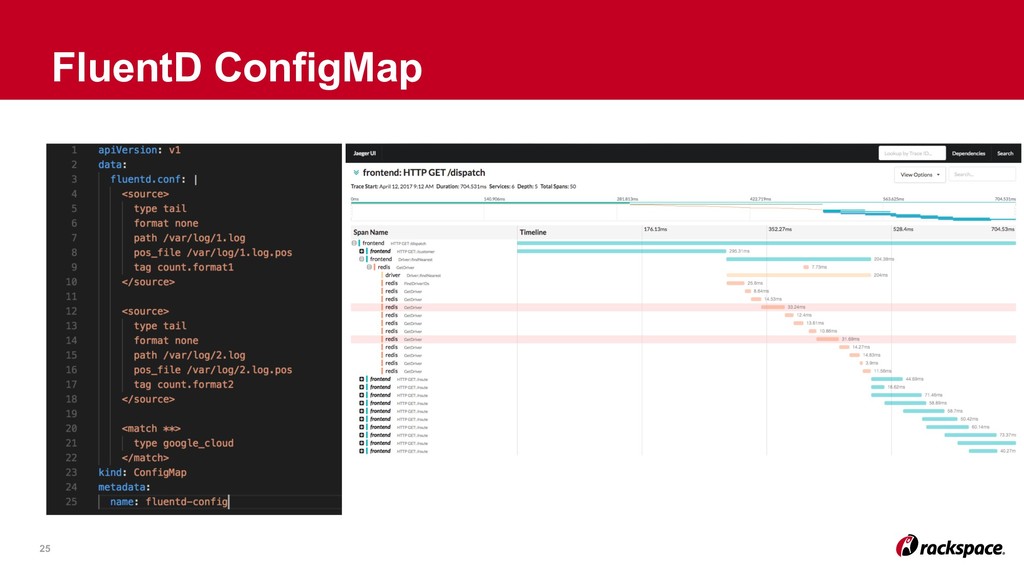

25. 25 FluentD ConfigMap

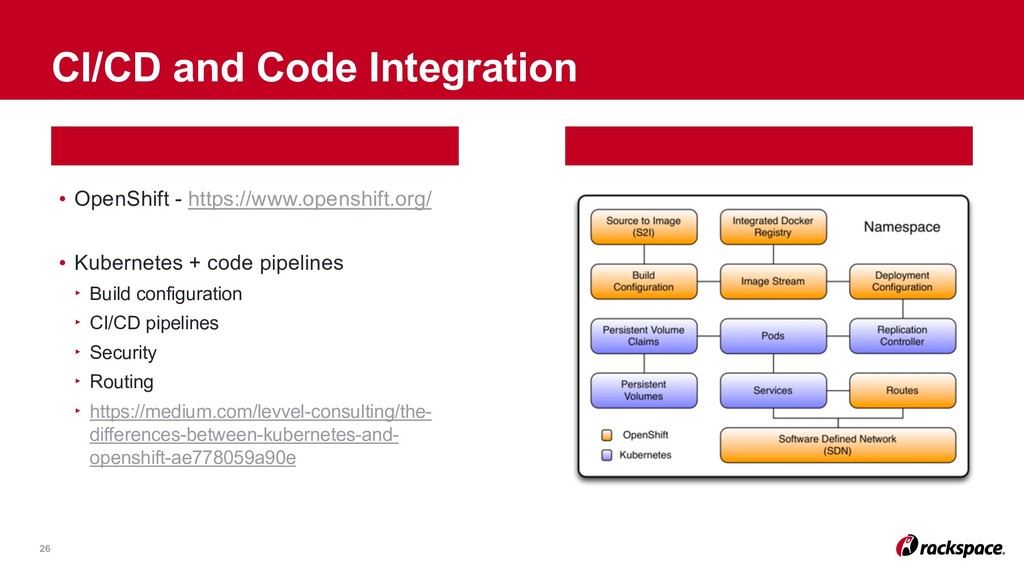

26. 26 CI/CD and Code Integration • OpenShift - https://www.openshift.org/ • Kubernetes + code pipelines ‣ Build configuration ‣ CI/CD pipelines ‣ Security ‣ Routing ‣ https://medium.com/levvel-consulting/the- differences-between-kubernetes-and- openshift-ae778059a90e

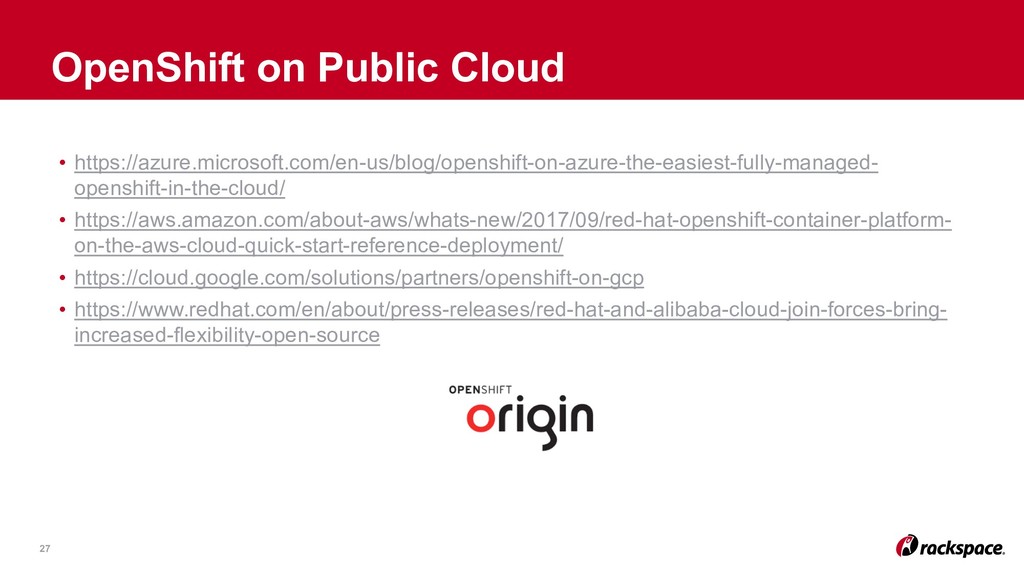

27. 27 OpenShift on Public Cloud • https://azure.microsoft.com/en-us/blog/openshift-on-azure-the-easiest-fully-managed- openshift-in-the-cloud/ • https://aws.amazon.com/about-aws/whats-new/2017/09/red-hat-openshift-container-platform- on-the-aws-cloud-quick-start-reference-deployment/ • https://cloud.google.com/solutions/partners/openshift-on-gcp • https://www.redhat.com/en/about/press-releases/red-hat-and-alibaba-cloud-join-forces-bring- increased-flexibility-open-source

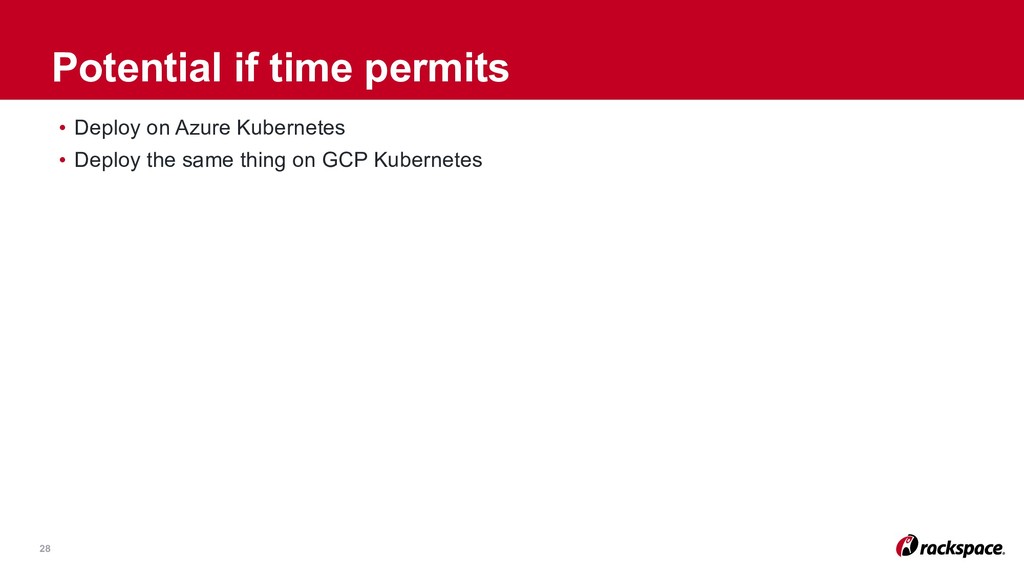

28. Potential if time permits 28 • Deploy on Azure Kubernetes • Deploy the same thing on GCP Kubernetes

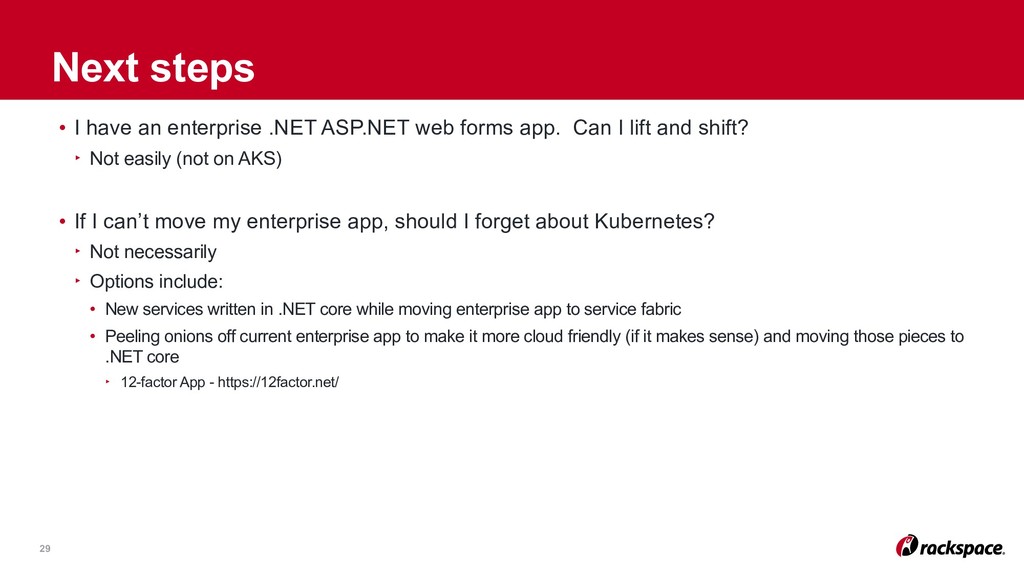

29. Next steps 29 • I have an enterprise .NET ASP.NET web forms app. Can I lift and shift? ‣ Not easily (not on AKS) • If I can’t move my enterprise app, should I forget about Kubernetes? ‣ Not necessarily ‣ Options include: • New services written in .NET core while moving enterprise app to service fabric • Peeling onions off current enterprise app to make it more cloud friendly (if it makes sense) and moving those pieces to .NET core ‣ 12-factor App - https://12factor.net/
