Integrate your data into OroCRM

CSV Import and Export

Transcript

1. Presentation title here Integrate your data into OroCRM CSV Import and Export Sergey Zhuravel https://github.com/sergeyz https://twitter.com/sergey_zv

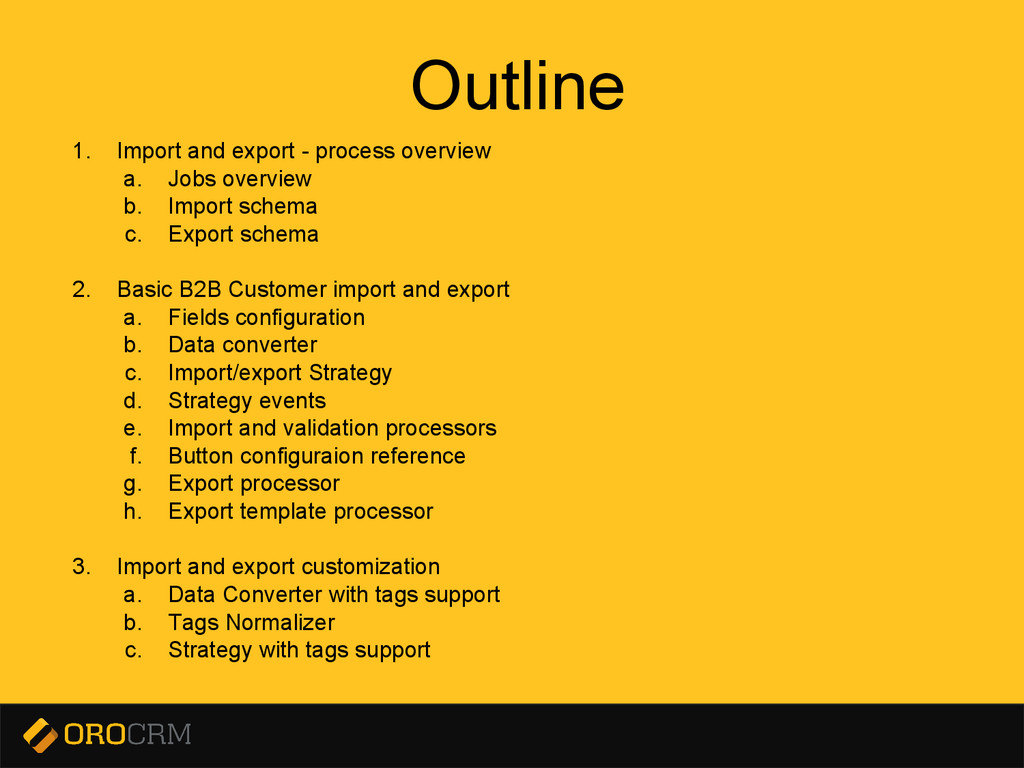

2. Presentation title here Outline 1. Import and export - process overview a. Jobs overview b. Import schema c. Export schema 2. Basic B2B Customer import and export a. Fields configuration b. Data converter c. Import/export Strategy d. Strategy events e. Import and validation processors f. Button configuraion reference g. Export processor h. Export template processor 3. Import and export customization a. Data Converter with tags support b. Tags Normalizer c. Strategy with tags support

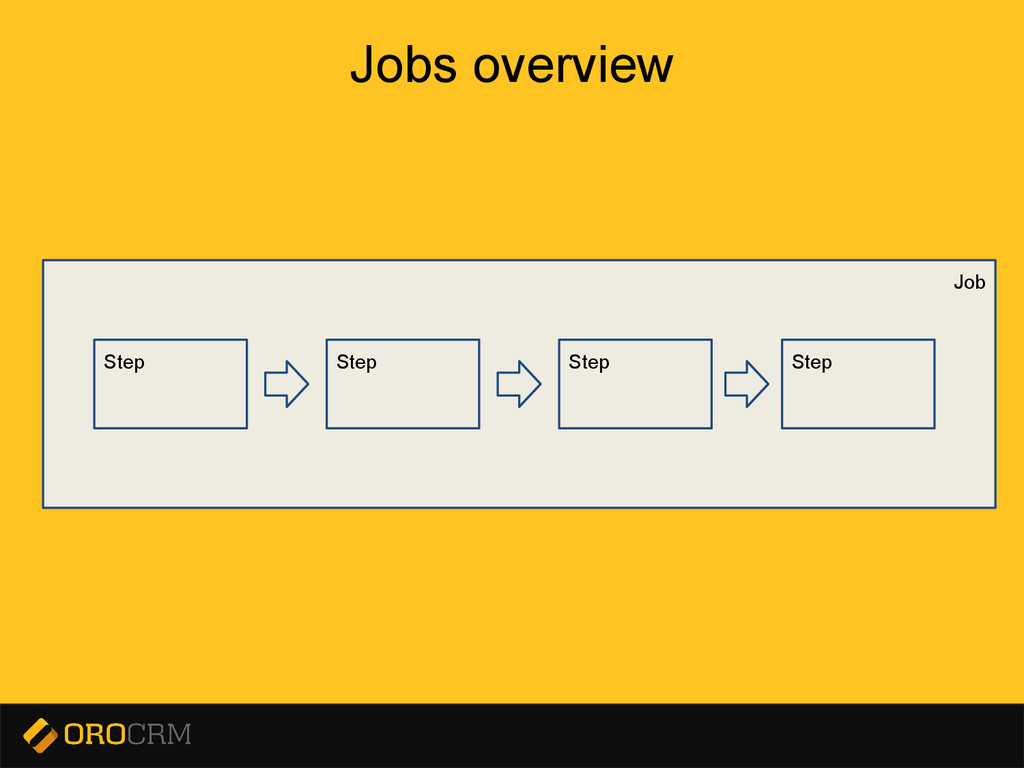

3. Presentation title here Jobs overview Job Step Step Step Step

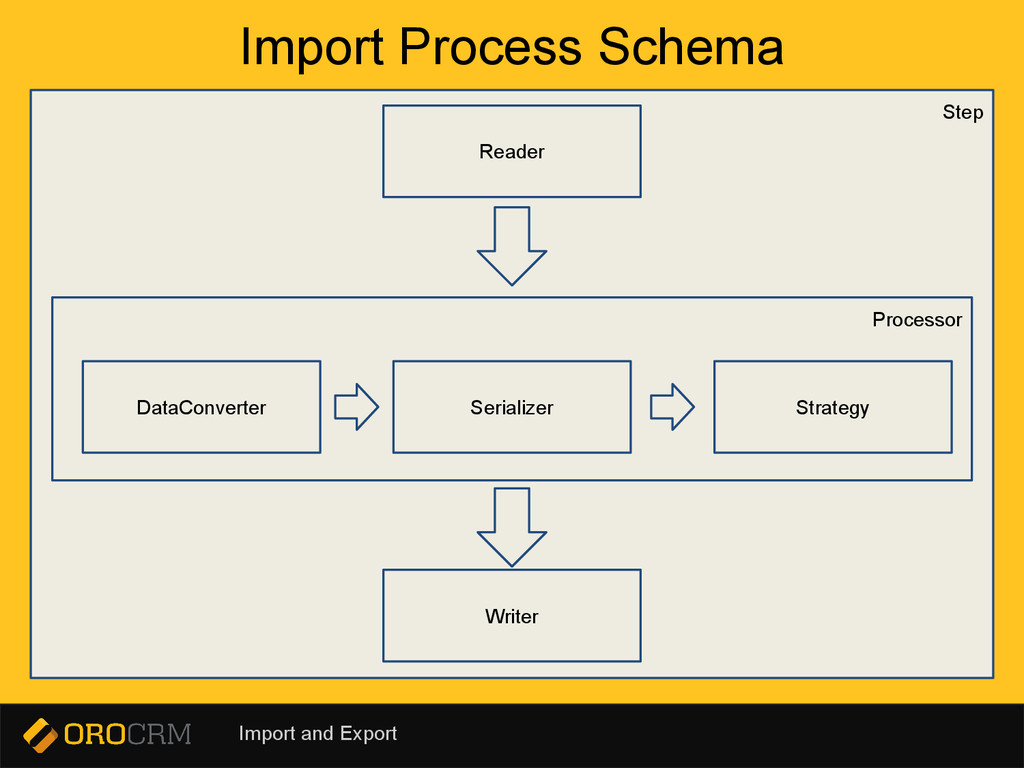

4. Presentation title here Import Process Schema Step Reader Processor Writer DataConverter Serializer Strategy Import and Export

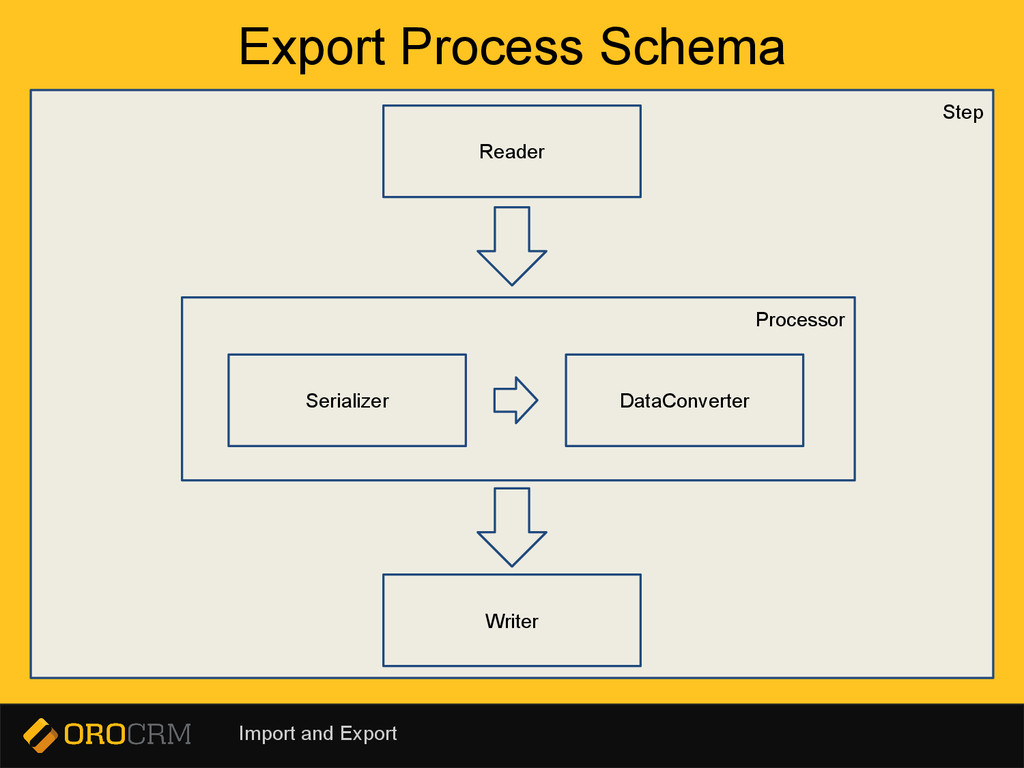

5. Presentation title here Export Process Schema Step Reader Processor Writer DataConverter Serializer Import and Export

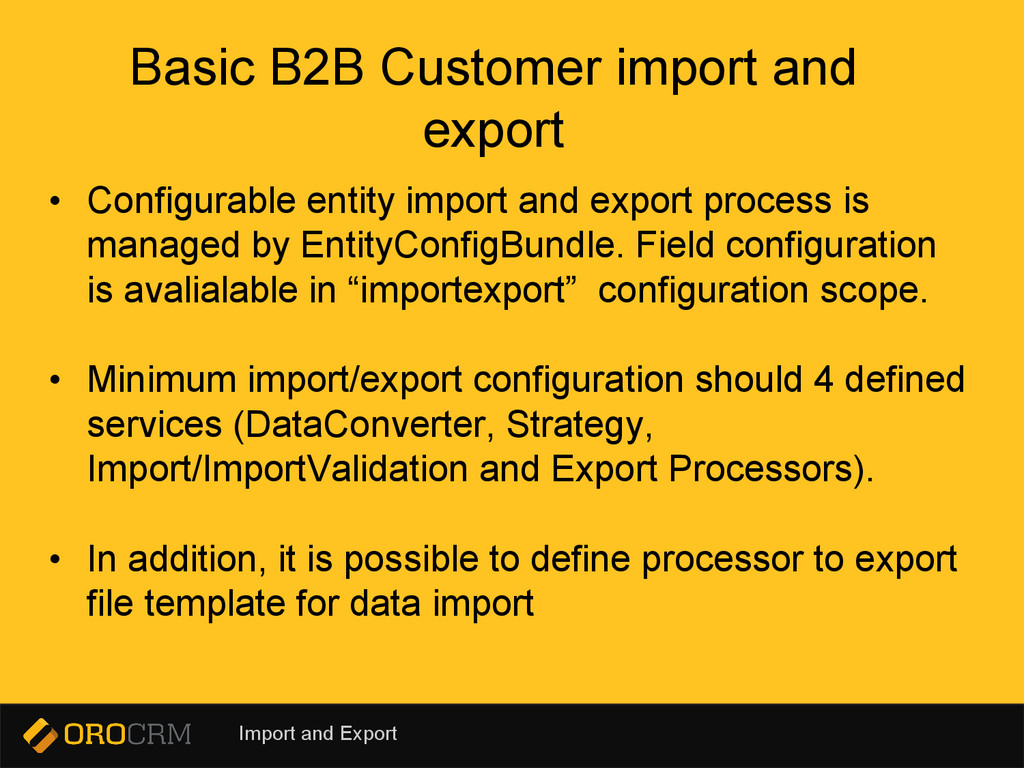

6. Presentation title here Basic B2B Customer import and export • Configurable entity import and export process is managed by EntityConfigBundle. Field configuration is avalialable in “importexport” configuration scope. • Minimum import/export configuration should 4 defined services (DataConverter, Strategy, Import/ImportValidation and Export Processors). • In addition, it is possible to define processor to export file template for data import Import and Export

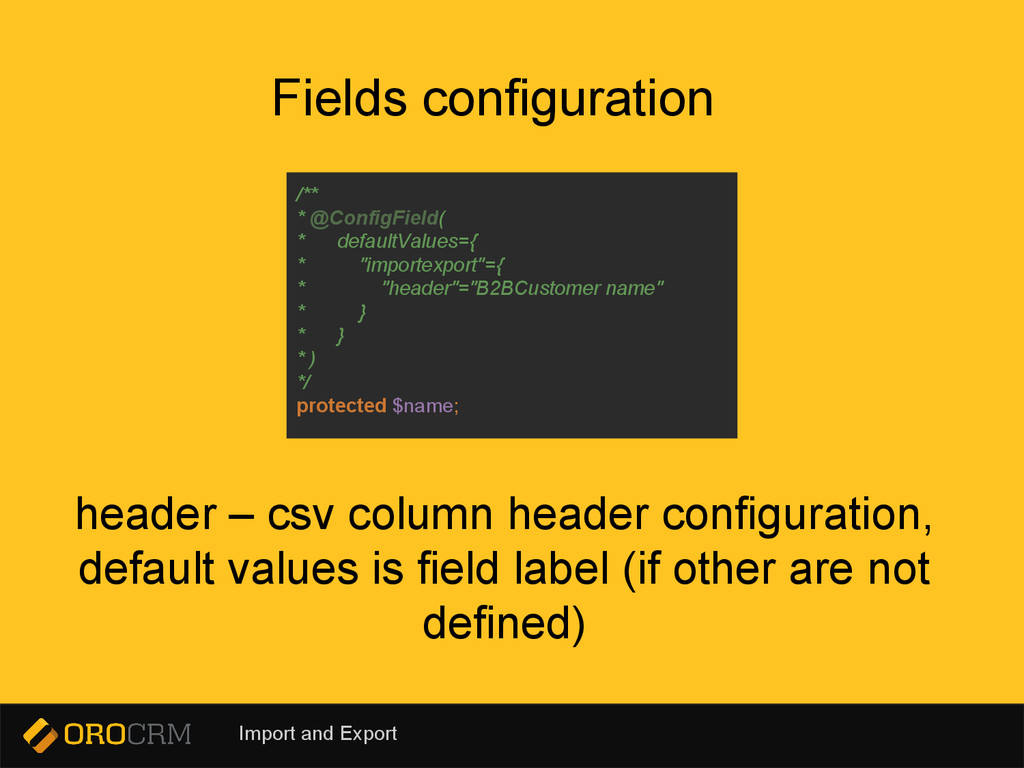

7. Presentation title here Fields configuration header – csv column header configuration, default values is field label (if other are not defined) /** * @ConfigField( * defaultValues={ * "importexport"={ * "header"="B2BCustomer name" * } * } * ) */ protected $name; Import and Export
8. Presentation title here Fields configuration identity – field is used to search entity by import strategy /** * @ConfigField( * defaultValues={ * "importexport"={ * "identity"=true * } * } * ) */ protected $name; Import and Export

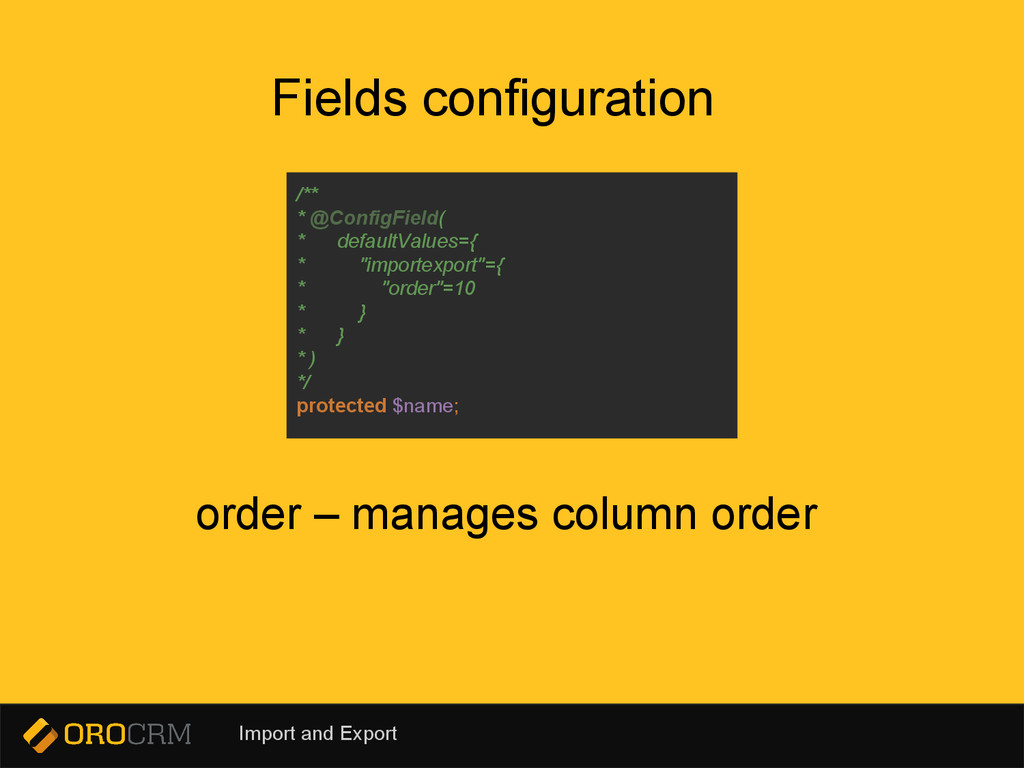

9. Presentation title here Fields configuration order – manages column order /** * @ConfigField( * defaultValues={ * "importexport"={ * "order"=10 * } * } * ) */ protected $name; Import and Export

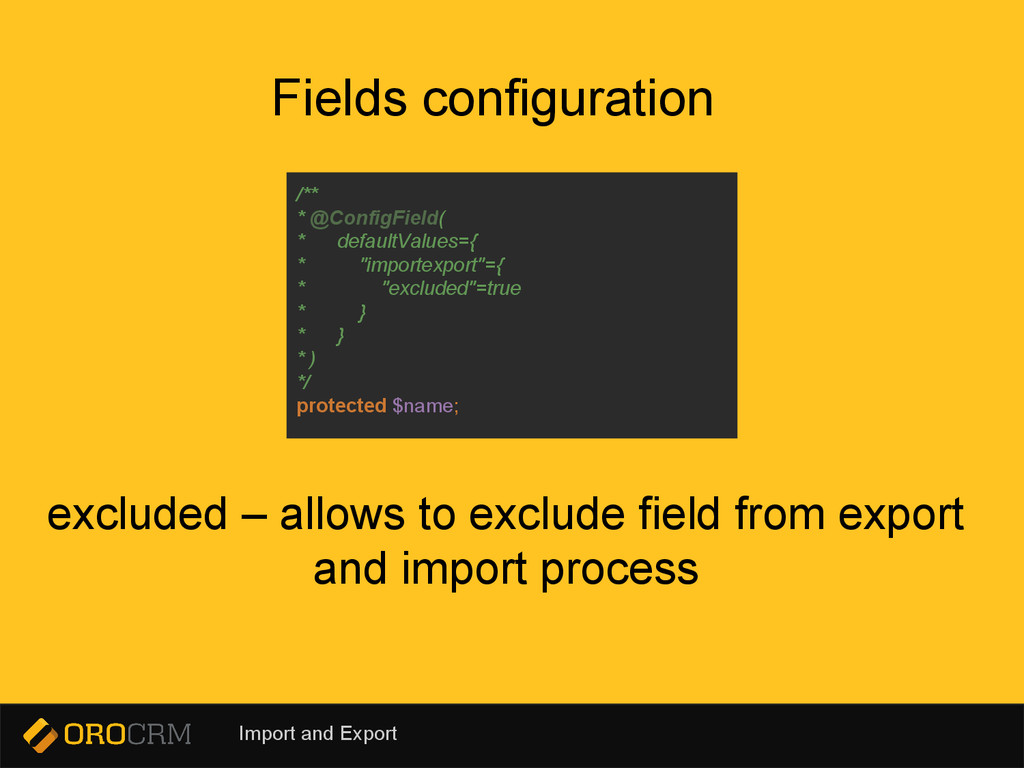

10. Presentation title here Fields configuration excluded – allows to exclude field from export and import process /** * @ConfigField( * defaultValues={ * "importexport"={ * "excluded"=true * } * } * ) */ protected $name; Import and Export

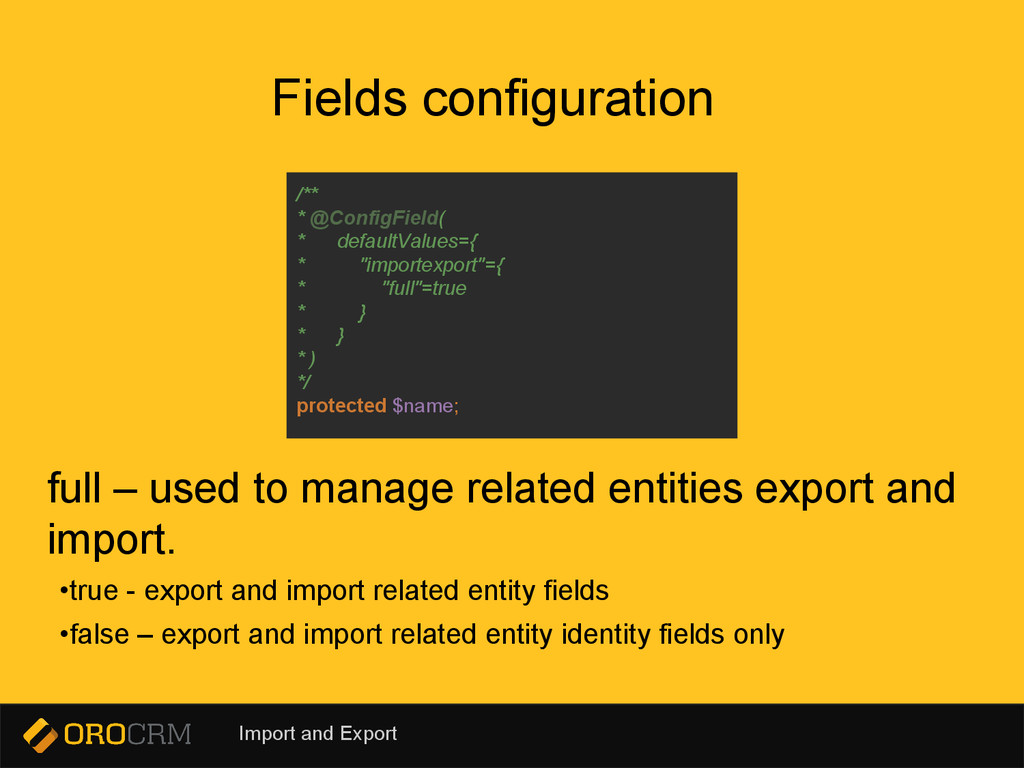

11. Presentation title here Fields configuration full – used to manage related entities export and import. •true - export and import related entity fields •false – export and import related entity identity fields only /** * @ConfigField( * defaultValues={ * "importexport"={ * "full"=true * } * } * ) */ protected $name; Import and Export
12. Presentation title here Fields configuration Import and Export
13. Presentation title here Data Converter • Data converter is responsible for headers mapping and converting imported data to nested representation of entity and its relations. • Use customized or ConfigurableTableDataConverter orocrm_sales.importexport.data_converter.b2bcustomer: parent: oro_importexport.data_converter.configurable Import and Export git checkout tags/step-1

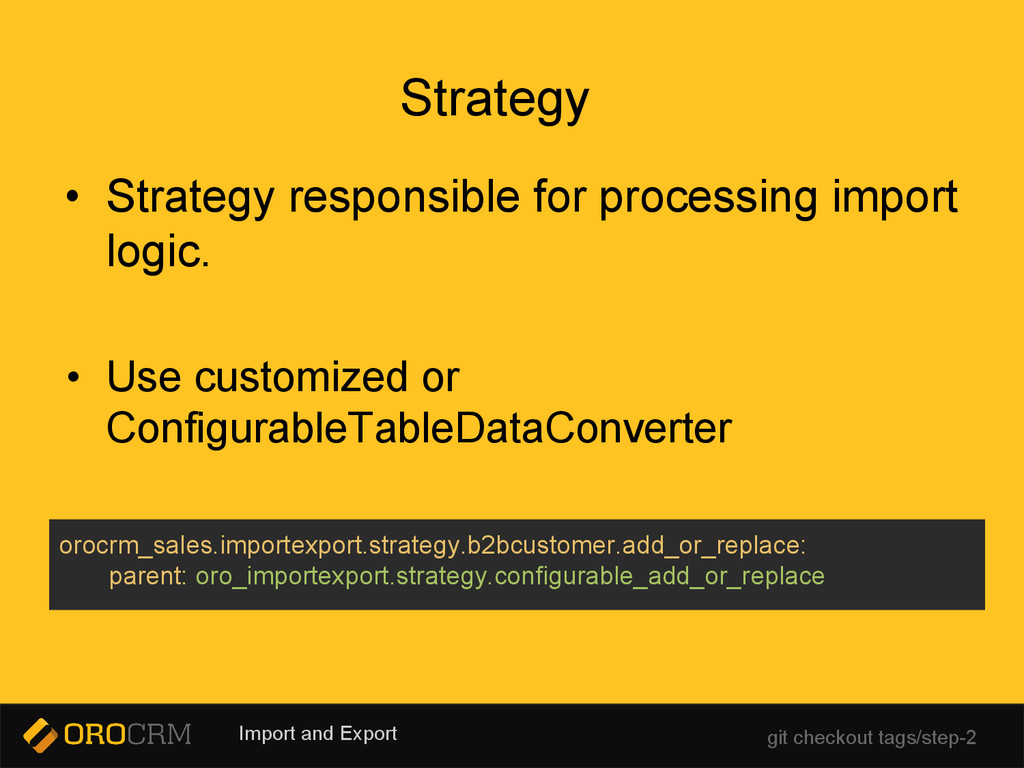

14. Presentation title here Strategy • Strategy responsible for processing import logic. • Use customized or ConfigurableTableDataConverter orocrm_sales.importexport.strategy.b2bcustomer.add_or_replace: parent: oro_importexport.strategy.configurable_add_or_replace Import and Export git checkout tags/step-2

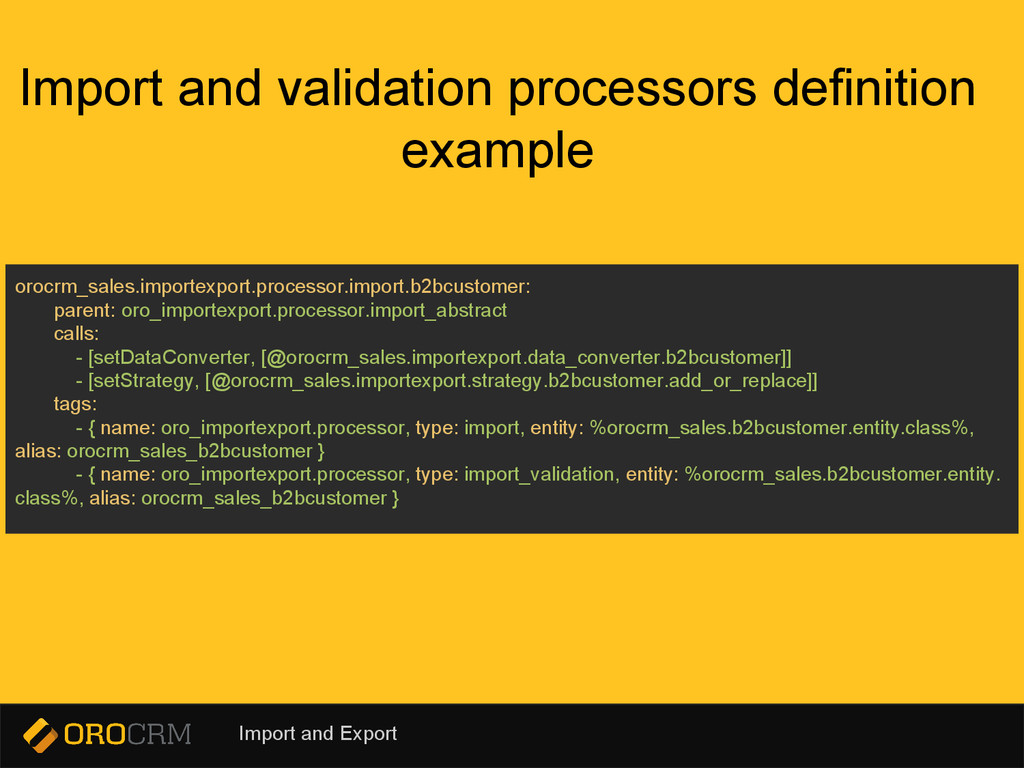

15. Presentation title here orocrm_sales.importexport.processor.import.b2bcustomer: parent: oro_importexport.processor.import_abstract calls: - [setDataConverter, [@orocrm_sales.importexport.data_converter.b2bcustomer]] - [setStrategy, [@orocrm_sales.importexport.strategy.b2bcustomer.add_or_replace]] tags: - { name: oro_importexport.processor, type: import, entity: %orocrm_sales.b2bcustomer.entity.class%, alias: orocrm_sales_b2bcustomer } - { name: oro_importexport.processor, type: import_validation, entity: %orocrm_sales.b2bcustomer.entity. class%, alias: orocrm_sales_b2bcustomer } Import and validation processors definition example Import and Export

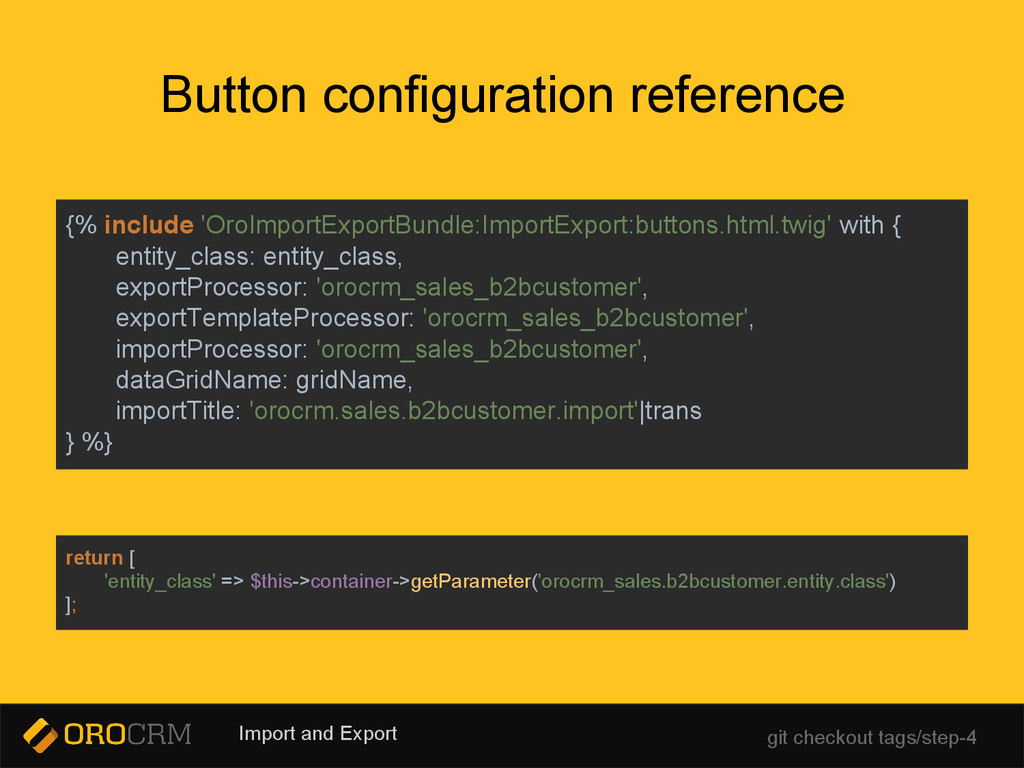

16. Presentation title here Button configuration reference {% include 'OroImportExportBundle:ImportExport:buttons.html.twig' with { entity_class: entity_class, exportProcessor: 'orocrm_sales_b2bcustomer', exportTemplateProcessor: 'orocrm_sales_b2bcustomer', importProcessor: 'orocrm_sales_b2bcustomer', dataGridName: gridName, importTitle: 'orocrm.sales.b2bcustomer.import'|trans } %} return [ 'entity_class' => $this->container->getParameter('orocrm_sales.b2bcustomer.entity.class') ]; Import and Export git checkout tags/step-4

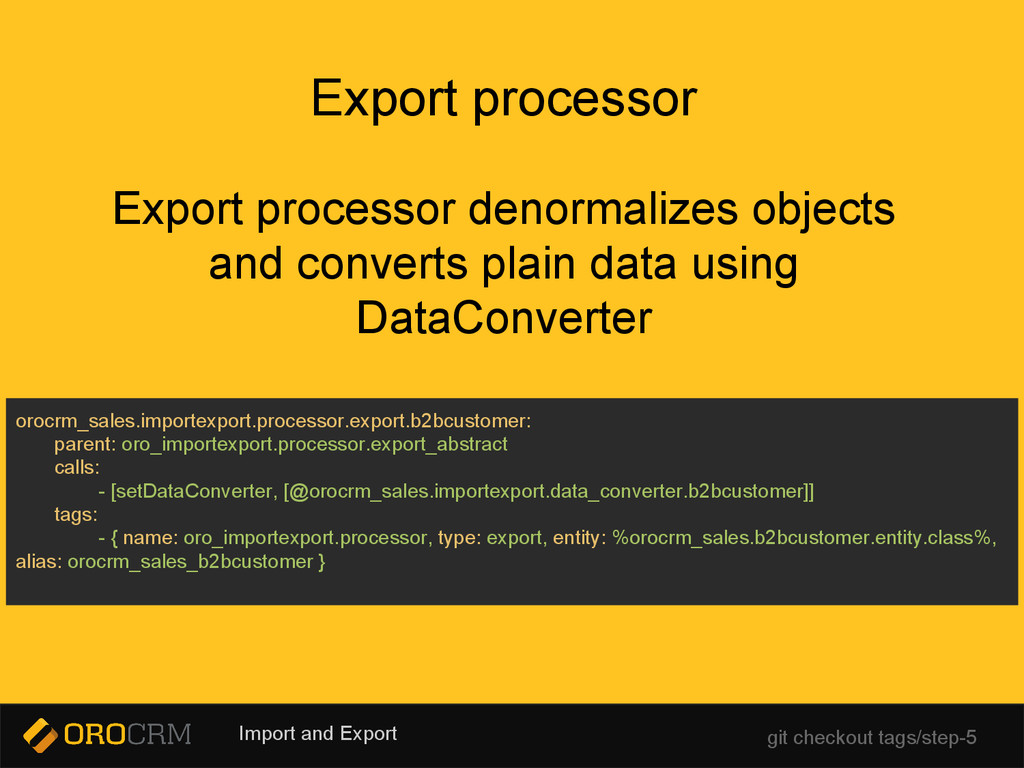

17. Presentation title here Export processor Export processor denormalizes objects and converts plain data using DataConverter orocrm_sales.importexport.processor.export.b2bcustomer: parent: oro_importexport.processor.export_abstract calls: - [setDataConverter, [@orocrm_sales.importexport.data_converter.b2bcustomer]] tags: - { name: oro_importexport.processor, type: export, entity: %orocrm_sales.b2bcustomer.entity.class%, alias: orocrm_sales_b2bcustomer } Import and Export git checkout tags/step-5

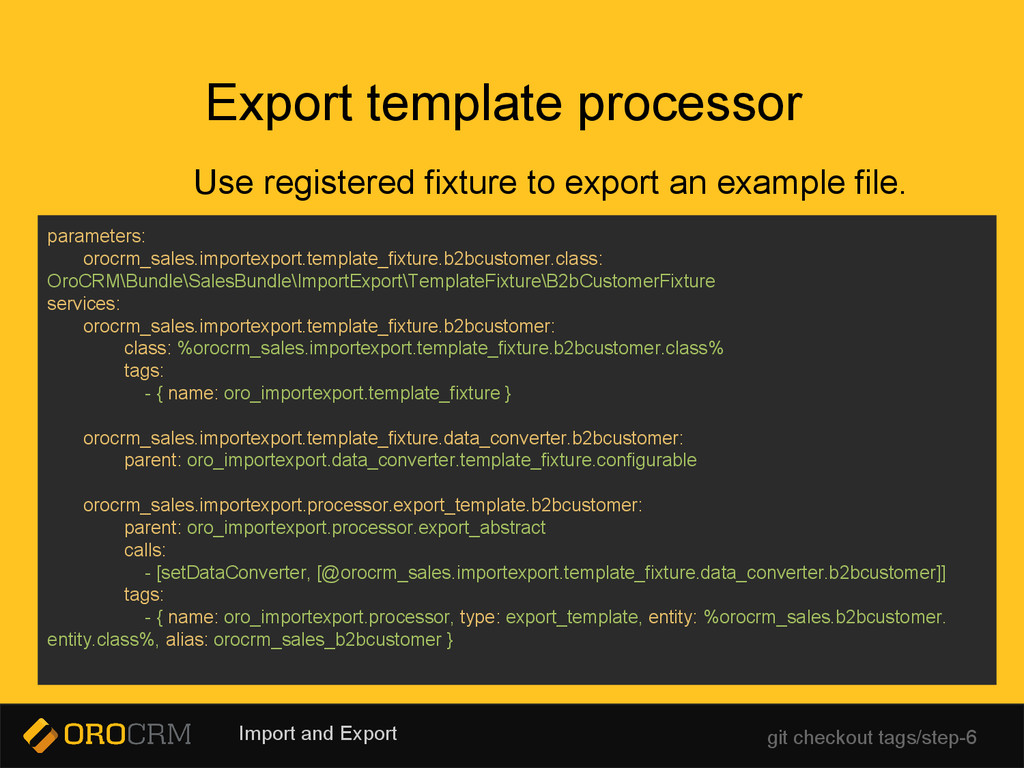

18. Presentation title here Export template processor Use registered fixture to export an example file. parameters: orocrm_sales.importexport.template_fixture.b2bcustomer.class: OroCRM\Bundle\SalesBundle\ImportExport\TemplateFixture\B2bCustomerFixture services: orocrm_sales.importexport.template_fixture.b2bcustomer: class: %orocrm_sales.importexport.template_fixture.b2bcustomer.class% tags: - { name: oro_importexport.template_fixture } orocrm_sales.importexport.template_fixture.data_converter.b2bcustomer: parent: oro_importexport.data_converter.template_fixture.configurable orocrm_sales.importexport.processor.export_template.b2bcustomer: parent: oro_importexport.processor.export_abstract calls: - [setDataConverter, [@orocrm_sales.importexport.template_fixture.data_converter.b2bcustomer]] tags: - { name: oro_importexport.processor, type: export_template, entity: %orocrm_sales.b2bcustomer. entity.class%, alias: orocrm_sales_b2bcustomer } Import and Export git checkout tags/step-6

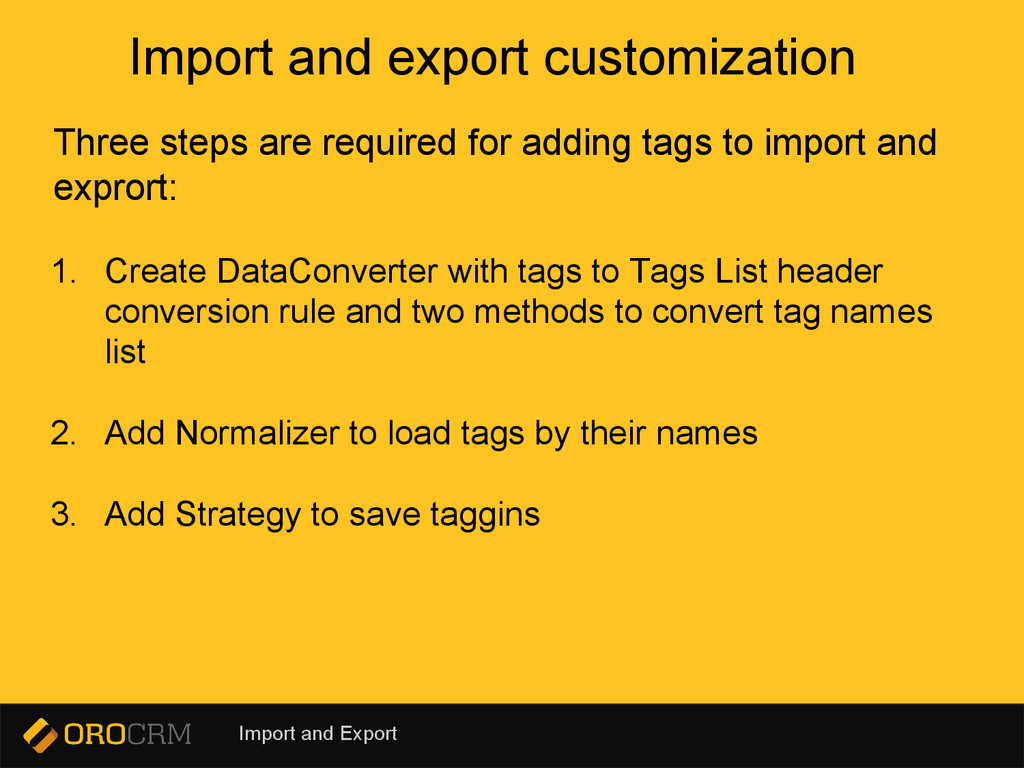

19. Presentation title here Import and export customization Import and Export Three steps are required for adding tags to import and exprort: 1. Create DataConverter with tags to Tags List header conversion rule and two methods to convert tag names list 2. Add Normalizer to load tags by their names 3. Add Strategy to save taggins
20. Presentation title here Custom Data Converter use Oro\Bundle\ImportExportBundle\Converter\AbstractTableDataConverter; class B2BCustomerDataConverter extends AbstractTableDataConverter { /** * {@inheritdoc} */ protected function getHeaderConversionRules() { return [ 'ID' => 'id', 'Name' => 'name', 'Channel' => 'channel:name', ]; } /** * {@inheritdoc} */ protected function getBackendHeader() { return ['id', 'name', 'channel']; } } Import and Export git checkout tags/step-7
21. Presentation title here Normalizers • Import and export use extended Serializer Component. • Serializer converts plain data to entities and back using normalizers. • Oro Serialier and Normalizers have additional parameter “context” to make normalization process more flexible. orocrm_sales.importexport.normalizer.b2bcustomer: parent: oro_importexport.serializer.configurable_entity_normalizer tags: - { name: oro_importexport.normalizer } Import and Export git checkout tags/step-8

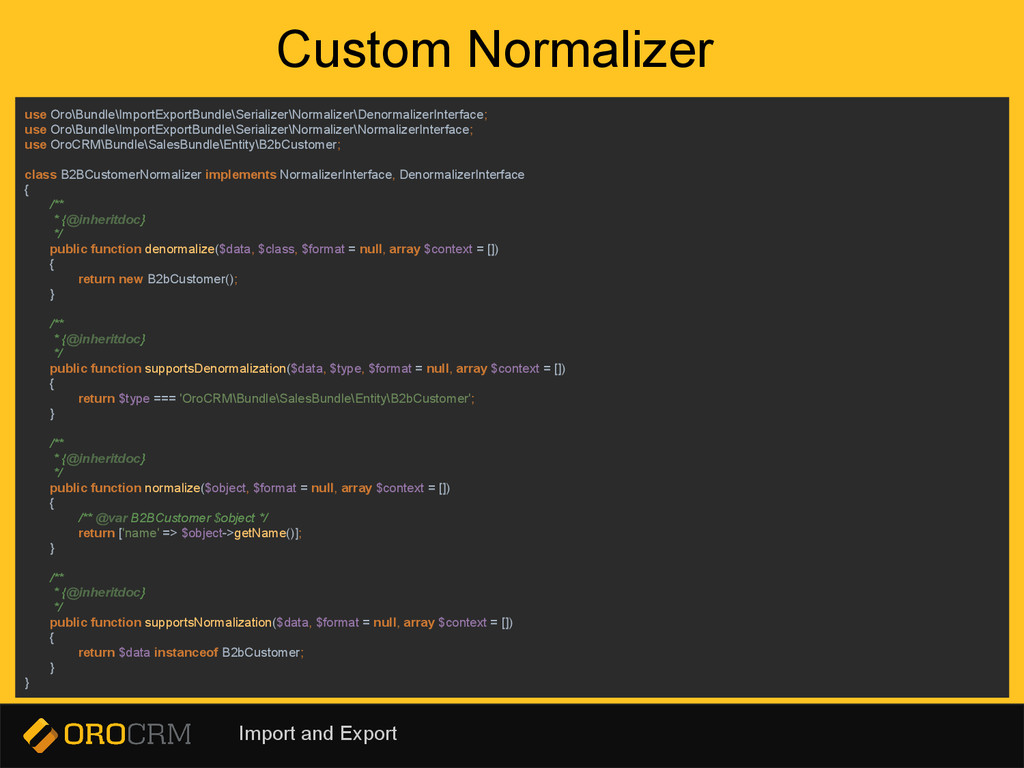

22. Presentation title here Custom Normalizer use Oro\Bundle\ImportExportBundle\Serializer\Normalizer\DenormalizerInterface; use Oro\Bundle\ImportExportBundle\Serializer\Normalizer\NormalizerInterface; use OroCRM\Bundle\SalesBundle\Entity\B2bCustomer; class B2BCustomerNormalizer implements NormalizerInterface, DenormalizerInterface { /** * {@inheritdoc} */ public function denormalize($data, $class, $format = null, array $context = []) { return new B2bCustomer(); } /** * {@inheritdoc} */ public function supportsDenormalization($data, $type, $format = null, array $context = []) { return $type === 'OroCRM\Bundle\SalesBundle\Entity\B2bCustomer'; } /** * {@inheritdoc} */ public function normalize($object, $format = null, array $context = []) { /** @var B2BCustomer $object */ return ['name' => $object->getName()]; } /** * {@inheritdoc} */ public function supportsNormalization($data, $format = null, array $context = []) { return $data instanceof B2bCustomer; } } Import and Export
23. Presentation title here Custom Strategy use Oro\Bundle\ImportExportBundle\Strategy\StrategyInterface use OroCRM\Bundle\SalesBundle\Entity\B2bCustomer; class B2BCustomerStrategy extends StrategyInterface { /** * @param B2BCustomer $entity * * {@inheritdoc} */ public function process($entity) { if (!$entity->getDataChannel()) { return null; } return $entity; } } Import and Export git checkout tags/step-9
24. Presentation title here Strategy Events namespace Oro\Bundle\ImportExportBundle\Event; use Symfony\Component\EventDispatcher\Event; class StrategyEvent extends Event { const PROCESS_BEFORE = 'oro_importexport.strategy.process_before'; const PROCESS_AFTER = 'oro_importexport.strategy.process_after'; Import and Export

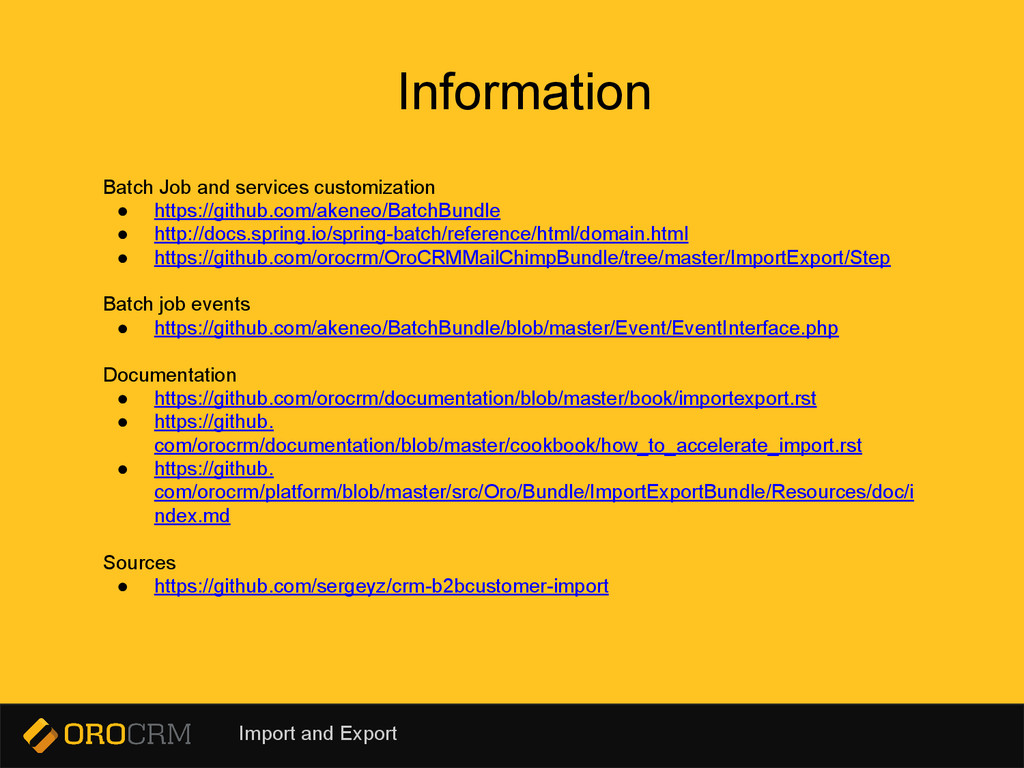

25. Presentation title here Batch Job and services customization • https://github.com/akeneo/BatchBundle • http://docs.spring.io/spring-batch/reference/html/domain.html • https://github.com/orocrm/OroCRMMailChimpBundle/tree/master/ImportExport/Step Batch job events • https://github.com/akeneo/BatchBundle/blob/master/Event/EventInterface.php Documentation • https://github.com/orocrm/documentation/blob/master/book/importexport.rst • https://github. com/orocrm/documentation/blob/master/cookbook/how_to_accelerate_import.rst • https://github. com/orocrm/platform/blob/master/src/Oro/Bundle/ImportExportBundle/Resources/doc/i ndex.md Sources • https://github.com/sergeyz/crm-b2bcustomer-import Information Import and Export
26. Presentation title here Q/A Import and Export
