Micro Switch

Yuenfung
November 25, 2022

Micro Switch

Right angle 6 needle 2 gear plastic white PS-22E59 Small flat top micro switch push button. Click for more info: https://www.alibaba.com/product-detail/right-angle-6-needle-2-gear_1600388208560.html?spm=a2700.shop_plser.41413.11.5ebb40997AXlNS

Product Description
Rating : 30VDC 1A
Function : OFF-ON
Mechanical life : 10000 cycles
Contact resistance : 50MΩ Max
Insulation resistance : 1000 MΩ [email protected] VDC
Dielectric strength : AC 500V
Operating temperature : -16ºC to +60ºC
Operating force : 250±100gf
Typical applications : Instrumentation measurement equipment

Yuenfung

November 25, 2022
Tweet

Other Decks in Technology

Transcript

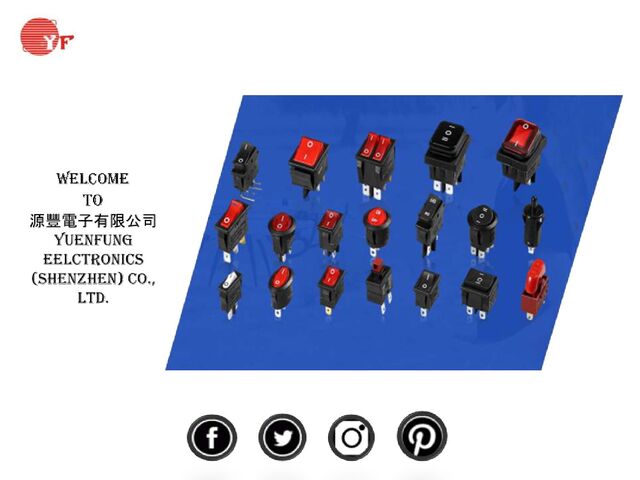

  1. None
  2. YuenFung Electronic(SHenZhen)CO.ltd is a HongKong manufacturer of switche and jack.

    Established in 1997, specialized in researching,designing,manufacturing and sales of switches ,Our main products are:Toggle Switch\Rocker and Lever Handle Switch\Rocker Switch \tact Switch\Push Switch\Slide Switch\and so on , for Home appliance\ flight controllers Phone\Camera\Toy\Instrument and Computer etc.The products are compliant to European RoHS directive and REACH ,company have implemented ISO9001:2015 and ISO 14001:2015 ,most of products have obtained UL ,CQC CULUS,ENEC international certification
  3. Micro Switch Right angle 6 needle 2 gear plastic white

    PS-22E59 Small flat top micro switch push button. Click for more info: https://www.alibaba.com/product-detail/right-angle-6-needle-2- gear_1600388208560.html?spm=a2700.shop_plser.41413.11.5ebb40997AXlNS Product Description Rating : 30VDC 1A Function : OFF-ON Mechanical life : 10000 cycles Contact resistance : 50MΩ Max Insulation resistance : 1000 MΩ [email protected] VDC Dielectric strength : AC 500V Operating temperature : -16ºC to +60ºC Operating force : 250±100gf Typical applications : Instrumentation measurement equipment Micro Switch Factory Lema KW7-2 roller lever micro switch microswitch CE micro switch for motorcycles. Click for more info: https://www.alibaba.com/product-detail/Micro-Switch-Lema-KW7-2- Roller_1600598223921.html?spm=a2700.galleryofferlist.normal_offer.d_image.56a340abngtjqk&s=p Product Description Brand : LEMA Model : KW7-2 Voltage : 250V Electric Current : 16A Protection level : IP40 Package : CARTON Size : 37.2*15.9*10.3mm Certification : 37.2*15.9*10.3mm Operating speed : 0.1mm-1m/s
  4. Micro Switch Manufacturer 12 Pin Pushbutton Switch 30VDC 0.1A Locking

    Blue Push Button Switch Wholesale. Click for more info: https://www.alibaba.com/product-detail/12-Pin-Pushbutton-Switch-30VDC- 0_1600146175897.html?spm=a2700.shop_plser.41413.13.3e426144EVuScA Product Description Rating : 30VDC 1A Function : OFF-ON Mechanical life : 10000 cycles Contact resistance : 50MΩ Max Insulation resistance : 1000 MΩ [email protected] VDC Dielectric strength : AC 500V Operating temperature : -16ºC to +60ºC Operating force : 350±100gf Typical applications : Instrumentation measurement equipment Push Button switch 2022 IP65 splash-proof round push button switch reset self-locking 16 mm diameter installation size push button switch. Click for more info: https://www.alibaba.com/product-detail/2022-IP65-splash-proof-round- push_1600217952975.html?spm=a2700.shop_plser.41413.13.2bcc5b03QQJ4Hf Product Description Rating : Ith:5A Ui:250V Mounting Hole Size : Φ16MM Contact arrangement : 1NO Operating Type : Momentary Torque : 5-14N.m Mechanical life : 1000000 cycles Electric life : 50000 cycles Contact resistance : 50MΩ Max Insulation resistance : 1000 MΩ [email protected] VDC
  5. Toggle Switch MTS-102-C3 ON-ON 3 Pin Single Pole Right Angle

    Mini Toggle Switch. Click for more info: https://www.alibaba.com/product-detail/MTS-102-C3-ON-ON- 3_62096942892.html?spm=a2700.shop_plser.41413.11.4d4150deMhUbTU Product Description Rating : 5A 125VAC, 2A 250VAC Contact Resistance : 20MΩ Max Insulation Resistance : 500VDC 1000MΩ Min Dielectric Strength : 1500V AC, 1 Minute Operatiing Temperature : -25ºC~+85ºC Electrical Life : 10000 cycles Mechanical Life : 40000 cycles Circuit : SPDT Switch function : ON ON Miniature Toggle Switch 5A 125VAC 2A 250VAC on on miniature rocker toggle switch, click for more info: https://www.alibaba.com/product- detail/5A-125VAC-2A-250VAC-on-on_1600574793501.html?spm=a2700.shop_plser.41413.15.53d82c9eAM87Ju Product Description Rating : 5A 125VAC, 2A 250VAC Contact Resistance : 20MΩ Max Insulation Resistanc : 500VDC 1000MΩ Min Dielectric Strength : 1000VAC, 1 Minute Operatiing Temperature : -25ºC~+85ºC Electrical Life : 10000 cycles Mechanical Life : 40000 cycles Circuit : DPDT
  6. Contact Information - : Follow Us : - YuenFung Electronic(SHenZhen)CO.ltd

    is a HongKong manufacturer of switche and jack. Established in 1997, specialized in researching,designing,manufacturing and sales of switches ,Our main products are:Toggle Switch\Rocker and Lever Handle Switch\Rocker Switch \tact Switch\Push Switch\Slide Switch\and so on , for Home appliance\ flight controllers Phone\Camera\Toy\Instrument and Computer etc.The products are compliant to European RoHS directive and REACH ,company have implemented ISO9001:2015 and ISO 14001:2015 ,most of products have obtained UL ,CQC CULUS,ENEC international certification. yfswitch.en.alibaba.com
