MR16 Report

MR16 含 AC Power

Transcript

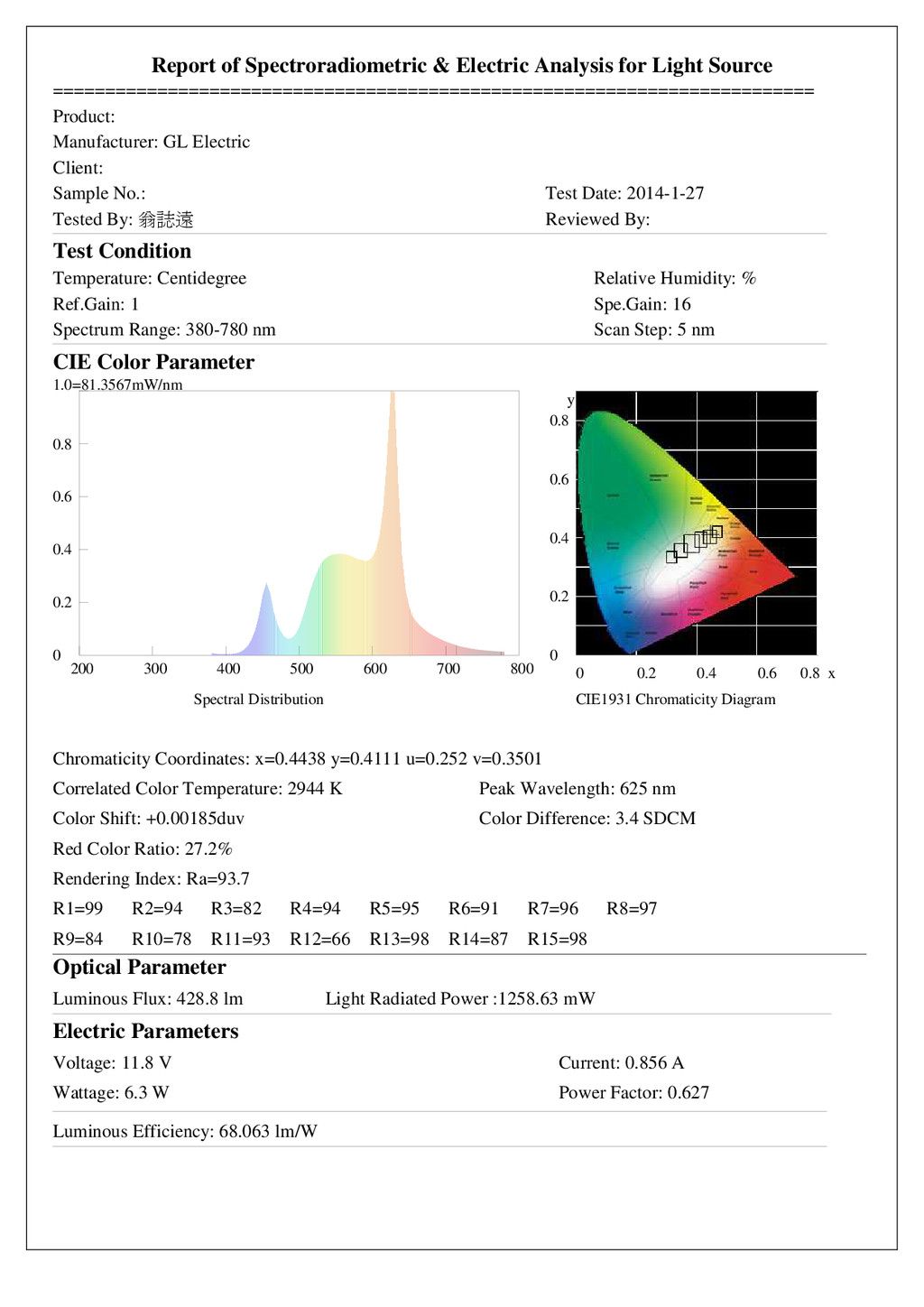

1. Report of Spectroradiometric & Electric Analysis for Light Source ========================================================================= Product: Manufacturer: GL Electric Client: Sample No.: Test Date: 2014-1-27 Tested By: 翁翁翁 Reviewed By: Test Condition Temperature: Centidegree Relative Humidity: % Ref.Gain: 1 Spe.Gain: 16 Spectrum Range: 380-780 nm Scan Step: 5 nm CIE Color Parameter 0 0.2 0.4 0.6 0.8 1.0=81.3567mW/nm 200 300 400 500 600 700 800 Spectral Distribution CIE1931 Chromaticity Diagram y 0.8 0.6 0.4 0.2 0 0 0.2 0.4 0.6 0.8 x Chromaticity Coordinates: x=0.4438 y=0.4111 u=0.252 v=0.3501 Correlated Color Temperature: 2944 K Peak Wavelength: 625 nm Color Shift: +0.00185duv Color Difference: 3.4 SDCM Red Color Ratio: 27.2% Rendering Index: Ra=93.7 R1=99 R2=94 R3=82 R4=94 R5=95 R6=91 R7=96 R8=97 R9=84 R10=78 R11=93 R12=66 R13=98 R14=87 R15=98 Optical Parameter Luminous Flux: 428.8 lm Light Radiated Power :1258.63 mW Electric Parameters Voltage: 11.8 V Current: 0.856 A Wattage: 6.3 W Power Factor: 0.627 Luminous Efficiency: 68.063 lm/W
