mruby on C#: From VM Implementation to Game (RubyKaigi 2026)Scripting

RubyKaigi 2026 Day1
https://rubykaigi.org/2026/presentations/hadashiA.html

What if mruby could run anywhere—without any C compilation? I built MRubyCS, a complete mruby VM implementation in pure C#. This makes embedding mruby in cross-platform applications far easier. Cross-platform distribution means juggling build targets, static/dynamic linking, and diverse host machines—a constant hassle (iOS, Web, Win, Mac, consoles, etc.). And on closed platforms like game consoles (Ps, Switch, Xbox..), it's often impractical without SDK access—now it just works. Unity and .NET already handle platform abstraction for you. This also opens new doors for the Ruby community. Game development has long been a space where Ruby has limited presence. With mruby running in Unity, Ruby developers can bring their language into one of the world's most popular game engines—for scripting game logic, building tools, and more. Beyond the VM implementation story, I'll show practical game scripting with VitalRouter.MRuby and Fiber-based coroutines!

Transcript

1. mruby on C# From VM Implementation to Game Scripting
2. mruby is the lightweight implementation of the Ruby language can be linked and embedded within your application.

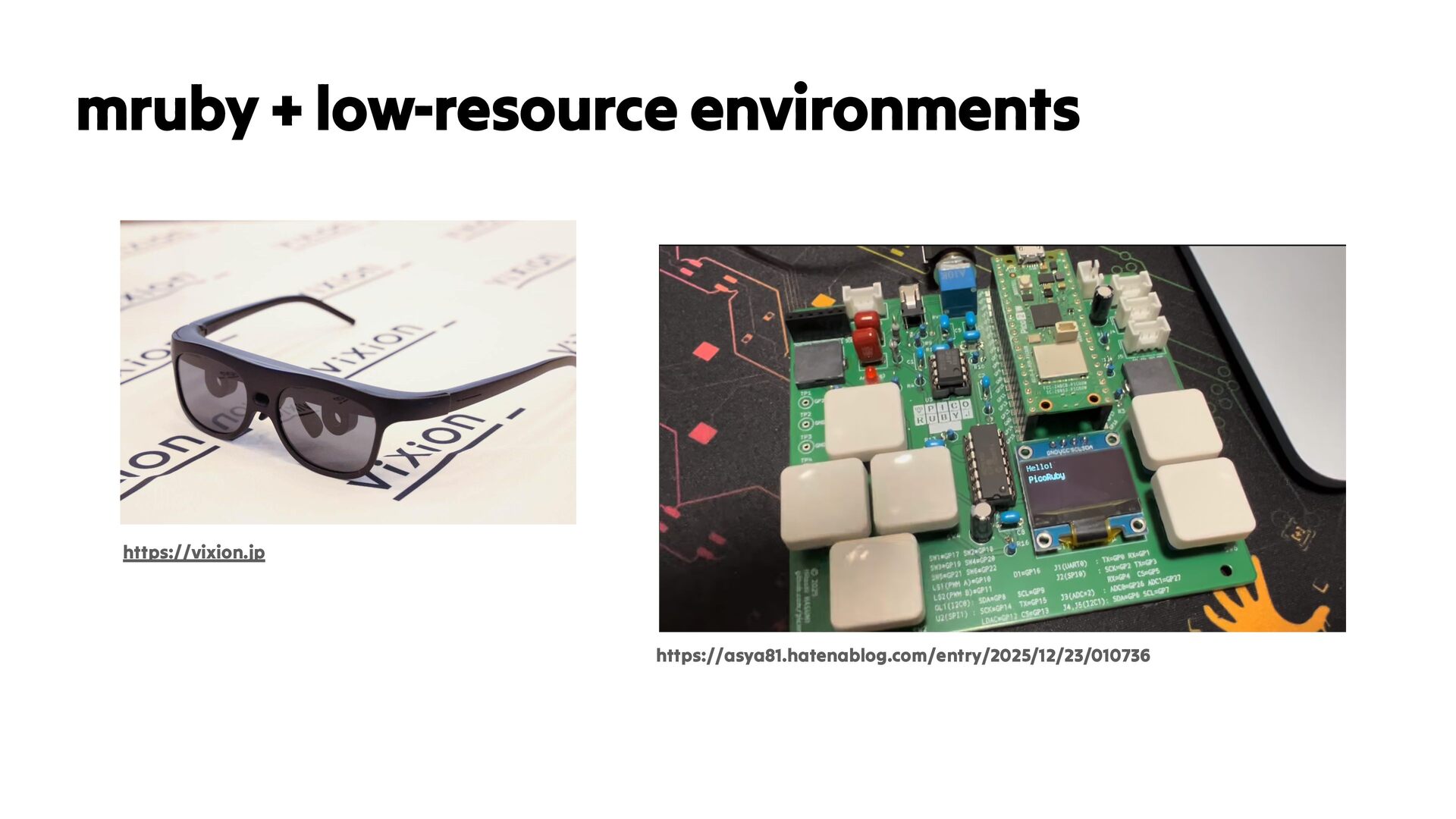

3. mruby + low-resource environments https://asya81.hatenablog.com/entry/2025/12/23/010736 https://vixion.jp
4. mruby is the lightweight implementation of the Ruby language can be linked and embedded within your application.

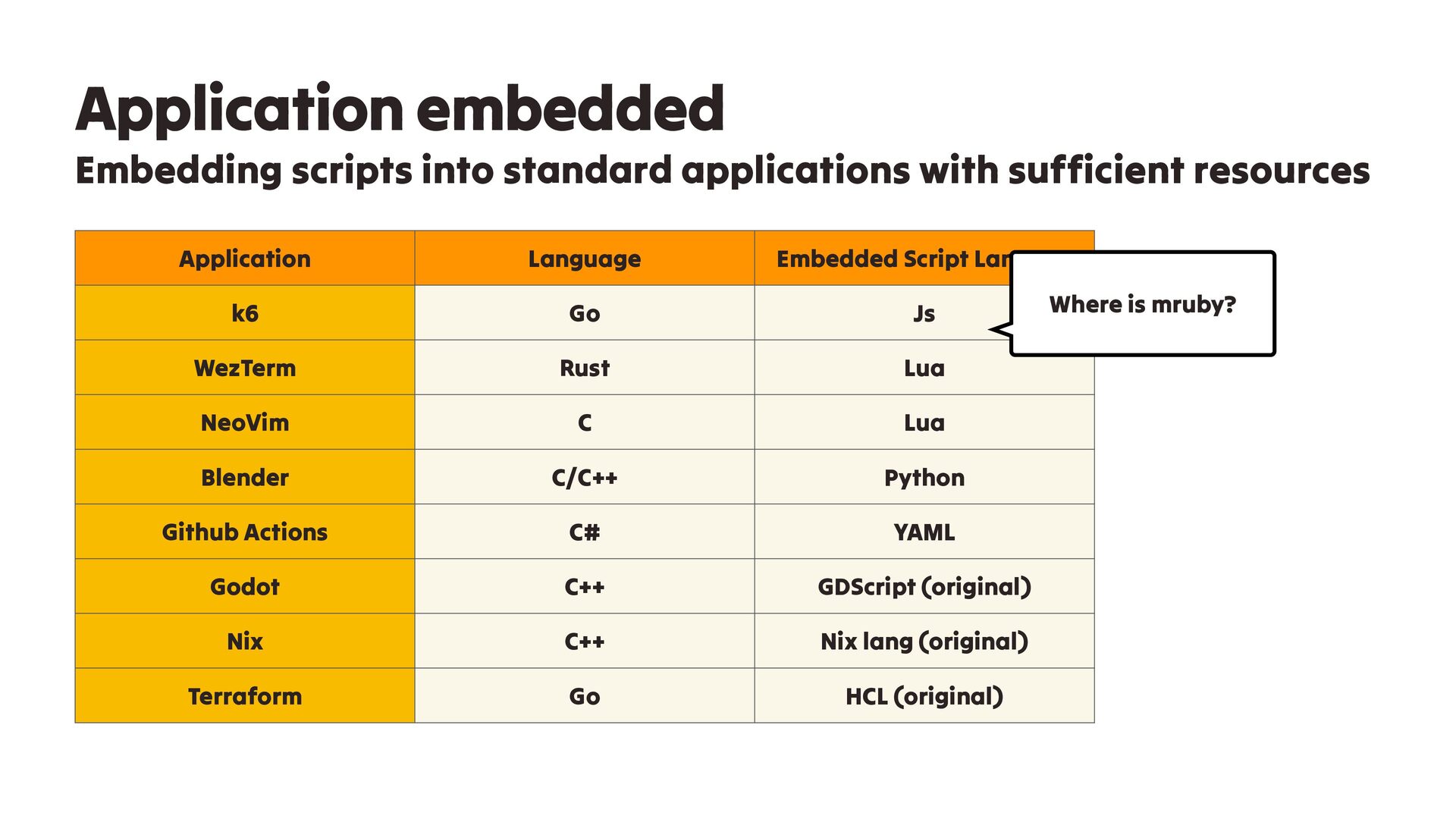

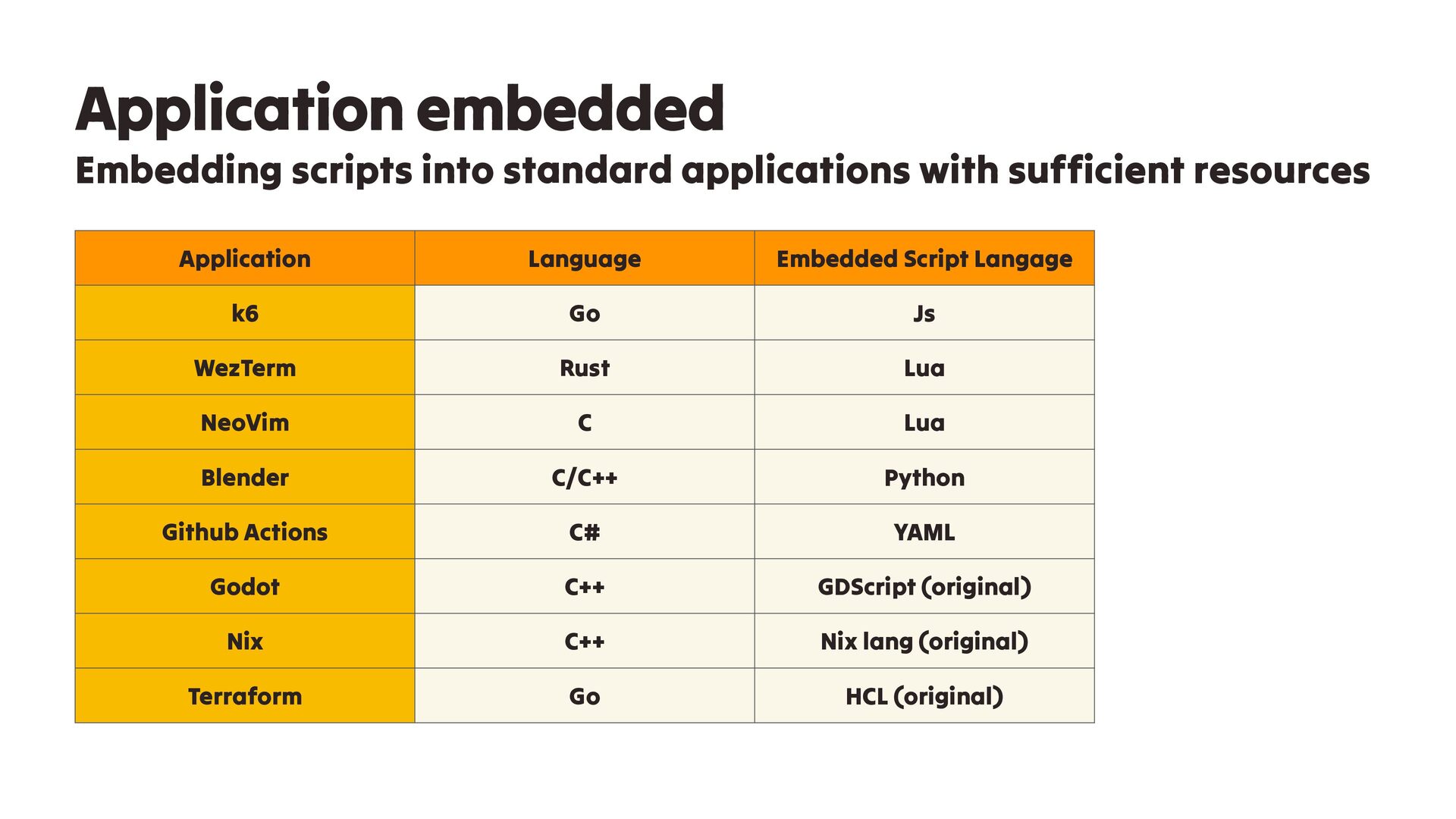

5. Application embedded Embedding scripts into standard applications with sufficient resources Application Language Embedded Script Langage k6 Go Js WezTerm Rust Lua NeoVim C Lua Blender C/C++ Python Github Actions C# YAML Godot C++ GDScript (original) Nix C++ Nix lang (original) Terraform Go HCL (original)
6. Μʜʜ
7. Application embedded Embedding scripts into standard applications with sufficient resources Application Language Embedded Script Langage k6 Go Js WezTerm Rust Lua NeoVim C Lua Blender C/C++ Python Github Actions C# YAML Godot C++ GDScript (original) Nix C++ Nix lang (original) Terraform Go HCL (original) Where is mruby?
8. Q. Why isn't muby popular for app embedding?

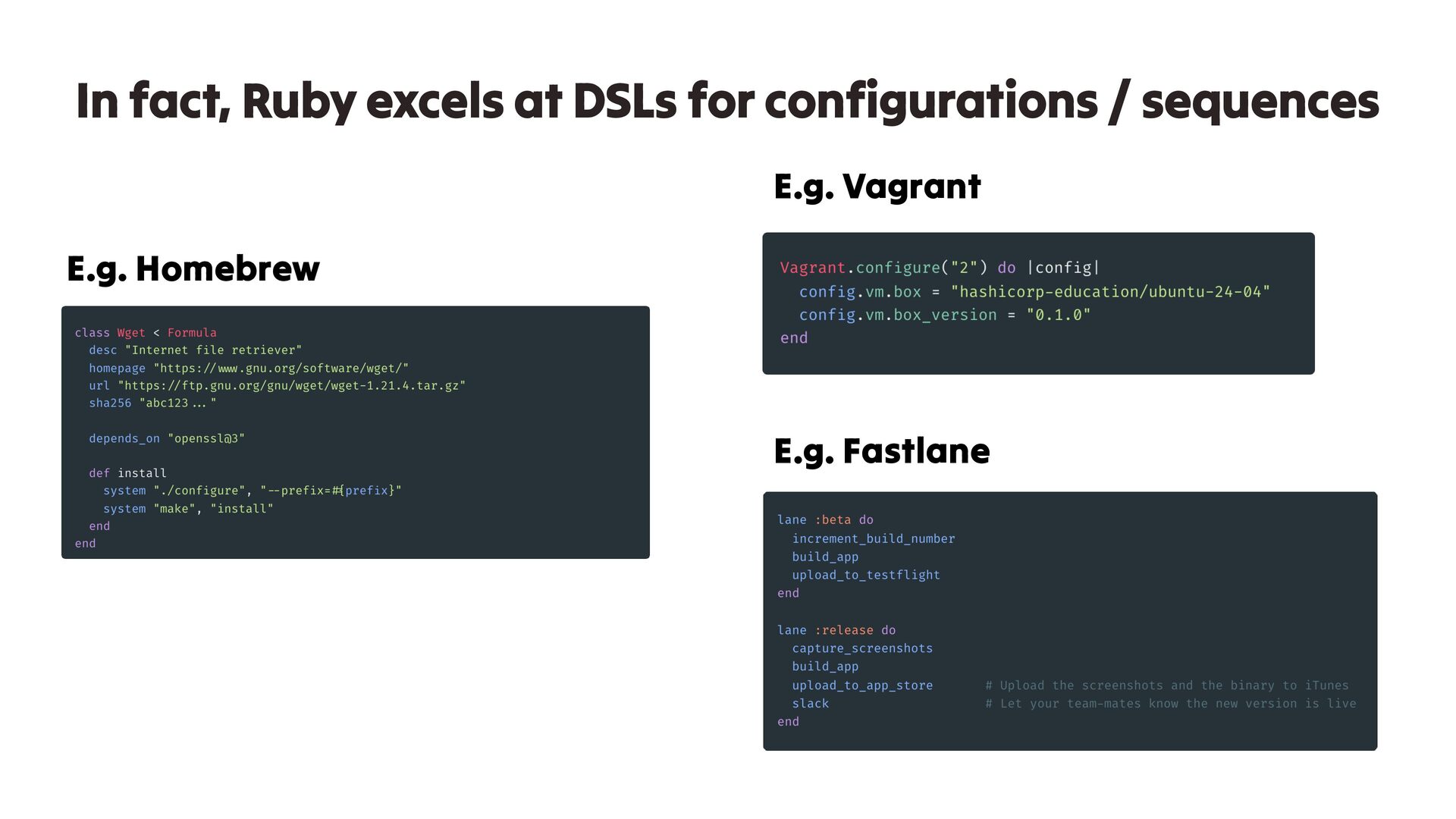

9. In fact, Ruby excels at DSLs for configurations / sequences E.g. Vagrant E.g. Fastlane E.g. Homebrew

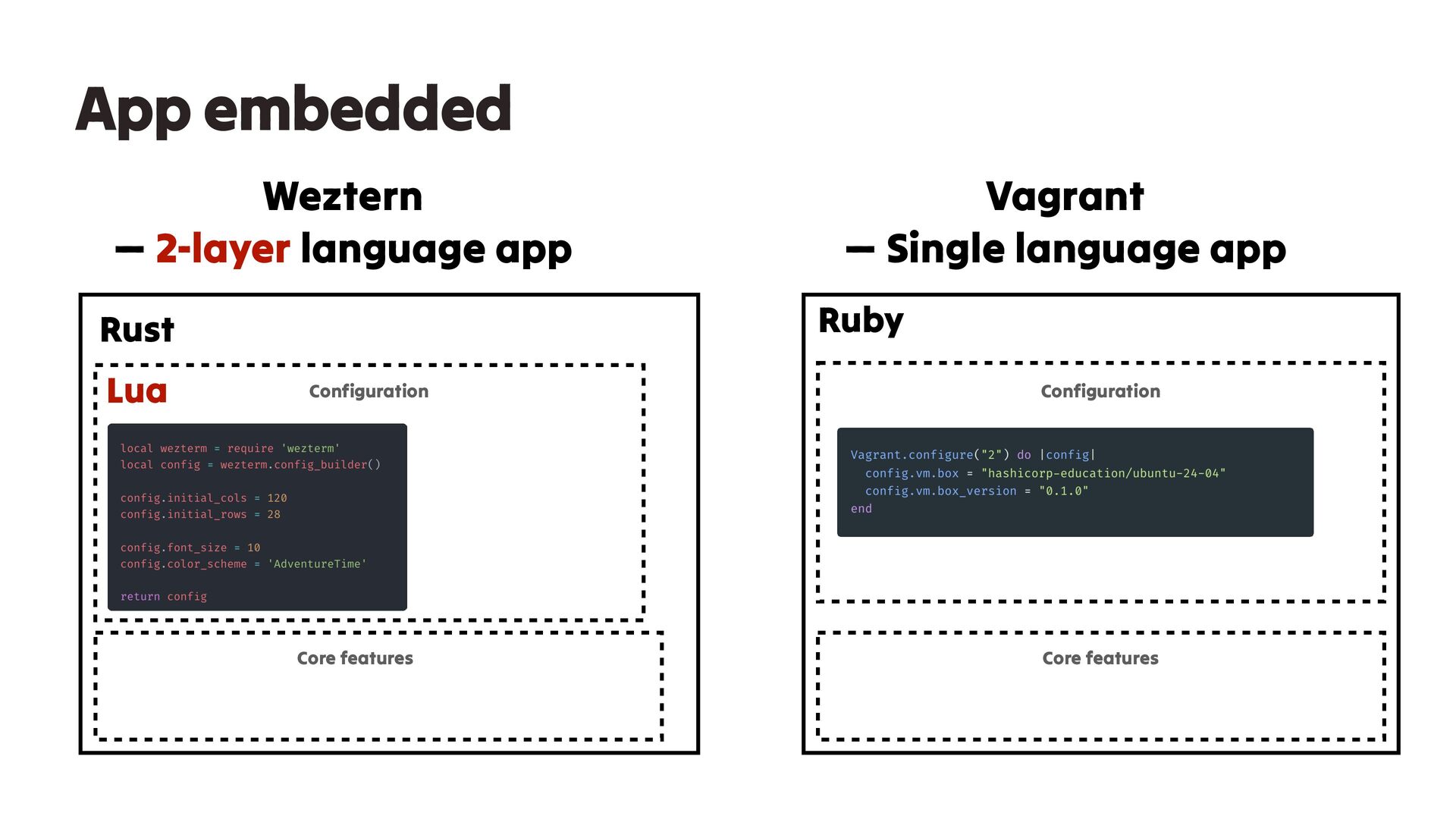

10. App embedded Vagrant — Single language app Weztern — 2-layer language app Lua Rust Ruby Configuration Configuration Core features Core features
11. ٱอాཽࣗ/ @hadashiA • OSS Developer (C#/Unity) • Experience working as an architect for large-scale online games / web services • Interested in performance optimization About Speaker

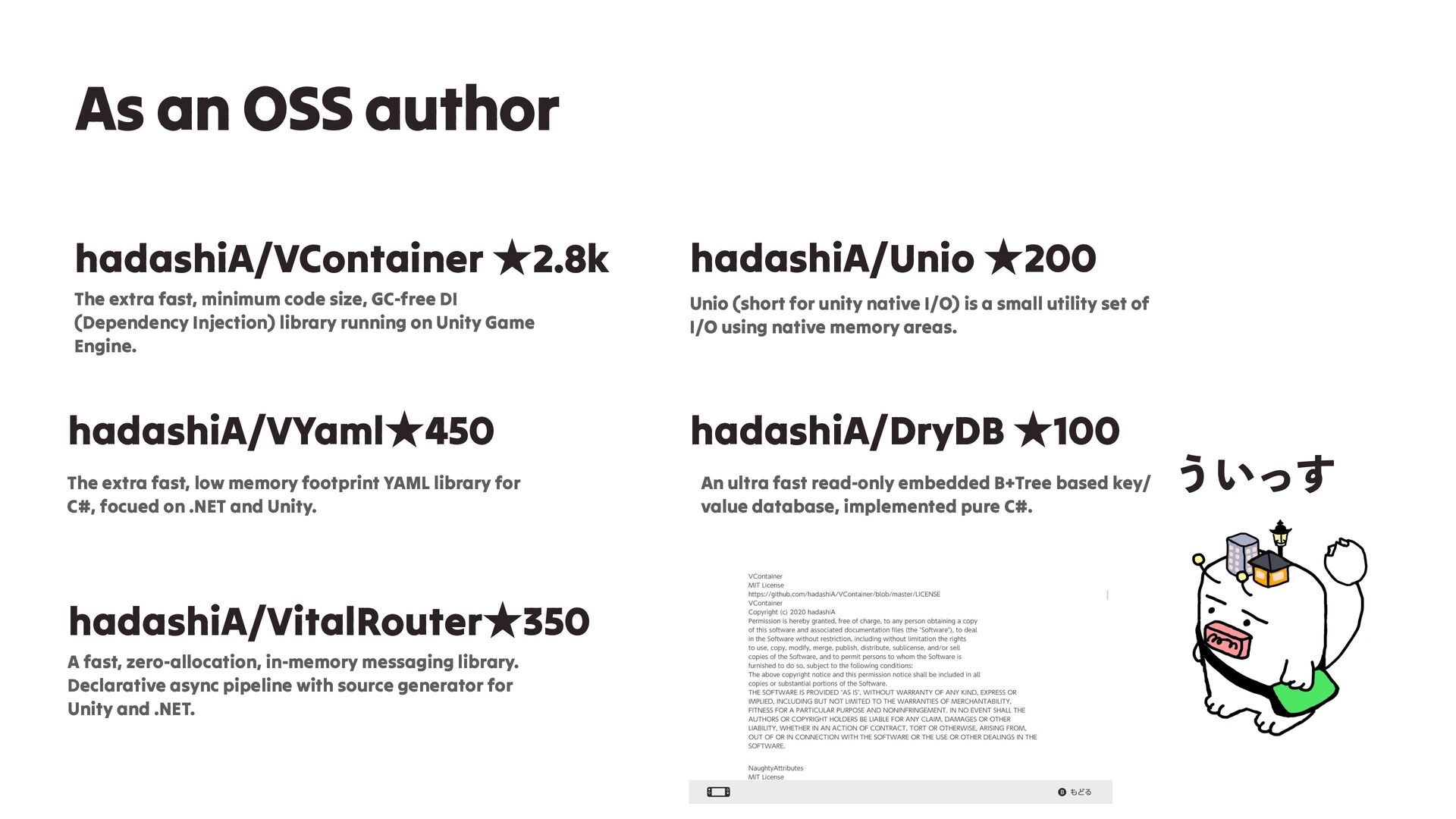

12. As an OSS author hadashiA/VContainer ˒2.8k The extra fast, minimum code size, GC-free DI (Dependency Injection) library running on Unity Game Engine. hadashiA/VYaml˒450 The extra fast, low memory footprint YAML library for C#, focued on .NET and Unity. hadashiA/VitalRouter˒350 A fast, zero-allocation, in-memory messaging library. Declarative async pipeline with source generator for Unity and .NET. hadashiA/DryDB ˒100 An ultra fast read-only embedded B+Tree based key/ value database, implemented pure C#. ͏͍ͬ͢ hadashiA/Unio ˒200 Unio (short for unity native I/O) is a small utility set of I/O using native memory areas.
13. As an Contributor/Committer (2024) Cysharp/UniTask ˒10.7k Provides an efficient allocation free async/await integration for Unity. Cysharp/ZLogger ˒1.6k Zero Allocation Text/Structured Logger for .NET with StringInterpolation and Source Generator, built on top of a Microsoft.Extensions.Logging. Cysharp/MemoryPack ˒4.4k Zero encoding extreme performance binary serializer for C# and Unity. Cysharp/R3 ˒3.7k The new future of dotnet/reactive and UniRx. ΋ͬ͢΋ͬ͢ Cysharp/Ulid ˒1.6k Fast .NET C# Implementation of ULID for .NET and Unity.

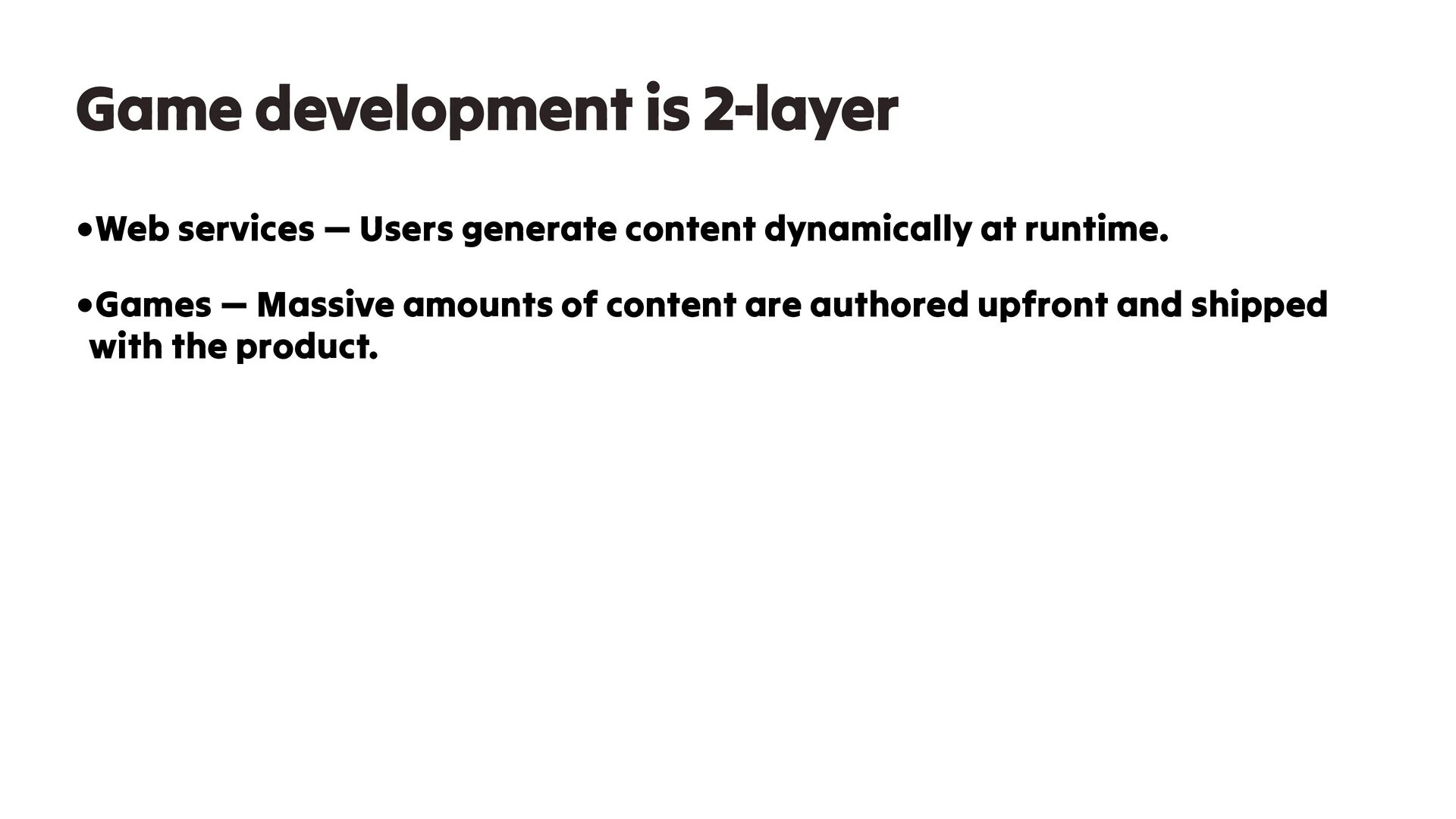

14. Game development is 2-layer •Web services — Users generate content dynamically at runtime. •Games — Massive amounts of content are authored upfront and shipped with the product.

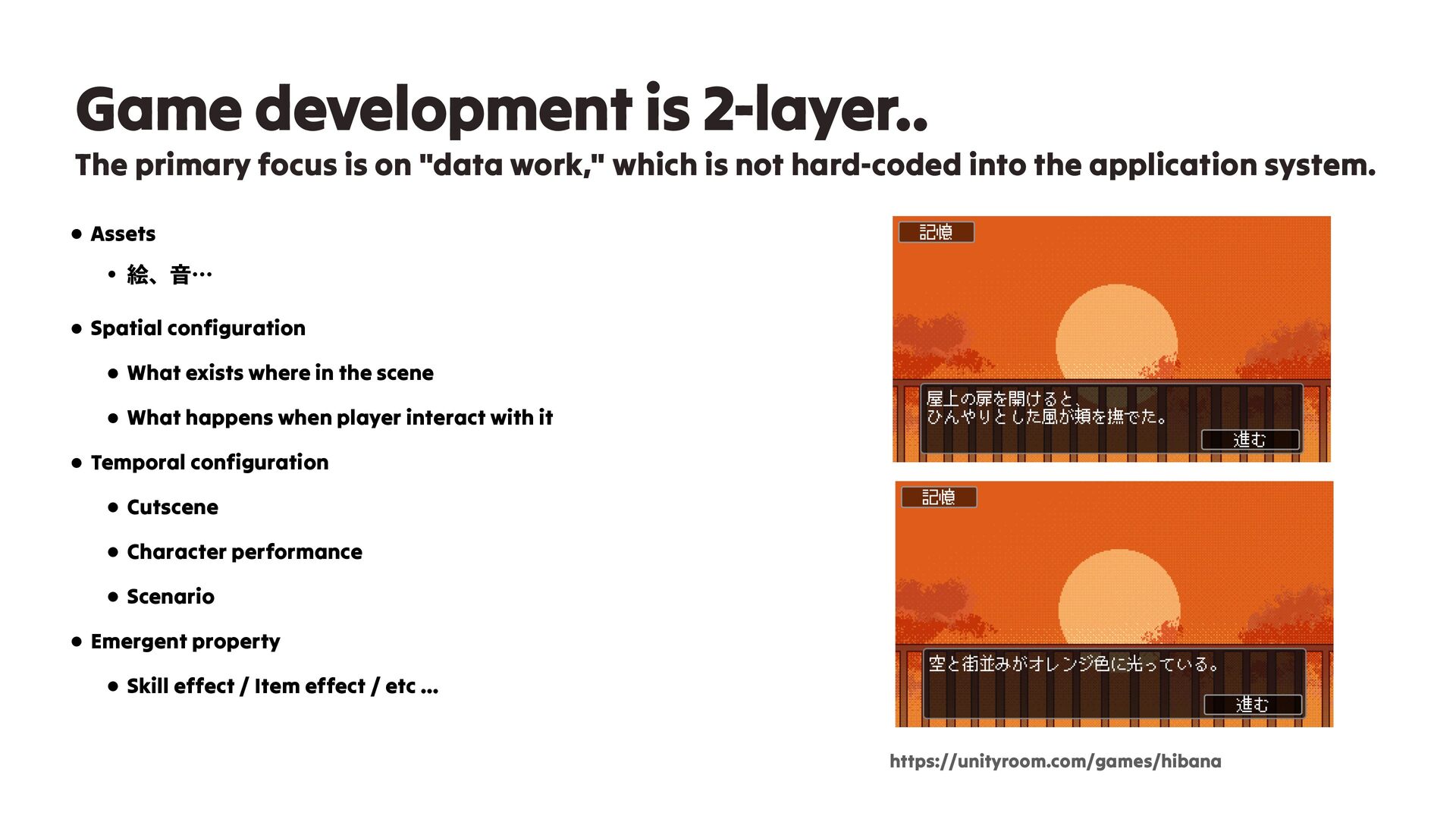

15. Game development is 2-layer.. The primary focus is on "data work," which is not hard-coded into the application system. • Assets w ֆɺԻʜ
    • Spatial configuration • What exists where in the scene • What happens when player interact with it • Temporal configuration • Cutscene • Character performance • Scenario • Emergent property • Skill effect / Item effect / etc … https://unityroom.com/games/hibana

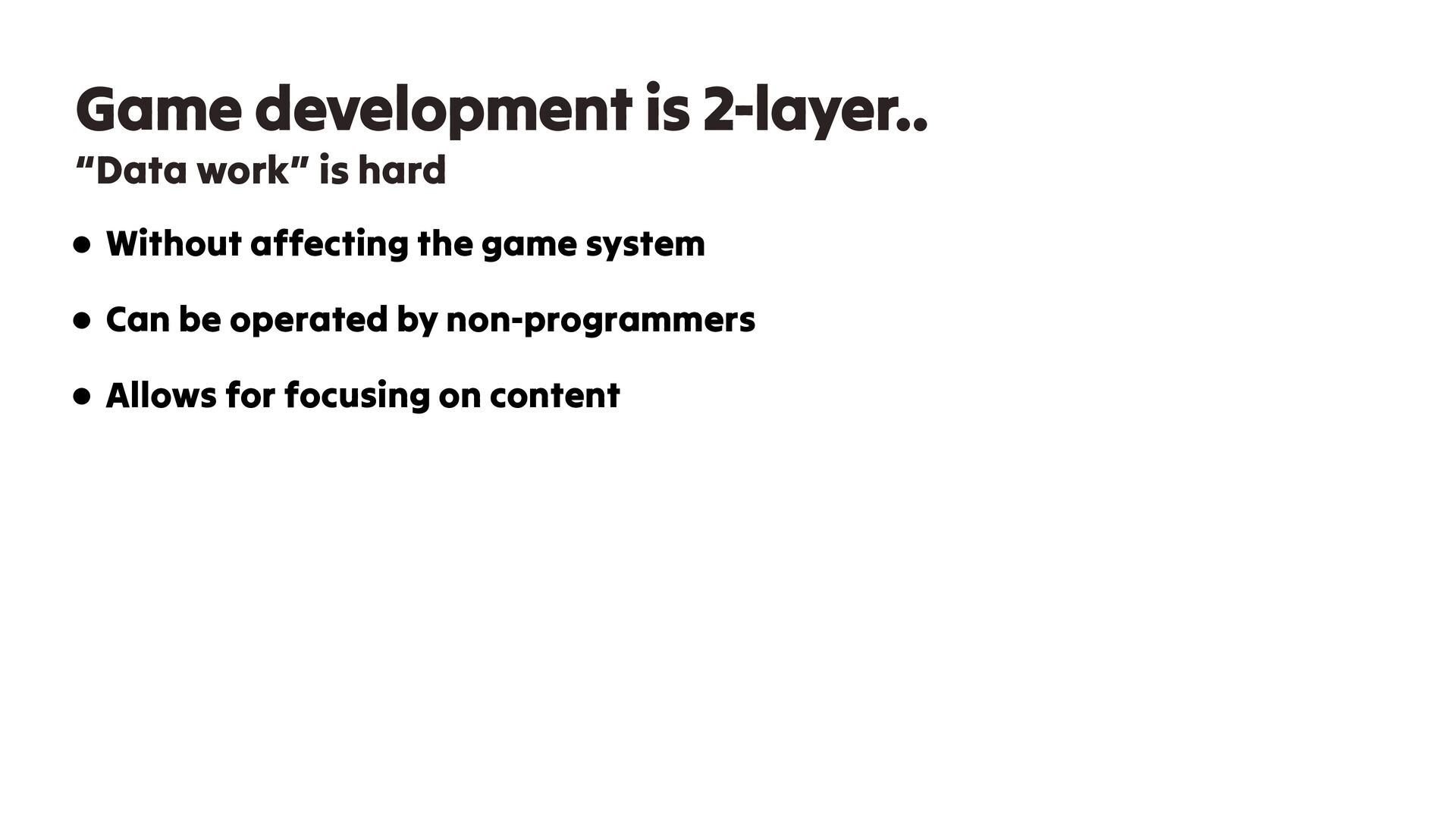

16. Game development is 2-layer.. • Without affecting the game system • Can be operated by non-programmers • Allows for focusing on content “Data work” is hard

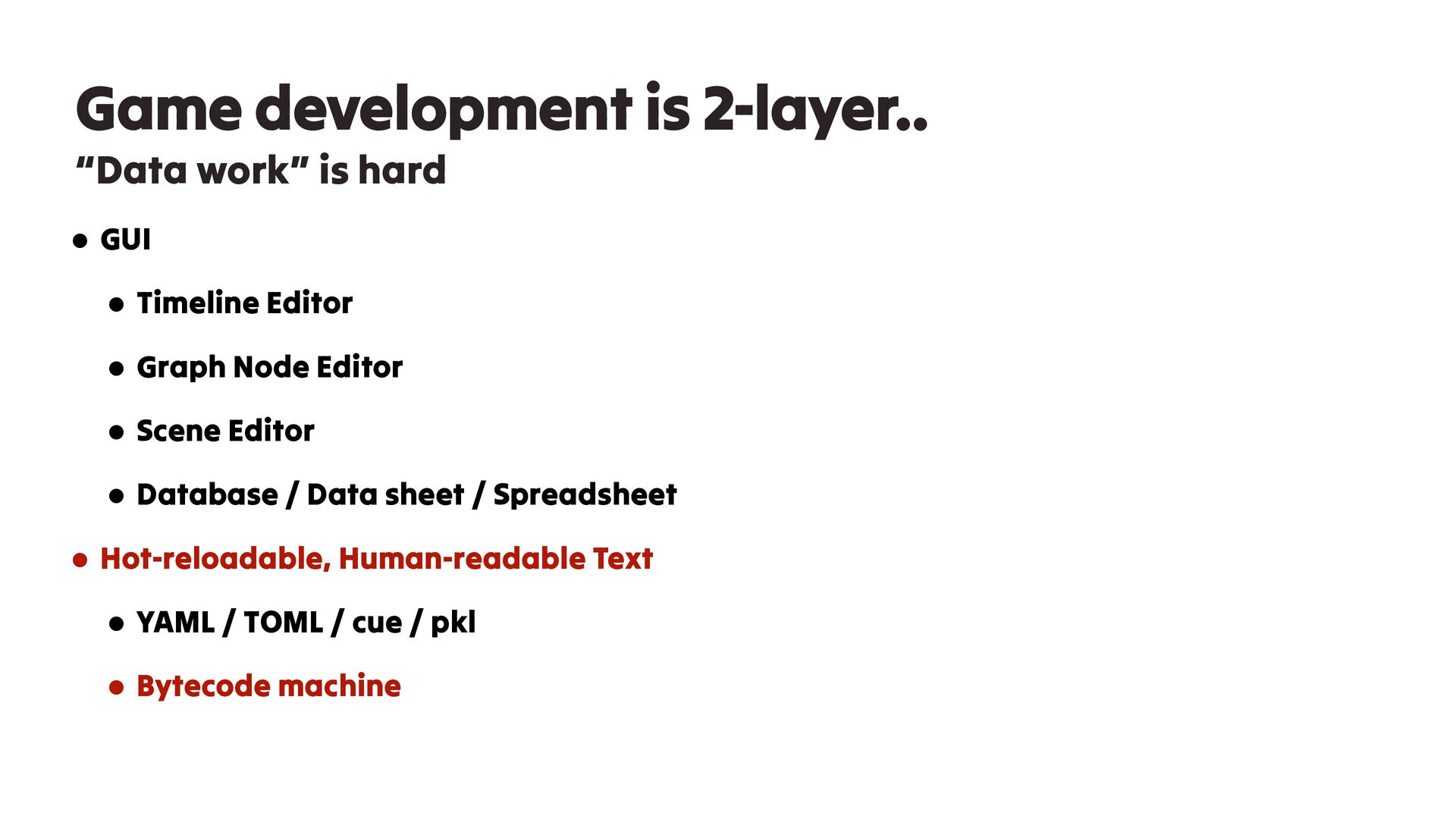

17. Game development is 2-layer.. • GUI • Timeline Editor • Graph Node Editor • Scene Editor • Database / Data sheet / Spreadsheet • Hot-reloadable, Human-readable Text • YAML / TOML / cue / pkl • Bytecode machine “Data work” is hard

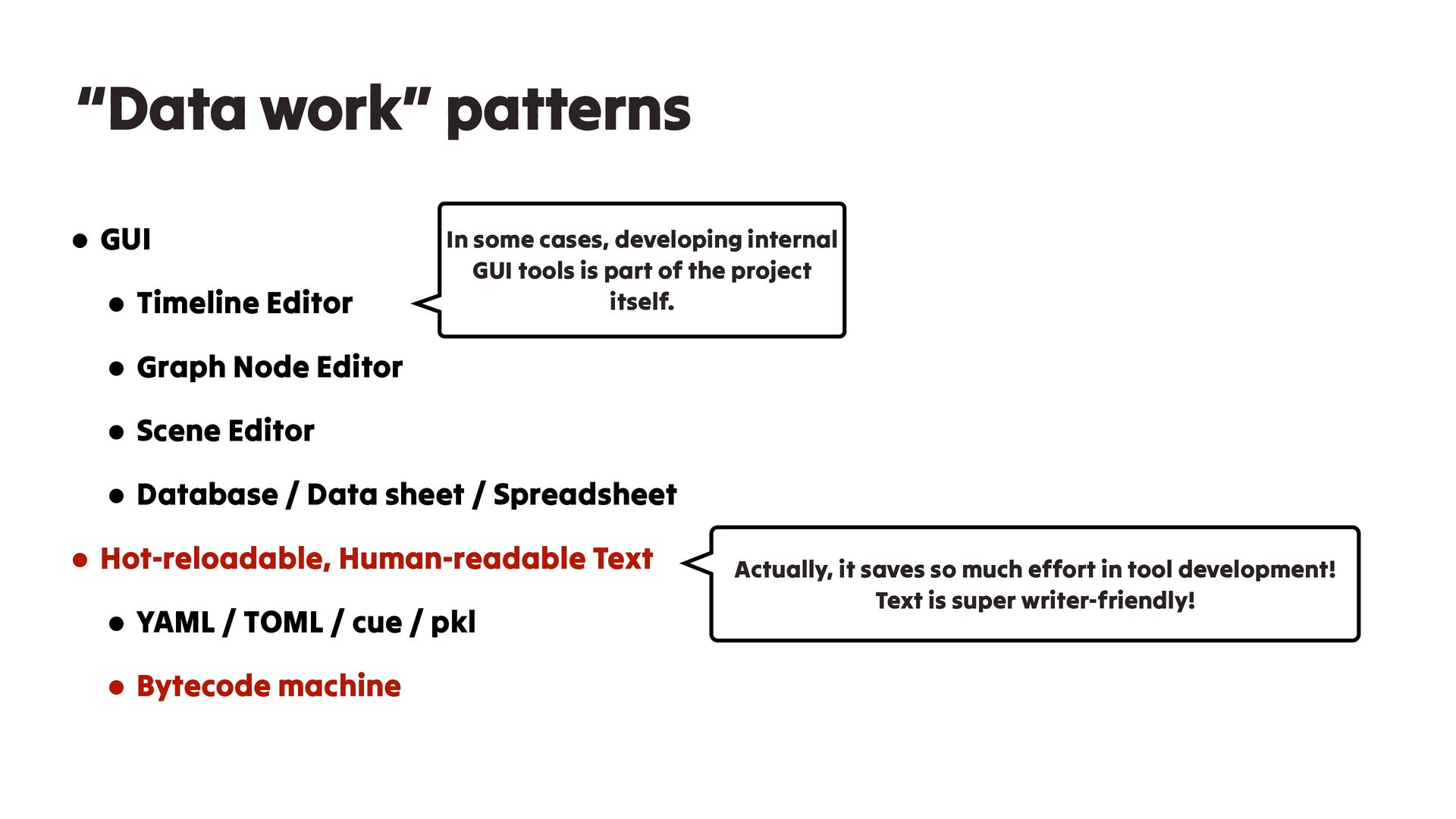

18. “Data work” patterns • GUI • Timeline Editor • Graph Node Editor • Scene Editor • Database / Data sheet / Spreadsheet • Hot-reloadable, Human-readable Text • YAML / TOML / cue / pkl • Bytecode machine In some cases, developing internal GUI tools is part of the project itself. Actually, it saves so much effort in tool development! Text is super writer-friendly!

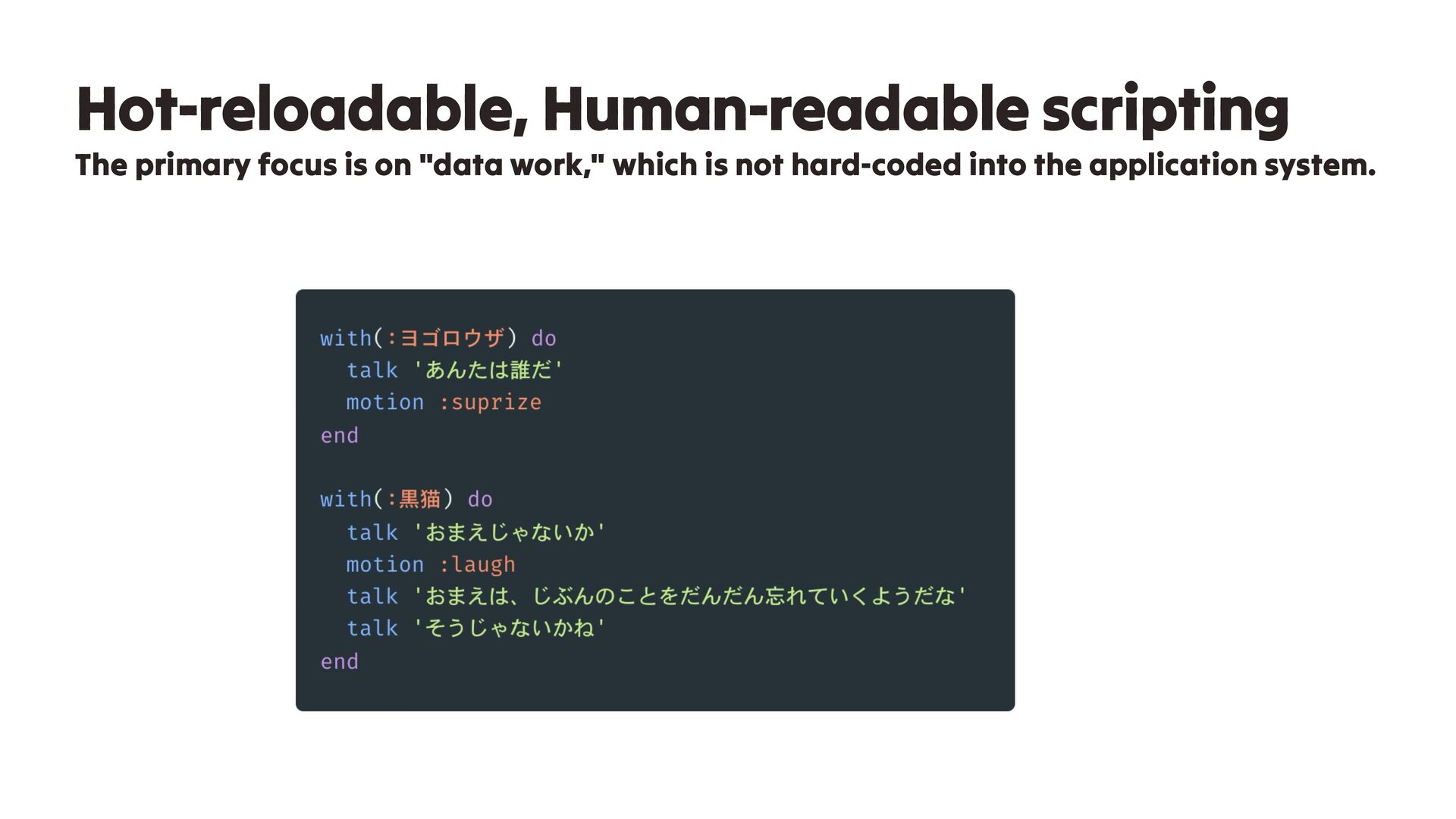

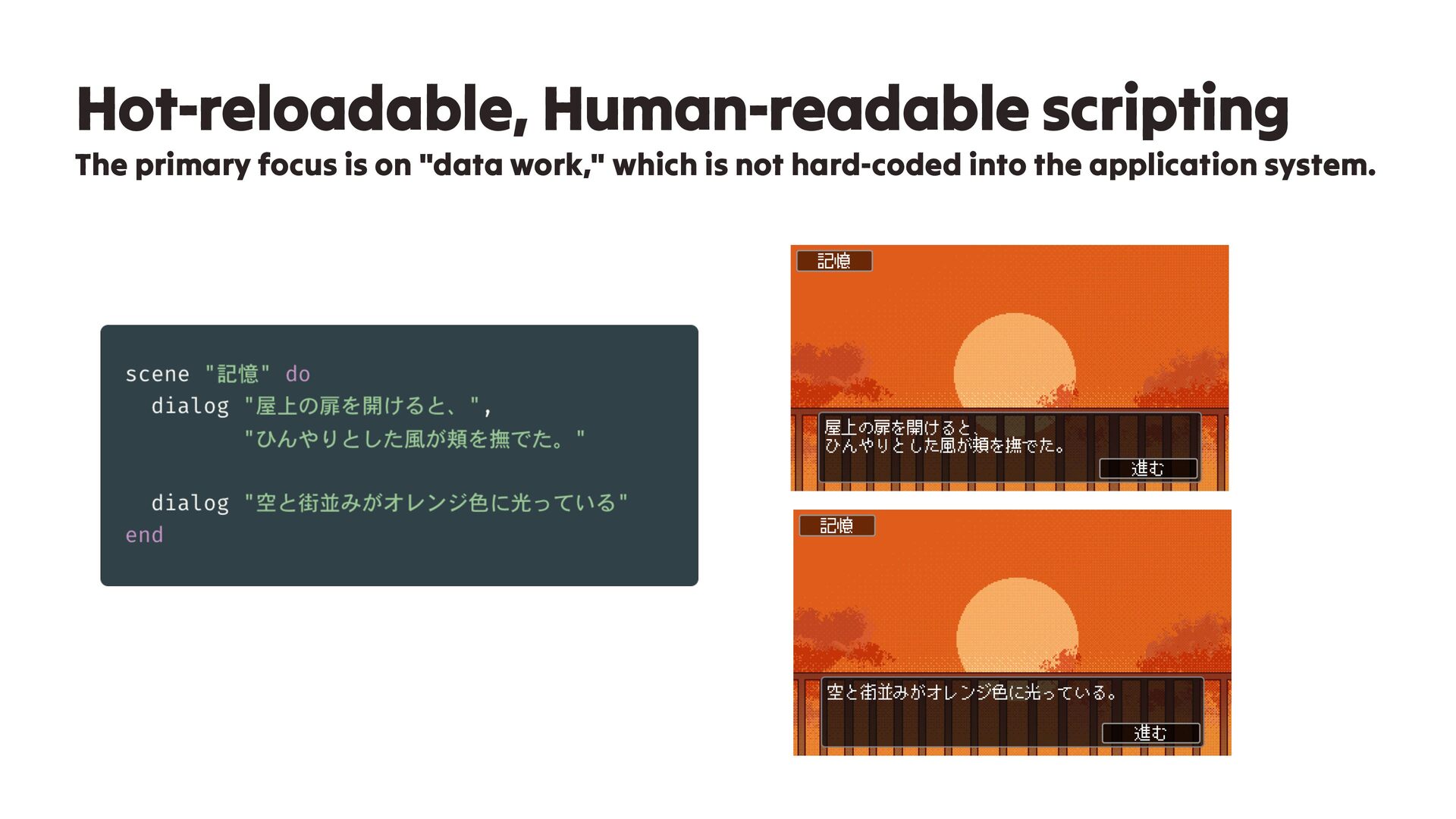

19. Hot-reloadable, Human-readable scripting The primary focus is on "data work," which is not hard-coded into the application system.
20. Hot-reloadable, Human-readable scripting The primary focus is on "data work," which is not hard-coded into the application system.

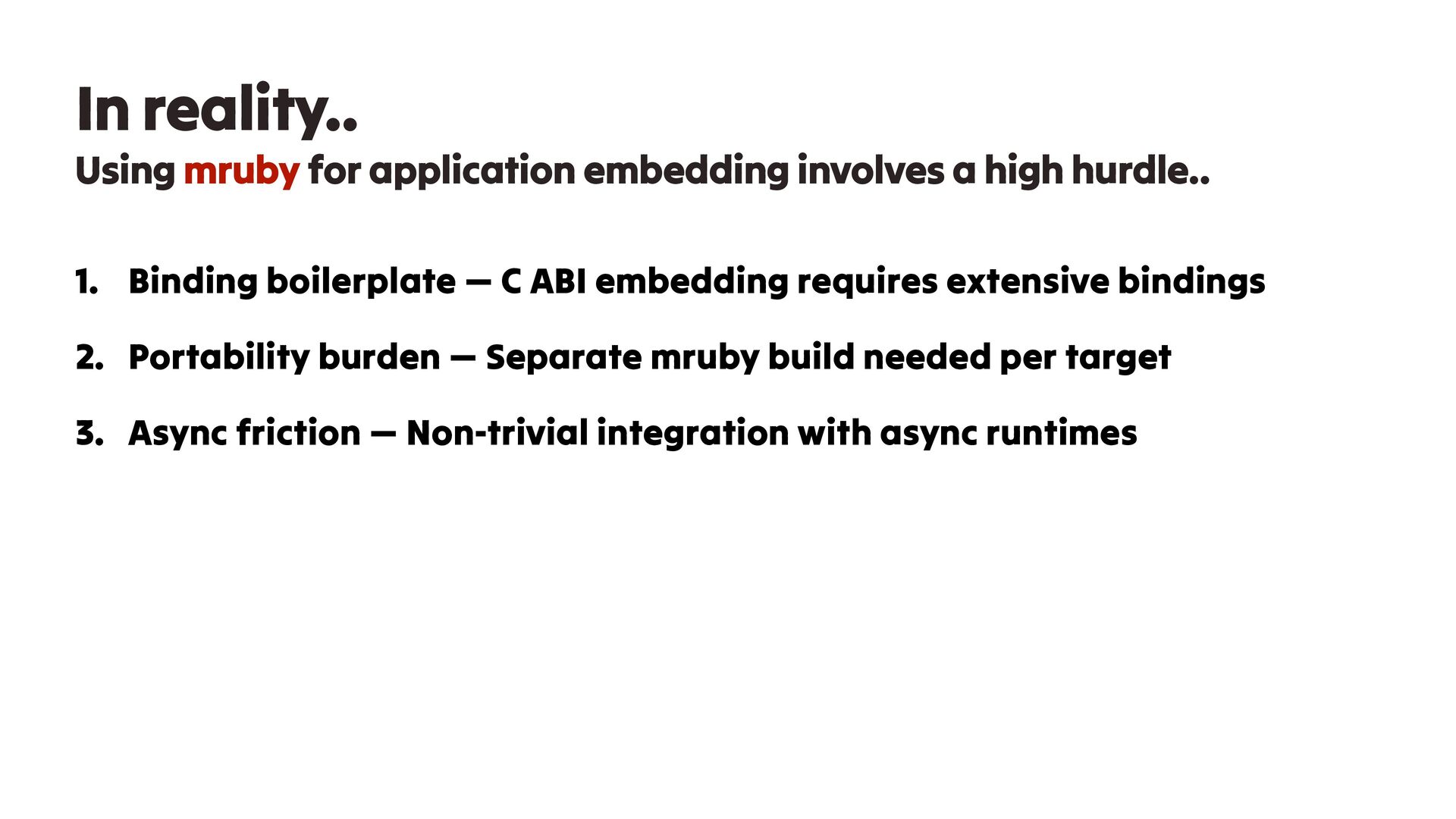

21. In reality.. 1. Binding boilerplate — C ABI embedding requires extensive bindings 2. Portability burden — Separate mruby build needed per target 3. Async friction — Non-trivial integration with async runtimes Using mruby for application embedding involves a high hurdle..
22. The application is not written in C.. • Apps are written in managed languages that hide platform differences • mruby requires a build step • mruby requires C FFI • And Integrate mruby GC managed memory. • For native binaries, modern devs reach for Rust/Zig by default • Their native types aren't C ABI compatible

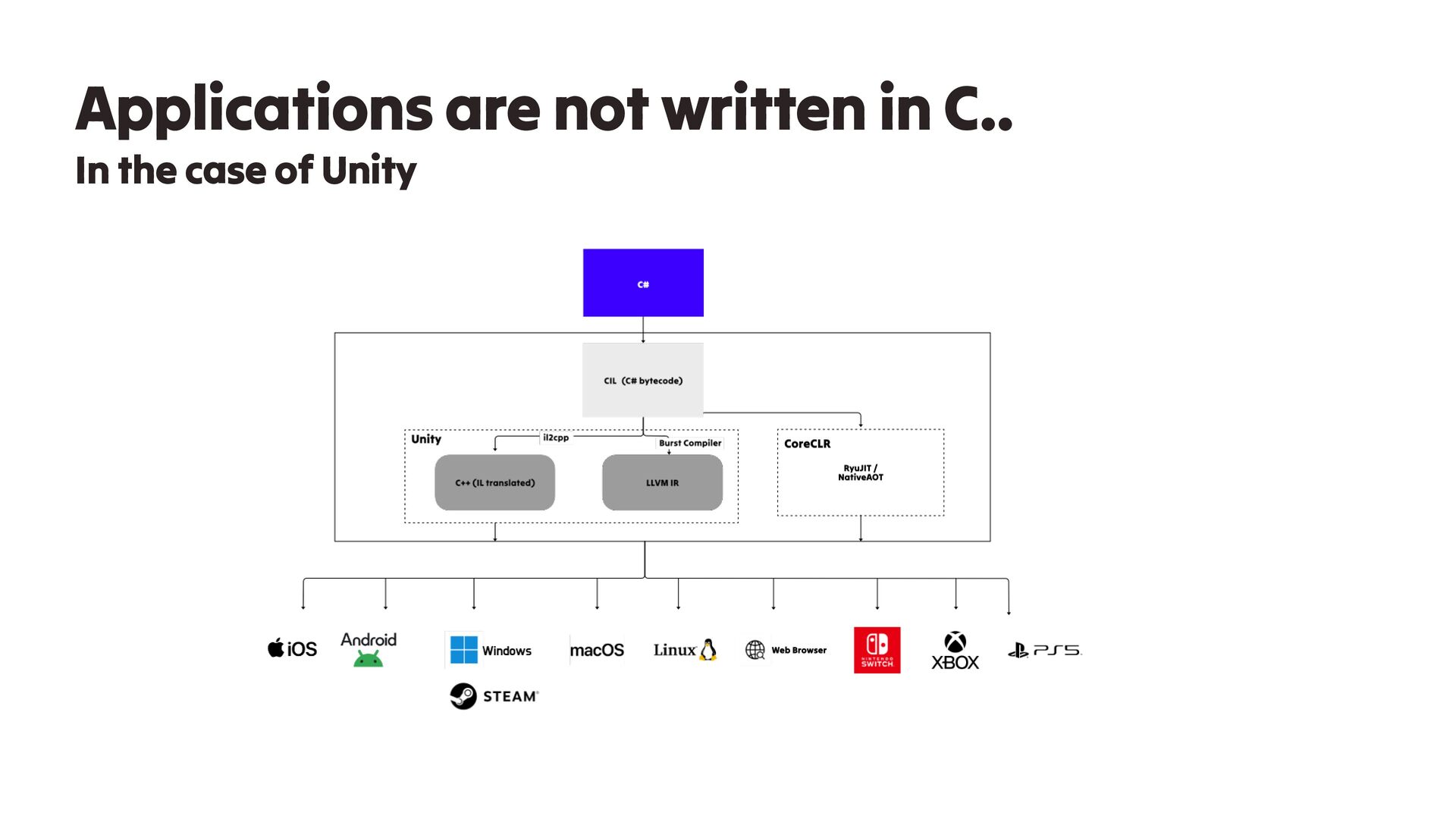

23. Applications are not written in C.. In the case of Unity

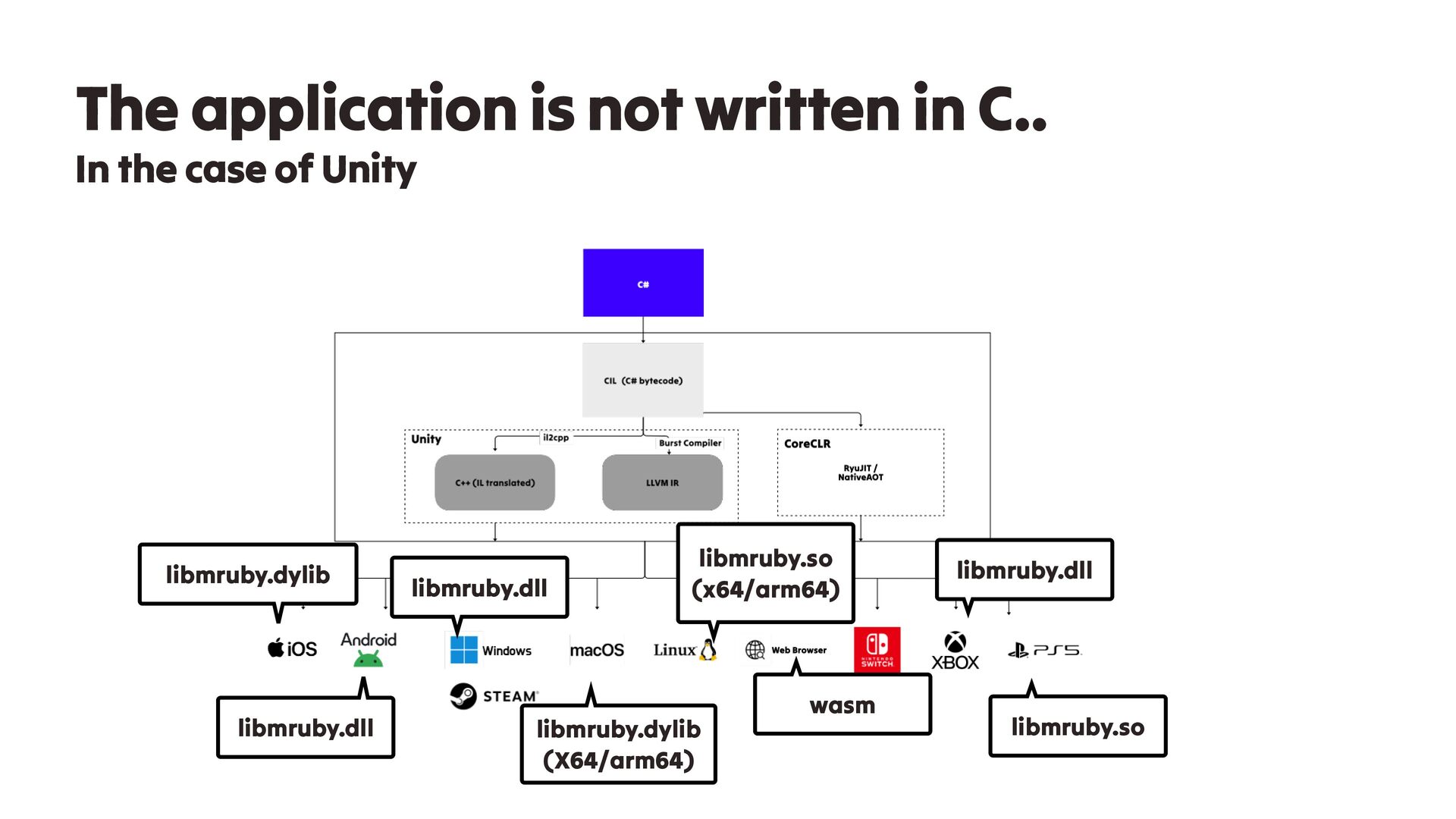

24. The application is not written in C.. libmruby.dylib libmruby.dll libmruby.dll libmruby.so (x64/arm64) libmruby.dylib (X64/arm64) libmruby.so libmruby.dll In the case of Unity wasm

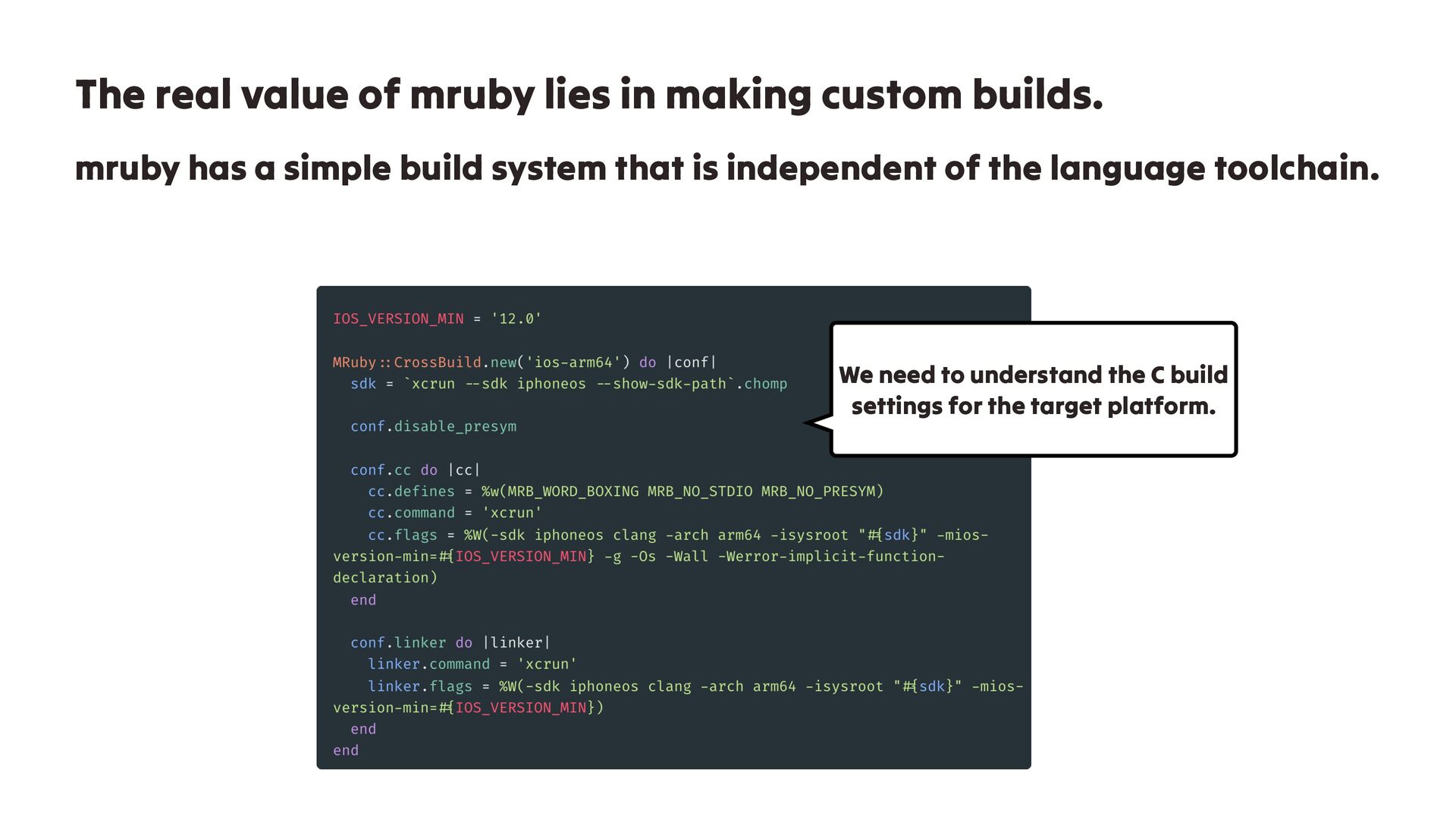

25. The real value of mruby lies in making custom builds. mruby has a simple build system that is independent of the language toolchain. We need to understand the C build settings for the target platform.

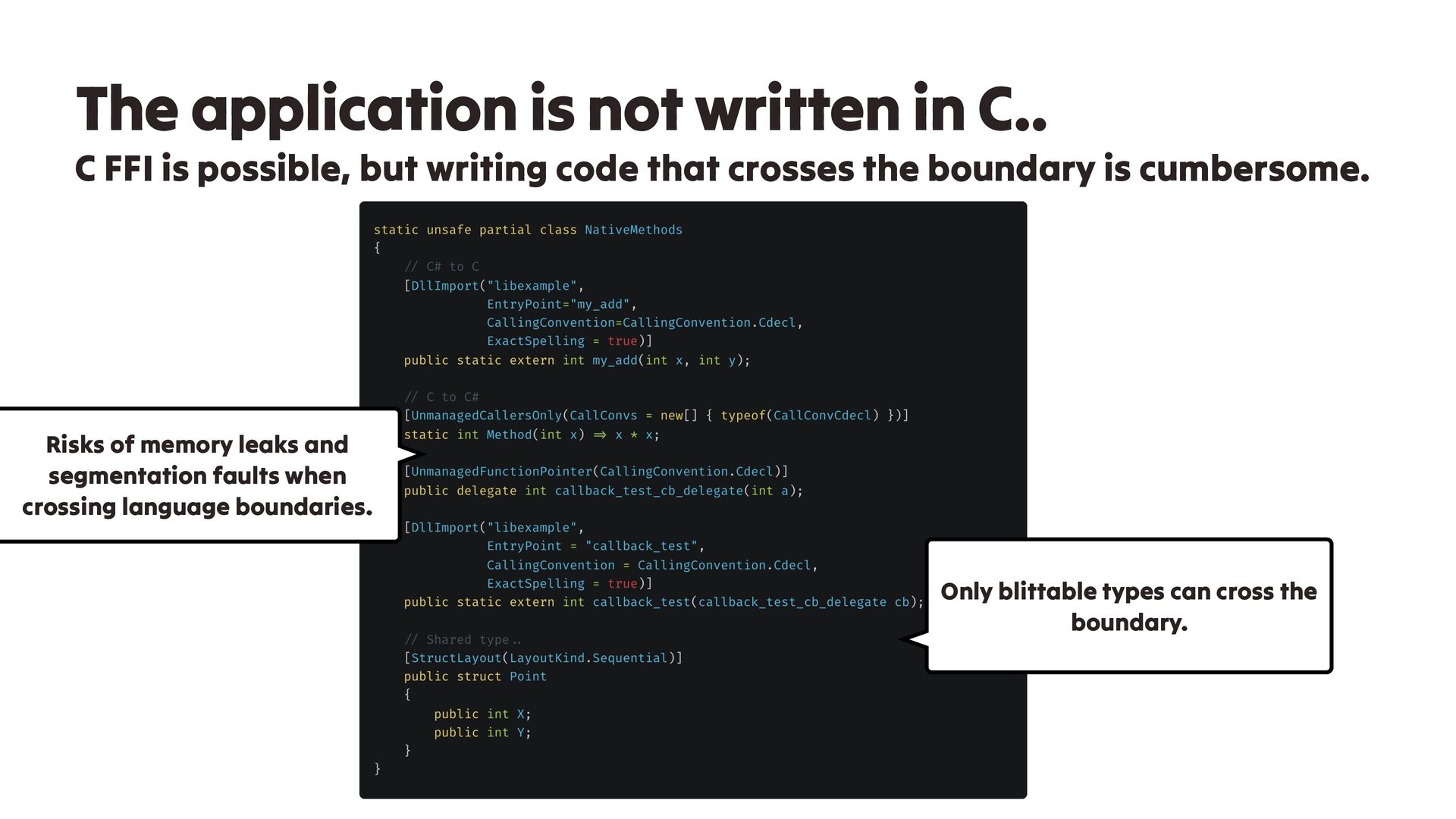

26. The application is not written in C.. C FFI is possible, but writing code that crosses the boundary is cumbersome. Only blittable types can cross the boundary. Risks of memory leaks and segmentation faults when crossing language boundaries.

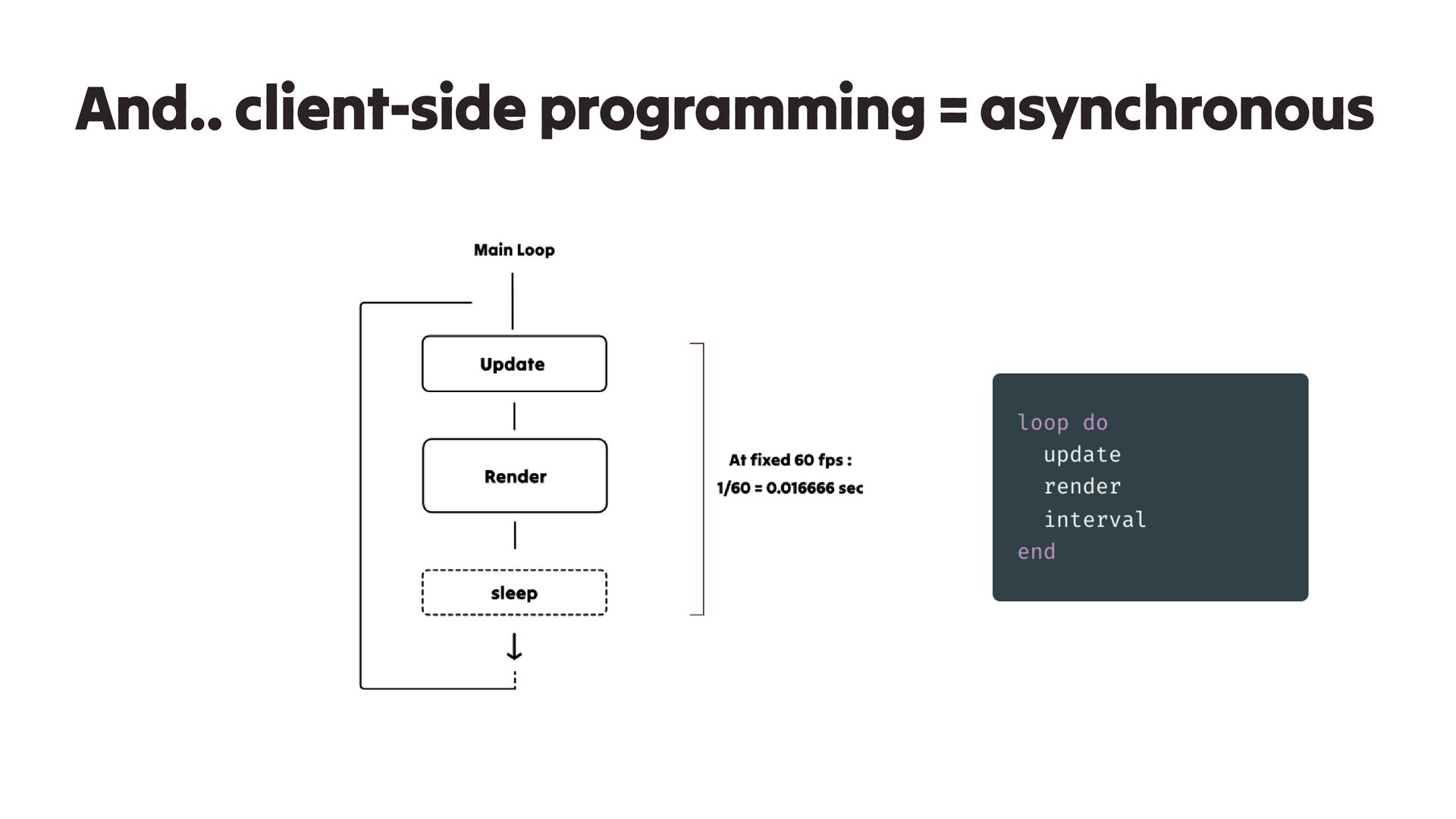

27. And.. client-side programming = asynchronous

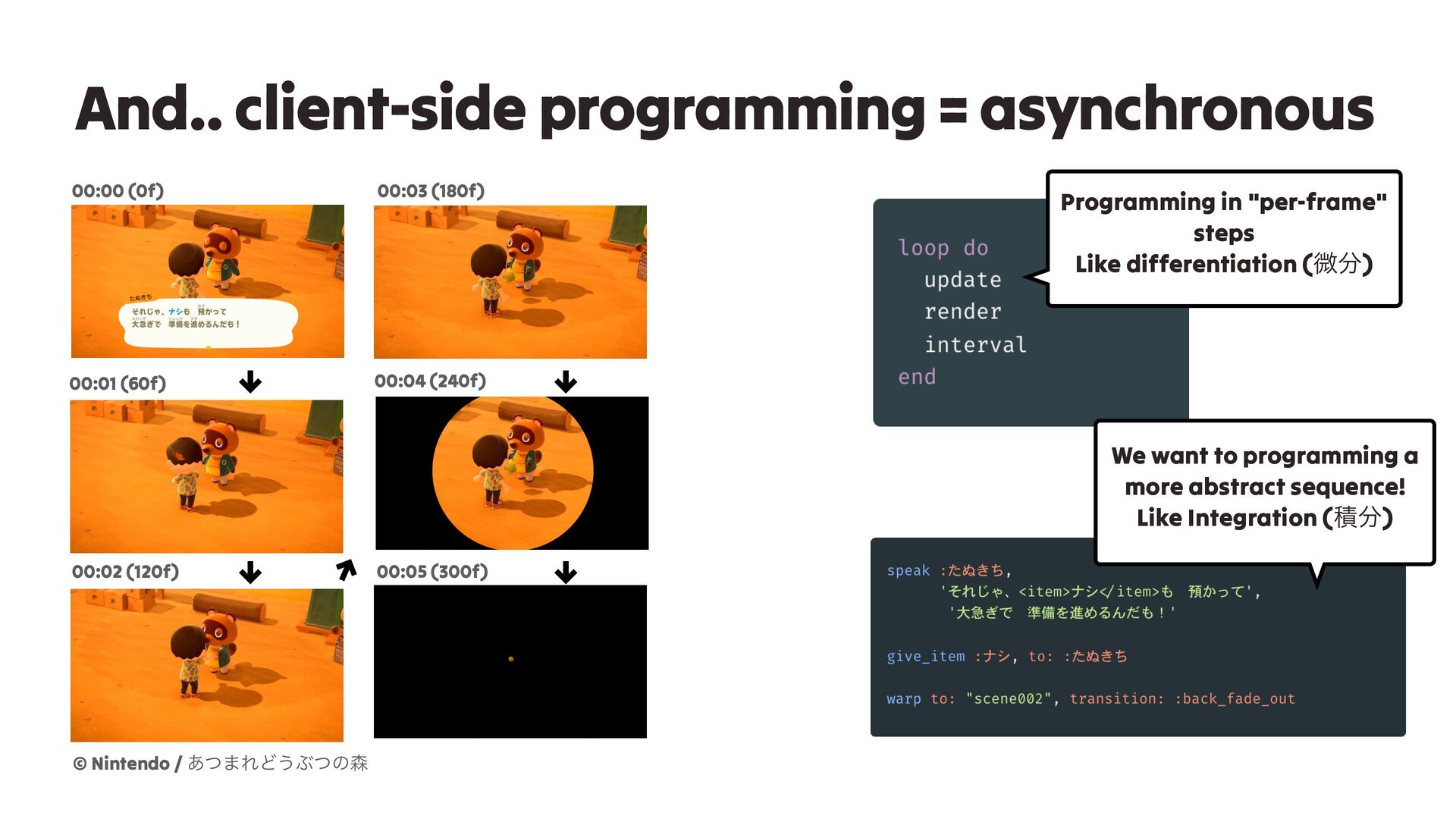

28. And.. client-side programming = asynchronous Programming in "per-frame" steps Like differentiation (ඍ෼) We want to programming a more abstract sequence! Like Integration (ੵ෼) 00:00 (0f) 00:01 (60f) 00:02 (120f) 00:03 (180f) 00:04 (240f) 00:05 (300f) © Nintendo / ͋ͭ·ΕͲ͏Ϳͭͷ৿ ↓ ↓ ↓ ↓ ↓

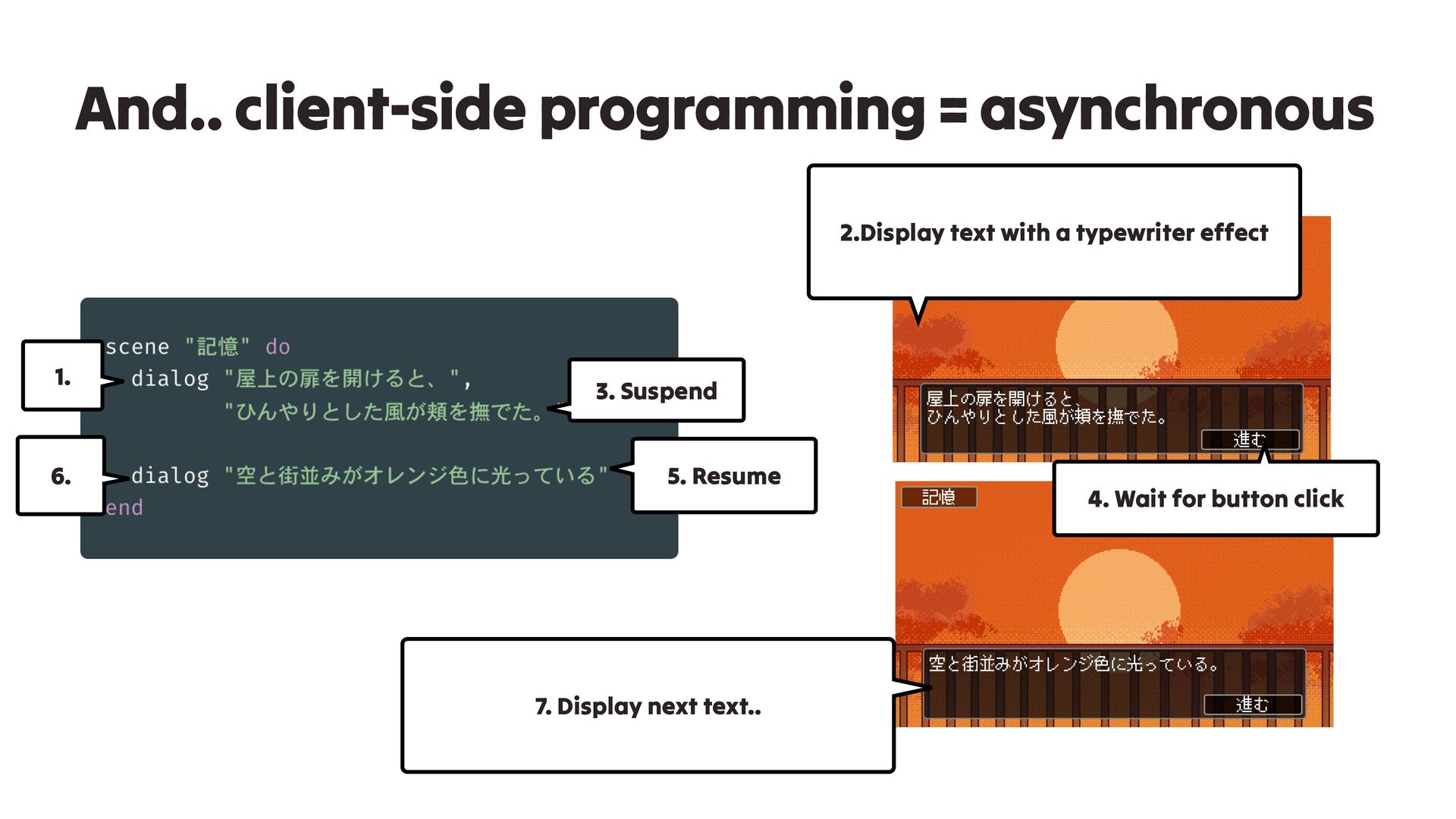

29. And.. client-side programming = asynchronous 2.Display text with a typewriter effect 3. Suspend 4. Wait for button click 5. Resume 7. Display next text.. 1. 6.

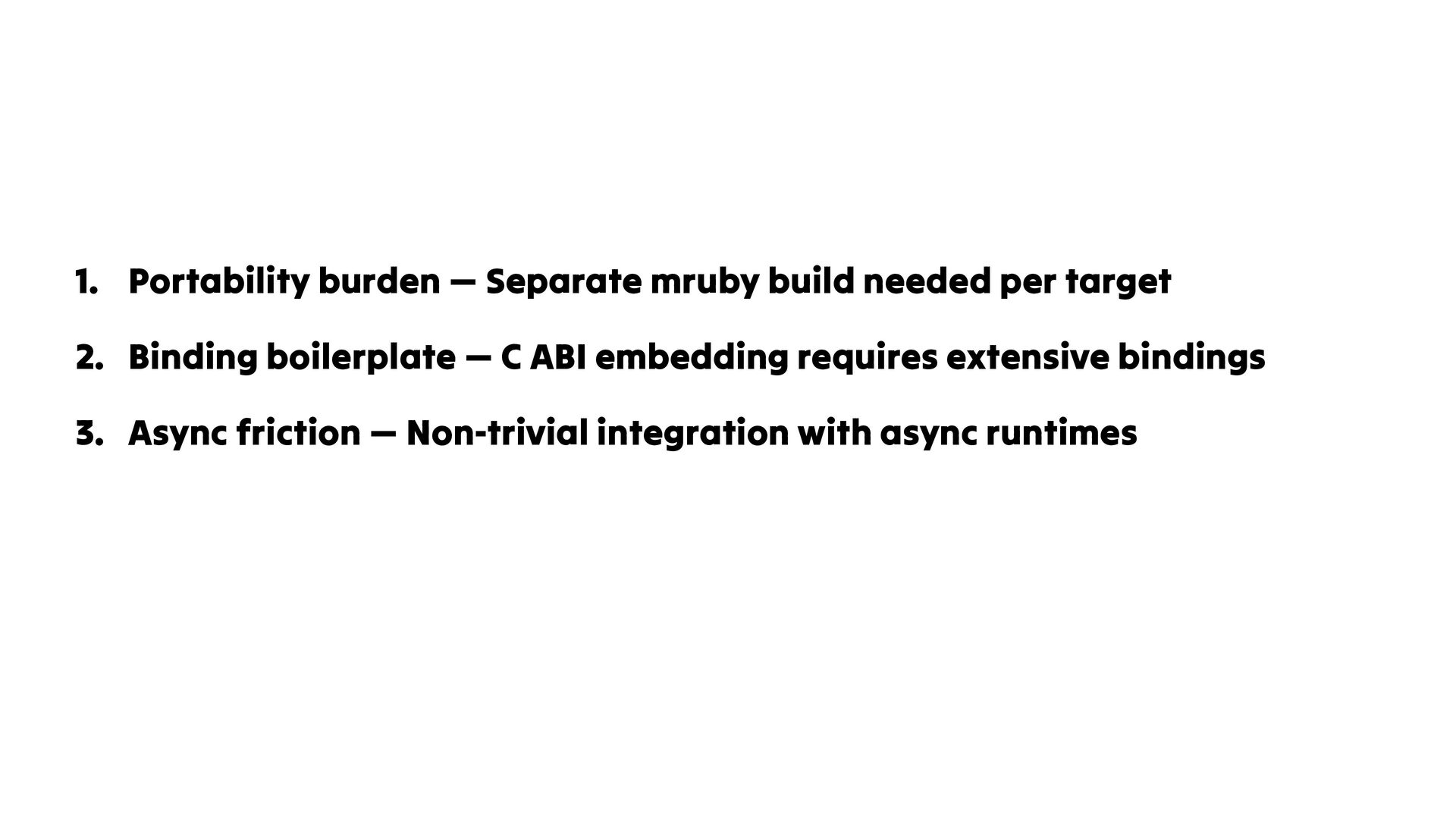

30. 1. Portability burden — Separate mruby build needed per target 2. Binding boilerplate — C ABI embedding requires extensive bindings 3. Async friction — Non-trivial integration with async runtimes

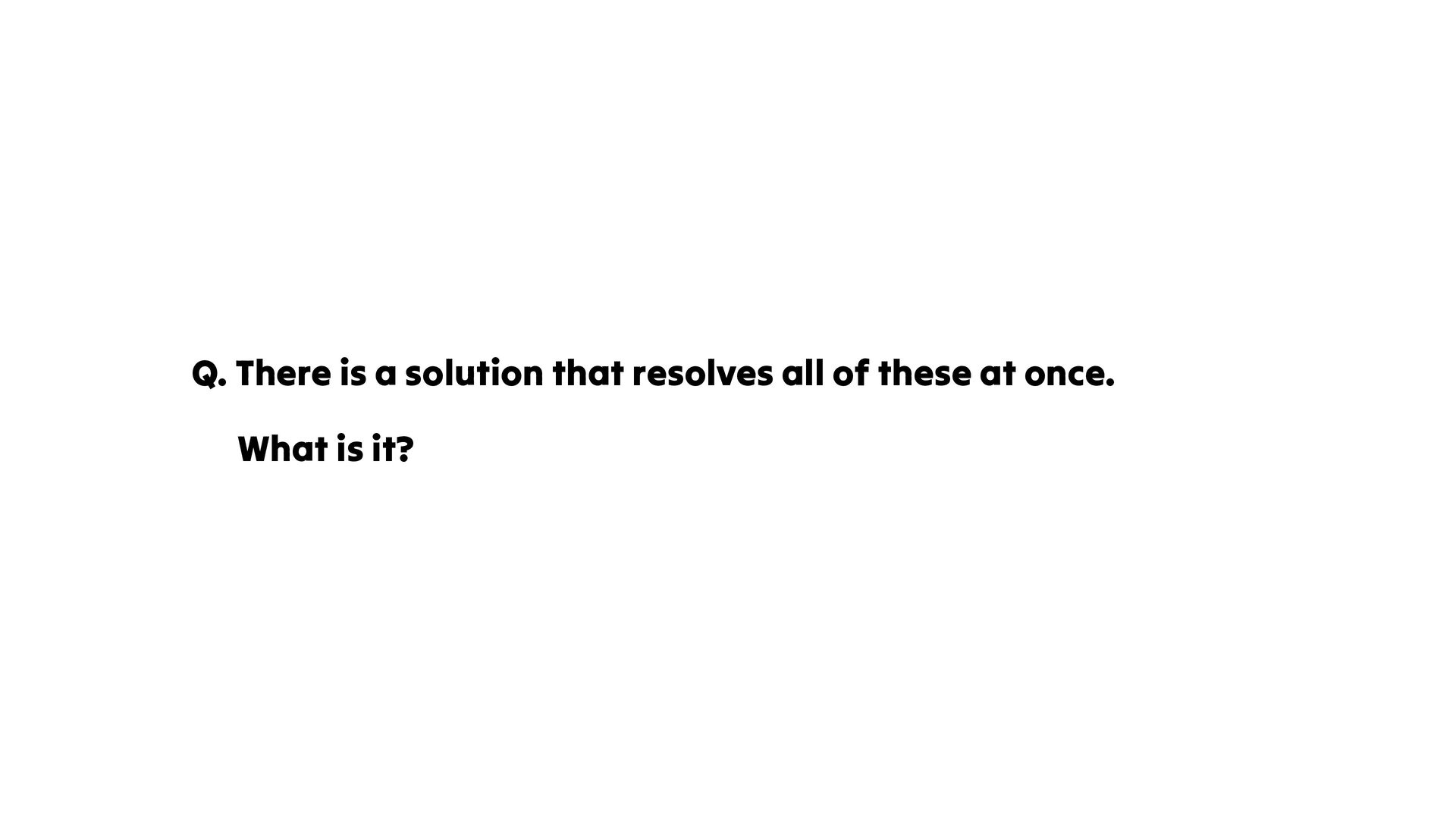

31. Q. There is a solution that resolves all of these at once. What is it?

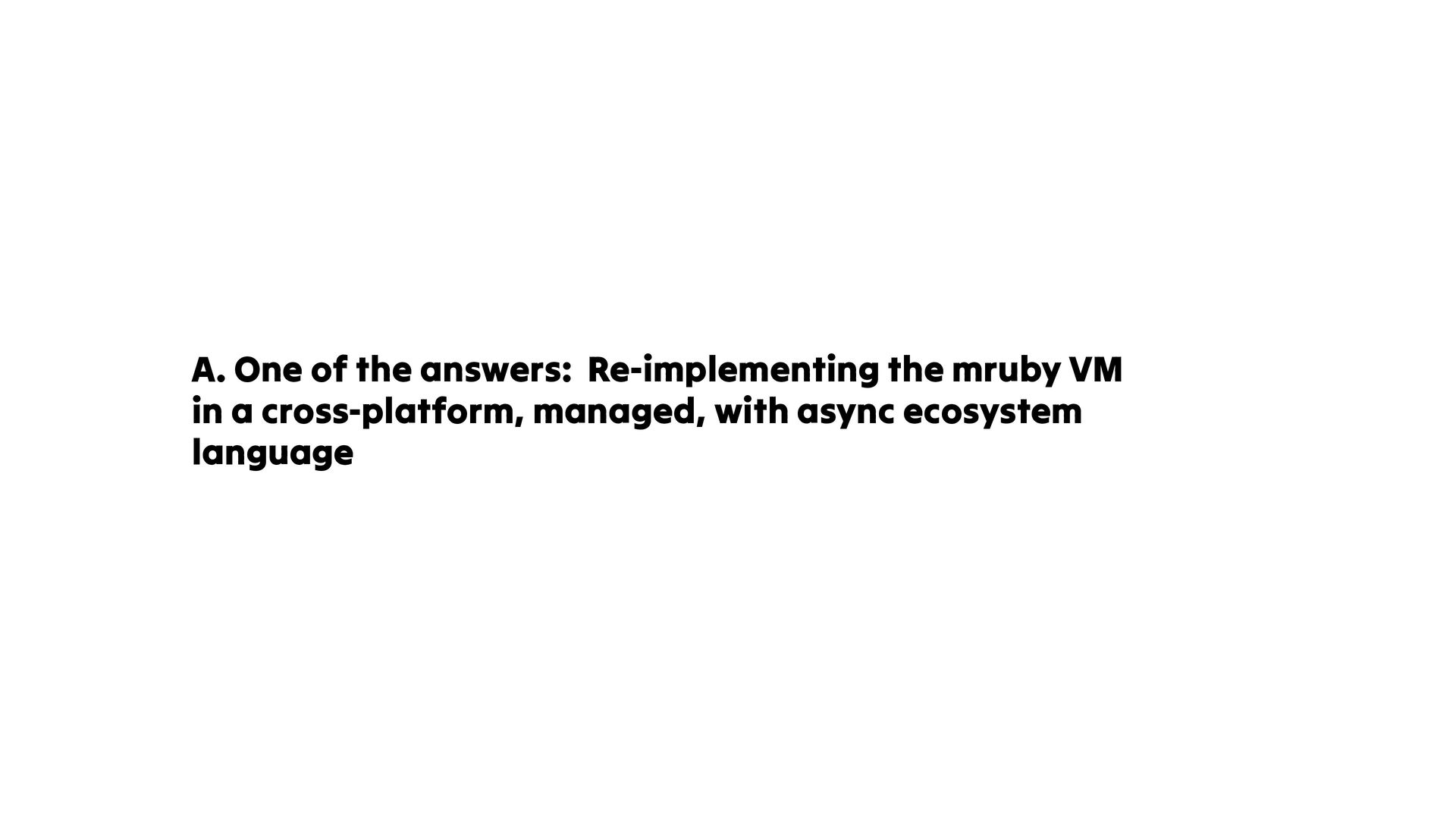

32. A. One of the answers: Re-implementing the mruby VM in a cross-platform, managed, with async ecosystem language

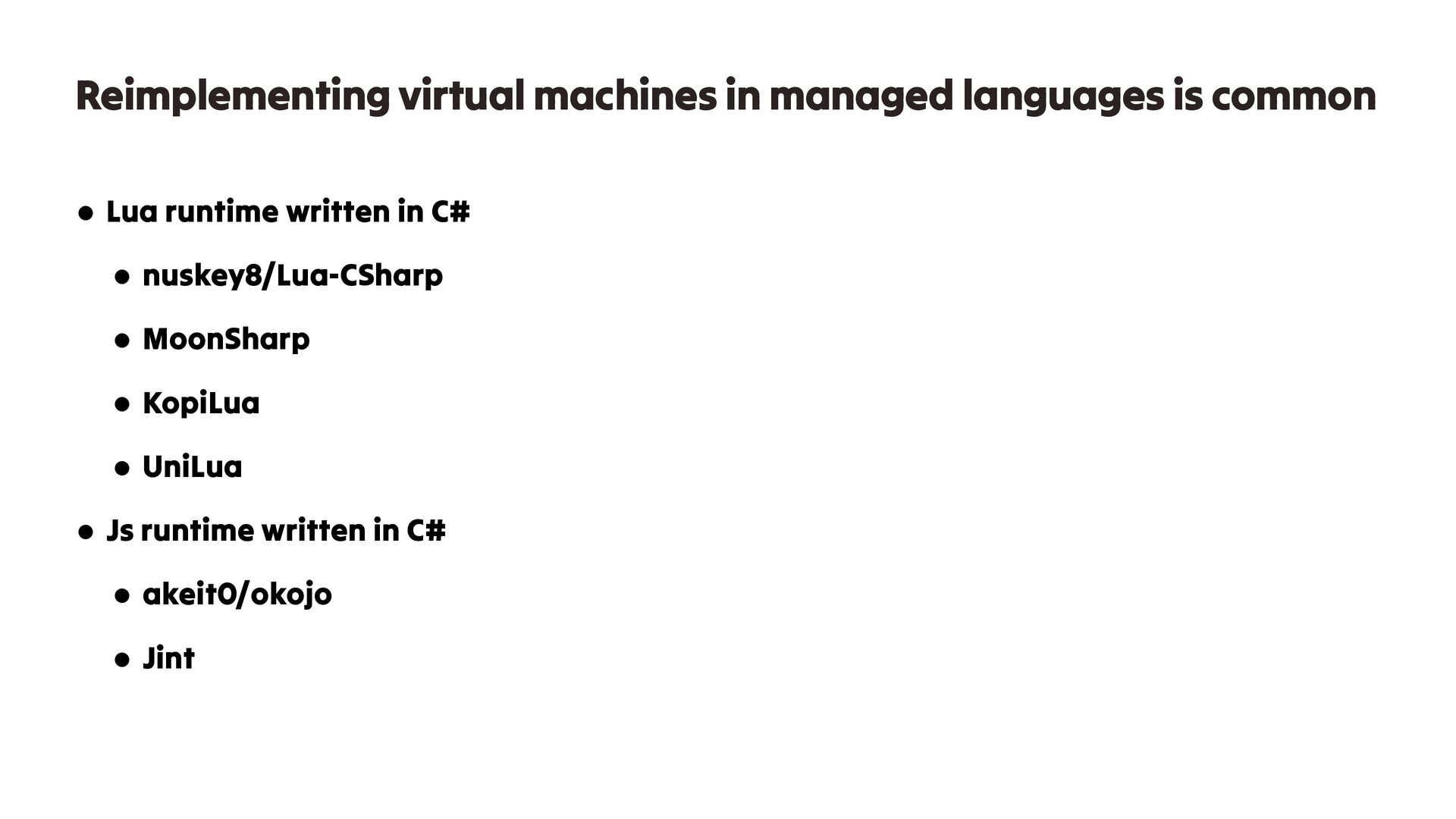

33. Reimplementing virtual machines in managed languages is common • Lua runtime written in C# • nuskey8/Lua-CSharp • MoonSharp • KopiLua • UniLua • Js runtime written in C# • akeit0/okojo • Jint

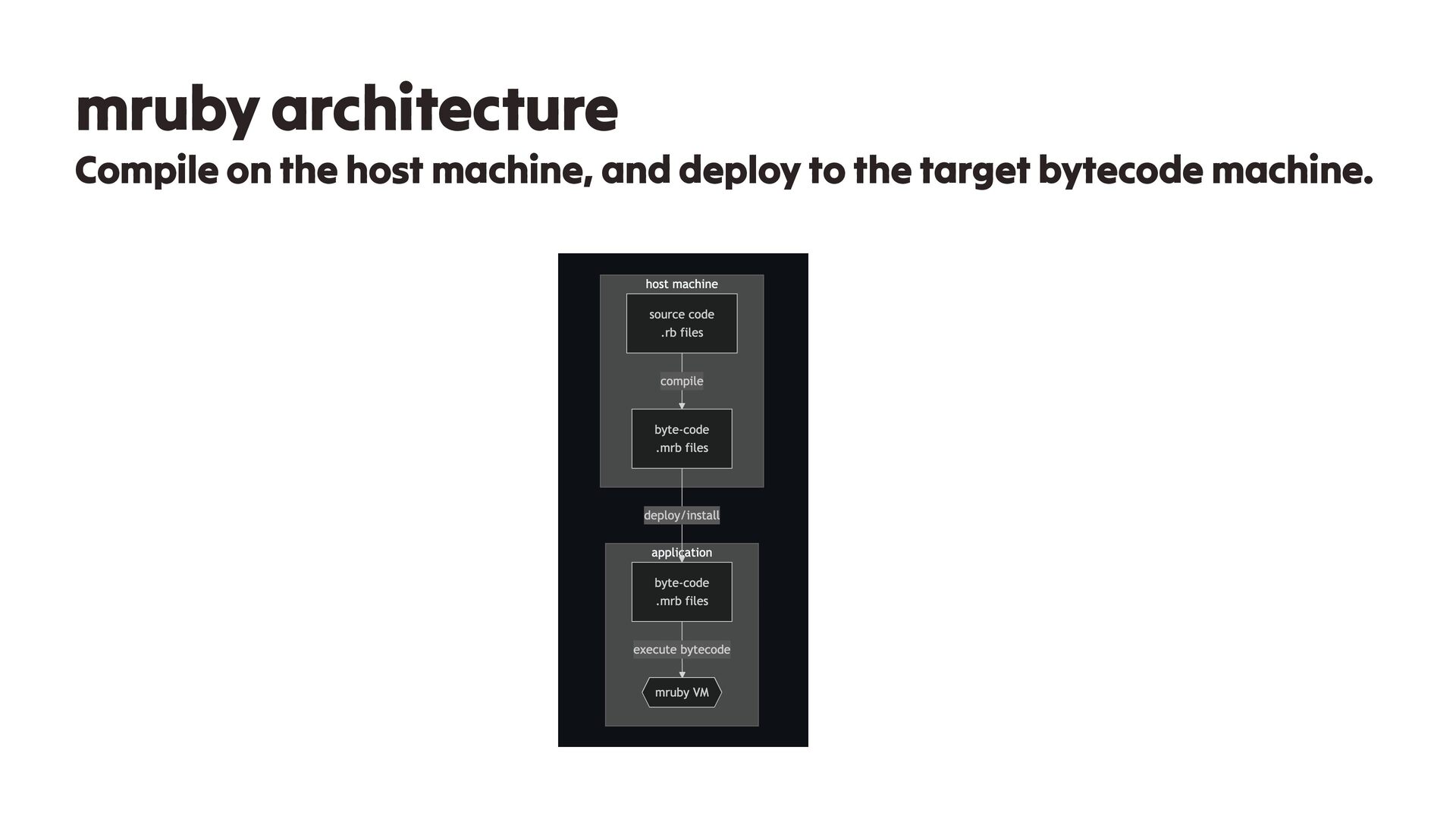

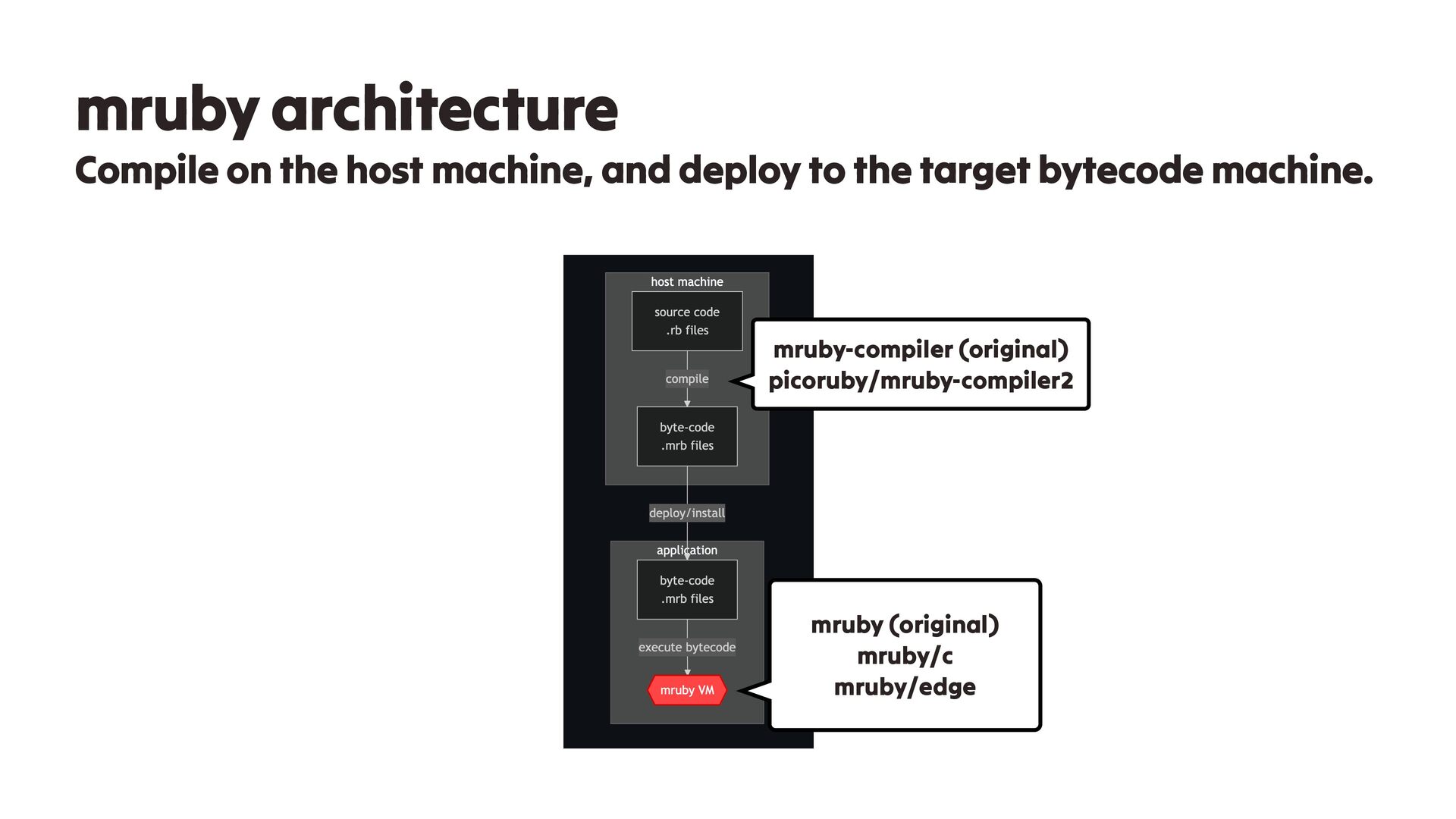

34. mruby architecture Compile on the host machine, and deploy to the target bytecode machine.
35. mruby architecture Compile on the host machine, and deploy to the target bytecode machine. mruby (original) mruby/c mruby/edge mruby-compiler (original) picoruby/mruby-compiler2

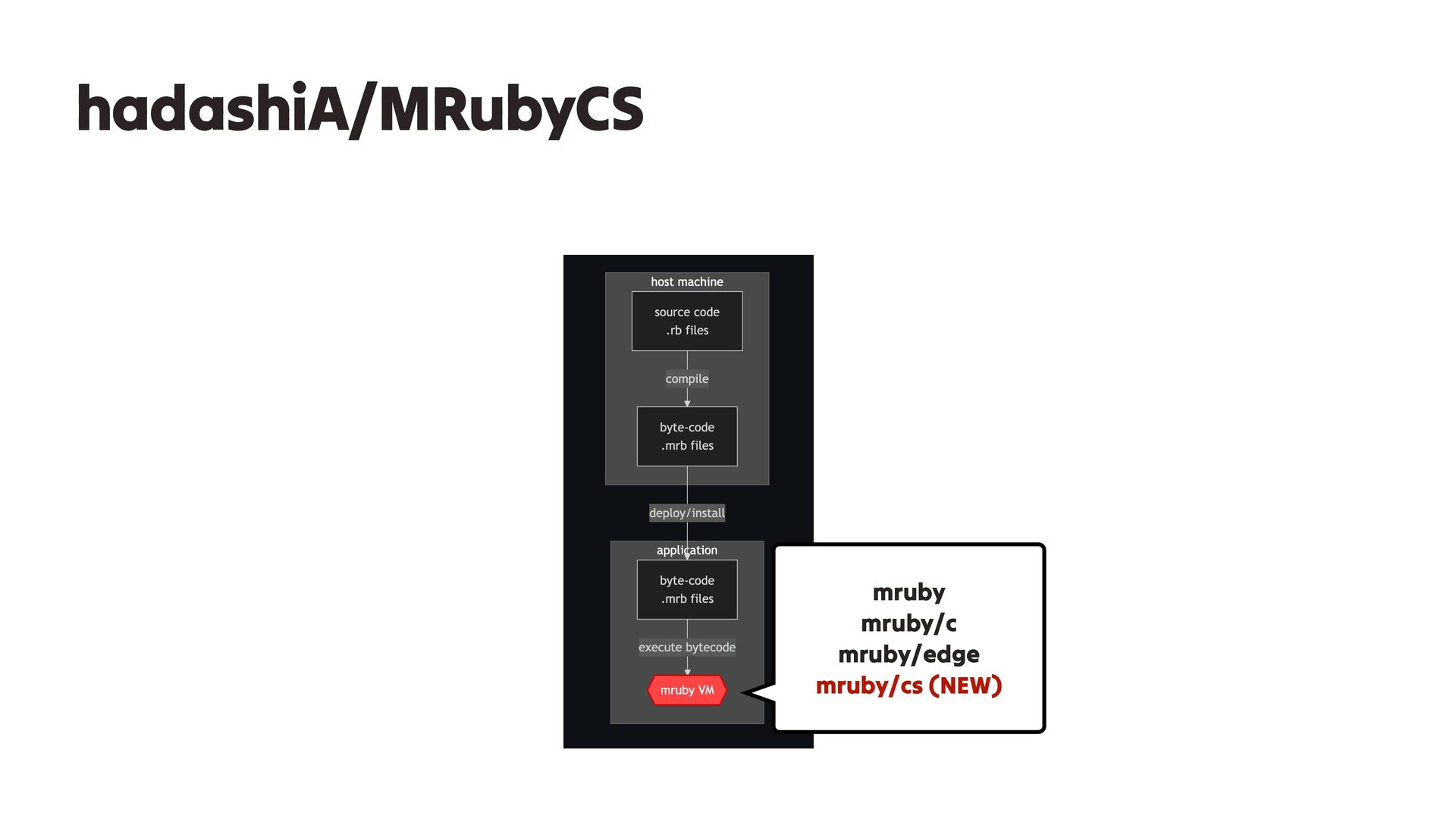

36. hadashiA/MRubyCS mruby mruby/c mruby/edge mruby/cs (NEW)

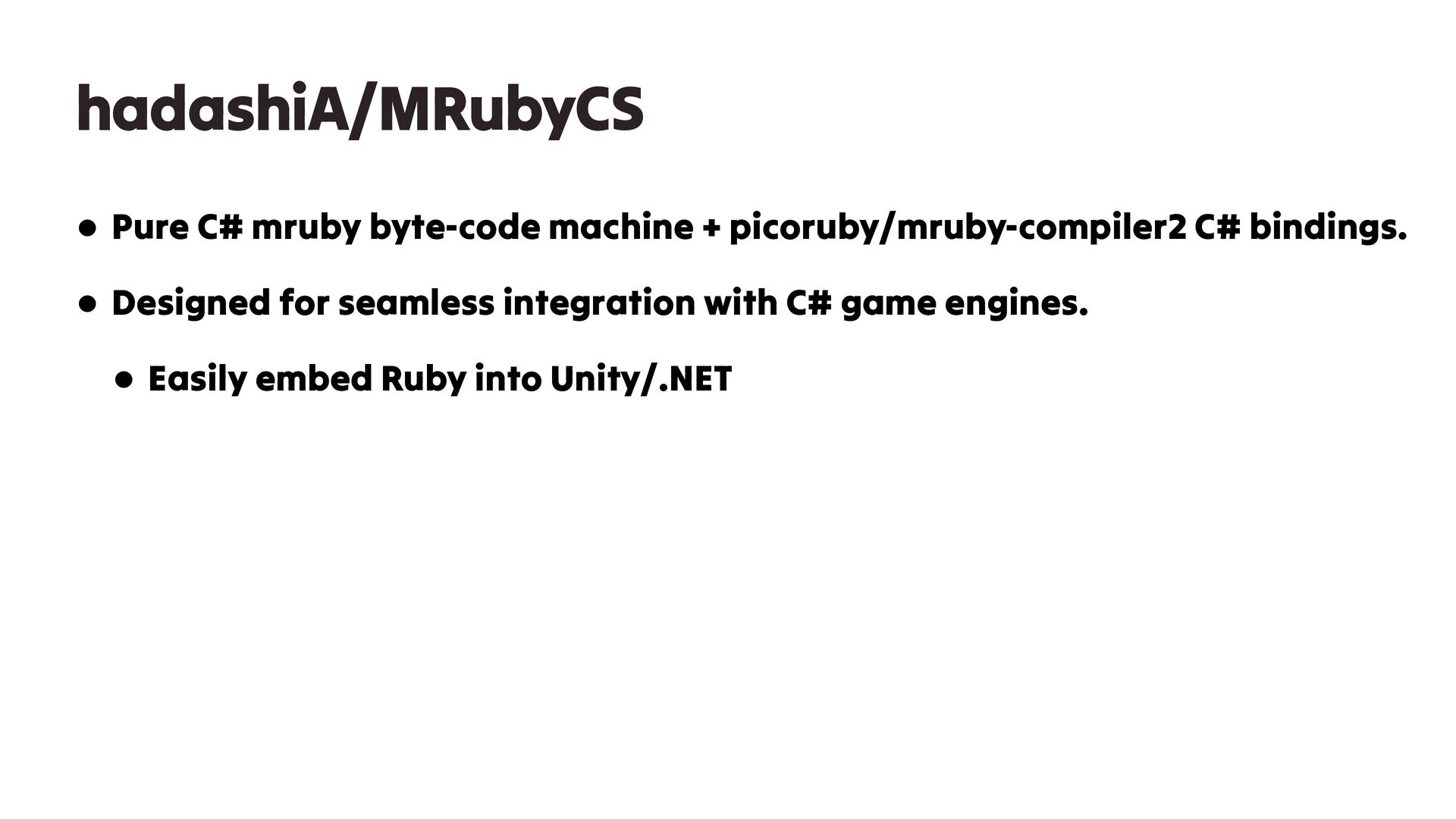

37. hadashiA/MRubyCS • Pure C# mruby byte-code machine + picoruby/mruby-compiler2 C# bindings. • Designed for seamless integration with C# game engines. • Easily embed Ruby into Unity/.NET

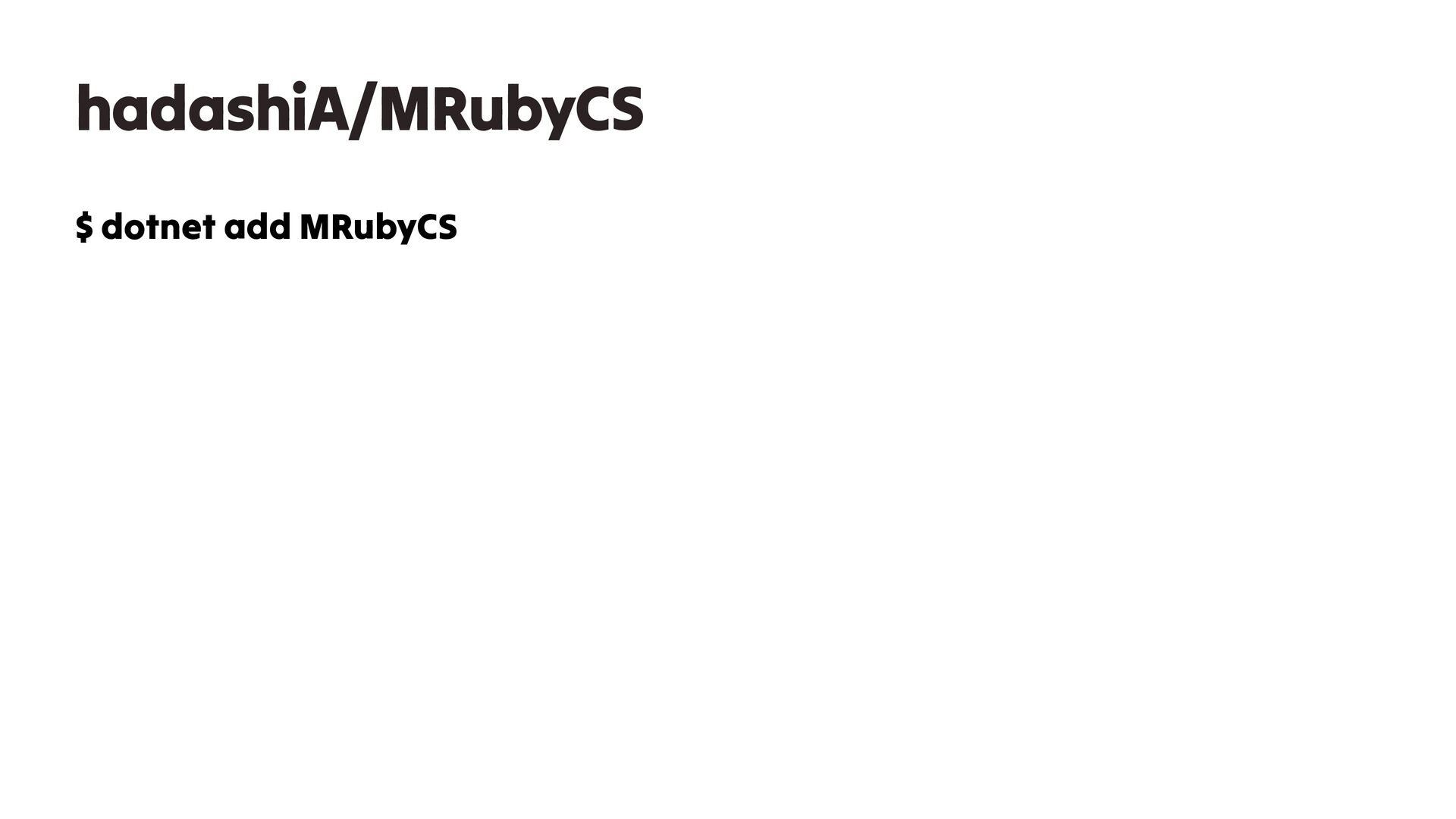

38. hadashiA/MRubyCS $ dotnet add MRubyCS

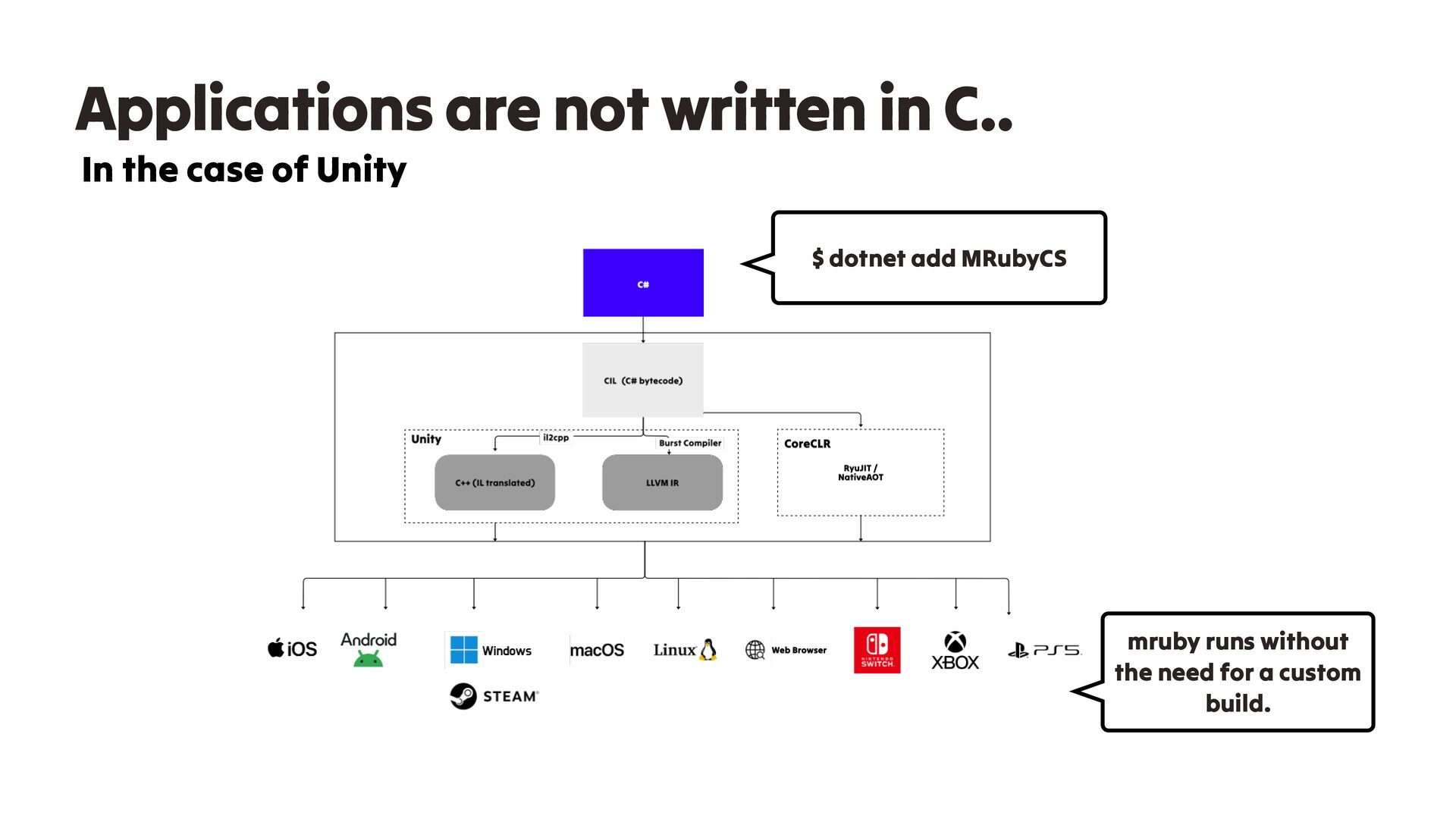

39. Applications are not written in C.. $ dotnet add MRubyCS mruby runs without the need for a custom build. In the case of Unity

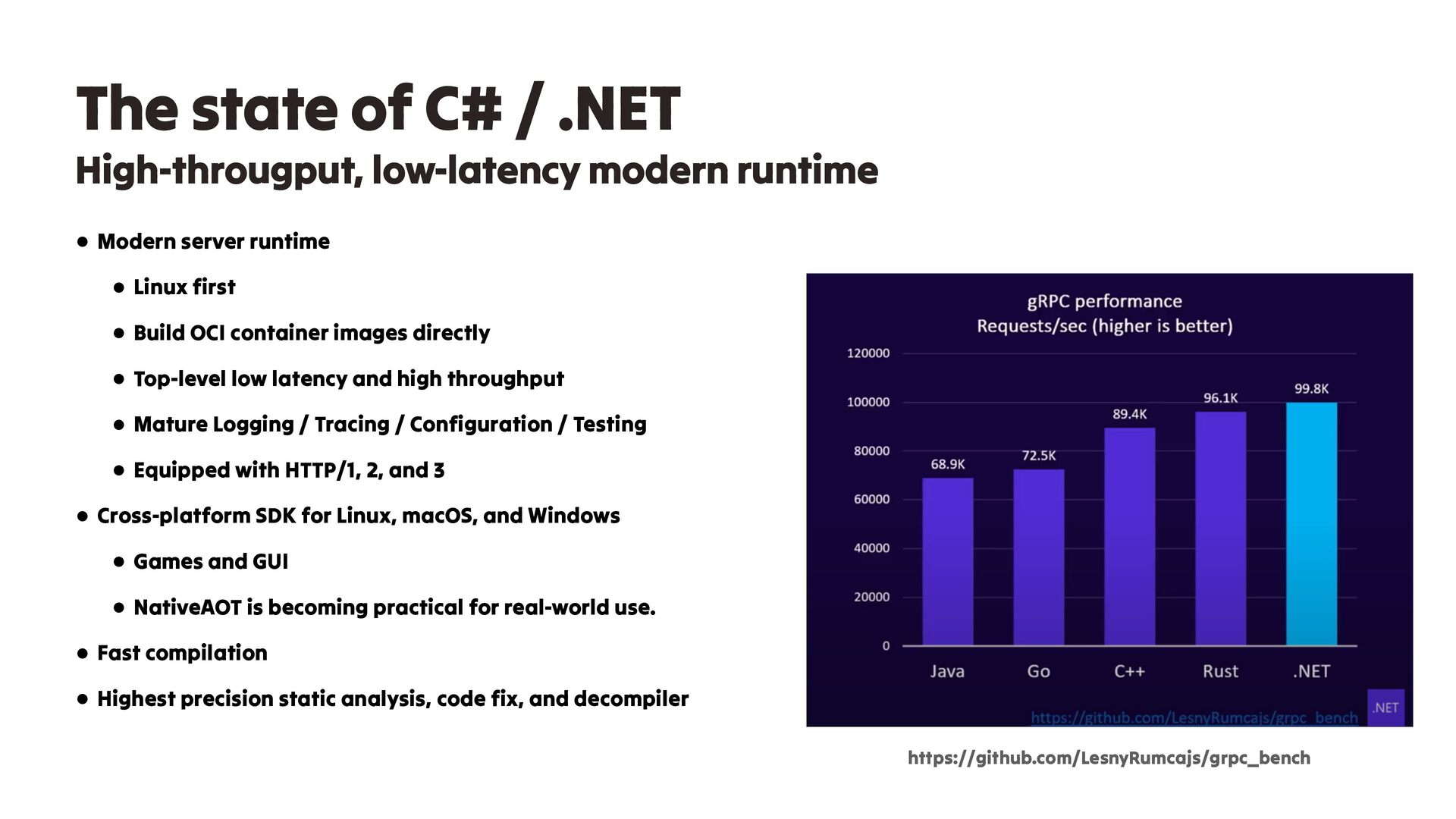

40. The state of C# / .NET • Modern server runtime • Linux first • Build OCI container images directly • Top-level low latency and high throughput • Mature Logging / Tracing / Configuration / Testing • Equipped with HTTP/1, 2, and 3 • Cross-platform SDK for Linux, macOS, and Windows • Games and GUI • NativeAOT is becoming practical for real-world use. • Fast compilation • Highest precision static analysis, code fix, and decompiler High-througput, low-latency modern runtime https://github.com/LesnyRumcajs/grpc_bench

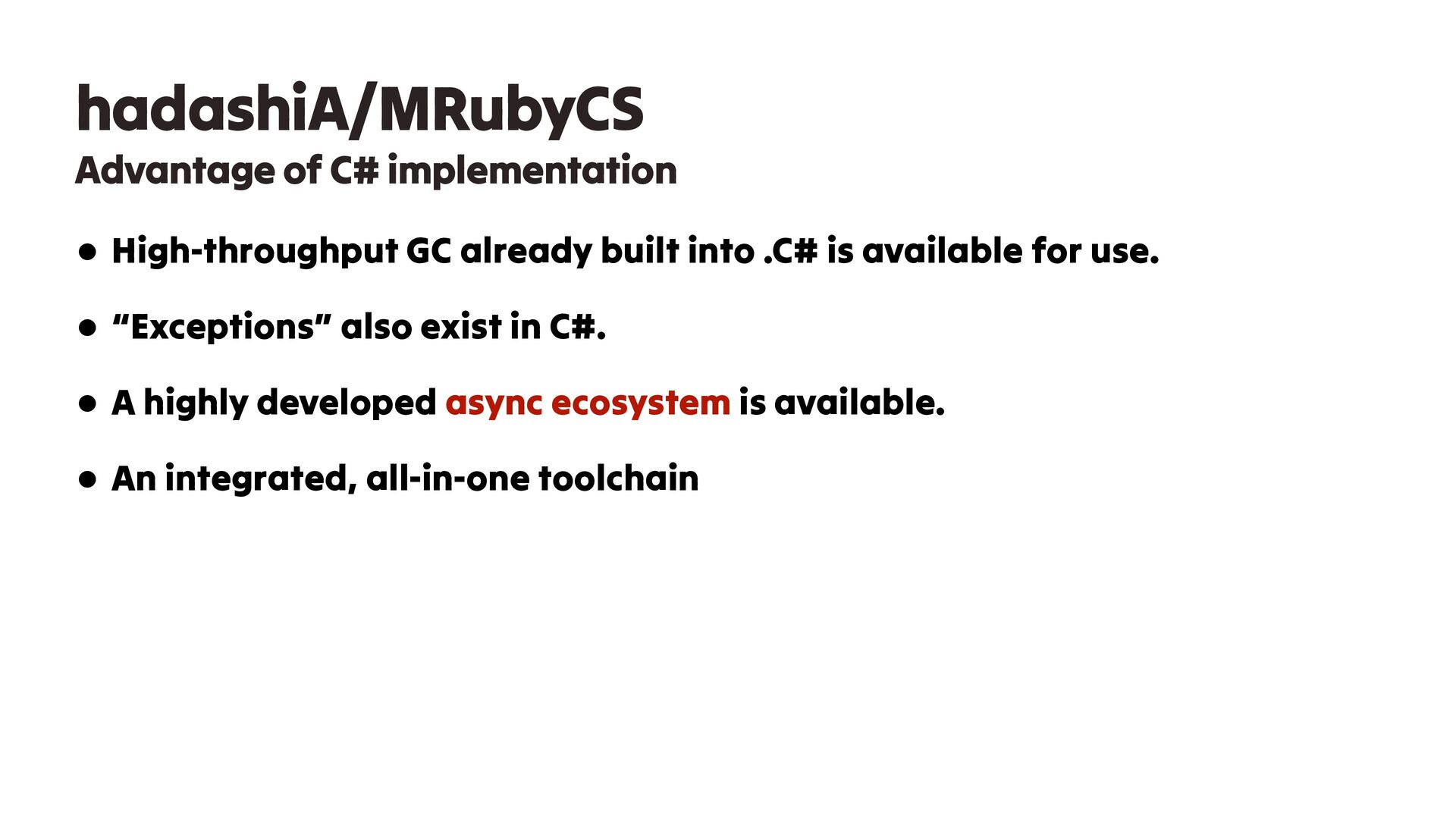

41. hadashiA/MRubyCS • High-throughput GC already built into .C# is available for use. • “Exceptions” also exist in C#. • A highly developed async ecosystem is available. • An integrated, all-in-one toolchain Advantage of C# implementation

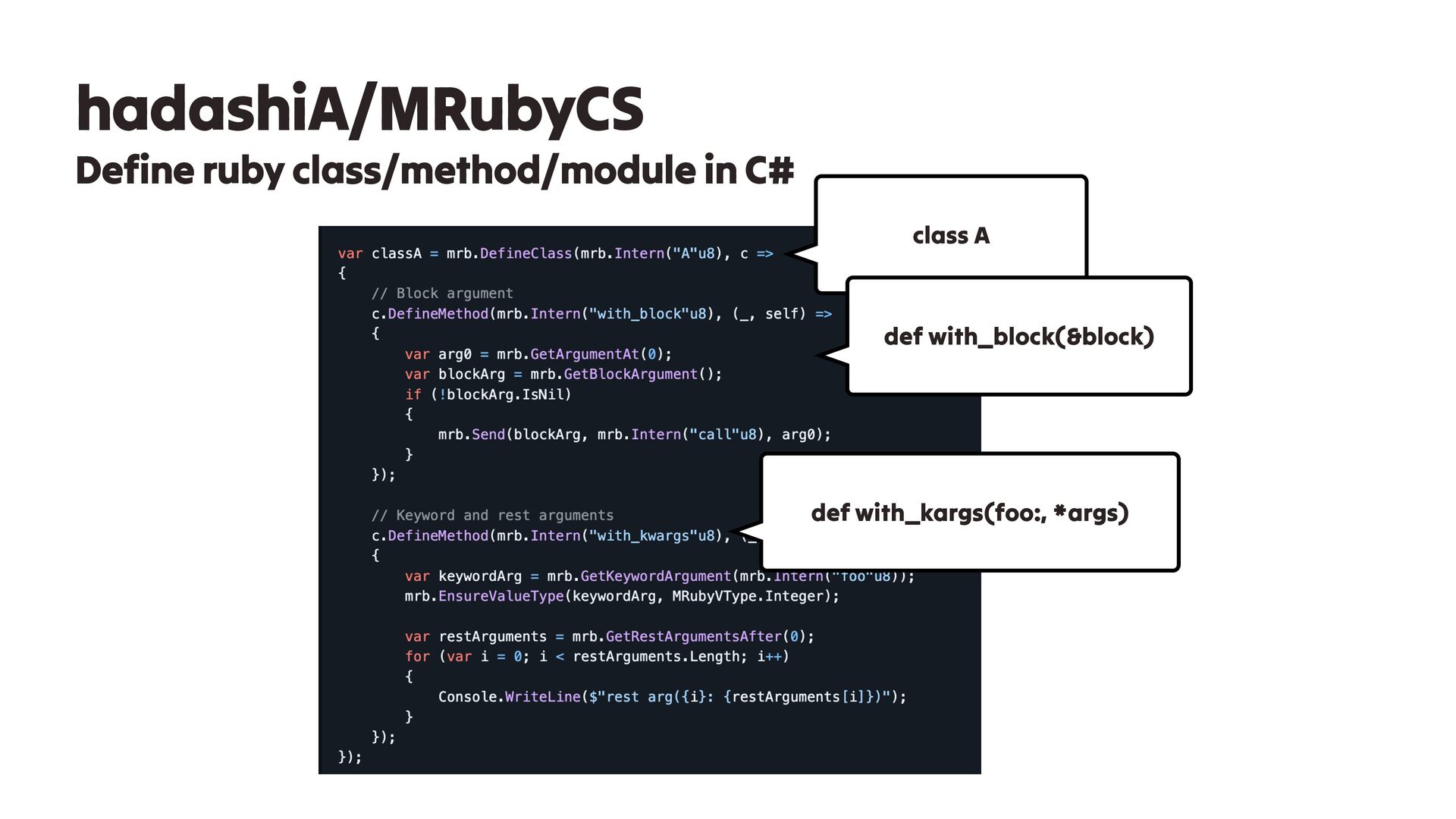

42. hadashiA/MRubyCS Define ruby class/method/module in C# class A def with_block(&block) def with_kargs(foo:, *args)

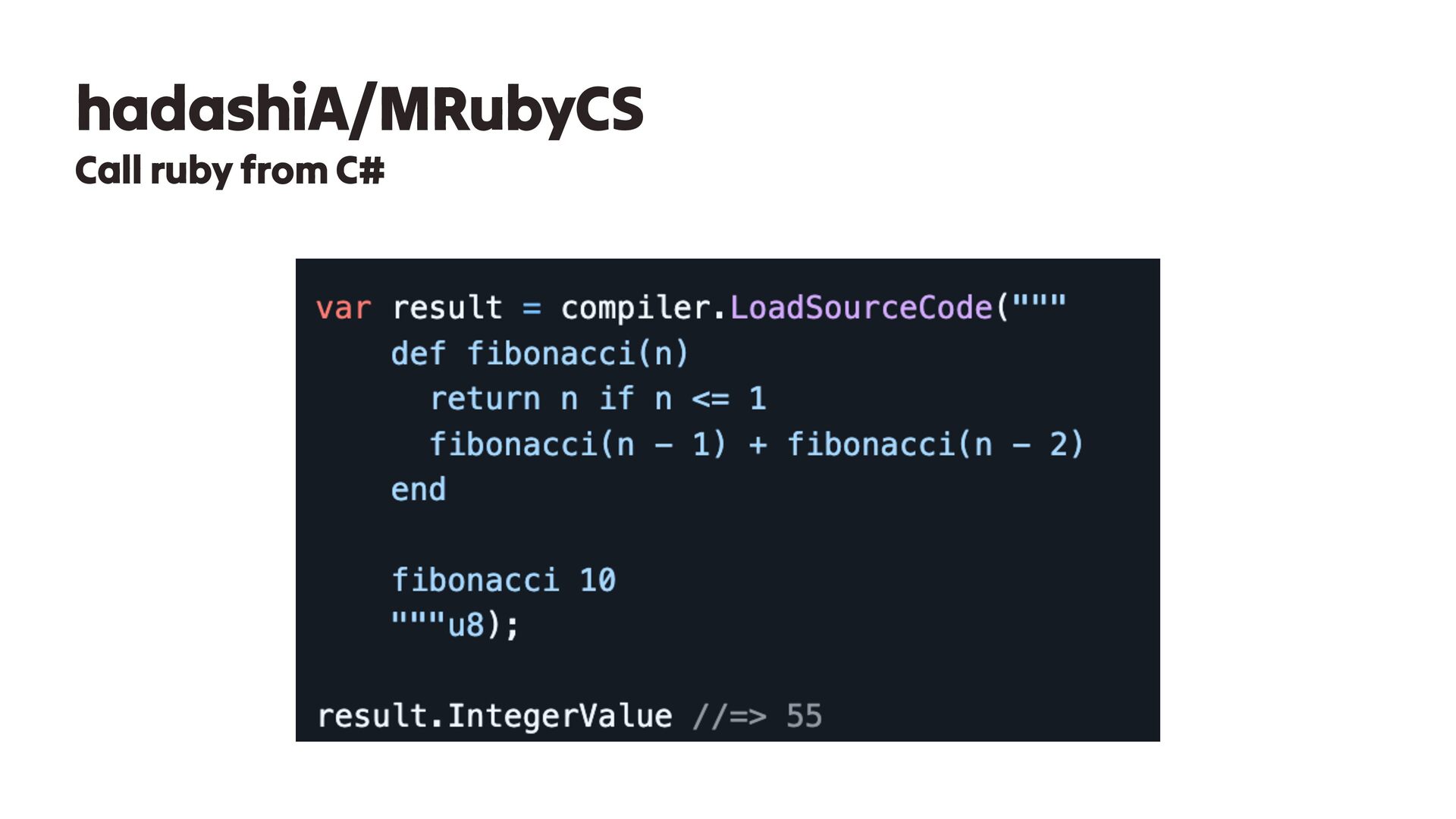

43. hadashiA/MRubyCS Call ruby from C#

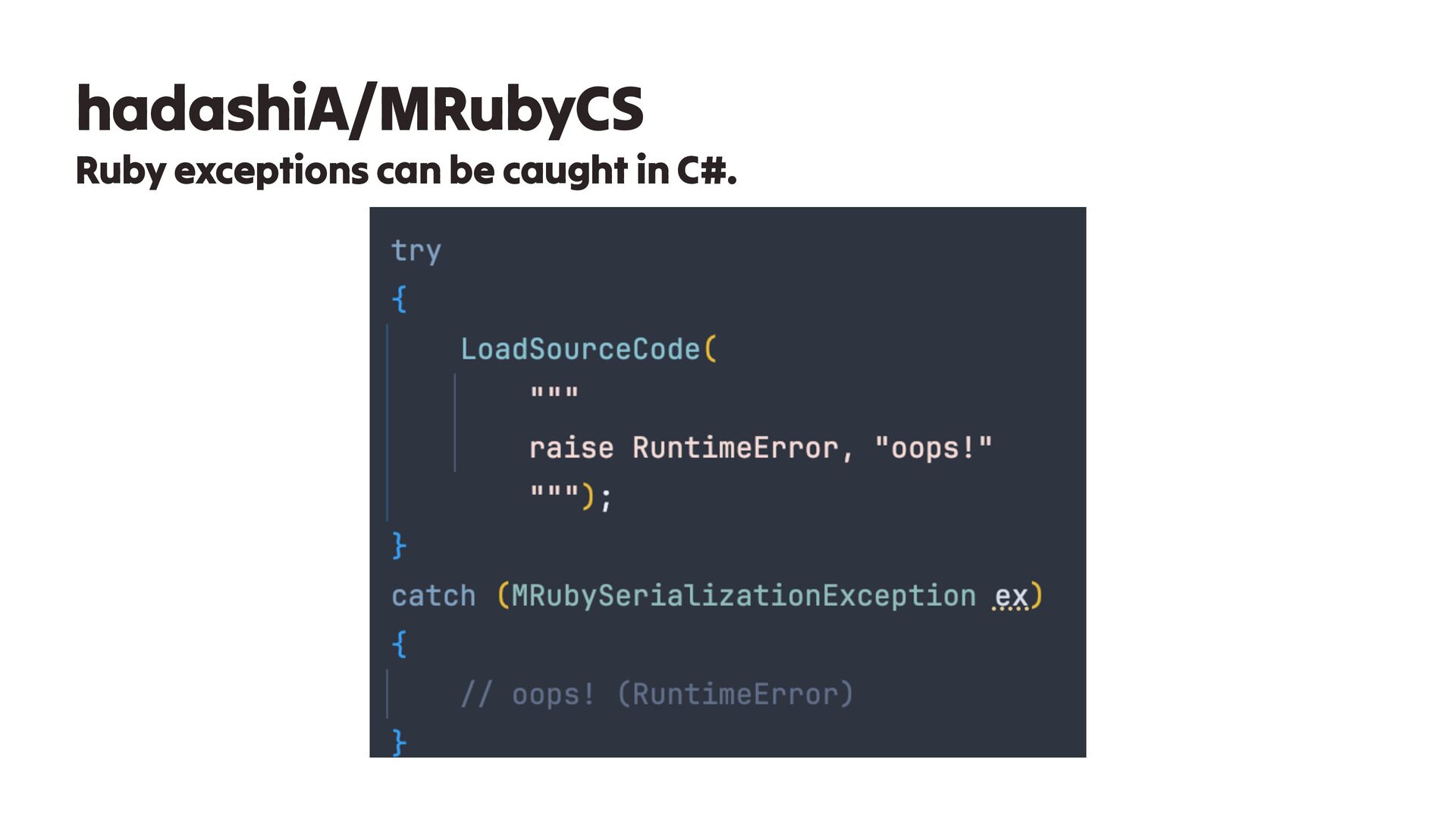

44. hadashiA/MRubyCS Ruby exceptions can be caught in C#.

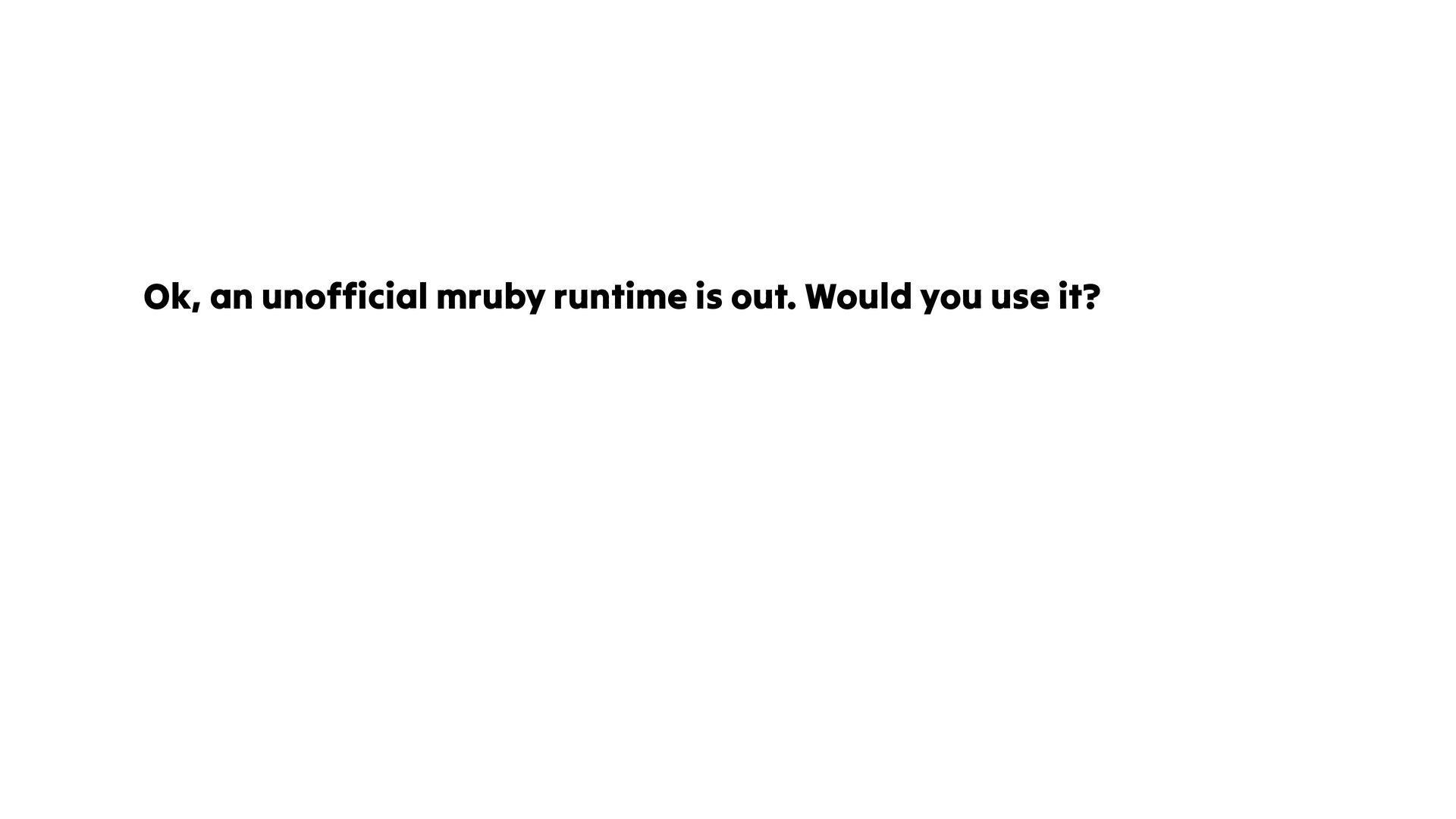

45. Ok, an unofficial mruby runtime is out. Would you use it?

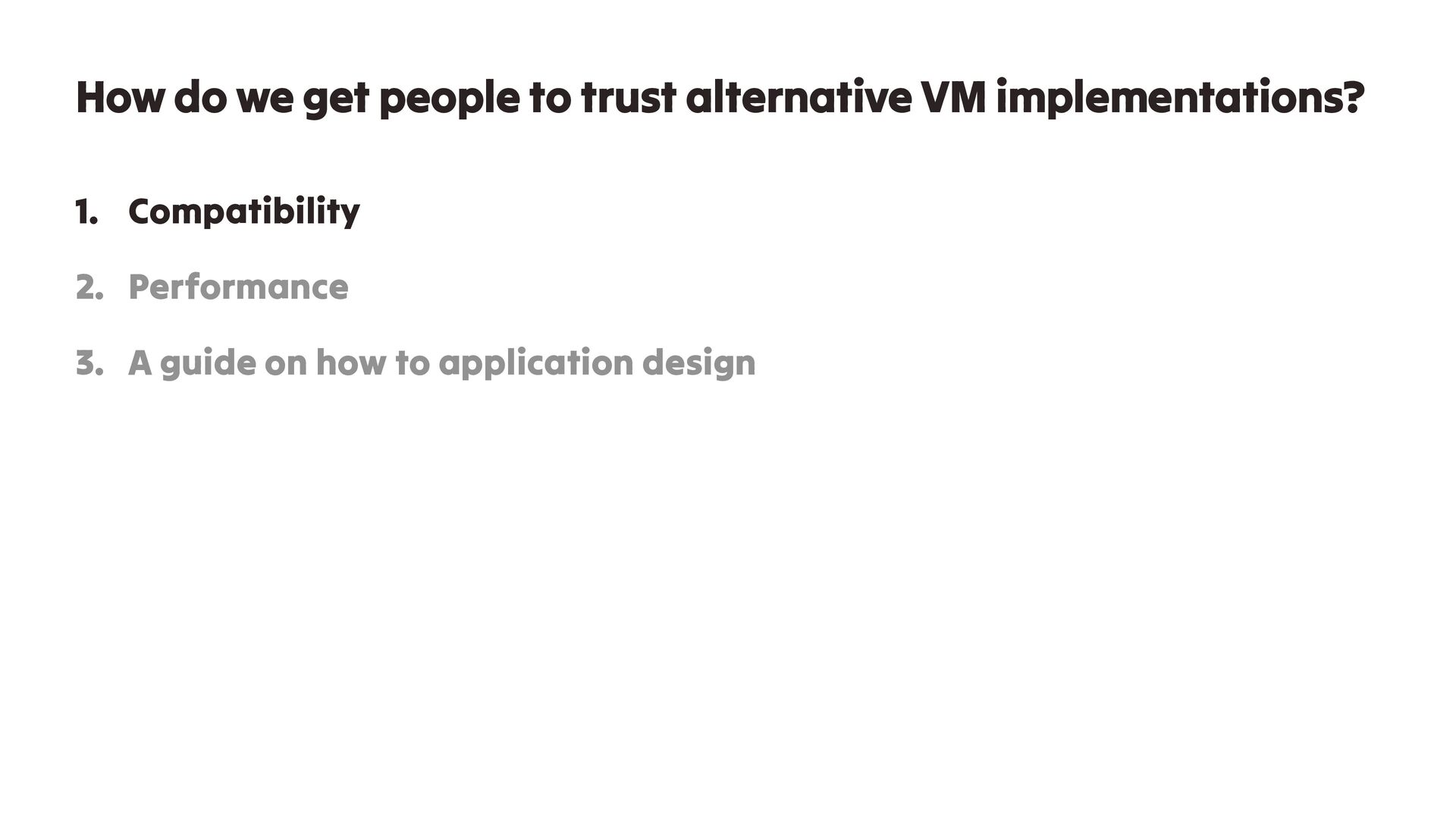

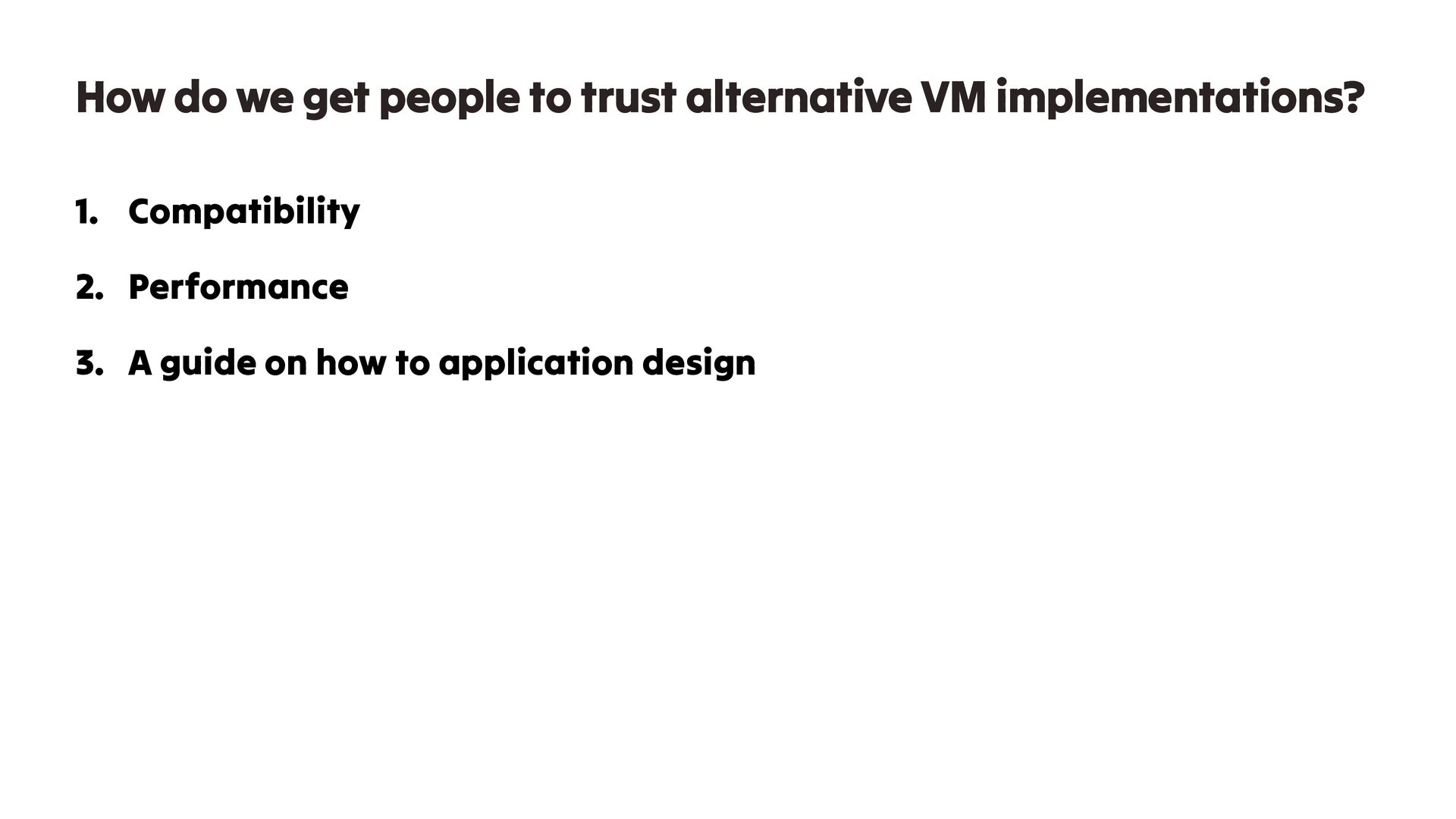

46. How do we get people to trust alternative VM implementations? 1. Compatibility 2. Performance 3. A guide on how to application design
47. How do we get people to trust alternative VM implementations? 1. Compatibility 2. Performance 3. A guide on how to application design

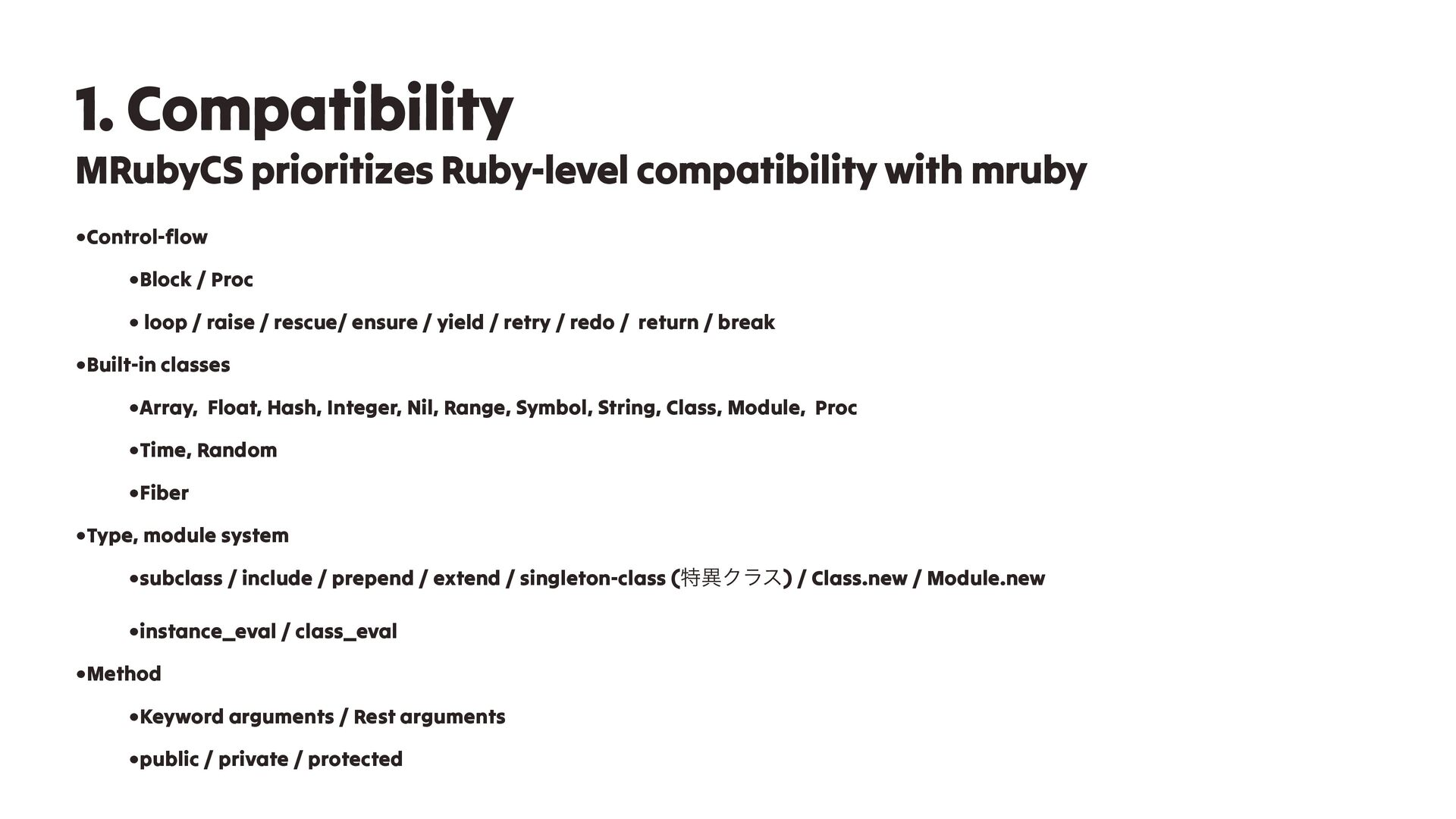

48. 1. Compatibility MRubyCS prioritizes Ruby-level compatibility with mruby •Control-flow •Block / Proc • loop / raise / rescue/ ensure / yield / retry / redo / return / break •Built-in classes •Array, Float, Hash, Integer, Nil, Range, Symbol, String, Class, Module, Proc •Time, Random •Fiber •Type, module system •subclass / include / prepend / extend / singleton-class (ಛҟΫϥε) / Class.new / Module.new •instance_eval / class_eval •Method •Keyword arguments / Rest arguments •public / private / protected

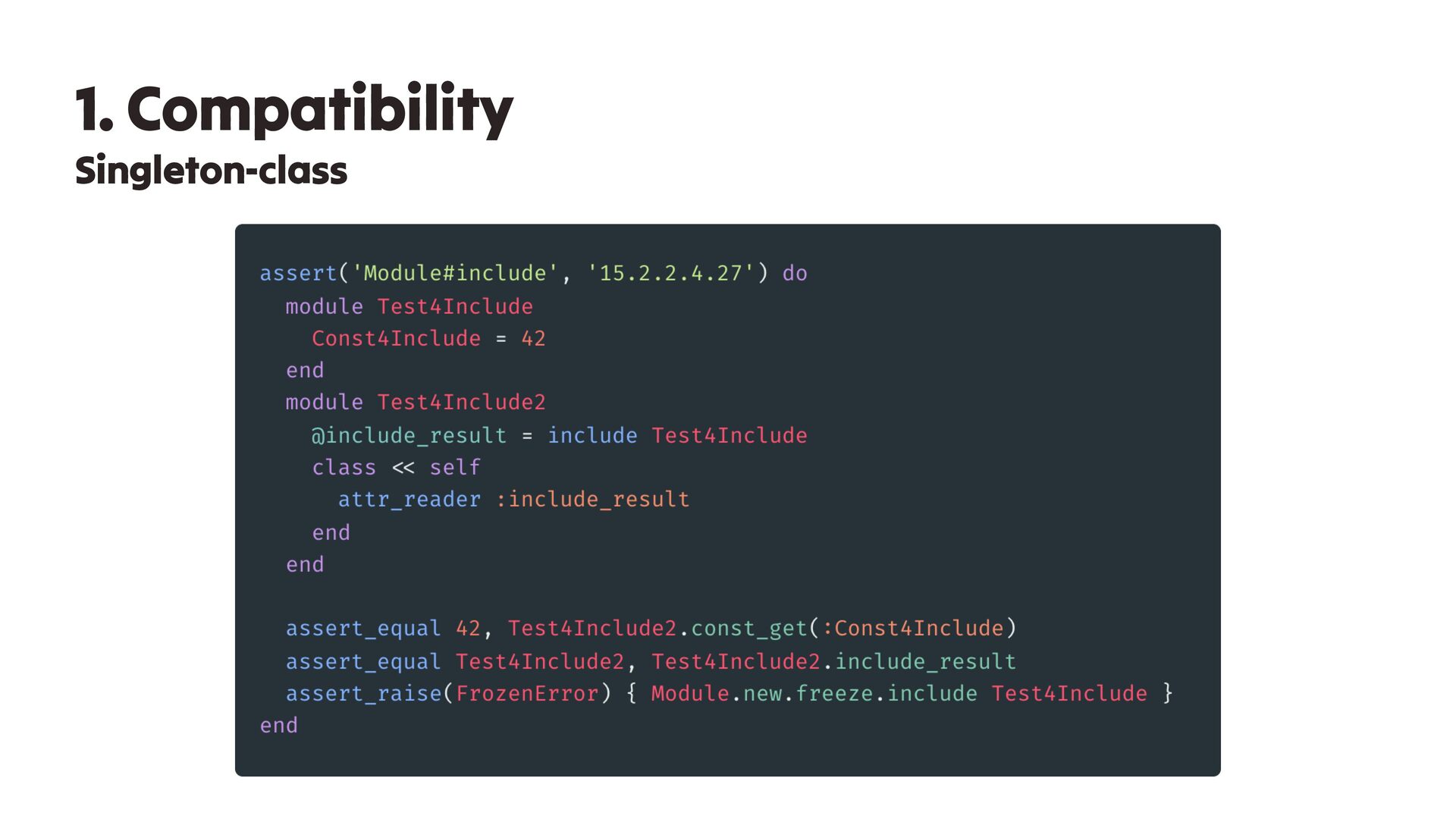

49. 1. Compatibility Singleton-class

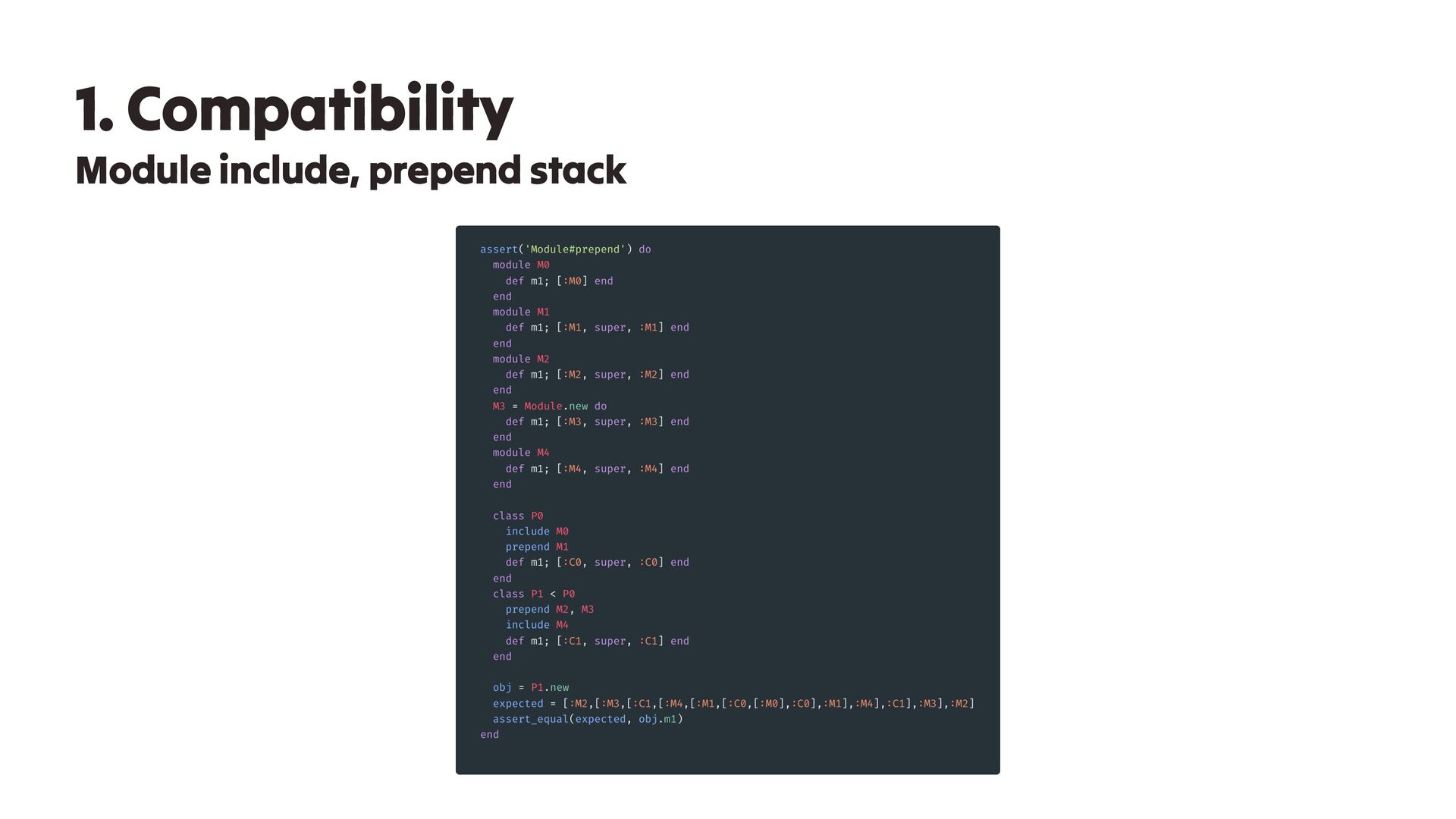

50. 1. Compatibility Module include, prepend stack

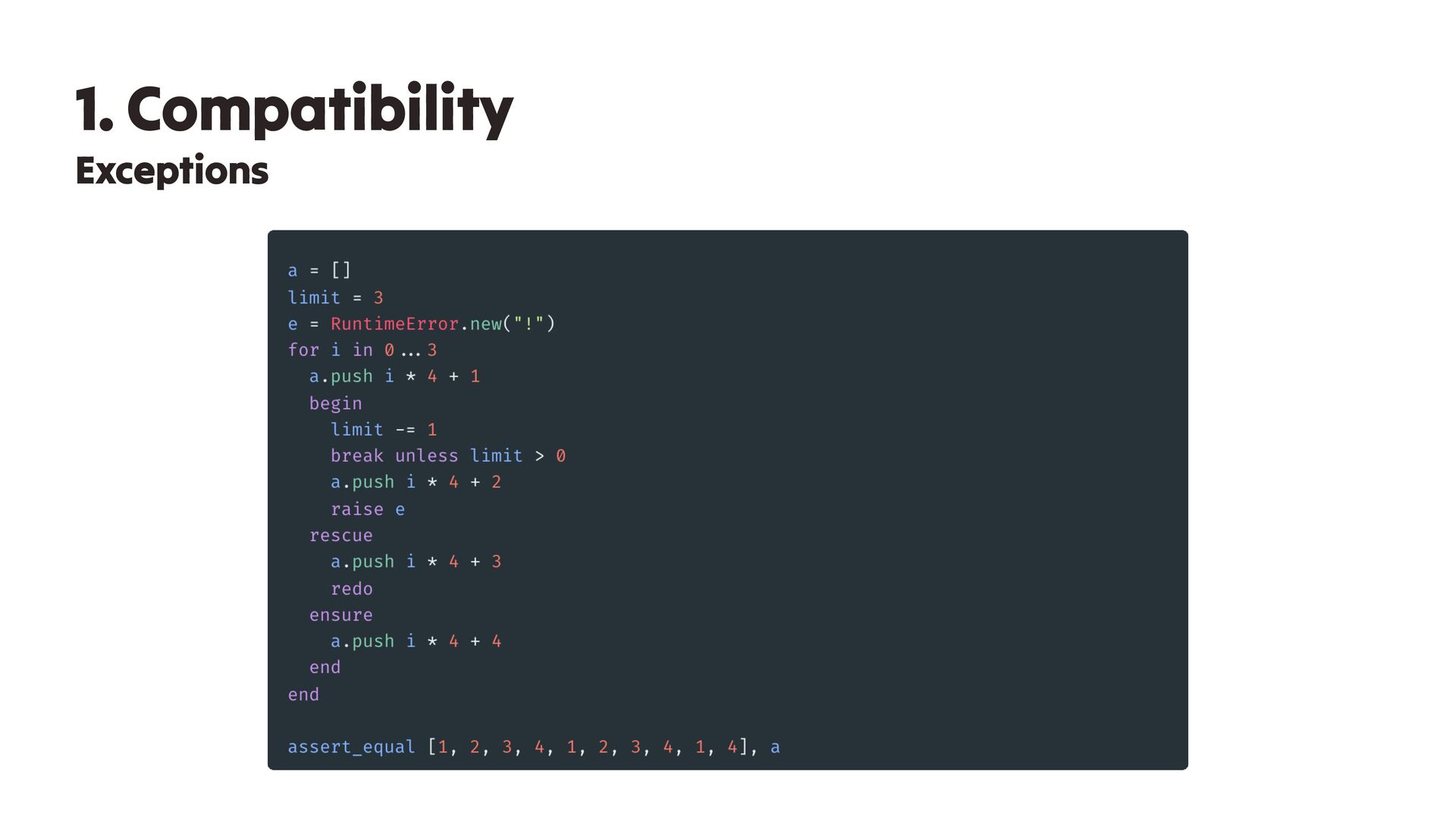

51. 1. Compatibility Exceptions

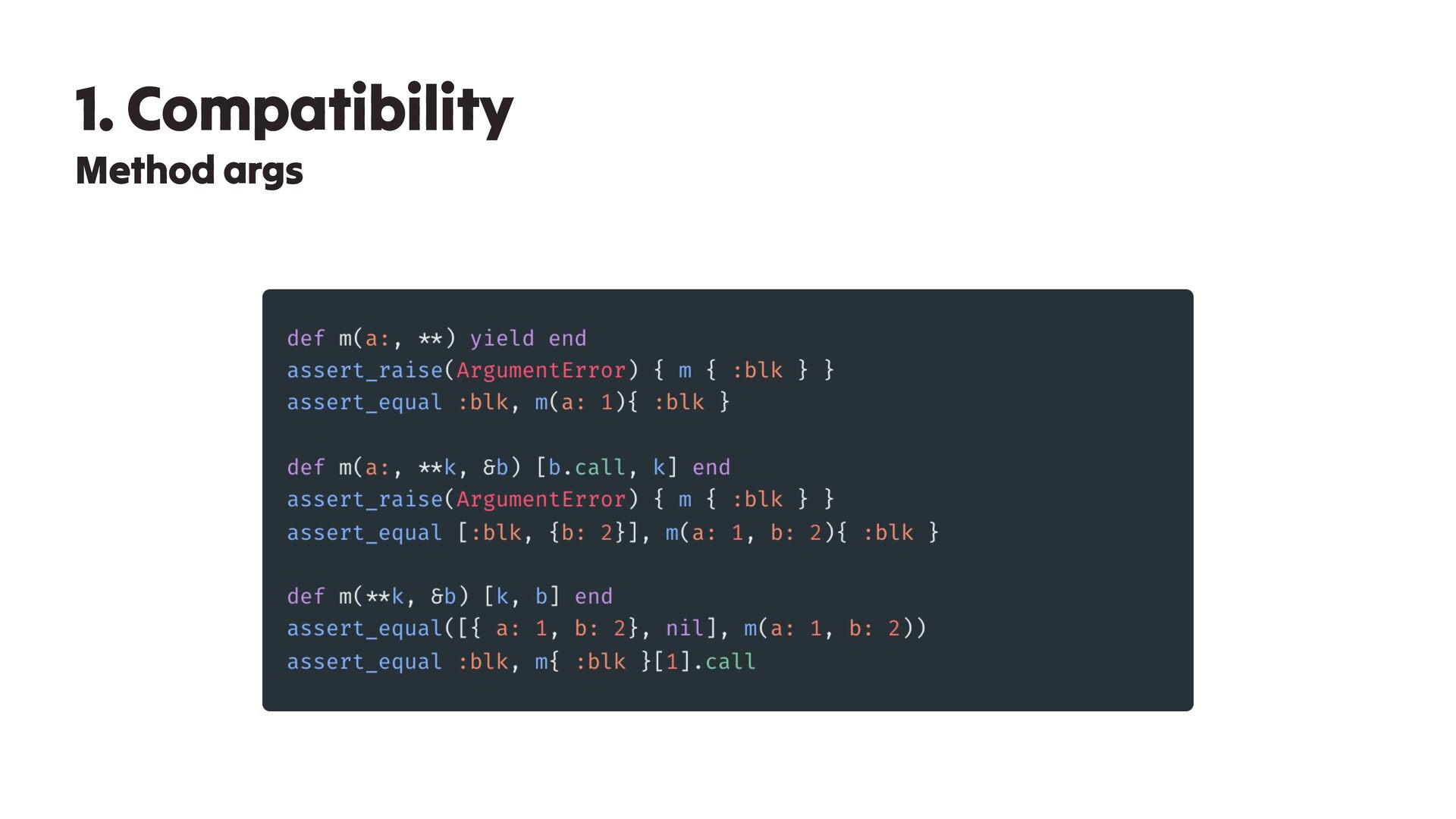

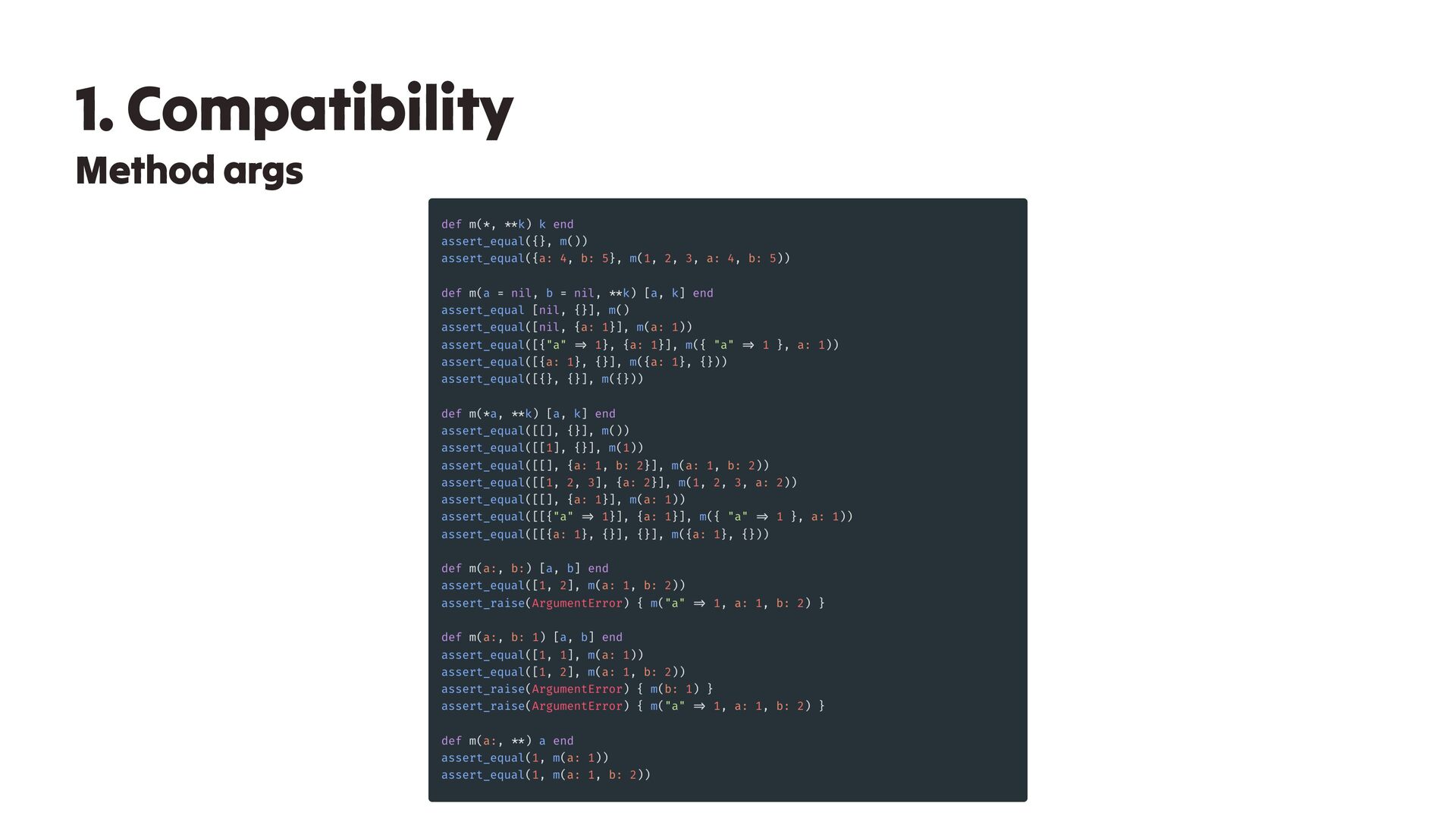

52. 1. Compatibility Method args
53. 1. Compatibility Method args

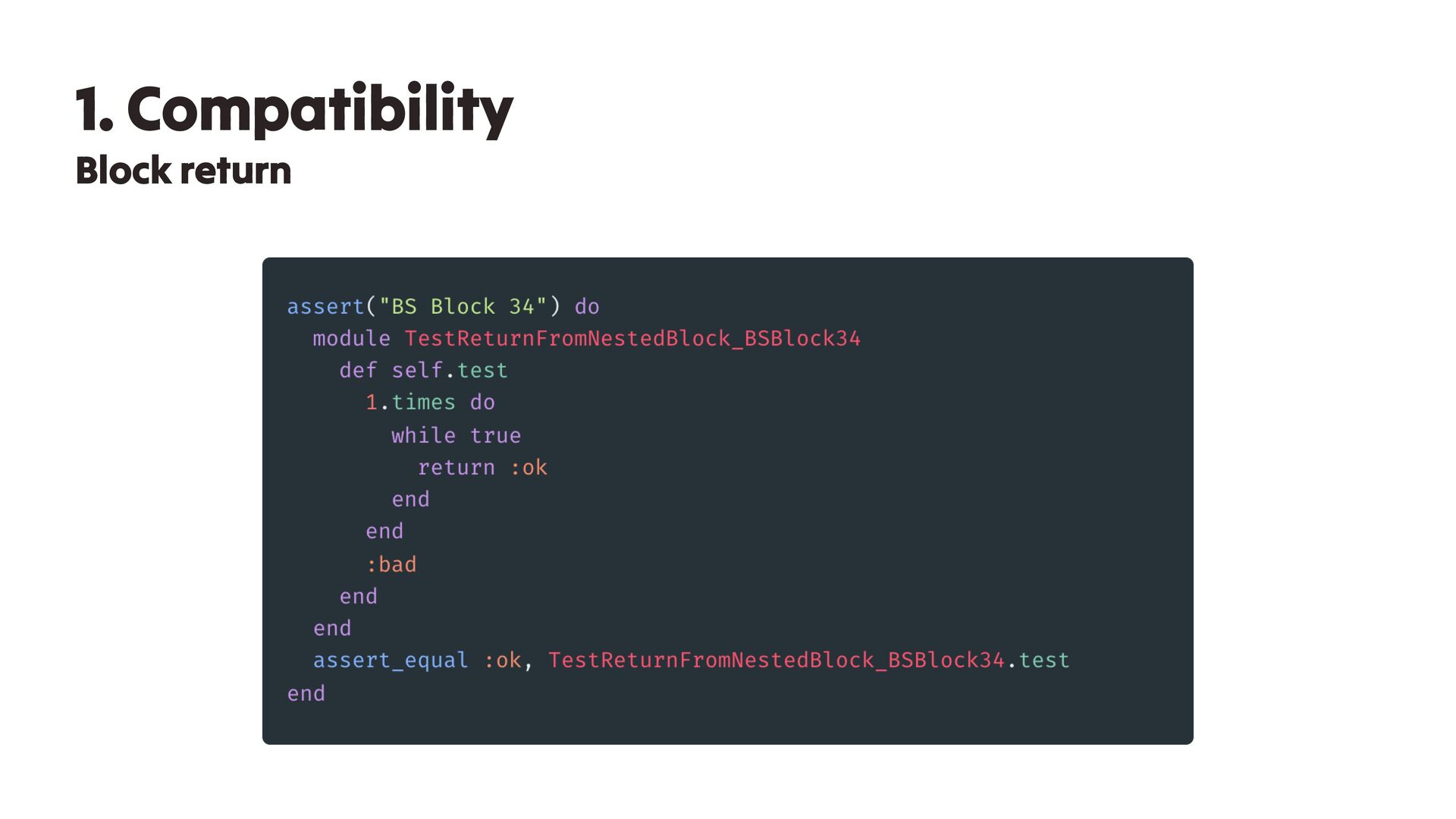

54. 1. Compatibility Block return
55. 1. Compatibility Builtin class libs

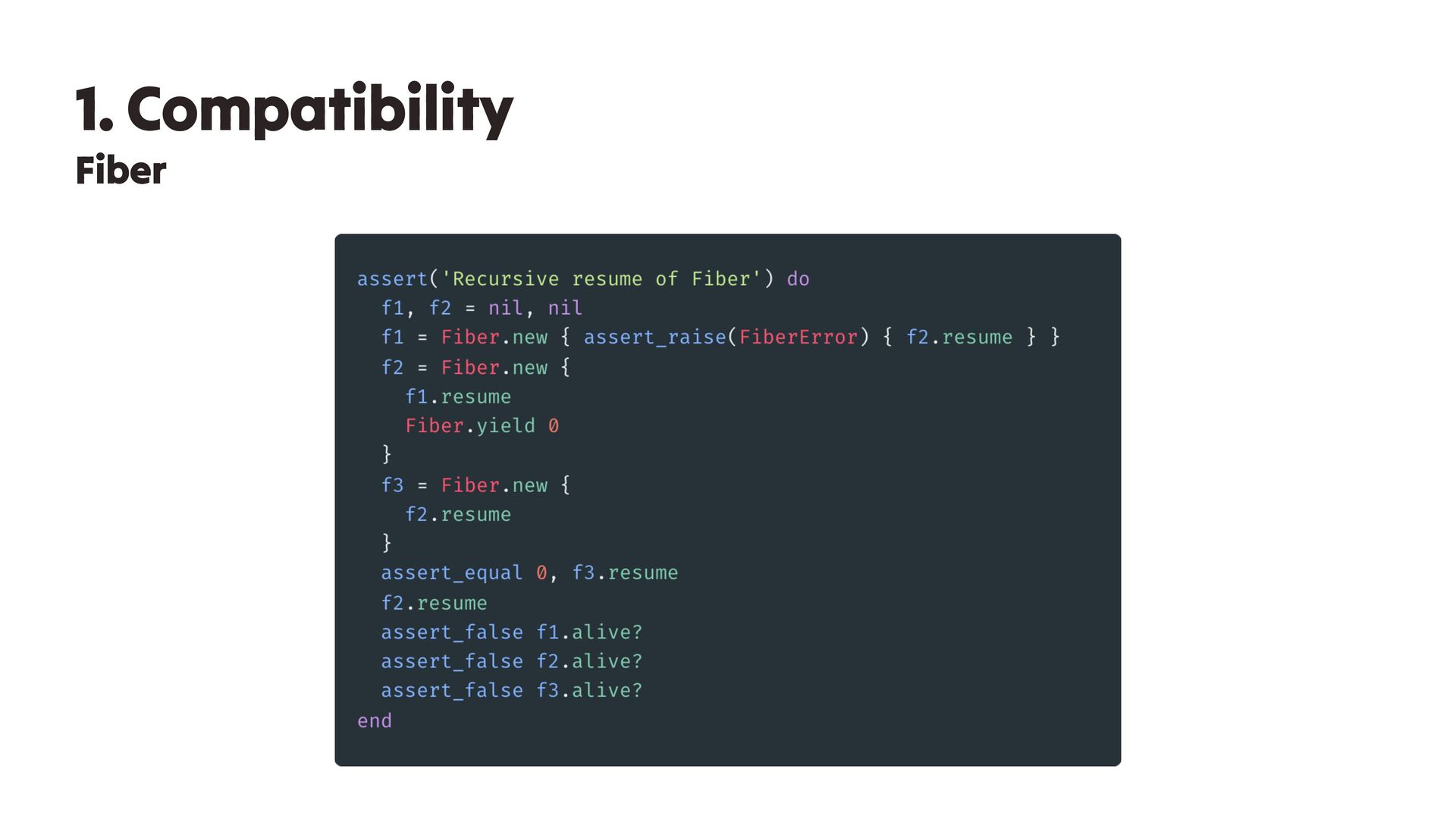

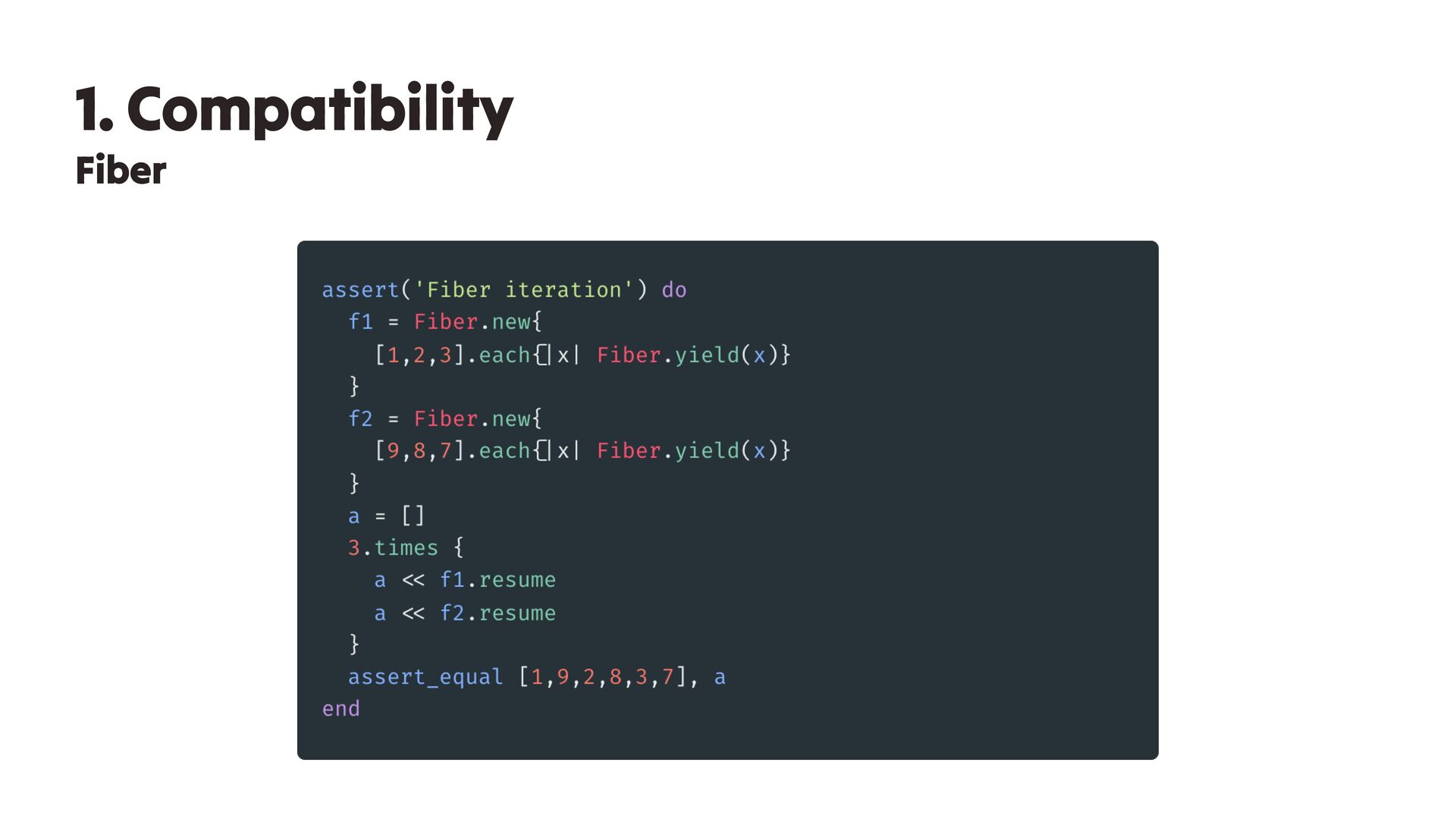

56. 1. Compatibility Fiber
57. 1. Compatibility Fiber

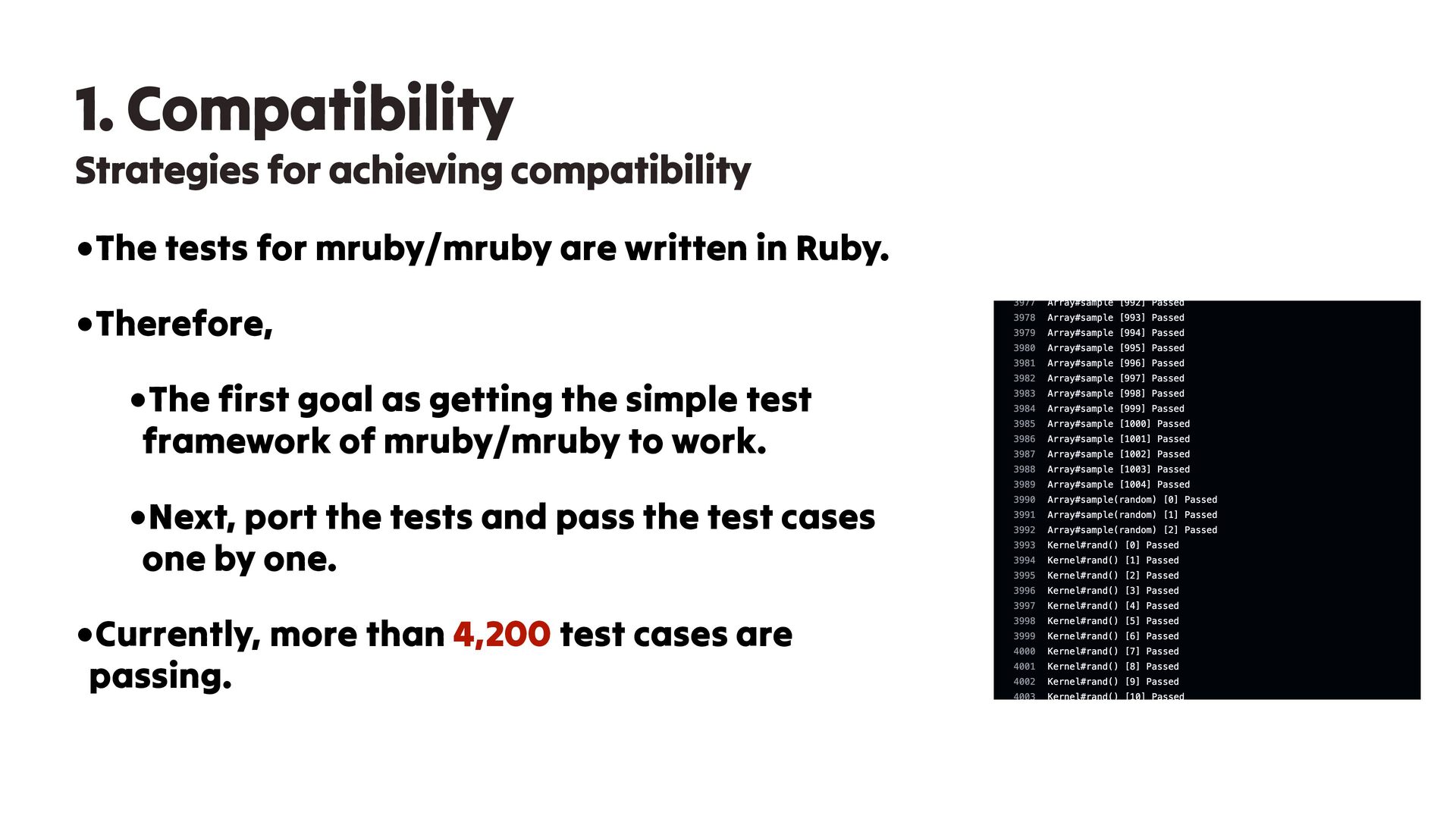

58. 1. Compatibility Strategies for achieving compatibility •The tests for mruby/mruby are written in Ruby. •Therefore, •The first goal as getting the simple test framework of mruby/mruby to work. •Next, port the tests and pass the test cases one by one. •Currently, more than 4,200 test cases are passing.
59. How do we get people to trust alternative VM implementations? 1. Compatibility 2. Performance 3. A guide on how to application design

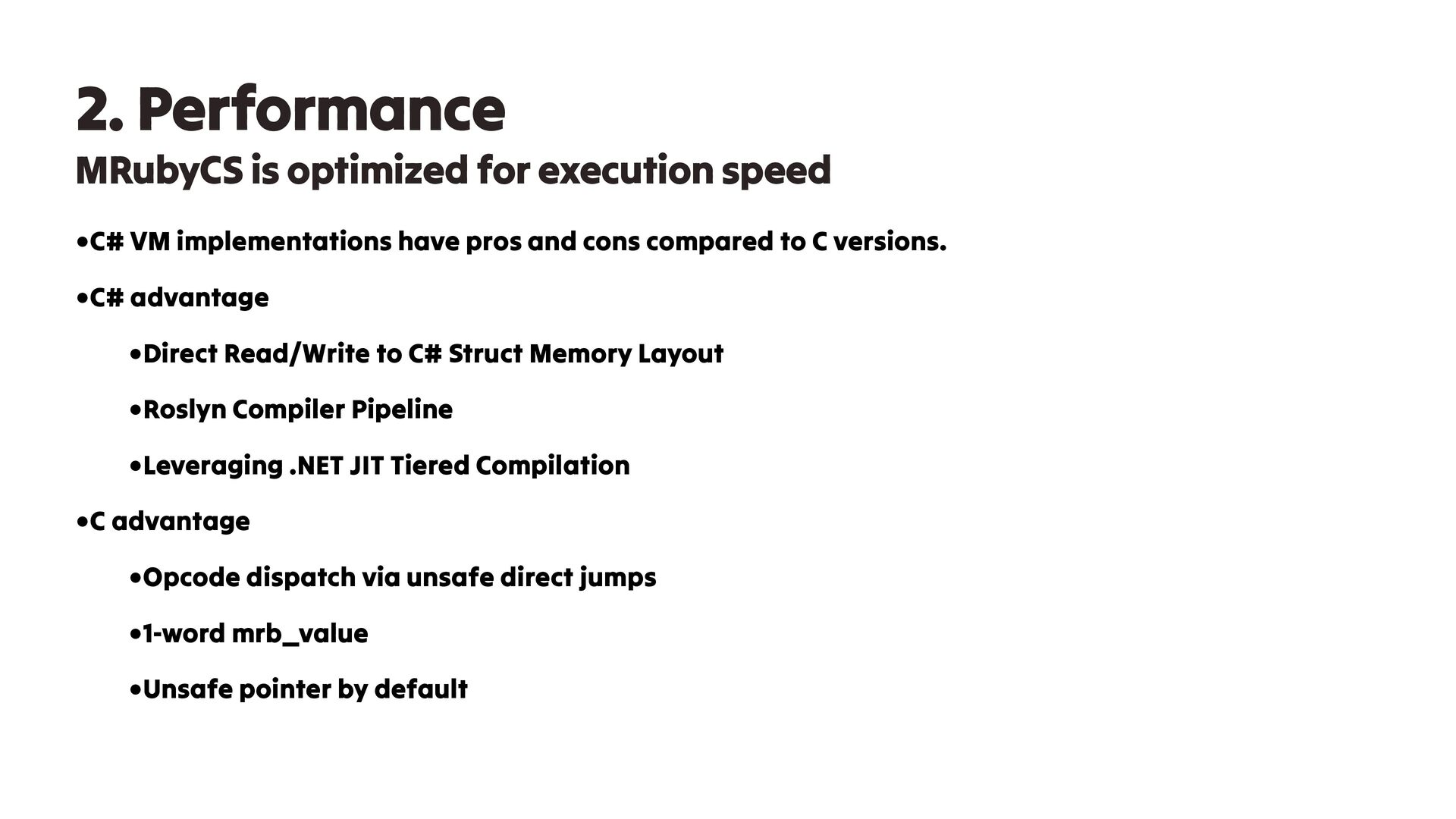

60. 2. Performance MRubyCS is optimized for execution speed •C# VM implementations have pros and cons compared to C versions. •C# advantage •Direct Read/Write to C# Struct Memory Layout •Roslyn Compiler Pipeline •Leveraging .NET JIT Tiered Compilation •C advantage •Opcode dispatch via unsafe direct jumps •1-word mrb_value •Unsafe pointer by default

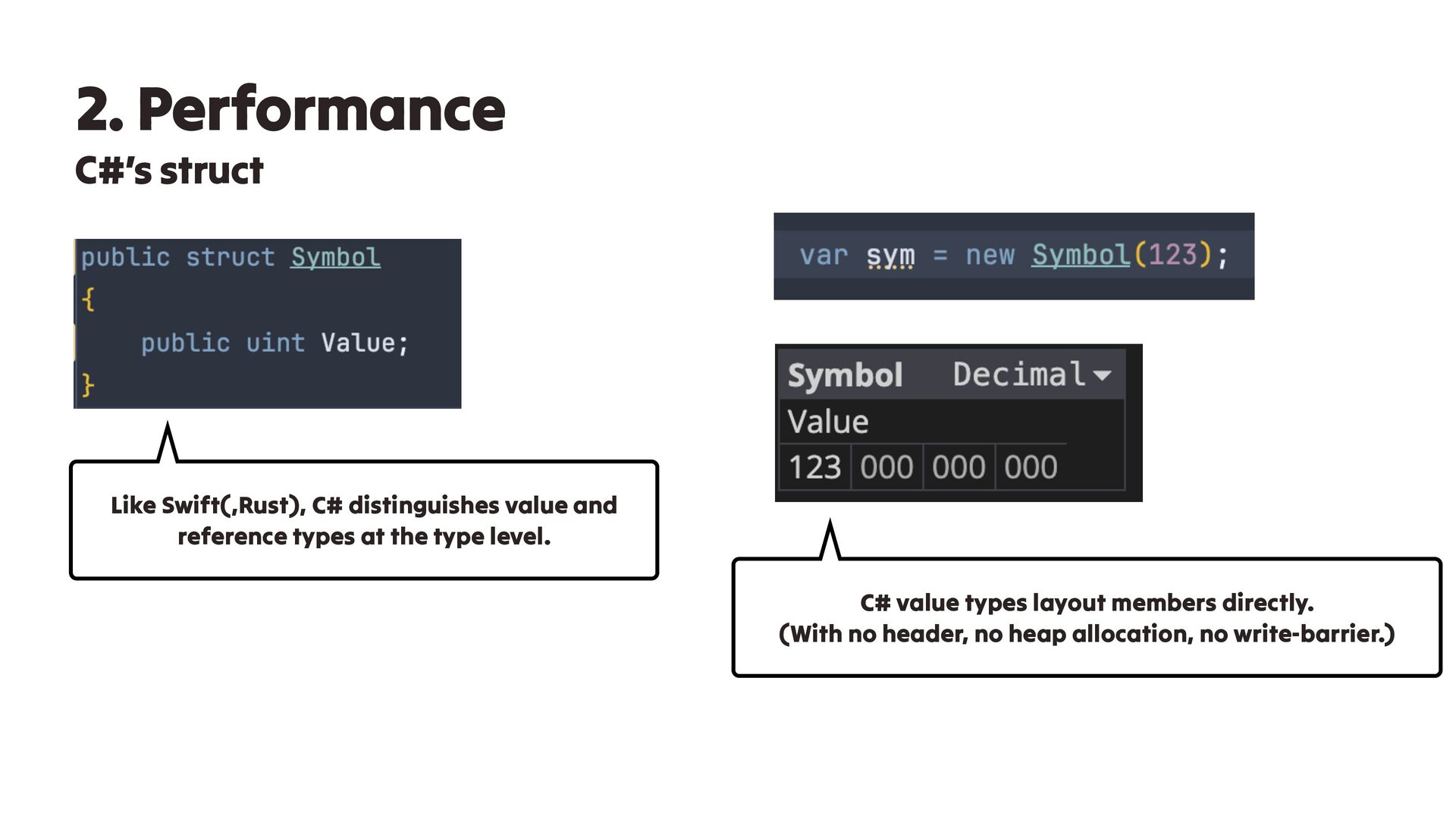

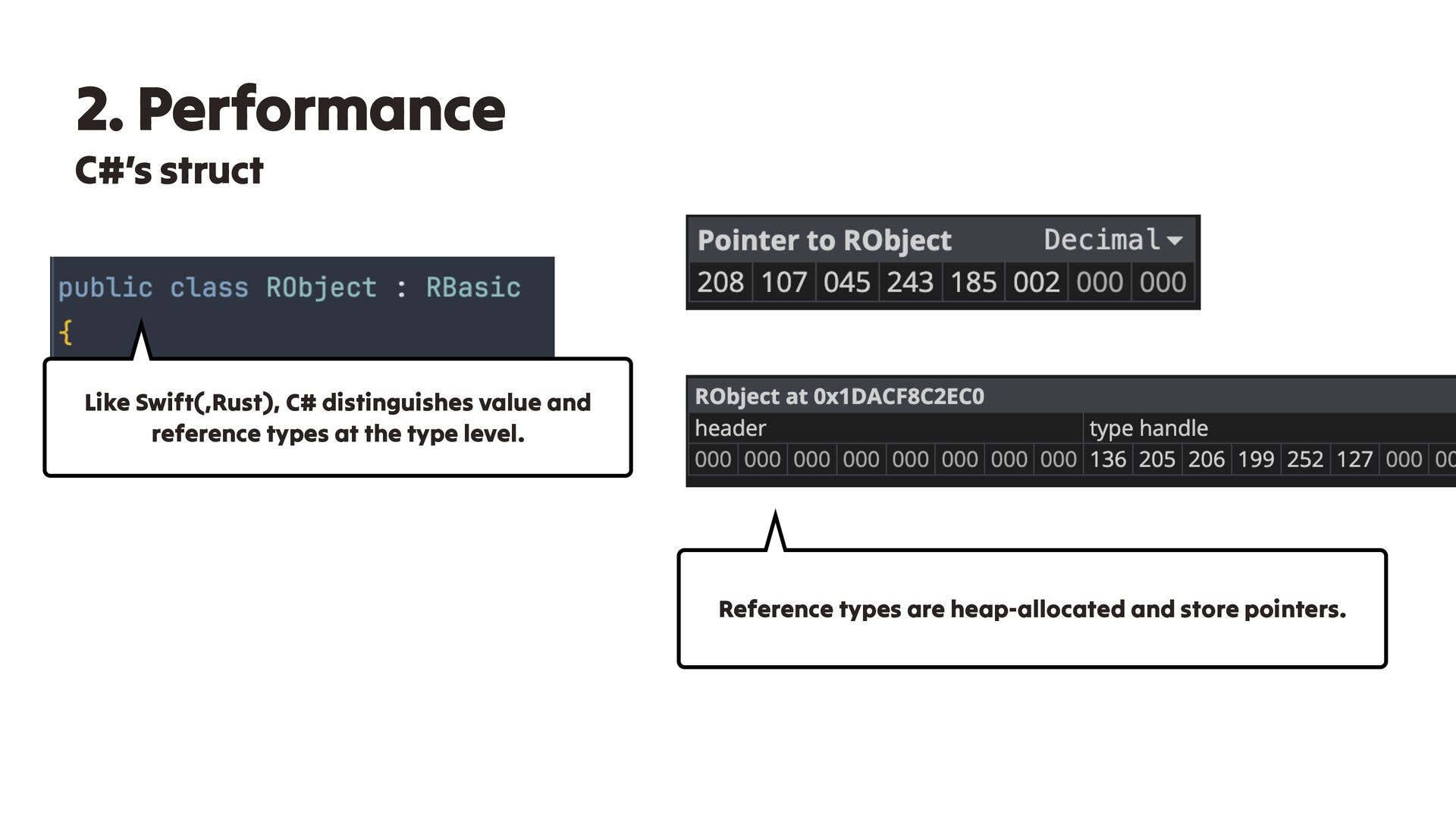

61. 2. Performance C#’s struct Like Swift(,Rust), C# distinguishes value and reference types at the type level. C# value types layout members directly. (With no header, no heap allocation, no write-barrier.)
62. 2. Performance C#’s struct Reference types are heap-allocated and store pointers. Like Swift(,Rust), C# distinguishes value and reference types at the type level.

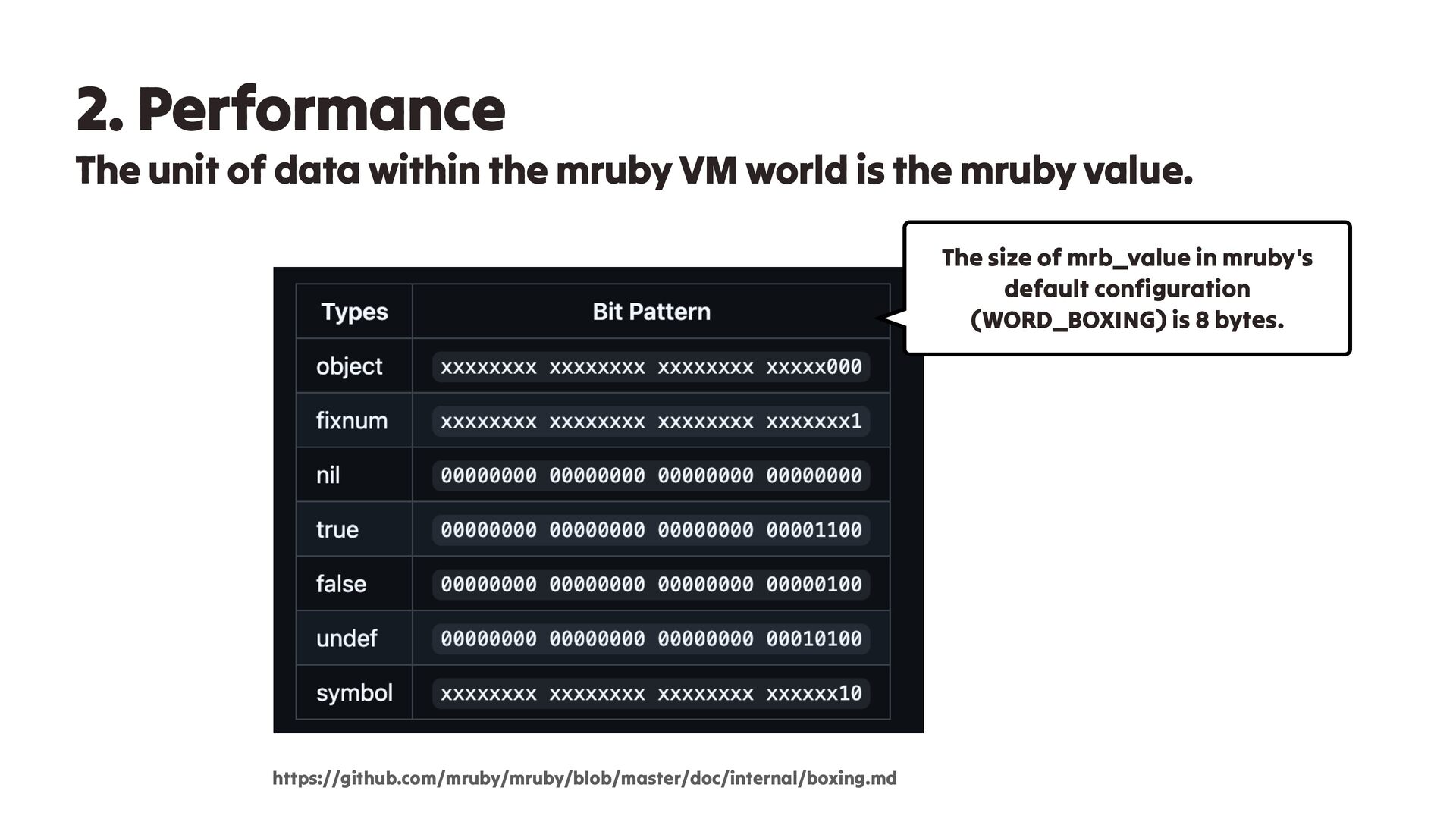

63. 2. Performance The unit of data within the mruby VM world is the mruby value.
64. 2. Performance The unit of data within the mruby VM world is the mruby value. The size of mrb_value in mruby's default configuration (WORD_BOXING) is 8 bytes. https://github.com/mruby/mruby/blob/master/doc/internal/boxing.md

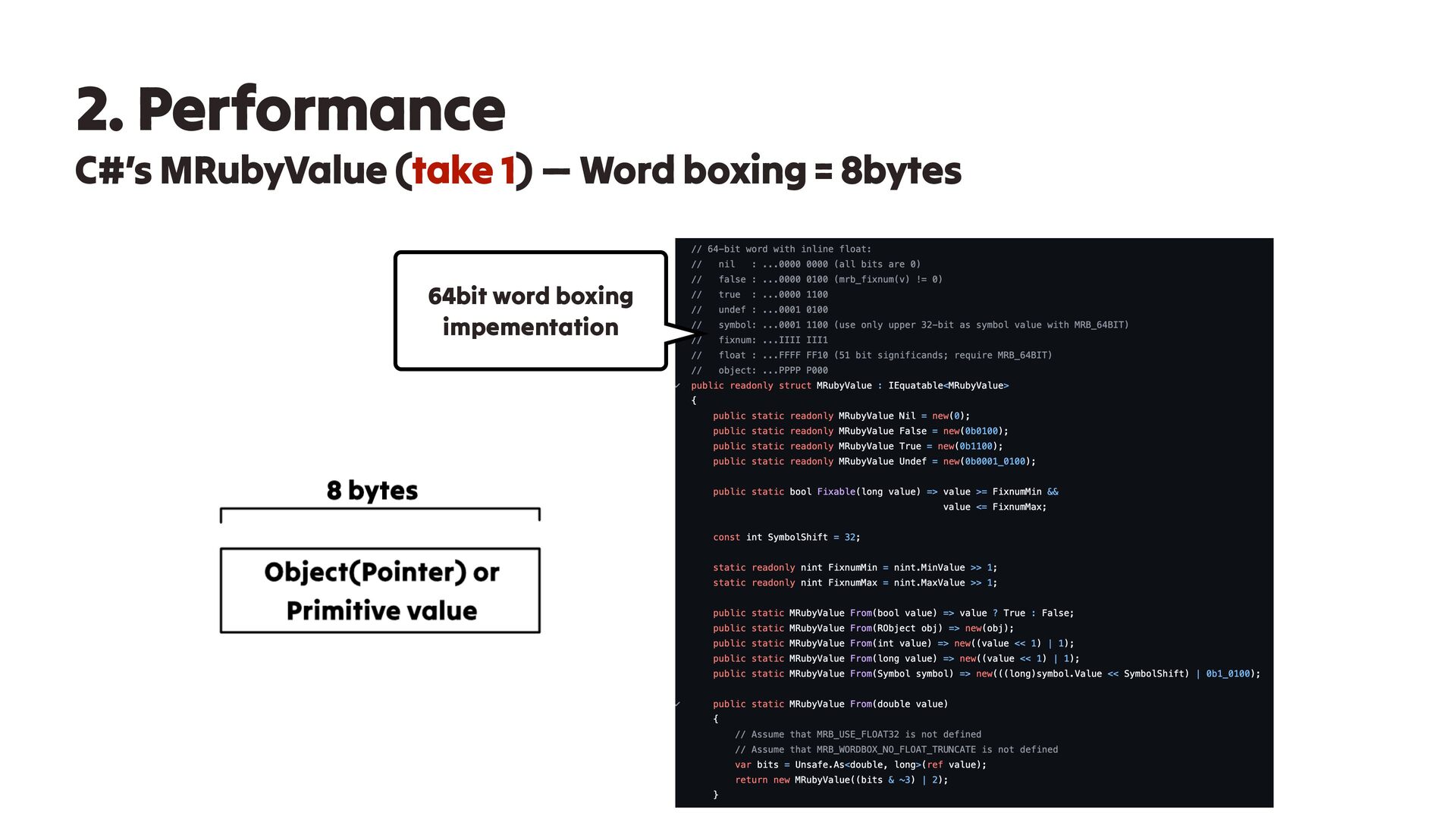

65. 2. Performance C#’s MRubyValue (take 1) — Word boxing = 8bytes 64bit word boxing impementation

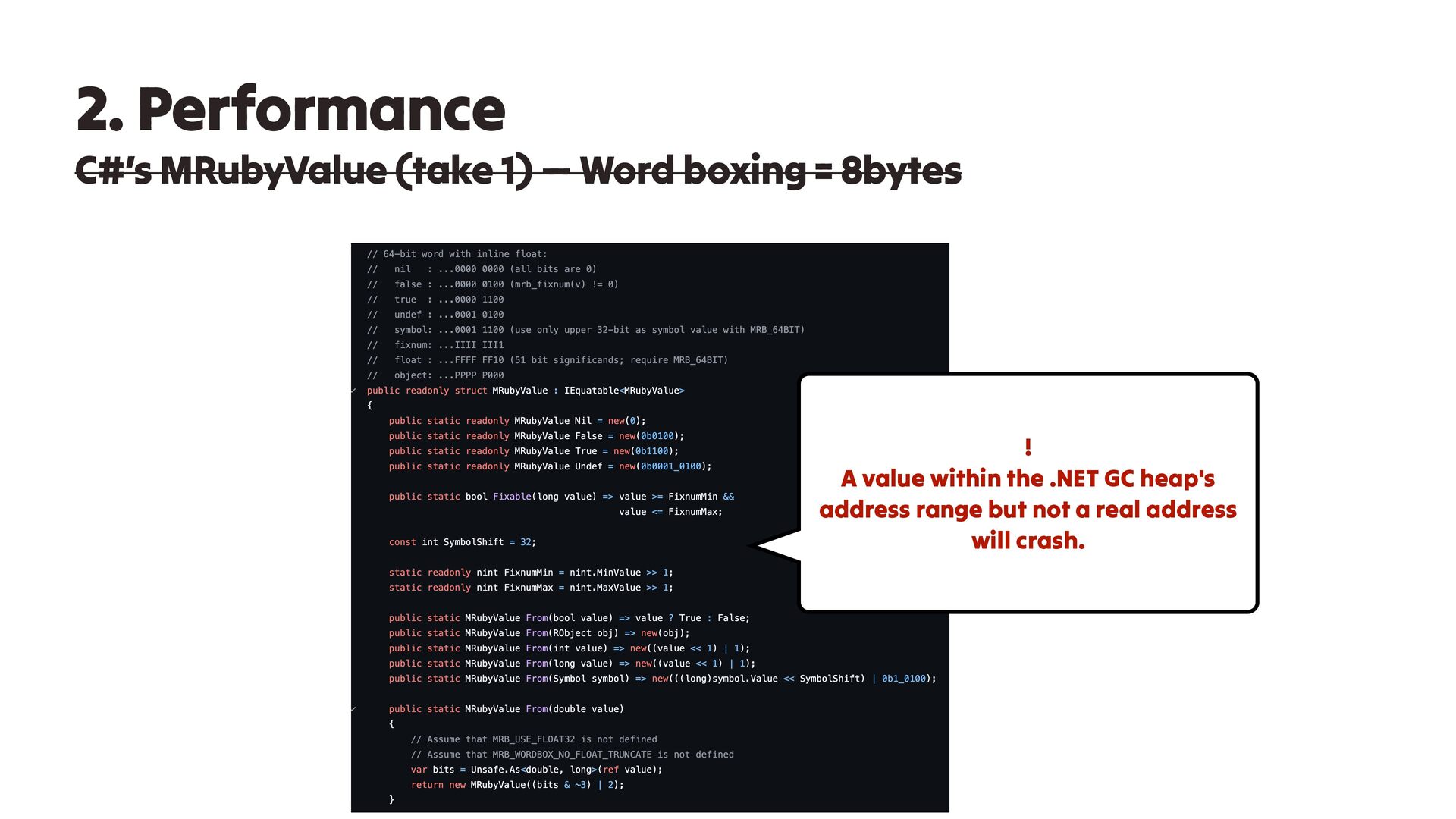

66. 2. Performance C#’s MRubyValue (take 1) — Word boxing = 8bytes ! A value within the .NET GC heap's address range but not a real address will crash.

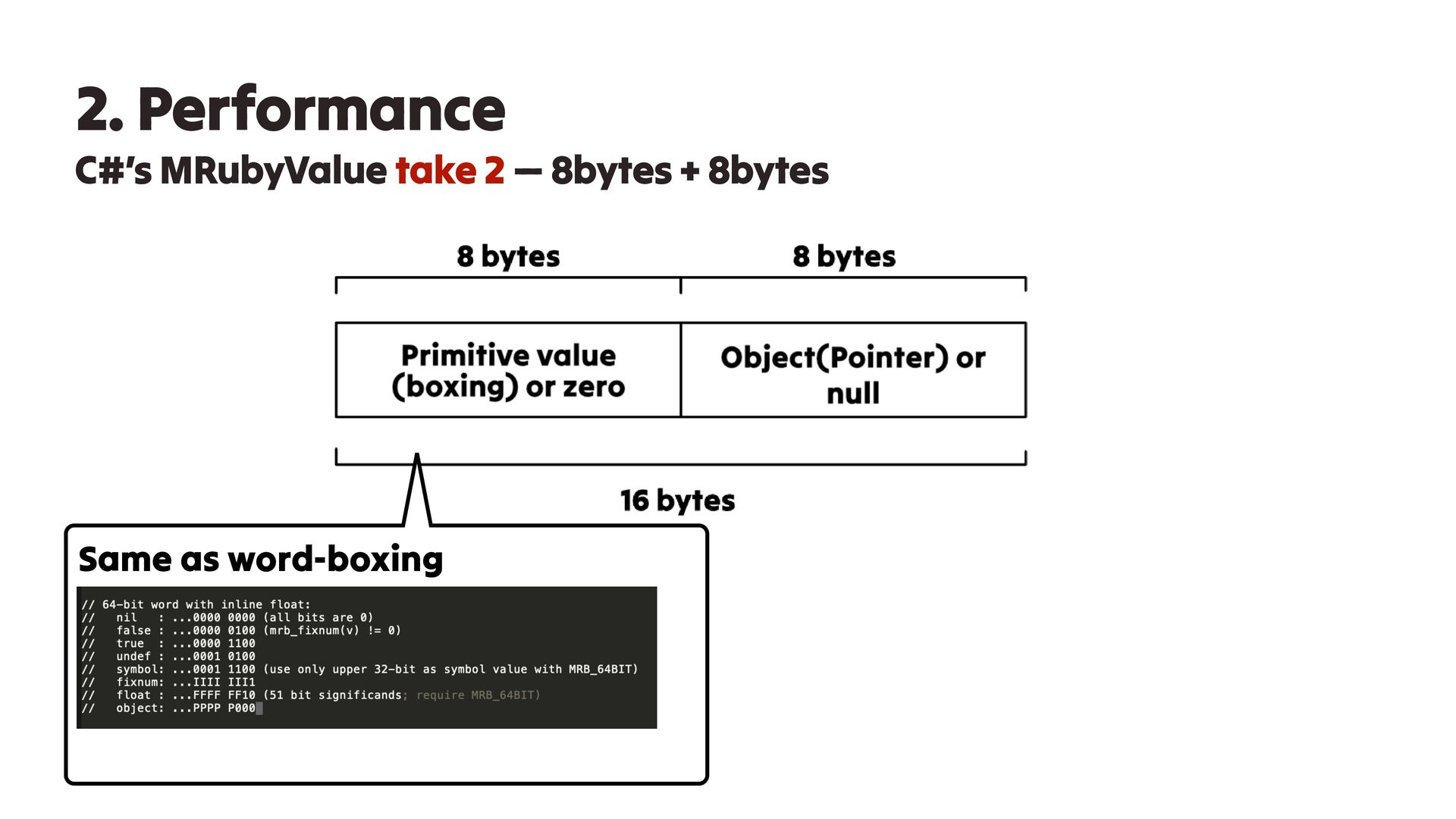

67. 2. Performance C#’s MRubyValue take 2 — 8bytes + 8bytes Same as word-boxing

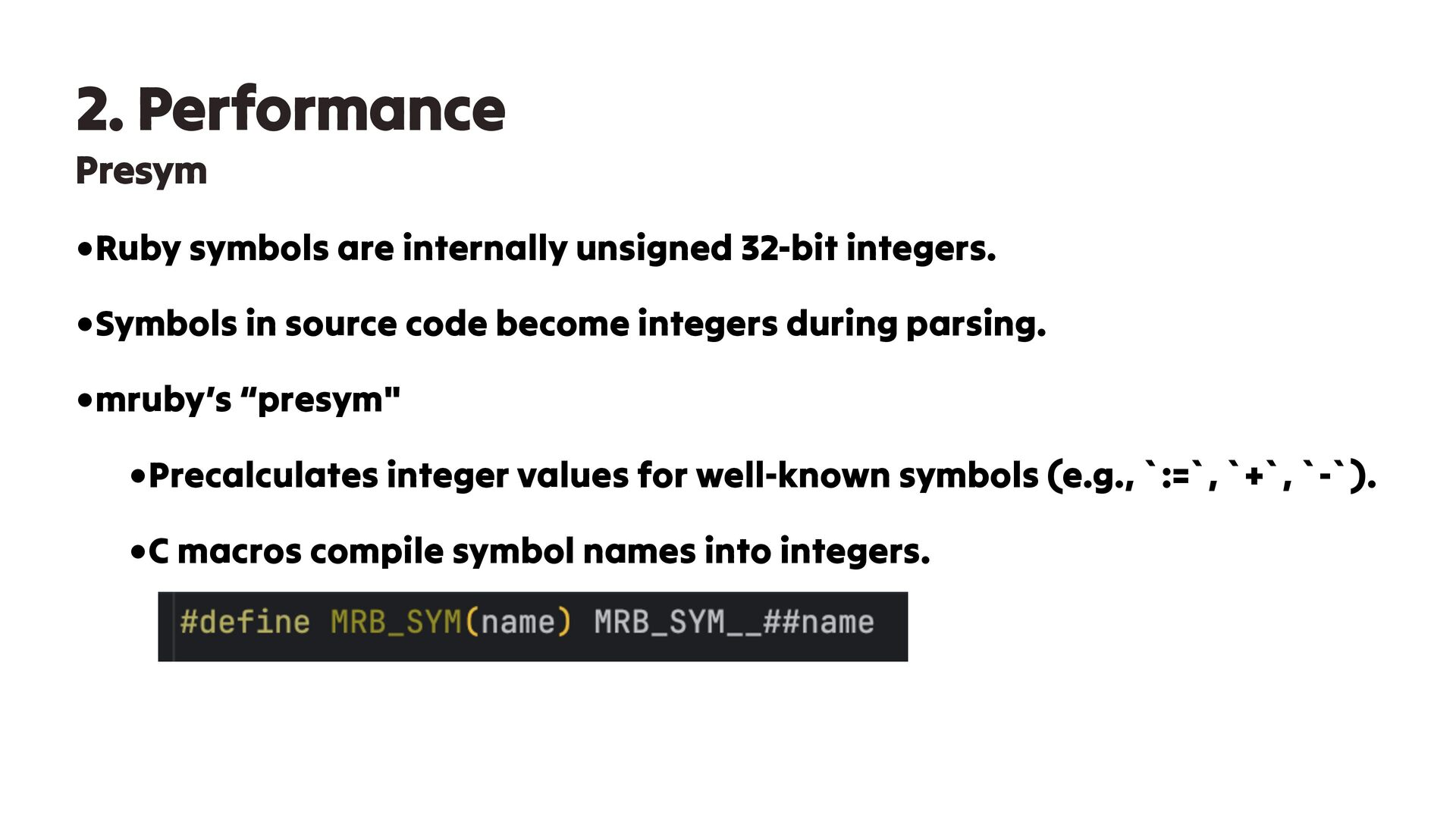

68. 2. Performance Presym •Ruby symbols are internally unsigned 32-bit integers. •Symbols in source code become integers during parsing. •mruby’s “presym" •Precalculates integer values for well-known symbols (e.g., `:=`, `+`, `-`). •C macros compile symbol names into integers.

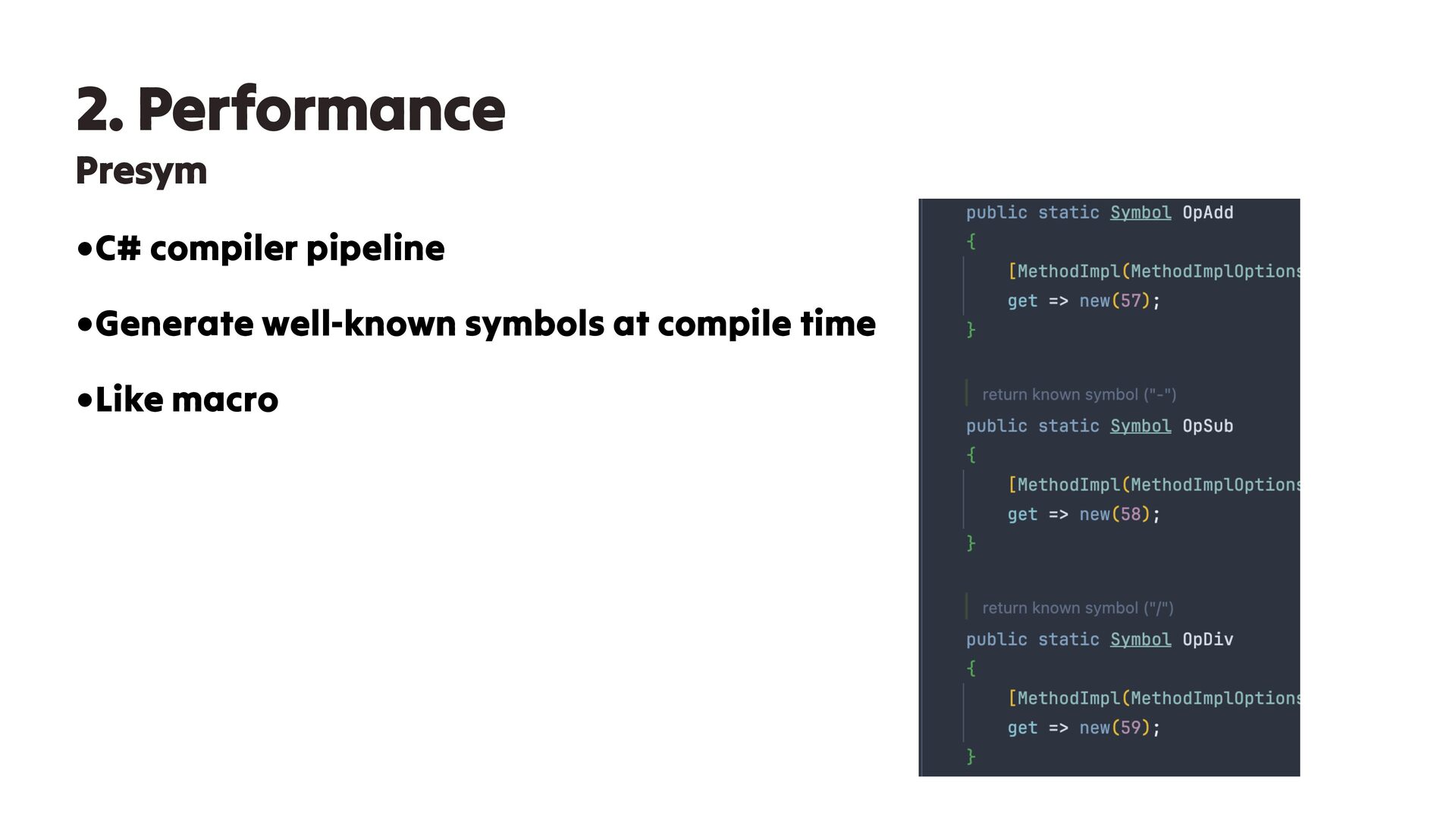

69. 2. Performance Presym •C# compiler pipeline •Generate well-known symbols at compile time •Like macro

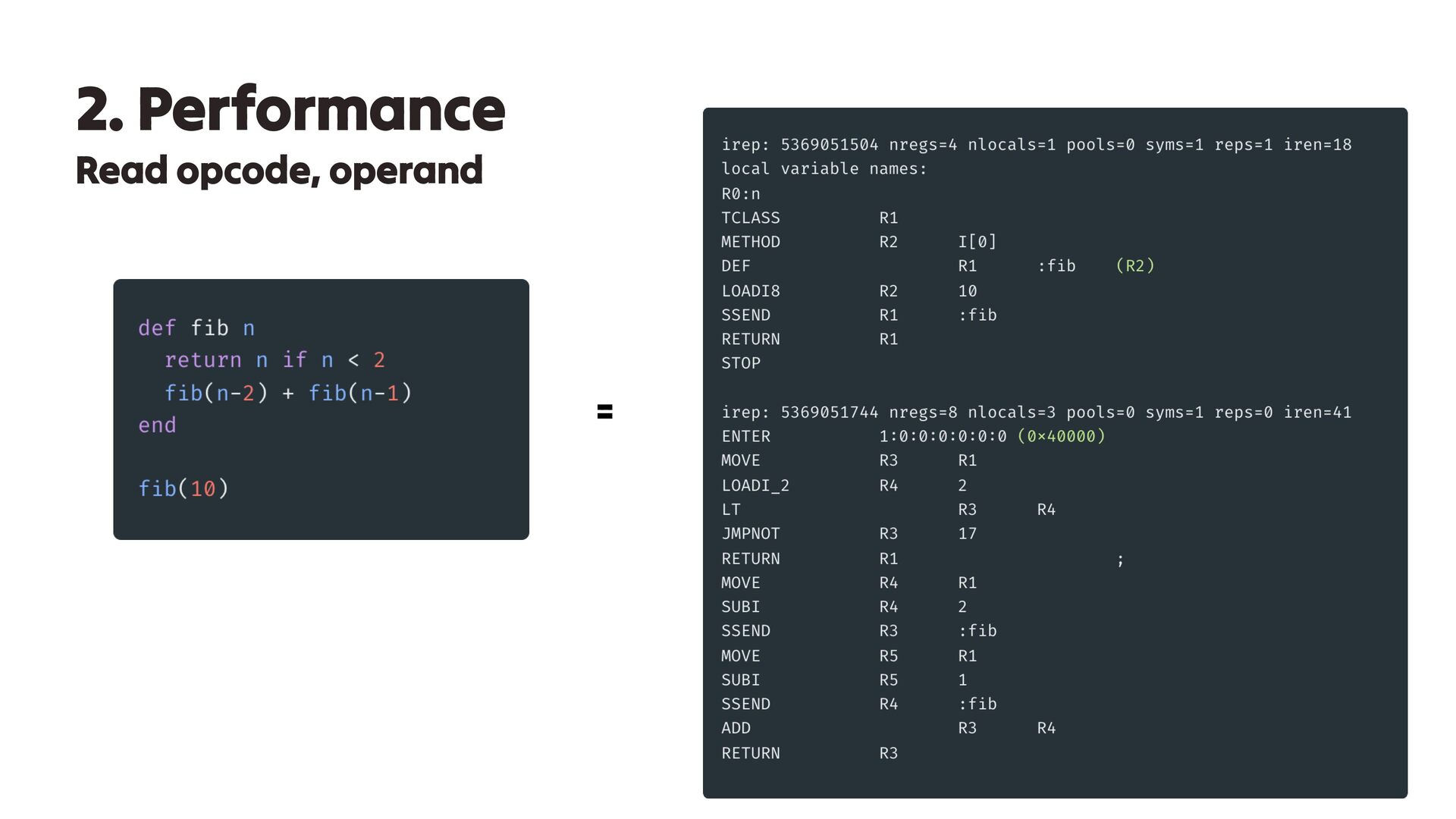

70. 2. Performance Read opcode, operand =

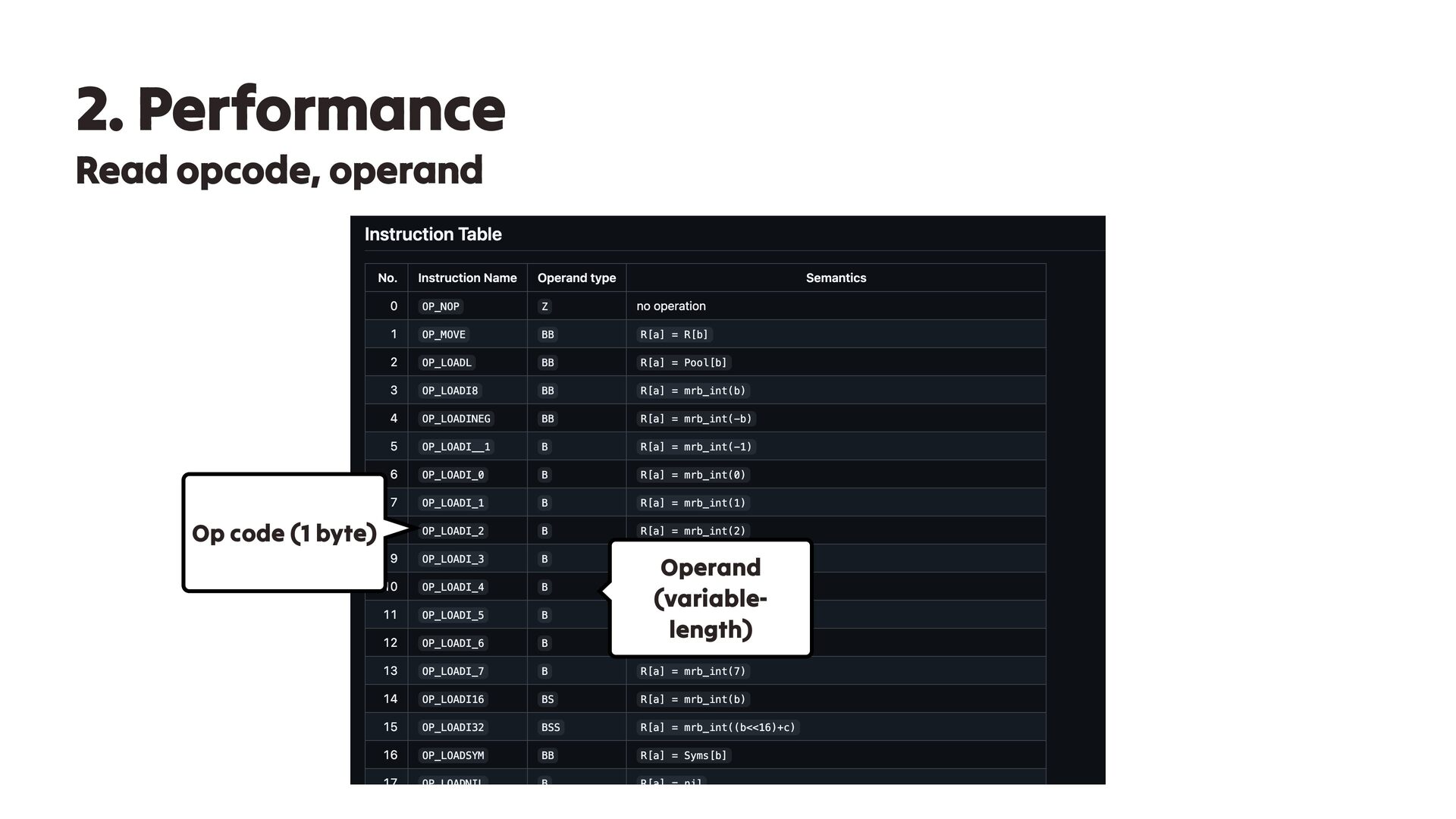

71. 2. Performance Read opcode, operand Op code (1 byte) Operand (variable- length)

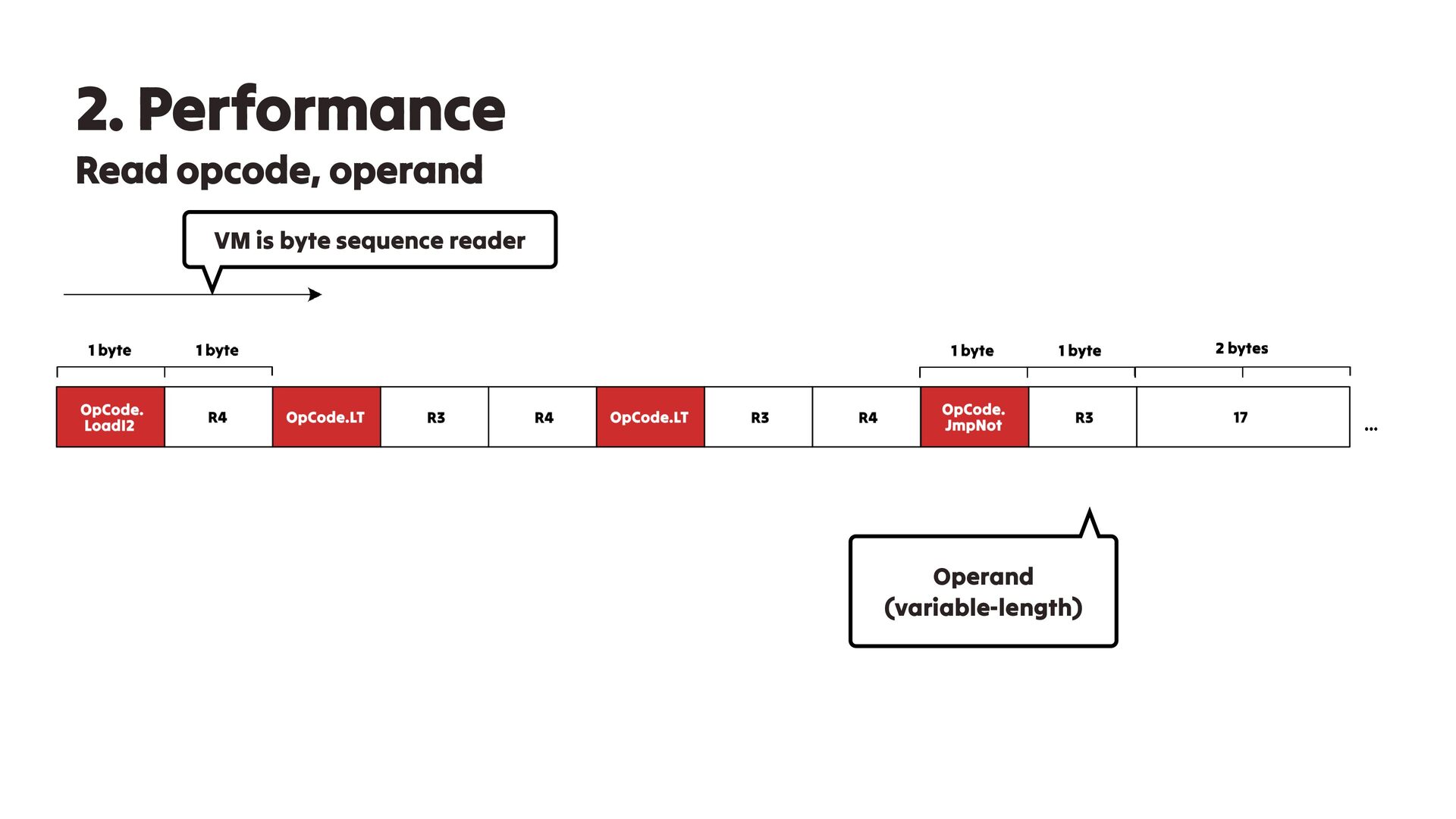

72. 2. Performance Read opcode, operand Operand (variable-length) VM is byte sequence reader
73. 2. Performance Directly jump to the address specified by the label!!!!!!!! Some advantages of using C

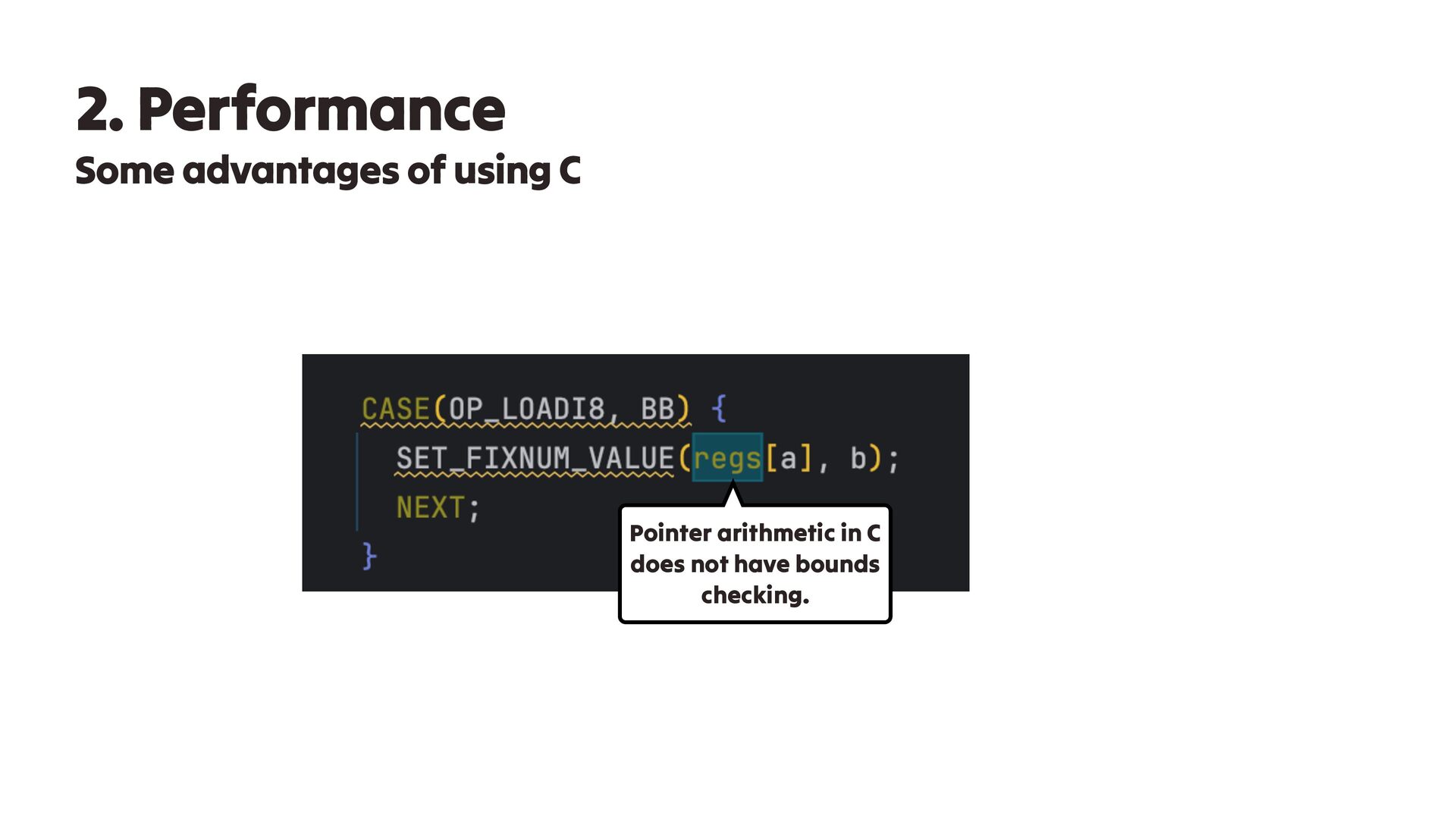

74. 2. Performance Some advantages of using C Pointer arithmetic in C does not have bounds checking.

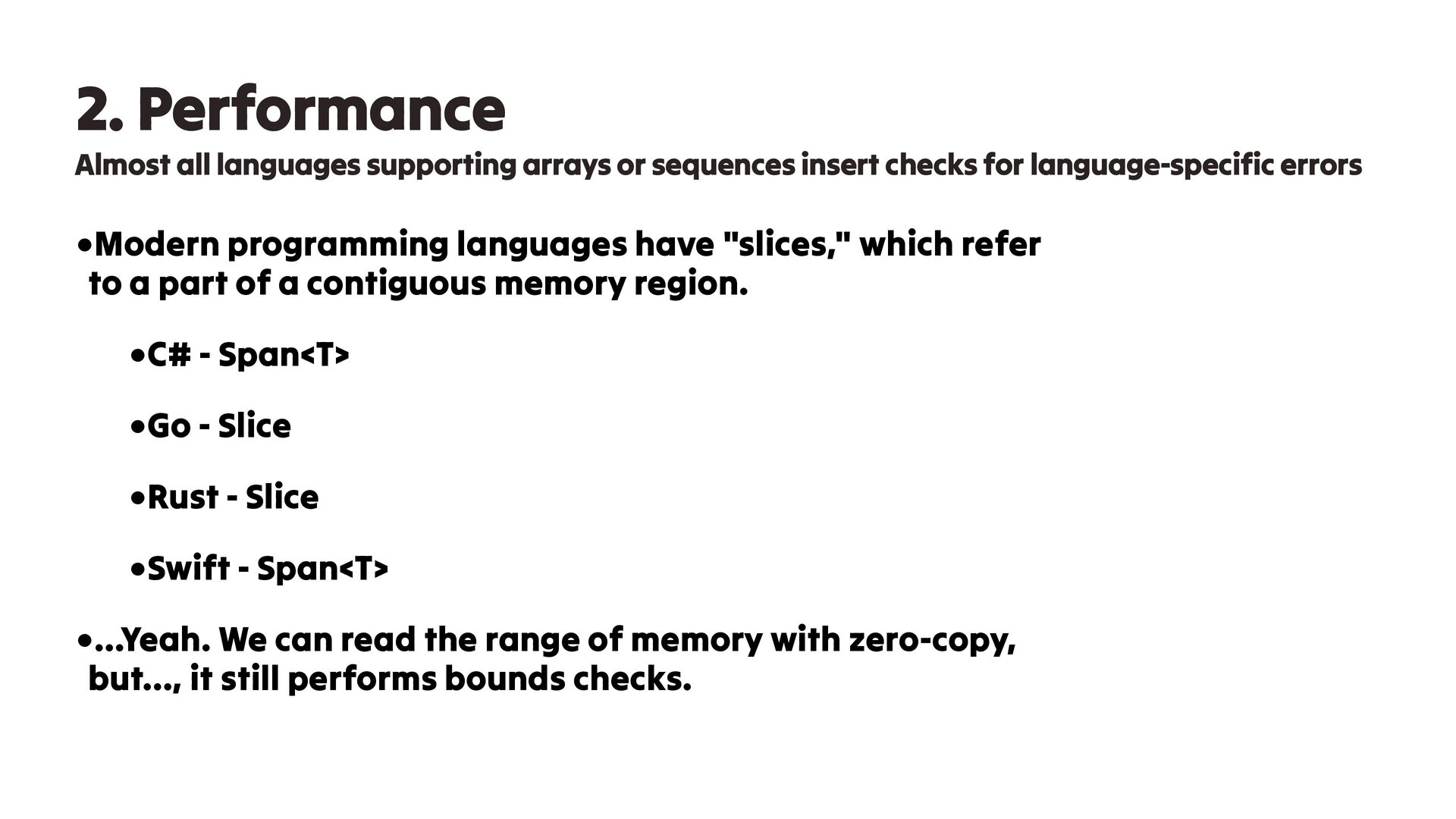

75. 2. Performance Almost all languages supporting arrays or sequences insert checks for language-specific errors •Modern programming languages have "slices," which refer to a part of a contiguous memory region. •C# - Span<T> •Go - Slice •Rust - Slice •Swift - Span<T> •…Yeah. We can read the range of memory with zero-copy, but…, it still performs bounds checks.

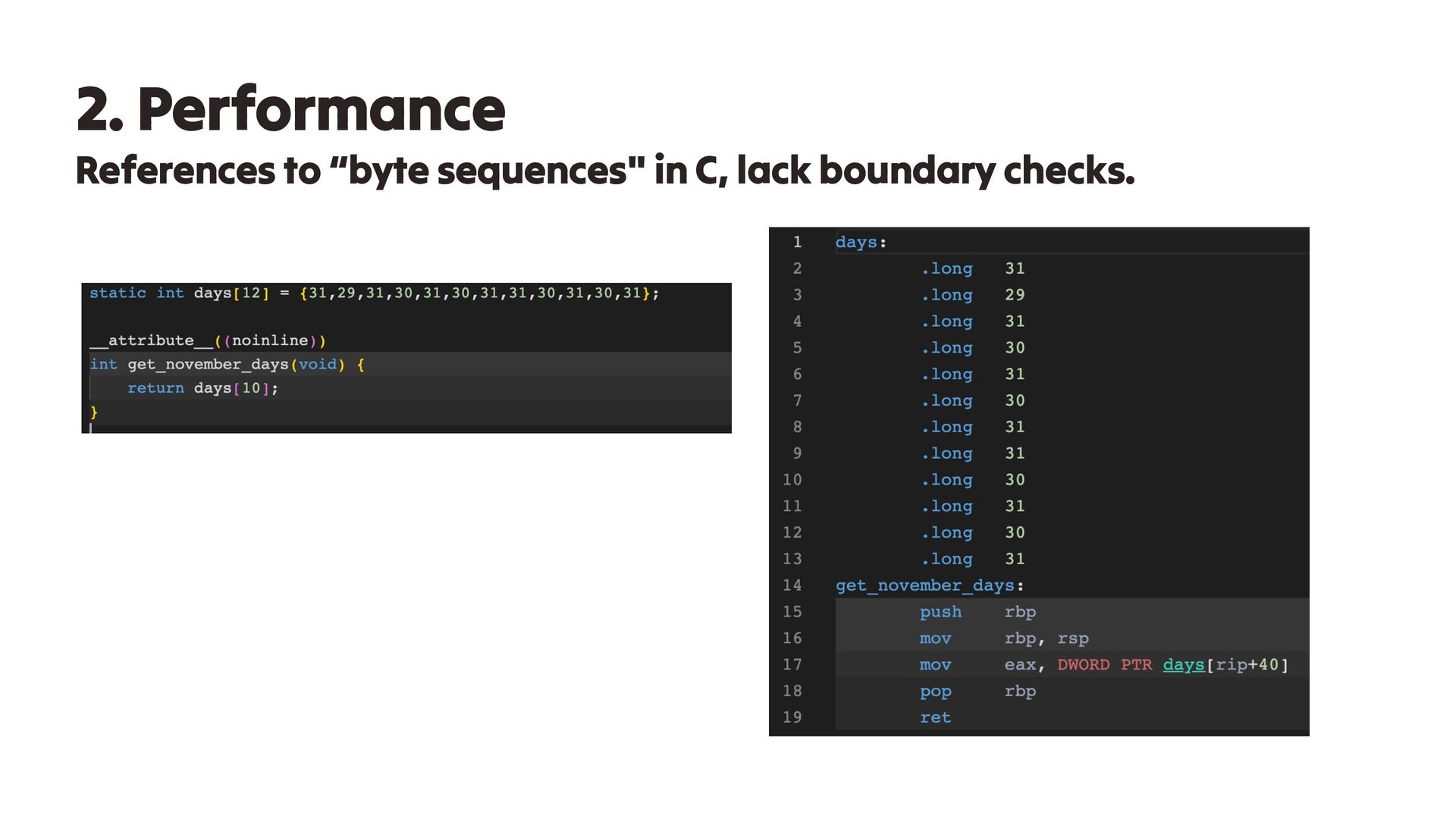

76. 2. Performance References to “byte sequences" in C, lack boundary checks.

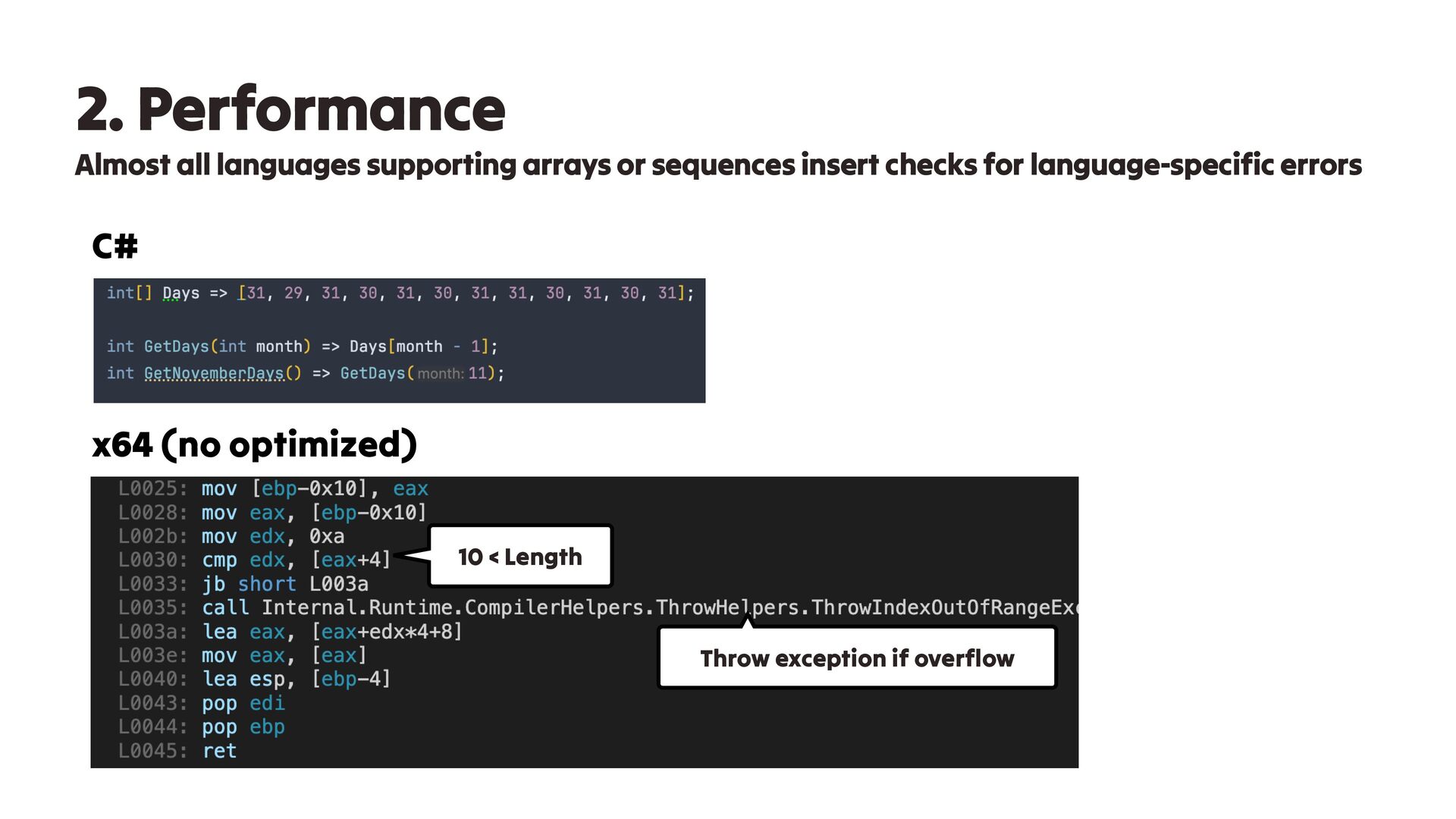

77. 2. Performance Almost all languages supporting arrays or sequences insert checks for language-specific errors 10 < Length Throw exception if overflow C# x64 (no optimized)

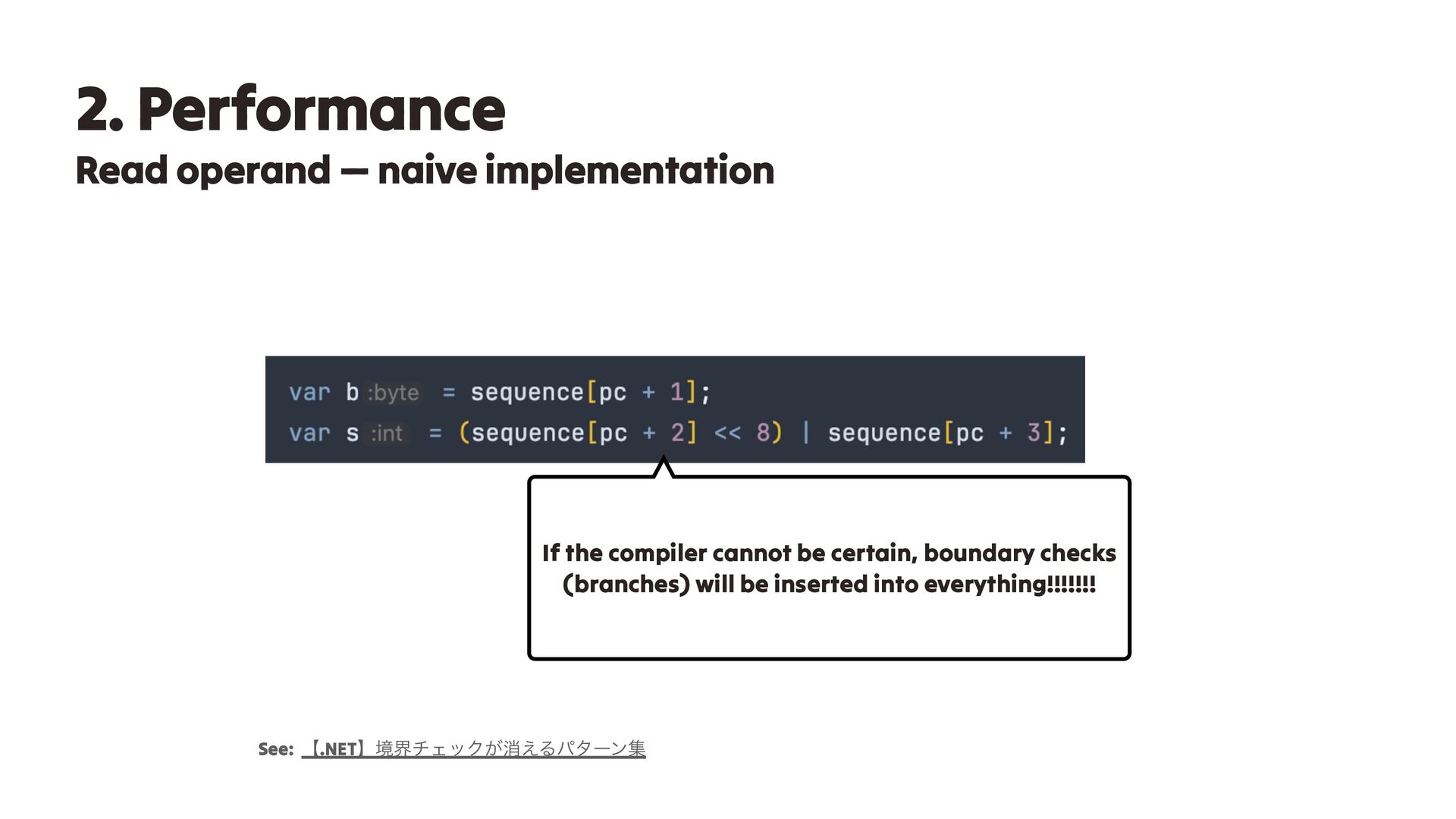

78. 2. Performance Read operand — naive implementation If the compiler cannot be certain, boundary checks (branches) will be inserted into everything!!!!!!! See: ʲ.NETʳڥքνΣοΫ͕ফ͑Δύλʔϯू

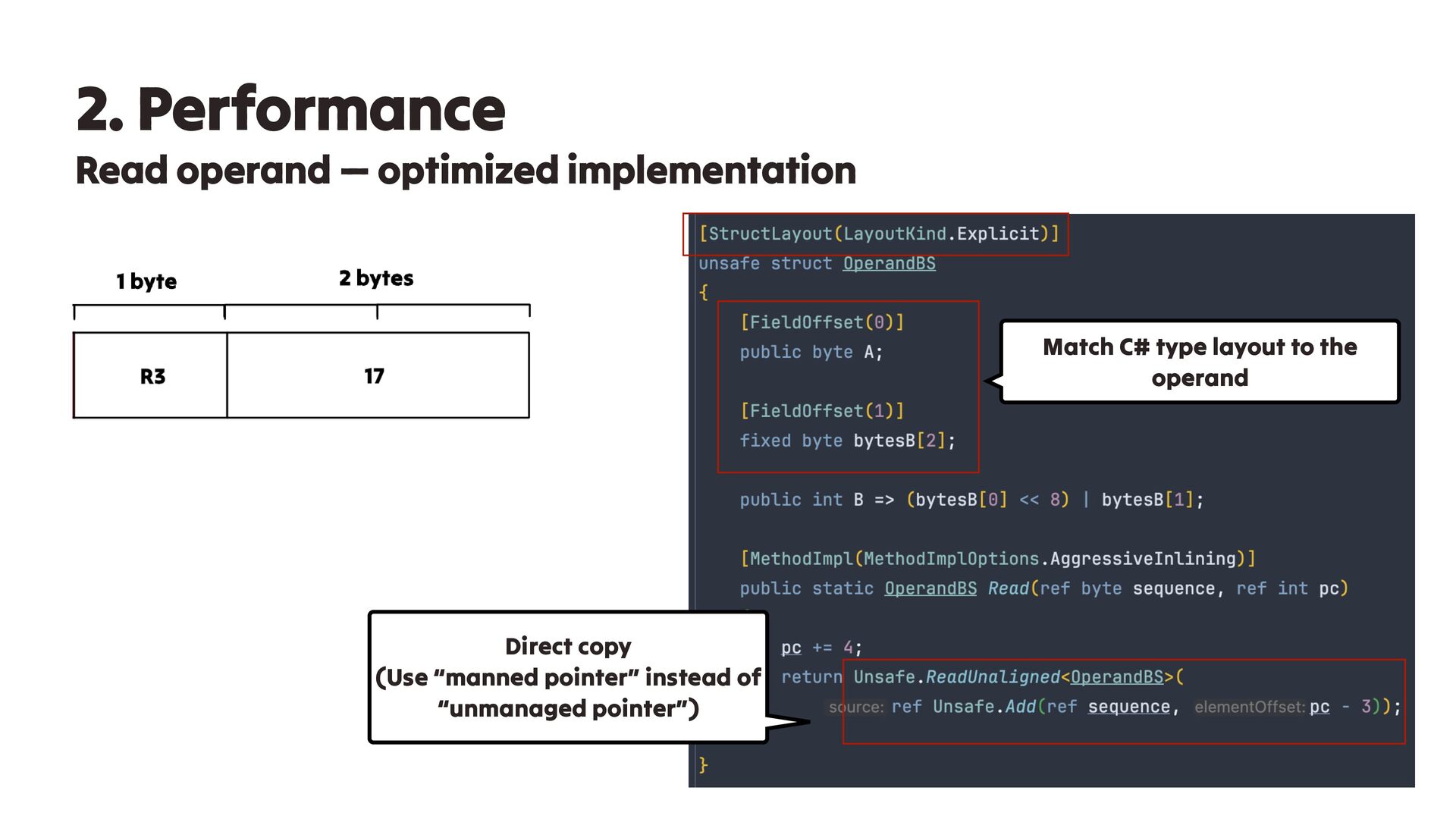

79. 2. Performance Read operand — optimized implementation Match C# type layout to the operand Direct copy (Use “manned pointer” instead of “unmanaged pointer”)

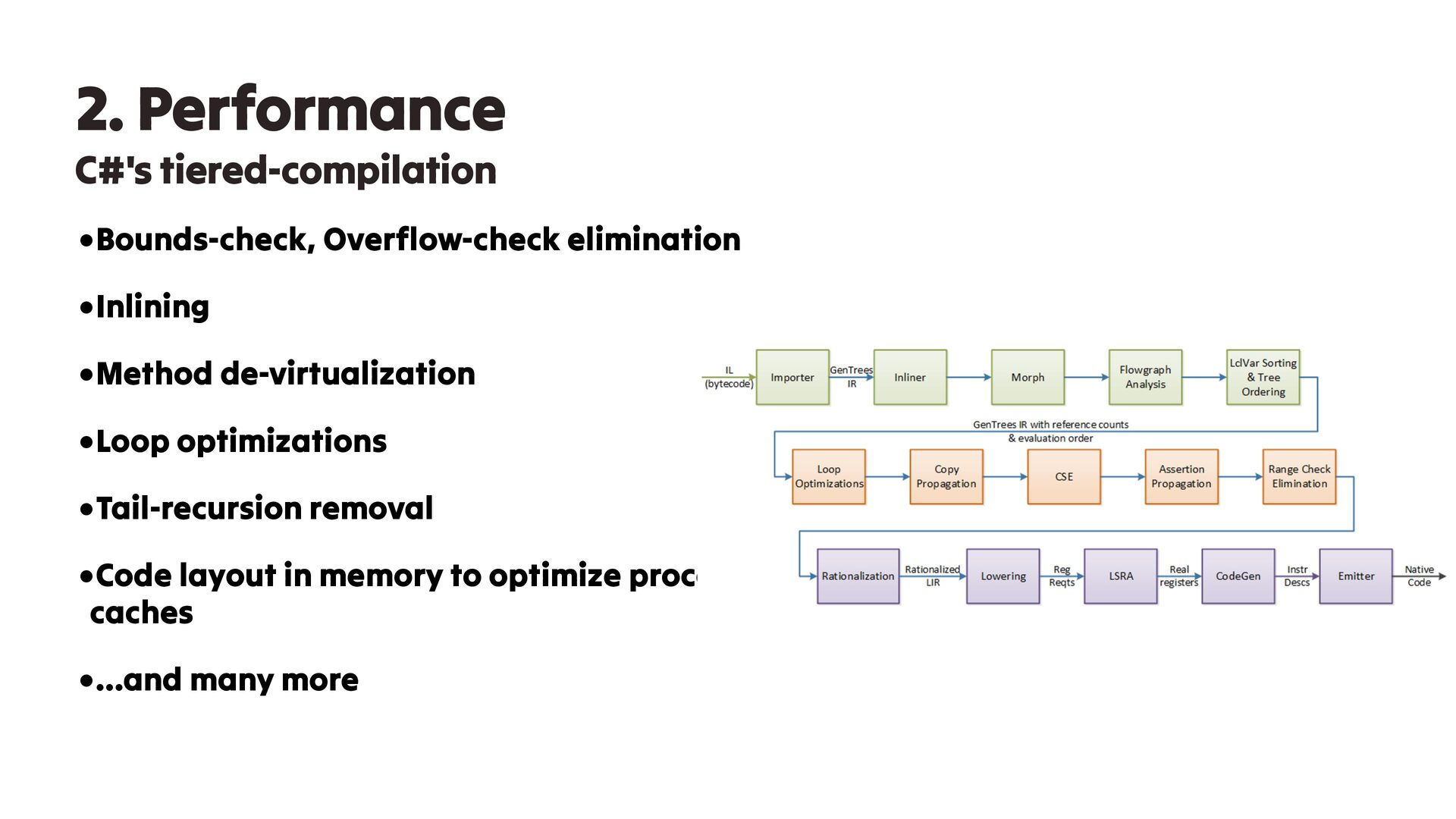

80. 2. Performance C#'s tiered-compilation •Bounds-check, Overflow-check elimination •Inlining •Method de-virtualization •Loop optimizations •Tail-recursion removal •Code layout in memory to optimize processor caches •…and many more

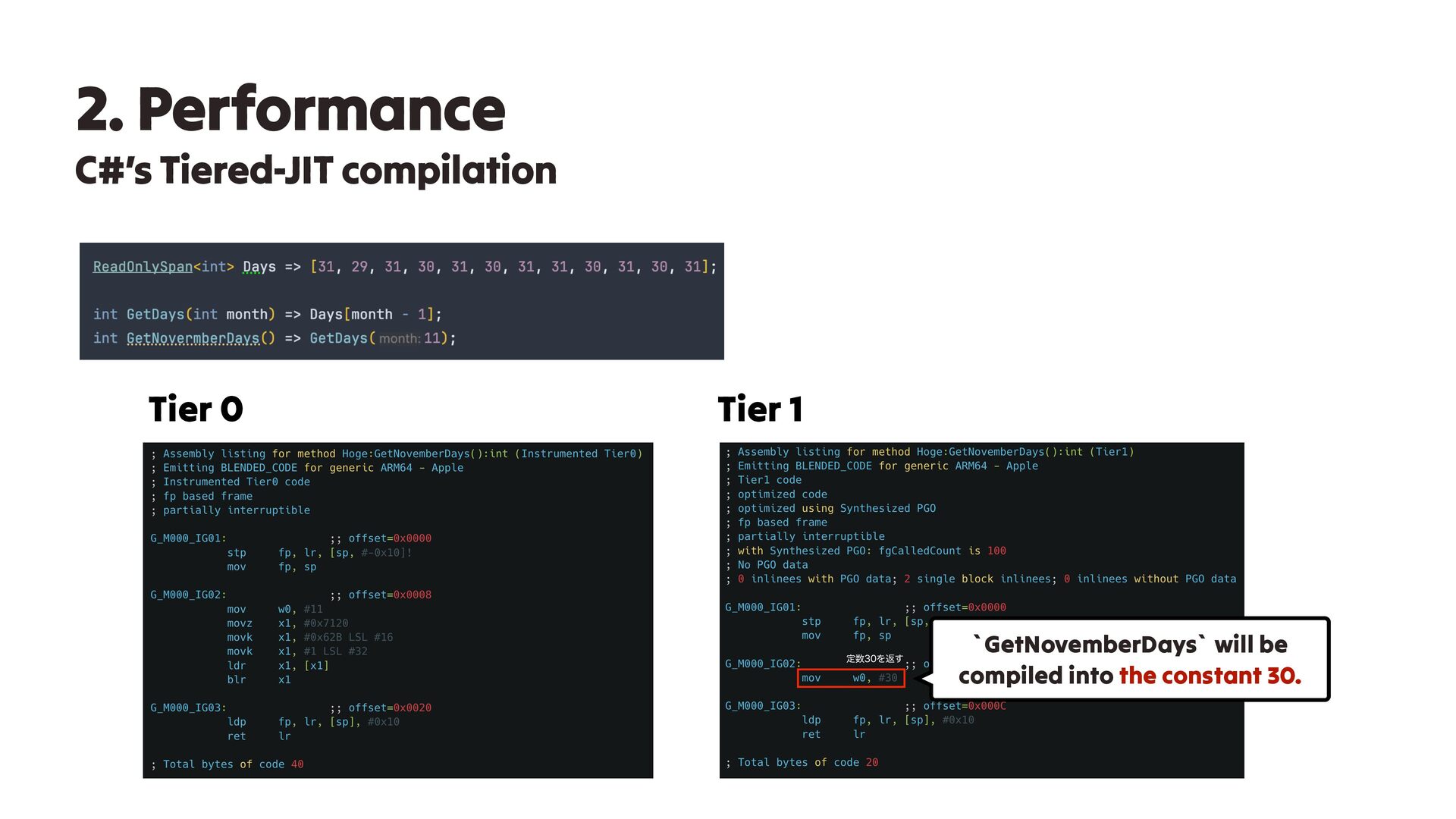

81. 2. Performance C#’s Tiered-JIT compilation Tier 0 Tier 1 `GetNovemberDays` will be compiled into the constant 30.

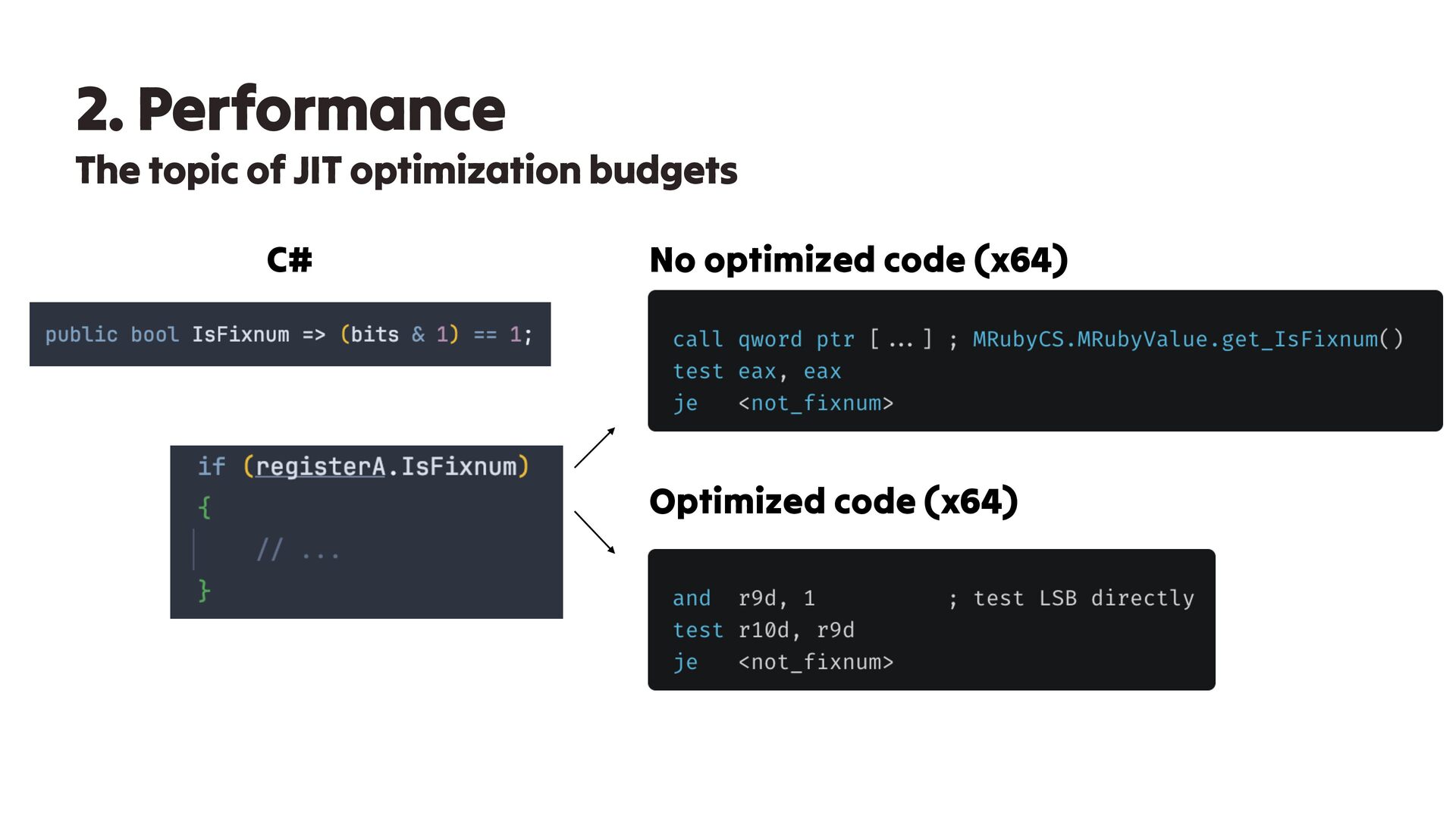

82. 2. Performance The topic of JIT optimization budgets No optimized code (x64) Optimized code (x64) C#

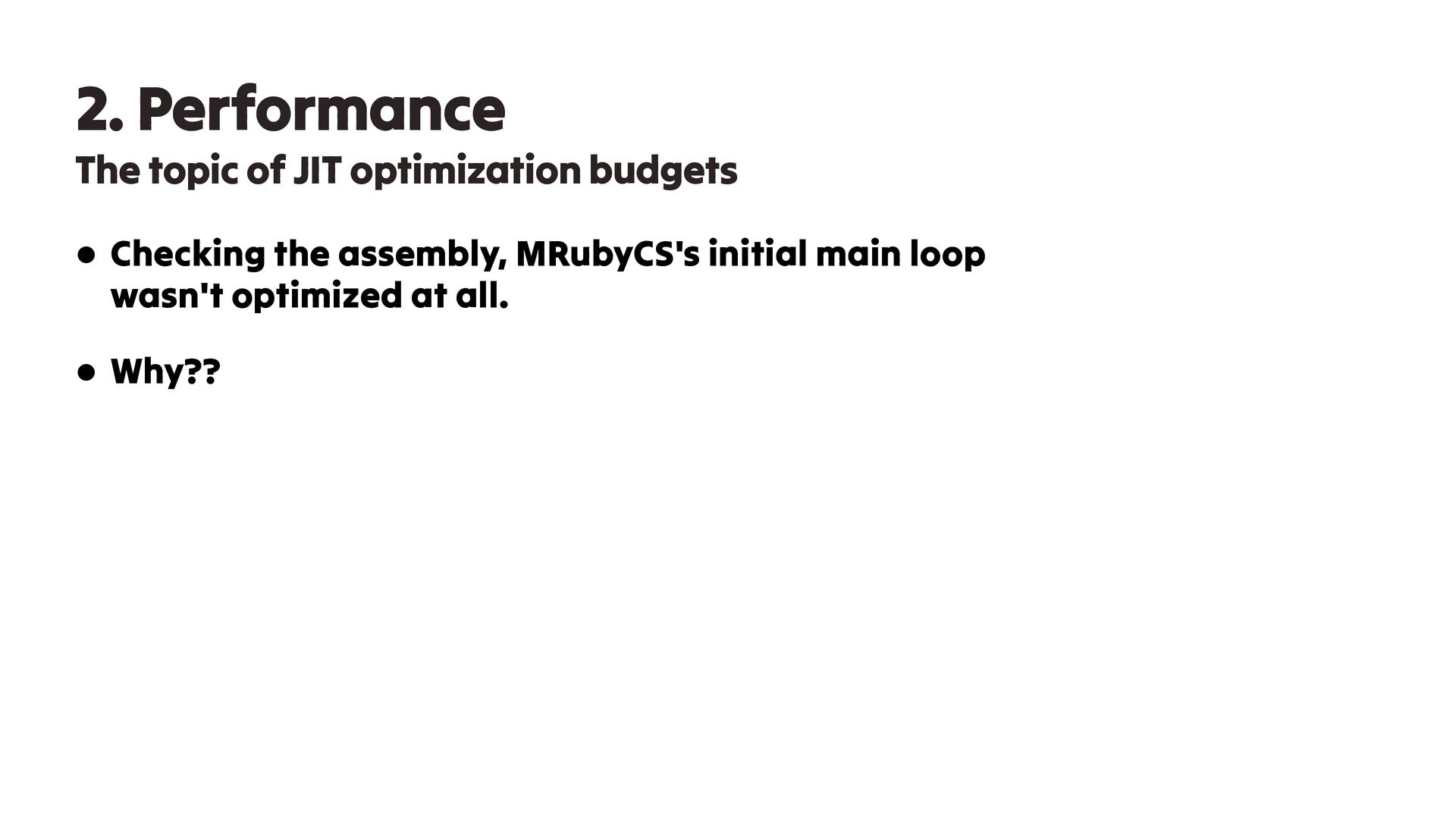

83. 2. Performance The topic of JIT optimization budgets • Checking the assembly, MRubyCS's initial main loop wasn't optimized at all. • Why??

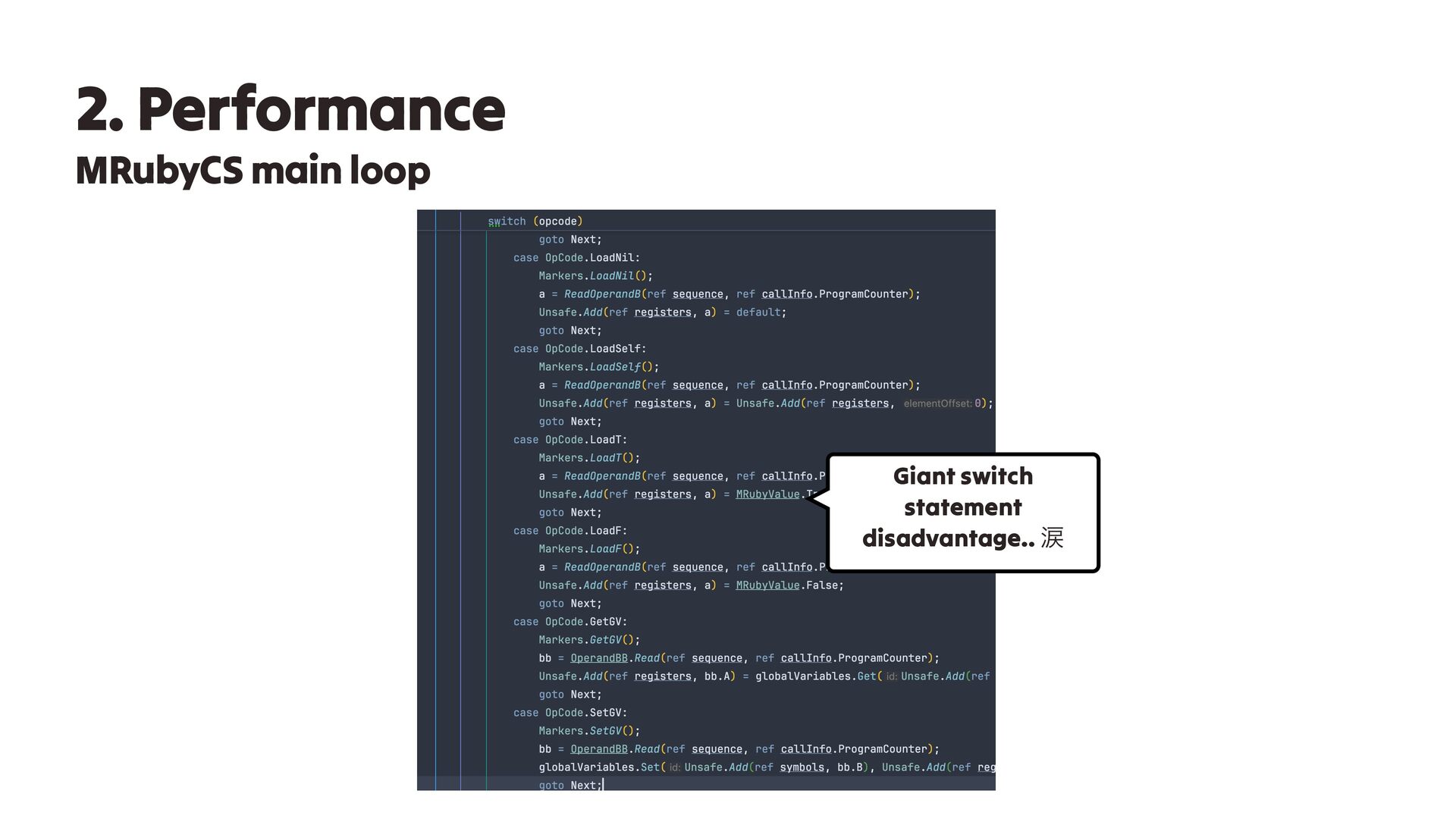

84. 2. Performance MRubyCS main loop Giant switch statement disadvantage.. ྦ
85. 2. Performance • JIT does not spend an infinite amount of time on optimization. • The budget for optimization is determined to some extent based on heuristics. • The main loop of MRubyCS is very large, and the JIT exhausts its optimization budget before it can be sufficiently optimized…………. The topic of JIT optimization budgets
86. 2. Performance • Reduce the IL size of the main loop. • → Extract cold paths into separate methods and intentionally mark them with [NoInlining]. • → Steadily reduce the number of local variables. • → Stop catching arithmetic overflows with granular try/catch blocks. The topic of JIT optimization budgets Optimize by not optimizing

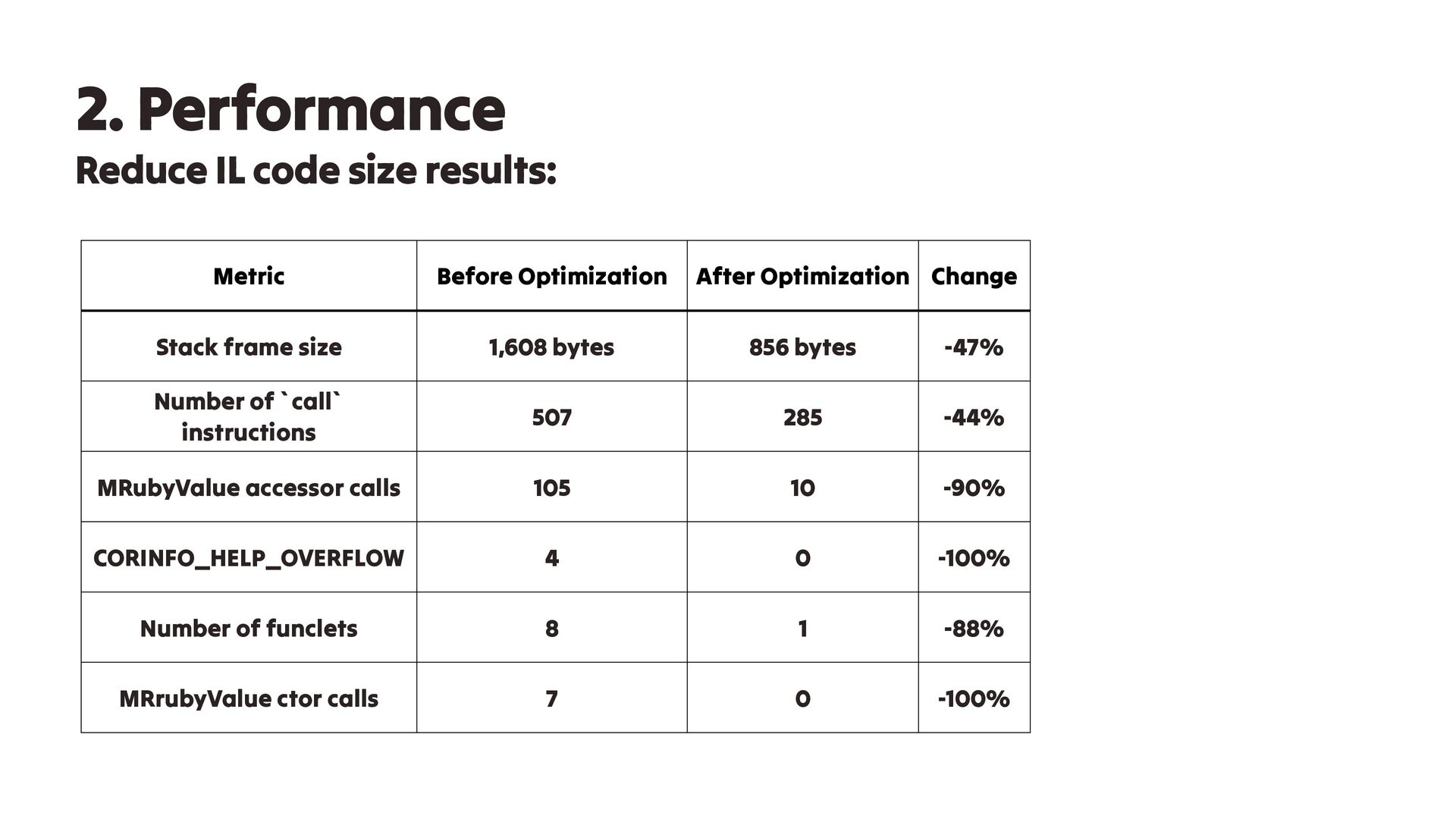

87. 2. Performance Reduce IL code size results: Metric Before Optimization After Optimization Change Stack frame size 1,608 bytes 856 bytes -47% Number of `call` instructions 507 285 -44% MRubyValue accessor calls 105 10 -90% CORINFO_HELP_OVERFLOW 4 0 -100% Number of funclets 8 1 -88% MRrubyValue ctor calls 7 0 -100%

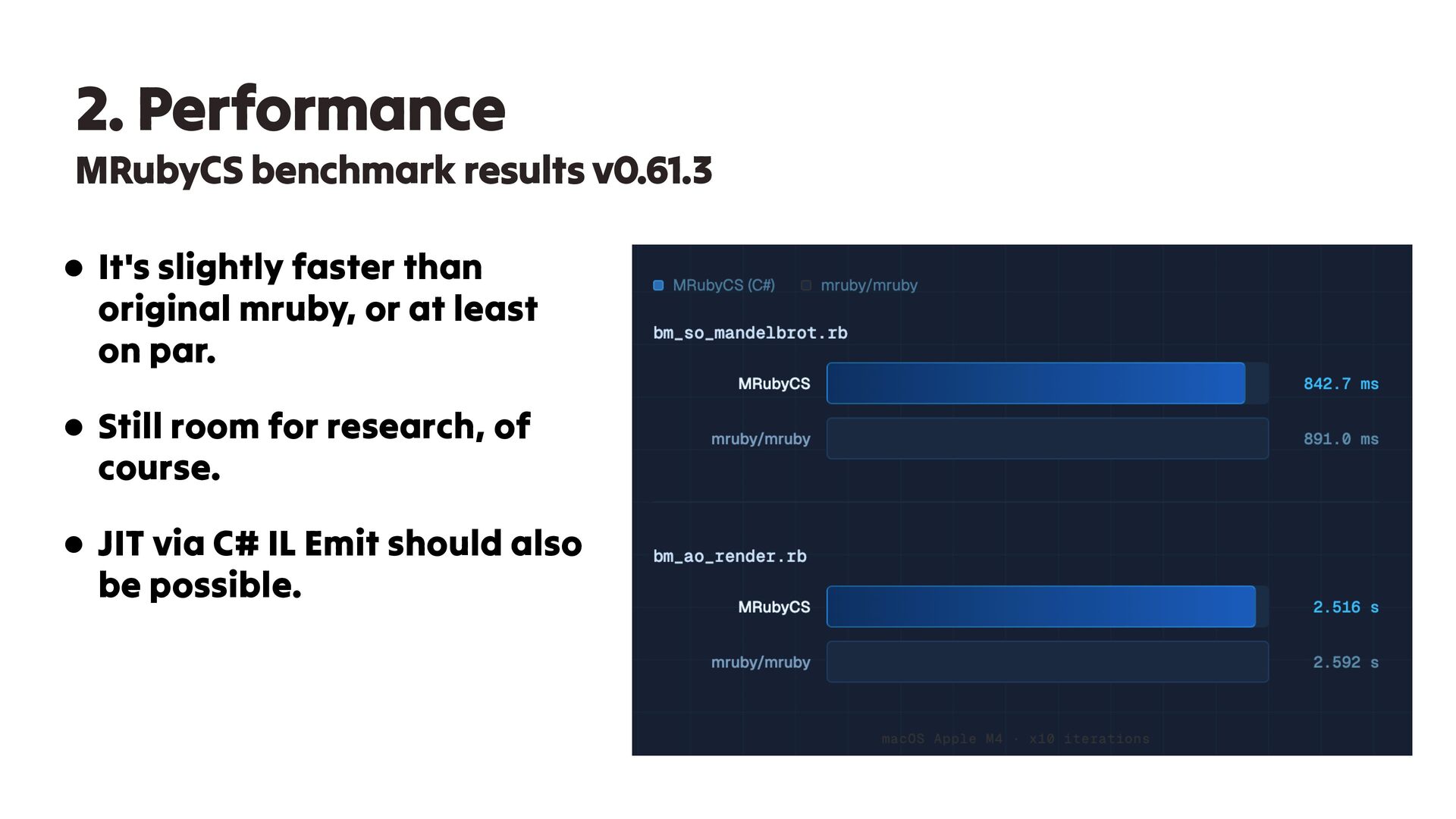

88. 2. Performance MRubyCS benchmark results v0.61.3 • It's slightly faster than original mruby, or at least on par. • Still room for research, of course. • JIT via C# IL Emit should also be possible.

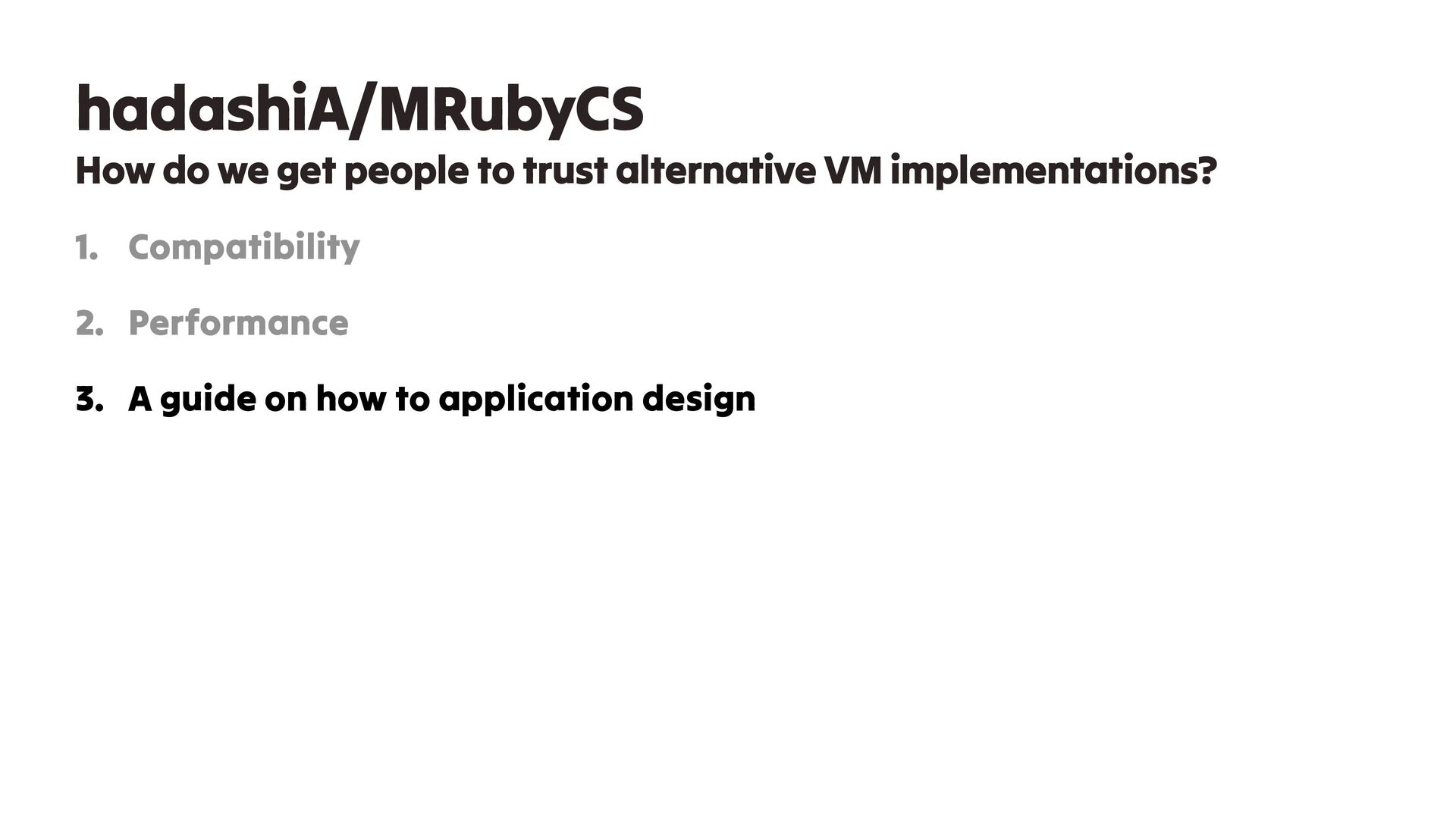

89. hadashiA/MRubyCS How do we get people to trust alternative VM implementations? 1. Compatibility 2. Performance 3. A guide on how to application design

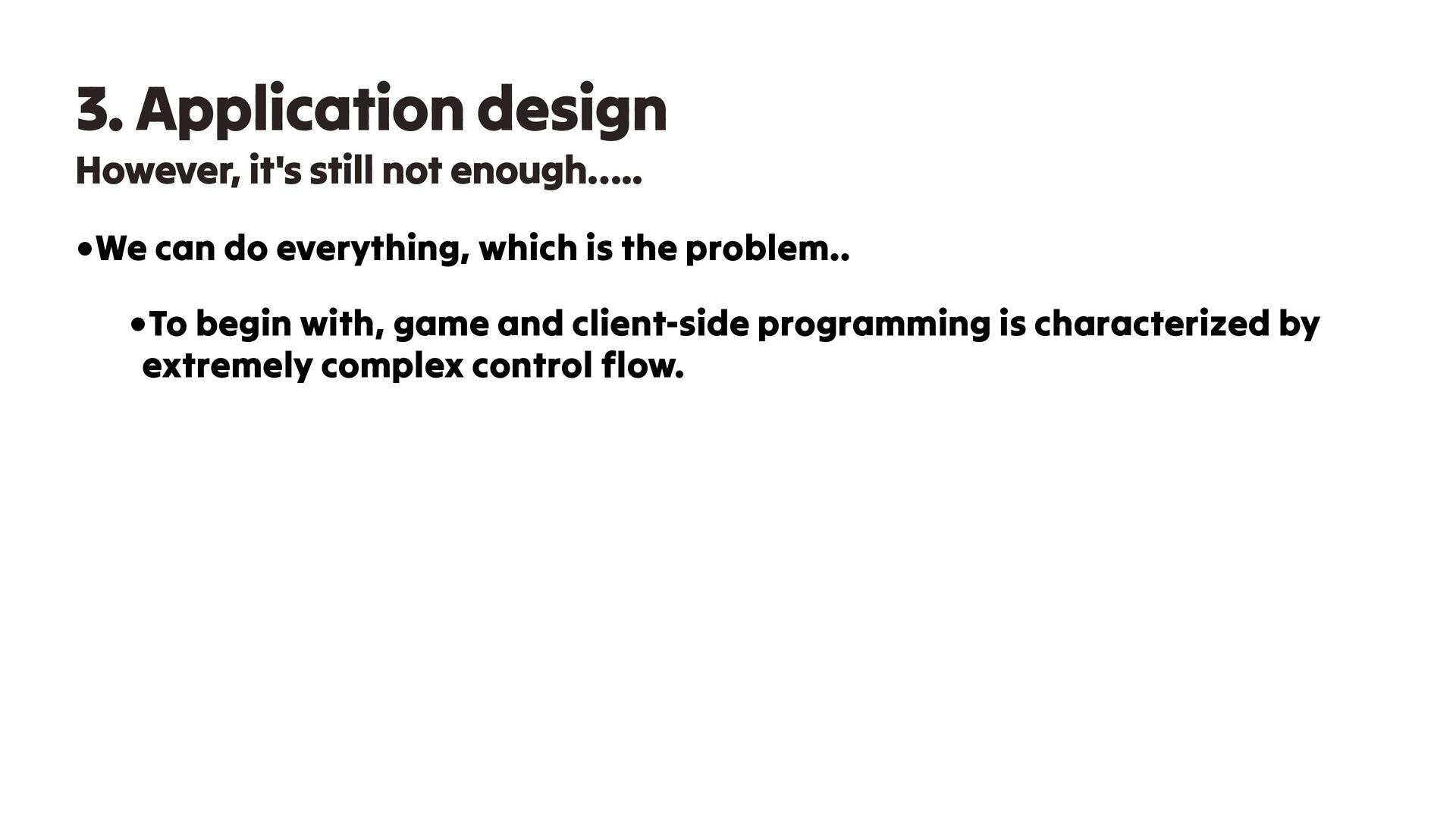

90. 3. Application design However, it's still not enough….. •We can do everything, which is the problem.. •To begin with, game and client-side programming is characterized by extremely complex control flow.

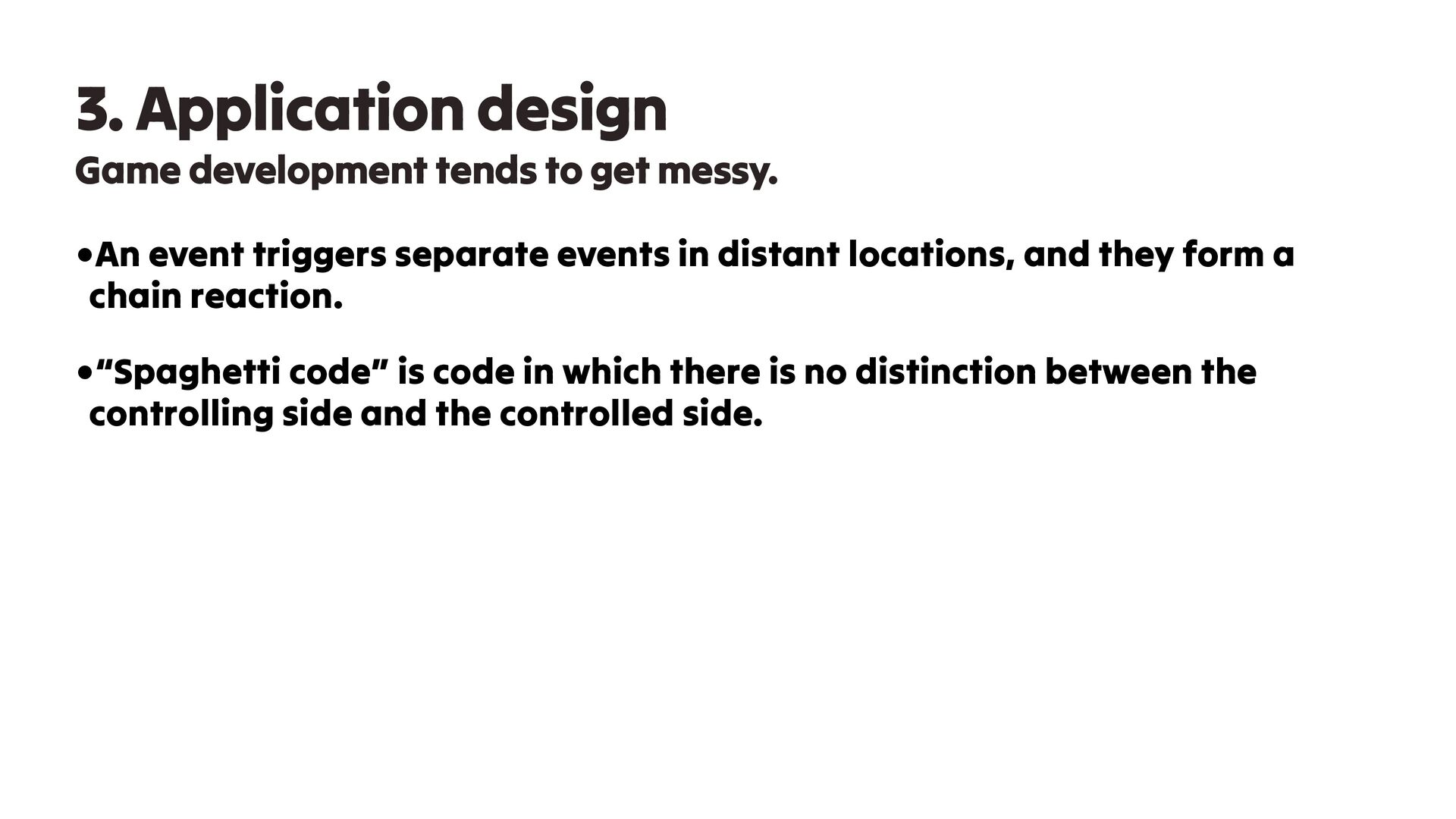

91. 3. Application design Game development tends to get messy. •An event triggers separate events in distant locations, and they form a chain reaction. •“Spaghetti code” is code in which there is no distinction between the controlling side and the controlled side.

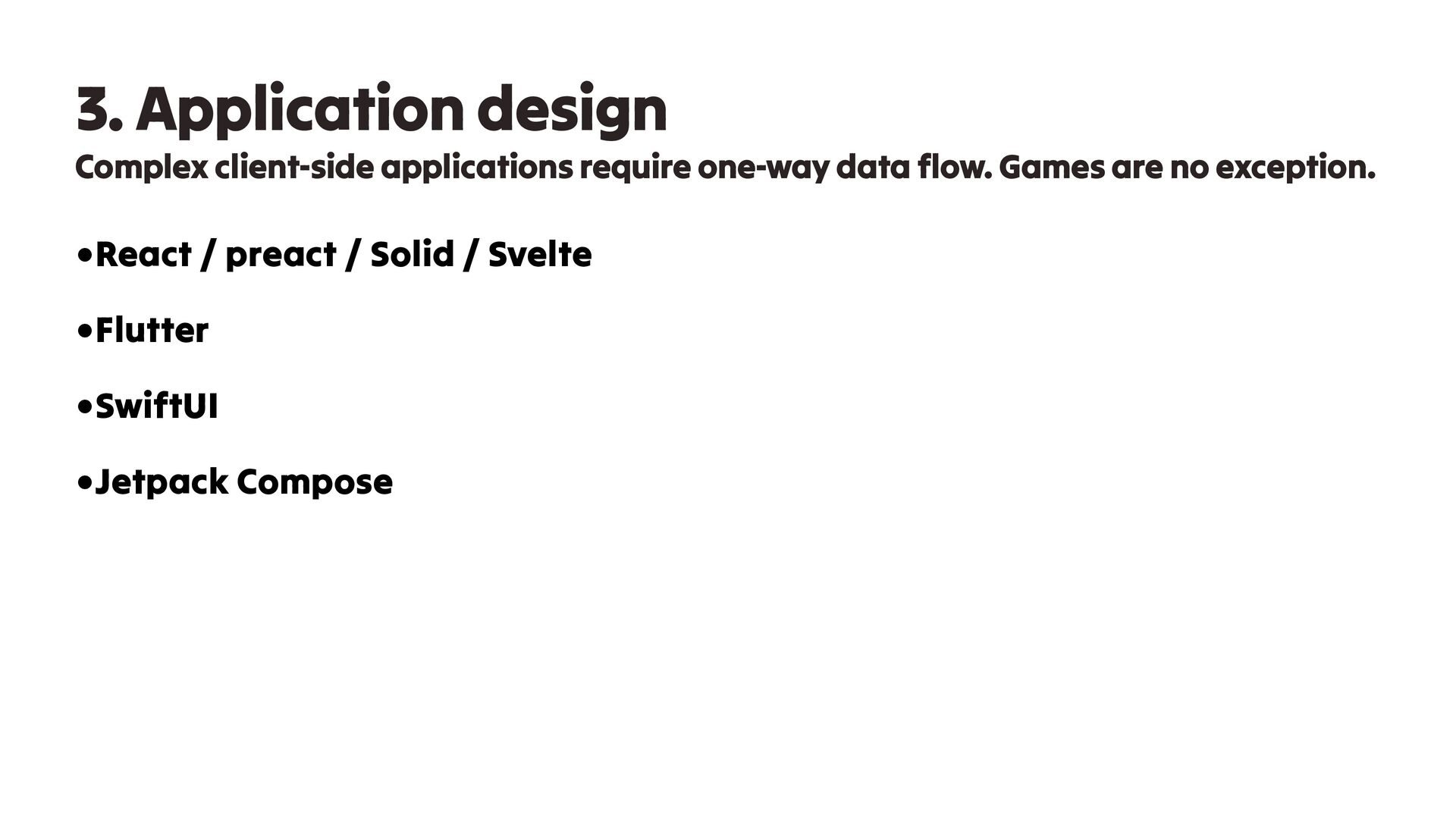

92. 3. Application design Complex client-side applications require one-way data flow. Games are no exception. •React / preact / Solid / Svelte •Flutter •SwiftUI •Jetpack Compose

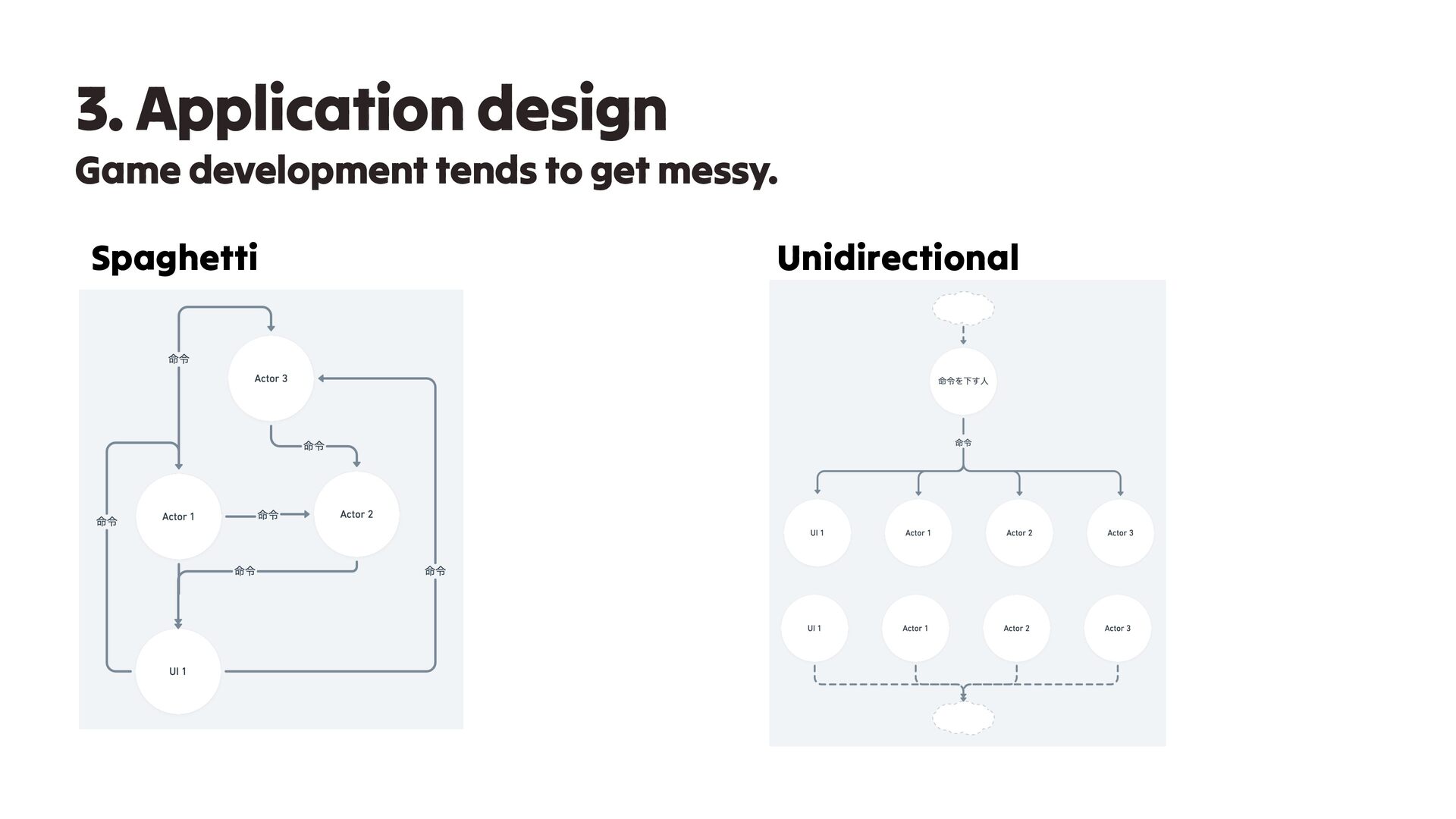

93. 3. Application design Game development tends to get messy. Spaghetti Unidirectional
94. 3. Application design In-memory pub/sub messaging is powerful pattern https://vitalrouter.hadashikick.jp
95. 3. Application design In-memory pub/sub messaging is powerful pattern https://vitalrouter.hadashikick.jp Abstract it as a "message" to the application, independent of the input source. By simply spoofing this “message”, we can do anything: esting, auto-play, and demos.
96. 3. Application design In-memory pub/sub messaging is powerful pattern https://vitalrouter.hadashikick.jp Publisher Publisher Subscriber Subscriber Interceptor B Interceptor C Interceptor C Interceptor B Interceptor A Interceptor A Exception Handling Logging Filtering The Interceptor pattern becomes applicable. Asynchronous processing is not just about completing something later!! •Cancellation •Error propagation •Throttling / Dropping / Switching •→ In FP terms, it's basically composition. Throttling / Switching
97. 3. Application design in-memory messaging — hadashiA/VitalRouter Publish command Async subscriber pipelines

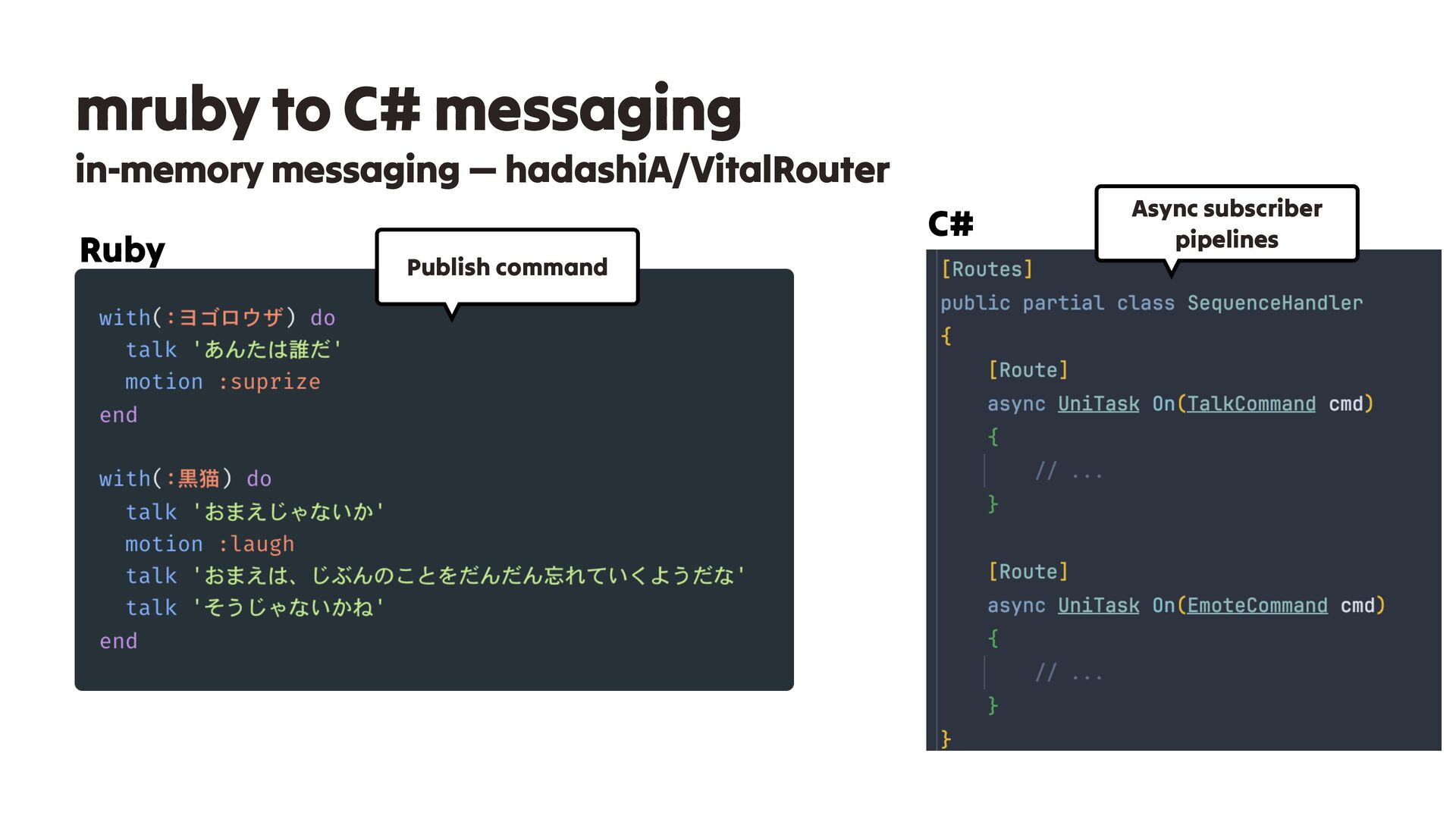

98. mruby to C# messaging in-memory messaging — hadashiA/VitalRouter Ruby C# Publish command Async subscriber pipelines
99. 3. Application design in-memory messaging — hadashiA/VitalRouter https://vitalrouter.hadashikick.jp What if we connect mruby to this input...?

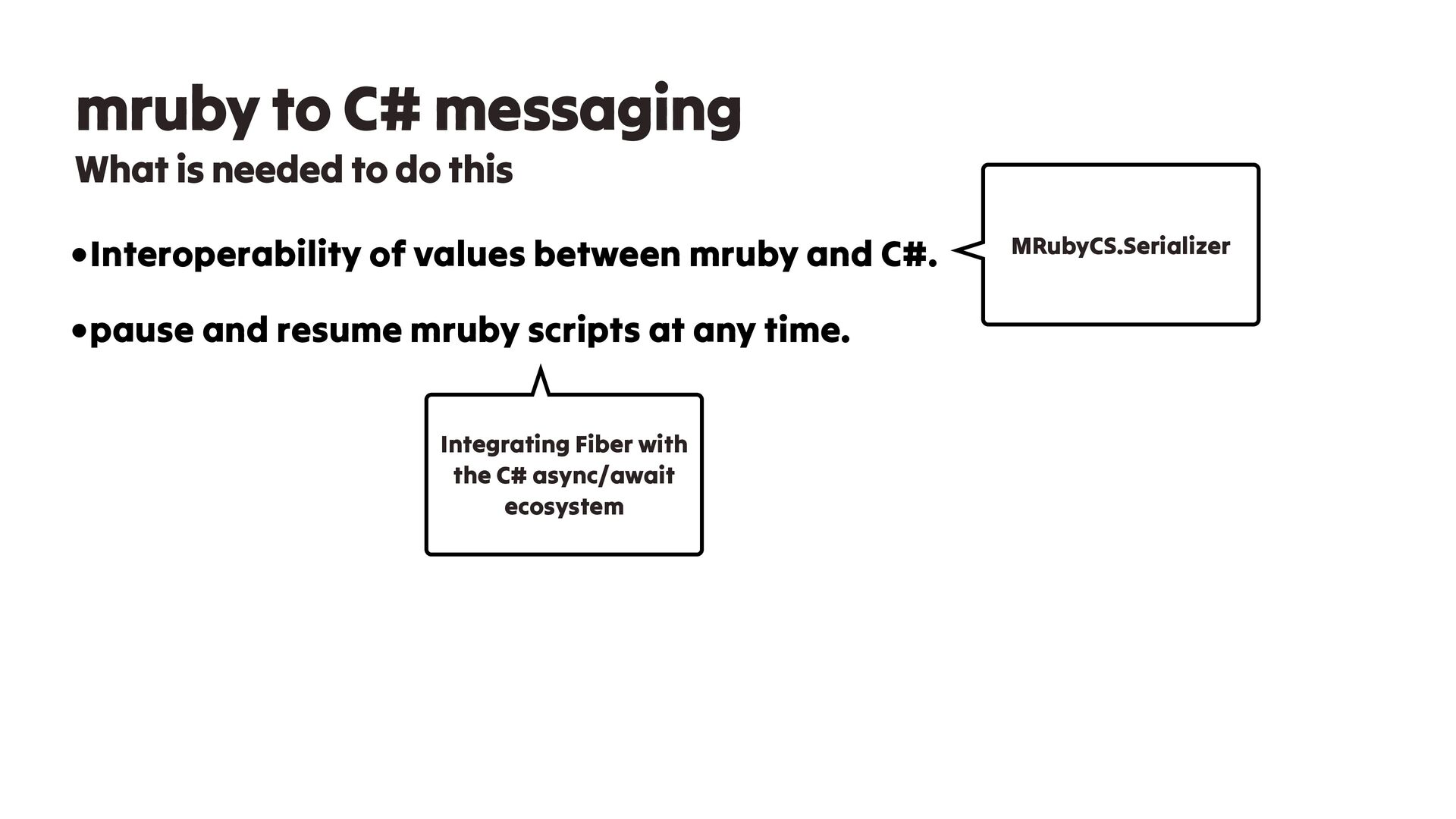

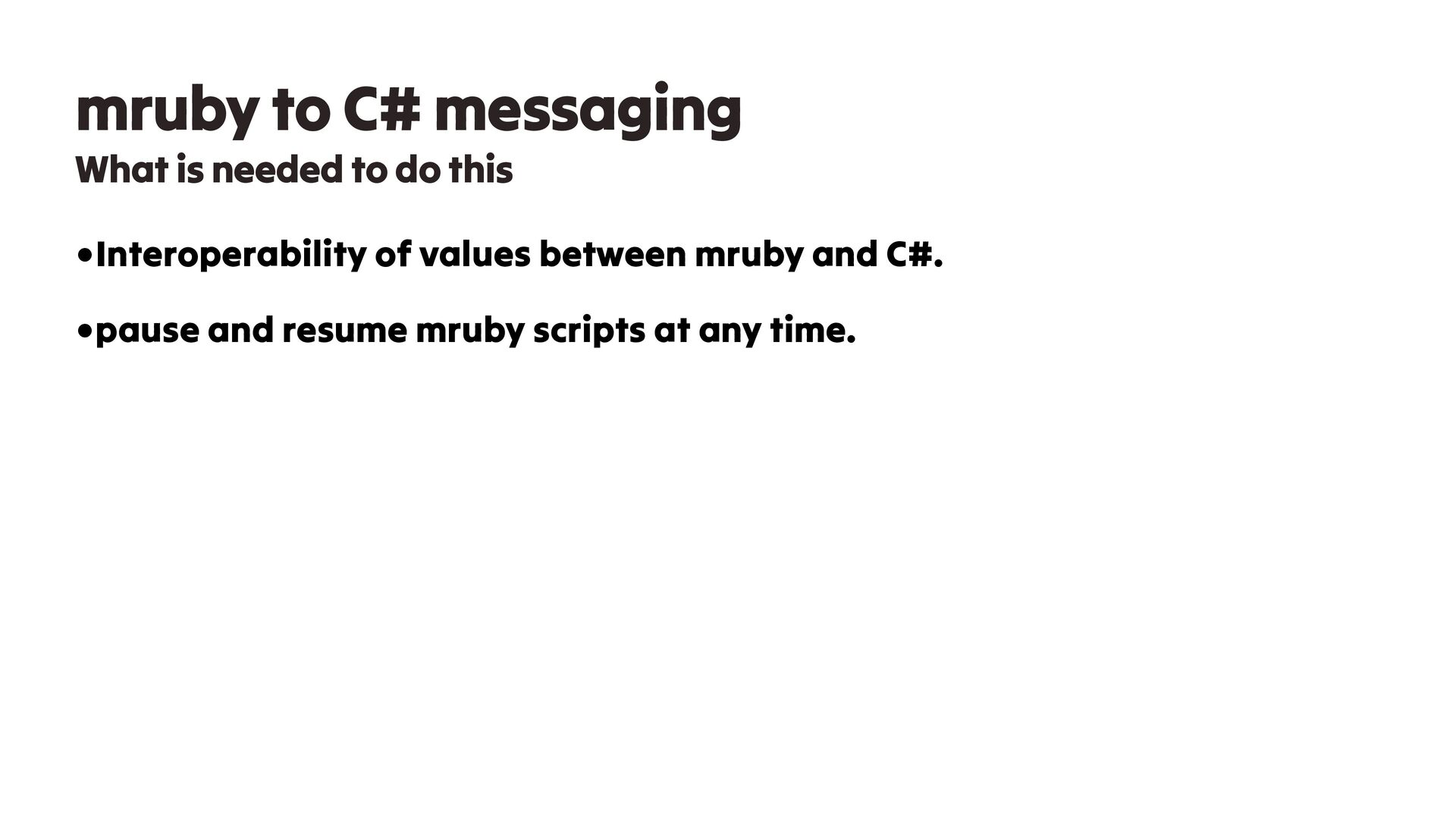

100. mruby to C# messaging What is needed to do this •Interoperability of values between mruby and C#. •pause and resume mruby scripts at any time.
101. mruby to C# messaging What is needed to do this •Interoperability of values between mruby and C#. •pause and resume mruby scripts at any time. MRubyCS.Serializer Integrating Fiber with the C# async/await ecosystem

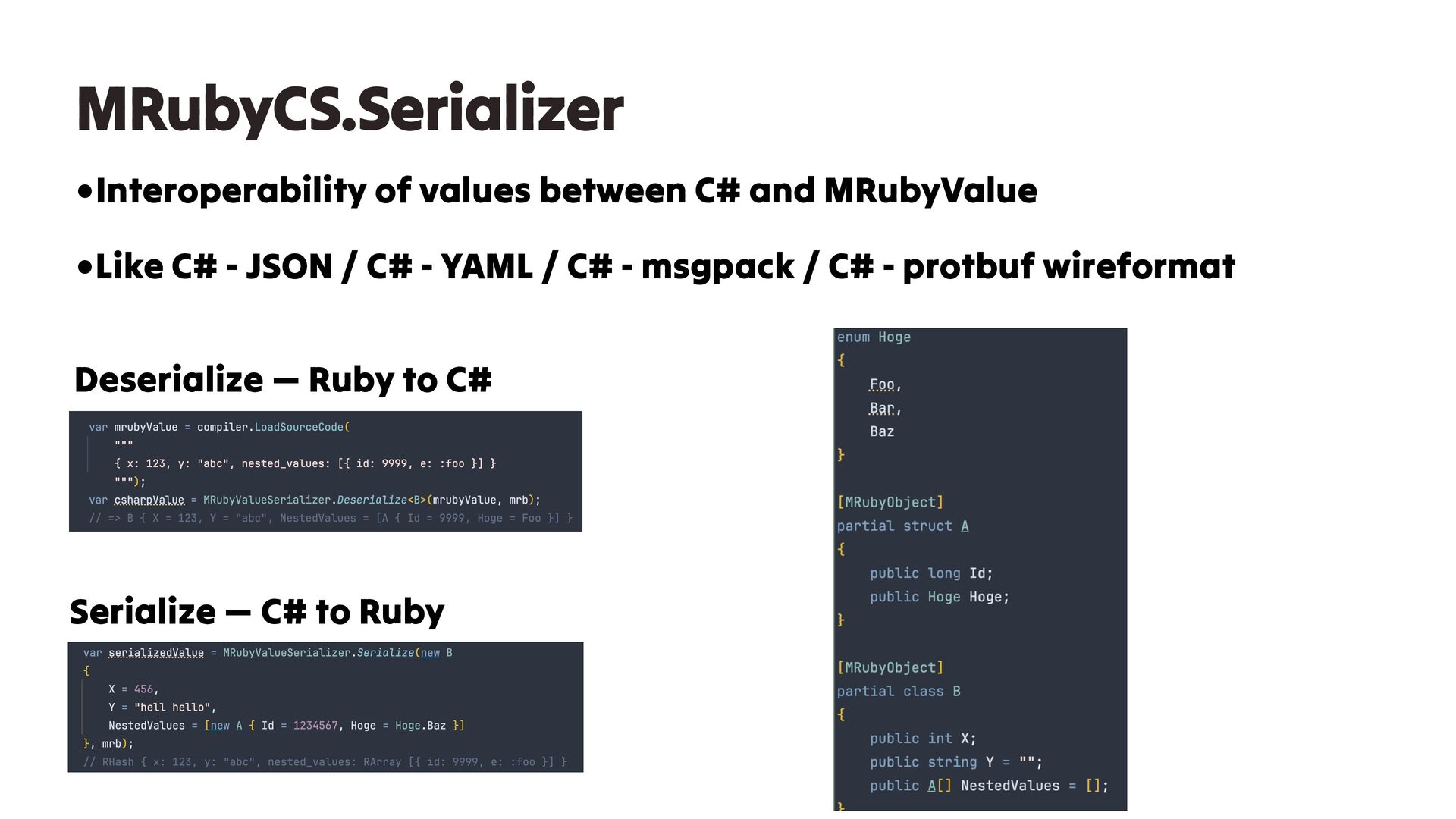

102. MRubyCS.Serializer •Interoperability of values between C# and MRubyValue •Like C# - JSON / C# - YAML / C# - msgpack / C# - protbuf wireformat Deserialize — Ruby to C# Serialize — C# to Ruby

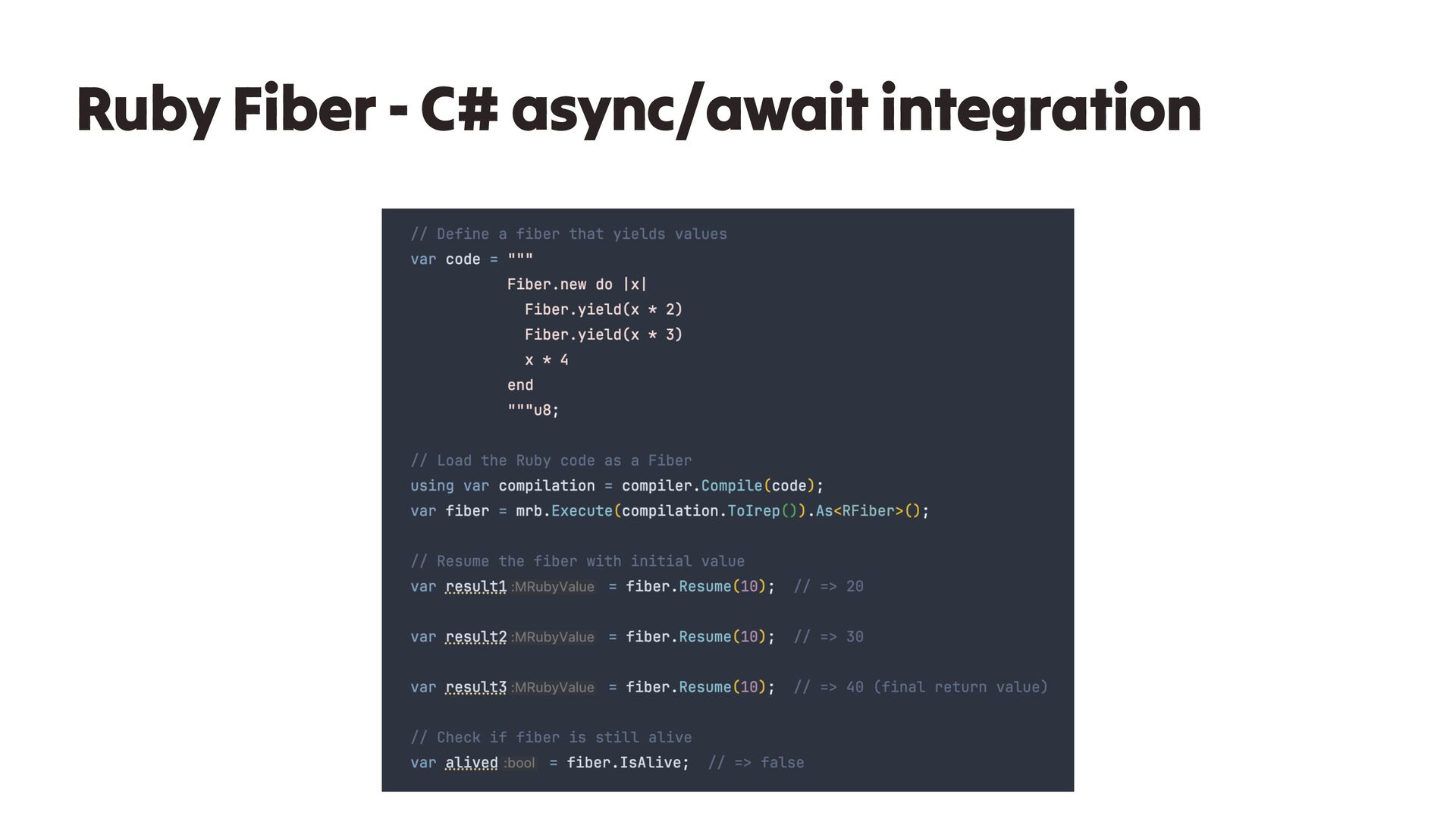

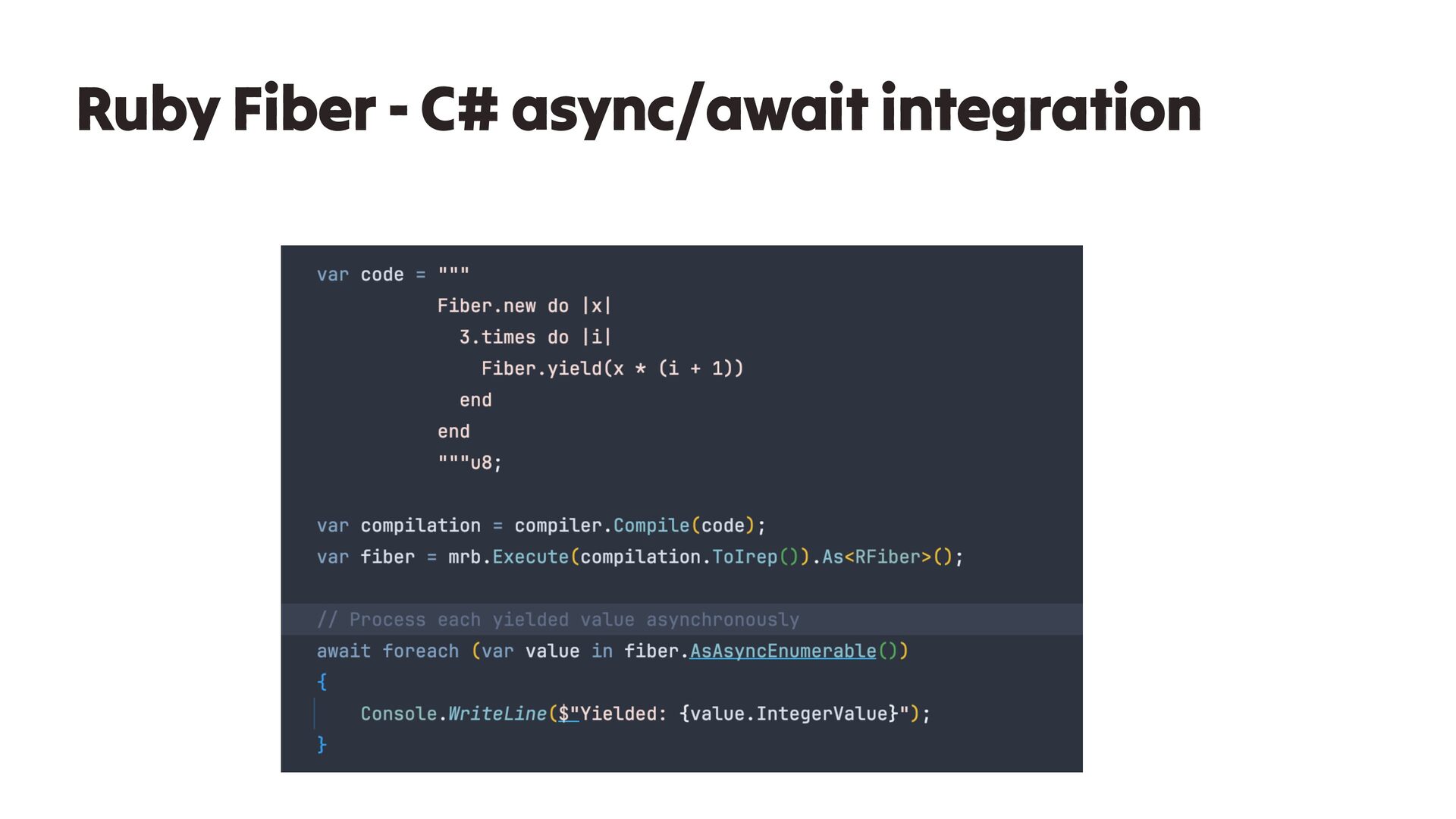

103. Ruby Fiber - C# async/await integration

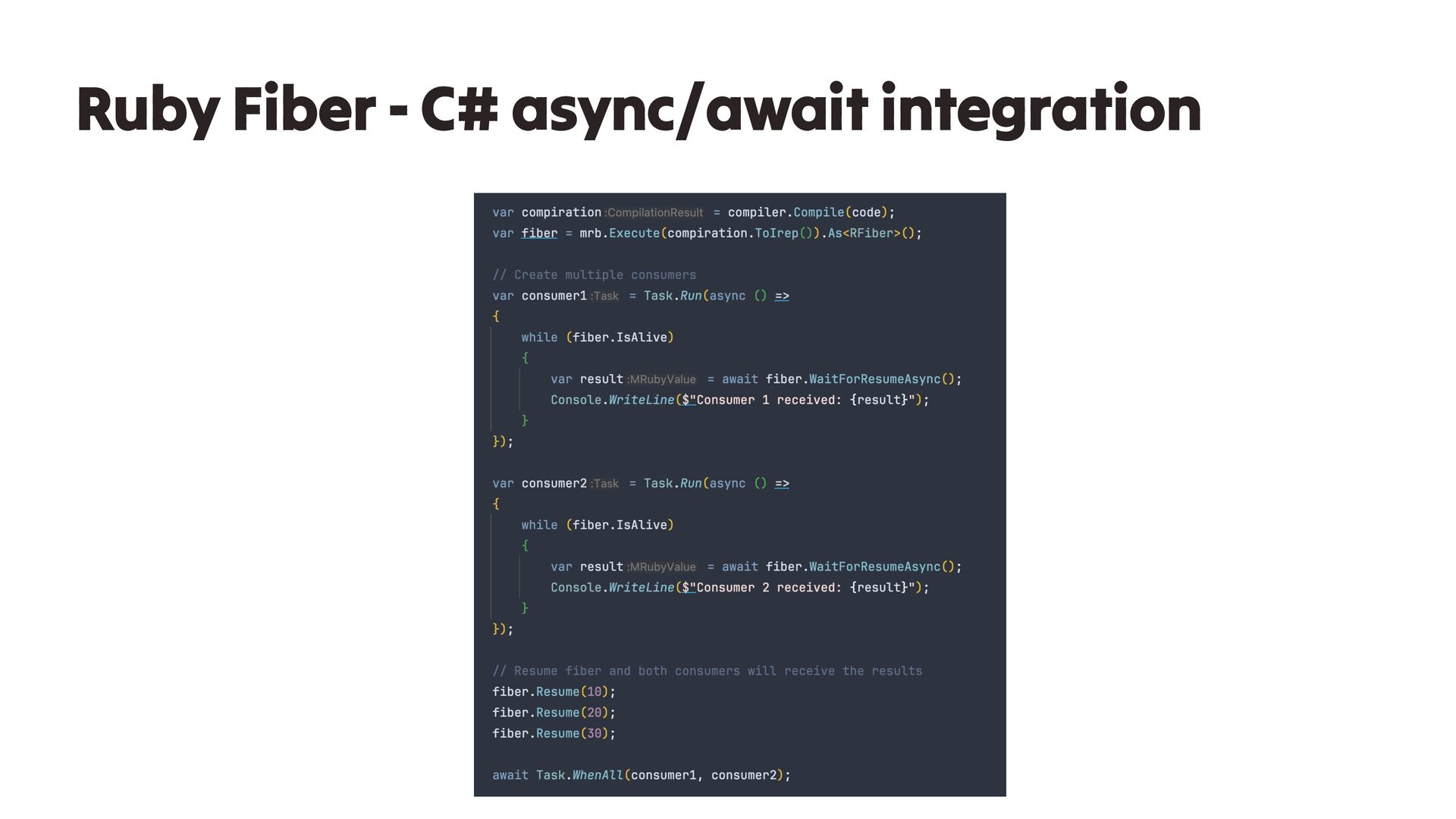

104. Ruby Fiber - C# async/await integration
105. Ruby Fiber - C# async/await integration

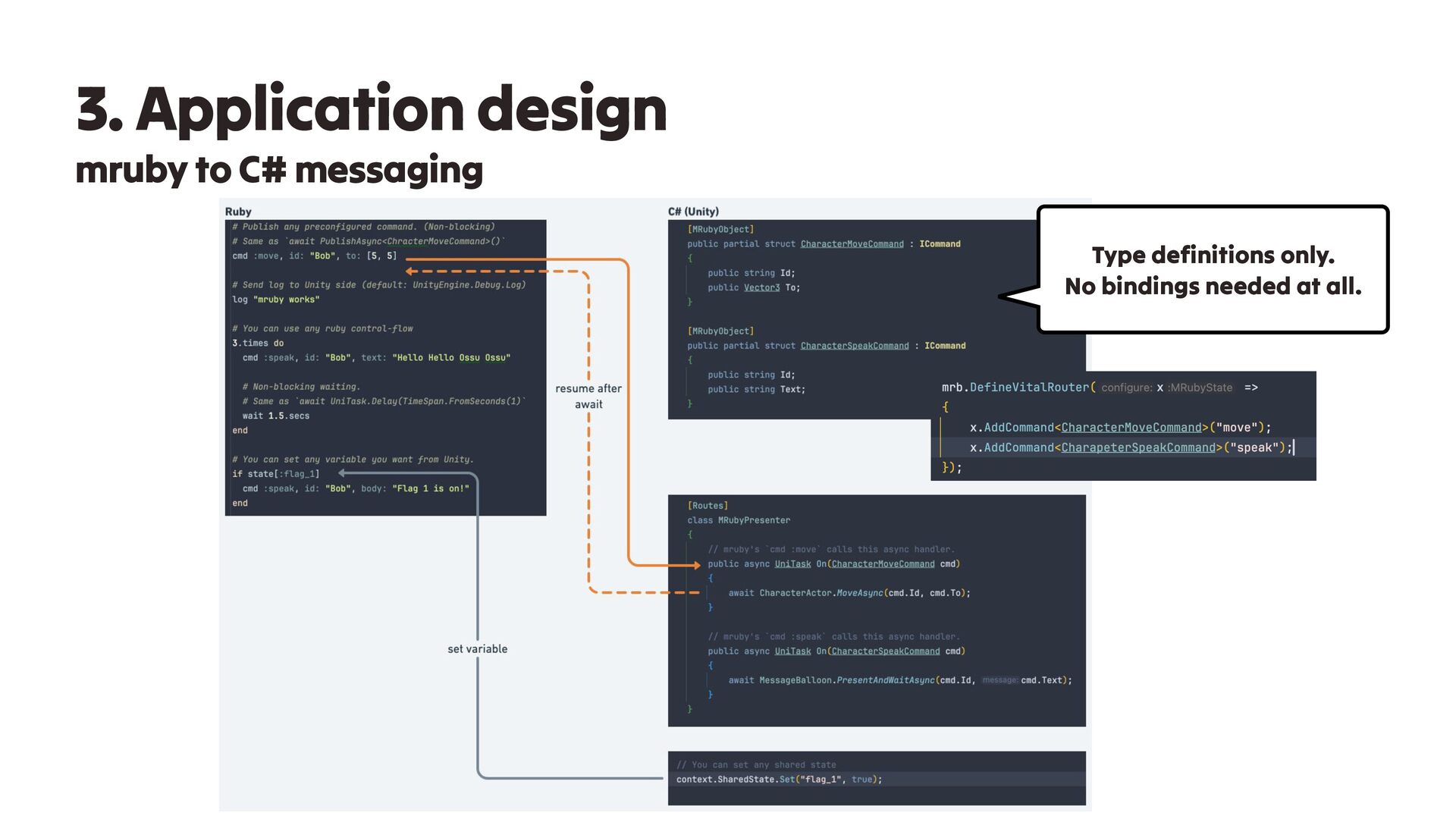

106. 3. Application design mruby to C# messaging Type definitions only. No bindings needed at all.

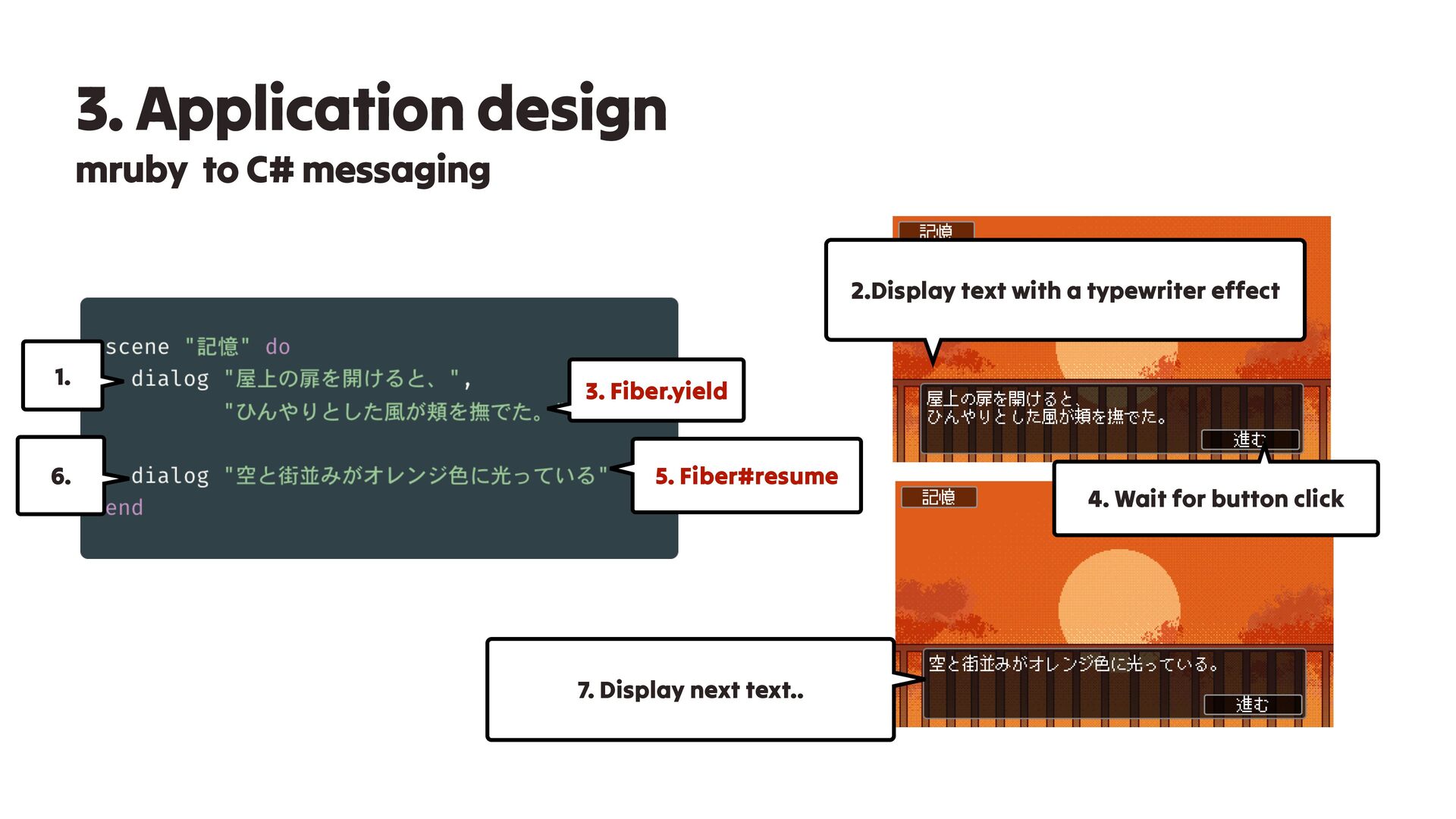

107. 2.Display text with a typewriter effect 3. Fiber.yield 4. Wait for button click 5. Fiber#resume 7. Display next text.. 1. 6. 3. Application design mruby to C# messaging
108. VitalRouter.MRuby v2 Case Studies େਖ਼ϊελϧδʔ https://unityroom.com/games/taisho-nostalgie

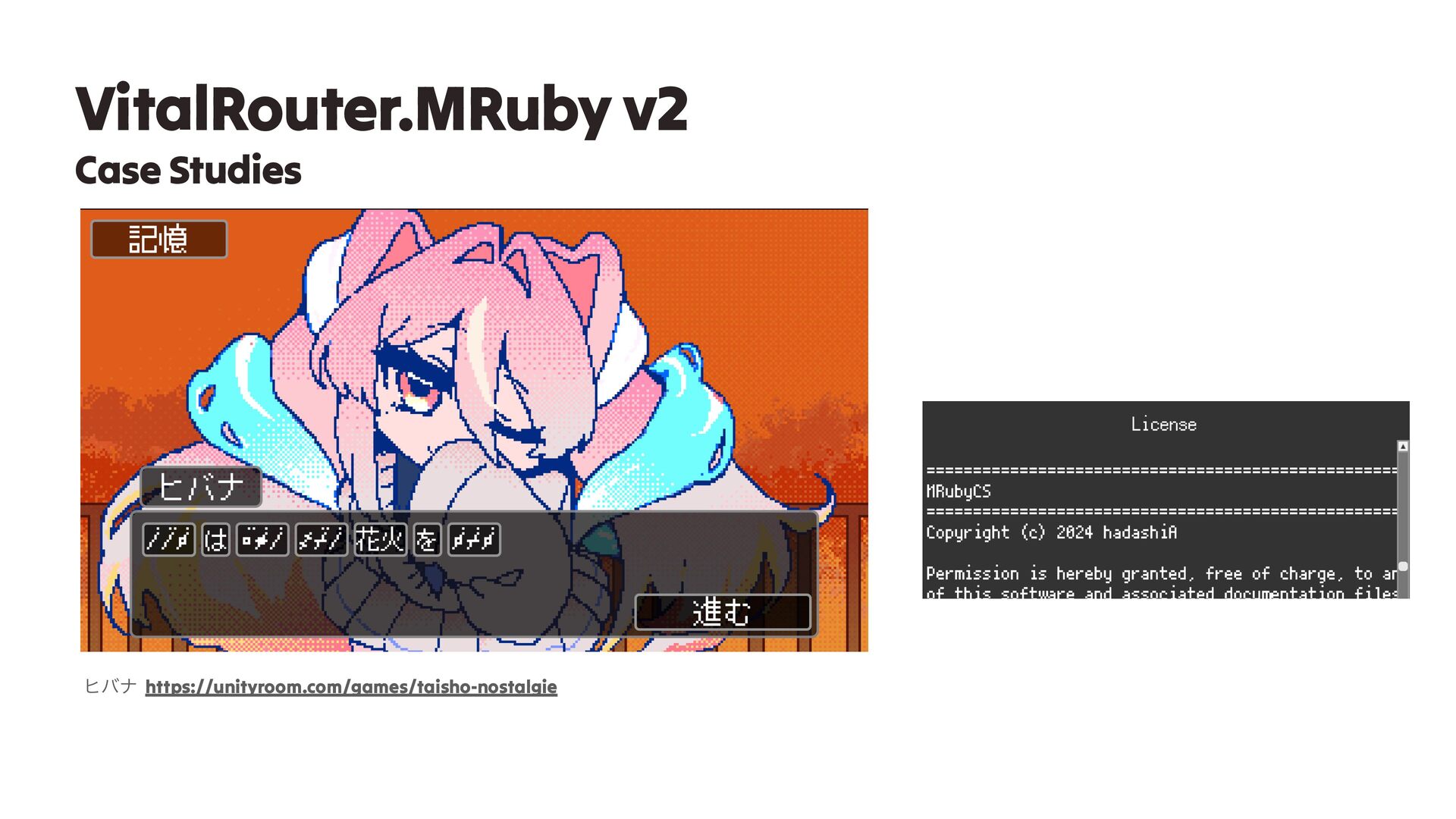

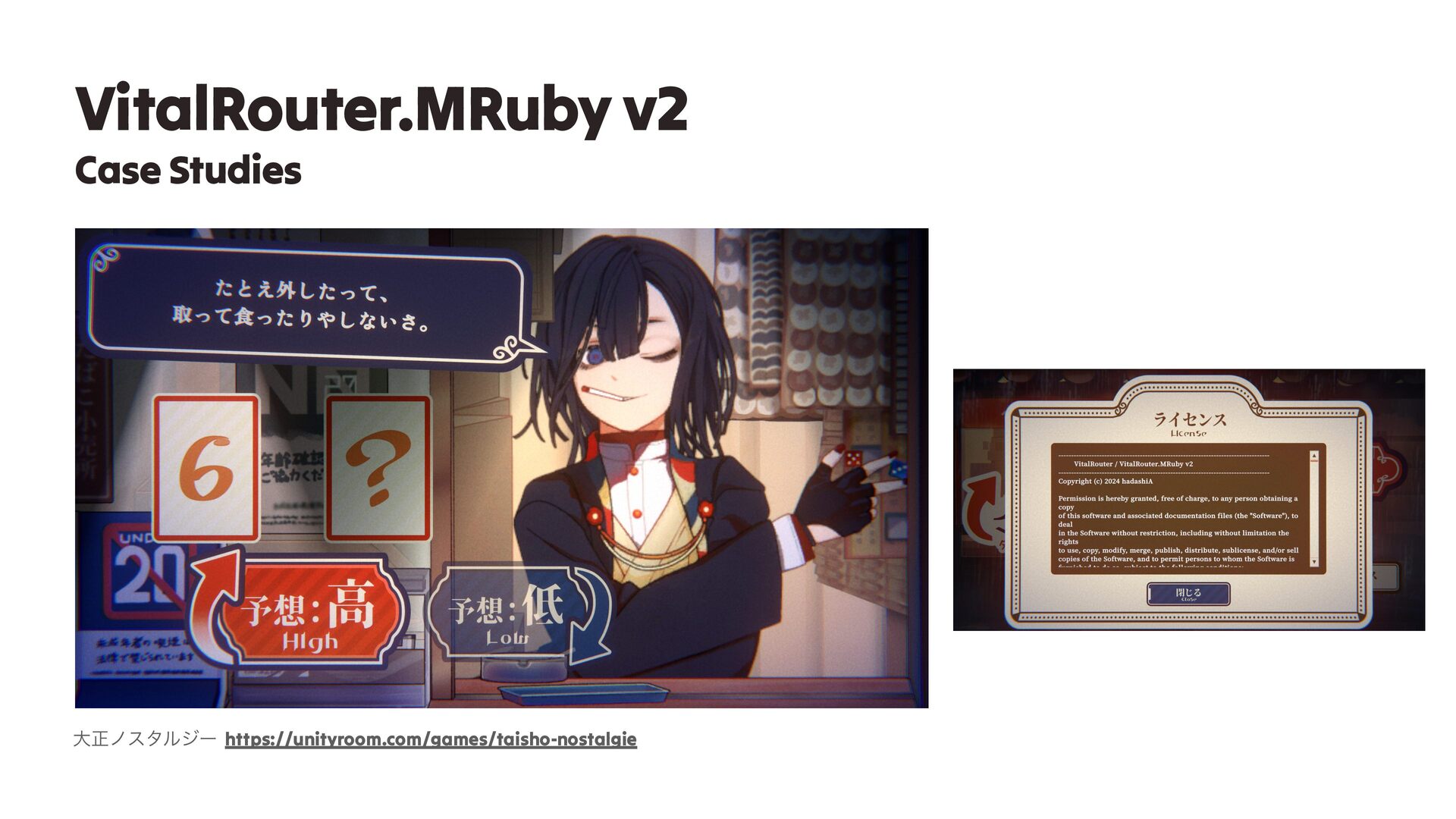

109. VitalRouter.MRuby v2 Case Studies ώόφ https://unityroom.com/games/taisho-nostalgie
