Adding Salt to AutoYaST

YaST2 Configuration Management is a brand new YaST module which offers integration between AutoYaST and Salt. It's no secret that many AutoYaST configuration features can be implemented using some Configuration Management System (like Salt or Puppet). So the idea is to bring together the best of both worlds: AutoYaST will take care of installing the base system (partitioning, networking, etc.) and Salt will configure the system.

Transcript

1. Imobach González Sosa YaST Developer igonzalezsosa@suse.com Adding Salt to AutoYaST Integrating AutoYaST and Configuration Managment Systems
2. AutoYaST
3. What is AutoYaST? • Tool to perform unattended installation/upgrade of openSUSE/SUSE systems • Allow configuration of already installed systems • Partitioning, network configuration, software installation… • ... and configuration of additional services
4. AutoYaST Profiles <profile xmlns="http://www.suse.com/1.0/yast2ns" xmlns:config="http://www.suse.com/1.0/configns"> <partitioning config:type="list"> <!-- Partitioning schema --> </partitioning> <software> <!-- Software selection --> </software> <networking> <!-- Network configuration --> </networking> <scripts> <!-- Scripts to be executed pre/during/after installation--> </scripts> </profile>
5. A minimal profile <profile xmlns="http://www.suse.com/1.0/yast2ns" xmlns:config="http://www.suse.com/1.0/configns"> <users config:type="list"> <user> <encrypted config:type="boolean">false</encrypted> <fullname>root</fullname> <gid>0</gid> <home>/root</home> <shell>/bin/bash</shell> <user_password>nots3cr3t</user_password> <username>root</username> </user> </users> </profile>
6. Writing a profile • From scratch • Clone an installed system (and tune it if needed) – AutoYaST UI – Command line
7. Limitations • Limited to YaST modules • Installation not always 100% reproducible • Only applies to openSUSE/SUSE distributions
8. Configuration Management Software
9. At a glance • Enable administrators to configure systems and track changes • Usually the administrator describes how the system should look like • Automated and reproducible • Many options with a wide range of features
10. Salt • Configuration management and remote execution engine • Event-driven • Pretty flexible architecture • Superb documentation • Library of reusable components
11. Salt jargon • Roles: master and minions • State: system configuration description • Pillar: data to be used in states • Formula: reusable and pre-written Salt states • Grains: data associated to Minions
12. Example State apache: pkg.installed: [] service.running: - watch: - pkg: apache - file: /etc/httpd/conf/httpd.conf - user: apache /etc/httpd/conf/httpd.conf: file.managed: - source: salt://apache/httpd.conf - user: root - group: root - mode: 644
13. AutoYaST + Salt
14. The best of both worlds • AutoYaST does the initial installation: partitioning, network configuration, software installation, etc. • Salt performs additional configuration: more software installation, services configuration, etc.
15. Example 1: master based • Keys are pre-accepted by the Salt Master • Multiple keys can be stored at the same place <configuration_management> <type>salt</type> <master>salt.my-network.lan</master> <keys_url>http://my-network.lan/salt/keys</keys_url> <!-- <keys_url>usb:/</keys_url> --> </configuration_management>

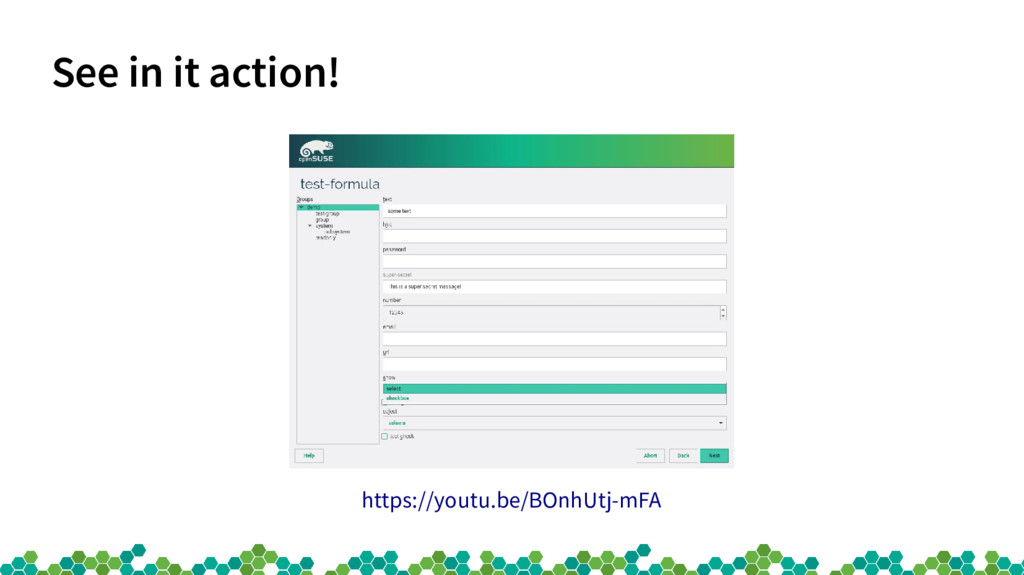

16. See in it action! https://youtu.be/BOnhUtj-mFA
17. Example 2: master based • Minion needs to be accepted on the Salt master • System administrator intervention is needed <configuration_management> <type>salt</type> <!-- puppet support is experimental --> <master>salt.my-network.lan</master> <auth_attempts config:type="integer">3</auth_attempts> <auth_time_out config:type="integer">50</auth_time_out> </configuration_management>
18. Example 3: masterless mode • Salt server is not required • The module will retrieve states/formulas and pillars <configuration_management> <type>salt</type> <states_url>http://my-network.lan/salt/redis.tar.gz</states_url> <pillar_url>http://my-network.lan/salt/redis-conf.tar.gz</pillar_url> </configuration_management>
19. Experimental features
20. Puppet support <!-- Masterless mode --> <configuration_management> <type>puppet</type> <modules_url>http://my-network.lan/puppet/webserver.tgz</modules_url> </configuration_management> <!-- Master based mode --> <configuration_management> <type>puppet</type> <master>puppet.my-network.lan</master> <keys_url>http://my-network.lan/salt/keys</keys_url> </configuration_management>
21. SUSE Manager Parametrizable Salt Formulas • Mechanism to describe Pillars data • Enable developers to build a UI to expose them timezone: name: "Atlantic/Canary" utc: true
22. SUSE Manager Parametrizable Salt Formulas timezone: $type: hidden-group name: $type: select $values: ["UTC", "Atlantic/Canary", "Europe/Berlin", "US/Mountain"] $default: Europe/Berlin utc: $type: boolean $default: True
23. SUSE Manager Parametrizable Salt Formulas
24. See in it action! https://youtu.be/3pBUaWGeomo
25. Future
26. Some wild ideas • Improve UI integration within the installer • AutoYaST UI • Cloning support • Puppet Hiera • Git
27. Thanks!
28. Thanks! • My beloved YaST team for taking care of this module • Duncan Mac-Vicar for his contribution and help • Hannes Kühnemund for creating the feature request • The openSUSE Project!
29. References • YaST2 Configuration Management module https://github.com/yast/yast-configuration-management • AutoYaST documentation for openSUSE http://doc.opensuse.org/projects/autoyast/ • SaltStack homepage https://saltstack.com/ • Puppet Labs homepage https://puppetlabs.com/ • “Forms are the Formula for Success” by Joachim Werner https://www.suse.com/communities/blog/forms-formula-success/ • YaST2 integration with Salt (Hack Week proof of concept demostration) https://www.youtube.com/watch?v=2em_R84XVYg
31. Questions?
32. Join Us at www.opensuse.org
