Going Serverless

Serverless is a new framework that allows developers to easily harness AWS Lambda and Api Gateway to build and deploy full fledged API services without needing to deal with any ops level overhead or paying for servers when they're not in use. It's kinda like Heroku on-demand for single functions.

Transcript

1. Going Serverless @jagthedrummer - OctoLabs.com/railsconf2016
2. ! ! @jagthedrummer - OctoLabs.com/railsconf2016
3. Serverless? @jagthedrummer - OctoLabs.com/railsconf2016
4. Serverless @jagthedrummer - OctoLabs.com/railsconf2016
5. @jagthedrummer - OctoLabs.com/railsconf2016
6. ⚡ serverless.com ⚡ framework for building web, mobile and IoT applications exclusively on AWS Lambda, API Gateway, and related services @jagthedrummer - OctoLabs.com/railsconf2016
7. ! ! @jagthedrummer - OctoLabs.com/railsconf2016
8. Vendor Lock-in ! @jagthedrummer - OctoLabs.com/railsconf2016
9. OPS @jagthedrummer - OctoLabs.com/railsconf2016
10. Scale @jagthedrummer - OctoLabs.com/railsconf2016
11. Money @jagthedrummer - OctoLabs.com/railsconf2016
12. Jeremy Green Consultant, Author, SaaSer @jagthedrummer jeremy@octolabs.com @jagthedrummer - OctoLabs.com/railsconf2016
13. IndependentConsultingManual.com Remarq.io Other Interests: Drumming, Photography, and Brewing @jagthedrummer - OctoLabs.com/railsconf2016
14. clickfunnels.com @jagthedrummer - OctoLabs.com/railsconf2016
15. @jagthedrummer - OctoLabs.com/railsconf2016
16. The Pieces @jagthedrummer - OctoLabs.com/railsconf2016
17. Lambda @jagthedrummer - OctoLabs.com/railsconf2016
18. API Gateway @jagthedrummer - OctoLabs.com/railsconf2016
19. DynamoDB @jagthedrummer - OctoLabs.com/railsconf2016
20. RDS @jagthedrummer - OctoLabs.com/railsconf2016
21. CloudFormation @jagthedrummer - OctoLabs.com/railsconf2016

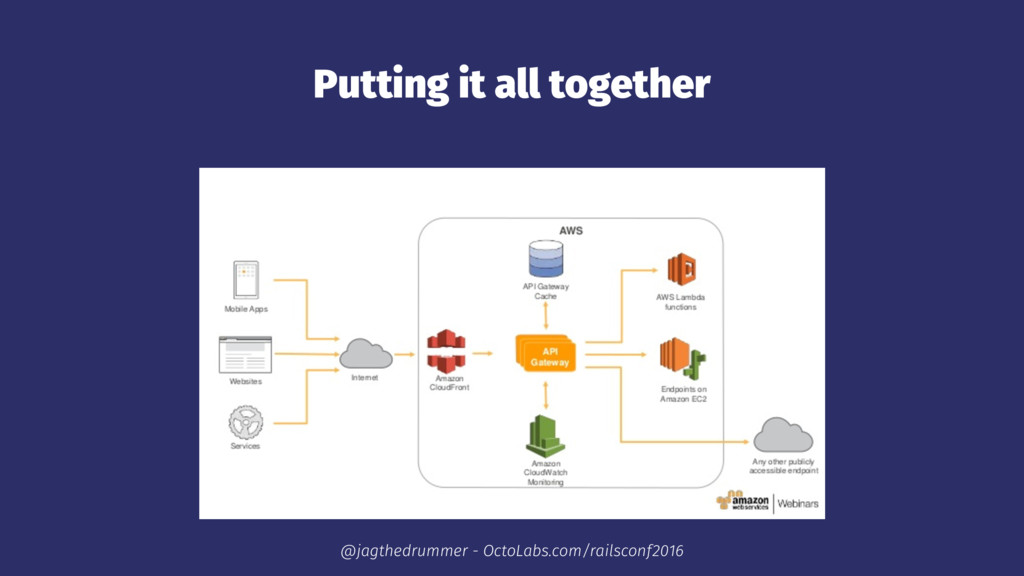

22. Putting it all together @jagthedrummer - OctoLabs.com/railsconf2016

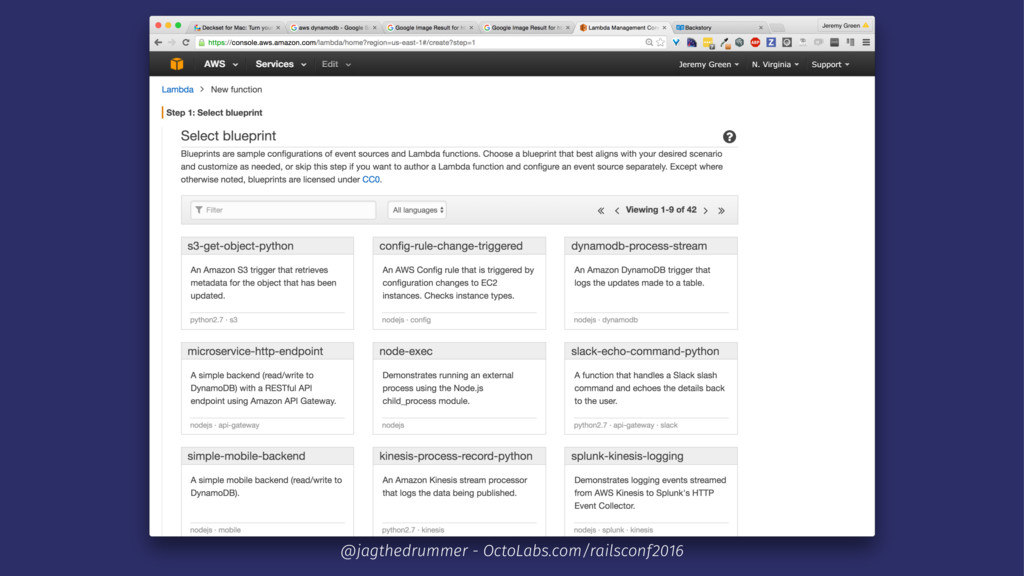

23. @jagthedrummer - OctoLabs.com/railsconf2016
24. @jagthedrummer - OctoLabs.com/railsconf2016

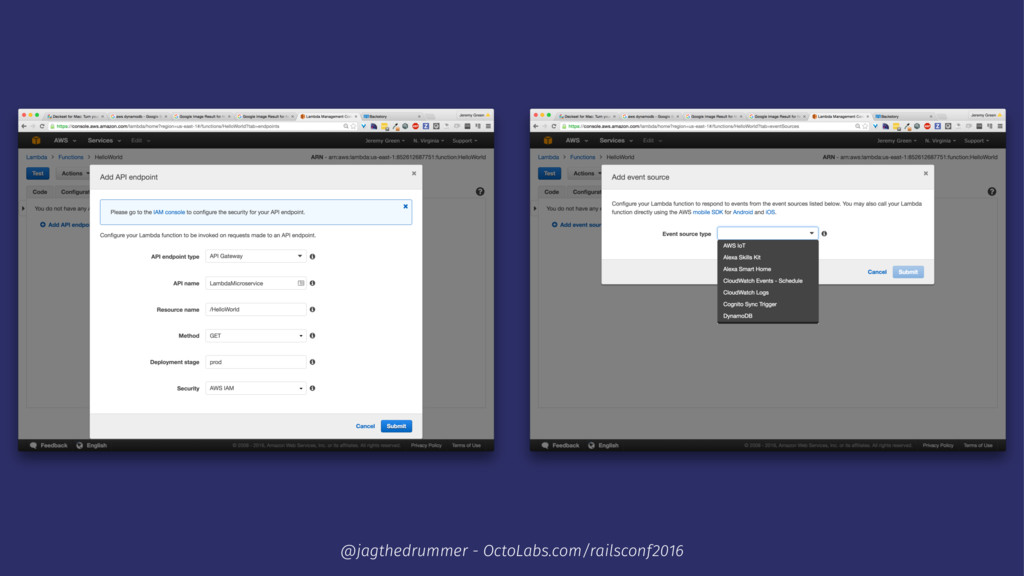

25. @jagthedrummer - OctoLabs.com/railsconf2016

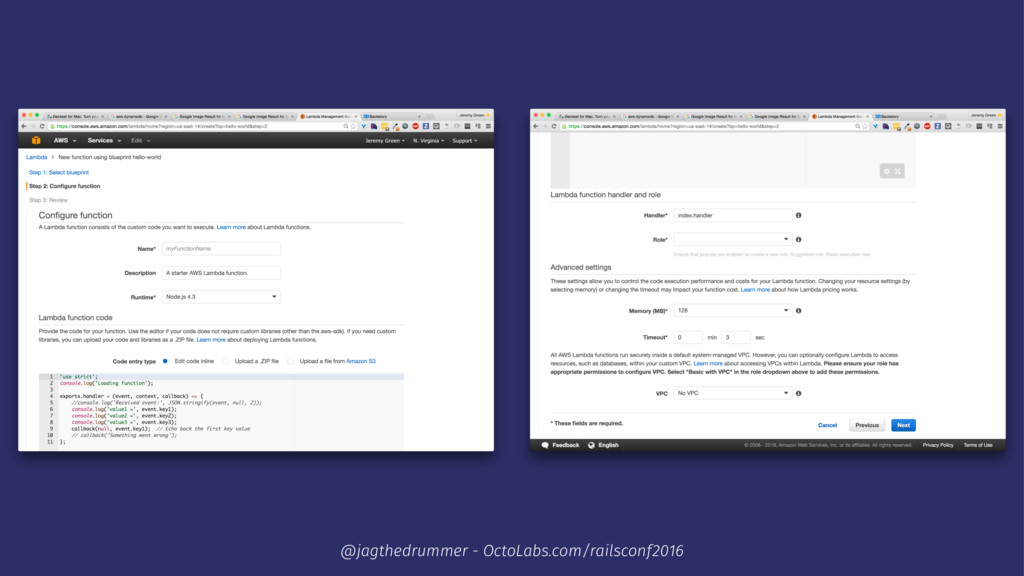

26. @jagthedrummer - OctoLabs.com/railsconf2016
27. Coding in the browser? @jagthedrummer - OctoLabs.com/railsconf2016
28. ! → " → # @jagthedrummer - OctoLabs.com/railsconf2016

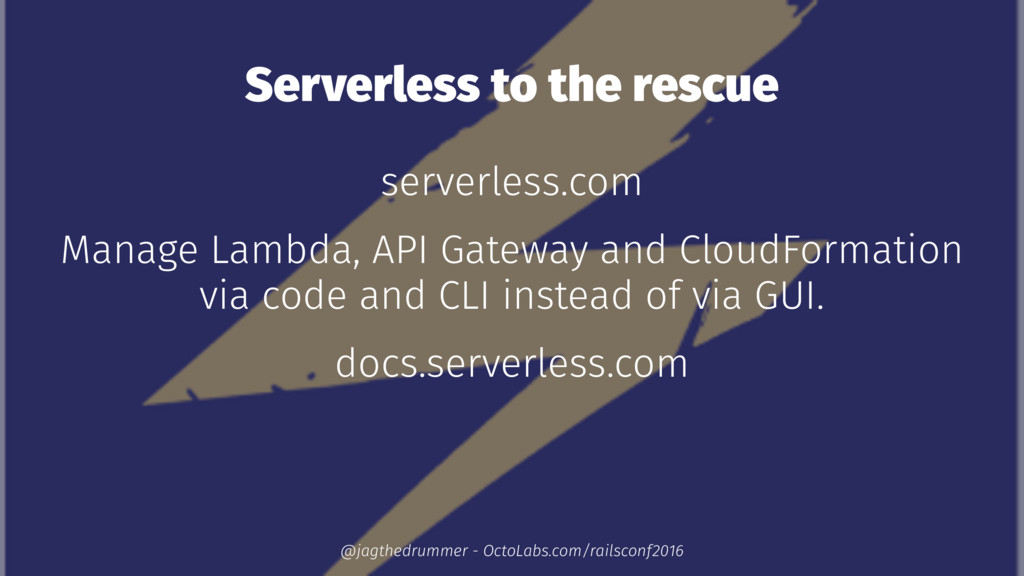

29. Serverless to the rescue serverless.com Manage Lambda, API Gateway and CloudFormation via code and CLI instead of via GUI. docs.serverless.com @jagthedrummer - OctoLabs.com/railsconf2016
30. Getting started @jagthedrummer - OctoLabs.com/railsconf2016
31. First step → Create a new AWS account! → Srsly! @jagthedrummer - OctoLabs.com/railsconf2016

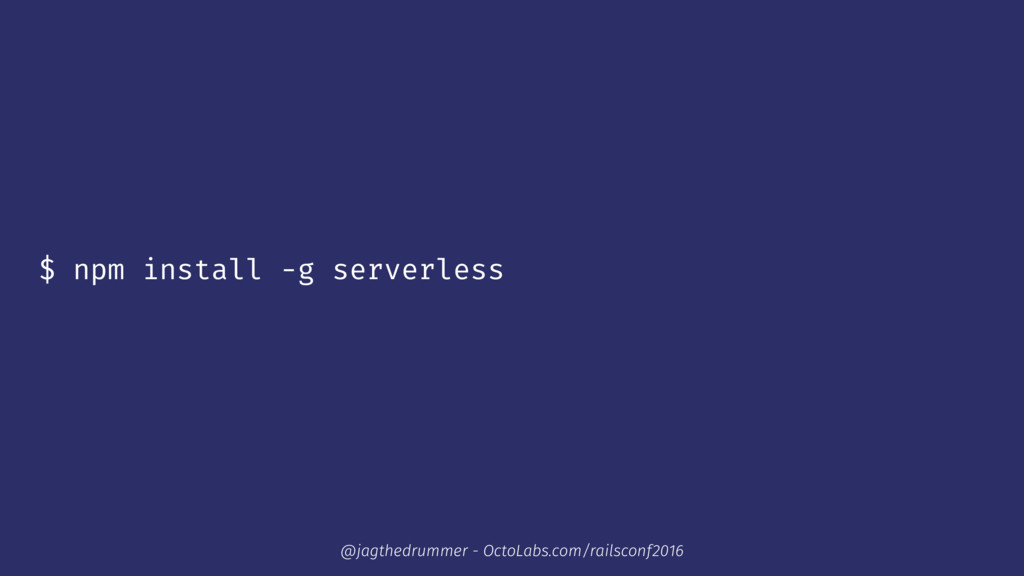

32. $ npm install -g serverless @jagthedrummer - OctoLabs.com/railsconf2016

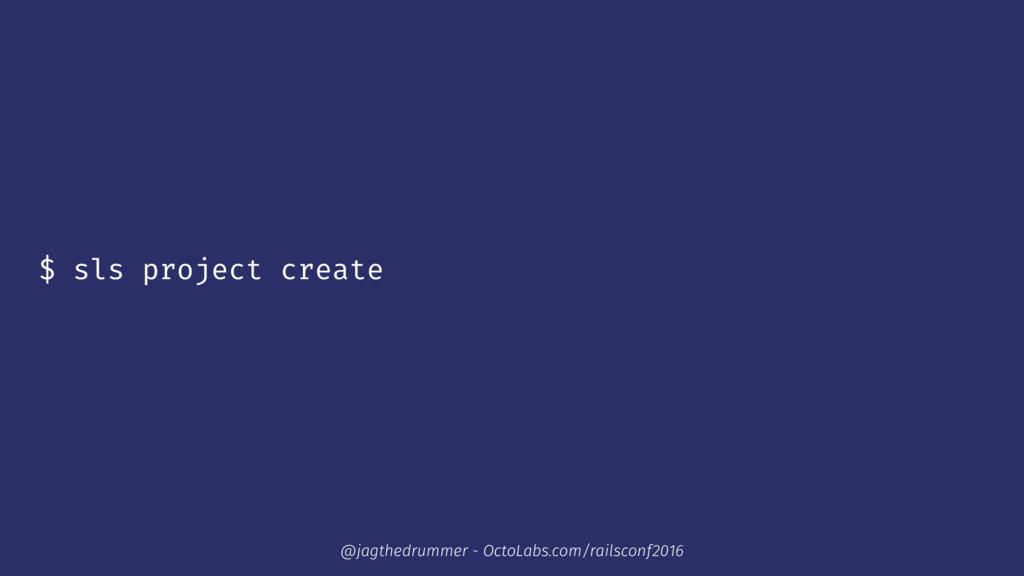

33. $ sls project create @jagthedrummer - OctoLabs.com/railsconf2016

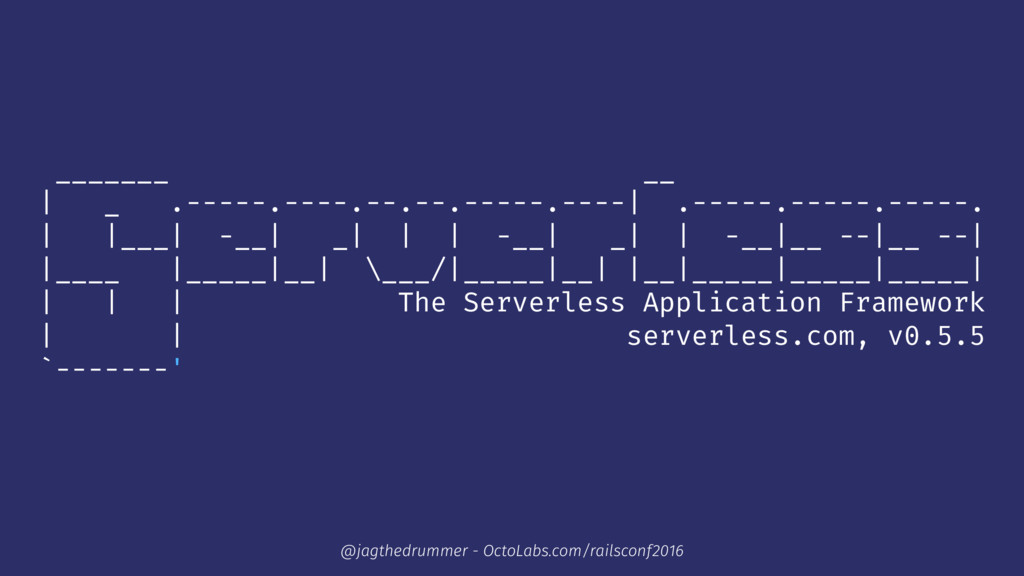

34. _______ __ | _ .-----.----.--.--.-----.----| .-----.-----.-----. | |___| -__| _| | | -__| _| | -__|__ --|__ --| |____ |_____|__| \___/|_____|__| |__|_____|_____|_____| | | | The Serverless Application Framework | | serverless.com, v0.5.5 `-------' @jagthedrummer - OctoLabs.com/railsconf2016

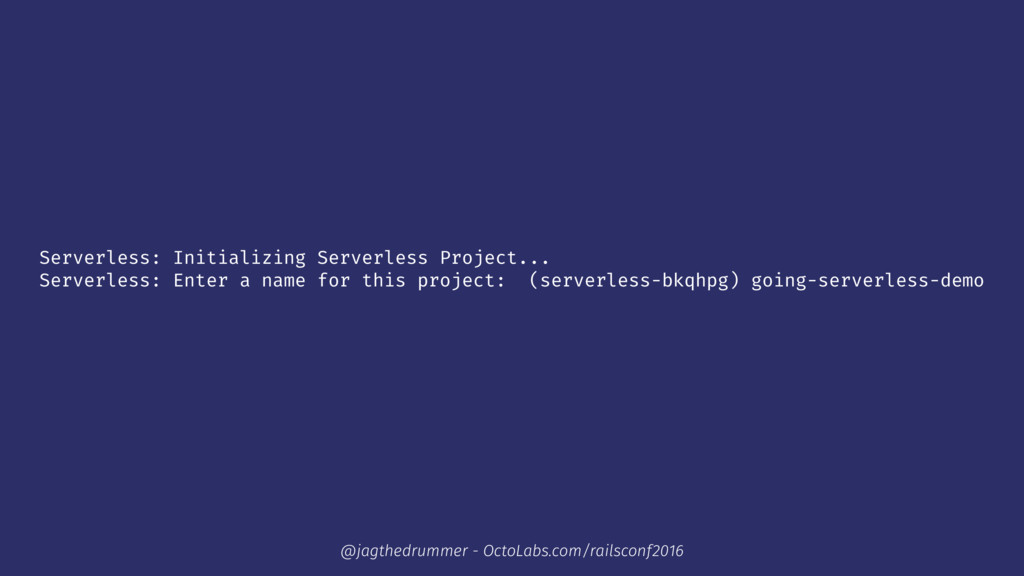

35. Serverless: Initializing Serverless Project... Serverless: Enter a name for this project: (serverless-bkqhpg) going-serverless-demo @jagthedrummer - OctoLabs.com/railsconf2016

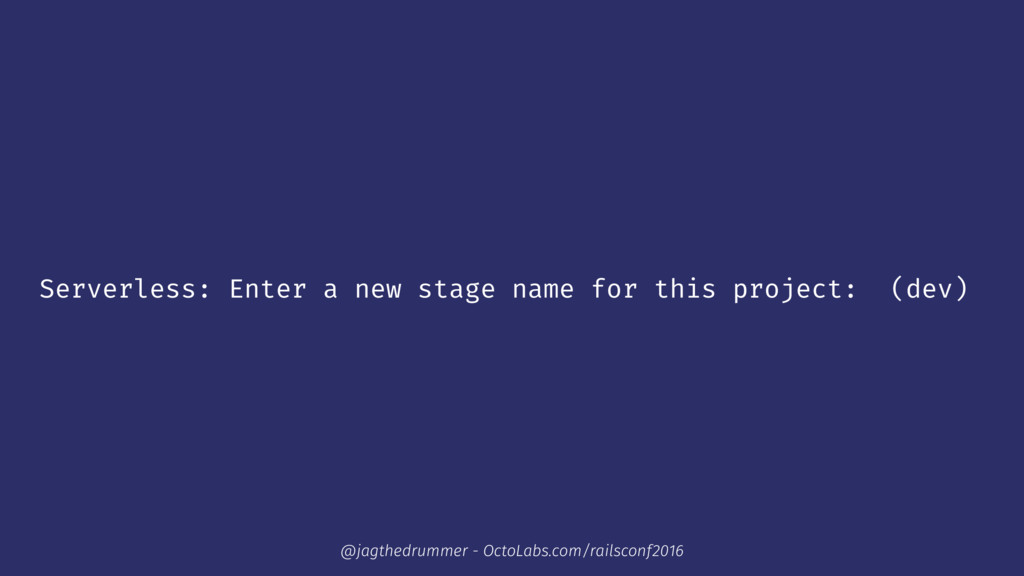

36. Serverless: Enter a new stage name for this project: (dev) @jagthedrummer - OctoLabs.com/railsconf2016

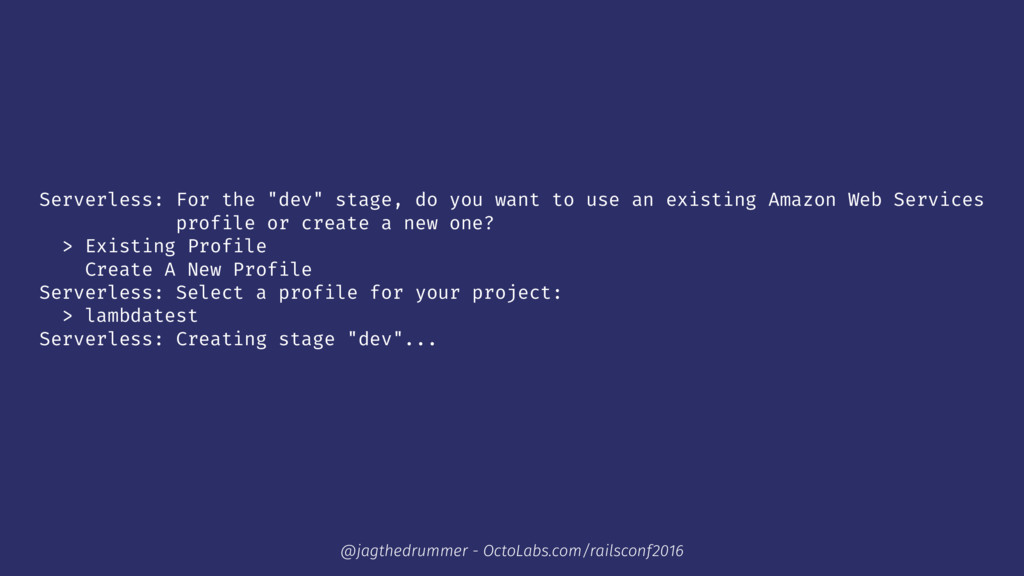

37. Serverless: For the "dev" stage, do you want to use an existing Amazon Web Services profile or create a new one? > Existing Profile Create A New Profile Serverless: Select a profile for your project: > lambdatest Serverless: Creating stage "dev"... @jagthedrummer - OctoLabs.com/railsconf2016

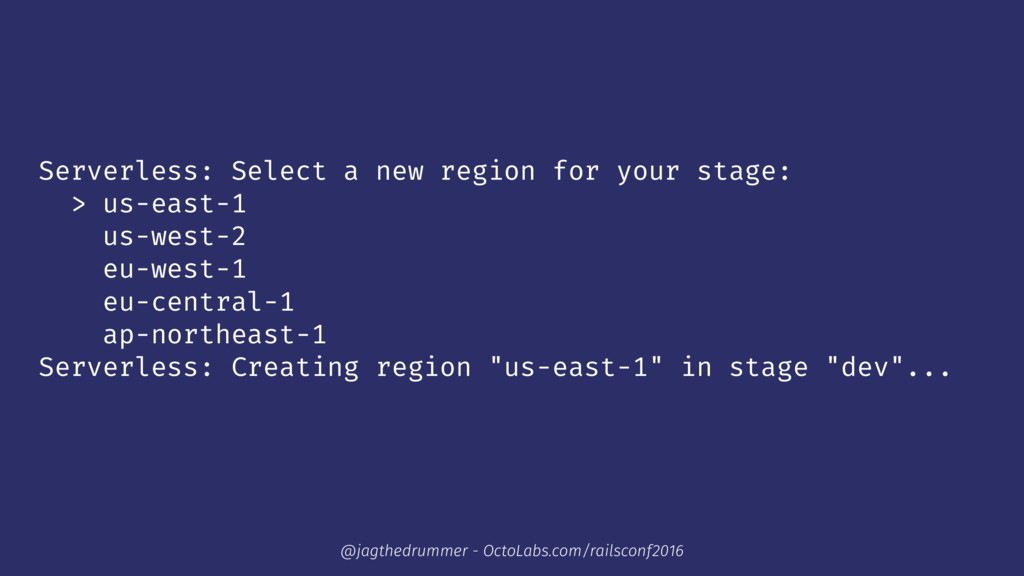

38. Serverless: Select a new region for your stage: > us-east-1 us-west-2 eu-west-1 eu-central-1 ap-northeast-1 Serverless: Creating region "us-east-1" in stage "dev"... @jagthedrummer - OctoLabs.com/railsconf2016

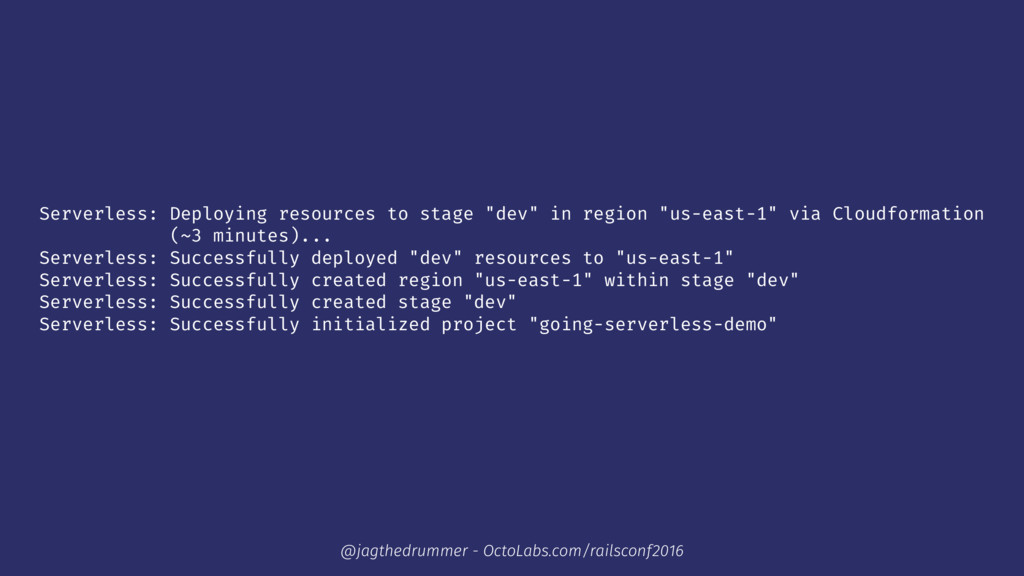

39. Serverless: Deploying resources to stage "dev" in region "us-east-1" via Cloudformation (~3 minutes)... Serverless: Successfully deployed "dev" resources to "us-east-1" Serverless: Successfully created region "us-east-1" within stage "dev" Serverless: Successfully created stage "dev" Serverless: Successfully initialized project "going-serverless-demo" @jagthedrummer - OctoLabs.com/railsconf2016

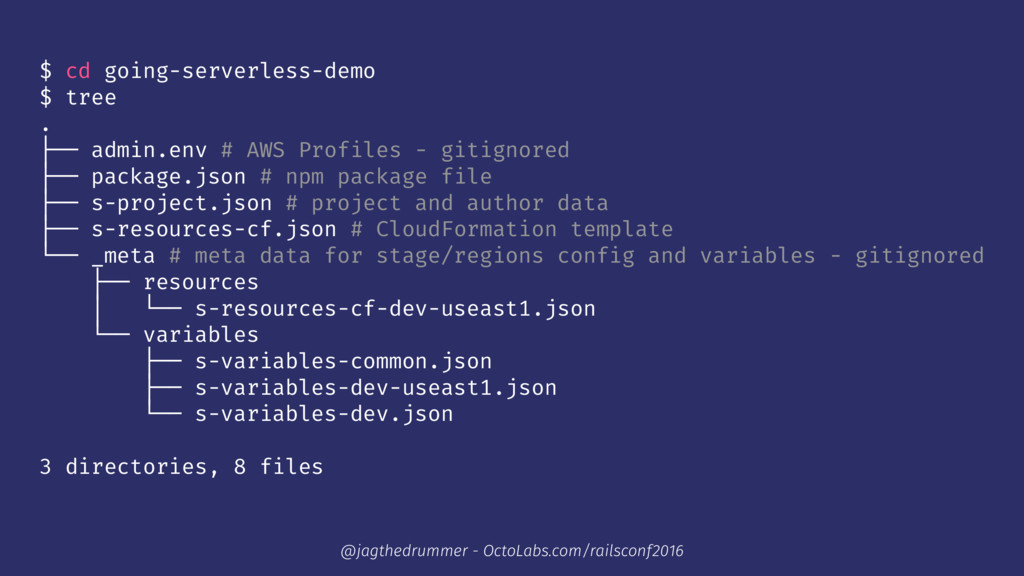

40. $ cd going-serverless-demo $ tree . ├── admin.env # AWS Profiles - gitignored ├── package.json # npm package file ├── s-project.json # project and author data ├── s-resources-cf.json # CloudFormation template └── _meta # meta data for stage/regions config and variables - gitignored ├── resources │ └── s-resources-cf-dev-useast1.json └── variables ├── s-variables-common.json ├── s-variables-dev-useast1.json └── s-variables-dev.json 3 directories, 8 files @jagthedrummer - OctoLabs.com/railsconf2016
41. What should we build? @jagthedrummer - OctoLabs.com/railsconf2016
42. Let's build something real* @jagthedrummer - OctoLabs.com/railsconf2016
43. LPaaS left-pad as a service* * OK, "real" ! @jagthedrummer - OctoLabs.com/railsconf2016

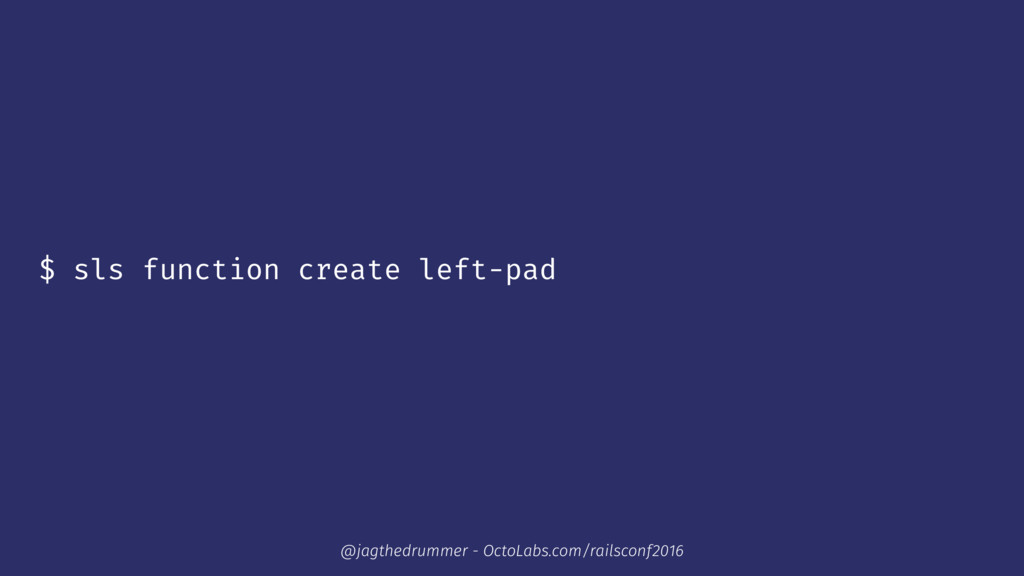

44. $ sls function create left-pad @jagthedrummer - OctoLabs.com/railsconf2016

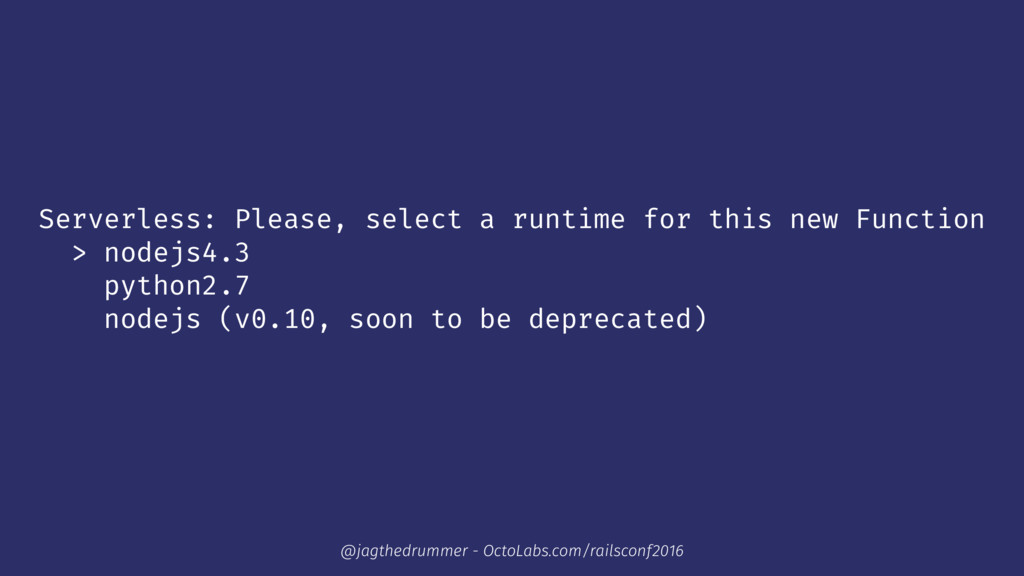

45. Serverless: Please, select a runtime for this new Function > nodejs4.3 python2.7 nodejs (v0.10, soon to be deprecated) @jagthedrummer - OctoLabs.com/railsconf2016

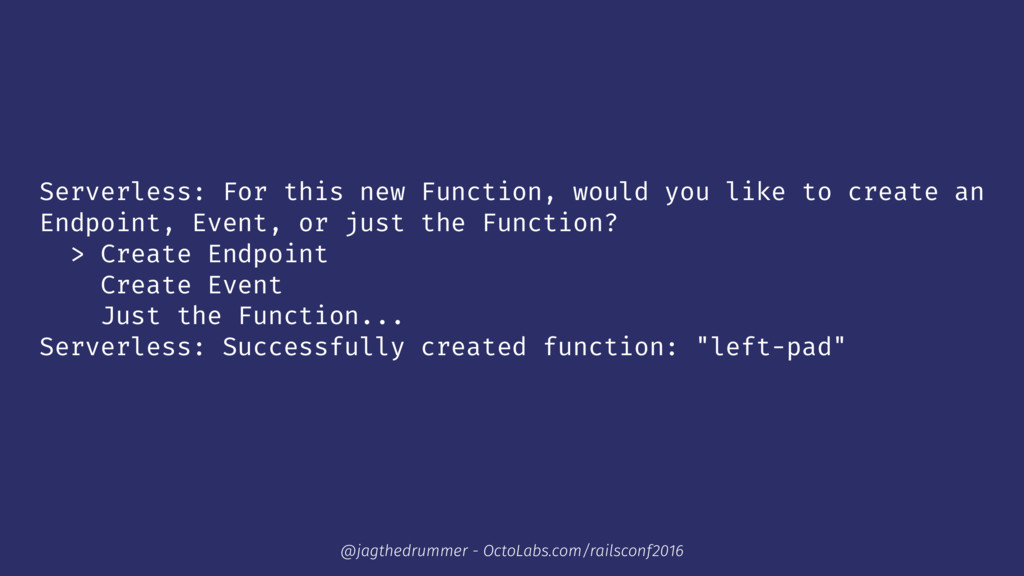

46. Serverless: For this new Function, would you like to create an Endpoint, Event, or just the Function? > Create Endpoint Create Event Just the Function... Serverless: Successfully created function: "left-pad" @jagthedrummer - OctoLabs.com/railsconf2016

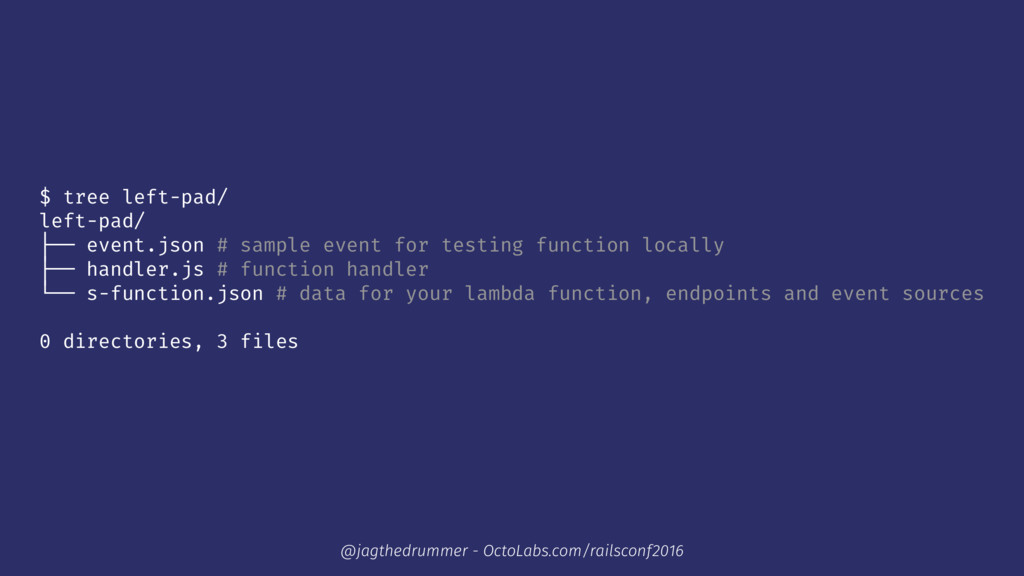

47. $ tree left-pad/ left-pad/ ├── event.json # sample event for testing function locally ├── handler.js # function handler └── s-function.json # data for your lambda function, endpoints and event sources 0 directories, 3 files @jagthedrummer - OctoLabs.com/railsconf2016
48. ! it! @jagthedrummer - OctoLabs.com/railsconf2016

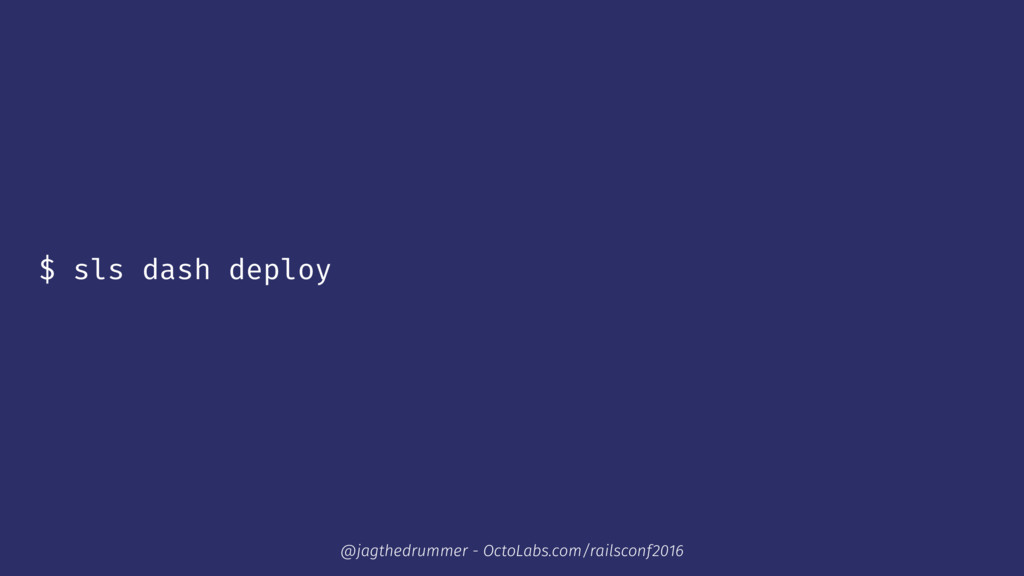

49. $ sls dash deploy @jagthedrummer - OctoLabs.com/railsconf2016

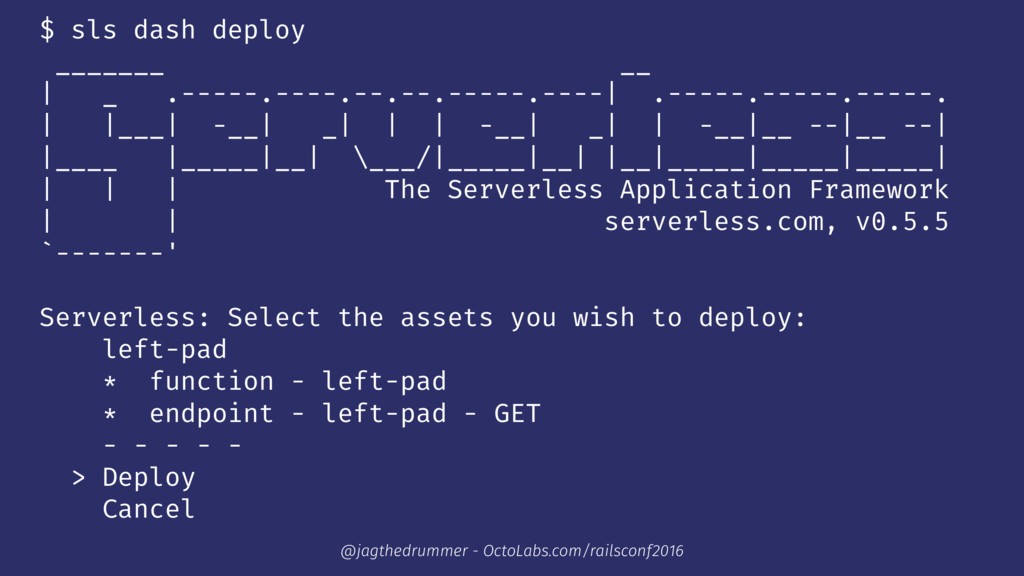

50. $ sls dash deploy _______ __ | _ .-----.----.--.--.-----.----| .-----.-----.-----. | |___| -__| _| | | -__| _| | -__|__ --|__ --| |____ |_____|__| \___/|_____|__| |__|_____|_____|_____| | | | The Serverless Application Framework | | serverless.com, v0.5.5 `-------' Serverless: Select the assets you wish to deploy: left-pad * function - left-pad * endpoint - left-pad - GET - - - - - > Deploy Cancel @jagthedrummer - OctoLabs.com/railsconf2016

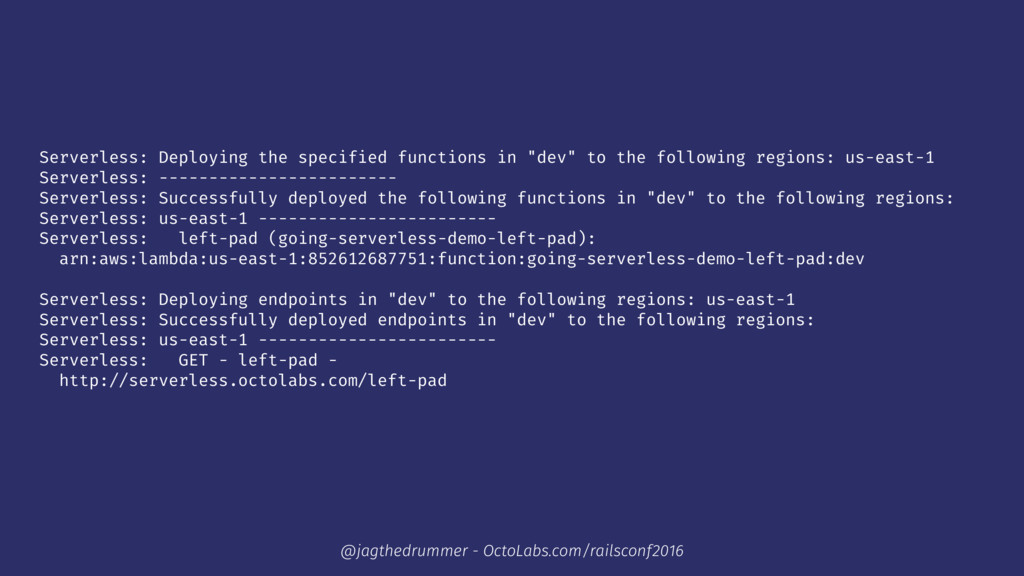

51. Serverless: Deploying the specified functions in "dev" to the following regions: us-east-1 Serverless: ------------------------ Serverless: Successfully deployed the following functions in "dev" to the following regions: Serverless: us-east-1 ------------------------ Serverless: left-pad (going-serverless-demo-left-pad): arn:aws:lambda:us-east-1:852612687751:function:going-serverless-demo-left-pad:dev Serverless: Deploying endpoints in "dev" to the following regions: us-east-1 Serverless: Successfully deployed endpoints in "dev" to the following regions: Serverless: us-east-1 ------------------------ Serverless: GET - left-pad - http://serverless.octolabs.com/left-pad @jagthedrummer - OctoLabs.com/railsconf2016

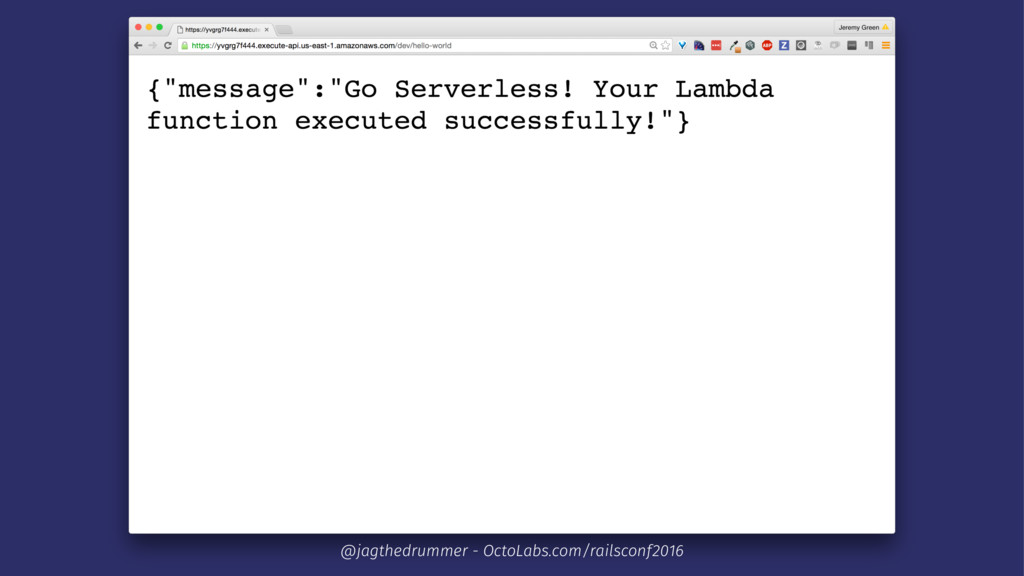

52. @jagthedrummer - OctoLabs.com/railsconf2016
53. Anatomy of a Lambda Function @jagthedrummer - OctoLabs.com/railsconf2016

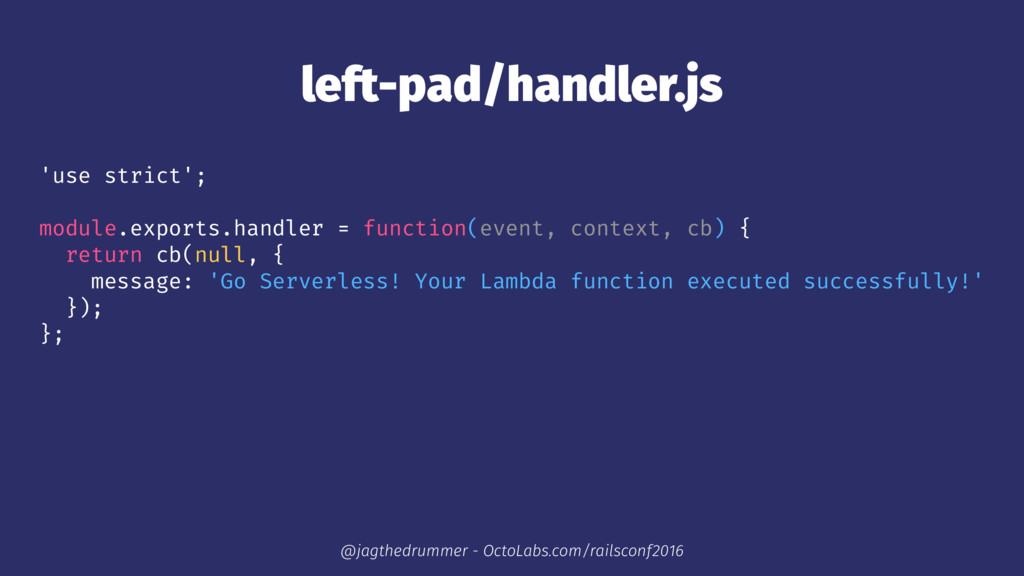

54. left-pad/handler.js 'use strict'; module.exports.handler = function(event, context, cb) { return cb(null, { message: 'Go Serverless! Your Lambda function executed successfully!' }); }; @jagthedrummer - OctoLabs.com/railsconf2016

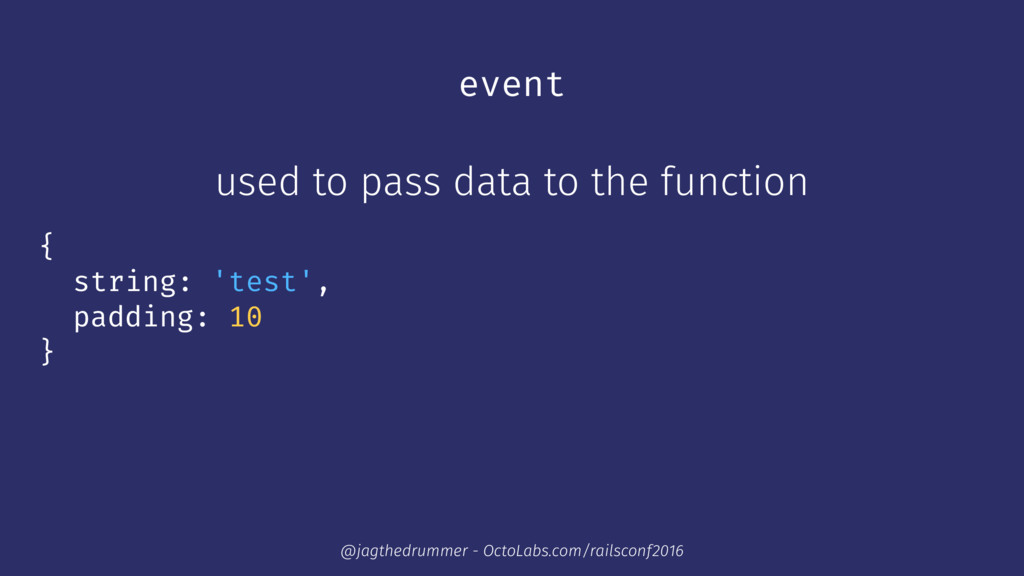

55. event used to pass data to the function { string: 'test', padding: 10 } @jagthedrummer - OctoLabs.com/railsconf2016

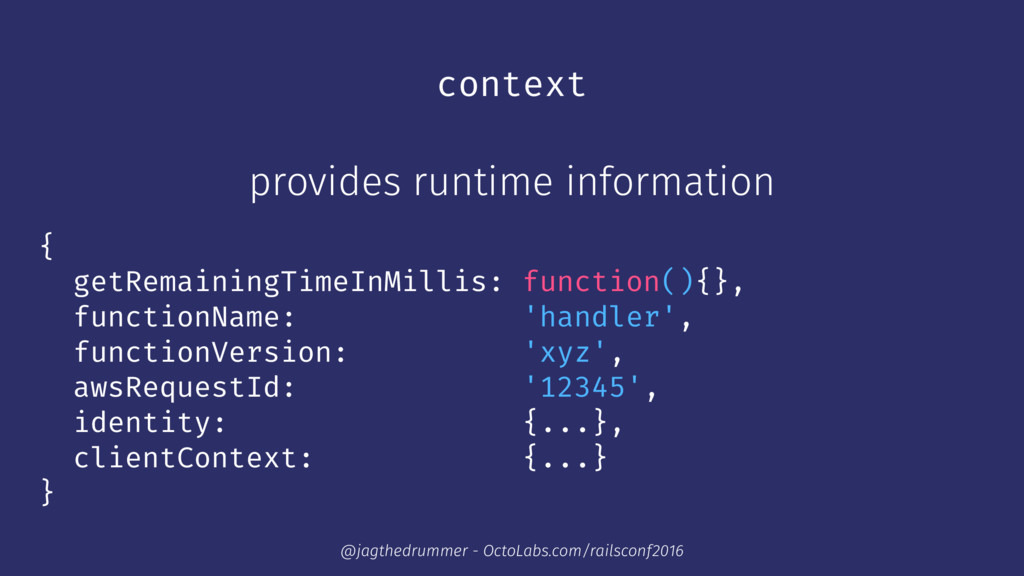

56. context provides runtime information { getRemainingTimeInMillis: function(){}, functionName: 'handler', functionVersion: 'xyz', awsRequestId: '12345', identity: {...}, clientContext: {...} } @jagthedrummer - OctoLabs.com/railsconf2016

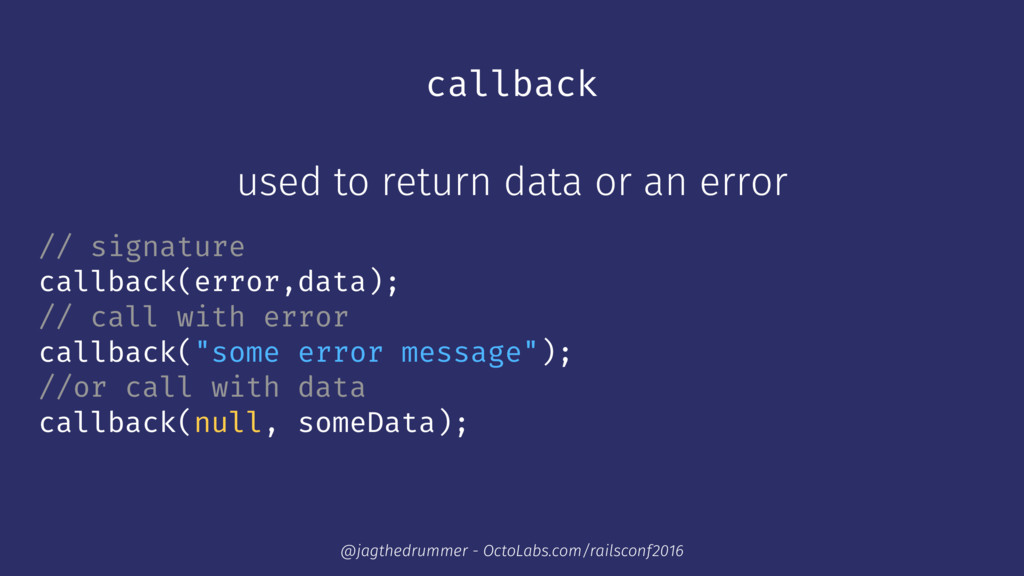

57. callback used to return data or an error // signature callback(error,data); // call with error callback("some error message"); //or call with data callback(null, someData); @jagthedrummer - OctoLabs.com/railsconf2016

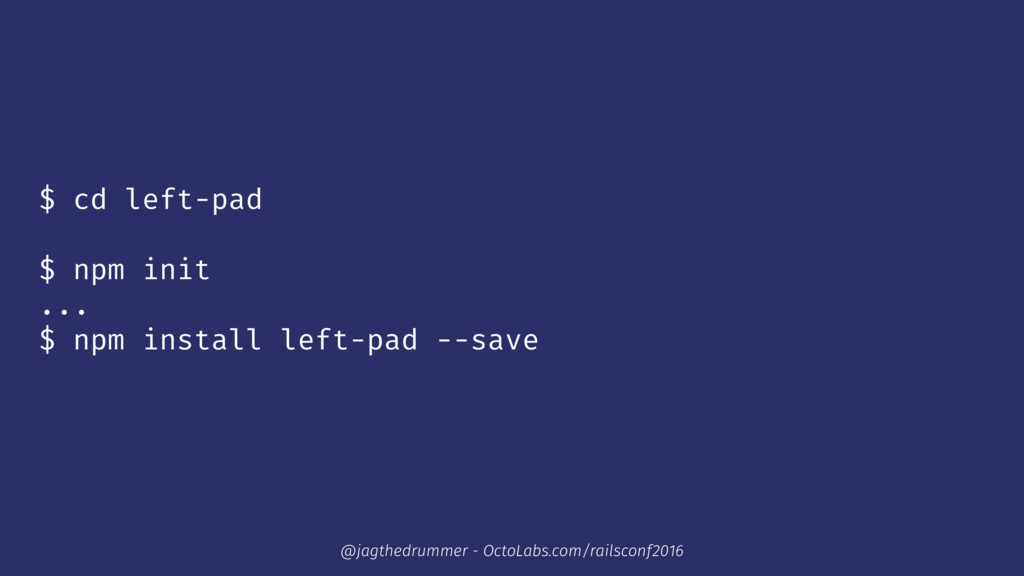

58. $ cd left-pad $ npm init ... $ npm install left-pad --save @jagthedrummer - OctoLabs.com/railsconf2016

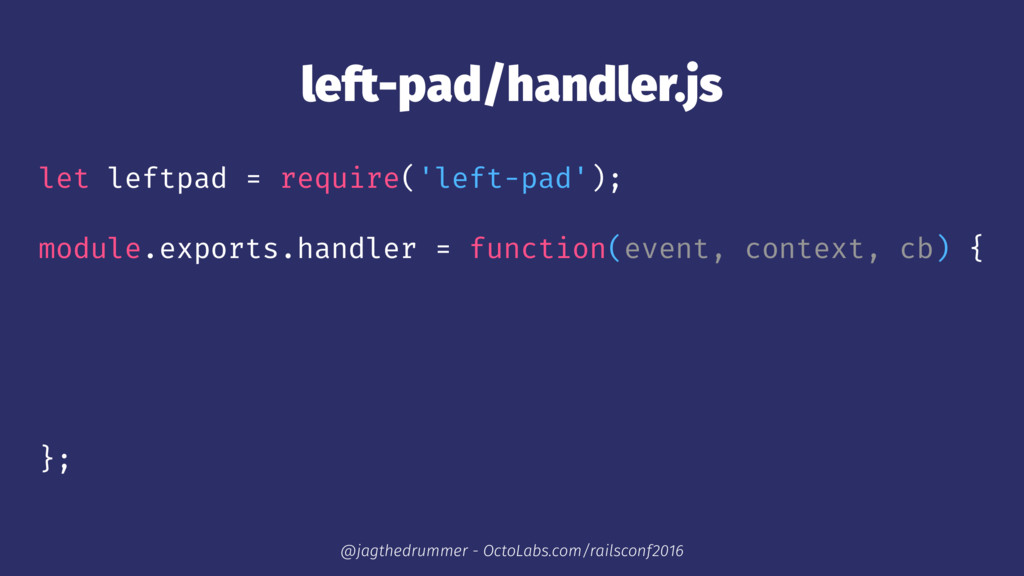

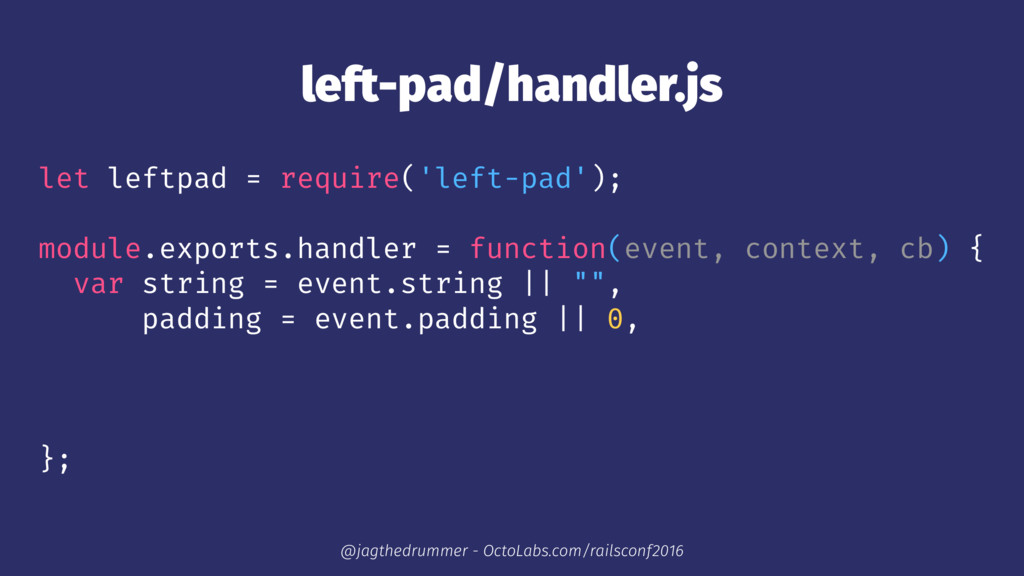

59. left-pad/handler.js let leftpad = require('left-pad'); module.exports.handler = function(event, context, cb) { }; @jagthedrummer - OctoLabs.com/railsconf2016

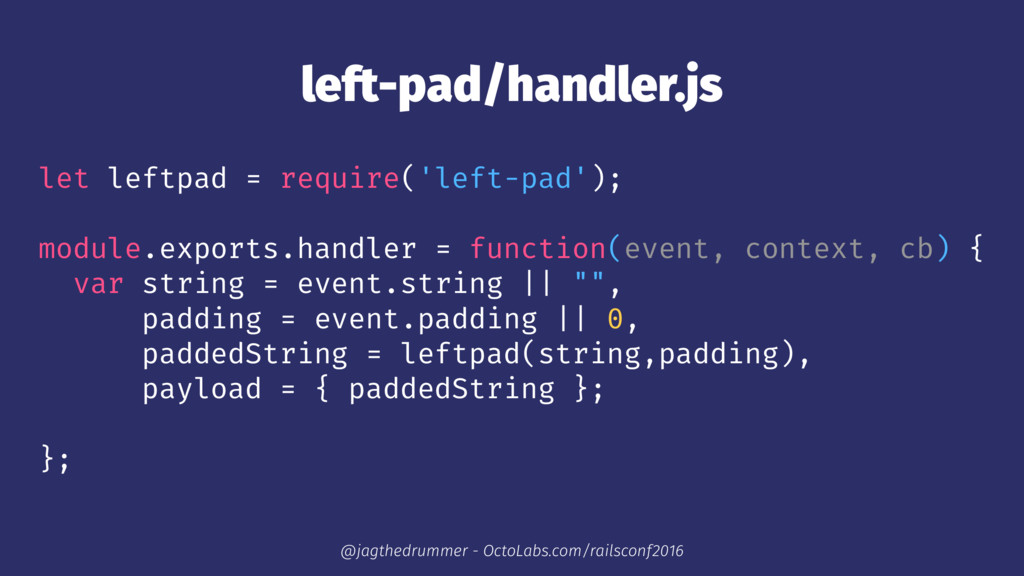

60. left-pad/handler.js let leftpad = require('left-pad'); module.exports.handler = function(event, context, cb) { var string = event.string || "", padding = event.padding || 0, }; @jagthedrummer - OctoLabs.com/railsconf2016

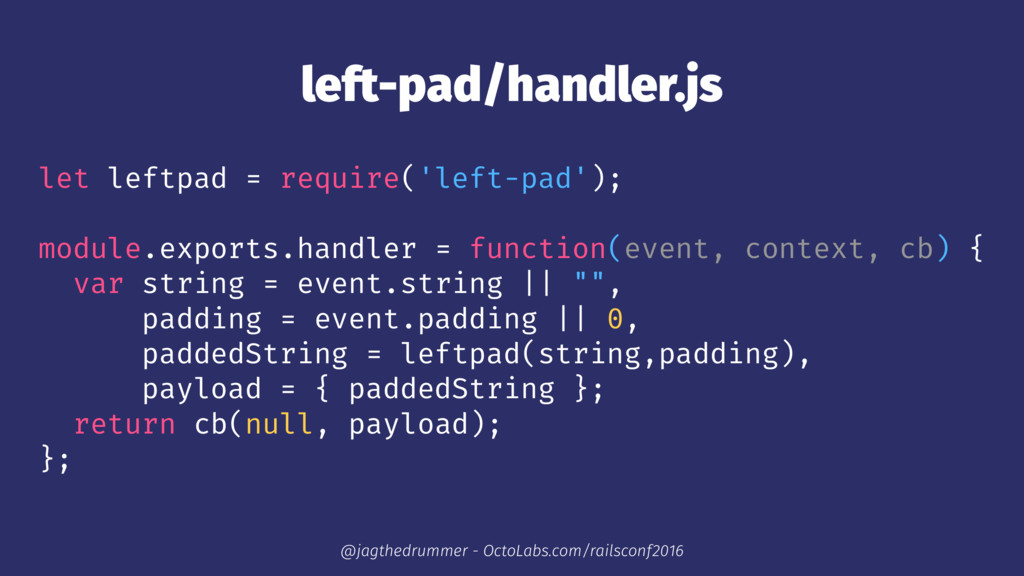

61. left-pad/handler.js let leftpad = require('left-pad'); module.exports.handler = function(event, context, cb) { var string = event.string || "", padding = event.padding || 0, paddedString = leftpad(string,padding), payload = { paddedString }; }; @jagthedrummer - OctoLabs.com/railsconf2016
62. left-pad/handler.js let leftpad = require('left-pad'); module.exports.handler = function(event, context, cb) { var string = event.string || "", padding = event.padding || 0, paddedString = leftpad(string,padding), payload = { paddedString }; return cb(null, payload); }; @jagthedrummer - OctoLabs.com/railsconf2016

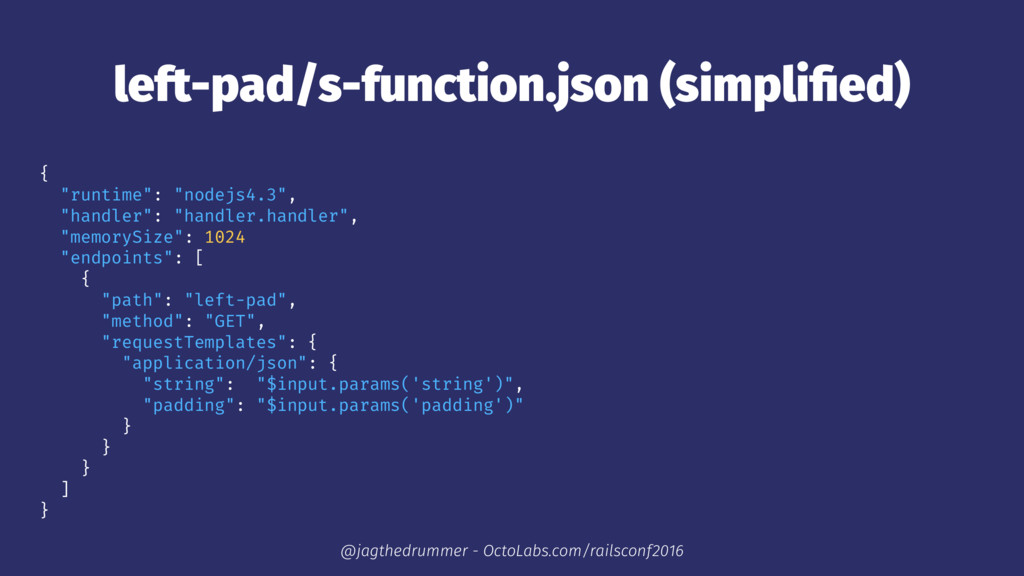

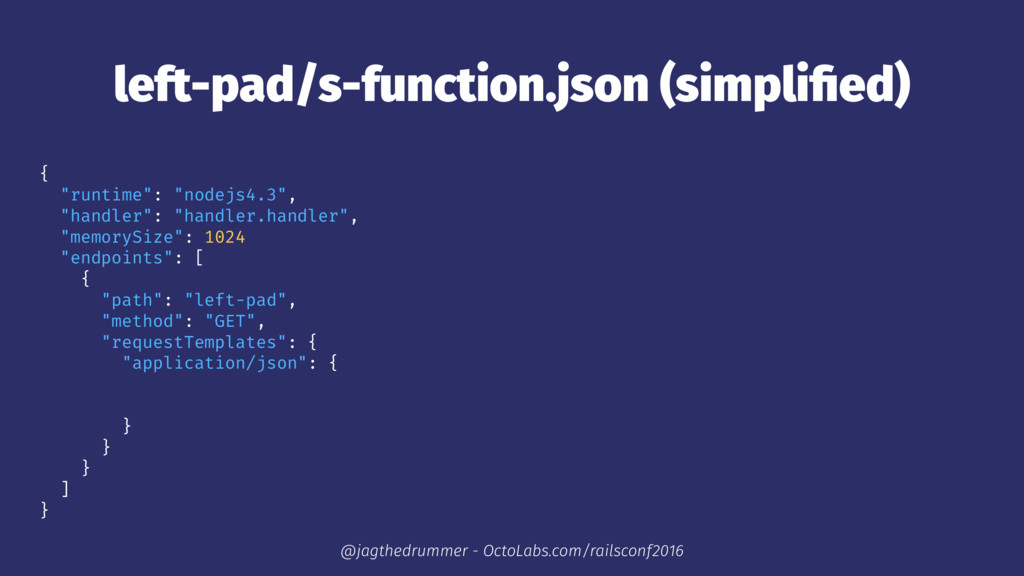

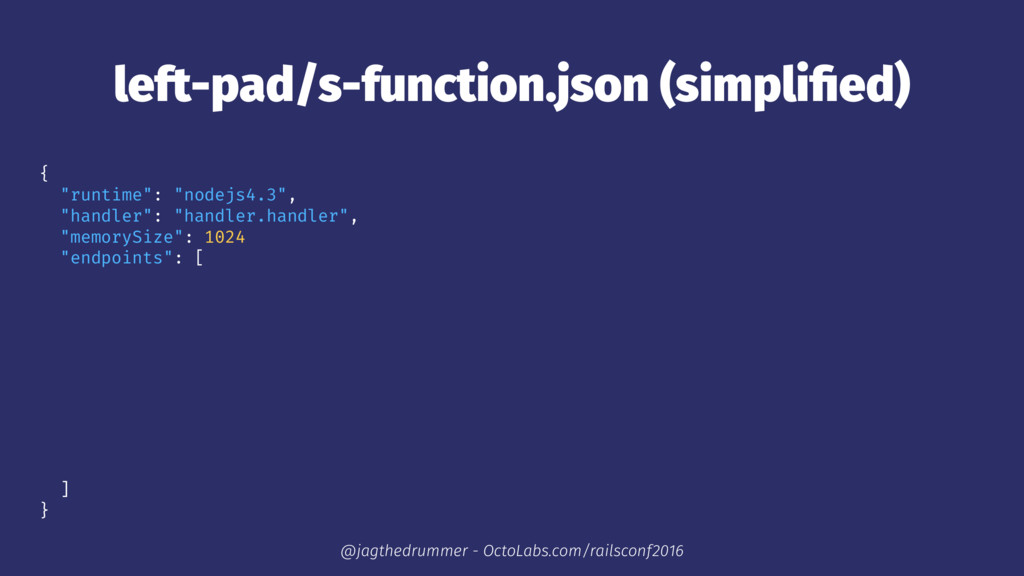

63. left-pad/s-function.json (simplified) { "runtime": "nodejs4.3", "handler": "handler.handler", "memorySize": 1024 "endpoints": [ ] } @jagthedrummer - OctoLabs.com/railsconf2016
64. left-pad/s-function.json (simplified) { "runtime": "nodejs4.3", "handler": "handler.handler", "memorySize": 1024 "endpoints": [ { "path": "left-pad", "method": "GET", "requestTemplates": { "application/json": { } } } ] } @jagthedrummer - OctoLabs.com/railsconf2016
65. left-pad/s-function.json (simplified) { "runtime": "nodejs4.3", "handler": "handler.handler", "memorySize": 1024 "endpoints": [ { "path": "left-pad", "method": "GET", "requestTemplates": { "application/json": { "string": "$input.params('string')", "padding": "$input.params('padding')" } } } ] } @jagthedrummer - OctoLabs.com/railsconf2016

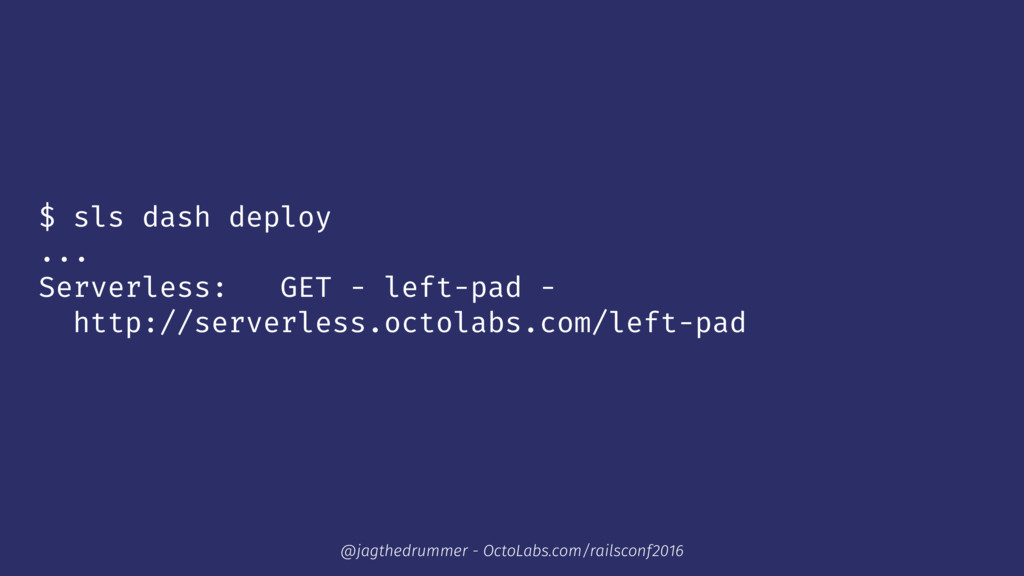

66. $ sls dash deploy ... Serverless: GET - left-pad - http://serverless.octolabs.com/left-pad @jagthedrummer - OctoLabs.com/railsconf2016

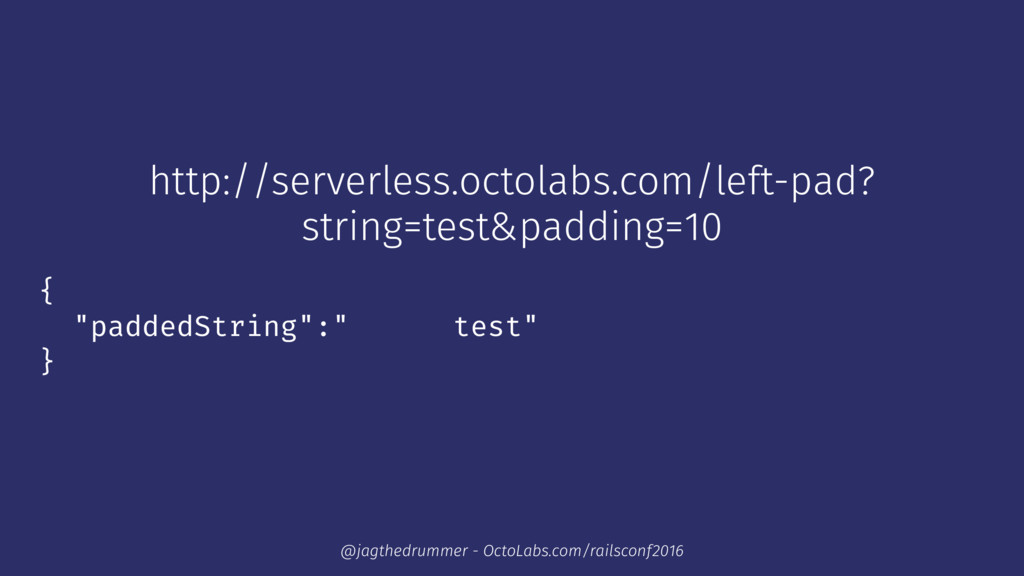

67. http://serverless.octolabs.com/left-pad? string=test&padding=10 { "paddedString":" test" } @jagthedrummer - OctoLabs.com/railsconf2016

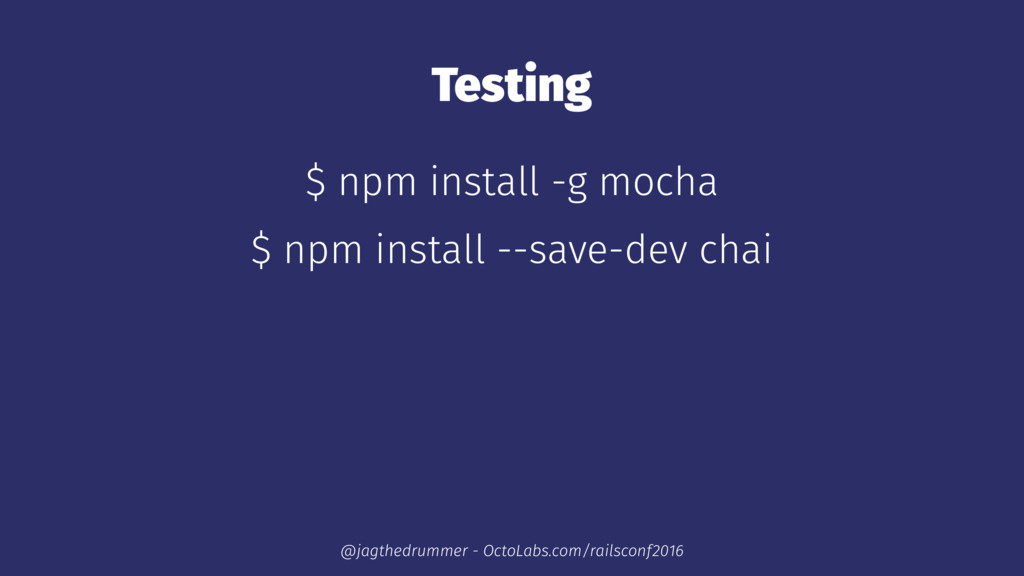

68. Testing $ npm install -g mocha $ npm install --save-dev chai @jagthedrummer - OctoLabs.com/railsconf2016

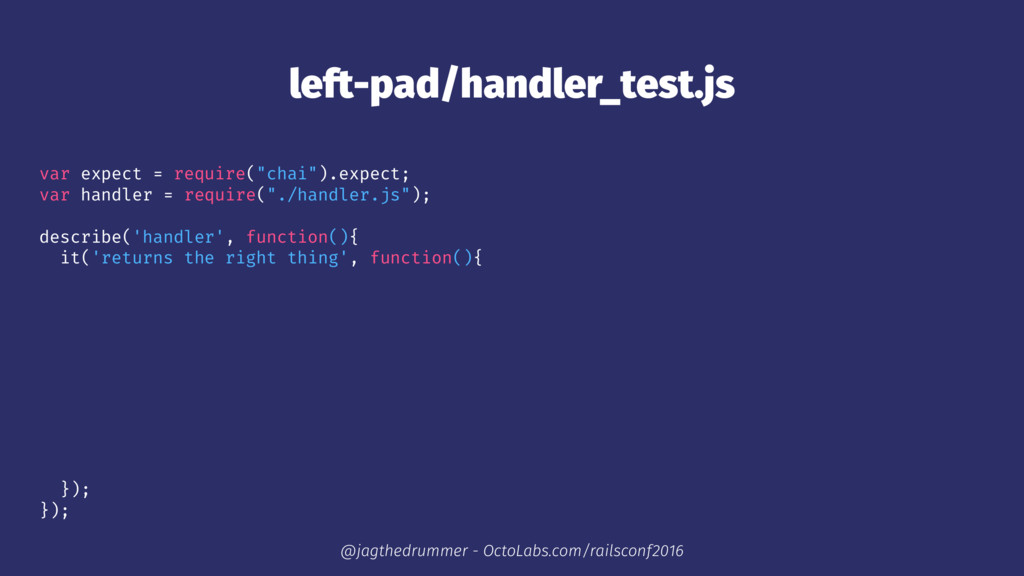

69. left-pad/handler_test.js var expect = require("chai").expect; var handler = require("./handler.js"); describe('handler', function(){ it('returns the right thing', function(){ }); }); @jagthedrummer - OctoLabs.com/railsconf2016

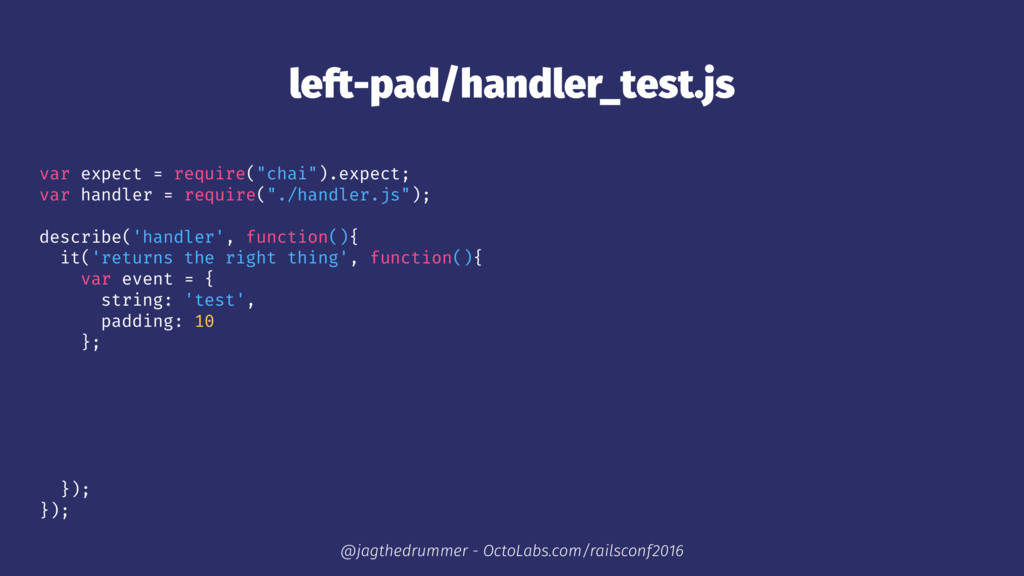

70. left-pad/handler_test.js var expect = require("chai").expect; var handler = require("./handler.js"); describe('handler', function(){ it('returns the right thing', function(){ var event = { string: 'test', padding: 10 }; }); }); @jagthedrummer - OctoLabs.com/railsconf2016

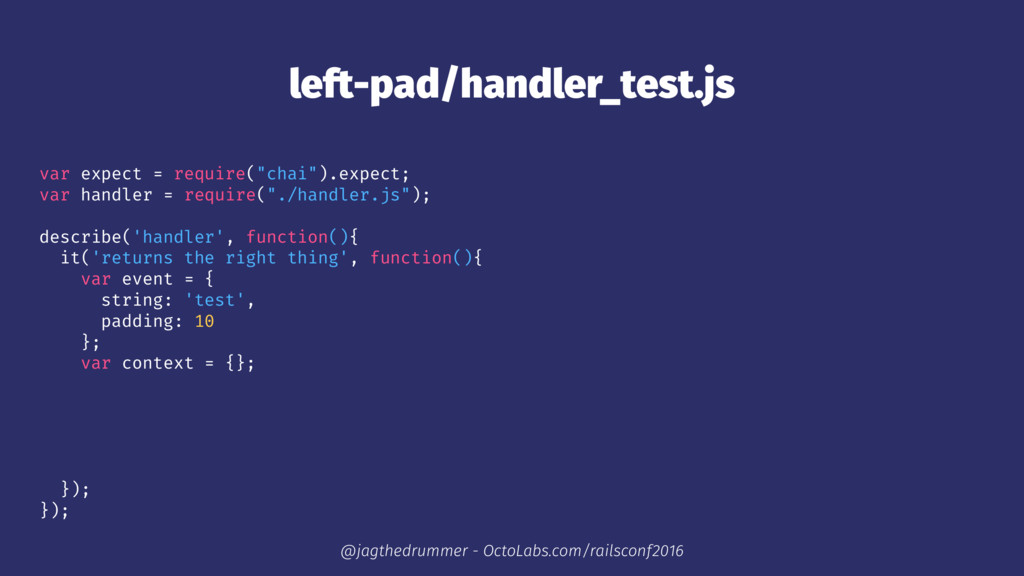

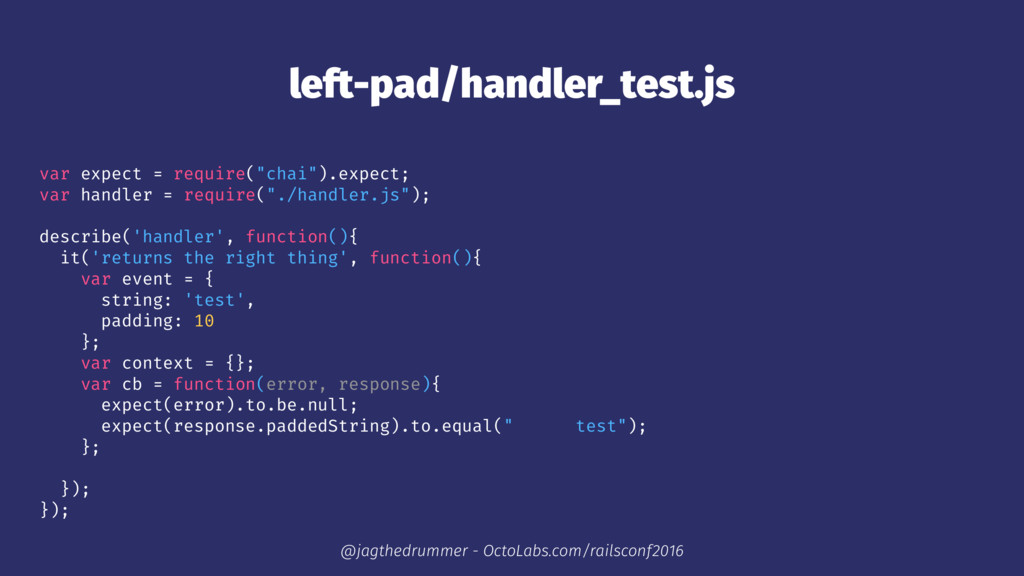

71. left-pad/handler_test.js var expect = require("chai").expect; var handler = require("./handler.js"); describe('handler', function(){ it('returns the right thing', function(){ var event = { string: 'test', padding: 10 }; var context = {}; }); }); @jagthedrummer - OctoLabs.com/railsconf2016
72. left-pad/handler_test.js var expect = require("chai").expect; var handler = require("./handler.js"); describe('handler', function(){ it('returns the right thing', function(){ var event = { string: 'test', padding: 10 }; var context = {}; var cb = function(error, response){ expect(error).to.be.null; expect(response.paddedString).to.equal(" test"); }; }); }); @jagthedrummer - OctoLabs.com/railsconf2016

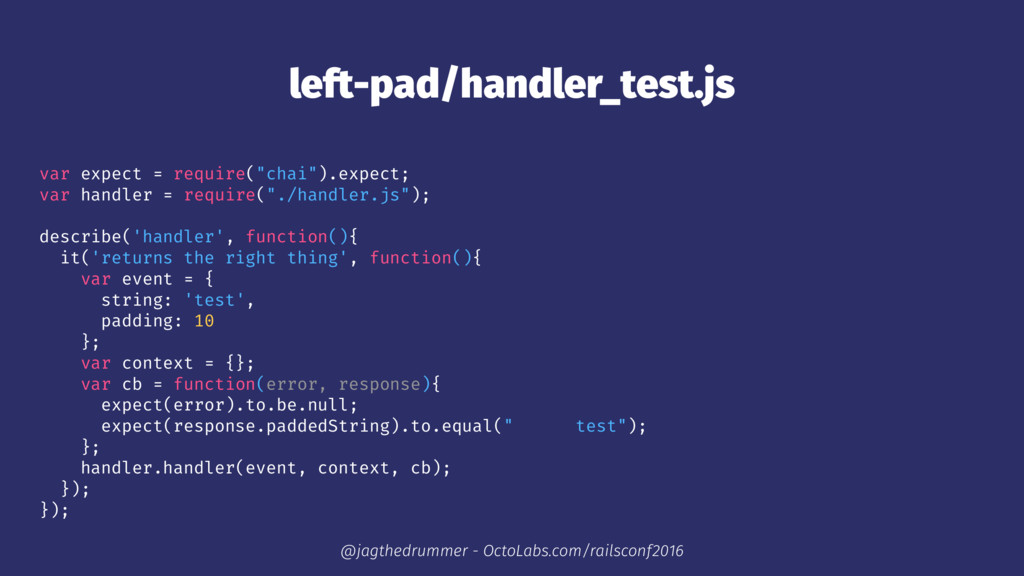

73. left-pad/handler_test.js var expect = require("chai").expect; var handler = require("./handler.js"); describe('handler', function(){ it('returns the right thing', function(){ var event = { string: 'test', padding: 10 }; var context = {}; var cb = function(error, response){ expect(error).to.be.null; expect(response.paddedString).to.equal(" test"); }; handler.handler(event, context, cb); }); }); @jagthedrummer - OctoLabs.com/railsconf2016

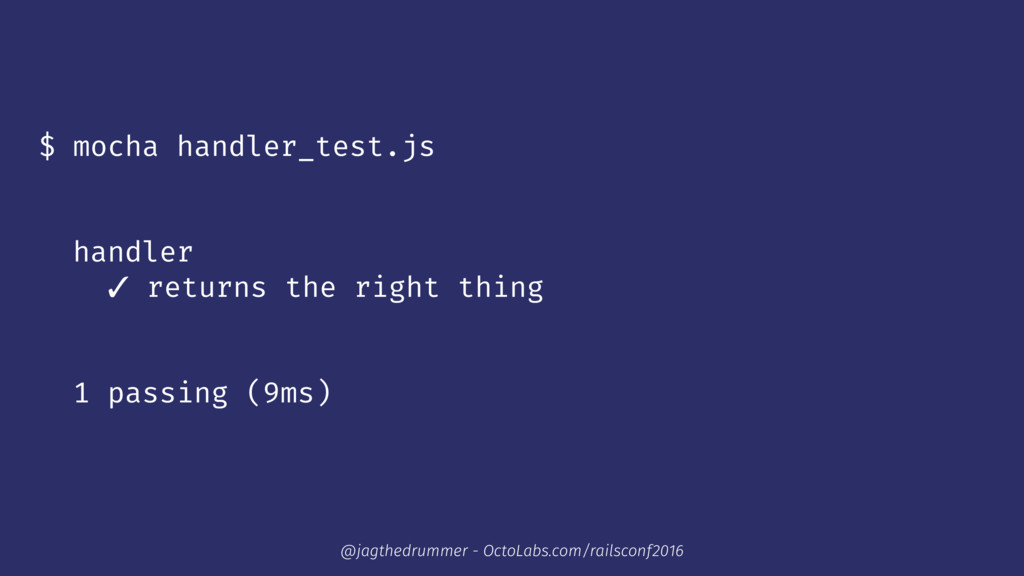

74. $ mocha handler_test.js handler ✓ returns the right thing 1 passing (9ms) @jagthedrummer - OctoLabs.com/railsconf2016
75. What about Ruby? @jagthedrummer - OctoLabs.com/railsconf2016

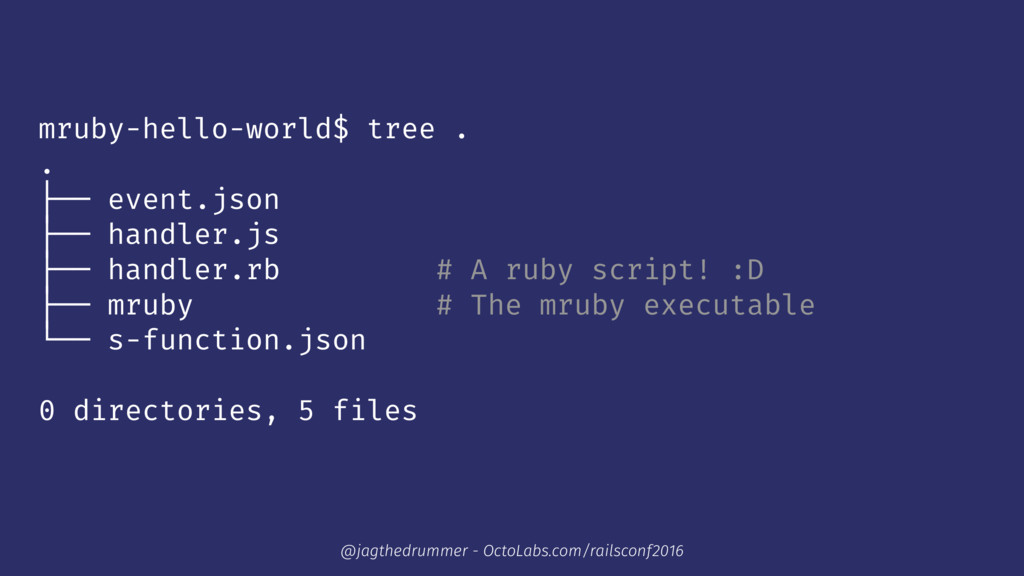

76. mruby-hello-world$ tree . . ├── event.json ├── handler.js ├── handler.rb # A ruby script! :D ├── mruby # The mruby executable └── s-function.json 0 directories, 5 files @jagthedrummer - OctoLabs.com/railsconf2016

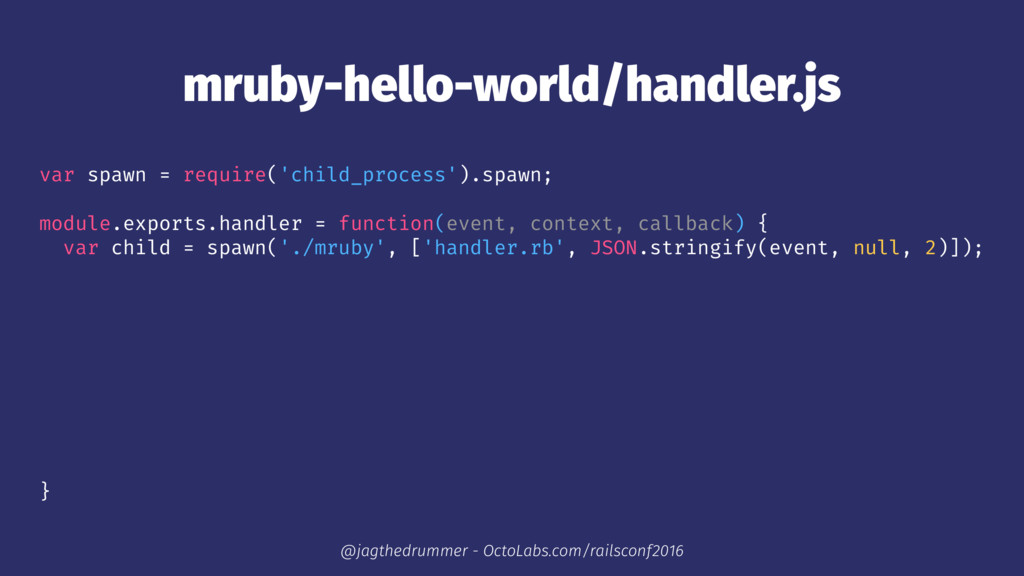

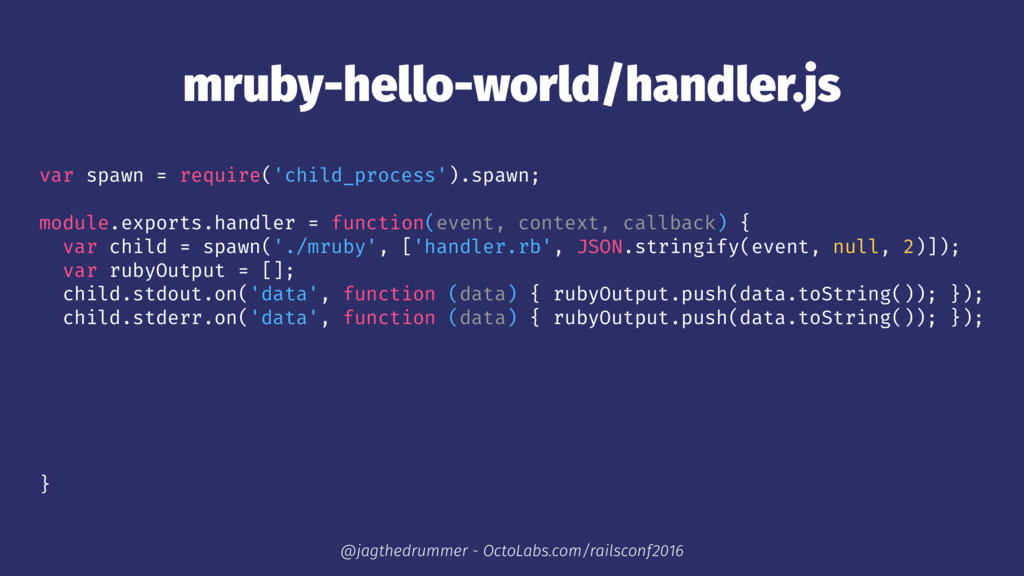

77. mruby-hello-world/handler.js var spawn = require('child_process').spawn; module.exports.handler = function(event, context, callback) { var child = spawn('./mruby', ['handler.rb', JSON.stringify(event, null, 2)]); } @jagthedrummer - OctoLabs.com/railsconf2016
78. mruby-hello-world/handler.js var spawn = require('child_process').spawn; module.exports.handler = function(event, context, callback) { var child = spawn('./mruby', ['handler.rb', JSON.stringify(event, null, 2)]); var rubyOutput = []; child.stdout.on('data', function (data) { rubyOutput.push(data.toString()); }); child.stderr.on('data', function (data) { rubyOutput.push(data.toString()); }); } @jagthedrummer - OctoLabs.com/railsconf2016

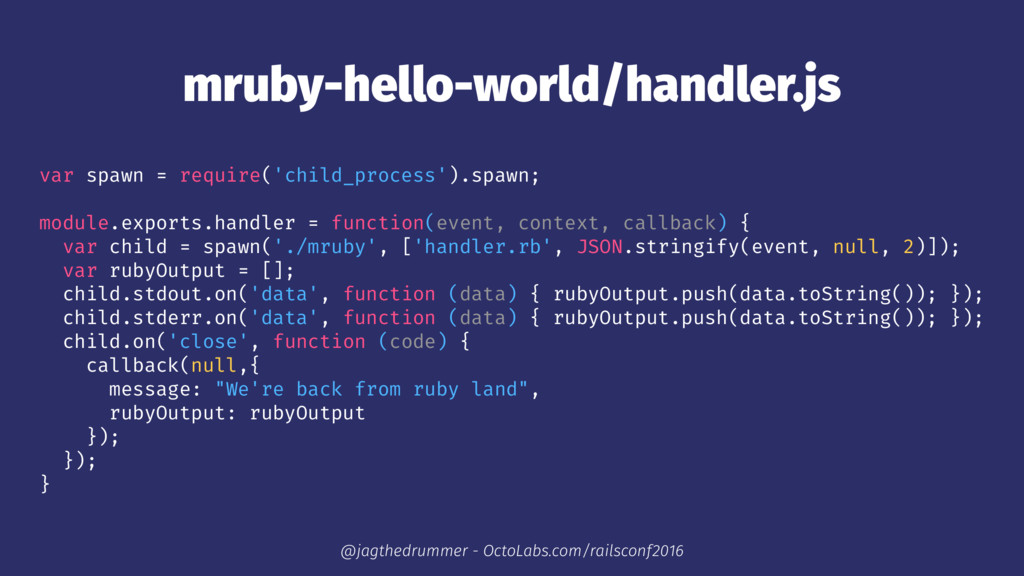

79. mruby-hello-world/handler.js var spawn = require('child_process').spawn; module.exports.handler = function(event, context, callback) { var child = spawn('./mruby', ['handler.rb', JSON.stringify(event, null, 2)]); var rubyOutput = []; child.stdout.on('data', function (data) { rubyOutput.push(data.toString()); }); child.stderr.on('data', function (data) { rubyOutput.push(data.toString()); }); child.on('close', function (code) { callback(null,{ message: "We're back from ruby land", rubyOutput: rubyOutput }); }); } @jagthedrummer - OctoLabs.com/railsconf2016

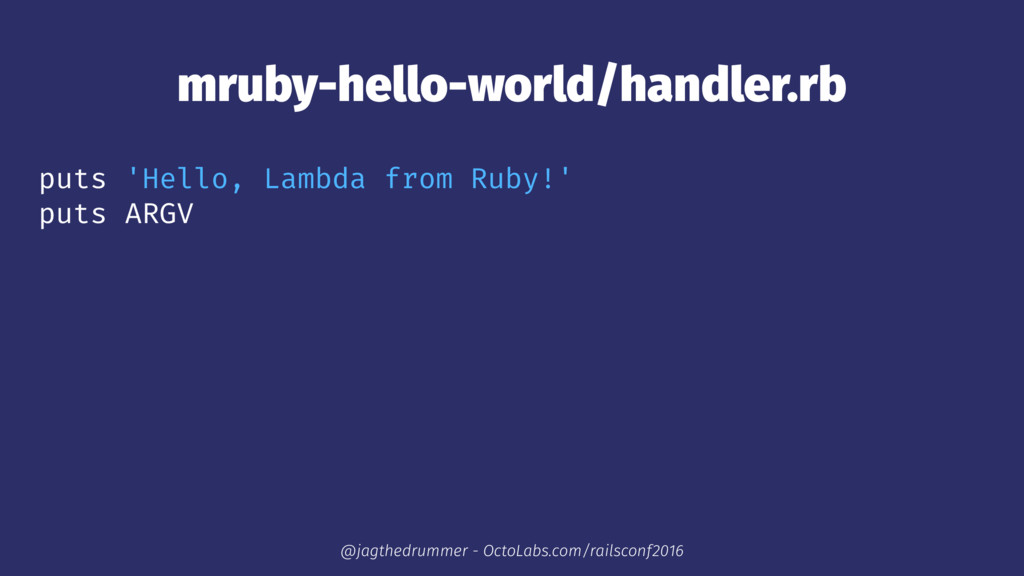

80. mruby-hello-world/handler.rb puts 'Hello, Lambda from Ruby!' puts ARGV @jagthedrummer - OctoLabs.com/railsconf2016

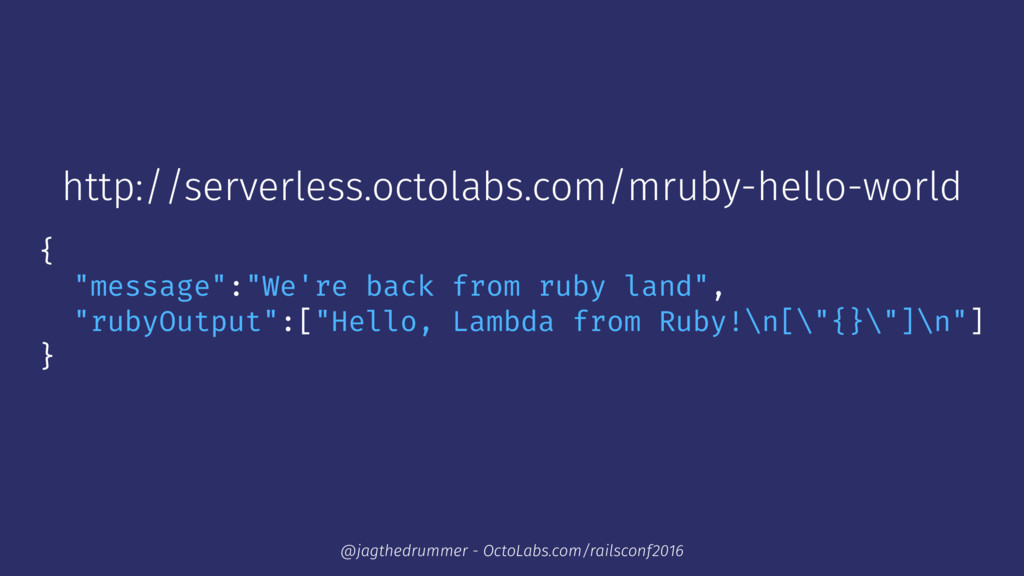

81. http://serverless.octolabs.com/mruby-hello-world { "message":"We're back from ruby land", "rubyOutput":["Hello, Lambda from Ruby!\n[\"{}\"]\n"] } @jagthedrummer - OctoLabs.com/railsconf2016
82. This is not production ready! @jagthedrummer - OctoLabs.com/railsconf2016
83. How fast is all of this? @jagthedrummer - OctoLabs.com/railsconf2016

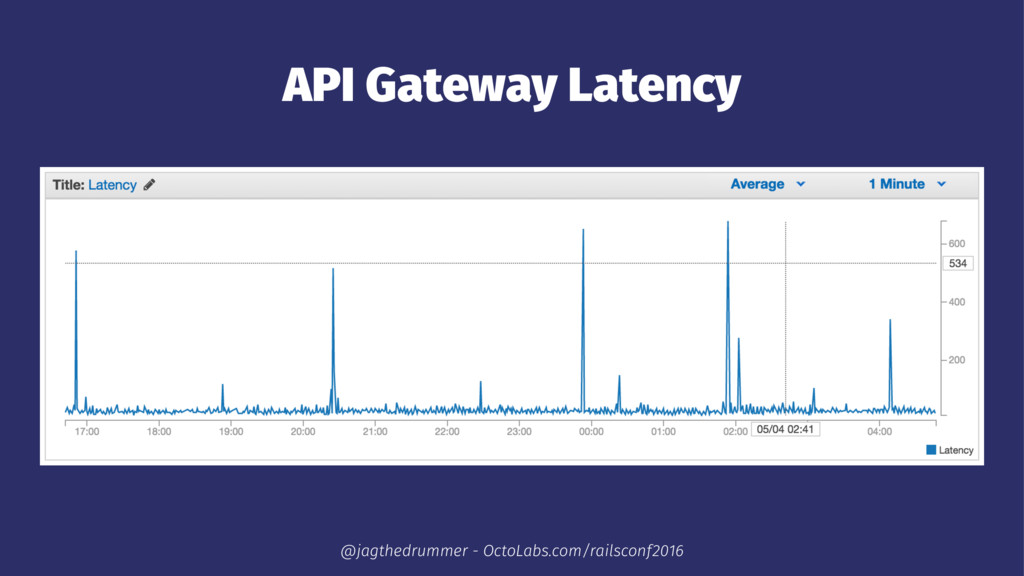

84. API Gateway Latency @jagthedrummer - OctoLabs.com/railsconf2016

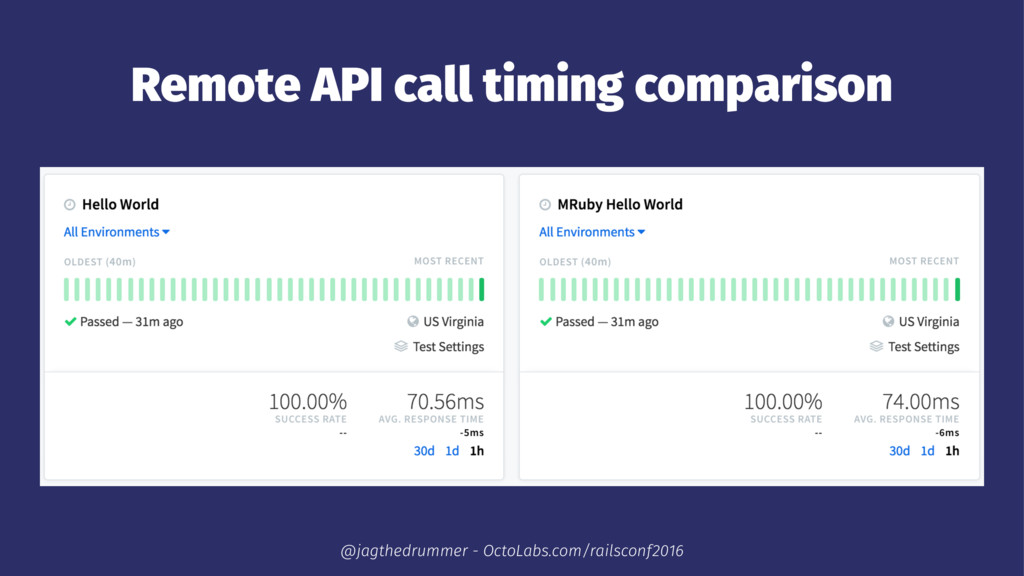

85. Remote API call timing comparison @jagthedrummer - OctoLabs.com/railsconf2016

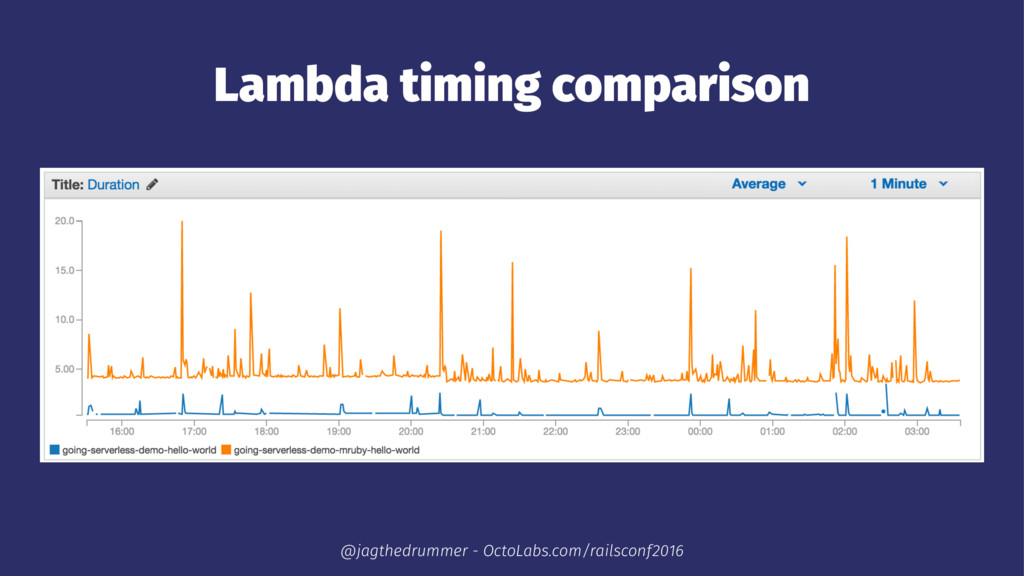

86. Lambda timing comparison @jagthedrummer - OctoLabs.com/railsconf2016
87. Wrapping Up @jagthedrummer - OctoLabs.com/railsconf2016
88. AWS Provides the Building Blocks @jagthedrummer - OctoLabs.com/railsconf2016
89. Serverless Provides Structure and Process @jagthedrummer - OctoLabs.com/railsconf2016
90. You provide the @jagthedrummer - OctoLabs.com/railsconf2016
91. Thank you! (And thanks to Click Funnels) octolabs.com/railsconf2016 @jagthedrummer - OctoLabs.com/railsconf2016
92. Bonus Slides @jagthedrummer - OctoLabs.com/railsconf2016

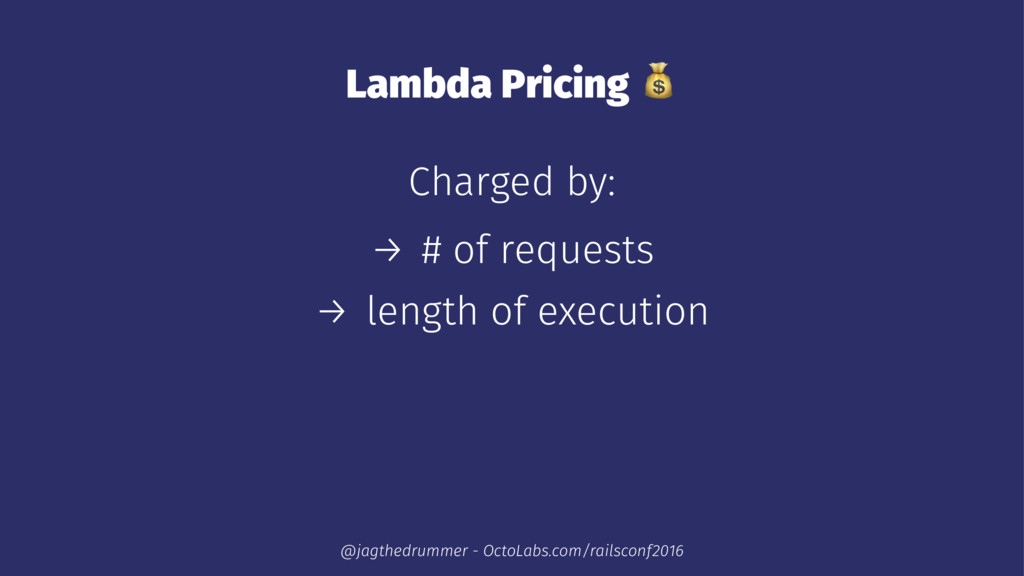

93. Lambda Pricing ! Charged by: → # of requests → length of execution @jagthedrummer - OctoLabs.com/railsconf2016

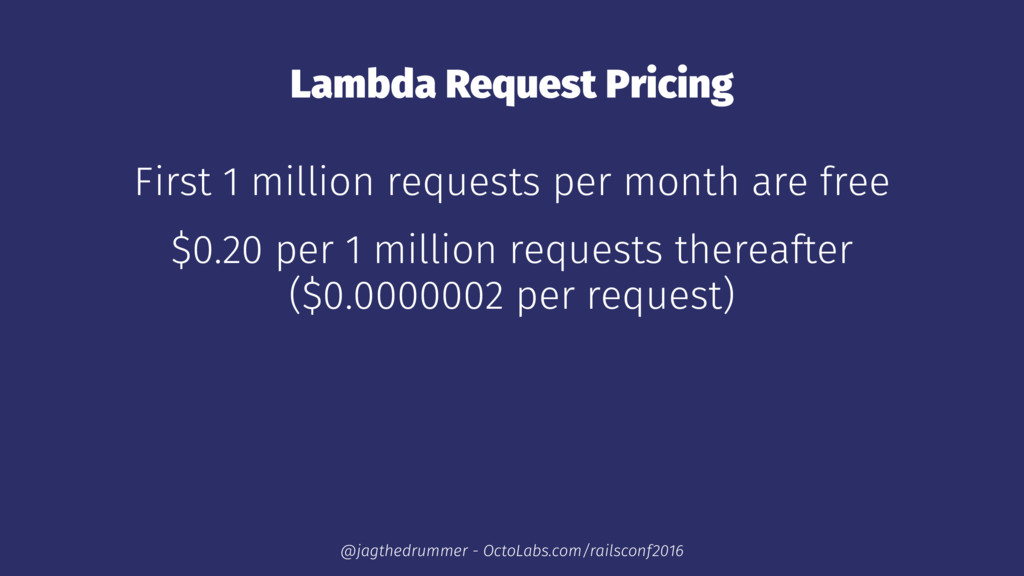

94. Lambda Request Pricing First 1 million requests per month are free $0.20 per 1 million requests thereafter ($0.0000002 per request) @jagthedrummer - OctoLabs.com/railsconf2016

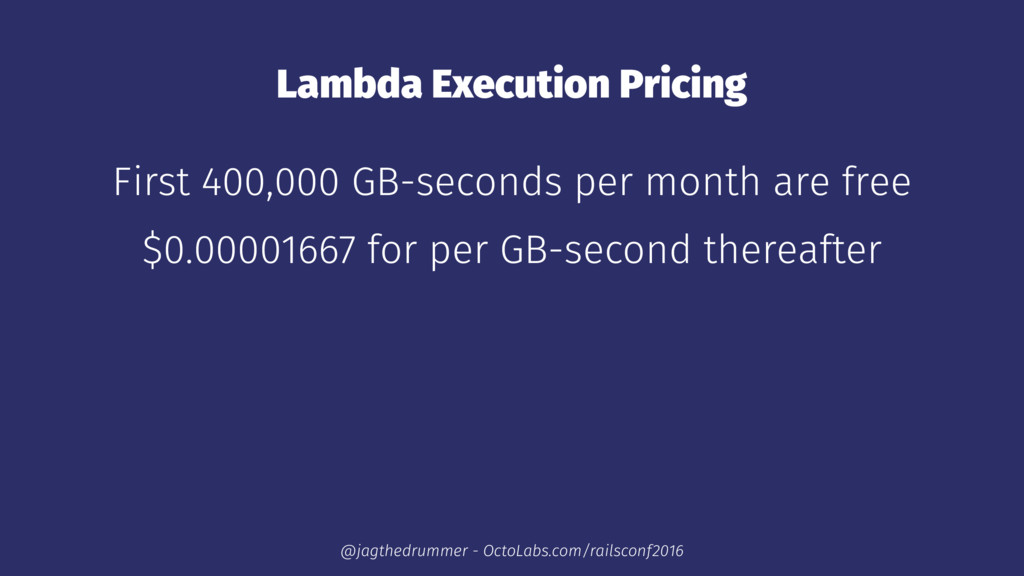

95. Lambda Execution Pricing First 400,000 GB-seconds per month are free $0.00001667 for per GB-second thereafter @jagthedrummer - OctoLabs.com/railsconf2016

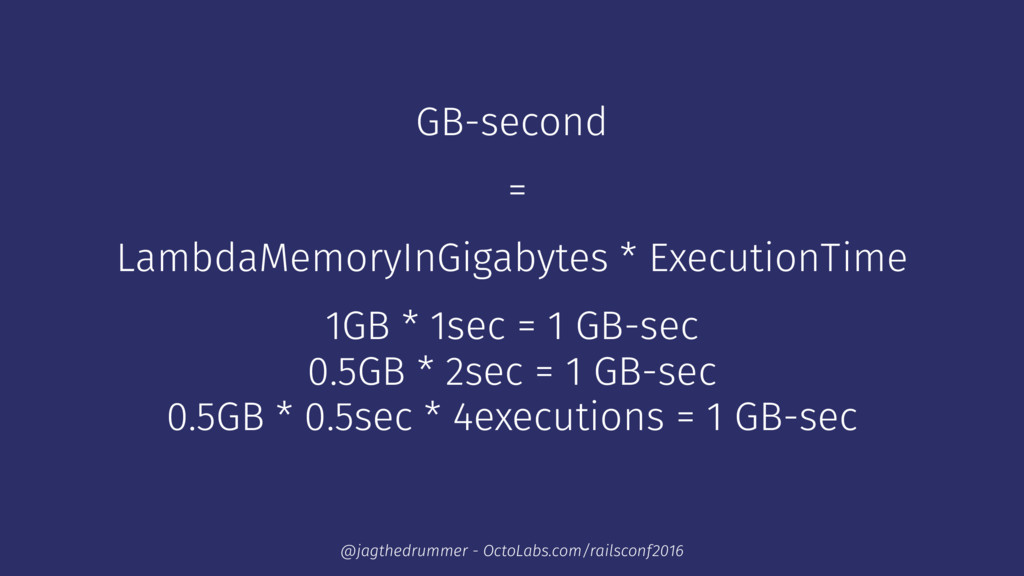

96. GB-second = LambdaMemoryInGigabytes * ExecutionTime 1GB * 1sec = 1 GB-sec 0.5GB * 2sec = 1 GB-sec 0.5GB * 0.5sec * 4executions = 1 GB-sec @jagthedrummer - OctoLabs.com/railsconf2016
97. Lambda Pricing Example 3 million executions per month 512MB of memory 1 second execution time $18.74 per month @jagthedrummer - OctoLabs.com/railsconf2016

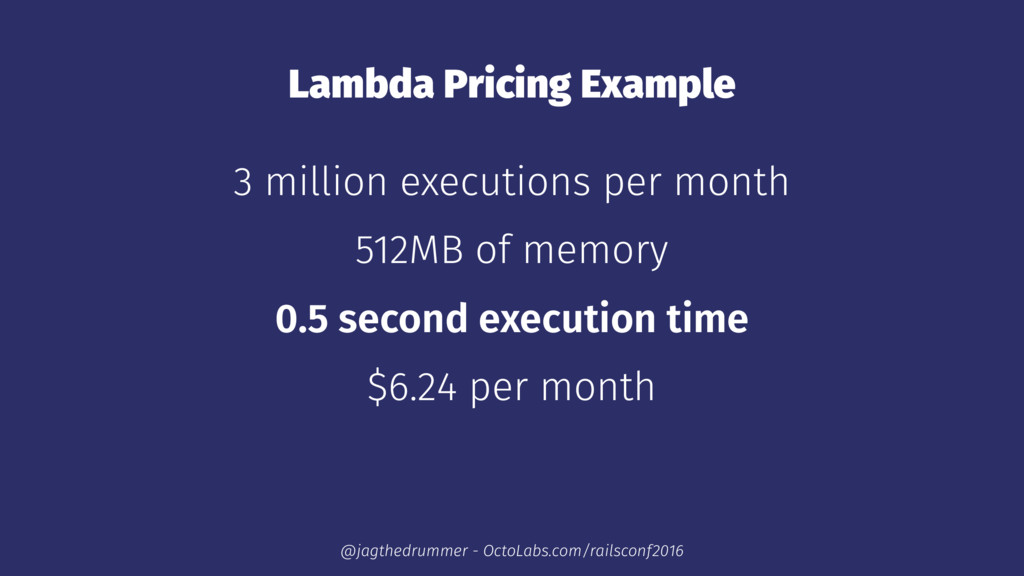

98. Lambda Pricing Example 3 million executions per month 512MB of memory 0.5 second execution time $6.24 per month @jagthedrummer - OctoLabs.com/railsconf2016

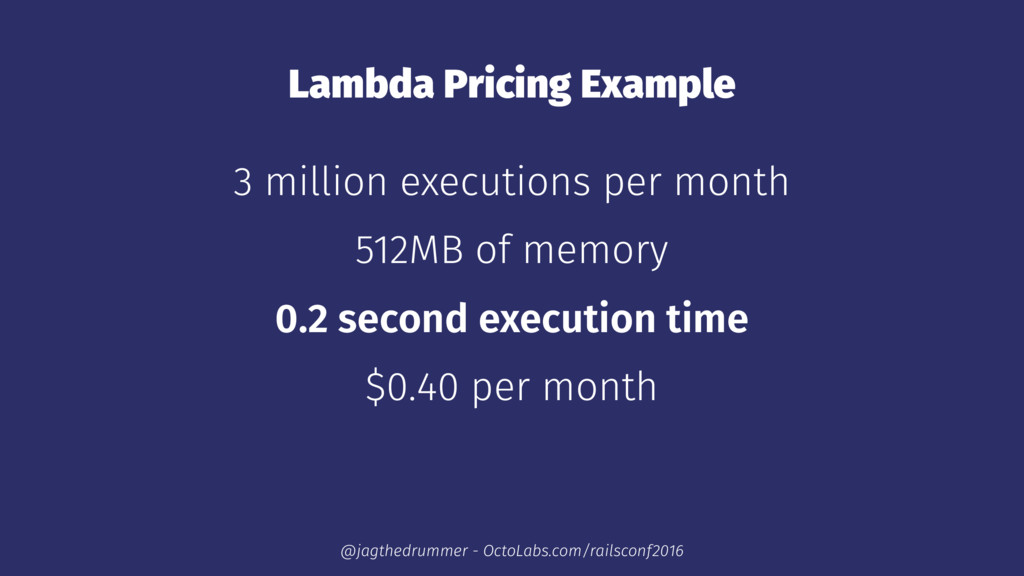

99. Lambda Pricing Example 3 million executions per month 512MB of memory 0.2 second execution time $0.40 per month @jagthedrummer - OctoLabs.com/railsconf2016

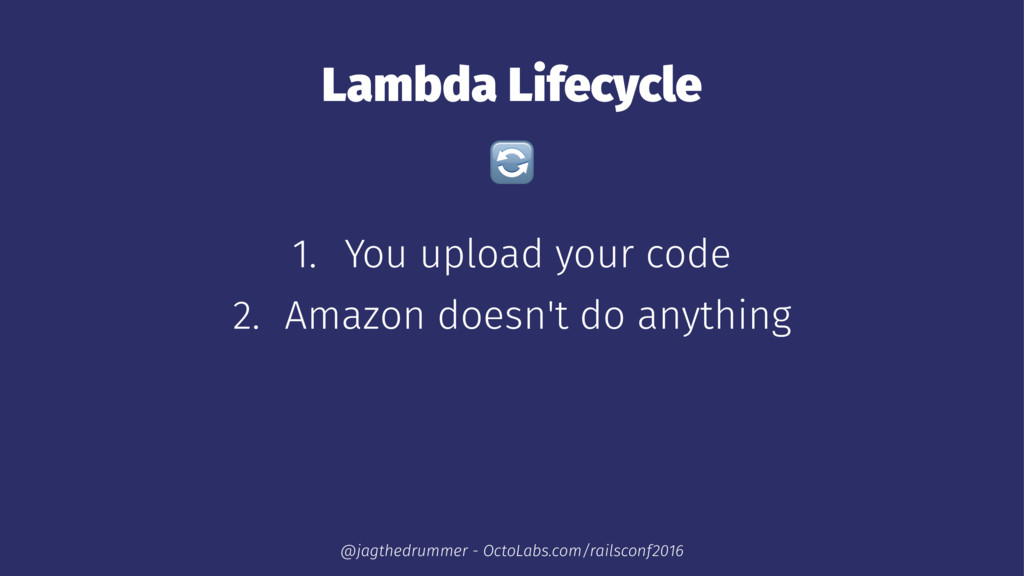

100. Lambda Lifecycle ! 1. You upload your code 2. Amazon doesn't do anything @jagthedrummer - OctoLabs.com/railsconf2016

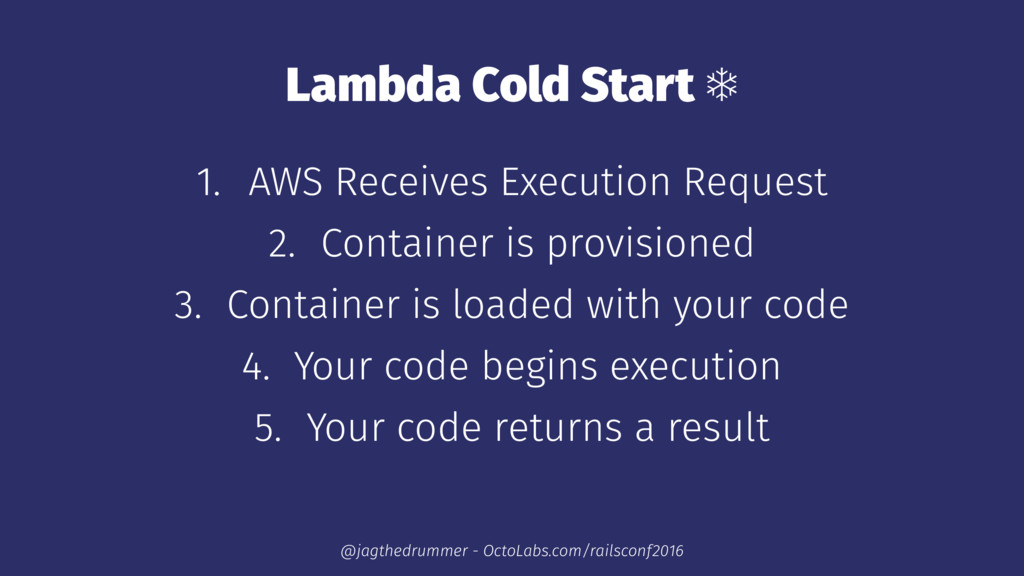

101. Lambda Cold Start ❄ 1. AWS Receives Execution Request 2. Container is provisioned 3. Container is loaded with your code 4. Your code begins execution 5. Your code returns a result @jagthedrummer - OctoLabs.com/railsconf2016
102. Time Passes ! (But not too much) @jagthedrummer - OctoLabs.com/railsconf2016

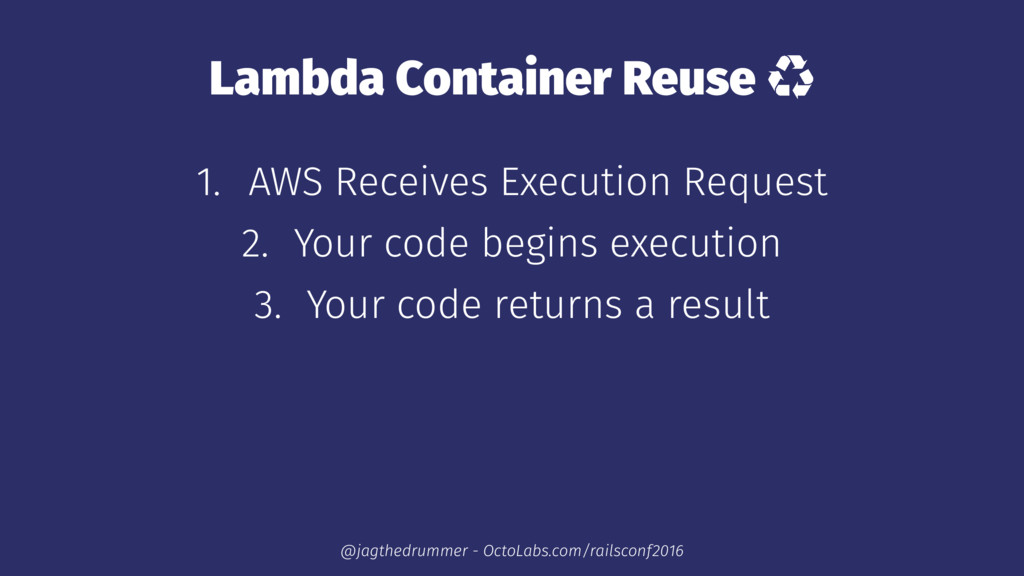

103. Lambda Container Reuse 㿃 1. AWS Receives Execution Request 2. Your code begins execution 3. Your code returns a result @jagthedrummer - OctoLabs.com/railsconf2016

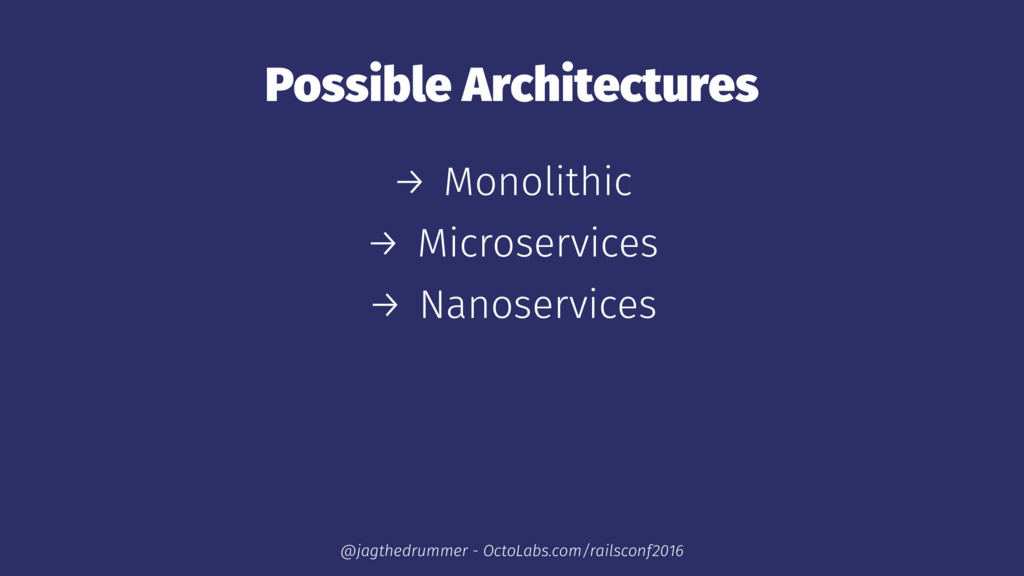

104. Possible Architectures → Monolithic → Microservices → Nanoservices @jagthedrummer - OctoLabs.com/railsconf2016

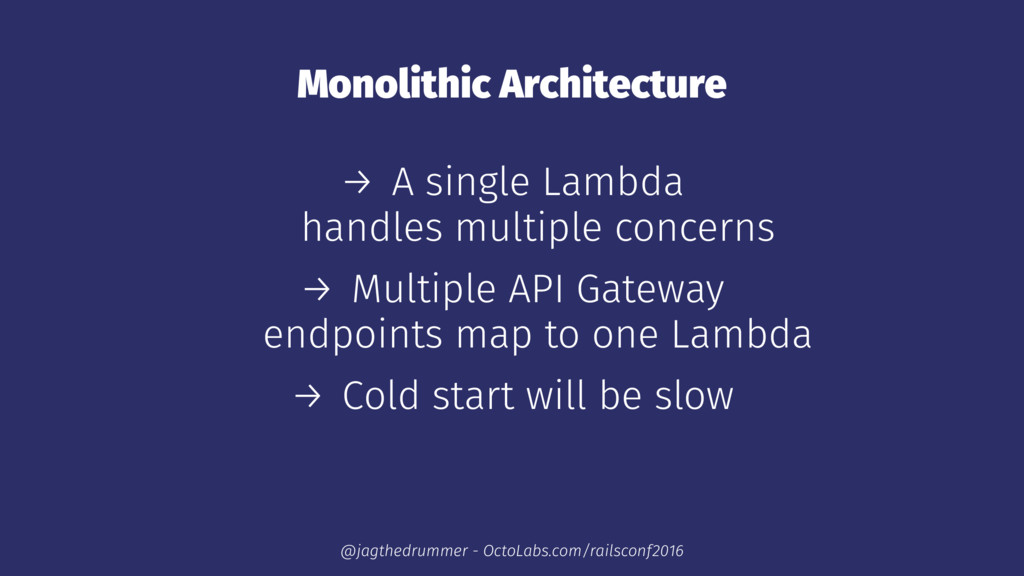

105. Monolithic Architecture → A single Lambda handles multiple concerns → Multiple API Gateway endpoints map to one Lambda → Cold start will be slow @jagthedrummer - OctoLabs.com/railsconf2016

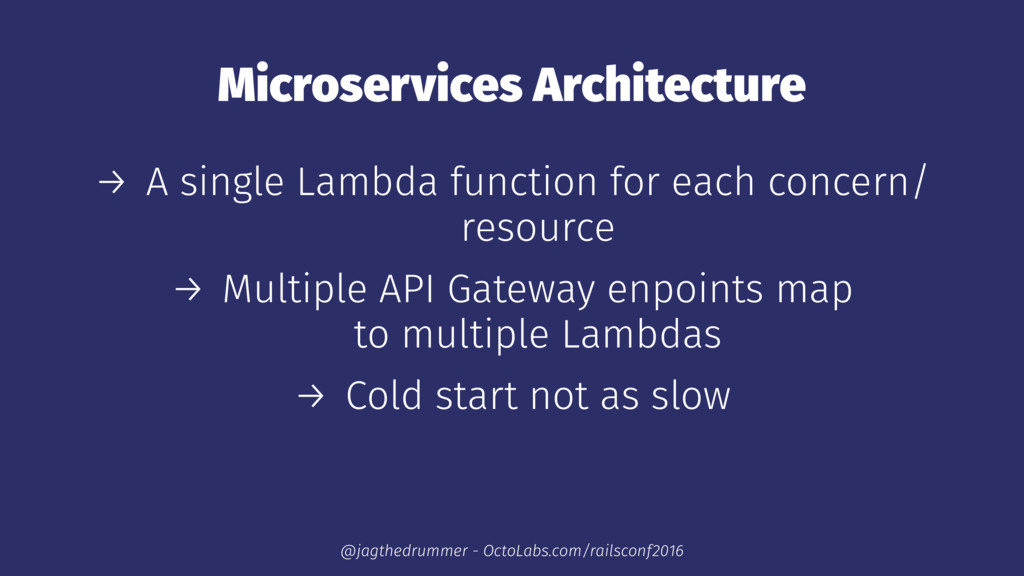

106. Microservices Architecture → A single Lambda function for each concern/ resource → Multiple API Gateway enpoints map to multiple Lambdas → Cold start not as slow @jagthedrummer - OctoLabs.com/railsconf2016

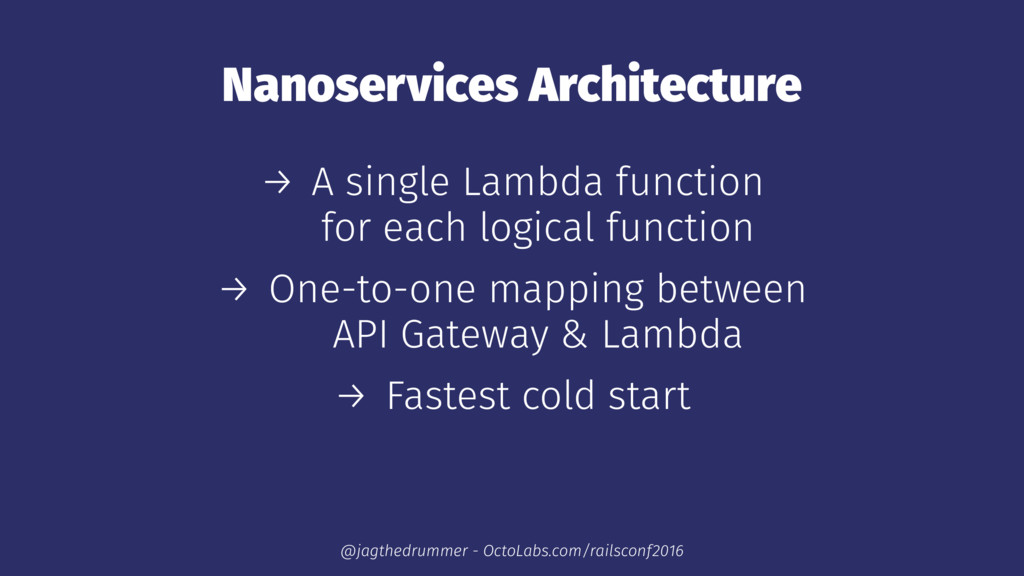

107. Nanoservices Architecture → A single Lambda function for each logical function → One-to-one mapping between API Gateway & Lambda → Fastest cold start @jagthedrummer - OctoLabs.com/railsconf2016
