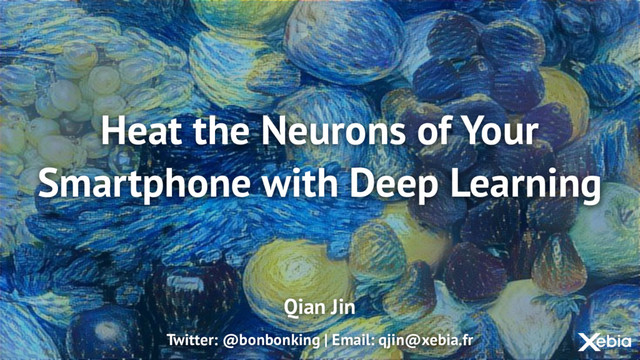

  1. Heat the Neurons of Your Smartphone with Deep Learning Qian

    Jin Twitter: @bonbonking | Email: qjin@xebia.fr
  2. About Me !"# About This Talk '

  3. Sylvain Lequeux Data Engineer @ Xebia Yoann Benoit Data Scientist

    @ Xebia
  4. On-Device Intelligence

  5. None
  6. Android Wear 2.0 Smart Reply Source: https://research.googleblog.com/2017/02/on-device-machine-intelligence.html 6 Learned Projection

    Model
  7. https://en.wikipedia.org/wiki/Moore%27s_law

  8. Source: https://www.qualcomm.com/news/snapdragon/2017/01/09/tensorflow-machine-learning-now-optimized-snapdragon-835-and-hexagon-682

  9. Credit: 9 Source: https://9to5google.com/2017/01/10/qualcomm-snapdragon-835-machine-learning-tensorflow/

  10. The ultimate goal of the on-device intelligence is to improve

    mobile devices’ ability to understand the world. 10 Image inspiration credit: Moodstocks
  11. #datamobile Chat History of the Slack channel

  12. None
  13. None
  14. Magritte Ceci n’est pas une pomme.

  15. René Magritte (1898-1967)

  16. 16

  17. Build TensorFlow Android Example With Bazel

  18. 18

  19. Android Developer Deep Learning Noob

  20. NEURONS NEURONS EVERYWHERE

  21. WE CAN RECOGNIZE ALL THE THINGS!

  22. I THOUGHT THERE WERE MODELS FOR EVERYTHING...

  23. Neural Networks in a Nutshell

  24. Here’s a Neural Network 24

  25. Prediction on an image - Inference 25

  26. Prediction on an image - Inference 26

  27. Prediction on an image - Inference 27 Apple: 0.98 Banana:

    0.02
  28. How to train a model?

  29. 29

  30. Back Propagation 30

  31. Back Propagation 31 Apple: 0.34 Banana: 0.66

  32. Apple: 0.34 Banana: 0.66 Back Propagation 32 Prediction Error

  33. Apple: 0.34 Banana: 0.66 Back Propagation 33 Prediction Error

  34. Apple: 0.34 Banana: 0.66 Back Propagation 34 Prediction Error

  35. Back Propagation 35 Apple: 0.87 Banana: 0.13

  36. Back Propagation 36 Banana: 0.93 Apple: 0.07

  37. Deep Convolutional Neural Network & Inception Architecture (Please don’t ask

    me any question about this part because I’ve no idea what are they talking about) Credit: http://nicolovaligi.com/history-inception-deep-learning-architecture.html
  38. Network In Network, Lin et al. (2014) 38 Credit: https://arxiv.org/pdf/1312.4400v3.pdf

  39. Going deeper with convolutions, Szegedy et al. (2014) Credit: https://arxiv.org/pdf/1409.4842v1.pdf

    39
  40. Rethinking the inception architecture for computer vision, Szegedy et al.

    (2015) Credit: https://arxiv.org/pdf/1512.00567v3.pdf 40
  41. Deep Convolutional Neural Network 41 Image Credit: https://github.com/tensorflow/models/tree/master/research/inception Visualisation of

    Inception v3 Model Architecture Edges Shapes High Level Features Classifiers
  42. Source: CS231n Convolutional Neural Networks for Visual Recognition http://cs231n.stanford.edu/

  43. Source: https://code.facebook.com/posts/1687861518126048/facebook-to-open-source-ai-hardware-design/

  44. Transfer Learning

  45. Transfer Learning • Use a pre-trained Deep Neural Network •

    Keep all operations but the last one • Re-train only the last operation to specialize your network to your classes Keep all weights identical except these ones 45
  46. Gather Training Data 46

  47. 47 Retrain a Model Source: https://codelabs.developers.google.com/codelabs/tensorflow-for-poets/ python -m tensorflow/examples/image_retraining/retrain.py \

    --bottleneck_dir=tf_files/bottlenecks \ --how_many_training_steps=500 \ --model_dir=tf_files/models/ \ --summaries_dir=tf_files/training_summaries/ \ --output_graph=tf_files/retrained_graph.pb \ --output_labels=tf_files/retrained_labels.txt \ --image_dir=tf_files/fruit_photos
  48. Overfitting

  49. None
  50. Obtain the Retrained Model •2 outputs: • Model as protobuf

    file: contains a version of the selected network with a final layer retrained on your categories • Labels as text file 50 model.pb label.txt
  51. 51 public class ClassifierActivity extends CameraActivity implements OnImageAvailableListener { private

    static final int INPUT_SIZE = 224; private static final int IMAGE_MEAN = 117; private static final float IMAGE_STD = 1; private static final String INPUT_NAME = "input"; private static final String OUTPUT_NAME = "output"; private static final String MODEL_FILE = "file:///android_asset/ tensorflow_inception_graph.pb"; private static final String LABEL_FILE = "file:///android_asset/ imagenet_comp_graph_label_strings.txt"; } Source: https://github.com/tensorflow/tensorflow/blob/master/tensorflow/examples/android/src/org/tensorflow/demo/ClassifierActivity.java
  52. java.lang.UnsupportedOperationException: Op BatchNormWithGlobalNormalization is not available in GraphDef version 21.

    52
  53. Unsupported Operations • Only keep the operations dedicated to the

    inference step • Remove decoding, training, loss and evaluation operations 53
  54. 54 Optimize for Inference Source: https://codelabs.developers.google.com/codelabs/tensorflow-for-poets/ python -m tensorflow/python/tools/optimize_for_inference \

    --input=tf_files/retrained_graph.pb \ --output=tf_files/optimized_graph.pb \ --input_names="input" \ --output_names="final_result"
  55. Build Standalone App

  56. Pre-Google I/O 2017 • Use nightly build • Library .so

    • Java API jar android { //… sourceSets { main { jniLibs.srcDirs = ['libs'] } } } 56
  57. Post-Google I/O 2017 Source: Android Meets TensorFlow: How to Accelerate

    Your App with AI (Google I/O '17) https://www.youtube.com/watch?v=25ISTLhz0ys 57 Currently: 1.4.0-rc0
  58. None
  59. App size ~80MB 59

  60. Reducing Model Size

  61. WHO CARES? MODEL SIZE 61

  62. Model Size All weights are stored as they are (64-bit

    floats) => 80MB 62
  63. ~80MB -> ~20MB 63 Weights Quantization 6.372638493746383 => 6.4 Source:

    https://www.tensorflow.org/performance/quantization
  64. 64 Quantize Graph Source: https://codelabs.developers.google.com/codelabs/tensorflow-for-poets/ python -m tensorflow/tools/quantization/quantize_graph.py \ --input=tf_files/optimized_graph.pb

    \ --output=tf_files/rounded_graph.pb \ --output_node_names=final_result \ --mode=weights_rounded
  65. MobileNet Mobile-first computer vision models for TensorFlow 65 Image credit

    : https://github.com/tensorflow/models/blob/master/research/slim/nets/mobilenet_v1.md
  66. Inception V3 v.s. MobileNet 66 Inception V3 78% Accuracy* 85MB

    MobileNet (Largest configuration) 70.5% Accuracy* 19MB *: accuracy on ImageNet images
  67. None
  68. 68 Optimize for Mobile > IMAGE_SIZE=224 > ARCHITECTURE="mobilenet_0.50_${IMAGE_SIZE}"

  69. 69 Optimize for Mobile Source: https://codelabs.developers.google.com/codelabs/tensorflow-for-poets/ python -m tensorflow/examples/image_retraining/retrain.py \

    --bottleneck_dir=tf_files/bottlenecks \ --how_many_training_steps=500 \ --model_dir=tf_files/models/ \ --summaries_dir=tf_files/training_summaries/"${ARCHITECTURE}" \ --output_graph=tf_files/retrained_graph.pb \ --output_labels=tf_files/retrained_labels.txt \ --architecture="${ARCHITECTURE}" \ —image_dir=tf_files/fruit_photos
  70. ~80Mb => ~20Mb => ~1-5Mb Source: https://research.googleblog.com/2017/06/mobilenets-open-source-models-for.html

  71. None
  72. Underneath the Android App

  73. Android SDK (Java) Android NDK (C++) Classifier Implementation TensorFlow JNI

    wrapper Image (Bitmap) Trained Model top_results Classifications + Confidence input_tensor 1 2 3 4 Camera Preview Ref: https://jalammar.github.io/Supercharging-android-apps-using-tensorflow/ Overlay Display
  74. Image Sampling Get Image from Camera Preview Crop the center

    square Resize Sample Image 74
  75. Converts YUV420 (NV21) to ARGB8888 75 public static native void

    convertYUV420ToARGB8888( byte[] y, byte[] u, byte[] v, int[] output, int width, int height, int yRowStride, int uvRowStride, int uvPixelStride, boolean halfSize );
  76. 76 /** * Initializes a native TensorFlow session for classifying

    images. * * @param assetManager The asset manager to be used to load assets. * @param modelFilename The filepath of the model GraphDef protocol buffer. * @param labels The list of labels * @param inputSize The input size. A square image of inputSize x inputSize is assumed. * @param imageMean The assumed mean of the image values. * @param imageStd The assumed std of the image values. * @param inputName The label of the image input node. * @param outputName The label of the output node. * @throws IOException */ public static Classifier create( AssetManager assetManager, String modelFilename, List<String> labels, int inputSize, int imageMean, float imageStd, String inputName, String outputName) { }
  77. 77 @Override public List<Recognition> recognizeImage(final Bitmap bitmap) { // Preprocess

    bitmap bitmap.getPixels(intValues, 0, bitmap.getWidth(), 0, 0, bitmap.getWidth(), bitmap.getHeight()); for (int i = 0; i < intValues.length; ++i) { final int val = intValues[i]; floatValues[i * 3 + 0] = (((val >> 16) & 0xFF) - imageMean) / imageStd; floatValues[i * 3 + 1] = (((val >> 8) & 0xFF) - imageMean) / imageStd; floatValues[i * 3 + 2] = ((val & 0xFF) - imageMean) / imageStd; } // Copy the input data into TensorFlow. inferenceInterface.feed(inputName, floatValues, 1, inputSize, inputSize, 3); // Run the inference call. inferenceInterface.run(outputNames, logStats); // Copy the output Tensor back into the output array. inferenceInterface.fetch(outputName, outputs); (continue..) Preprocess Bitmap / Create Tensor
  78. 78 @Override public List<Recognition> recognizeImage(final Bitmap bitmap) { // Preprocess

    bitmap bitmap.getPixels(intValues, 0, bitmap.getWidth(), 0, 0, bitmap.getWidth(), bitmap.getHeight()); for (int i = 0; i < intValues.length; ++i) { final int val = intValues[i]; floatValues[i * 3 + 0] = (((val >> 16) & 0xFF) - imageMean) / imageStd; floatValues[i * 3 + 1] = (((val >> 8) & 0xFF) - imageMean) / imageStd; floatValues[i * 3 + 2] = ((val & 0xFF) - imageMean) / imageStd; } // Copy the input data into TensorFlow. inferenceInterface.feed(inputName, floatValues, 1, inputSize, inputSize, 3); // Run the inference call. inferenceInterface.run(outputNames, logStats); // Copy the output Tensor back into the output array. inferenceInterface.fetch(outputName, outputs); (continue..) Feed Input Data to TensorFlow
  79. 79 @Override public List<Recognition> recognizeImage(final Bitmap bitmap) { // Preprocess

    bitmap bitmap.getPixels(intValues, 0, bitmap.getWidth(), 0, 0, bitmap.getWidth(), bitmap.getHeight()); for (int i = 0; i < intValues.length; ++i) { final int val = intValues[i]; floatValues[i * 3 + 0] = (((val >> 16) & 0xFF) - imageMean) / imageStd; floatValues[i * 3 + 1] = (((val >> 8) & 0xFF) - imageMean) / imageStd; floatValues[i * 3 + 2] = ((val & 0xFF) - imageMean) / imageStd; } // Copy the input data into TensorFlow. inferenceInterface.feed(inputName, floatValues, 1, inputSize, inputSize, 3); // Run the inference call. inferenceInterface.run(outputNames, logStats); // Copy the output Tensor back into the output array. inferenceInterface.fetch(outputName, outputs); (continue..) Run the Inference Call
  80. 80 @Override public List<Recognition> recognizeImage(final Bitmap bitmap) { // Preprocess

    bitmap bitmap.getPixels(intValues, 0, bitmap.getWidth(), 0, 0, bitmap.getWidth(), bitmap.getHeight()); for (int i = 0; i < intValues.length; ++i) { final int val = intValues[i]; floatValues[i * 3 + 0] = (((val >> 16) & 0xFF) - imageMean) / imageStd; floatValues[i * 3 + 1] = (((val >> 8) & 0xFF) - imageMean) / imageStd; floatValues[i * 3 + 2] = ((val & 0xFF) - imageMean) / imageStd; } // Copy the input data into TensorFlow. inferenceInterface.feed(inputName, floatValues, 1, inputSize, inputSize, 3); // Run the inference call. inferenceInterface.run(outputNames, logStats); // Copy the output Tensor back into the output array. inferenceInterface.fetch(outputName, outputs); (continue..) Fetch the Output Tensor
  81. 81 (continue..) // Find the best classifications. PriorityQueue<Recognition> pq =

    new PriorityQueue<>( 3, (lhs, rhs) -> { // Intentionally reversed to put high confidence at the head of the queue. return Float.compare(rhs.getConfidence(), lhs.getConfidence()); }); for (int i = 0; i < outputs.length; ++i) { if (outputs[i] > THRESHOLD) { pq.add( new Recognition( "" + i, labels.size() > i ? labels.get(i) : "unknown", outputs[i], null)); } } //... return recognitions; } Find the Best Classification
  82. Adding New Models

  83. None
  84. Adding a New Model 84 2 * 20 MB =

    40 MB
  85. Model Stacking • Start from previous model to keep all

    specific operations in the graph • Specify all operations to keep when optimizing for inference graph_util.convert_variables_to_constants(sess, graph.as_graph_def(), [“final_result_fruits”, “final_result_vegetables”]
  86. Android Makers Paris 2017

  87. 87 Source: https://www.youtube.com/watch?v=EnFyneRScQ8

  88. None
  89. Continuous Training Pipeline 89 Source: https://www.tensorflow.org/serving/

  90. TensorFlow Serving Hosts the model provides remote access to it

    90 Source: https://www.tensorflow.org/serving/
  91. model.pb label.txt Continuous Training Pipeline

  92. model.pb label.txt Dispensing Model

  93. Currently with Project Magritte… Training • Model debug done by

    overheating a laptop • Model built on personal GPU • Files uploaded manually Model dispensing • API available • Deployment on AWS, currently migrating on Google Cloud 93
  94. Android App Evolves

  95. None
  96. Android FilesDir model.pb Labels model.pb label.txt

  97. public TensorFlowInferenceInterface(AssetManager assetManager, String model) { prepareNativeRuntime(); this.modelName = model;

    this.g = new Graph(); this.sess = new Session(g); this.runner = sess.runner(); final boolean hasAssetPrefix = model.startsWith(ASSET_FILE_PREFIX); InputStream is = null; try { String aname = hasAssetPrefix ? model.split(ASSET_FILE_PREFIX)[1] : model; is = assetManager.open(aname); } catch (IOException e) { if (hasAssetPrefix) { throw new RuntimeException("Failed to load model from '" + model + "'", e); } // Perhaps the model file is not an asset but is on disk. try { is = new FileInputStream(model); } catch (IOException e2) { throw new RuntimeException("Failed to load model from '" + model + "'", e); } } } Source: https://github.com/tensorflow/tensorflow/blob/master/tensorflow/contrib/android/java/org/tensorflow/contrib/android/TensorFlowInferenceInterface.java
  98. public TensorFlowInferenceInterface(AssetManager assetManager, String model) { prepareNativeRuntime(); this.modelName = model;

    this.g = new Graph(); this.sess = new Session(g); this.runner = sess.runner(); final boolean hasAssetPrefix = model.startsWith(ASSET_FILE_PREFIX); InputStream is = null; try { String aname = hasAssetPrefix ? model.split(ASSET_FILE_PREFIX)[1] : model; is = assetManager.open(aname); } catch (IOException e) { if (hasAssetPrefix) { throw new RuntimeException("Failed to load model from '" + model + "'", e); } // Perhaps the model file is not an asset but is on disk. try { is = new FileInputStream(model); } catch (IOException e2) { throw new RuntimeException("Failed to load model from '" + model + "'", e); } } } Source: https://github.com/tensorflow/tensorflow/blob/master/tensorflow/contrib/android/java/org/tensorflow/contrib/android/TensorFlowInferenceInterface.java
  99. public TensorFlowInferenceInterface(AssetManager assetManager, String model) { prepareNativeRuntime(); this.modelName = model;

    this.g = new Graph(); this.sess = new Session(g); this.runner = sess.runner(); final boolean hasAssetPrefix = model.startsWith(ASSET_FILE_PREFIX); InputStream is = null; try { String aname = hasAssetPrefix ? model.split(ASSET_FILE_PREFIX)[1] : model; is = assetManager.open(aname); } catch (IOException e) { if (hasAssetPrefix) { throw new RuntimeException("Failed to load model from '" + model + "'", e); } // Perhaps the model file is not an asset but is on disk. try { is = new FileInputStream(model); } catch (IOException e2) { throw new RuntimeException("Failed to load model from '" + model + "'", e); } } } Source: https://github.com/tensorflow/tensorflow/blob/master/tensorflow/contrib/android/java/org/tensorflow/contrib/android/TensorFlowInferenceInterface.java
  100. Model Inception V3 Optimized & Quantized

  101. Model MobileNets_1.0_224

  102. Model MobileNets_0.5_224

  103. Model MobileNets_0.25_224

  104. Demo Time

  105. None
  106. None
  107. What’s next?

  108. Source: Android Meets TensorFlow: How to Accelerate Your App with

    AI (Google I/O '17) https://www.youtube.com/watch?v=25ISTLhz0ys
  109. Source: Android Meets TensorFlow: How to Accelerate Your App with

    AI (Google I/O '17) https://www.youtube.com/watch?v=25ISTLhz0ys
  110. Federate Learning Collaborative Machine Learning without Centralized Training Data 110

    Source: https://research.googleblog.com/2017/04/federated-learning-collaborative.html
  111. Resources

  112. Resources • Artificial neural network: https://en.wikipedia.org/wiki/Artificial_neural_network • Deep Learning: https://en.wikipedia.org/wiki/Deep_learning

    • Convolutional Neural Network: https://en.wikipedia.org/wiki/Convolutional_neural_network • TensorFlow for Poets: https://codelabs.developers.google.com/codelabs/tensorflow-for-poets/ • TensorFlow for Poets 2: Optimize for Mobile: https://codelabs.developers.google.com/ codelabs/tensorflow-for-poets-2/ • TensorFlow Glossary: https://www.tensorflow.org/versions/r0.12/resources/glossary • Magritte project blog: http://blog.xebia.fr/2017/07/24/on-device-intelligence-integrez-du- deep-learning-sur-vos-smartphones/ 112
  113. Thank you! Github: https://github.com/xebia-france/magritte Twitter: @bonbonking Email: qjin@xebia.fr
