Reverse Engineering .NET and Java - 1DevDay Detroit 2012

Learn the various techniques bad guys can use to extract information from your .NET or Java applications or at least how you can recover the source code that your predecessor deleted before he quit. A demo filled session on how easy it is to extract information from virtually any .NET or Java application.

Transcript

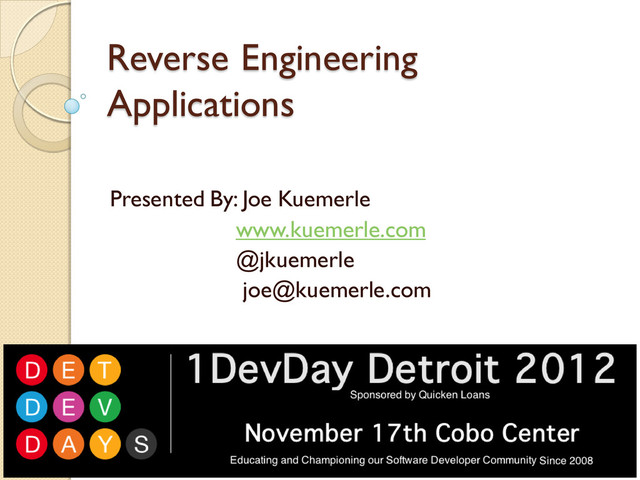

1. Reverse Engineering
   Applications
   Presented By: Joe Kuemerle
   www.kuemerle.com
   @jkuemerle
   joe@kuemerle.com


   View Slide

2. @jkuemerle / www.kuemerle.com
   Joe Kuemerle
    Developer at BookingBuilder Technologies
    Over 15 years of development experience with a
   broad range of technologies
    Focused on application and data security, coding
   best practices and regulatory compliance
    Presenter at community, regional and national
   events.


   View Slide

3. @jkuemerle / www.kuemerle.com


   View Slide

4. @jkuemerle / www.kuemerle.com
   Why Reverse Engineer?
   Random fact:
   A 2007 FBI study notes 70% of network abuse is due to insiders


   View Slide

5. @jkuemerle / www.kuemerle.com


   View Slide

6. @jkuemerle / www.kuemerle.com
   Ease of Reverse Engineering
   Managed Code (.NET and Java)
    Why is it easy to reverse engineer Managed Code
   ◦ NET
    All high level source is compiled to MSIL
    IL is verbose (compared to assembly) / IL is well documented (CLI
   specification)
    Open source compiler to reference
    Shared Source CLI compiler
    Rich metadata included in assembly
    Support for reflection means code using reflection must be self
   describing, by default all that information is embedded in assemblies
   ◦ Java
    High level source is compiled to bytecode
    Bytecode is stored in a well defined structure / Bytecode to
   Opcode
    Open Source compiler
    Classes are self describing


   View Slide

7. @jkuemerle / www.kuemerle.com
   What Can Be Reverse Engineered
   .NET: Any Managed Portable
   Executable (PE)
   • Windows Forms • AWT/Swing Applications
   • Silverlight • Applets
   • WPF • Servlets
   • SharePoint WebParts • EJBs
   • Compact Framework Applications • Android APKs
   • Office Business Applications
   • Windows Workflow
   • Micro Framework Applications
   • ASP.NET (with server access)
   • Windows Phone
   Java: Class, JAR, WAR, APK
   * Flash assemblies are also
   similar to a managed language
   assembly (consist of opcodes)
   and can be reverse engineered
   to resources and ActionScript
   source via similar methods


   View Slide

8. @jkuemerle / www.kuemerle.com
   Native Tools
   • IDA Pro
   •$515 and up
   • Syser debugger
   $198 and up
   • DevPartner
   $2,400


   View Slide

9. @jkuemerle / www.kuemerle.com
   Managed Code Tools


   View Slide

10. @jkuemerle / www.kuemerle.com
    So what, it’s free and easy. Big deal!
    Once you (or someone else) has this
    knowledge what can they do?
    ◦ Look to see exactly how things *really* work
    ◦ Find out things they might not need to know
     Passwords
     Encryption Keys
     Secret data
    ◦ Alter functionality
     Bypass authentication checks
     Unlock functionality
     Alter the user interface
     Add malicious code


    View Slide

11. @jkuemerle / www.kuemerle.com
    Demo Time


    View Slide

12. @jkuemerle / www.kuemerle.com
    Now What?


    View Slide

13. @jkuemerle / www.kuemerle.com
    Raising Defenses
    ◦ Do not ship debug versions
    ◦ Strong Name assemblies to
    prevent alteration
    ◦ Authenticode signing
    ◦ JAR signing
    ◦ Do not embed secrets in the binaries
     Use DPAPI to encrypt secrets
     Public key signature validation
    ◦ Obfuscation


    View Slide

14. @jkuemerle / www.kuemerle.com
    More Demos


    View Slide

15. @jkuemerle / www.kuemerle.com
    Photo Attributes
     http://flickr.com/photos/calavera/65098350/
     http://flickr.com/photos/epitti/199843720/
     http://flickr.com/photos/moriza/77481889/
     http://flickr.com/photos/dannyboyster/60371673/
     http://flickr.com/photos/20406121@N04/263234
    4166/
     http://flickr.com/photos/rogersmith/126697530/
     http://flickr.com/photos/docman/36125185/
     http://flickr.com/photos/frozen-in-time/3858611/
     http://flickr.com/photos/chubbybat/62206640/
     http://www.flickr.com/photos/citrixonline/544724
    8934


    View Slide

16. @jkuemerle / www.kuemerle.com
    Tools
     Reflector : http://www.red-gate.com/products/reflector/index.htm
     Reflector Plug In Page : http://www.codeplex.com/reflectoraddins
     ILSpy: http://ilspy.net/
     JustDecompile: http://www.telerik.com/products/decompiler.aspx
     Cecil Decompiler : http://evain.net/blog/articles/2008/12/15/cecil-decompiler
     Dile : http://sourceforge.net/projects/dile
     Snoop : http://snoopwpf.codeplex.com/
     XAML Spy : http://xamlspy.com/
     Crack.NET : http://cracknetproject.codeplex.com/
     DJ Decompiler : http://members.fortunecity.com/neshkov/dj.html
     JAD: http://www.kpdus.com/jad.html
     Open Source Flash Decompiler : http://osflash.org/swf9tools
     Java Decompiler: http://java.decompiler.free.fr/
     APK Tool: http://code.google.com/p/android-apktool/
     Smali: http://code.google.com/p/smali/
     Dex2Jar: http://code.google.com/p/dex2jar/


    View Slide

17. @jkuemerle / www.kuemerle.com
    References
     Exploiting Software – Hoglund & McGraw – Addison
    Wesley
     Brian Long : Reverse Engineering To Learn .NET Better
    ◦ http://www.blong.com/Conferences/DCon2003/Rever
    seEngineering/ReverseEngineering.htm
     David Cumps : Reverse Engineering with Reflector and
    Reflexil
    ◦ http://blog.cumps.be/reverse-engineering-with-
    reflector-and-reflexil
     Jason Haley http://jasonhaley.com
     Jason Bock http://www.jasonbock.net/JB
     Decompiling Java – Godfrey Nolan – Apress
     Java Virtual Machine – Meyer & Downing – O’Reilly


    View Slide
