1. Painless, Type-Safe Data Views with Swift and Interface Builder Jordan Kay (@_Jordan) github.com/jordanekay jordanekay@mac.com

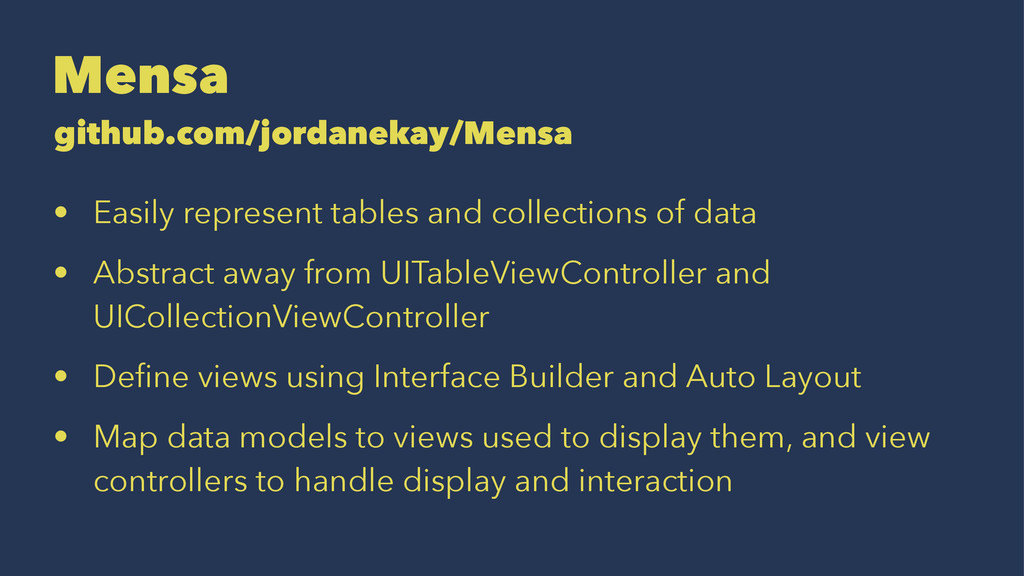

2. Mensa github.com/jordanekay/Mensa • Easily represent tables and collections of data • Abstract away from UITableViewController and UICollectionViewController • Define views using Interface Builder and Auto Layout • Map data models to views used to display them, and view controllers to handle display and interaction

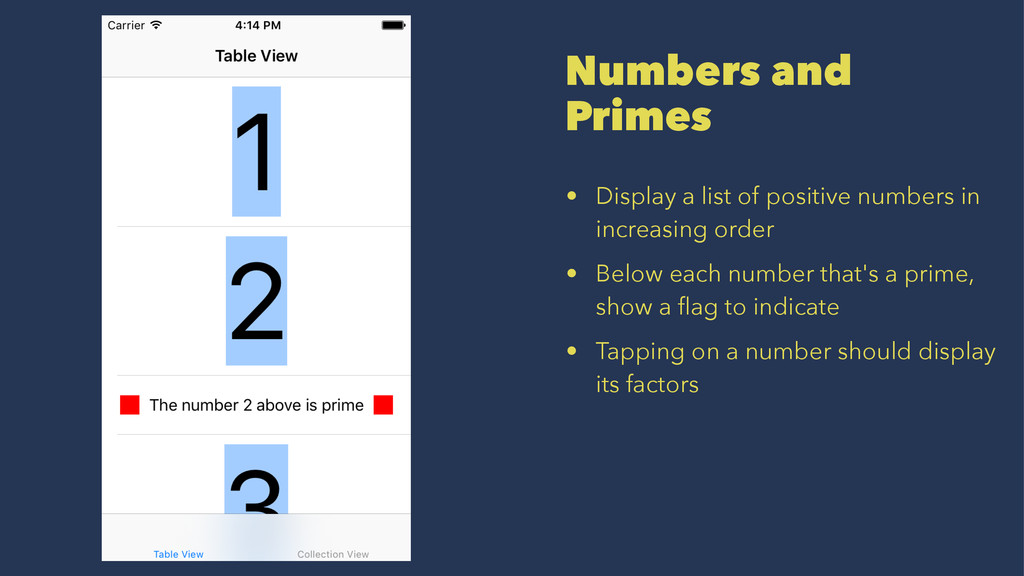

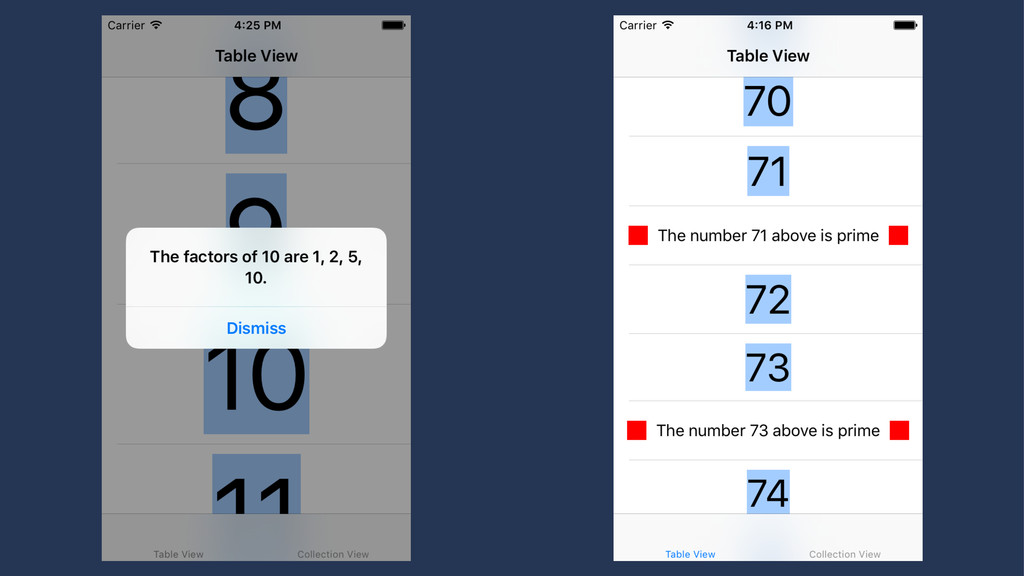

3. Numbers and Primes • Display a list of positive numbers in increasing order • Below each number that's a prime, show a flag to indicate • Tapping on a number should display its factors

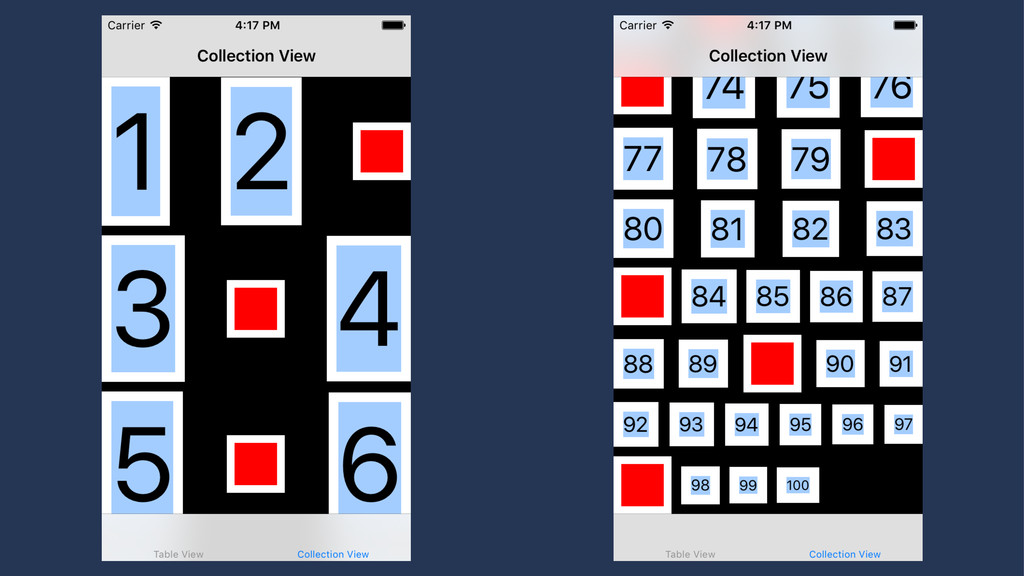

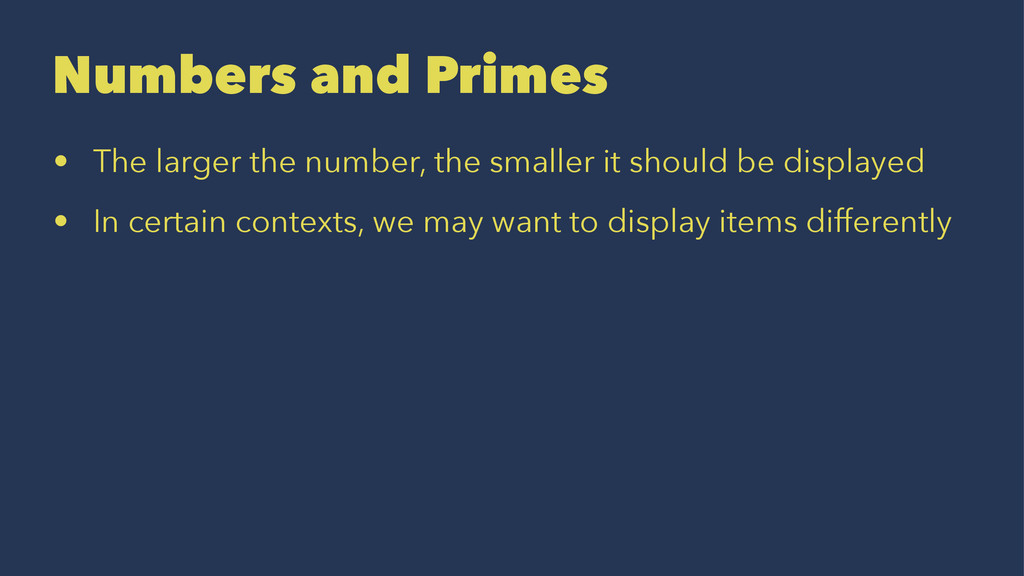

4. Numbers and Primes • The larger the number, the smaller it should be displayed • In certain contexts, we may want to display items differently

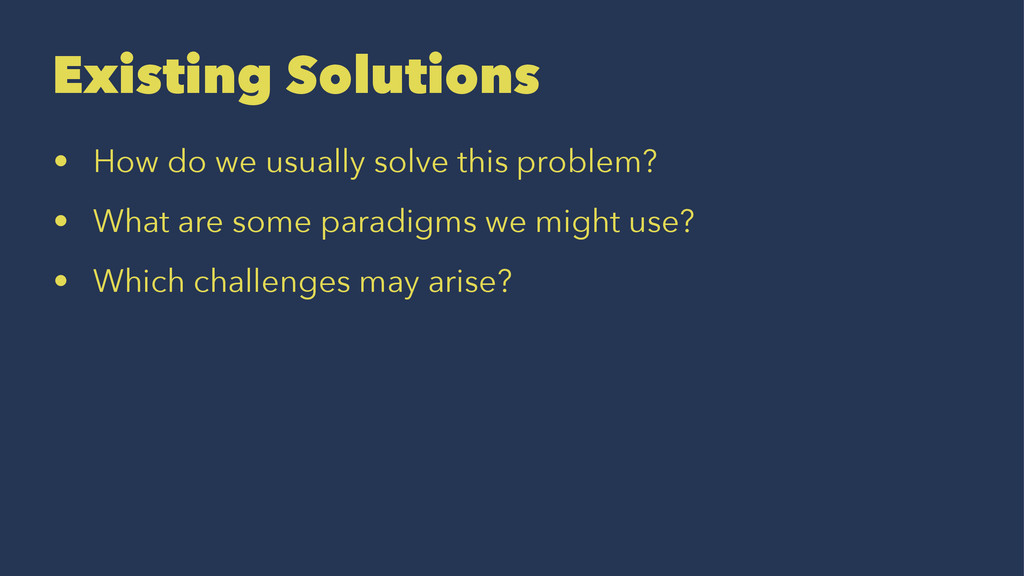

7. Existing Solutions • How do we usually solve this problem? • What are some paradigms we might use? • Which challenges may arise?
8. Model View Controller
9. Model

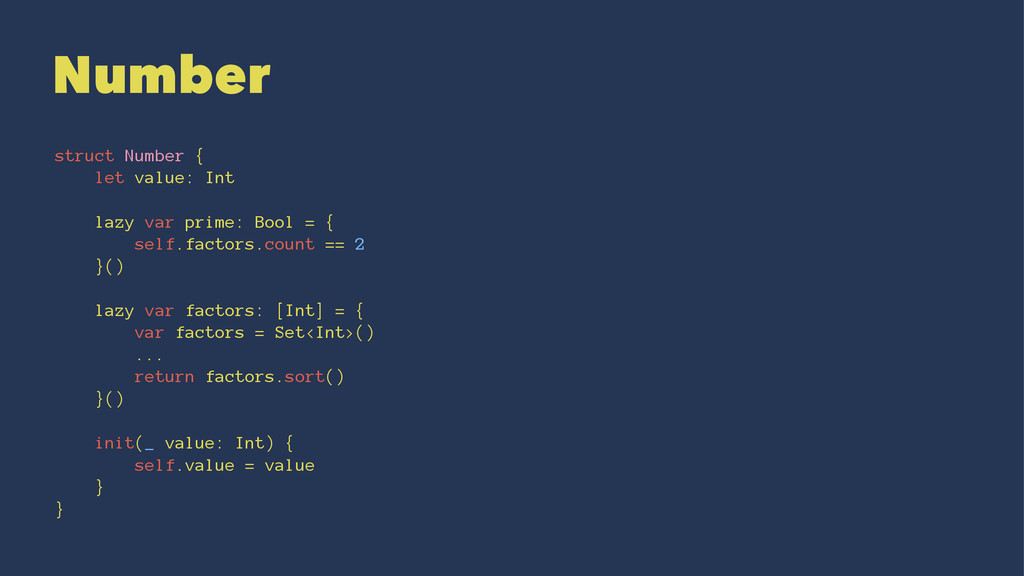

10. Number struct Number { let value: Int lazy var prime: Bool = { self.factors.count == 2 }() lazy var factors: [Int] = { var factors = Set<Int>() ... return factors.sort() }() init(_ value: Int) { self.value = value } }

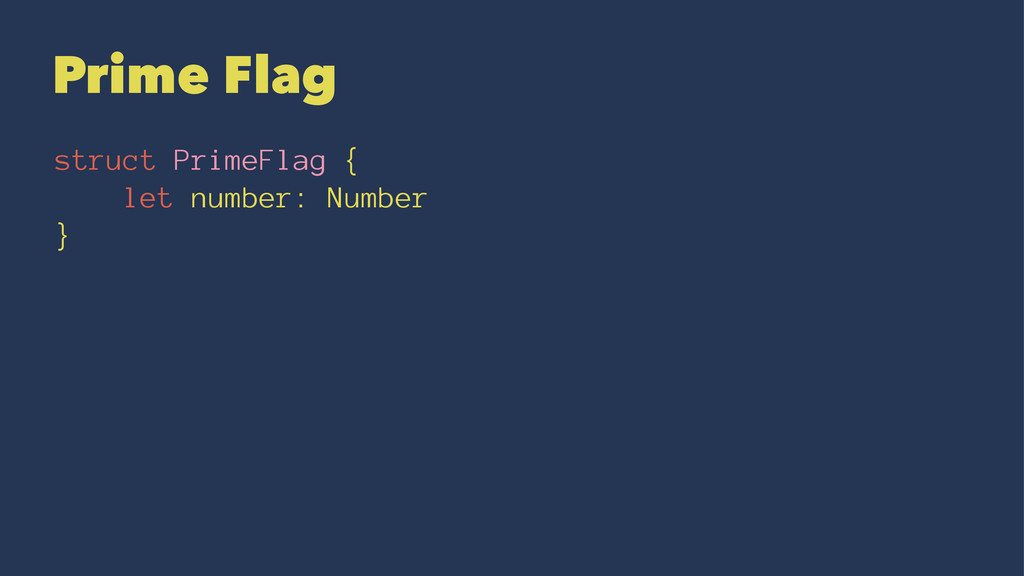

11. Prime Flag struct PrimeFlag { let number: Number }
12. View

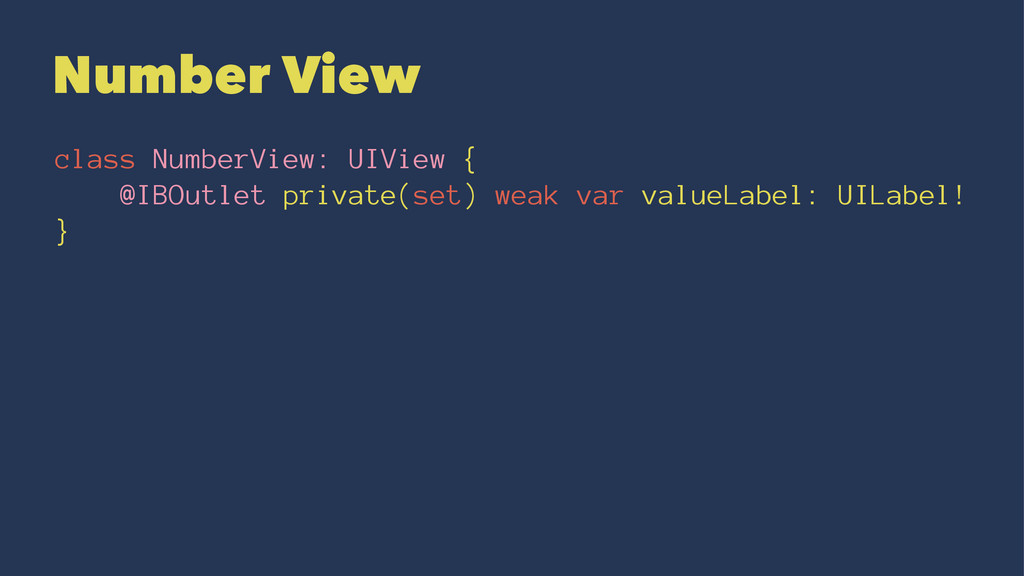

13. Number View class NumberView: UIView { @IBOutlet private(set) weak var valueLabel: UILabel! }

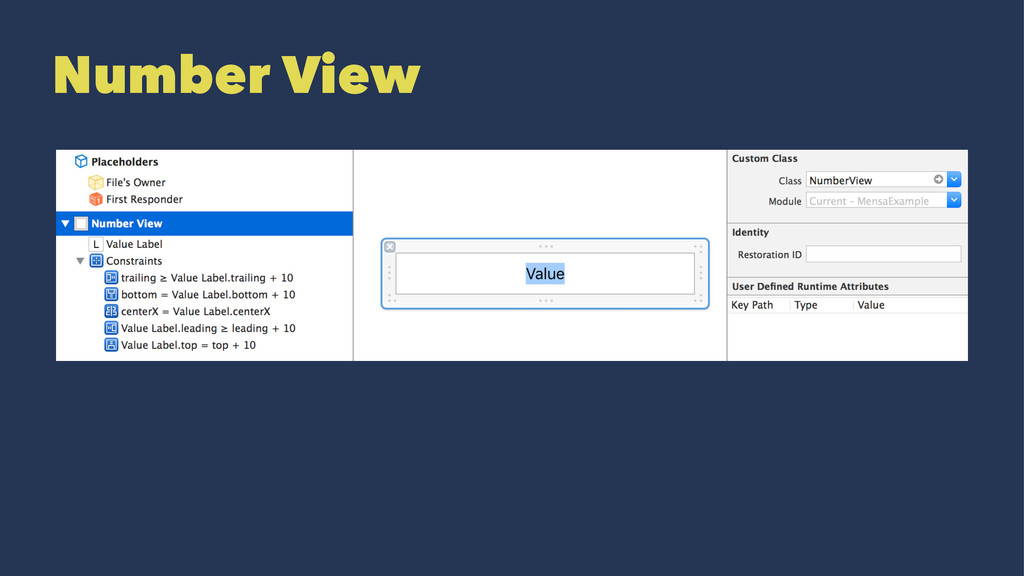

14. Number View

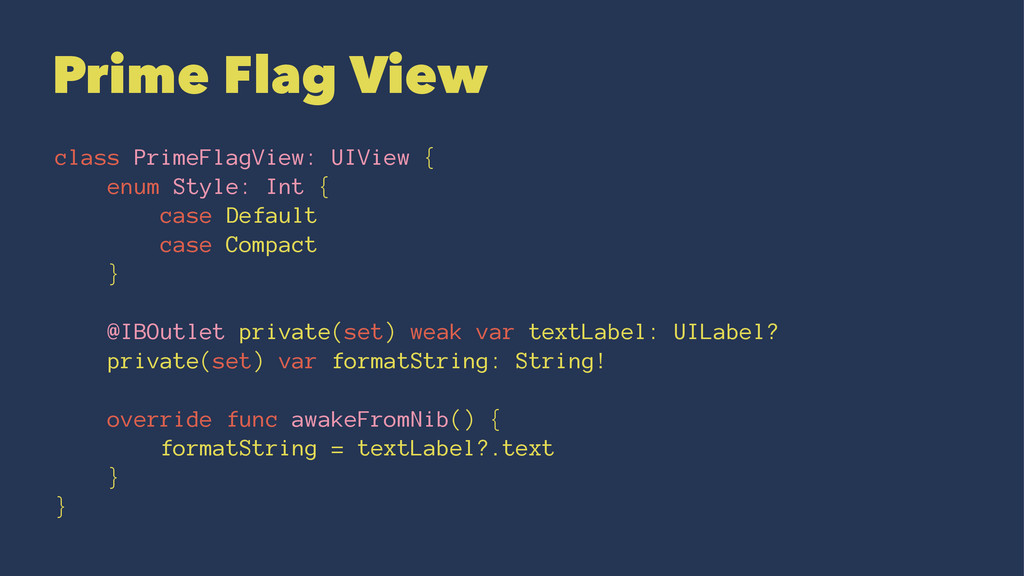

15. Prime Flag View class PrimeFlagView: UIView { enum Style: Int { case Default case Compact } @IBOutlet private(set) weak var textLabel: UILabel? private(set) var formatString: String! override func awakeFromNib() { formatString = textLabel?.text } }

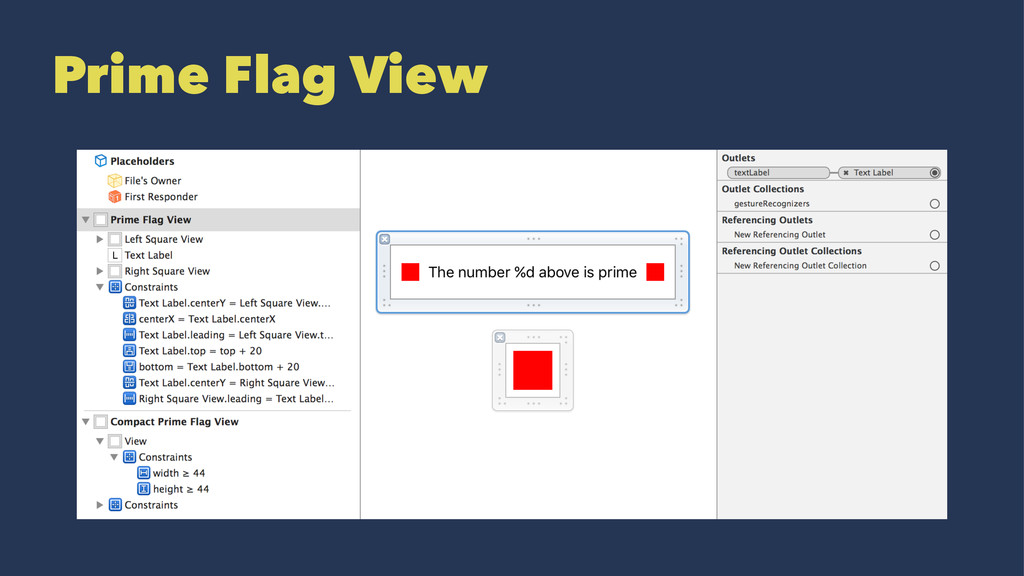

16. Prime Flag View
17. Controller

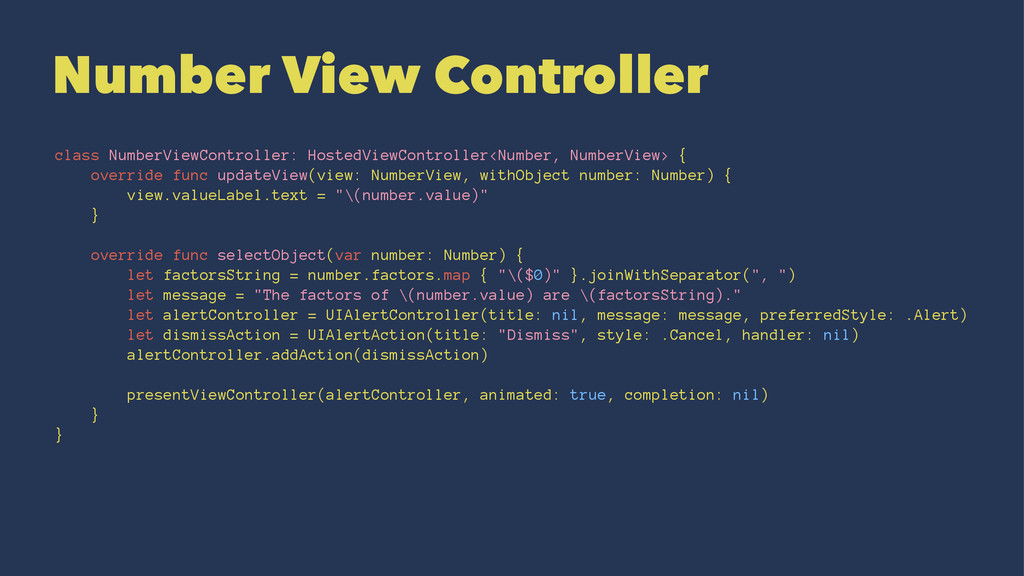

18. Number View Controller class NumberViewController: HostedViewController<Number, NumberView> { override func updateView(view: NumberView, withObject number: Number) { view.valueLabel.text = "\(number.value)" } override func selectObject(var number: Number) { let factorsString = number.factors.map { "\($0)" }.joinWithSeparator(", ") let message = "The factors of \(number.value) are \(factorsString)." let alertController = UIAlertController(title: nil, message: message, preferredStyle: .Alert) let dismissAction = UIAlertAction(title: "Dismiss", style: .Cancel, handler: nil) alertController.addAction(dismissAction) presentViewController(alertController, animated: true, completion: nil) } }

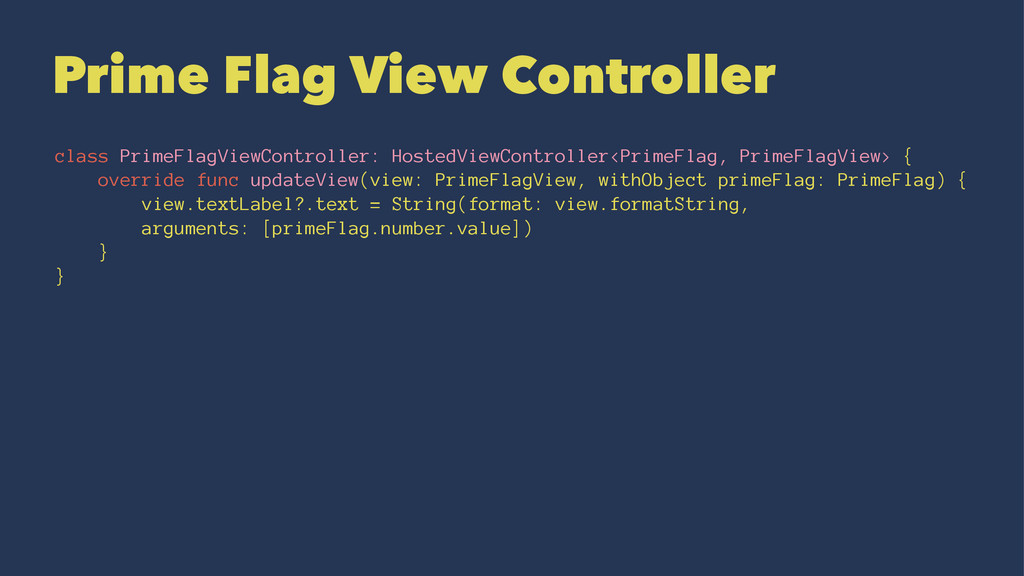

19. Prime Flag View Controller class PrimeFlagViewController: HostedViewController<PrimeFlag, PrimeFlagView> { override func updateView(view: PrimeFlagView, withObject primeFlag: PrimeFlag) { view.textLabel?.text = String(format: view.formatString, arguments: [primeFlag.number.value]) } }

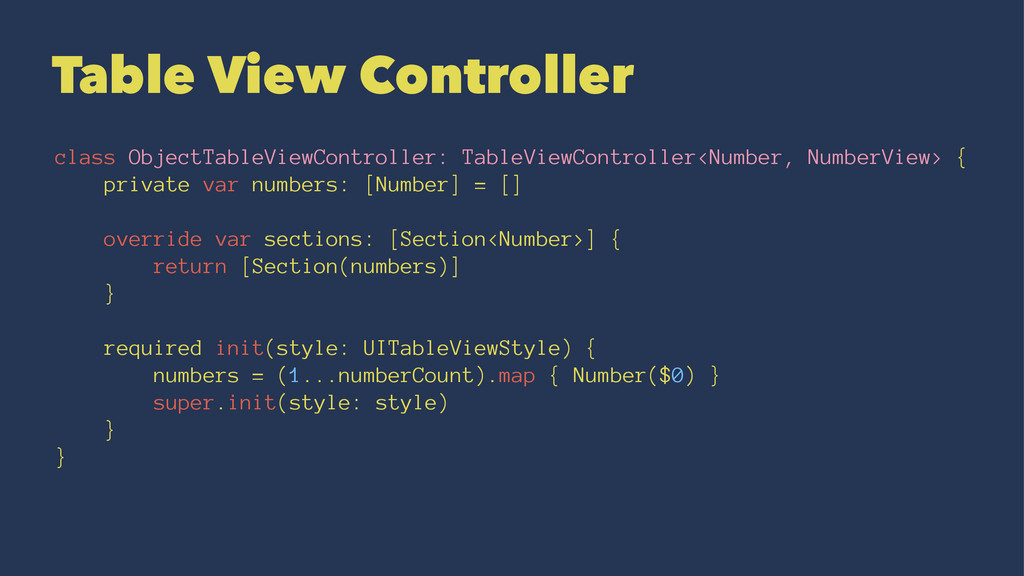

20. Table View Controller class ObjectTableViewController: TableViewController<Number, NumberView> { private var numbers: [Number] = [] override var sections: [Section<Number>] { return [Section(numbers)] } required init(style: UITableViewStyle) { numbers = (1...numberCount).map { Number($0) } super.init(style: style) } }

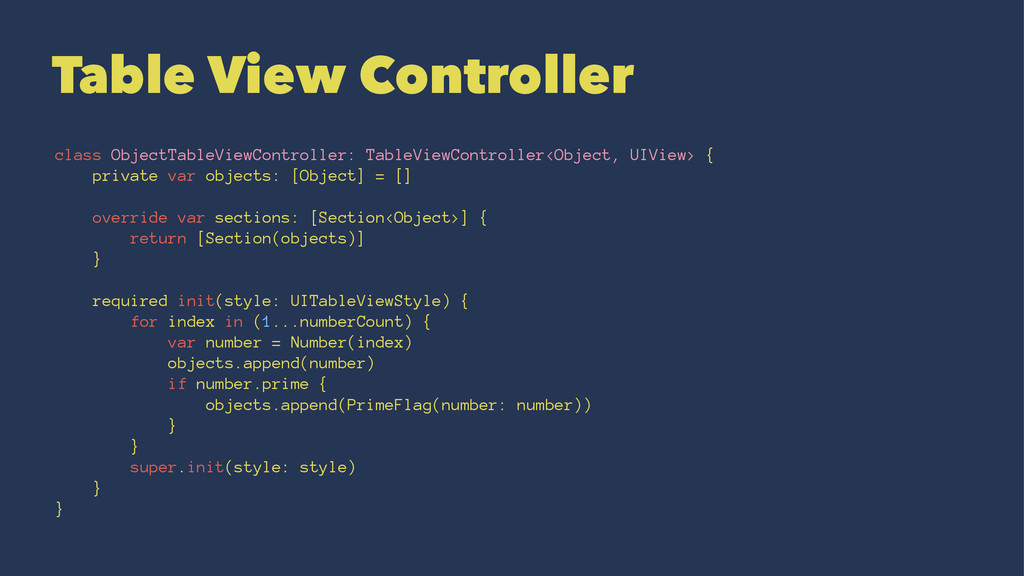

21. Table View Controller class ObjectTableViewController: TableViewController<Object, UIView> { private var objects: [Object] = [] override var sections: [Section<Object>] { return [Section(objects)] } required init(style: UITableViewStyle) { for index in (1...numberCount) { var number = Number(index) objects.append(number) if number.prime { objects.append(PrimeFlag(number: number)) } } super.init(style: style) } }

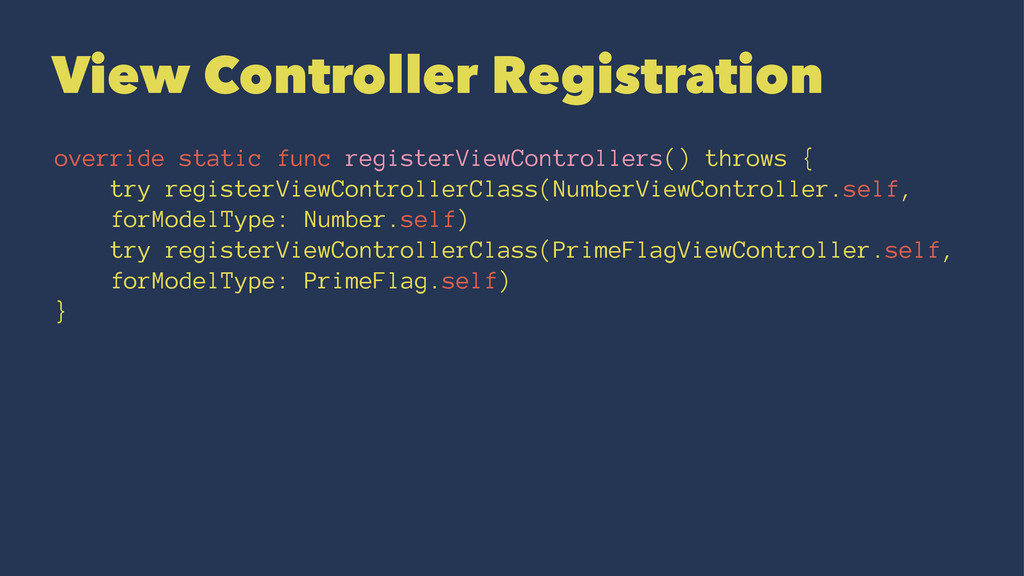

22. View Controller Registration override static func registerViewControllers() throws { try registerViewControllerClass(NumberViewController.self, forModelType: Number.self) try registerViewControllerClass(PrimeFlagViewController.self, forModelType: PrimeFlag.self) }
23. Registration Errors enum RegisterError: ErrorType { case ViewControllerUnregistered case ViewTypeMismatch case HostingViewControllerUnderspecified }

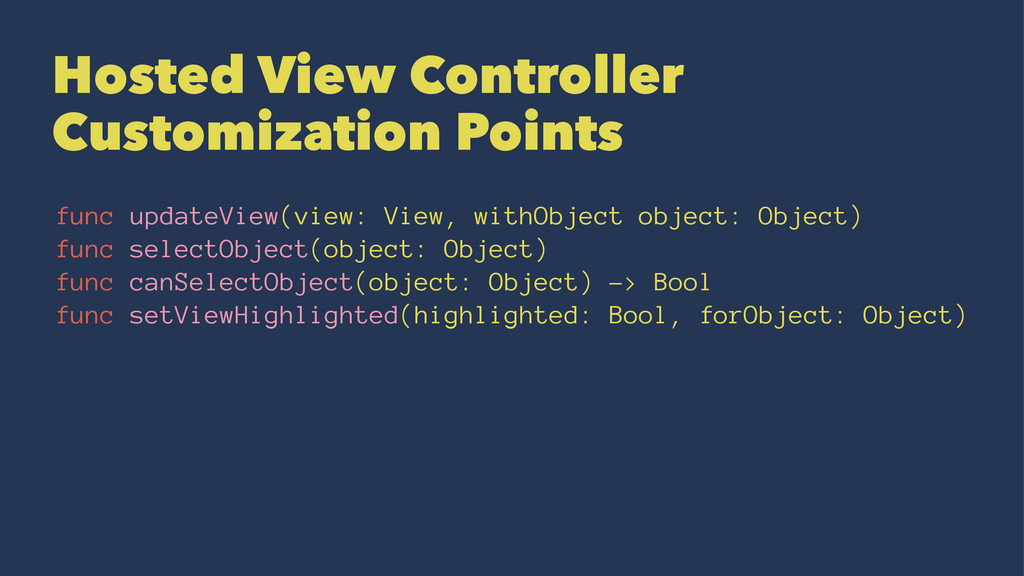

24. Hosted View Controller Customization Points func updateView(view: View, withObject object: Object) func selectObject(object: Object) func canSelectObject(object: Object) -> Bool func setViewHighlighted(highlighted: Bool, forObject: Object)

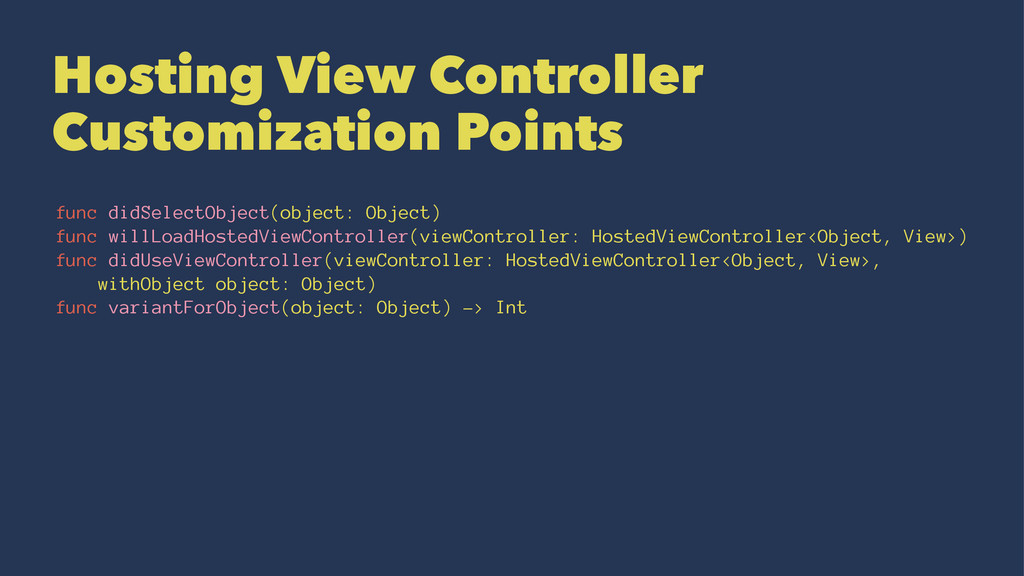

25. Hosting View Controller Customization Points func didSelectObject(object: Object) func willLoadHostedViewController(viewController: HostedViewController<Object, View>) func didUseViewController(viewController: HostedViewController<Object, View>, withObject object: Object) func variantForObject(object: Object) -> Int

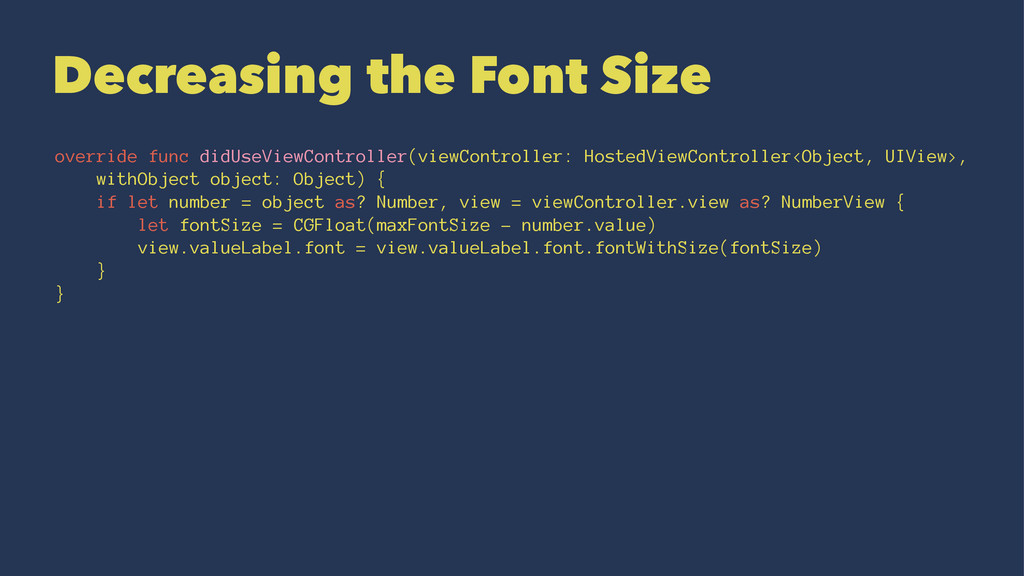

26. Decreasing the Font Size override func didUseViewController(viewController: HostedViewController<Object, UIView>, withObject object: Object) { if let number = object as? Number, view = viewController.view as? NumberView { let fontSize = CGFloat(maxFontSize - number.value) view.valueLabel.font = view.valueLabel.font.fontWithSize(fontSize) } }

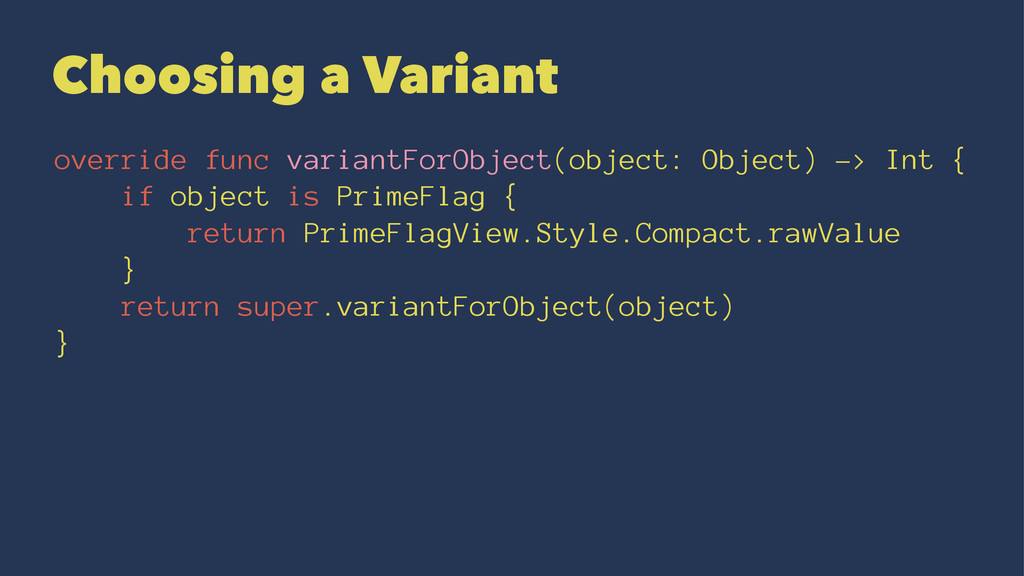

27. Choosing a Variant override func variantForObject(object: Object) -> Int { if object is PrimeFlag { return PrimeFlagView.Style.Compact.rawValue } return super.variantForObject(object) }

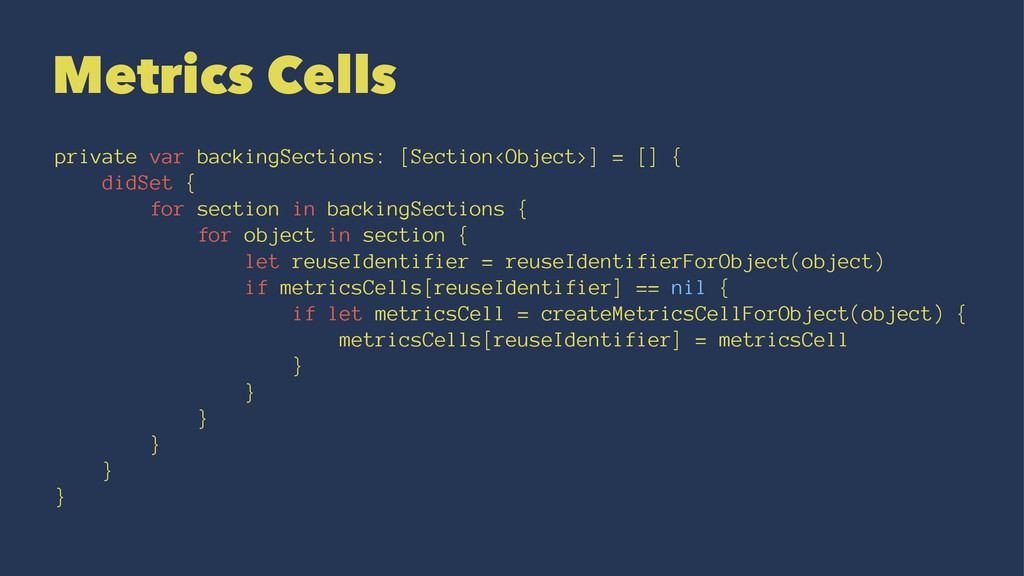

28. Metrics Cells private var backingSections: [Section<Object>] = [] { didSet { for section in backingSections { for object in section { let reuseIdentifier = reuseIdentifierForObject(object) if metricsCells[reuseIdentifier] == nil { if let metricsCell = createMetricsCellForObject(object) { metricsCells[reuseIdentifier] = metricsCell } } } } } }

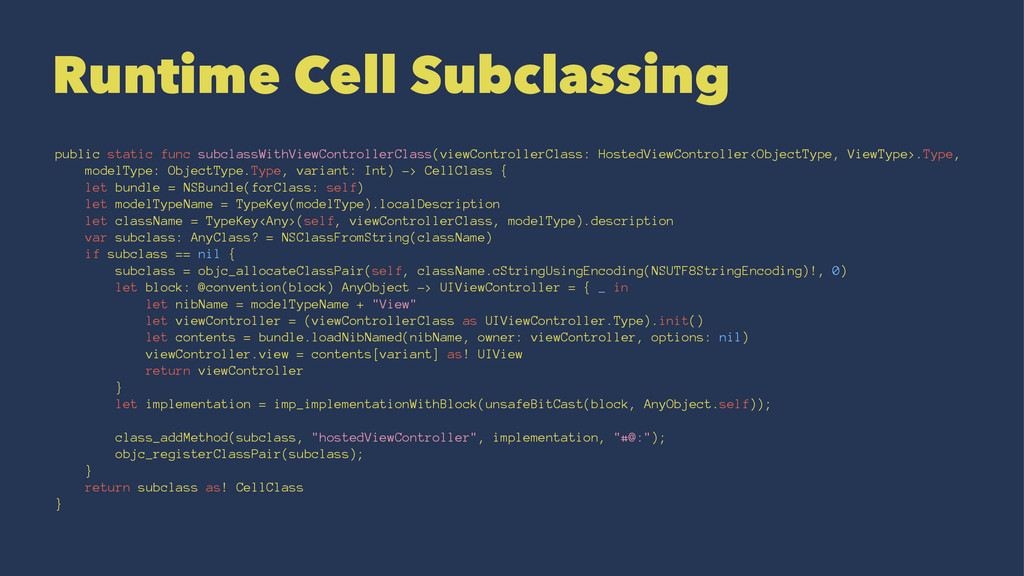

29. Runtime Cell Subclassing public static func subclassWithViewControllerClass(viewControllerClass: HostedViewController<ObjectType, ViewType>.Type, modelType: ObjectType.Type, variant: Int) -> CellClass { let bundle = NSBundle(forClass: self) let modelTypeName = TypeKey(modelType).localDescription let className = TypeKey<Any>(self, viewControllerClass, modelType).description var subclass: AnyClass? = NSClassFromString(className) if subclass == nil { subclass = objc_allocateClassPair(self, className.cStringUsingEncoding(NSUTF8StringEncoding)!, 0) let block: @convention(block) AnyObject -> UIViewController = { _ in let nibName = modelTypeName + "View" let viewController = (viewControllerClass as UIViewController.Type).init() let contents = bundle.loadNibNamed(nibName, owner: viewController, options: nil) viewController.view = contents[variant] as! UIView return viewController } let implementation = imp_implementationWithBlock(unsafeBitCast(block, AnyObject.self)); class_addMethod(subclass, "hostedViewController", implementation, "#@:"); objc_registerClassPair(subclass); } return subclass as! CellClass }

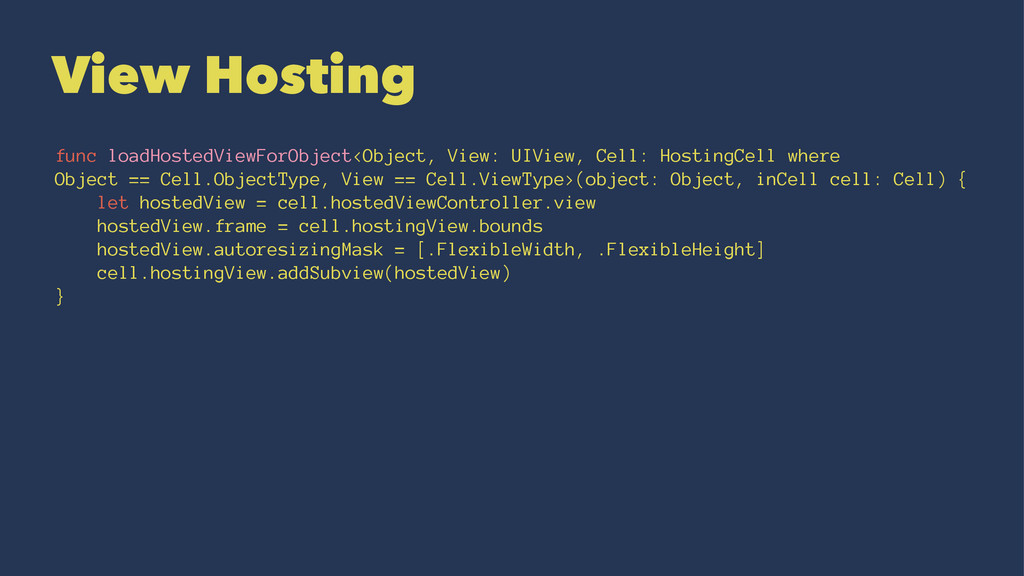

30. View Hosting func loadHostedViewForObject<Object, View: UIView, Cell: HostingCell where Object == Cell.ObjectType, View == Cell.ViewType>(object: Object, inCell cell: Cell) { let hostedView = cell.hostedViewController.view hostedView.frame = cell.hostingView.bounds hostedView.autoresizingMask = [.FlexibleWidth, .FlexibleHeight] cell.hostingView.addSubview(hostedView) }

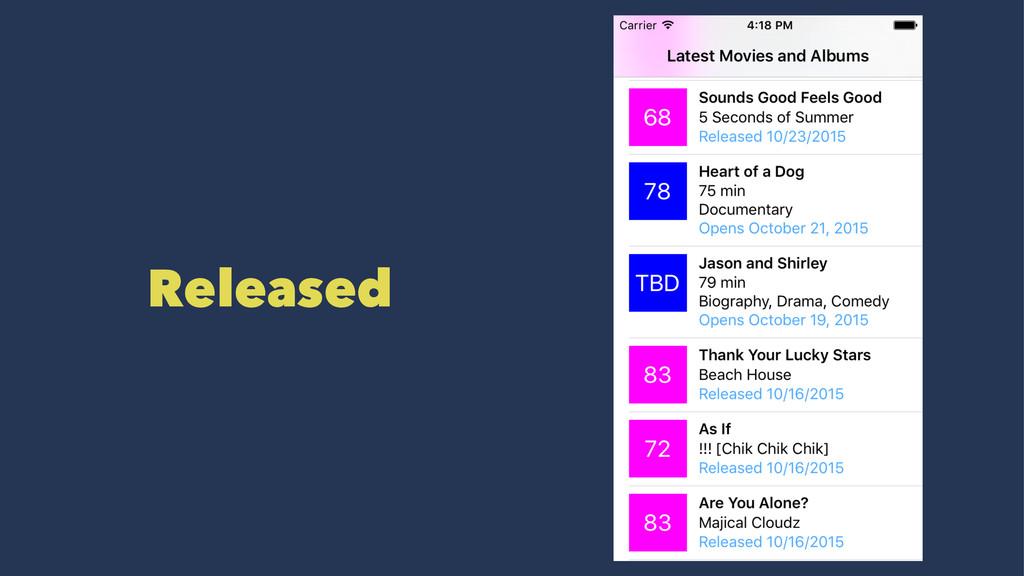

31. Released

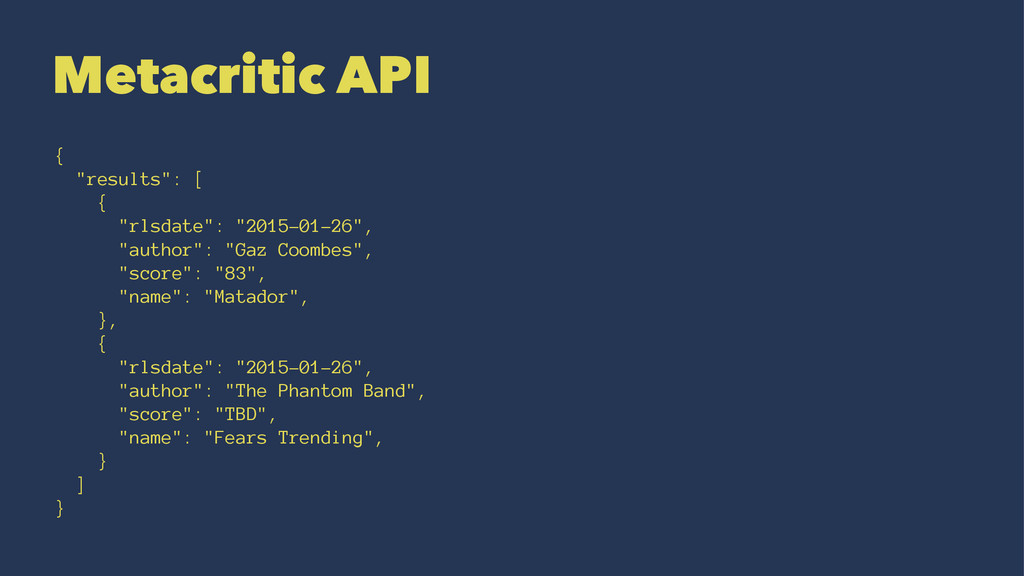

32. Metacritic API { "results": [ { "rlsdate": "2015-01-26", "author": "Gaz Coombes", "score": "83", "name": "Matador", }, { "rlsdate": "2015-01-26", "author": "The Phantom Band", "score": "TBD", "name": "Fears Trending", } ] }

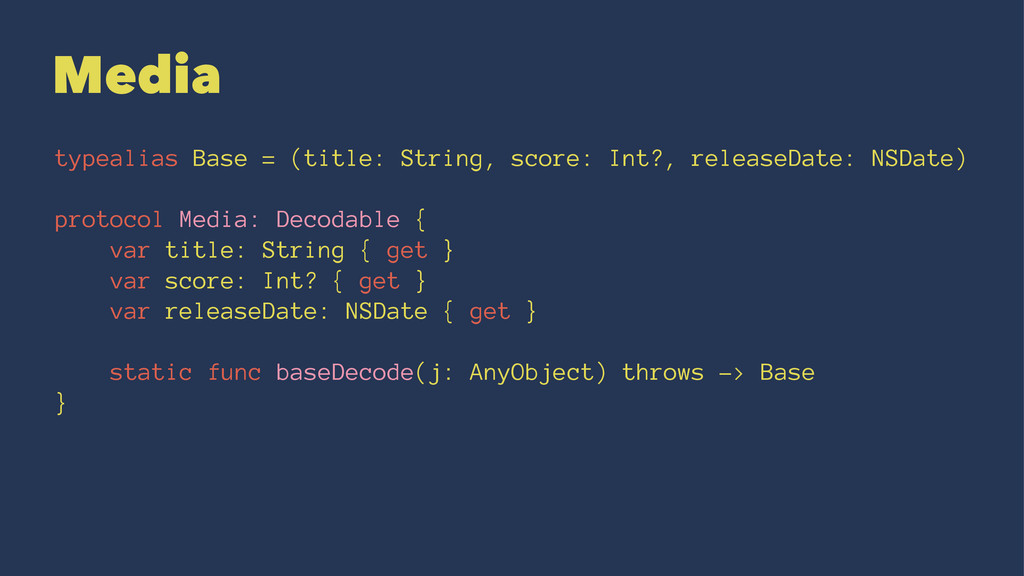

33. Media typealias Base = (title: String, score: Int?, releaseDate: NSDate) protocol Media: Decodable { var title: String { get } var score: Int? { get } var releaseDate: NSDate { get } static func baseDecode(j: AnyObject) throws -> Base }

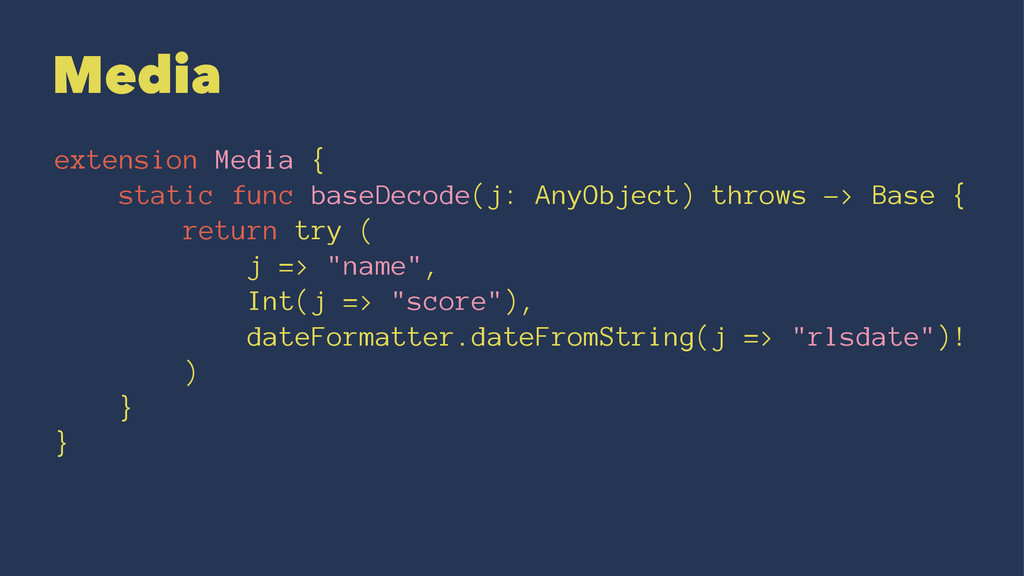

34. Media extension Media { static func baseDecode(j: AnyObject) throws -> Base { return try ( j => "name", Int(j => "score"), dateFormatter.dateFromString(j => "rlsdate")! ) } }

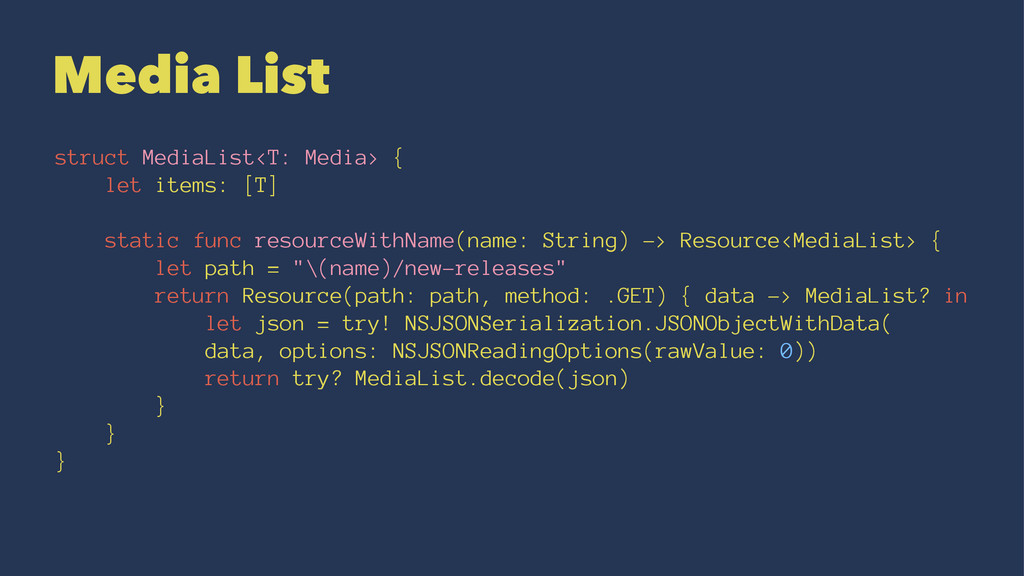

35. Media List struct MediaList<T: Media> { let items: [T] static func resourceWithName(name: String) -> Resource<MediaList> { let path = "\(name)/new-releases" return Resource(path: path, method: .GET) { data -> MediaList? in let json = try! NSJSONSerialization.JSONObjectWithData( data, options: NSJSONReadingOptions(rawValue: 0)) return try? MediaList.decode(json) } } }

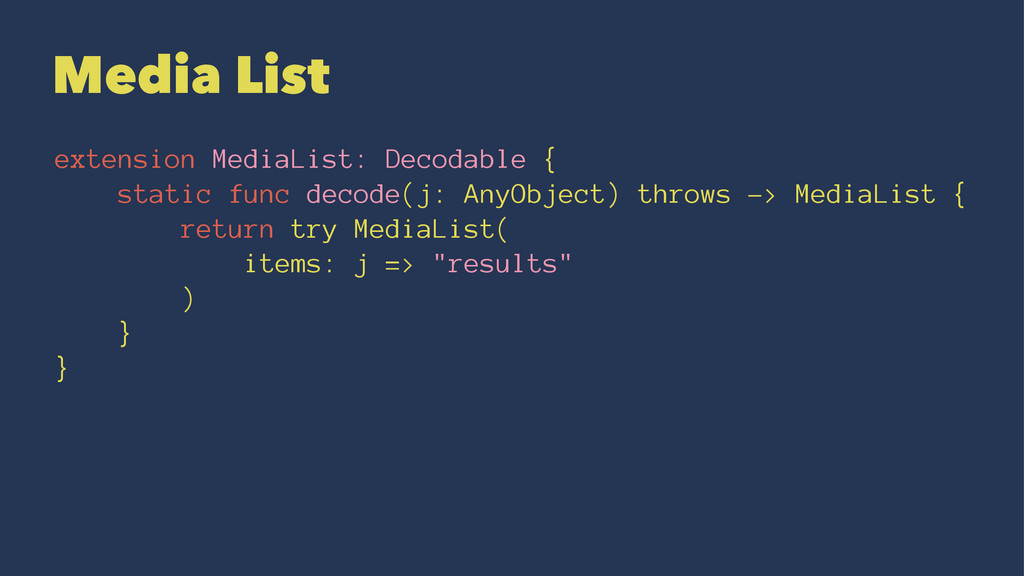

36. Media List extension MediaList: Decodable { static func decode(j: AnyObject) throws -> MediaList { return try MediaList( items: j => "results" ) } }

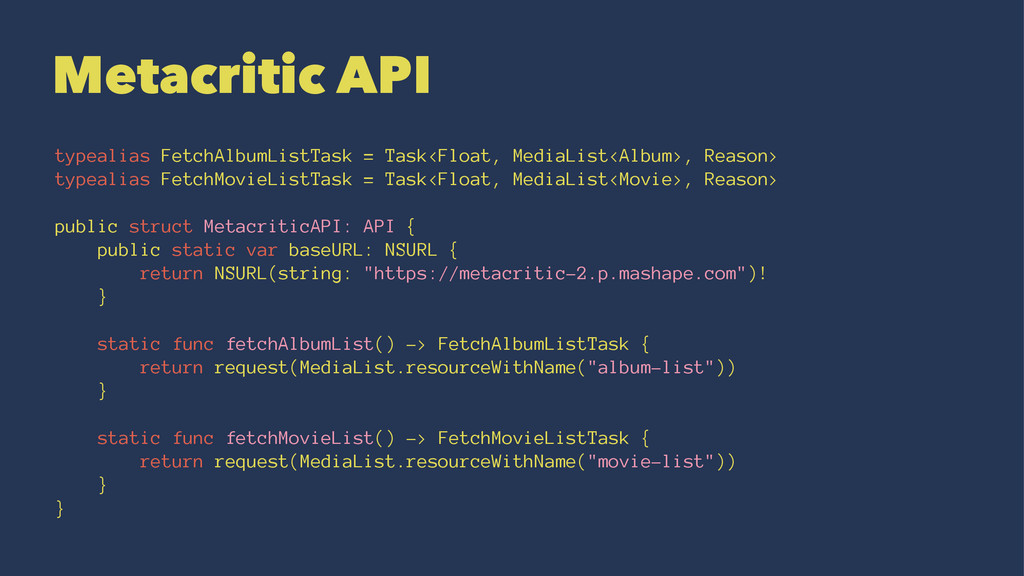

37. Metacritic API typealias FetchAlbumListTask = Task<Float, MediaList<Album>, Reason> typealias FetchMovieListTask = Task<Float, MediaList<Movie>, Reason> public struct MetacriticAPI: API { public static var baseURL: NSURL { return NSURL(string: "https://metacritic-2.p.mashape.com")! } static func fetchAlbumList() -> FetchAlbumListTask { return request(MediaList.resourceWithName("album-list")) } static func fetchMovieList() -> FetchMovieListTask { return request(MediaList.resourceWithName("movie-list")) } }

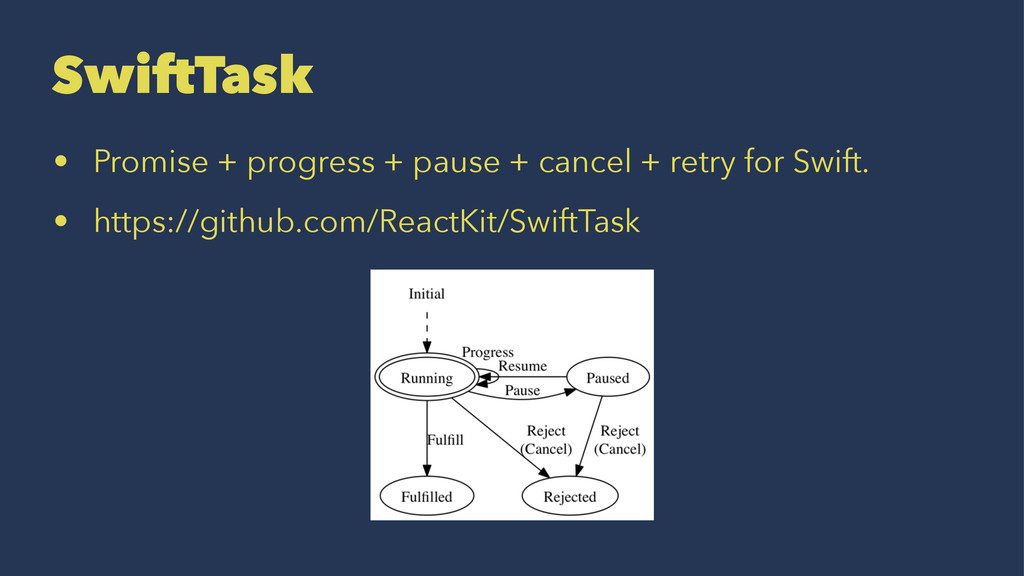

38. SwiftTask • Promise + progress + pause + cancel + retry for Swift. • https://github.com/ReactKit/SwiftTask

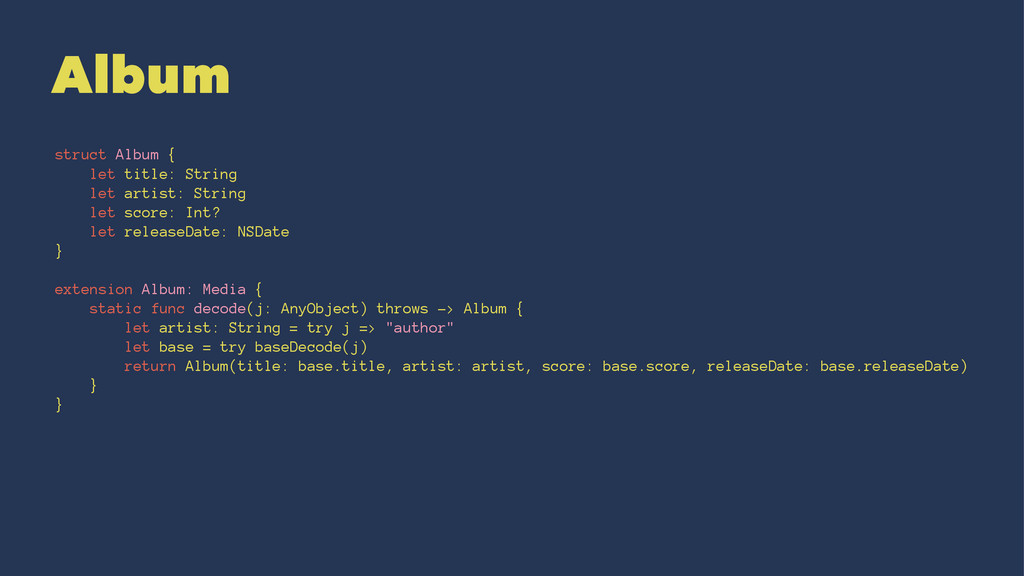

39. Album struct Album { let title: String let artist: String let score: Int? let releaseDate: NSDate } extension Album: Media { static func decode(j: AnyObject) throws -> Album { let artist: String = try j => "author" let base = try baseDecode(j) return Album(title: base.title, artist: artist, score: base.score, releaseDate: base.releaseDate) } }

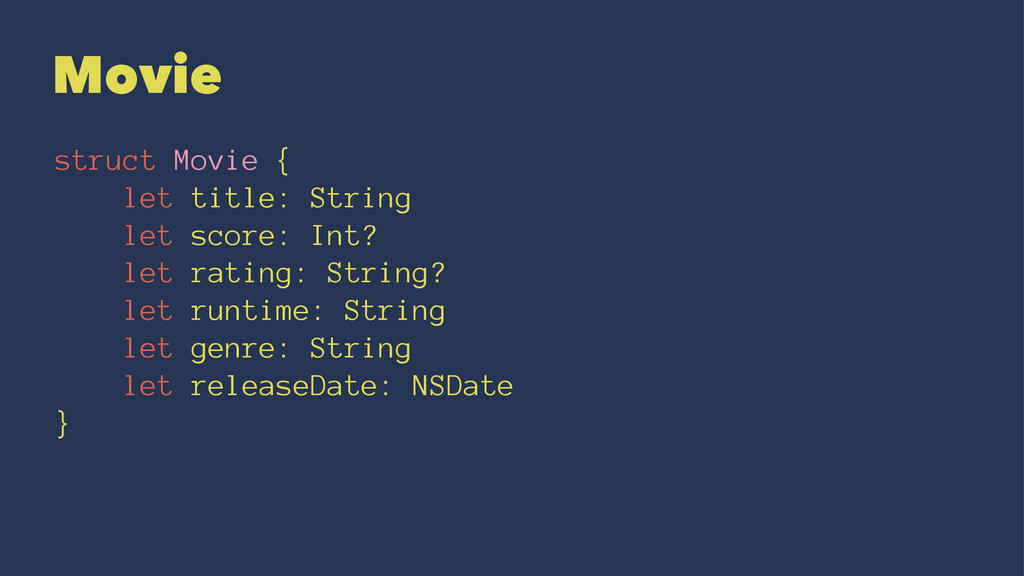

40. Movie struct Movie { let title: String let score: Int? let rating: String? let runtime: String let genre: String let releaseDate: NSDate }

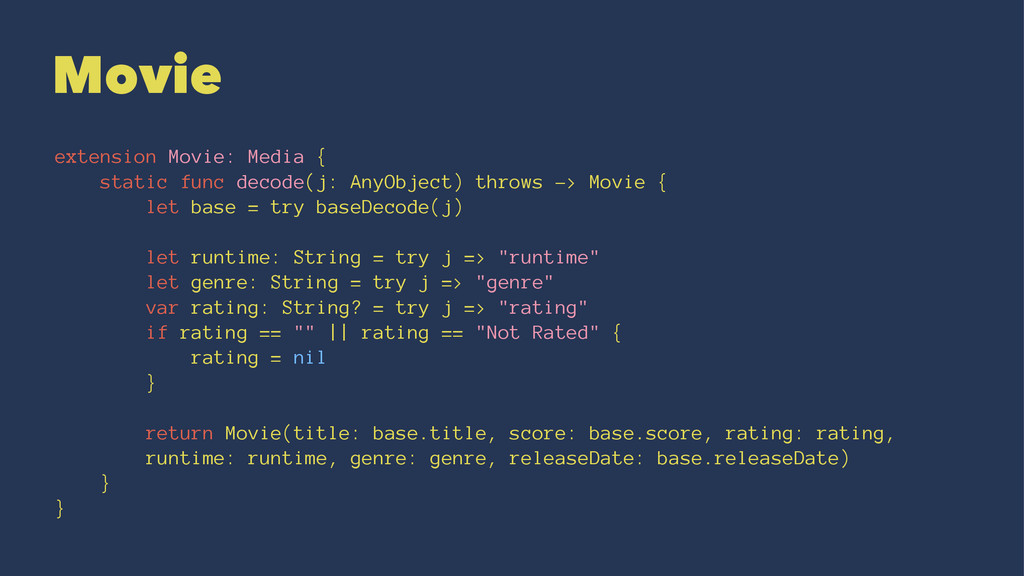

41. Movie extension Movie: Media { static func decode(j: AnyObject) throws -> Movie { let base = try baseDecode(j) let runtime: String = try j => "runtime" let genre: String = try j => "genre" var rating: String? = try j => "rating" if rating == "" || rating == "Not Rated" { rating = nil } return Movie(title: base.title, score: base.score, rating: rating, runtime: runtime, genre: genre, releaseDate: base.releaseDate) } }

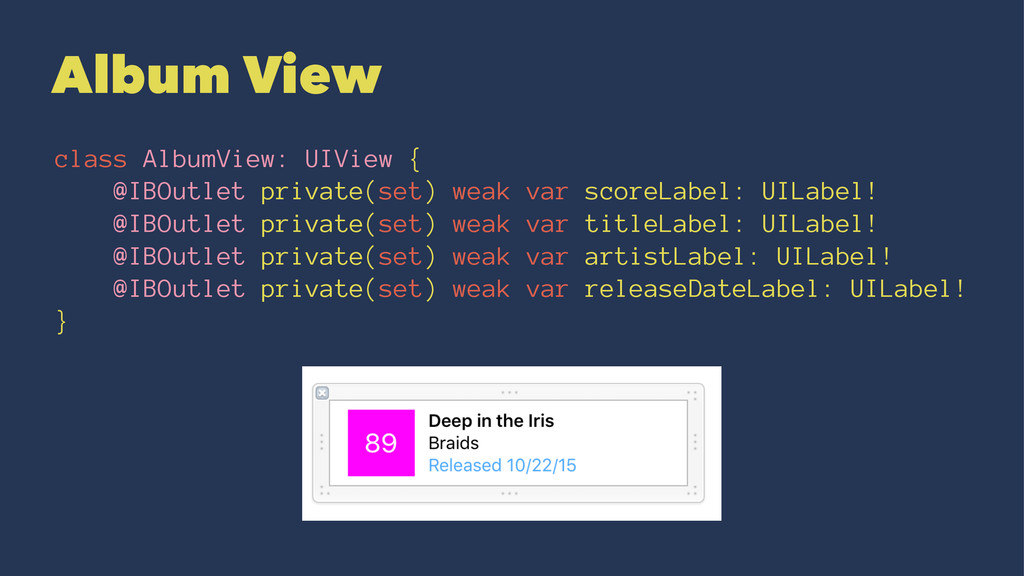

42. Album View class AlbumView: UIView { @IBOutlet private(set) weak var scoreLabel: UILabel! @IBOutlet private(set) weak var titleLabel: UILabel! @IBOutlet private(set) weak var artistLabel: UILabel! @IBOutlet private(set) weak var releaseDateLabel: UILabel! }

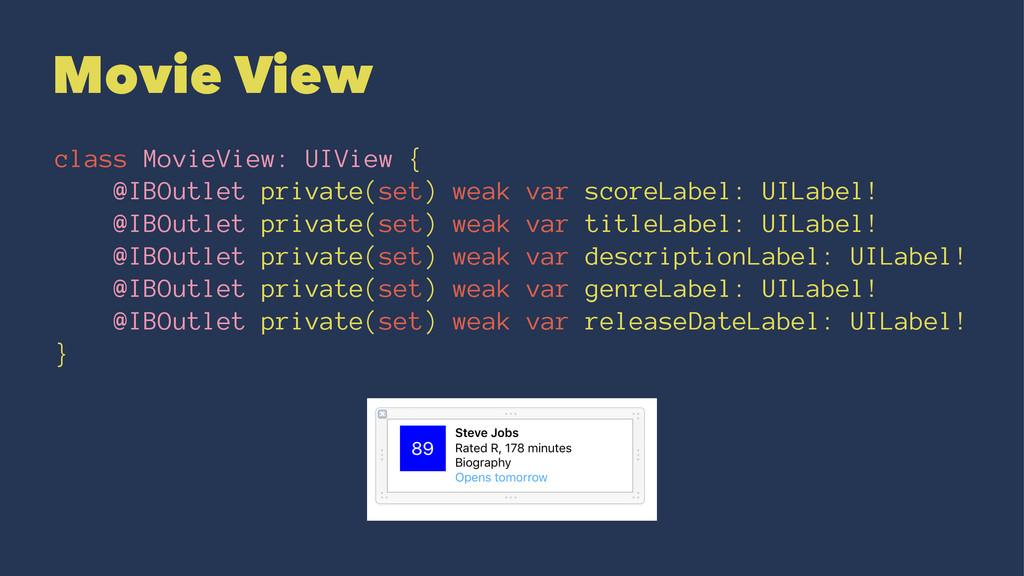

43. Movie View class MovieView: UIView { @IBOutlet private(set) weak var scoreLabel: UILabel! @IBOutlet private(set) weak var titleLabel: UILabel! @IBOutlet private(set) weak var descriptionLabel: UILabel! @IBOutlet private(set) weak var genreLabel: UILabel! @IBOutlet private(set) weak var releaseDateLabel: UILabel! }

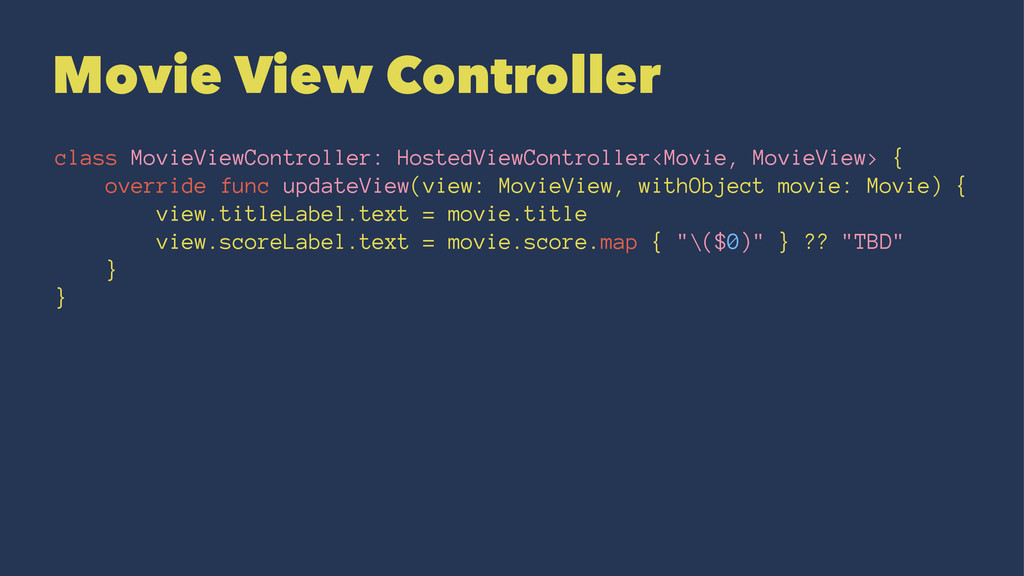

44. Movie View Controller class MovieViewController: HostedViewController<Movie, MovieView> { override func updateView(view: MovieView, withObject movie: Movie) { view.titleLabel.text = movie.title view.scoreLabel.text = movie.score.map { "\($0)" } ?? "TBD" } }

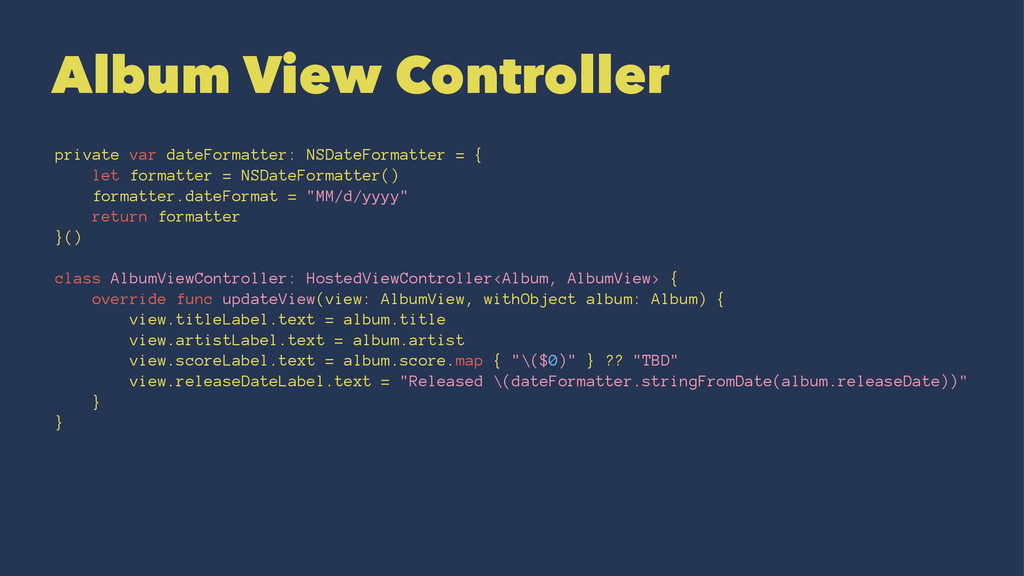

45. Album View Controller private var dateFormatter: NSDateFormatter = { let formatter = NSDateFormatter() formatter.dateFormat = "MM/d/yyyy" return formatter }() class AlbumViewController: HostedViewController<Album, AlbumView> { override func updateView(view: AlbumView, withObject album: Album) { view.titleLabel.text = album.title view.artistLabel.text = album.artist view.scoreLabel.text = album.score.map { "\($0)" } ?? "TBD" view.releaseDateLabel.text = "Released \(dateFormatter.stringFromDate(album.releaseDate))" } }

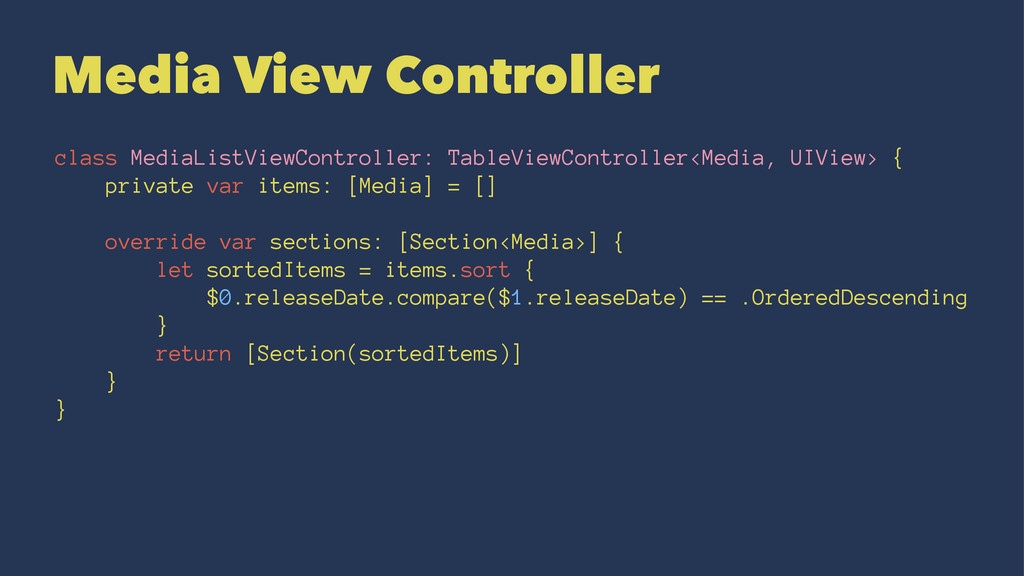

46. Media View Controller class MediaListViewController: TableViewController<Media, UIView> { private var items: [Media] = [] override var sections: [Section<Media>] { let sortedItems = items.sort { $0.releaseDate.compare($1.releaseDate) == .OrderedDescending } return [Section(sortedItems)] } }

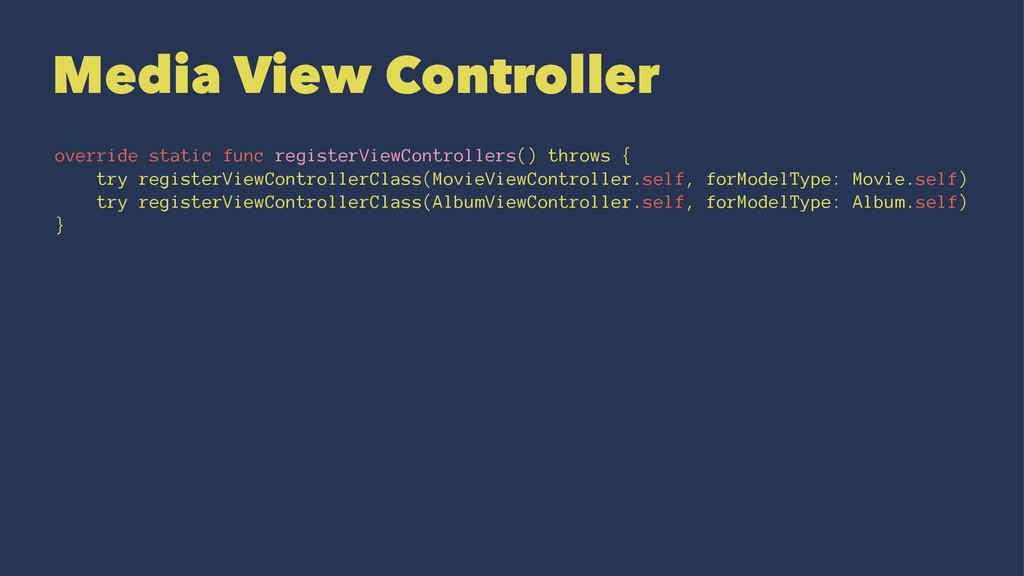

47. Media View Controller override static func registerViewControllers() throws { try registerViewControllerClass(MovieViewController.self, forModelType: Movie.self) try registerViewControllerClass(AlbumViewController.self, forModelType: Album.self) }

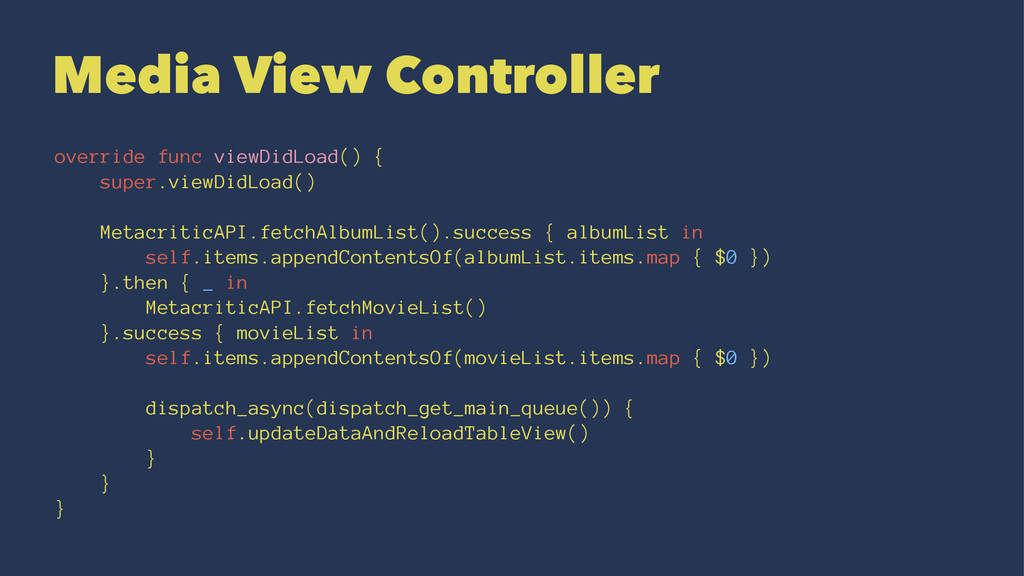

48. Media View Controller override func viewDidLoad() { super.viewDidLoad() MetacriticAPI.fetchAlbumList().success { albumList in self.items.appendContentsOf(albumList.items.map { $0 }) }.then { _ in MetacriticAPI.fetchMovieList() }.success { movieList in self.items.appendContentsOf(movieList.items.map { $0 }) dispatch_async(dispatch_get_main_queue()) { self.updateDataAndReloadTableView() } } }

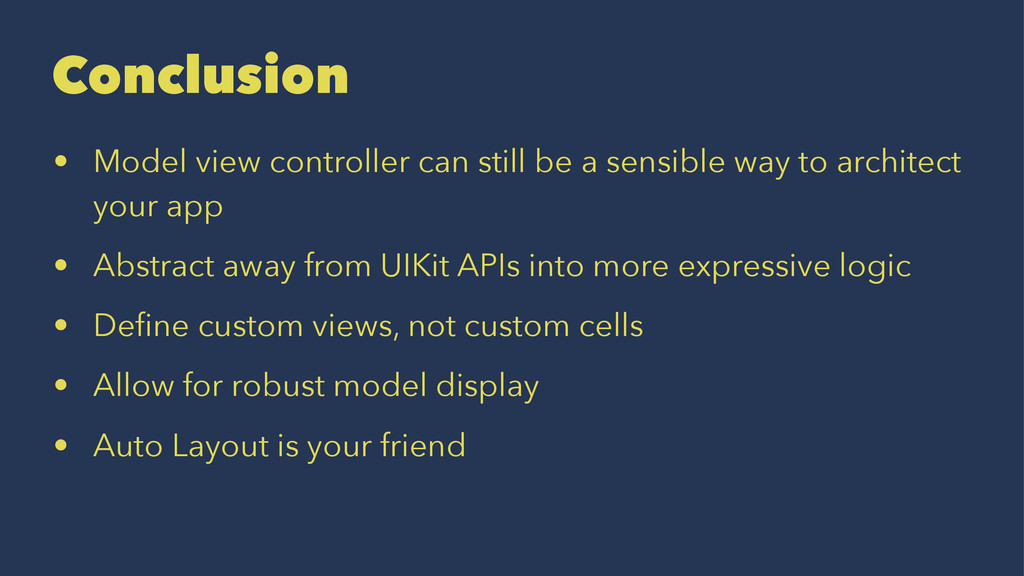

49. Conclusion • Model view controller can still be a sensible way to architect your app • Abstract away from UIKit APIs into more expressive logic • Define custom views, not custom cells • Allow for robust model display • Auto Layout is your friend
50. Thanks!
