Certified Mergeable Replicated Data Types

Replicated data types (RDTs) are data structures that permit concurrent modification of multiple potentially geo-distributed replicas without coordination between them. RDTs are designed in such a way that conflicting operations are eventually deterministically reconciled ensuring convergence. Constructing correct RDTs remains a difficult endeavour due to the complexity of reasoning about independently evolving states of the replicas. With the focus on the correctness of RDTs (and rightly so), existing approaches to RDTs are less efficient compared to their sequential counterparts in terms of time and space complexity. This is unfortunate since RDTs are often used in an local-first setting where the local operations far outweigh remote communication.

In this paper, we present Peepul, a pragmatic approach to building and verifying efficient RDTs. To make reasoning about correctness easier, we cast RDTs in the mould of distributed version control system, and equip it with a threeway merge function for reconciling conflicting versions. Further, we go beyond just verifying convergence, and provide a methodology to verify arbitrarily complex specifications. We develop a replication-aware simulation relation based technique to relate RDT specifications to their efficient purely functional implementations. We have developed Peepul as an F* library that discharges proof obligations to an SMT solver. The verified efficient RDTs are extracted as OCaml code and used in Irmin, a Git-like distributed database.

Transcript

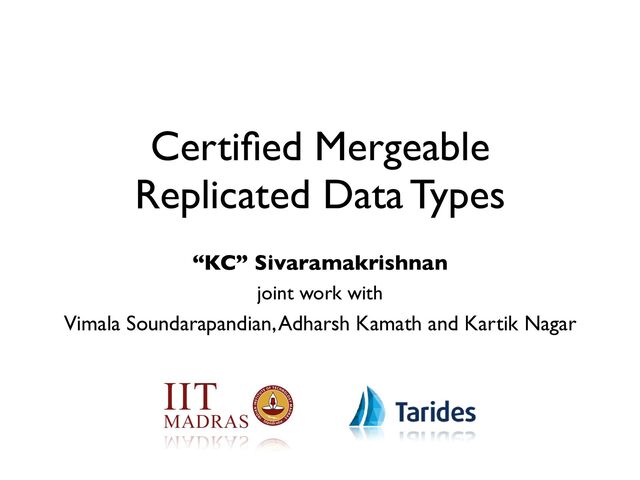

1. Certi
   fi
   ed Mergeable
   Replicated Data Types
   “KC” Sivaramakrishnan
   joint work with
   Vimala Soundarapandian, Adharsh Kamath and Kartik Nagar


   View Slide

2. View Slide

3. INTERNET


   View Slide

4. INTERNET


   View Slide

5. INTERNET
   ≠


   View Slide

6. INTERNET
   ≠
   • Serializability
   • Linearizability
   • Weak Consistency & Isolation


   View Slide

7. Even simple data structures attract enormous
   complexity when made distributed


   View Slide

8. 4
   module Counter : sig


   type t


   val read : t -> int


   val add : t -> int -> t


   val sub : t -> int -> t


   end = struct


   type t = int


   let read x = x


   let add x d = x + d


   let sub x d = x - d


   end
   Sequential Counter


   View Slide

9. • Written in idiomatic style
   • Composable
   4
   module Counter : sig


   type t


   val read : t -> int


   val add : t -> int -> t


   val sub : t -> int -> t


   end = struct


   type t = int


   let read x = x


   let add x d = x + d


   let sub x d = x - d


   end
   type counter_list = Counter.t list
   Sequential Counter


   View Slide

10. INTERNET
    0
    0
    0
    0
    Replicated Counter


    View Slide

11. INTERNET
    0
    0
    0
    0
    Replicated Counter


    View Slide

12. INTERNET
    0
    0
    0
    0
    Replicated Counter


    View Slide

13. INTERNET
    0
    0
    0
    0
    Replicated Counter


    View Slide

14. INTERNET
    0
    0
    0
    0
    Replicated Counter


    View Slide

15. INTERNET
    0
    0
    0
    Replicated Counter
    +2
    2


    View Slide

16. INTERNET
    0
    0
    0
    Replicated Counter
    +2
    2


    View Slide

17. INTERNET
    0
    0
    Replicated Counter
    +2
    2
    +3
    3


    View Slide

18. INTERNET
    0
    0
    Replicated Counter
    +2
    2
    +3
    3
    • Idea: Apply the local operations at all replicas


    View Slide

19. INTERNET
    Replicated Counter
    +2 +3
    5
    5
    5
    5
    • Idea: Apply the local operations at all replicas


    View Slide

20. 7
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end


    View Slide

21. 7
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7


    View Slide

22. 7
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7
    8
    +1


    View Slide

23. 7
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7
    8 21
    +1 *3


    View Slide

24. 7
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7
    8 21
    +1 *3
    24
    *3


    View Slide

25. 7
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7
    8 21
    +1 *3
    24 22
    *3 +1


    View Slide

26. 7
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7
    8 21
    +1 *3
    24 22
    *3 +1
    Diverges


    View Slide

27. 7
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7
    8 21
    +1 *3
    24 22
    *3 +1
    Diverges
    Addition and multiplication do not commute


    View Slide

28. 8
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end


    View Slide

29. 8
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    • Idea: Capture the effect of multiplication through the
    commutative addition operation


    View Slide

30. 8
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7
    • Idea: Capture the effect of multiplication through the
    commutative addition operation


    View Slide

31. 8
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7
    8
    +1
    • Idea: Capture the effect of multiplication through the
    commutative addition operation


    View Slide

32. 8
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7
    8 21
    +1 *3
    • Idea: Capture the effect of multiplication through the
    commutative addition operation


    View Slide

33. 8
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7
    8 21
    +1 *3
    22
    +14
    • Idea: Capture the effect of multiplication through the
    commutative addition operation


    View Slide

34. 8
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7
    8 21
    +1 *3
    22 22
    +14 +1
    • Idea: Capture the effect of multiplication through the
    commutative addition operation


    View Slide

35. 8
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7
    8 21
    +1 *3
    22 22
    +14 +1
    Converges
    • Idea: Capture the effect of multiplication through the
    commutative addition operation


    View Slide

36. 8
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    end
    7
    8 21
    +1 *3
    22 22
    +14 +1
    Converges
    • Idea: Capture the effect of multiplication through the
    commutative addition operation
    • CRDTs


    View Slide

37. Convergent Replicated Data Types
    (CRDT)
    9


    View Slide

38. Convergent Replicated Data Types
    (CRDT)
    • CRDT is guaranteed to ensure strong eventual consistency (SEC)
    ★ G-counters, PN-counters, OR-Sets, Graphs, Ropes, docs, sheets
    ★ Simple interface for the clients of CRDTs
    9


    View Slide

39. Convergent Replicated Data Types
    (CRDT)
    • CRDT is guaranteed to ensure strong eventual consistency (SEC)
    ★ G-counters, PN-counters, OR-Sets, Graphs, Ropes, docs, sheets
    ★ Simple interface for the clients of CRDTs
    • Need to reengineer every datatype to ensure SEC
    (commutativity)
    ★ Do not mirror sequential counter parts => implementation & proof
    burden
    ★ Do not compose!
    ✦ counter set is not a composition of counter and set CRDTs
    9


    View Slide

40. Can we program & reason about replicated data types
    as an extension of their sequential counterparts?


    View Slide

41. Can we program & reason about replicated data types
    as an extension of their sequential counterparts?
    MRDT


    View Slide

42. 11
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    val merge : lca:t -> v1:t -> v2:t -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    let merge ~lca ~v1 ~v2 =


    lca + (v1 - lca) + (v2 - lca)


    end


    View Slide

43. 11
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    val merge : lca:t -> v1:t -> v2:t -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    let merge ~lca ~v1 ~v2 =


    lca + (v1 - lca) + (v2 - lca)


    end
    7


    View Slide

44. 11
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    val merge : lca:t -> v1:t -> v2:t -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    let merge ~lca ~v1 ~v2 =


    lca + (v1 - lca) + (v2 - lca)


    end
    7
    8
    +1


    View Slide

45. 11
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    val merge : lca:t -> v1:t -> v2:t -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    let merge ~lca ~v1 ~v2 =


    lca + (v1 - lca) + (v2 - lca)


    end
    7
    8 21
    +1 *3


    View Slide

46. 11
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    val merge : lca:t -> v1:t -> v2:t -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    let merge ~lca ~v1 ~v2 =


    lca + (v1 - lca) + (v2 - lca)


    end
    7
    8 21
    +1 *3
    22


    View Slide

47. 11
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    val merge : lca:t -> v1:t -> v2:t -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    let merge ~lca ~v1 ~v2 =


    lca + (v1 - lca) + (v2 - lca)


    end
    7
    8 21
    +1 *3
    22 22


    View Slide

48. 11
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    val merge : lca:t -> v1:t -> v2:t -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    let merge ~lca ~v1 ~v2 =


    lca + (v1 - lca) + (v2 - lca)


    end
    7
    8 21
    +1 *3
    22 22
    22 = 7 + (8-1) + (21 -7)


    View Slide

49. 11
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    val merge : lca:t -> v1:t -> v2:t -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    let merge ~lca ~v1 ~v2 =


    lca + (v1 - lca) + (v2 - lca)


    end
    7
    8 21
    +1 *3
    22 22
    22 = 7 + (8-1) + (21 -7)
    • 3-way merge function makes the counter suitable for distribution


    View Slide

50. 11
    module Counter : sig


    type t


    val read : t -> int


    val add : t -> int -> t


    val sub : t -> int -> t


    val mult : t -> int -> t


    val merge : lca:t -> v1:t -> v2:t -> t


    end = struct


    type t = int


    let read x = x


    let add x d = x + d


    let sub x d = x - d


    let mult x n = x * n


    let merge ~lca ~v1 ~v2 =


    lca + (v1 - lca) + (v2 - lca)


    end
    7
    8 21
    +1 *3
    22 22
    22 = 7 + (8-1) + (21 -7)
    • 3-way merge function makes the counter suitable for distribution
    • Does not appeal to individual operations => independently
    extend data-type


    View Slide

51. 12
    Systems ➞ PL


    View Slide

52. 12
    Systems ➞ PL
    • CRDTs need to take care of
    systems level concerns such as
    message loss, duplication and
    reordering


    View Slide

53. 12
    Systems ➞ PL
    • CRDTs need to take care of
    systems level concerns such as
    message loss, duplication and
    reordering
    • 3-way merge is oblivious to these
    ✦ By leaving those concerns to MRDT
    middleware


    View Slide

54. 12
    7
    8 21
    +1 *3
    22 22
    Systems ➞ PL
    • CRDTs need to take care of
    systems level concerns such as
    message loss, duplication and
    reordering
    • 3-way merge is oblivious to these
    ✦ By leaving those concerns to MRDT
    middleware


    View Slide

55. ??
    12
    7
    8 21
    +1 *3
    22 22
    Systems ➞ PL
    • CRDTs need to take care of
    systems level concerns such as
    message loss, duplication and
    reordering
    • 3-way merge is oblivious to these
    ✦ By leaving those concerns to MRDT
    middleware


    View Slide

56. ??
    12
    7
    8 21
    +1 *3
    22 22
    22
    22 = 21 + (21-21) + (22 -21)
    Systems ➞ PL
    • CRDTs need to take care of
    systems level concerns such as
    message loss, duplication and
    reordering
    • 3-way merge is oblivious to these
    ✦ By leaving those concerns to MRDT
    middleware


    View Slide

57. Does the 3-way merge idea generalise?


    View Slide

58. Does the 3-way merge idea generalise?
    Sort of


    View Slide

59. 14
    Observed-Removed Set


    View Slide

60. 14
    • OR-set — add-wins when there is a concurrent add and remove
    of the same element
    Observed-Removed Set


    View Slide

61. 14
    • OR-set — add-wins when there is a concurrent add and remove
    of the same element
    Observed-Removed Set
    let merge ~lca ~v1 ~v2 =


    (lca ∩ v1 ∩ v2) (* unmodified elements *)


    ∪ (v1 - lca) (* added in v1 *)


    ∪ (v2 - lca) (* added in v2 *)
    Kaki et al. “Mergeable Replicated Data Types”,
    OOPSLA 2019


    View Slide

62. 14
    {1}
    • OR-set — add-wins when there is a concurrent add and remove
    of the same element
    Observed-Removed Set
    let merge ~lca ~v1 ~v2 =


    (lca ∩ v1 ∩ v2) (* unmodified elements *)


    ∪ (v1 - lca) (* added in v1 *)


    ∪ (v2 - lca) (* added in v2 *)
    Kaki et al. “Mergeable Replicated Data Types”,
    OOPSLA 2019


    View Slide

63. 14
    {1}
    {1}
    add(1)
    • OR-set — add-wins when there is a concurrent add and remove
    of the same element
    Observed-Removed Set
    let merge ~lca ~v1 ~v2 =


    (lca ∩ v1 ∩ v2) (* unmodified elements *)


    ∪ (v1 - lca) (* added in v1 *)


    ∪ (v2 - lca) (* added in v2 *)
    Kaki et al. “Mergeable Replicated Data Types”,
    OOPSLA 2019


    View Slide

64. 14
    {1}
    {1} { }
    add(1) rem(1)
    • OR-set — add-wins when there is a concurrent add and remove
    of the same element
    Observed-Removed Set
    let merge ~lca ~v1 ~v2 =


    (lca ∩ v1 ∩ v2) (* unmodified elements *)


    ∪ (v1 - lca) (* added in v1 *)


    ∪ (v2 - lca) (* added in v2 *)
    Kaki et al. “Mergeable Replicated Data Types”,
    OOPSLA 2019


    View Slide

65. 14
    {1}
    {1} { }
    { } { }
    add(1) rem(1)
    • OR-set — add-wins when there is a concurrent add and remove
    of the same element
    Observed-Removed Set
    let merge ~lca ~v1 ~v2 =


    (lca ∩ v1 ∩ v2) (* unmodified elements *)


    ∪ (v1 - lca) (* added in v1 *)


    ∪ (v2 - lca) (* added in v2 *)
    { } ∪ ({1} - {1}) ∪ ({ } - {1})

    = { } ∪ { } ∪ { }

    = { } (expected {1})
    Kaki et al. “Mergeable Replicated Data Types”,
    OOPSLA 2019


    View Slide

66. 14
    {1}
    {1} { }
    { } { }
    add(1) rem(1)
    • Convergence is not suf
    fi
    cient; Intent is not preserved
    • OR-set — add-wins when there is a concurrent add and remove
    of the same element
    Observed-Removed Set
    let merge ~lca ~v1 ~v2 =


    (lca ∩ v1 ∩ v2) (* unmodified elements *)


    ∪ (v1 - lca) (* added in v1 *)


    ∪ (v2 - lca) (* added in v2 *)
    { } ∪ ({1} - {1}) ∪ ({ } - {1})

    = { } ∪ { } ∪ { }

    = { } (expected {1})
    Kaki et al. “Mergeable Replicated Data Types”,
    OOPSLA 2019


    View Slide

67. Concretising Intent
    • Intent is a woolly term
    ★ How can we formalise the intent of operations on a data
    structure?
    15
    l
    v1 v2
    v


    View Slide

68. Concretising Intent
    • Intent is a woolly term
    ★ How can we formalise the intent of operations on a data
    structure?
    • We need
    ★ A formal language to specify the intent of an RDT
    ★ Mechanization to bridge the air gap between speci
    fi
    cation
    and implementation due to distributed system complexity
    15
    l
    v1 v2
    v


    View Slide

69. Peepul — Certi
    fi
    ed MRDTs
    16


    View Slide

70. Peepul — Certi
    fi
    ed MRDTs
    • An F* library implementing and proving MRDTs
    ★ https://github.com/prismlab/peepul
    16


    View Slide

71. Peepul — Certi
    fi
    ed MRDTs
    • An F* library implementing and proving MRDTs
    ★ https://github.com/prismlab/peepul
    • Speci
    fi
    cation language is event-based
    ★ Burckhardt et al. “Replicated Data Types: Speci
    fi
    cation, Veri
    fi
    cation and Optimality”,
    POPL 2014
    16


    View Slide

72. Peepul — Certi
    fi
    ed MRDTs
    • An F* library implementing and proving MRDTs
    ★ https://github.com/prismlab/peepul
    • Speci
    fi
    cation language is event-based
    ★ Burckhardt et al. “Replicated Data Types: Speci
    fi
    cation, Veri
    fi
    cation and Optimality”,
    POPL 2014
    • Replication-aware simulation to connect speci
    fi
    cation with implementation
    16


    View Slide

73. Peepul — Certi
    fi
    ed MRDTs
    • An F* library implementing and proving MRDTs
    ★ https://github.com/prismlab/peepul
    • Speci
    fi
    cation language is event-based
    ★ Burckhardt et al. “Replicated Data Types: Speci
    fi
    cation, Veri
    fi
    cation and Optimality”,
    POPL 2014
    • Replication-aware simulation to connect speci
    fi
    cation with implementation
    • Composition of MRDTs and their proofs!
    16


    View Slide

74. Peepul — Certi
    fi
    ed MRDTs
    • An F* library implementing and proving MRDTs
    ★ https://github.com/prismlab/peepul
    • Speci
    fi
    cation language is event-based
    ★ Burckhardt et al. “Replicated Data Types: Speci
    fi
    cation, Veri
    fi
    cation and Optimality”,
    POPL 2014
    • Replication-aware simulation to connect speci
    fi
    cation with implementation
    • Composition of MRDTs and their proofs!
    • Extracted RDTs are compatible with Irmin — a Git-like distributed
    database
    16


    View Slide

75. Fixing OR-Set
    • Discriminate duplicate additions by
    associating a unique id
    17


    View Slide

76. Fixing OR-Set
    • Discriminate duplicate additions by
    associating a unique id
    17
    { (a,1) }


    View Slide

77. Fixing OR-Set
    • Discriminate duplicate additions by
    associating a unique id
    17
    { (a,1) }
    { (a,1);


    (a,2) }
    add(a)


    View Slide

78. Fixing OR-Set
    • Discriminate duplicate additions by
    associating a unique id
    17
    { (a,1) }
    { (a,1);


    (a,2) }
    { }
    add(a) rem(a)


    View Slide

79. Fixing OR-Set
    • Discriminate duplicate additions by
    associating a unique id
    17
    { (a,1) }
    { (a,1);


    (a,2) }
    { }
    { (a,2) } { (a,2) }
    add(a) rem(a)
    { } ∪ ( { (a,1); (a,2) } - { (a,1) }) ∪ ( { } - { (a,1) } )

    = { } ∪ { (a,2) } ∪ { }

    = { (a,2) }


    View Slide

80. Fixing OR-Set
    • Discriminate duplicate additions by
    associating a unique id
    • MRDT implementation
    17
    { (a,1) }
    { (a,1);


    (a,2) }
    { }
    { (a,2) } { (a,2) }
    add(a) rem(a)
    { } ∪ ( { (a,1); (a,2) } - { (a,1) }) ∪ ( { } - { (a,1) } )

    = { } ∪ { (a,2) } ∪ { }

    = { (a,2) }


    View Slide

81. Fixing OR-Set
    • Discriminate duplicate additions by
    associating a unique id
    • MRDT implementation
    17
    { (a,1) }
    { (a,1);


    (a,2) }
    { }
    { (a,2) } { (a,2) }
    add(a) rem(a)
    { } ∪ ( { (a,1); (a,2) } - { (a,1) }) ∪ ( { } - { (a,1) } )

    = { } ∪ { (a,2) } ∪ { }

    = { (a,2) }


    View Slide

82. Fixing OR-Set
    • Discriminate duplicate additions by
    associating a unique id
    • MRDT implementation
    17
    { (a,1) }
    { (a,1);


    (a,2) }
    { }
    { (a,2) } { (a,2) }
    add(a) rem(a)
    { } ∪ ( { (a,1); (a,2) } - { (a,1) }) ∪ ( { } - { (a,1) } )

    = { } ∪ { (a,2) } ∪ { }

    = { (a,2) }
    Unique Lamport Timestamps


    View Slide

83. 18
    Specifying OR-Set
    Abstract state


    View Slide

84. 18
    Specifying OR-Set
    Abstract state
    add(a)
    add(a) rem(a)
    rd
    vis
    vis
    vis vis
    { (a,1) }
    { (a,1);


    (a,2) }
    { }
    { (a,2) } { (a,2) }
    add(a) rem(a)


    View Slide

85. 18
    Specifying OR-Set
    Abstract state
    add(a)
    add(a) rem(a)
    rd
    vis
    vis
    vis vis
    { (a,1) }
    { (a,1);


    (a,2) }
    { }
    { (a,2) } { (a,2) }
    add(a) rem(a)


    View Slide

86. 18
    Specifying OR-Set
    Abstract state
    = { a }
    add(a)
    add(a) rem(a)
    rd
    vis
    vis
    vis vis
    { (a,1) }
    { (a,1);


    (a,2) }
    { }
    { (a,2) } { (a,2) }
    add(a) rem(a)


    View Slide

87. Simulation Relation
    • Connects the abstract execution with the concrete state
    • For the OR-set,
    19


    View Slide

88. Verifying Operations
    1. Show that the simulation holds for operations
    20


    View Slide

89. Verifying Operations
    1. Show that the simulation holds for operations
    20
    to prove
    Operation de
    fi
    nition
    de
    fi
    ned once-and-for-all
    Simulation
    relation


    View Slide

90. Verifying Operations
    1. Show that the simulation holds for operations
    20
    to prove
    Operation de
    fi
    nition
    de
    fi
    ned once-and-for-all
    Simulation
    relation
    2. Show that the simulation holds for merge


    View Slide

91. Verifying Operations
    1. Show that the simulation holds for operations
    20
    to prove
    Operation de
    fi
    nition
    de
    fi
    ned once-and-for-all
    Simulation
    relation
    2. Show that the simulation holds for merge


    View Slide

92. Verifying Operations
    1. Show that the simulation holds for operations
    20
    to prove
    Operation de
    fi
    nition
    de
    fi
    ned once-and-for-all
    Simulation
    relation
    2. Show that the simulation holds for merge
    Merge de
    fi
    nition
    Assume
    de
    fi
    ned once-and-for-all
    To prove


    View Slide

93. Verifying Operations
    3. Show that the speci
    fi
    cation and the implementation agree on
    the return values of operations
    21


    View Slide

94. Verifying Operations
    3. Show that the speci
    fi
    cation and the implementation agree on
    the return values of operations
    21
    4. Convergence


    View Slide

95. Verifying Operations
    3. Show that the speci
    fi
    cation and the implementation agree on
    the return values of operations
    21
    4. Convergence
    ✦ Permits the different replicas to converge to states that are
    observationally equal but not structurally equal
    ✤ Example: differently balanced BSTs


    View Slide

96. Verifying Operations
    3. Show that the speci
    fi
    cation and the implementation agree on
    the return values of operations
    21
    4. Convergence
    ✦ Permits the different replicas to converge to states that are
    observationally equal but not structurally equal
    ✤ Example: differently balanced BSTs


    View Slide

97. Space-ef
    fi
    cient OR-Set
    • Recall that the OR-set has duplicates
    • How can we remove them?
    22
    { (a,1) }
    { (a,1);


    (a,2) }
    { }
    { (a,2) } { (a,2) }
    add(a) rem(a)


    View Slide

98. Space-ef
    fi
    cient OR-Set
    • Recall that the OR-set has duplicates
    • How can we remove them?
    • Idea
    ★ On addition, replace existing element’s timestamp with the new timestamp
    ★ On merge, pick the larger timestamp
    22
    { (a,1) }
    { (a,1);


    (a,2) }
    { }
    { (a,2) } { (a,2) }
    add(a) rem(a)


    View Slide

99. Space-ef
    fi
    cient OR-Set
    • Recall that the OR-set has duplicates
    • How can we remove them?
    • Idea
    ★ On addition, replace existing element’s timestamp with the new timestamp
    ★ On merge, pick the larger timestamp
    22
    { (a,1) }
    { (a,1);


    (a,2) }
    { }
    { (a,2) } { (a,2) }
    add(a) rem(a)
    Correctness
    argument is tricky


    View Slide

100. Space-ef
     fi
     cient OR-Set
     23
     { (a,1) }
     { (a,1);


     (a,2) }
     { }
     { (a,2) } { (a,2) }
     add(a) rem(a)
     { (a,1) }
     { (a,2) } { }
     { (a,2) } { (a,2) }
     add(a) rem(a)


     View Slide

101. Space-ef
     fi
     cient OR-Set
     23
     { (a,1) }
     { (a,1);


     (a,2) }
     { }
     { (a,2) } { (a,2) }
     add(a) rem(a)
     { (a,1) }
     { (a,2) } { }
     { (a,2) } { (a,2) }
     add(a) rem(a)


     View Slide

102. Space-ef
     fi
     cient OR-Set
     23
     { (a,1) }
     { (a,1);


     (a,2) }
     { }
     { (a,2) } { (a,2) }
     add(a) rem(a)
     { (a,1) }
     { (a,2) } { }
     { (a,2) } { (a,2) }
     add(a) rem(a)
     Simulation relation is more
     intricate as one would
     expect


     View Slide

103. Veri
     fi
     cation effort
     24


     View Slide

104. 25
     Composing CRDTs is HARD!


     View Slide

105. Composing IRC-style chat
     • Build IRC-style group chat
     ★ Send and read messages in channels
     ★ For simplicity, channels and messages cannot be deleted
     • Represent application state as a grow-only map with string
     (channel name) keys and mergeable-log as values
     • Goal:
     ★ map and log proved correct separately
     ★ Use the proof of underlying RDTs to prove chat application
     correctness
     26


     View Slide

106. Generic Map MRDT
     • Speci
     fi
     cation
     27


     View Slide

107. Generic Map MRDT
     • Speci
     fi
     cation
     27
     where


     View Slide

108. Generic Map MRDT
     • Speci
     fi
     cation
     • Project
     fi
     lters the abstract state of the map on the key k and
     returns an abstract state of the underlying data type
     ★ Provided by the user once for a generic MRDT
     27
     where


     View Slide

109. Generic Map MRDT
     • Speci
     fi
     cation
     • Project
     fi
     lters the abstract state of the map on the key k and
     returns an abstract state of the underlying data type
     ★ Provided by the user once for a generic MRDT
     27
     where
     set (“general”, append (“hello”))
     set (“compiler”, append (“error”))
     set (“general”, append (“world”))
     vis
     vis
     get (“general”, rd)
     [“world”; “hello”]


     View Slide

110. 28
     Generic Map MRDT
     Implementation
     Simulation Relation


     View Slide

111. 28
     Generic Map MRDT
     Implementation
     Simulation Relation
     Get applies given operation on the
     value at key k and returns the value


     View Slide

112. 28
     Generic Map MRDT
     Implementation
     Simulation Relation
     Get applies given operation on the
     value at key k and returns the value
     Set is Get + update the map
     with the new state


     View Slide

113. 28
     Generic Map MRDT
     Implementation
     Simulation Relation
     Get applies given operation on the
     value at key k and returns the value
     Set is Get + update the map
     with the new state
     Merge uses the merge of the
     underlying value type!


     View Slide

114. 28
     Generic Map MRDT
     Implementation
     Simulation Relation
     Get applies given operation on the
     value at key k and returns the value
     Set is Get + update the map
     with the new state
     Merge uses the merge of the
     underlying value type!
     Simulation relation appeals to the
     value type’s simulation relation!


     View Slide

115. • Program state is constructed by instantiating generic map with
     mergeable log
     ★ The proof of correctness of the chat application directly follows from the
     composition!
     29
     Composing IRC-style chat


     View Slide

116. Mergeable Queues
     • Replicated queue with at-least-once dequeue semantics
     ★ First veri
     fi
     ed queue RDT!
     30


     View Slide

117. Mergeable Queues
     • Replicated queue with at-least-once dequeue semantics
     ★ First veri
     fi
     ed queue RDT!
     30


     View Slide

118. Mergeable Queues
     • Replicated queue with at-least-once dequeue semantics
     ★ First veri
     fi
     ed queue RDT!
     • Our aim is to have O(1) enqueue and dequeue and O(n) merge
     30


     View Slide

119. Mergeable Queues
     • Implementation
     ★ Uses two-list functional queue implementation
     ✦ amortised O(1) enqueue and dequeue operations
     ★ Merge uses longest common contiguous subsequence
     algorithm — O(n)
     31
     M


     View Slide

120. Mergeable Queues
     • Implementation
     ★ Uses two-list functional queue implementation
     ✦ amortised O(1) enqueue and dequeue operations
     ★ Merge uses longest common contiguous subsequence
     algorithm — O(n)
     • Speci
     fi
     cation
     1.Any element popped in either A or B does not
     remain in M
     2. Any element pushed into either A or B appears in M
     3. An element that remains untouched in LCA, A, B
     remains in M
     4. Order of pairs of elements in LCA, A, B must be
     preserved in M, if those elements are present in M.
     31
     M


     View Slide

121. Mergeable Queues
     • Implementation
     ★ Uses two-list functional queue implementation
     ✦ amortised O(1) enqueue and dequeue operations
     ★ Merge uses longest common contiguous subsequence
     algorithm — O(n)
     • Speci
     fi
     cation
     1.Any element popped in either A or B does not
     remain in M
     2. Any element pushed into either A or B appears in M
     3. An element that remains untouched in LCA, A, B
     remains in M
     4. Order of pairs of elements in LCA, A, B must be
     preserved in M, if those elements are present in M.
     31
     M
     Implementation far
     removed from the
     specification!


     View Slide

122. Veri
     fi
     cation effort
     32


     View Slide

123. 33
     Summary


     View Slide

124. • Programming and proving with RDTs is complicated due to
     concurrency and the lack of suitable programming abstractions
     33
     Summary


     View Slide

125. • Programming and proving with RDTs is complicated due to
     concurrency and the lack of suitable programming abstractions
     • MRDTs simplify RDTs by implementing them as extensions of
     sequential data types
     ★ Reasoning about correctness is still hard
     33
     Summary


     View Slide

126. • Programming and proving with RDTs is complicated due to
     concurrency and the lack of suitable programming abstractions
     • MRDTs simplify RDTs by implementing them as extensions of
     sequential data types
     ★ Reasoning about correctness is still hard
     • Peepul is an F* library for certi
     fi
     ed MRDTs
     ★ Replication-aware simulation for proving complex MRDTs
     ★ Complex MRDTs can be constructed and proved using simpler MRDTs
     33
     Summary


     View Slide

127. • Programming and proving with RDTs is complicated due to
     concurrency and the lack of suitable programming abstractions
     • MRDTs simplify RDTs by implementing them as extensions of
     sequential data types
     ★ Reasoning about correctness is still hard
     • Peepul is an F* library for certi
     fi
     ed MRDTs
     ★ Replication-aware simulation for proving complex MRDTs
     ★ Complex MRDTs can be constructed and proved using simpler MRDTs
     • F* allows us to strike a balance between automated and
     interactive proofs
     ★ Extract to OCaml and run on Irmin!
     33
     Summary


     View Slide

128. Backup Slides
     34


     View Slide

129. Queue Performance
     35


     View Slide
