Build SMS applications with Flask and Pindo

A simple example using Flask and Pindo API to send an SMS.

Transcript

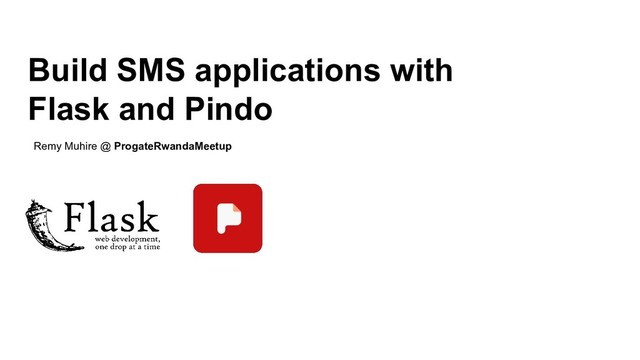

1. Build SMS applications with Flask and Pindo Remy Muhire @ ProgateRwandaMeetup
2. Who is @kenessajr?
3. That’s is him right? ❖ Community Man at Progate ❖ Software Engineer at Pindo
4. Pindo is a communication platform for humans and machines Pindo
5. Flask is a micro web framework written in Python. It is classified as a microframework because it does not require particular tools or libraries
6. Let’s build our application.
7. Let’s first have a taste of pindo-cli. We will use pindo-cli to generate an API-KEY https://github.com/pindo-io/pindo-cli
8. Objectives By the end of this session you should be able to….. • Write a simple api route for sending SMS using Flask. • Use the requests to fetch external APIs. • Build a Docker image for your application.
9. Required tools • Install the Postman Client for testing APIs https://getpostman.com/apps • Install Docker https://docs.docker.com/install/ • Install httpie https://httpie.org/#installation for those who prefer cli application instead of Postman
10. Project setup First we will create a simple project called pindo-flask You can find the full example on Github https://github.com/kenessajr/flask-pindo mkdir pindo-flask && cd pindo-flask
11. from flask import Flask, jsonify app = Flask(__name__) @app.route('/') def ping(): return jsonify( { 'status': 200, 'message': 'saccess', 'payload': 'pong' } ) if __name__ == '__main__': app.run(debug=True, host='0.0.0.0') Then create app.py where you add the following code touch app.py or manually
12. Flask==1.0.2 Let’s create a requirements.txt to keep our dependencies, and add the following lines touch requirements.txt or manually
13. FROM python:3.6-alpine as base COPY . /app WORKDIR /app RUN pip install -r requirements.txt ENTRYPOINT ["python"] CMD ["app.py"] Let’s create a Dockerfile and add the following code touch Dockerfile or manually
14. Run our app.... Starting by building our Dockerfile image Run with docker Yay! Your app is now running on port 5000! Now, if go to localhost:5000… docker build -t pindo-flask:latest . docker run -d -p 5000:5000 pindo-flask
15. Stop our running container Stop your container docker ps -a docker stop [container id]
16. Cool, Let’s add docker-compose.yml.
17. api: build: . ports: - "5000:5000" volumes: - .:/api Create the docker-compose.yml file touch docker-compose.yml or manually
18. from flask import Flask, jsonify app = Flask(__name__) # new class Config: BASE_URL = 'http://178.128.165.87' @app.route('/') def ping(): return jsonify( { 'status': 200, 'message': 'success', 'payload': 'ping' } ) if __name__ == '__main__': app.run(debug=True, host='0.0.0.0') We’re back to our app.py, add the following code to app.py
19. from flask import Flask, jsonify, request import requests from requests.auth import HTTPBasicAuth app = Flask(__name__) class Config: BASE_URL = 'http://178.128.165.87' class Send(Config): def __init__(self, token, to, text, sender='Pindo'): self.token = token self.to = to self.text = text self.sender = sender self.url = '{}/sms/'.format(Config.BASE_URL) def sms(self): payload = { 'to': self.to, 'text': self.text, 'sender': self.sender } r = requests.post( self.url, auth=HTTPBasicAuth(self.token, ''), json=payload ) return '{}'.format(r.json()) Now let’s add our Class Send method to app.py,
20. Flask==1.0.2 requests==2.20.0 We’re having a new dependency call requests, we need to update our requirements.txt
21. @app.route('/') def ping(): return jsonify( { 'status': 200, 'message': 'success', 'payload': 'ping' } ) # new from . import Send @app.route('/send', methods=['POST']) def sms(): data = request.get_json() send = Send(data['token'], data['to'], data['text'], data['sender']).sms() return jsonify(send) if __name__ == '__main__': app.run(debug=True, host='0.0.0.0') We’re already there, let’s now build our sending route api. Add the following code to app.py
22. Now, run docker-compose down && docker-compose up --build . Your application is running on ….. http://localhost:5000/. Let’s test on Postman!
23. First register and request a token through the pindo-cli. Check instruction on https://github.com/pindo-io/pindo-cli
24. Send an SMS - Postman Client
25. Send an SMS - httpie http :5000/send token=your-token to=+250785383100 \ text='Hello from PindoTust' sender=Pindo
26. Thank you! @progate_en @pindoio @kenessajr - on Twitter
