Pycon SG 2015 Lee Yang Peng

Network Security and Analysis with Python

Transcript

1. NETWORK SECURITY AND ANALYSIS WITH PYTHON Lee Yang Peng Dunman High School Singapore
9. DEEP Packet Inspection Searching if anything in the packet is suspicious

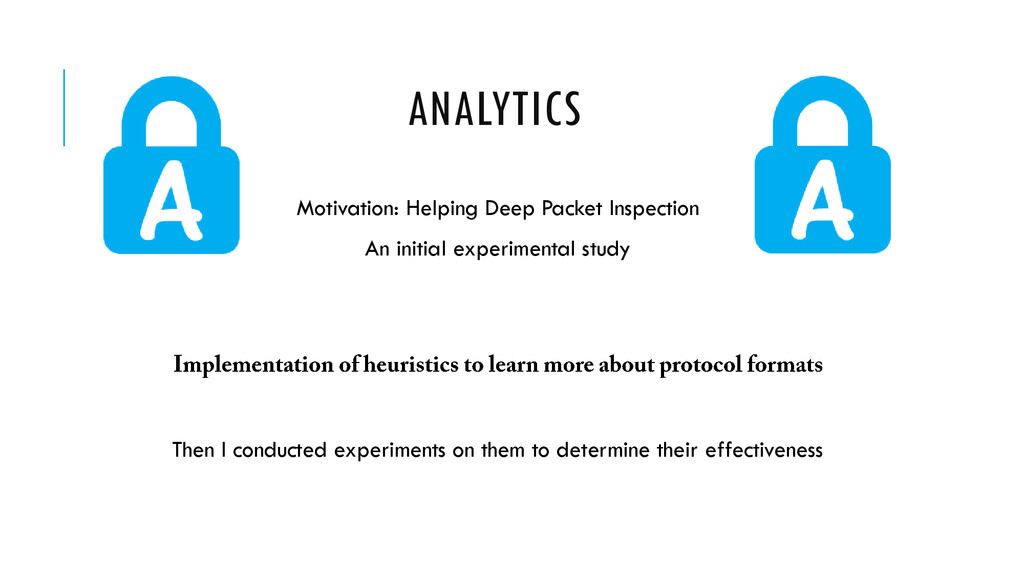

14. ANALYTICS Motivation: Helping Deep Packet Inspection An initial experimental study Then I conducted experiments on them to determine their effectiveness

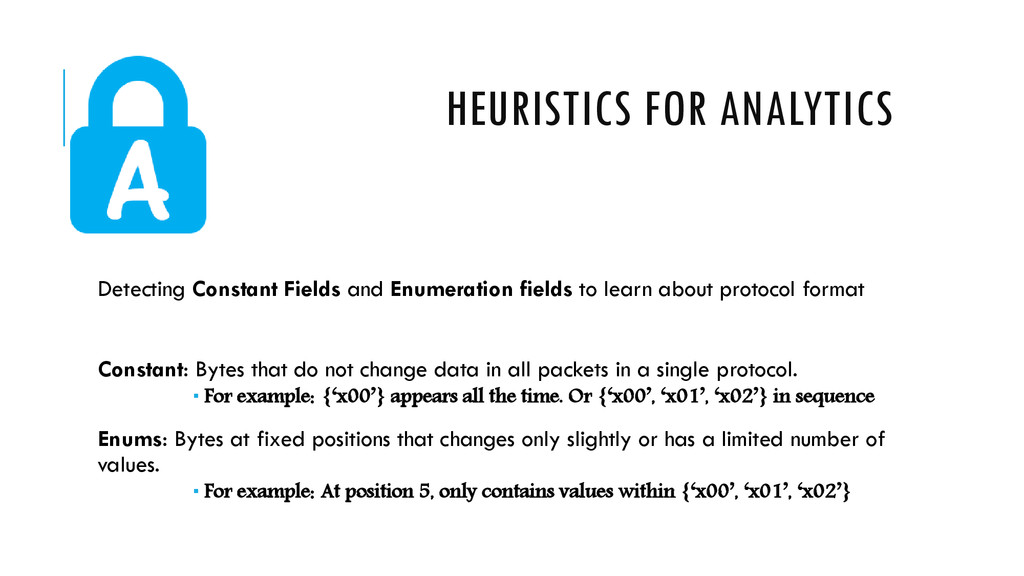

16. HEURISTICS FOR ANALYTICS Detecting Constant Fields and Enumeration fields to learn about protocol format Constant: Bytes that do not change data in all packets in a single protocol.  For example: {‘x00’} appears all the time. Or {‘x00’, ‘x01’, ‘x02’} in sequence Enums: Bytes at fixed positions that changes only slightly or has a limited number of values.  For example: At position 5, only contains values within {‘x00’, ‘x01’, ‘x02’}

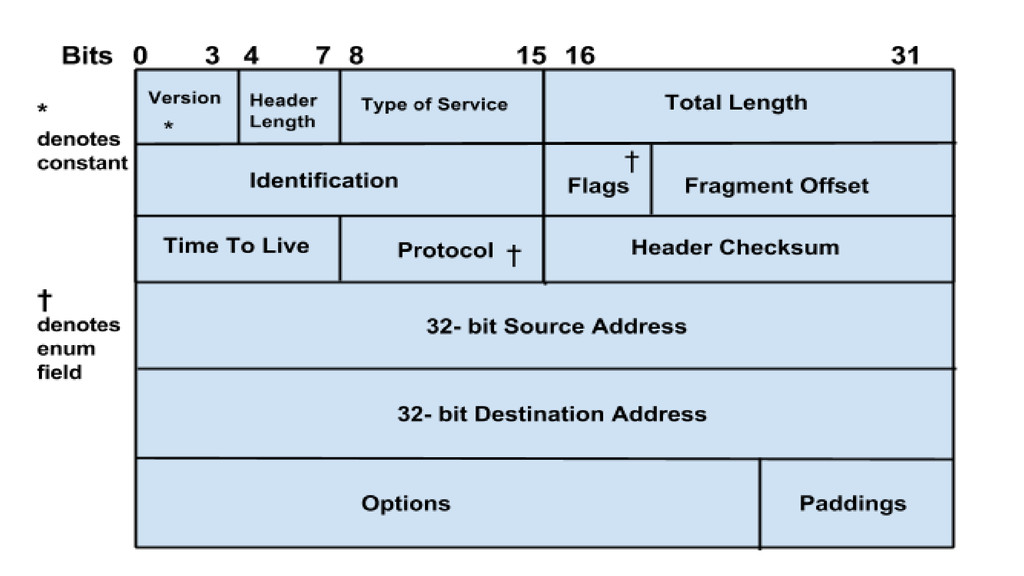

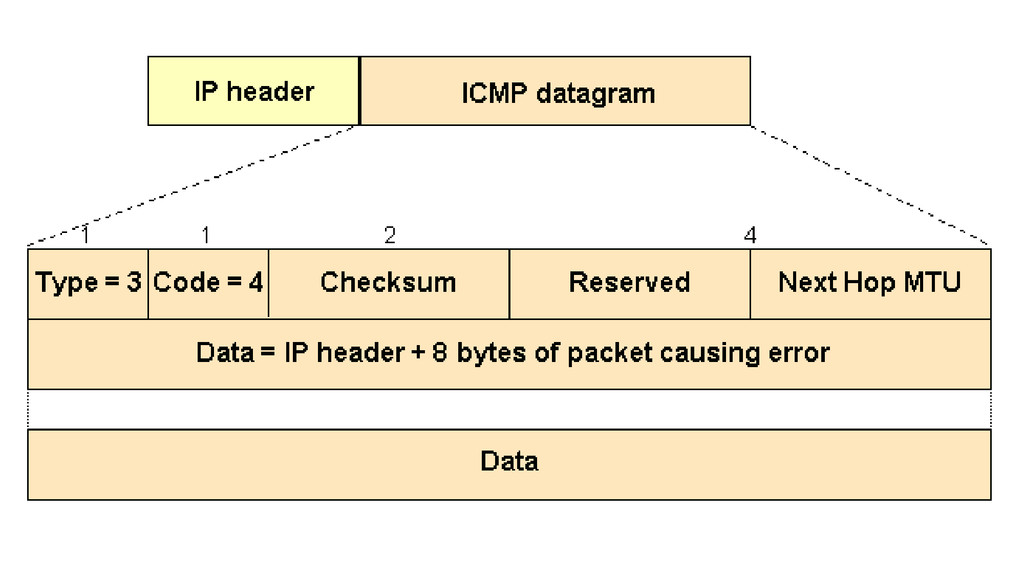

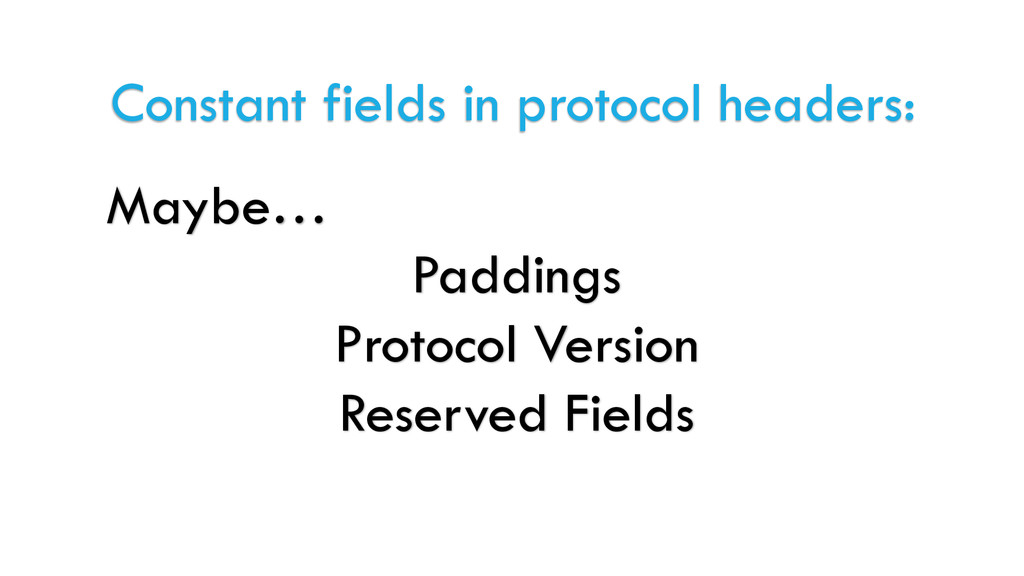

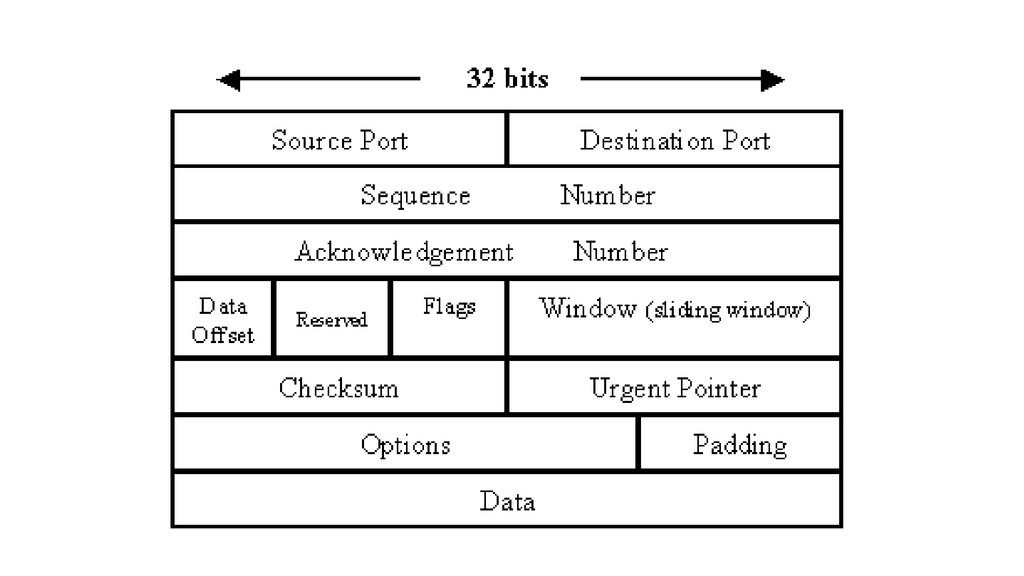

18. Constant fields in protocol headers: Maybe… Paddings Protocol Version Reserved Fields

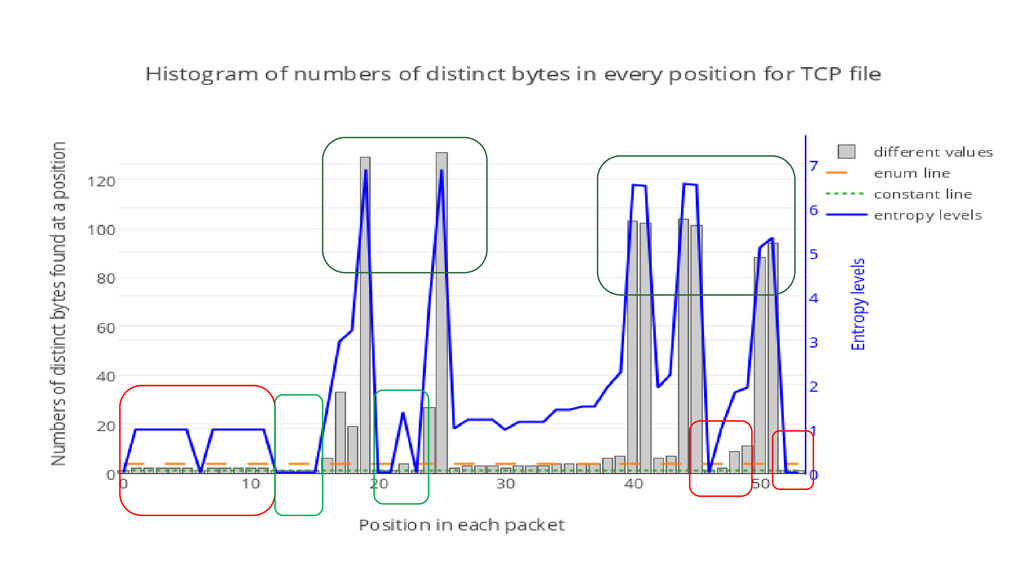

22. Where pi is the probability of each value occurring

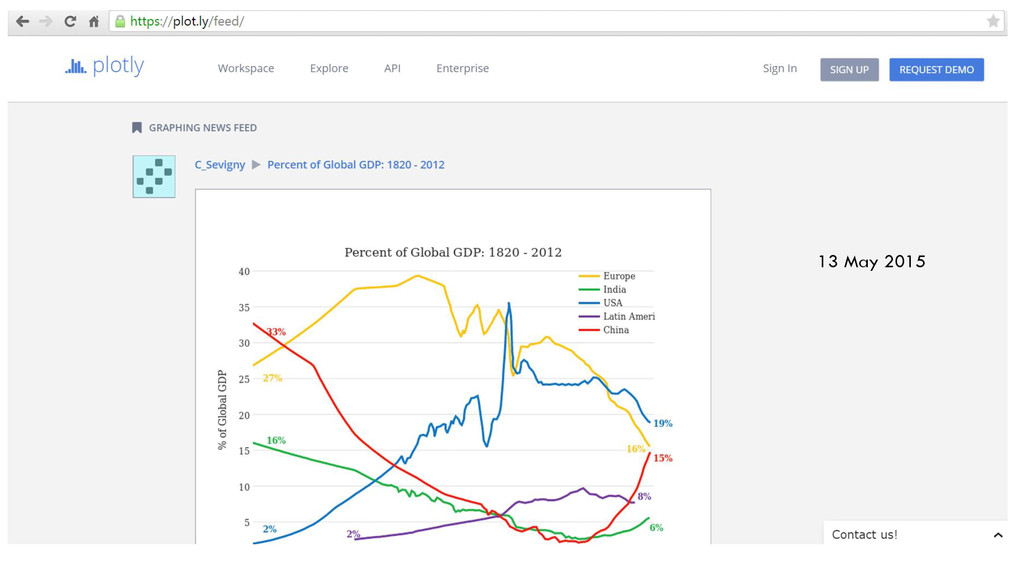

24. 13 May 2015

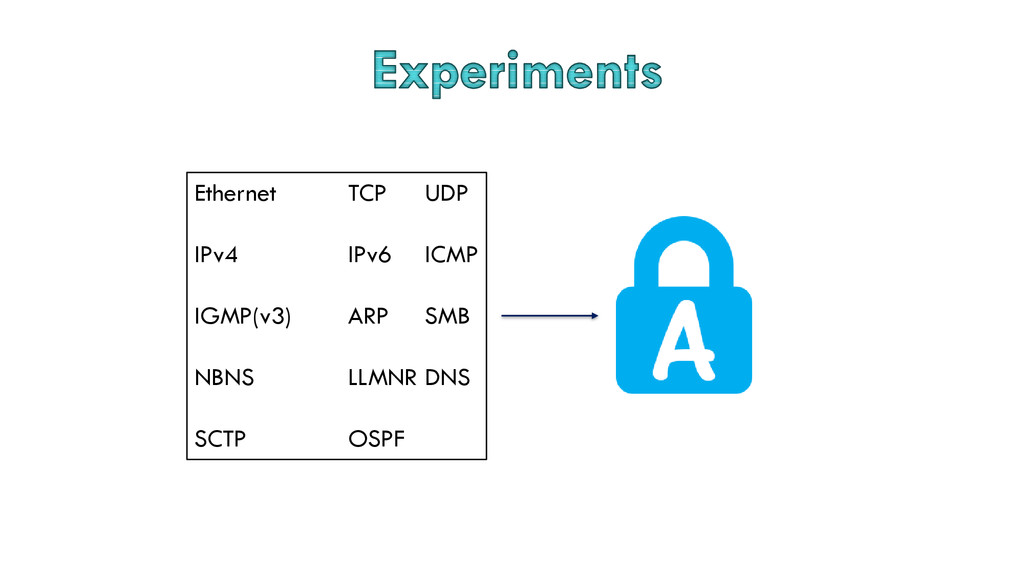

26. Ethernet TCP UDP IPv4 IPv6 ICMP IGMP(v3) ARP SMB NBNS LLMNR DNS SCTP OSPF

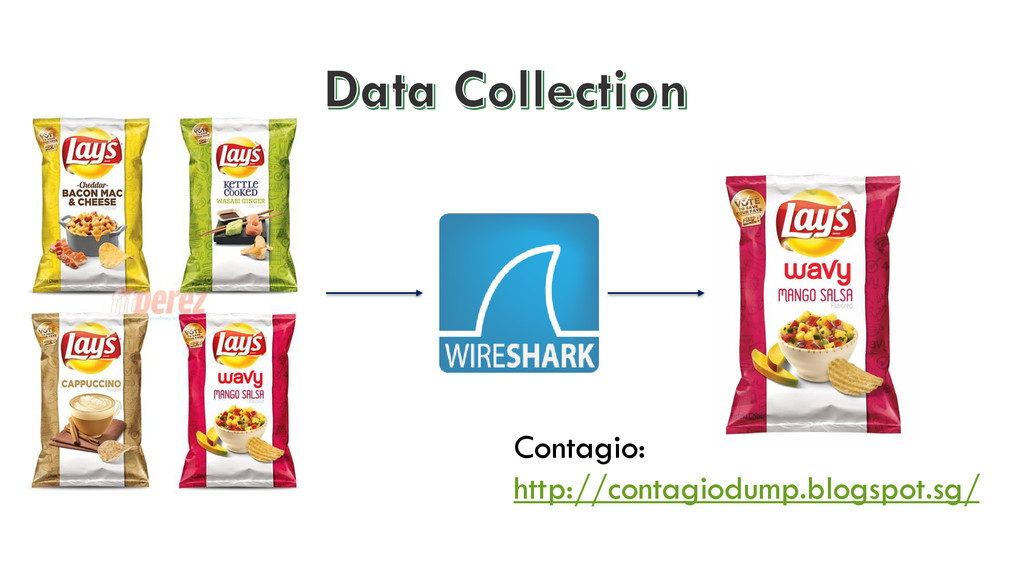

27. Contagio: http://contagiodump.blogspot.sg/

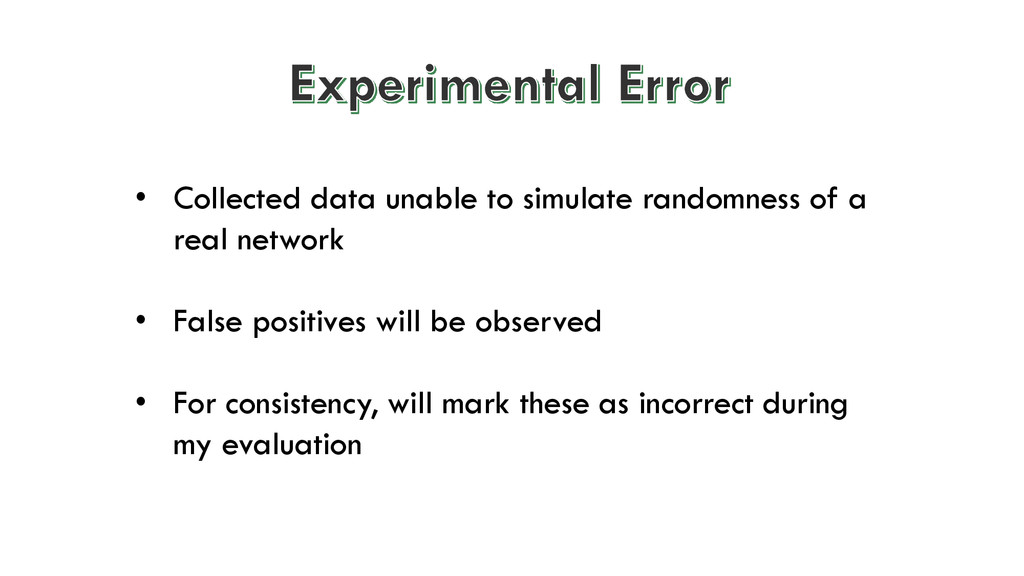

29. • Collected data unable to simulate randomness of a real network • False positives will be observed • For consistency, will mark these as incorrect during my evaluation

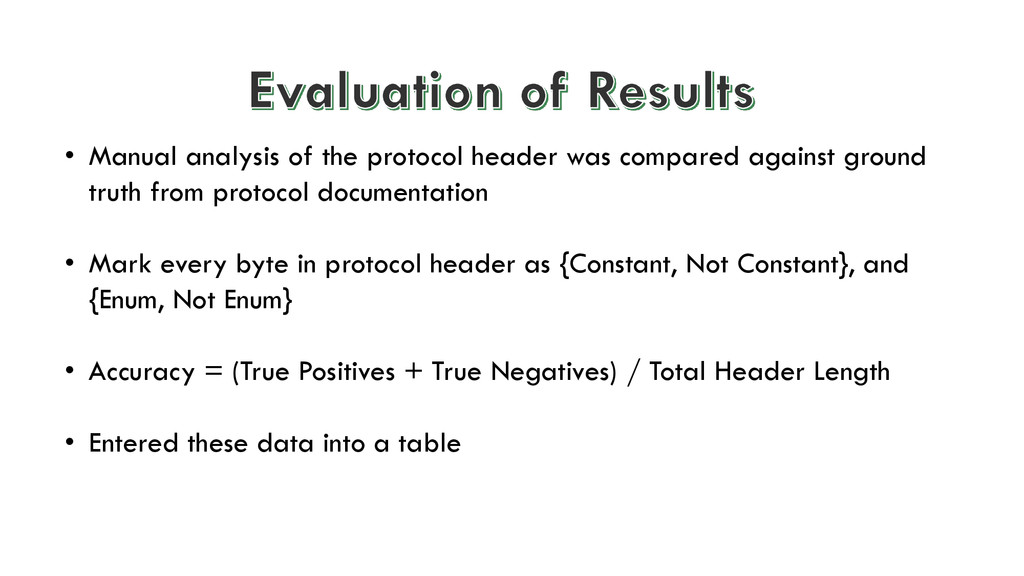

34. • Manual analysis of the protocol header was compared against ground truth from protocol documentation • Mark every byte in protocol header as {Constant, Not Constant}, and {Enum, Not Enum} • Accuracy = (True Positives + True Negatives) / Total Header Length • Entered these data into a table

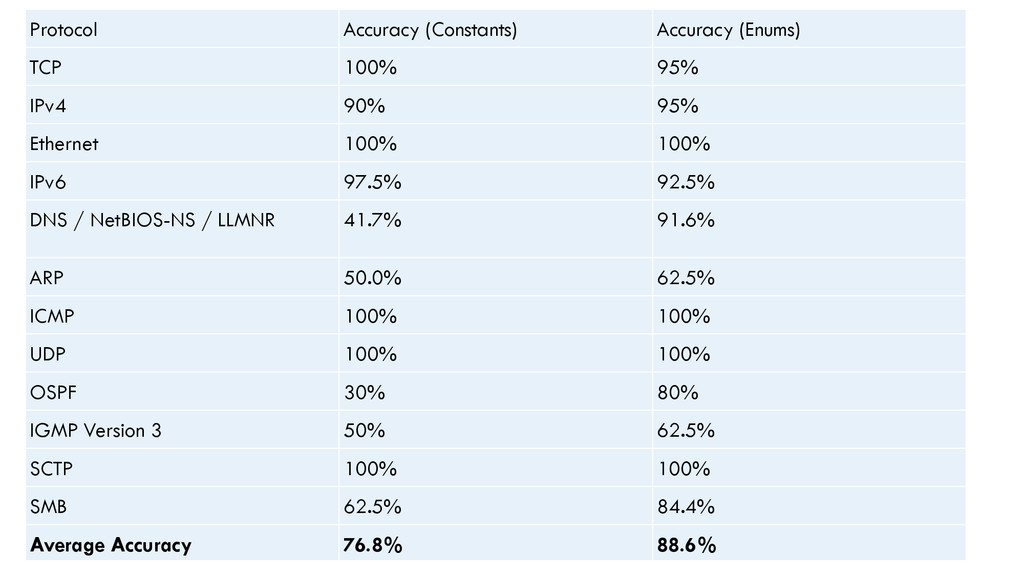

35. Protocol Accuracy (Constants) Accuracy (Enums) TCP 100% 95% IPv4 90% 95% Ethernet 100% 100% IPv6 97.5% 92.5% DNS / NetBIOS-NS / LLMNR 41.7% 91.6% ARP 50.0% 62.5% ICMP 100% 100% UDP 100% 100% OSPF 30% 80% IGMP Version 3 50% 62.5% SCTP 100% 100% SMB 62.5% 84.4% Average Accuracy 76.8% 88.6%

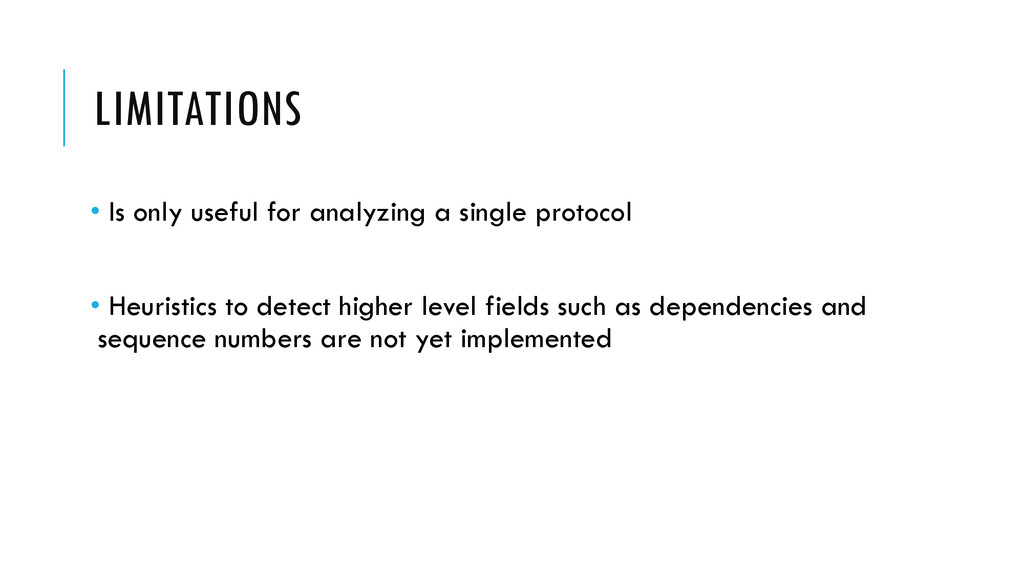

36. LIMITATIONS • Is only useful for analyzing a single protocol • Heuristics to detect higher level fields such as dependencies and sequence numbers are not yet implemented
