1. VVOLs & vSphere 6 STO3161 Matt Cowger

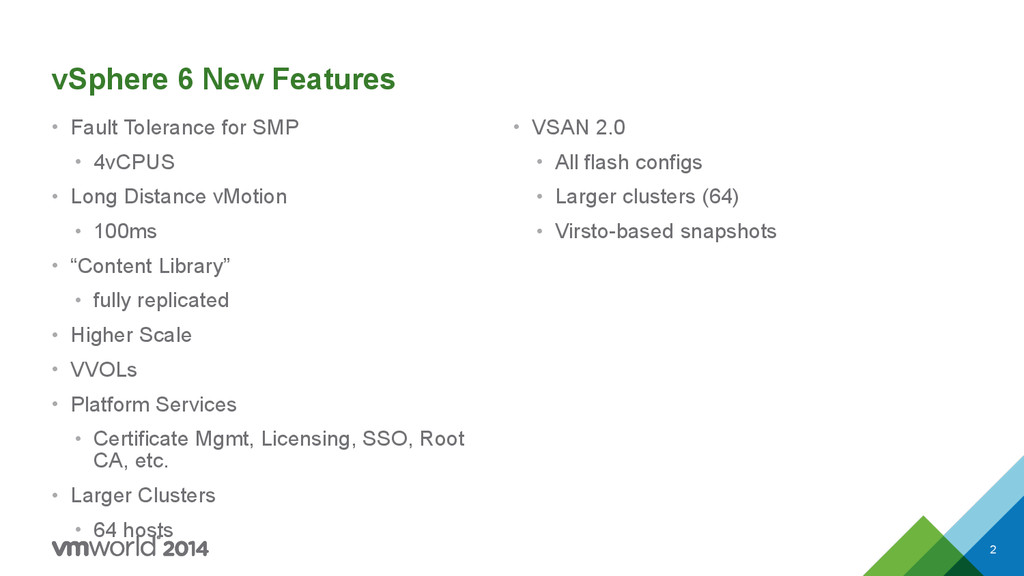

2. vSphere 6 New Features • Fault Tolerance for SMP • 4vCPUS • Long Distance vMotion • 100ms • “Content Library” • fully replicated • Higher Scale • VVOLs • Platform Services • Certificate Mgmt, Licensing, SSO, Root CA, etc. • Larger Clusters • 64 hosts 2 • VSAN 2.0 • All flash configs • Larger clusters (64) • Virsto-based snapshots

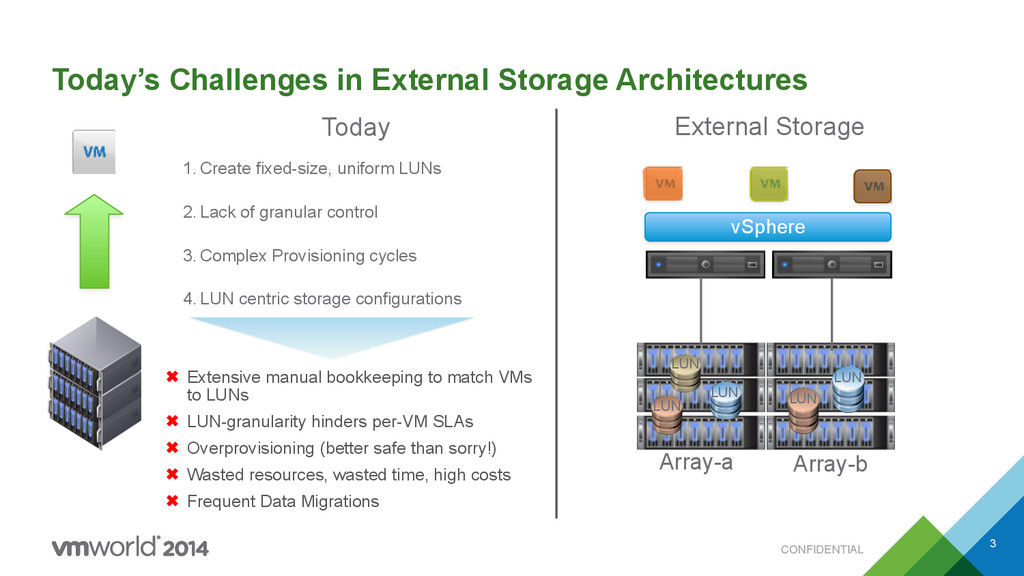

3. CONFIDENTIAL Today’s Challenges in External Storage Architectures 3 External Storage vSphere Array-a Array-b Today 1. Create fixed-size, uniform LUNs 2. Lack of granular control 3. Complex Provisioning cycles 4. LUN centric storage configurations ✖ Extensive manual bookkeeping to match VMs to LUNs ✖ LUN-granularity hinders per-VM SLAs ✖ Overprovisioning (better safe than sorry!) ✖ Wasted resources, wasted time, high costs ✖ Frequent Data Migrations LUN LUN LUN LUN LUN

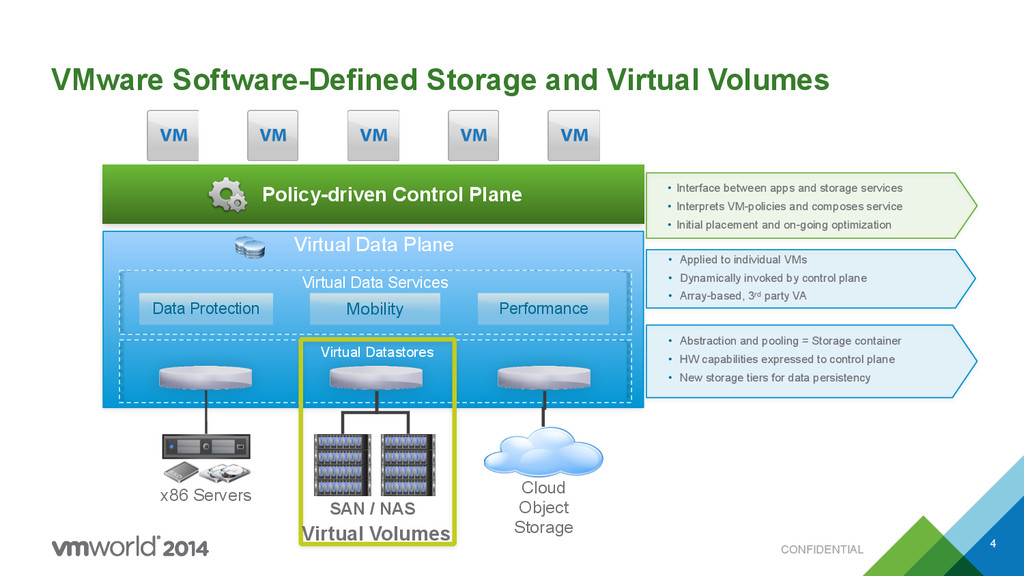

4. CONFIDENTIAL VMware Software-Defined Storage and Virtual Volumes 4 Policy-driven Control Plane Virtual Data Plane Virtual Datastores Performance Mobility Data Protection Virtual Data Services Cloud Object Storage SAN / NAS x86 Servers • Interface between apps and storage services • Interprets VM-policies and composes service • Initial placement and on-going optimization • Abstraction and pooling = Storage container • HW capabilities expressed to control plane • New storage tiers for data persistency • Applied to individual VMs • Dynamically invoked by control plane • Array-based, 3rd party VA Virtual Volumes

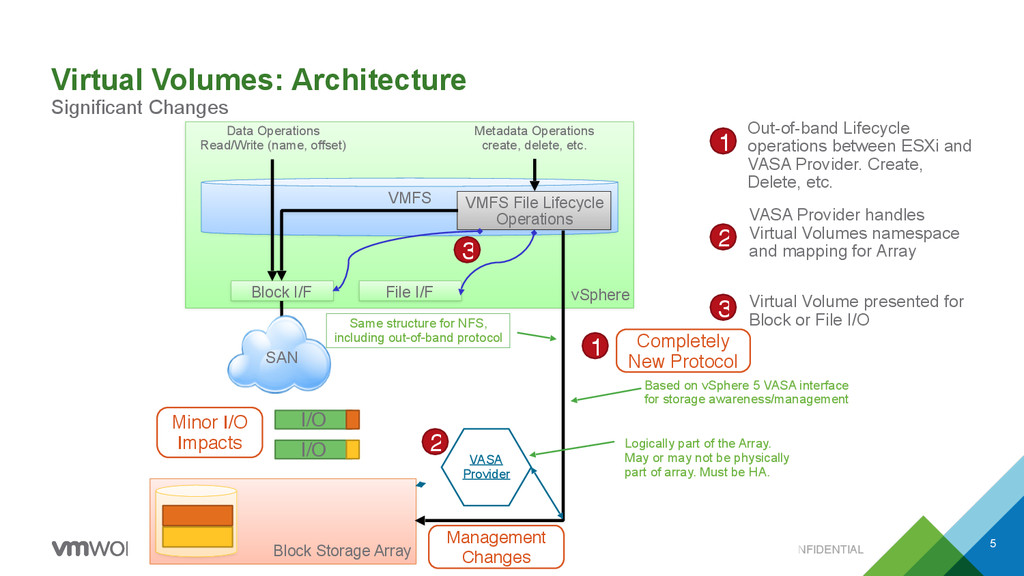

5. CONFIDENTIAL Virtual Volumes: Architecture Significant Changes vSphere Block I/F VMFS Block Storage Array Metadata Operations create, delete, etc. Data Operations Read/Write (name, offset) VMFS File Lifecycle Operations LUN SAN I/O 2 I/O VASA
 Provider File I/F 1 1 Out-of-band Lifecycle operations between ESXi and VASA Provider. Create, Delete, etc. 2 VASA Provider handles Virtual Volumes namespace and mapping for Array 3 3 Virtual Volume presented for Block or File I/O Logically part of the Array. May or may not be physically part of array. Must be HA. Based on vSphere 5 VASA interface
 for storage awareness/management Same structure for NFS,
 including out-of-band protocol Minor I/O
 Impacts Management
 Changes Completely New Protocol 5

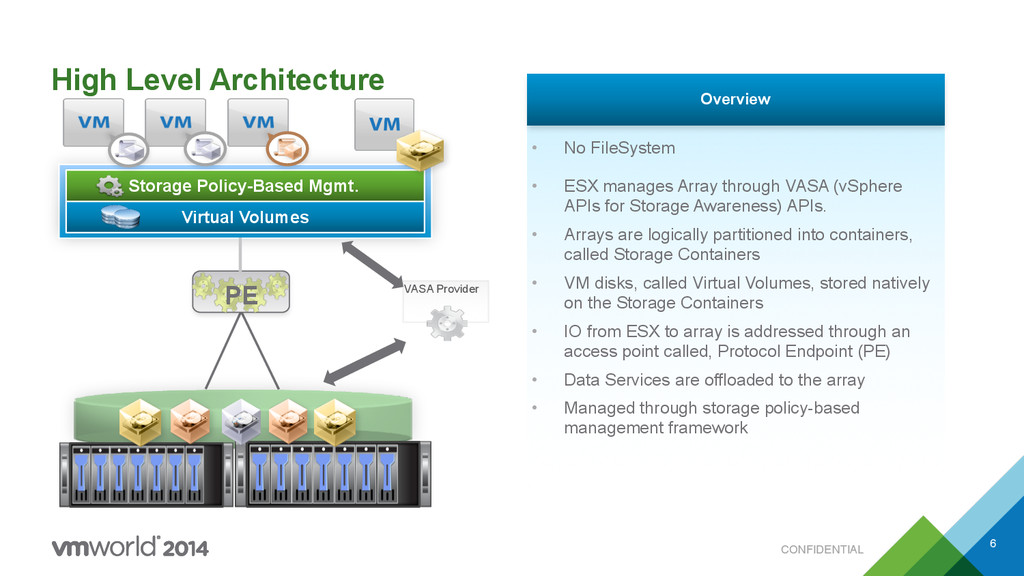

6. CONFIDENTIAL High Level Architecture 6 Overview • No FileSystem • ESX manages Array through VASA (vSphere APIs for Storage Awareness) APIs. • Arrays are logically partitioned into containers, called Storage Containers • VM disks, called Virtual Volumes, stored natively on the Storage Containers • IO from ESX to array is addressed through an access point called, Protocol Endpoint (PE) • Data Services are offloaded to the array • Managed through storage policy-based management framework vSphere Storage Policy-Based Mgmt. Virtual Volumes PE VASA Provider

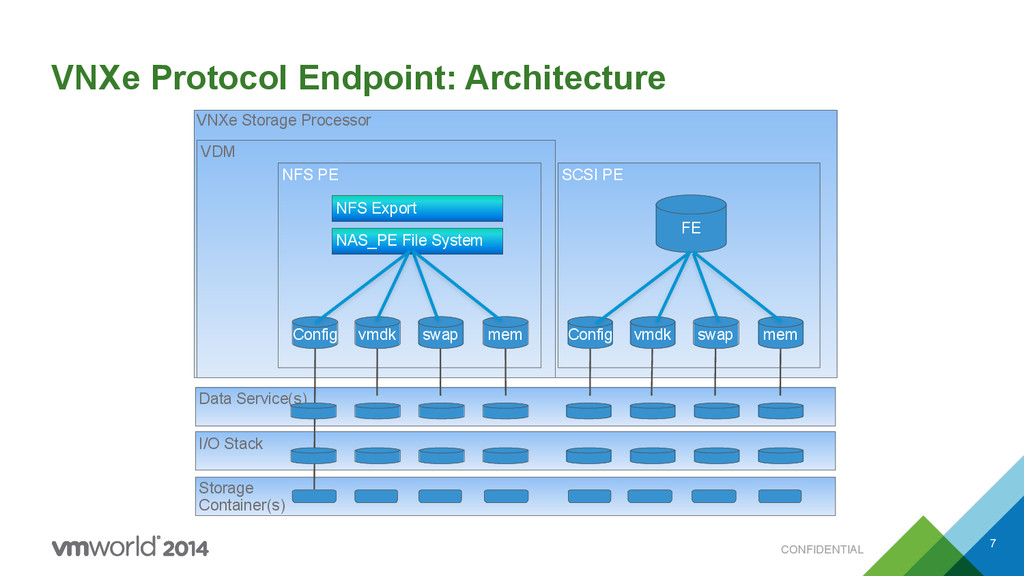

7. CONFIDENTIAL VDM NFS PE SCSI PE VNXe Protocol Endpoint: Architecture 7 Config swap vmdk FE Data Service(s) I/O Stack Storage Container(s) NFS Export mem Config swap vmdk mem NAS_PE File System VNXe Storage Processor
8. CONFIDENTIAL 8

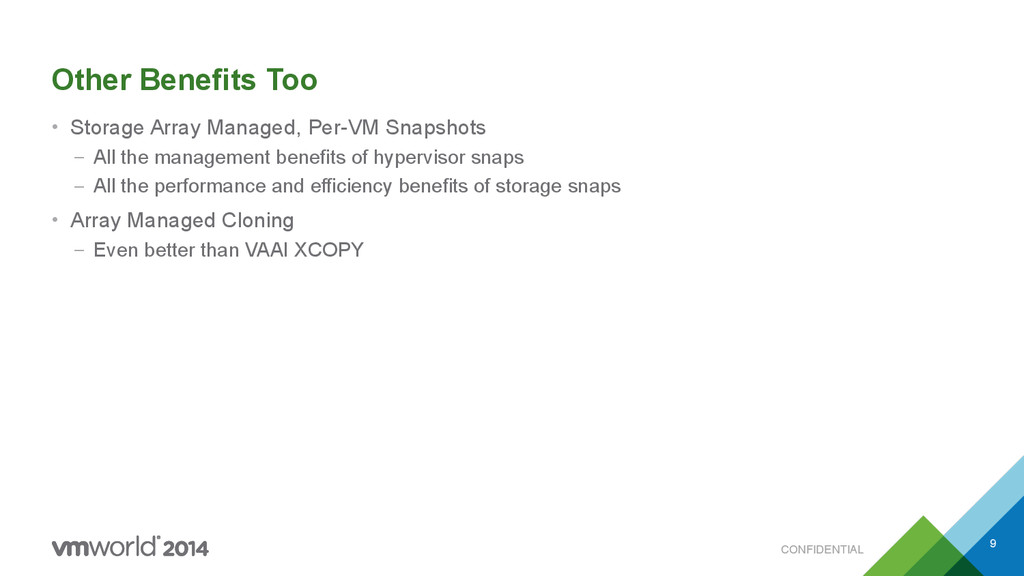

9. CONFIDENTIAL Other Benefits Too • Storage Array Managed, Per-VM Snapshots – All the management benefits of hypervisor snaps – All the performance and efficiency benefits of storage snaps • Array Managed Cloning – Even better than VAAI XCOPY 9
10. CONFIDENTIAL YOU COULD MANAGE BY SERVICE LEVEL VIA POLICY-BASED APPLICATIONS OBJECTIVES AUTOMATION 10 WHAT IF… DIAMOND 0.1-1.0 milliseconds GOLD 4-20 milliseconds SILVER 6-30 milliseconds BALANCED SYSTEM
 OPTIMIZED

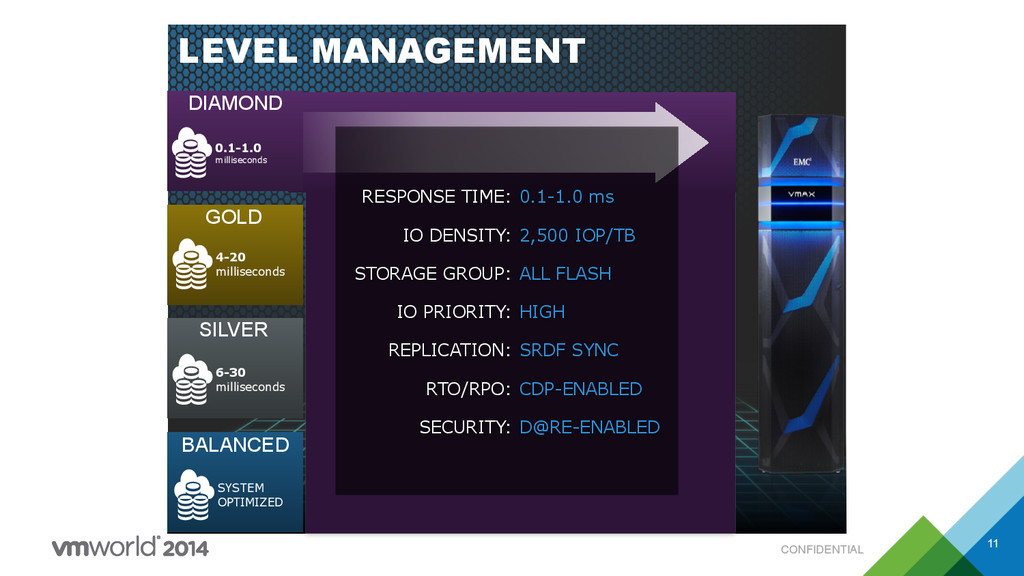

11. CONFIDENTIAL 11 SERVICE LEVEL MANAGEMENT RESPONSE TIME: IO DENSITY: STORAGE GROUP: IO PRIORITY: REPLICATION: RTO/RPO: SECURITY: DIAMOND 0.1-1.0 milliseconds GOLD 4-20 milliseconds SILVER 6-30 milliseconds BALANCED SYSTEM
 OPTIMIZED 0.1-1.0 ms 2,500 IOP/TB ALL FLASH HIGH SRDF SYNC CDP-ENABLED D@RE-ENABLED

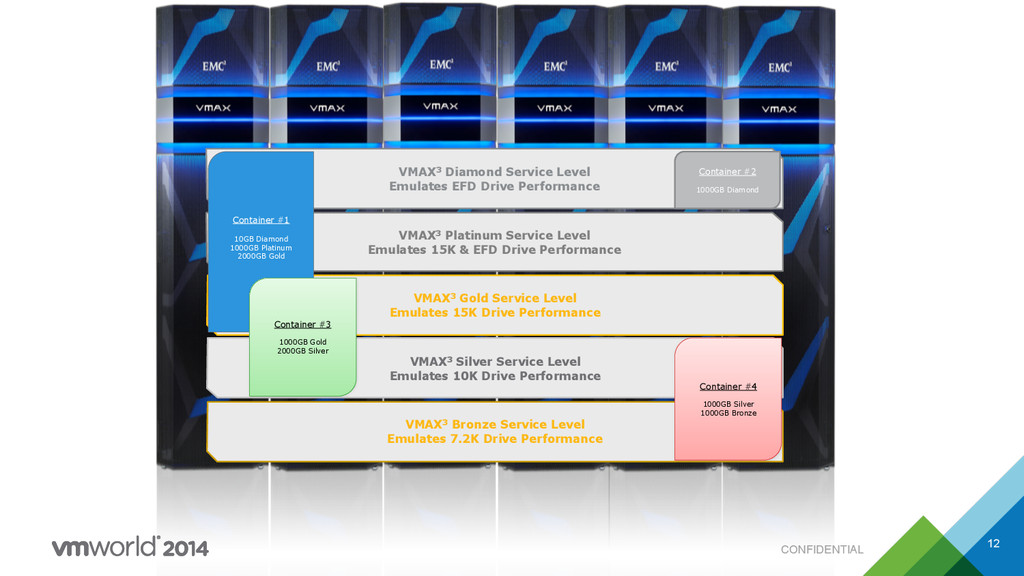

12. CONFIDENTIAL 12 VMAX3 Bronze Service Level Emulates 7.2K Drive Performance VMAX3 Silver Service Level Emulates 10K Drive Performance VMAX3 Gold Service Level Emulates 15K Drive Performance VMAX3 Platinum Service Level Emulates 15K & EFD Drive Performance VMAX3 Diamond Service Level
 Emulates EFD Drive Performance Container #2 1000GB Diamond Container #1
 10GB Diamond 1000GB Platinum 2000GB Gold Container #3 1000GB Gold 2000GB Silver Container #4 1000GB Silver 1000GB Bronze

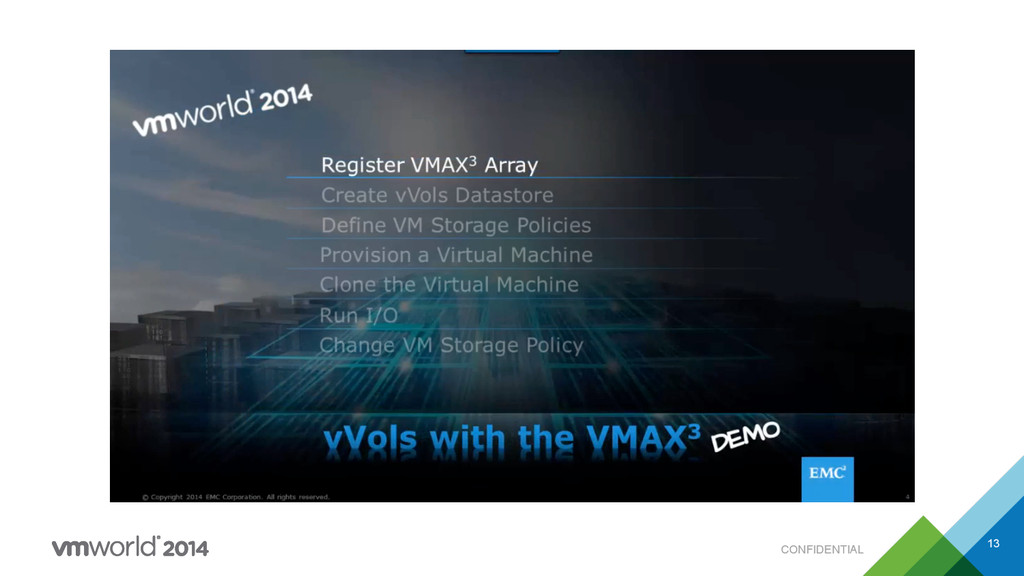

13. CONFIDENTIAL 13
14. …But Where Does ViPR Fit?

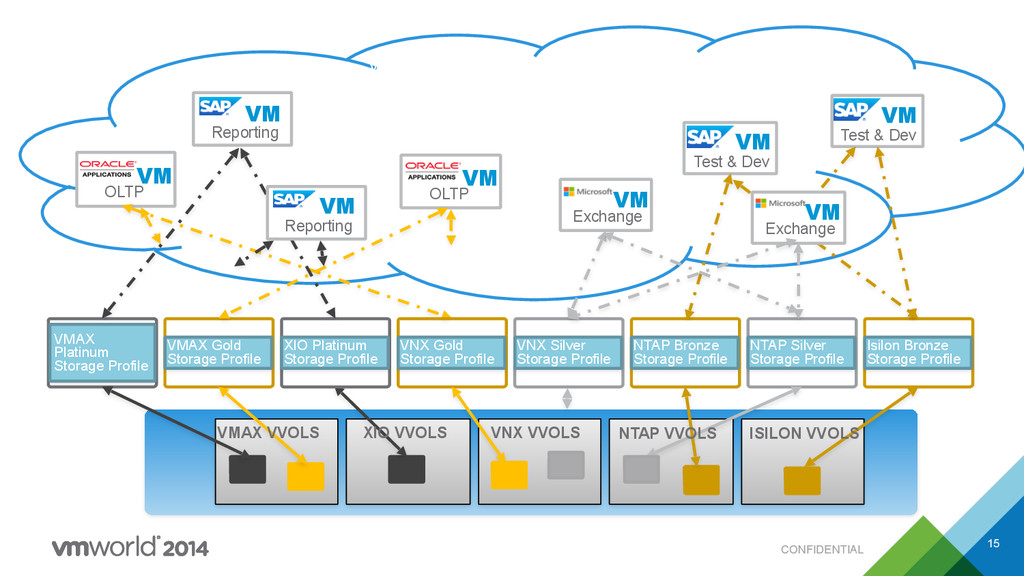

15. CONFIDENTIAL 15 VMware vCenter Isilon Bronze Storage Profile Test & Dev VM NTAP Bronze Storage Profile Test & Dev VM NTAP Silver Storage Profile VNX Silver Storage Profile Reporting VM OLTP VM VMAX Platinum Storage Profile XIO Platinum Storage Profile VMAX Gold Storage Profile Exchange VM VNX Gold Storage Profile OLTP VM VMAX VVOLS VNX VVOLS ISILON VVOLS NTAP VVOLS XIO VVOLS Traditional Infrastructure Reporting VM Exchange VM

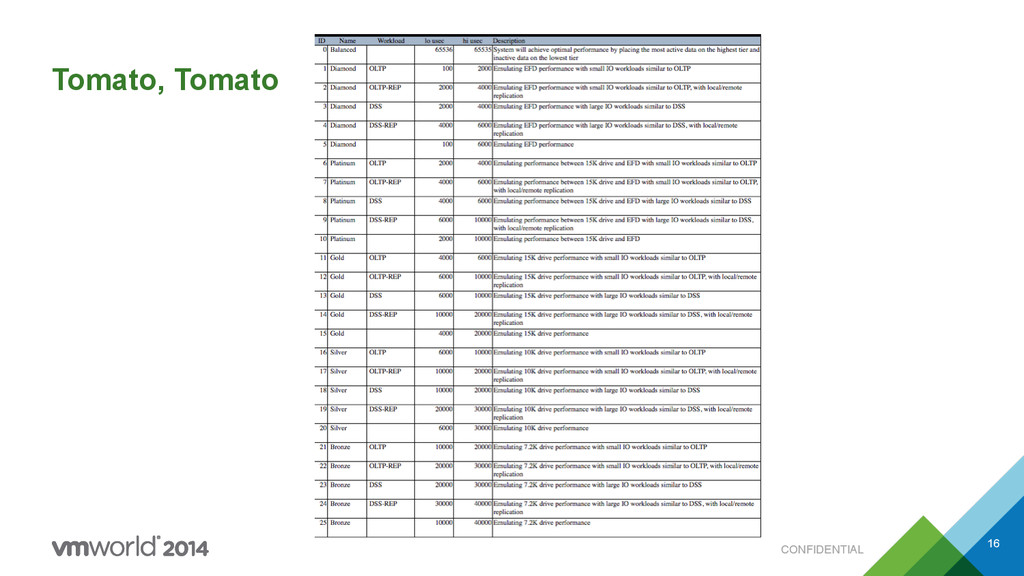

16. CONFIDENTIAL Tomato, Tomato 16

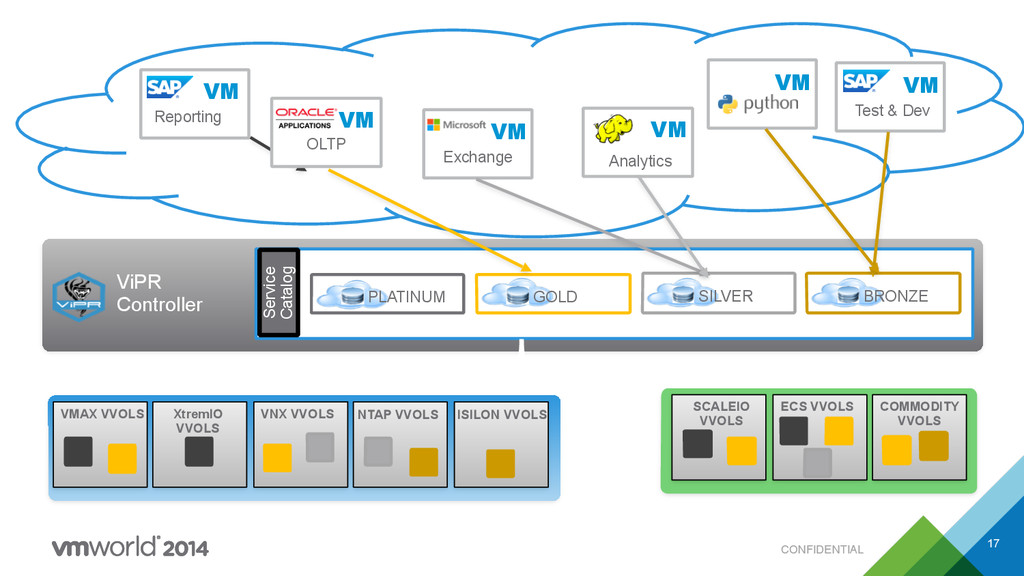

17. CONFIDENTIAL 17 VMware vCenter Service Catalog PLATINUM GOLD SILVER BRONZE ViPR Controller VM Reporting VM Test & Dev VM Exchange VM OLTP VM Analytics VMAX VVOLS VNX VVOLS ISILON VVOLS NTAP VVOLS XtremIO VVOLS SCALEIO VVOLS COMMODITY VVOLS ECS VVOLS Traditional Infrastructure HyperScale Infrastructure VM

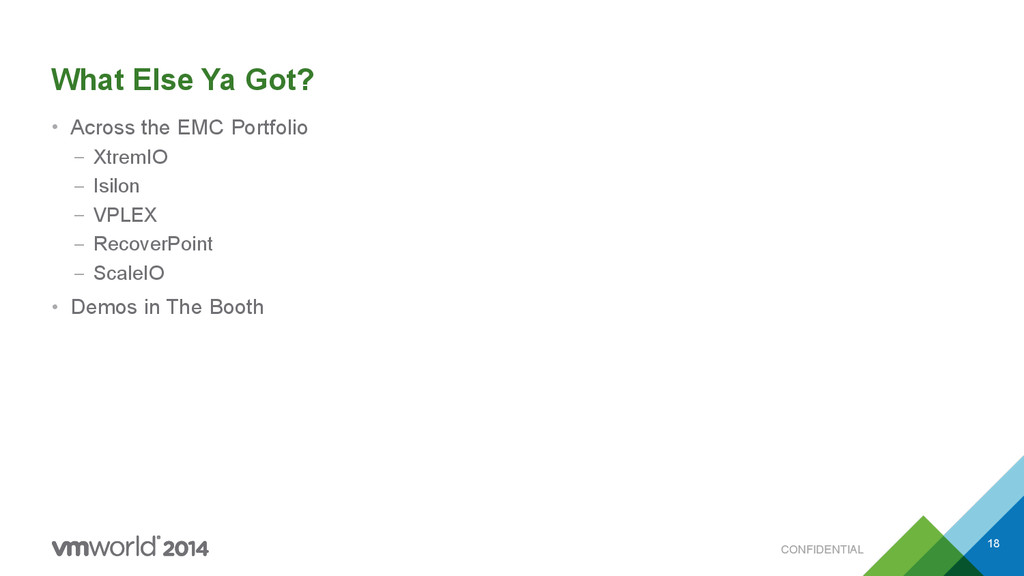

18. CONFIDENTIAL What Else Ya Got? • Across the EMC Portfolio – XtremIO – Isilon – VPLEX – RecoverPoint – ScaleIO • Demos in The Booth 18
19. CONFIDENTIAL Beta Opportunity 19 ANNOUNCES Virtual Volumes Q4’14 Beta Program VVOLBETA@emc.com
