This presentation shows how to use the concept of Infrastructure as a Code and AWS CloudFormation to model business problems using serverless components.

Transcript

1. The Power of IaC
2. Michał Górski Cloud Architect Northmill AB After the work: • Football • Fantasy Books • Cats • Tea • Traveling michal.gorski.pl@gmail.com michal-gorski

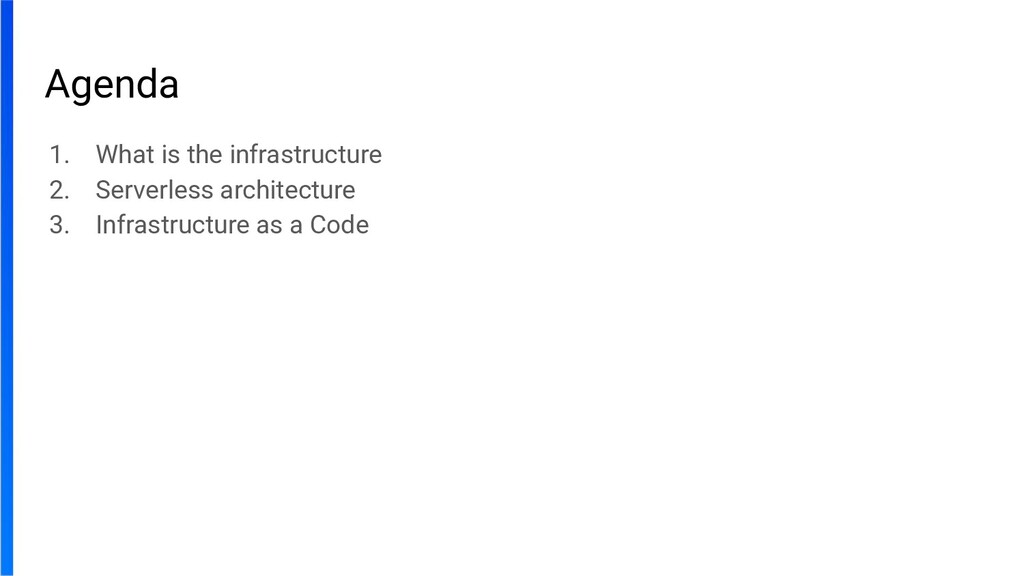

3. Agenda 1. What is the infrastructure 2. Serverless architecture 3. Infrastructure as a Code

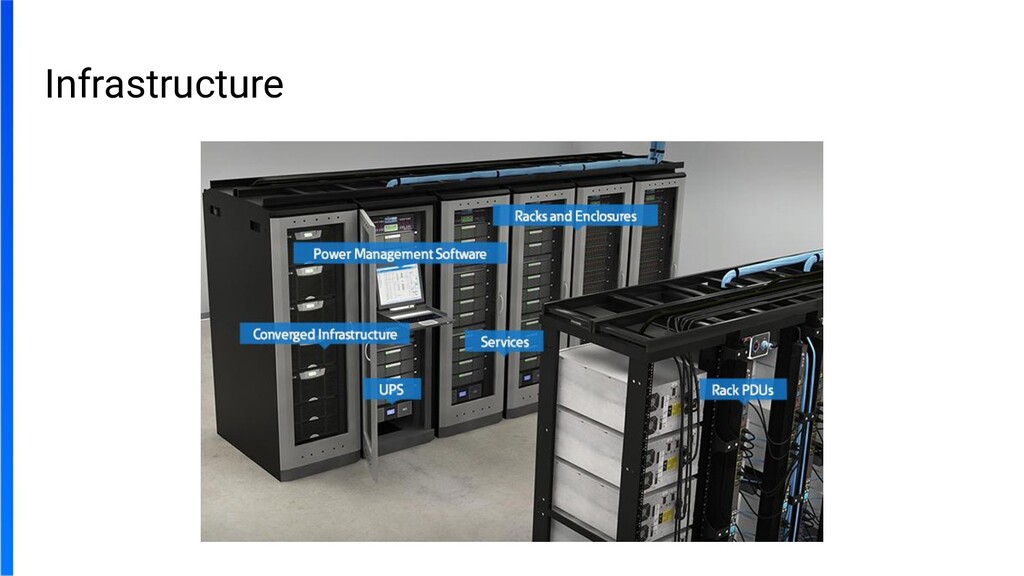

4. Infrastructure

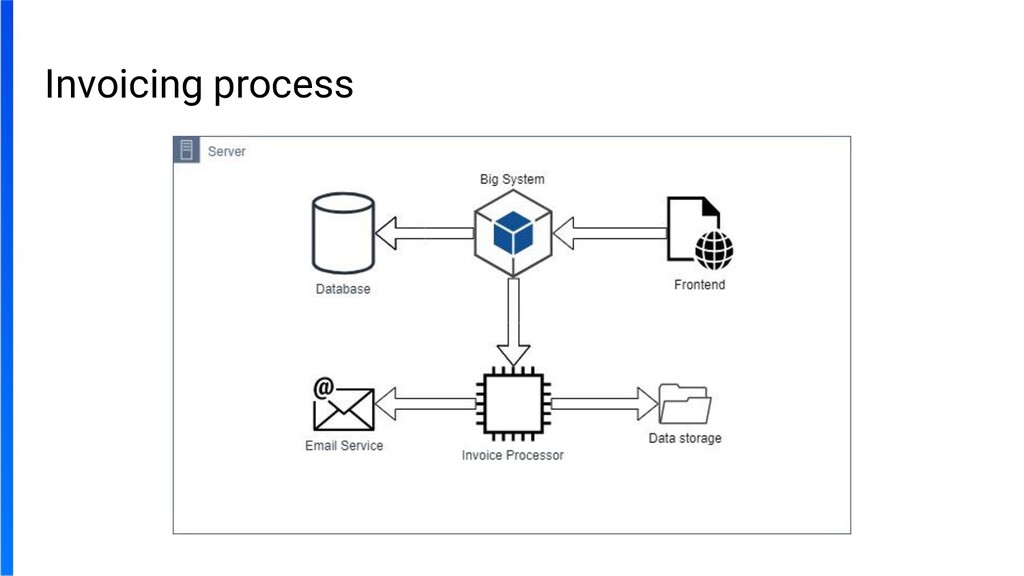

5. Invoicing process
6. Invoicing process

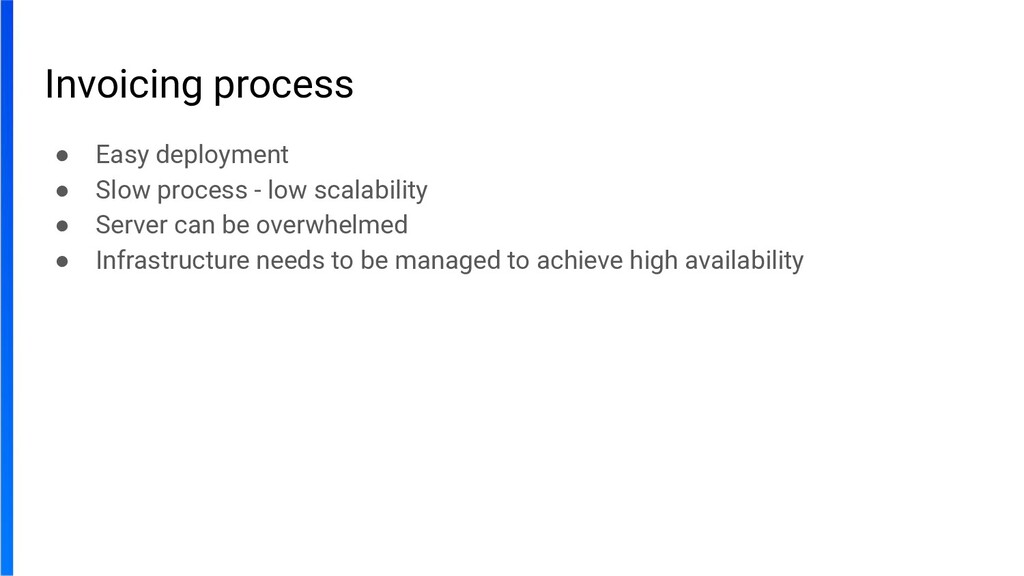

7. Invoicing process • Easy deployment • Slow process - low scalability • Server can be overwhelmed • Infrastructure needs to be managed to achieve high availability

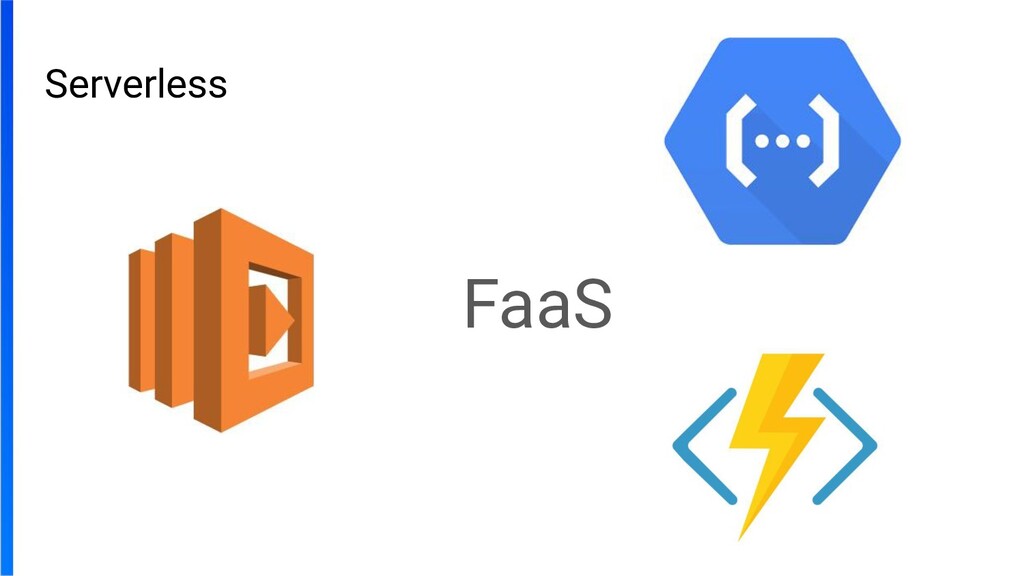

8. Serverless FaaS
9. Serverless FaaS
10. Serverless BaaS
11. Serverless BaaS
12. Serverless BaaS
13. Serverless BaaS

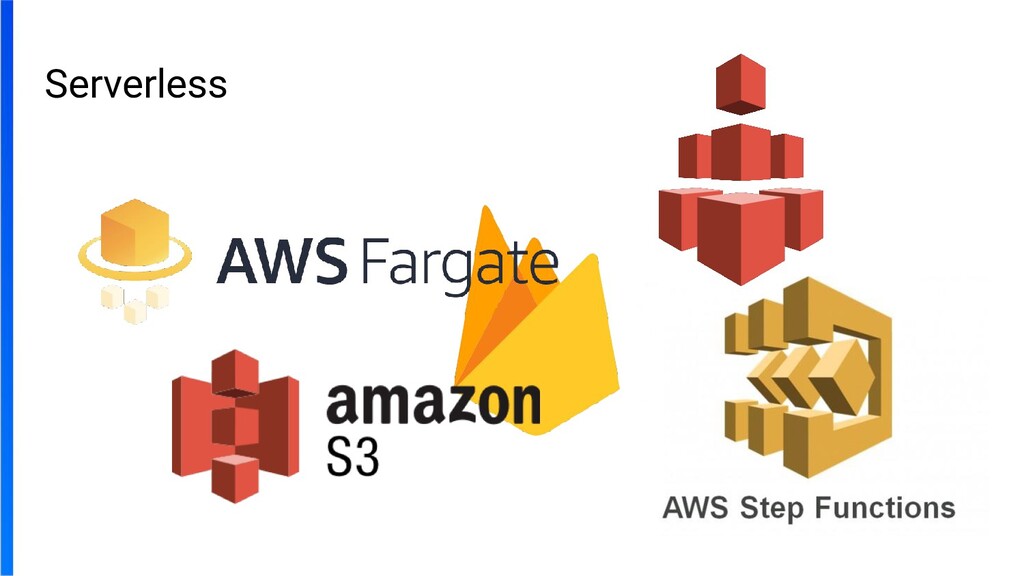

14. Serverless BaaS

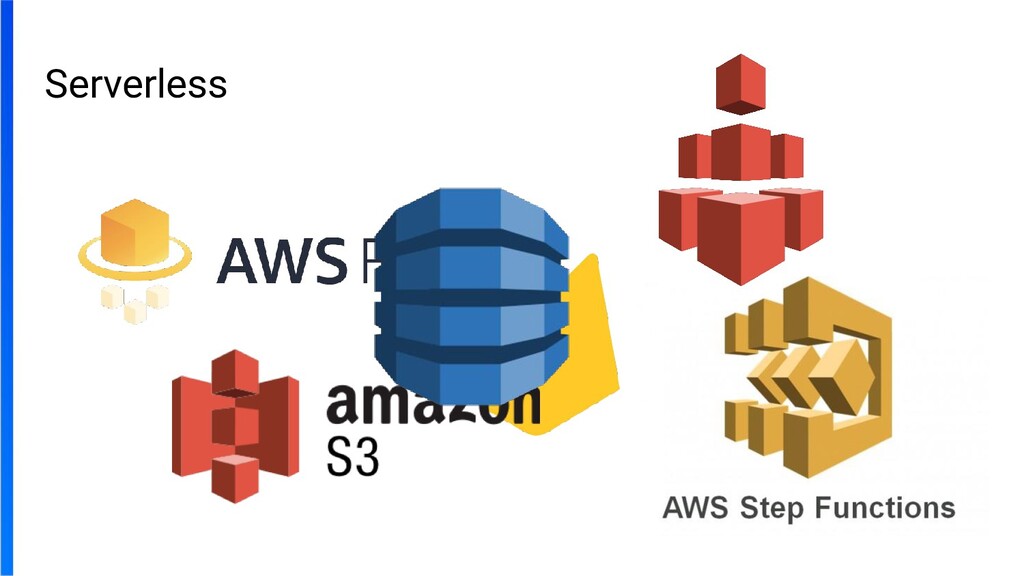

15. Serverless BaaS
16. Serverless BaaS
17. Serverless BaaS
18. Serverless BaaS
19. Serverless BaaS

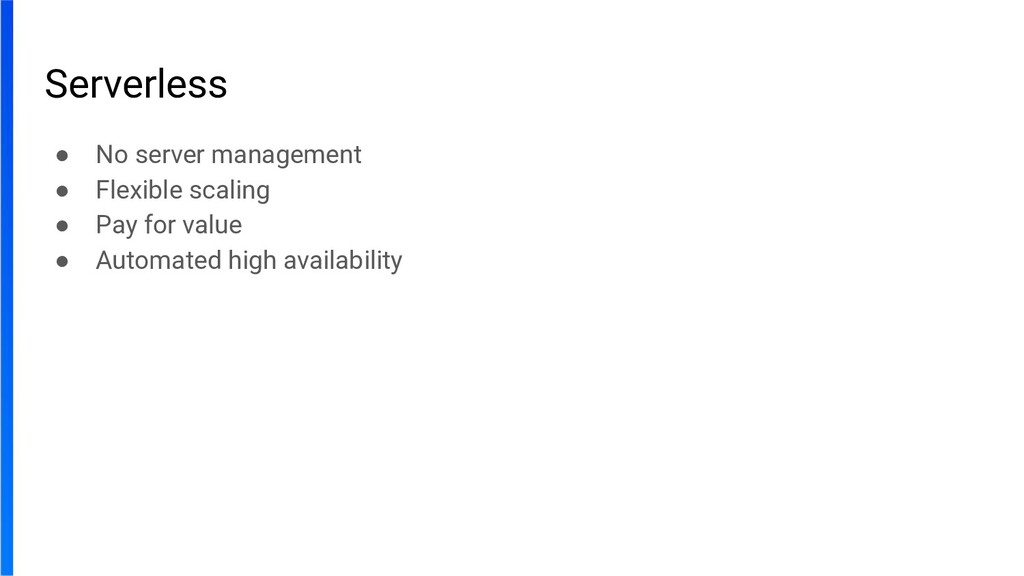

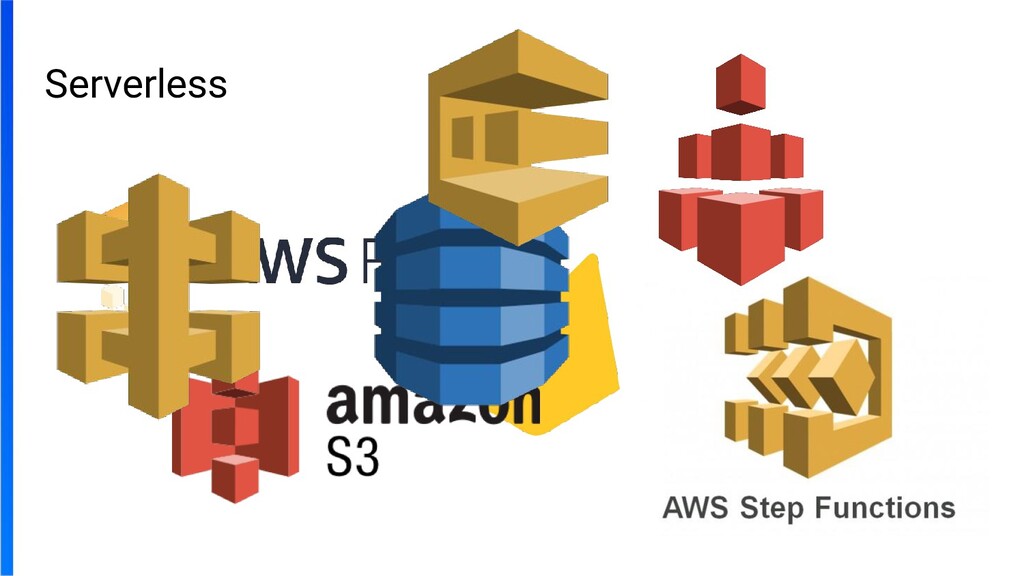

20. Serverless • No server management • Flexible scaling • Pay for value • Automated high availability

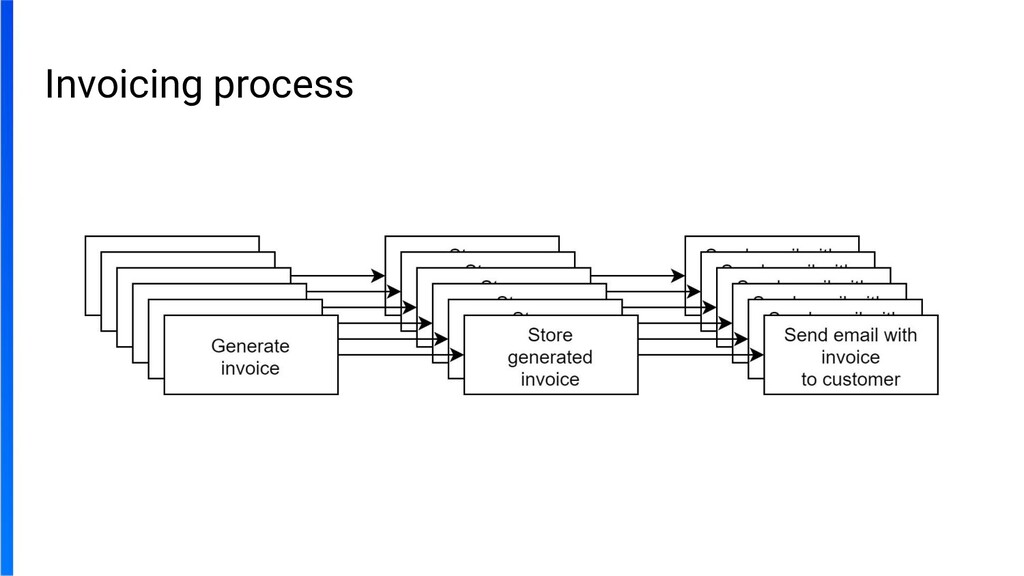

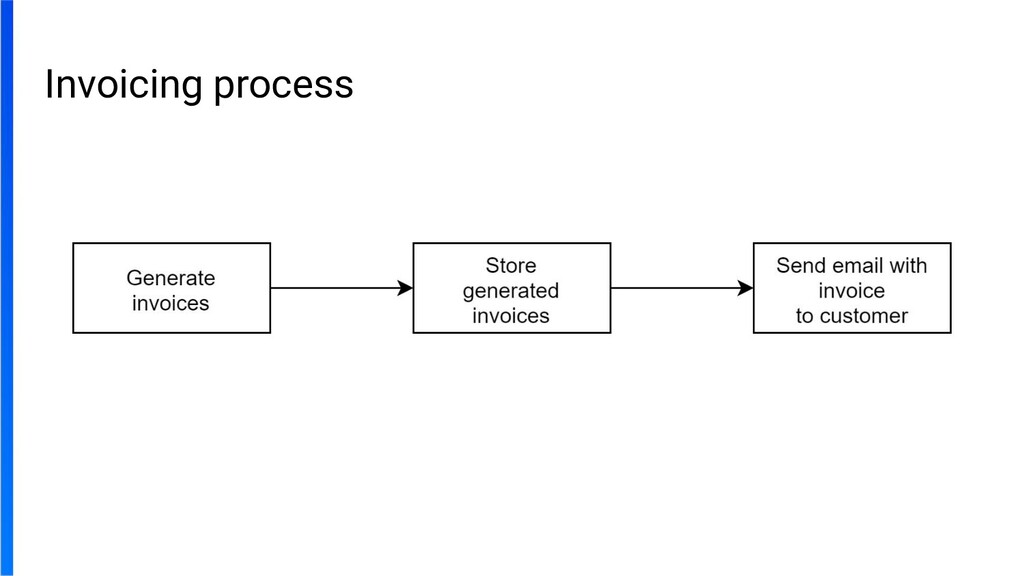

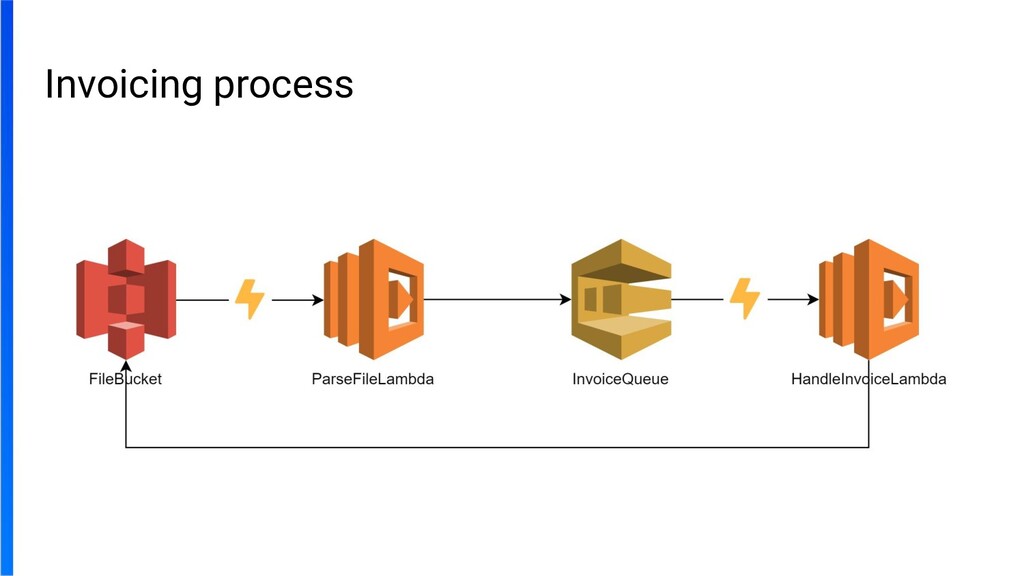

21. Invoicing process
22. Invoicing process

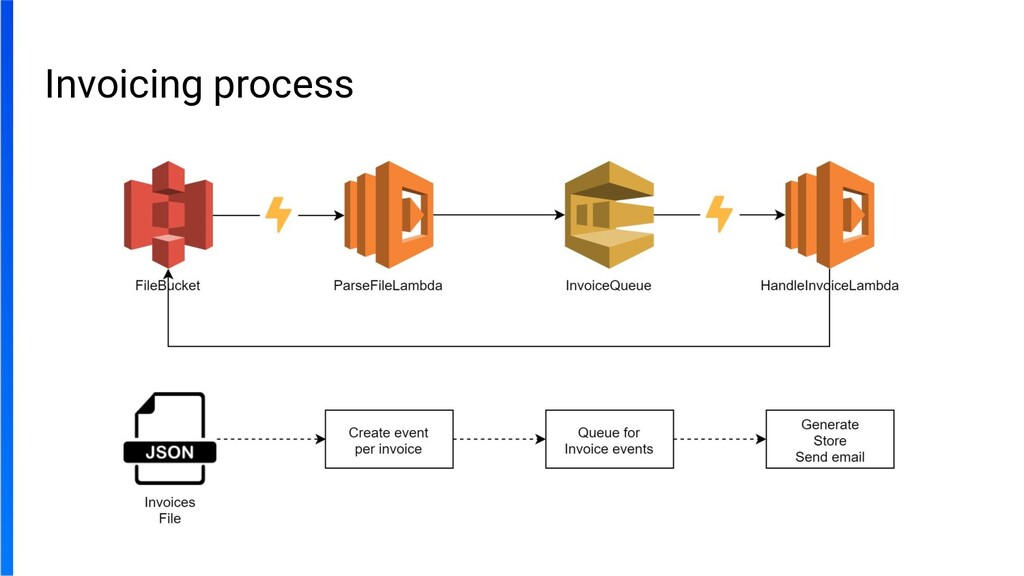

23. Invoicing process
24. Invoicing process

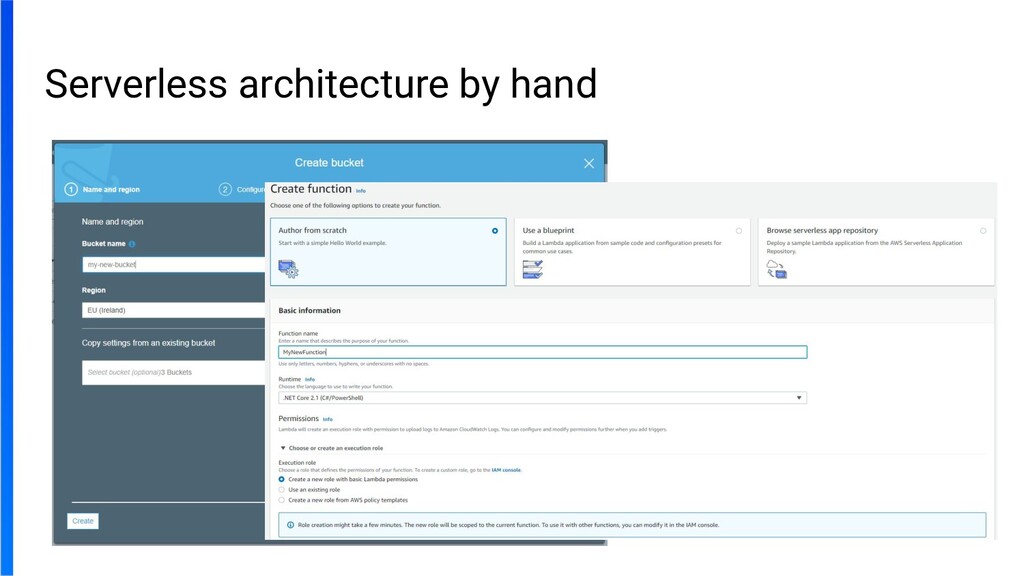

25. Serverless architecture by hand

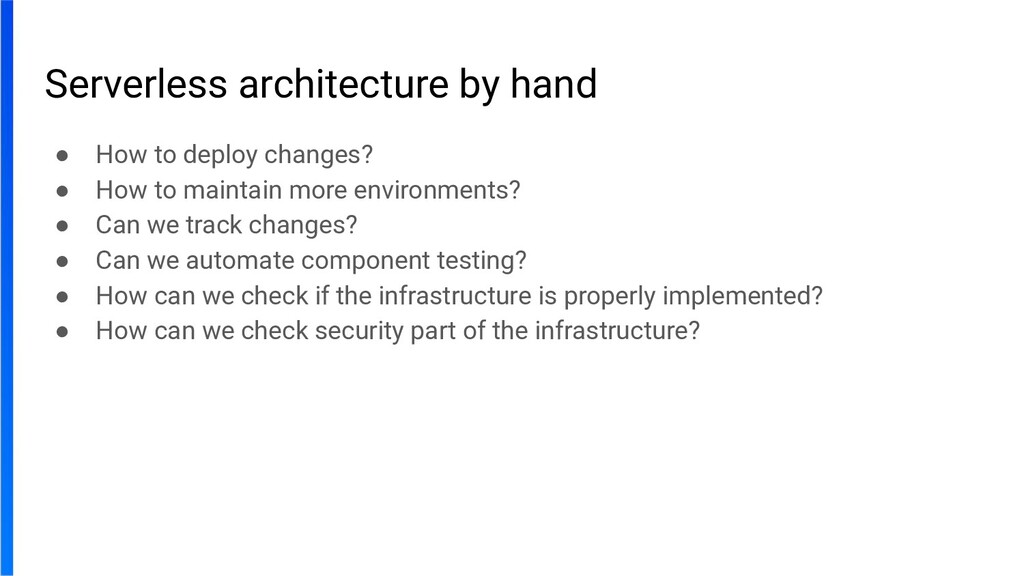

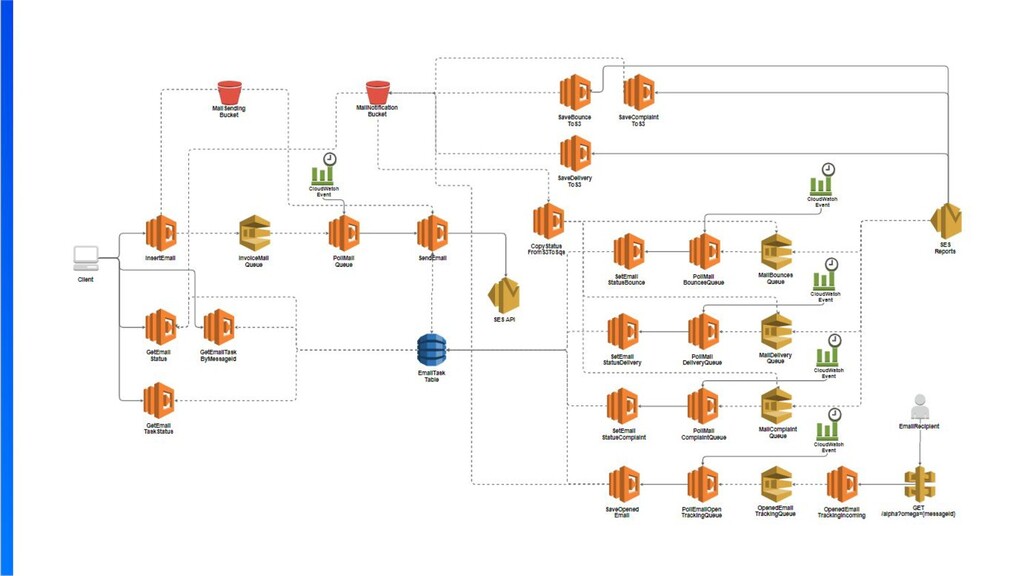

27. Serverless architecture by hand • How to deploy changes? • How to maintain more environments? • Can we track changes? • Can we automate component testing? • How can we check if the infrastructure is properly implemented? • How can we check security part of the infrastructure?

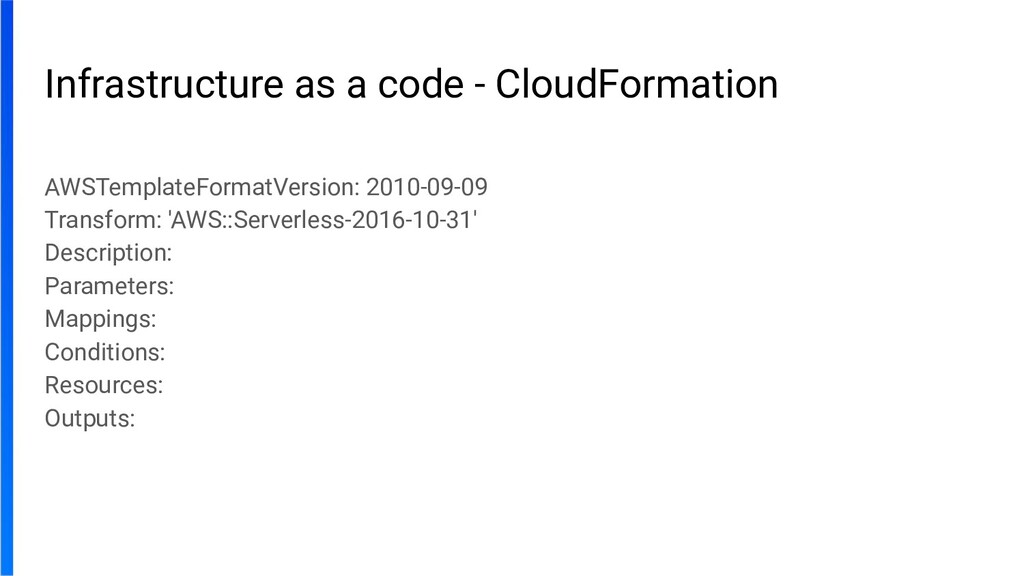

28. Infrastructure as a code - CloudFormation AWSTemplateFormatVersion: 2010-09-09 Transform: 'AWS::Serverless-2016-10-31' Description: Parameters: Mappings: Conditions: Resources: Outputs:
29. Invoicing process

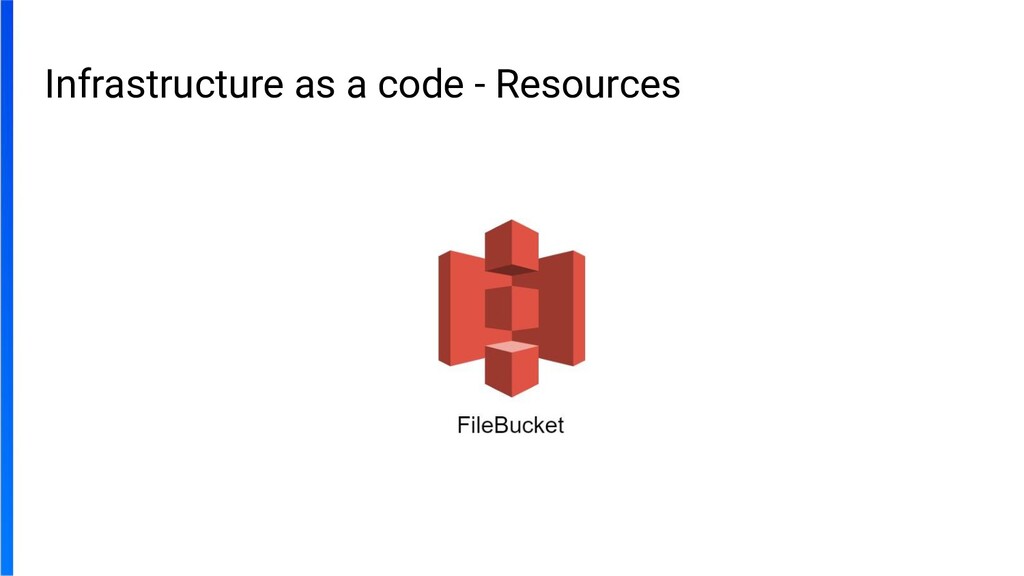

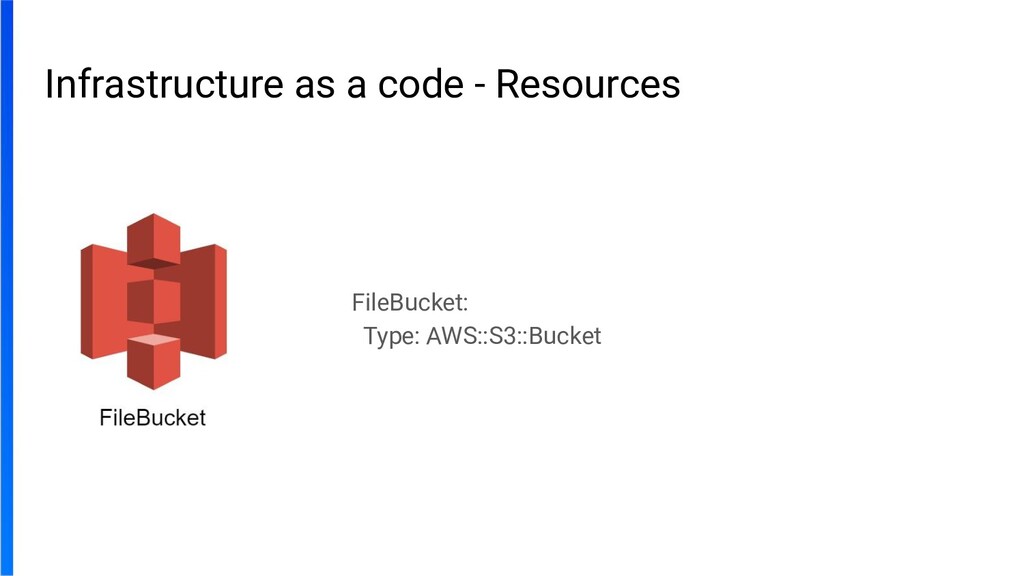

30. Infrastructure as a code - Resources FileBucket: Type: AWS::S3::Bucket

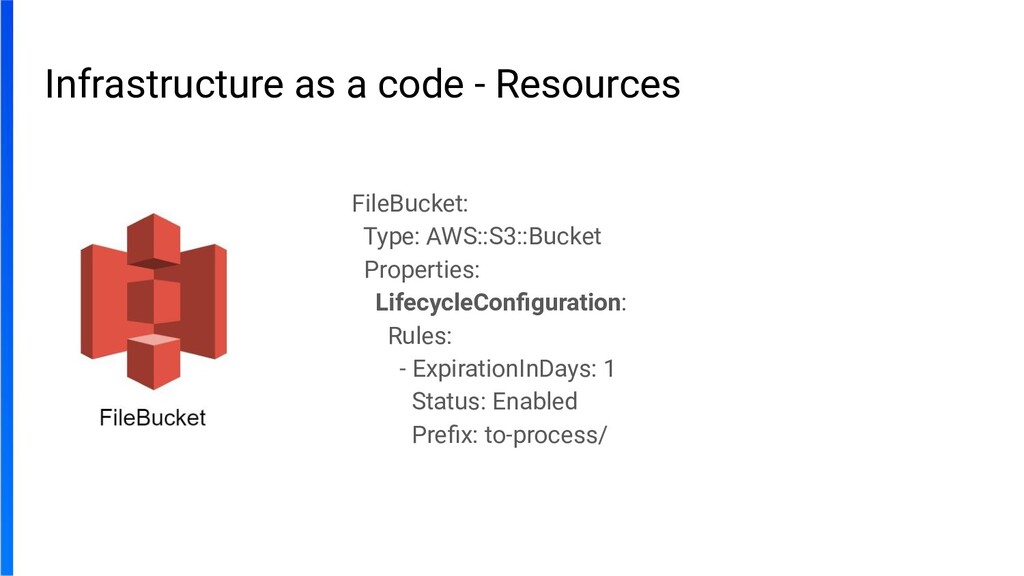

31. Infrastructure as a code - Resources FileBucket: Type: AWS::S3::Bucket Properties: LifecycleConfiguration: Rules: - ExpirationInDays: 1 Status: Enabled Prefix: to-process/

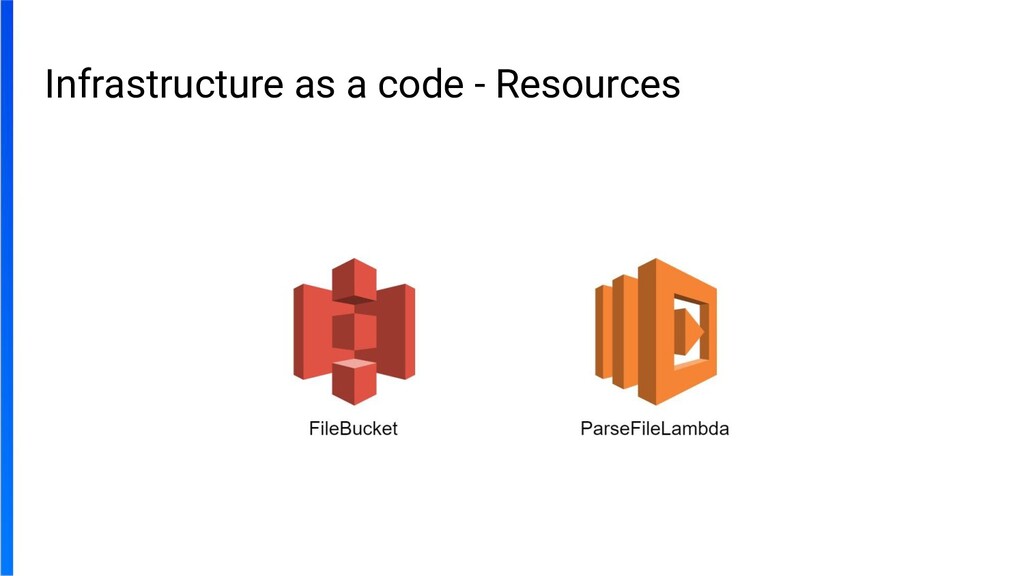

32. Infrastructure as a code - Resources

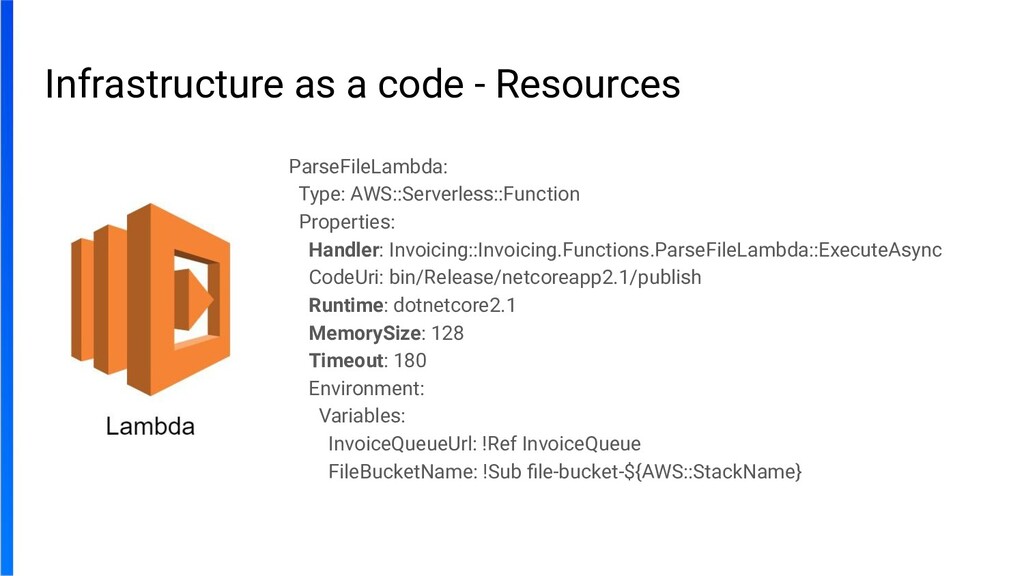

33. Infrastructure as a code - Resources ParseFileLambda: Type: AWS::Serverless::Function Properties: Handler: Invoicing::Invoicing.Functions.ParseFileLambda::ExecuteAsync CodeUri: bin/Release/netcoreapp2.1/publish Runtime: dotnetcore2.1 MemorySize: 128 Timeout: 180 Environment: Variables: InvoiceQueueUrl: !Ref InvoiceQueue FileBucketName: !Sub file-bucket-${AWS::StackName}

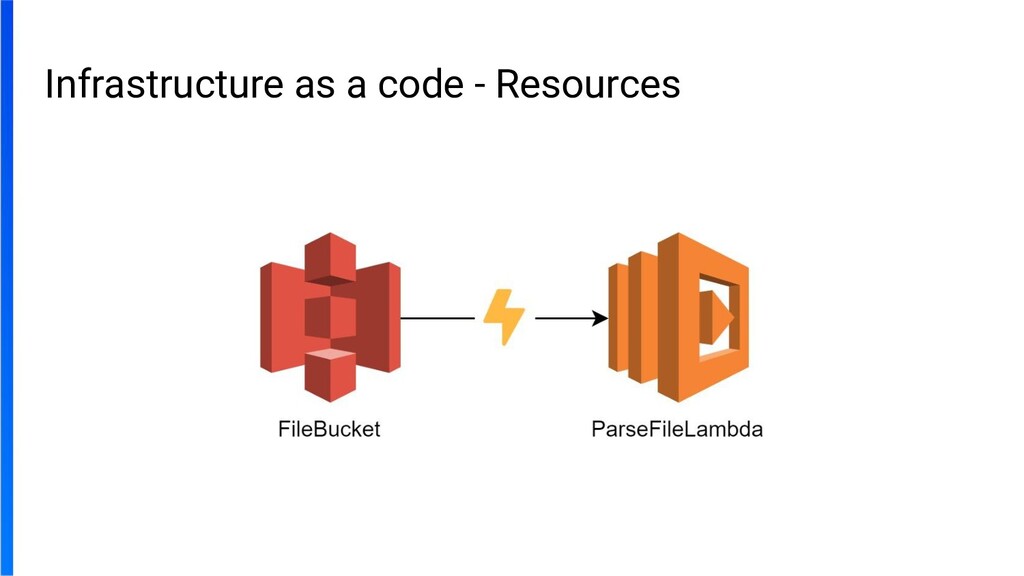

34. Infrastructure as a code - Resources
35. Infrastructure as a code - Resources FileBucket: Type: AWS::S3::Bucket Properties: NotificationConfiguration: LambdaConfigurations: - Event: s3:ObjectCreated:* Filter: S3Key: Rules: - Name: prefix Value: to-process/ Function: !GetAtt ParseFileLambda.Arn

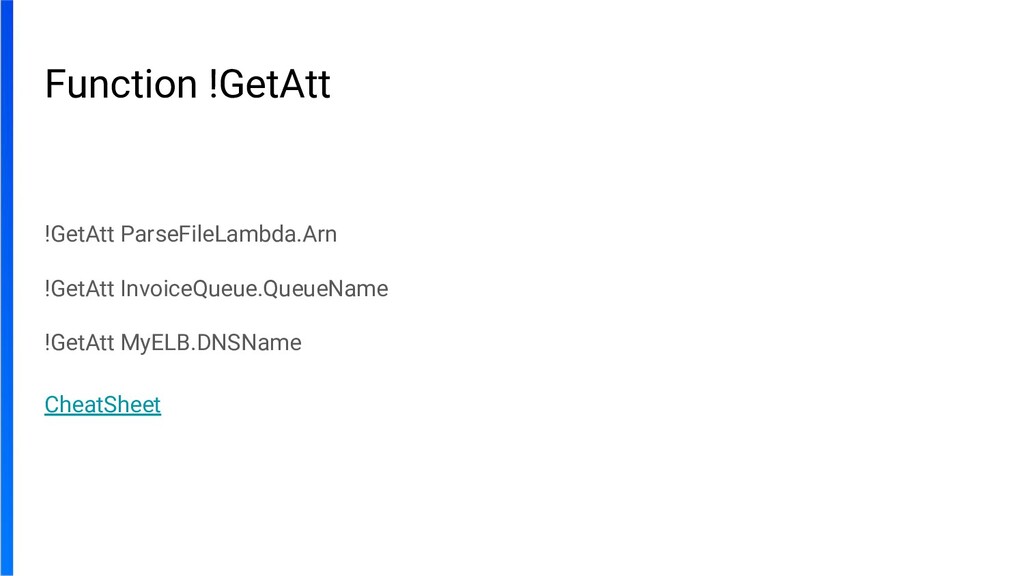

36. Function !GetAtt !GetAtt ParseFileLambda.Arn !GetAtt InvoiceQueue.QueueName !GetAtt MyELB.DNSName CheatSheet

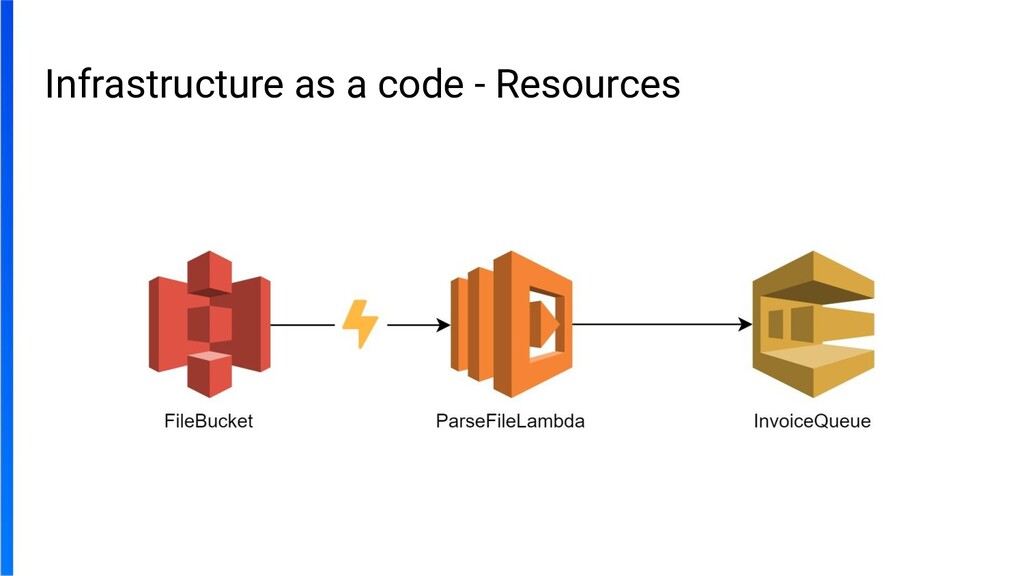

37. Infrastructure as a code - Resources

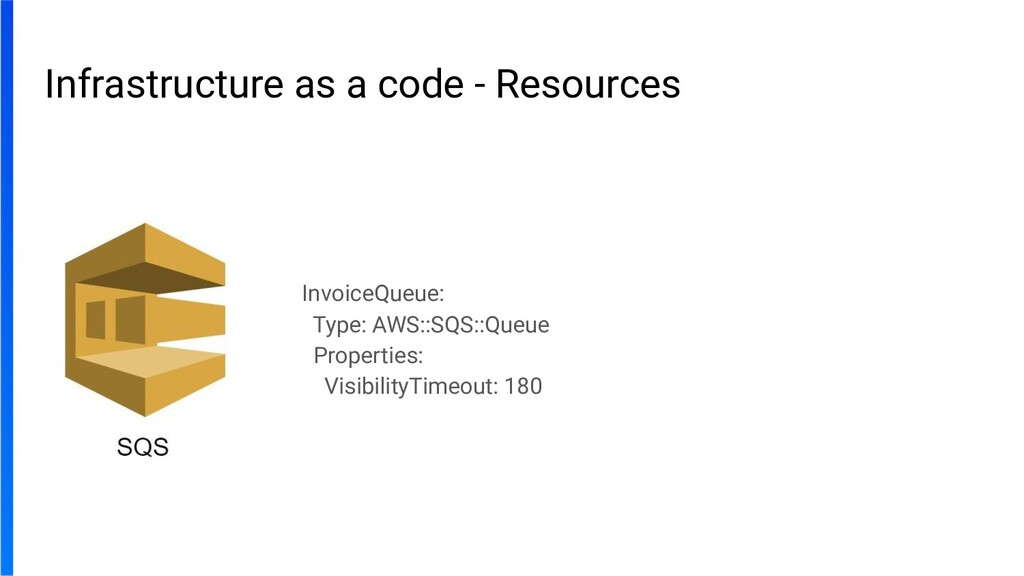

38. Infrastructure as a code - Resources InvoiceQueue: Type: AWS::SQS::Queue Properties: VisibilityTimeout: 180
39. Infrastructure as a code - Resources

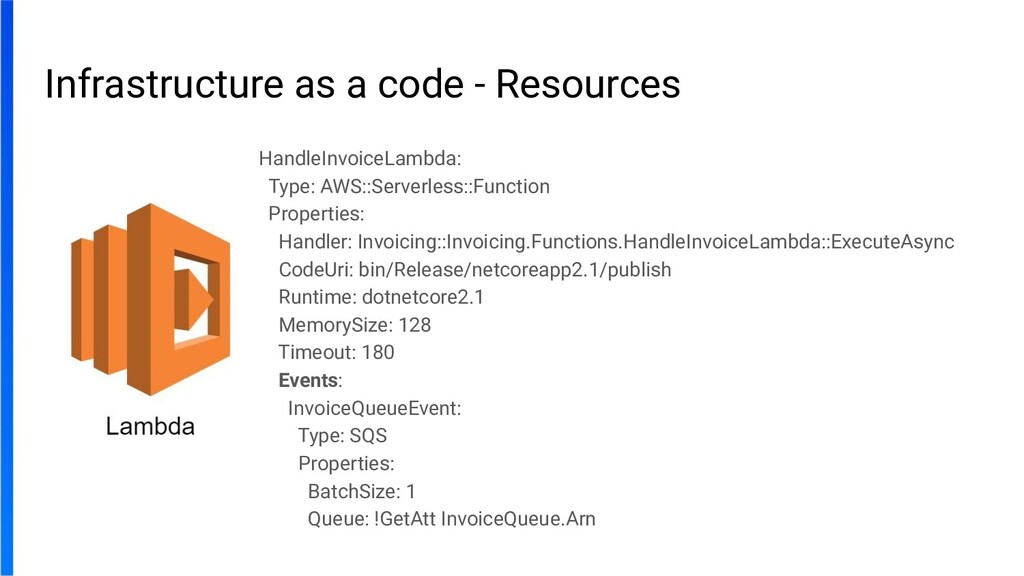

40. Infrastructure as a code - Resources HandleInvoiceLambda: Type: AWS::Serverless::Function Properties: Handler: Invoicing::Invoicing.Functions.HandleInvoiceLambda::ExecuteAsync CodeUri: bin/Release/netcoreapp2.1/publish Runtime: dotnetcore2.1 MemorySize: 128 Timeout: 180 Events: InvoiceQueueEvent: Type: SQS Properties: BatchSize: 1 Queue: !GetAtt InvoiceQueue.Arn

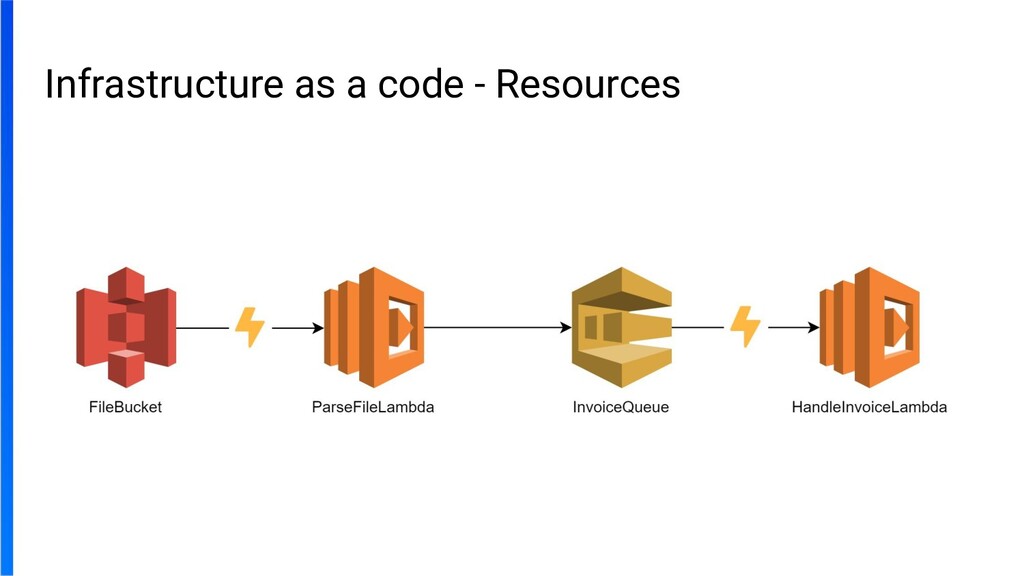

41. Infrastructure as a code - Resources

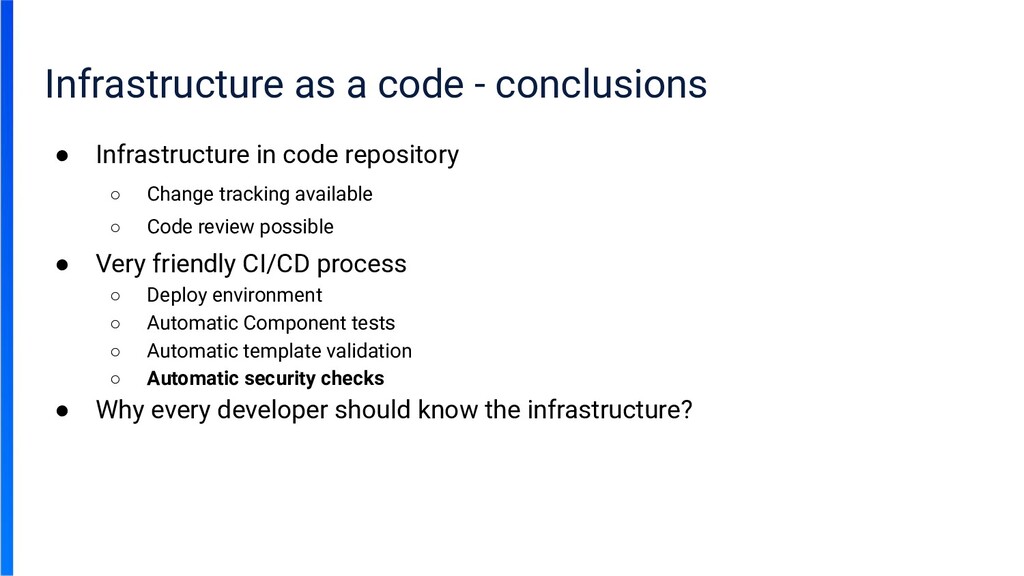

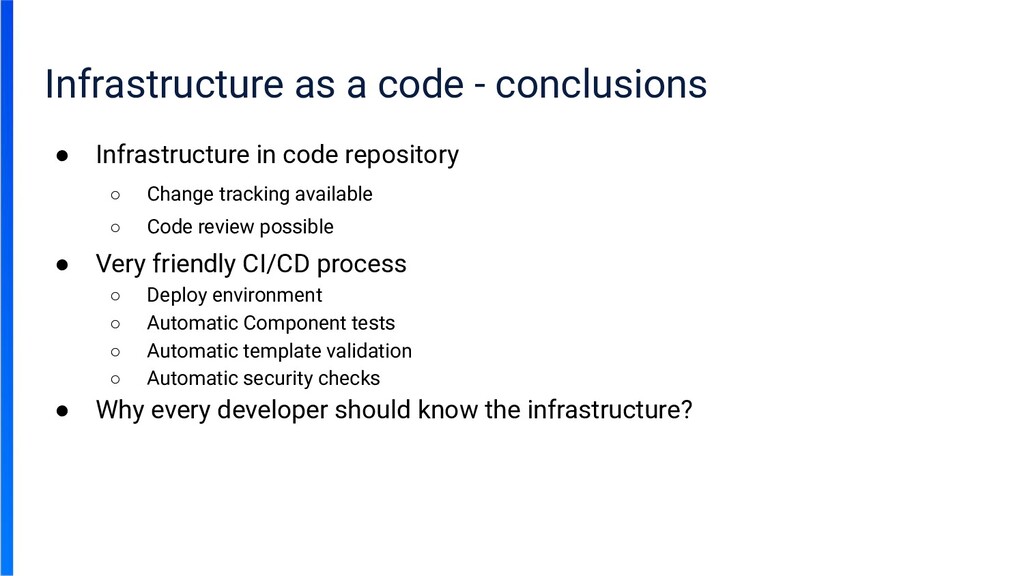

42. Infrastructure as a code - conclusions • Infrastructure in code repository ◦ Change tracking available ◦ Code review possible • Very friendly CI/CD process ◦ Deploy environment ◦ Automatic Component tests ◦ Automatic template validation ◦ Automatic security checks • Why every developer should know the infrastructure?
43. Infrastructure as a code - conclusions • Infrastructure in code repository ◦ Change tracking available ◦ Code review possible • Very friendly CI/CD process ◦ Deploy environment ◦ Automatic Component tests ◦ Automatic template validation ◦ Automatic security checks • Why every developer should know the infrastructure?
44. Invoicing process

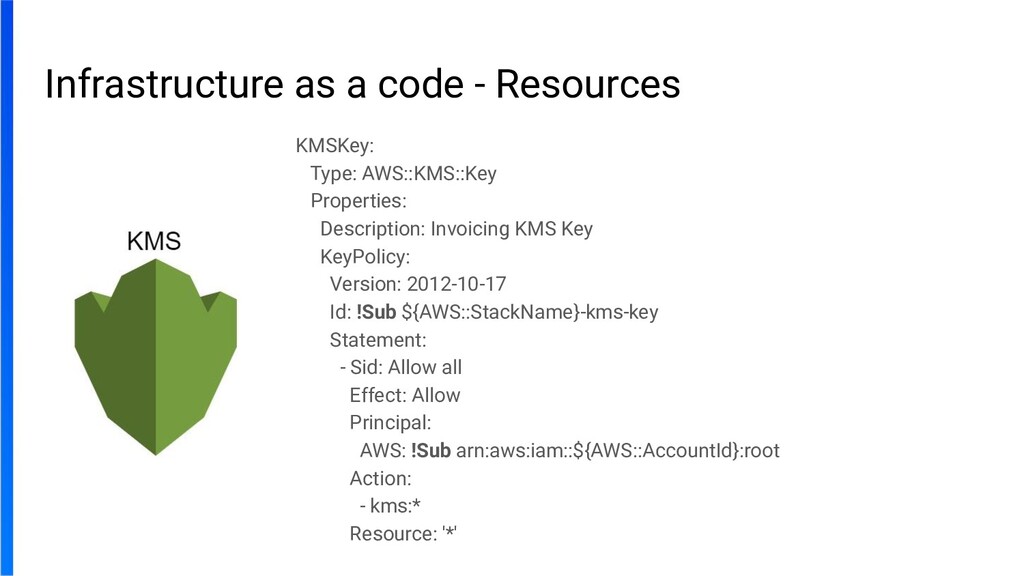

45. Infrastructure as a code - Resources KMSKey: Type: AWS::KMS::Key Properties: Description: Invoicing KMS Key KeyPolicy: Version: 2012-10-17 Id: !Sub ${AWS::StackName}-kms-key Statement: - Sid: Allow all Effect: Allow Principal: AWS: !Sub arn:aws:iam::${AWS::AccountId}:root Action: - kms:* Resource: '*'

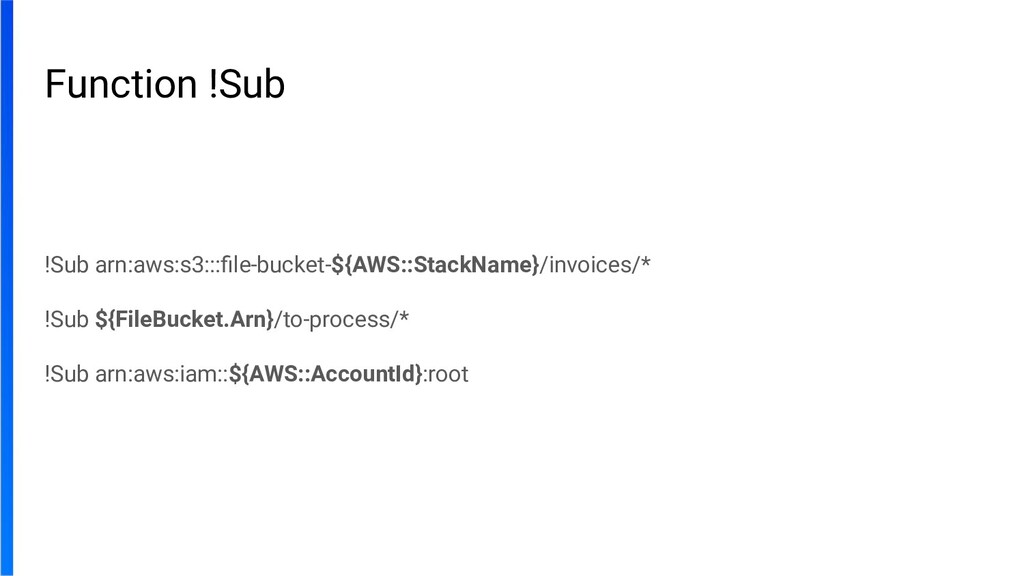

46. Function !Sub !Sub arn:aws:s3:::file-bucket-${AWS::StackName}/invoices/* !Sub ${FileBucket.Arn}/to-process/* !Sub arn:aws:iam::${AWS::AccountId}:root
47. Infrastructure as a code - Resources FileBucket: Type: AWS::S3::Bucket Properties: BucketEncryption: ServerSideEncryptionConfiguration: - ServerSideEncryptionByDefault: SSEAlgorithm: aws:kms KMSMasterKeyID: !Ref KMSKey

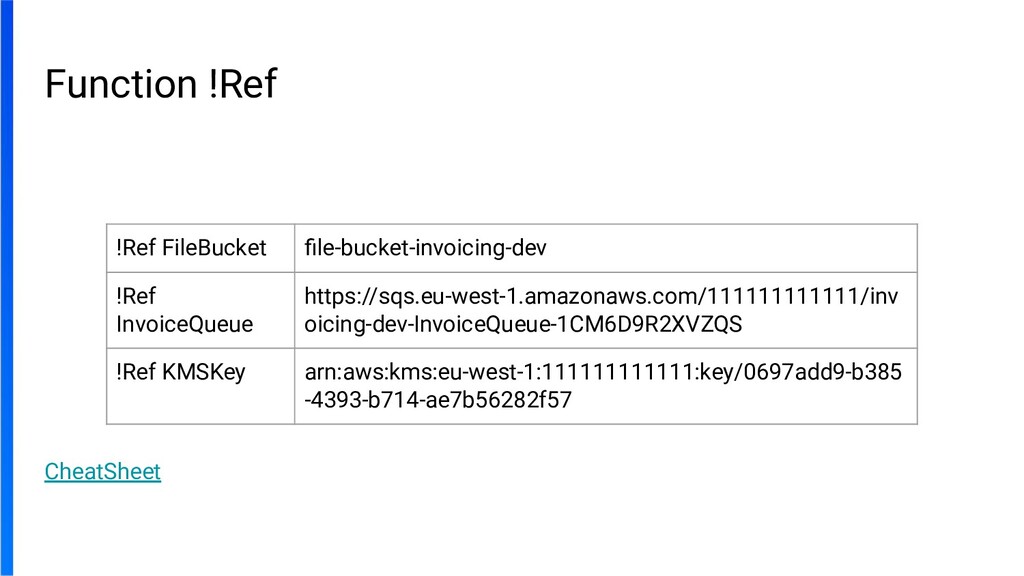

48. Function !Ref CheatSheet !Ref FileBucket file-bucket-invoicing-dev !Ref InvoiceQueue https://sqs.eu-west-1.amazonaws.com/111111111111/inv oicing-dev-InvoiceQueue-1CM6D9R2XVZQS !Ref KMSKey arn:aws:kms:eu-west-1:111111111111:key/0697add9-b385 -4393-b714-ae7b56282f57

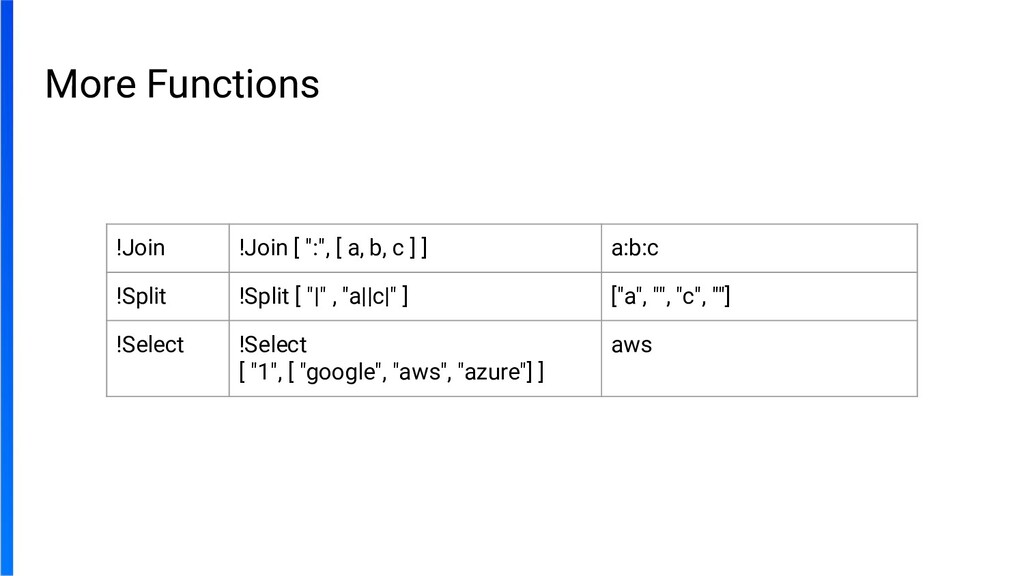

49. More Functions !Join !Join [ ":", [ a, b, c ] ] a:b:c !Split !Split [ "|" , "a||c|" ] ["a", "", "c", ""] !Select !Select [ "1", [ "google", "aws", "azure"] ] aws

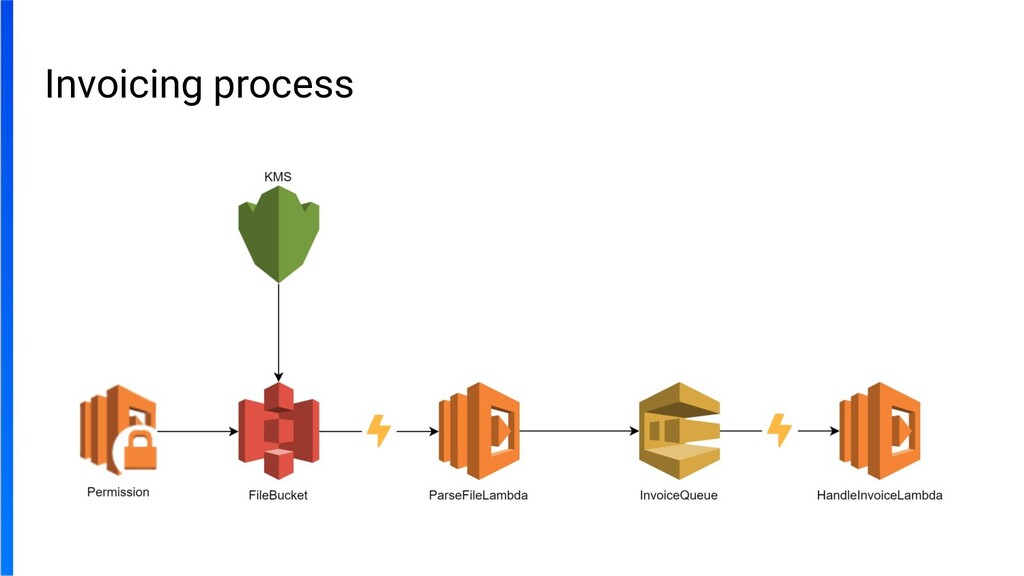

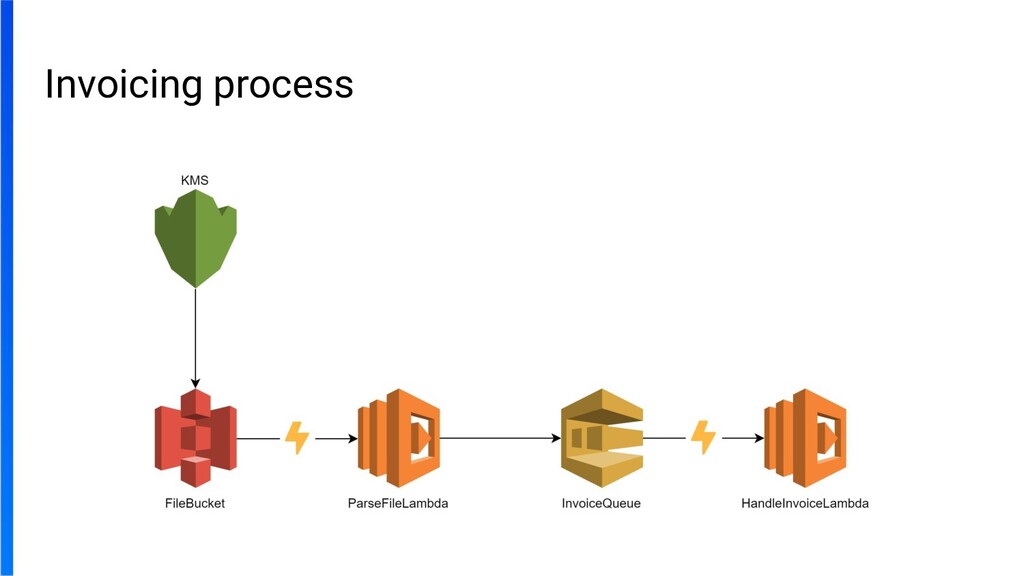

50. Invoicing process

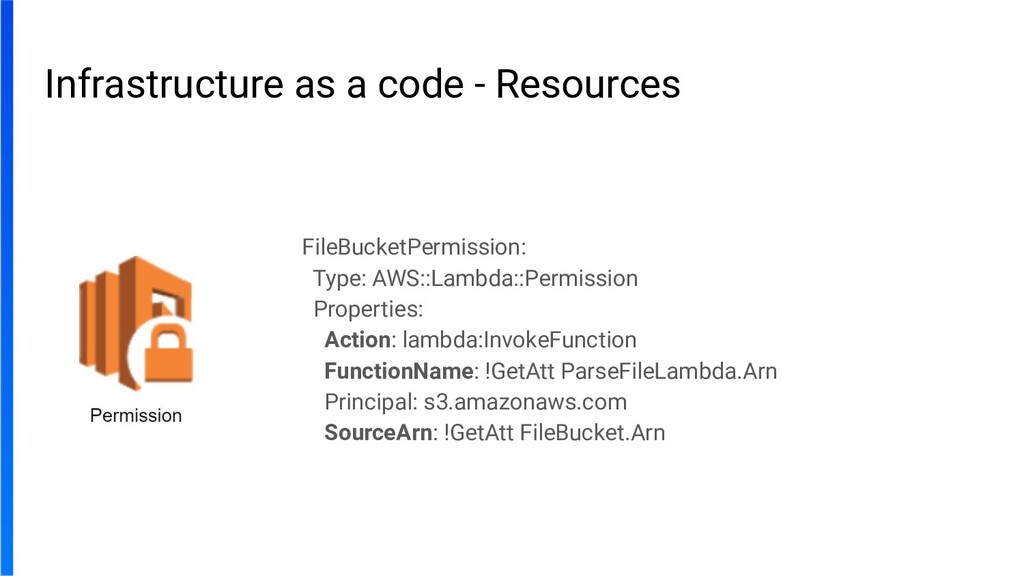

51. Infrastructure as a code - Resources FileBucketPermission: Type: AWS::Lambda::Permission Properties: Action: lambda:InvokeFunction FunctionName: !GetAtt ParseFileLambda.Arn Principal: s3.amazonaws.com SourceArn: !GetAtt FileBucket.Arn
52. Invoicing process

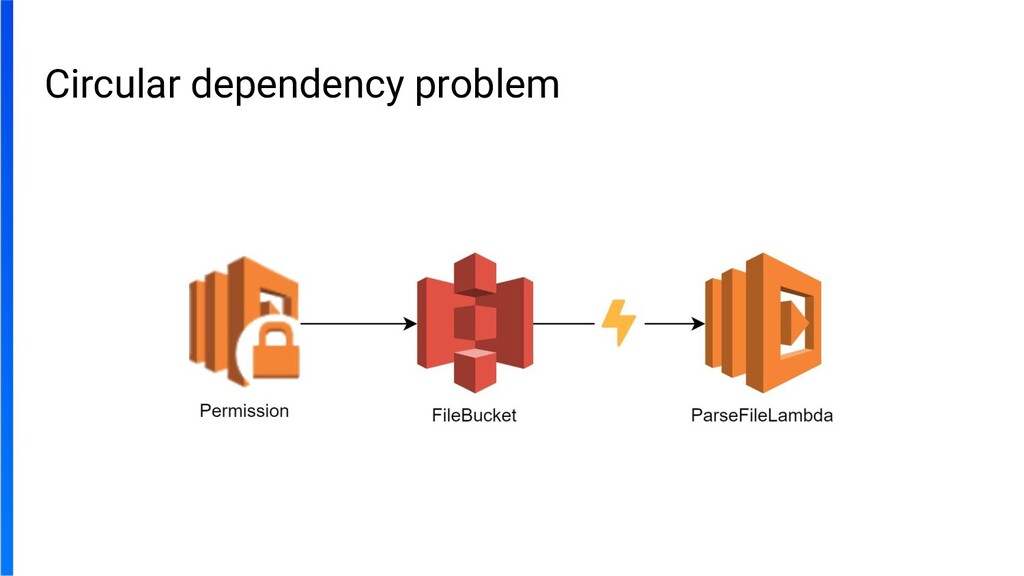

53. Circular dependency problem

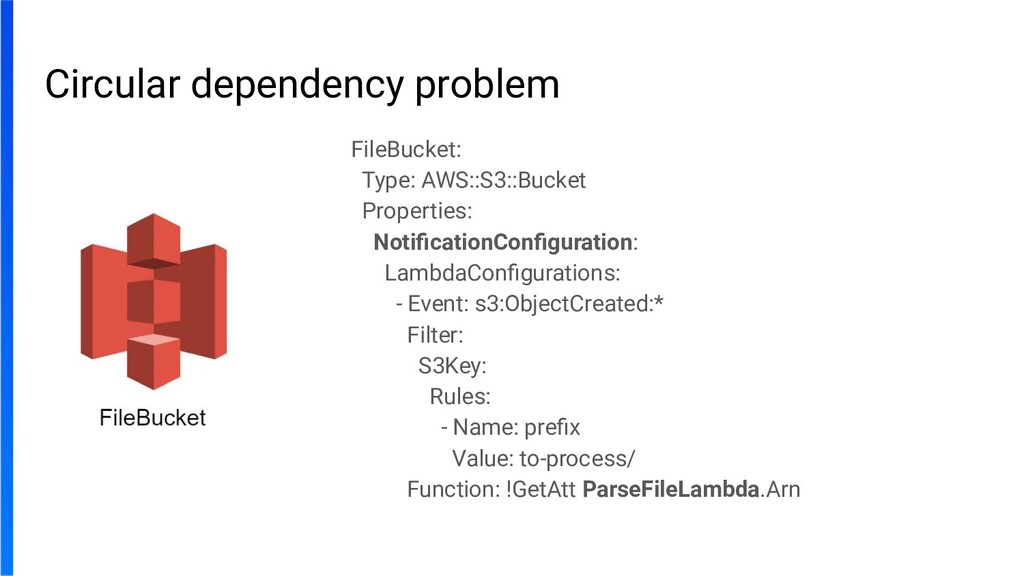

54. Circular dependency problem FileBucket: Type: AWS::S3::Bucket Properties: NotificationConfiguration: LambdaConfigurations: - Event: s3:ObjectCreated:* Filter: S3Key: Rules: - Name: prefix Value: to-process/ Function: !GetAtt ParseFileLambda.Arn

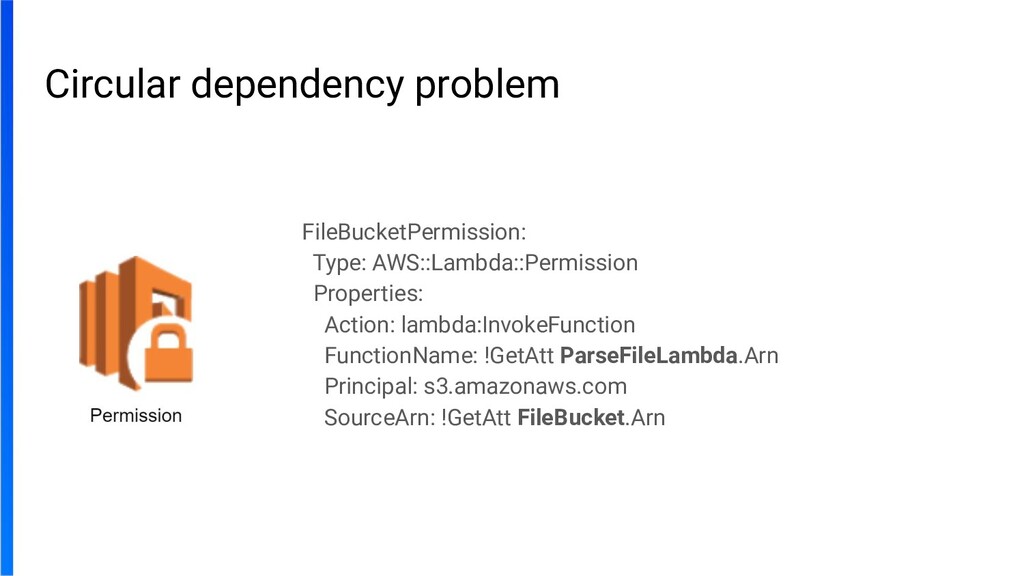

55. Circular dependency problem FileBucketPermission: Type: AWS::Lambda::Permission Properties: Action: lambda:InvokeFunction FunctionName: !GetAtt ParseFileLambda.Arn Principal: s3.amazonaws.com SourceArn: !GetAtt FileBucket.Arn

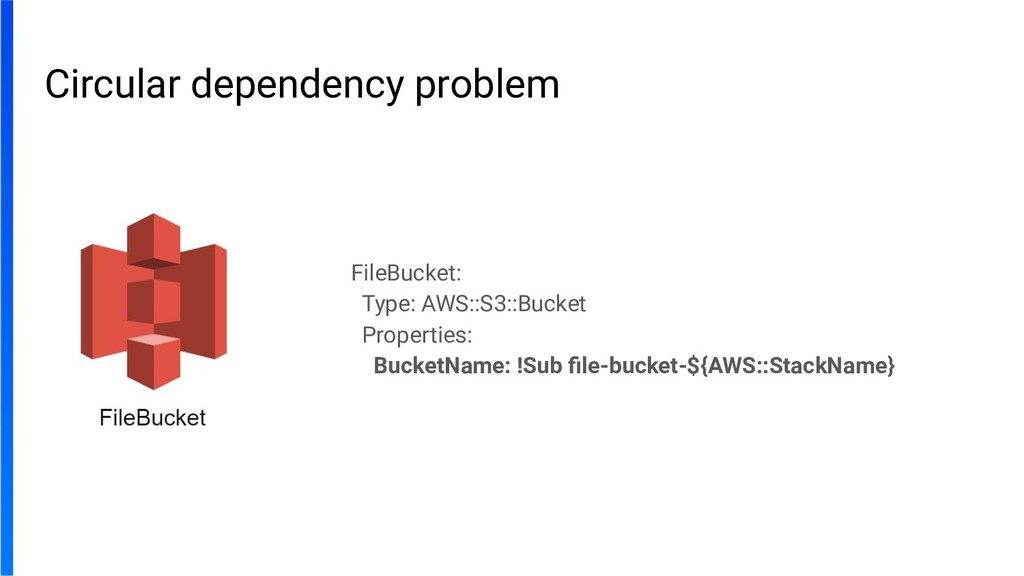

56. Circular dependency problem FileBucket: Type: AWS::S3::Bucket Properties: BucketName: !Sub file-bucket-${AWS::StackName}

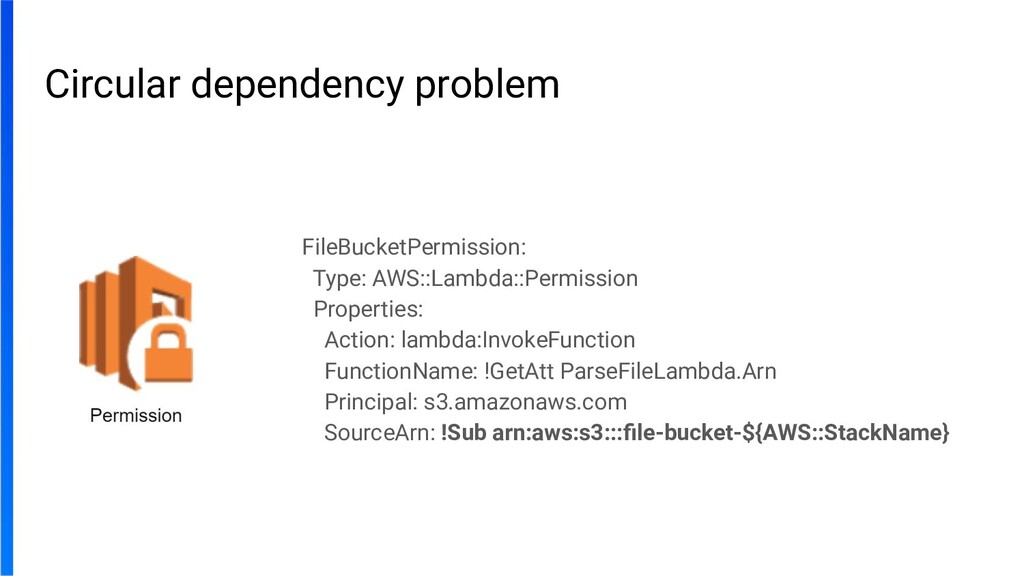

57. Circular dependency problem FileBucketPermission: Type: AWS::Lambda::Permission Properties: Action: lambda:InvokeFunction FunctionName: !GetAtt ParseFileLambda.Arn Principal: s3.amazonaws.com SourceArn: !Sub arn:aws:s3:::file-bucket-${AWS::StackName}

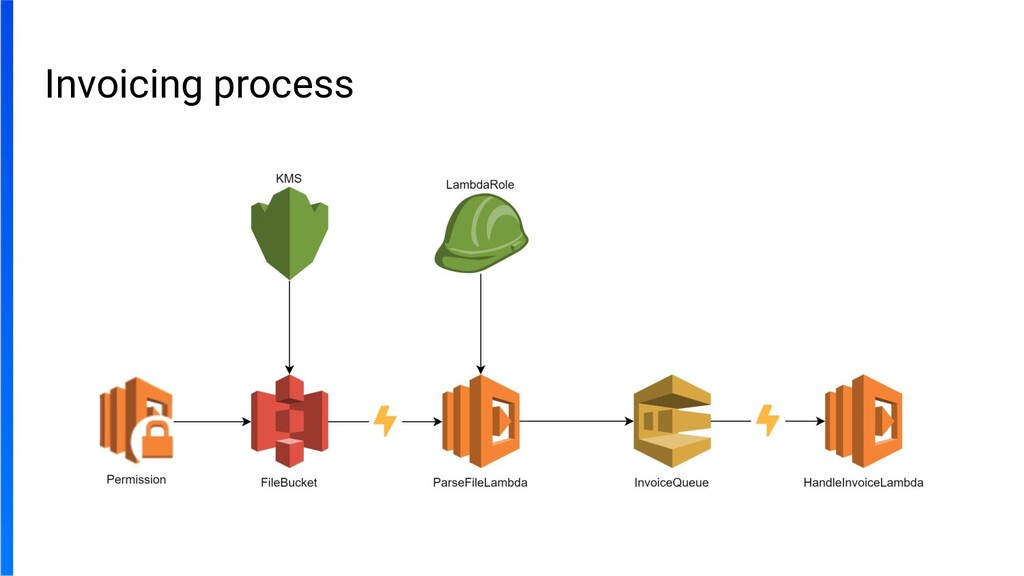

58. Invoicing process

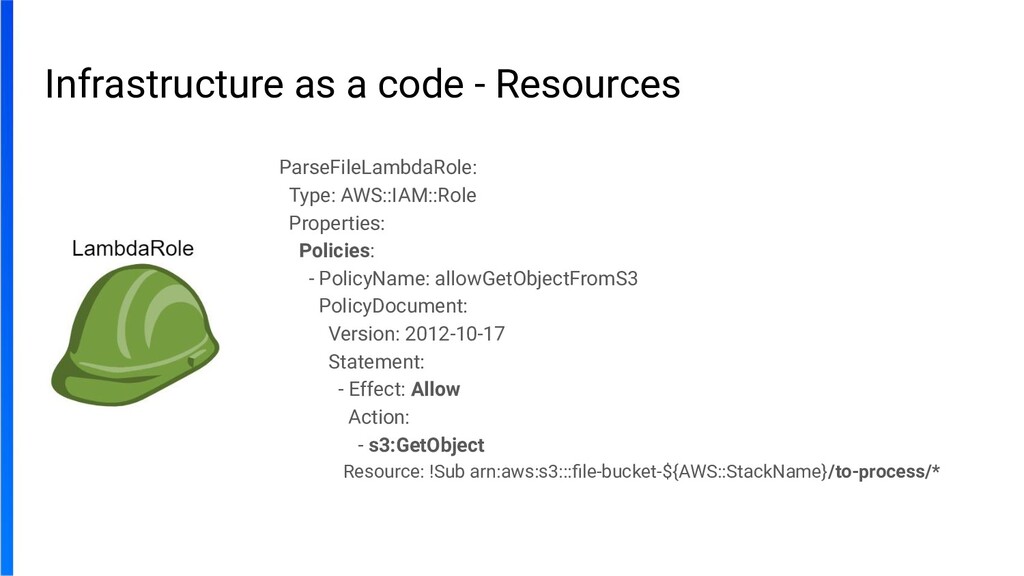

59. Infrastructure as a code - Resources ParseFileLambdaRole: Type: AWS::IAM::Role Properties: Policies: - PolicyName: allowGetObjectFromS3 PolicyDocument: Version: 2012-10-17 Statement: - Effect: Allow Action: - s3:GetObject Resource: !Sub arn:aws:s3:::file-bucket-${AWS::StackName}/to-process/*

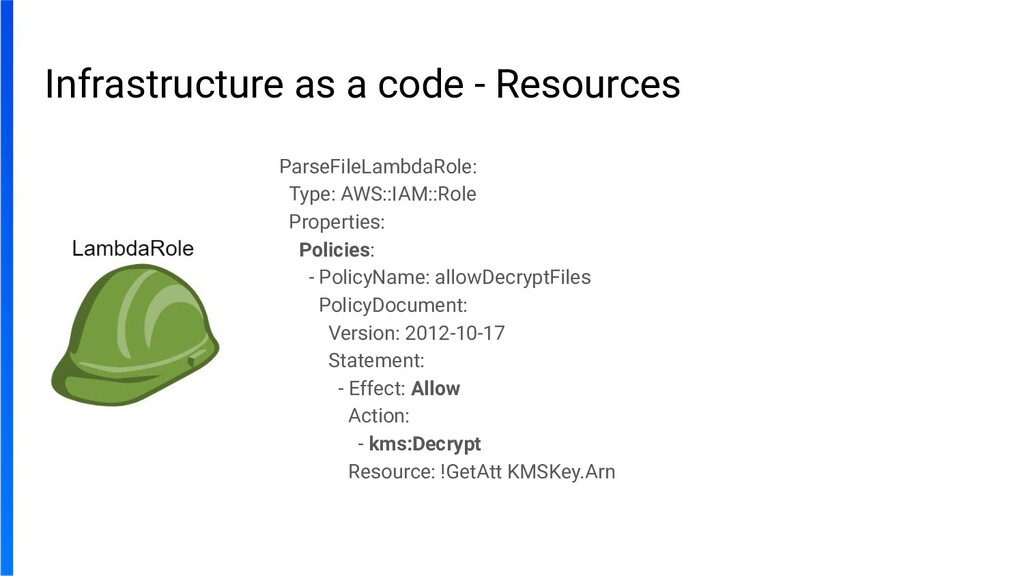

60. Infrastructure as a code - Resources ParseFileLambdaRole: Type: AWS::IAM::Role Properties: Policies: - PolicyName: allowDecryptFiles PolicyDocument: Version: 2012-10-17 Statement: - Effect: Allow Action: - kms:Decrypt Resource: !GetAtt KMSKey.Arn

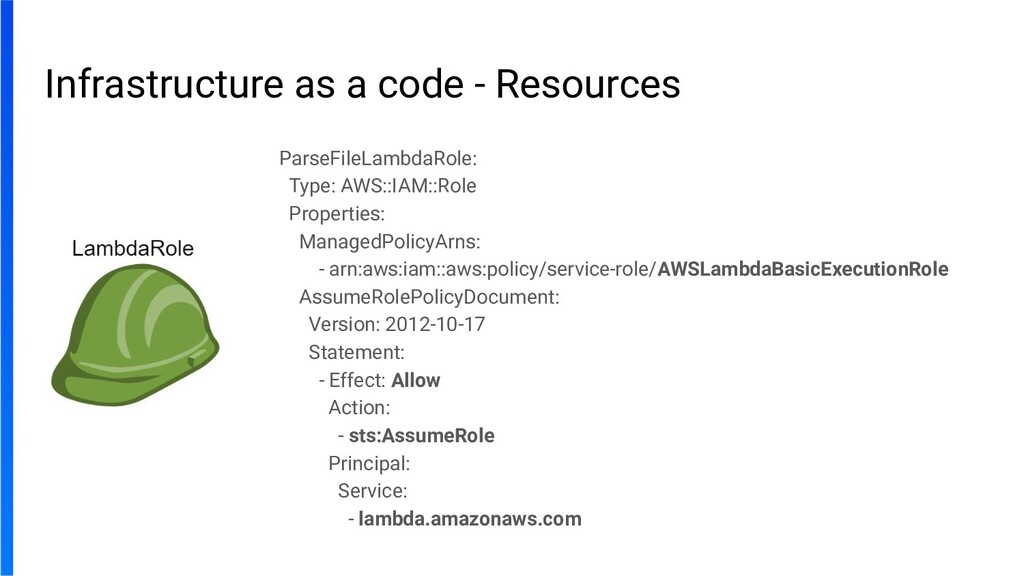

61. Infrastructure as a code - Resources ParseFileLambdaRole: Type: AWS::IAM::Role Properties: ManagedPolicyArns: - arn:aws:iam::aws:policy/service-role/AWSLambdaBasicExecutionRole AssumeRolePolicyDocument: Version: 2012-10-17 Statement: - Effect: Allow Action: - sts:AssumeRole Principal: Service: - lambda.amazonaws.com

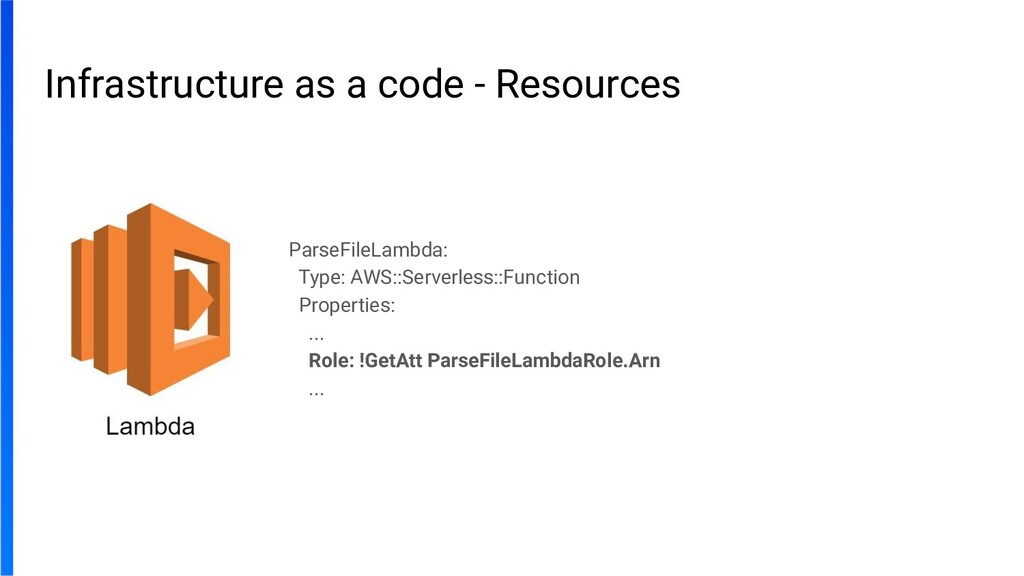

62. Infrastructure as a code - Resources ParseFileLambda: Type: AWS::Serverless::Function Properties: ... Role: !GetAtt ParseFileLambdaRole.Arn ...

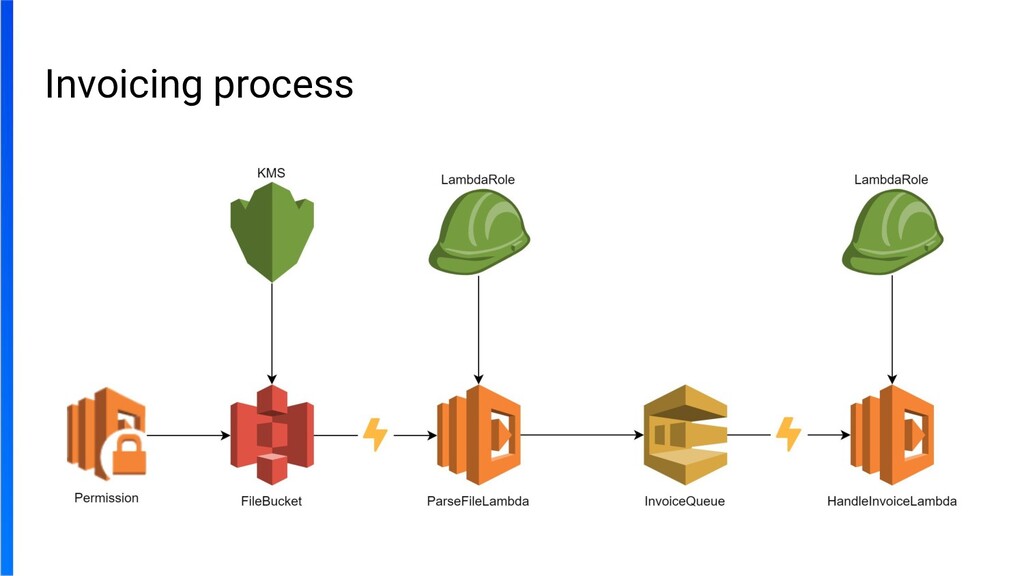

63. Invoicing process

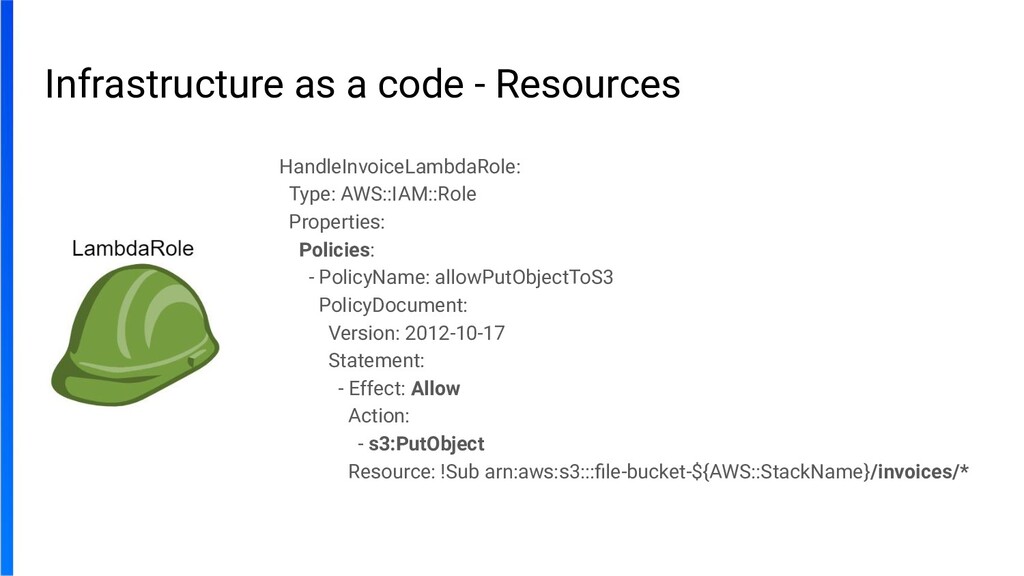

64. Infrastructure as a code - Resources HandleInvoiceLambdaRole: Type: AWS::IAM::Role Properties: Policies: - PolicyName: allowPutObjectToS3 PolicyDocument: Version: 2012-10-17 Statement: - Effect: Allow Action: - s3:PutObject Resource: !Sub arn:aws:s3:::file-bucket-${AWS::StackName}/invoices/*

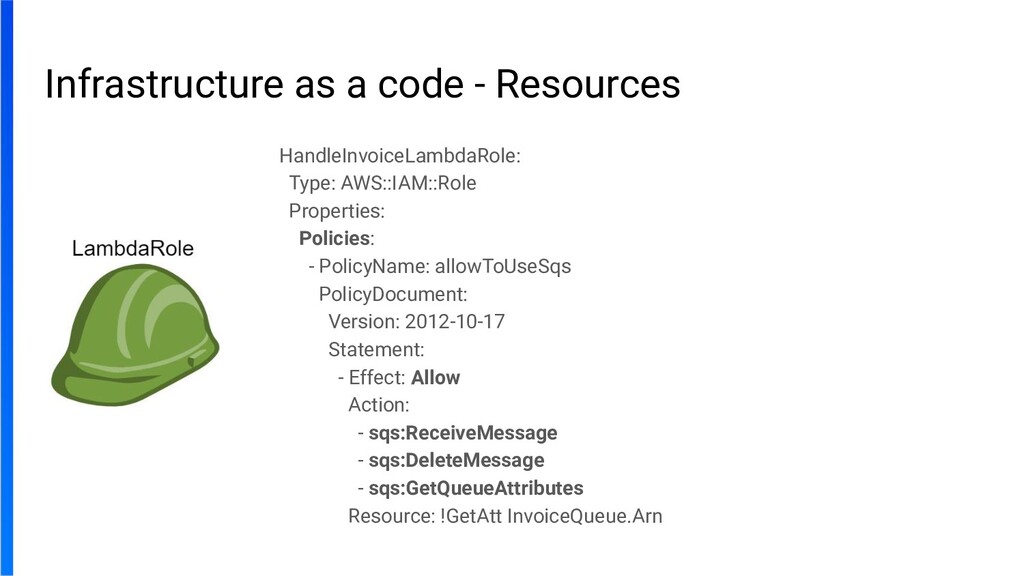

65. Infrastructure as a code - Resources HandleInvoiceLambdaRole: Type: AWS::IAM::Role Properties: Policies: - PolicyName: allowToUseSqs PolicyDocument: Version: 2012-10-17 Statement: - Effect: Allow Action: - sqs:ReceiveMessage - sqs:DeleteMessage - sqs:GetQueueAttributes Resource: !GetAtt InvoiceQueue.Arn

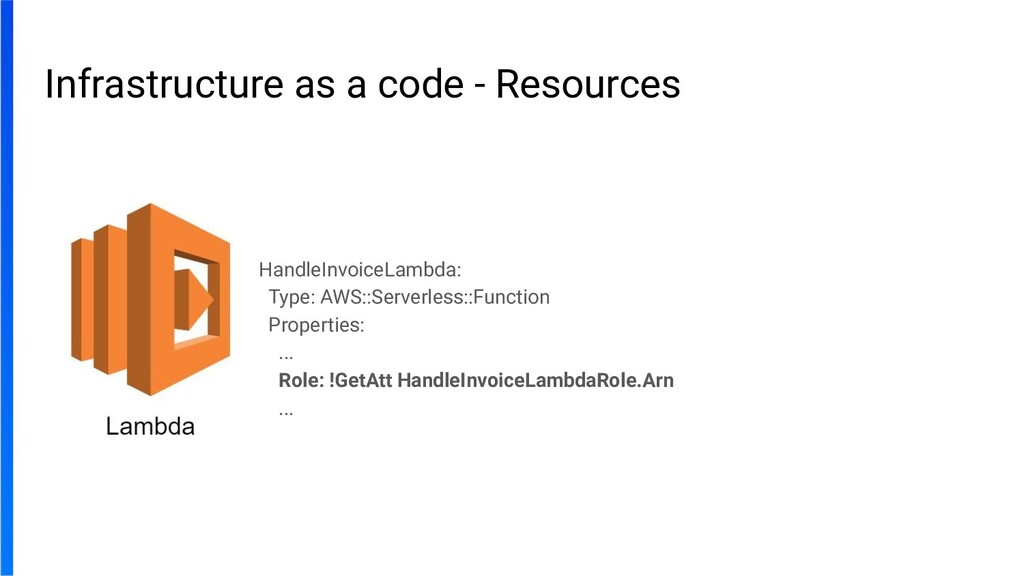

66. Infrastructure as a code - Resources HandleInvoiceLambda: Type: AWS::Serverless::Function Properties: ... Role: !GetAtt HandleInvoiceLambdaRole.Arn ...

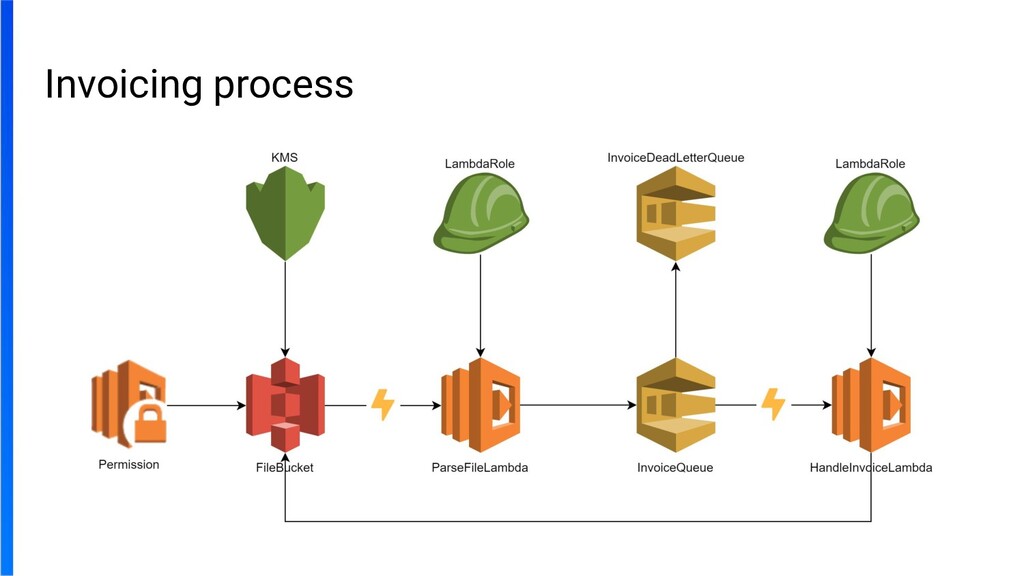

67. Invoicing process

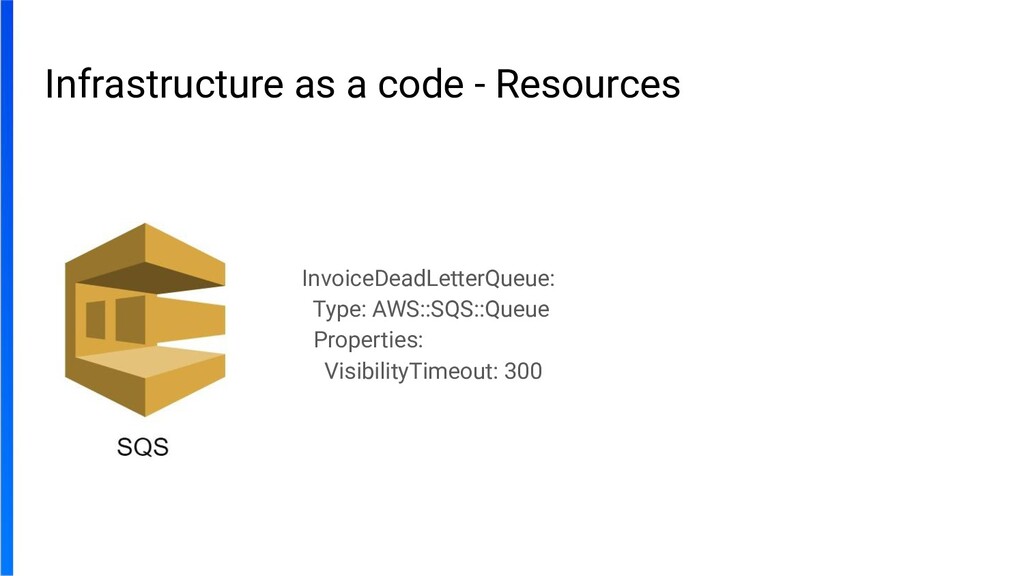

68. Infrastructure as a code - Resources InvoiceDeadLetterQueue: Type: AWS::SQS::Queue Properties: VisibilityTimeout: 300

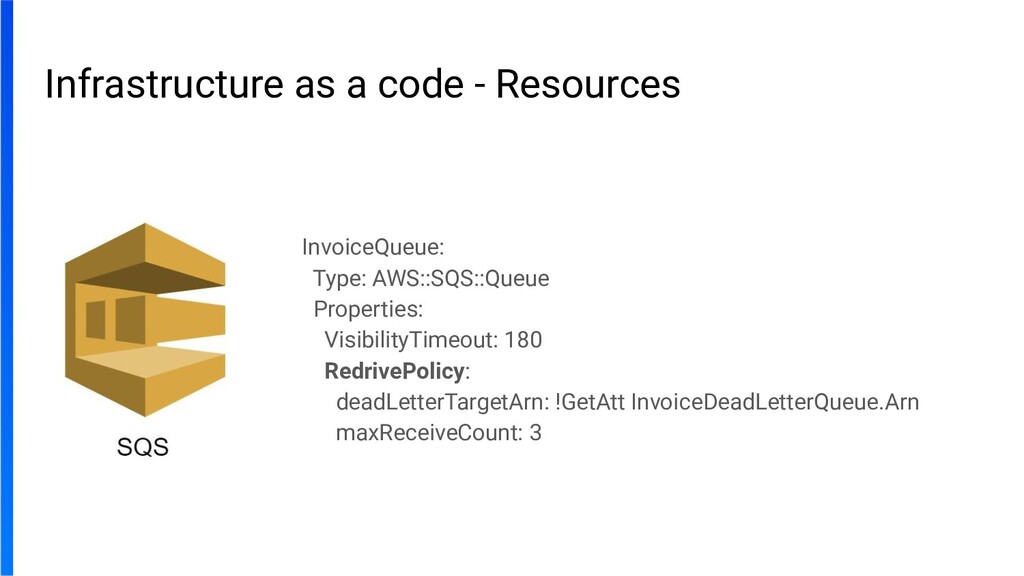

69. Infrastructure as a code - Resources InvoiceQueue: Type: AWS::SQS::Queue Properties: VisibilityTimeout: 180 RedrivePolicy: deadLetterTargetArn: !GetAtt InvoiceDeadLetterQueue.Arn maxReceiveCount: 3
70. Invoicing process

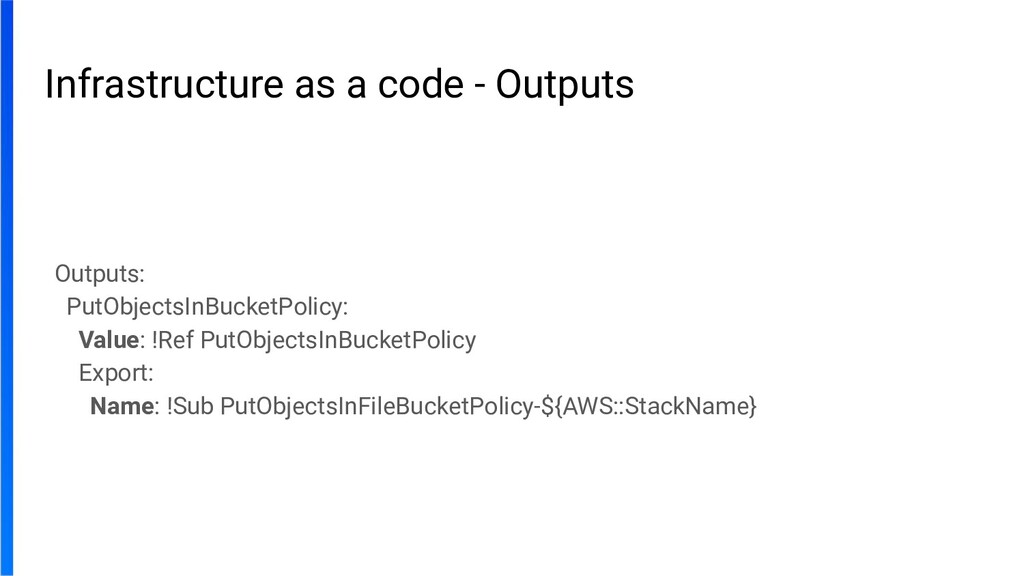

71. Infrastructure as a code - Outputs Outputs: PutObjectsInBucketPolicy: Value: !Ref PutObjectsInBucketPolicy Export: Name: !Sub PutObjectsInFileBucketPolicy-${AWS::StackName}

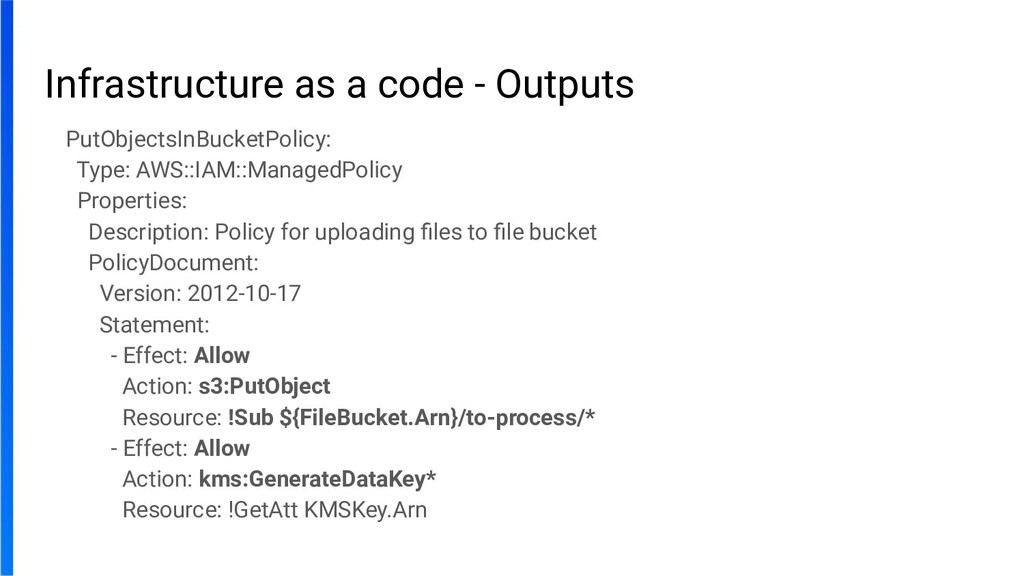

72. Infrastructure as a code - Outputs PutObjectsInBucketPolicy: Type: AWS::IAM::ManagedPolicy Properties: Description: Policy for uploading files to file bucket PolicyDocument: Version: 2012-10-17 Statement: - Effect: Allow Action: s3:PutObject Resource: !Sub ${FileBucket.Arn}/to-process/* - Effect: Allow Action: kms:GenerateDataKey* Resource: !GetAtt KMSKey.Arn
73. Invoicing process

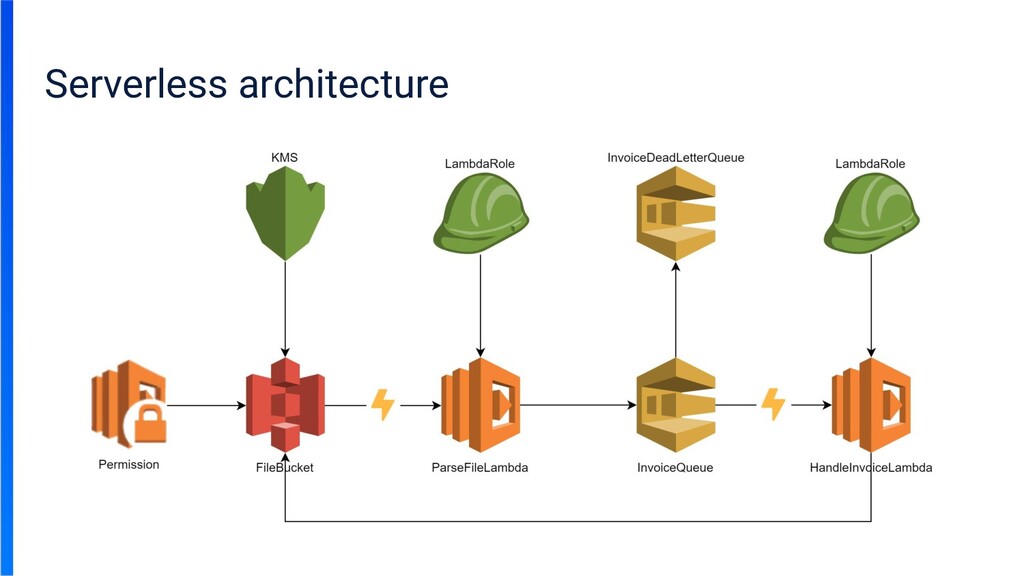

74. Serverless architecture
75. Serverless architecture
76. Serverless architecture

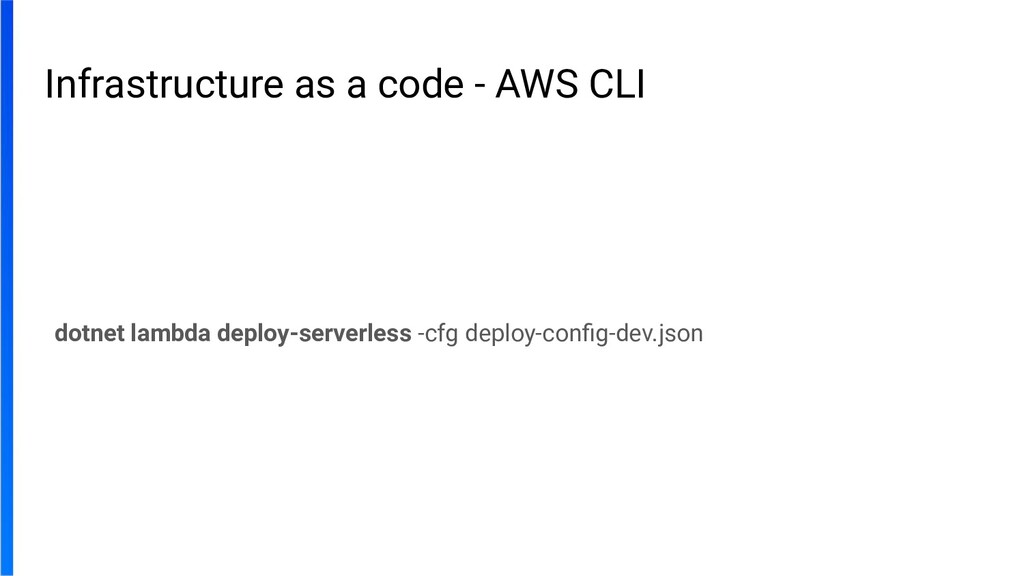

78. Infrastructure as a code - AWS CLI dotnet lambda deploy-serverless -cfg deploy-config-dev.json

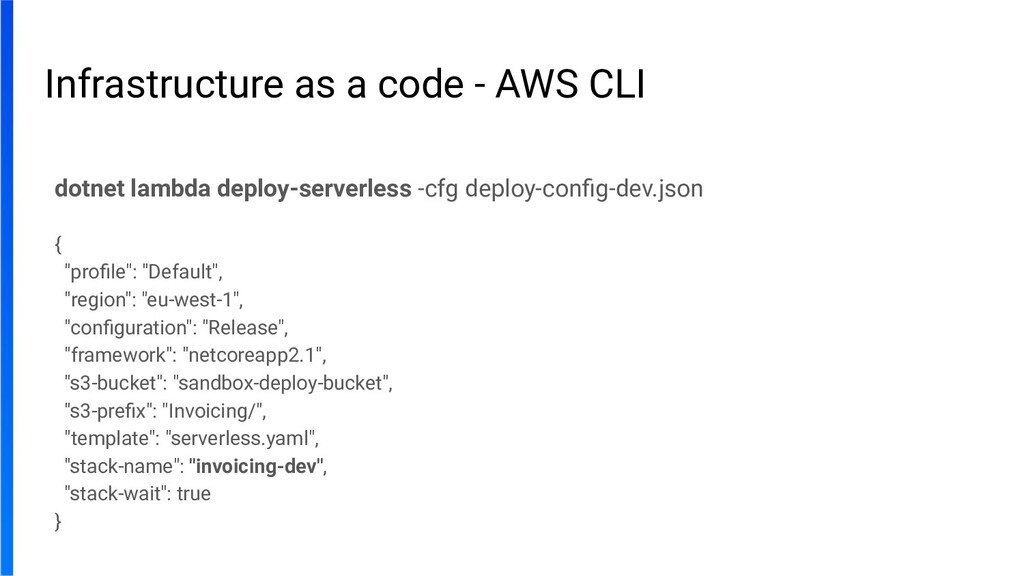

79. Infrastructure as a code - AWS CLI dotnet lambda deploy-serverless -cfg deploy-config-dev.json { "profile": "Default", "region": "eu-west-1", "configuration": "Release", "framework": "netcoreapp2.1", "s3-bucket": "sandbox-deploy-bucket", "s3-prefix": "Invoicing/", "template": "serverless.yaml", "stack-name": "invoicing-dev", "stack-wait": true }

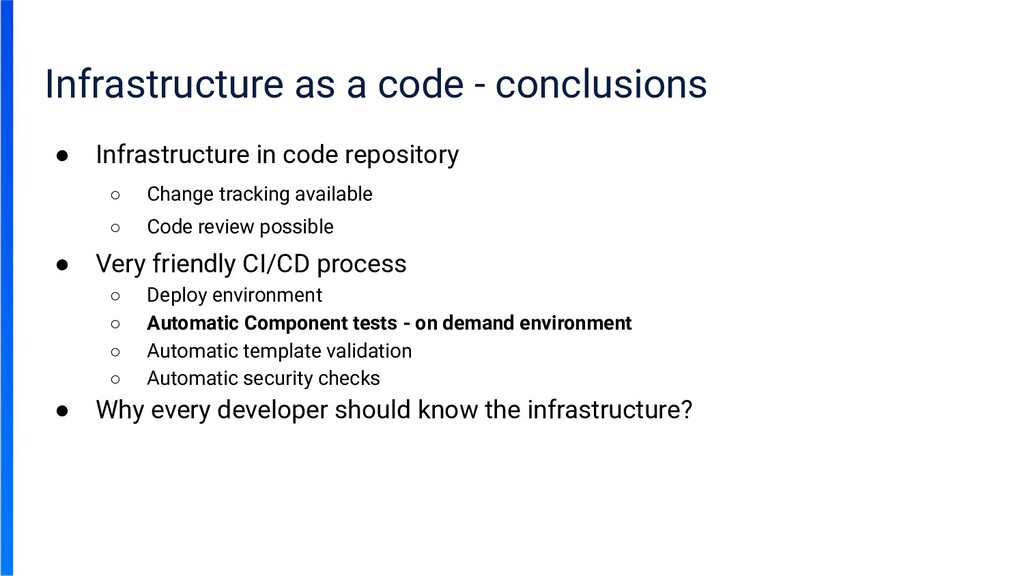

80. Infrastructure as a code - conclusions • Infrastructure in code repository ◦ Change tracking available ◦ Code review possible • Very friendly CI/CD process ◦ Deploy environment ◦ Automatic Component tests - on demand environment ◦ Automatic template validation ◦ Automatic security checks • Why every developer should know the infrastructure?
81. Infrastructure as a code - AWS CLI dotnet lambda deploy-serverless -cfg deploy-config-dev.json { "profile": "Default", "region": "eu-west-1", "configuration": "Release", "framework": "netcoreapp2.1", "s3-bucket": "sandbox-deploy-bucket", "s3-prefix": "Invoicing/", "template": "serverless.yaml", "stack-name": "invoicing-dev", "stack-wait": true }
82. Infrastructure as a code - Resources KMSKey: Type: AWS::KMS::Key Properties: Description: Invoicing KMS Key KeyPolicy: Version: 2012-10-17 Id: !Sub ${AWS::StackName}-kms-key Statement: - Sid: Allow all Effect: Allow Principal: AWS: !Sub arn:aws:iam::${AWS::AccountId}:root Action: - kms:* Resource: '*'

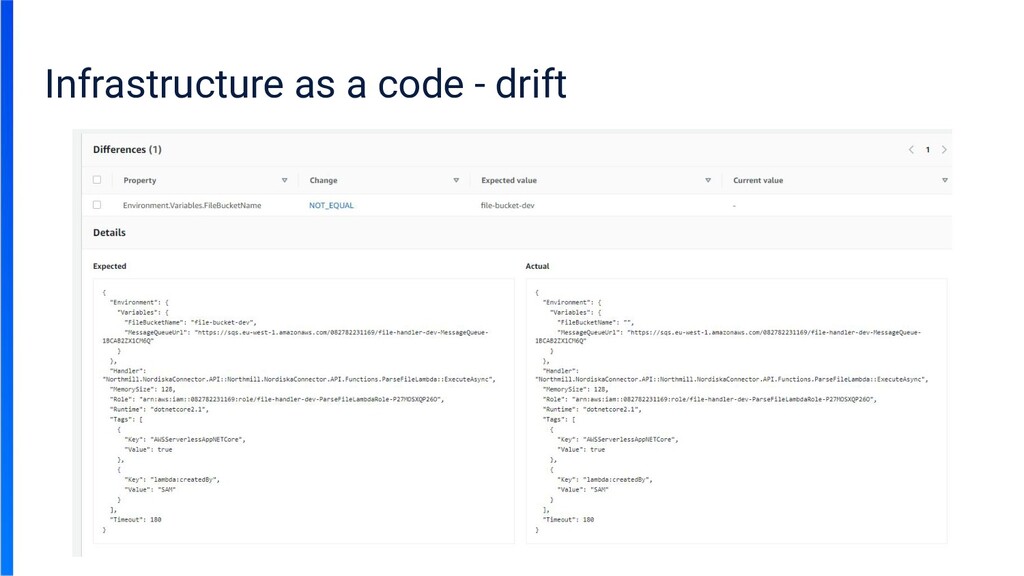

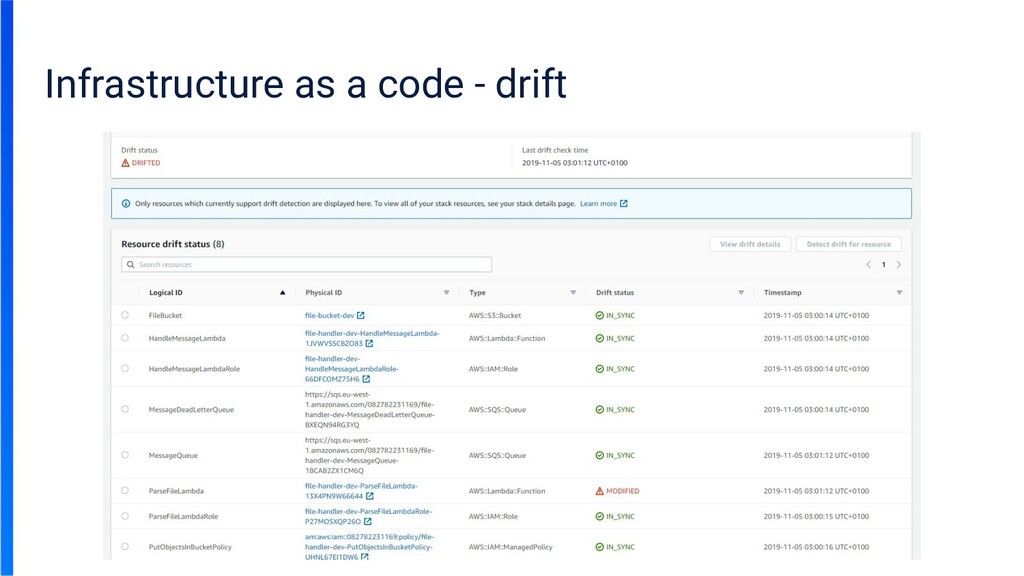

83. Infrastructure as a code - drift
84. Infrastructure as a code - drift
85. Thank you!! Q&A
