Docker swarm mode — как с этим жить

Ринат Хабибиев (Zvooq.com) @ MoscowPython 43

"Версия 1.12 подарила адептам Docker возможность разрабатывать автоматически масштабируемые и отказоустойчивые сервисы. Давайте разберём, как это работает, и научимся при помощи Fabricio быстро разворачивать сервисы Docker на произвольной инфраструктуре".

Видео: http://www.moscowpython.ru/meetup/43/docker-swarm-mode-kak-s-etim-zhit/

Transcript

1. Docker swarm mode - как с этим жить
   AUTHOR: Rinat Khabibiev, 2017
   MOSCOW, October 2016
   $ fab


   View Slide

2. RINAT KHABIBIEV
   2
   https://github.com/renskiy https://www.facebook.com/rinat.khabibiev
   PostgreSQL


   View Slide

3. Музыкальный сервис
   для массовой
   аудитории


   View Slide

4. 4
   DOCKER: QUIZ


   View Slide

5. 4
   DOCKER: QUIZ
   •Docker (dev, test, production)


   View Slide

6. 4
   DOCKER: QUIZ
   •Docker (dev, test, production)
   •Docker in production


   View Slide

7. 4
   DOCKER: QUIZ
   •Docker (dev, test, production)
   •Docker in production
   •Docker cluster (Swarm, Kubernetes, etc.)


   View Slide

8. 5
   https://www.docker.com/company
   SOME DOCKER STATISTICS


   View Slide

9. 6
   TRANSPORT CONTAINER


   View Slide

10. 7
    DOCKER CONTAINER


    View Slide

11. 8
    DOCKER IMAGE AND CONTAINERS


    View Slide

12. 9
    DOCKER SWARM MODE
    Leader


    View Slide

13. 10
    DOCKER SWARM MODE INIT
    $ docker swarm init
    Swarm initialized: current node (ggb0suhodetmzleo9b8c53poz) is now a manager.
    To add a worker to this swarm, run the following command:
    docker swarm join \
    --token SWMTKN-1-55vqojlc1688irxxak3l6ziijv9wh9vplh9a-5r5db3vtt27c98rzlz77kf2qu \
    192.168.65.2:2377
    To add a manager to this swarm, run 'docker swarm join-token manager' and follow the
    instructions.


    View Slide

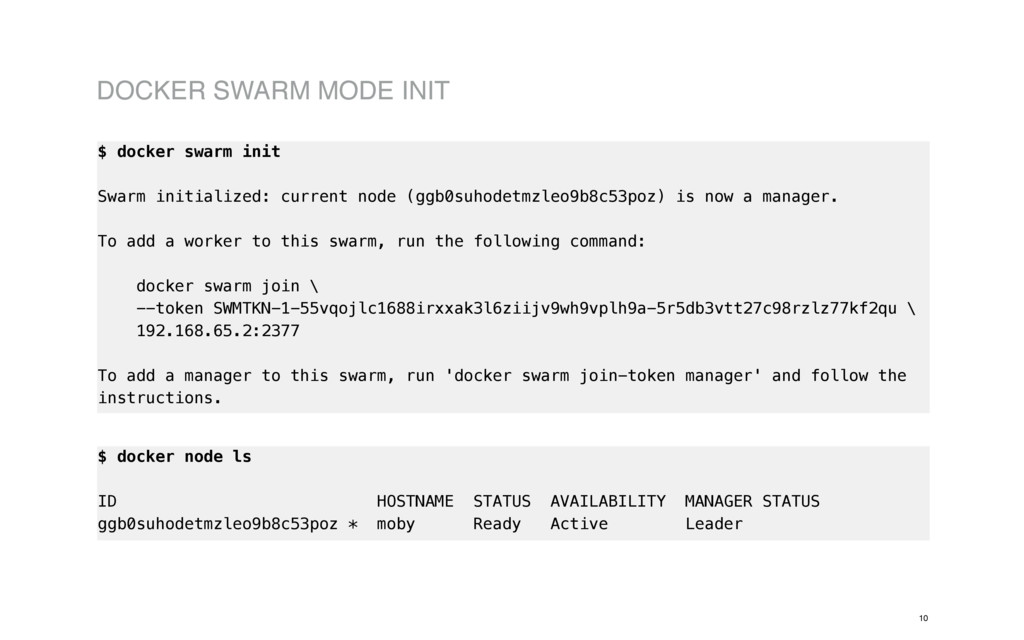

14. 10
    DOCKER SWARM MODE INIT
    $ docker swarm init
    Swarm initialized: current node (ggb0suhodetmzleo9b8c53poz) is now a manager.
    To add a worker to this swarm, run the following command:
    docker swarm join \
    --token SWMTKN-1-55vqojlc1688irxxak3l6ziijv9wh9vplh9a-5r5db3vtt27c98rzlz77kf2qu \
    192.168.65.2:2377
    To add a manager to this swarm, run 'docker swarm join-token manager' and follow the
    instructions.
    $ docker node ls
    ID HOSTNAME STATUS AVAILABILITY MANAGER STATUS
    ggb0suhodetmzleo9b8c53poz * moby Ready Active Leader


    View Slide

15. 11
    DOCKER SWARM MODE: SERVICE CREATE
    $ docker service create --replicas 3 --name my-service --network my-network my-image


    View Slide

16. 11
    DOCKER SWARM MODE: SERVICE CREATE
    $ docker service create --replicas 3 --name my-service --network my-network my-image


    View Slide

17. 12
    DOCKER SWARM MODE: INGRESS LOAD BALANCING


    View Slide

18. 13
    DOCKER SWARM MODE: SERVICE SCALING
    $ docker service ps my-service
    ID NAME IMAGE NODE DESIRED STATE CURRENT STATE
    0qihejybwf1x my-service.1 my-image worker3 Running Running 8 seconds
    bk658fpbex0d my-service.2 my-image worker2 Running Running 9 seconds
    5ls5s5fldaqg my-service.3 my-image worker1 Running Running 9 seconds


    View Slide

19. 13
    DOCKER SWARM MODE: SERVICE SCALING
    $ docker service ps my-service
    ID NAME IMAGE NODE DESIRED STATE CURRENT STATE
    0qihejybwf1x my-service.1 my-image worker3 Running Running 8 seconds
    bk658fpbex0d my-service.2 my-image worker2 Running Running 9 seconds
    5ls5s5fldaqg my-service.3 my-image worker1 Running Running 9 seconds
    $ docker service ps my-service
    Error response from daemon: This node is not a swarm manager. Worker nodes can't be
    used to view or modify cluster state. Please run this command on a manager node or
    promote the current node to a manager.


    View Slide

20. 13
    DOCKER SWARM MODE: SERVICE SCALING
    $ docker service ps my-service
    ID NAME IMAGE NODE DESIRED STATE CURRENT STATE
    0qihejybwf1x my-service.1 my-image worker3 Running Running 8 seconds
    bk658fpbex0d my-service.2 my-image worker2 Running Running 9 seconds
    5ls5s5fldaqg my-service.3 my-image worker1 Running Running 9 seconds
    $ docker service update --replicas 4 my-service
    $ docker service ps my-service
    Error response from daemon: This node is not a swarm manager. Worker nodes can't be
    used to view or modify cluster state. Please run this command on a manager node or
    promote the current node to a manager.


    View Slide

21. 14
    PROVISIONING, DEPLOY, ORCHESTRATION
    ORCHESTRATION
    PROVISIONING
    DEPLOY


    View Slide

22. 15
    PROVISIONING, DEPLOY, ORCHESTRATION


    View Slide

23. 15
    PROVISIONING, DEPLOY, ORCHESTRATION
    • orchestration - достижение и поддержание заданных
    настроек


    View Slide

24. 15
    PROVISIONING, DEPLOY, ORCHESTRATION
    • orchestration - достижение и поддержание заданных
    настроек
    • provisioning - подготовка инфраструктуры к работе


    View Slide

25. 15
    PROVISIONING, DEPLOY, ORCHESTRATION
    • orchestration - достижение и поддержание заданных
    настроек
    • provisioning - подготовка инфраструктуры к работе
    • deploy - выкладка новой версии приложения


    View Slide

26. 16
    PROVISIONING TOOLS PROVIDE HELP WITH DEPLOY


    View Slide

27. 16
    PROVISIONING TOOLS PROVIDE HELP WITH DEPLOY
    • built-in support: poor customisation and/or XML/YAML-hell


    View Slide

28. 16
    PROVISIONING TOOLS PROVIDE HELP WITH DEPLOY
    • built-in support: poor customisation and/or XML/YAML-hell


    View Slide

29. 16
    PROVISIONING TOOLS PROVIDE HELP WITH DEPLOY
    • built-in support: poor customisation and/or XML/YAML-hell
    • external scripts: breaking conventions


    View Slide

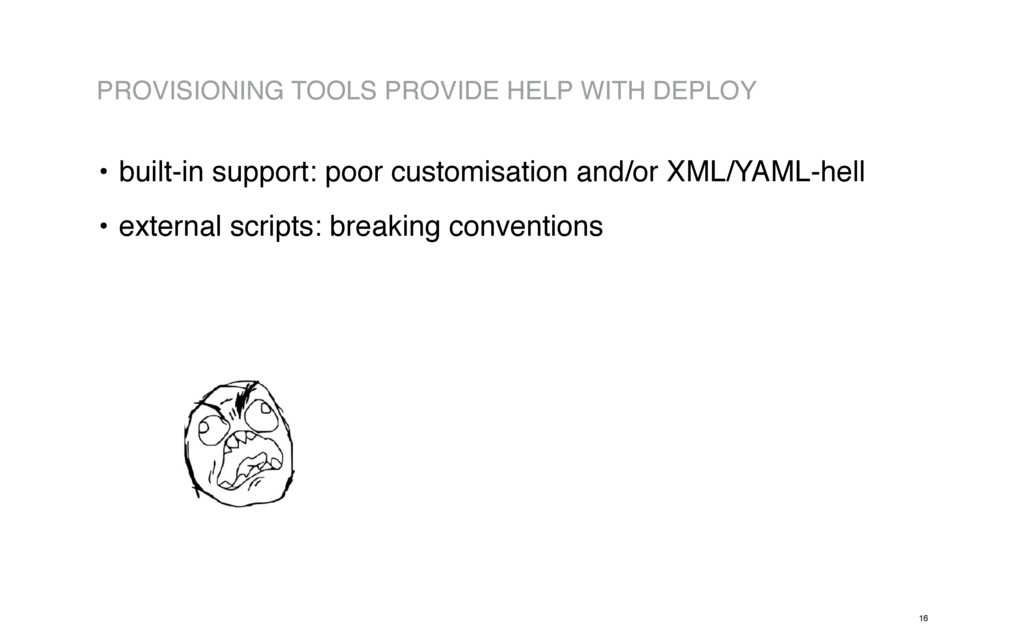

30. 16
    PROVISIONING TOOLS PROVIDE HELP WITH DEPLOY
    • built-in support: poor customisation and/or XML/YAML-hell
    • external scripts: breaking conventions


    View Slide

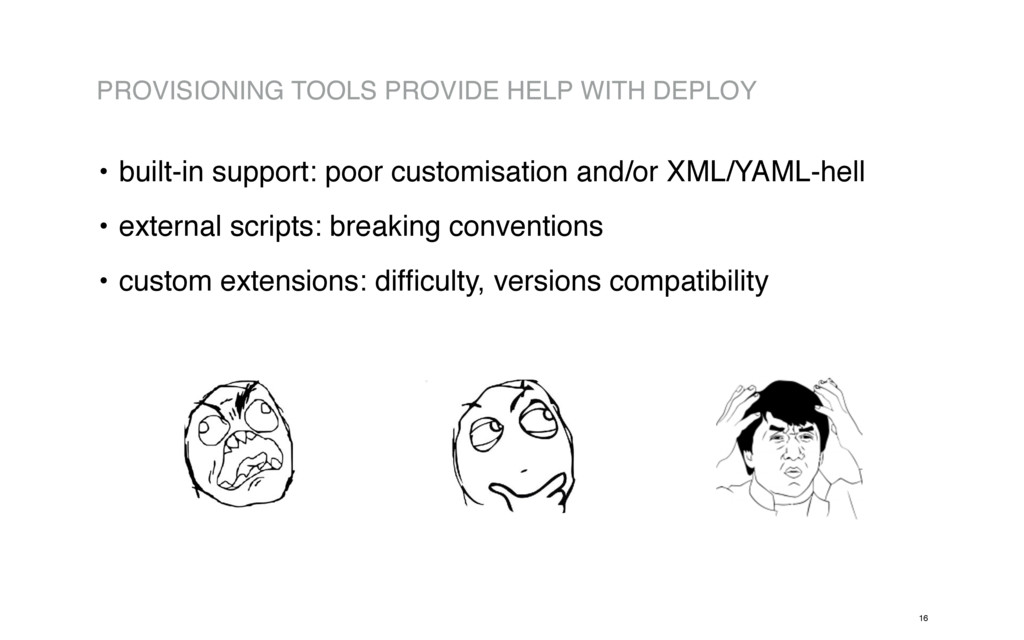

31. 16
    PROVISIONING TOOLS PROVIDE HELP WITH DEPLOY
    • built-in support: poor customisation and/or XML/YAML-hell
    • external scripts: breaking conventions
    • custom extensions: difficulty, versions compatibility


    View Slide

32. 16
    PROVISIONING TOOLS PROVIDE HELP WITH DEPLOY
    • built-in support: poor customisation and/or XML/YAML-hell
    • external scripts: breaking conventions
    • custom extensions: difficulty, versions compatibility


    View Slide

33. View Slide

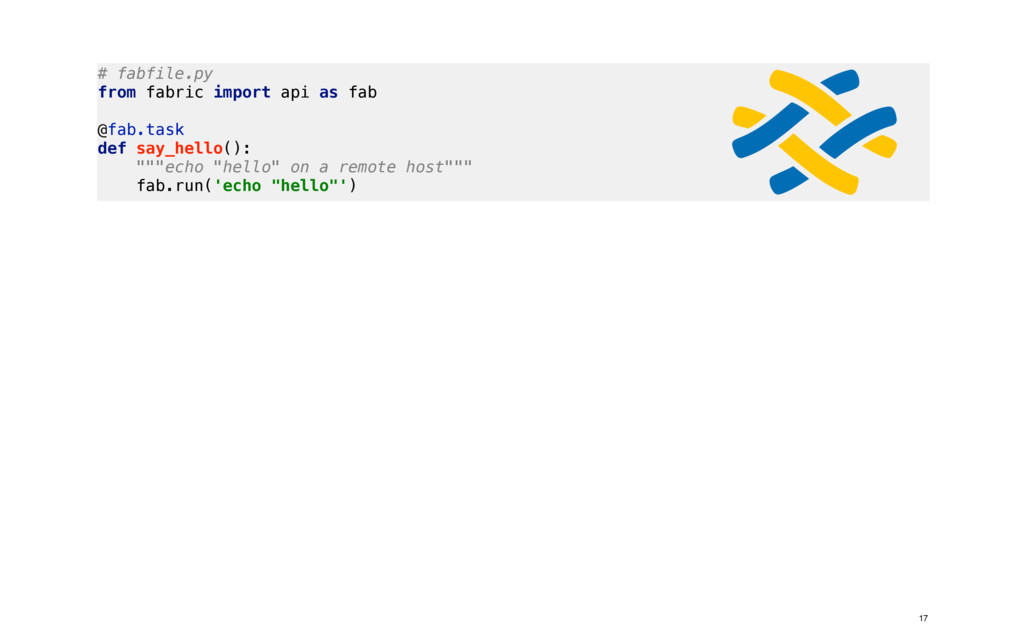

34. 17
    # fabfile.py

    from fabric import api as fab



    @fab.task

    def say_hello():

    """echo "hello" on a remote host"""

    fab.run('echo "hello"')


    View Slide

35. 17
    # fabfile.py

    from fabric import api as fab



    @fab.task

    def say_hello():

    """echo "hello" on a remote host"""

    fab.run('echo "hello"')
    $ fab --list
    Available commands:
    say_hello echo "hello" on a remote host


    View Slide

36. 17
    # fabfile.py

    from fabric import api as fab



    @fab.task

    def say_hello():

    """echo "hello" on a remote host"""

    fab.run('echo "hello"')
    $ fab --list
    Available commands:
    say_hello echo "hello" on a remote host
    $ fab say_hello
    [example.com] Executing task 'say_hello'
    [example.com] run: echo "hello"
    [example.com] out: hello
    [example.com] out:
    Done.
    Disconnecting from example.com... done.


    View Slide

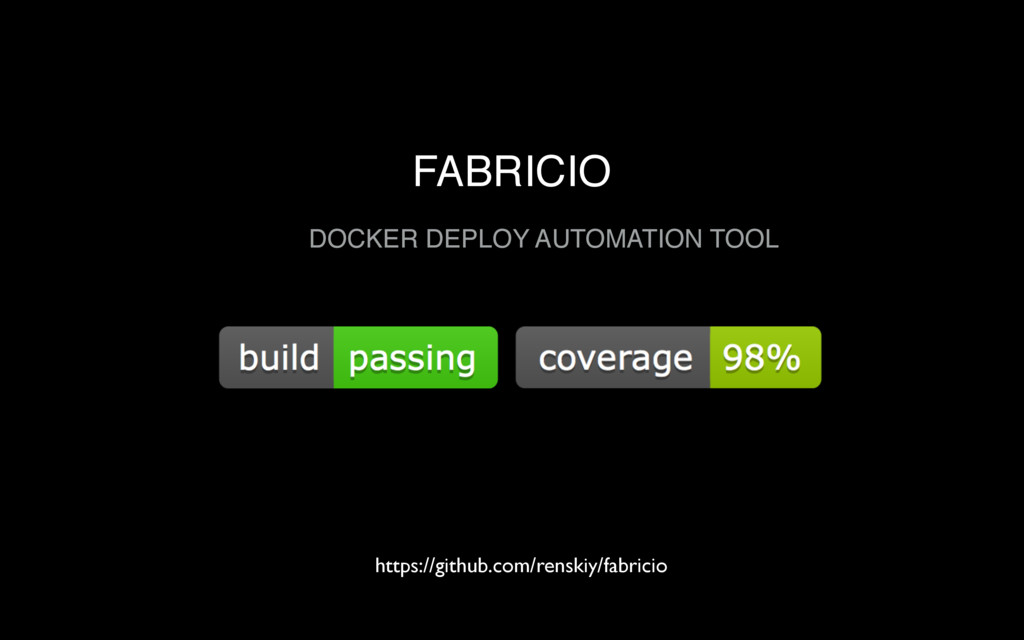

37. FABRICIO
    18
    https://github.com/renskiy/fabricio
    DOCKER DEPLOY AUTOMATION TOOL


    View Slide

38. 19
    FABRICIO: DEPLOY & ROLLBACK
    DEPLOY


    View Slide

39. 19
    FABRICIO: DEPLOY & ROLLBACK
    DEPLOY ROLLBACK


    View Slide

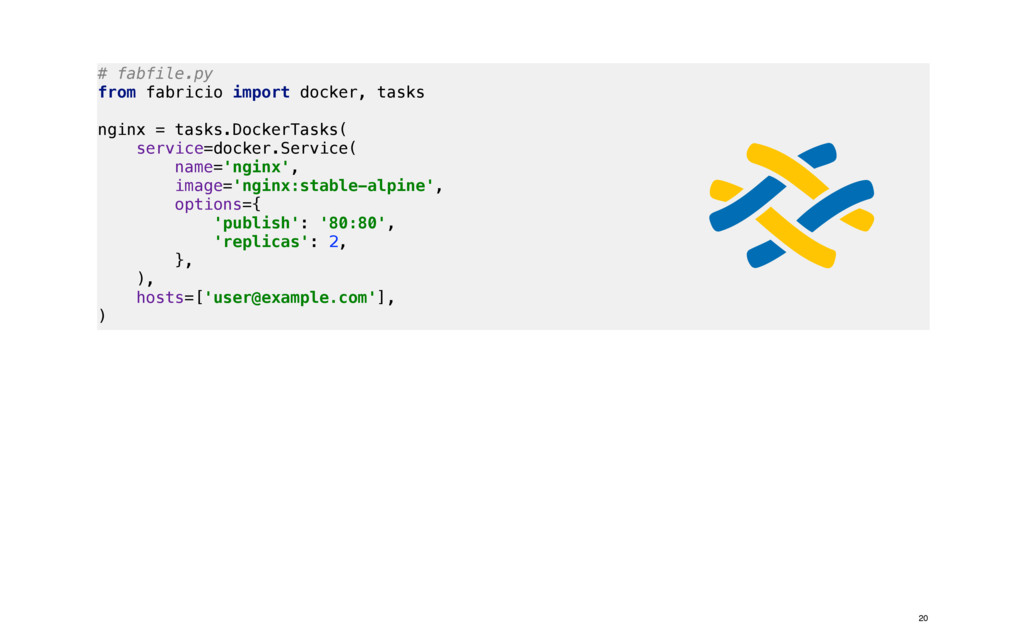

40. 20
    # fabfile.py

    from fabricio import docker, tasks



    nginx = tasks.DockerTasks(

    service=docker.Service(

    name='nginx',

    image='nginx:stable-alpine',

    options={

    'publish': '80:80',

    'replicas': 2,

    },

    ),

    hosts=['user@example.com'],

    )


    View Slide

41. 20
    # fabfile.py

    from fabricio import docker, tasks



    nginx = tasks.DockerTasks(

    service=docker.Service(

    name='nginx',

    image='nginx:stable-alpine',

    options={

    'publish': '80:80',

    'replicas': 2,

    },

    ),

    hosts=['user@example.com'],

    )
    $ fab --list
    Available commands:
    nginx full service deploy (prepare -> push -> upgrade)
    nginx.deploy full service deploy (prepare -> push -> upgrade)
    nginx.rollback rollback service to a previous version (migrate-back -> revert)
    nginx.upgrade upgrade service to a new version (backup -> pull -> migrate ->
    update)


    View Slide

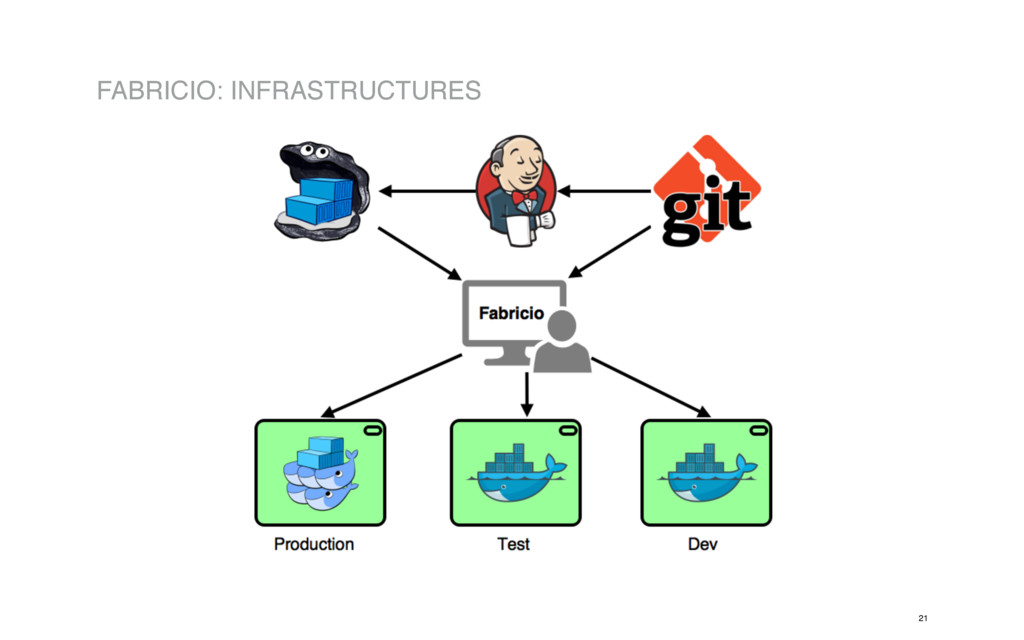

42. 21
    FABRICIO: INFRASTRUCTURES


    View Slide

43. 21
    FABRICIO: INFRASTRUCTURES
    from fabric import api as fab

    from fabricio import tasks



    @tasks.infrastructure

    def production():

    fab.env.roledefs = {

    'api': [

    '1.example.com',

    '2.example.com',

    '3.example.com',

    ],

    'cron': [

    'cron.example.com',

    ],

    }



    @tasks.infrastructure

    def stage():

    fab.env.roledefs = {

    'api': [

    'test.example.com',

    ],

    'cron': [],

    }


    View Slide

44. 22
    FABRICIO: INFRASTRUCTURES
    $ fab stage deploy
    Are you sure you want to
    select test infrastructure to
    run task(s) on? [y/N] y
    [vagrant@172.28.128.3]
    Executing task ‘pull'
    ...


    View Slide

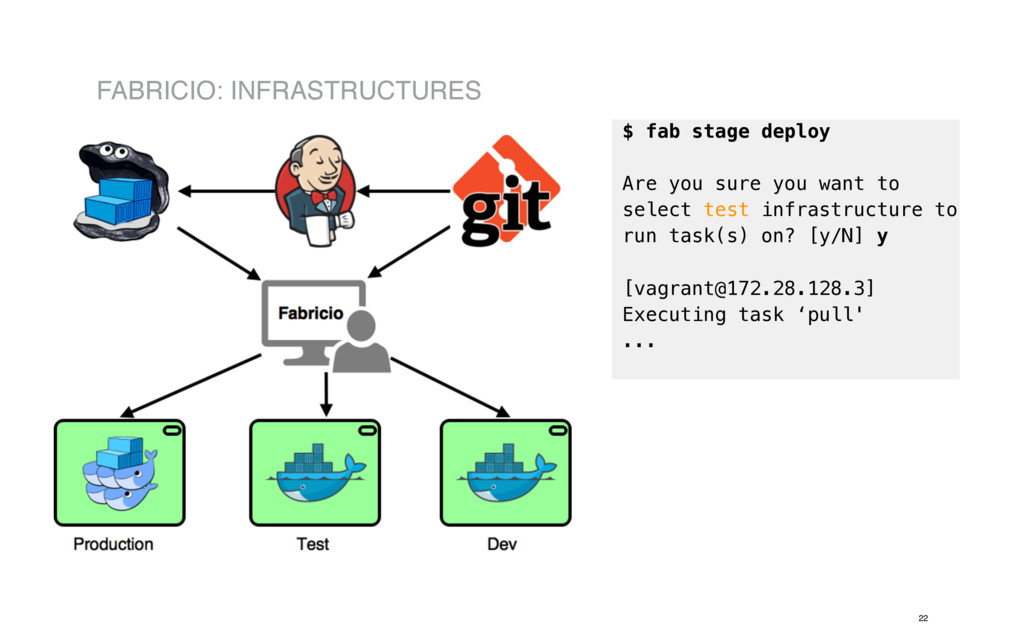

45. 22
    FABRICIO: INFRASTRUCTURES
    $ fab stage deploy
    Are you sure you want to
    select test infrastructure to
    run task(s) on? [y/N] y
    [vagrant@172.28.128.3]
    Executing task ‘pull'
    ...
    $ fab stage.confirm deploy
    [vagrant@172.28.128.3]
    Executing task ‘pull'
    ...


    View Slide

46. 23
    FABRICIO FEATURES


    View Slide

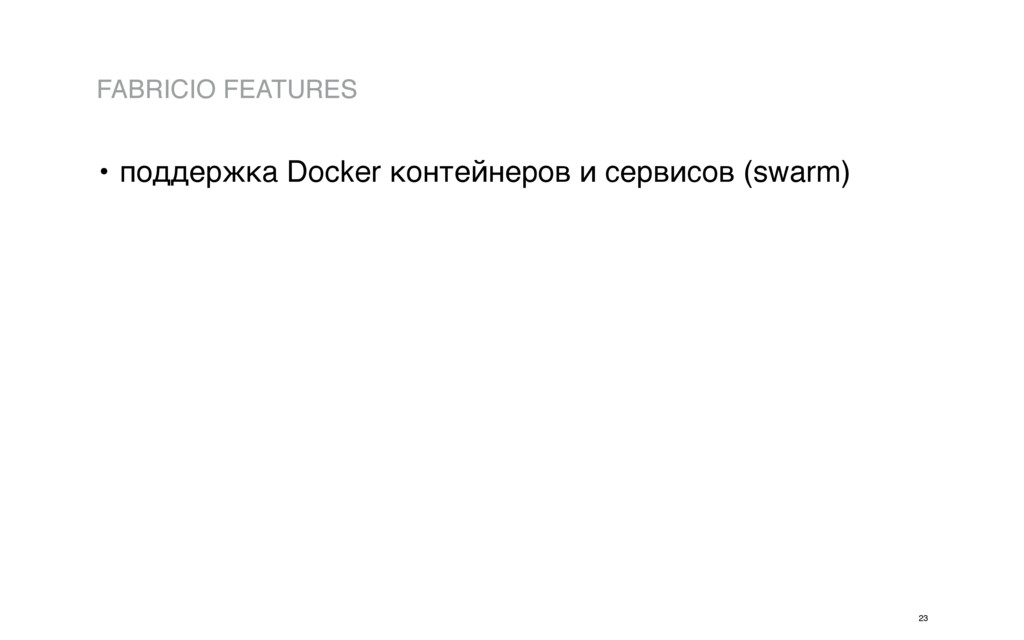

47. 23
    FABRICIO FEATURES
    • поддержка Docker контейнеров и сервисов (swarm)


    View Slide

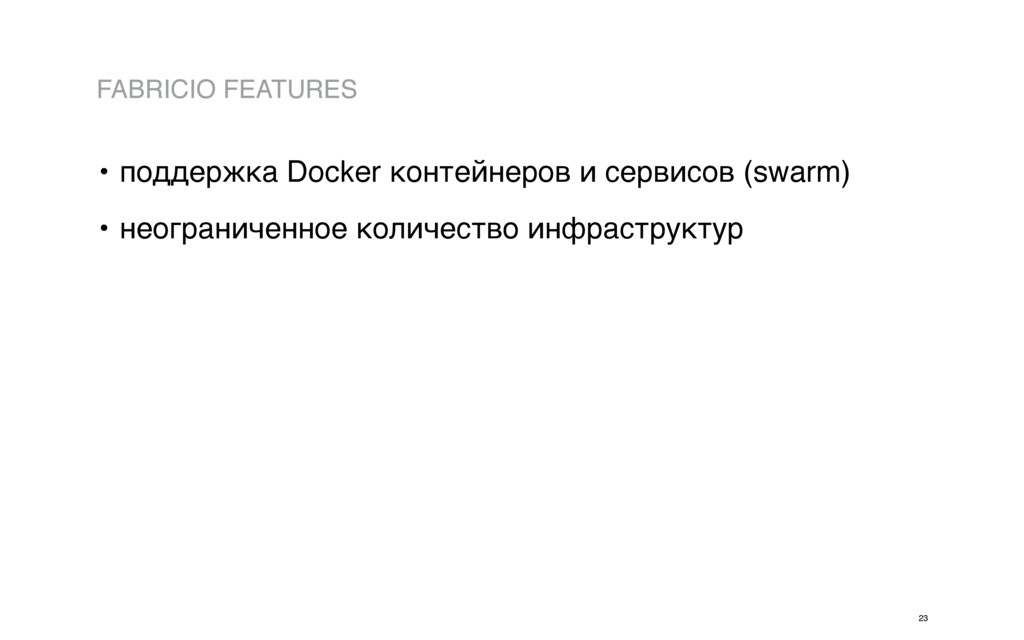

48. 23
    FABRICIO FEATURES
    • поддержка Docker контейнеров и сервисов (swarm)
    • неограниченное количество инфраструктур


    View Slide

49. 23
    FABRICIO FEATURES
    • поддержка Docker контейнеров и сервисов (swarm)
    • неограниченное количество инфраструктур
    • сборка образов


    View Slide

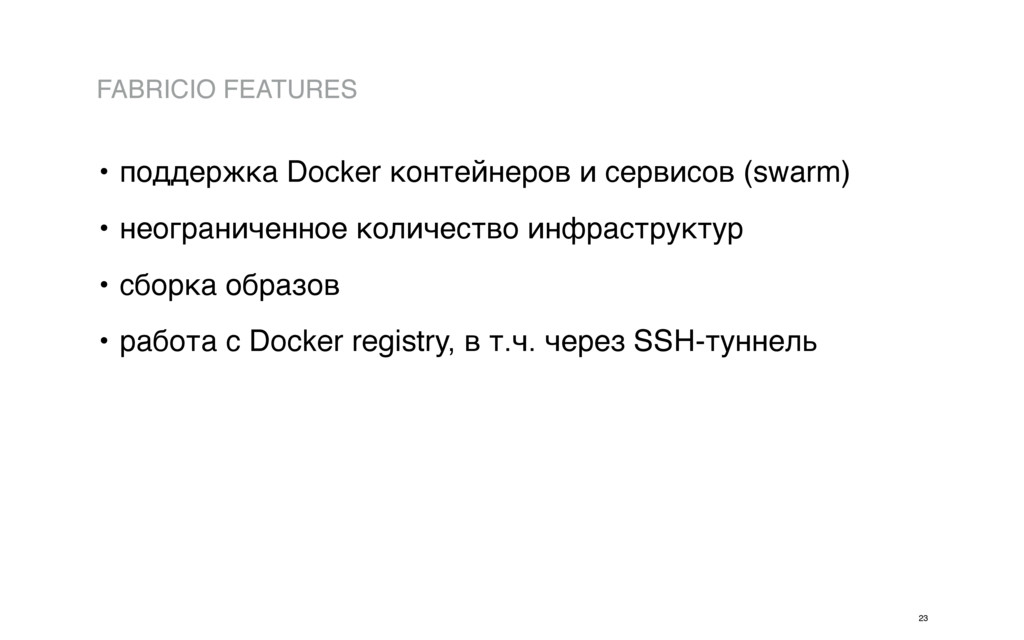

50. 23
    FABRICIO FEATURES
    • поддержка Docker контейнеров и сервисов (swarm)
    • неограниченное количество инфраструктур
    • сборка образов
    • работа с Docker registry, в т.ч. через SSH-туннель


    View Slide

51. 23
    FABRICIO FEATURES
    • поддержка Docker контейнеров и сервисов (swarm)
    • неограниченное количество инфраструктур
    • сборка образов
    • работа с Docker registry, в т.ч. через SSH-туннель
    • применение и откат миграций Django


    View Slide

52. 23
    FABRICIO FEATURES
    • поддержка Docker контейнеров и сервисов (swarm)
    • неограниченное количество инфраструктур
    • сборка образов
    • работа с Docker registry, в т.ч. через SSH-туннель
    • применение и откат миграций Django
    • разворачивание кластера PostgreSQL


    View Slide

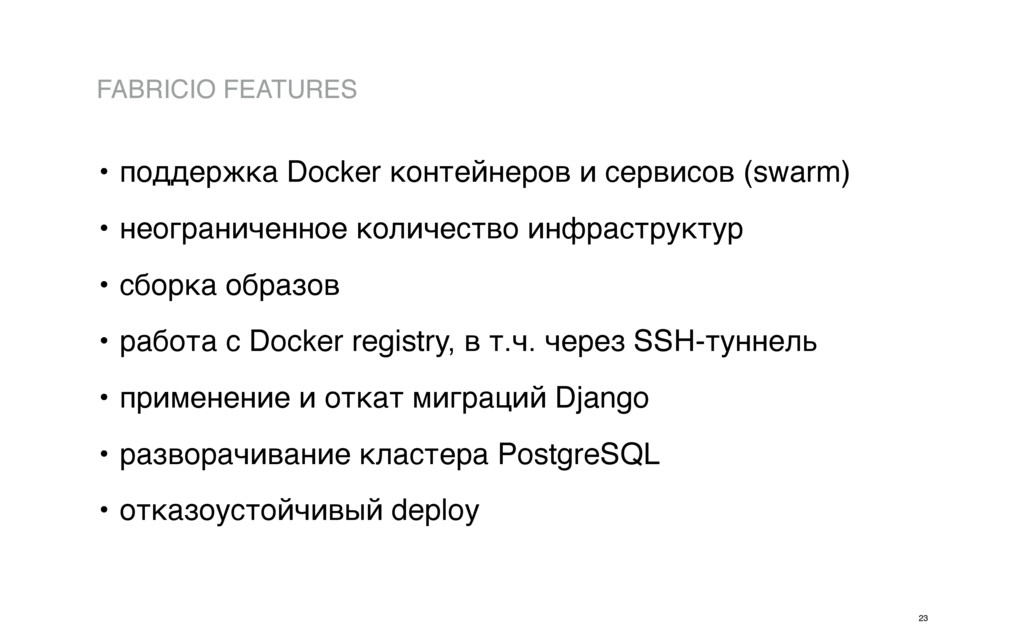

53. 23
    FABRICIO FEATURES
    • поддержка Docker контейнеров и сервисов (swarm)
    • неограниченное количество инфраструктур
    • сборка образов
    • работа с Docker registry, в т.ч. через SSH-туннель
    • применение и откат миграций Django
    • разворачивание кластера PostgreSQL
    • отказоустойчивый deploy


    View Slide

54. 24
    DOCKER SWARM MODE


    View Slide

55. • Балансировка запросов
    24
    DOCKER SWARM MODE


    View Slide

56. • Балансировка запросов
    • Мониторинг состояния нод
    24
    DOCKER SWARM MODE


    View Slide

57. • Балансировка запросов
    • Мониторинг состояния нод
    • Автоматический перенос контейнеров с упавшей ноды
    24
    DOCKER SWARM MODE


    View Slide

58. • Балансировка запросов
    • Мониторинг состояния нод
    • Автоматический перенос контейнеров с упавшей ноды
    • Прозрачные масштабирование и обновление
    24
    DOCKER SWARM MODE


    View Slide

59. • Балансировка запросов
    • Мониторинг состояния нод
    • Автоматический перенос контейнеров с упавшей ноды
    • Прозрачные масштабирование и обновление
    • Отказоустойчивость
    24
    DOCKER SWARM MODE


    View Slide

60. 25
    DOCKER SWARM MODE


    View Slide

61. 25
    DOCKER SWARM MODE
    Вопросы?
    • Fabricio: github.com/renskiy/fabricio
    • Fabric: fabfile.org
    • Docker: docs.docker.com (вдруг кто не знал)


    View Slide
