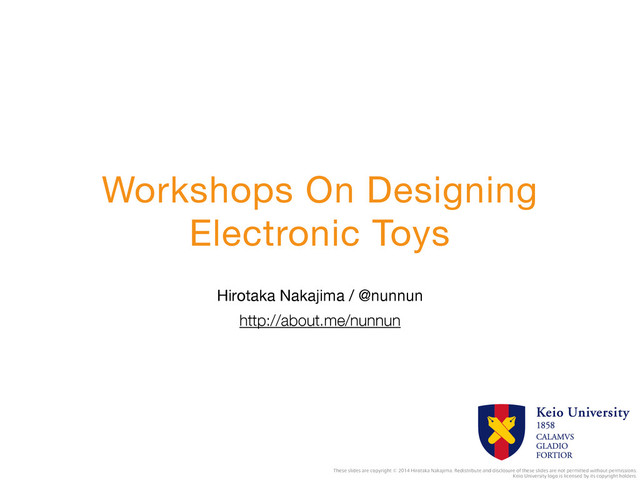

  1. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZMPHPJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Workshops On Designing Electronic Toys Hirotaka Nakajima /

    @nunnun http://about.me/nunnun 1
  2. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Me 2 • Hirotaka Nakajima • Ph.D student

    at Keio SFC • https://github.com/nunnun / @nunnun • Interests • Mobile Web • MPTCP, QUIC, HTTP/2, WebRTC, IGOV • Gadgets
  3. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Agenda 3 • Introduction to Arduino programming •

    Digital Output / LED0 • Digital Input / LED1 • Analog Input / LED2 • Use LED as a sensor • (Data Transfer)
  4. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Arduino 4 • Integrated Single-board micro controller •

    AVR micro controller and IDE(Integrated Development Environment) • Aim to communicate with sensors or PCs • Easy to use as a prototyping ! • Open source hardware • We’re using Arduino compatible architecture • more freedom, less money :)
  5. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Arduino Programming 5 • Processing-based Language (C like

    syntax) • 2 Main functions • setup() • Called once on the boot • loop() • Continuous loop ! ! • http://arduino.cc/en/Reference/HomePage int ledPin=8; ! void setup() { pinMode(ledPin,OUTPUT); } ! void loop() { digitalWrite(ledPin,1); delay(500); digitalWrite(ledPin,0); delay(500); }
  6. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Arduino: Function 6 • pinMode(pin, mode) • Configures

    the specified pin to behave either as input or output. • pinMode(8, OUTPUT);
 set the pin #8 as OUTPUT pin.
  7. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Digital Output 7 • Control On/Off • digitalWrite([PIN#],

    [Value]) • e.g.)
 setup(){
 int ledPin = 8; //LED is connected to digital output pin #8
 }

 loop(){
 digitalWrite(ledPin, HIGH); //set the LED on
 delay(1000); // wait for a second
 digitalWrite(ledPin, LOW); //set the LED off
 delay(1000); // wait for a second
 }
  8. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST LED0 8 • http://web.sfc.keio.ac.jp/~takefuji/led0.tar • Blink the LED

  9. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Where should I put the LED? 9 •

    Generally Data sheet may help
 http://www.atmel.com/Images/doc8161.pdf 8P C1 (ADC1/PCINT9) C0 (ADC0/PCINT8) DC7 ND REF DC6 CC B5 (SCK/PCINT5) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 (PCINT14/RESET) PC6 (PCINT16/RXD) PD0 (PCINT17/TXD) PD1 (PCINT18/INT0) PD2 (PCINT19/OC2B/INT1) PD3 (PCINT20/XCK/T0) PD4 VCC GND (PCINT6/XTAL1/TOSC1) PB6 (PCINT7/XTAL2/TOSC2) PB7 (PCINT21/OC0B/T1) PD5 (PCINT22/OC0A/AIN0) PD6 (PCINT23/AIN1) PD7 (PCINT0/CLKO/ICP1) PB0 PC5 (ADC5/SCL/PCINT13) PC4 (ADC4/SDA/PCINT12) PC3 (ADC3/PCINT11) PC2 (ADC2/PCINT10) PC1 (ADC1/PCINT9) PC0 (ADC0/PCINT8) GND AREF AVCC PB5 (SCK/PCINT5) PB4 (MISO/PCINT4) PB3 (MOSI/OC2A/PCINT3) PB2 (SS/OC1B/PCINT2) PB1 (OC1A/PCINT1) PDIP
  10. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Where should I put the LED? 10 •

    With Arduino, Arduino has pin-mapping for each micro- controller. • ATmega328 - Arduino Pin Mapping
 http://arduino.cc/en/Hacking/PinMapping168
  11. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Where should I put the LED? 11

  12. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Where should I put the LED? 12

  13. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Digital Input 13 • Handling digital input
 e.g.)

    Switch • Configure the PIN to use as INPUT • Read the input value • digitalRead(pin)
  14. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Digital Input 14 int ledPin = 13; //

    LED connected to digital pin 13 int inPin = 7; // pushbutton connected to digital pin 7 int val = 0; // variable to store the read value ! void setup() { pinMode(ledPin, OUTPUT); // sets the digital pin 13 as output pinMode(inPin, INPUT); // sets the digital pin 7 as input } ! void loop() { val = digitalRead(inPin); // read the input pin digitalWrite(ledPin, val); // sets the LED to the button's value }
  15. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST LED1 15 • http://web.sfc.keio.ac.jp/~takefuji/led1.tar • Read the digital

    input value and reflect the value to digital output.
  16. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Analog Input 16 • Analog vs Digital !

    ! ! ! ! • Handling Analog sensor • Need to convert analog voltage data to digital
  17. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Analog Input 17

  18. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Analog Input 18 • analogRead(pin) • Map input

    voltage to integer values
 0V ~ 5V -> 0 ~ 1023 • Takes 100 msec to read the value (10,000 time / sec)
  19. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST LED 19 • Light Emitting Diode • Emits

    light
 if the anode voltage > cathode
  20. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST Use LED as a sensor 20 • According

    to Wikipedia: • LED as light sensor:
 "A LED is simply a diode that has been doped specifically for efficient light emission and has been packaged in a transparent case. Therefore, if inserted into a circuit in the same way as a photodiode, which is essentially the same thing, the LED will perform the same function.” • Photodiode:
 "A photodiode is a type of photodetector capable of converting light into either current or voltage, depending upon the mode of operation."
  21. 5IFTFTMJEFTBSFDPQZSJHIU˜)JSPUBLB/BLBKJNB3FEJTUSJCVUFBOEEJTDMPTVSFPGUIFTFTMJEFTBSFOPUQFSNJUUFEXJUIPVUQFSNJTTJPOT ,FJP6OJWFSTJUZJTMJDFOTFECZJUTDPQZSJHIUIPMEFST LED2 21 • http://web.sfc.keio.ac.jp/~takefuji/led2.tar • Read the analog

    sensor value(LED voltage) and output digital value if the sensor value exceed the threshold
