Concurrency Testing using Custom Linux Schedulers (p99conf)

New features of the Linux kernel allow us to develop our own Linux schedulers. This talk shows how anyone can write a basic Linux scheduler and use it, for example, to fuzz for concurrency bugs or optimize for specific workloads.

Transcript

1. A ScyllaDB Community Jake Hillion Software Engineer Johannes Bechberger Software Engineer Concurrency Testing using Custom Linux Schedulers
2. Heisenbugs

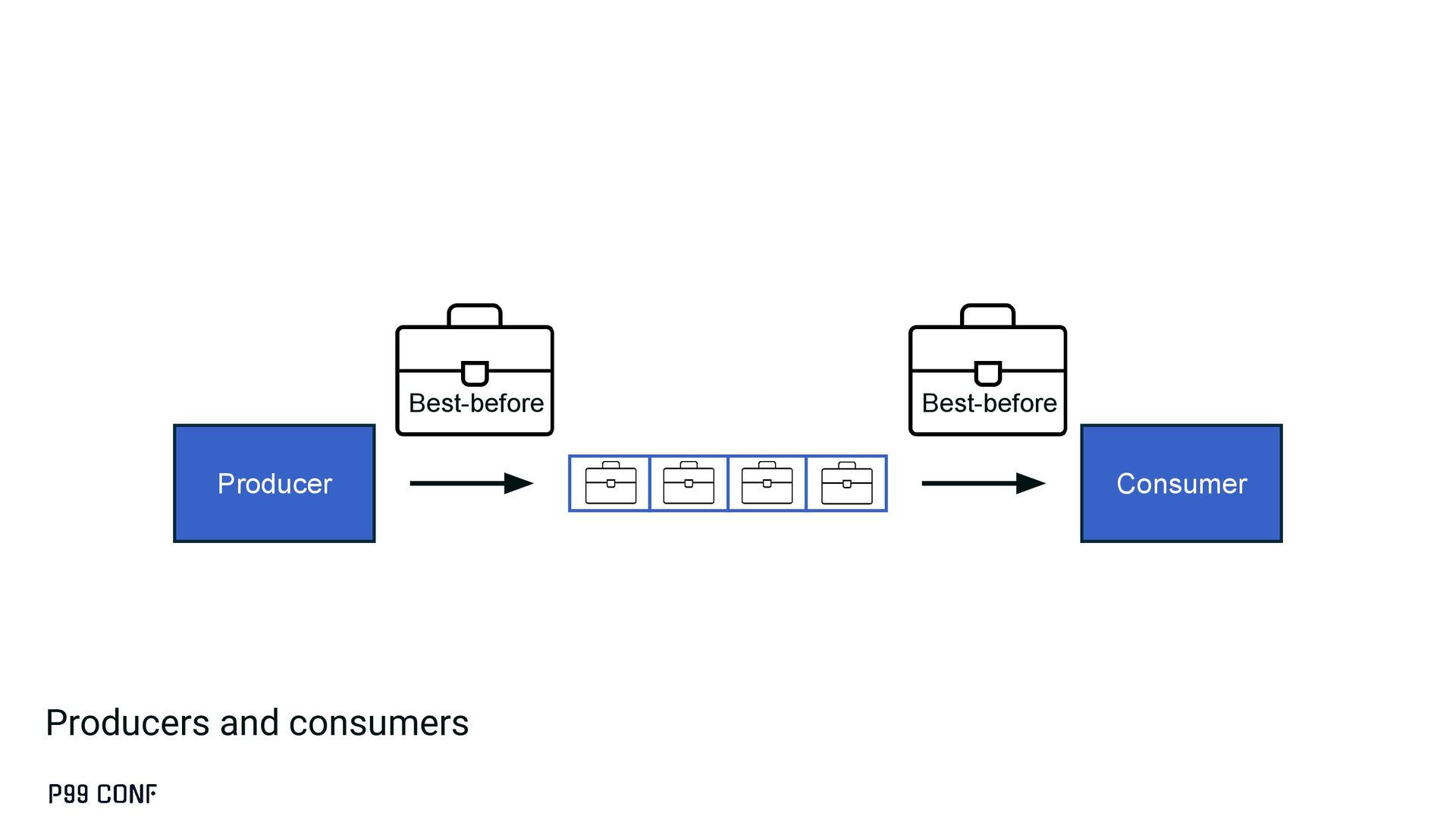

3. Producers and consumers Producer Consumer Best-before Best-before

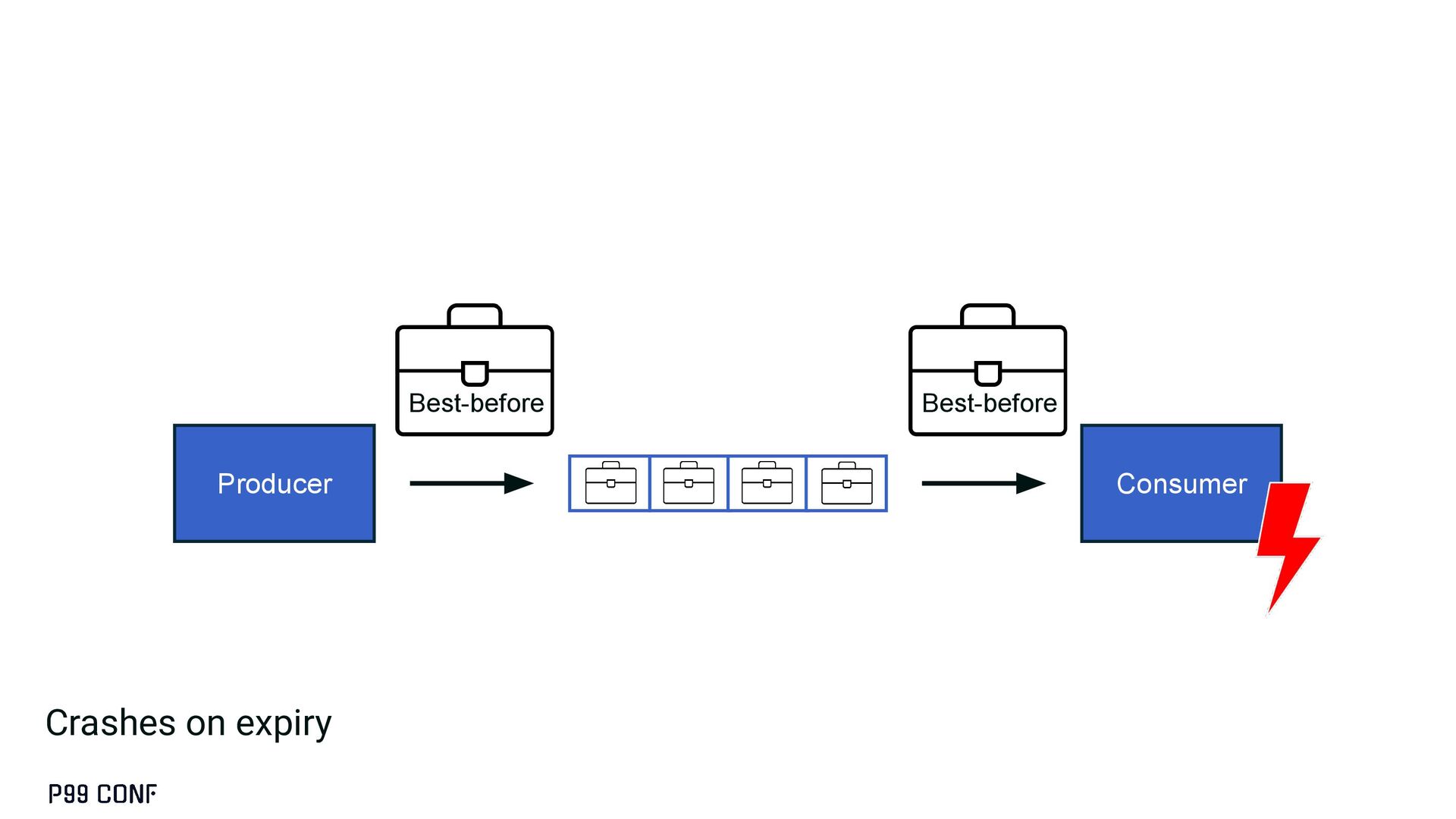

4. Crashes on expiry Producer Consumer Best-before Best-before

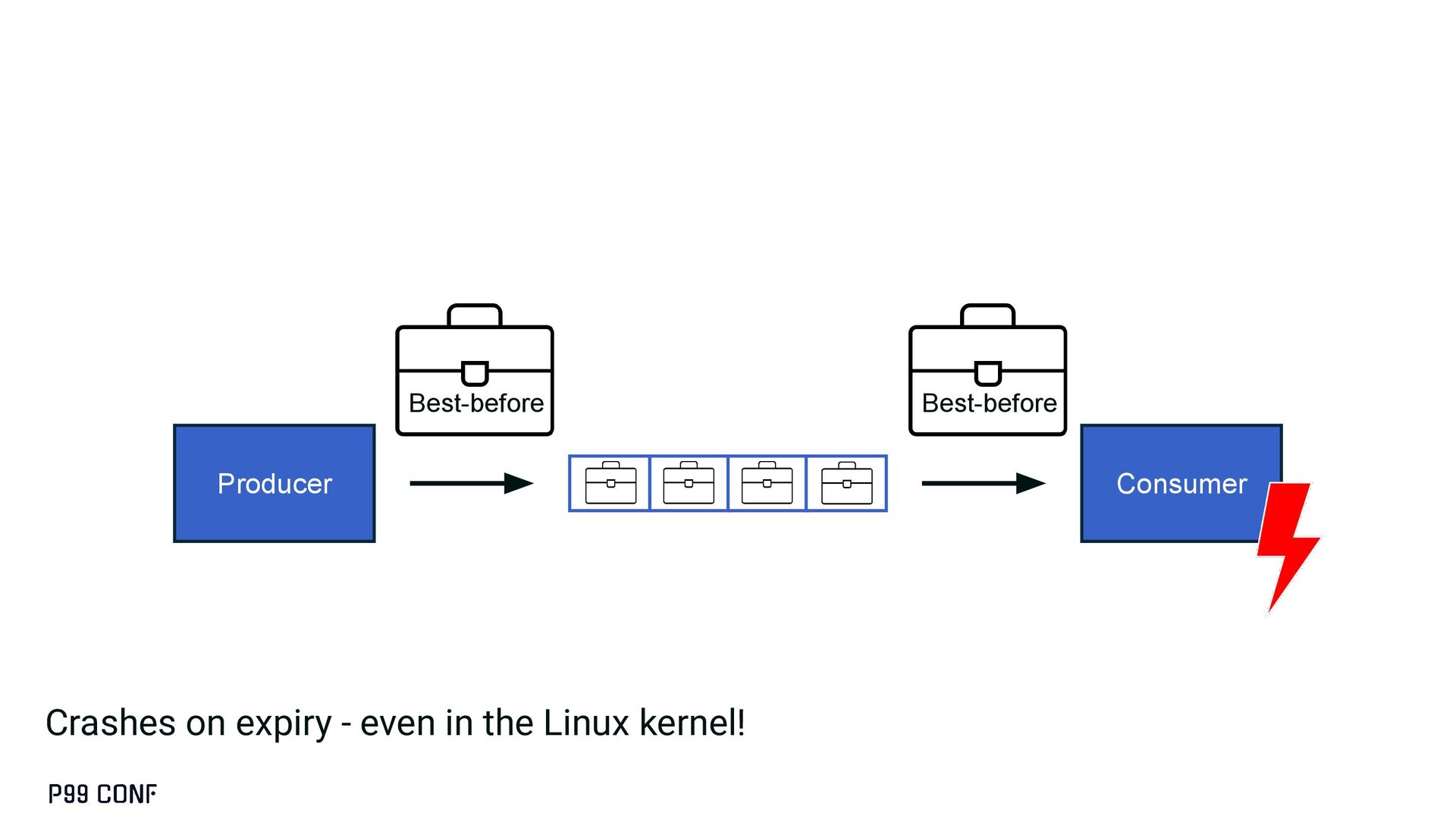

5. Crashes on expiry - even in the Linux kernel! Producer Consumer Best-before Best-before

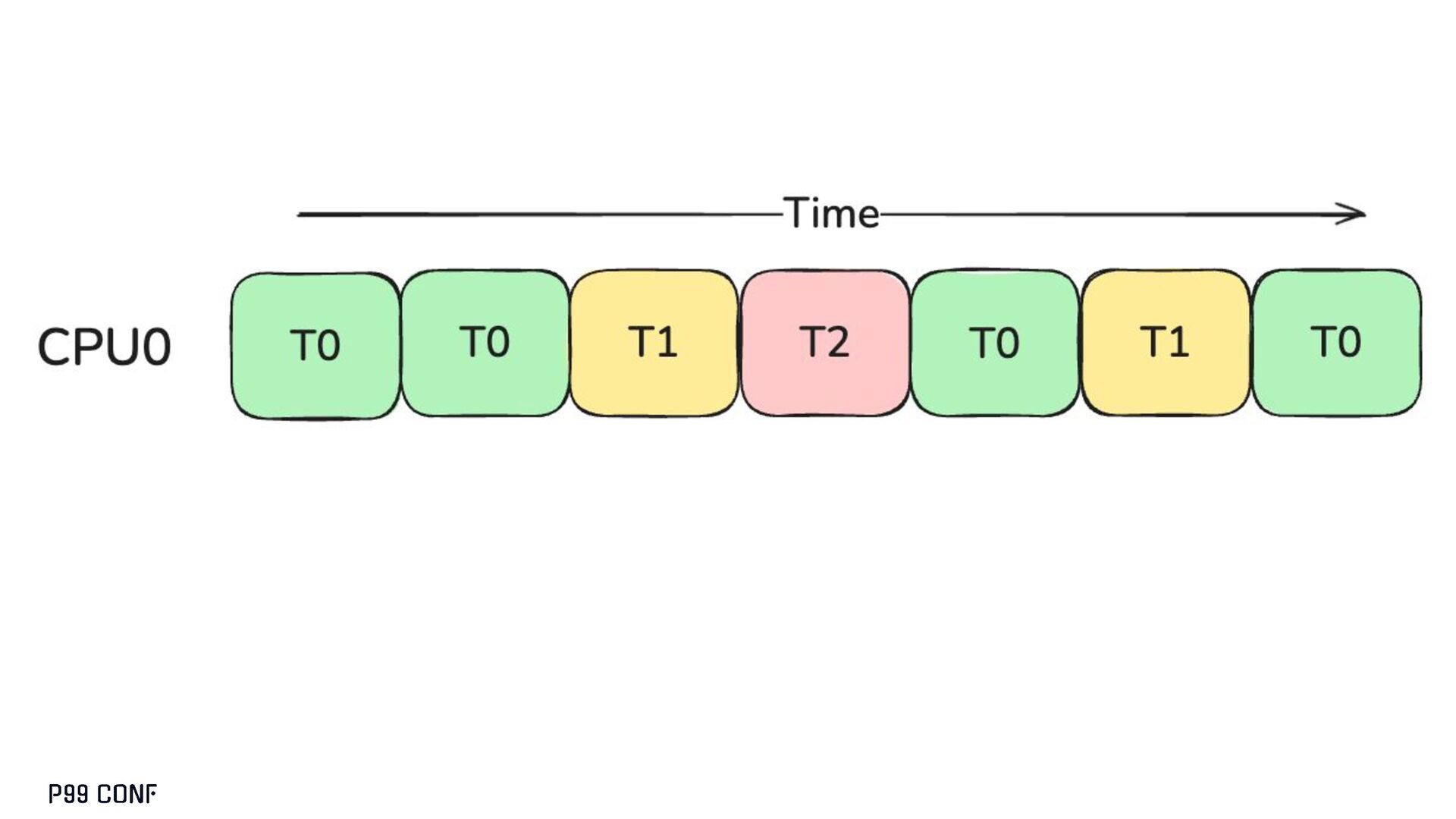

6. Scheduling
9. Work-Conserving Responsive Fair
10. Work-Conserving Responsive Fair This is predictable.
11. ERRATIC TBD We need an erratic scheduler!
12. Work-Conserving Responsive Fair
13. Work-Conserving Responsive Fair Not Not Maybe
14. Work-Conserving Responsive Fair Not Not Maybe This is not predictable.
15. Building our scheduler
16. eBPF is a crazy technology, it’s like putting JavaScript into the Linux kernel Brendan Gregg “ https://www.facesofopensource.com/brendan-gregg/
17. sched_ext Ease of experimentation and exploration Customization Rapid scheduler deployments
18. Let's create our own + +

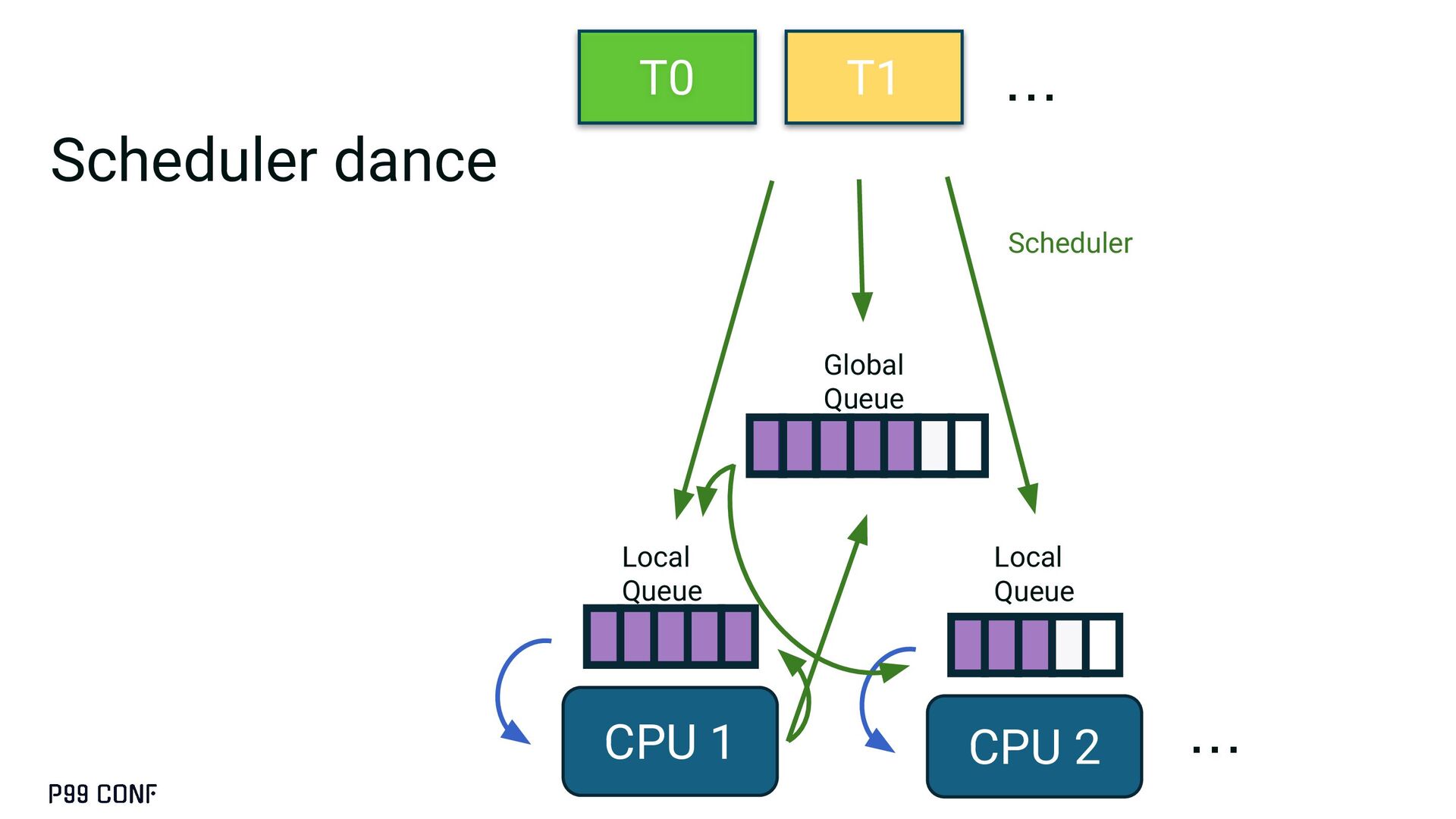

19. T0 CPU 1 Local Queue CPU 2 Local Queue Global Queue Scheduler ... ... Scheduler dance T1

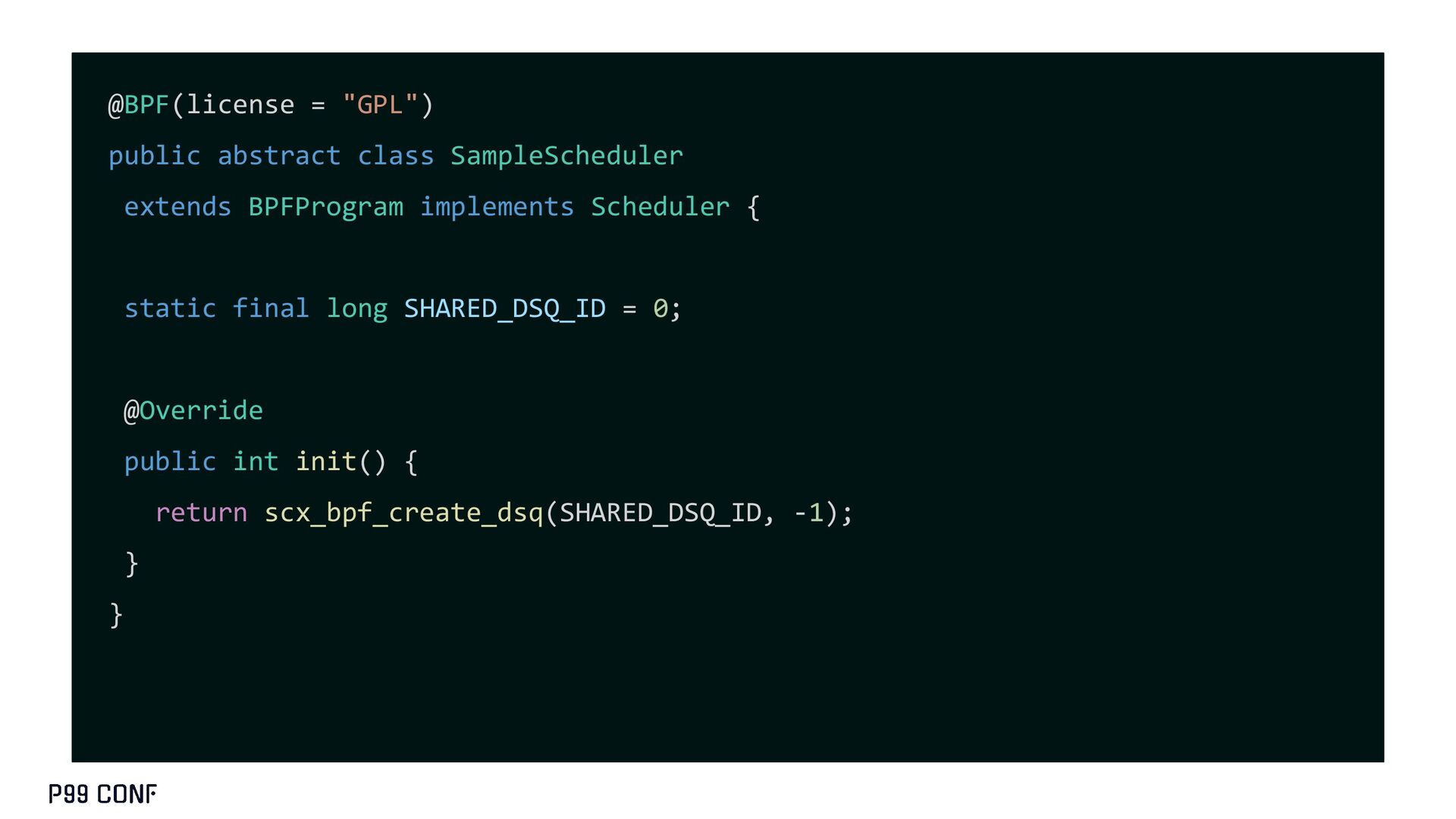

20. @BPF(license = "GPL") public abstract class SampleScheduler extends BPFProgram implements Scheduler { static final long SHARED_DSQ_ID = 0; @Override public int init() { return scx_bpf_create_dsq(SHARED_DSQ_ID, -1); } }

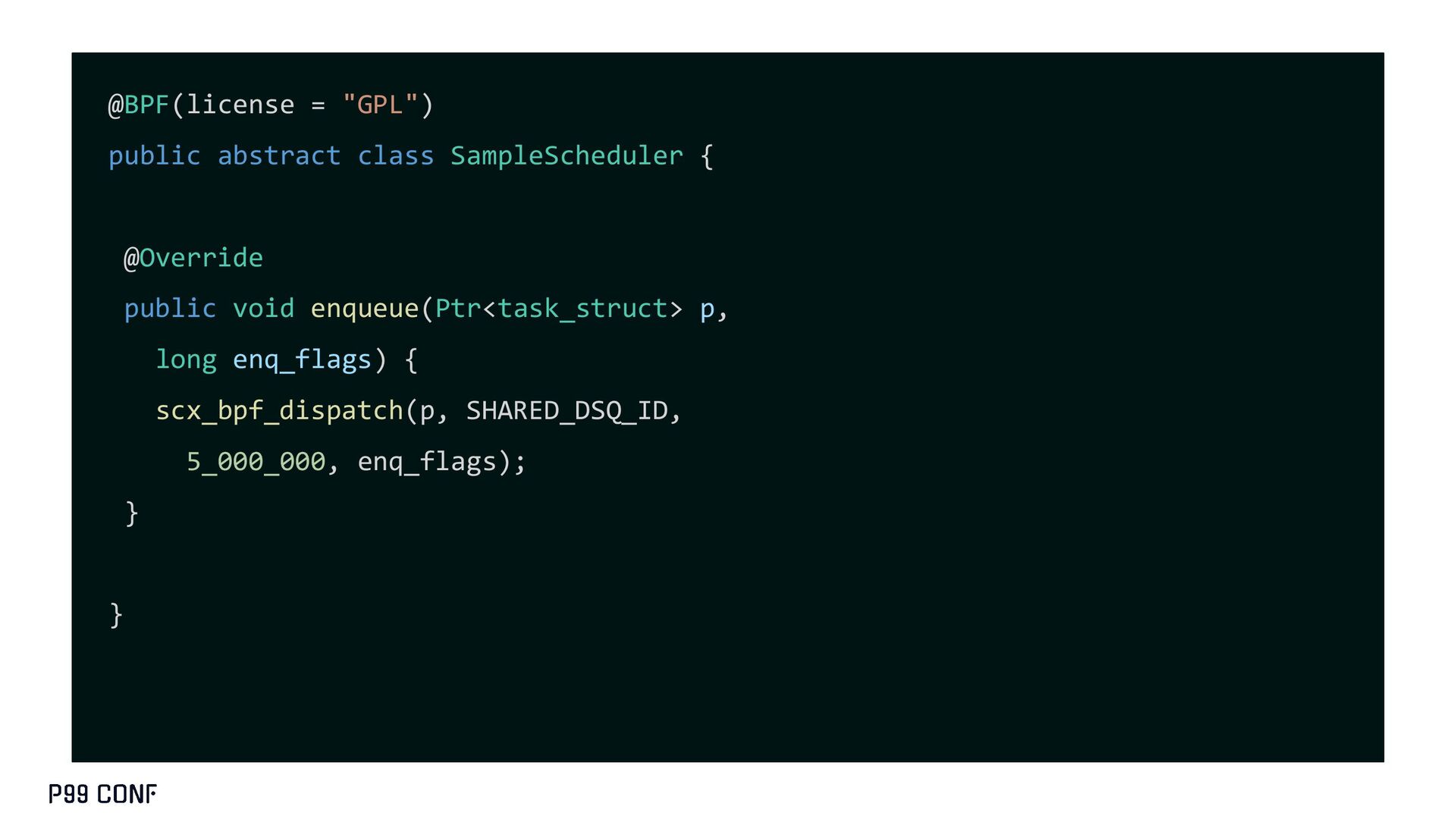

21. @BPF(license = "GPL") public abstract class SampleScheduler { @Override public void enqueue(Ptr<task_struct> p, long enq_flags) { scx_bpf_dispatch(p, SHARED_DSQ_ID, 5_000_000, enq_flags); } }

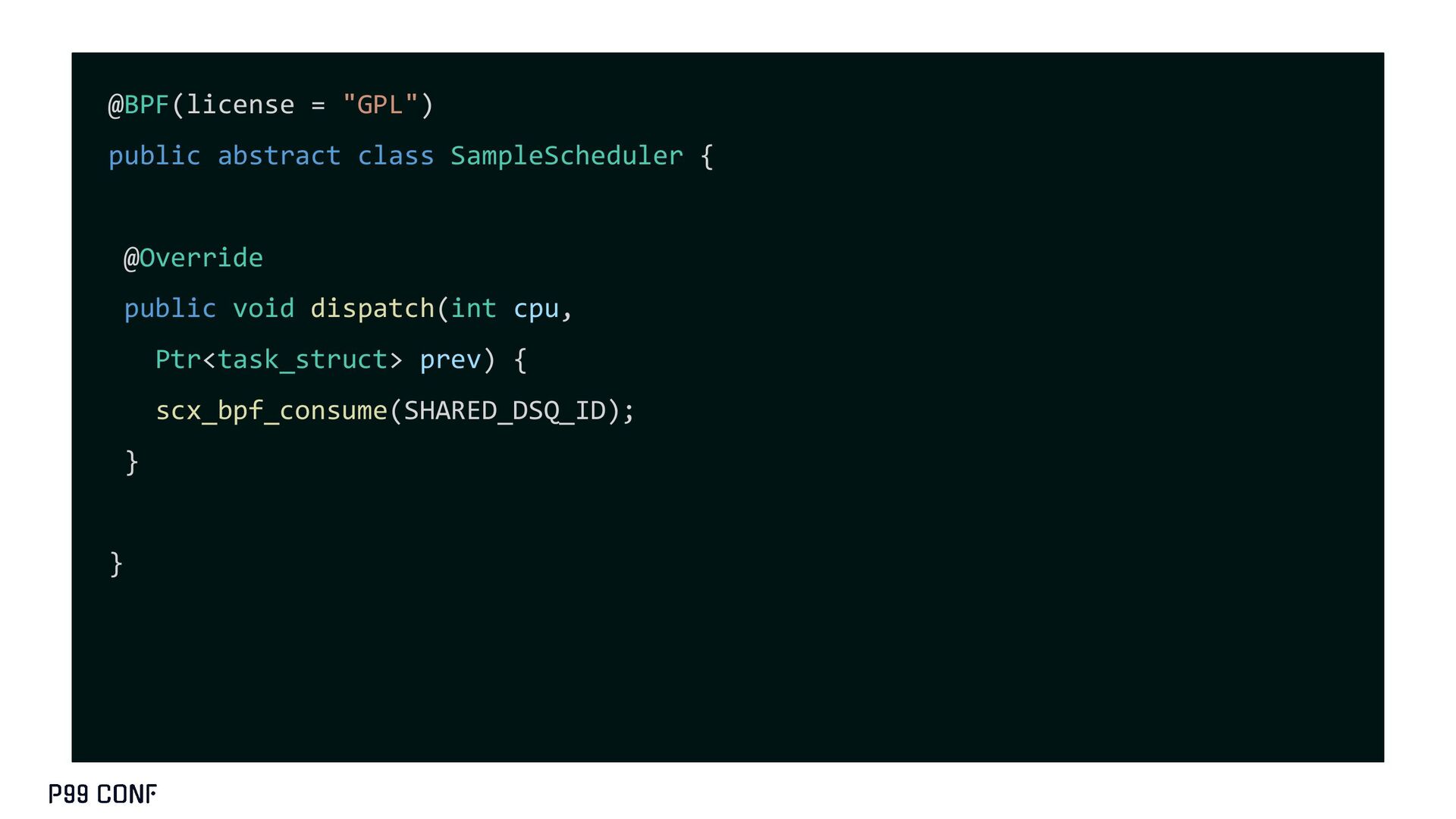

22. @BPF(license = "GPL") public abstract class SampleScheduler { @Override public void dispatch(int cpu, Ptr<task_struct> prev) { scx_bpf_consume(SHARED_DSQ_ID); } }
23. Fixing a kernel driver scheduling bug with scx_chaos

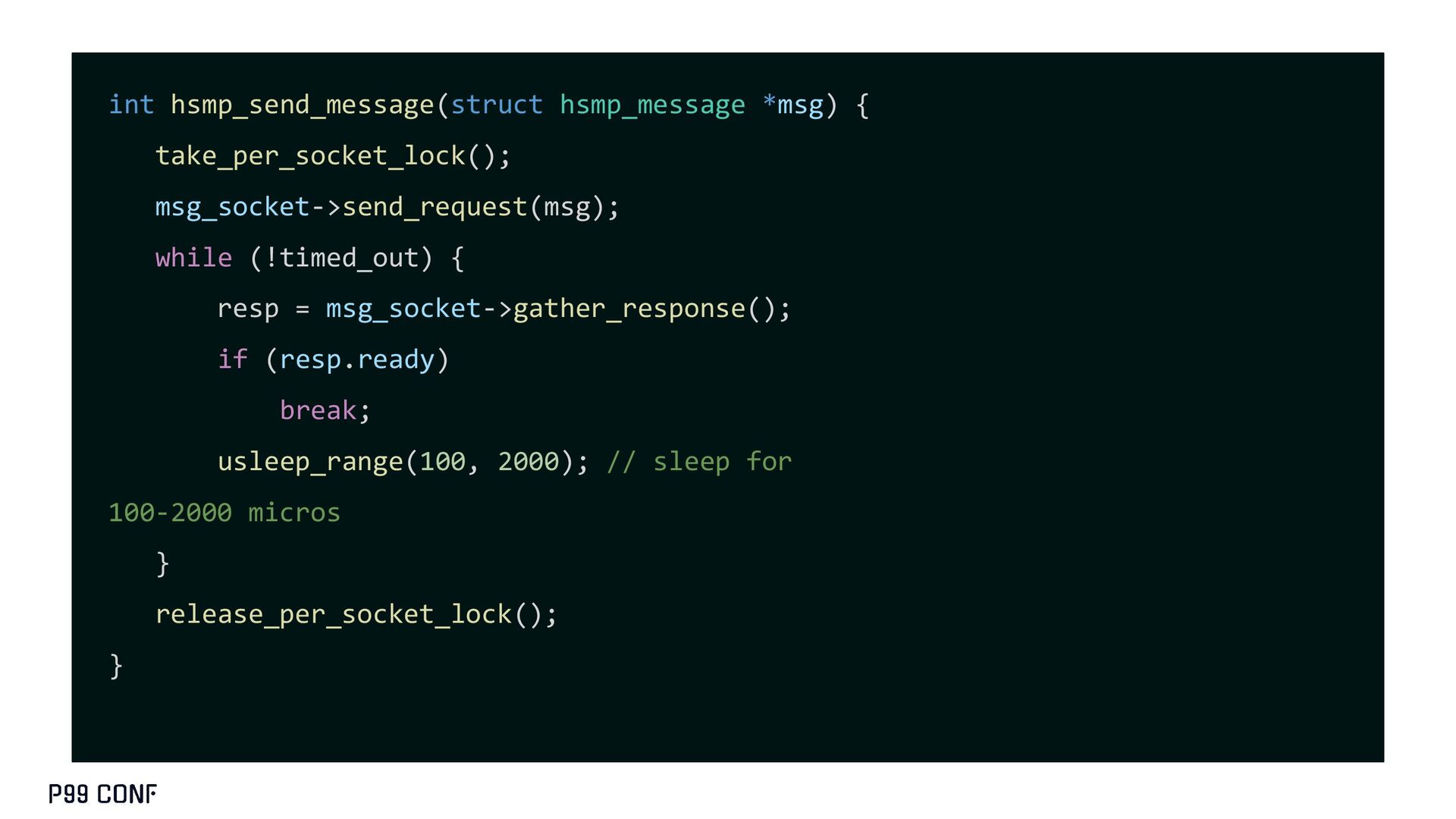

24. int hsmp_send_message(struct hsmp_message *msg) { take_per_socket_lock(); msg_socket->send_request(msg); while (!timed_out) { resp = msg_socket->gather_response(); if (resp.ready) break; usleep_range(100, 2000); // sleep for 100-2000 micros } release_per_socket_lock(); }

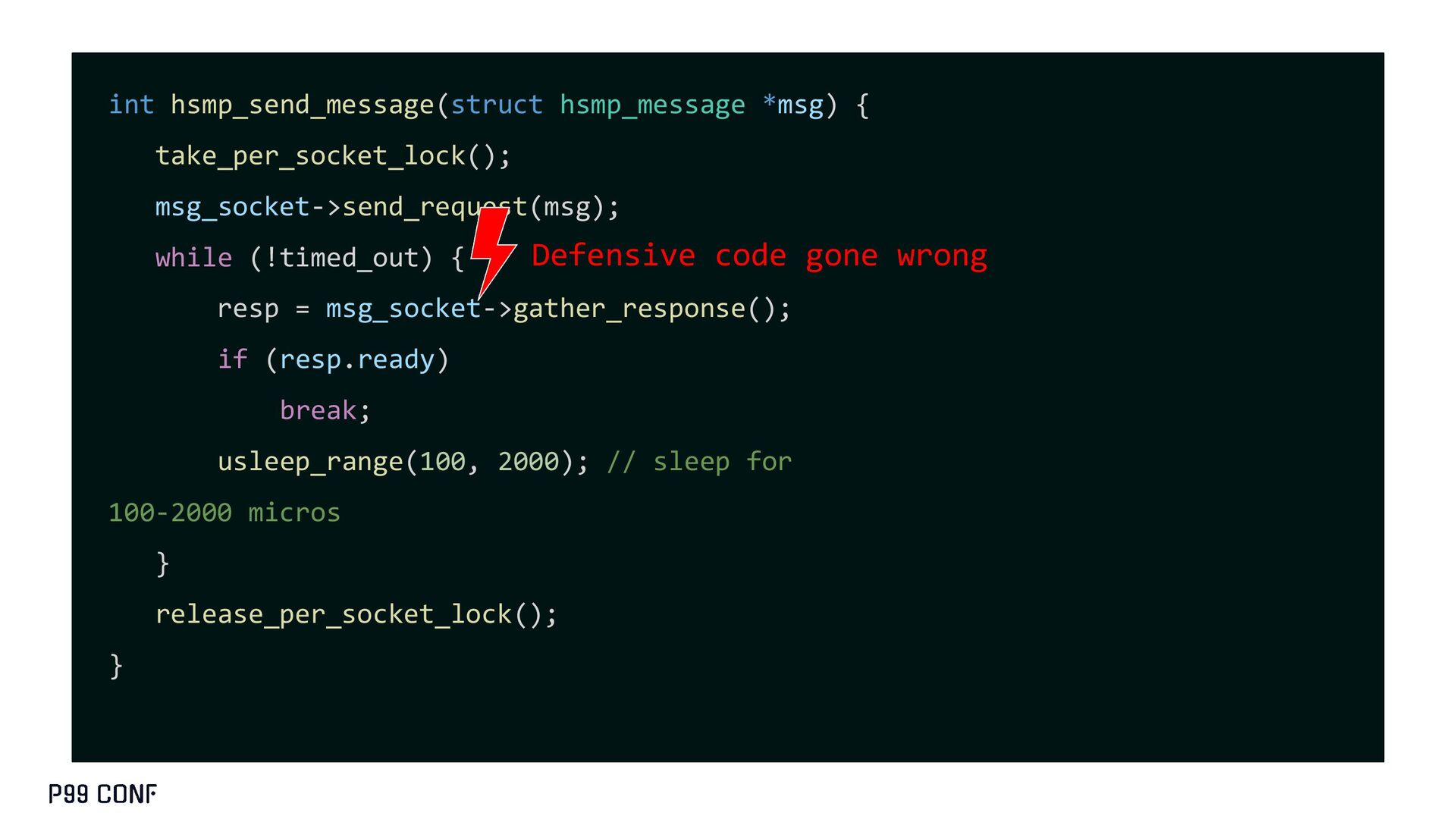

25. int hsmp_send_message(struct hsmp_message *msg) { take_per_socket_lock(); msg_socket->send_request(msg); while (!timed_out) { resp = msg_socket->gather_response(); if (resp.ready) break; usleep_range(100, 2000); // sleep for 100-2000 micros } release_per_socket_lock(); } Defensive code gone wrong

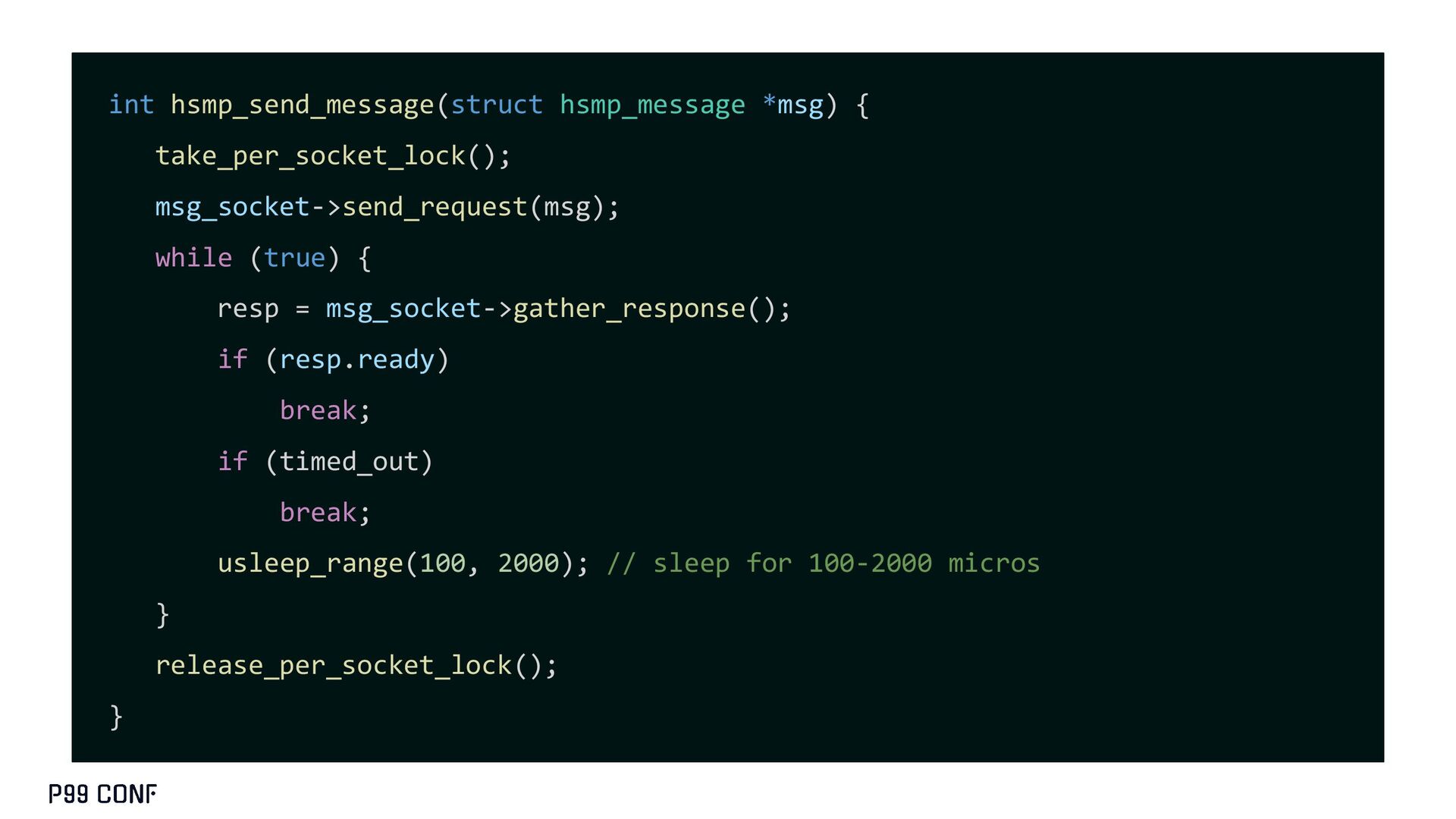

26. int hsmp_send_message(struct hsmp_message *msg) { take_per_socket_lock(); msg_socket->send_request(msg); while (true) { resp = msg_socket->gather_response(); if (resp.ready) break; if (timed_out) break; usleep_range(100, 2000); // sleep for 100-2000 micros } release_per_socket_lock(); }
27. Reproduction
28. “Normally we just add sleeps and hope for the best” -Anonymous kernel developer

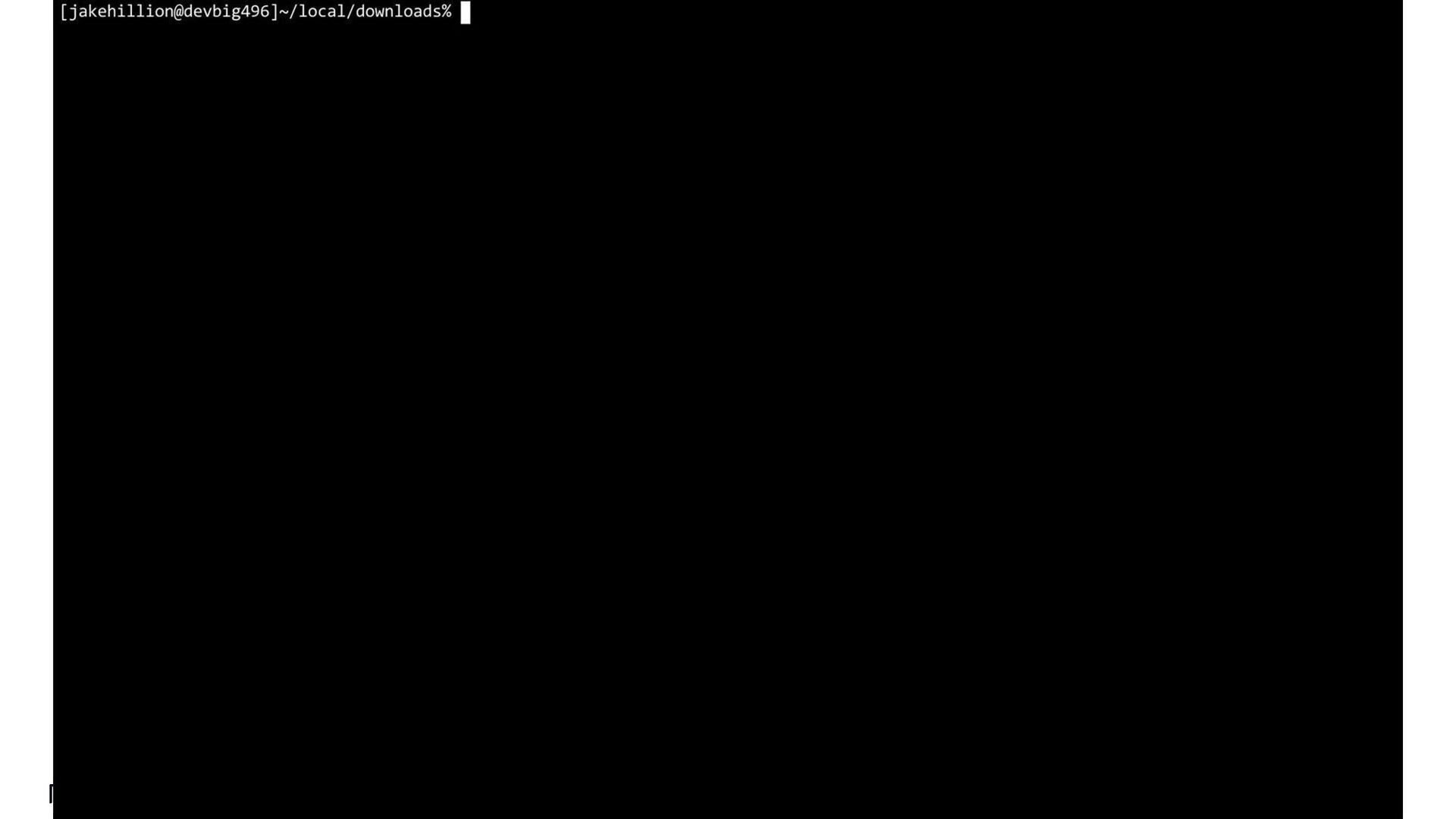

29. Demo
30. scx_chaos helps to find bugs due to invalid concurrency assumptions.
31. https://github.com/parttimenerd/ concurrency-fuzz-scheduler https://github.com/sched-ext/scx/tree/ main/scheds/rust/scx_chaos
32. Thank you! Let’s connect. Jake Hillion @jakehillion.me on Bluesky https://matrix.to/#/@jake:hillion.co.uk blog.hillion.co.uk Johannes Bechberger @mostlynerdless.de on Bluesky https://mastodon.social/@parttimenerd mostlynerdless.de
