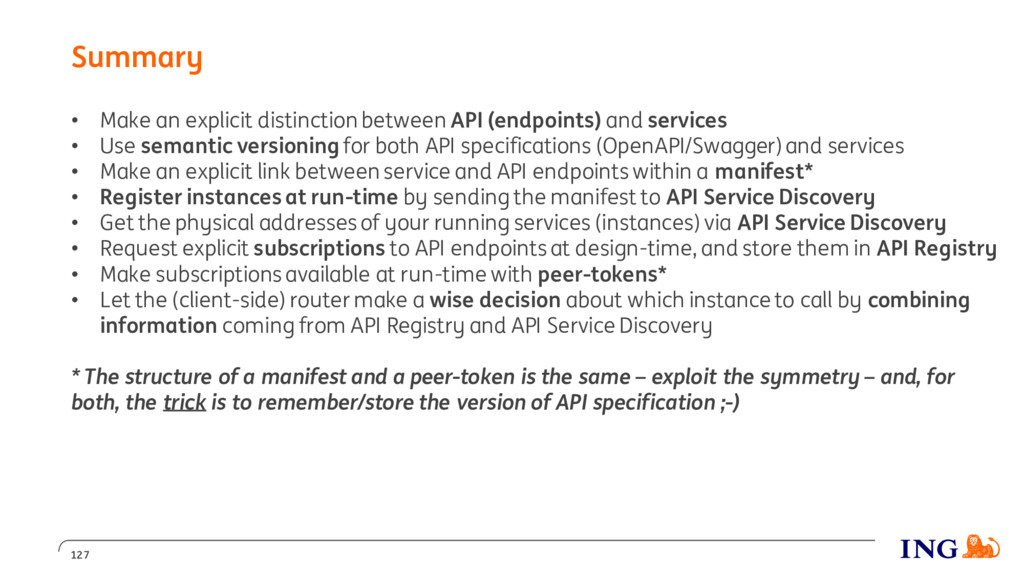

  1. A Journey from API Versioning to Canary Release Patrice Krakow

    | ING | Lead Architect | APIs APIDays Zurich - API Economy and Microservices Zurich | 2017, September 27 (1.5.0)
  2. We want to be a tech company with a banking

    license! Ralph Hamers, CEO and chairman Executive Board ING Group source: https://www.ing.com/Newsroom/All-news/We-want-to-be-a-tech-company-with-a-banking-license-Ralph-Hamers.htm

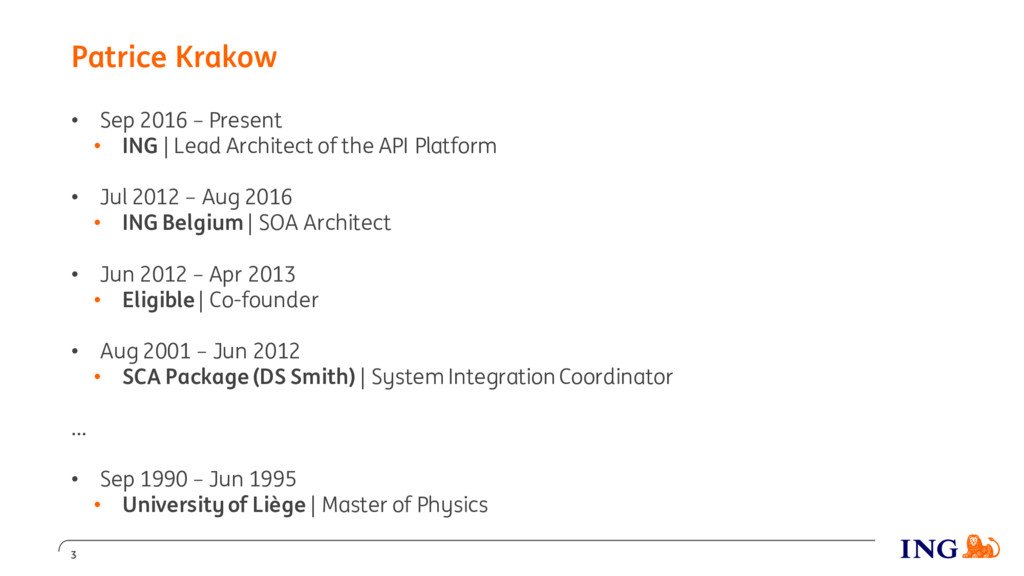

  3. Patrice Krakow 3 • Sep 2016 – Present • ING

    | Lead Architect of the API Platform • Jul 2012 – Aug 2016 • ING Belgium | SOA Architect • Jun 2012 – Apr 2013 • Eligible | Co-founder • Aug 2001 – Jun 2012 • SCA Package (DS Smith) | System Integration Coordinator … • Sep 1990 – Jun 1995 • University of Liège | Master of Physics

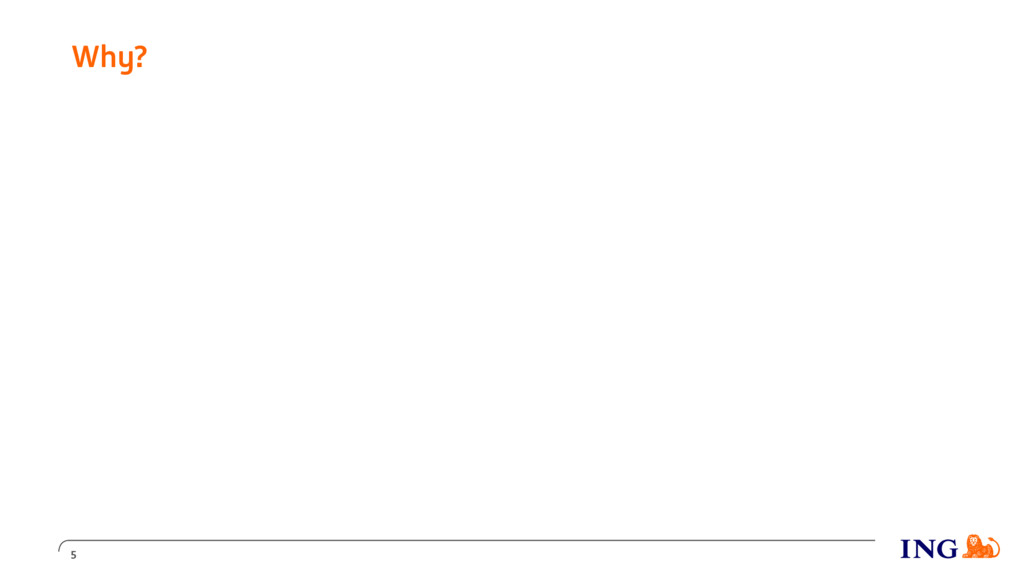

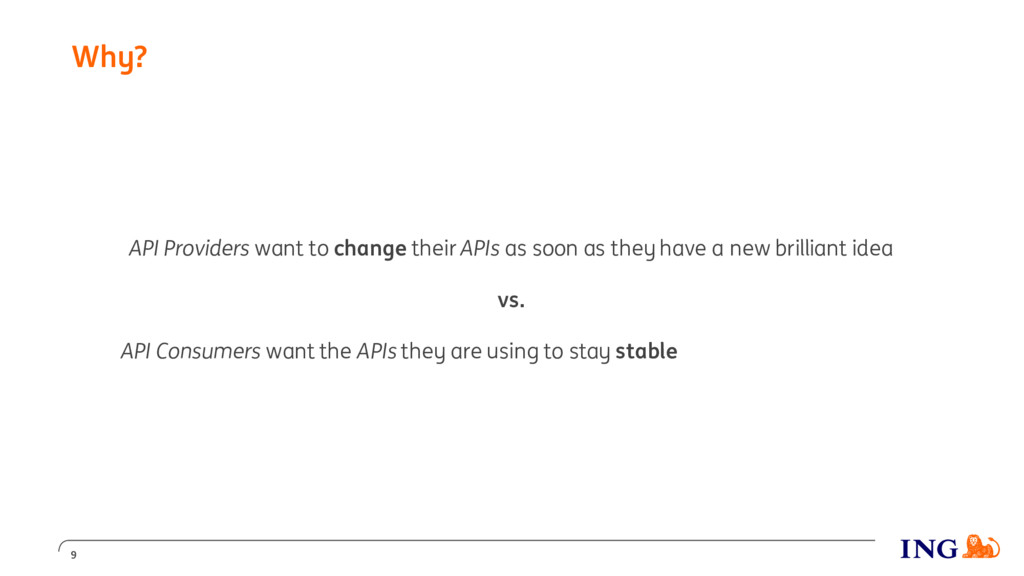

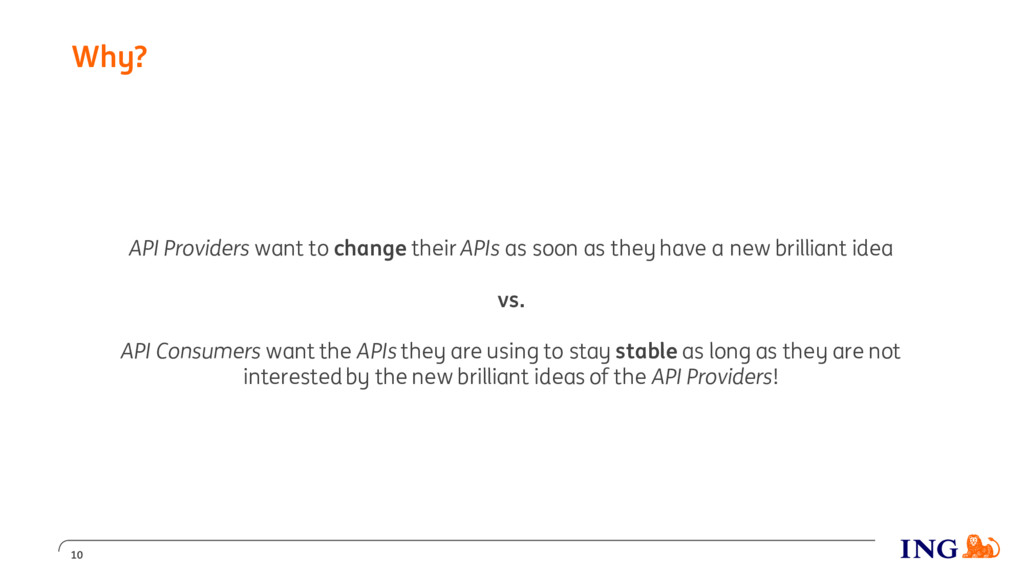

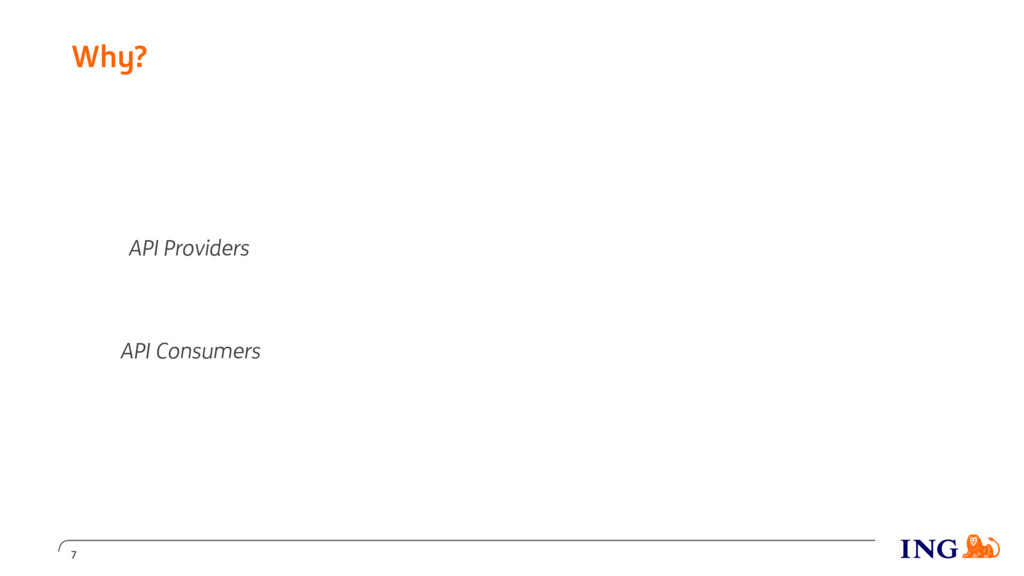

  4. API Providers want to change their APIs as soon as

    they have a new brilliant idea Why? 6
  5. API Providers want to change their APIs as soon as

    they have a new brilliant idea vs. API Consumers want the APIs they are using to stay stable as long as they are not interested by the new brilliant ideas of the API Providers! Why? 7
  6. API Providers want to change their APIs as soon as

    they have a new brilliant idea API Consumers want the APIs they are using to stay stable as long as they are not interested by the new brilliant ideas of the API Providers! Why? 8
  7. API Providers want to change their APIs as soon as

    they have a new brilliant idea vs. API Consumers want the APIs they are using to stay stable as long as they are not interested by the new brilliant ideas of the API Providers! Why? 9
  8. API Providers want to change their APIs as soon as

    they have a new brilliant idea vs. API Consumers want the APIs they are using to stay stable as long as they are not interested by the new brilliant ideas of the API Providers! Why? 10

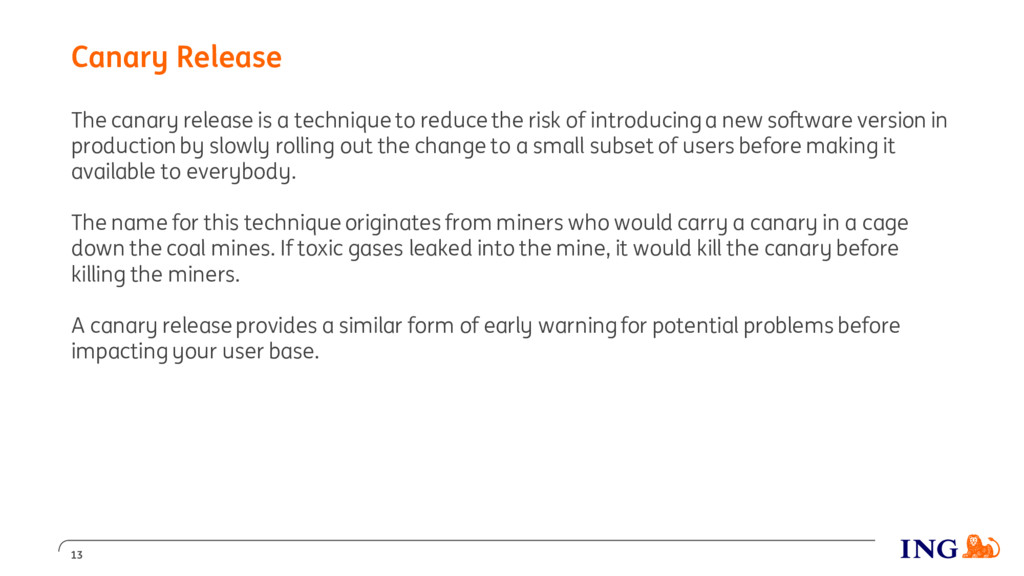

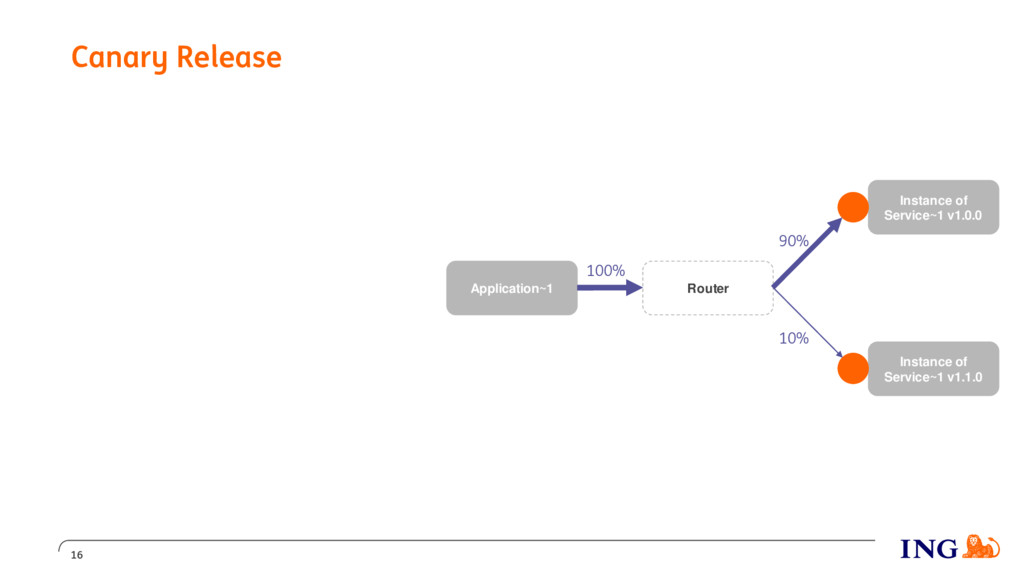

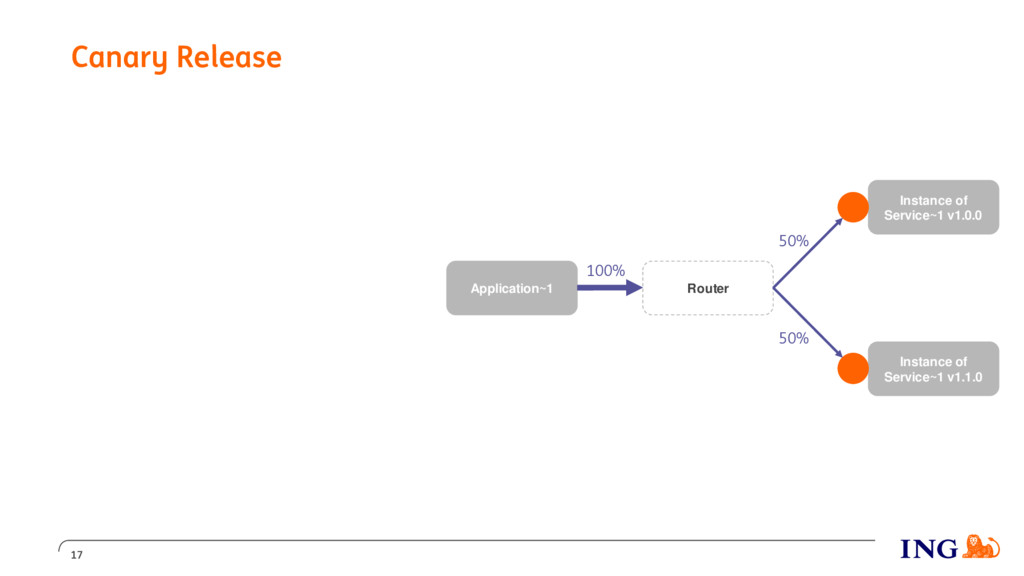

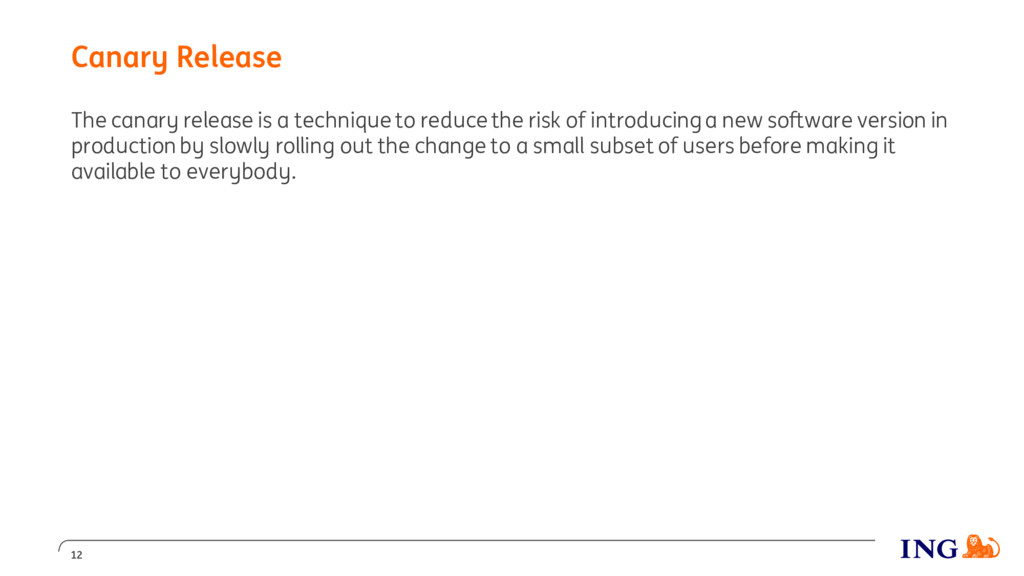

  9. The canary release is a technique to reduce the risk

    of introducing a new software version in production by slowly rolling out the change to a small subset of users before making it available to everybody. Canary Release 12

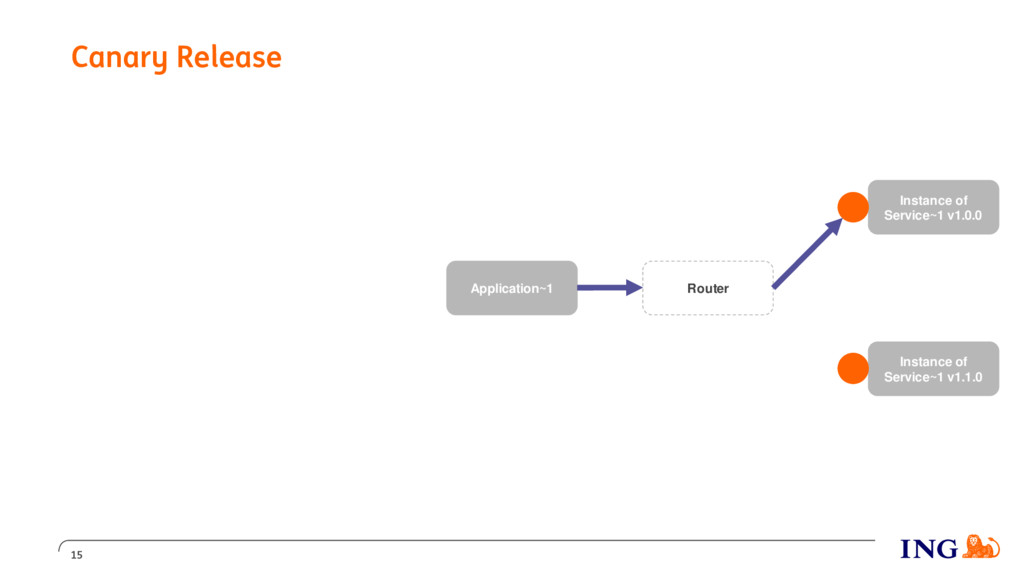

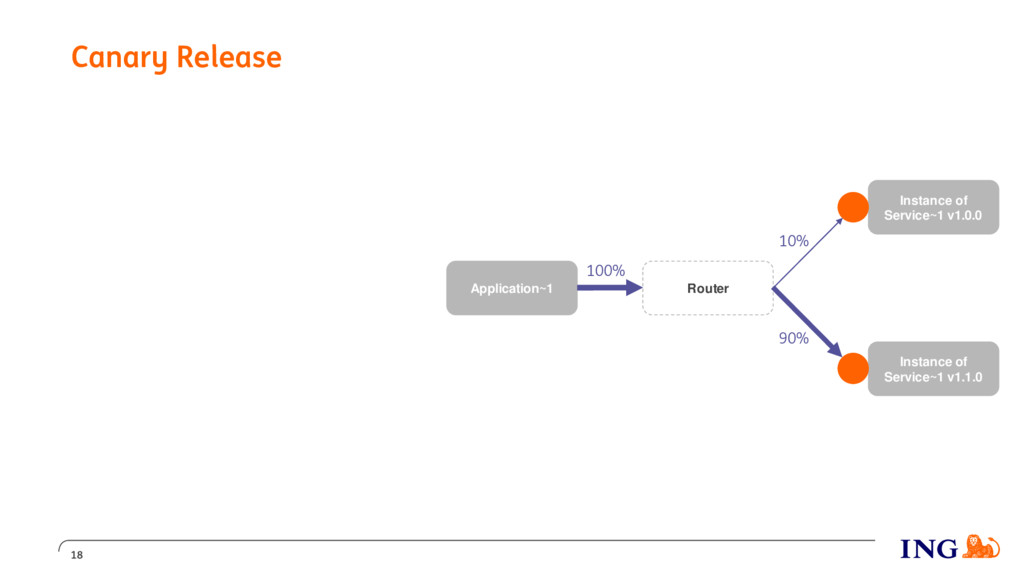

  10. The canary release is a technique to reduce the risk

    of introducing a new software version in production by slowly rolling out the change to a small subset of users before making it available to everybody. The name for this technique originates from miners who would carry a canary in a cage down the coal mines. If toxic gases leaked into the mine, it would kill the canary before killing the miners. A canary release provides a similar form of early warning for potential problems before impacting your user base. Canary Release 13

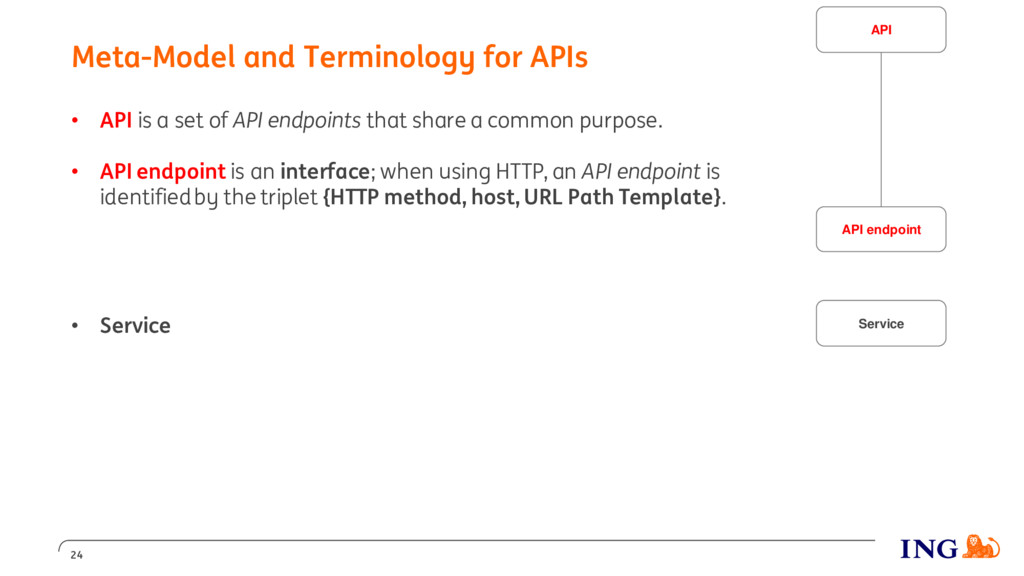

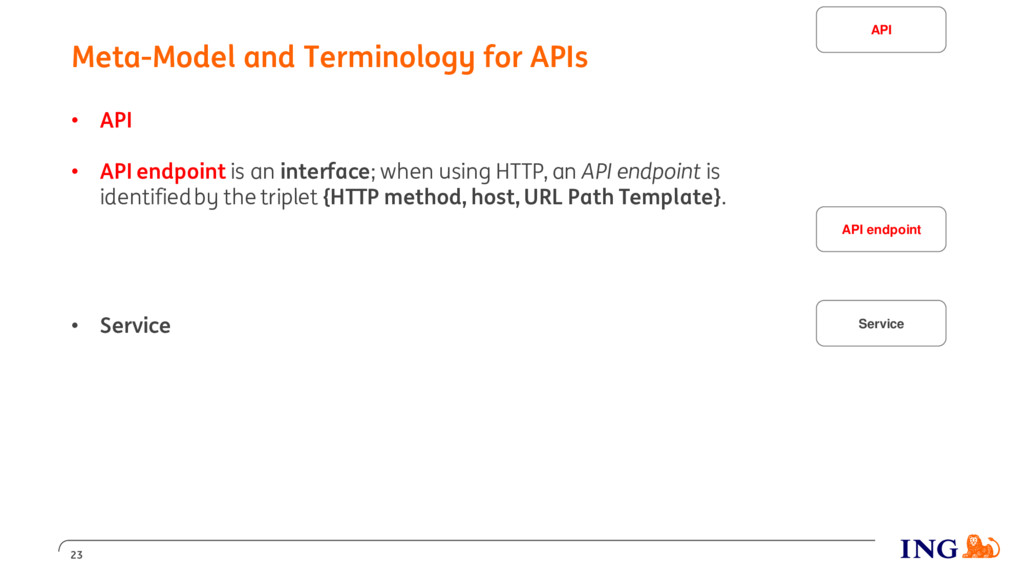

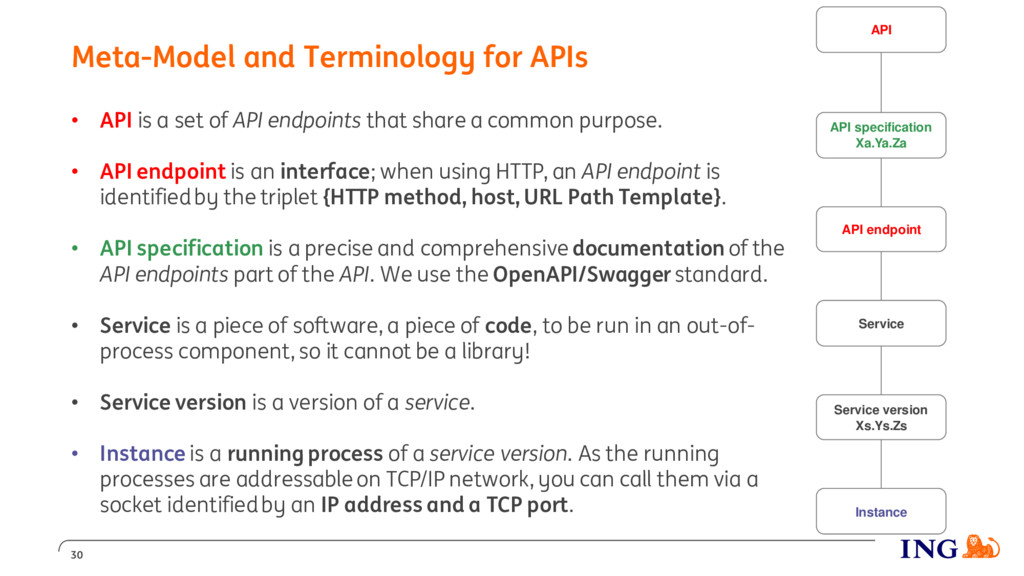

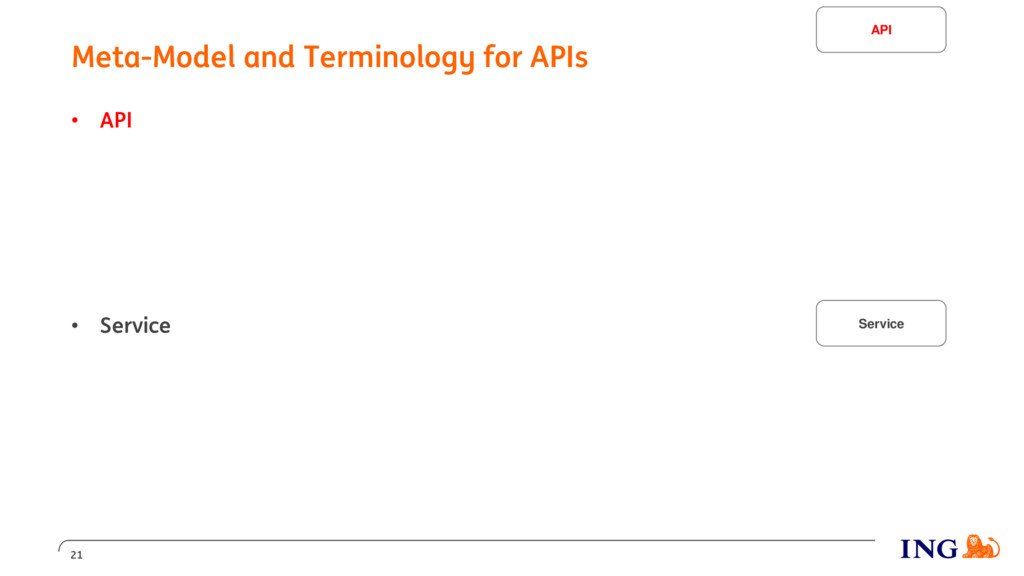

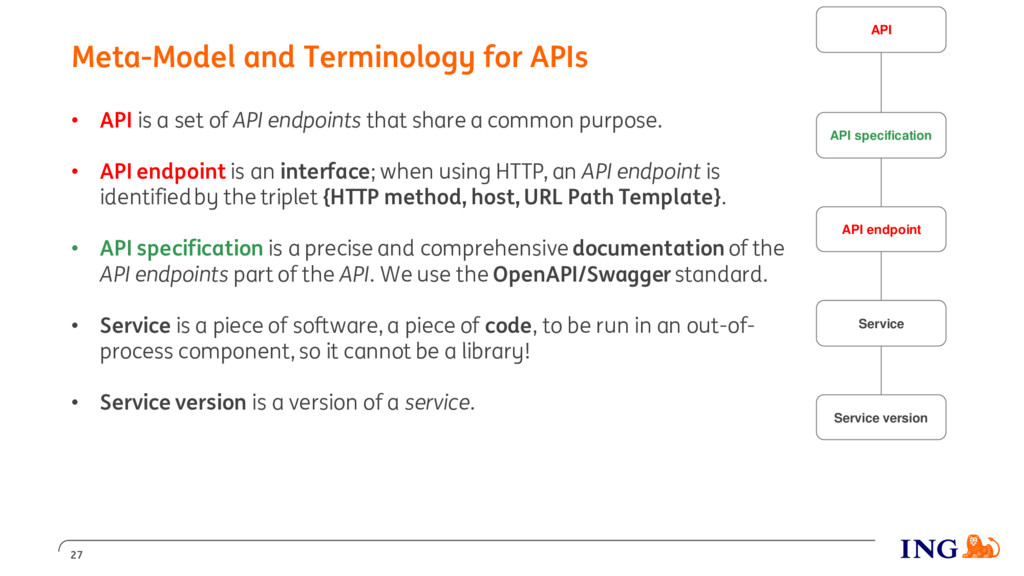

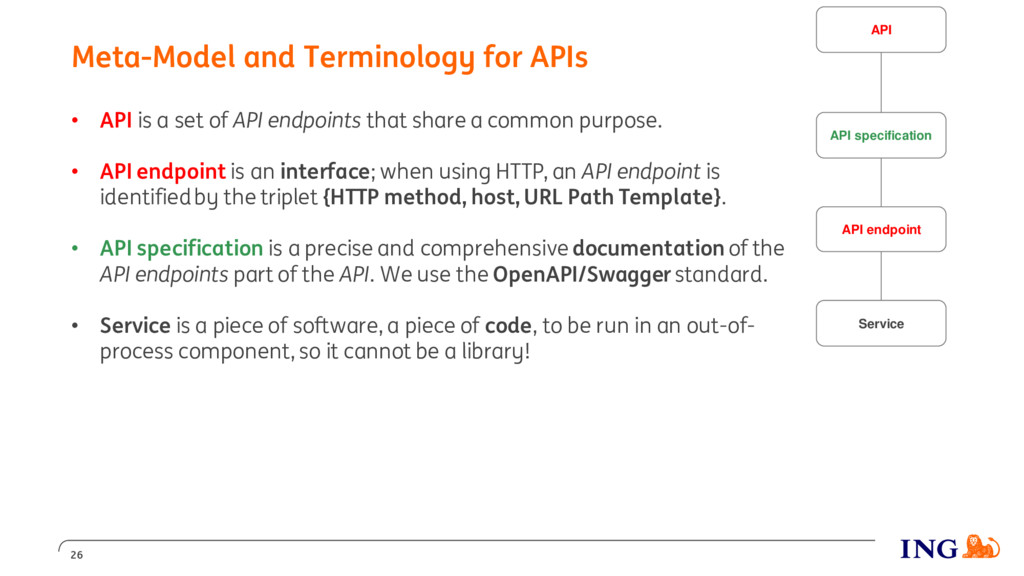

  11. • API is a set of API endpoints. • API

    endpoint is an interface; when using HTTP, an API endpoint is identified by the triplet {HTTP method, host, URL Path Template}. • API specification is a precise and comprehensive documentation of the API endpoints part of the API. We use the OpenAPI/Swagger standard. • Service is a piece of software, a piece of code, to be run in an out-of- process component, so it cannot be a library! • Service version is a version of a service. • Instance is a running process of a service version. As the running processes are addressable on TCP/IP network, you can call them via a socket identified by an IP address and a TCP port. 21 Meta-Model and Terminology for APIs Service API
  12. • API is a set of API endpoints. • API

    endpoint is an interface; when using HTTP, an API endpoint is identified by the triplet {HTTP method, host, URL Path Template}. • API specification is a precise and comprehensive documentation of the API endpoints part of the API. We use the OpenAPI/Swagger standard. • Service is a piece of software, a piece of code, to be run in an out-of- process component, so it cannot be a library! • Service version is a version of a service. • Instance is a running process of a service version. As the running processes are addressable on TCP/IP network, you can call them via a socket identified by an IP address and a TCP port. 22 Meta-Model and Terminology for APIs Service API
  13. • API is a set of API endpoints. • API

    endpoint is an interface; when using HTTP, an API endpoint is identified by the triplet {HTTP method, host, URL Path Template}. • API specification is a precise and comprehensive documentation of the API endpoints part of the API. We use the OpenAPI/Swagger standard. • Service is a piece of software, a piece of code, to be run in an out-of- process component, so it cannot be a library! • Service version is a version of a service. • Instance is a running process of a service version. As the running processes are addressable on TCP/IP network, you can call them via a socket identified by an IP address and a TCP port. 23 Meta-Model and Terminology for APIs API endpoint Service API

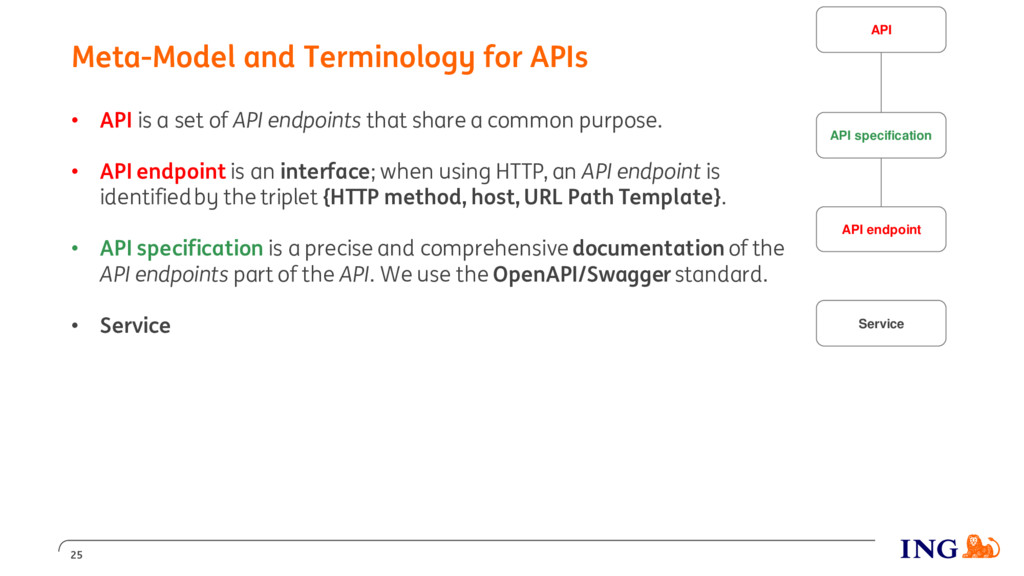

  14. • API is a set of API endpoints that share

    a common purpose. • API endpoint is an interface; when using HTTP, an API endpoint is identified by the triplet {HTTP method, host, URL Path Template}. • API specification is a precise and comprehensive documentation of the API endpoints part of the API. We use the OpenAPI/Swagger standard. • Service is a piece of software, a piece of code, to be run in an out-of- process component, so it cannot be a library! • Service version is a version of a service. • Instance is a running process of a service version. As the running processes are addressable on TCP/IP network, you can call them via a socket identified by an IP address and a TCP port. 24 Meta-Model and Terminology for APIs API endpoint Service API
  15. • API is a set of API endpoints that share

    a common purpose. • API endpoint is an interface; when using HTTP, an API endpoint is identified by the triplet {HTTP method, host, URL Path Template}. • API specification is a precise and comprehensive documentation of the API endpoints part of the API. We use the OpenAPI/Swagger standard. • Service is a piece of software, a piece of code, to be run in an out-of- process component, so it cannot be a library! • Service version is a version of a service. • Instance is a running process of a service version. As the running processes are addressable on TCP/IP network, you can call them via a socket identified by an IP address and a TCP port. 25 Meta-Model and Terminology for APIs API endpoint API specification Service API
  16. • API is a set of API endpoints that share

    a common purpose. • API endpoint is an interface; when using HTTP, an API endpoint is identified by the triplet {HTTP method, host, URL Path Template}. • API specification is a precise and comprehensive documentation of the API endpoints part of the API. We use the OpenAPI/Swagger standard. • Service is a piece of software, a piece of code, to be run in an out-of- process component, so it cannot be a library! • Service version is a version of a service. • Instance is a running process of a service version. As the running processes are addressable on TCP/IP network, you can call them via a socket identified by an IP address and a TCP port. 26 Meta-Model and Terminology for APIs API endpoint API specification Service API
  17. • API is a set of API endpoints that share

    a common purpose. • API endpoint is an interface; when using HTTP, an API endpoint is identified by the triplet {HTTP method, host, URL Path Template}. • API specification is a precise and comprehensive documentation of the API endpoints part of the API. We use the OpenAPI/Swagger standard. • Service is a piece of software, a piece of code, to be run in an out-of- process component, so it cannot be a library! • Service version is a version of a service. • Instance is a running process of a service version. As the running processes are addressable on TCP/IP network, you can call them via a socket identified by an IP address and a TCP port. 27 Meta-Model and Terminology for APIs API endpoint API specification Service Service version API
  18. • API is a set of API endpoints that share

    a common purpose. • API endpoint is an interface; when using HTTP, an API endpoint is identified by the triplet {HTTP method, host, URL Path Template}. • API specification is a precise and comprehensive documentation of the API endpoints part of the API. We use the OpenAPI/Swagger standard. • Service is a piece of software, a piece of code, to be run in an out-of- process component, so it cannot be a library! • Service version is a version of a service. • Instance is a running process of a service version. As the running processes are addressable on TCP/IP network, you can call them via a socket identified by an IP address and a TCP port. 28 Meta-Model and Terminology for APIs API endpoint API specification Service Service version Instance API

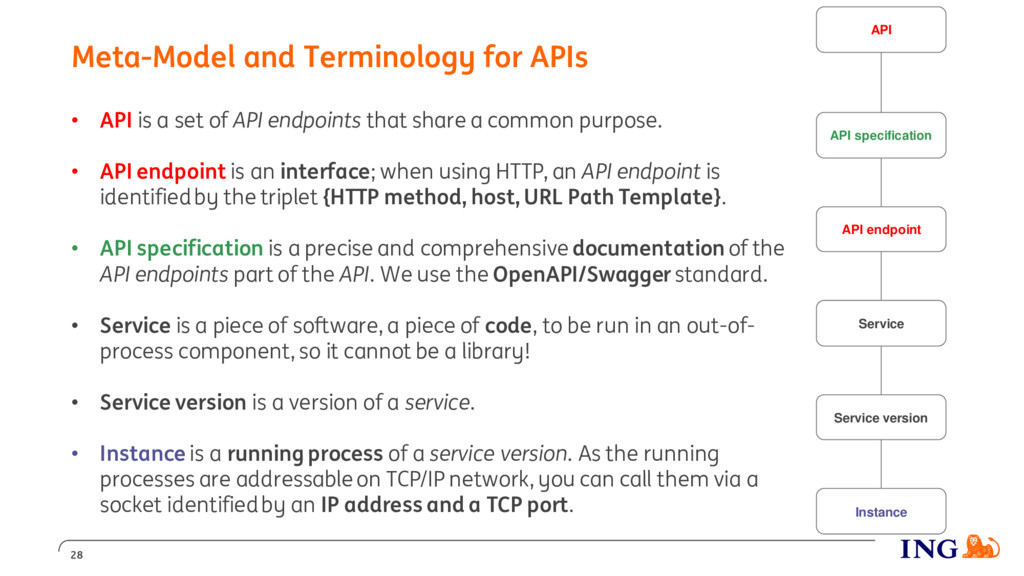

  19. • API is a set of API endpoints that share

    a common purpose. • API endpoint is an interface; when using HTTP, an API endpoint is identified by the triplet {HTTP method, host, URL Path Template}. • API specification is a precise and comprehensive documentation of the API endpoints part of the API. We use the OpenAPI/Swagger standard. • Service is a piece of software, a piece of code, to be run in an out-of- process component, so it cannot be a library! • Service version is a version of a service. • Instance is a running process of a service version. As the running processes are addressable on TCP/IP network, you can call them via a socket identified by an IP address and a TCP port. 29 Meta-Model and Terminology for APIs API endpoint API specification Service Service version Xs.Ys.Zs Instance API
  20. • API is a set of API endpoints that share

    a common purpose. • API endpoint is an interface; when using HTTP, an API endpoint is identified by the triplet {HTTP method, host, URL Path Template}. • API specification is a precise and comprehensive documentation of the API endpoints part of the API. We use the OpenAPI/Swagger standard. • Service is a piece of software, a piece of code, to be run in an out-of- process component, so it cannot be a library! • Service version is a version of a service. • Instance is a running process of a service version. As the running processes are addressable on TCP/IP network, you can call them via a socket identified by an IP address and a TCP port. 30 Meta-Model and Terminology for APIs API endpoint API specification Xa.Ya.Za Service Service version Xs.Ys.Zs Instance API

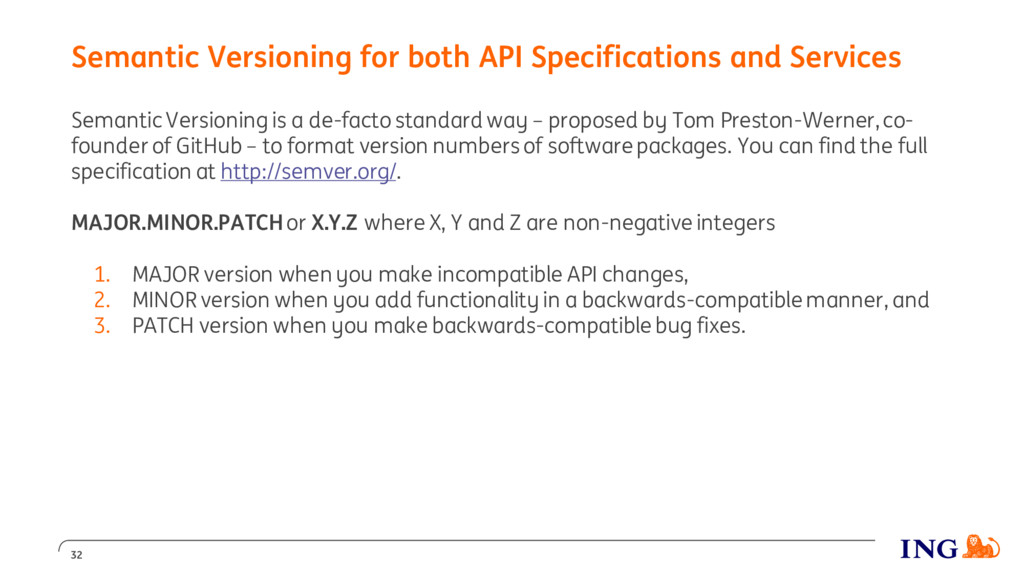

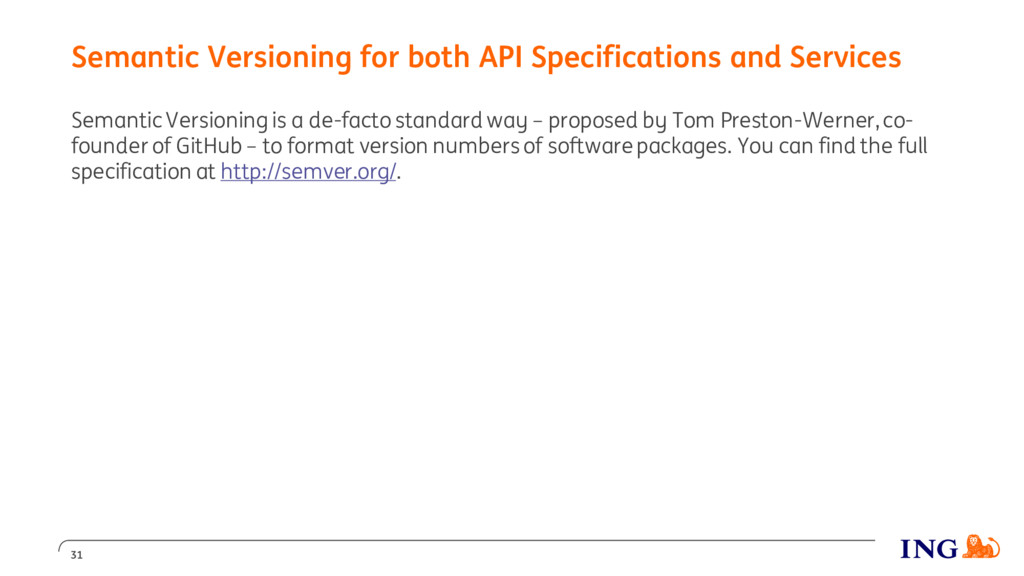

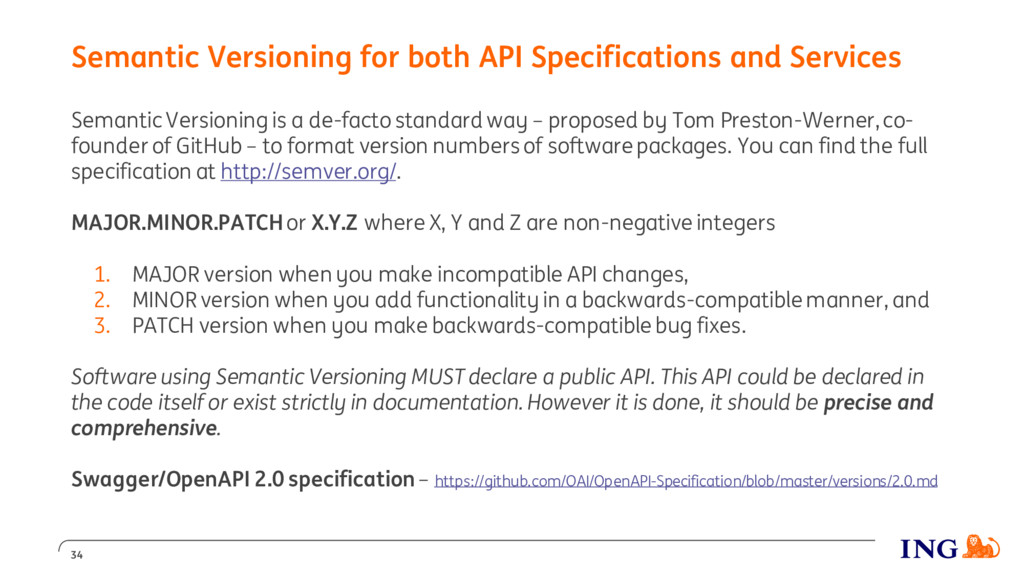

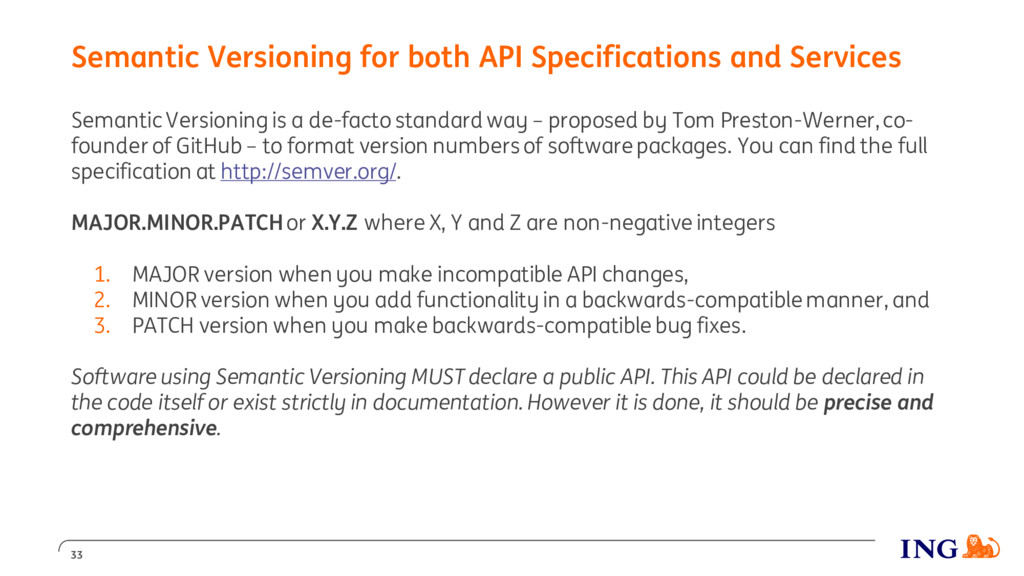

  21. Semantic Versioning is a de-facto standard way – proposed by

    Tom Preston-Werner, co- founder of GitHub – to format version numbers of software packages. You can find the full specification at http://semver.org/. Semantic Versioning for both API Specifications and Services 31
  22. Semantic Versioning is a de-facto standard way – proposed by

    Tom Preston-Werner, co- founder of GitHub – to format version numbers of software packages. You can find the full specification at http://semver.org/. MAJOR.MINOR.PATCHor X.Y.Z where X, Y and Z are non-negative integers 1. MAJOR version when you make incompatible API changes, 2. MINOR version when you add functionality in a backwards-compatible manner, and 3. PATCH version when you make backwards-compatible bug fixes. Semantic Versioning for both API Specifications and Services 32
  23. Semantic Versioning is a de-facto standard way – proposed by

    Tom Preston-Werner, co- founder of GitHub – to format version numbers of software packages. You can find the full specification at http://semver.org/. MAJOR.MINOR.PATCHor X.Y.Z where X, Y and Z are non-negative integers 1. MAJOR version when you make incompatible API changes, 2. MINOR version when you add functionality in a backwards-compatible manner, and 3. PATCH version when you make backwards-compatible bug fixes. Software using Semantic Versioning MUST declare a public API. This API could be declared in the code itself or exist strictly in documentation. However it is done, it should be precise and comprehensive. Semantic Versioning for both API Specifications and Services 33
  24. Semantic Versioning is a de-facto standard way – proposed by

    Tom Preston-Werner, co- founder of GitHub – to format version numbers of software packages. You can find the full specification at http://semver.org/. MAJOR.MINOR.PATCHor X.Y.Z where X, Y and Z are non-negative integers 1. MAJOR version when you make incompatible API changes, 2. MINOR version when you add functionality in a backwards-compatible manner, and 3. PATCH version when you make backwards-compatible bug fixes. Software using Semantic Versioning MUST declare a public API. This API could be declared in the code itself or exist strictly in documentation. However it is done, it should be precise and comprehensive. Swagger/OpenAPI 2.0 specification – https://github.com/OAI/OpenAPI-Specification/blob/master/versions/2.0.md Semantic Versioning for both API Specifications and Services 34

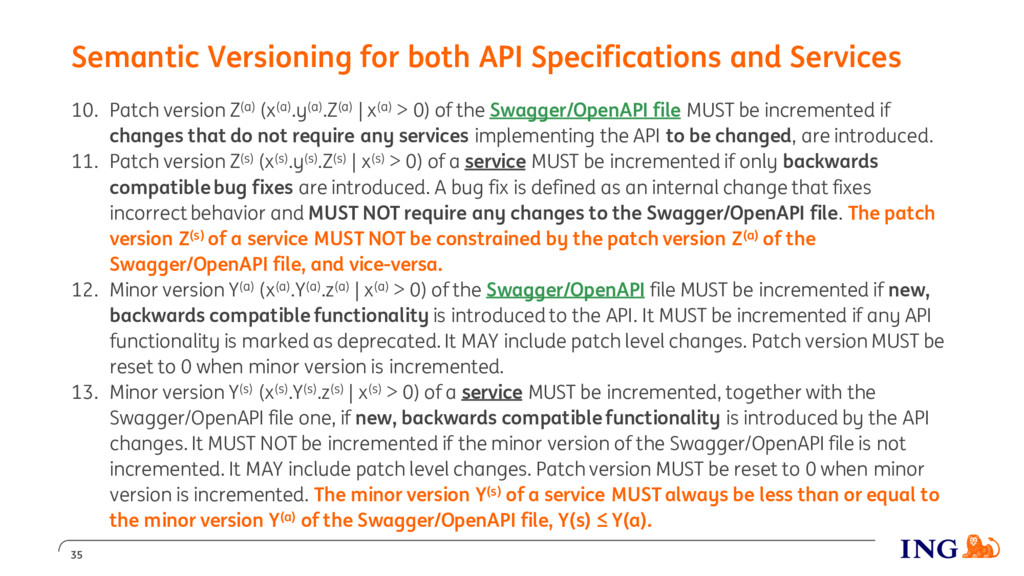

  25. 10. Patch version Z(a) (x(a).y(a).Z(a) | x(a) > 0) of

    the Swagger/OpenAPI file MUST be incremented if changes that do not require any services implementing the API to be changed, are introduced. 11. Patch version Z(s) (x(s).y(s).Z(s) | x(s) > 0) of a service MUST be incremented if only backwards compatible bug fixes are introduced. A bug fix is defined as an internal change that fixes incorrect behavior and MUST NOT require any changes to the Swagger/OpenAPI file. The patch version Z(s) of a service MUST NOT be constrained by the patch version Z(a) of the Swagger/OpenAPI file, and vice-versa. 12. Minor version Y(a) (x(a).Y(a).z(a) | x(a) > 0) of the Swagger/OpenAPI file MUST be incremented if new, backwards compatible functionality is introduced to the API. It MUST be incremented if any API functionality is marked as deprecated. It MAY include patch level changes. Patch version MUST be reset to 0 when minor version is incremented. 13. Minor version Y(s) (x(s).Y(s).z(s) | x(s) > 0) of a service MUST be incremented, together with the Swagger/OpenAPI file one, if new, backwards compatible functionality is introduced by the API changes. It MUST NOT be incremented if the minor version of the Swagger/OpenAPI file is not incremented. It MAY include patch level changes. Patch version MUST be reset to 0 when minor version is incremented. The minor version Y(s) of a service MUST always be less than or equal to the minor version Y(a) of the Swagger/OpenAPI file, Y(s) ≤ Y(a). Semantic Versioning for both API Specifications and Services 35
  26. 10. Patch version Z(a) (x(a).y(a).Z(a) | x(a) > 0) of

    the Swagger/OpenAPI file MUST be incremented if changes that do not require any services implementing the API to be changed, are introduced. 11. Patch version Z(s) (x(s).y(s).Z(s) | x(s) > 0) of a service MUST be incremented if only backwards compatible bug fixes are introduced. A bug fix is defined as an internal change that fixes incorrect behavior and MUST NOT require any changes to the Swagger/OpenAPI file. The patch version Z(s) of a service MUST NOT be constrained by the patch version Z(a) of the Swagger/OpenAPI file, and vice-versa. 12. Minor version Y(a) (x(a).Y(a).z(a) | x(a) > 0) of the Swagger/OpenAPI file MUST be incremented if new, backwards compatible functionality is introduced to the API. It MUST be incremented if any API functionality is marked as deprecated. It MAY include patch level changes. Patch version MUST be reset to 0 when minor version is incremented. 13. Minor version Y(s) (x(s).Y(s).z(s) | x(s) > 0) of a service MUST be incremented, together with the Swagger/OpenAPI file one, if new, backwards compatible functionality is introduced by the API changes. It MUST NOT be incremented if the minor version of the Swagger/OpenAPI file is not incremented. It MAY include patch level changes. Patch version MUST be reset to 0 when minor version is incremented. The minor version Y(s) of a service MUST always be less than or equal to the minor version Y(a) of the Swagger/OpenAPI file, Y(s) ≤ Y(a). Semantic Versioning for both API Specifications and Services 36

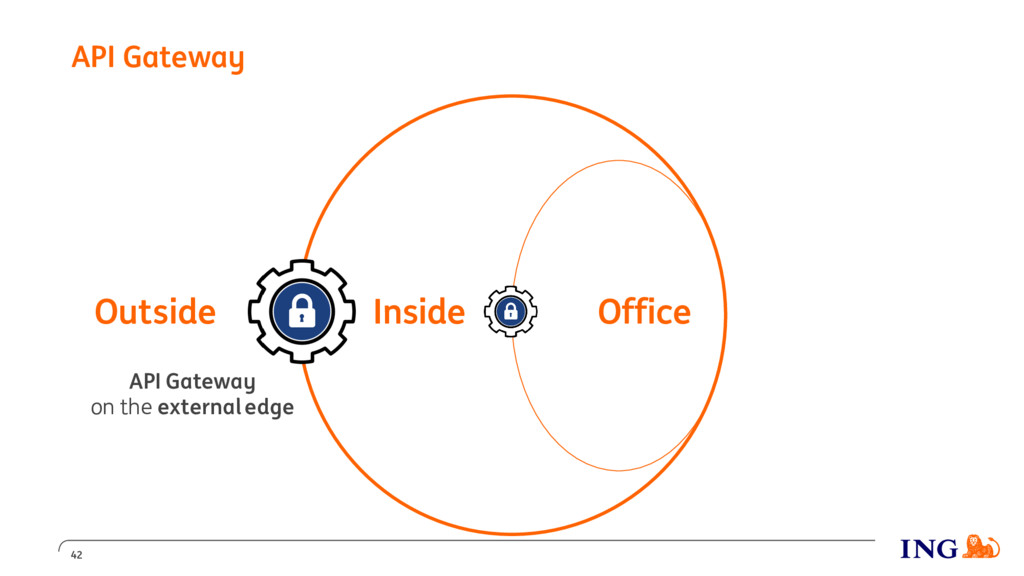

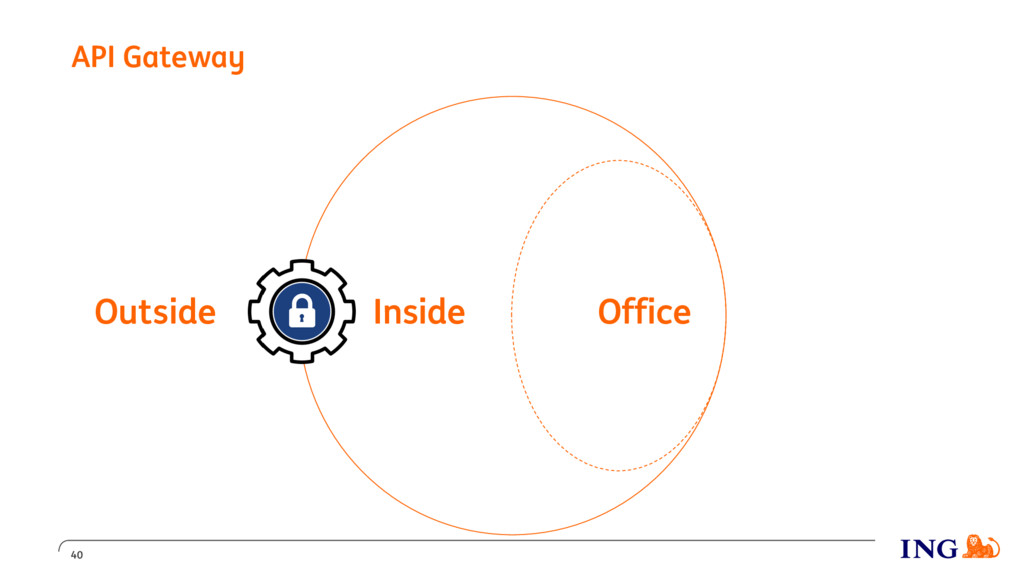

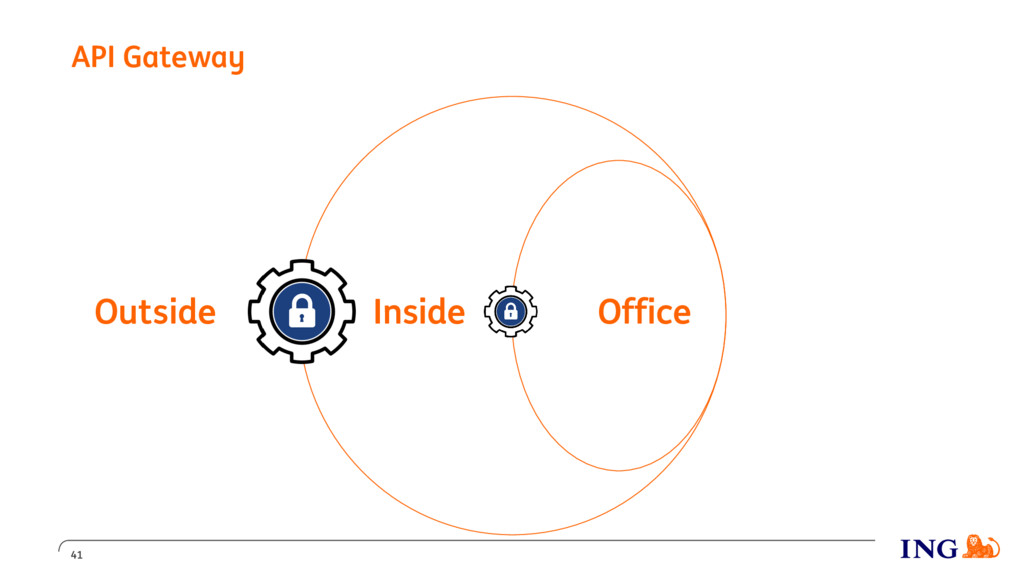

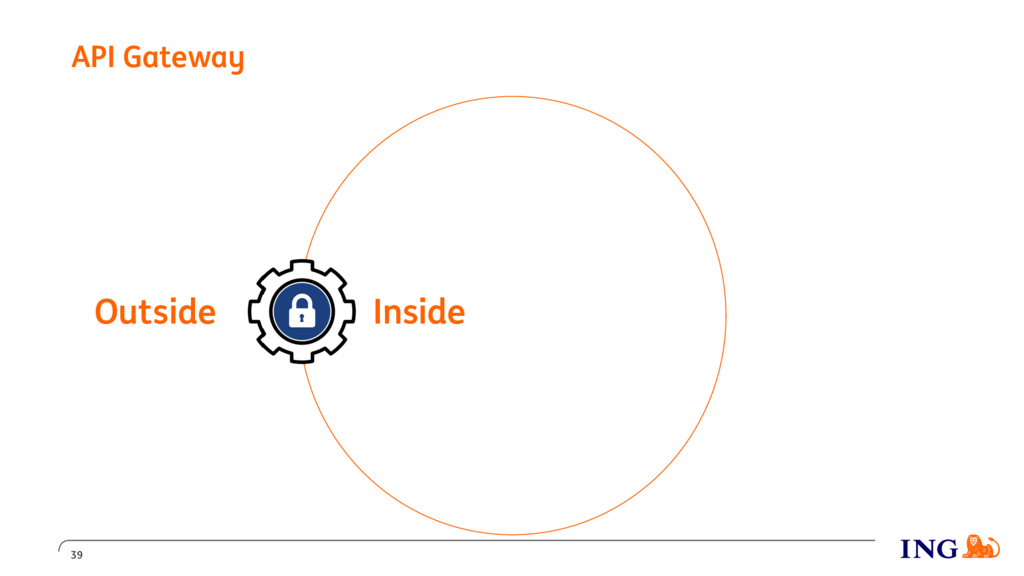

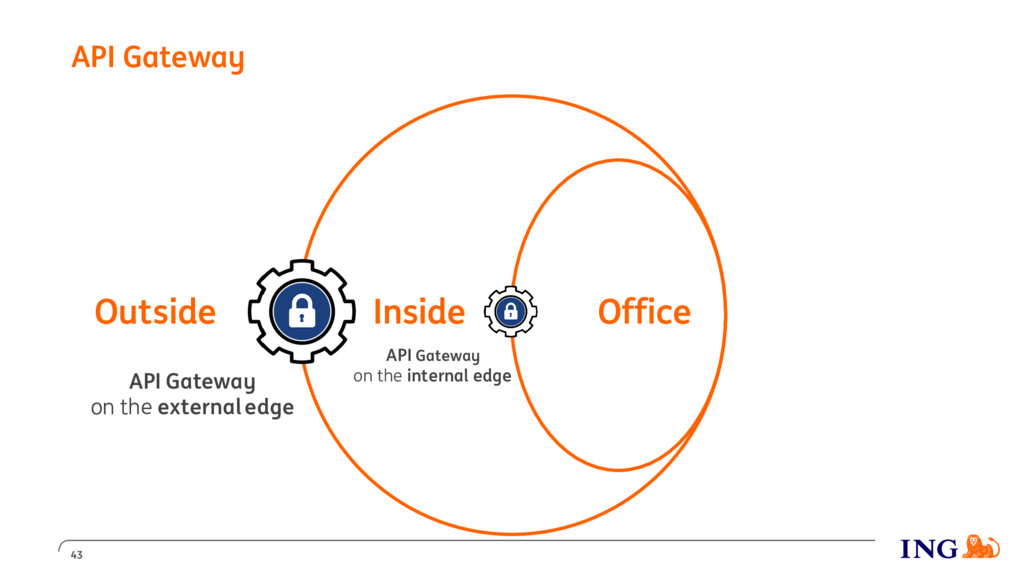

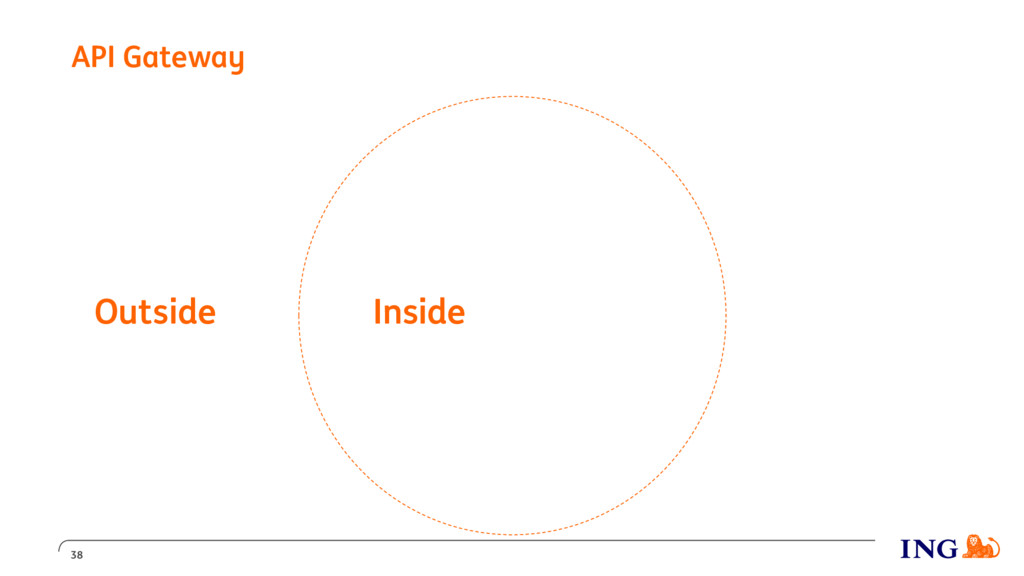

  27. API Gateway 43 Outside Inside Office API Gateway on the

    external edge API Gateway on the internal edge

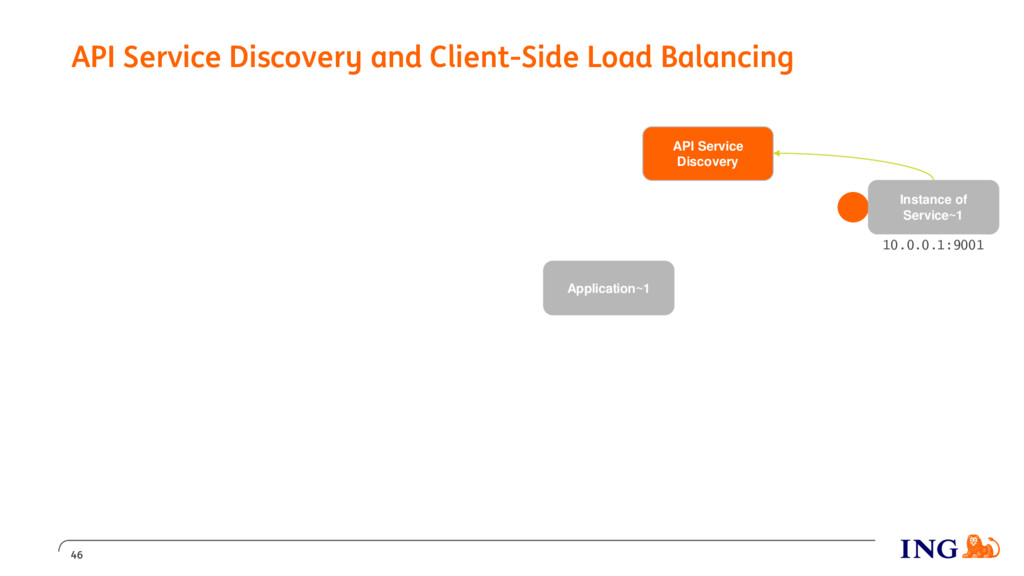

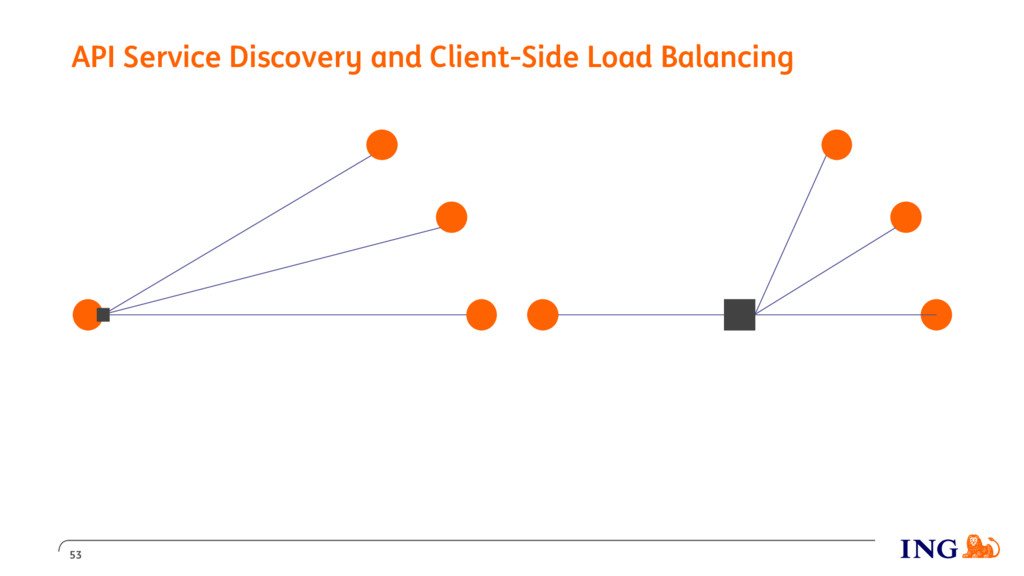

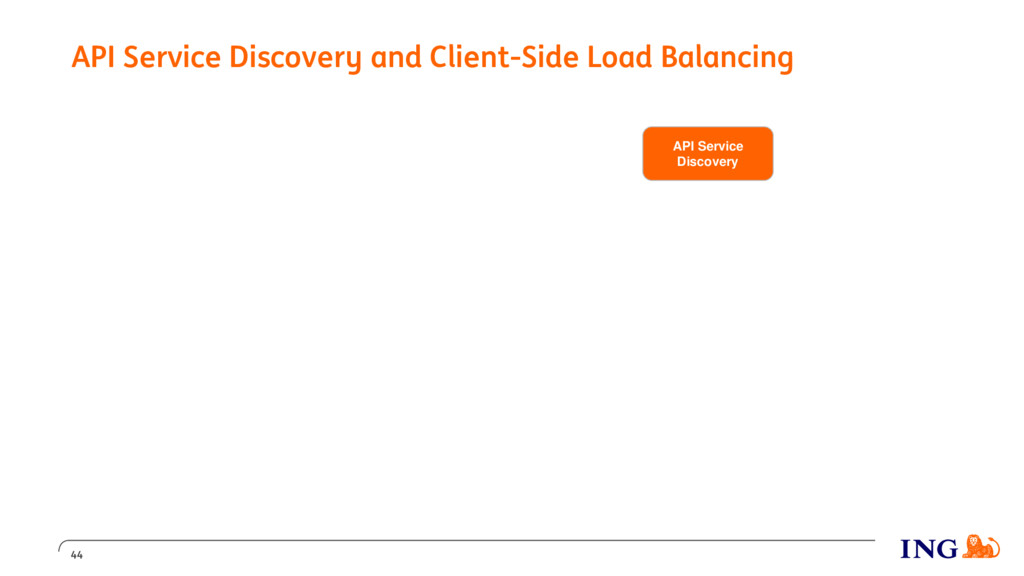

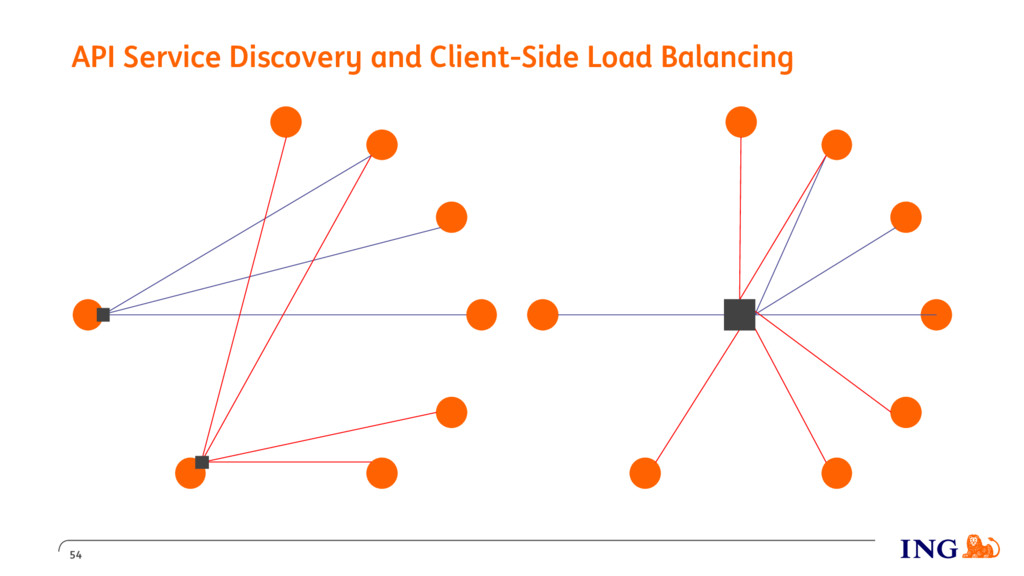

  28. API Service Discovery and Client-Side Load Balancing 45 API Service

    Discovery Instance of Service~1 10.0.0.1:9001
  29. API Service Discovery and Client-Side Load Balancing 46 API Service

    Discovery Instance of Service~1 10.0.0.1:9001 Application~1
  30. API Service Discovery and Client-Side Load Balancing 47 Router API

    Service Discovery Instance of Service~1 10.0.0.1:9001 Application~1
  31. API Service Discovery and Client-Side Load Balancing 48 Router API

    Service Discovery Instance of Service~1 10.0.0.1:9001 Application~1

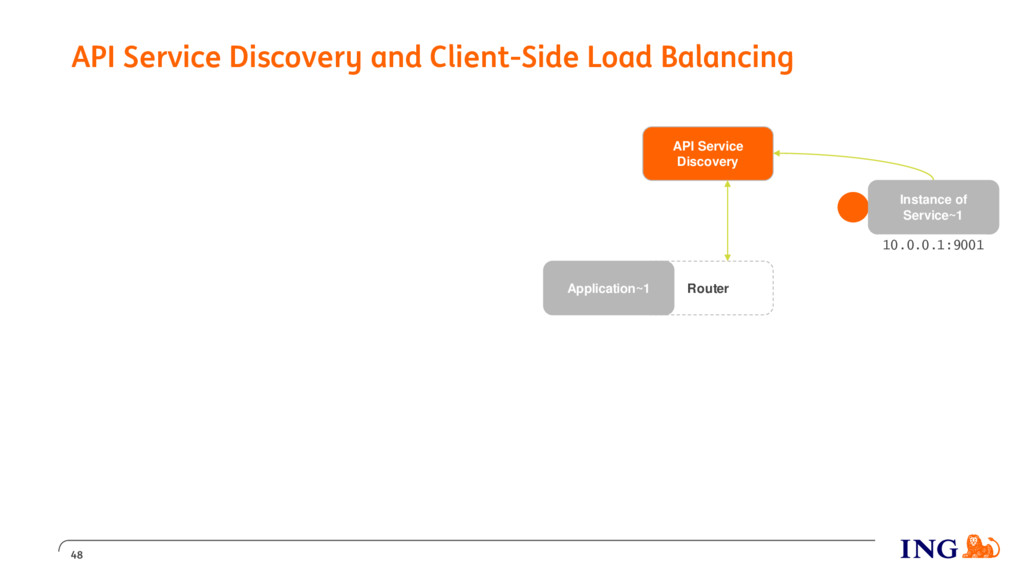

  32. API Service Discovery and Client-Side Load Balancing 49 Router API

    Service Discovery Instance of Service~1 10.0.0.1:9001 Application~1

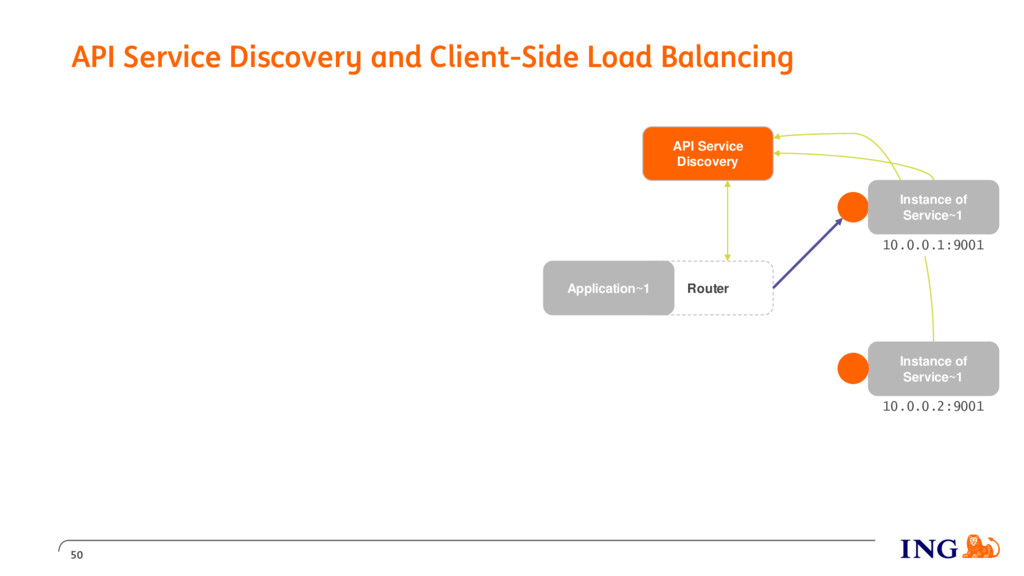

  33. API Service Discovery and Client-Side Load Balancing 50 Router Instance

    of Service~1 API Service Discovery Instance of Service~1 10.0.0.1:9001 10.0.0.2:9001 Application~1
  34. API Service Discovery and Client-Side Load Balancing 51 Router Instance

    of Service~1 API Service Discovery Instance of Service~1 10.0.0.1:9001 10.0.0.2:9001 Application~1
  35. API Service Discovery and Client-Side Load Balancing 52 Router Instance

    of Service~1 API Service Discovery Instance of Service~1 10.0.0.1:9001 10.0.0.2:9001 Application~1

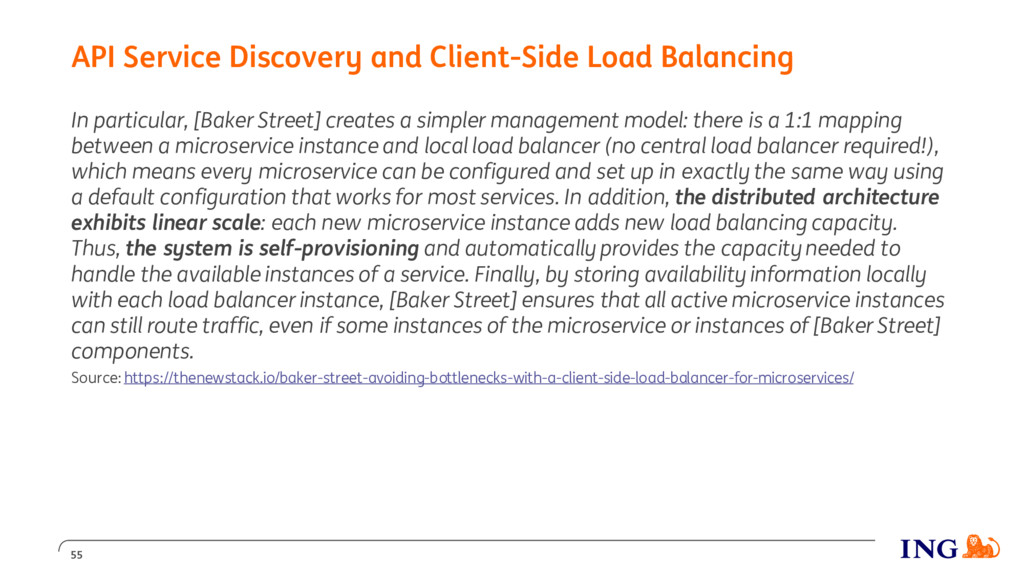

  36. In particular, [Baker Street] creates a simpler management model: there

    is a 1:1 mapping between a microservice instance and local load balancer (no central load balancer required!), which means every microservice can be configured and set up in exactly the same way using a default configuration that works for most services. In addition, the distributed architecture exhibits linear scale: each new microservice instance adds new load balancing capacity. Thus, the system is self-provisioning and automatically provides the capacity needed to handle the available instances of a service. Finally, by storing availability information locally with each load balancer instance, [Baker Street] ensures that all active microservice instances can still route traffic, even if some instances of the microservice or instances of [Baker Street] components. Source: https://thenewstack.io/baker-street-avoiding-bottlenecks-with-a-client-side-load-balancer-for-microservices/ API Service Discovery and Client-Side Load Balancing 55

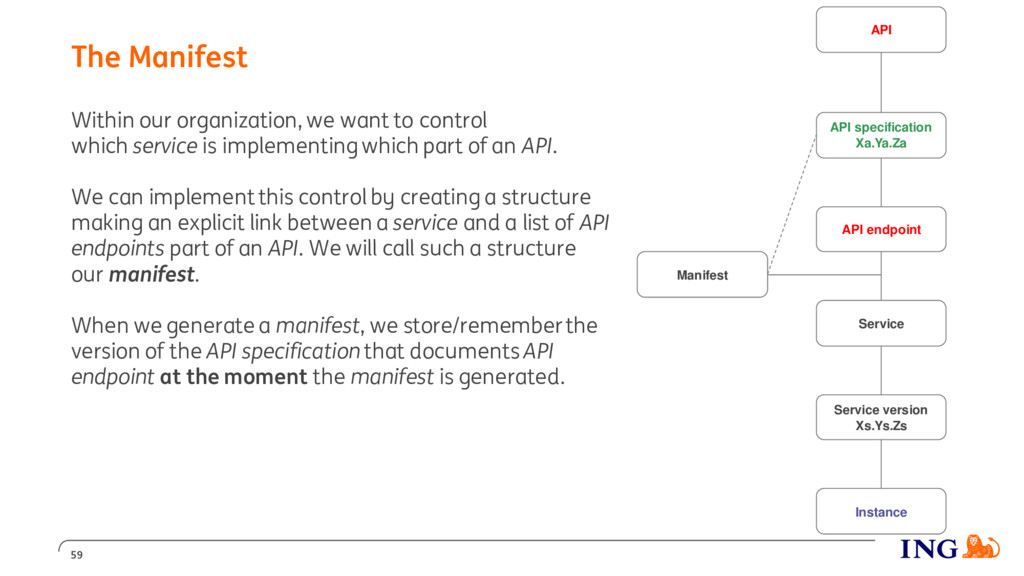

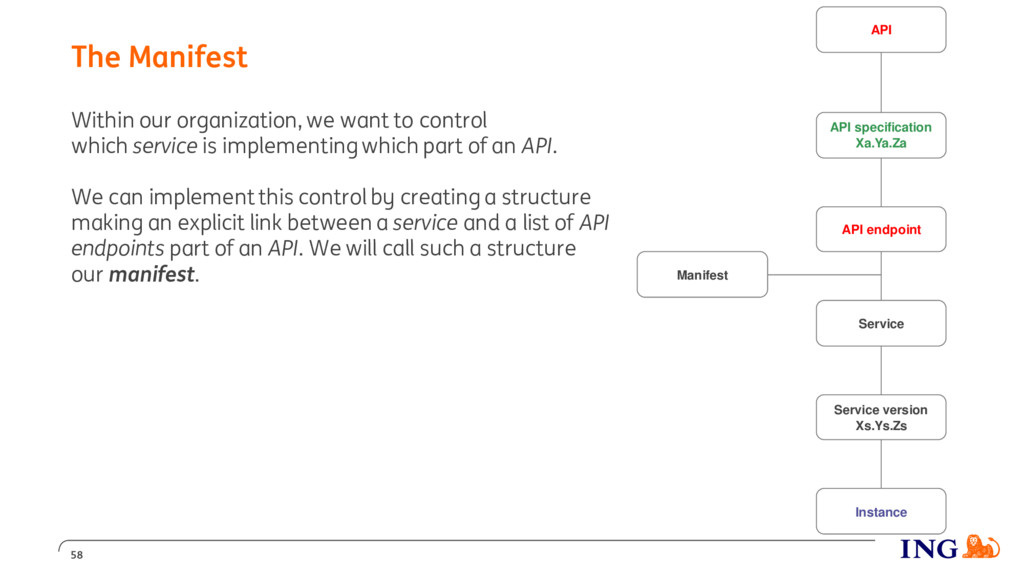

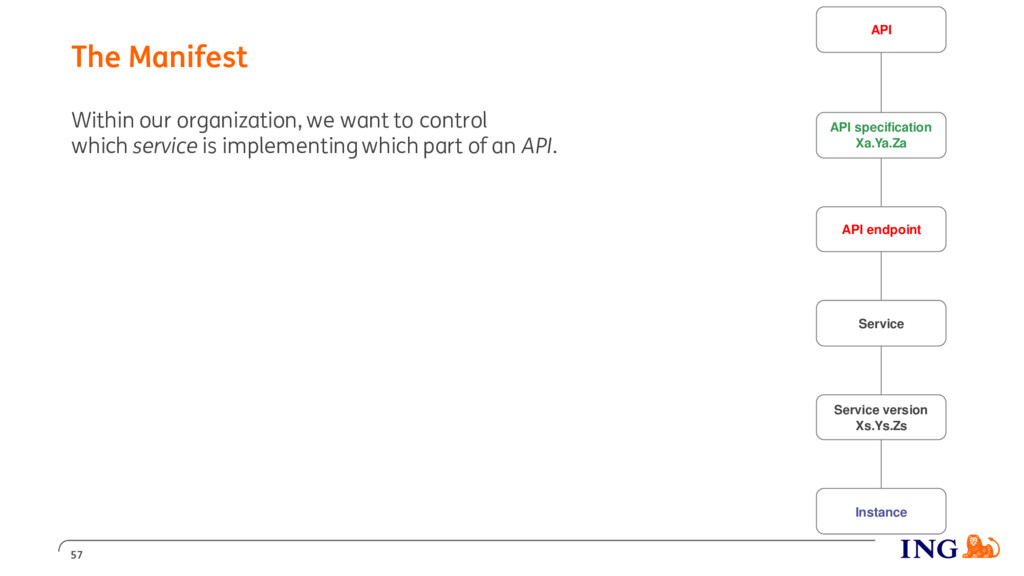

  37. Within our organization, we want to control which service is

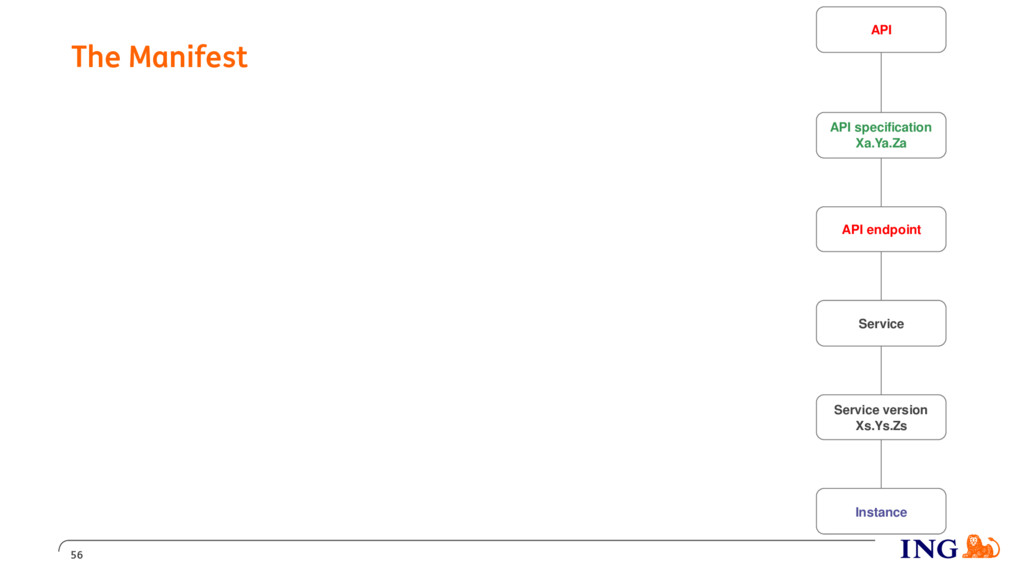

    implementing which part of an API. The Manifest 57 API endpoint API specification Xa.Ya.Za Service Service version Xs.Ys.Zs Instance API
  38. Within our organization, we want to control which service is

    implementing which part of an API. We can implement this control by creating a structure making an explicit link between a service and a list of API endpoints part of an API. We will call such a structure our manifest. The Manifest 58 API endpoint API specification Xa.Ya.Za Service Service version Xs.Ys.Zs Instance API Manifest
  39. Within our organization, we want to control which service is

    implementing which part of an API. We can implement this control by creating a structure making an explicit link between a service and a list of API endpoints part of an API. We will call such a structure our manifest. When we generate a manifest, we store/remember the version of the API specificationthat documents API endpoint at the moment the manifest is generated. The Manifest 59 API endpoint API specification Xa.Ya.Za Service Service version Xs.Ys.Zs Instance API Manifest

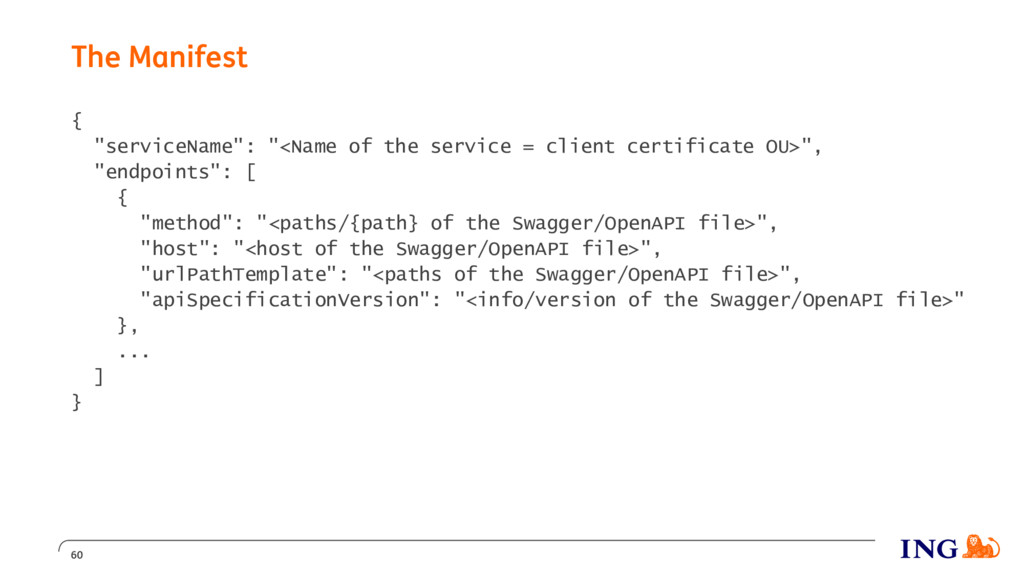

  40. { "serviceName": "<Name of the service = client certificate OU>",

    "endpoints": [ { "method": "<paths/{path} of the Swagger/OpenAPI file>", "host": "<host of the Swagger/OpenAPI file>", "urlPathTemplate": "<paths of the Swagger/OpenAPI file>", "apiSpecificationVersion": "<info/version of the Swagger/OpenAPI file>" }, ... ] } The Manifest 60

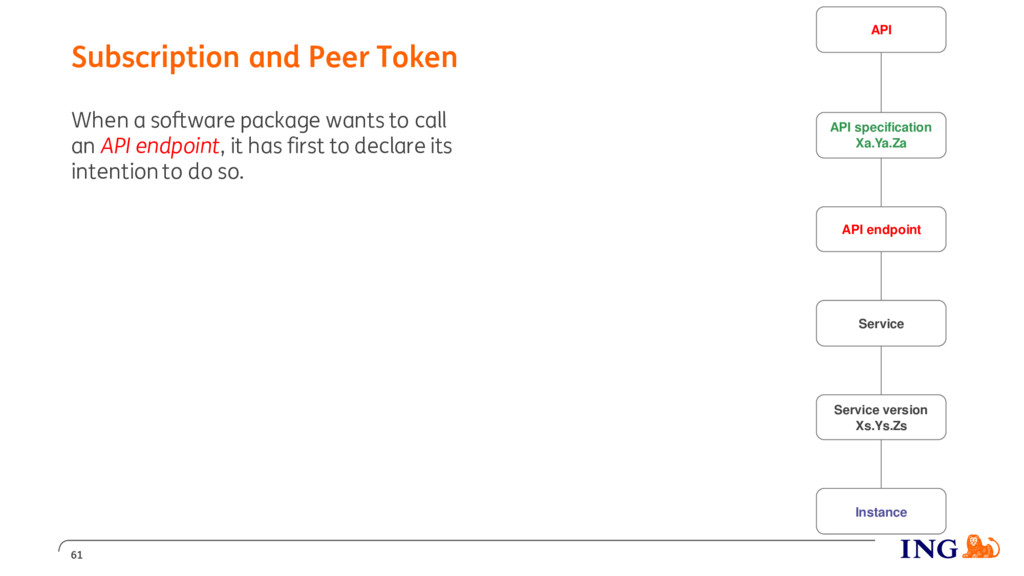

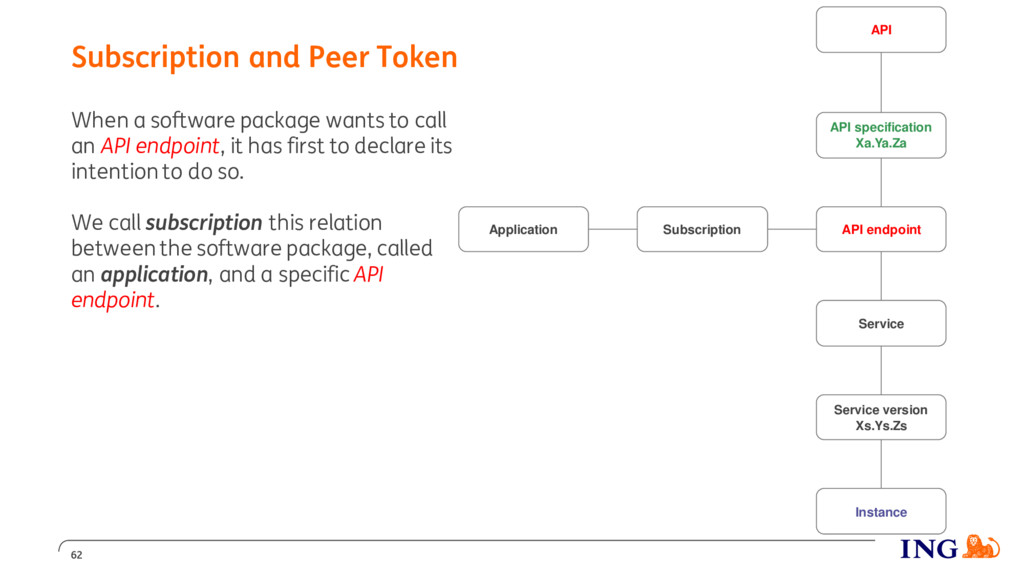

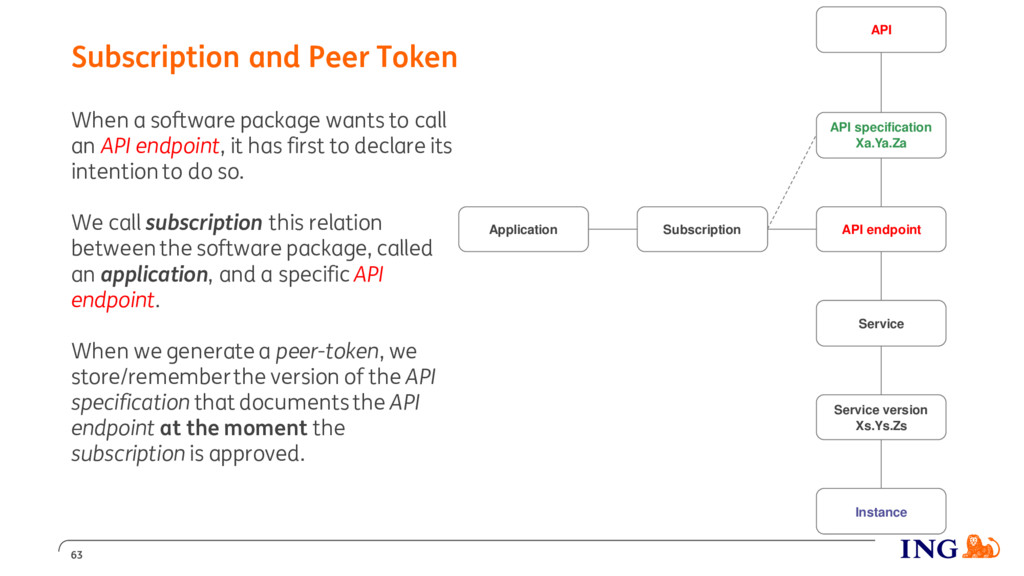

  41. When a software package wants to call an API endpoint,

    it has first to declare its intention to do so. Subscription and Peer Token 61 API endpoint API specification Xa.Ya.Za Service Service version Xs.Ys.Zs Instance API
  42. When a software package wants to call an API endpoint,

    it has first to declare its intention to do so. We call subscription this relation between the software package, called an application, and a specific API endpoint. Subscription and Peer Token 62 API endpoint API specification Xa.Ya.Za Service Service version Xs.Ys.Zs Instance API Subscription Application
  43. When a software package wants to call an API endpoint,

    it has first to declare its intention to do so. We call subscription this relation between the software package, called an application, and a specific API endpoint. When we generate a peer-token, we store/remember the version of the API specification that documents the API endpoint at the moment the subscription is approved. Subscription and Peer Token 63 API endpoint API specification Xa.Ya.Za Service Service version Xs.Ys.Zs Instance API Subscription Application

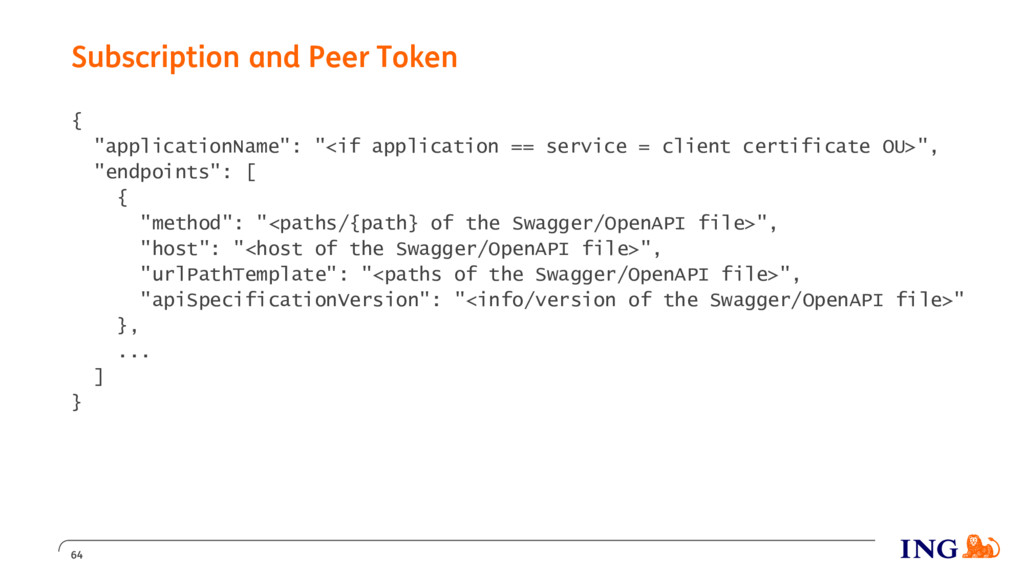

  44. { "applicationName": "<if application == service = client certificate OU>",

    "endpoints": [ { "method": "<paths/{path} of the Swagger/OpenAPI file>", "host": "<host of the Swagger/OpenAPI file>", "urlPathTemplate": "<paths of the Swagger/OpenAPI file>", "apiSpecificationVersion": "<info/version of the Swagger/OpenAPI file>" }, ... ] } Subscription and Peer Token 64

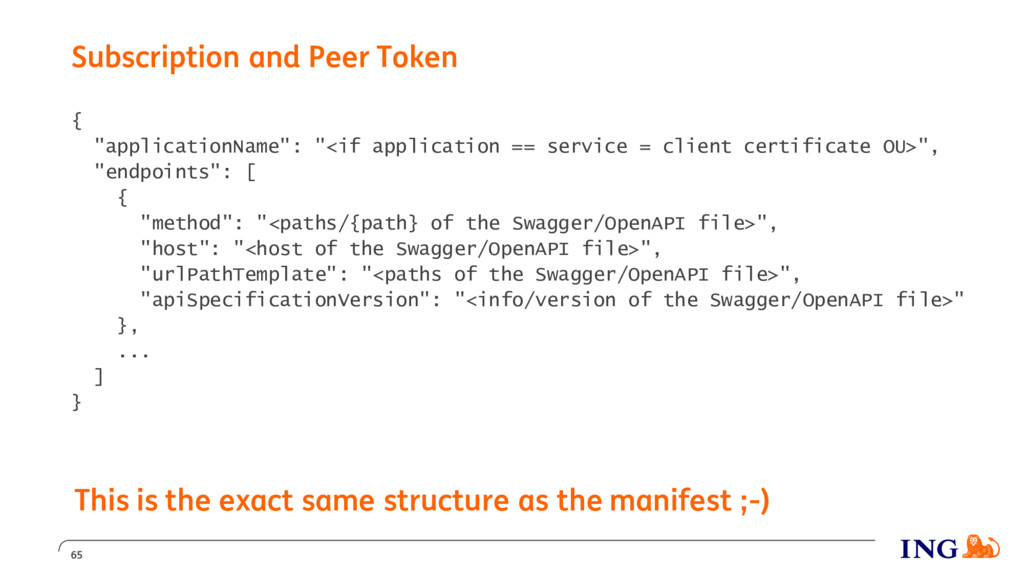

  45. { "applicationName": "<if application == service = client certificate OU>",

    "endpoints": [ { "method": "<paths/{path} of the Swagger/OpenAPI file>", "host": "<host of the Swagger/OpenAPI file>", "urlPathTemplate": "<paths of the Swagger/OpenAPI file>", "apiSpecificationVersion": "<info/version of the Swagger/OpenAPI file>" }, ... ] } Subscription and Peer Token 65 This is the exact same structure as the manifest ;-)

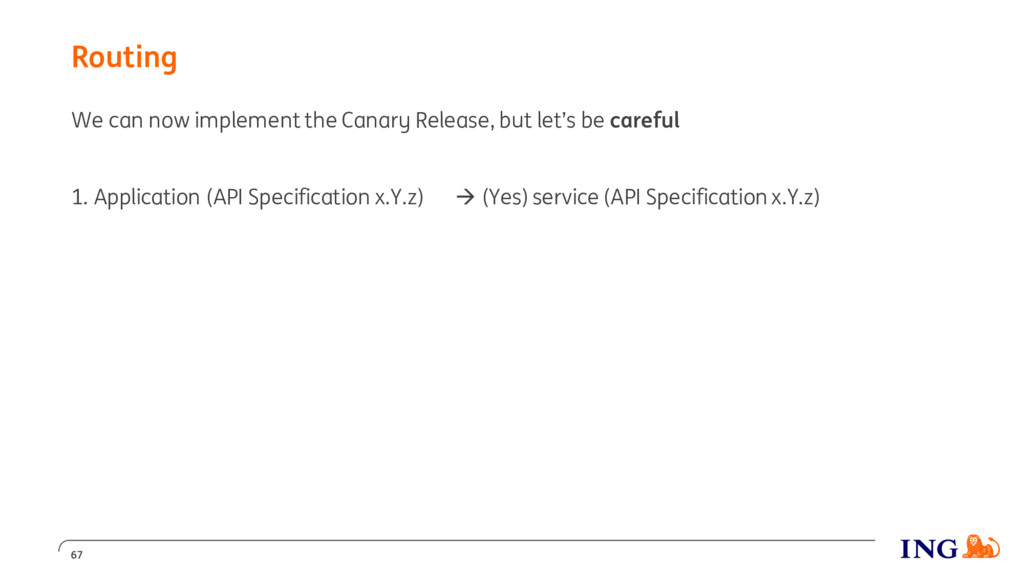

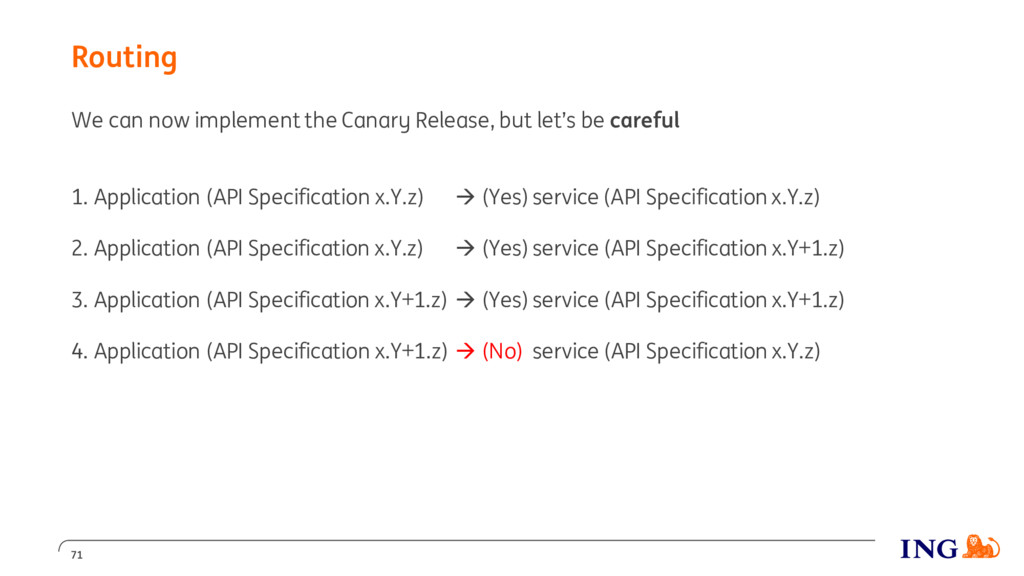

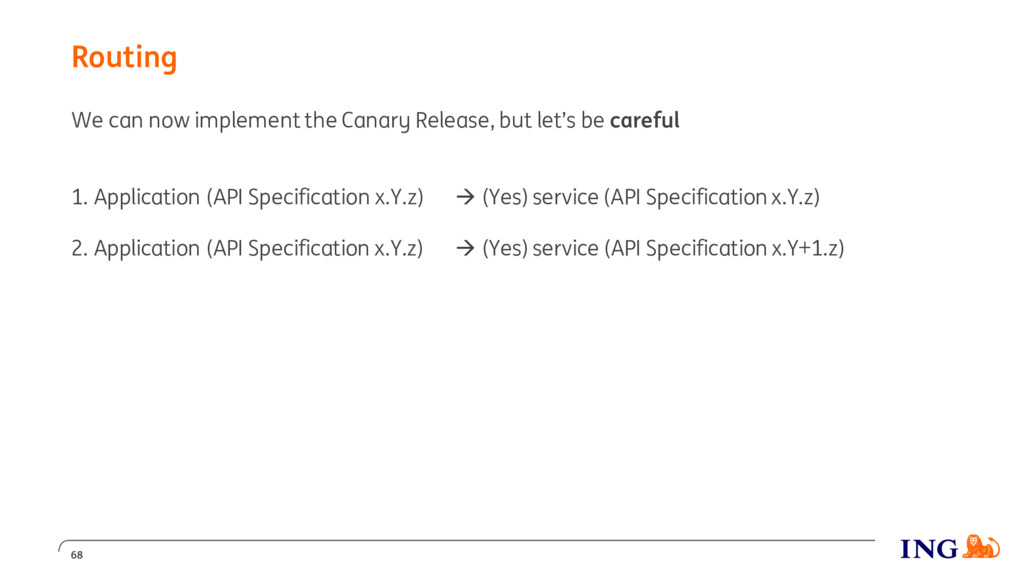

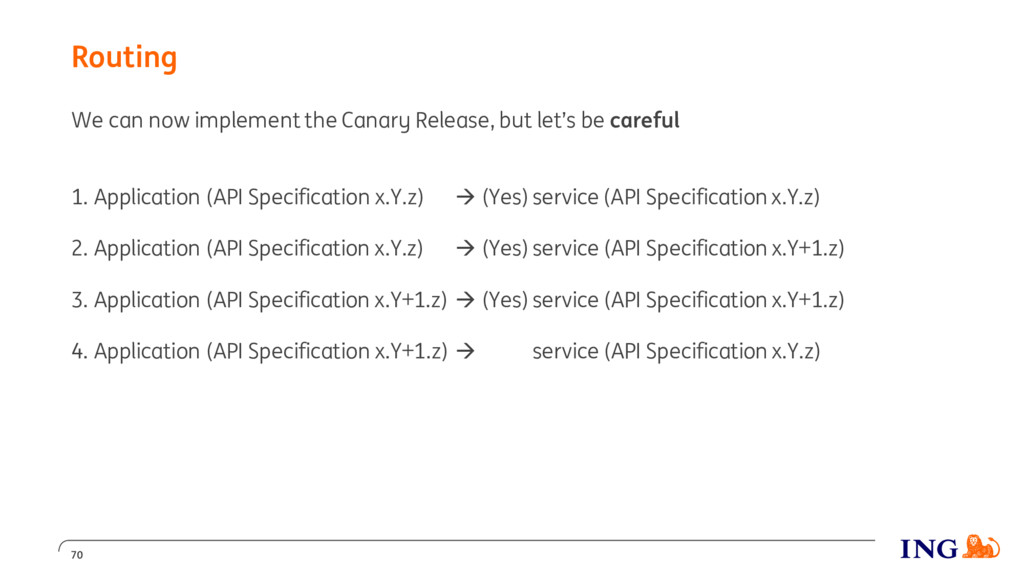

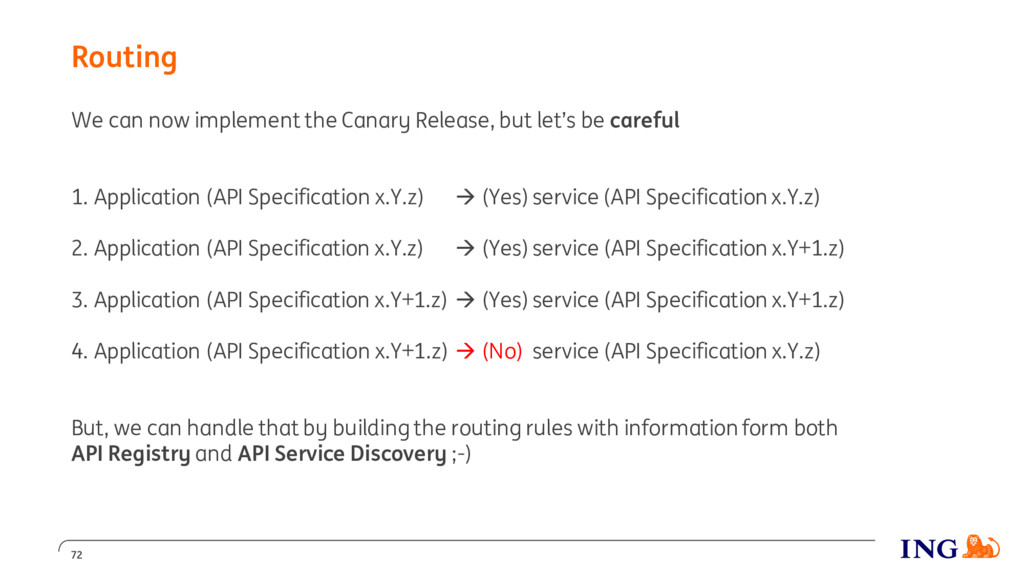

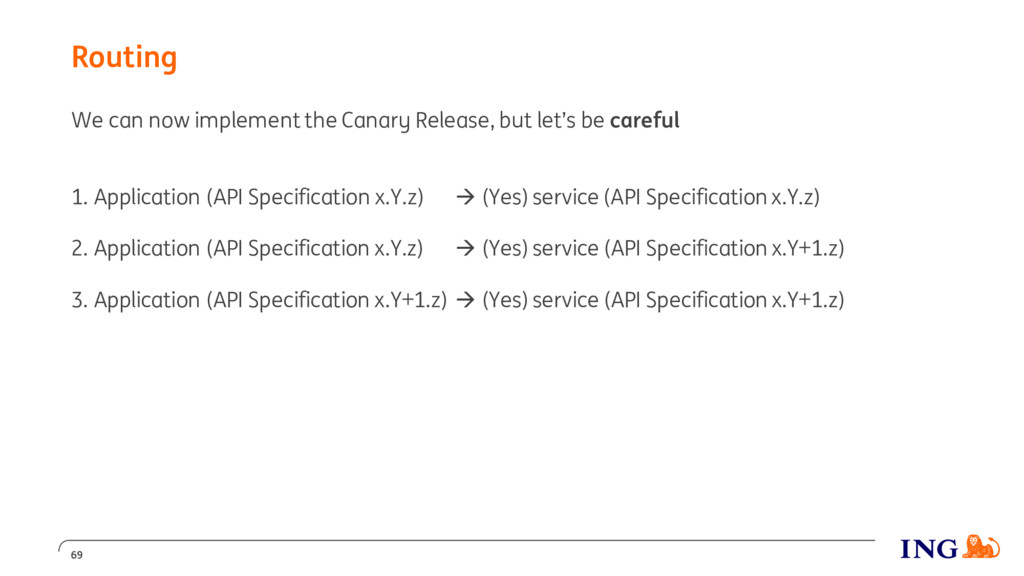

  46. We can now implement the Canary Release, but let’s be

    careful Application (API Specification x.Y.z)  (Yes) API endpoint (API Specification x.Y.z) Application (API Specification x.Y.z)  (Yes) API endpoint (API Specification x.Y+1.z) Application (API Specification x.Y+1.z)  (Yes) API endpoint (API Specification x.Y+1.z) Application (API Specification x.Y+1.z)  (No) API endpoint (API Specification x.Y.z) But, we can handle that by building the routing rules with information form both the API Registry and the API Service Discovery ;-) Routing 66
  47. We can now implement the Canary Release, but let’s be

    careful 1. Application (API Specification x.Y.z)  (Yes) service (API Specification x.Y.z) Application (API Specification x.Y.z)  (Yes) API endpoint (API Specification x.Y+1.z) Application (API Specification x.Y+1.z)  (Yes) API endpoint (API Specification x.Y+1.z) Application (API Specification x.Y+1.z)  (No) API endpoint (API Specification x.Y.z) But, we can handle that by building the routing rules with information form both the API Registry and the API Service Discovery ;-) Routing 67
  48. We can now implement the Canary Release, but let’s be

    careful 1. Application (API Specification x.Y.z)  (Yes) service (API Specification x.Y.z) 2. Application (API Specification x.Y.z)  (Yes) service (API Specification x.Y+1.z) Application (API Specification x.Y+1.z)  (Yes) API endpoint (API Specification x.Y+1.z) Application (API Specification x.Y+1.z)  (No) API endpoint (API Specification x.Y.z) But, we can handle that by building the routing rules with information form both the API Registry and the API Service Discovery ;-) Routing 68
  49. We can now implement the Canary Release, but let’s be

    careful 1. Application (API Specification x.Y.z)  (Yes) service (API Specification x.Y.z) 2. Application (API Specification x.Y.z)  (Yes) service (API Specification x.Y+1.z) 3. Application (API Specification x.Y+1.z)  (Yes) service (API Specification x.Y+1.z) Application (API Specification x.Y+1.z)  (No) API endpoint (API Specification x.Y.z) But, we can handle that by building the routing rules with information form both the API Registry and the API Service Discovery ;-) Routing 69
  50. We can now implement the Canary Release, but let’s be

    careful 1. Application (API Specification x.Y.z)  (Yes) service (API Specification x.Y.z) 2. Application (API Specification x.Y.z)  (Yes) service (API Specification x.Y+1.z) 3. Application (API Specification x.Y+1.z)  (Yes) service (API Specification x.Y+1.z) 4. Application (API Specification x.Y+1.z)  (No) service (API Specification x.Y.z) But, we can handle that by building the routing rules with information form both the API Registry and the API Service Discovery ;-) Routing 70
  51. We can now implement the Canary Release, but let’s be

    careful 1. Application (API Specification x.Y.z)  (Yes) service (API Specification x.Y.z) 2. Application (API Specification x.Y.z)  (Yes) service (API Specification x.Y+1.z) 3. Application (API Specification x.Y+1.z)  (Yes) service (API Specification x.Y+1.z) 4. Application (API Specification x.Y+1.z)  (No) service (API Specification x.Y.z) But, we can handle that by building the routing rules with information form both the API Registry and the API Service Discovery ;-) Routing 71
  52. We can now implement the Canary Release, but let’s be

    careful 1. Application (API Specification x.Y.z)  (Yes) service (API Specification x.Y.z) 2. Application (API Specification x.Y.z)  (Yes) service (API Specification x.Y+1.z) 3. Application (API Specification x.Y+1.z)  (Yes) service (API Specification x.Y+1.z) 4. Application (API Specification x.Y+1.z)  (No) service (API Specification x.Y.z) But, we can handle that by building the routing rules with information form both API Registry and API Service Discovery ;-) Routing 72

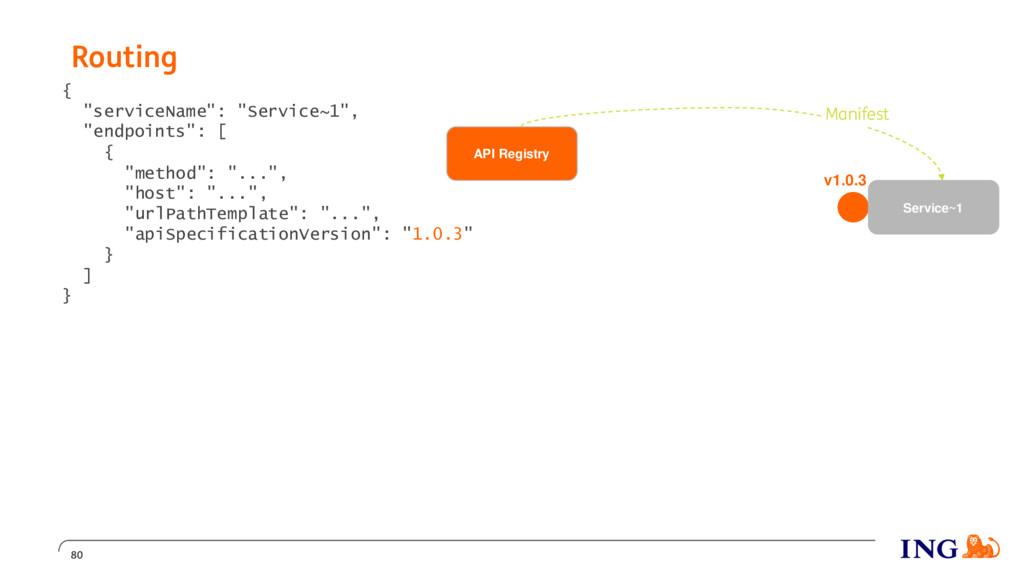

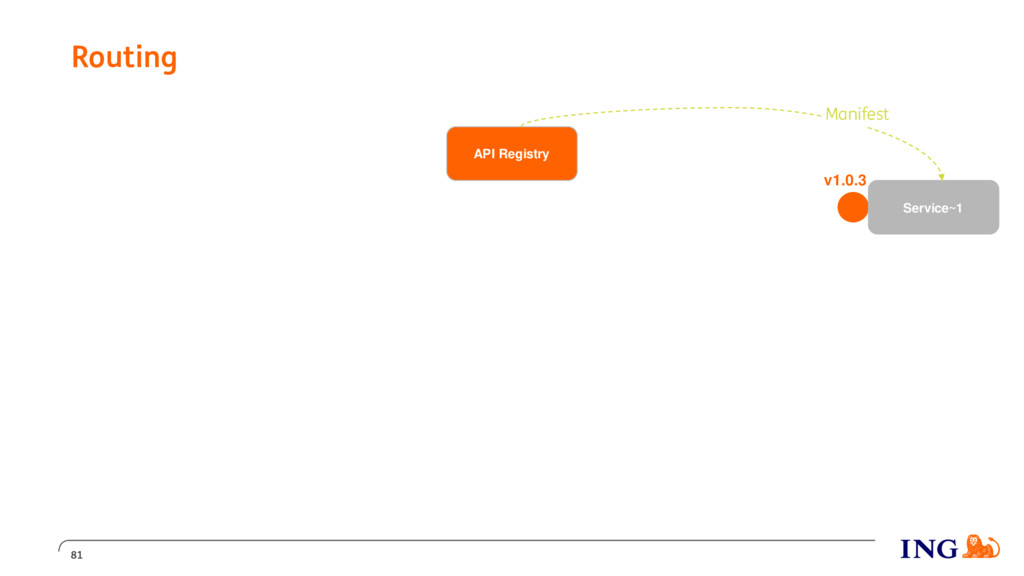

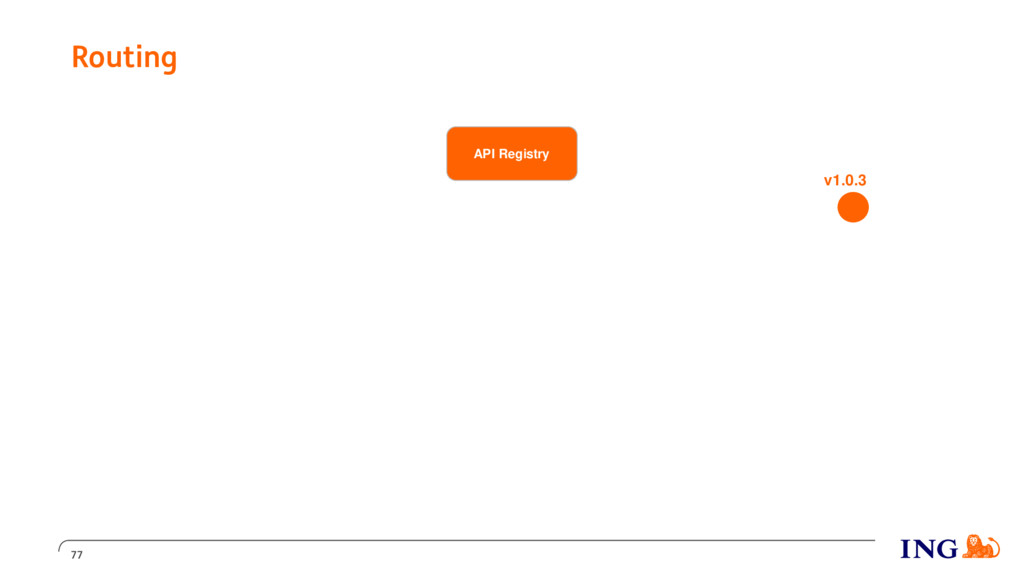

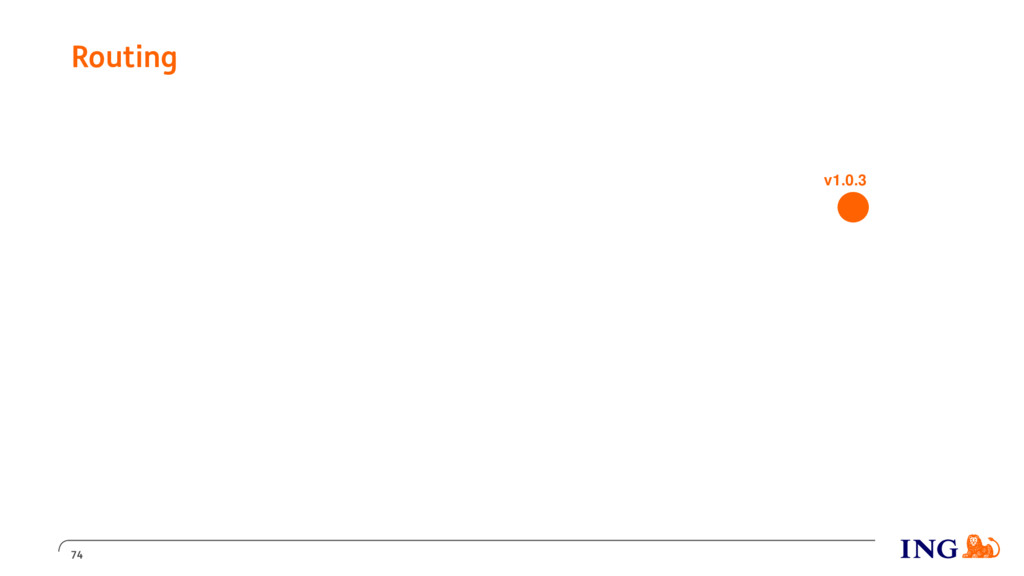

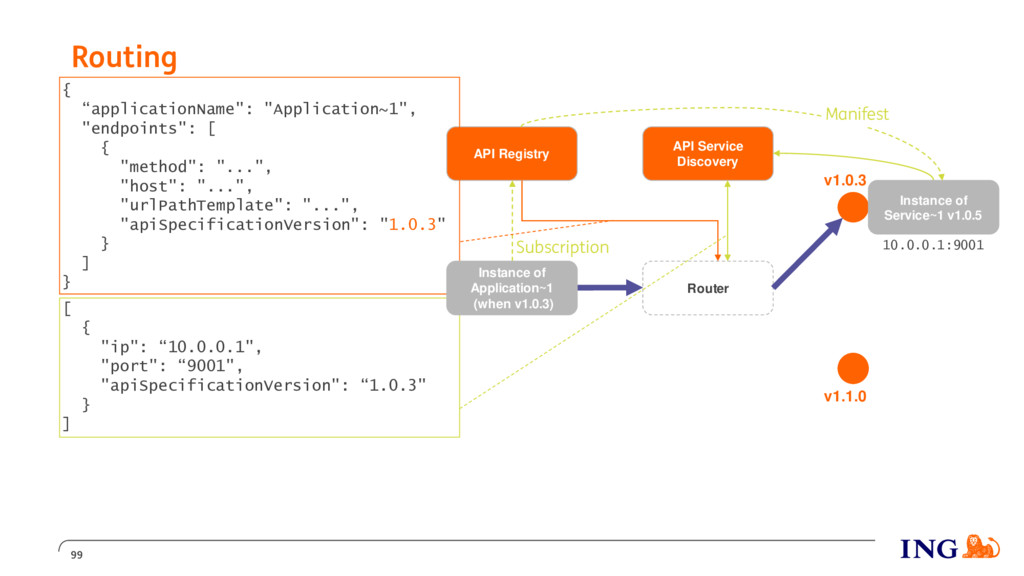

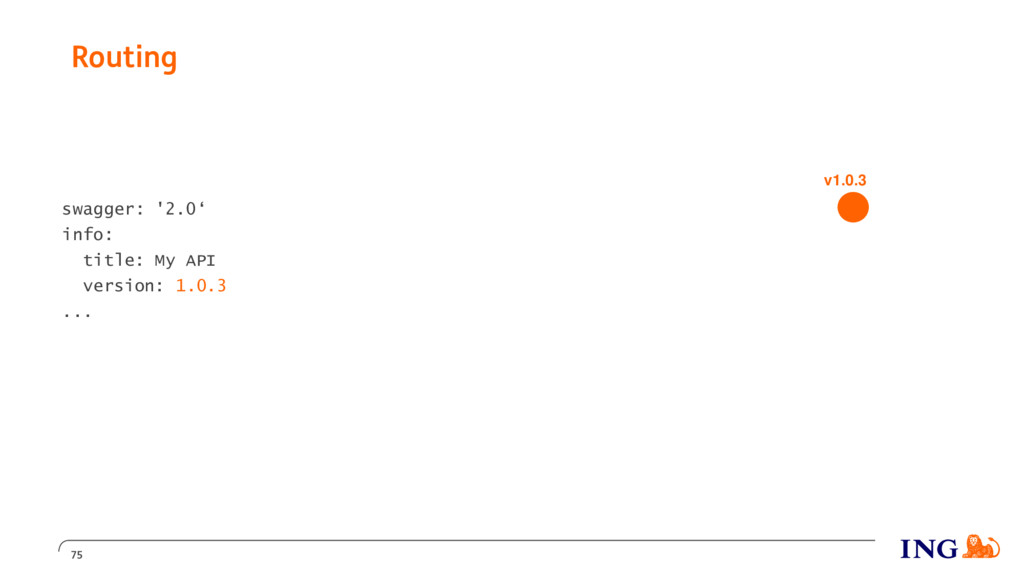

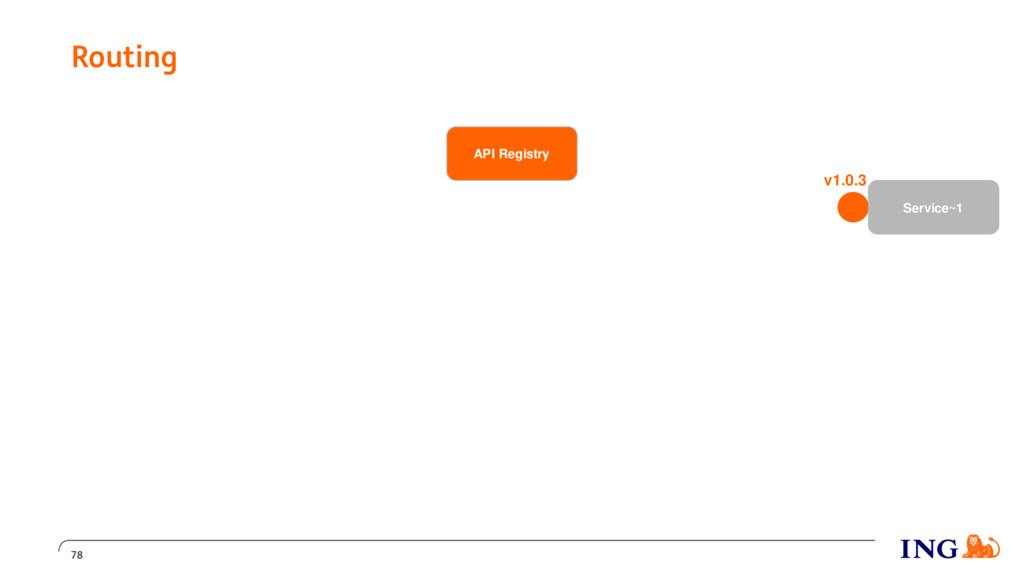

  53. Routing 80 Service~1 API Registry v1.0.3 { "serviceName": "Service~1", "endpoints":

    [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } Manifest

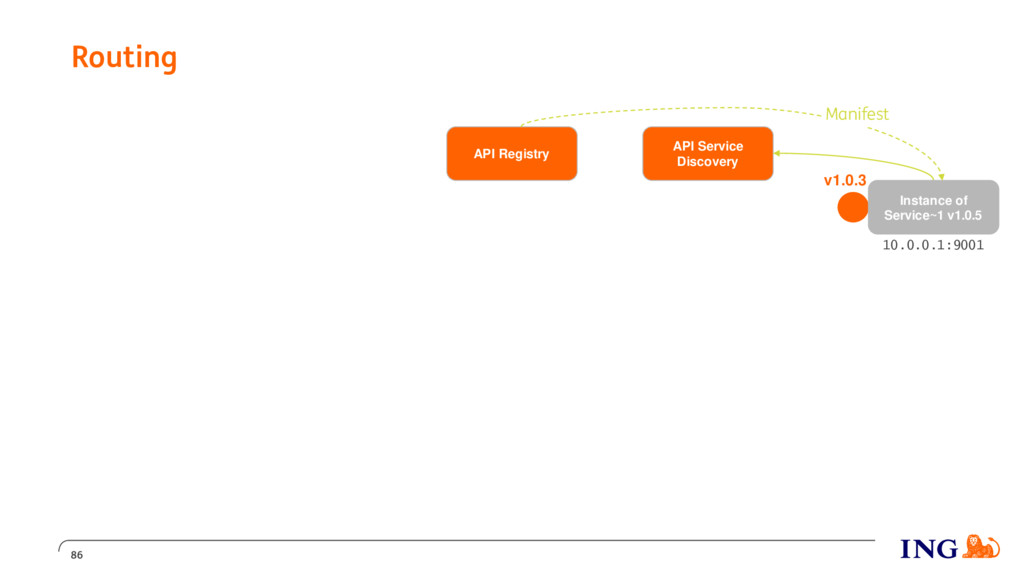

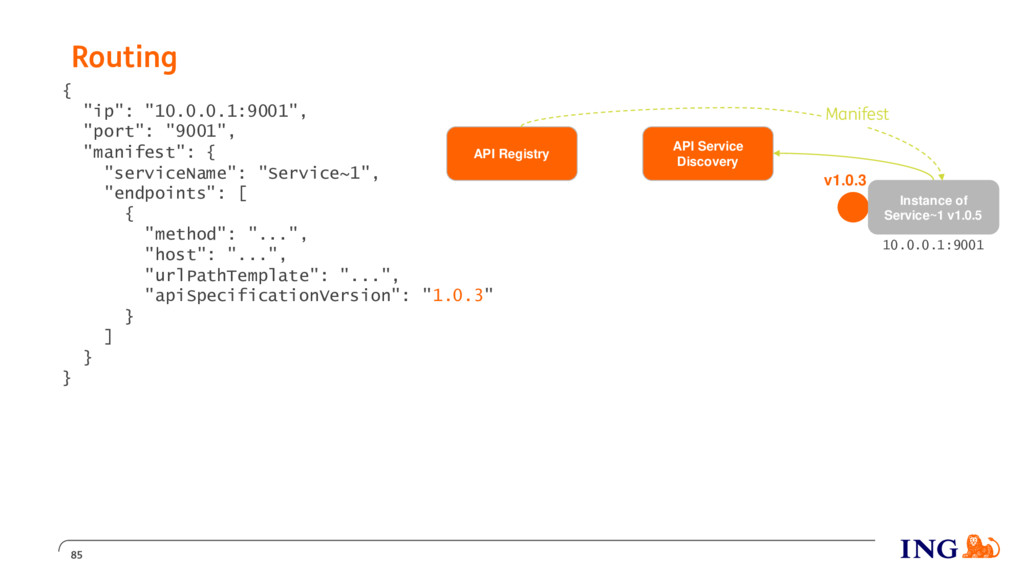

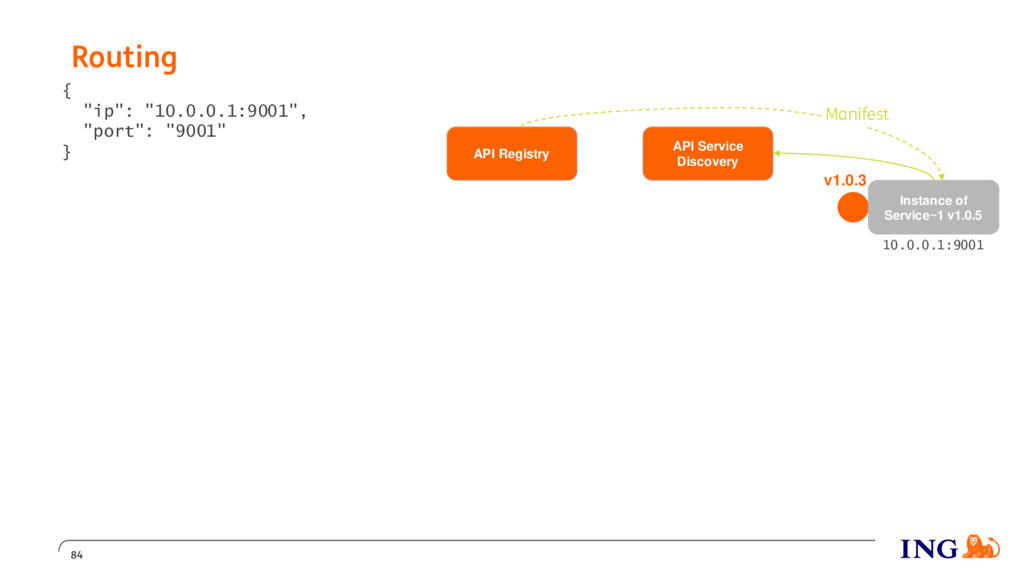

  54. Routing 84 API Service Discovery Instance of Service~1 v1.0.5 API

    Registry 10.0.0.1:9001 v1.0.3 Manifest { "ip": "10.0.0.1:9001", "port": "9001" }
  55. Routing 85 API Service Discovery Instance of Service~1 v1.0.5 API

    Registry 10.0.0.1:9001 v1.0.3 Manifest { "ip": "10.0.0.1:9001", "port": "9001", "manifest": { "serviceName": "Service~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } }
  56. Routing 88 Application~1 (when v1.0.3) API Service Discovery Instance of

    Service~1 v1.0.5 API Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription
  57. Routing 89 Application~1 (when v1.0.3) API Service Discovery Instance of

    Service~1 v1.0.5 API Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription { “applicationName": "Application~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] }
  58. Routing 90 Application~1 (when v1.0.3) API Service Discovery Instance of

    Service~1 v1.0.5 API Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription

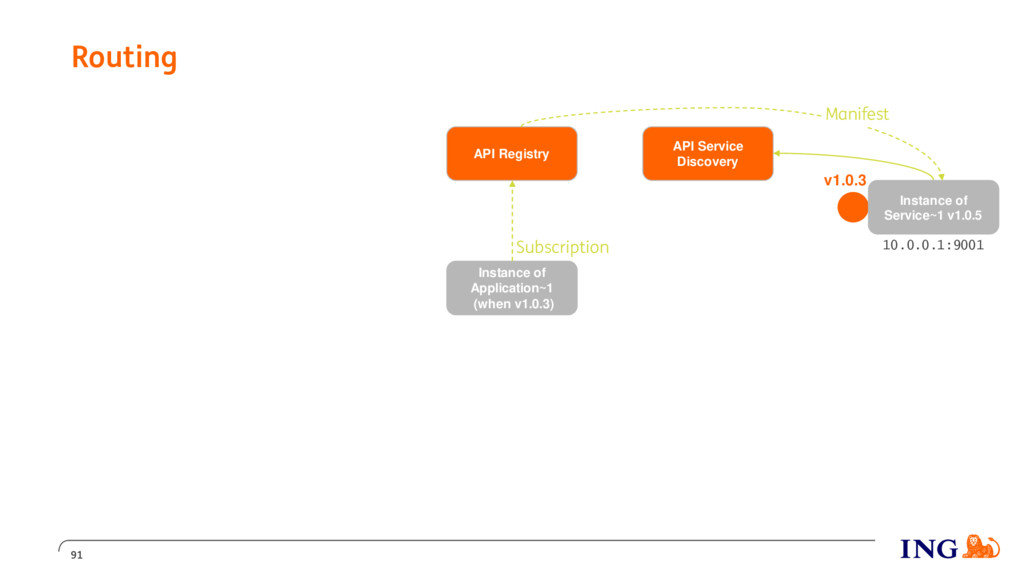

  59. Routing 91 Instance of Application~1 (when v1.0.3) API Service Discovery

    Instance of Service~1 v1.0.5 API Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription
  60. Routing 92 Instance of Application~1 (when v1.0.3) Router API Service

    Discovery Instance of Service~1 v1.0.5 API Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription
  61. Routing 93 Instance of Application~1 (when v1.0.3) Router API Service

    Discovery Instance of Service~1 v1.0.5 API Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription

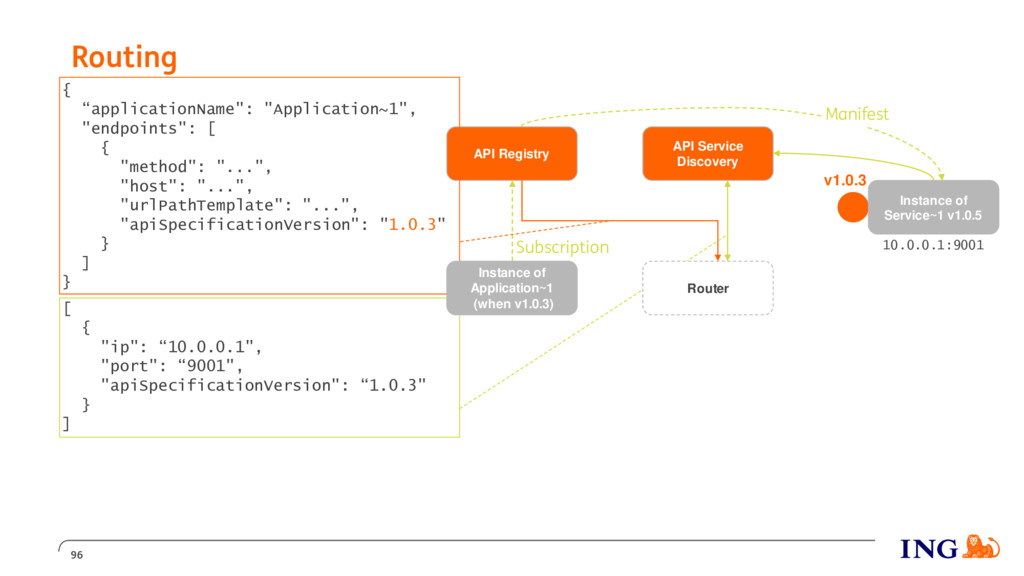

  62. Routing 94 Router API Service Discovery Instance of Service~1 v1.0.5

    API Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription { “applicationName": "Application~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } Instance of Application~1 (when v1.0.3)
  63. Routing 95 Router API Service Discovery Instance of Service~1 v1.0.5

    API Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription { “applicationName": "Application~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } Instance of Application~1 (when v1.0.3)

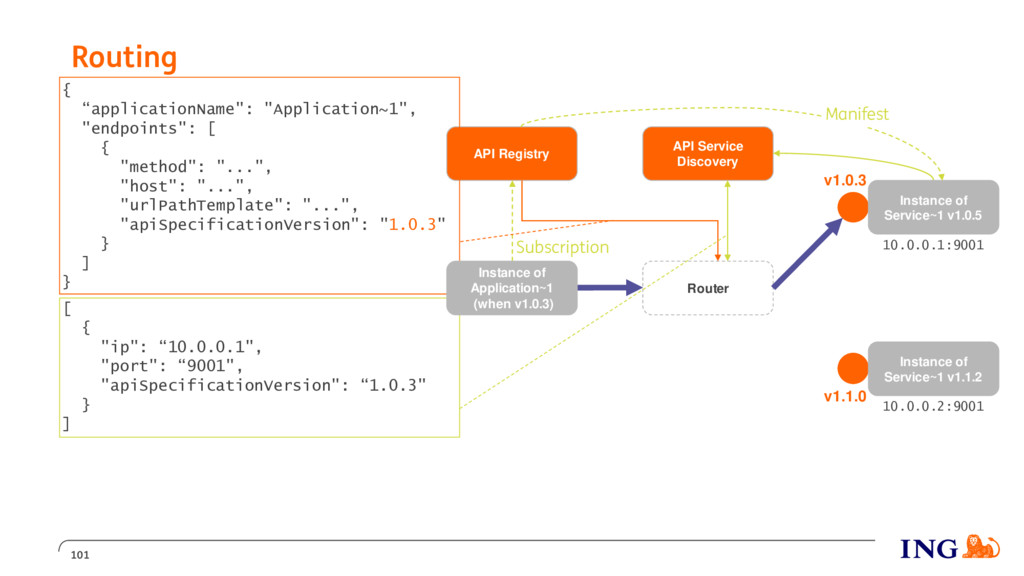

  64. Routing 96 API Service Discovery Instance of Service~1 v1.0.5 API

    Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription { “applicationName": "Application~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" } ] Router Instance of Application~1 (when v1.0.3)
  65. Routing 97 API Service Discovery Instance of Service~1 v1.0.5 API

    Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription { “applicationName": "Application~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" } ] Instance of Application~1 (when v1.0.3) Router
  66. Routing 98 API Service Discovery Instance of Service~1 v1.0.5 API

    Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription { “applicationName": "Application~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" } ] Router Instance of Application~1 (when v1.0.3)
  67. Routing 99 API Service Discovery Instance of Service~1 v1.0.5 API

    Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription { “applicationName": "Application~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" } ] Router v1.1.0 Instance of Application~1 (when v1.0.3)
  68. Routing 100 API Service Discovery Instance of Service~1 v1.0.5 API

    Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription { “applicationName": "Application~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" } ] Router v1.1.0 Service~1 v1.1.2 Instance of Application~1 (when v1.0.3)
  69. Routing 101 API Service Discovery Instance of Service~1 v1.0.5 API

    Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription { “applicationName": "Application~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" } ] Router v1.1.0 Instance of Service~1 v1.1.2 10.0.0.2:9001 Instance of Application~1 (when v1.0.3)
  70. Routing 102 API Service Discovery Instance of Service~1 v1.0.5 API

    Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription { “applicationName": "Application~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" } ] Router v1.1.0 Instance of Service~1 v1.1.2 10.0.0.2:9001 Instance of Application~1 (when v1.0.3)
  71. Routing 103 API Service Discovery Instance of Service~1 v1.0.5 API

    Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription { “applicationName": "Application~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" } ] Router v1.1.0 Instance of Service~1 v1.1.2 10.0.0.2:9001 Instance of Application~1 (when v1.0.3)

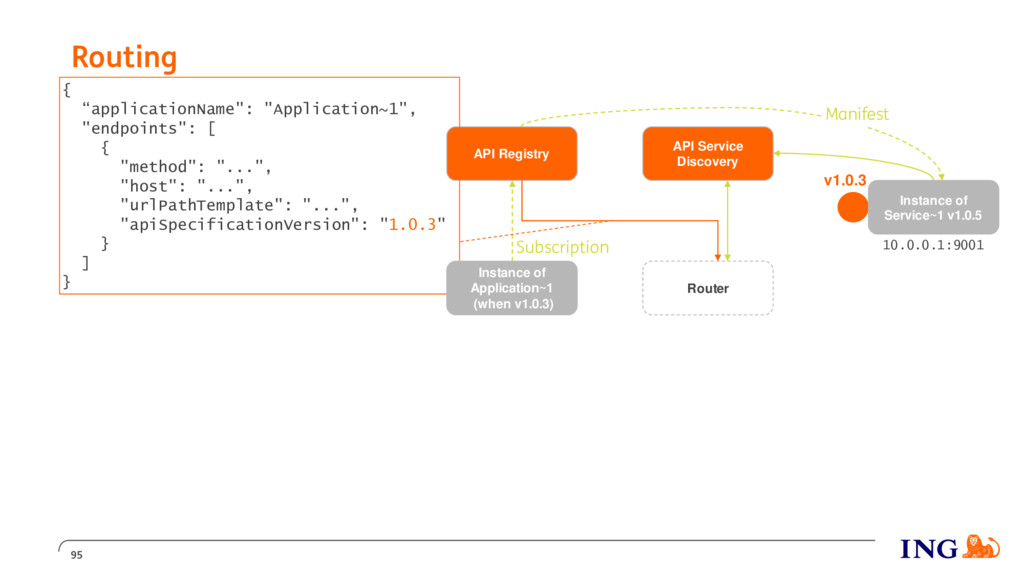

  72. Routing 104 API Service Discovery Instance of Service~1 v1.0.5 API

    Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription { “applicationName": "Application~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" }, { "ip": “10.0.0.2", "port": “9001", "apiSpecificationVersion": “1.1.0" } ] Router Instance of Application~1 (when v1.0.3) v1.1.0 Instance of Service~1 v1.1.2 10.0.0.2:9001
  73. Routing 105 API Service Discovery Instance of Service~1 v1.0.5 API

    Registry 10.0.0.1:9001 v1.0.3 Manifest Subscription { “applicationName": "Application~1", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.0.3" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" }, { "ip": “10.0.0.2", "port": “9001", "apiSpecificationVersion": “1.1.0" } ] Router Instance of Application~1 (when v1.0.3) v1.1.0 Instance of Service~1 v1.1.2 10.0.0.2:9001

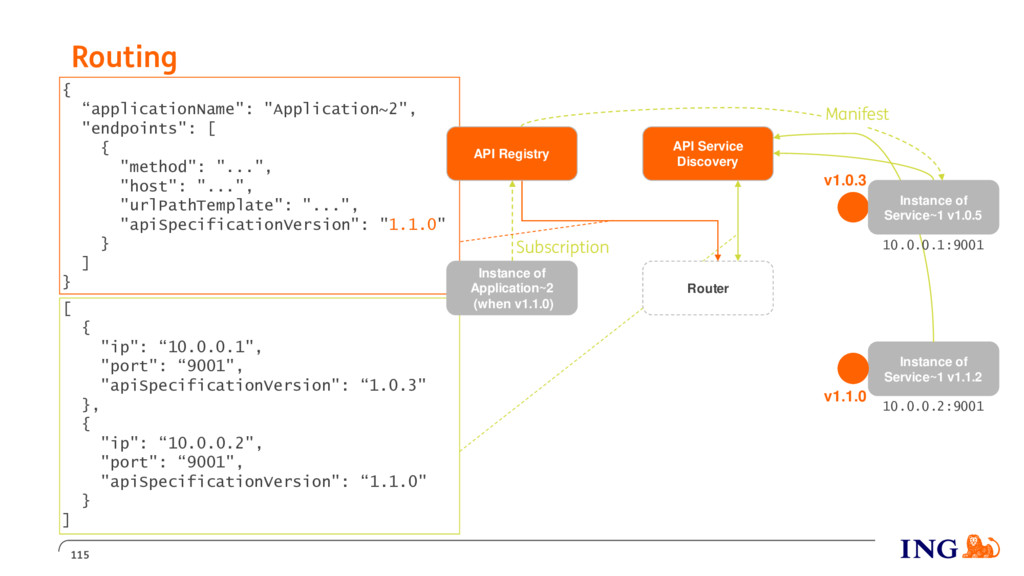

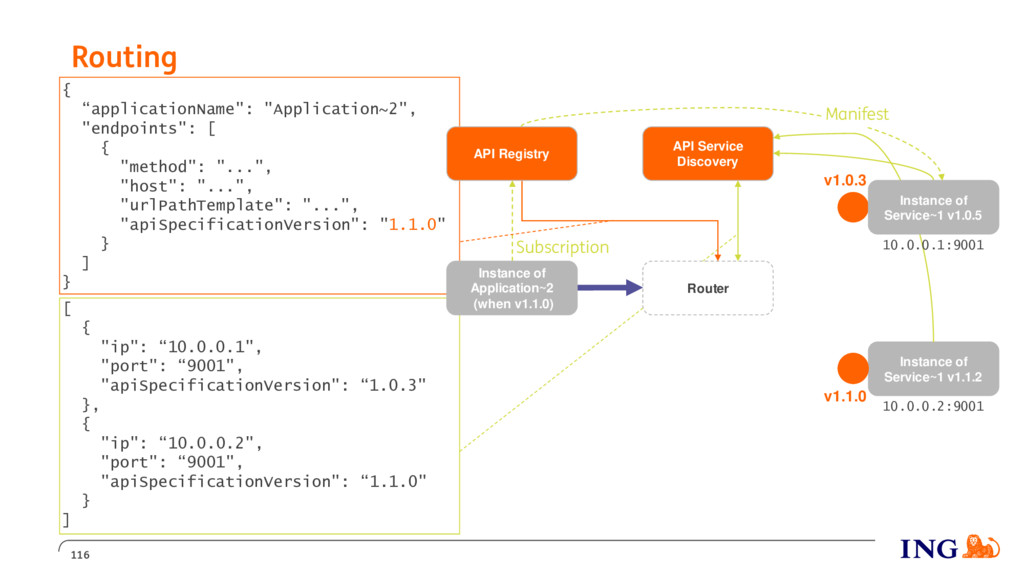

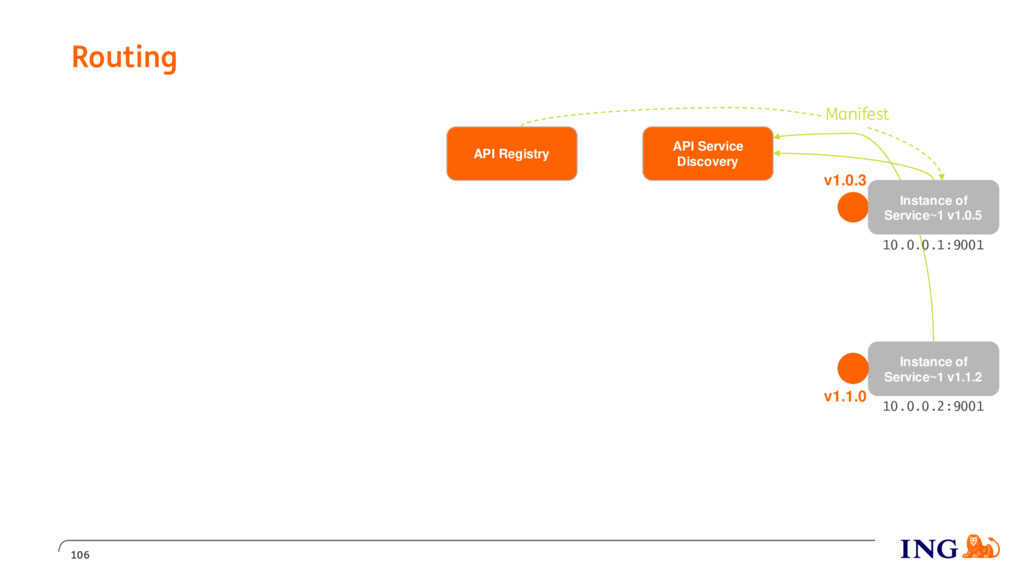

  74. Routing 106 Instance of Service~1 v1.1.2 API Service Discovery Instance

    of Service~1 v1.0.5 API Registry 10.0.0.1:9001 10.0.0.2:9001 v1.0.3 v1.1.0 Manifest
  75. Routing 107 Application~2 Instance of Service~1 v1.1.2 API Service Discovery

    Instance of Service~1 v1.0.5 API Registry 10.0.0.1:9001 10.0.0.2:9001 v1.0.3 v1.1.0 Manifest

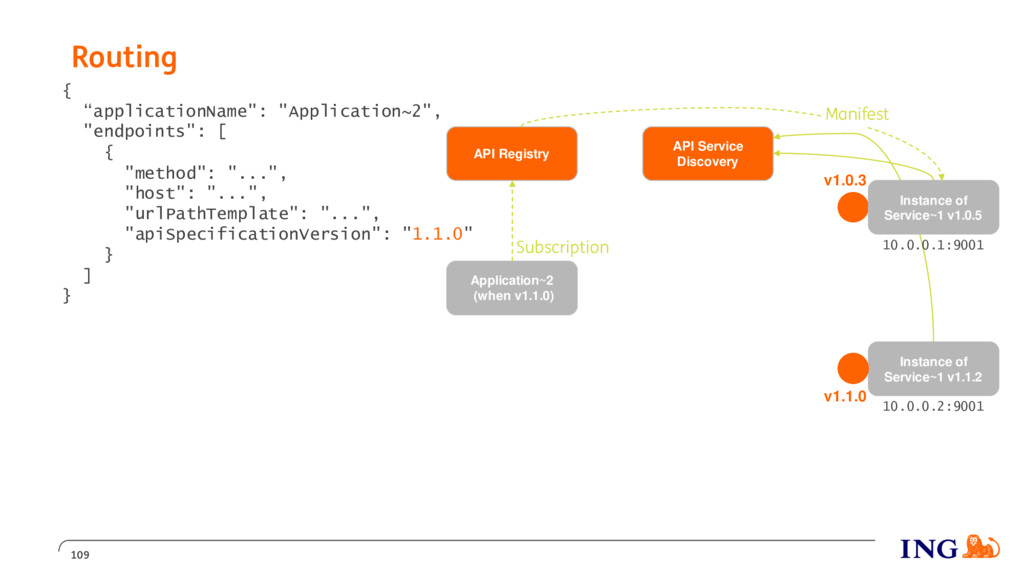

  76. Routing 108 Application~2 (when v1.1.0) Instance of Service~1 v1.1.2 API

    Service Discovery Instance of Service~1 v1.0.5 API Registry 10.0.0.1:9001 10.0.0.2:9001 v1.0.3 v1.1.0 Manifest Subscription
  77. Routing 109 Application~2 (when v1.1.0) Instance of Service~1 v1.1.2 API

    Service Discovery Instance of Service~1 v1.0.5 API Registry 10.0.0.1:9001 10.0.0.2:9001 v1.0.3 v1.1.0 Manifest Subscription { “applicationName": "Application~2", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.1.0" } ] }
  78. Routing 110 Application~2 (when v1.1.0) Instance of Service~1 v1.1.2 API

    Service Discovery Instance of Service~1 v1.0.5 API Registry 10.0.0.1:9001 10.0.0.2:9001 v1.0.3 v1.1.0 Manifest Subscription

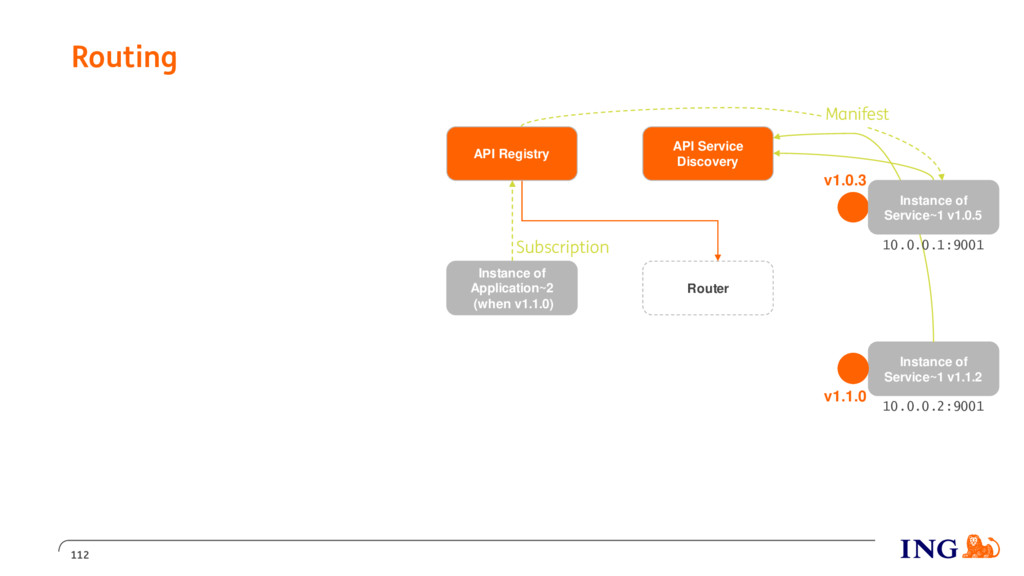

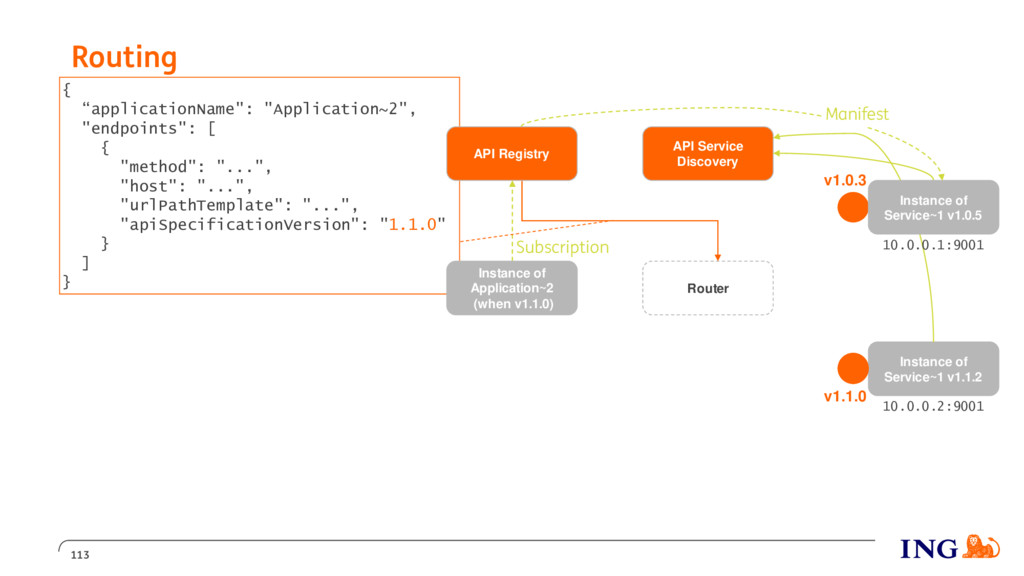

  79. Routing 111 Router Instance of Service~1 v1.1.2 API Service Discovery

    Instance of Service~1 v1.0.5 10.0.0.1:9001 10.0.0.2:9001 v1.0.3 v1.1.0 API Registry Instance of Application~2 (when v1.1.0) Manifest Subscription
  80. Routing 112 Router Instance of Service~1 v1.1.2 API Service Discovery

    Instance of Service~1 v1.0.5 10.0.0.1:9001 10.0.0.2:9001 v1.0.3 v1.1.0 API Registry Instance of Application~2 (when v1.1.0) Manifest Subscription
  81. Routing 113 Router Instance of Service~1 v1.1.2 API Service Discovery

    Instance of Service~1 v1.0.5 10.0.0.1:9001 10.0.0.2:9001 v1.0.3 v1.1.0 { “applicationName": "Application~2", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.1.0" } ] } API Registry Instance of Application~2 (when v1.1.0) Manifest Subscription
  82. Routing 114 Router Instance of Service~1 v1.1.2 API Service Discovery

    Instance of Service~1 v1.0.5 10.0.0.1:9001 10.0.0.2:9001 v1.0.3 v1.1.0 { “applicationName": "Application~2", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.1.0" } ] } API Registry Instance of Application~2 (when v1.1.0) Manifest Subscription
  83. Routing 115 Router Instance of Service~1 v1.1.2 API Service Discovery

    Instance of Service~1 v1.0.5 10.0.0.1:9001 10.0.0.2:9001 v1.0.3 v1.1.0 { “applicationName": "Application~2", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.1.0" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" }, { "ip": “10.0.0.2", "port": “9001", "apiSpecificationVersion": “1.1.0" } ] API Registry Instance of Application~2 (when v1.1.0) Manifest Subscription
  84. Routing 116 Router Instance of Service~1 v1.1.2 API Service Discovery

    Instance of Service~1 v1.0.5 10.0.0.1:9001 10.0.0.2:9001 v1.0.3 v1.1.0 { “applicationName": "Application~2", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.1.0" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" }, { "ip": “10.0.0.2", "port": “9001", "apiSpecificationVersion": “1.1.0" } ] API Registry Instance of Application~2 (when v1.1.0) Manifest Subscription
  85. Routing 117 Router Instance of Service~1 v1.1.2 API Service Discovery

    Instance of Service~1 v1.0.5 10.0.0.1:9001 10.0.0.2:9001 v1.0.3 v1.1.0 { “applicationName": "Application~2", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.1.0" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" }, { "ip": “10.0.0.2", "port": “9001", "apiSpecificationVersion": “1.1.0" } ] API Registry Instance of Application~2 (when v1.1.0) Manifest Subscription
  86. Routing 118 Router Instance of Service~1 v1.1.2 API Service Discovery

    Instance of Service~1 v1.0.5 10.0.0.1:9001 10.0.0.2:9001 v1.0.3 v1.1.0 { “applicationName": "Application~2", "endpoints": [ { "method": "...", "host": "...", "urlPathTemplate": "...", "apiSpecificationVersion": "1.1.0" } ] } [ { "ip": “10.0.0.1", "port": “9001", "apiSpecificationVersion": “1.0.3" }, { "ip": “10.0.0.2", "port": “9001", "apiSpecificationVersion": “1.1.0" } ] API Registry Instance of Application~2 (when v1.1.0) Manifest Subscription
  87. • Make an explicit distinction between API (endpoints) and services

    • Use semantic versioning for both API specifications (OpenAPI/Swagger) and services Summary 122
  88. • Make an explicit distinction between API (endpoints) and services

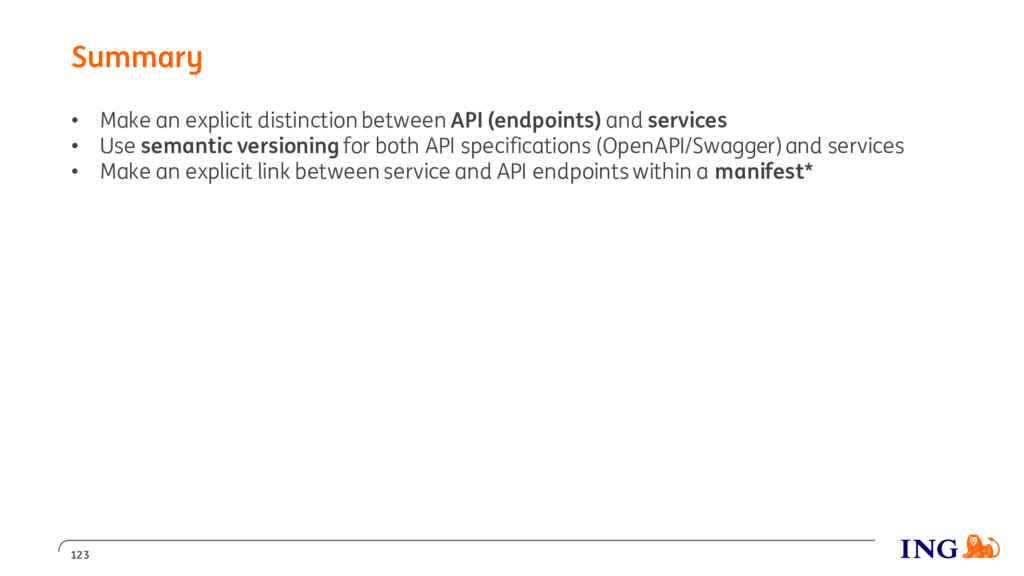

    • Use semantic versioning for both API specifications (OpenAPI/Swagger) and services • Make an explicit link between service and API endpoints within a manifest* Summary 123
  89. • Make an explicit distinction between API (endpoints) and services

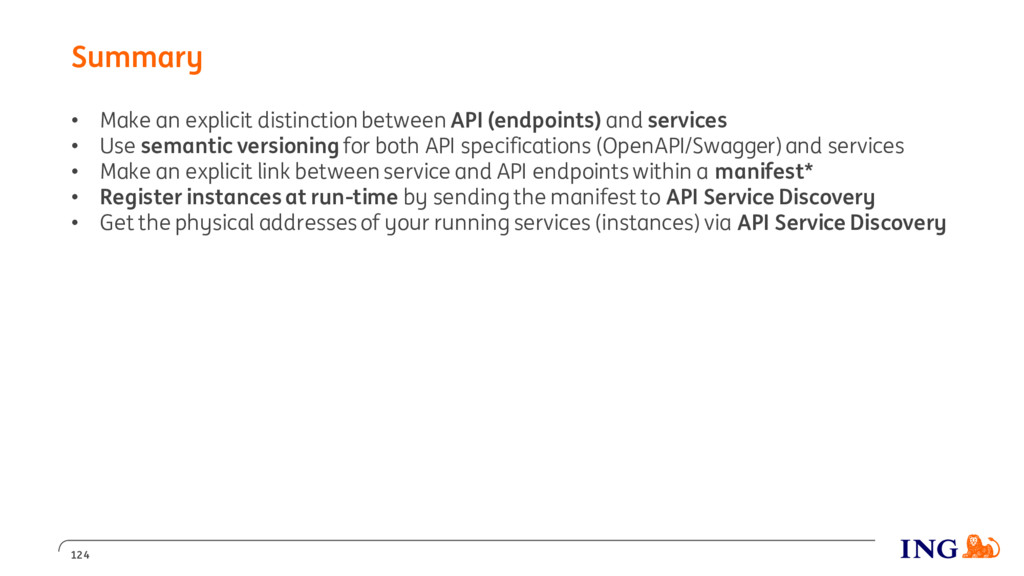

    • Use semantic versioning for both API specifications (OpenAPI/Swagger) and services • Make an explicit link between service and API endpoints within a manifest* • Register instances at run-time by sending the manifest to API Service Discovery • Get the physical addresses of your running services (instances) via API Service Discovery Summary 124
  90. • Make an explicit distinction between API (endpoints) and services

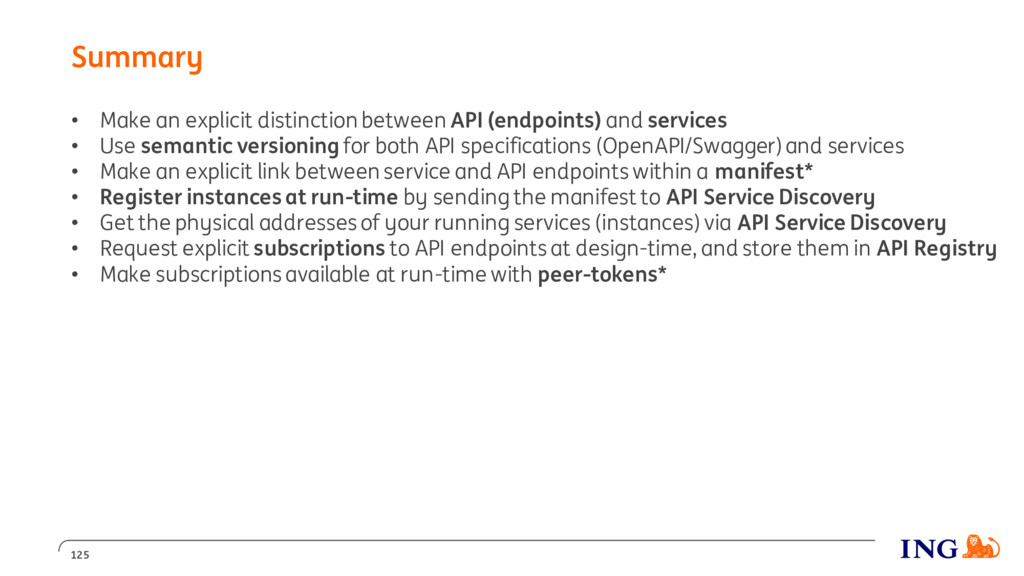

    • Use semantic versioning for both API specifications (OpenAPI/Swagger) and services • Make an explicit link between service and API endpoints within a manifest* • Register instances at run-time by sending the manifest to API Service Discovery • Get the physical addresses of your running services (instances) via API Service Discovery • Request explicit subscriptions to API endpoints at design-time, and store them in API Registry • Make subscriptions available at run-time with peer-tokens* Summary 125
  91. • Make an explicit distinction between API (endpoints) and services

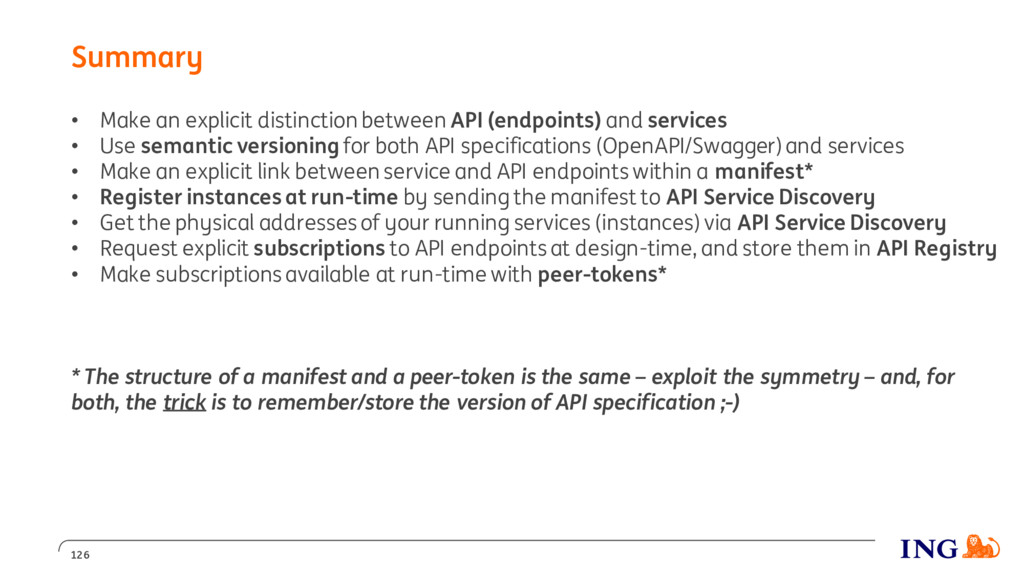

    • Use semantic versioning for both API specifications (OpenAPI/Swagger) and services • Make an explicit link between service and API endpoints within a manifest* • Register instances at run-time by sending the manifest to API Service Discovery • Get the physical addresses of your running services (instances) via API Service Discovery • Request explicit subscriptions to API endpoints at design-time, and store them in API Registry • Make subscriptions available at run-time with peer-tokens* • Let the (client-side) router make a wise decision about which instance to call by combining information coming from API Registry and API Service Discovery * The structure of a manifest and a peer-token is the same – exploit the symmetry – and, for both, the trick is to remember/store the version of API specification ;-) Summary 126
  92. • Make an explicit distinction between API (endpoints) and services

    • Use semantic versioning for both API specifications (OpenAPI/Swagger) and services • Make an explicit link between service and API endpoints within a manifest* • Register instances at run-time by sending the manifest to API Service Discovery • Get the physical addresses of your running services (instances) via API Service Discovery • Request explicit subscriptions to API endpoints at design-time, and store them in API Registry • Make subscriptions available at run-time with peer-tokens* • Let the (client-side) router make a wise decision about which instance to call by combining information coming from API Registry and API Service Discovery * The structure of a manifest and a peer-token is the same – exploit the symmetry – and, for both, the trick is to remember/store the version of API specification ;-) Summary 127

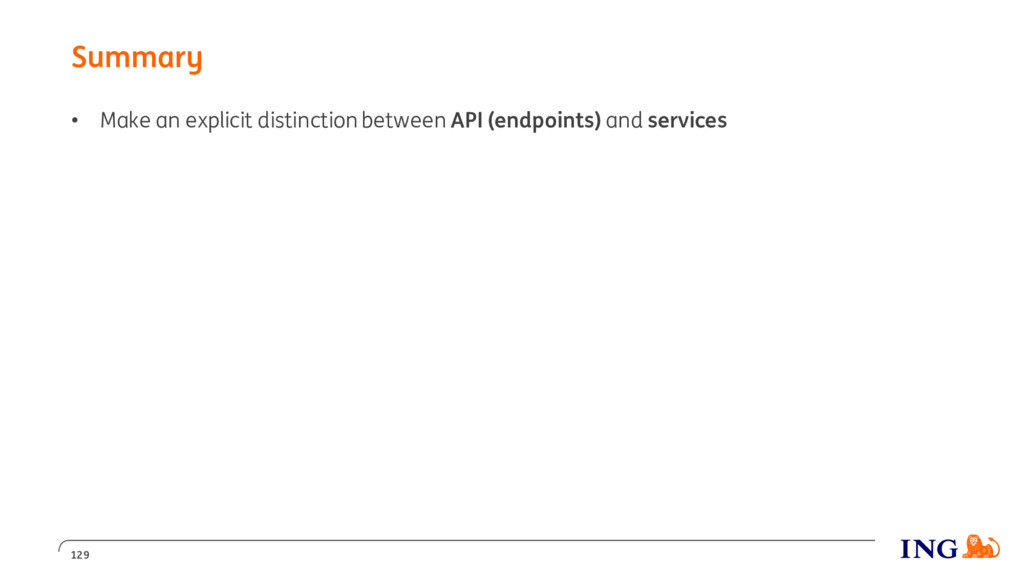

  93. • Make an explicit distinction between API (endpoints) and services

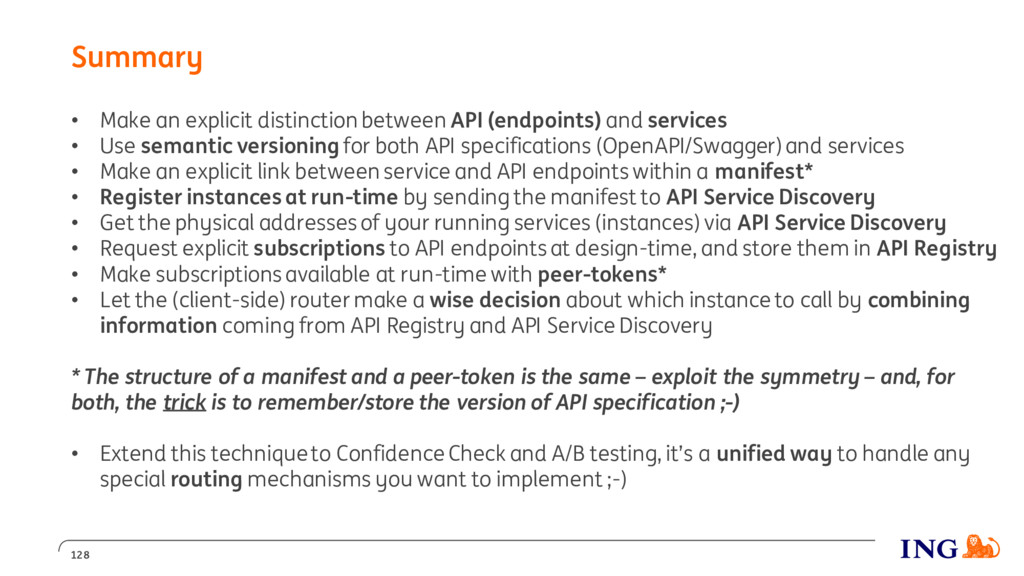

    • Use semantic versioning for both API specifications (OpenAPI/Swagger) and services • Make an explicit link between service and API endpoints within a manifest* • Register instances at run-time by sending the manifest to API Service Discovery • Get the physical addresses of your running services (instances) via API Service Discovery • Request explicit subscriptions to API endpoints at design-time, and store them in API Registry • Make subscriptions available at run-time with peer-tokens* • Let the (client-side) router make a wise decision about which instance to call by combining information coming from API Registry and API Service Discovery * The structure of a manifest and a peer-token is the same – exploit the symmetry – and, for both, the trick is to remember/store the version of API specification ;-) • Extend this technique to Confidence Check and A/B testing, it’s a unified way to handle any special routing mechanisms you want to implement ;-) Summary 128
  94. • Make an explicit distinction between API (endpoints) and services

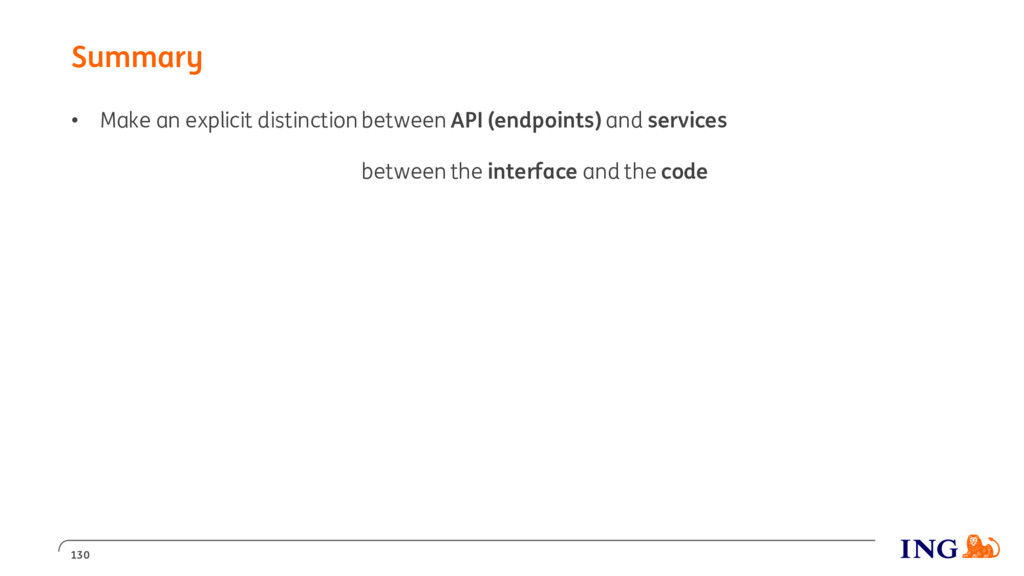

    • Make an explicit distinction between the interface and the code Summary 130
