native Android UI • Jetpack Compose simplifies and accelerates UI development on Android with less code, powerful tools, and intuitive Kotlin API • Much easier, no more jumping between code and xml • Some UI elements a lot easier to implement (Lists!)
UI components. • Annotated with @Composable. • Can contain other composables, creating a hierarchy. • Automatically update UI with state changes. • Executed by the Compose runtime, not directly by the developer. • Can accept parameters for configuration and dynamic content. • Follow a declarative programming model. • Designed for Kotlin and integrate seamlessly with Android's UI toolkit.
super.onCreate(savedInstanceState) setContent { Greeting("Android") } } } @Composable fun Greeting(name: String) { Text(text = "Hello $name!") } No XML, give composable function Annotates the function to be composable, part of the UI Text is another composable, notice now return!
super.onCreate(savedInstanceState) enableEdgeToEdge() setContent { LectureDemoTheme { Scaffold(modifier = Modifier.fillMaxSize()) { innerPadding -> Greeting( name = "Android", modifier = Modifier.padding(innerPadding) ) } } } } } Your layout can start under status bar Common theme Text is another composable, notice now return! Provides slots for top/bottomBar
Declarative Declarative UI Definition JSX Kotlin code with @Composable Swift code State Management useState, useContext, etc. remember, mutableStateOf, etc. @State, @Binding, etc. Reusability Components can be reused Composables can be reused Views can be reused Hierarchical Structure Component tree Composable tree View hierarchy Rendering Mechanism Virtual DOM, diffing algorithm Slot table, smart recomposition Declarative UI, diffing algorithm Lifecycle Management useEffect, useMemo, etc. DisposableEffect, LaunchedEffect onAppear, onDisappear Environment Adaptation Responsive design with CSS or libs Modifiers, MaterialTheme, etc. EnvironmentValues, @Environment Platform Integration Web (DOM) Android iOS, macOS, watchOS, tvOS Development Language JavaScript, TypeScript Kotlin Swift Community and Ecosystem Large, with extensive libraries Growing, Android-centric Growing, Apple platforms-focused UI Updates Explicit re-renders Automatic UI updates Automatic UI updates Data Flow Props down, events up Parameters, state hoisting Binding, state hoisting Debugging Tools React Developer Tools Layout Inspector, Compose Preview Xcode Previews, Instruments Learning Curve Moderate Moderate to high Moderate to high
can change over time • All Android apps display state to the user • Jetpack Compose helps you be explicit about where and how you store and use state in an Android app
a recomposition takes place • Composable functions can use the remember API to store an object in memory • A value computed by remember is stored in the Composition during initial composition, and the stored value is returned during recomposition • remember can be used to store both mutable and immutable objects.
super.onCreate(savedInstanceState) setContent { val mutableState : MutableState<String> = remember { mutableStateOf("Hello") } Button(onClick = { mutableState.value = "world" }) { Text(mutableState.value) } } } } Creates a MutableState that is remembered across recompositions. The remember function will ensure that the mutableStateOf("Hello") is only invoked once, and its result is preserved as long as the composable where this state is created remains in the Composition and does not get recomposed with different keys.
super.onCreate(savedInstanceState) setContent { val mutableState : MutableState<Int> = remember { mutableStateOf(1) } Button(onClick = { mutableState.value!++ }) { Text(mutableState.value.toString()) } } } } Changing the state to Int You can also optimize mutableIntStateOf (no boxing)
0 operator fun getValue(thisRef: Any?, property: KProperty!!<*>): Int { println("getValue called for '${property.name}', returning $value") return value } operator fun setValue(thisRef: Any?, property: KProperty!!<*>, newValue: Int) { println("setValue called for '${property.name}', changing value from $value to $newValue") value = newValue } } class Example { var x: Int by Delegate() !// Notice here the by keyword } fun main() { val example = Example() example.x = 4 !// This will invoke setValue of Delegate println(example.x) !// This will invoke getValue of Delegate }
super.onCreate(savedInstanceState) setContent { !// val mutableState : MutableState<Int> = remember { mutableStateOf(1) } var intState : Int by remember { mutableStateOf(1) } Button(onClick = { intState!++ }) { Text(intState.toString()) } } } } By using by keyword it will invoke the state variable for you! remember returns MutableIntState object, var intState: Int by mutableIntStateOf(0) The mutableIntState returns MutableIntState - object
super.onCreate(savedInstanceState) setContent { val mutableState: MutableState<MutableList<String!>> = remember { mutableStateOf(mutableListOf("hei", "moi")) } Button(onClick = { mutableState.value.add("hello")}) { Text(mutableState.value.toString()) } } } } UI refresh does not happen, value itself is the same
super.onCreate(savedInstanceState) setContent { var mutableState: MutableState<MutableList<String!>> = remember { mutableStateOf(mutableListOf("hei", "moi")) } Button(onClick = { !// Create a new list that is a copy of the current one val newList = mutableState.value.toMutableList() !// Add "hello" to the new list newList.add("hello") !// Update mutableState with the new list mutableState.value = newList }) { Text(mutableState.value.toString()) !// Assuming mutableState is a list of strings } } } } Now it works, but it’s rather painful to do…
} Column { Button(onClick = { name = "Jack" }) { Text("Change") } Greeting(name) } } @Composable fun Greeting(name : String) { Text(name) } This will change when main component state name changes
saved • The rememberSaveable API behaves similarly to remember because it retains state across recompositions, and also across activity or process recreation using the saved instance state mechanism. For example, this happens, when the screen is rotated. • If state contains custom objects, use @Parcelize
that you have describe in UI • State change • Jetpack Compose schedules a recomposition • Re-executes the composables that may have changed in response to state changes • Lifecycle is simple • Enter • Recompose (0 – n) • Leave
mutableStateListOf("Jack", "Hannah") } Column { for (text in list) { Greeting(text) } Button(onClick = { list.add("Tina") }) { Text("Add Name") } } } State triggers recomposition When adding a name, it will not recompose the Greetings already in the list
"Hannah") } Column { list.forEachIndexed { index, text -> Greeting(text, index) } Button(onClick = { list.add("Tina") }) { Text("Add Name") } } } @Composable fun Greeting(name: String, index: Int) { Text( text = "Hello $name!", ) SideEffect { Log.d("ComposeRecomposition", "Recomposing at $index") } } SideEffect is called after the composition is complete. Used to perform operations that can affect the state outside of the composable
"Hannah", "Tina") } Column { list.forEachIndexed { index, text -> Greeting(text, index) } Button(onClick = { list.removeFirst() }) { Text("Add Name") } } } @Composable fun Greeting(name: String, index: Int) { Text( text = "Hello $name!", ) SideEffect { Log.d("ComposeRecomposition", "Recomposing at $index") } } If inserting to top or removing from top (or middle), every Greeting is composed again!
LaunchedEffect enters the Composition, it launches a coroutine with the block of code passed as a parameter. • The coroutine will be cancelled if LaunchedEffect leaves the composition • If LaunchedEffect is recomposed with different keys, the existing coroutine will be cancelled and the new suspend function will be launched in a new coroutine.
time var time: LocalTime by remember { mutableStateOf(LocalTime.now()) } !// LaunchedEffect to update the time every second LaunchedEffect(Unit) { while (true) { time = LocalTime.now() !// Update the time Log.d("time", time.toString()) delay(1000) !// Wait for a second } } !// Display the formatted time Text(text = time.toString()) } Creates new coroutine in Dispatchers.Main, so it uses event loop mechanism
super.onCreate(savedInstanceState) setContent { var inputText by remember { mutableStateOf("") } val number = inputText.toIntOrNull() Column { TextField( value = inputText, onValueChange = { inputText = it }, label = { Text("Enter countdown start") }, keyboardOptions = KeyboardOptions(keyboardType = KeyboardType.Number) ) if (number !!= null) { Countdown(startNumber = number) } } } } } @Composable fun Countdown(startNumber: Int) { var currentNumber by remember { mutableIntStateOf(startNumber) } LaunchedEffect(startNumber) { for (i in startNumber downTo 0) { currentNumber = i delay(1000) } } Text(text = "Countdown: $currentNumber") } Dependency on the given argument. If it changes, current coroutine cancels and new one starts

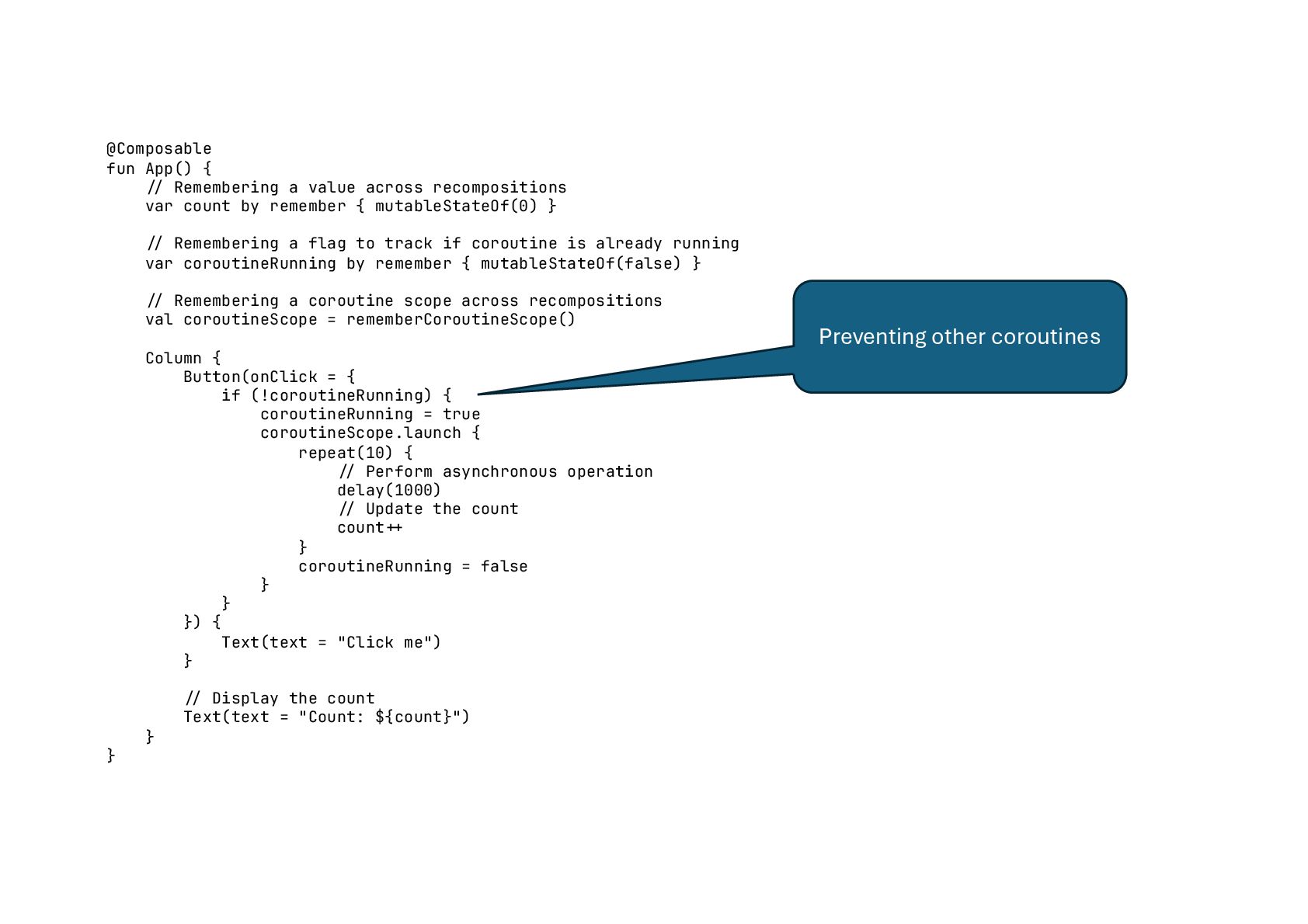

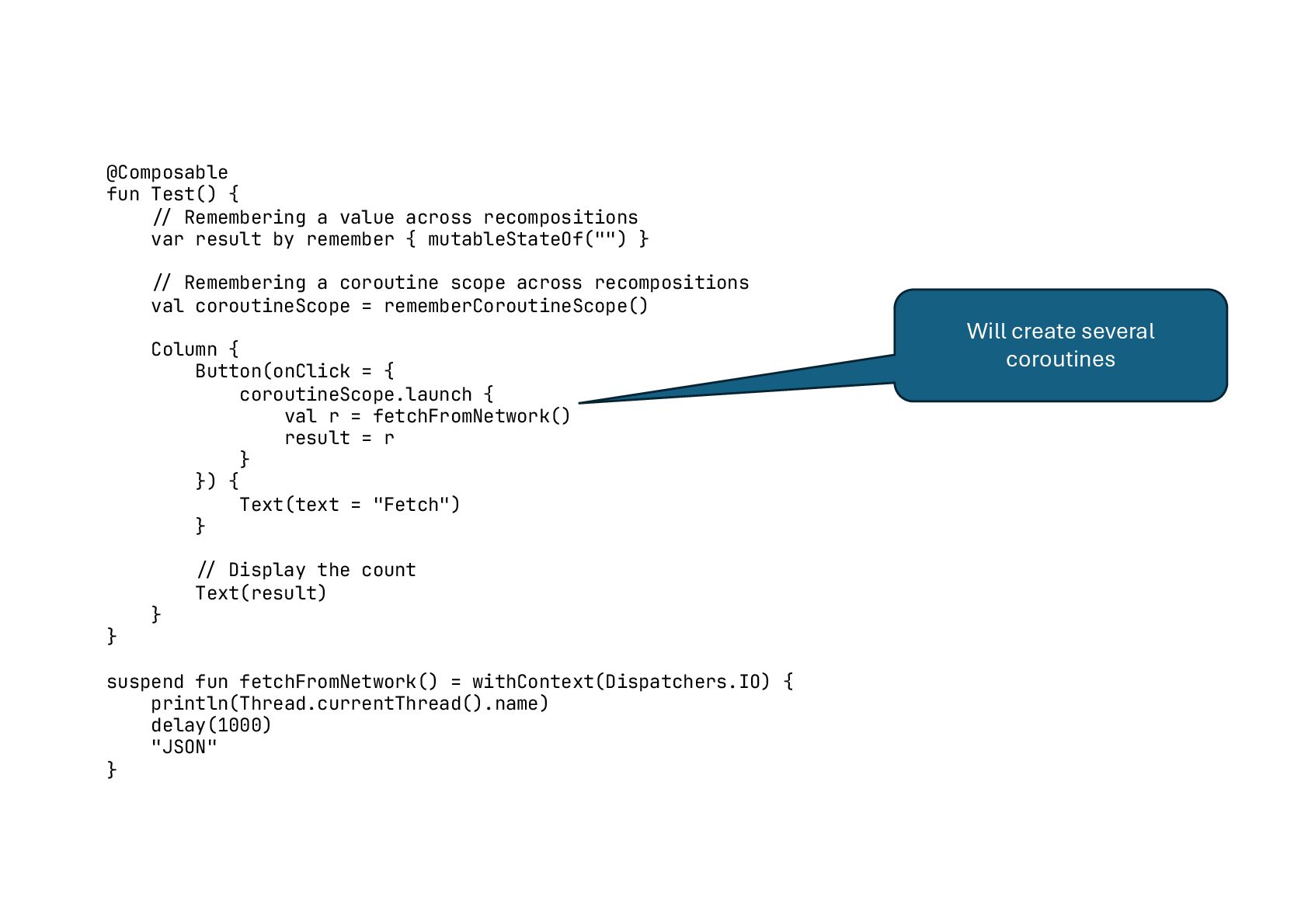

var result by remember { mutableStateOf("") } !// Remembering a coroutine scope across recompositions val coroutineScope = rememberCoroutineScope() Column { Button(onClick = { coroutineScope.launch { val r = fetchFromNetwork() result = r } }) { Text(text = "Fetch") } !// Display the count Text(result) } } suspend fun fetchFromNetwork() = withContext(Dispatchers.IO) { println(Thread.currentThread().name) delay(1000) "JSON" } Will create several coroutines

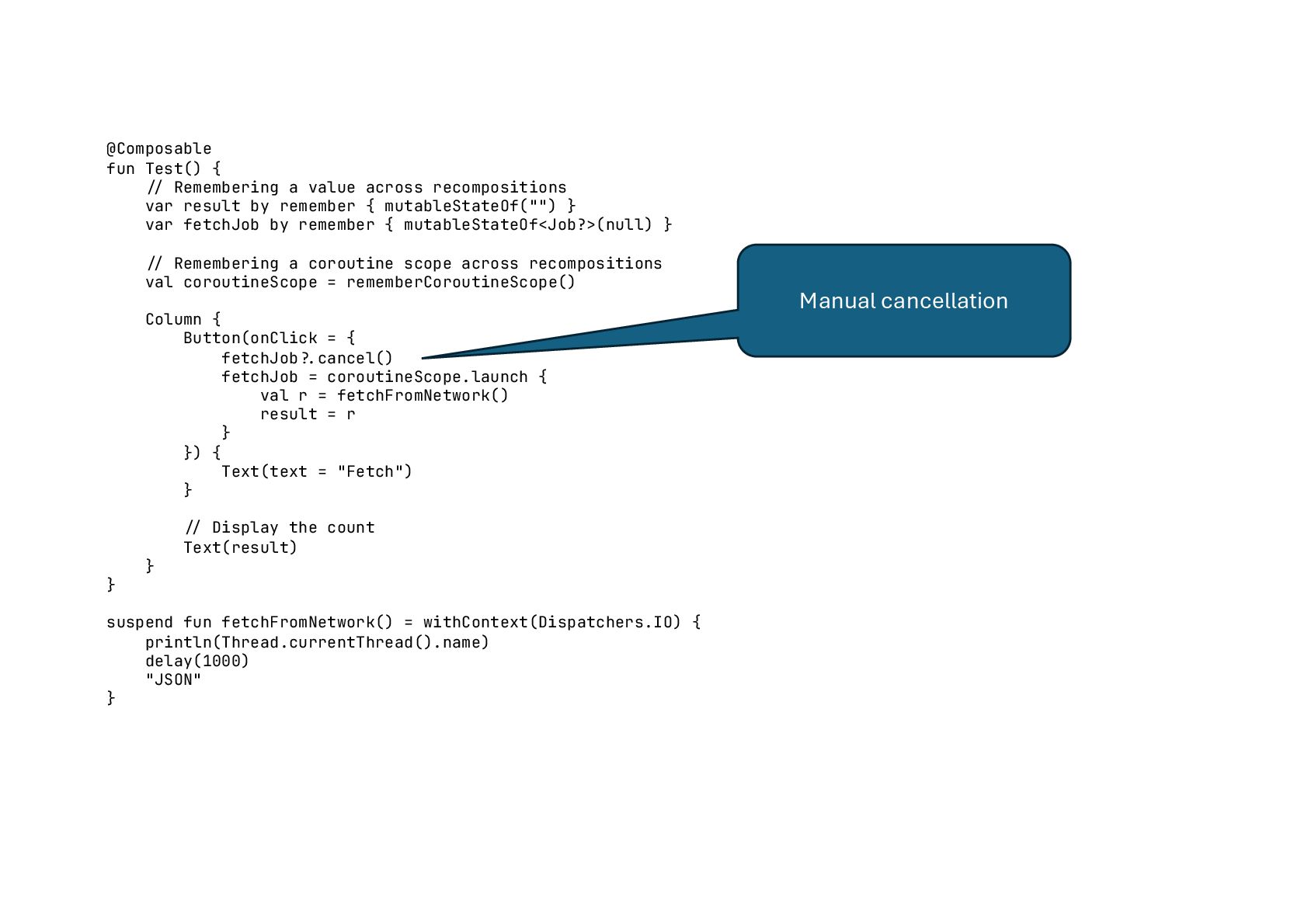

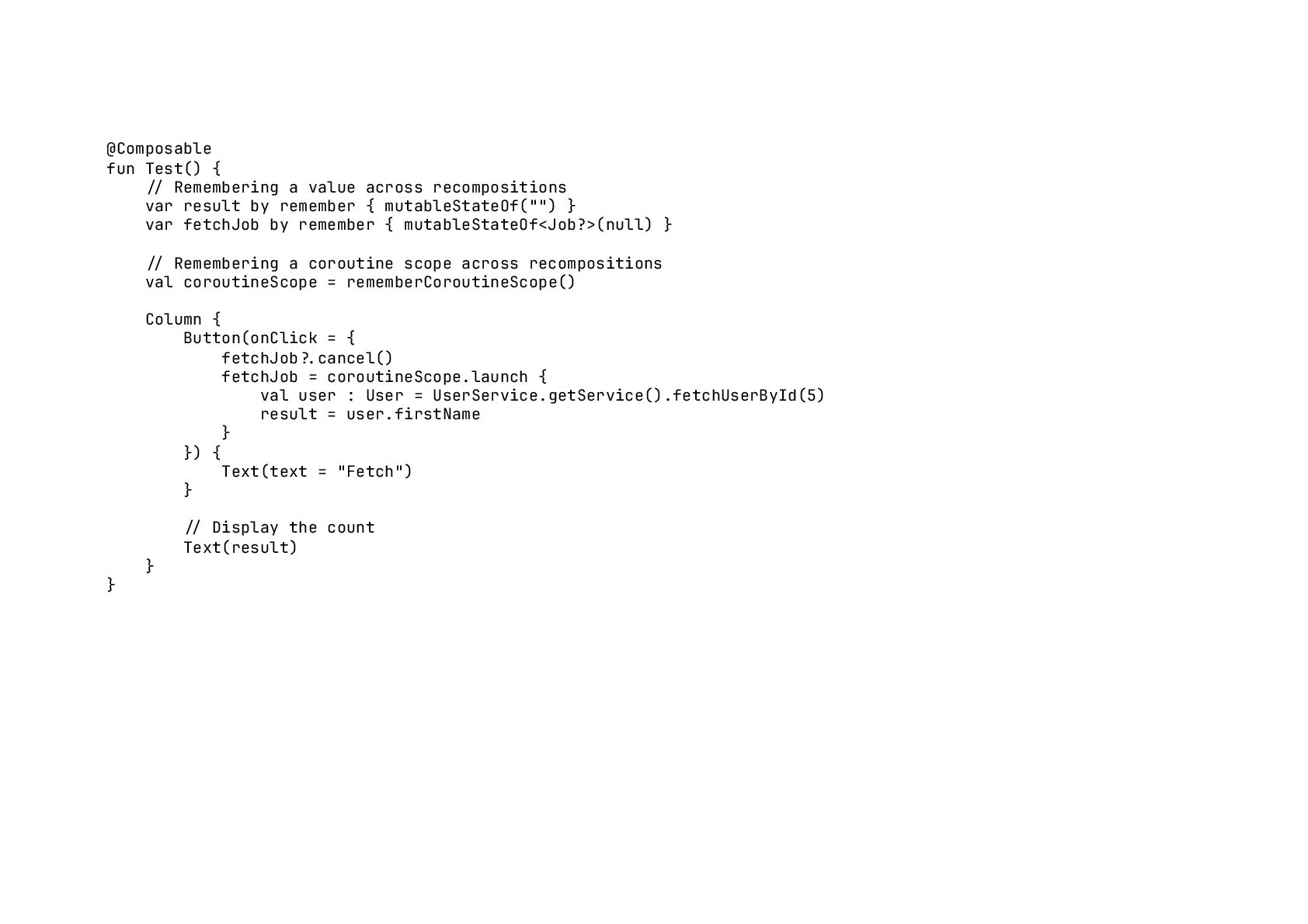

var result by remember { mutableStateOf("") } var fetchJob by remember { mutableStateOf<Job?>(null) } !// Remembering a coroutine scope across recompositions val coroutineScope = rememberCoroutineScope() Column { Button(onClick = { fetchJob!?.cancel() fetchJob = coroutineScope.launch { val r = fetchFromNetwork() result = r } }) { Text(text = "Fetch") } !// Display the count Text(result) } } suspend fun fetchFromNetwork() = withContext(Dispatchers.IO) { println(Thread.currentThread().name) delay(1000) "JSON" } Manual cancellation

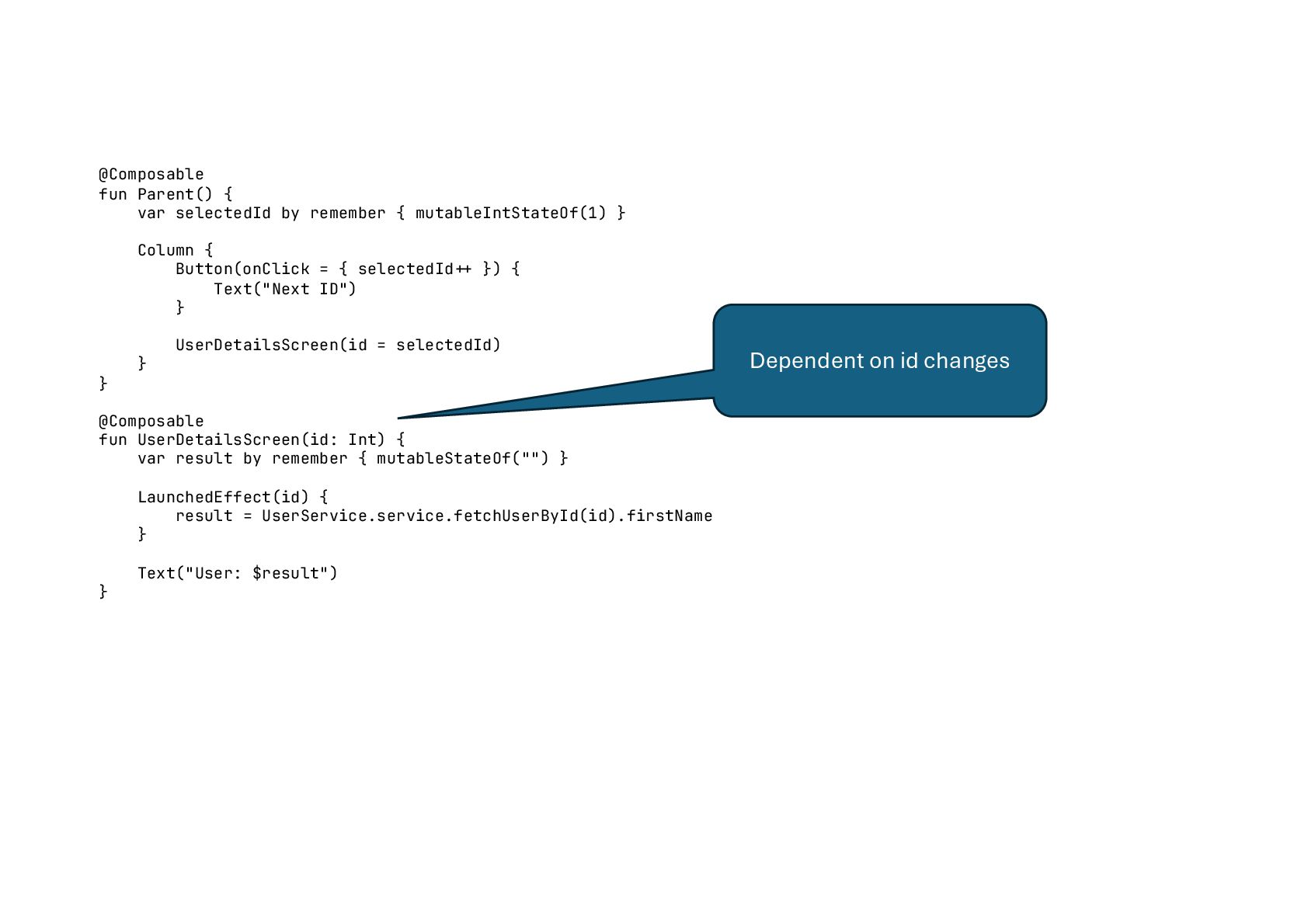

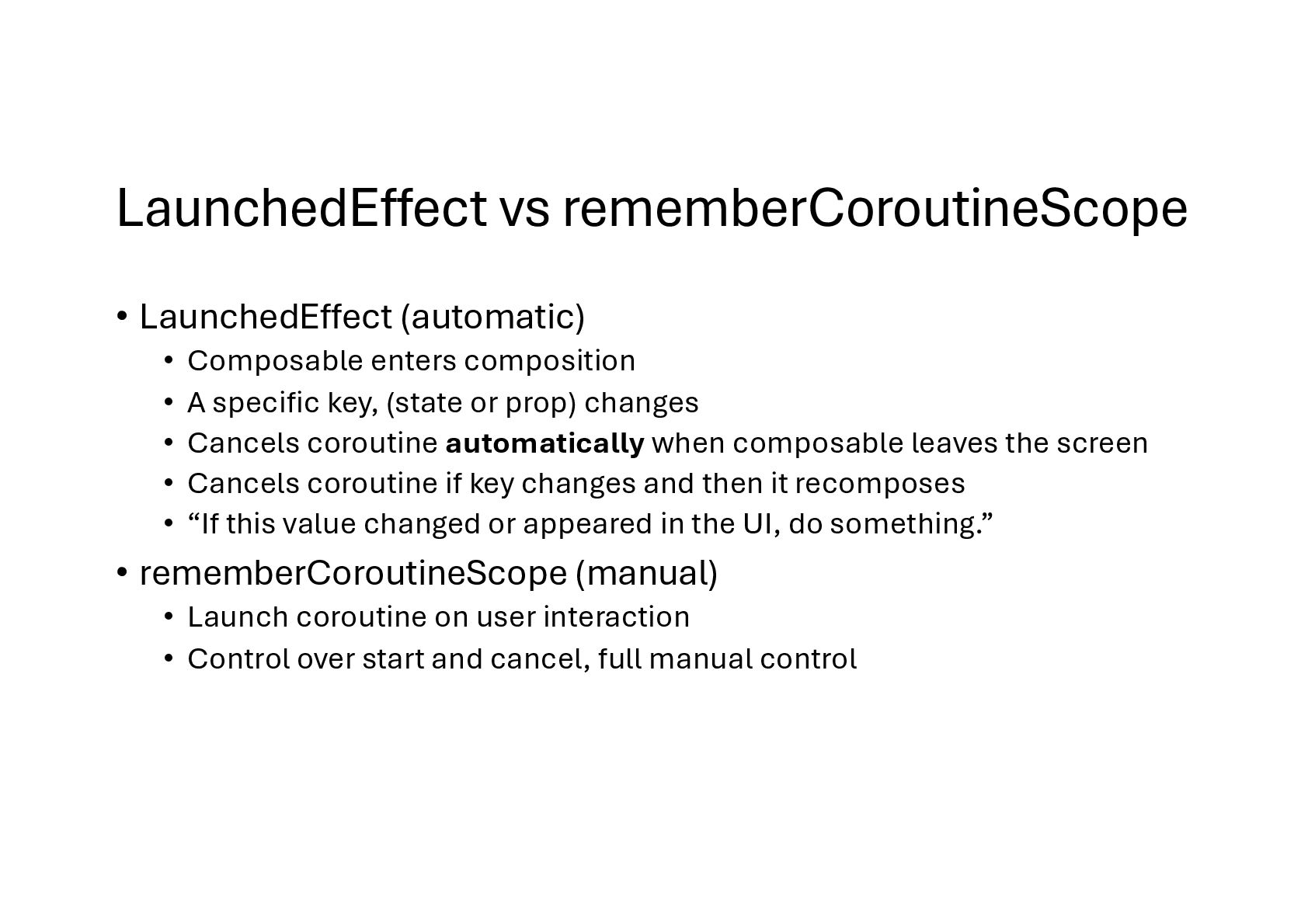

• A specific key, (state or prop) changes • Cancels coroutine automatically when composable leaves the screen • Cancels coroutine if key changes and then it recomposes • “If this value changed or appeared in the UI, do something.” • rememberCoroutineScope (manual) • Launch coroutine on user interaction • Control over start and cancel, full manual control

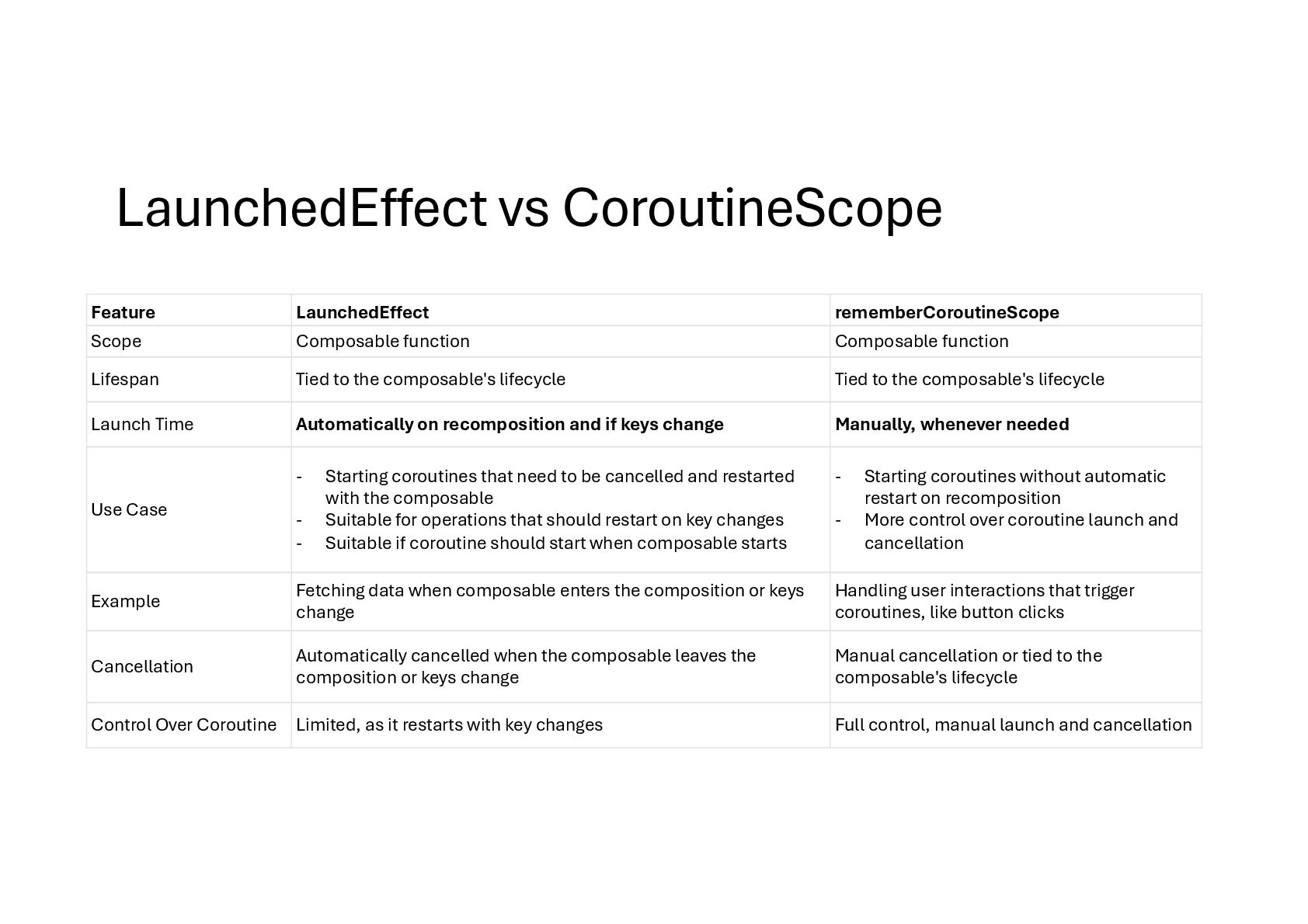

function Lifespan Tied to the composable's lifecycle Tied to the composable's lifecycle Launch Time Automatically on recomposition and if keys change Manually, whenever needed Use Case - Starting coroutines that need to be cancelled and restarted with the composable - Suitable for operations that should restart on key changes - Suitable if coroutine should start when composable starts - Starting coroutines without automatic restart on recomposition - More control over coroutine launch and cancellation Example Fetching data when composable enters the composition or keys change Handling user interactions that trigger coroutines, like button clicks Cancellation Automatically cancelled when the composable leaves the composition or keys change Manual cancellation or tied to the composable's lifecycle Control Over Coroutine Limited, as it restarts with key changes Full control, manual launch and cancellation

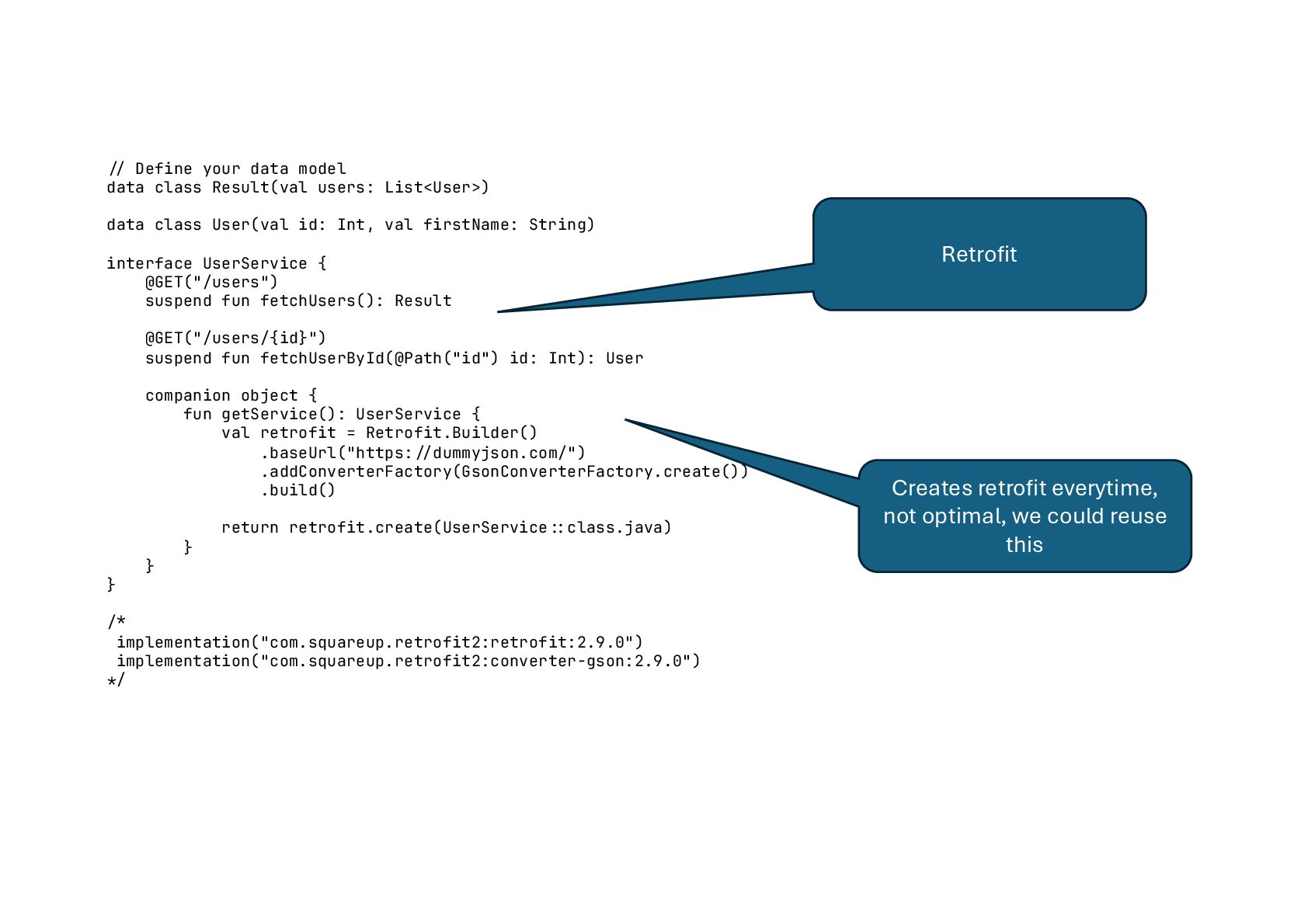

data class User(val id: Int, val firstName: String) interface UserService { @GET("/users") suspend fun fetchUsers(): Result @GET("/users/{id}") suspend fun fetchUserById(@Path("id") id: Int): User companion object { fun getService(): UserService { val retrofit = Retrofit.Builder() .baseUrl("https:!//dummyjson.com/") .addConverterFactory(GsonConverterFactory.create()) .build() return retrofit.create(UserService!::class.java) } } } !/* implementation("com.squareup.retrofit2:retrofit:2.9.0") implementation("com.squareup.retrofit2:converter-gson:2.9.0") !*/ Retrofit Creates retrofit everytime, not optimal, we could reuse this
var result by remember { mutableStateOf("") } var fetchJob by remember { mutableStateOf<Job?>(null) } !// Remembering a coroutine scope across recompositions val coroutineScope = rememberCoroutineScope() Column { Button(onClick = { fetchJob!?.cancel() fetchJob = coroutineScope.launch { val user : User = UserService.getService().fetchUserById(5) result = user.firstName } }) { Text(text = "Fetch") } !// Display the count Text(result) } }

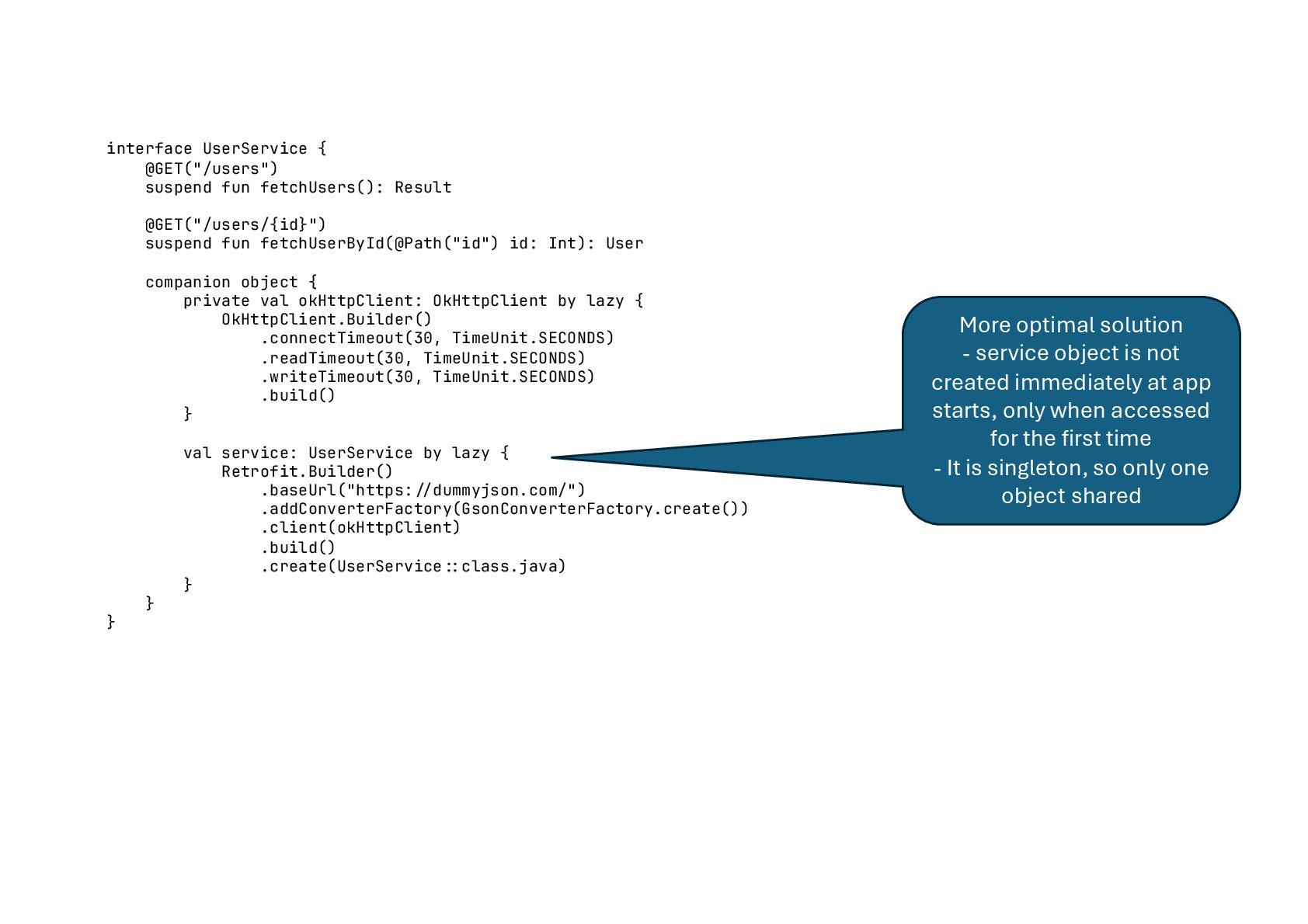

fun fetchUserById(@Path("id") id: Int): User companion object { private val okHttpClient: OkHttpClient by lazy { OkHttpClient.Builder() .connectTimeout(30, TimeUnit.SECONDS) .readTimeout(30, TimeUnit.SECONDS) .writeTimeout(30, TimeUnit.SECONDS) .build() } val service: UserService by lazy { Retrofit.Builder() .baseUrl("https:!//dummyjson.com/") .addConverterFactory(GsonConverterFactory.create()) .client(okHttpClient) .build() .create(UserService!::class.java) } } } More optimal solution - service object is not created immediately at app starts, only when accessed for the first time - It is singleton, so only one object shared

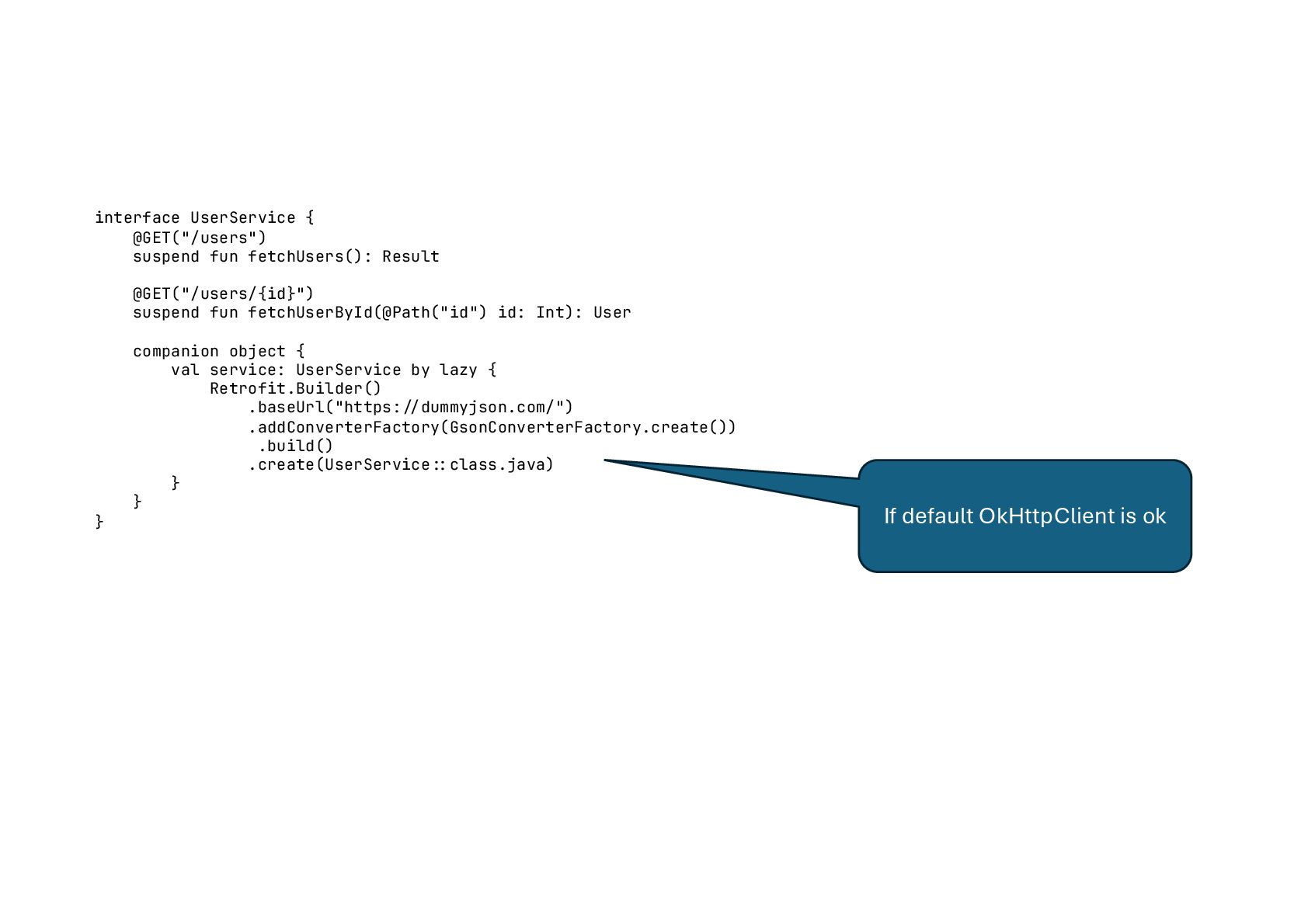

fun fetchUserById(@Path("id") id: Int): User companion object { val service: UserService by lazy { Retrofit.Builder() .baseUrl("https:!//dummyjson.com/") .addConverterFactory(GsonConverterFactory.create()) .build() .create(UserService!::class.java) } } } If default OkHttpClient is ok

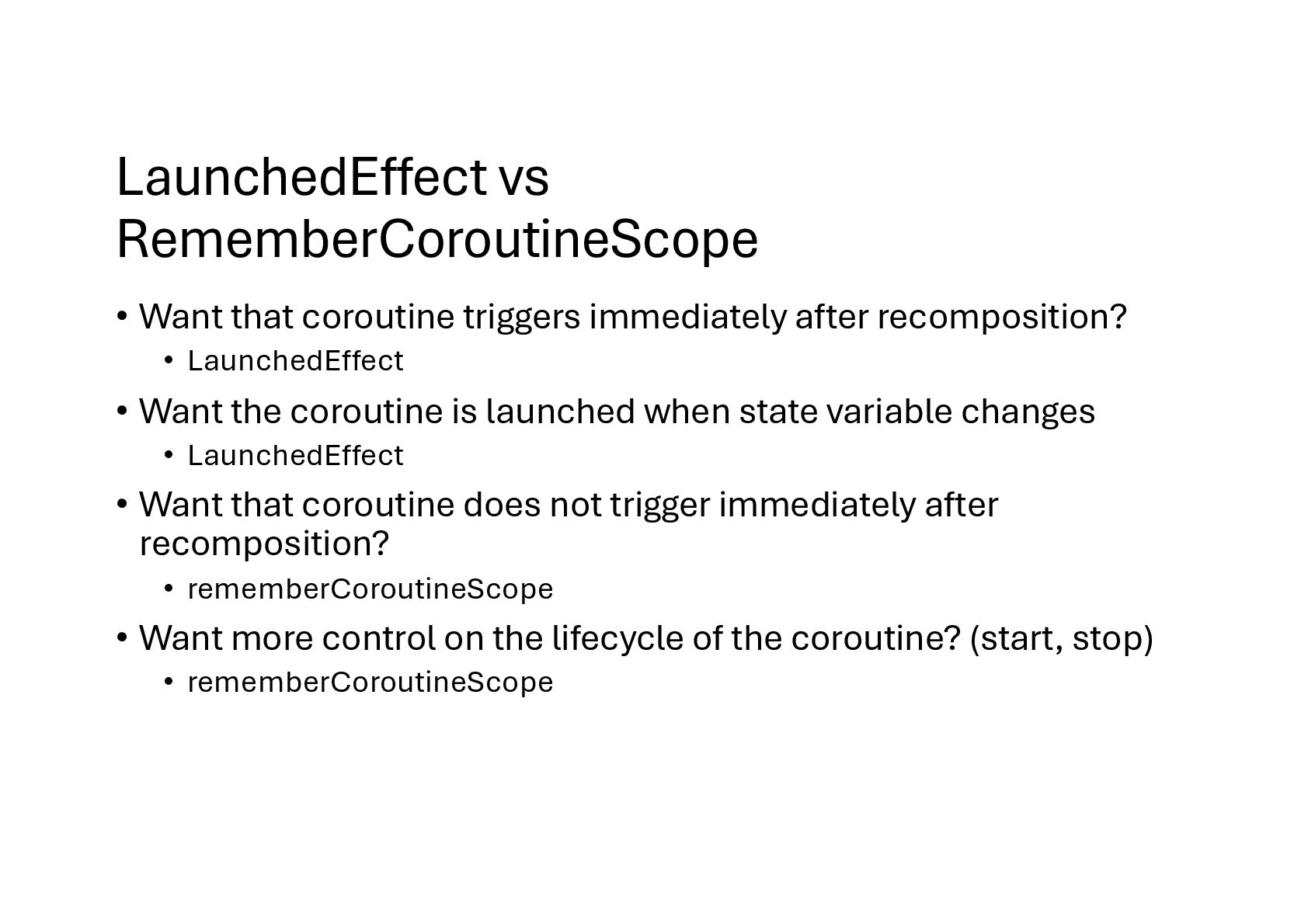

recomposition? • LaunchedEffect • Want the coroutine is launched when state variable changes • LaunchedEffect • Want that coroutine does not trigger immediately after recomposition? • rememberCoroutineScope • Want more control on the lifecycle of the coroutine? (start, stop) • rememberCoroutineScope

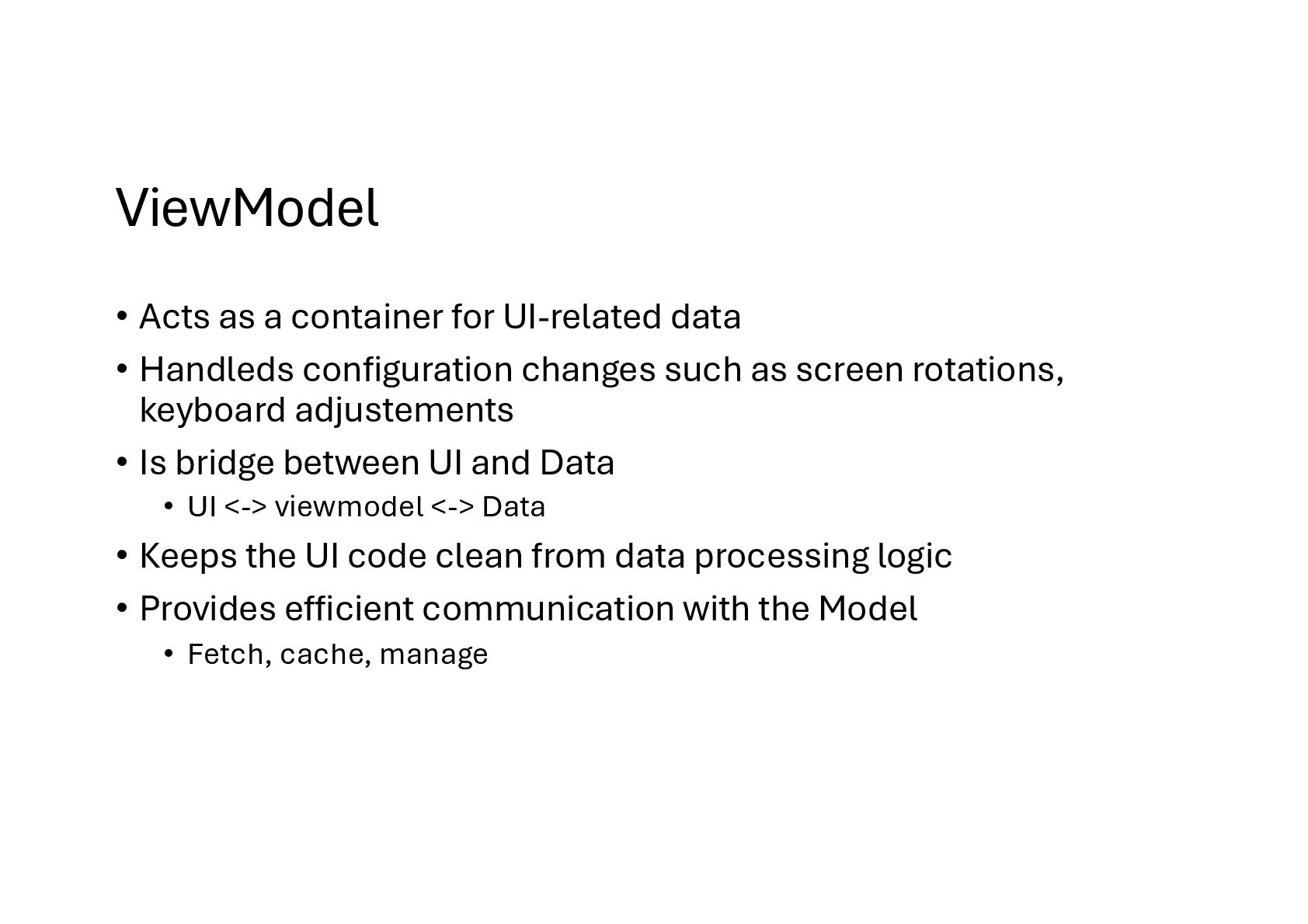

Handleds configuration changes such as screen rotations, keyboard adjustements • Is bridge between UI and Data • UI <-> viewmodel <-> Data • Keeps the UI code clean from data processing logic • Provides efficient communication with the Model • Fetch, cache, manage

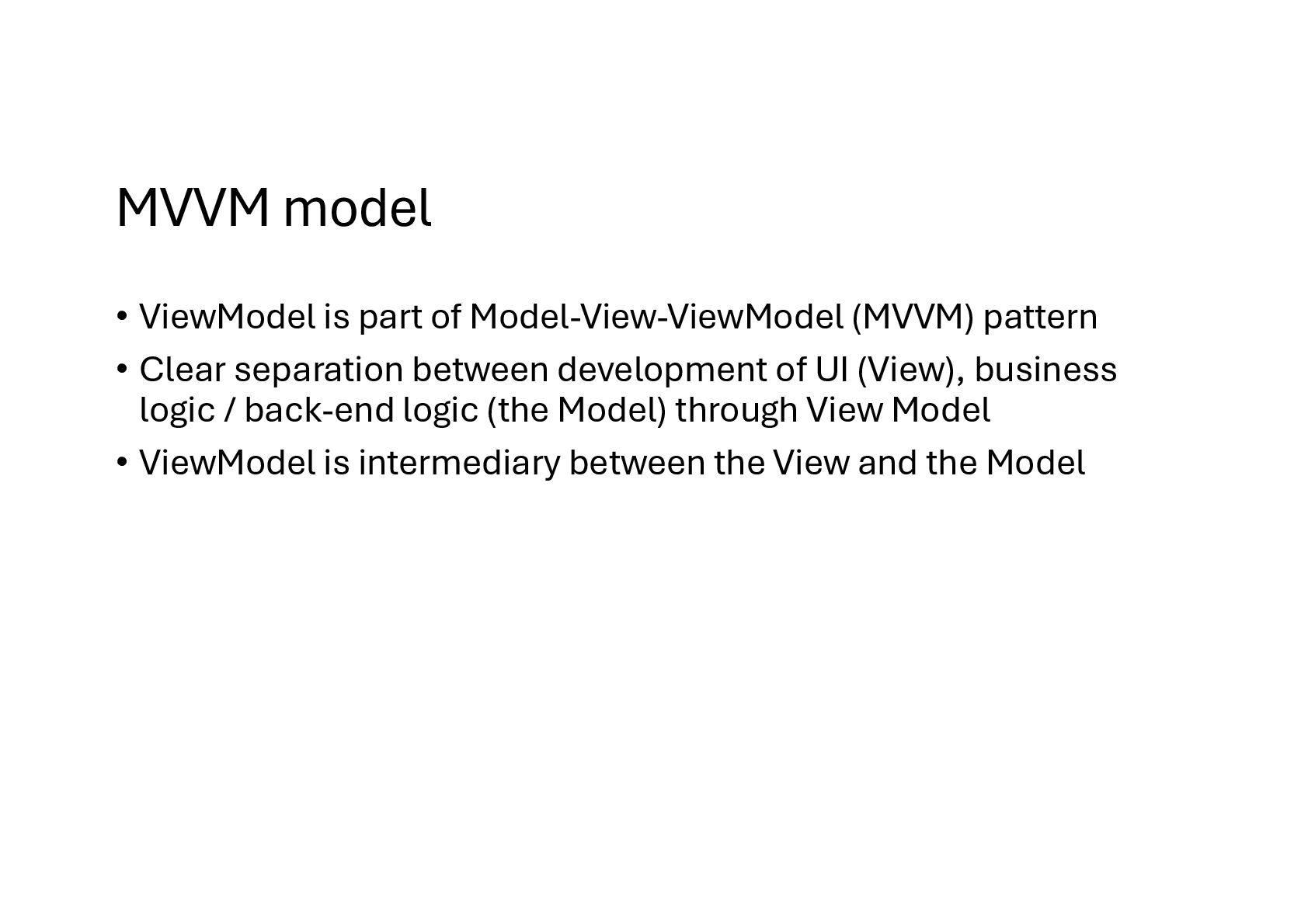

• Clear separation between development of UI (View), business logic / back-end logic (the Model) through View Model • ViewModel is intermediary between the View and the Model

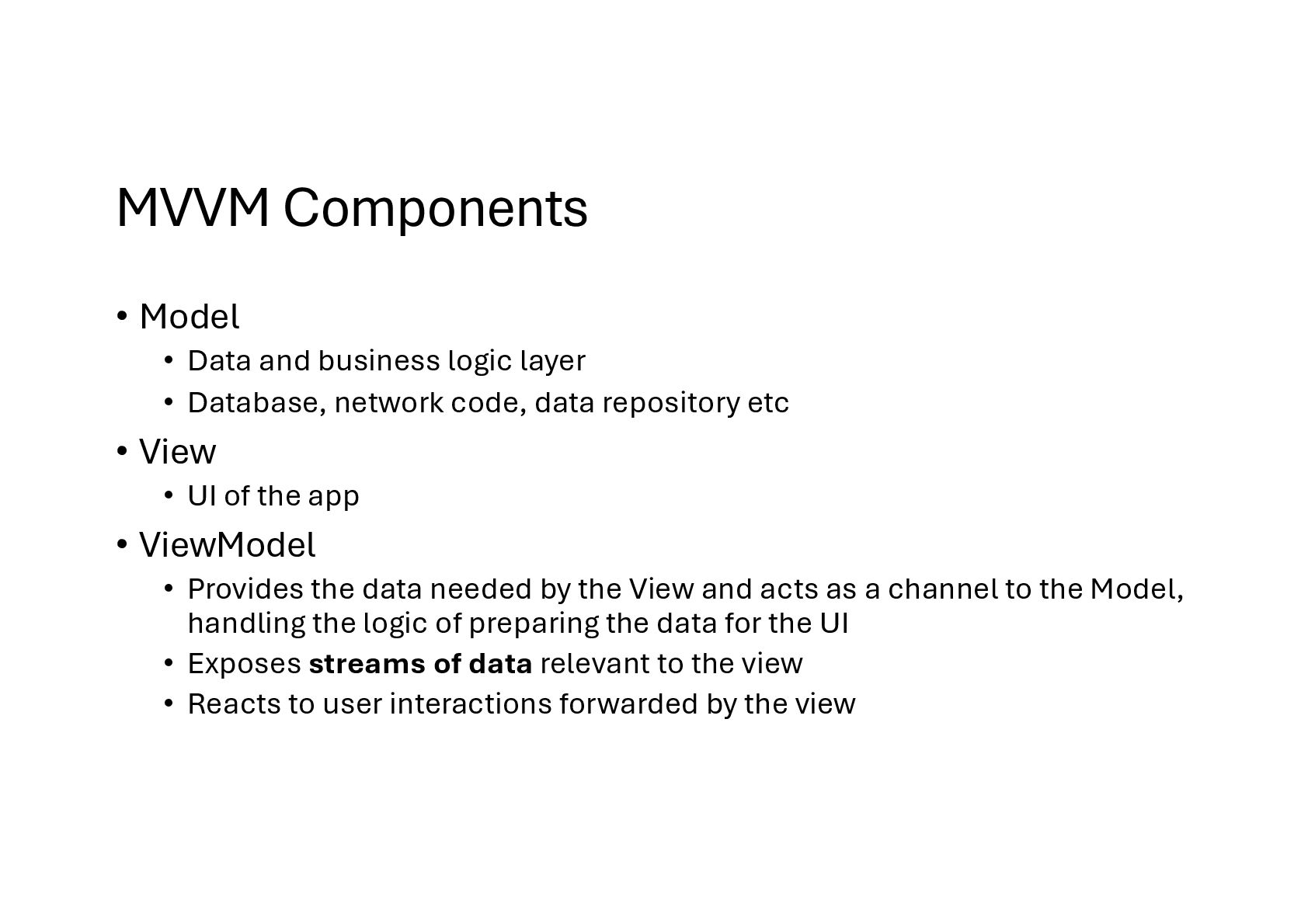

• Database, network code, data repository etc • View • UI of the app • ViewModel • Provides the data needed by the View and acts as a channel to the Model, handling the logic of preparing the data for the UI • Exposes streams of data relevant to the view • Reacts to user interactions forwarded by the view

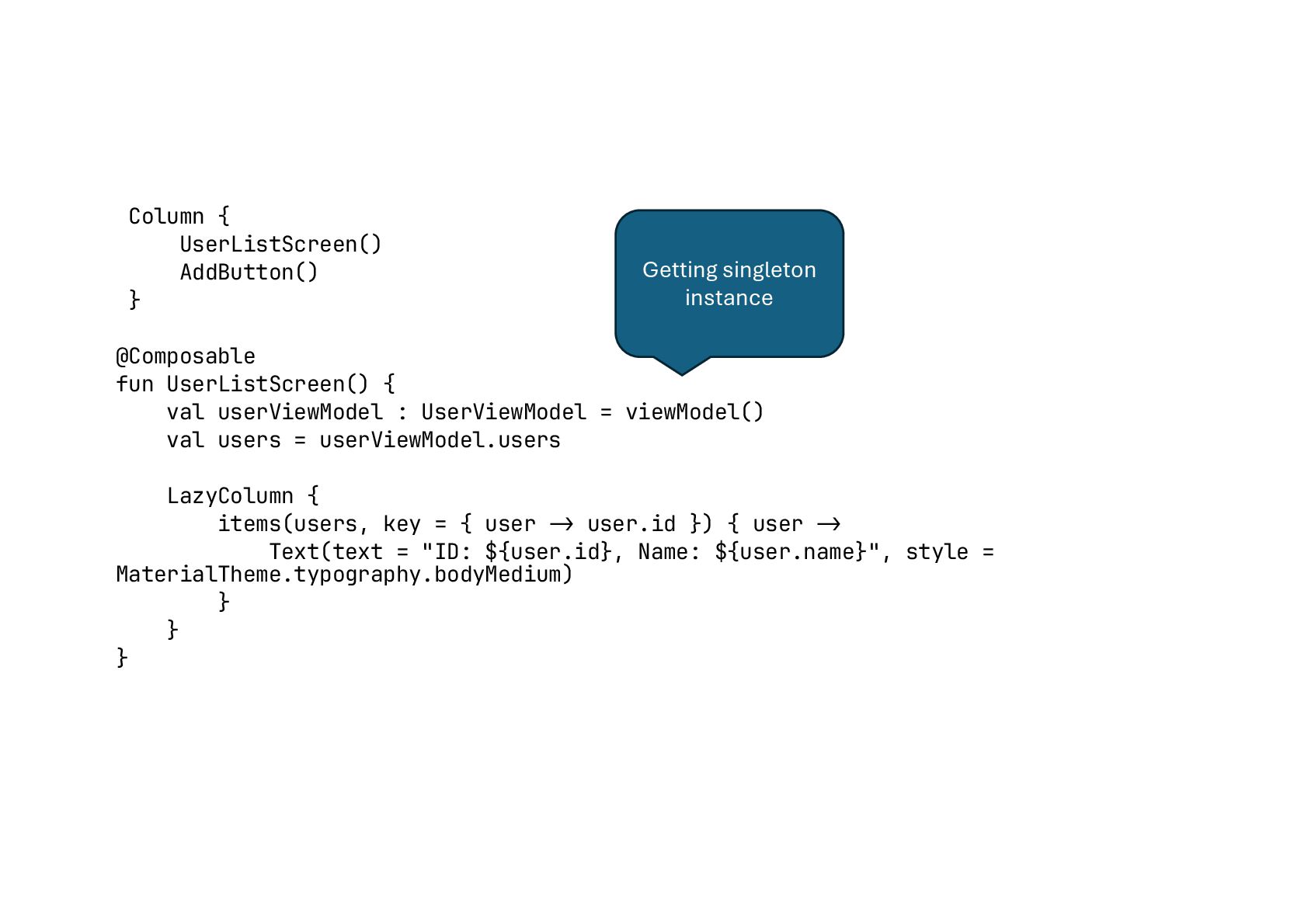

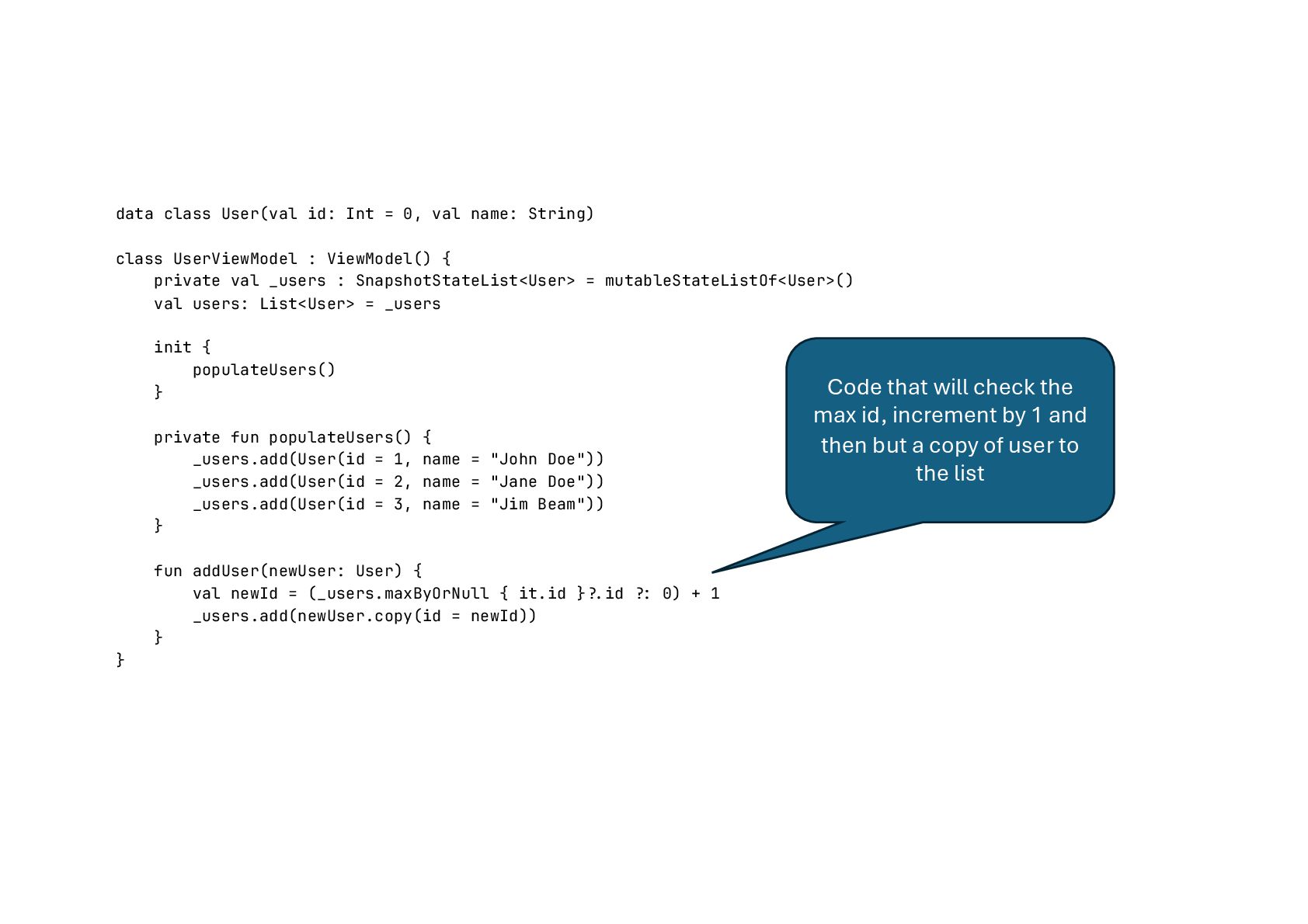

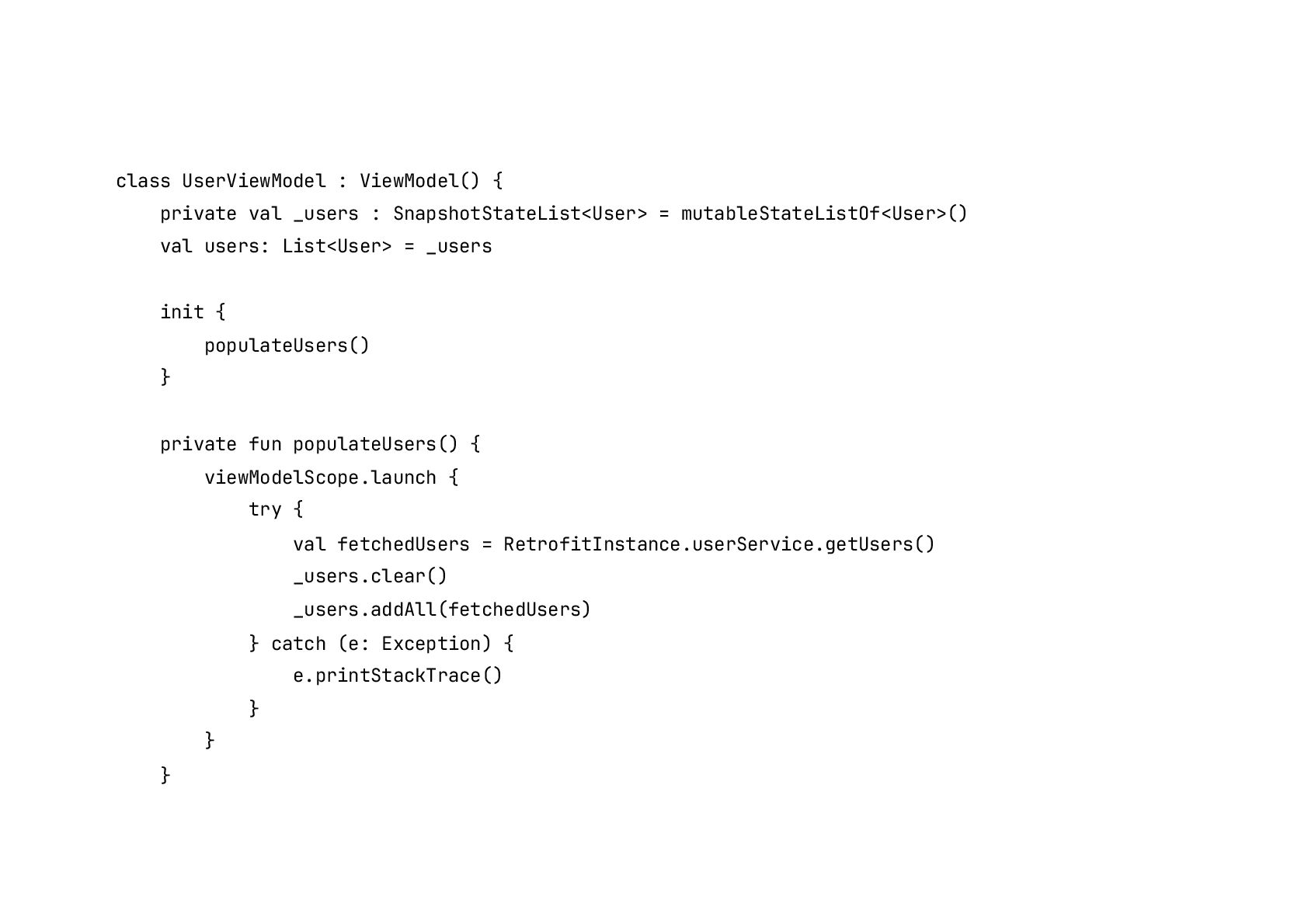

class UserViewModel : ViewModel() { private val _users : SnapshotStateList<User> = mutableStateListOf<User>() val users: List<User> = _users init { populateUsers() } private fun populateUsers() { _users.add(User(id = 1, name = "John Doe")) _users.add(User(id = 2, name = "Jane Doe")) _users.add(User(id = 3, name = "Jim Beam")) } fun addUser(newUser: User) { val newId = (_users.maxByOrNull { it.id }!?.id !?: 0) + 1 _users.add(newUser.copy(id = newId)) } } Code that will check the max id, increment by 1 and then but a copy of user to the list

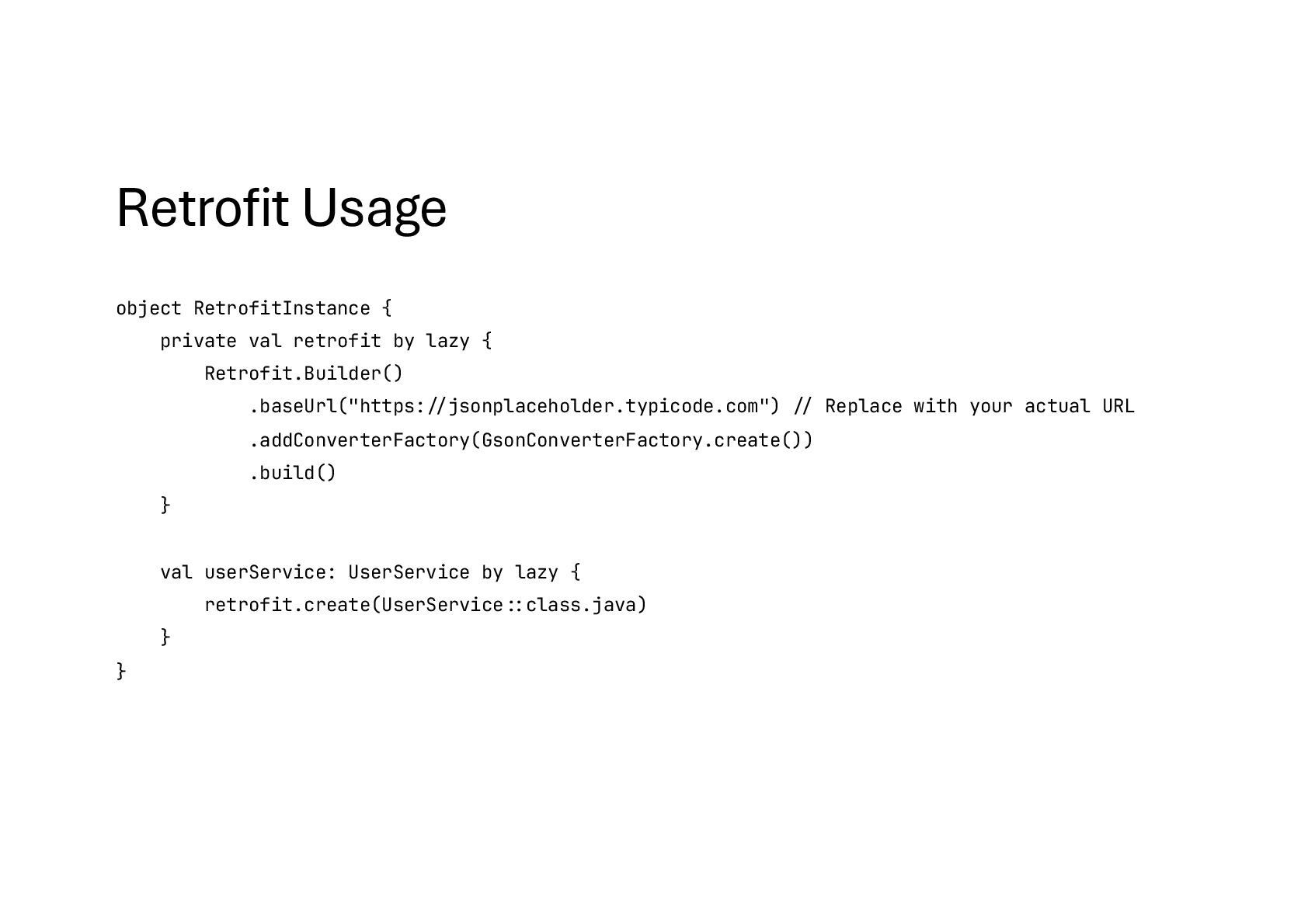

{ Retrofit.Builder() .baseUrl("https:!//jsonplaceholder.typicode.com") !// Replace with your actual URL .addConverterFactory(GsonConverterFactory.create()) .build() } val userService: UserService by lazy { retrofit.create(UserService!::class.java) } }

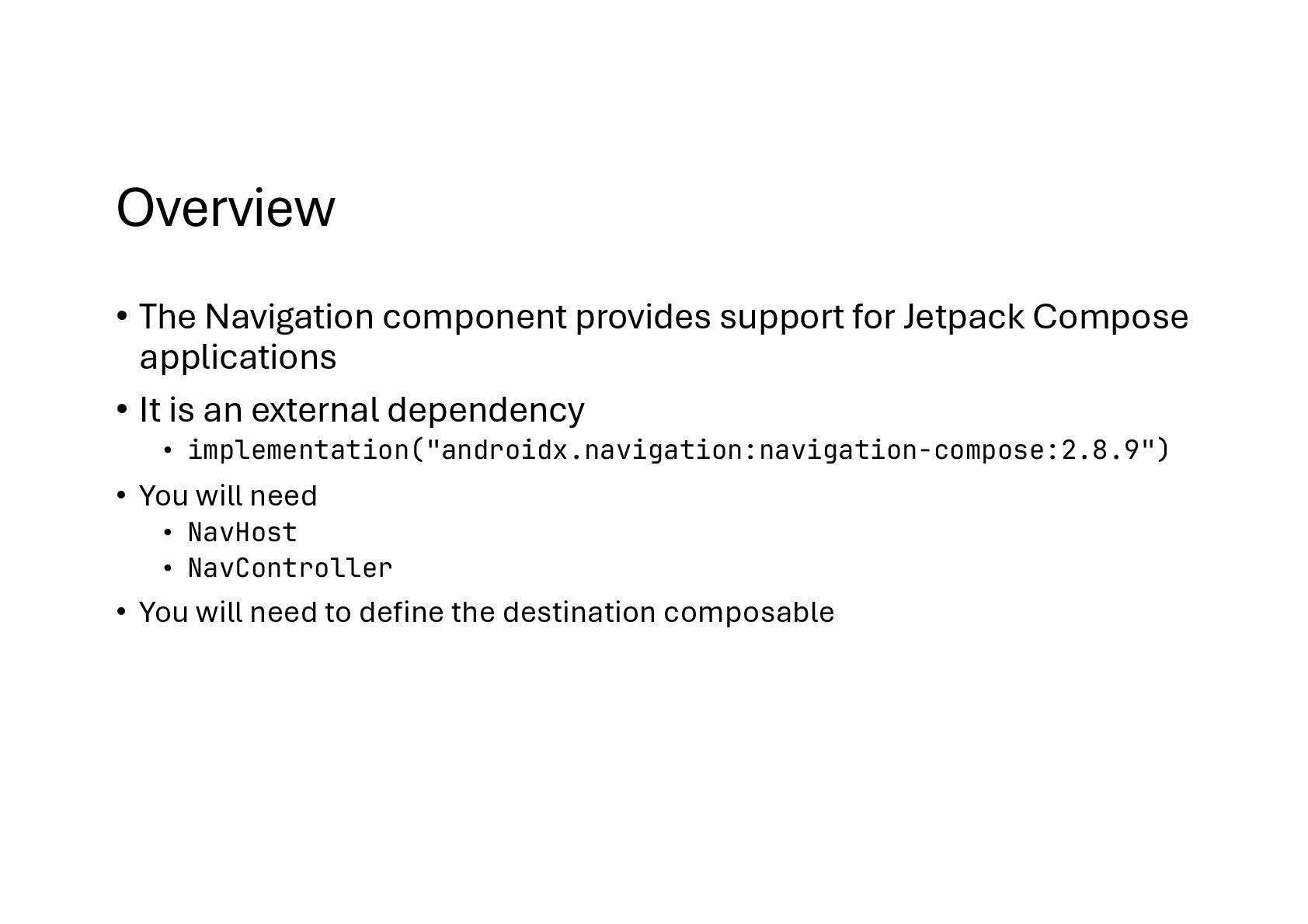

applications • It is an external dependency • implementation("androidx.navigation:navigation-compose:2.8.9") • You will need • NavHost • NavController • You will need to define the destination composable

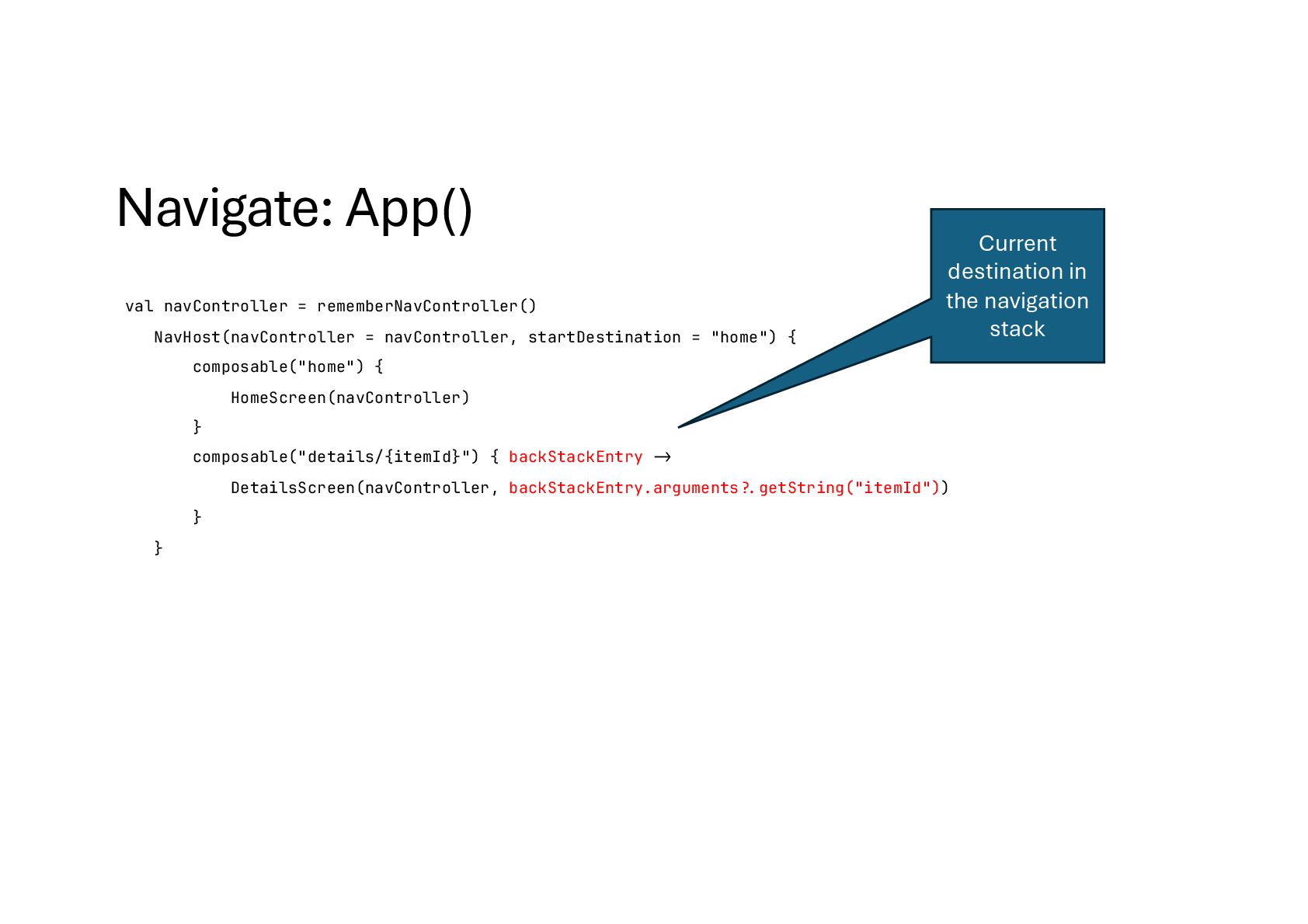

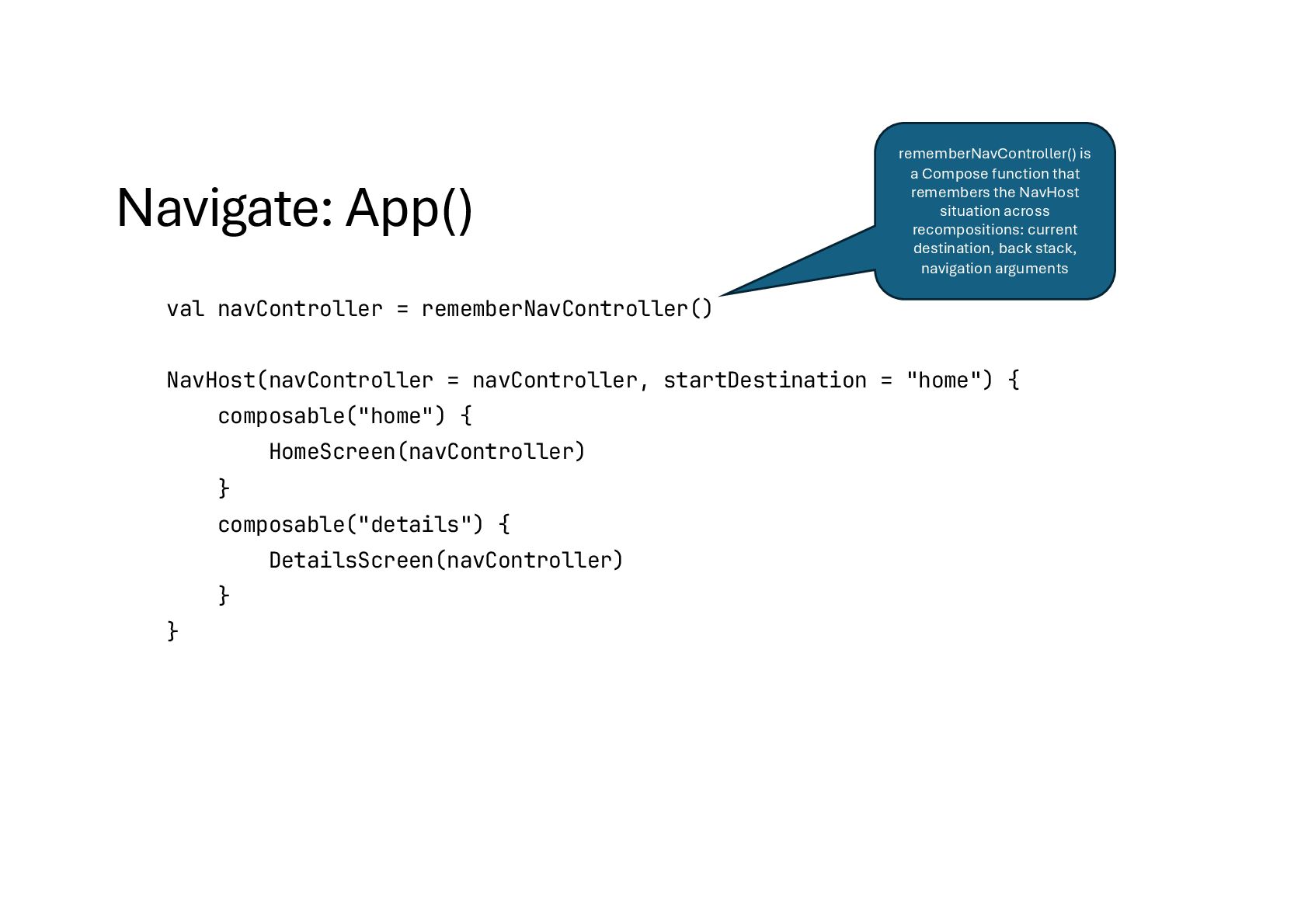

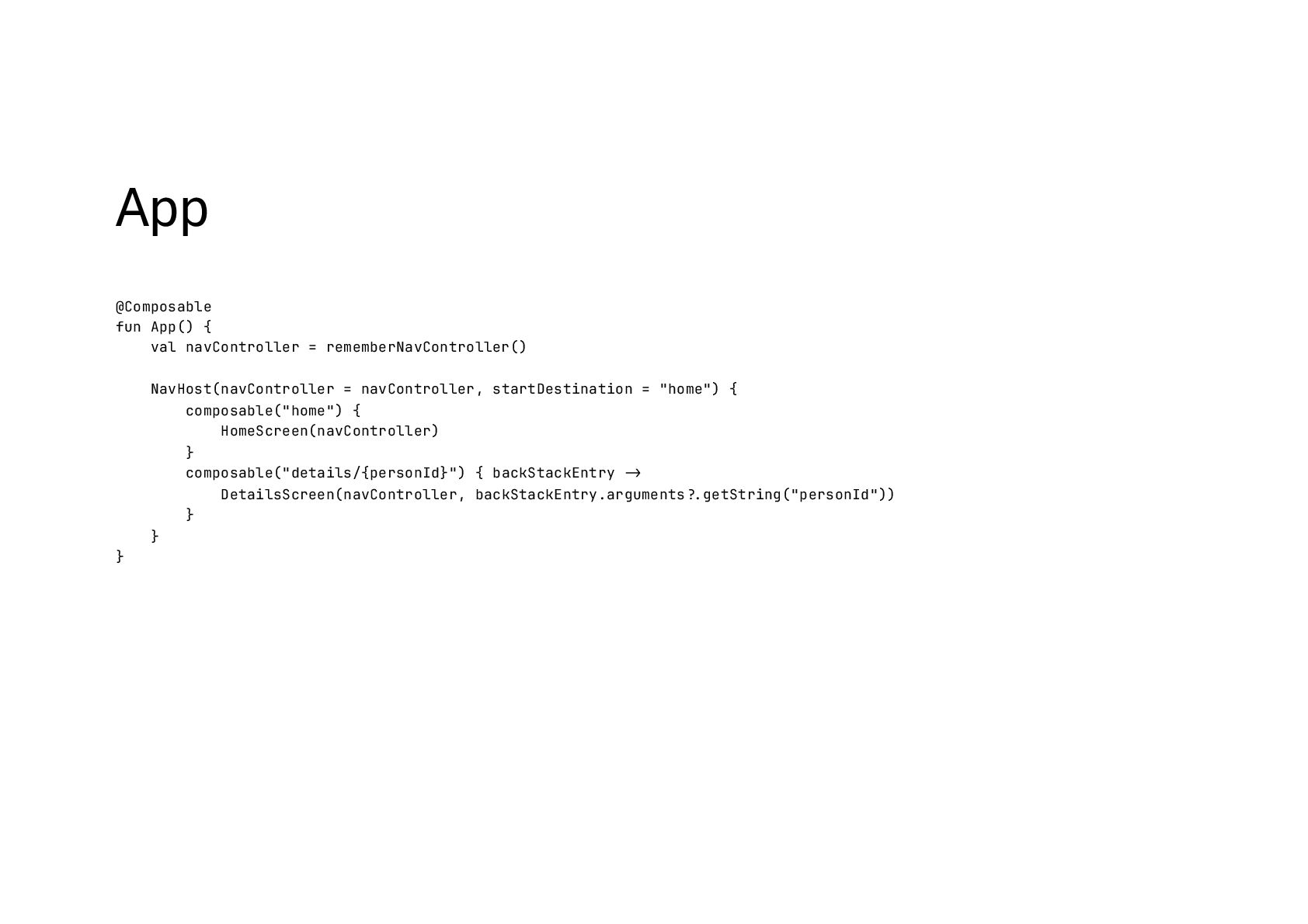

= "home") { composable("home") { HomeScreen(navController) } composable("details") { DetailsScreen(navController) } } rememberNavController() is a Compose function that remembers the NavHost situation across recompositions: current destination, back stack, navigation arguments
Alignment.Center, !// This centers the Button within the Box. modifier = Modifier.fillMaxSize() !// The Box will fill the entire screen. ) { !// Button automatically sizes itself to fit its content, and now it's also centered. Button(onClick = { navController.navigate("details") }) { Text(text = "Go to Details") } } } Navigate to “details”

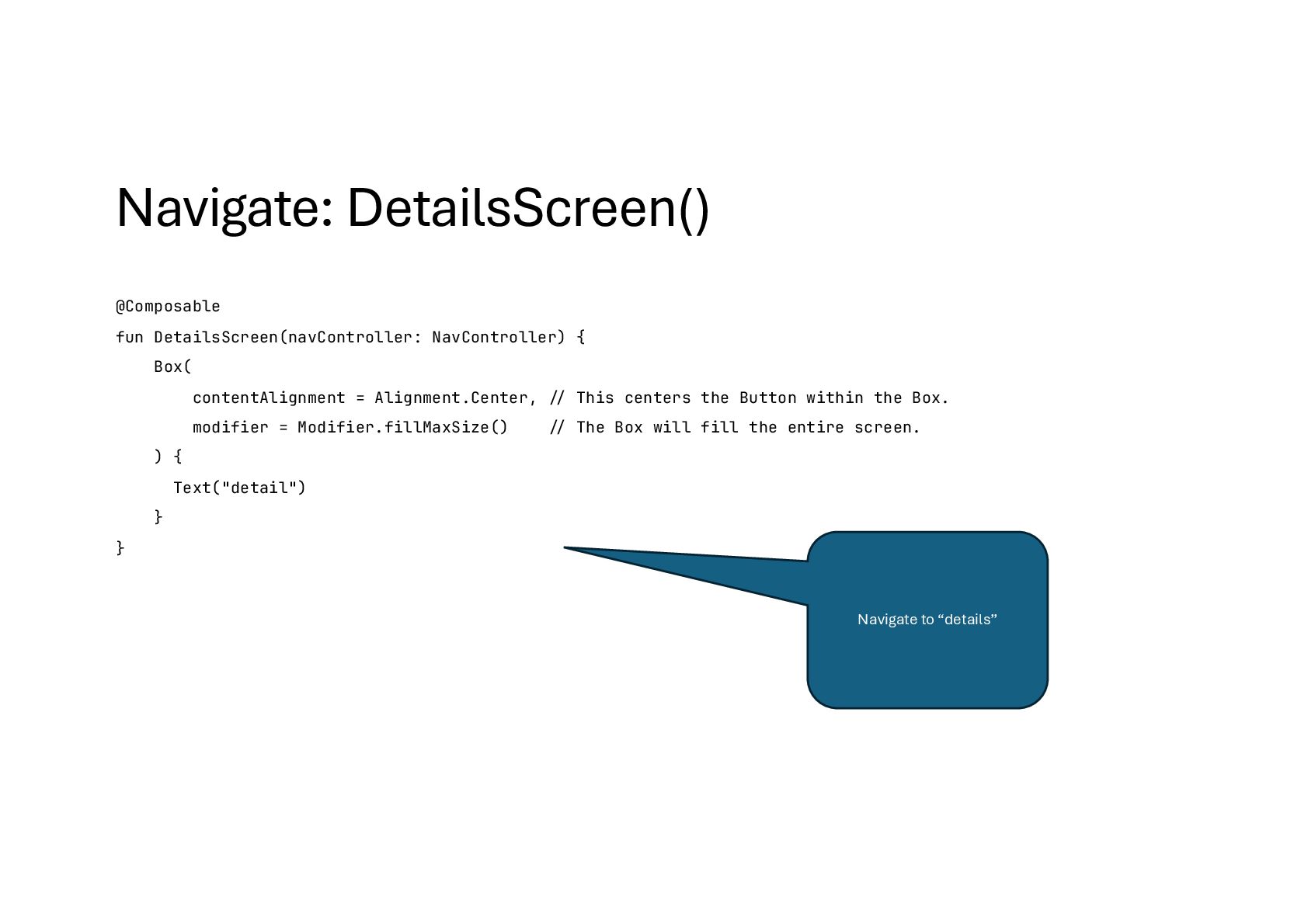

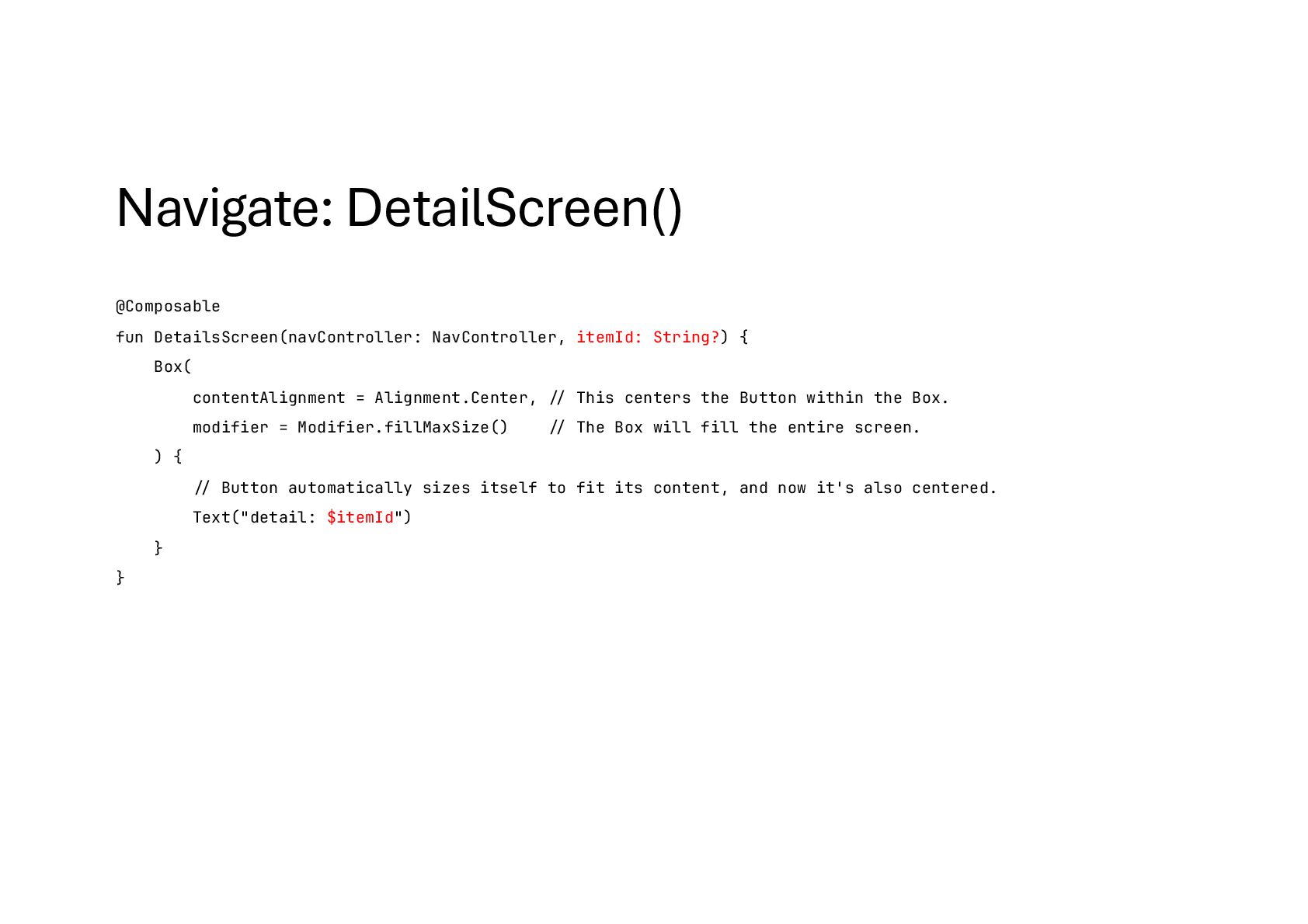

Alignment.Center, !// This centers the Button within the Box. modifier = Modifier.fillMaxSize() !// The Box will fill the entire screen. ) { Text("detail") } } Navigate to “details”

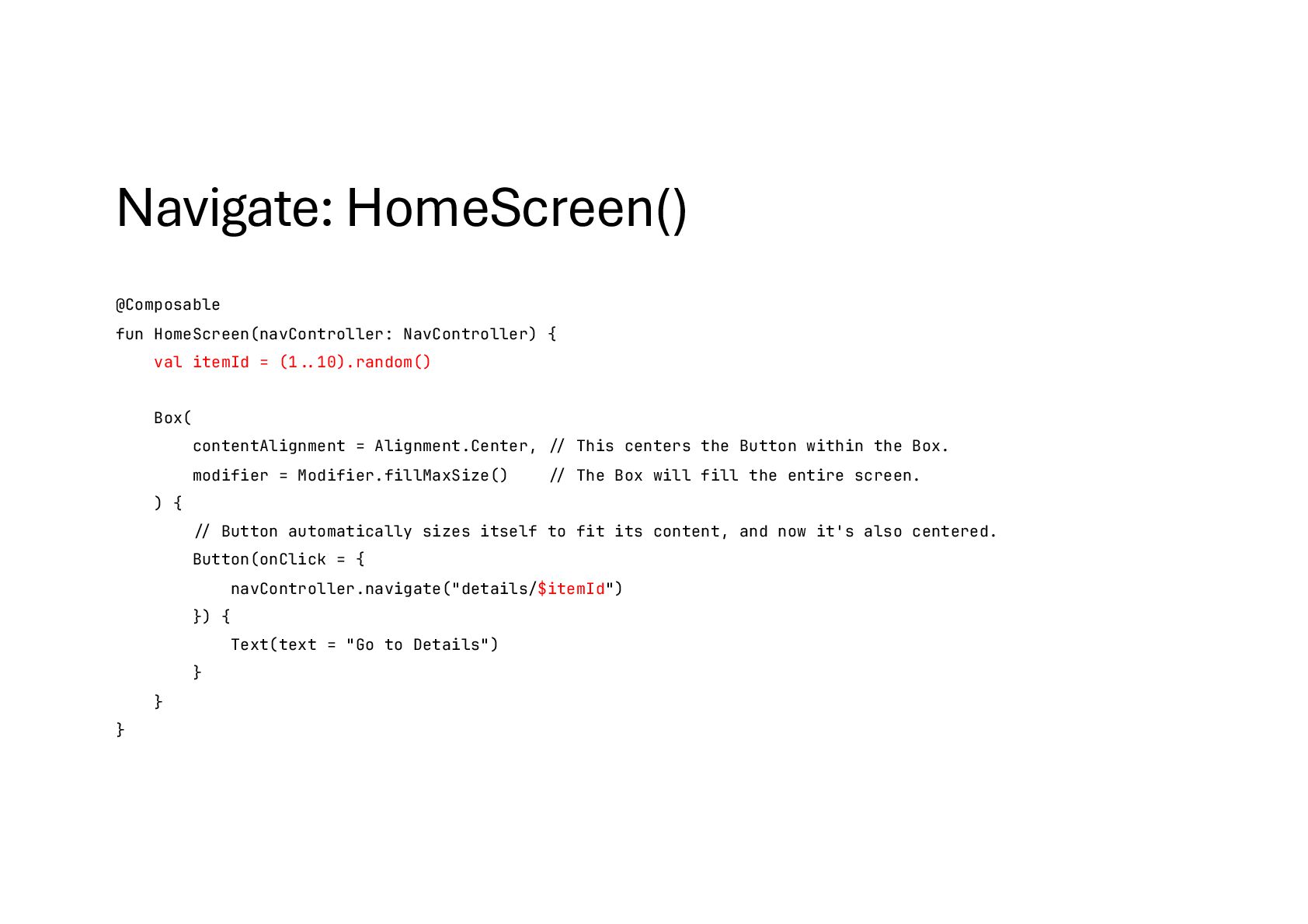

(1!..10).random() Box( contentAlignment = Alignment.Center, !// This centers the Button within the Box. modifier = Modifier.fillMaxSize() !// The Box will fill the entire screen. ) { !// Button automatically sizes itself to fit its content, and now it's also centered. Button(onClick = { navController.navigate("details/$itemId") }) { Text(text = "Go to Details") } } }
contentAlignment = Alignment.Center, !// This centers the Button within the Box. modifier = Modifier.fillMaxSize() !// The Box will fill the entire screen. ) { !// Button automatically sizes itself to fit its content, and now it's also centered. Text("detail: $itemId") } }

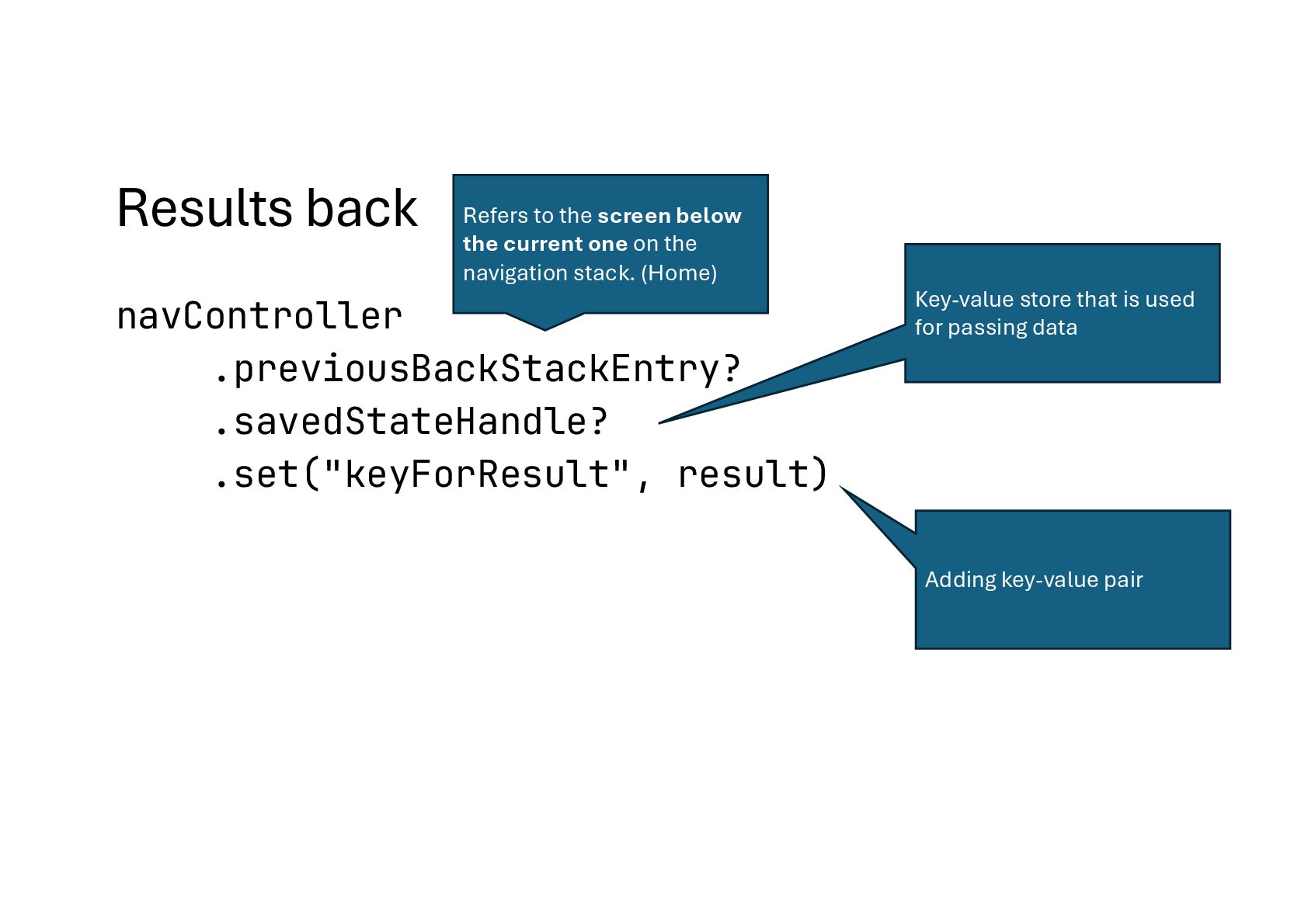

Logic to handle the back button press, similar to what would be used for a button click. val result = "${(1!..10).random()}" navController.previousBackStackEntry!?.savedStateHandle!?.set("keyForResult", result) navController.popBackStack() } Box( contentAlignment = Alignment.Center, !// This centers the Button within the Box. modifier = Modifier.fillMaxSize() !// The Box will fill the entire screen. ) { !// Button automatically sizes itself to fit its content, and now it's also centered. Text("detail: $itemId") } }

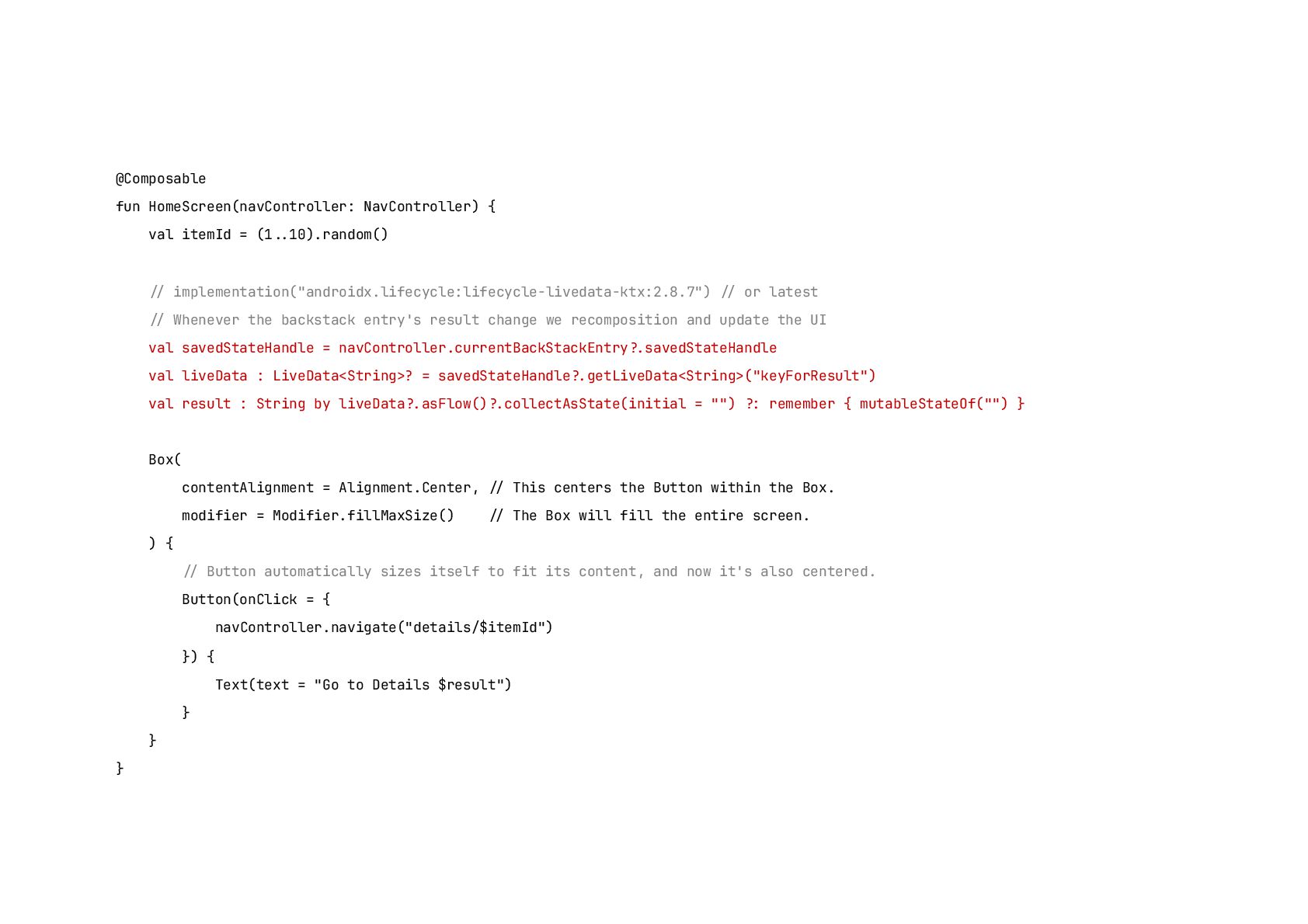

implementation("androidx.lifecycle:lifecycle-livedata-ktx:2.8.7") !// or latest !// Whenever the backstack entry's result change we recomposition and update the UI val savedStateHandle = navController.currentBackStackEntry!?.savedStateHandle val liveData : LiveData<String>? = savedStateHandle!?.getLiveData<String>("keyForResult") val result : String by liveData!?.asFlow()!?.collectAsState(initial = "") !?: remember { mutableStateOf("") } Box( contentAlignment = Alignment.Center, !// This centers the Button within the Box. modifier = Modifier.fillMaxSize() !// The Box will fill the entire screen. ) { !// Button automatically sizes itself to fit its content, and now it's also centered. Button(onClick = { navController.navigate("details/$itemId") }) { Text(text = "Go to Details $result") } } }

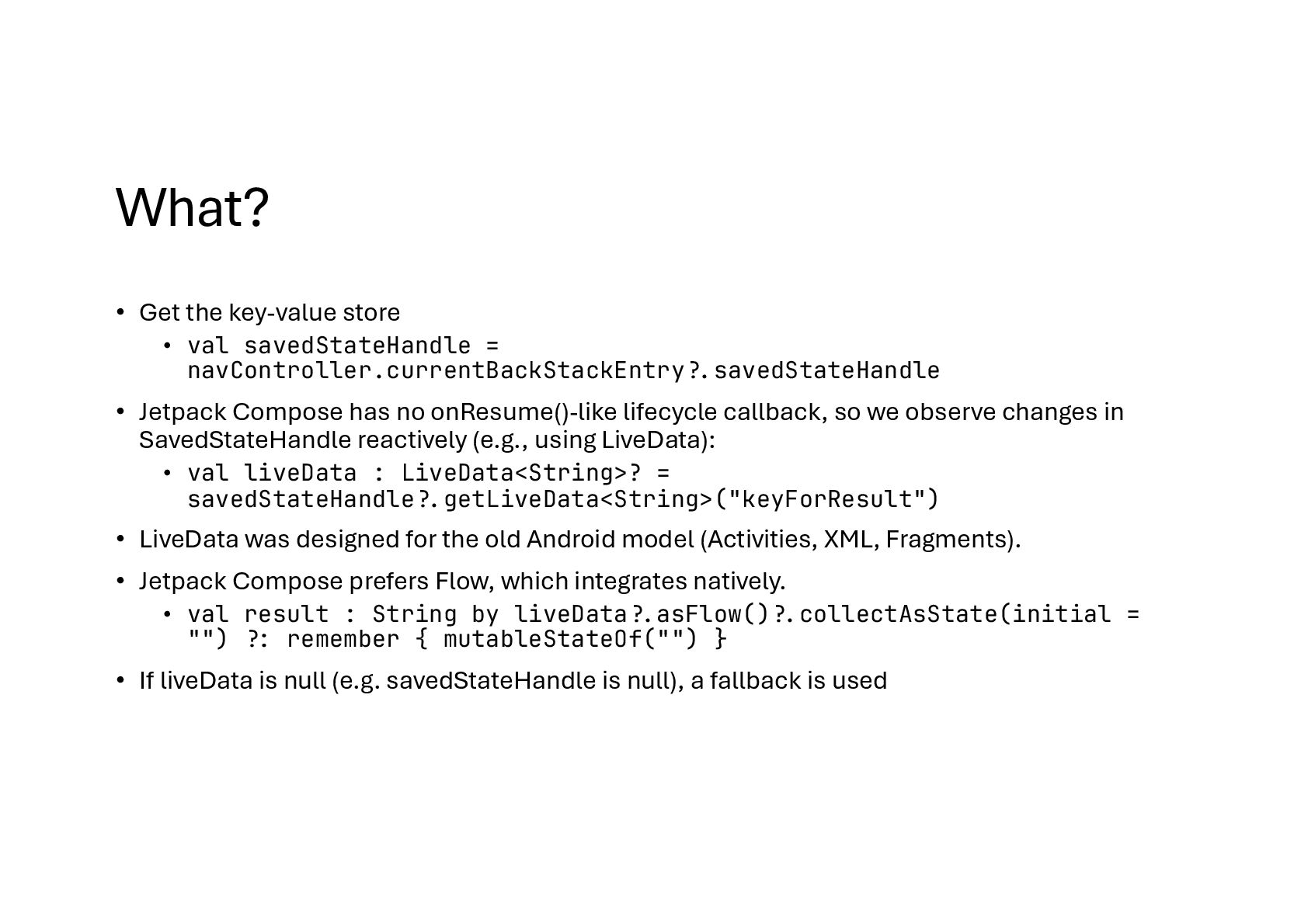

navController.currentBackStackEntry!?.savedStateHandle • Jetpack Compose has no onResume()-like lifecycle callback, so we observe changes in SavedStateHandle reactively (e.g., using LiveData): • val liveData : LiveData<String>? = savedStateHandle!?.getLiveData<String>("keyForResult") • LiveData was designed for the old Android model (Activities, XML, Fragments). • Jetpack Compose prefers Flow, which integrates natively. • val result : String by liveData!?.asFlow()!?.collectAsState(initial = "") !?: remember { mutableStateOf("") } • If liveData is null (e.g. savedStateHandle is null), a fallback is used

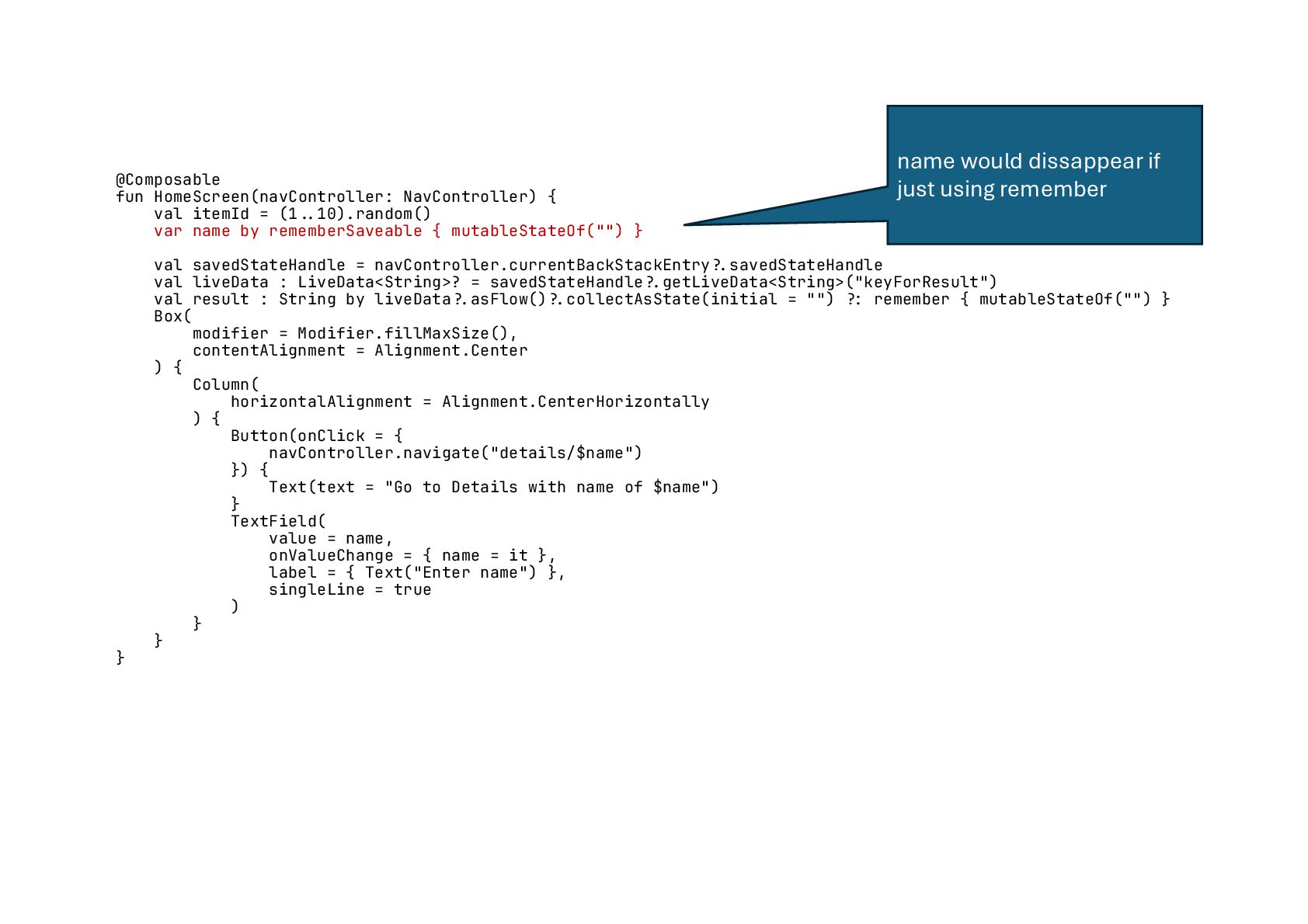

name by rememberSaveable { mutableStateOf("") } val savedStateHandle = navController.currentBackStackEntry!?.savedStateHandle val liveData : LiveData<String>? = savedStateHandle!?.getLiveData<String>("keyForResult") val result : String by liveData!?.asFlow()!?.collectAsState(initial = "") !?: remember { mutableStateOf("") } Box( modifier = Modifier.fillMaxSize(), contentAlignment = Alignment.Center ) { Column( horizontalAlignment = Alignment.CenterHorizontally ) { Button(onClick = { navController.navigate("details/$name") }) { Text(text = "Go to Details with name of $name") } TextField( value = name, onValueChange = { name = it }, label = { Text("Enter name") }, singleLine = true ) } } } name would dissappear if just using remember

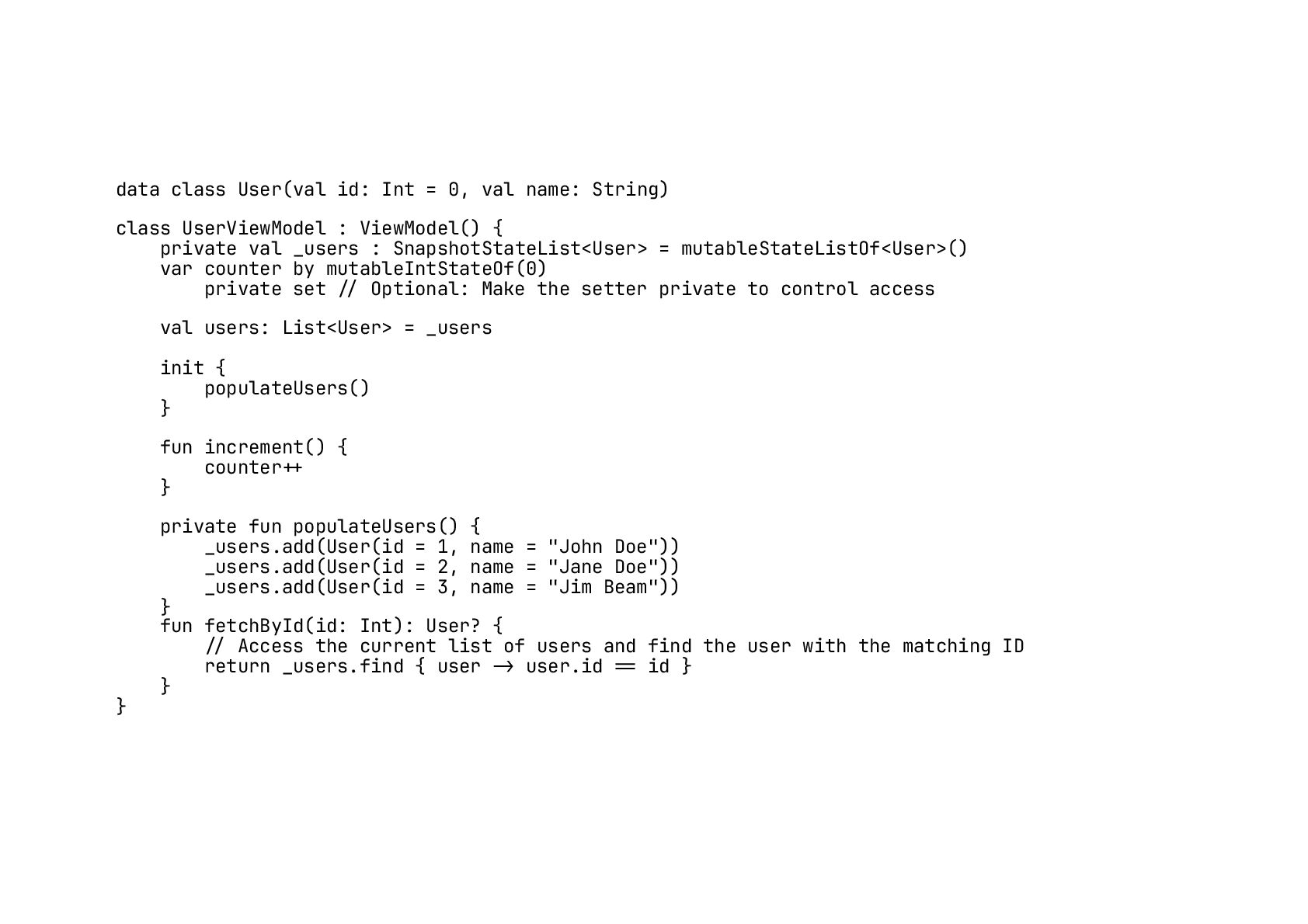

class UserViewModel : ViewModel() { private val _users : SnapshotStateList<User> = mutableStateListOf<User>() var counter by mutableIntStateOf(0) private set !// Optional: Make the setter private to control access val users: List<User> = _users init { populateUsers() } fun increment() { counter!++ } private fun populateUsers() { _users.add(User(id = 1, name = "John Doe")) _users.add(User(id = 2, name = "Jane Doe")) _users.add(User(id = 3, name = "Jim Beam")) } fun fetchById(id: Int): User? { !// Access the current list of users and find the user with the matching ID return _users.find { user -> user.id !== id } } }

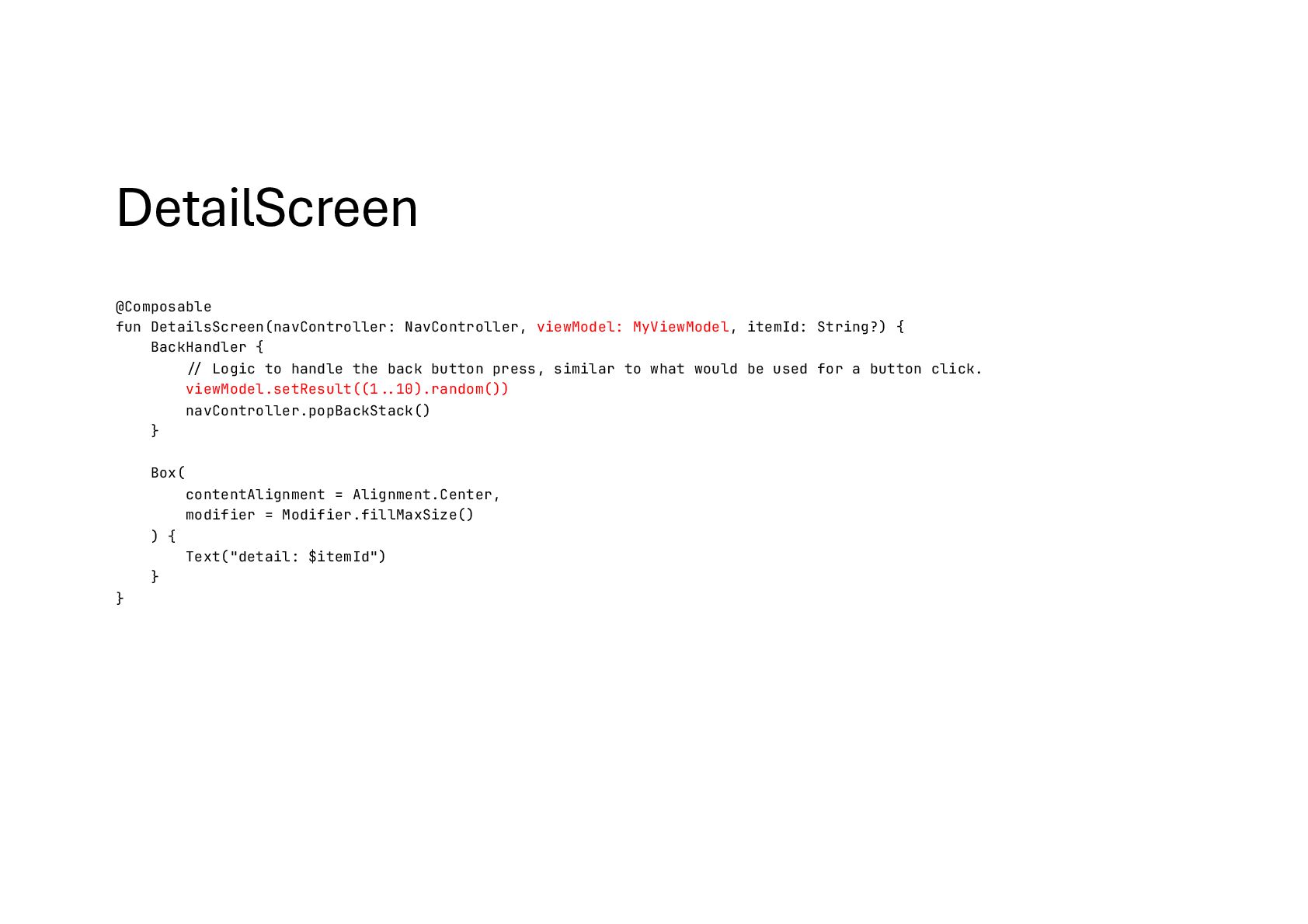

BackHandler { !// Logic to handle the back button press, similar to what would be used for a button click. viewModel.setResult((1!..10).random()) navController.popBackStack() } Box( contentAlignment = Alignment.Center, modifier = Modifier.fillMaxSize() ) { Text("detail: $itemId") } }

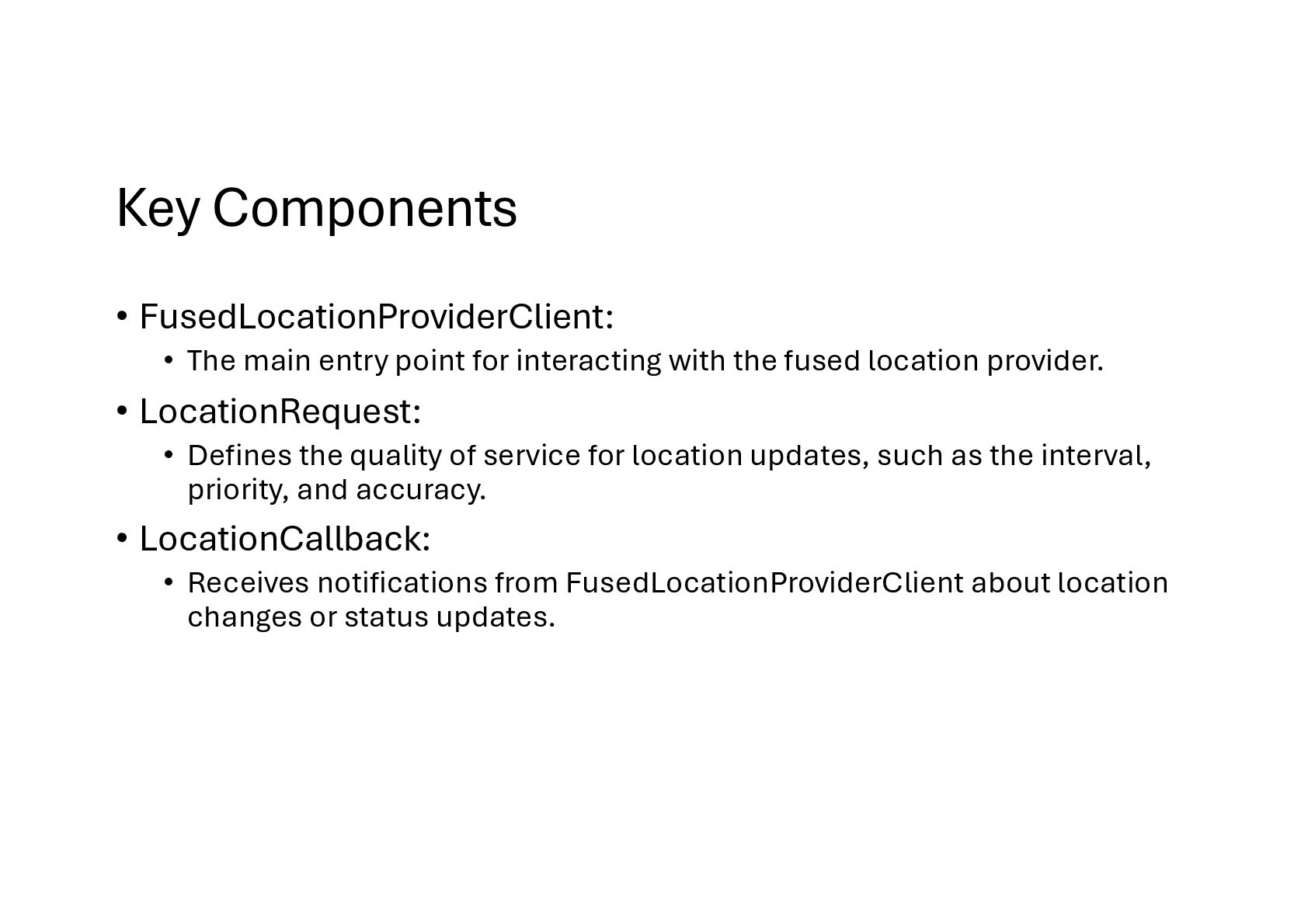

interacting with the fused location provider. • LocationRequest: • Defines the quality of service for location updates, such as the interval, priority, and accuracy. • LocationCallback: • Receives notifications from FusedLocationProviderClient about location changes or status updates.

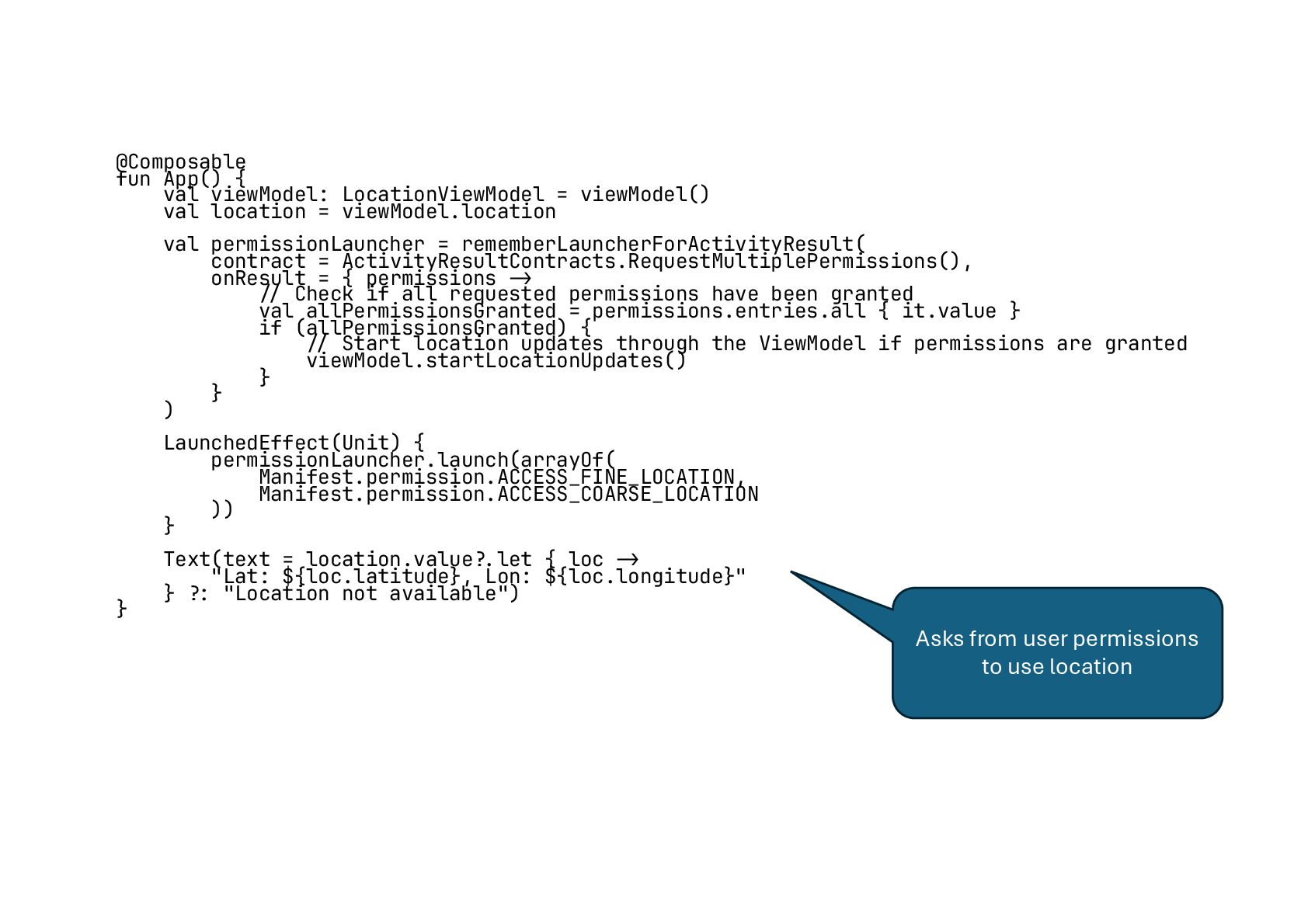

location = viewModel.location val permissionLauncher = rememberLauncherForActivityResult( contract = ActivityResultContracts.RequestMultiplePermissions(), onResult = { permissions -> "// Check if all requested permissions have been granted val allPermissionsGranted = permissions.entries.all { it.value } if (allPermissionsGranted) { "// Start location updates through the ViewModel if permissions are granted viewModel.startLocationUpdates() } } ) LaunchedEffect(Unit) { permissionLauncher.launch(arrayOf( Manifest.permission.ACCESS_FINE_LOCATION, Manifest.permission.ACCESS_COARSE_LOCATION )) } Text(text = location.value"?.let { loc -> "Lat: ${loc.latitude}, Lon: ${loc.longitude}" } "?: "Location not available") } Asks from user permissions to use location

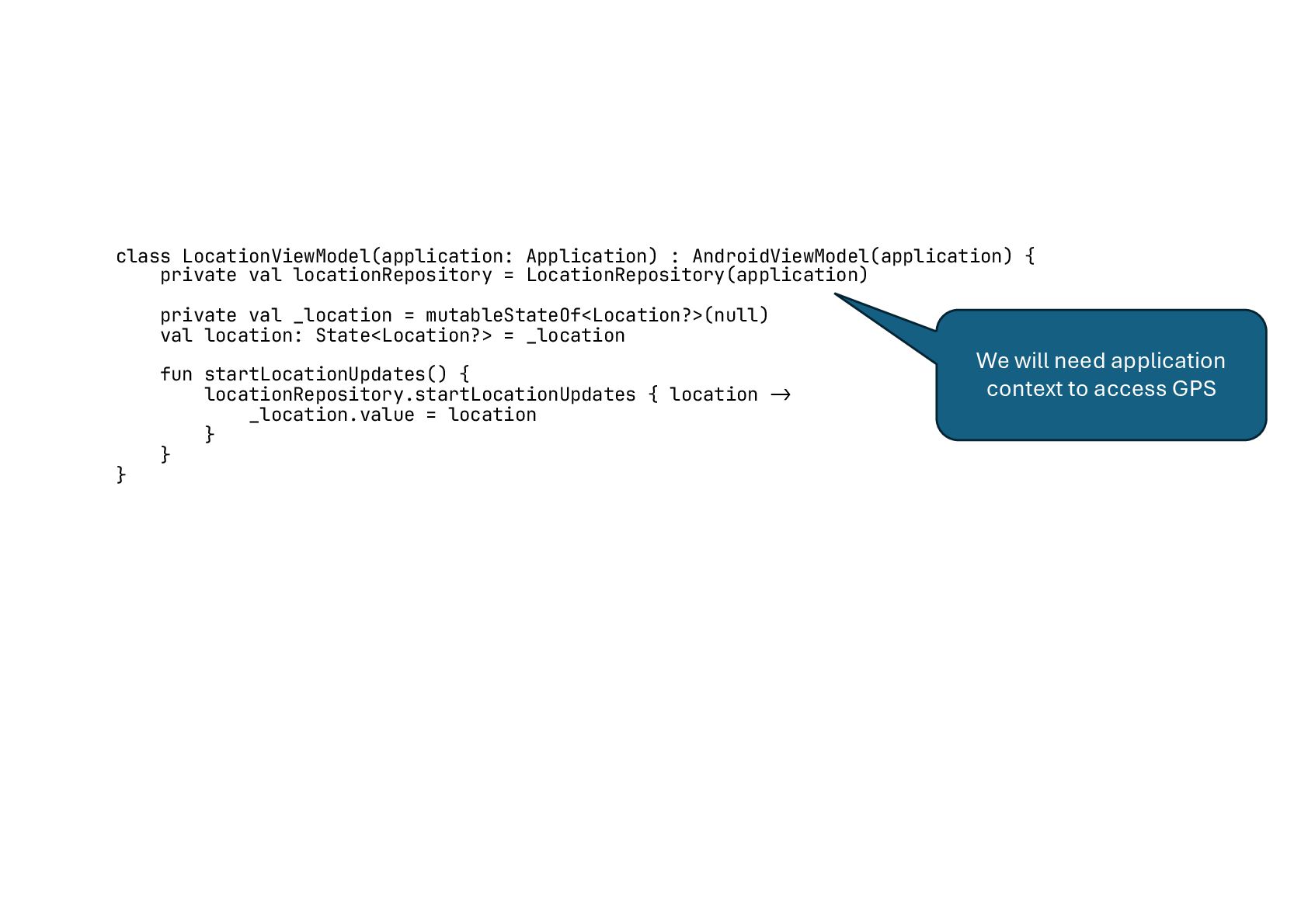

LocationRepository(application) private val _location = mutableStateOf<Location?>(null) val location: State<Location?> = _location fun startLocationUpdates() { locationRepository.startLocationUpdates { location -> _location.value = location } } } We will need application context to access GPS
