Practical Tips and Tricks to Improve Your Compose Previews (Droidcon Lisbon 2025)

@Preview(device = "spec:width=960dp,height=1080dp,dpi=480") @Composable private fun TitleSlidePreview() { PreviewBox {
TitleSlide() } } @Composable private fun TitleSlide() { Column( modifier = Modifier .fillMaxSize() .paint( painter = painterResource( id = R.drawable.glenn_carstens_peters, ), contentScale = ContentScale.FillBounds, ) .padding(32.dp) ) { Title( modifier = Modifier .fillMaxWidth() .padding(top = 32.dp), fontSize = 70.sp, ) Column( horizontalAlignment = CenterHorizontally, modifier = Modifier .fillMaxWidth() ) { Name( modifier = Modifier .weight(1f) .padding(bottom = 66.dp), imageHeight = 66.dp, textSize = 70.sp, ) Contacts( modifier = Modifier .padding( bottom = 16.dp, end = 16.dp, ), fontSize = 50.sp, ) } } } Practical Tips and Tricks to Improve Your Compose Previews István Juhos @istvanjuhos.dev

@istvanjuhos.dev #dclx25 Context and tooling

Food for thought 🍲💭

@istvanjuhos.dev #dclx25 XML preview

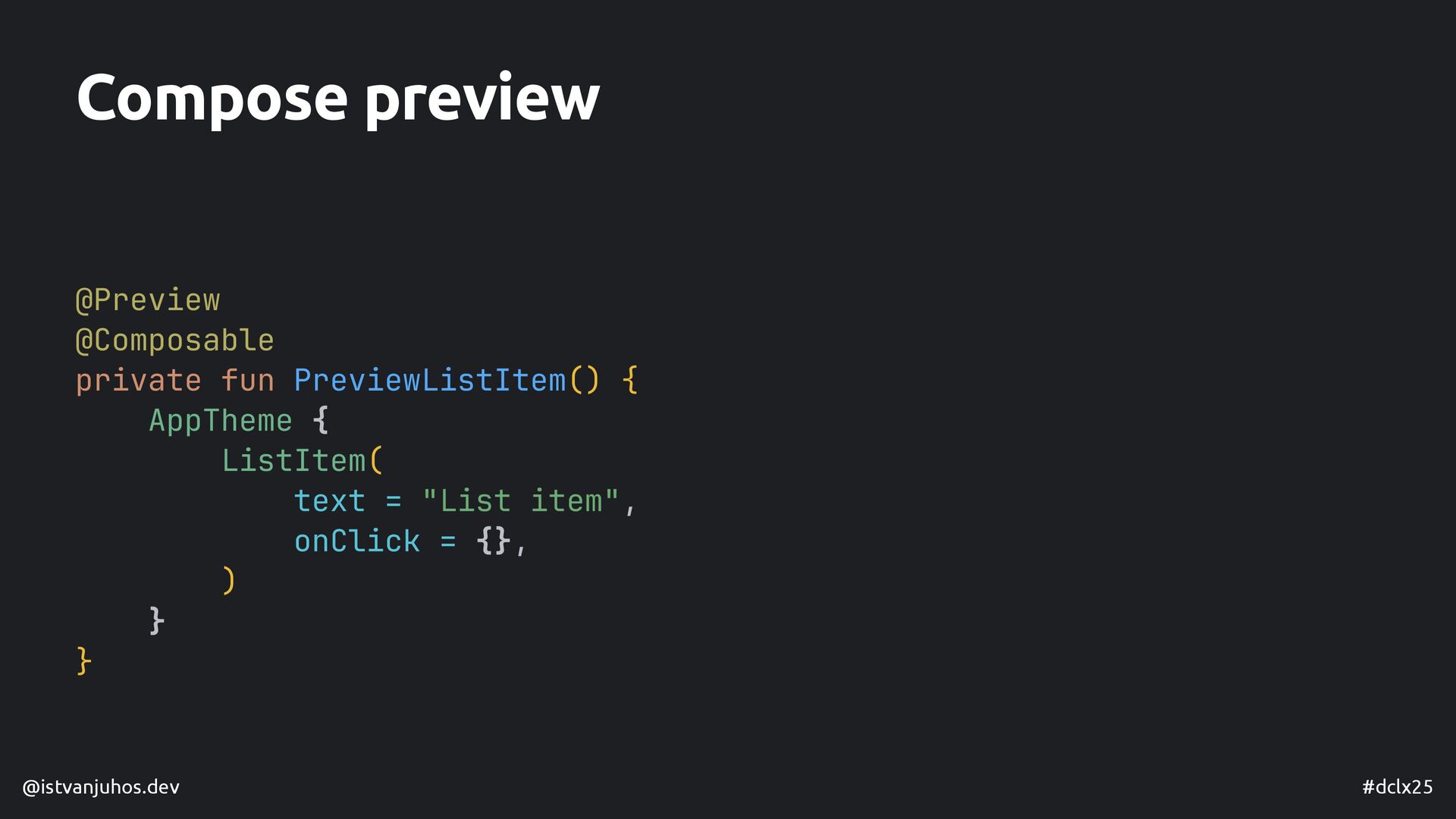

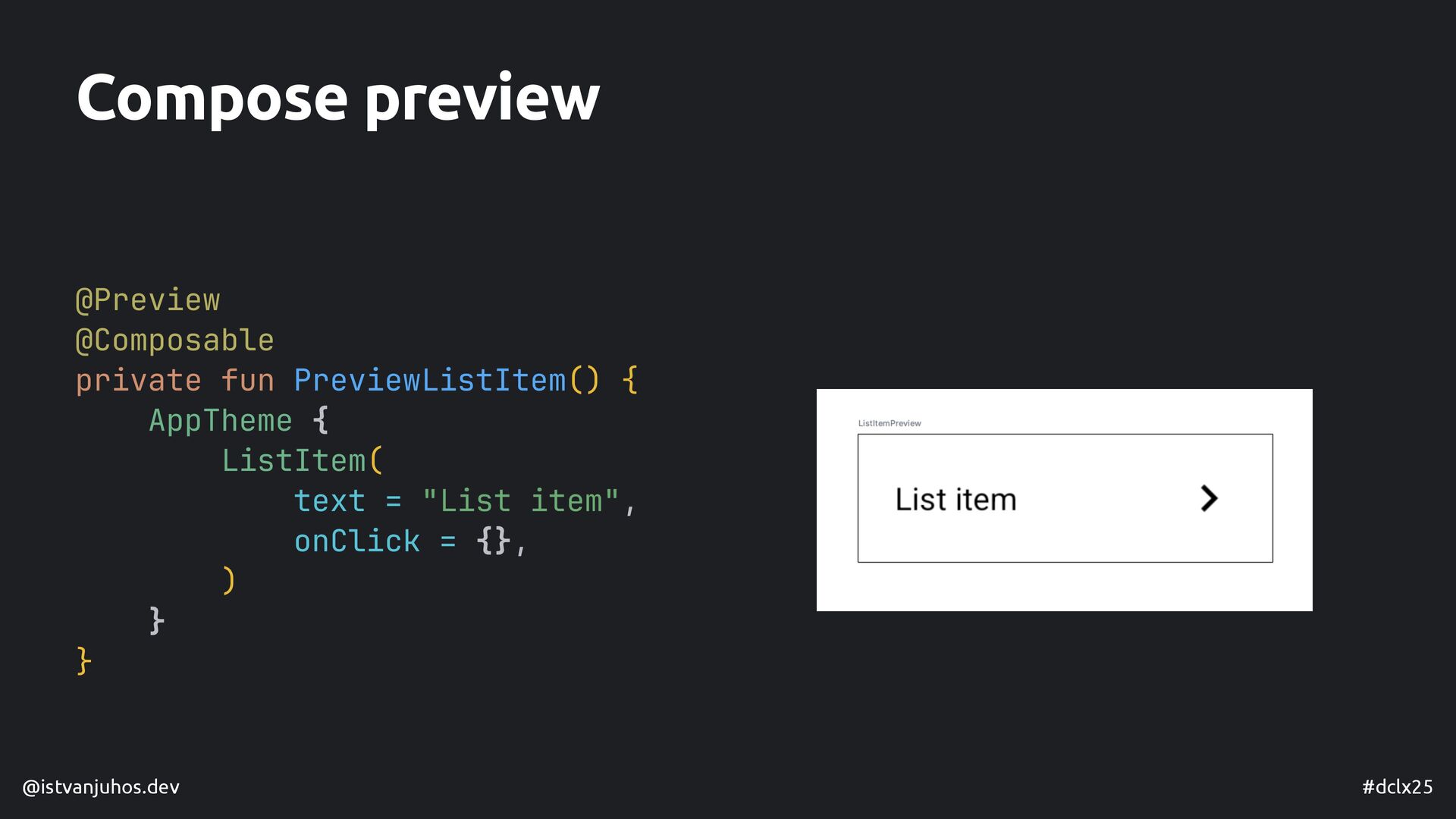

@istvanjuhos.dev #dclx25 Compose preview

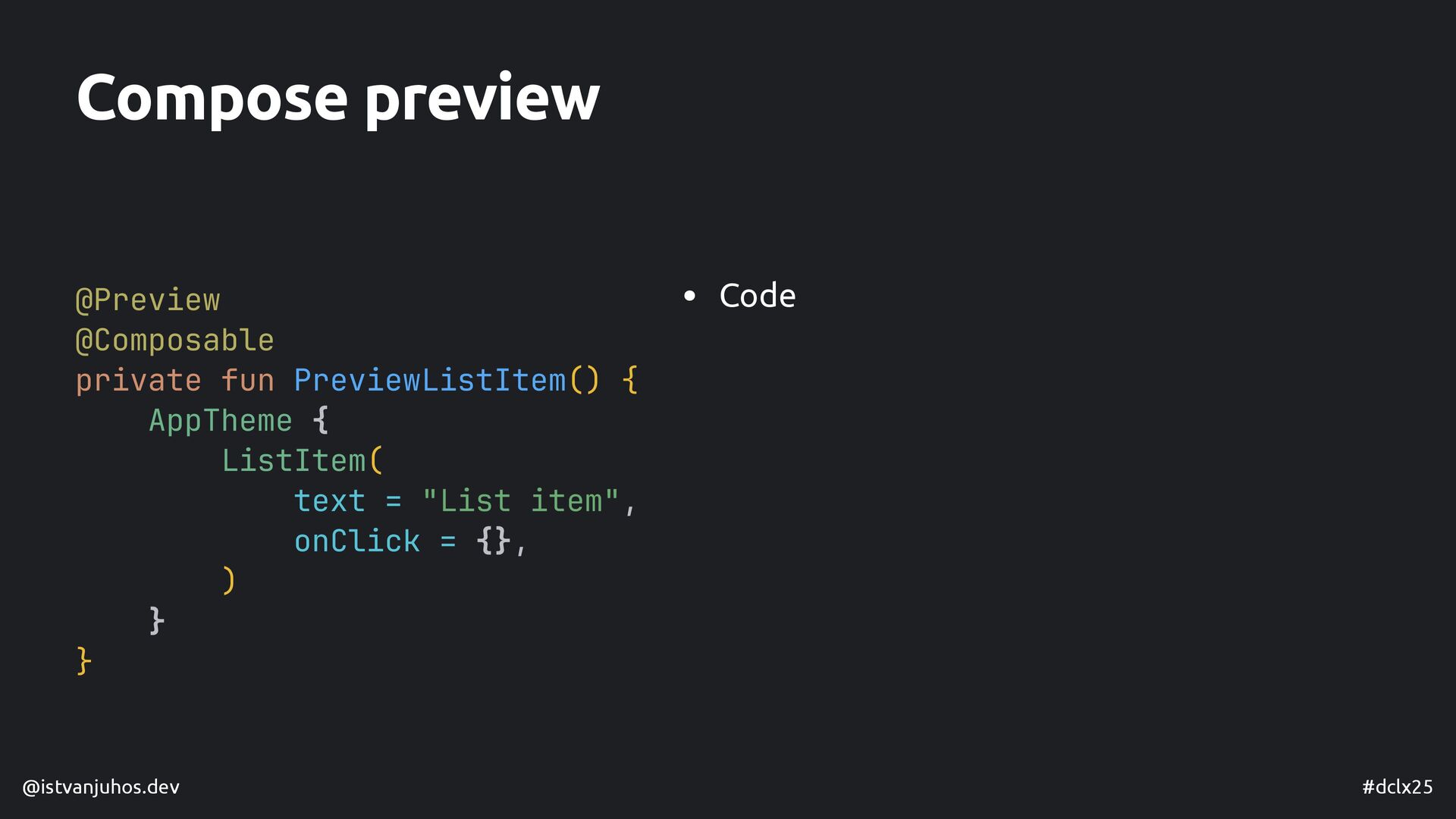

@istvanjuhos.dev #dclx25 @Preview @Composable private fun PreviewListItem() { AppTheme {
ListItem( text = "List item", onClick = {}, ) } } Compose preview

ListItem( text = "List item", onClick = {}, ) } } • Code Compose preview

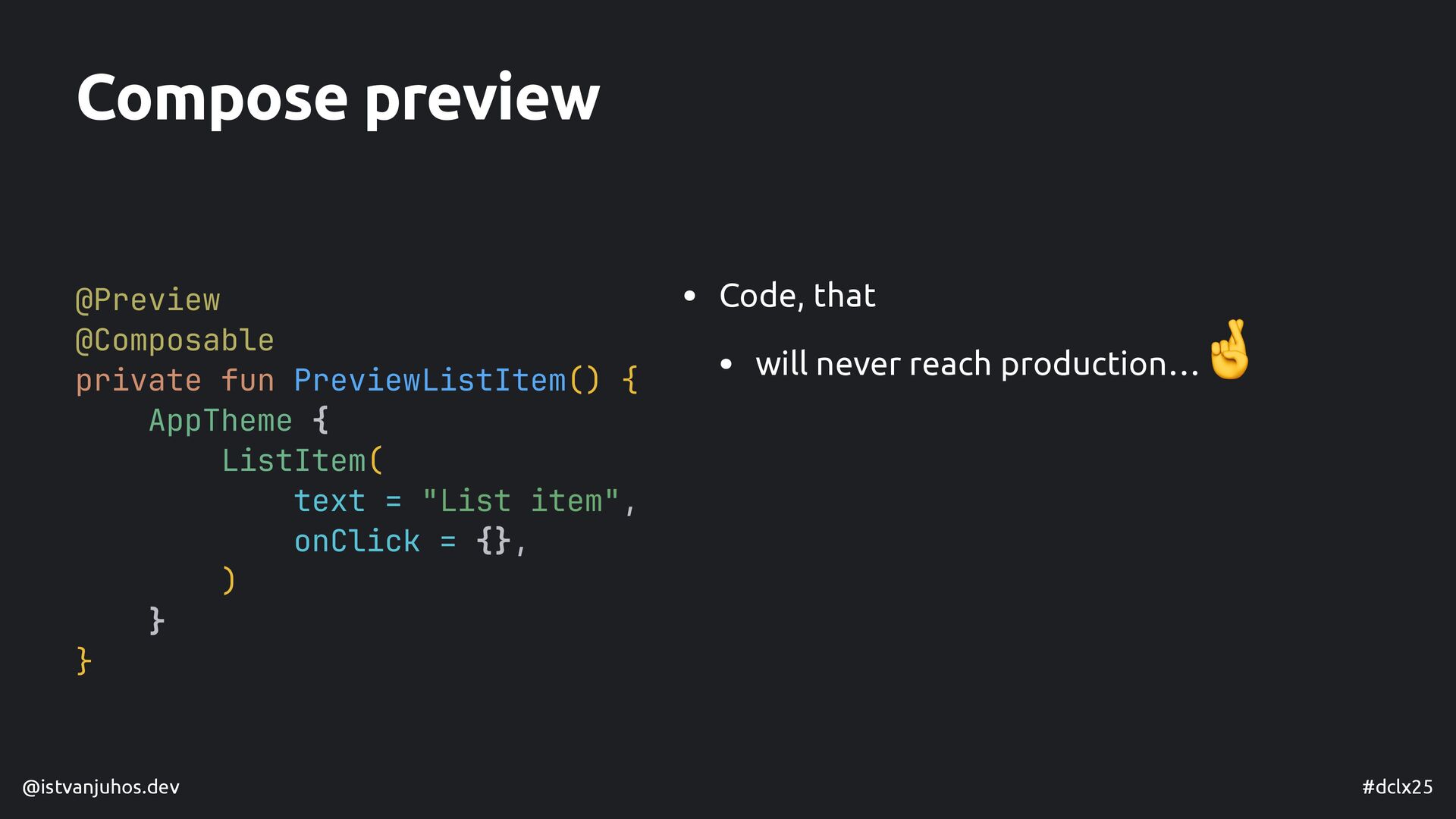

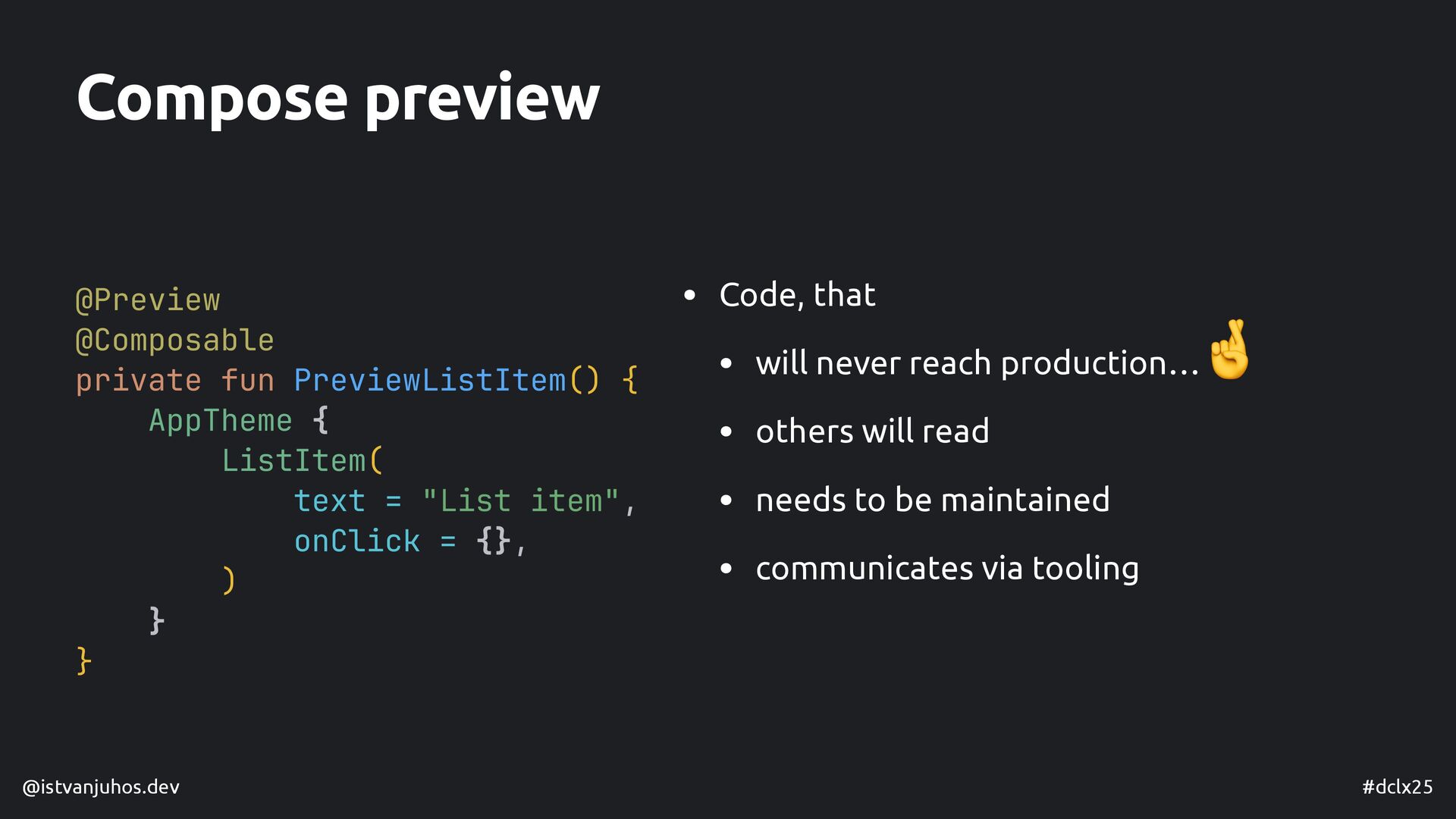

@istvanjuhos.dev #dclx25 • Code, that • will never reach production
@Preview @Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } } Compose preview

@istvanjuhos.dev #dclx25 • Code, that • will never reach productio
n … 🤞 @Preview @Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } } Compose preview

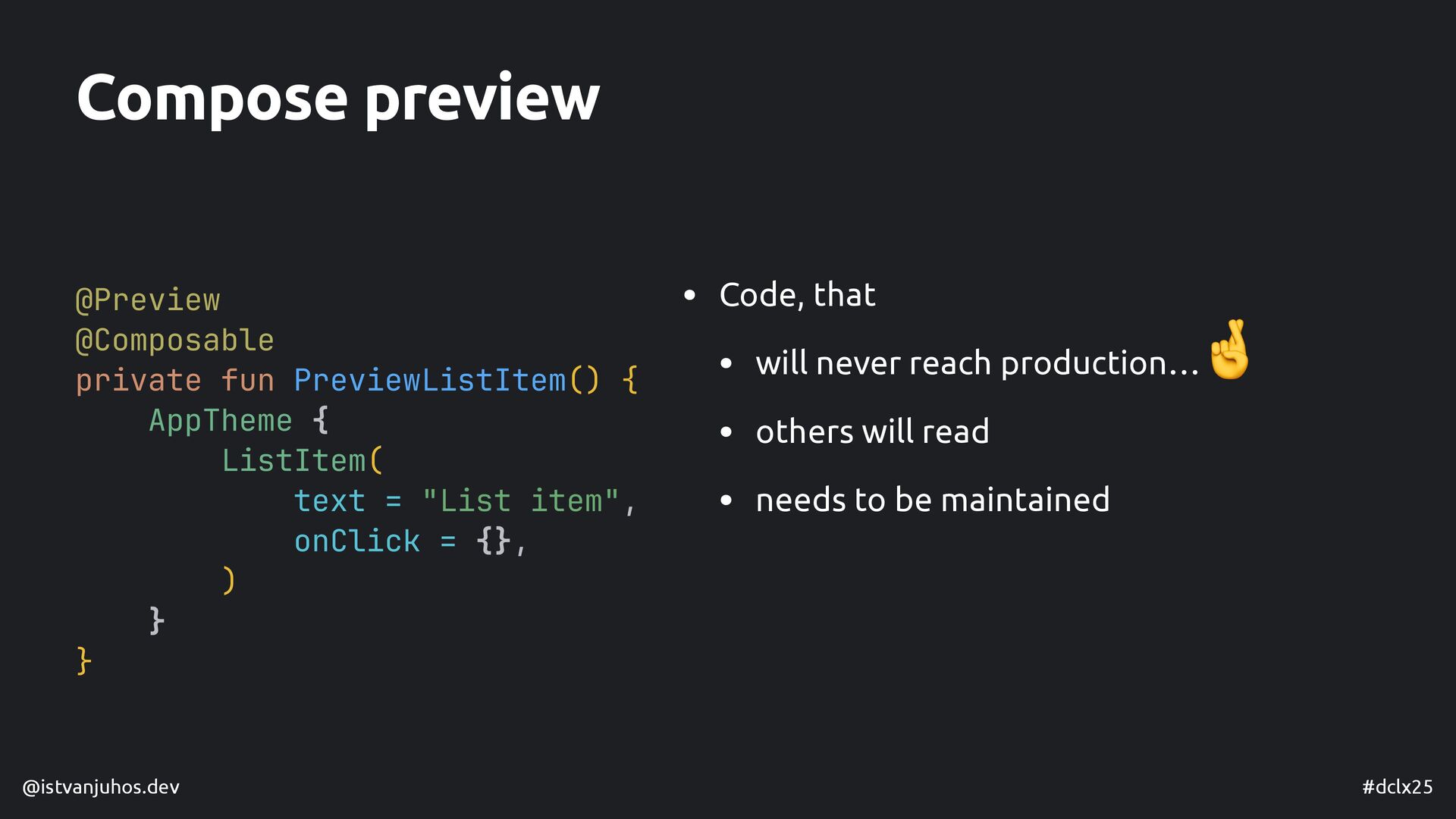

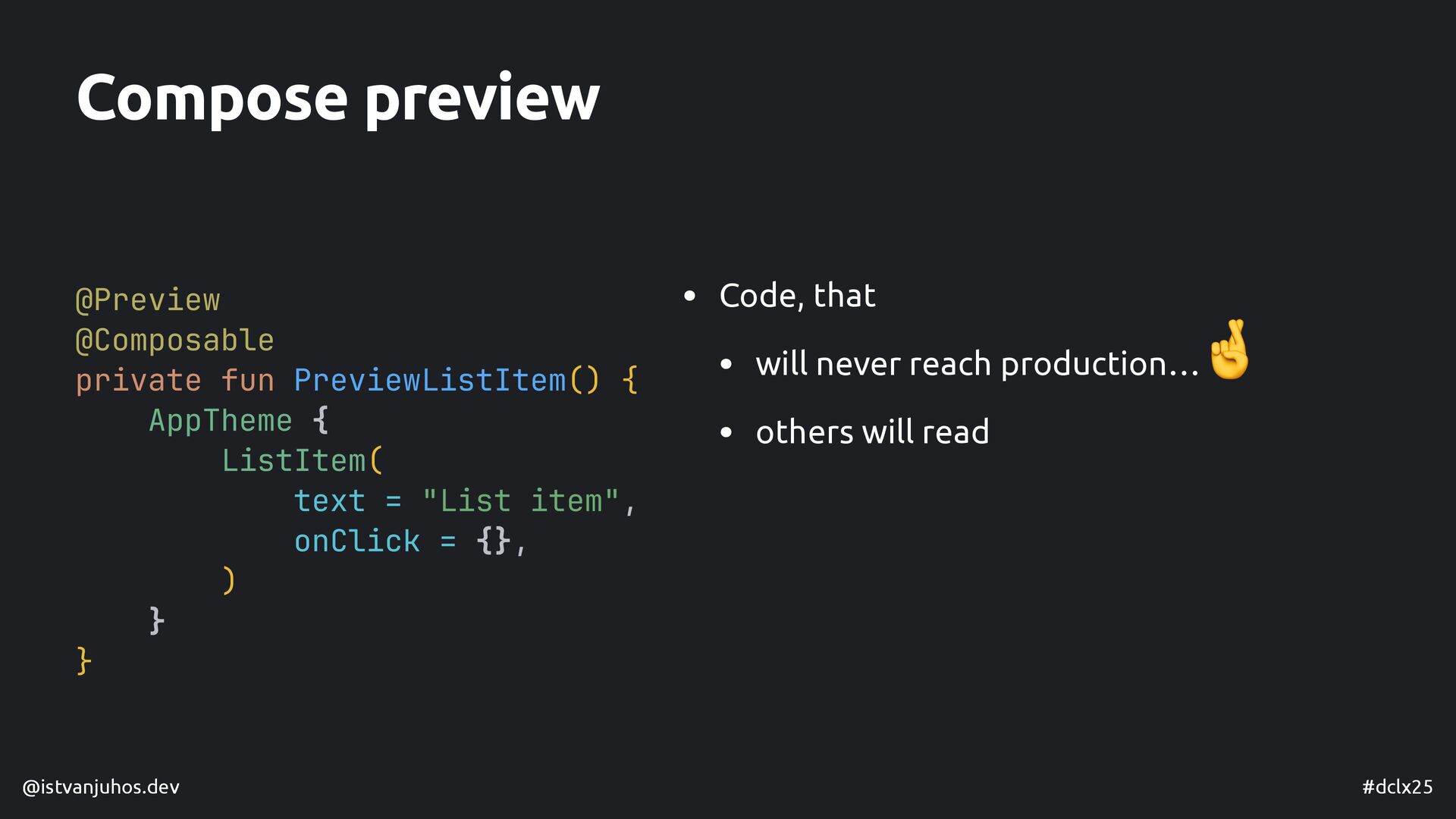

@istvanjuhos.dev #dclx25 • Code, that • will never reach production…
• others will read 🤞 @Preview @Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } } Compose preview

• others will read • needs to be maintained 🤞 @Preview @Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } } Compose preview

• others will read • needs to be maintained • communicates via tooling 🤞 @Preview @Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } } Compose preview

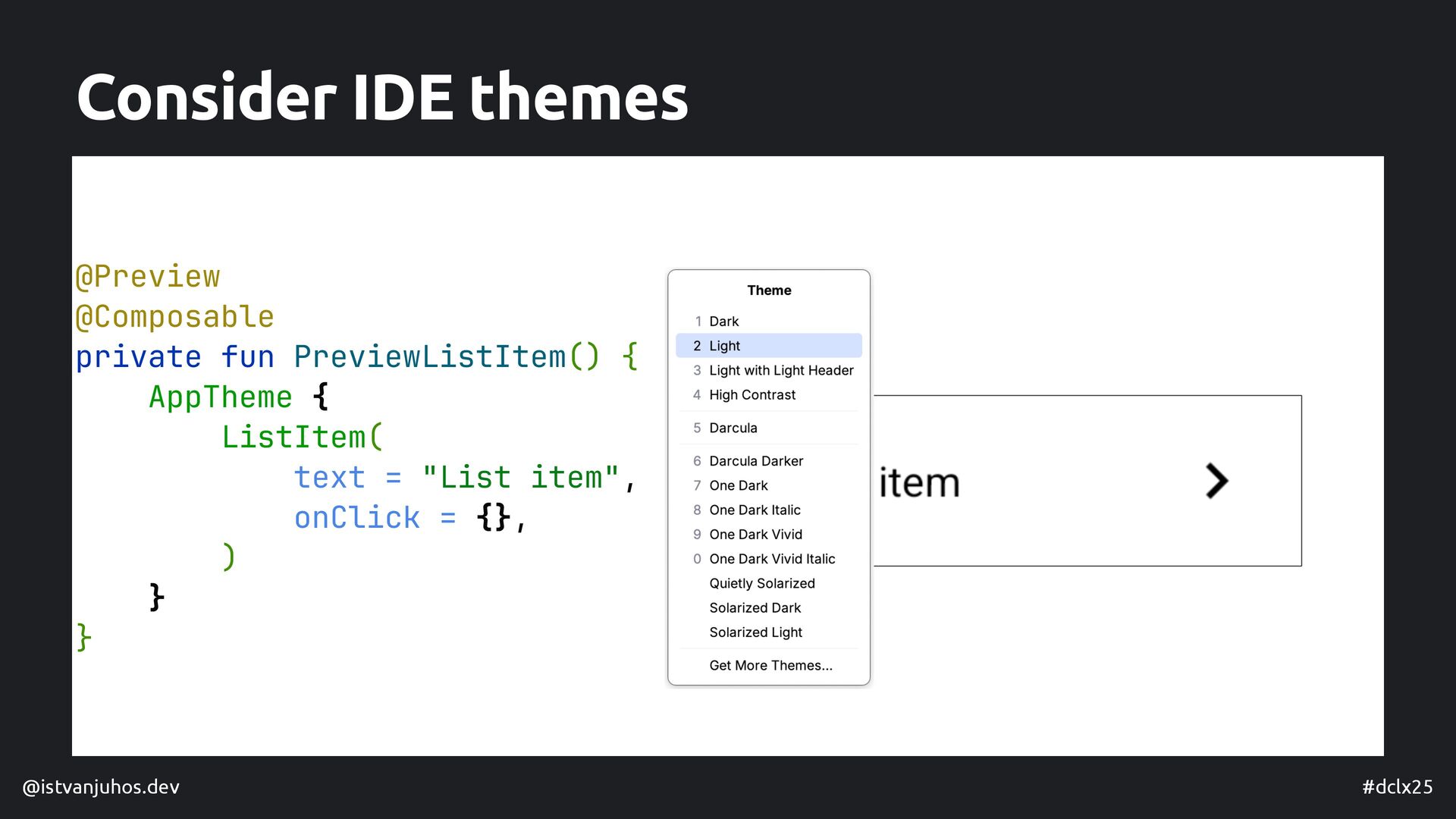

Consider IDE themes 🎨

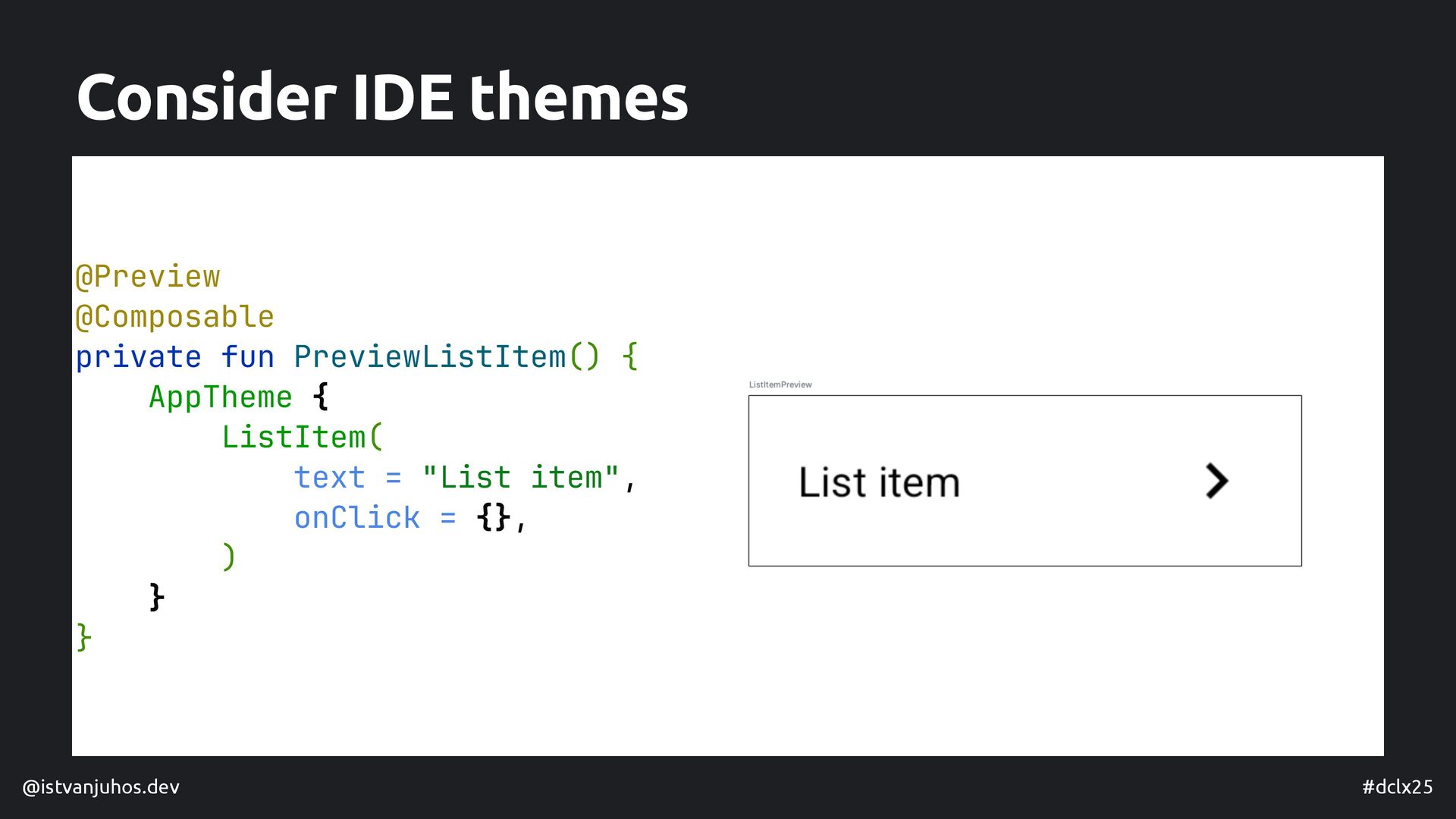

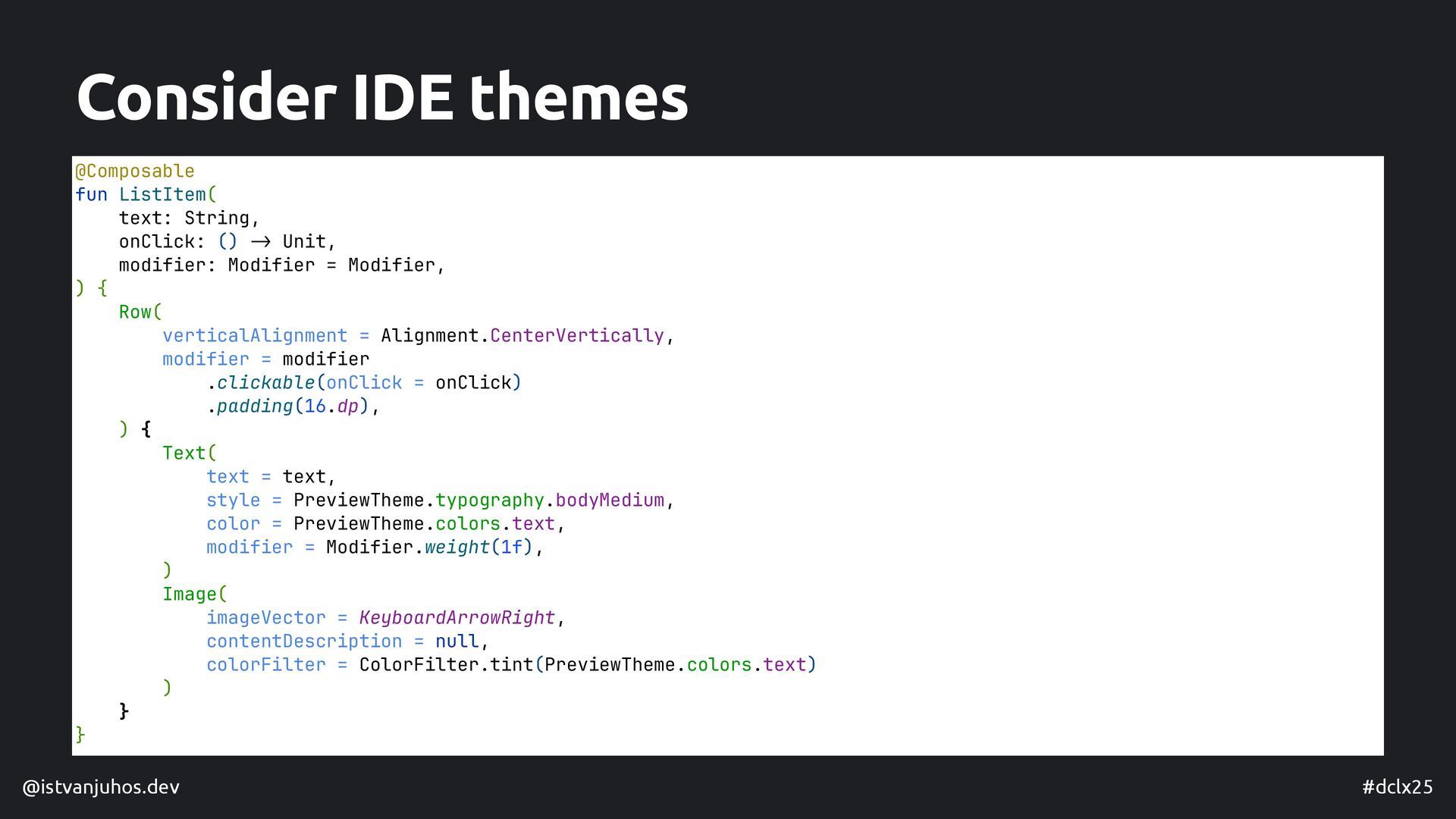

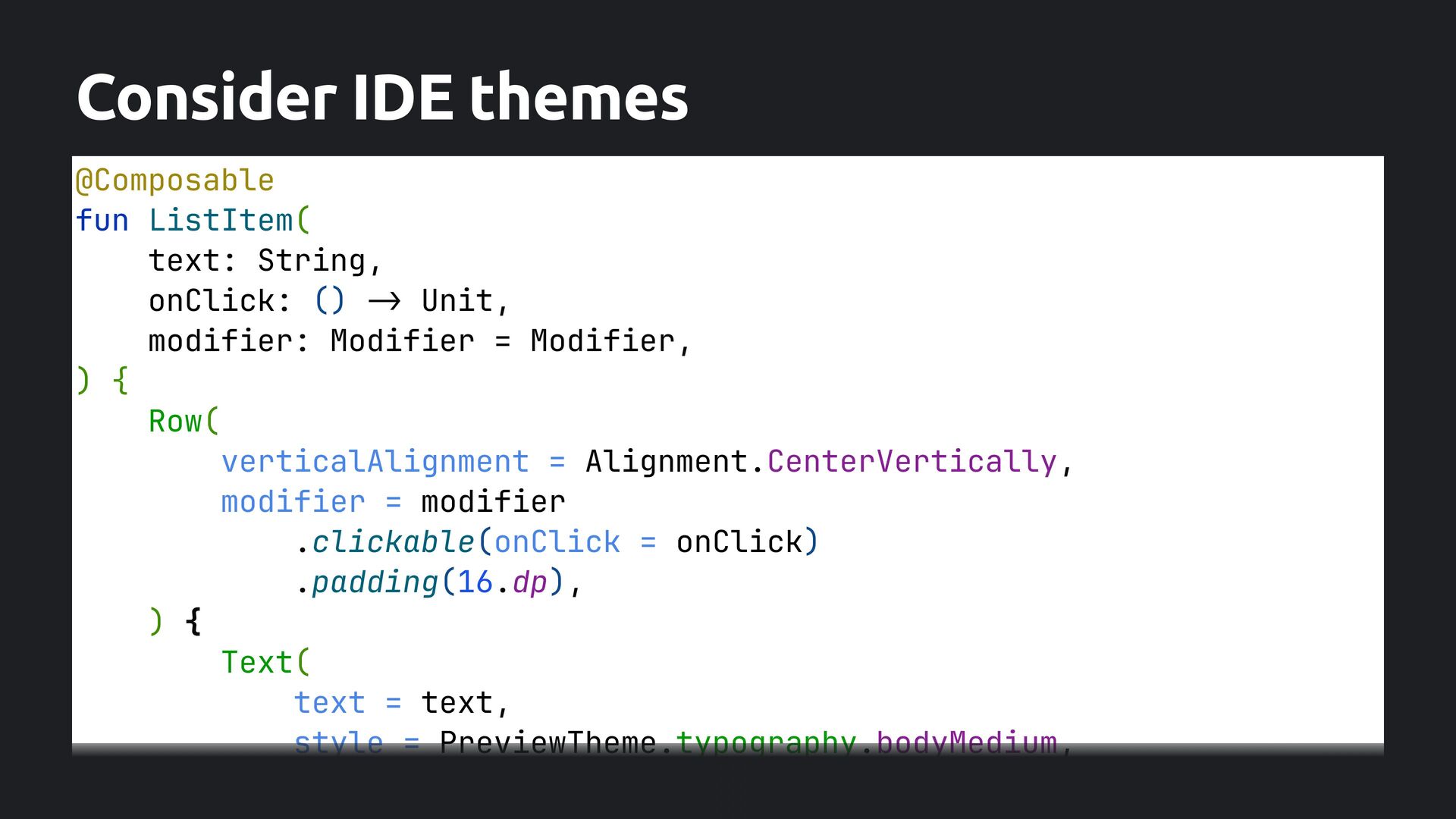

@istvanjuhos.dev #dclx25 Consider IDE themes @Composable fun ListItem( text: String,
onClick: () -> Unit, modifier: Modifier = Modifier, ) { Row( verticalAlignment = Alignment.CenterVertically, modifier = modifier .clickable(onClick = onClick) .padding(16.dp), ) { Text( text = text, style = PreviewTheme.typography.bodyMedium, color = PreviewTheme.colors.text, modifier = Modifier.weight(1f), ) Image( imageVector = KeyboardArrowRight, contentDescription = null, colorFilter = ColorFilter.tint(PreviewTheme.colors.text) ) } }

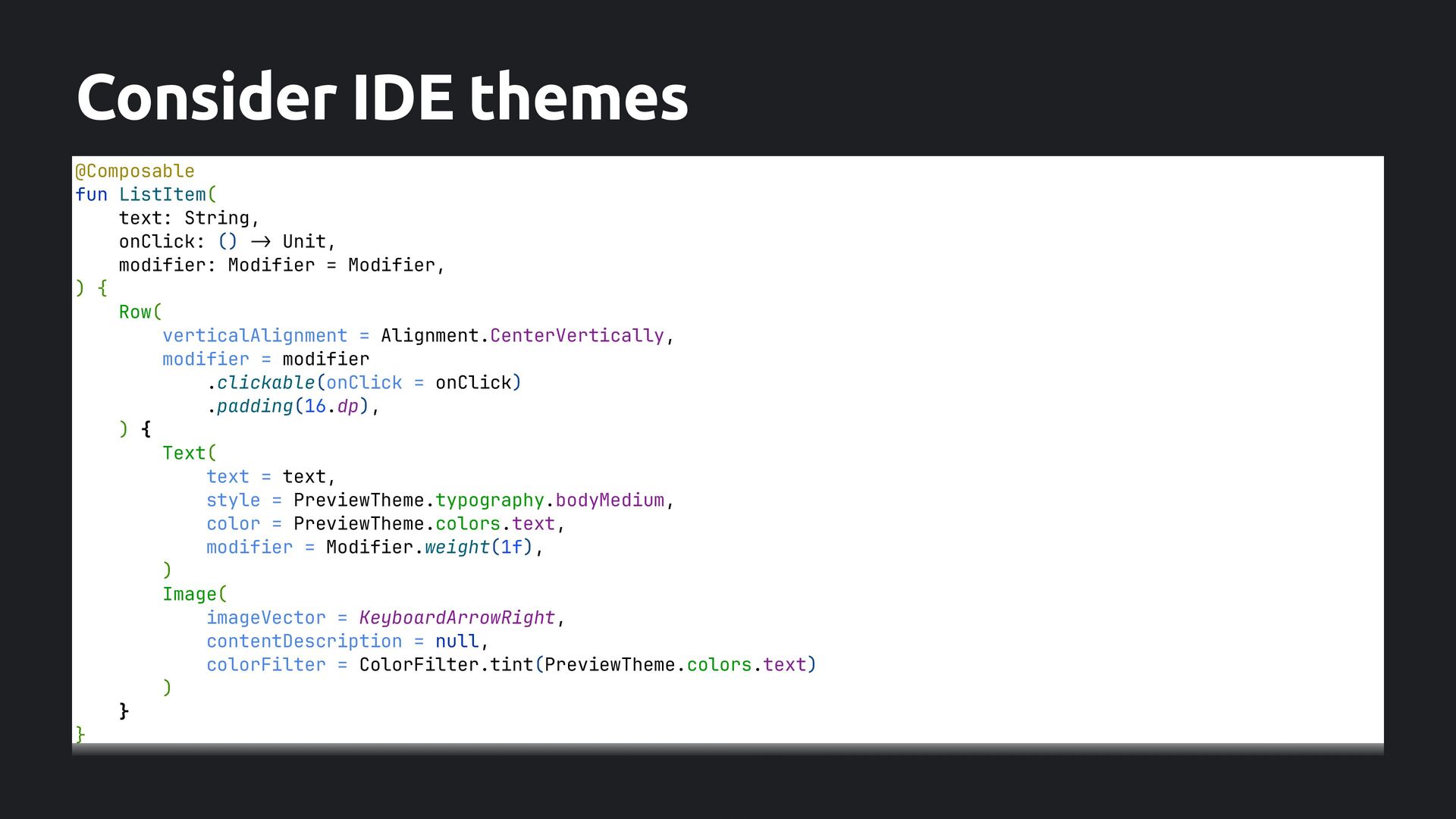

Consider IDE themes • Render Composable functions annotated with @Preview
@Composable fun ListItem( text: String, onClick: () -> Unit, modifier: Modifier = Modifier, ) { Row( verticalAlignment = Alignment.CenterVertically, modifier = modifier .clickable(onClick = onClick) .padding(16.dp), ) { Text( text = text, style = PreviewTheme.typography.bodyMedium, color = PreviewTheme.colors.text, modifier = Modifier.weight(1f), ) Image( imageVector = KeyboardArrowRight, contentDescription = null, colorFilter = ColorFilter.tint(PreviewTheme.colors.text) ) } }

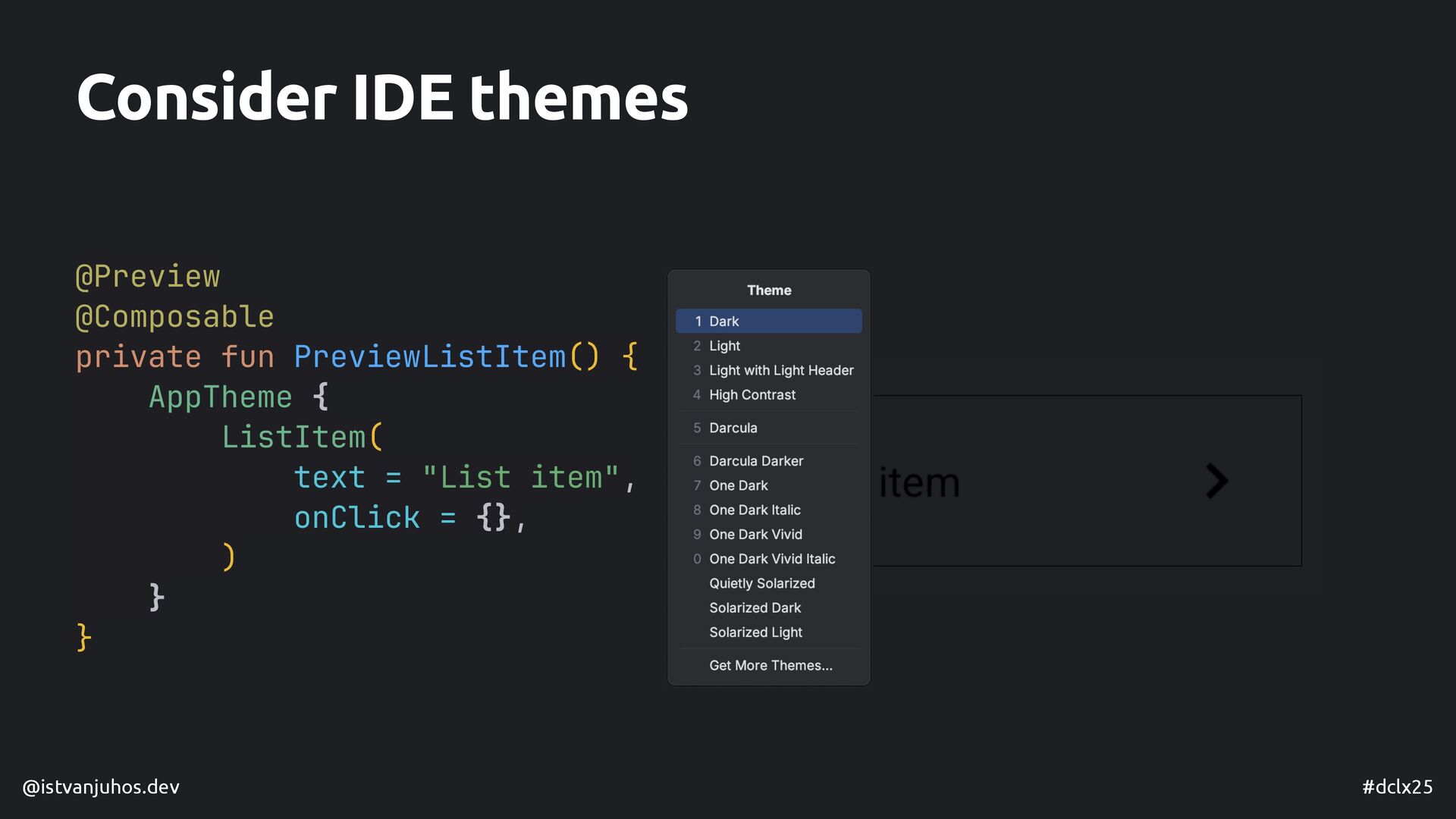

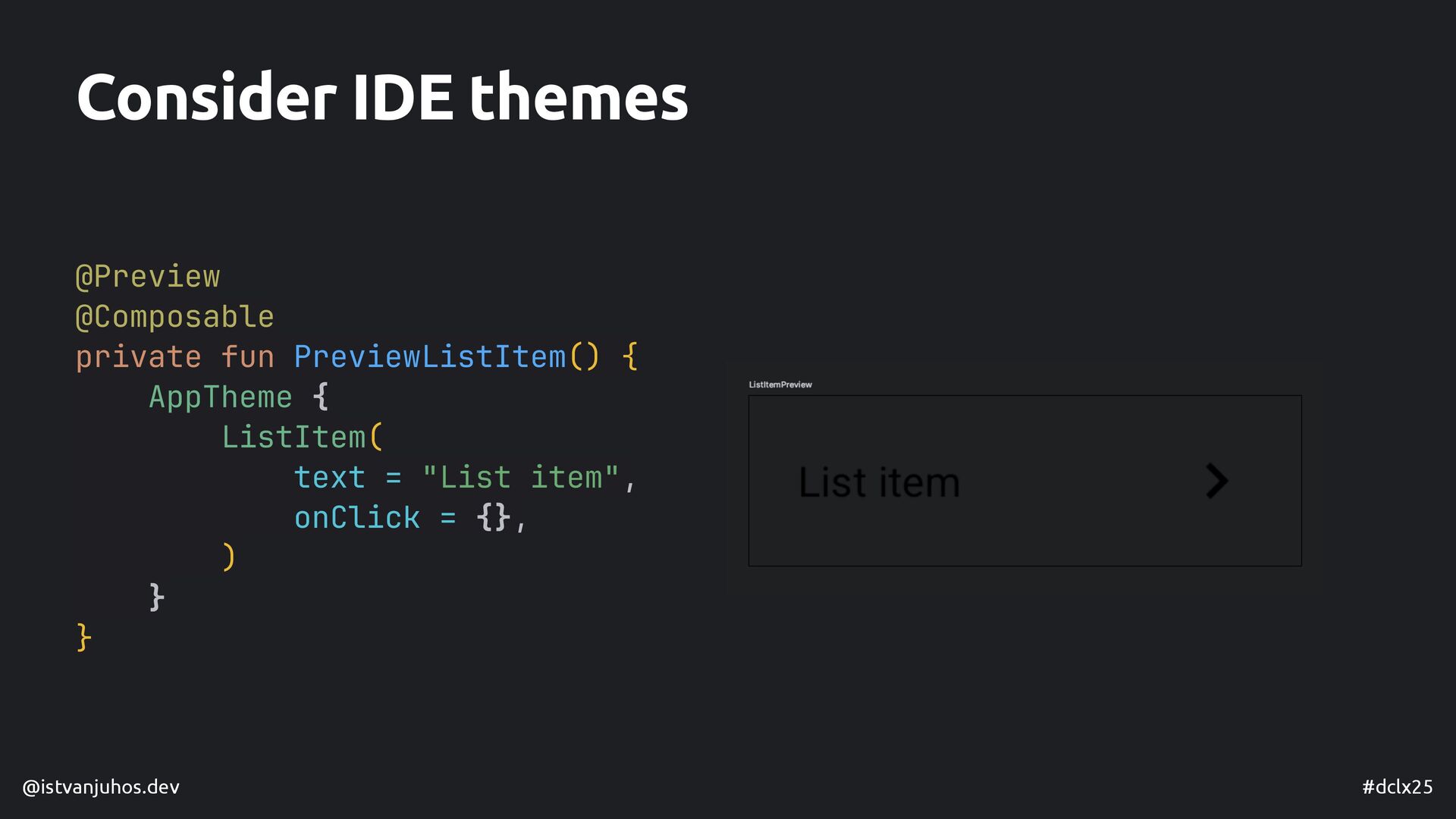

Consider IDE themes • Render Composable functions annotated with @Preview
@Composable fun ListItem( text: String, onClick: () -> Unit, modifier: Modifier = Modifier, ) { Row( verticalAlignment = Alignment.CenterVertically, modifier = modifier .clickable(onClick = onClick) .padding(16.dp), ) { Text( text = text, style = PreviewTheme.typography.bodyMedium, color = PreviewTheme.colors.text,

@istvanjuhos.dev #dclx25 Consider IDE themes @Preview @Composable private fun PreviewListItem()
{ AppTheme { ListItem( text = "List item", onClick = {}, ) } }

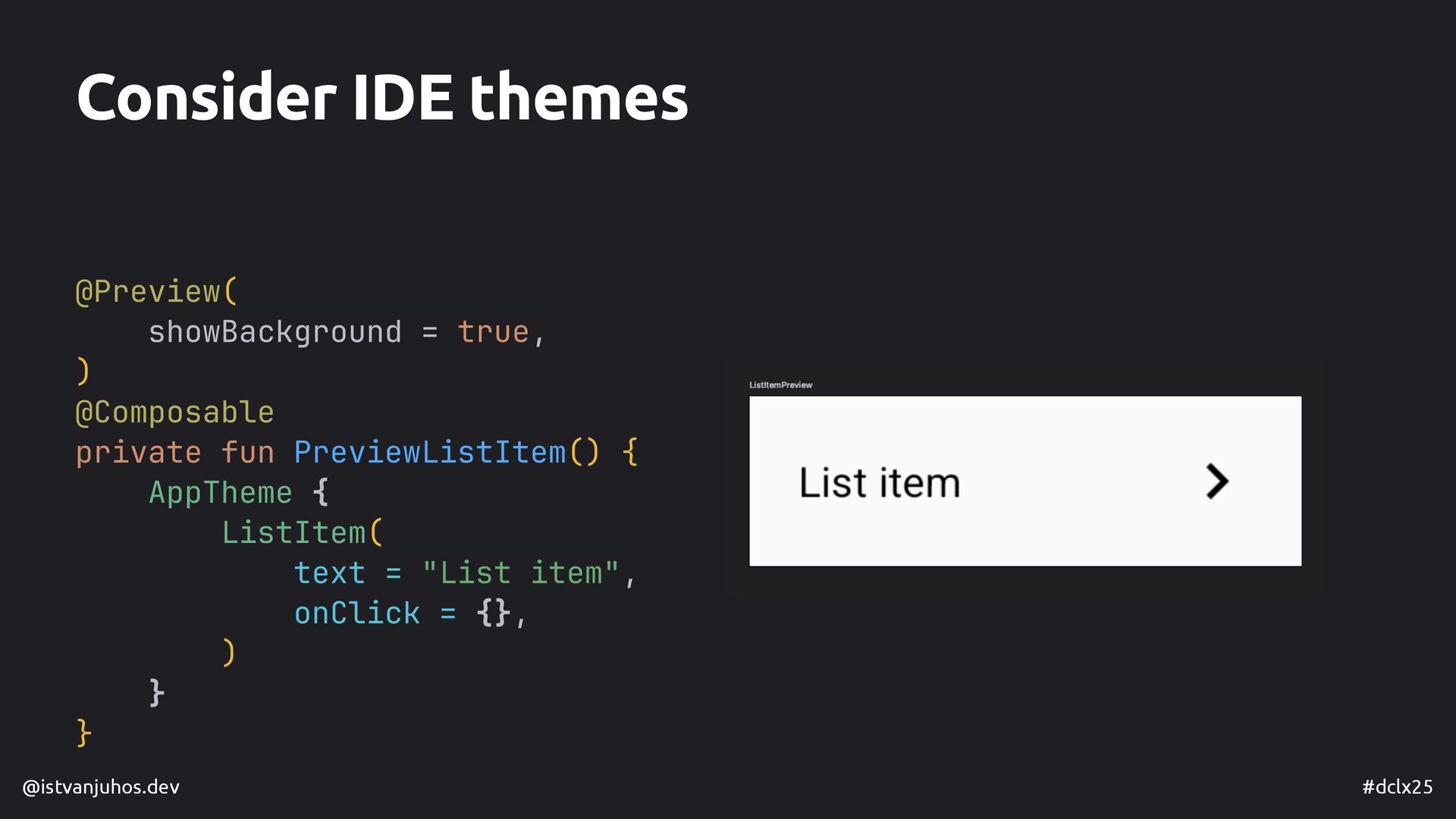

ListItem( text = "List item", onClick = {}, ) } } Consider IDE themes

@istvanjuhos.dev #dclx25 @Preview( showBackground = true, ) @Composable private fun
PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } } Consider IDE themes

PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } } Consider IDE themes vs

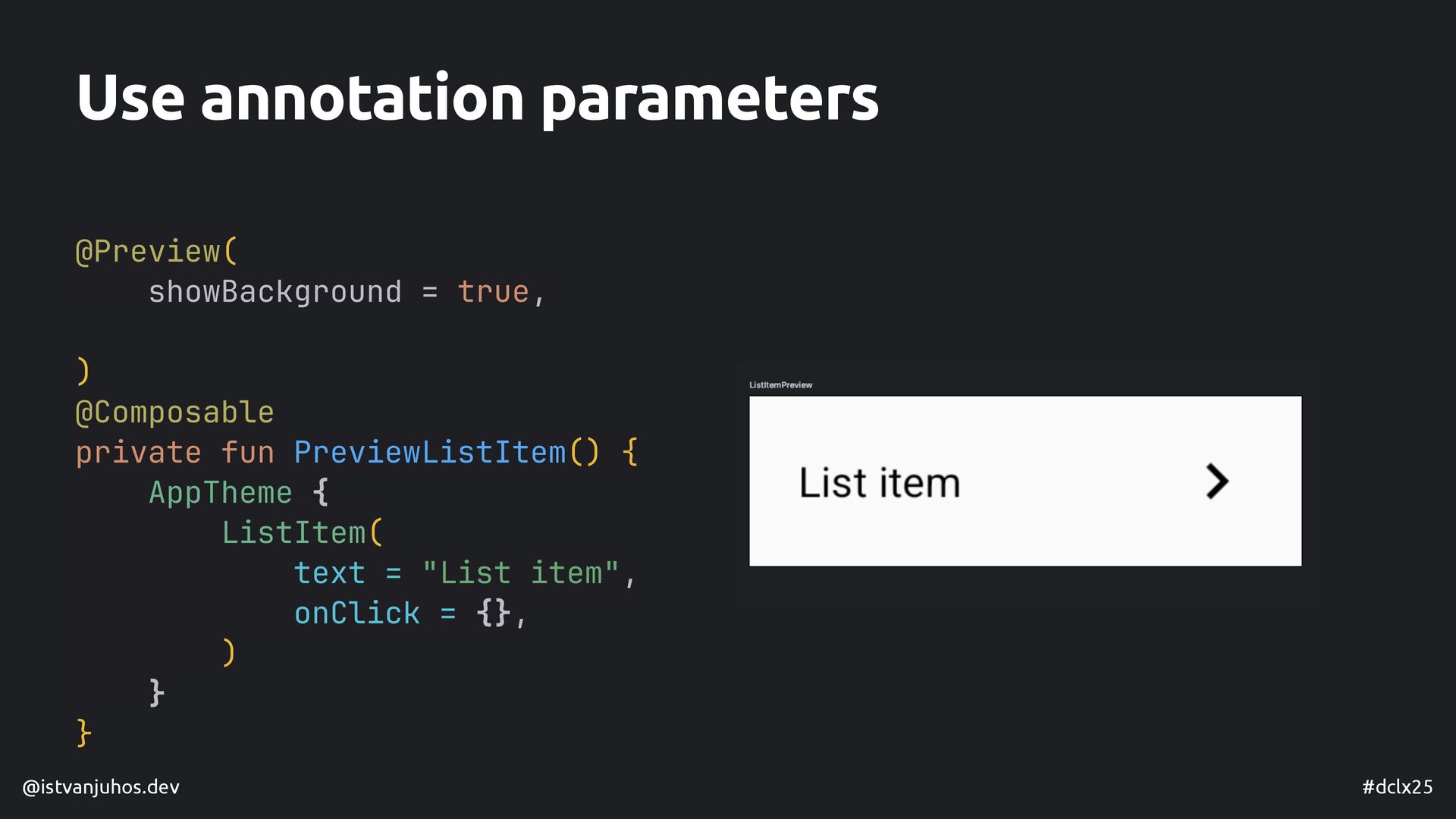

Use annotation parameters ⚙

PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } } Use annotation parameters

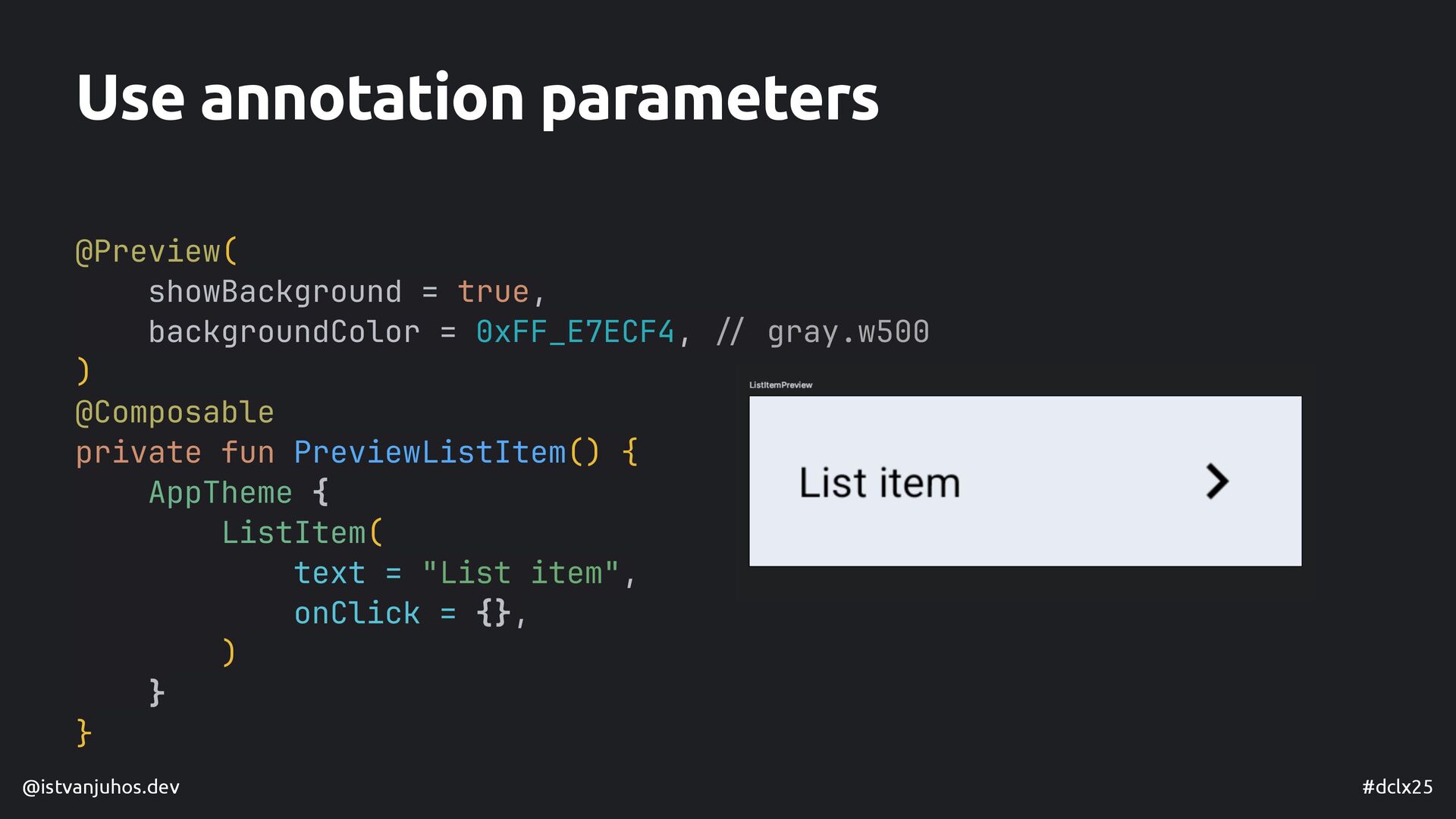

@istvanjuhos.dev #dclx25 @Preview( showBackground = true, backgroundColor = 0xFF_E7ECF4, )
@Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } } Use annotation parameters

@istvanjuhos.dev #dclx25 @Preview( showBackground = true, backgroundColor = 0xFF_E7ECF4, //
gray.w500 ) @Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } } Use annotation parameters

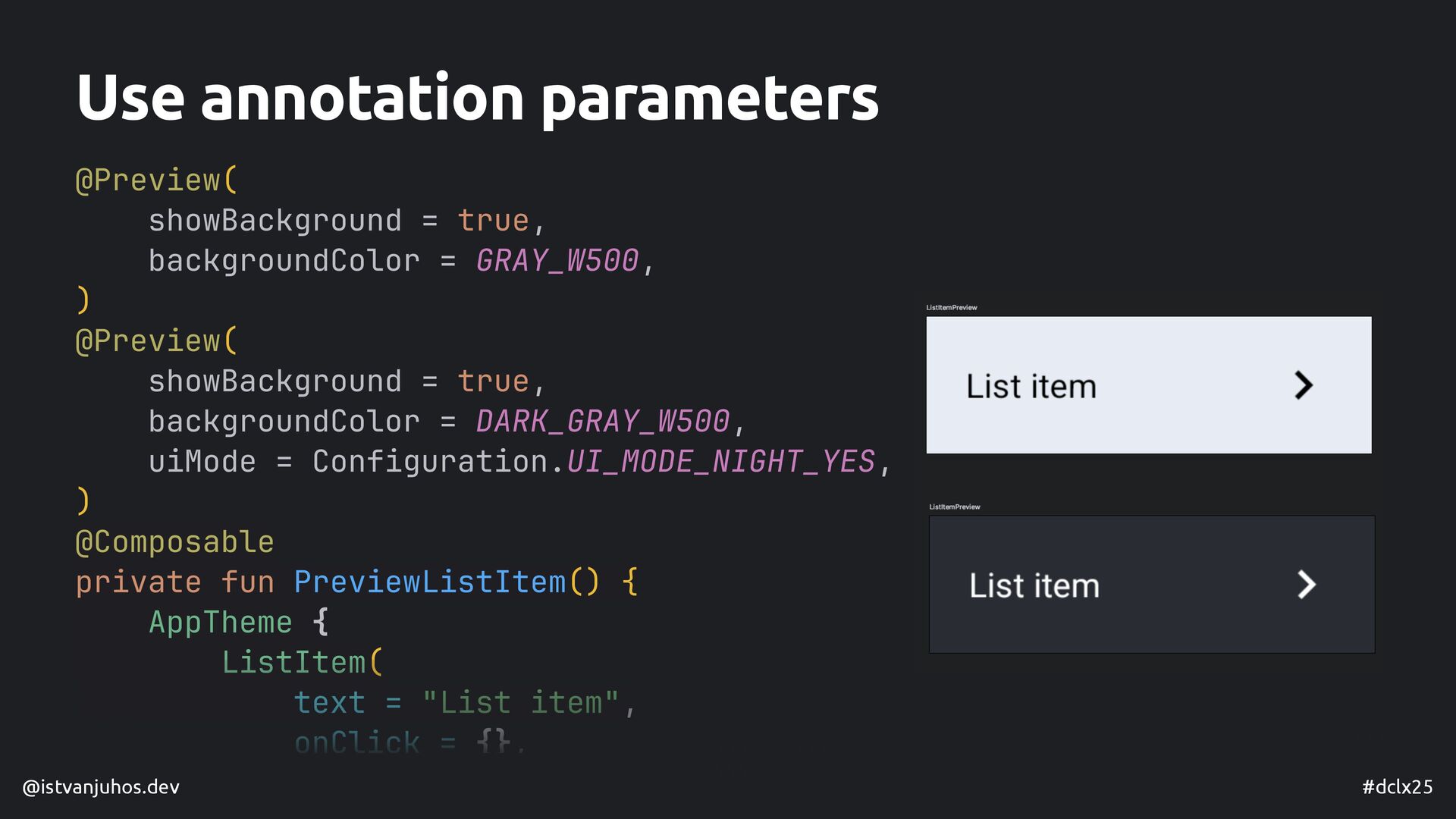

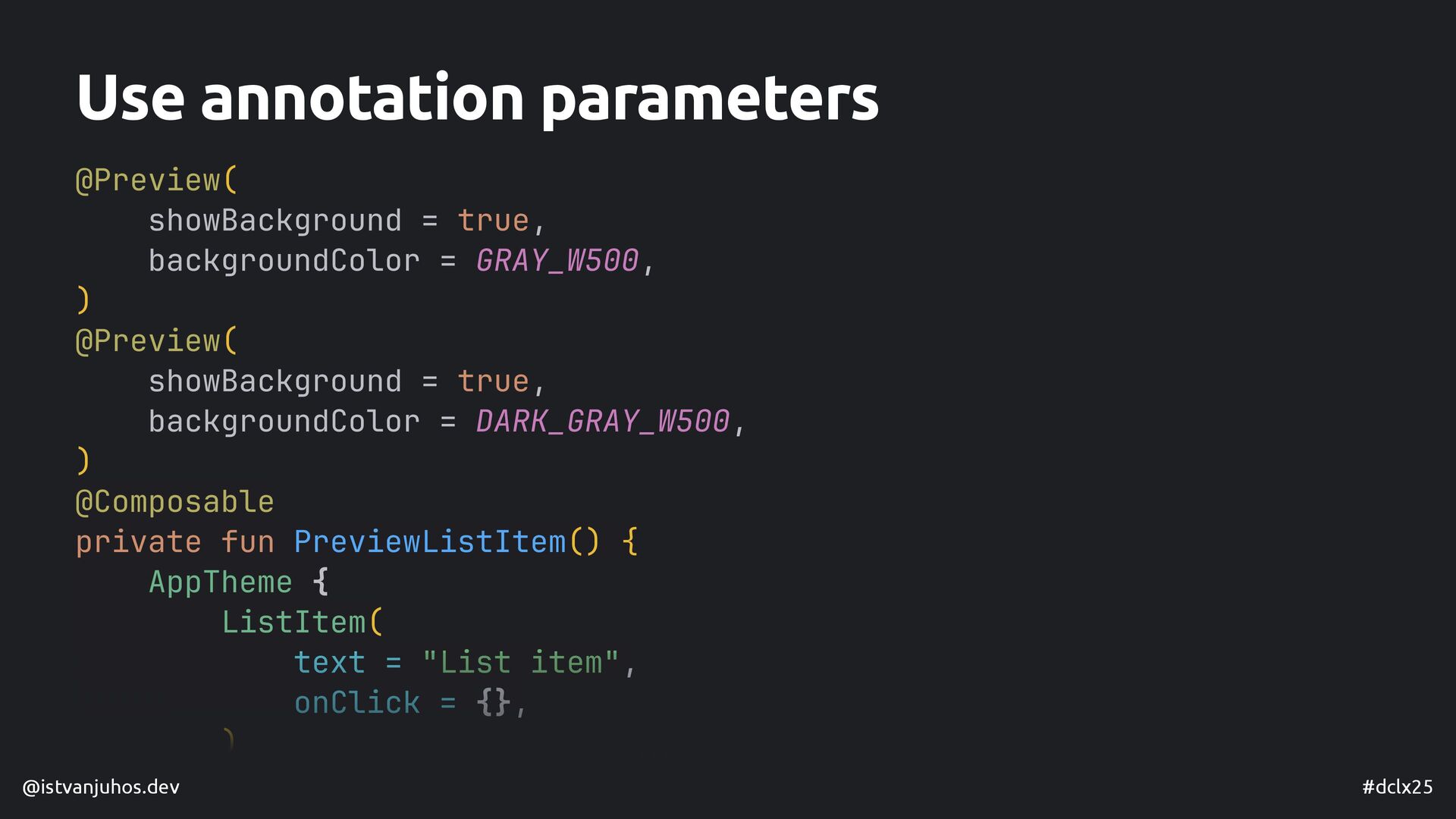

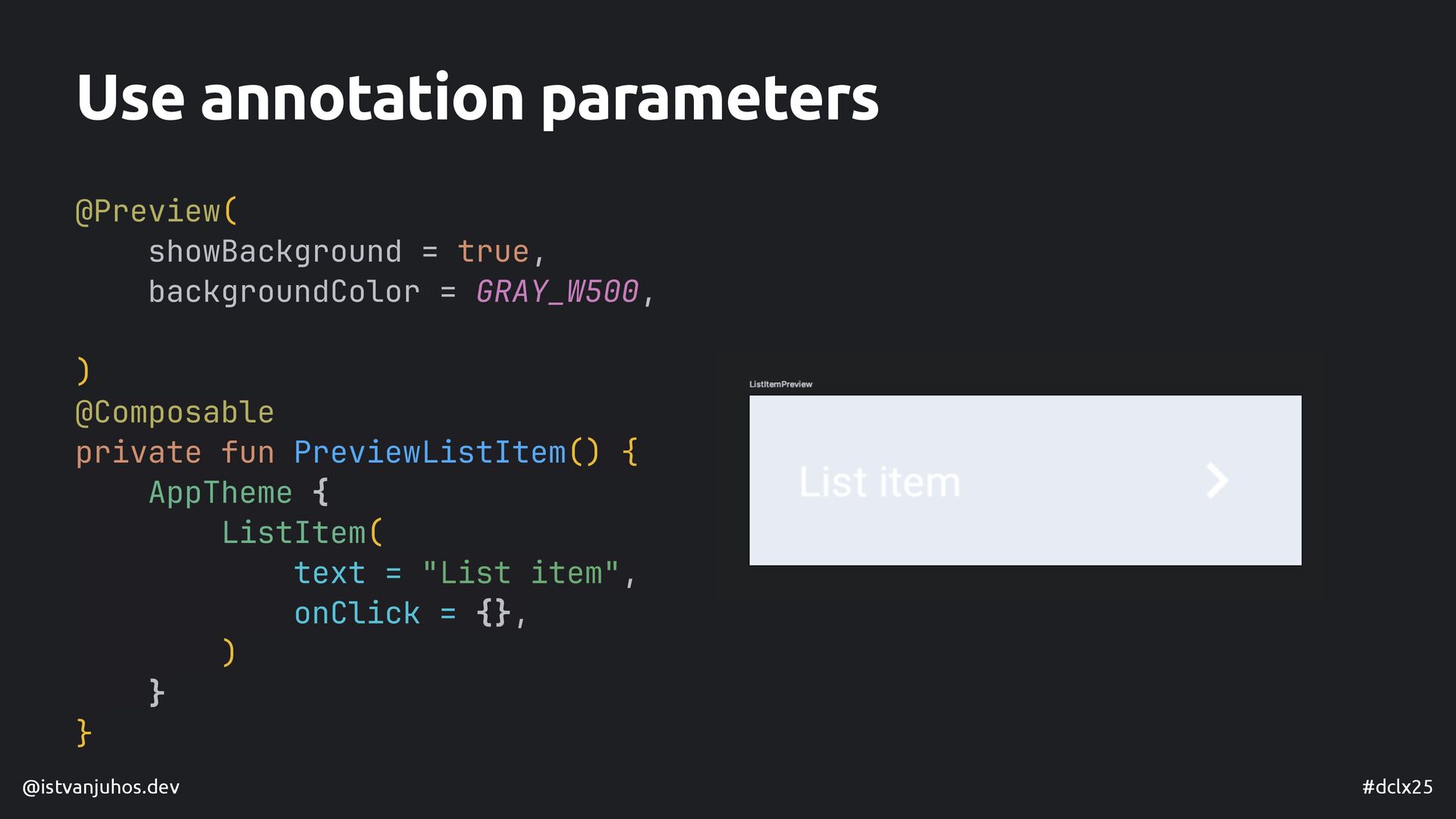

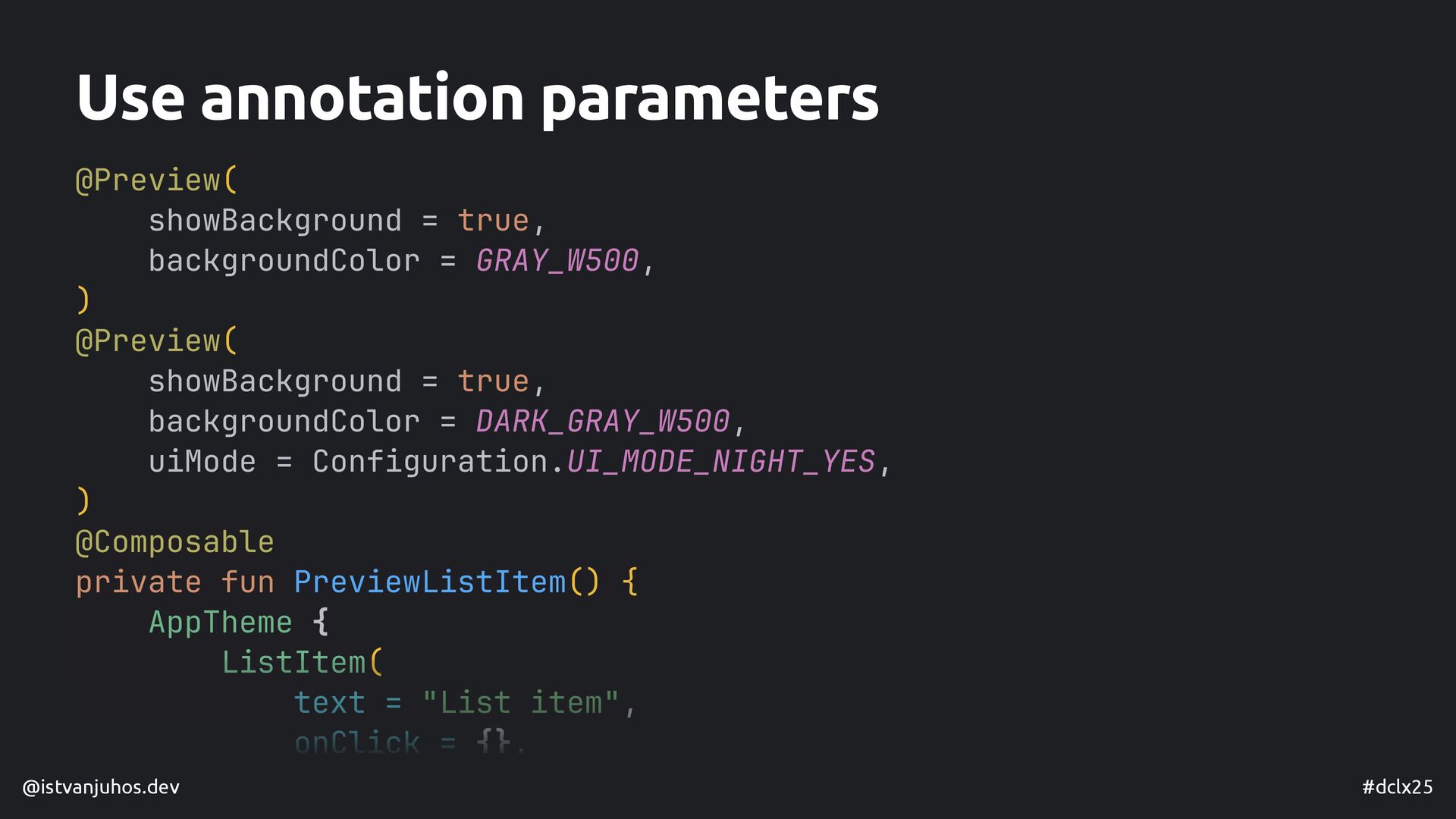

@istvanjuhos.dev #dclx25 Use annotation parameters @Preview( showBackground = true, backgroundColor
= GRAY_W500, ) @Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } } const val GRAY_W500 = 0xFF_E7ECF4 ...

= GRAY_W500, ) @Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } }

= GRAY_W500, uiMode = Configuration.UI_MODE_NIGHT_YES, ) @Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } }

= GRAY_W500, ) @Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, ) } }

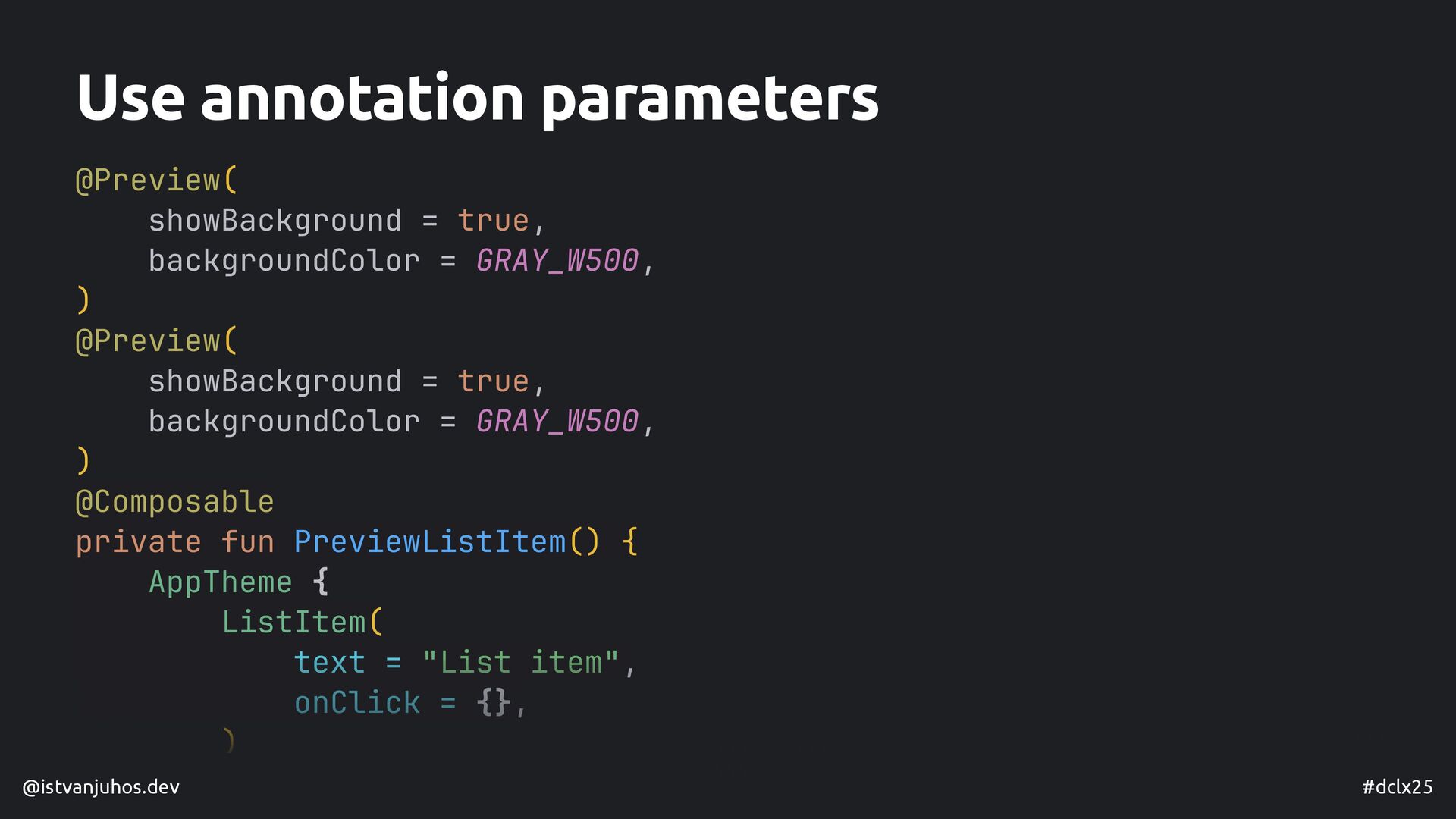

= GRAY_W500, ) @Preview( showBackground = true, backgroundColor = GRAY_W500, ) @Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, )

= GRAY_W500, ) @Preview( showBackground = true, backgroundColor = DARK_GRAY_W500, ) @Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {}, )

= GRAY_W500, ) @Preview( showBackground = true, backgroundColor = DARK_GRAY_W500, uiMode = Configuration.UI_MODE_NIGHT_YES, ) @Composable private fun PreviewListItem() { AppTheme { ListItem( text = "List item", onClick = {},

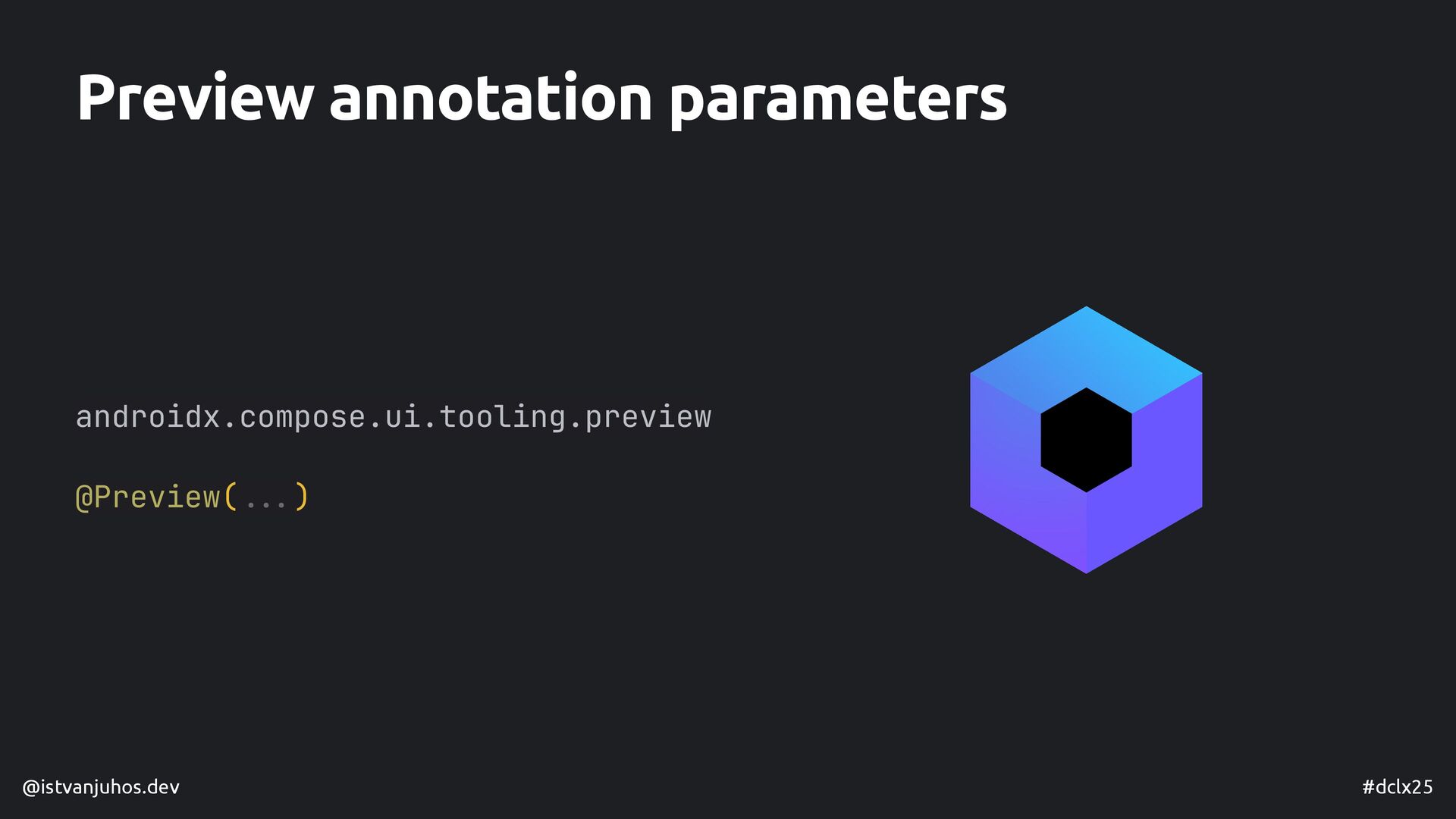

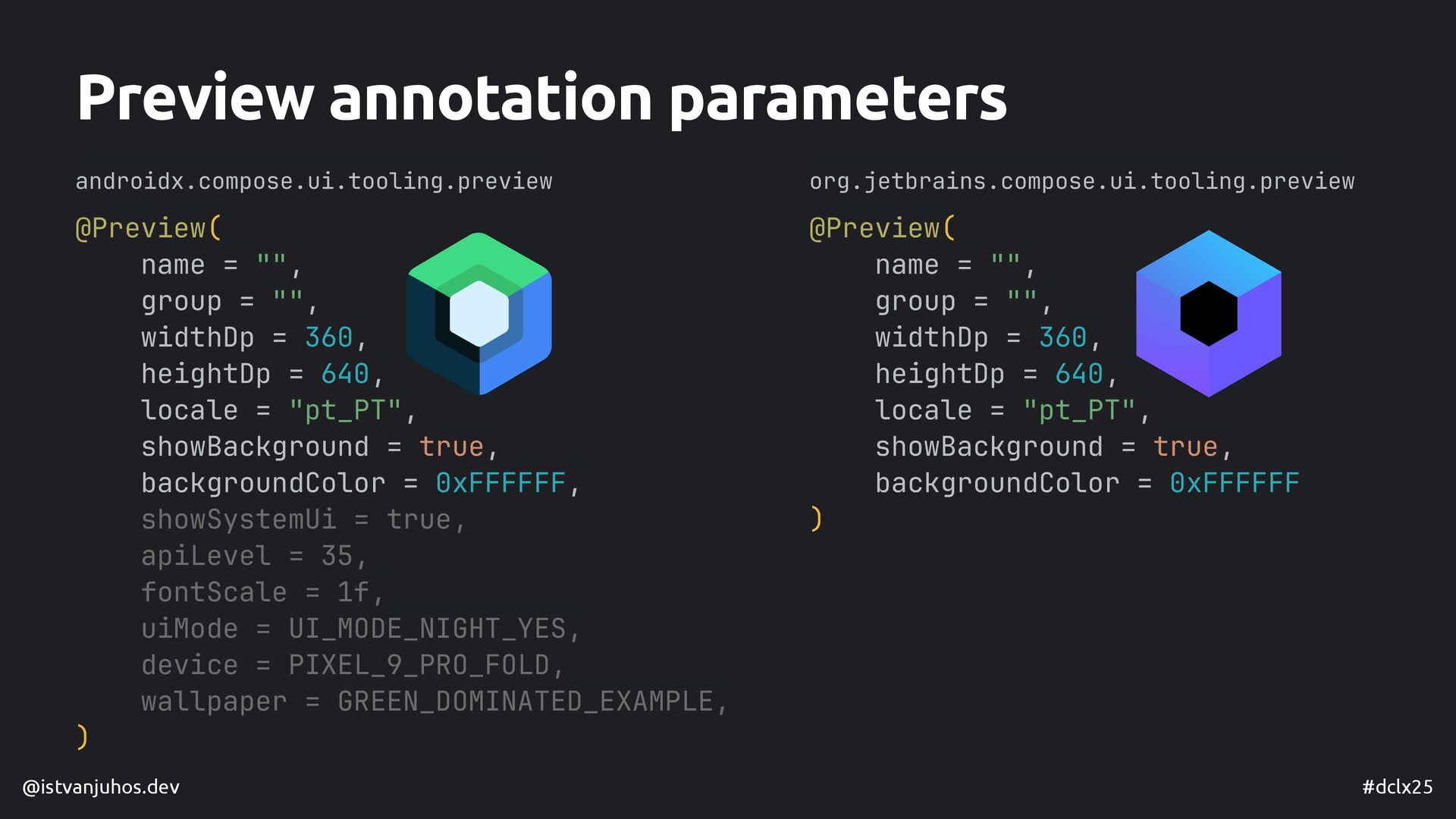

@istvanjuhos.dev #dclx25 Preview annotation parameters android x .compose.ui.tooling.preview @Preview( ...
) ✅

@istvanjuhos.dev #dclx25 Preview annotation parameters android x .compose.ui.tooling.preview @Preview( ...
)

@istvanjuhos.dev #dclx25 Preview annotation parameters org.jetbrain s .compose.ui.tooling.preview @Preview

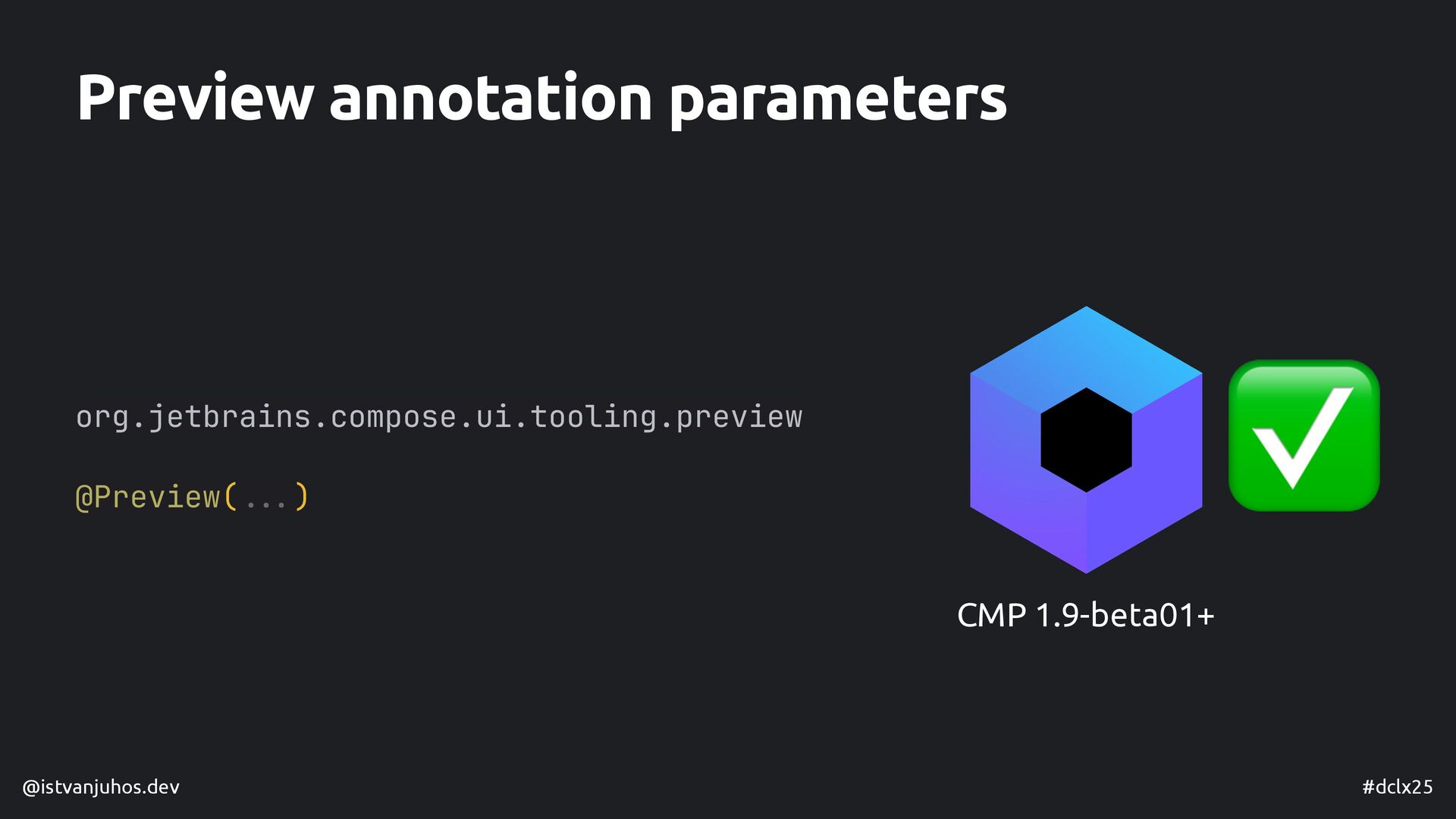

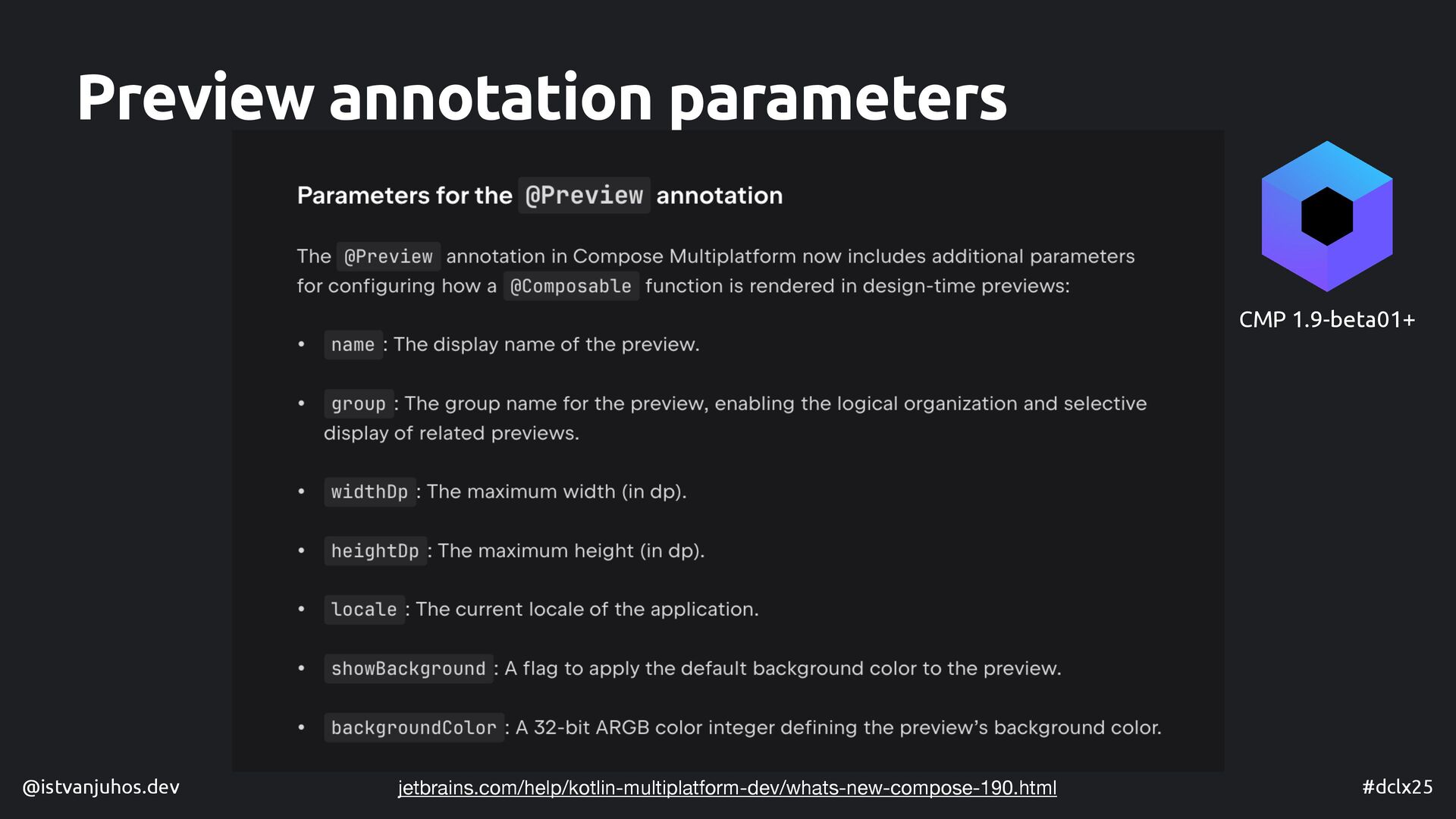

@istvanjuhos.dev #dclx25 Preview annotation parameters ✅ org.jetbrain s .compose.ui.tooling.preview @Preview(
... ) CMP 1.9-beta01+

@istvanjuhos.dev #dclx25 Preview annotation parameters jetbrains.com/help/kotlin-multiplatform-dev/whats-new-compose-190.html CMP 1.9-beta01+

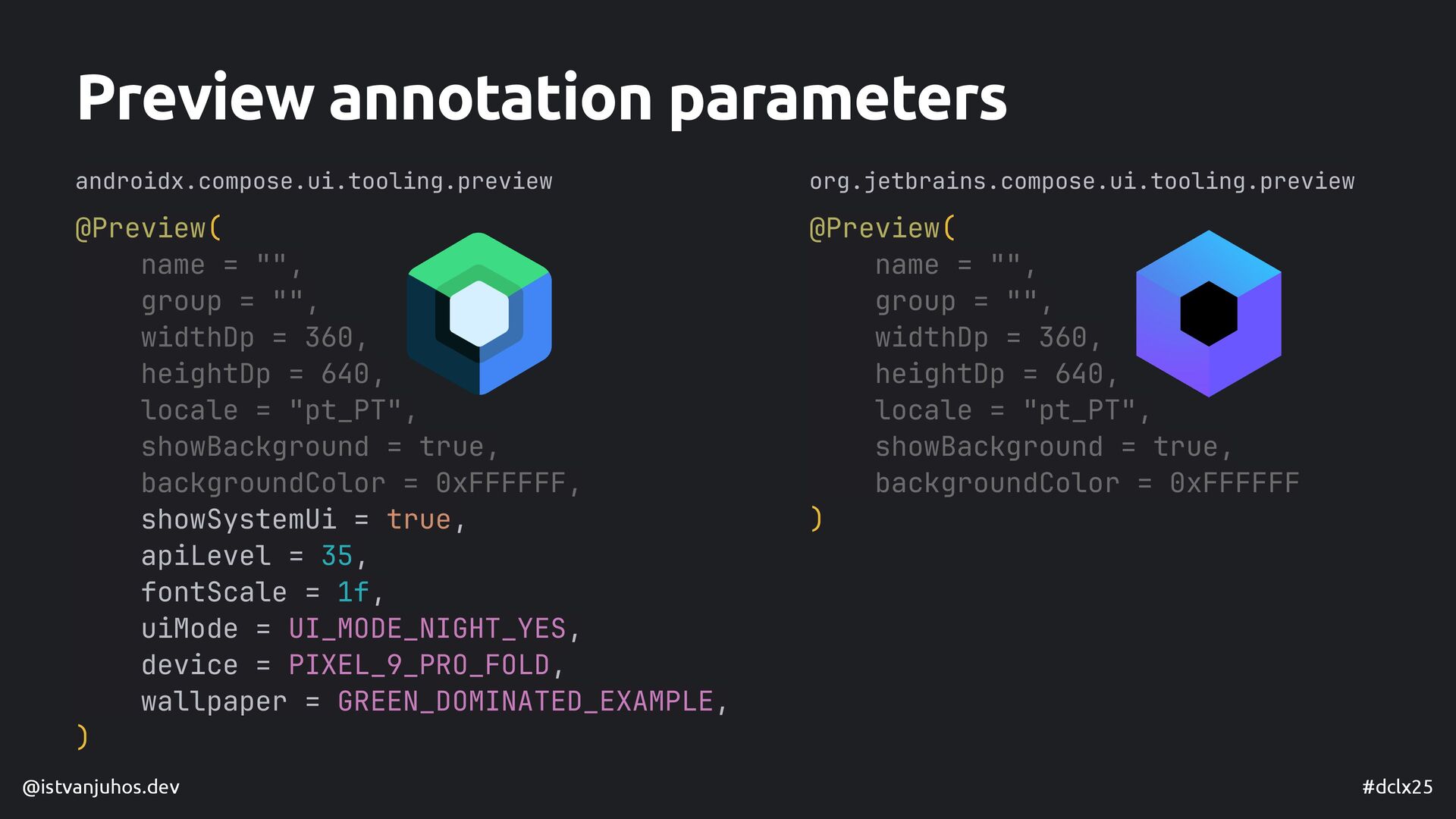

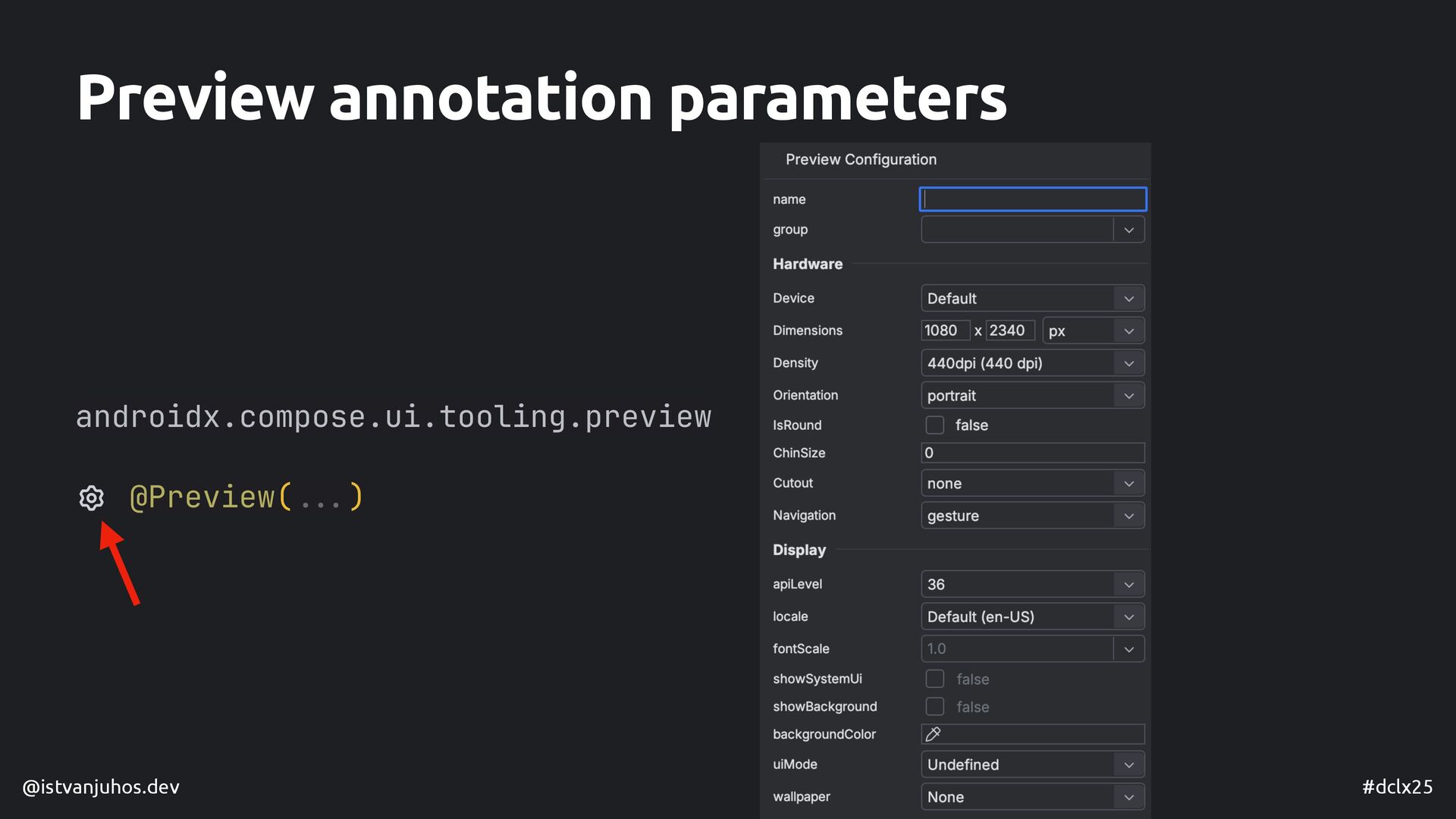

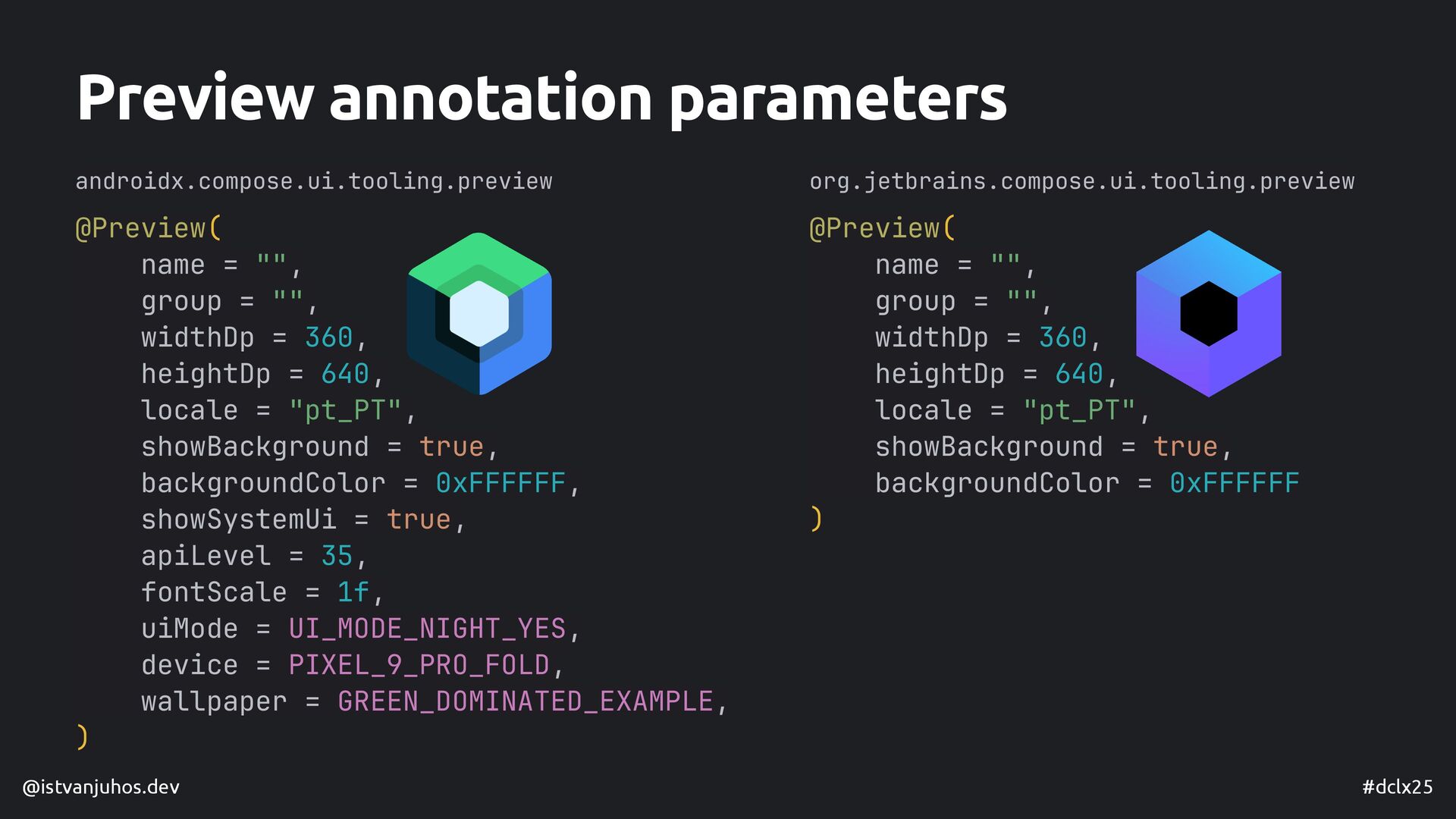

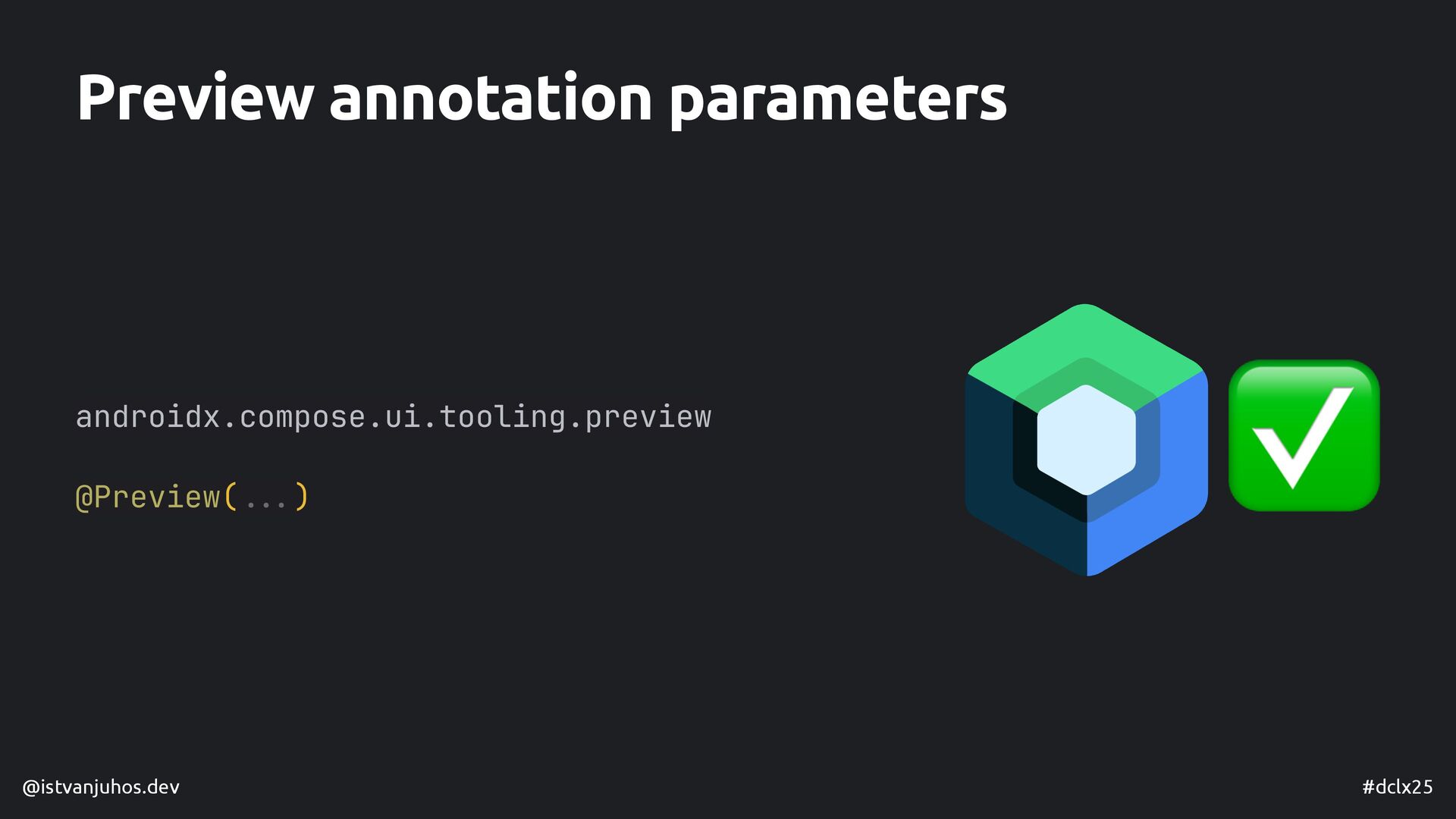

@istvanjuhos.dev #dclx25 Preview annotation parameters android x .compose.ui.tooling.preview org.jetbrain s
.compose.ui.tooling.preview @Preview( name = "", group = "", widthDp = 360, heightDp = 640, locale = "pt_PT", showBackground = true, backgroundColor = 0xFFFFFF, showSystemUi = true, apiLevel = 35, fontScale = 1f, uiMode = UI_MODE_NIGHT_YES, device = PIXEL_9_PRO_FOLD, wallpaper = GREEN_DOMINATED_EXAMPLE, ) @Preview( name = "", group = "", widthDp = 360, heightDp = 640, locale = "pt_PT", showBackground = true, backgroundColor = 0xFFFFFF )

Name your previews 👤

@istvanjuhos.dev #dclx25 @Preview @Composable private fun PreviewListItem() { ... }

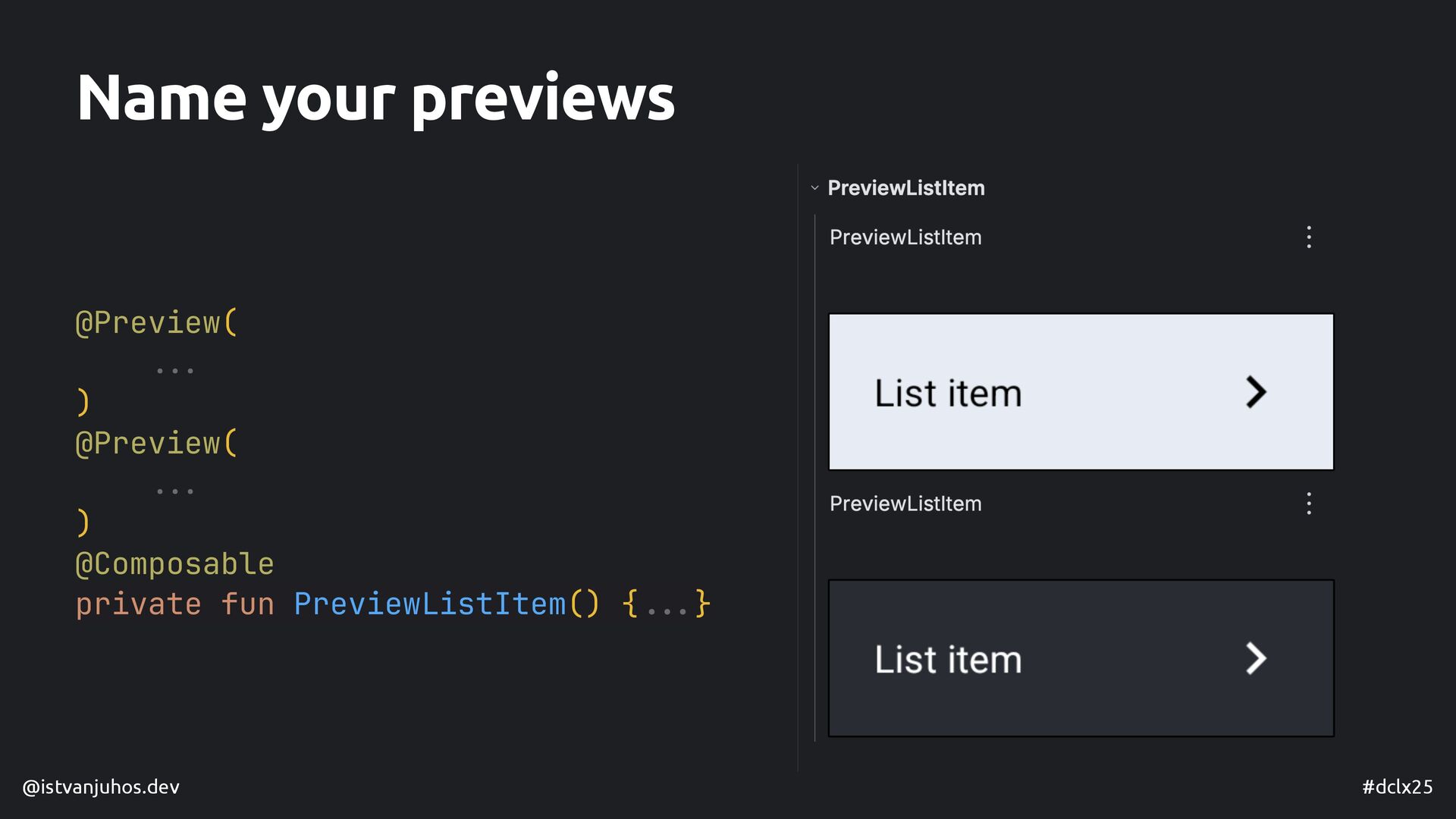

Name your previews

@istvanjuhos.dev #dclx25 @Preview( ... ) @Preview( ... ) @Composable private
fun PreviewListItem() { ... } Name your previews

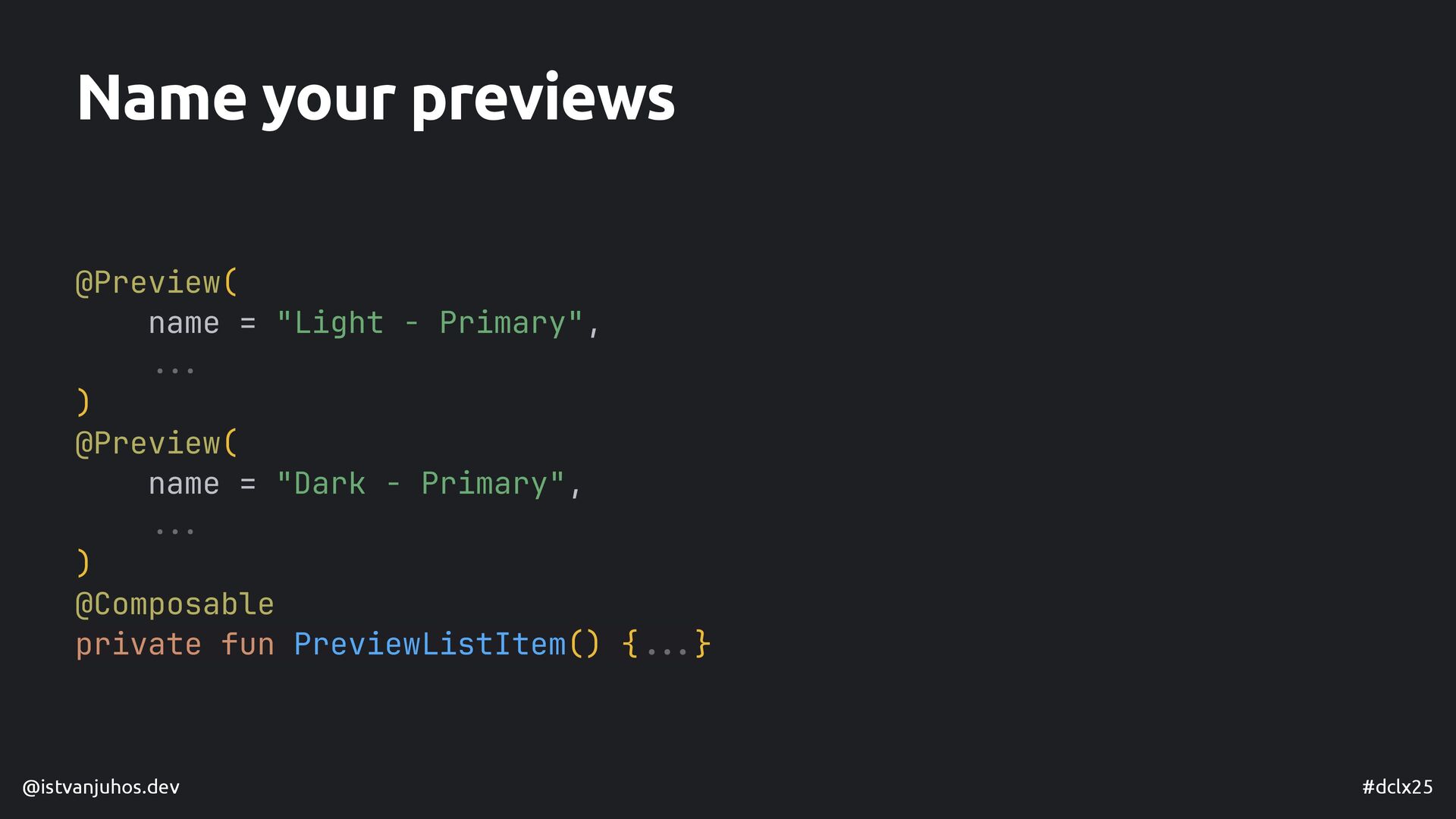

@istvanjuhos.dev #dclx25 @Preview( name = "Light - Primary", ... )
@Preview( name = "Dark - Primary", ... ) @Composable private fun PreviewListItem() { ... } Name your previews

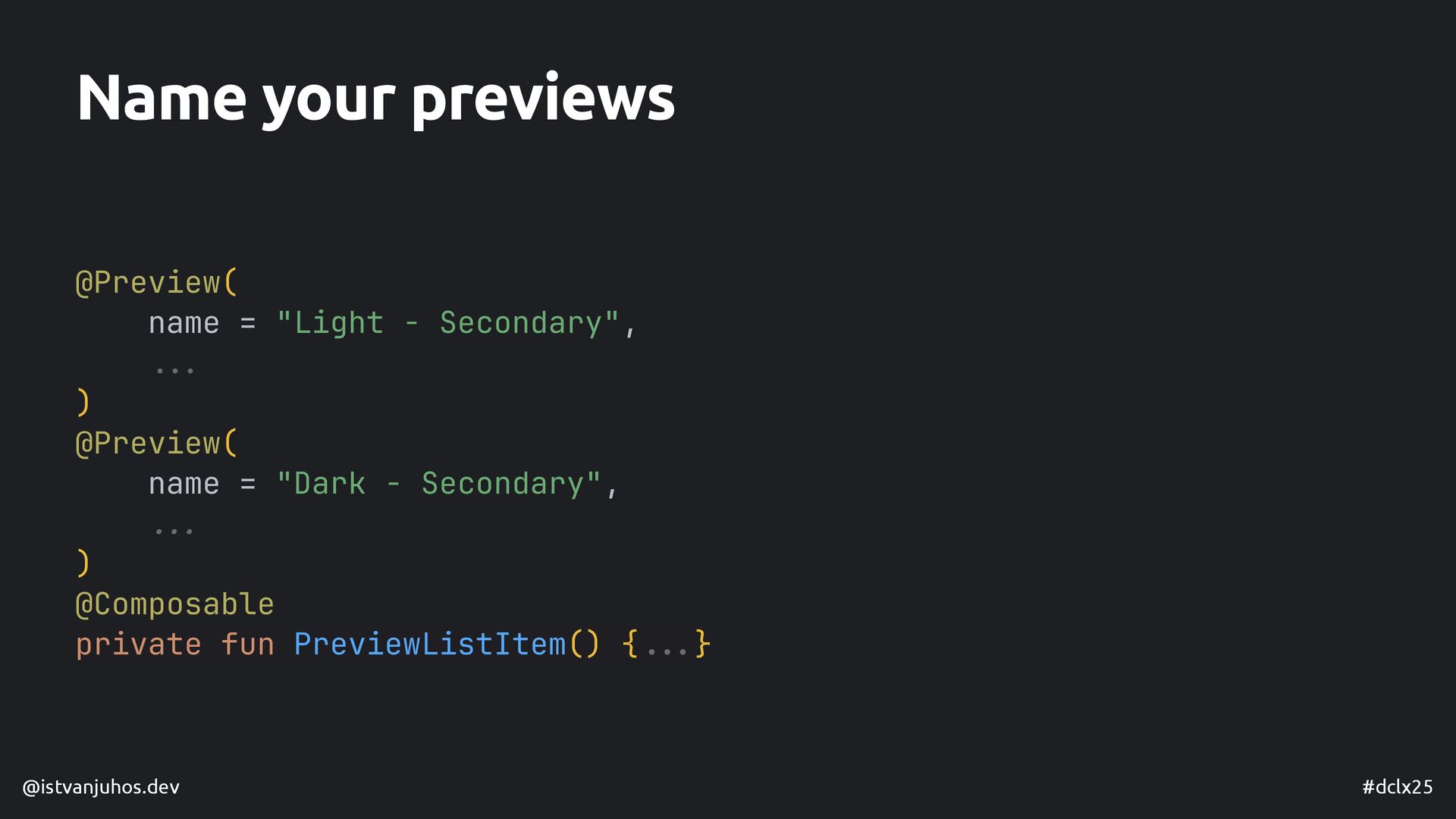

@istvanjuhos.dev #dclx25 @Preview( name = "Light - Secondary", ... )
@Preview( name = "Dark - Secondary", ... ) @Composable private fun PreviewListItem() { ... } Name your previews

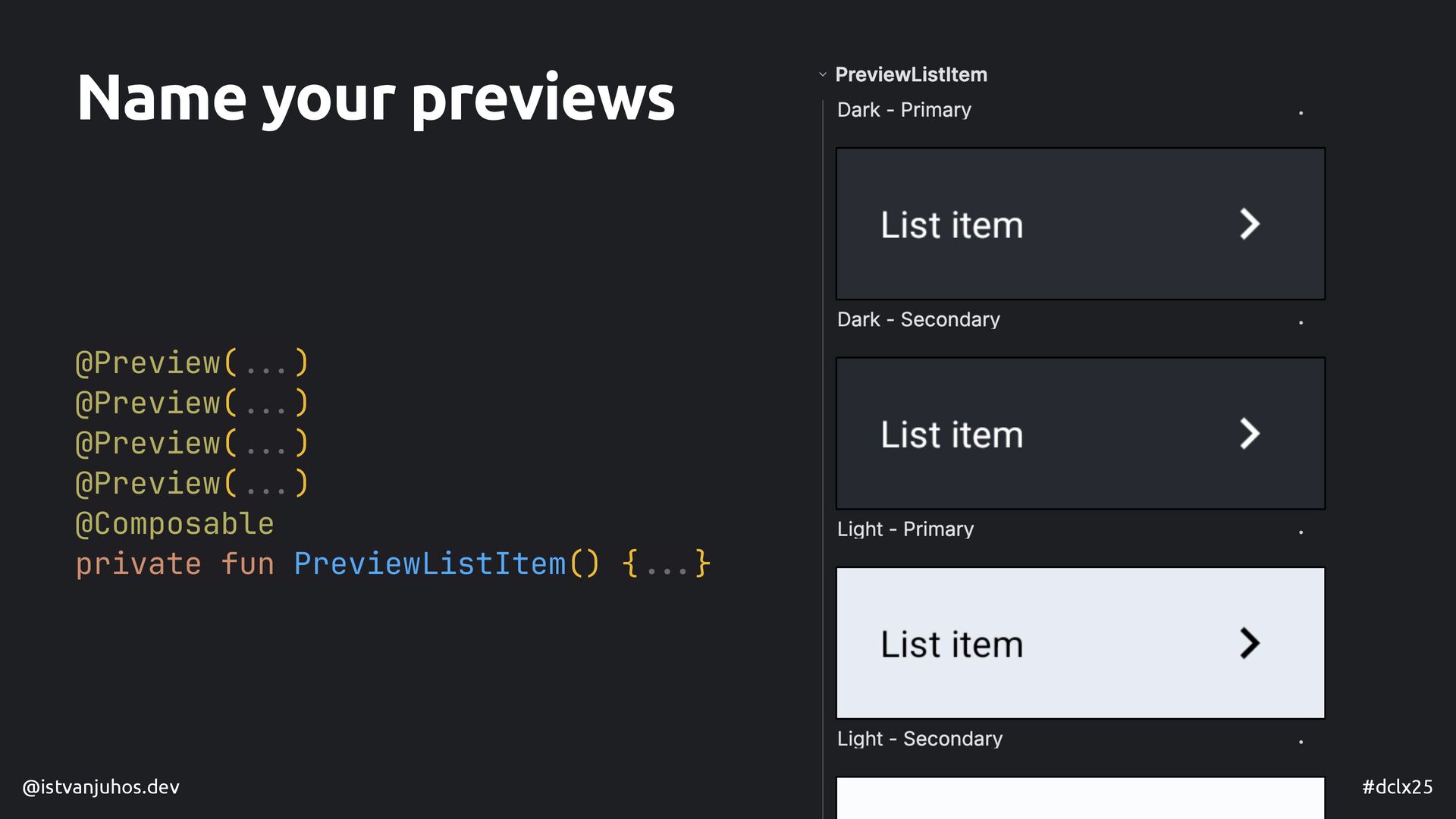

@istvanjuhos.dev #dclx25 @Preview( ... ) @Preview( ... ) @Preview( ...
) @Preview( ... ) @Composable private fun PreviewListItem() { ... } Name your previews

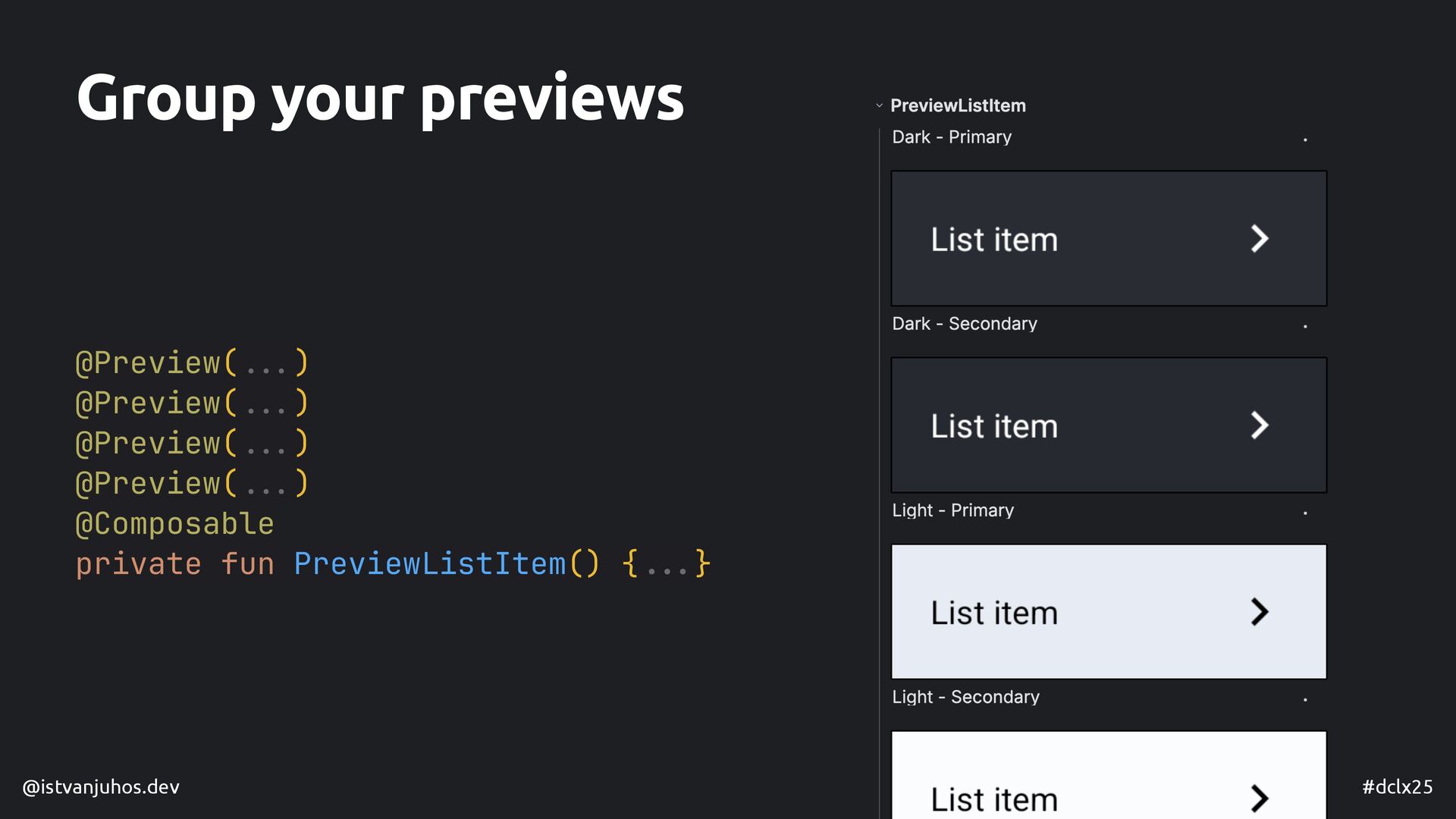

Group your previews 🏘

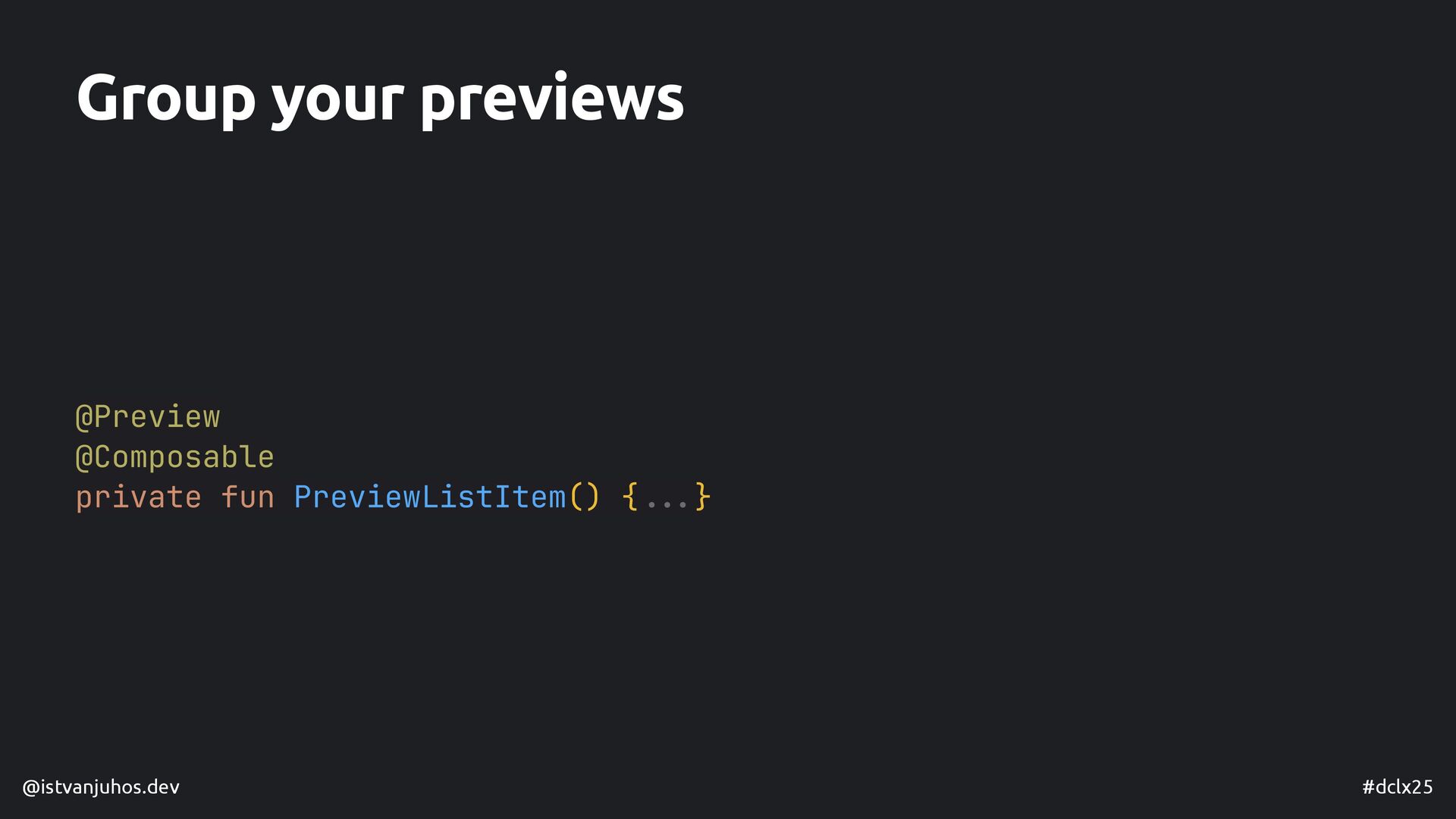

@istvanjuhos.dev #dclx25 @Preview @Composable private fun PreviewListItem() { ... }
Group your previews

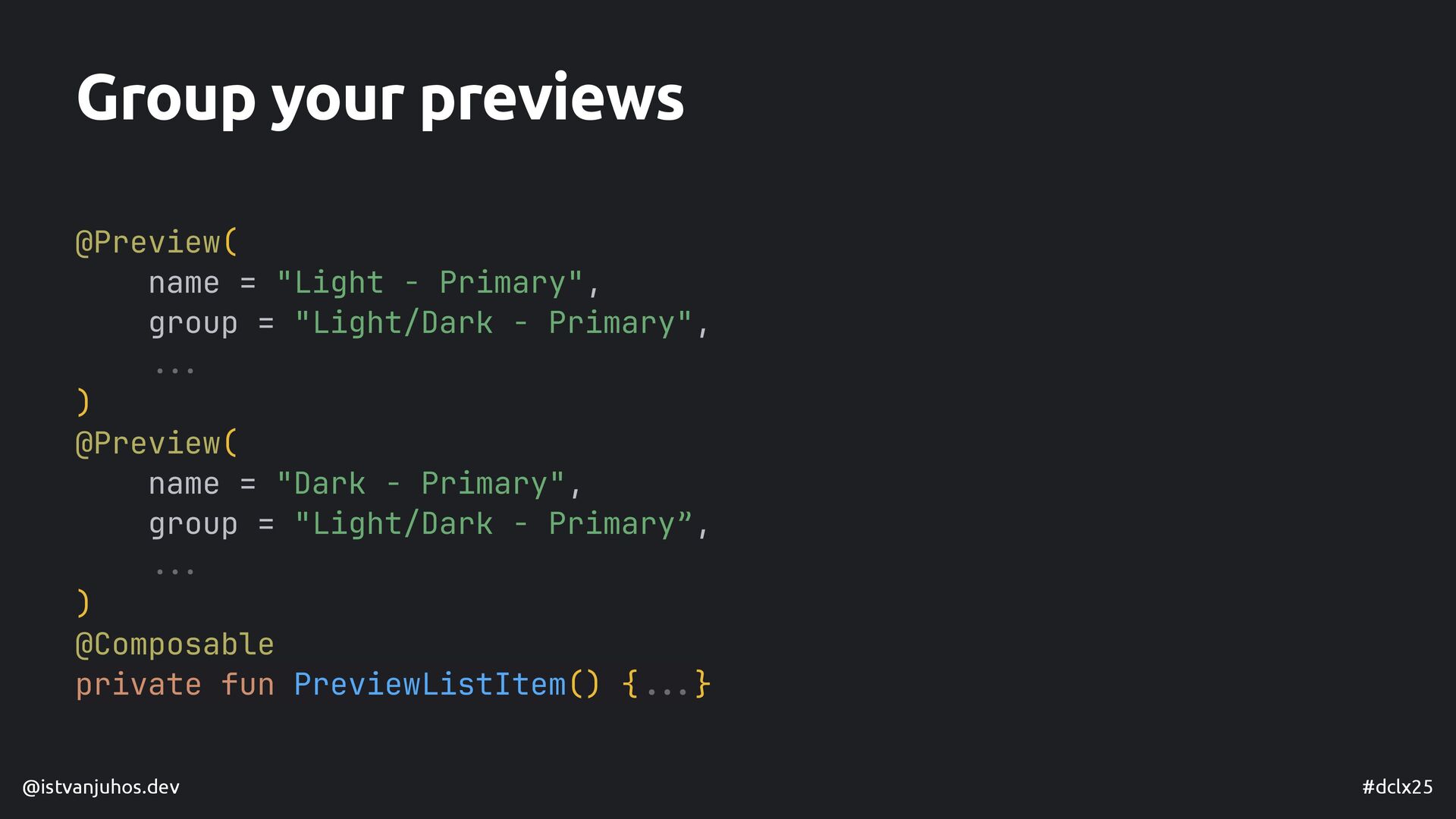

@istvanjuhos.dev #dclx25 @Preview( name = "Light - Primary", group =
"Light/Dark - Primary", ... ) @Preview( name = "Dark - Primary", group = "Light/Dark - Primary”, ... ) @Composable private fun PreviewListItem() { ... } Group your previews

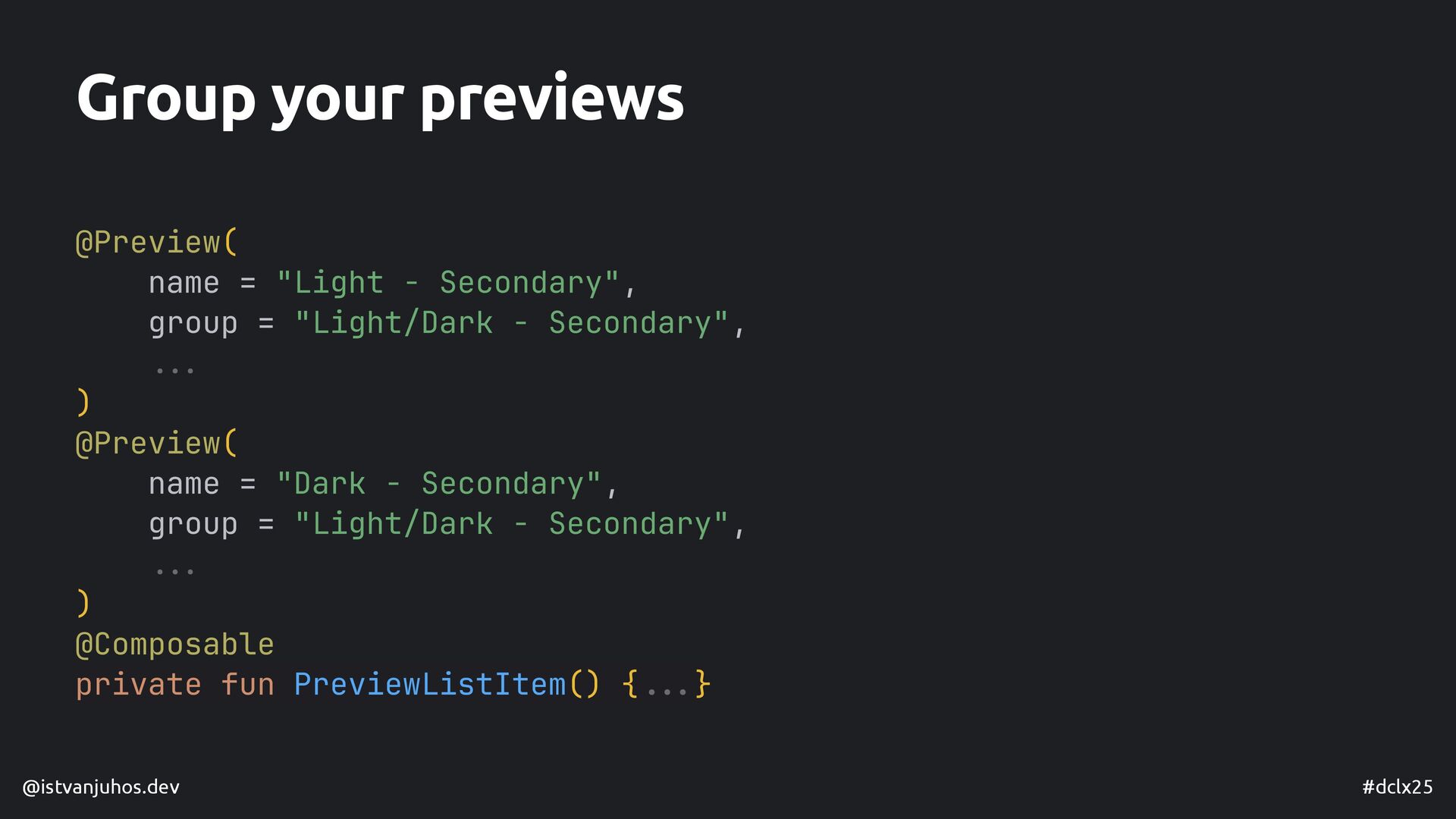

@istvanjuhos.dev #dclx25 @Preview( name = "Light - Secondary", group =
"Light/Dark - Secondary", ... ) @Preview( name = "Dark - Secondary", group = "Light/Dark - Secondary", ... ) @Composable private fun PreviewListItem() { ... } Group your previews

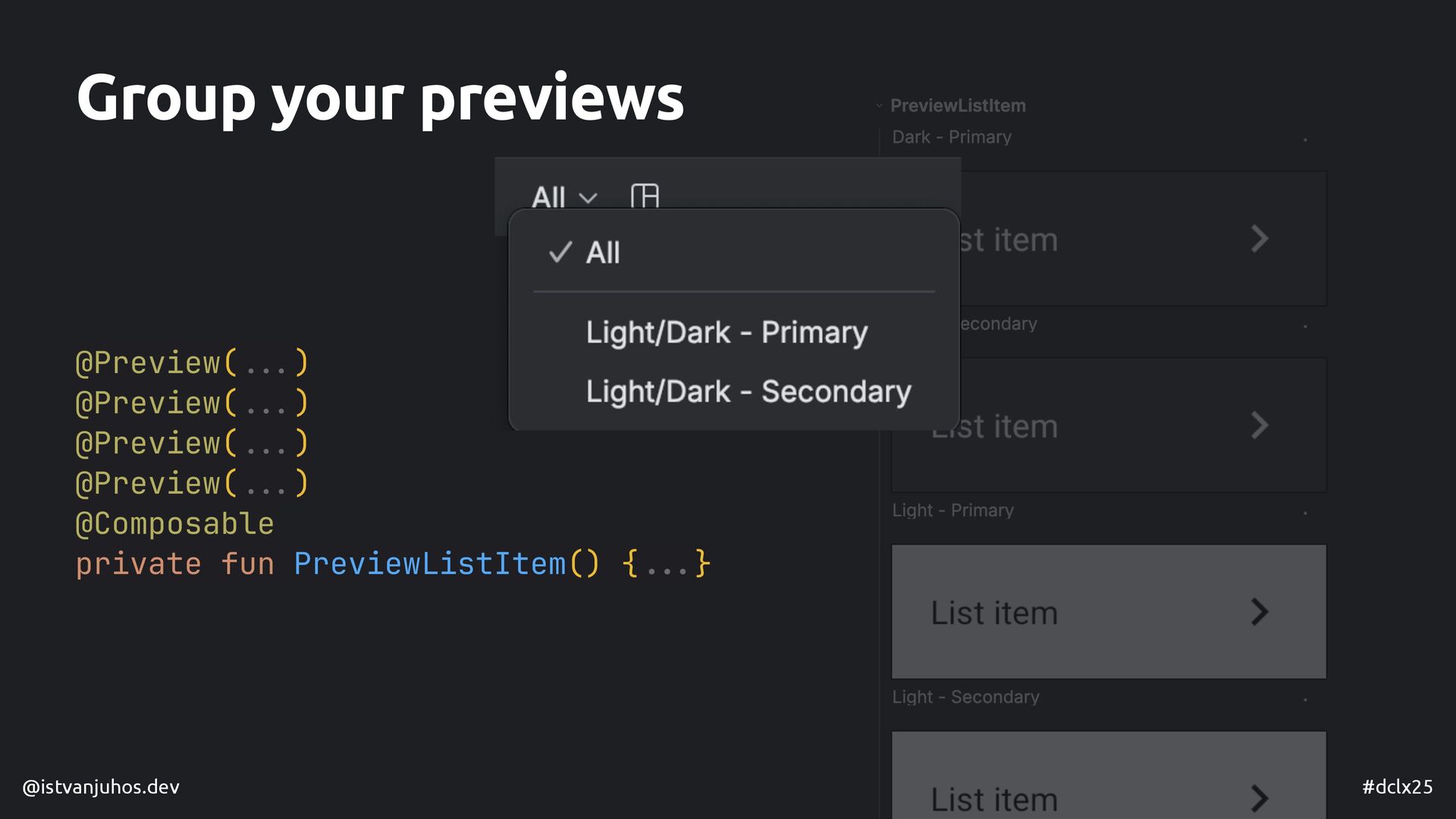

) @Preview( ... ) @Composable private fun PreviewListItem() { ... } Group your previews

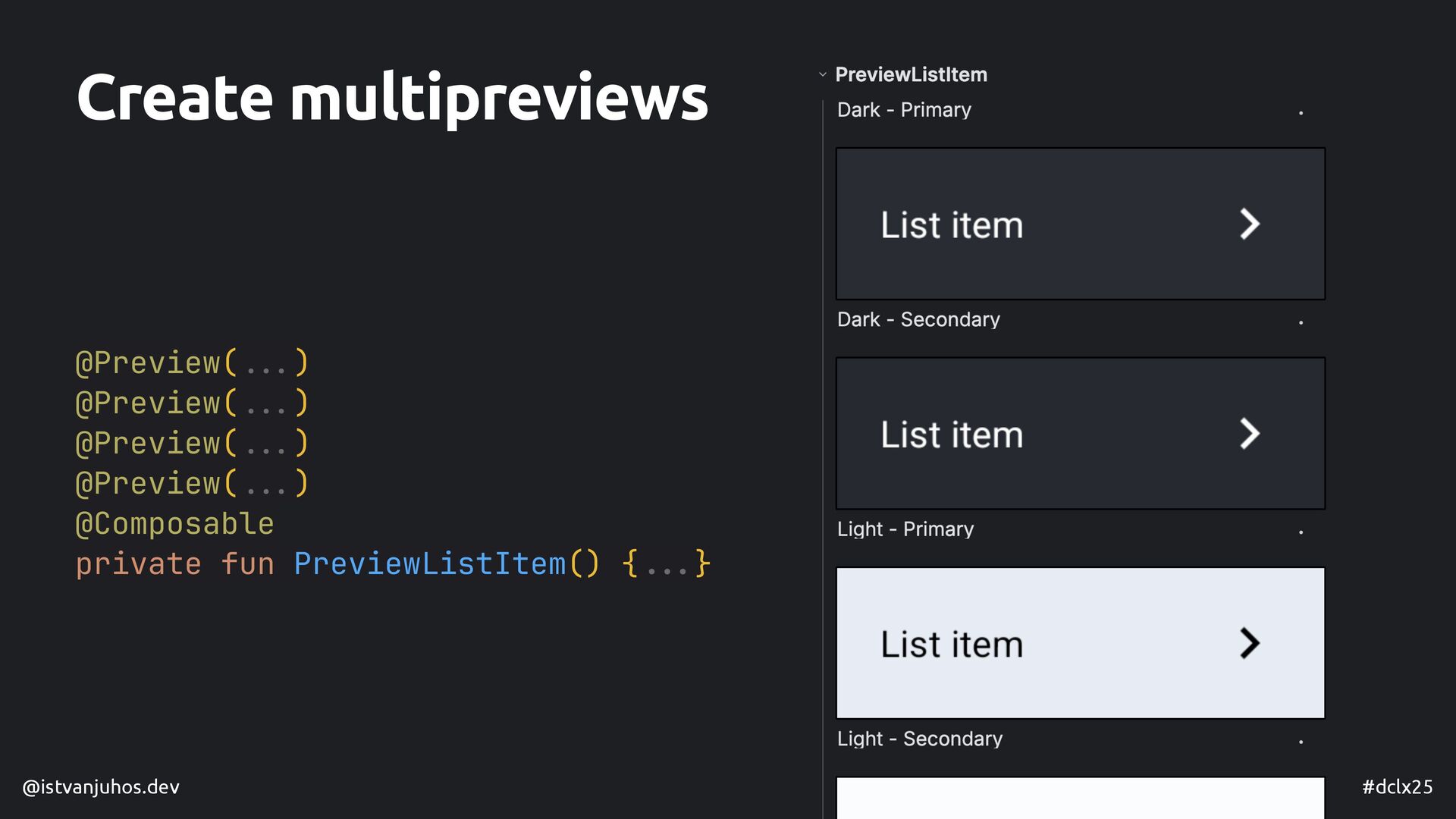

Create multipreviews 👥

) @Preview( ... ) @Composable private fun PreviewListItem() { ... } Create multipreviews

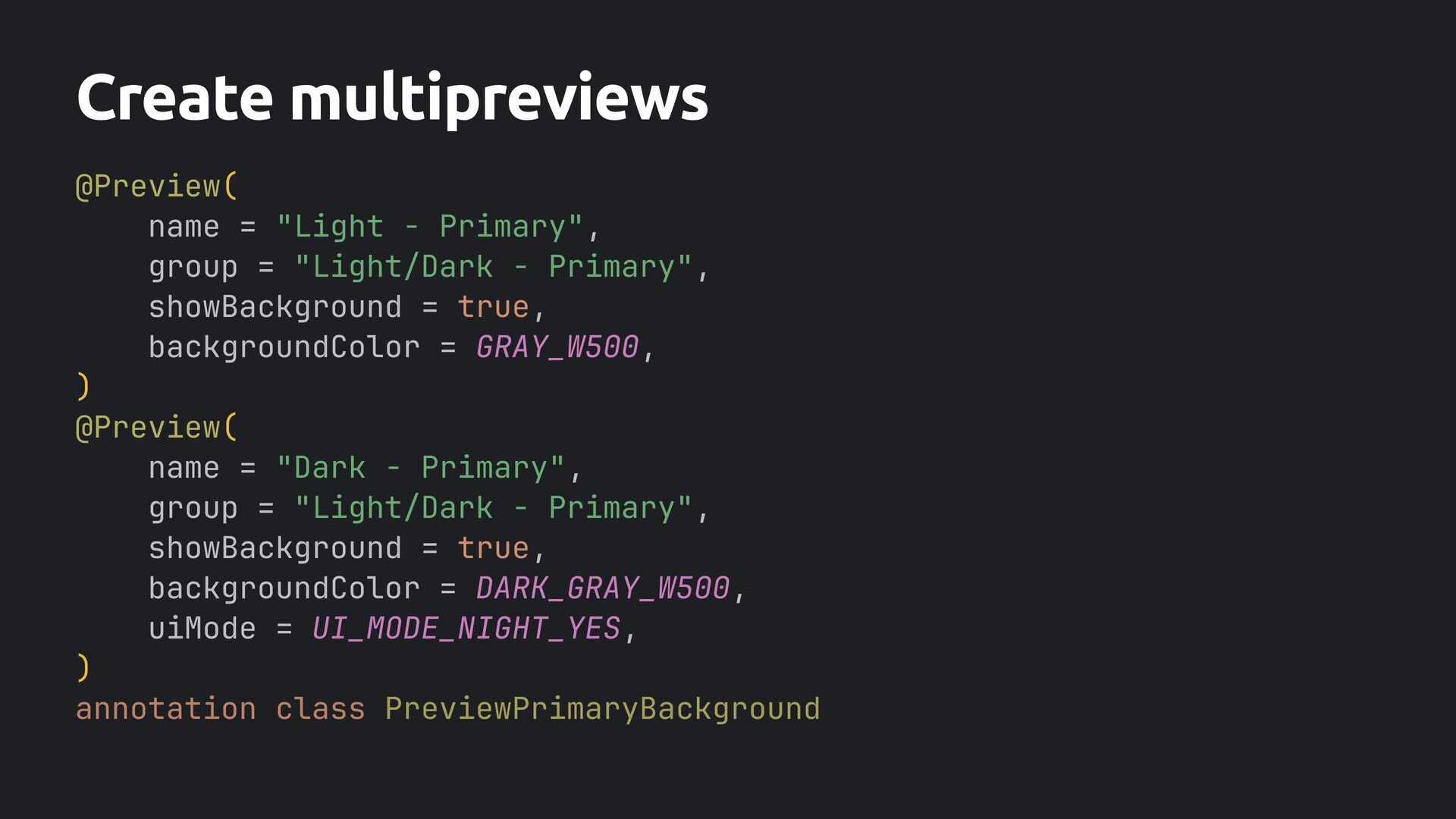

@Preview( name = "Light - Primary", group = "Light/Dark -
Primary", showBackground = true, backgroundColor = GRAY_W500, ) @Preview( name = "Dark - Primary", group = "Light/Dark - Primary", showBackground = true, backgroundColor = DARK_GRAY_W500, uiMode = UI_MODE_NIGHT_YES, ) annotation class PreviewPrimaryBackground Create multipreviews

@Preview( name = "Light - Secondary", group = "Light/Dark -
Secondary", showBackground = true, backgroundColor = GRAY_W100, ) @Preview( name = "Dark - Secondary", group = "Light/Dark - Secondary", showBackground = true, backgroundColor = DARK_GRAY_W100, uiMode = UI_MODE_NIGHT_YES, ) annotation class PreviewSecondaryBackground Create multipreviews

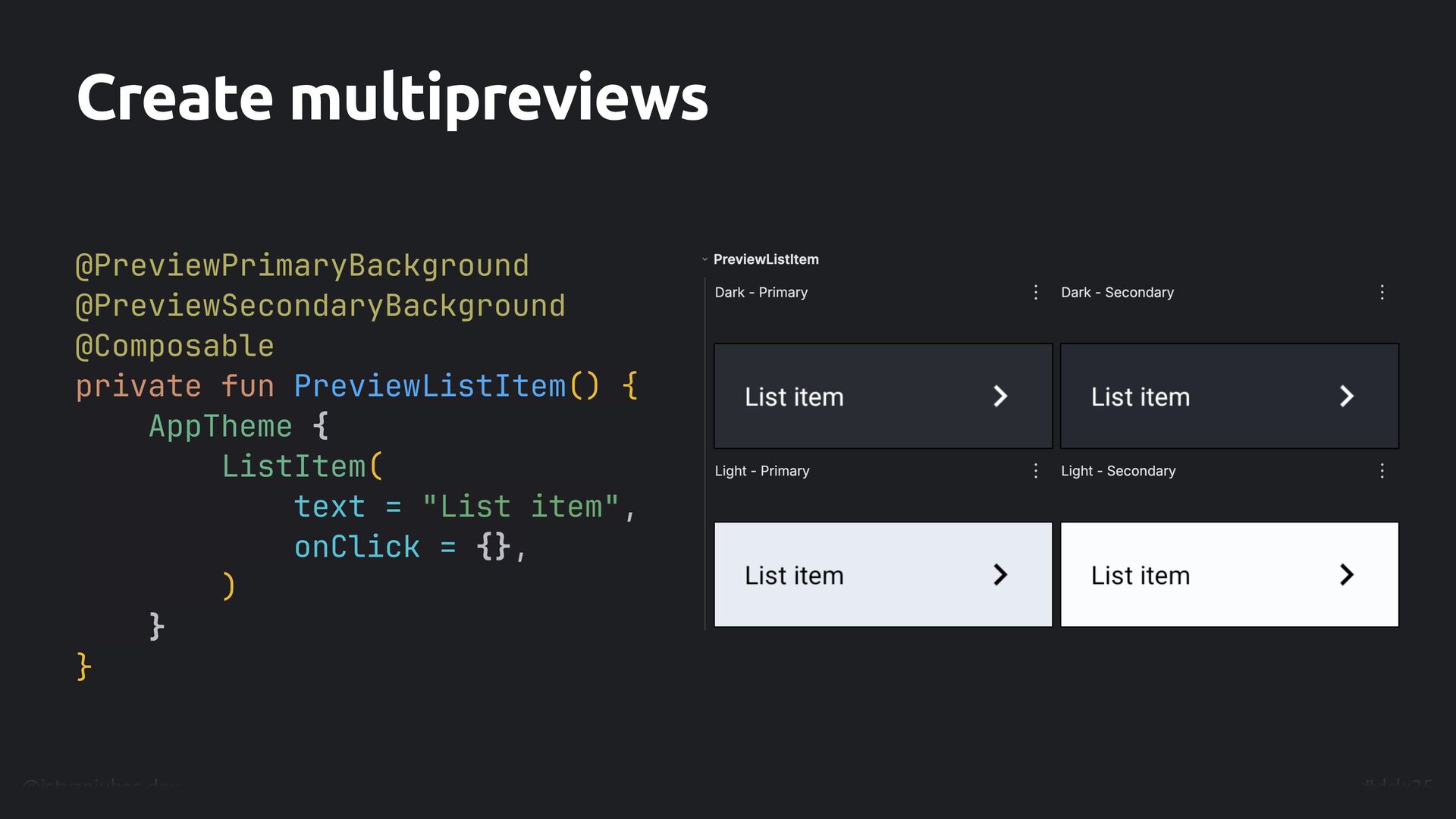

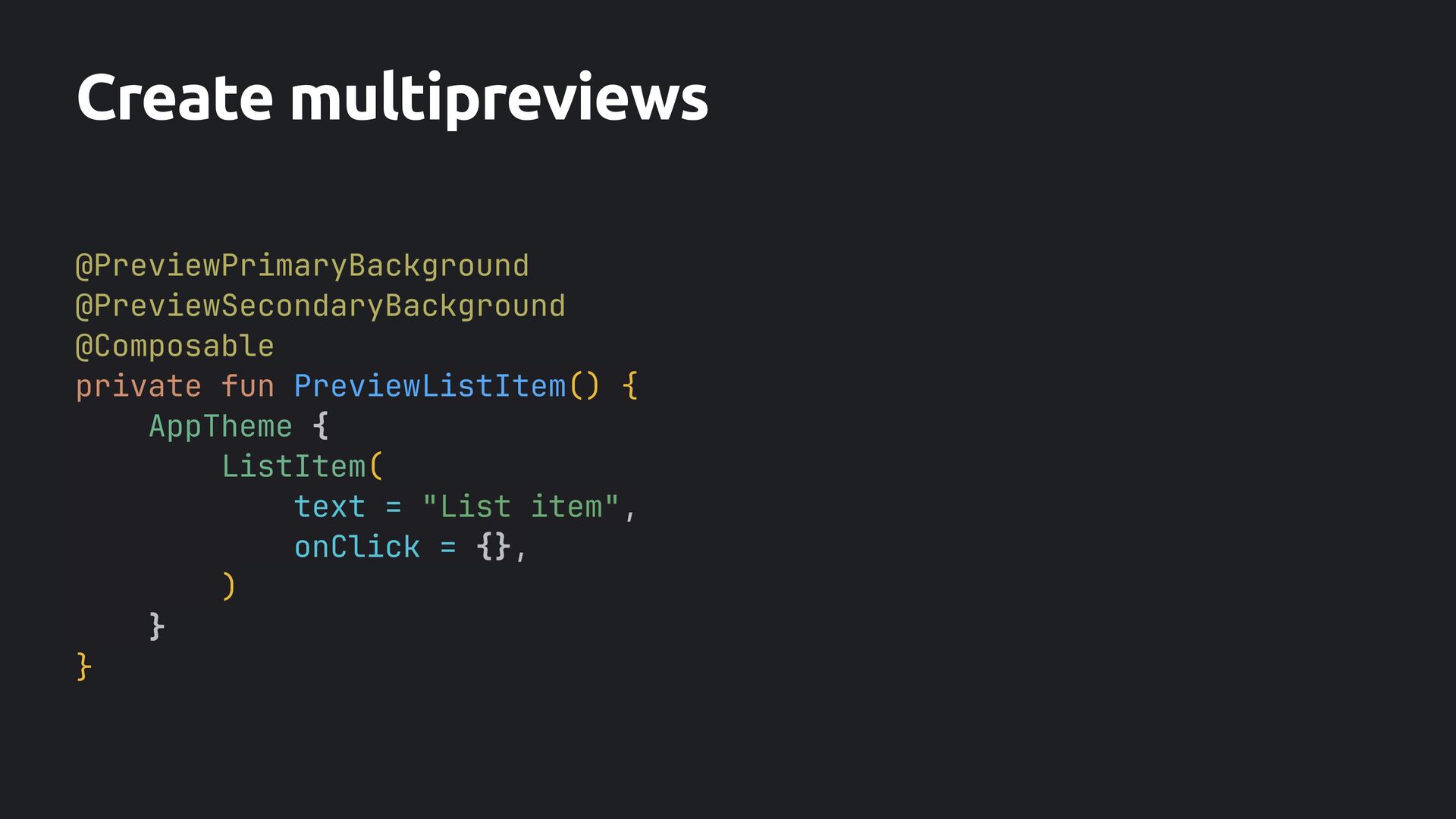

@PreviewPrimaryBackground @PreviewSecondaryBackground @Composable private fun PreviewListItem() { AppTheme { ListItem(
text = "List item", onClick = {}, ) } } Create multipreviews

@istvanjuhos.dev #dclx25 @PreviewPrimaryBackground @PreviewSecondaryBackground @Composable private fun PreviewListItem() { AppTheme
{ ListItem( text = "List item", onClick = {}, ) } } Create multipreviews

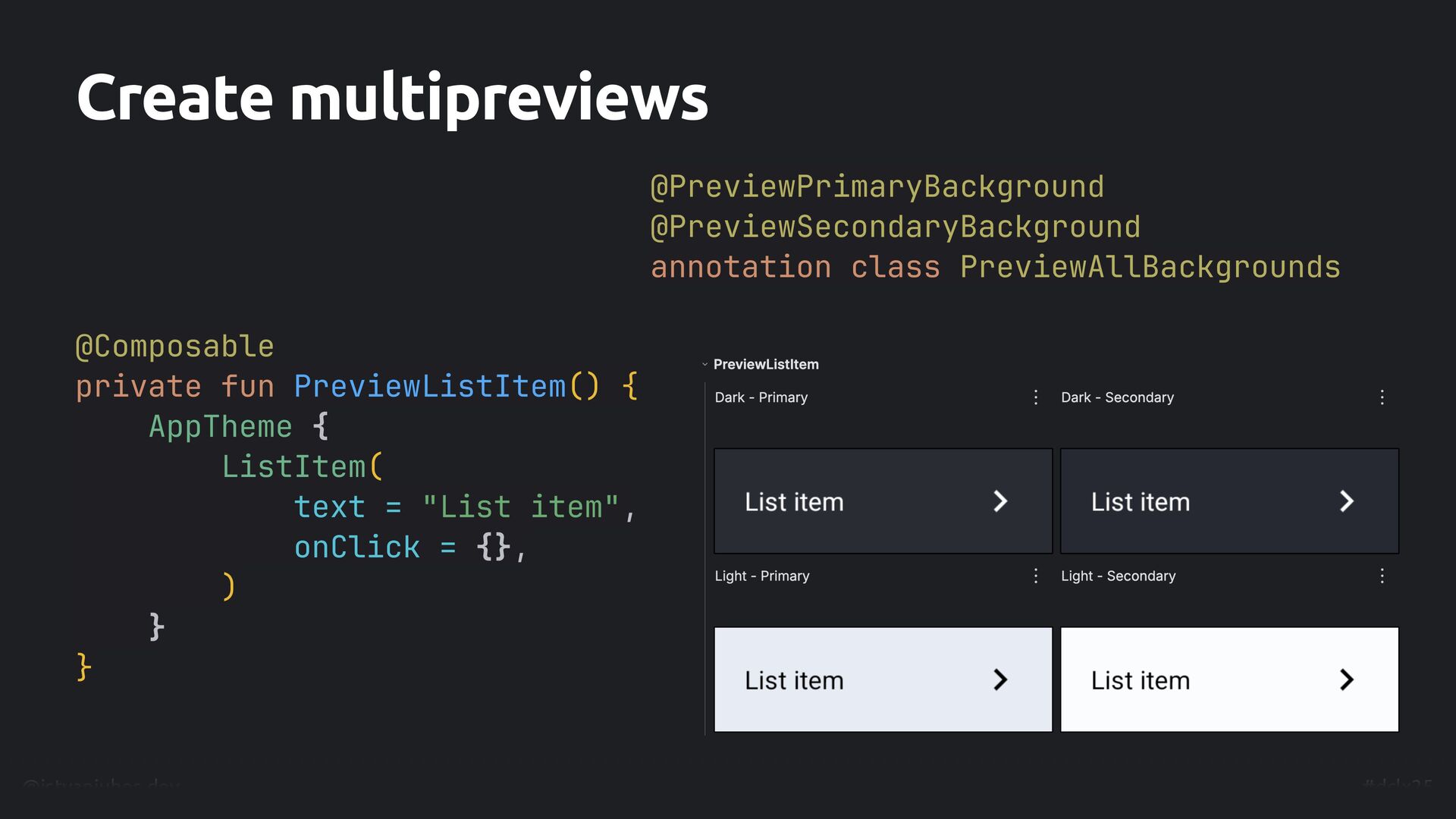

@istvanjuhos.dev #dclx25 @Composable private fun PreviewListItem() { AppTheme { ListItem(
text = "List item", onClick = {}, ) } } Create multipreviews @PreviewPrimaryBackground @PreviewSecondaryBackground annotation class PreviewAllBackgrounds

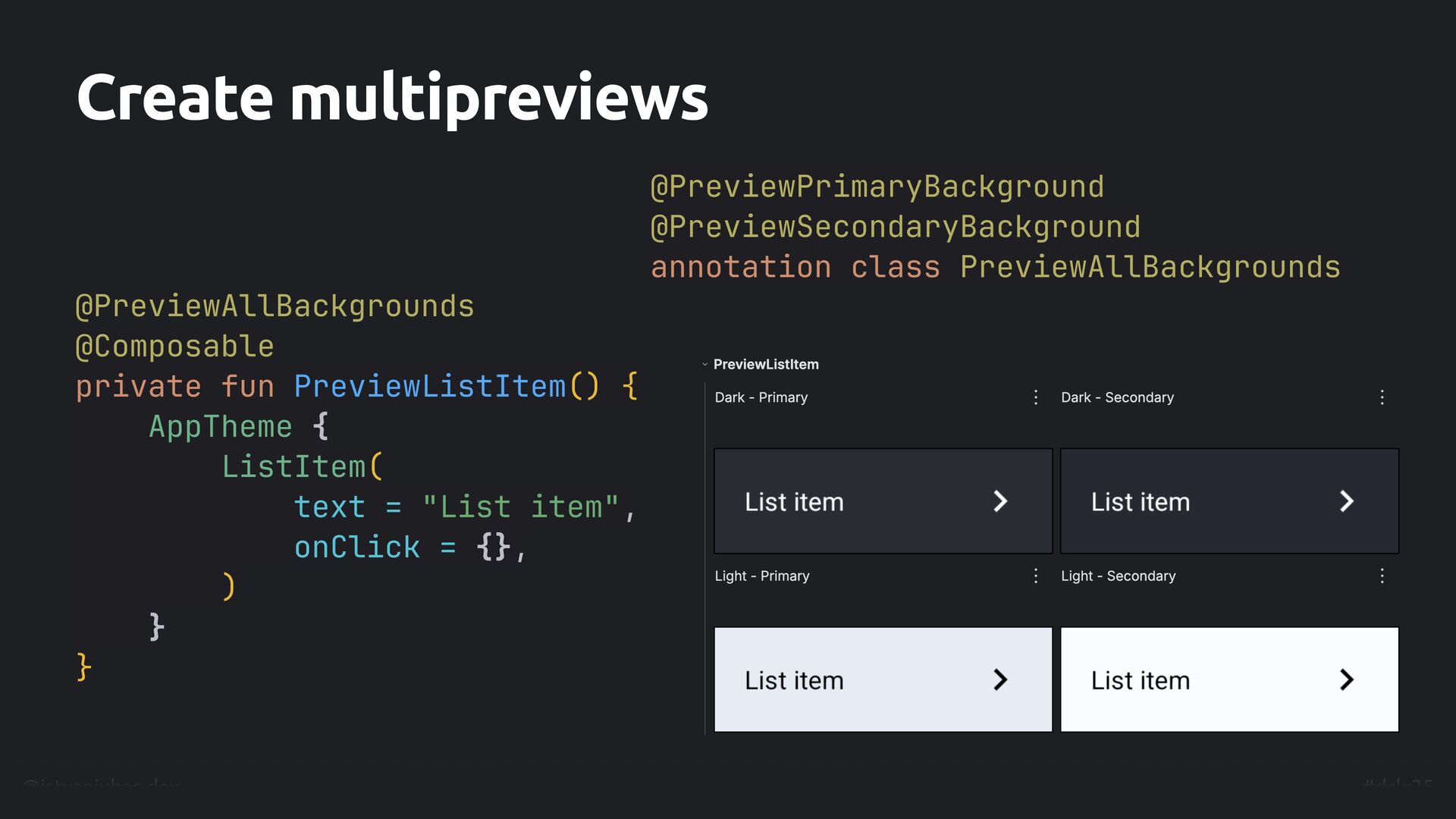

@istvanjuhos.dev #dclx25 @PreviewAllBackgrounds @Composable private fun PreviewListItem() { AppTheme {
ListItem( text = "List item", onClick = {}, ) } } Create multipreviews @PreviewPrimaryBackground @PreviewSecondaryBackground annotation class PreviewAllBackgrounds

Check out Multipreview templates 👥

@istvanjuhos.dev #dclx25 @PreviewLightDark @PreviewFontScale @Previe w ScreenSizes Multipreview templates androidx.compose.ui.tooling.preview

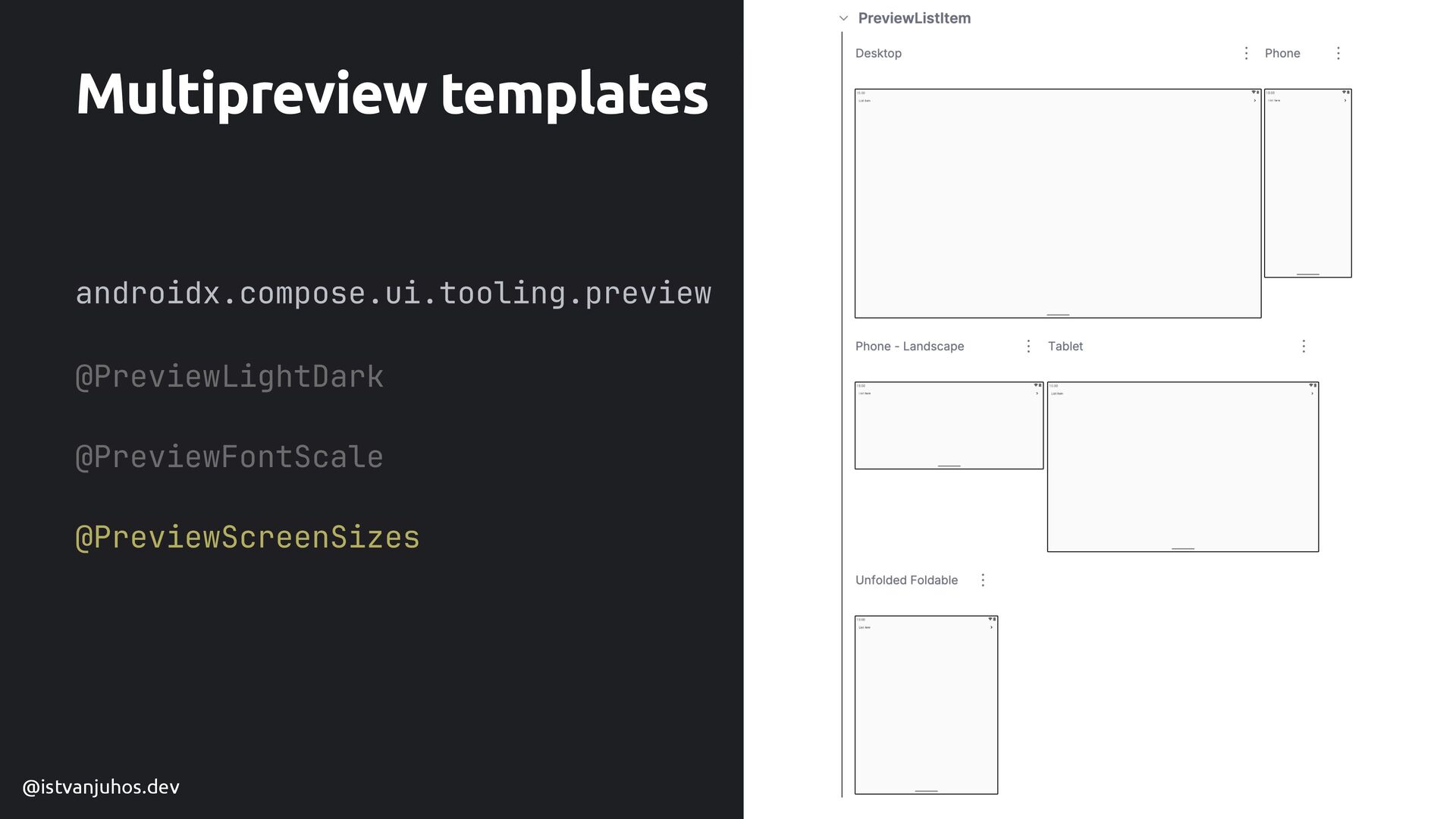

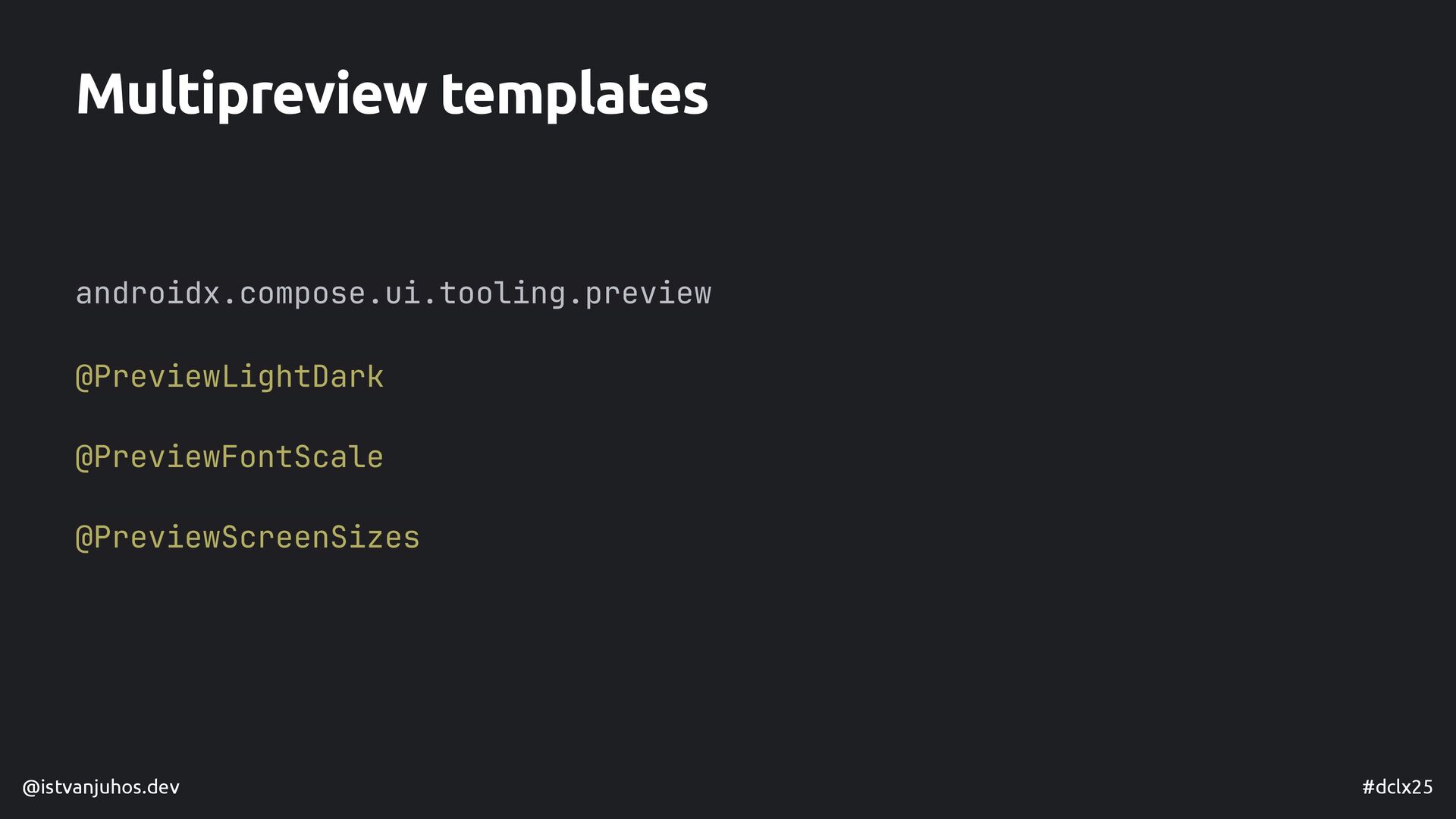

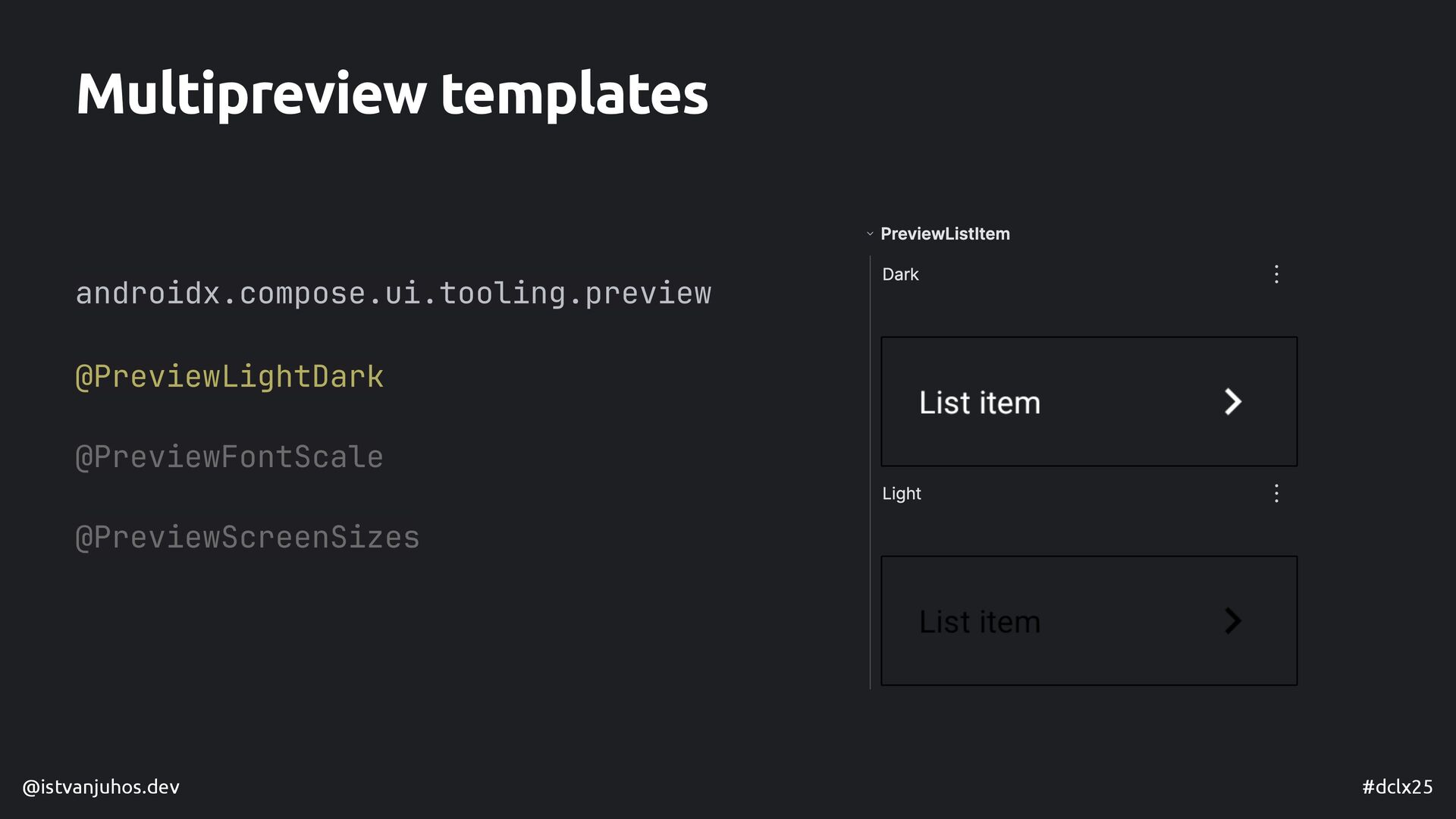

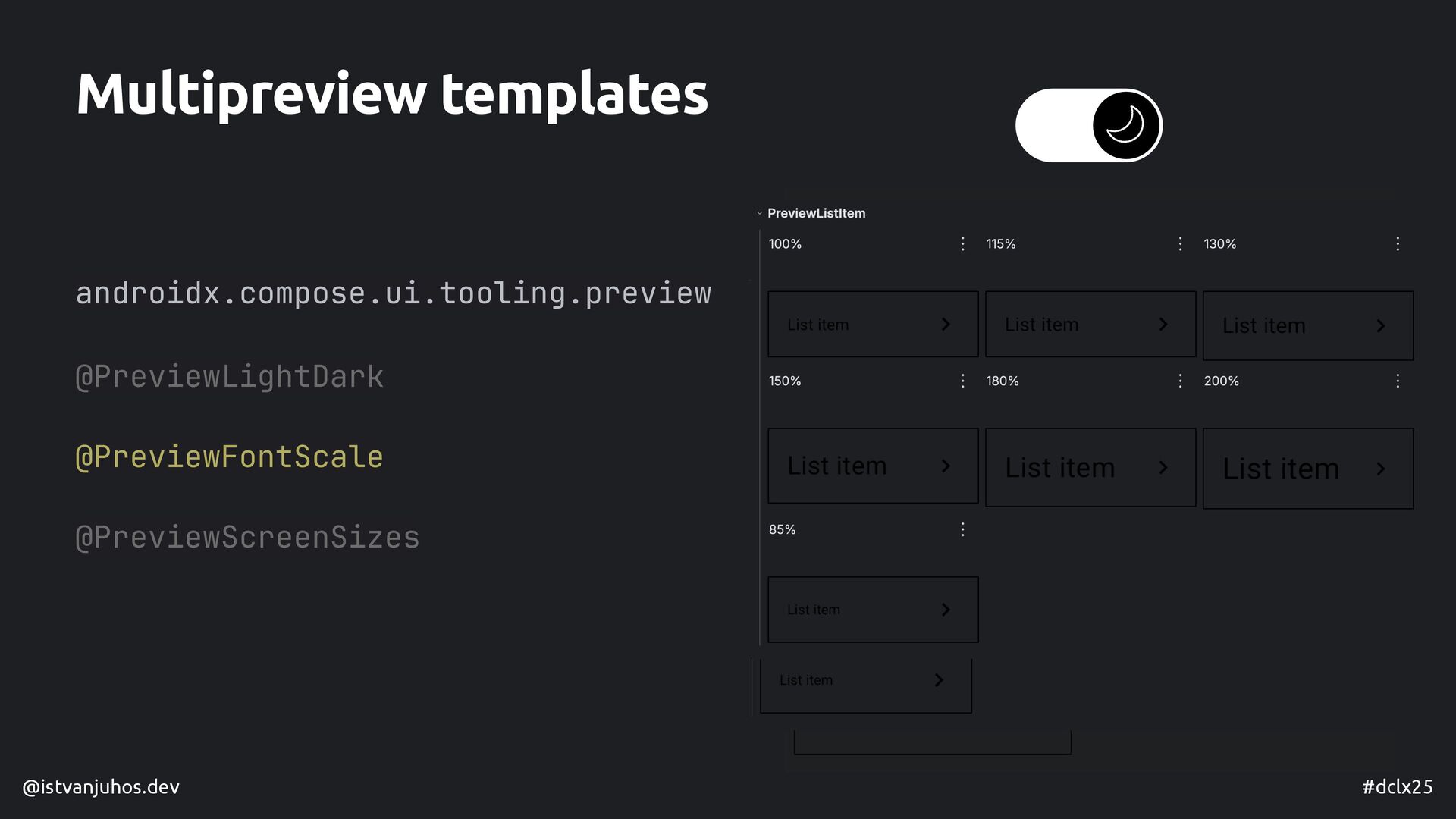

@istvanjuhos.dev #dclx25 Multipreview templates @PreviewLightDark @PreviewFontScale @Previe w ScreenSizes androidx.compose.ui.tooling.preview

@istvanjuhos.dev #dclx25 androidx.compose.ui.tooling.preview @PreviewLightDark @PreviewFontScale @Previe w ScreenSizes @PreviewDynamicColors Multipreview
templates

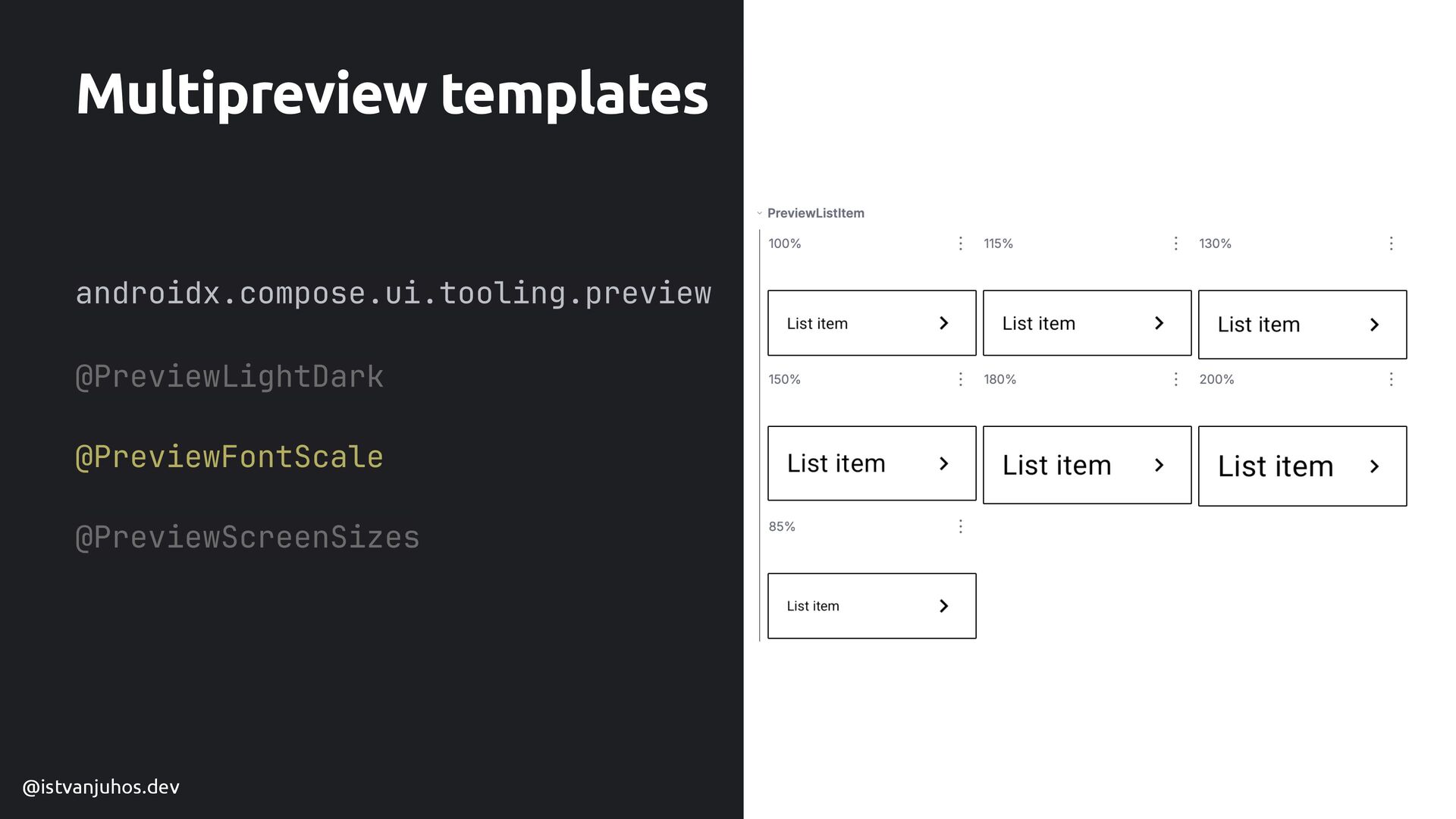

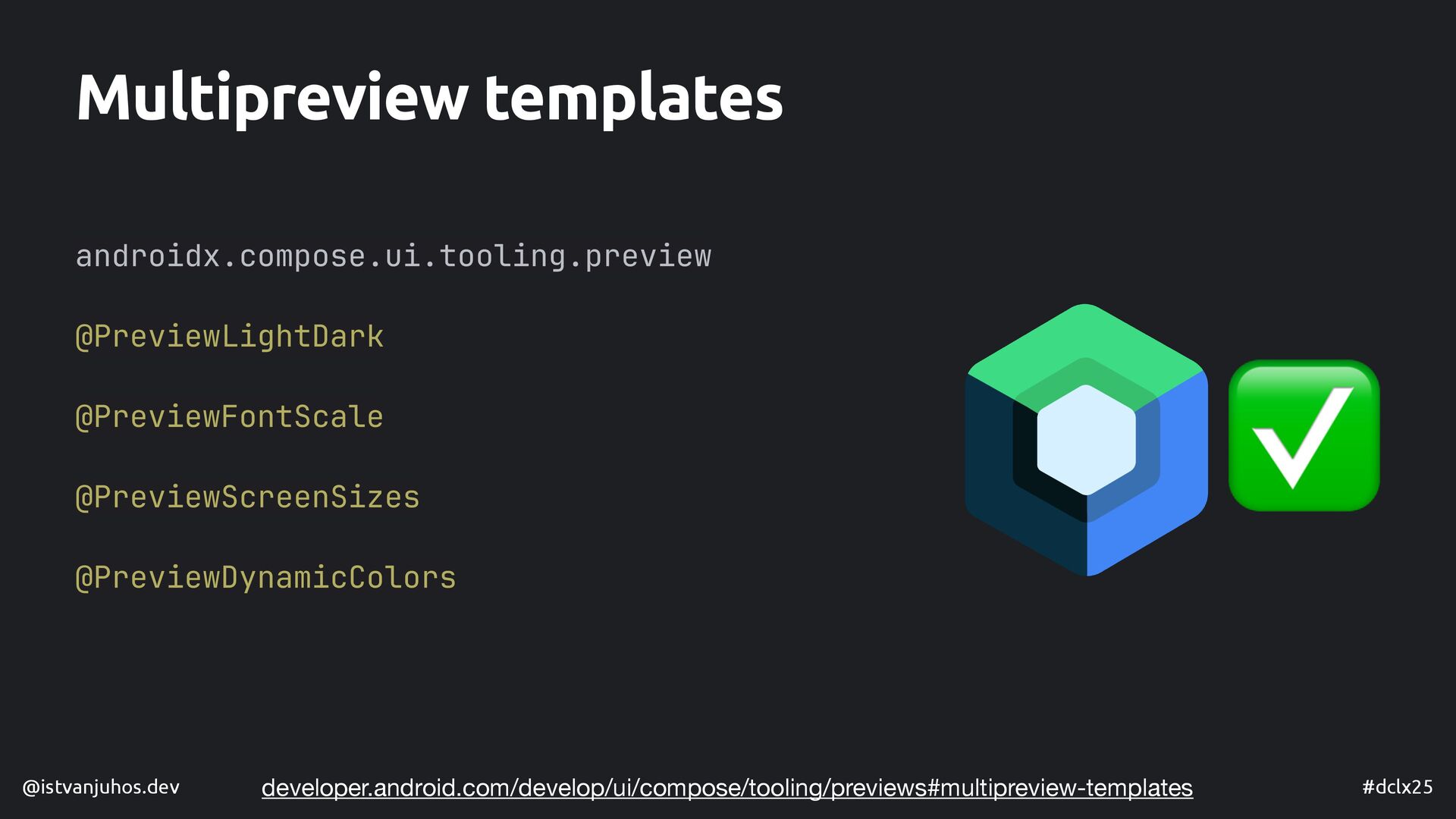

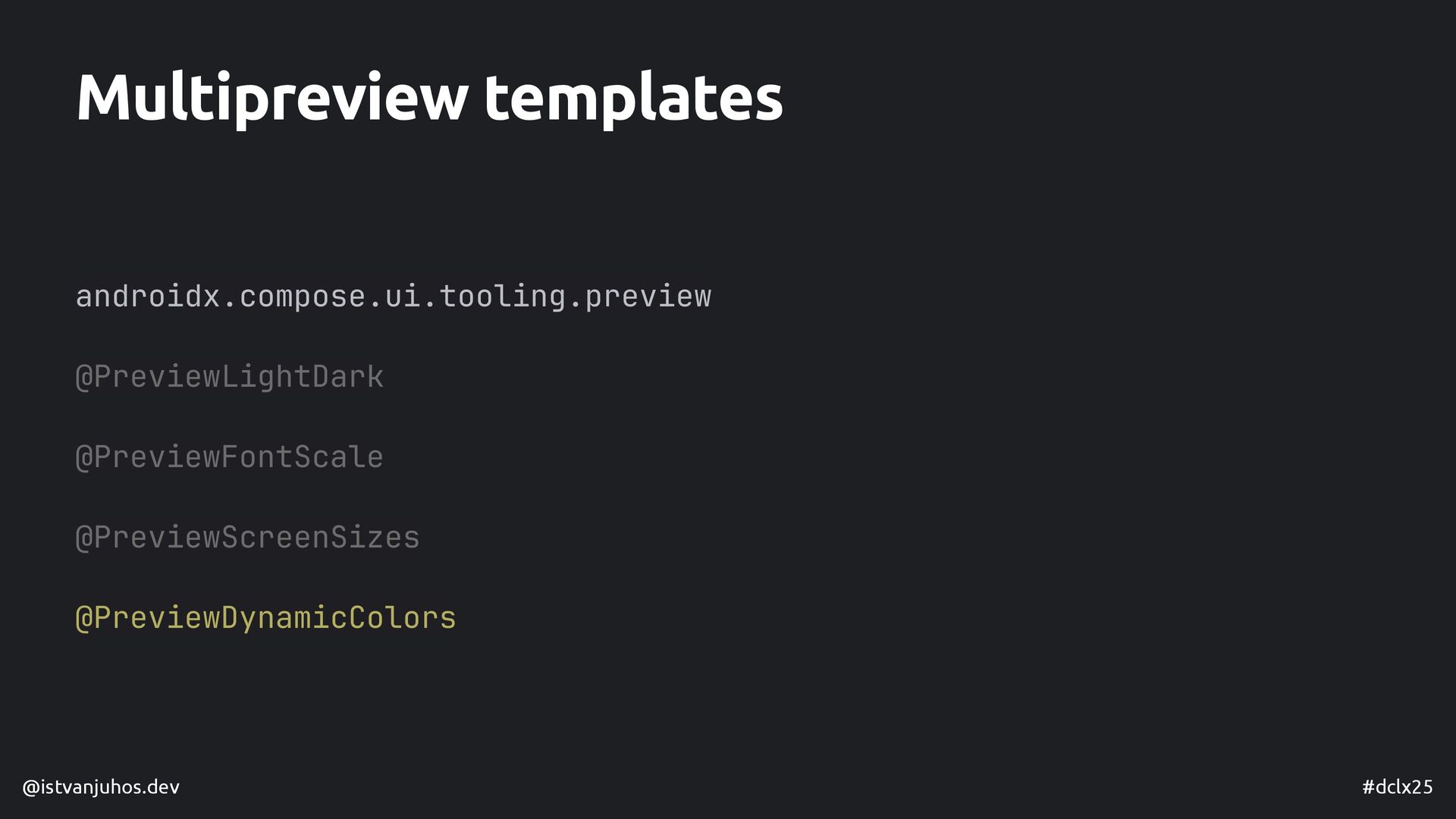

@istvanjuhos.dev #dclx25 Multipreview templates androidx.compose.ui.tooling.preview @PreviewLightDark @PreviewFontScale @Previe w ScreenSizes
@PreviewDynamicColors ✅ developer.android.com/develop/ui/compose/tooling/previews#multipreview-templates

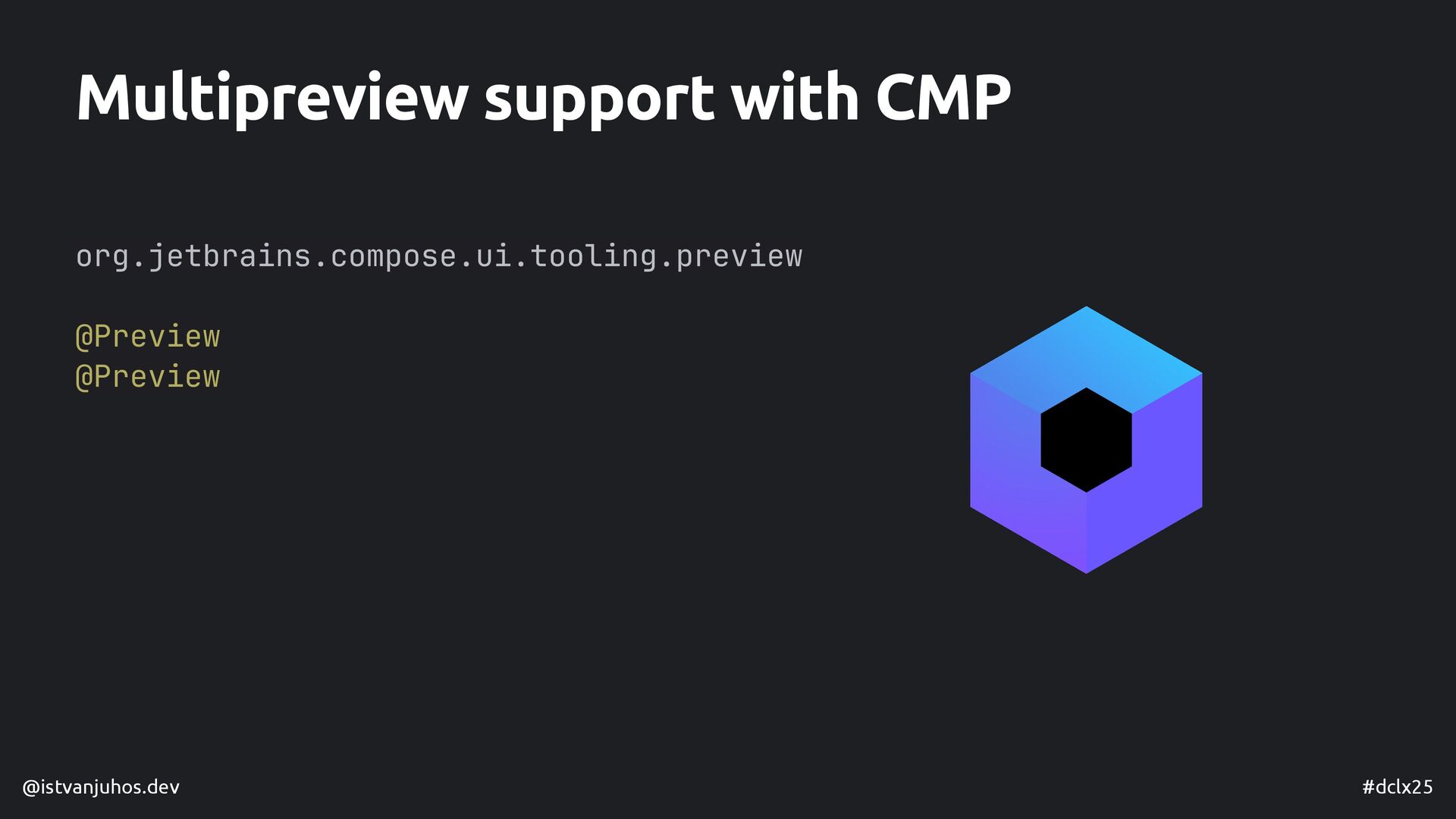

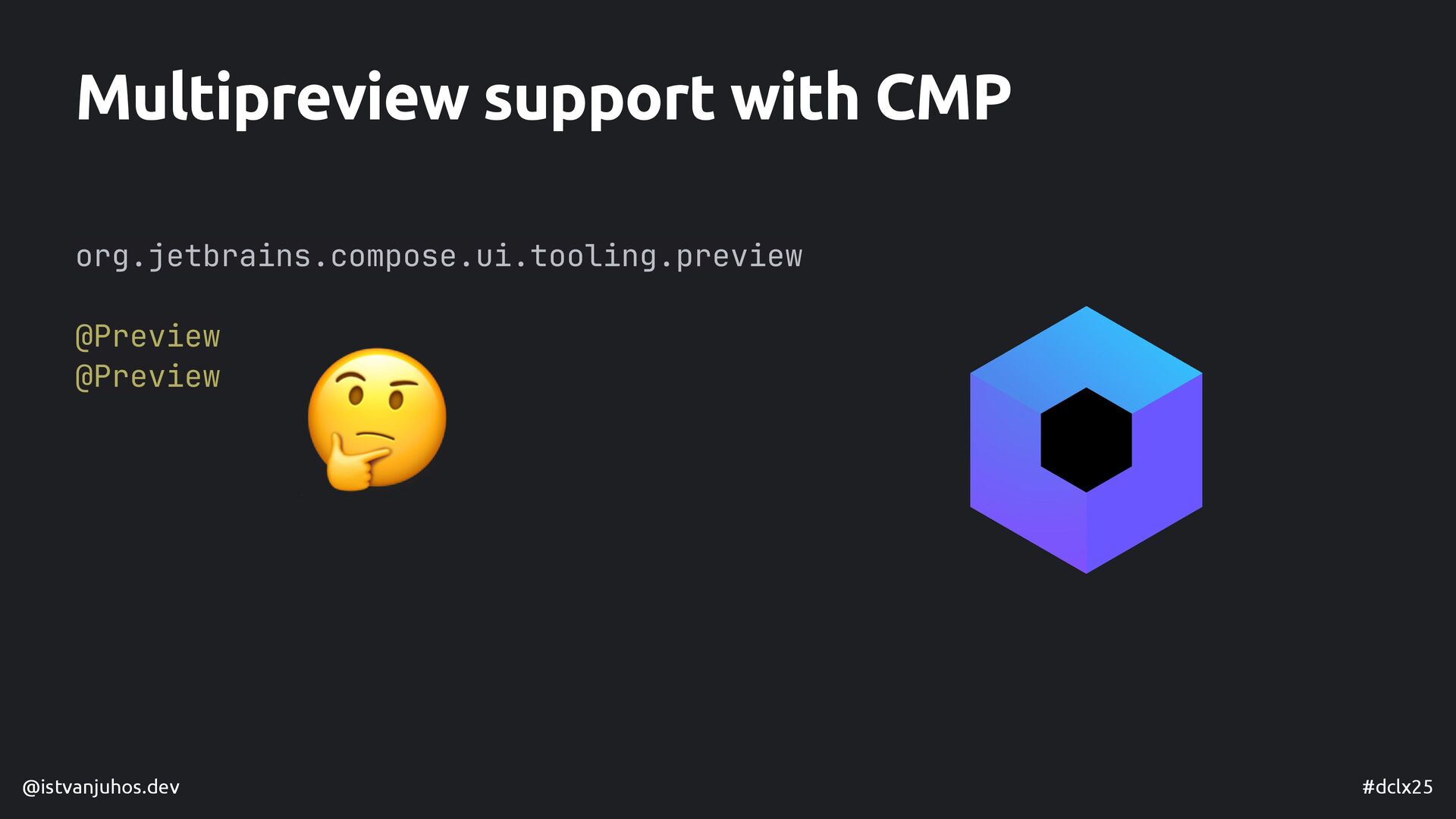

@istvanjuhos.dev #dclx25 Multipreview support with CMP org.jetbrain s .compose.ui.tooling.preview @Preview

@Preview

@Preview 🤔

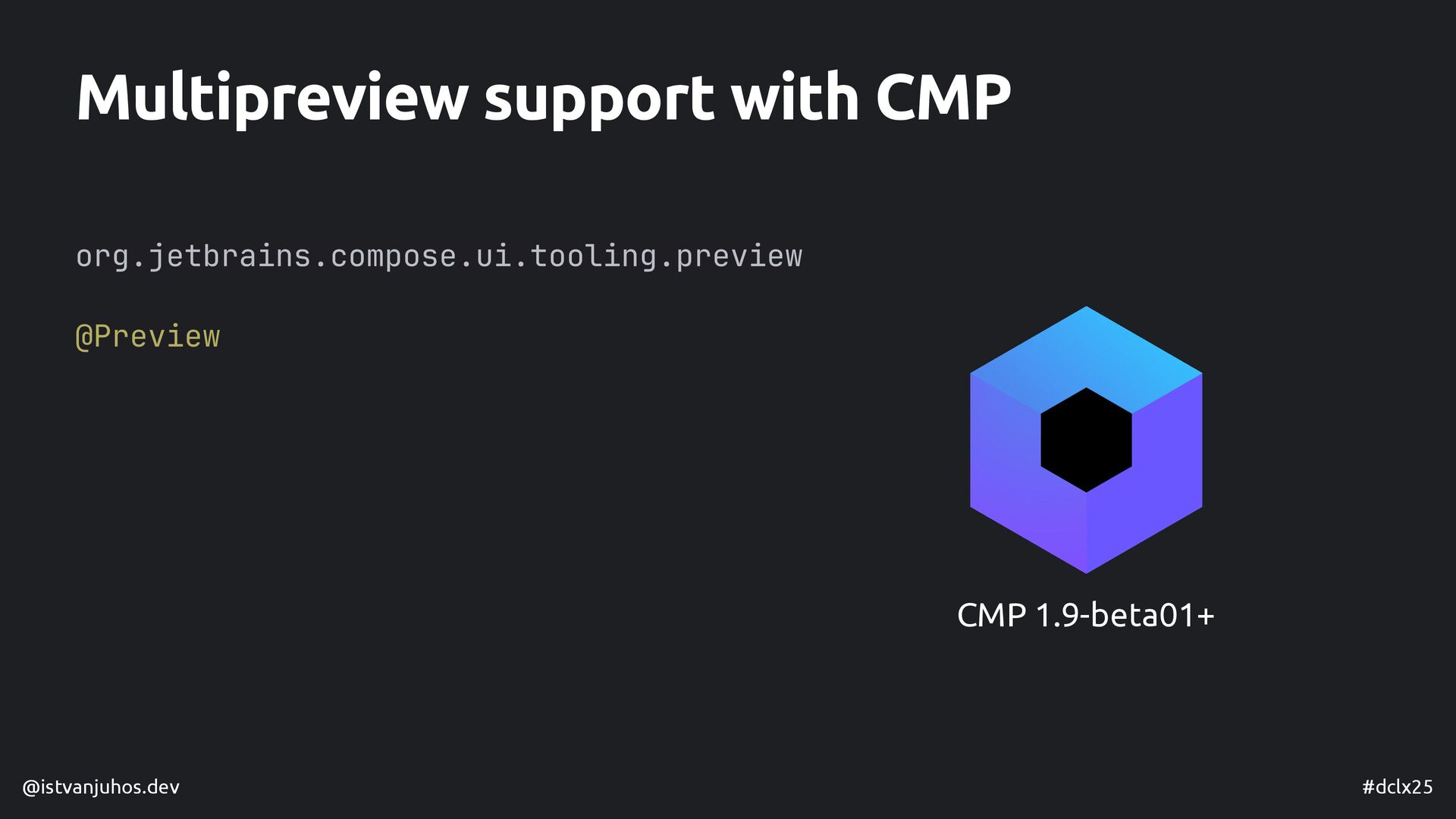

@istvanjuhos.dev #dclx25 Multipreview support with CMP CMP 1.9-beta01+ org.jetbrain s
.compose.ui.tooling.preview @Preview

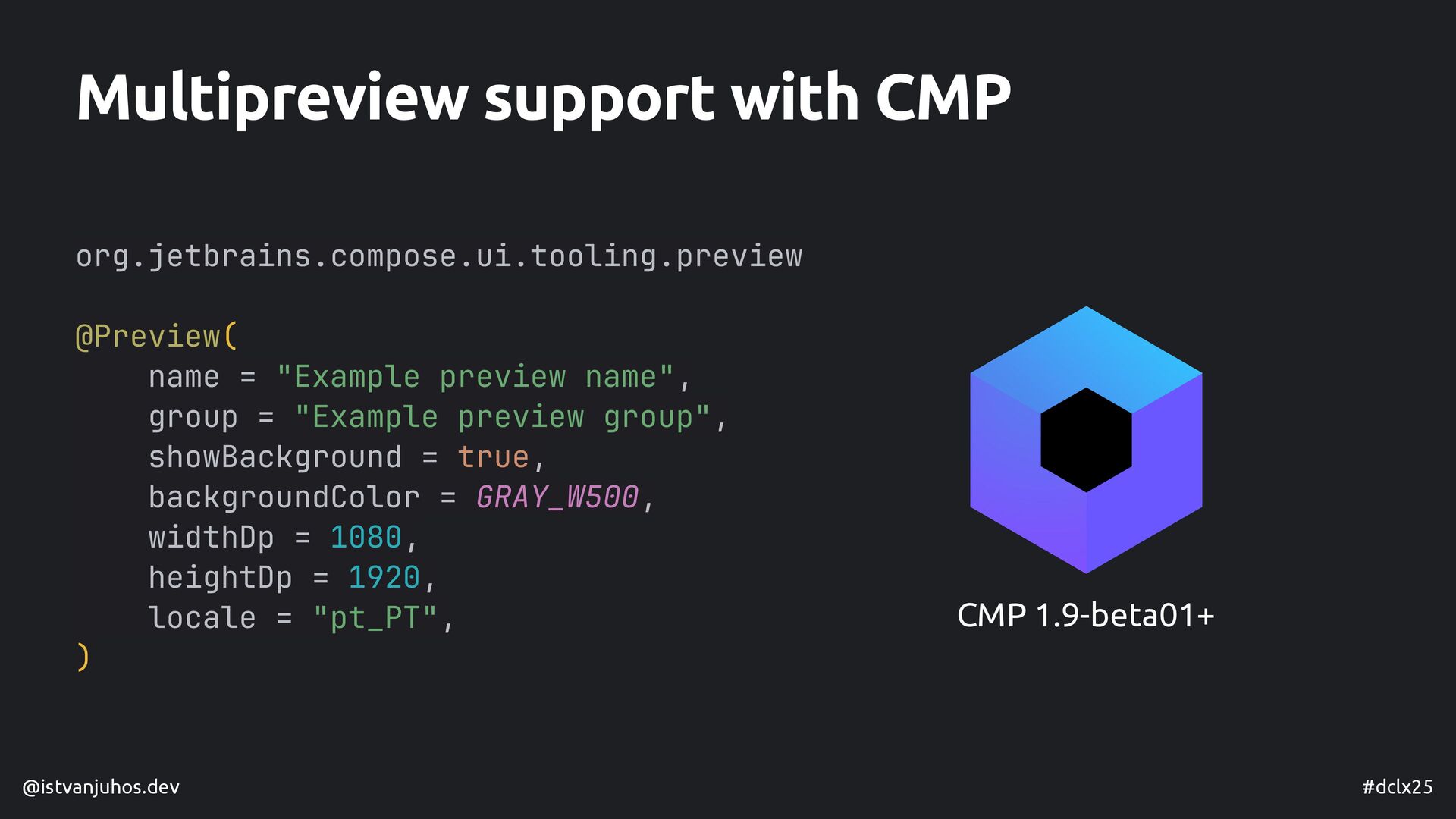

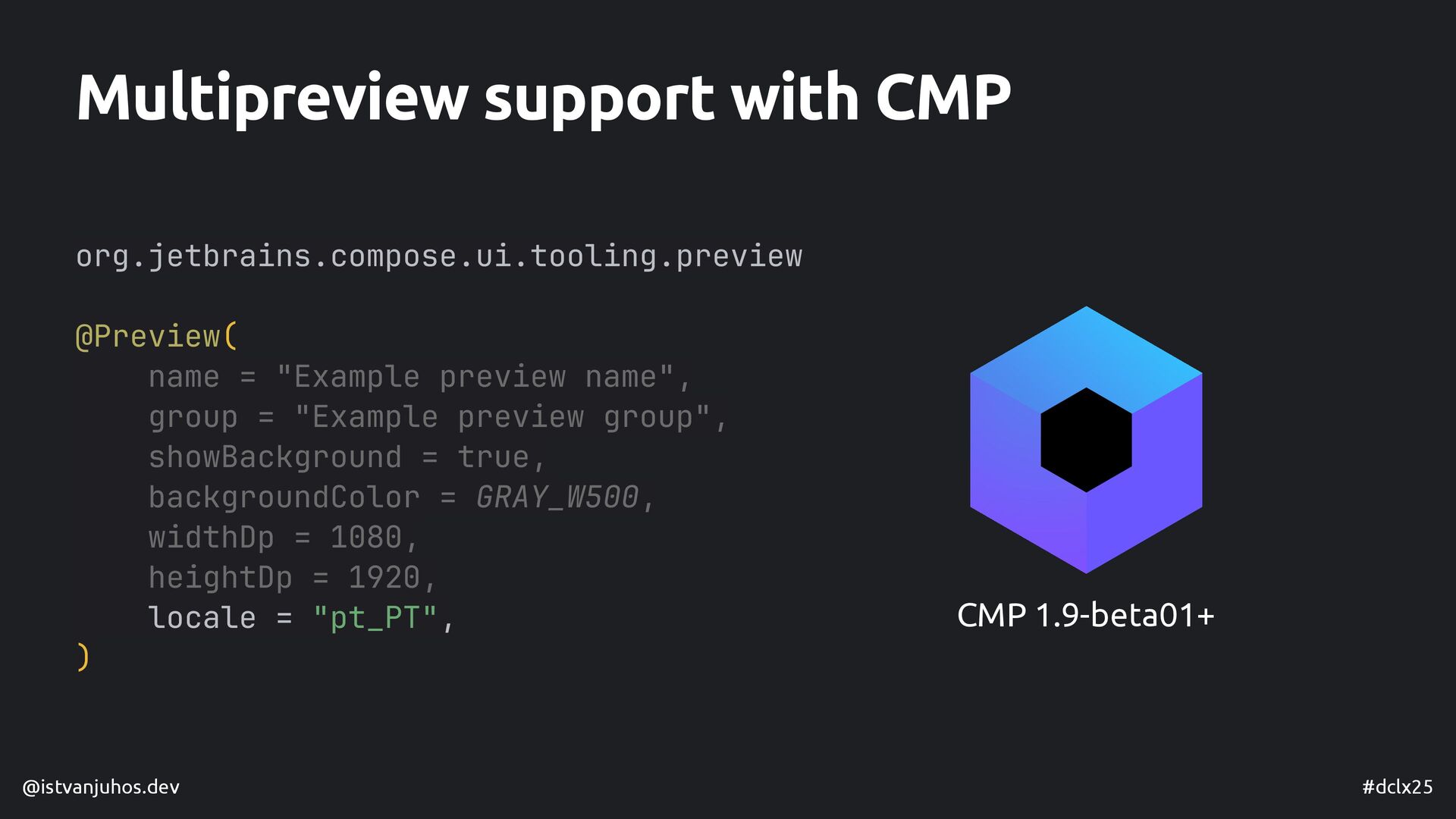

@istvanjuhos.dev #dclx25 Multipreview support with CMP org.jetbrain s .compose.ui.tooling.preview @Preview(
name = "Example preview name", group = "Example preview group", showBackground = true, backgroundColor = GRAY_W500, widthDp = 1080, heightDp = 1920, locale = "pt_PT", ) CMP 1.9-beta01+

@istvanjuhos.dev #dclx25 Multipreview examples - MultiThemePreview @Preview( name = "Dark
mode", group = "Theme", uiMode = Configuration .UI_MODE_NIGHT_YES ) @Preview( name = "Default", group = "Theme", ) annotation class MultiThemePreview

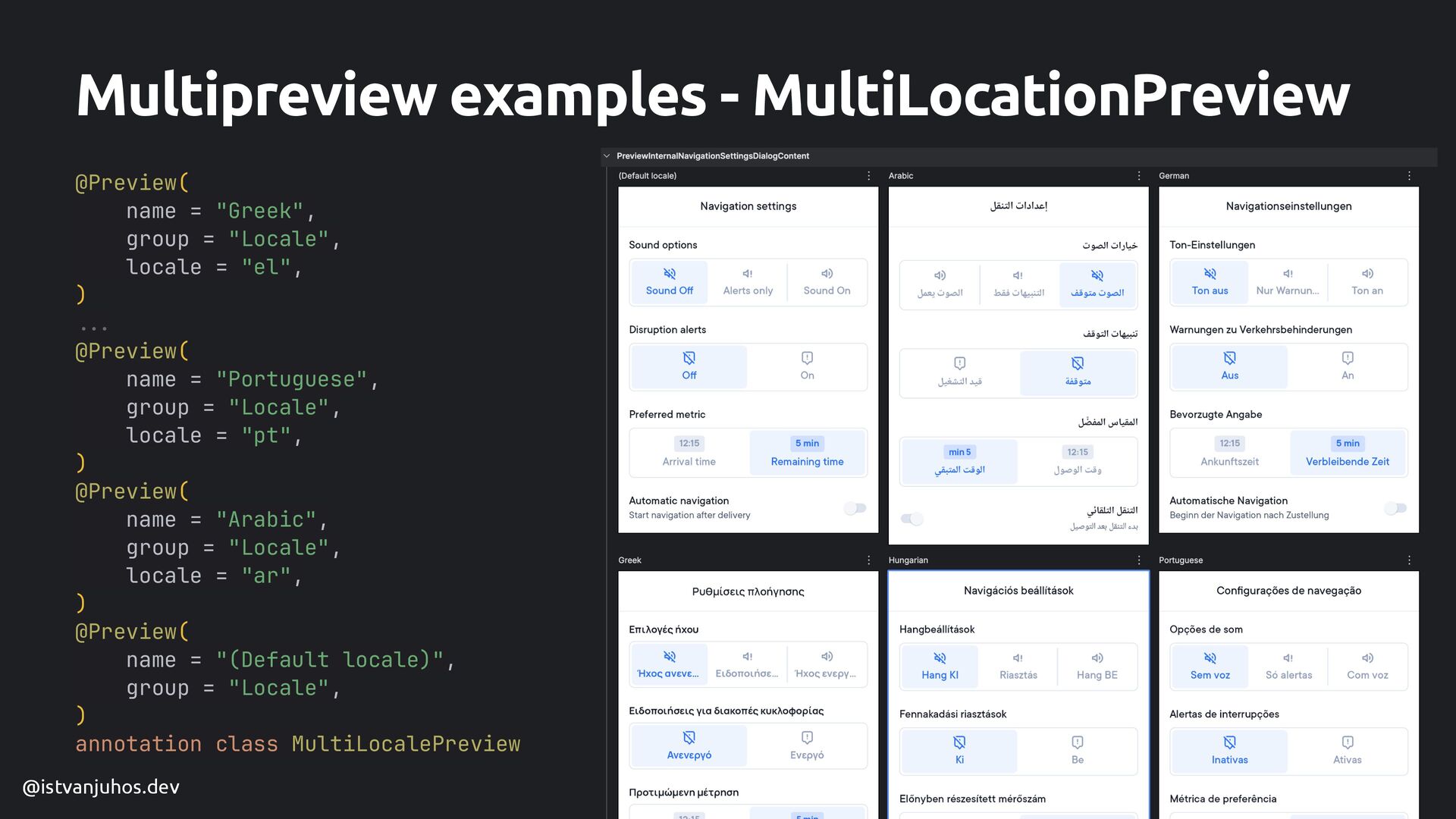

@istvanjuhos.dev #dclx25 Multipreview examples - MultiLocationPreview @Preview( name = "Greek",
group = "Locale", locale = "el", ) ... @Preview( name = "Portuguese", group = "Locale", locale = "pt", ) @Preview( name = "Arabic", group = "Locale", locale = "ar", ) @Preview( name = "(Default locale)", group = "Locale", ) annotation class MultiLocalePreview

Build custom tools 🪛

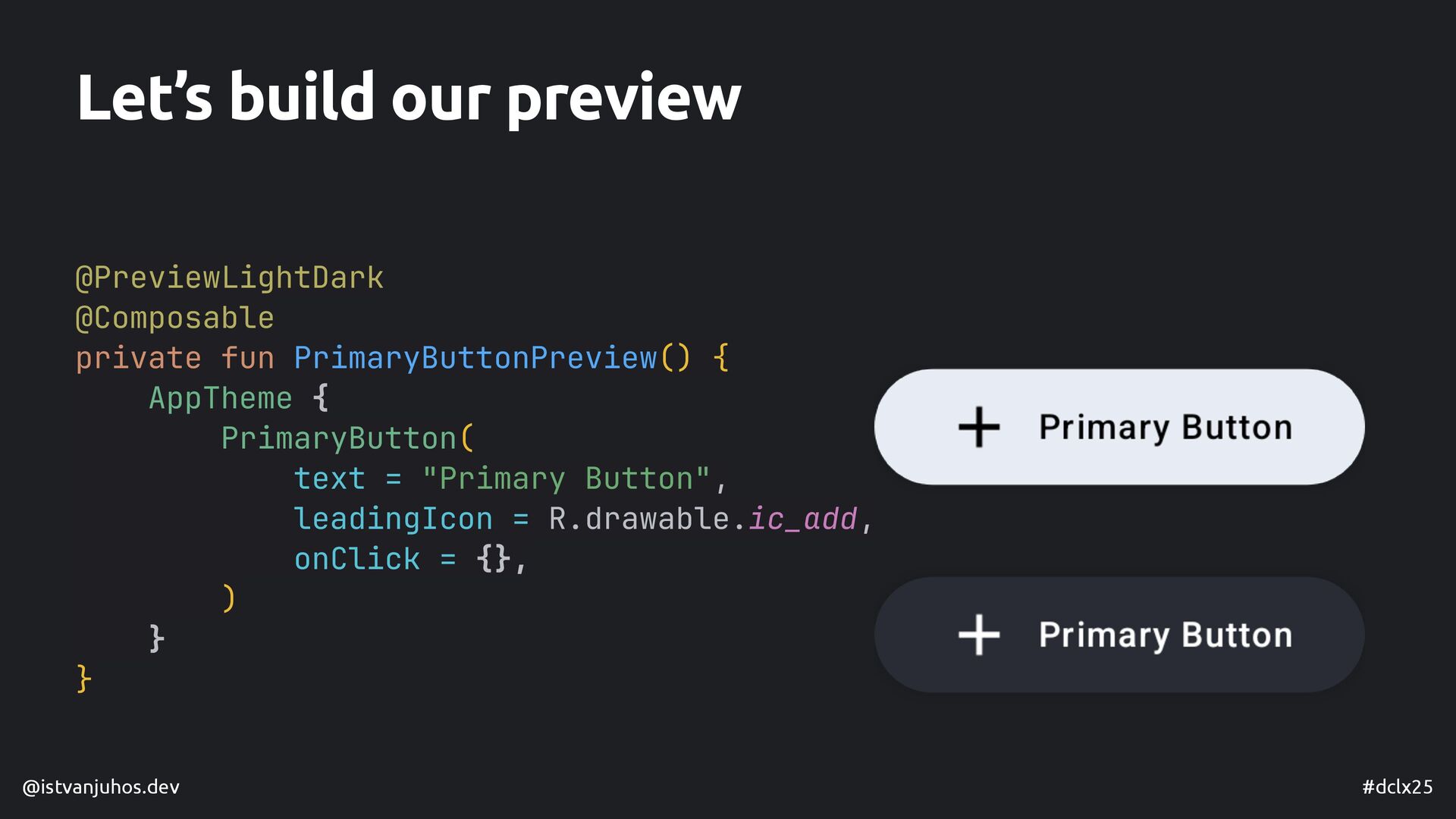

@istvanjuhos.dev #dclx25 @PreviewLightDark @Composable private fun PrimaryButtonPreview() { AppTheme {
PrimaryButton( text = "Primary Button", leadingIcon = R.drawable.ic_add, onClick = {}, ) } } Let’s build our preview

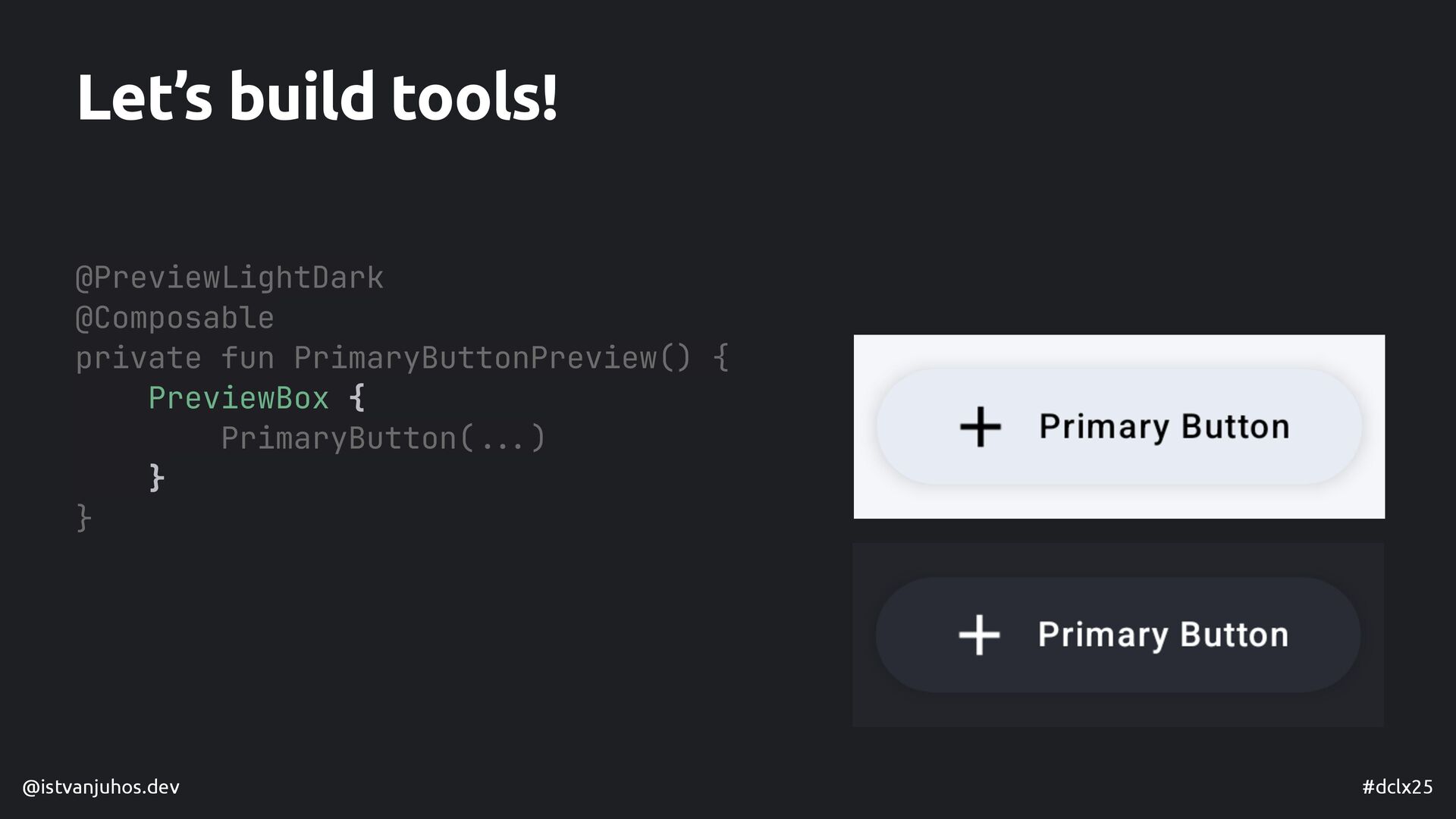

@istvanjuhos.dev #dclx25 @PreviewLightDark @Composable private fun PrimaryButtonPreview() { PreviewBox {
PrimaryButton( ... ) } } Let’s build tools!

@istvanjuhos.dev #dclx25 Building preview tools @Composable fun PreviewBox( modifier: Modifier
= Modifier, content: @Composable () -> Unit, ) { }

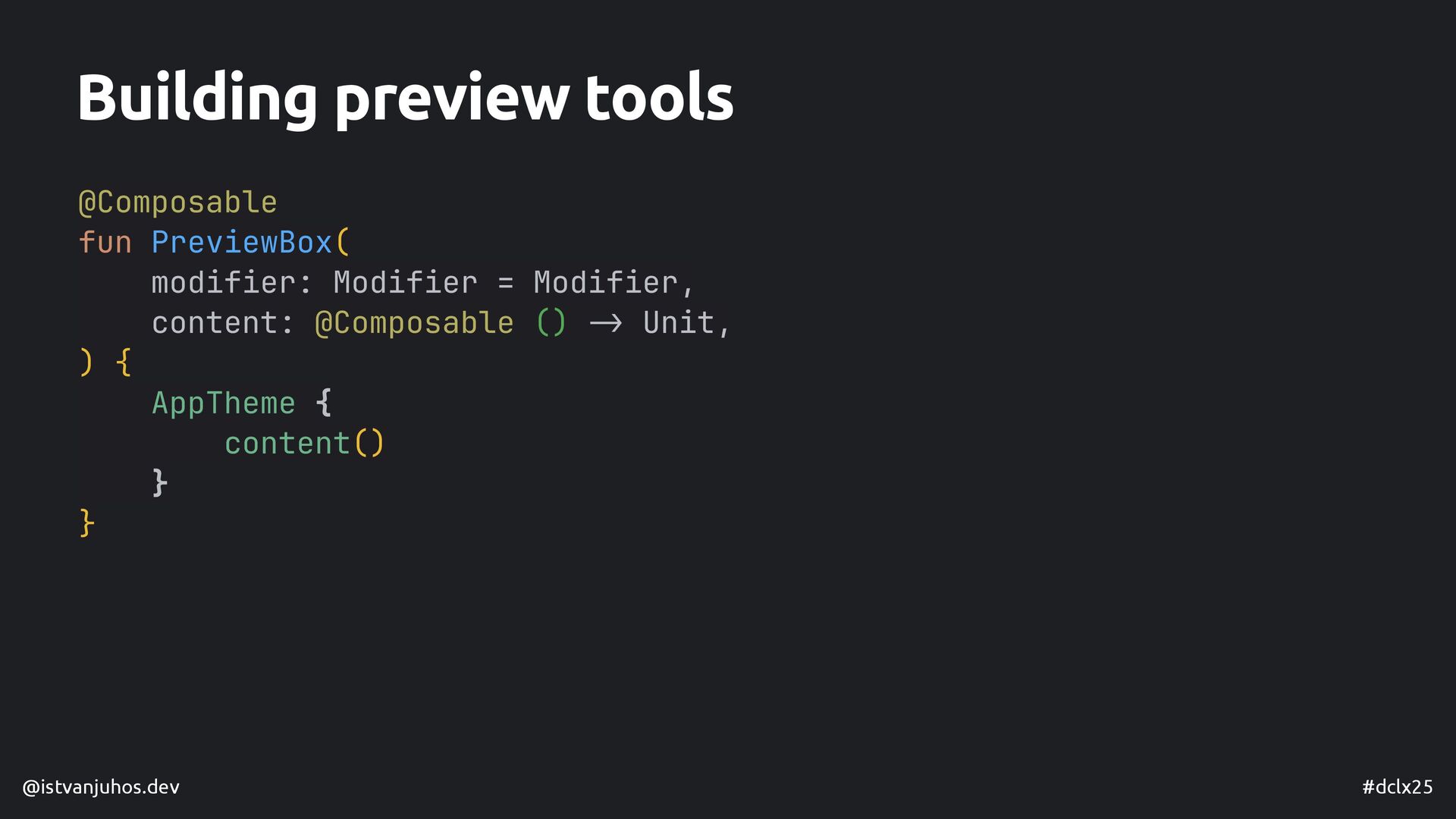

@istvanjuhos.dev #dclx25 @Composable fun PreviewBox( modifier: Modifier = Modifier, content:
@Composable () -> Unit, ) { AppTheme { content() } } Building preview tools

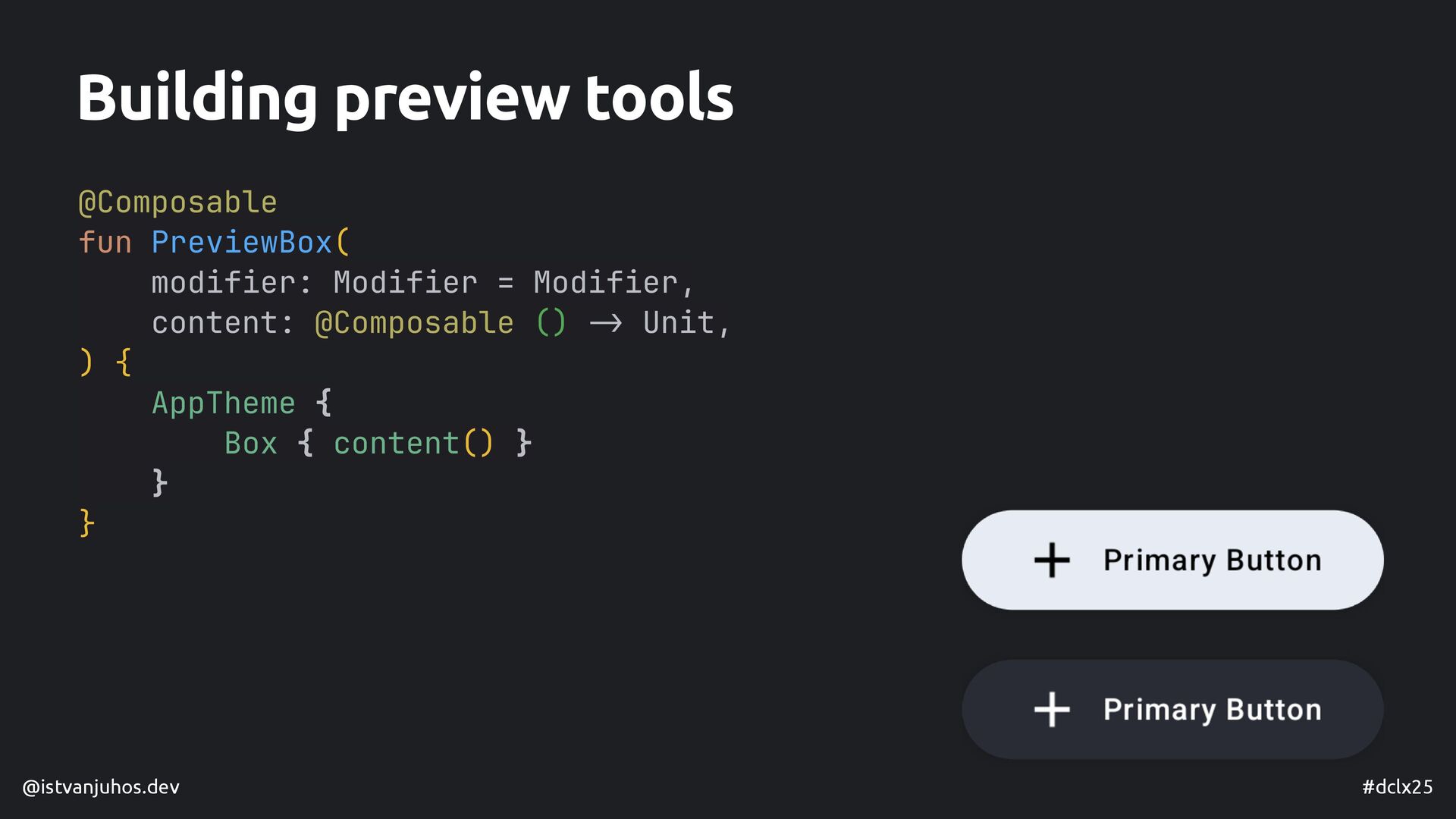

@istvanjuhos.dev #dclx25 @Composable fun PreviewBox( modifier: Modifier = Modifier, content:
@Composable () -> Unit, ) { AppTheme { Box { content() } } } Building preview tools

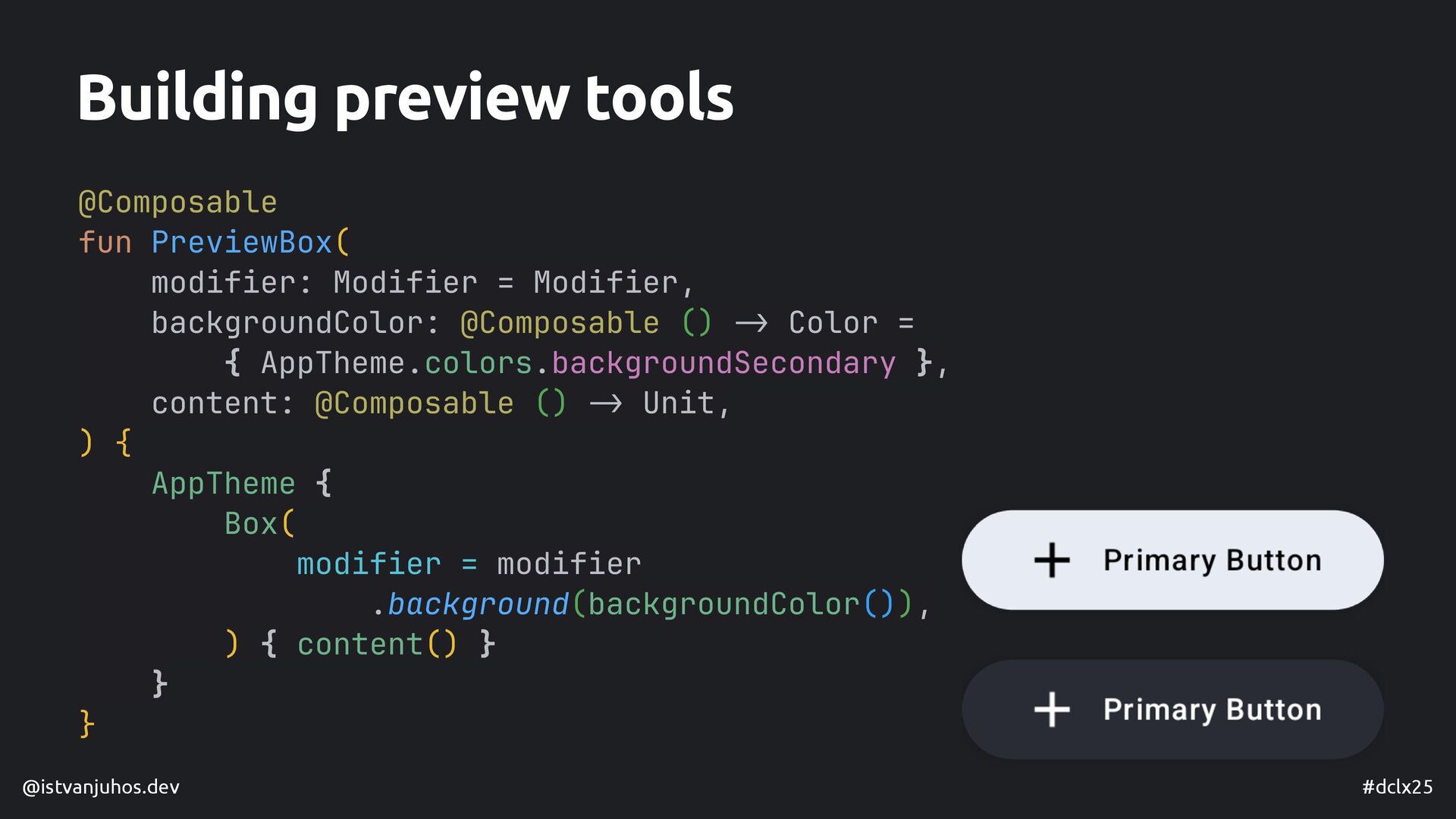

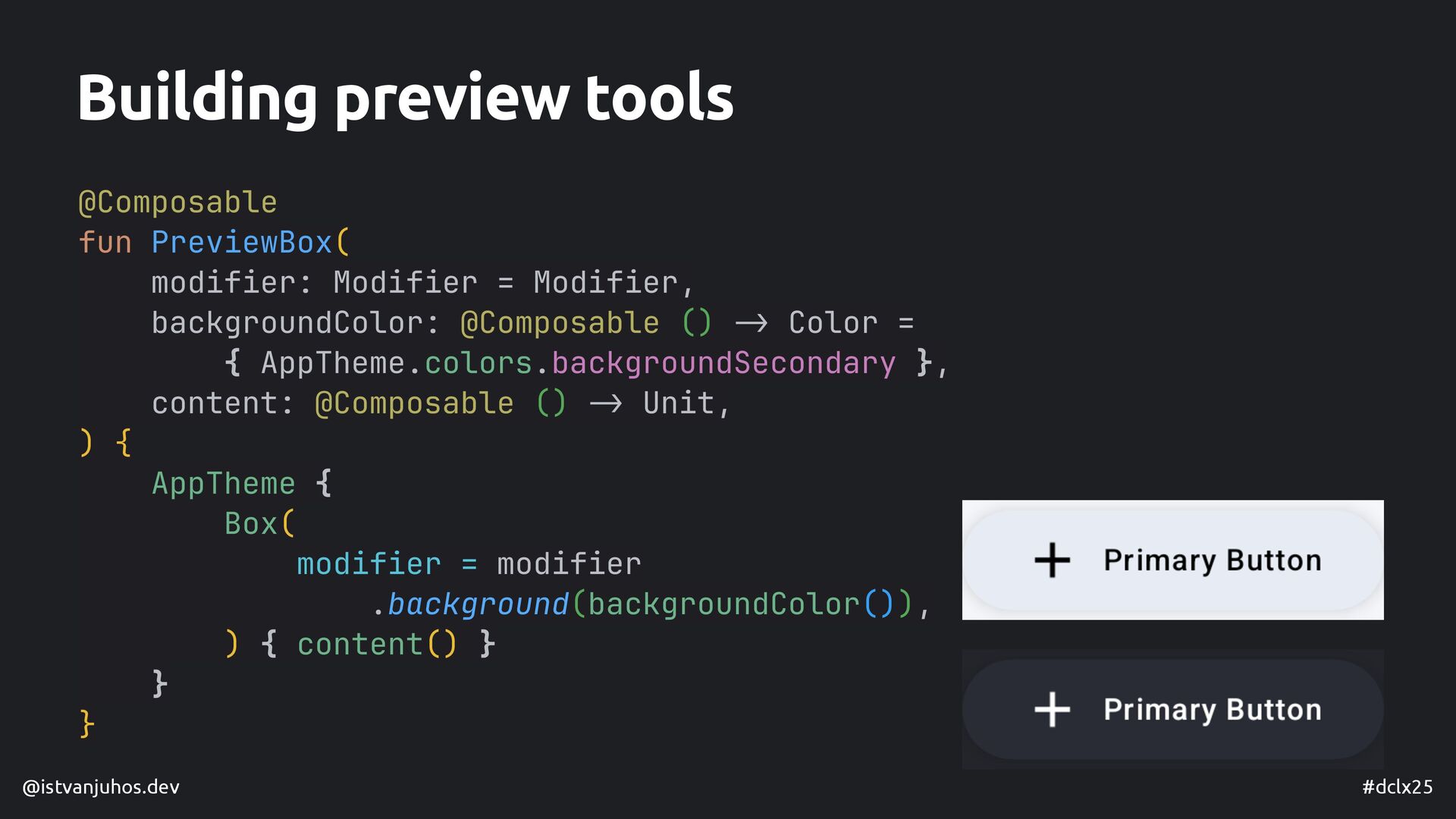

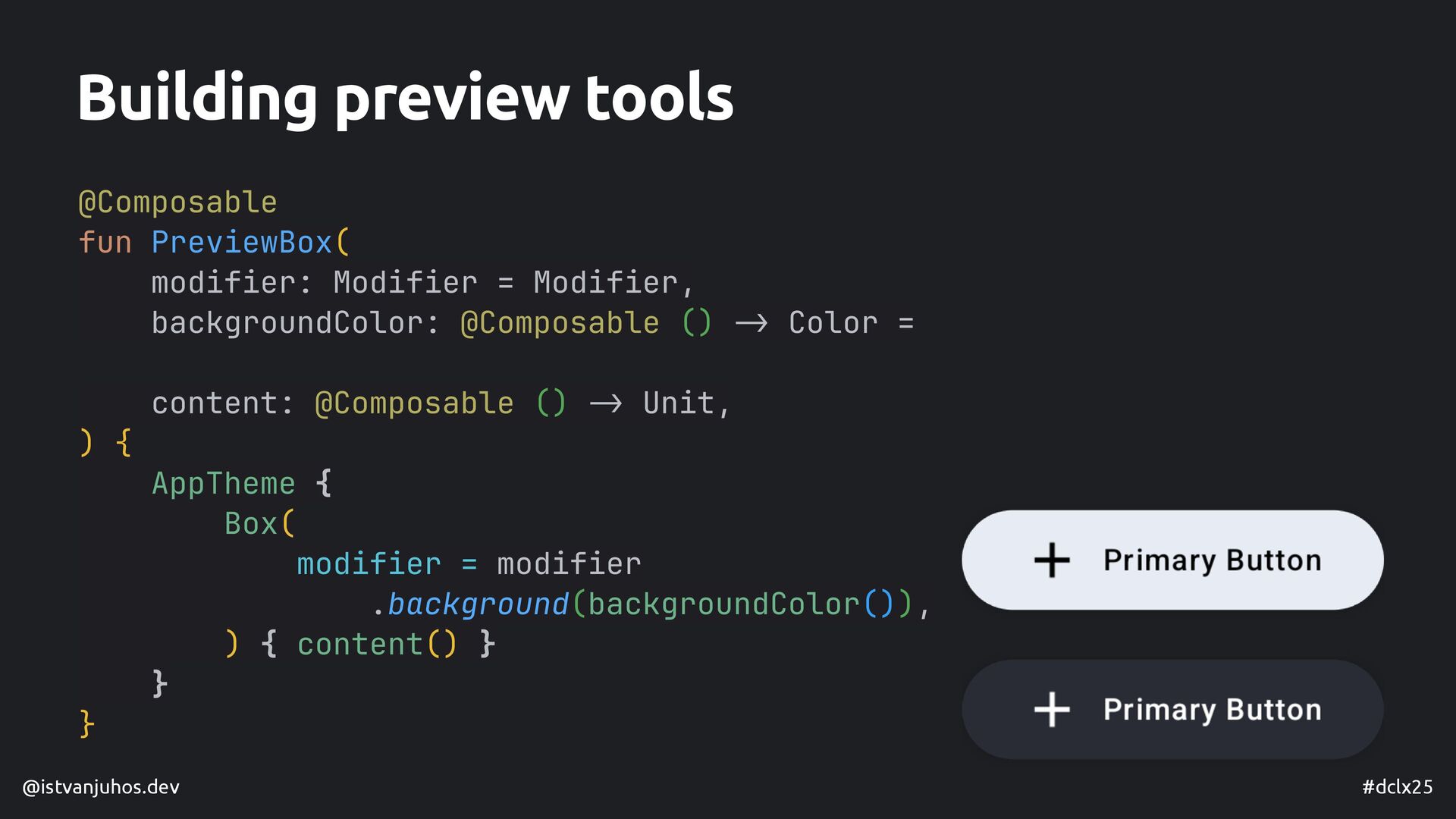

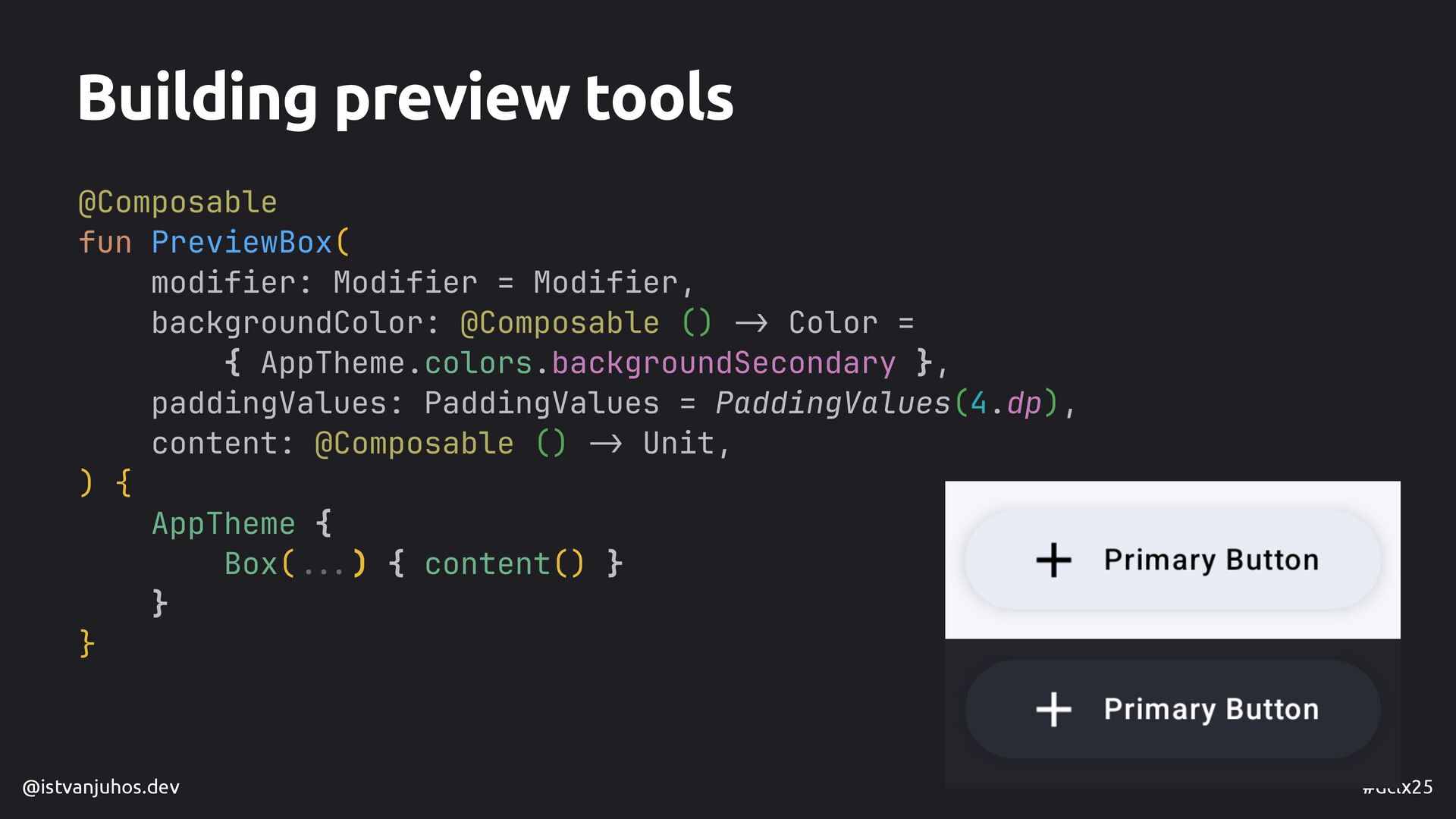

@istvanjuhos.dev #dclx25 @Composable fun PreviewBox( modifier: Modifier = Modifier, backgroundColor:
@Composable () -> Color = content: @Composable () -> Unit, ) { AppTheme { Box( modifier = modifier .background(backgroundColor()), ) { content() } } } Building preview tools

@Composable () -> Color = { AppTheme.colors.backgroundSecondary }, content: @Composable () -> Unit, ) { AppTheme { Box( modifier = modifier .background(backgroundColor()), ) { content() } } } Building preview tools

@Composable () -> Color = { AppTheme.colors.backgroundSecondary }, content: @Composable () -> Unit, ) { AppTheme { Box( ... ) { content() } } } Building preview tools

@Composable () -> Color = { AppTheme.colors.backgroundSecondary }, paddingValues: PaddingValues = PaddingValues(4.dp), content: @Composable () -> Unit, ) { AppTheme { Box( ... ) { content() } } } Building preview tools

@istvanjuhos.dev #dclx25 @Composable fun Previe w Box( ... content: @Composable
() -> Unit, ) { AppTheme { Box( ... ) { content() } } } Building preview tools

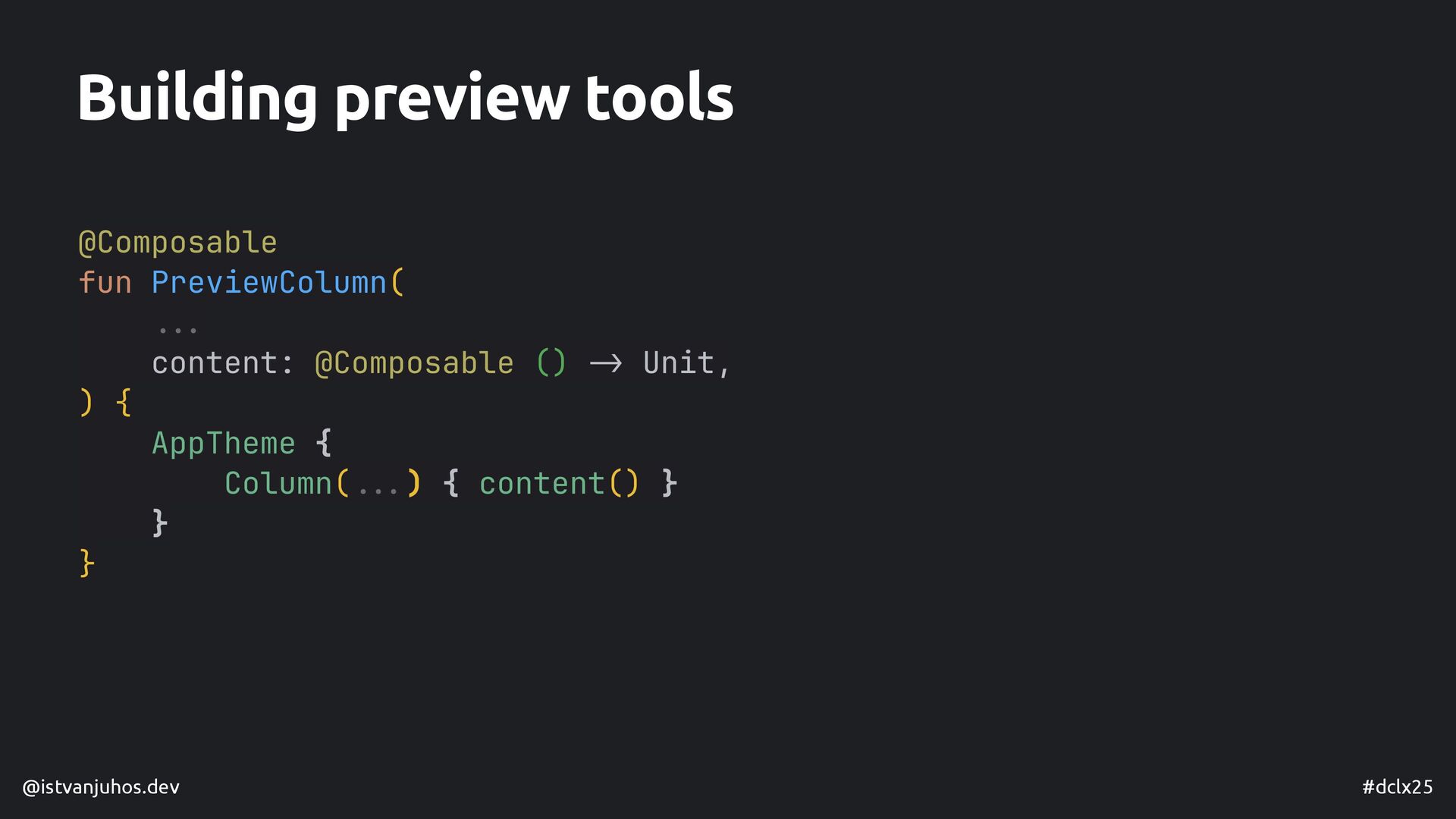

@istvanjuhos.dev #dclx25 @Composable fun Previe w Column( ... content: @Composable
() -> Unit, ) { AppTheme { Column( ... ) { content() } } } Building preview tools

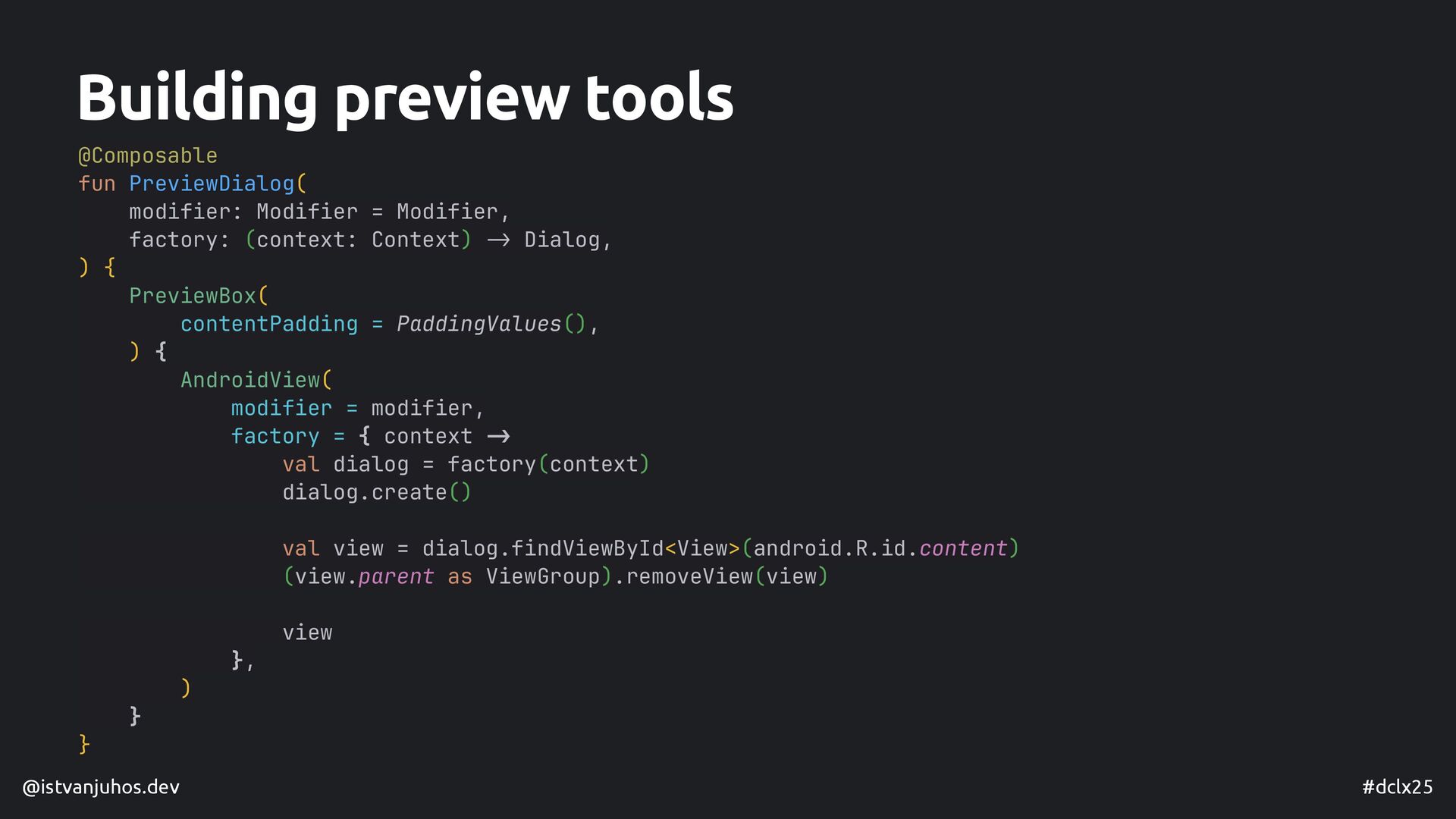

@istvanjuhos.dev #dclx25 @Composable fun PreviewDialog( modifier: Modifier = Modifier, factory:
(context: Context) -> Dialog, ) { PreviewBox( contentPadding = PaddingValues(), ) { AndroidView( modifier = modifier, factory = { context -> val dialog = factory(context) dialog.create() val view = dialog.findViewById<View>(android.R.id.content) (view.parent as ViewGroup).removeView(view) view }, ) } } Building preview tools

Override CompositionLocals 🗺

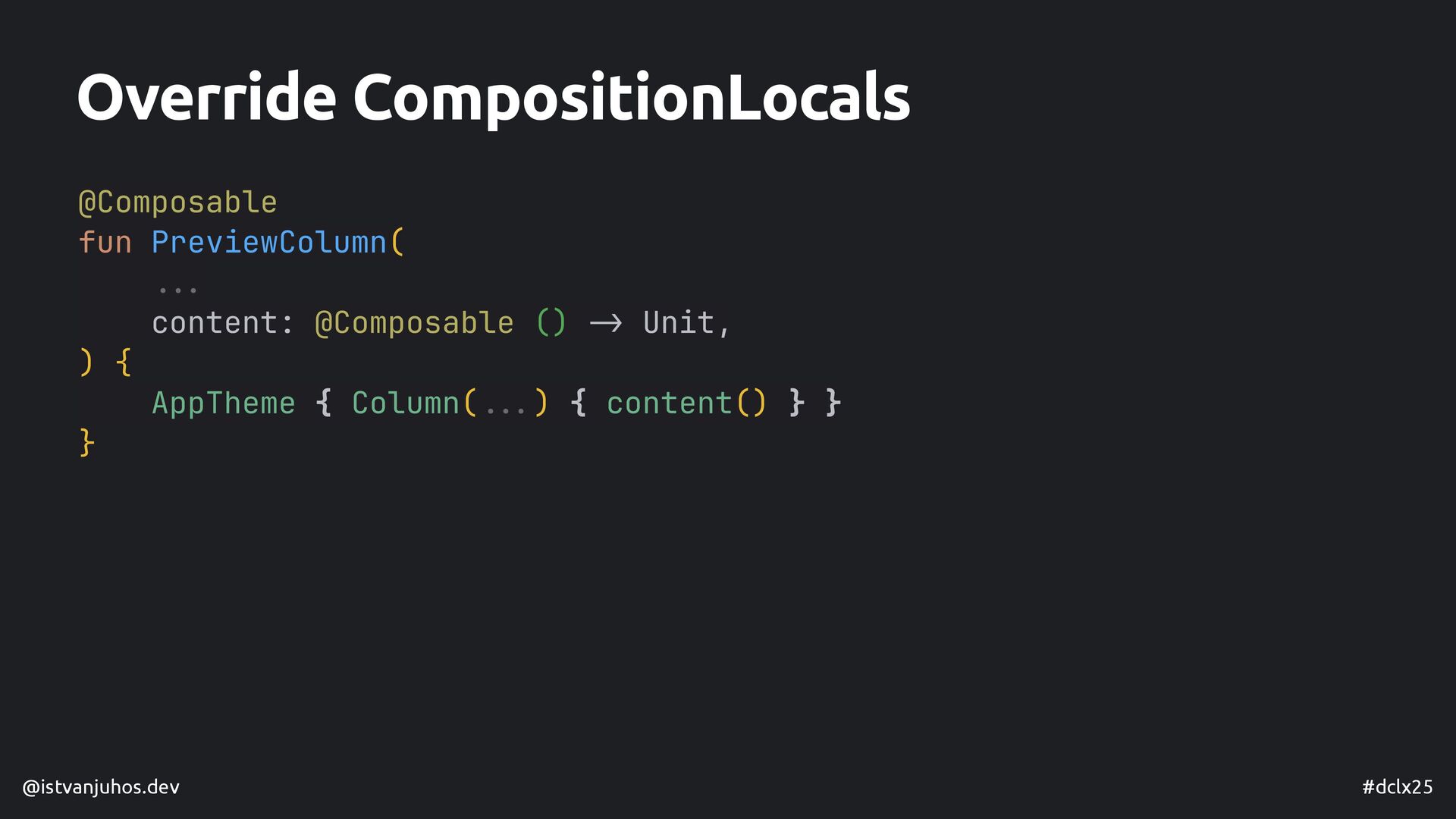

@istvanjuhos.dev #dclx25 Override CompositionLocals @Composable fun PreviewColumn( ... content: @Composable
() -> Unit, ) { AppTheme { Column( ... ) { content() } } }

@istvanjuhos.dev #dclx25 Override CompositionLocals @Composable fun PreviewColumn( ... layoutDirection: LayoutDirection
= LayoutDirection.Ltr, content: @Composable () -> Unit, ) { AppTheme { Column( ... ) { content() } } }

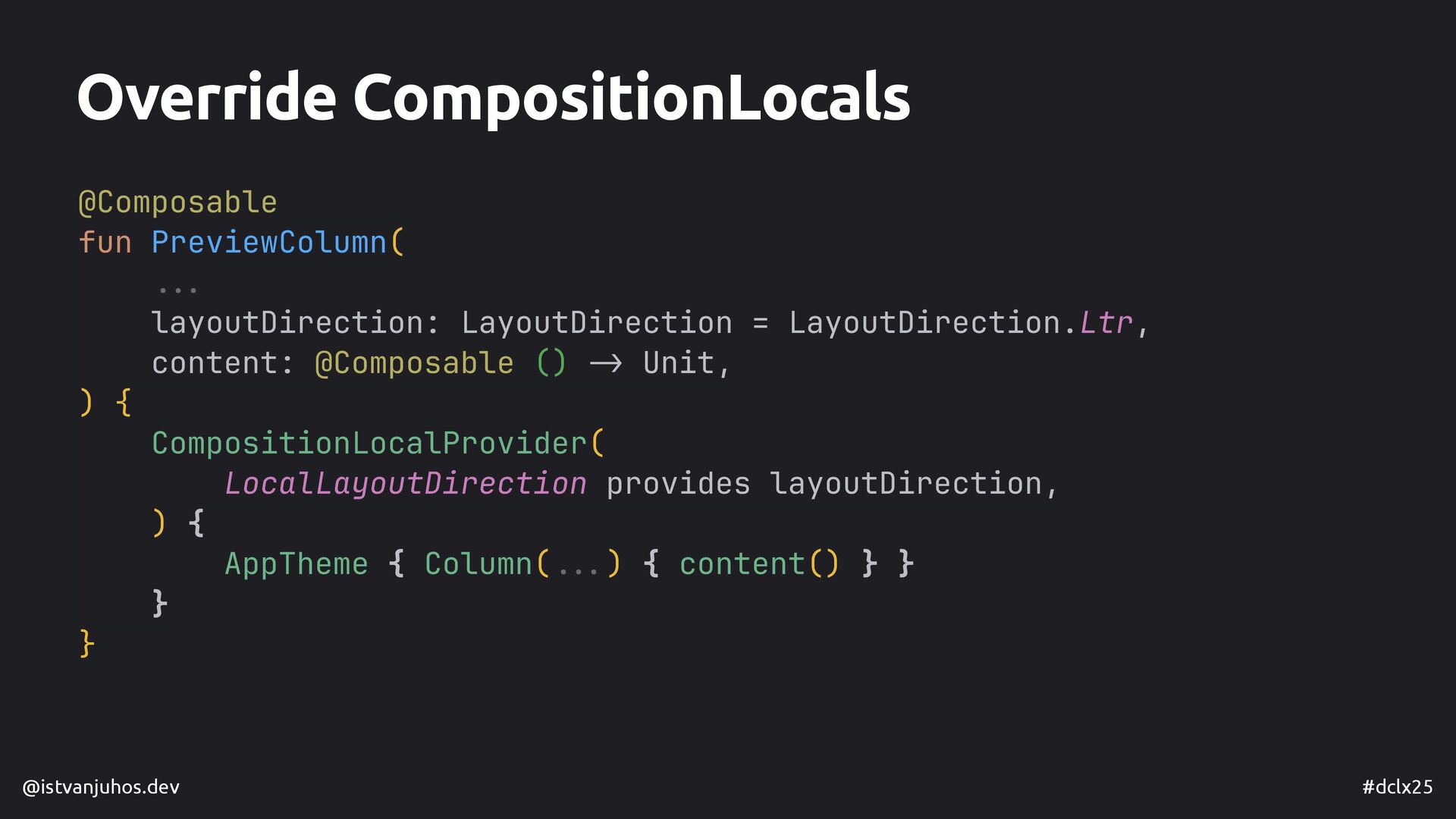

@istvanjuhos.dev #dclx25 Override CompositionLocals @Composable fun PreviewColumn( ... layoutDirection: LayoutDirection
= LayoutDirection.Ltr, content: @Composable () -> Unit, ) { CompositionLocalProvider( LocalLayoutDirection provides layoutDirection, ) { AppTheme { Column( ... ) { content() } } } }

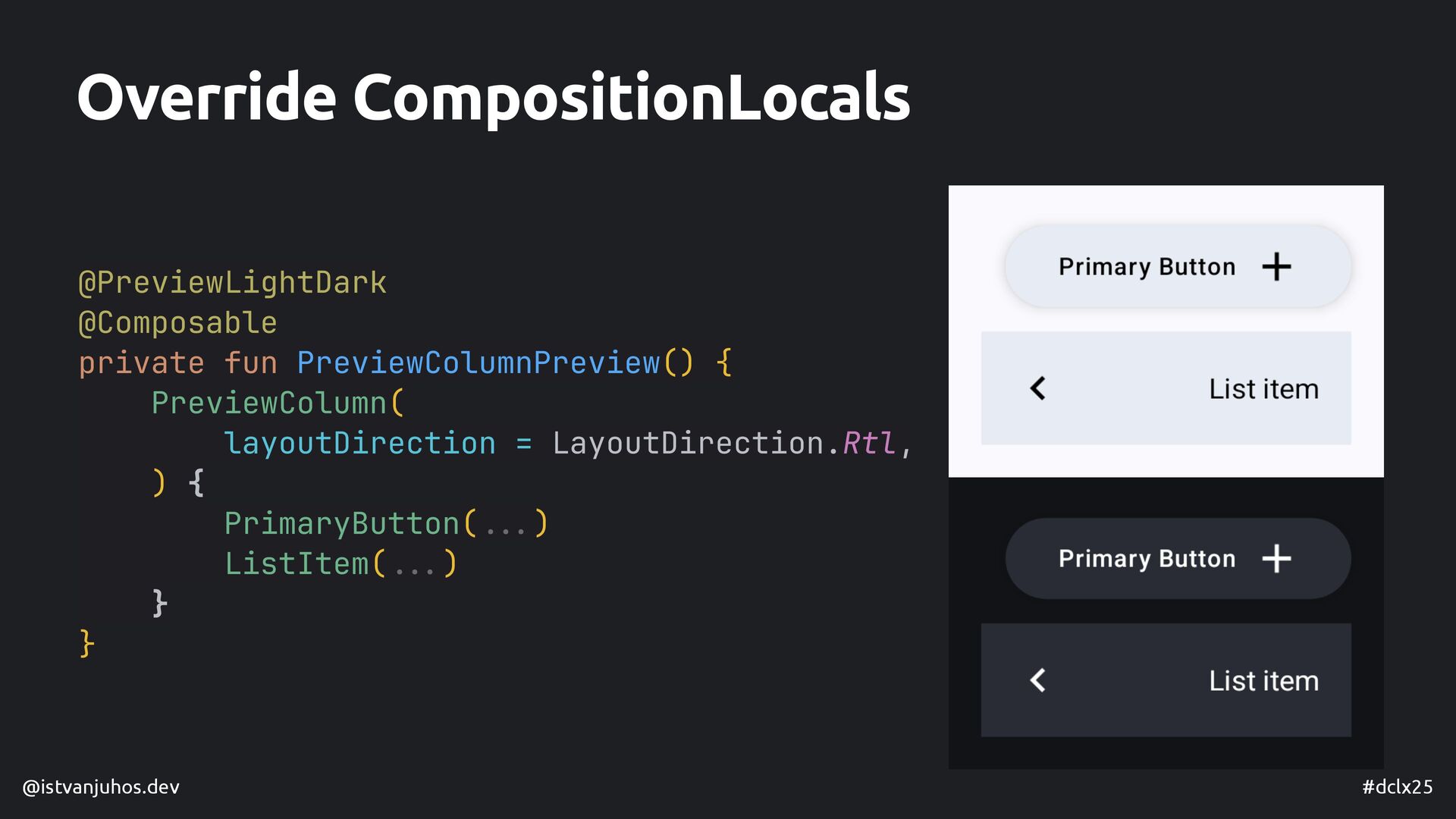

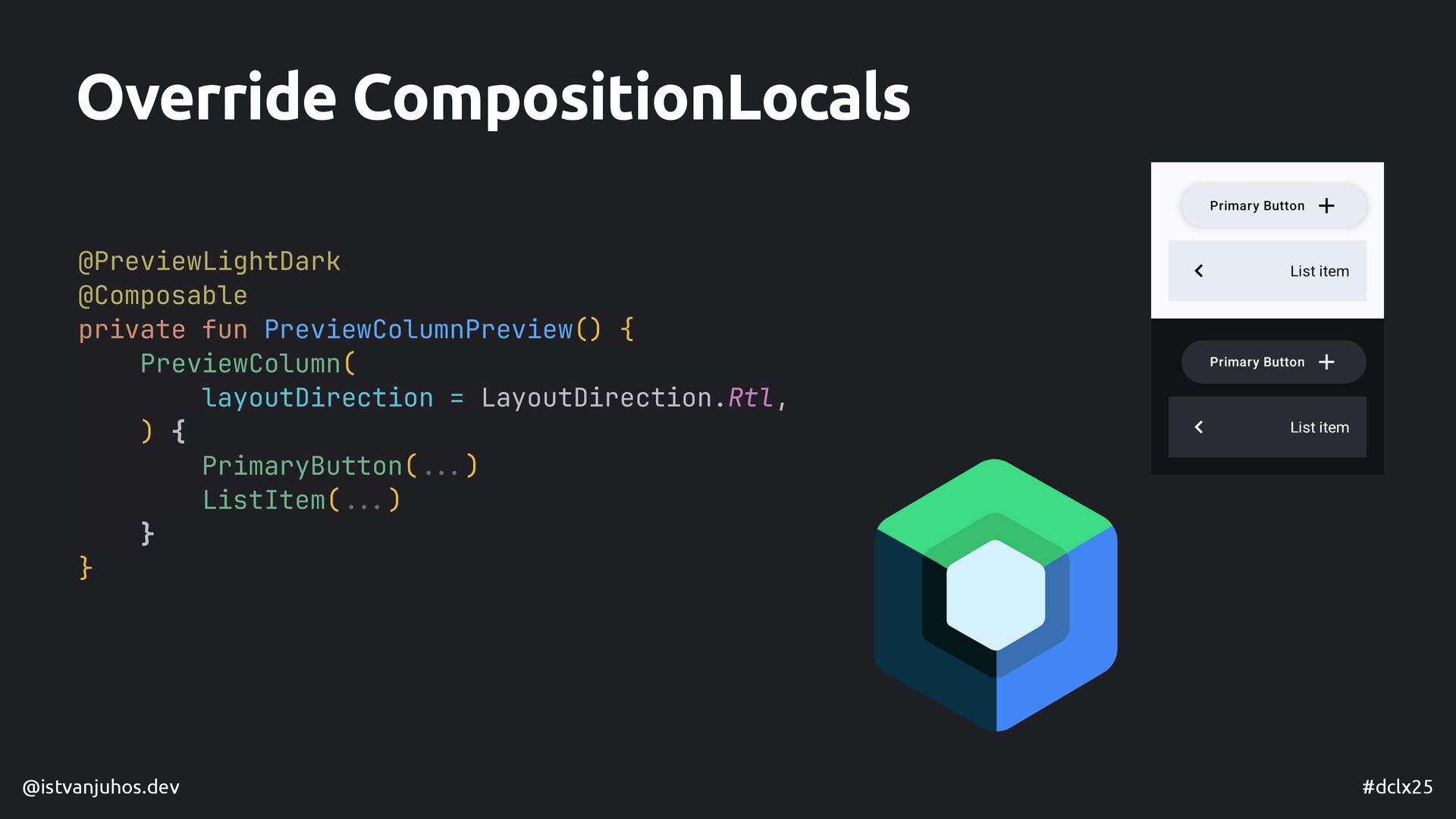

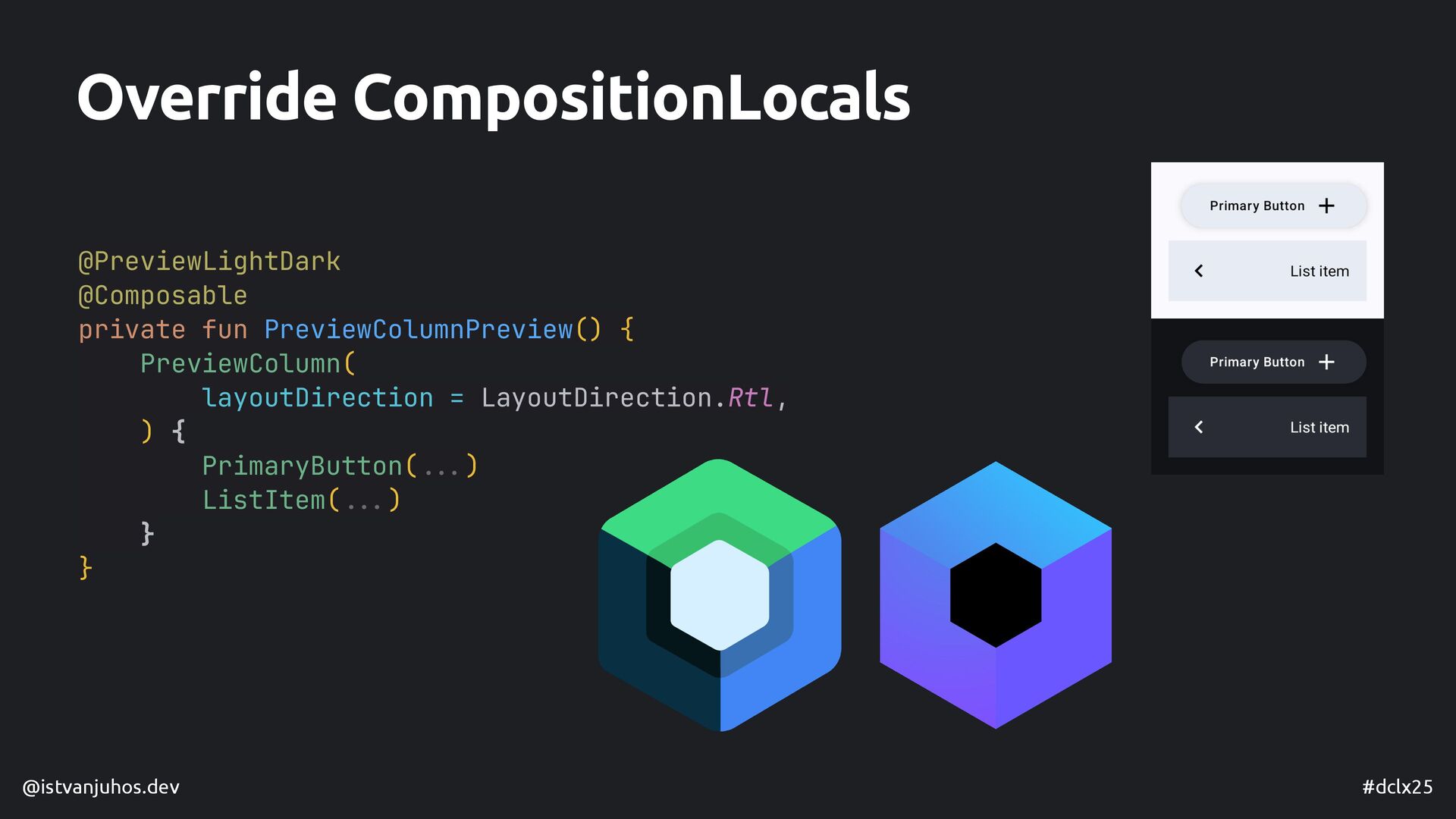

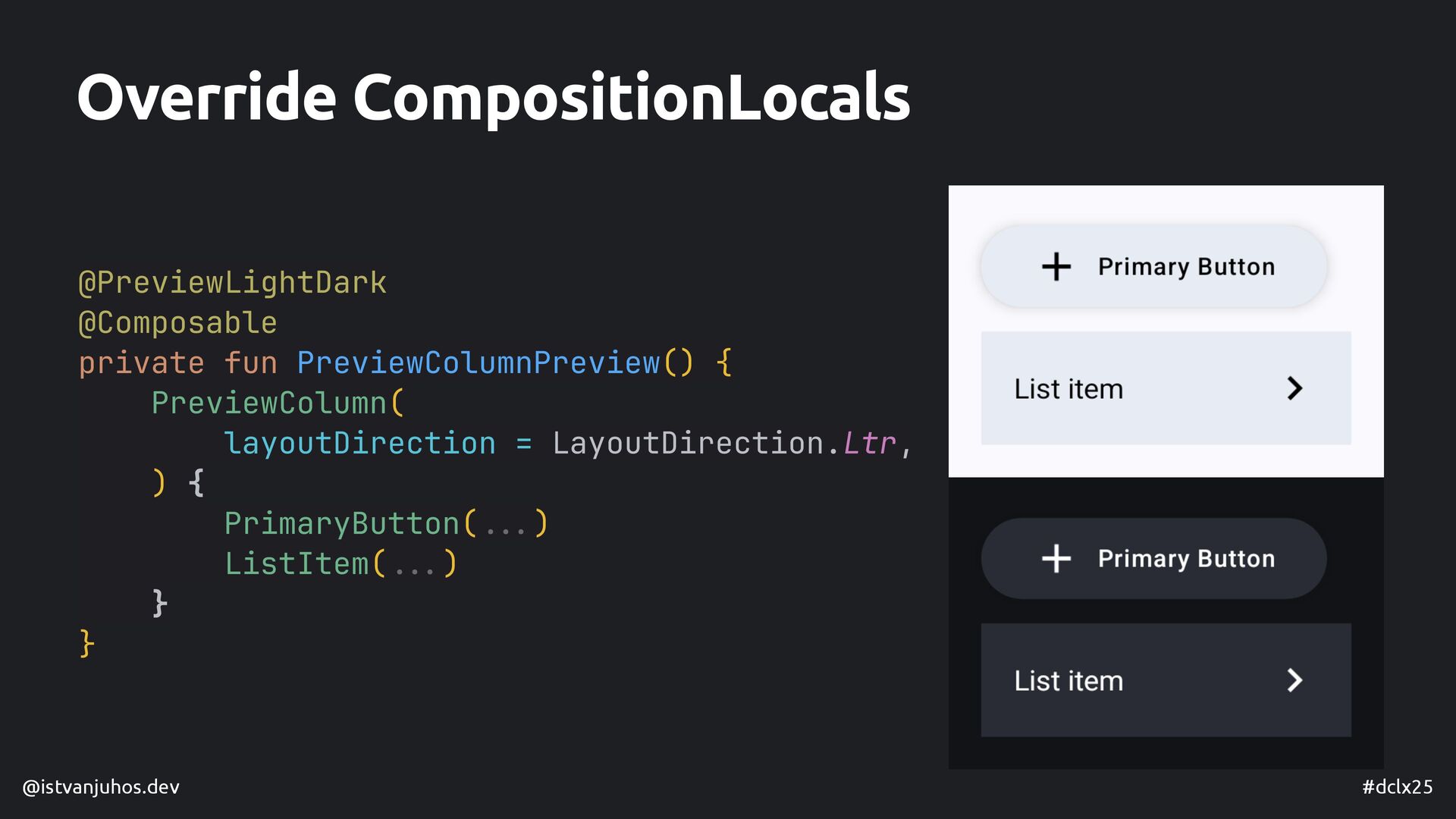

@istvanjuhos.dev #dclx25 Override CompositionLocals @PreviewLightDark @Composable private fun PreviewColumnPreview() {
PreviewColumn { PrimaryButton( ... ) ListItem( ... ) } }

PreviewColumn( layoutDirection = LayoutDirection.Ltr, ) { PrimaryButton( ... ) ListItem( ... ) } }

PreviewColumn( layoutDirection = LayoutDirection.Rtl, ) { PrimaryButton( ... ) ListItem( ... ) } }

PreviewColumn( layoutDirection = LayoutDirection.Rtl, ) { PrimaryButton( .. . ) ListItem( .. . ) } }

Make previews interactive 🎮

Circuit Route Planner / Circuit for Teams

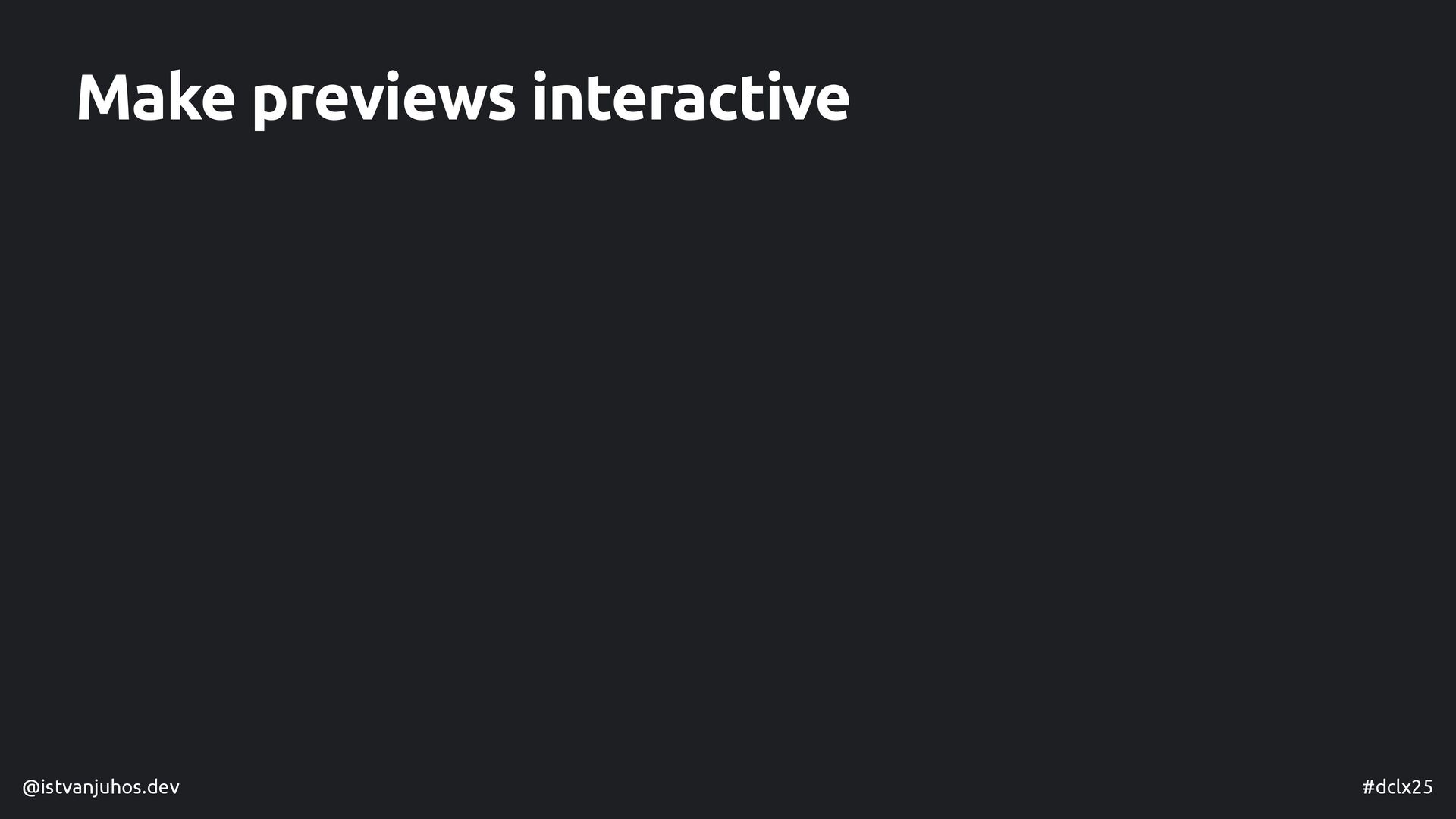

Make previews interactive 🎮

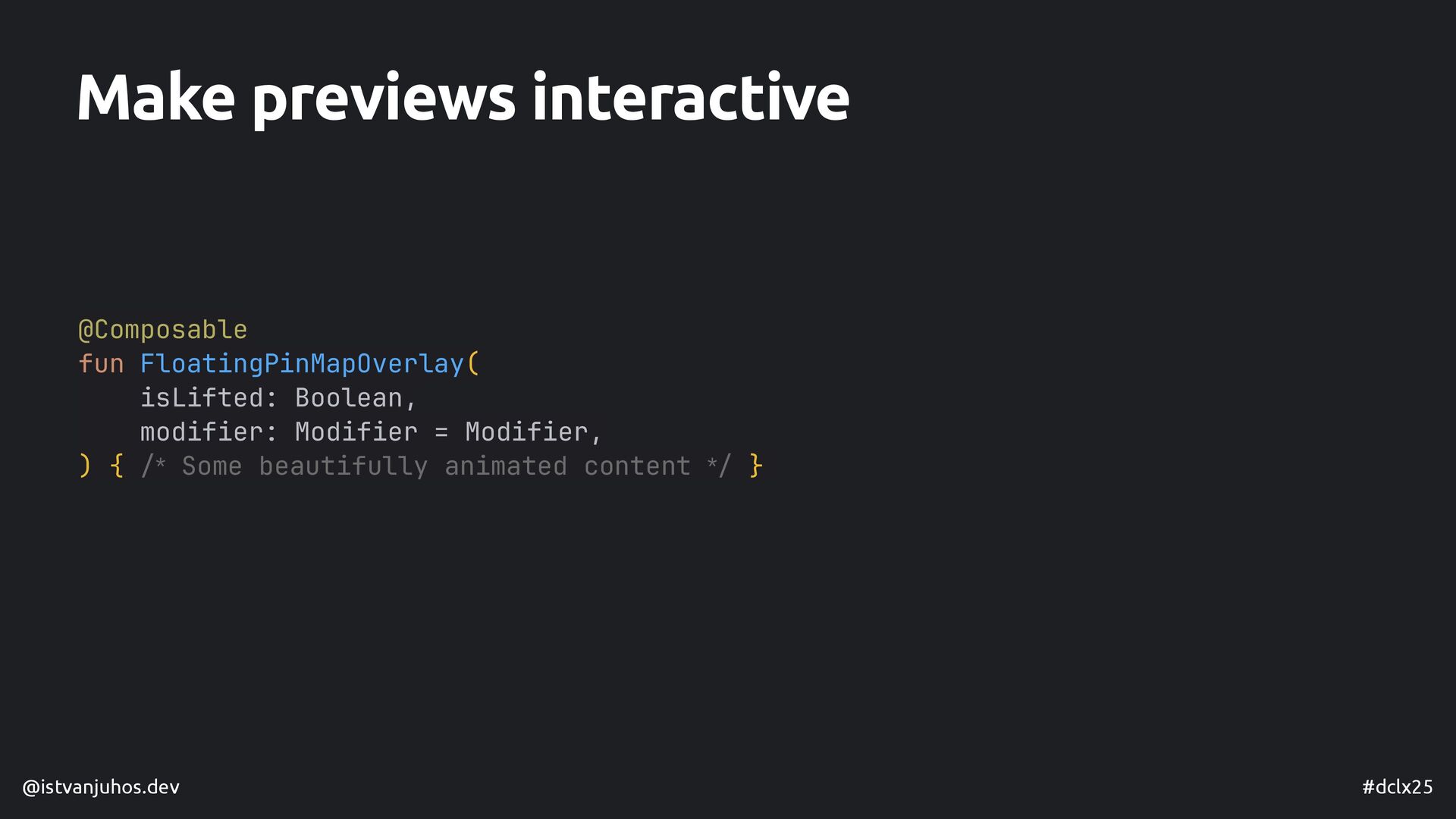

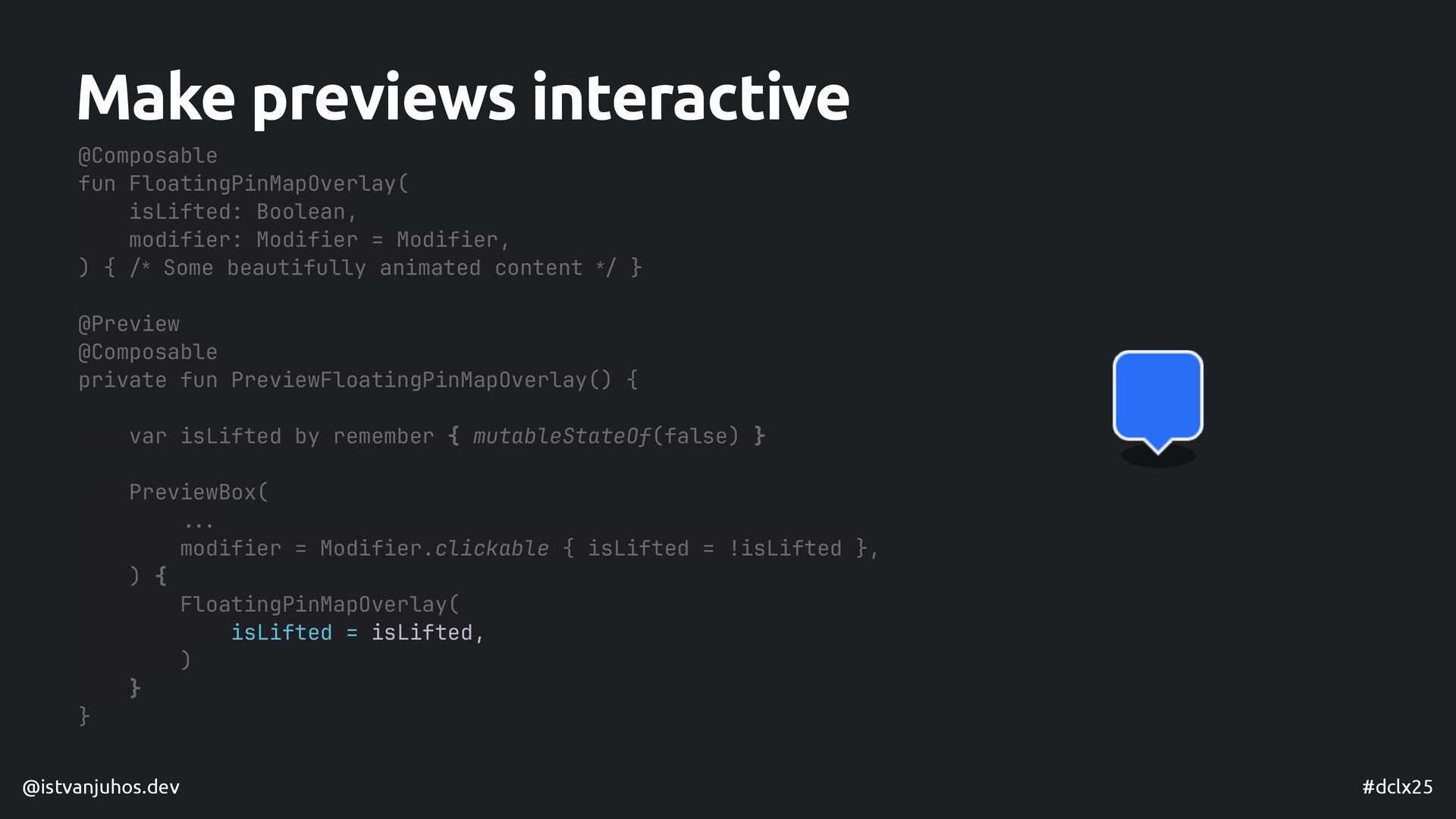

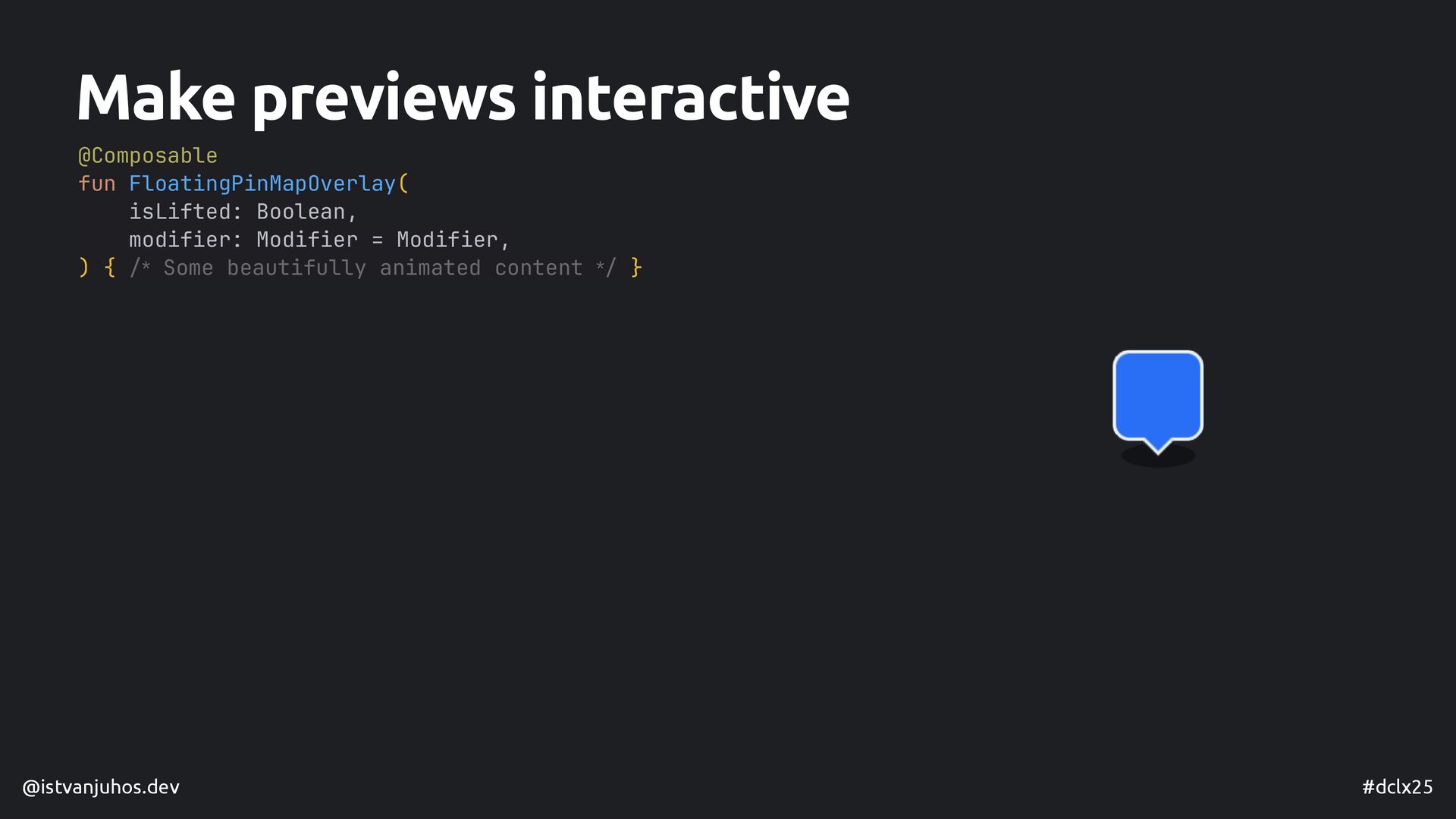

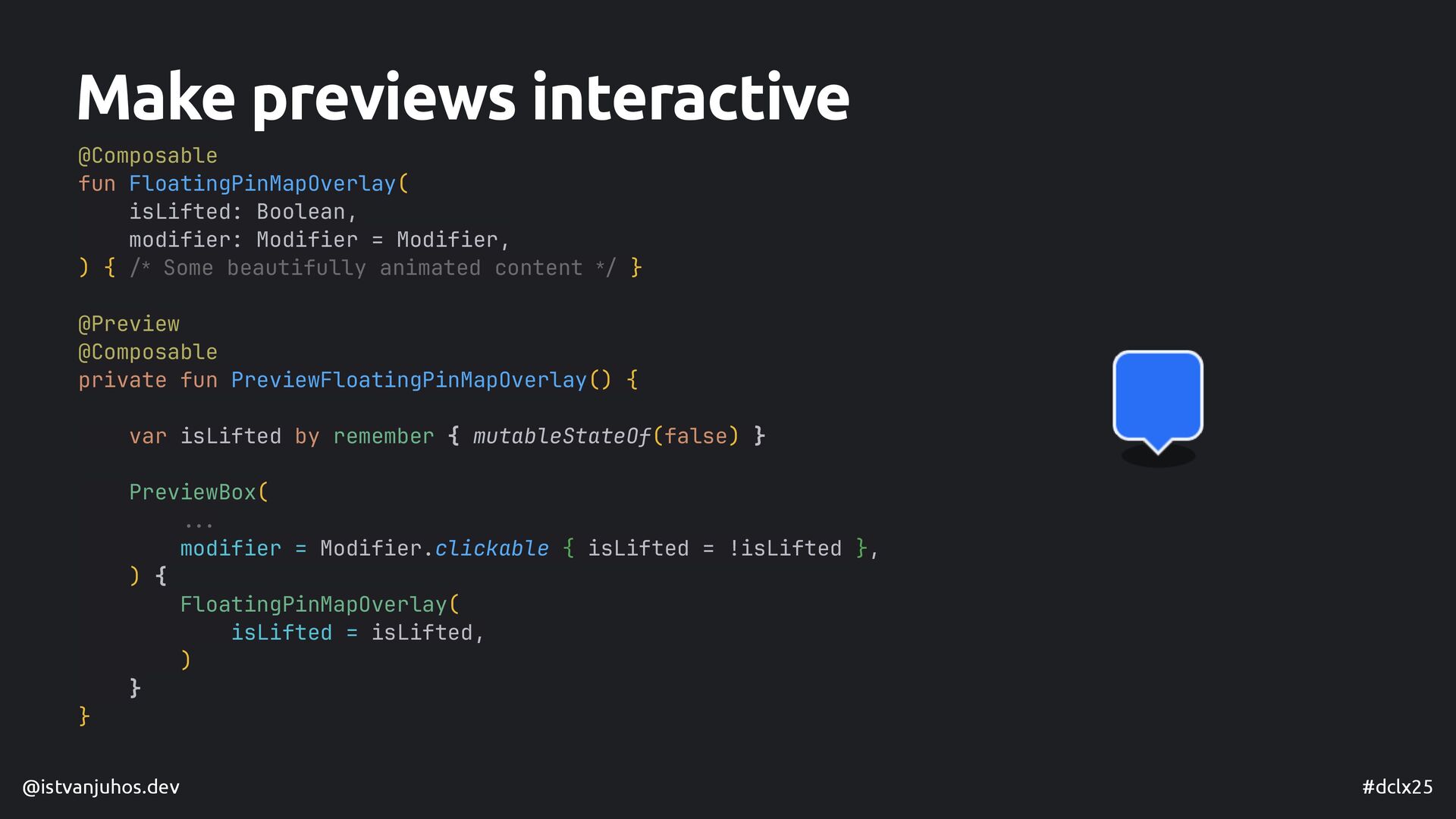

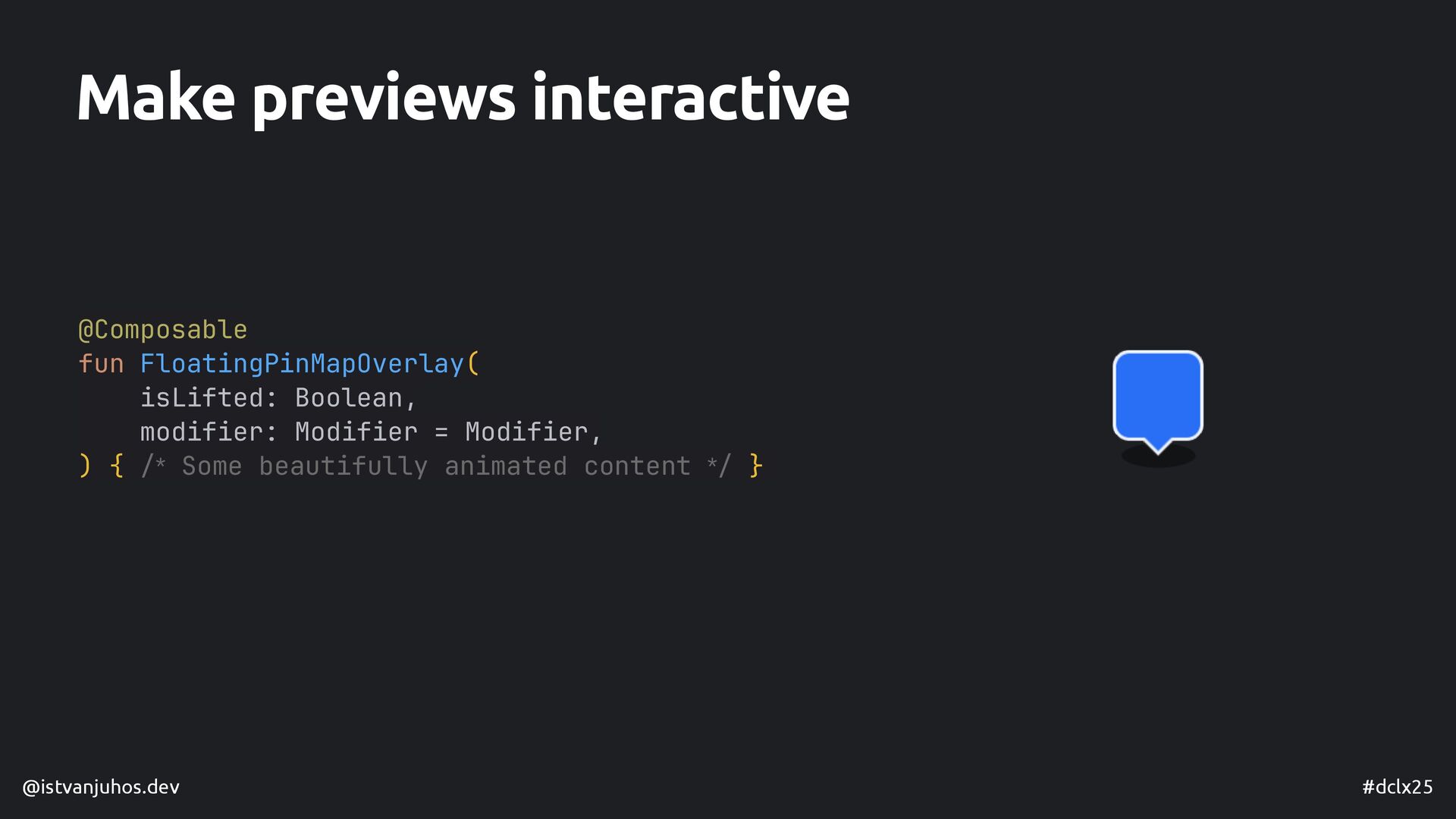

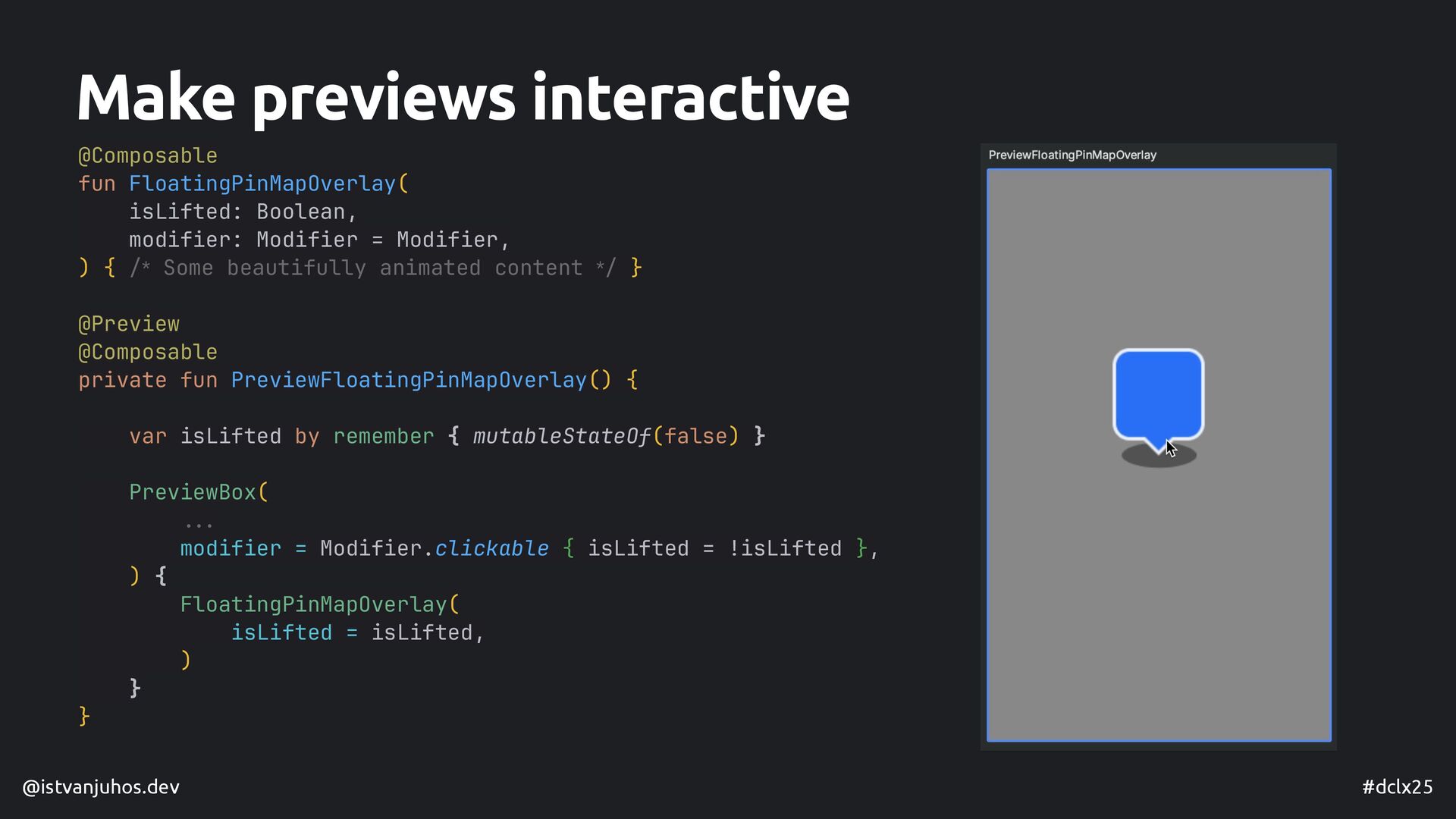

@istvanjuhos.dev #dclx25 Make previews interactive @Composable fun FloatingPinMapOverlay( isLifted: Boolean,
modifier: Modifier = Modifier, ) { ... }

modifier: Modifier = Modifier, ) { /* Some beautifully animated content */ }

modifier: Modifier = Modifier, ) { /* Some beautifully animated content */ } @Preview @Composable private fun PreviewFloatingPinMapOverlay() { var isLifted by remember { mutableStateOf(false) } PreviewBox( . .. modifier = Modifier.clickable { isLifted = !isLifted }, ) { FloatingPinMapOverlay( isLifted = isLifted, ) } }

@istvanjuhos.dev #dclx25 Make previews interactive ... . ..

@istvanjuhos.dev #dclx25 Make previews interactive ... . .. ✅

@istvanjuhos.dev #dclx25 Make previews interactive ✅

@istvanjuhos.dev #dclx25 Make previews interactive

Some more ideas 💡

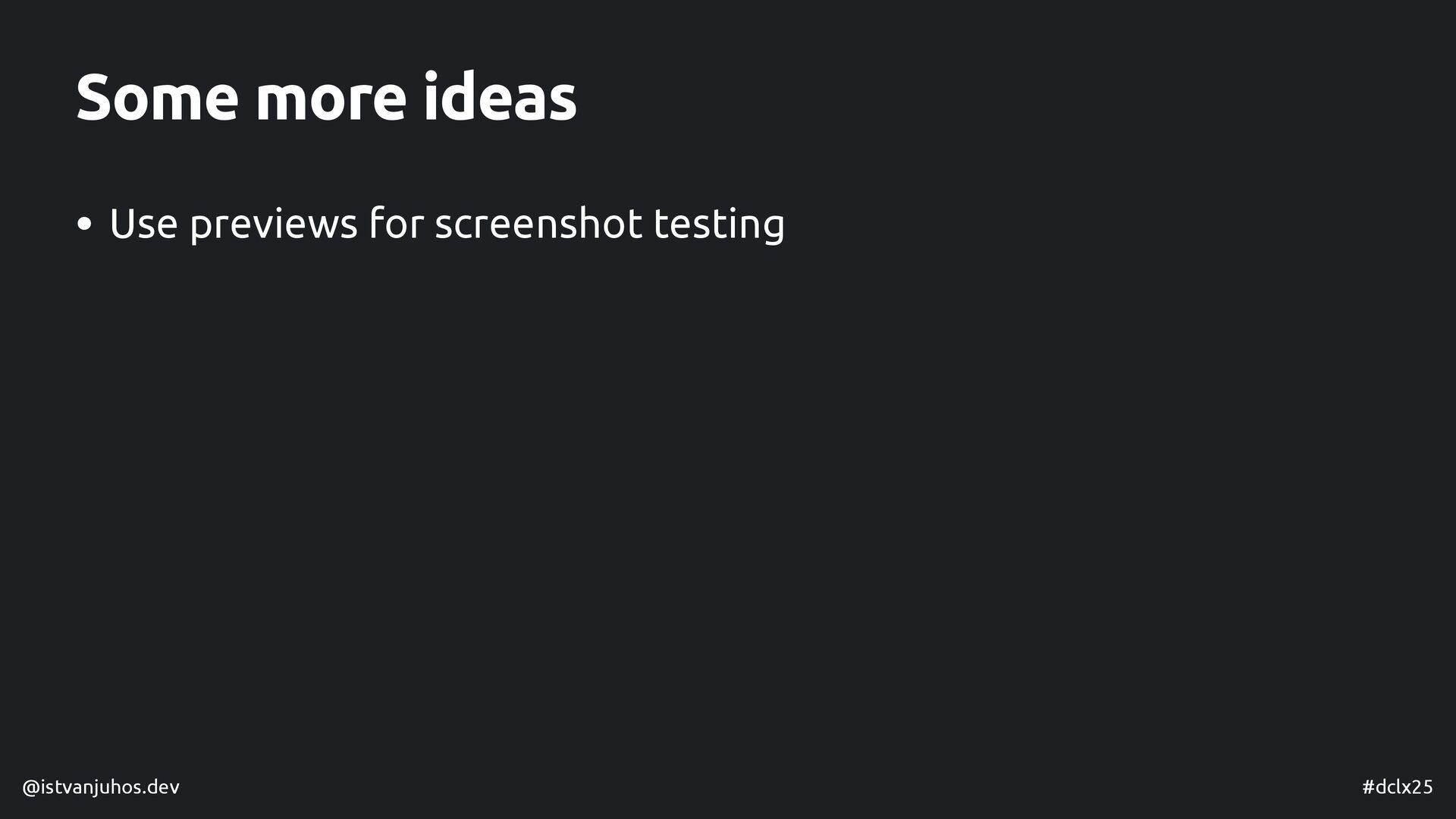

@istvanjuhos.dev #dclx25 Some more ideas • Use previews for screenshot
testing

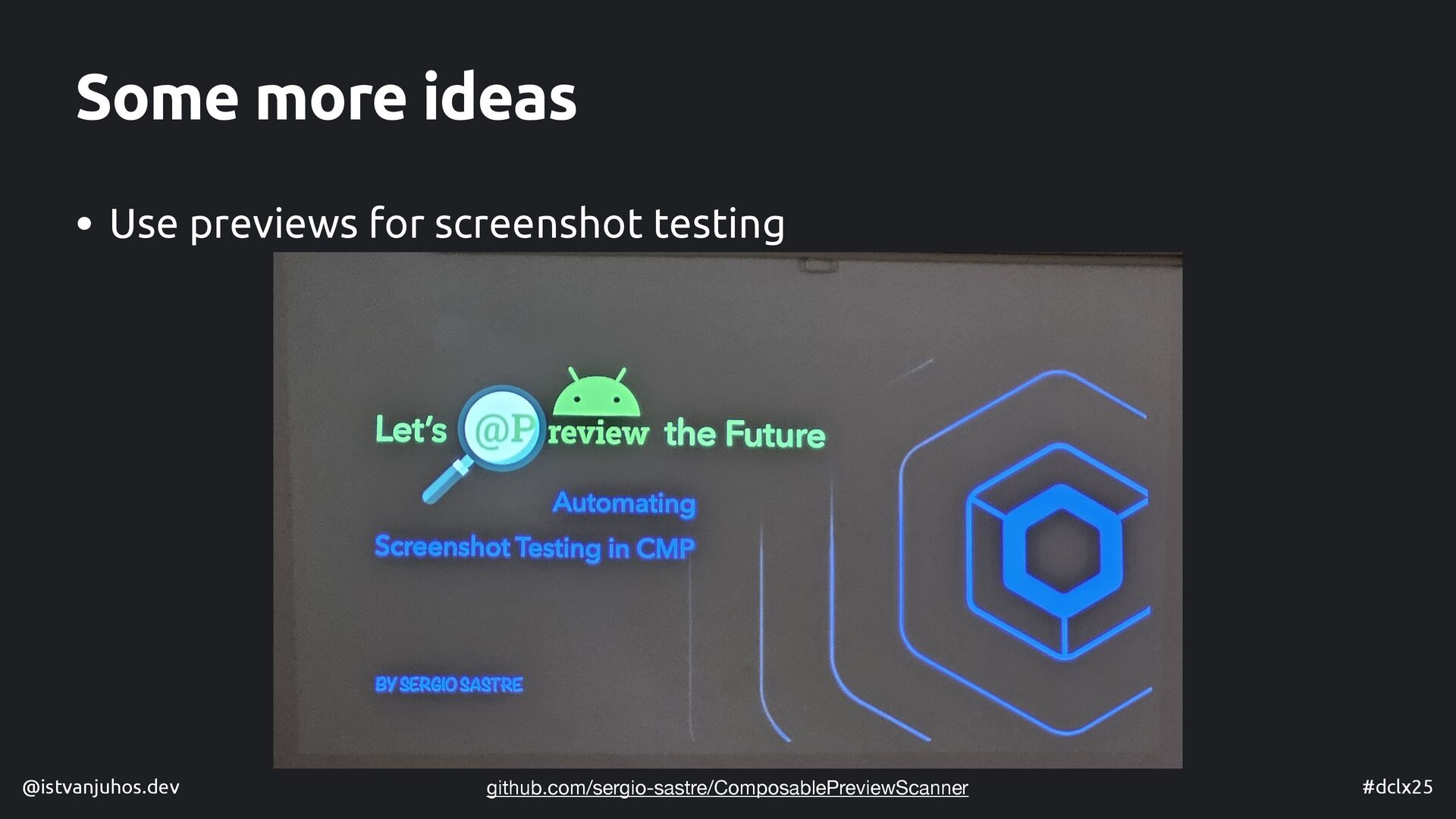

@istvanjuhos.dev #dclx25 Some more ideas • Use previews for screenshot
testing github.com/sergio-sastre/ComposablePreviewScanner

@istvanjuhos.dev #dclx25 Some more ideas • … make the whole
app runnable in Preview 🤷

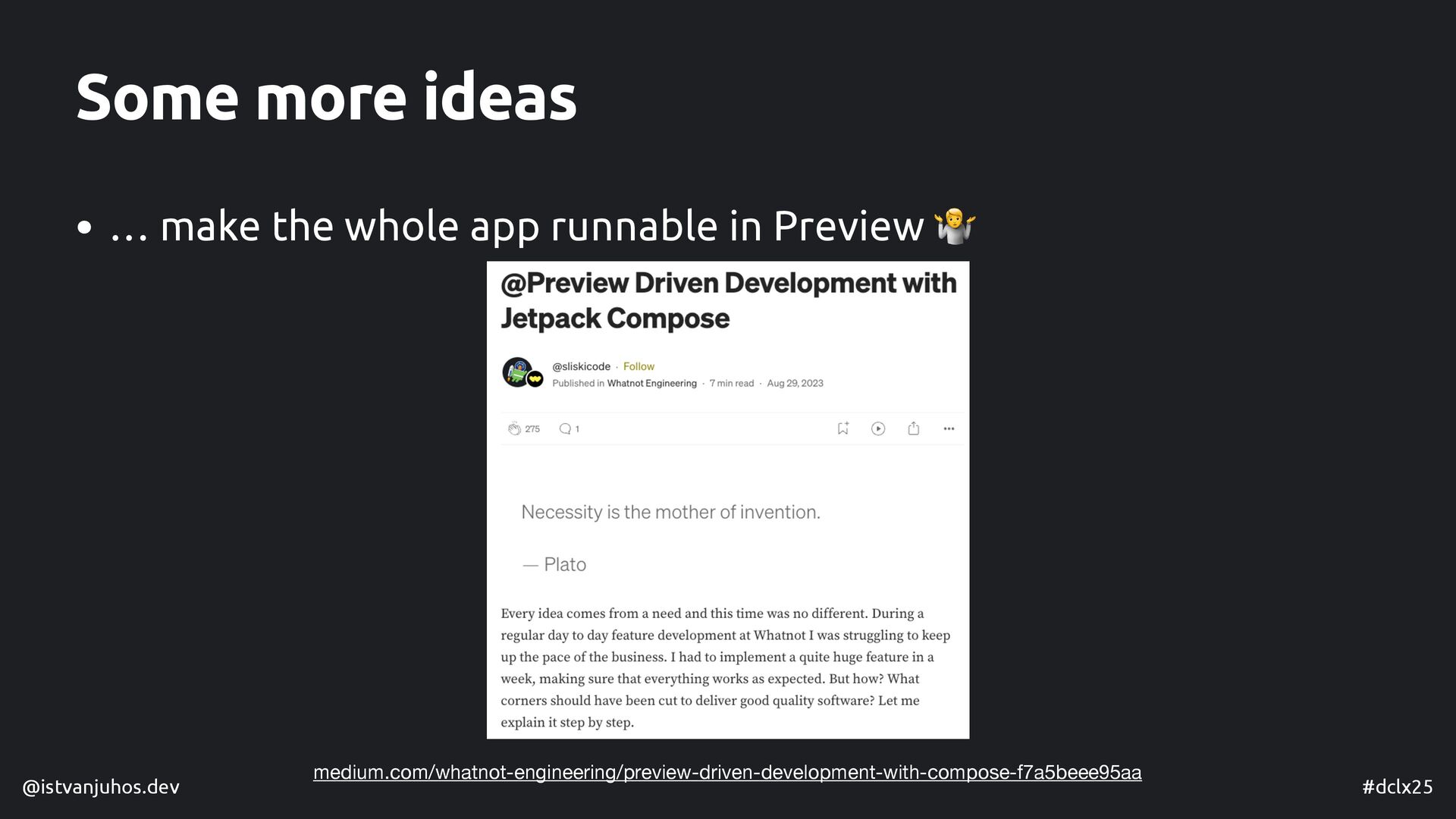

@istvanjuhos.dev #dclx25 Some more ideas • … make the whole
app runnable in Preview 🤷 medium.com/whatnot-engineering/preview-driven-development-with-compose-f7a5beee95aa

Wrapping up 📦

Worth the effort? 🤔

It depends 🤷

It depends 🤷 🫸

It sure does! 🤩 👌

It sure does! 🤩

@istvanjuhos.dev #dclx25 🛝 🛝 + resources istvanjuhos.dev

Practical Tips and Tricks to Improve Your Compose Previews •
Think of Previews as a form of communication • Create at least one Preview per unit of UI • Compose reusable tools to ease Preview development istvanjuhos.dev István Juhos Photo by Glenn Carstens-Peters
