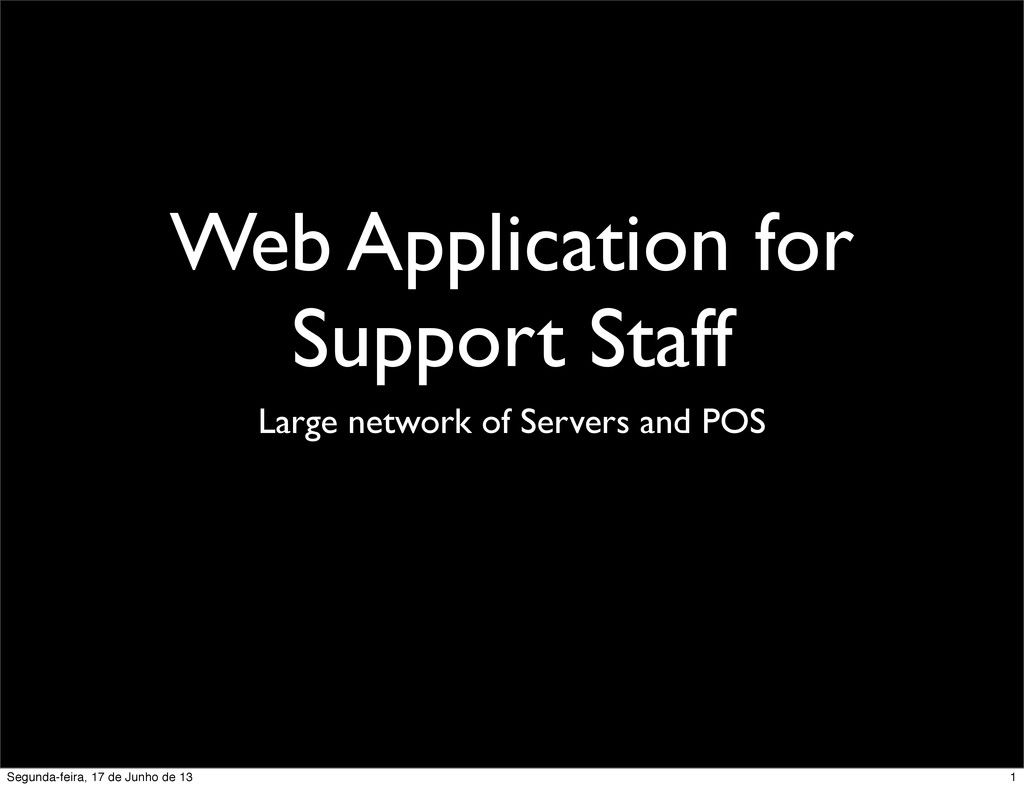

Story about the construction of a web application for monitoring, support, improve and control of a large network of POS. Very large network in Linux, multi-servers, multi-POS in every server, all communications being over ssh.

Filipe Moura

June 14, 2013
Tweet

More Decks by Filipe Moura

Other Decks in Programming

Transcript

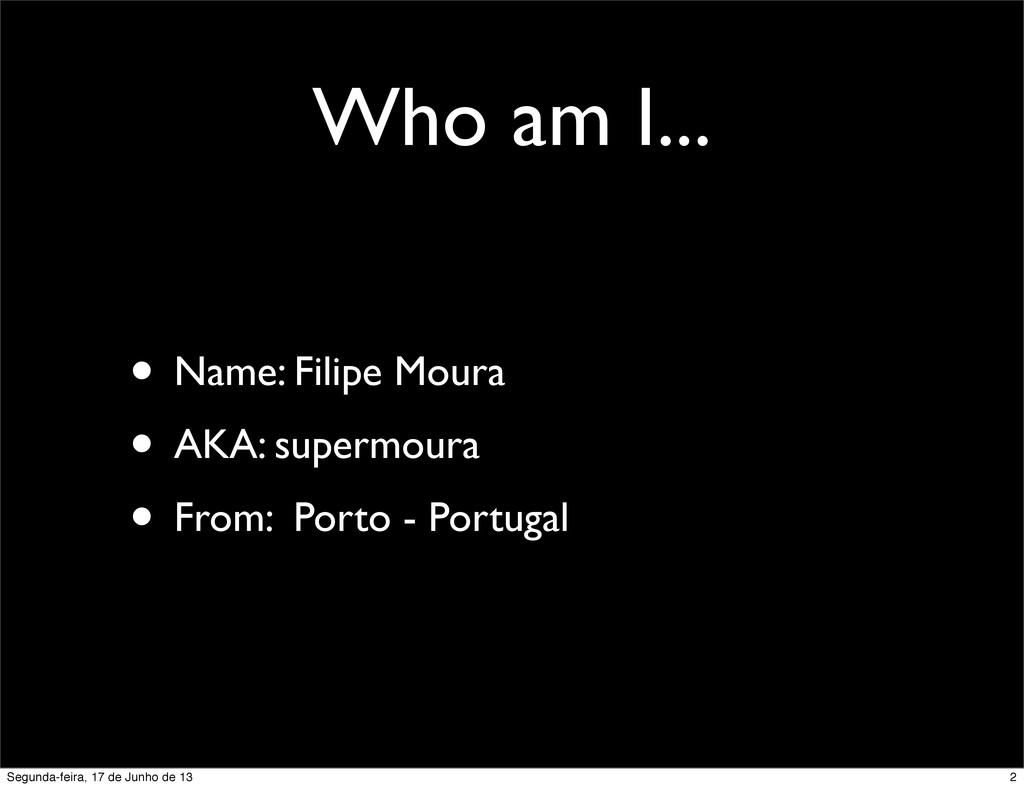

  1. Who am I... • Name: Filipe Moura • AKA: supermoura

    • From: Porto - Portugal 2 Segunda-feira, 17 de Junho de 13

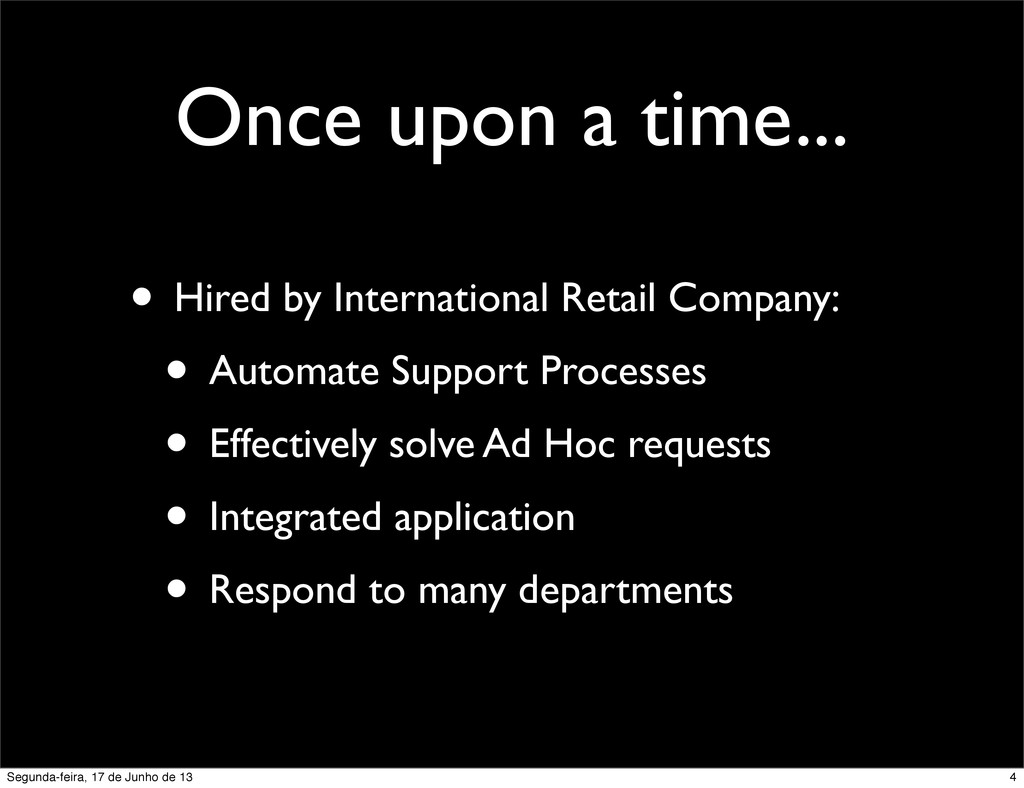

  2. Once upon a time... • Hired by International Retail Company:

    • Automate Support Processes • Effectively solve Ad Hoc requests • Integrated application • Respond to many departments 4 Segunda-feira, 17 de Junho de 13

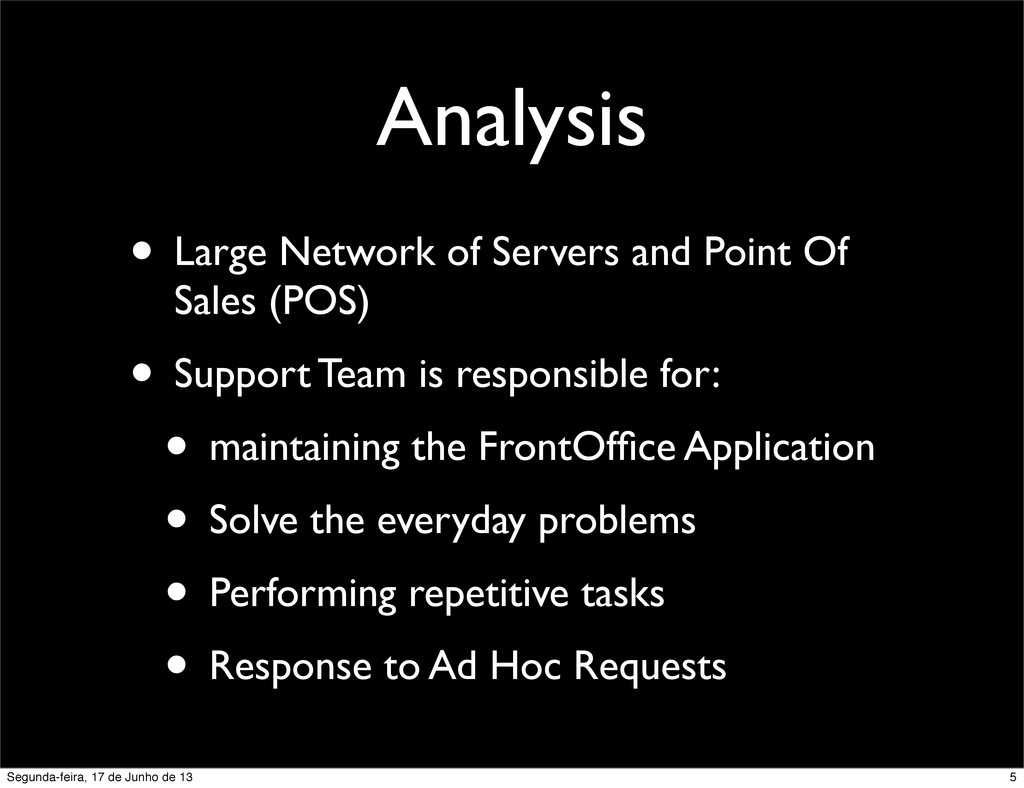

  3. Analysis • Large Network of Servers and Point Of Sales

    (POS) • Support Team is responsible for: • maintaining the FrontOffice Application • Solve the everyday problems • Performing repetitive tasks • Response to Ad Hoc Requests 5 Segunda-feira, 17 de Junho de 13

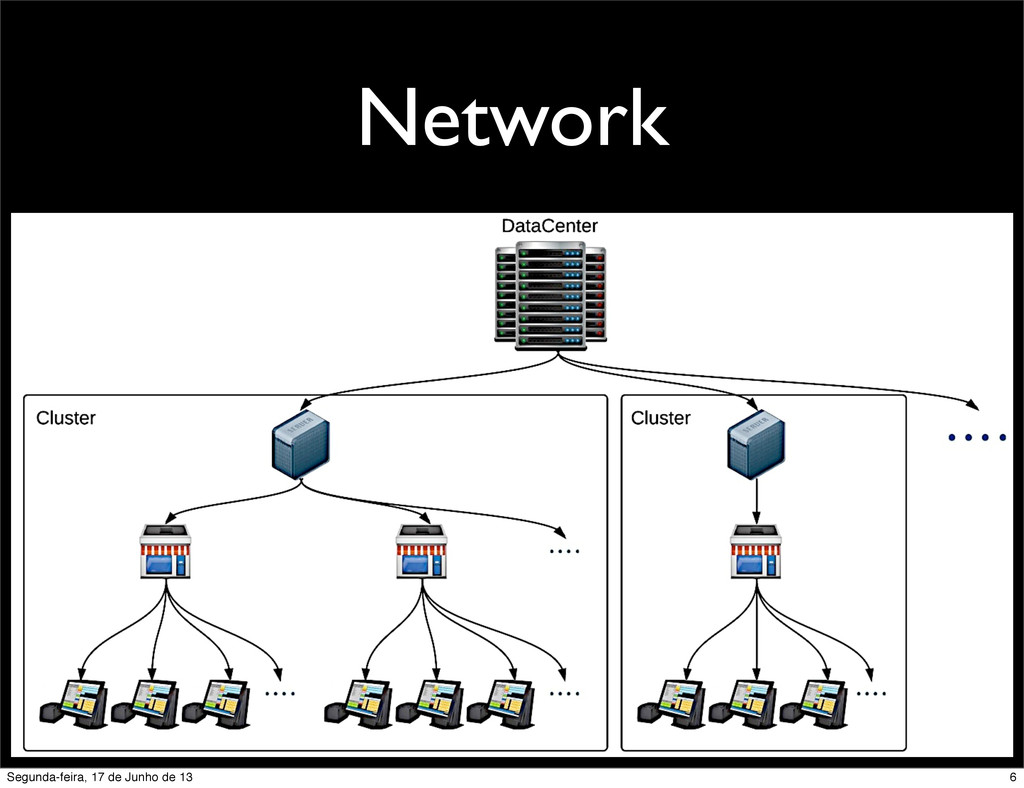

  4. Network • OS: Linux • Database: • PostgreSQL • Access

    on localhost • IP: fixed - known Server 7 Segunda-feira, 17 de Junho de 13

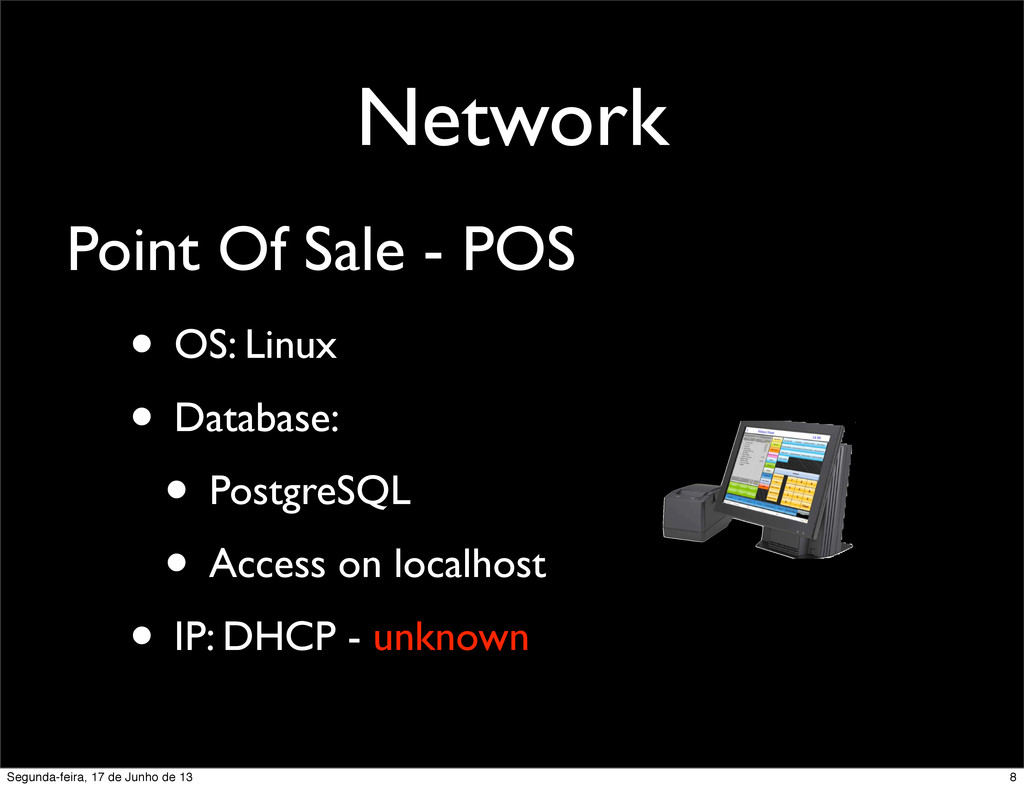

  5. Network • OS: Linux • Database: • PostgreSQL • Access

    on localhost • IP: DHCP - unknown Point Of Sale - POS 8 Segunda-feira, 17 de Junho de 13
  6. Introducing the Supporter Knowledge & Skills: Knowledge & Skills: Knowledge

    & Skills: Programming Low Database Basic POS & Sever High Business Model High Patience Very High 9 Segunda-feira, 17 de Junho de 13

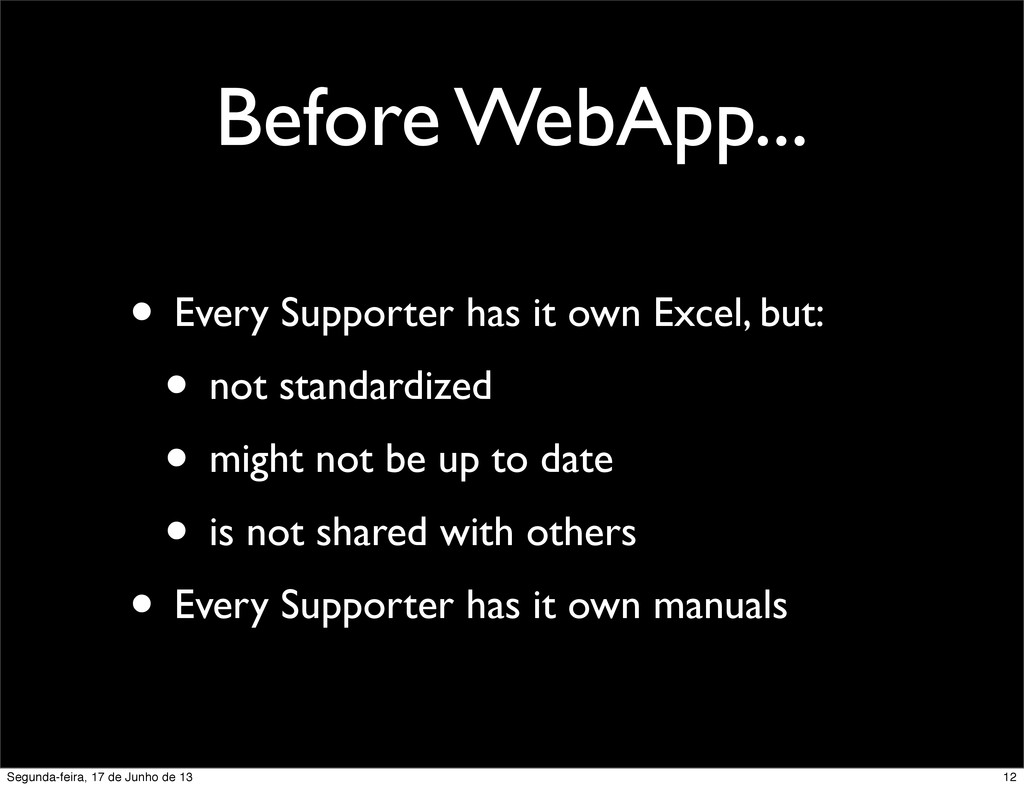

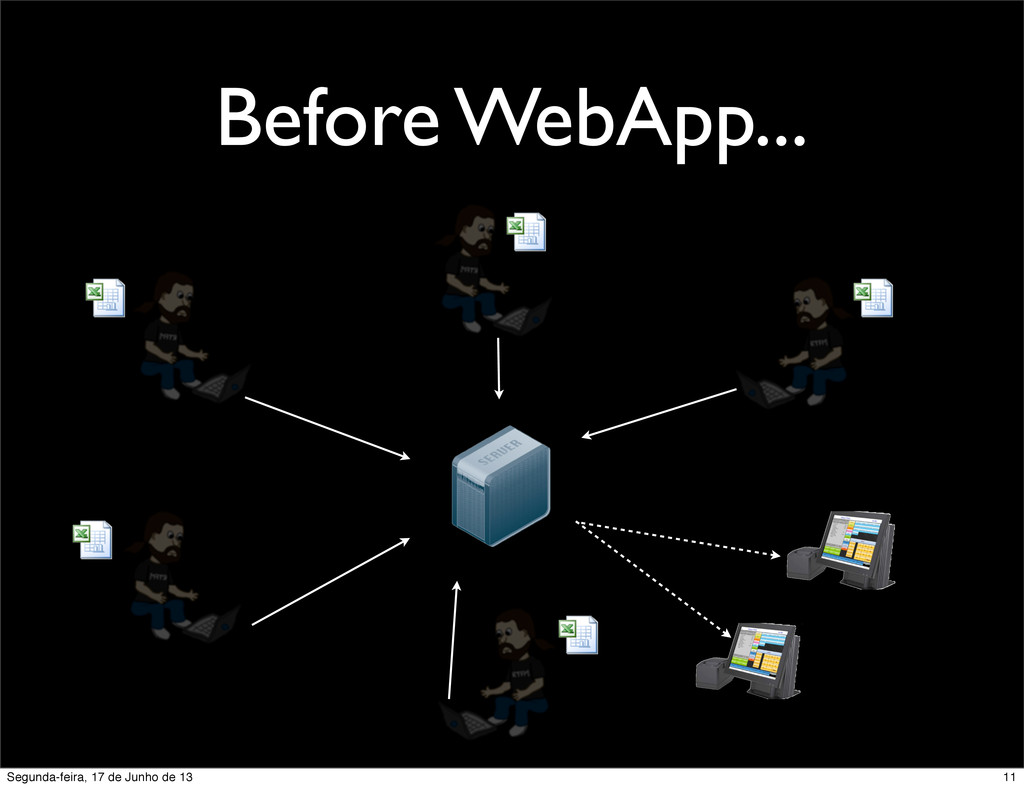

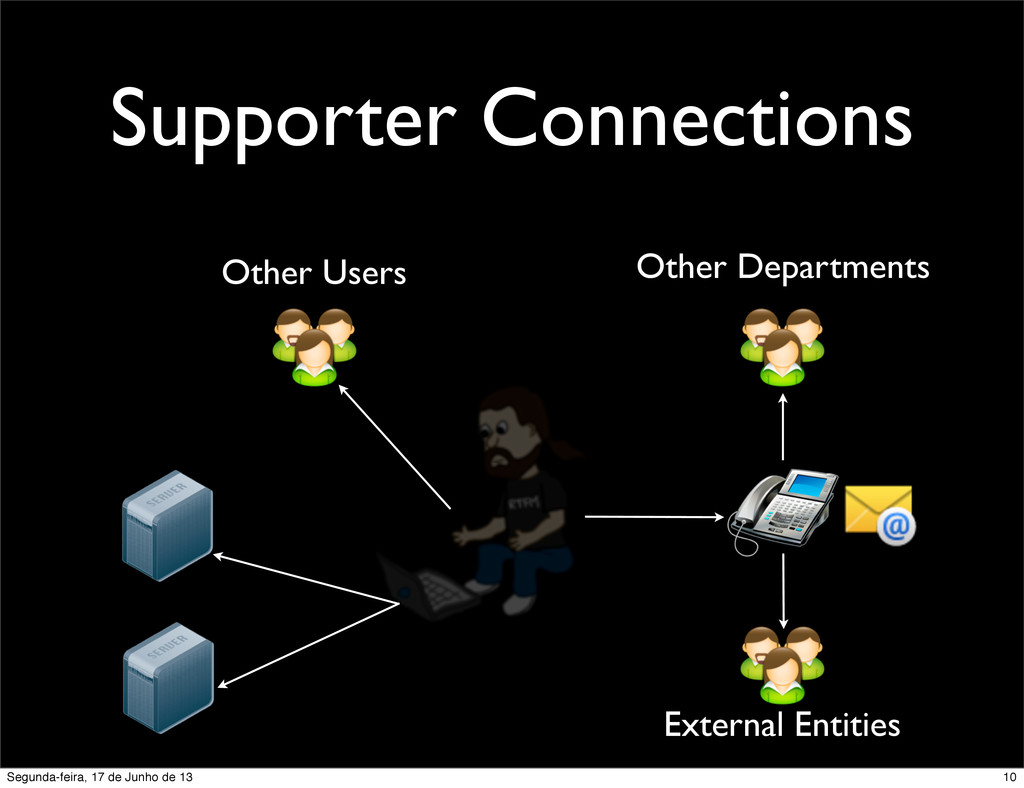

  7. Before WebApp... • Every Supporter has it own Excel, but:

    • not standardized • might not be up to date • is not shared with others • Every Supporter has it own manuals 12 Segunda-feira, 17 de Junho de 13
  8. Before WebApp... • There was no historical or centralized documentation

    • Each action was performed manually on all Servers and all POS • All connections is over Secure Shell (SSH) 13 Segunda-feira, 17 de Junho de 13

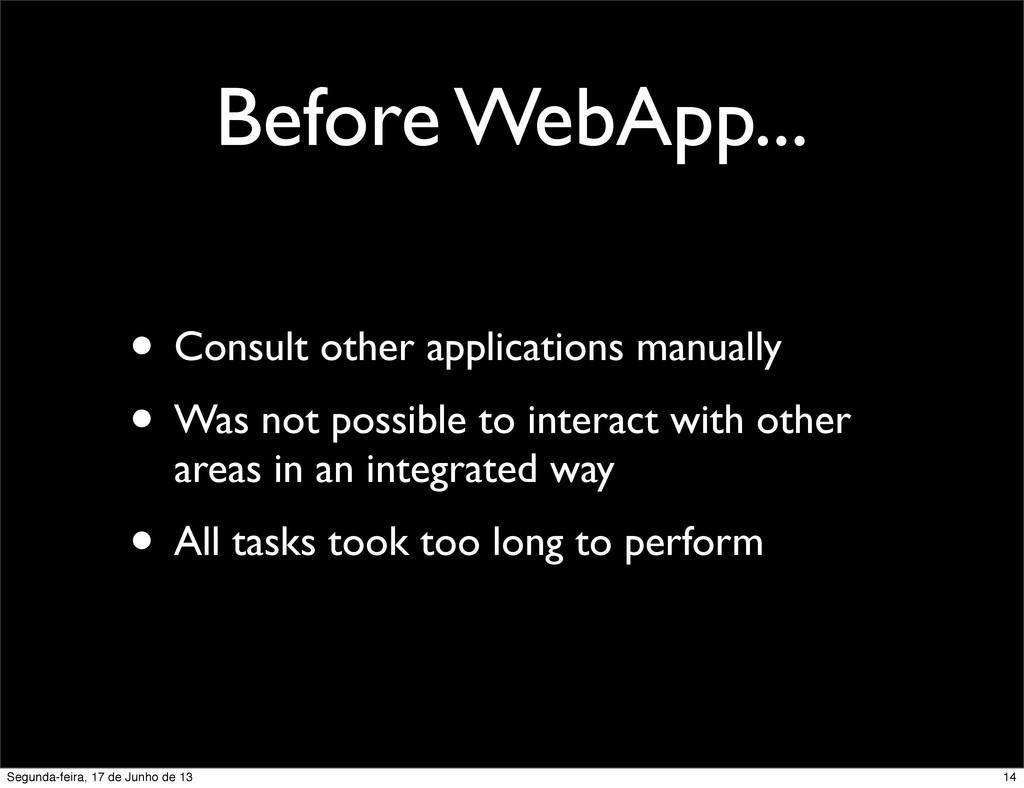

  9. Before WebApp... • Consult other applications manually • Was not

    possible to interact with other areas in an integrated way • All tasks took too long to perform 14 Segunda-feira, 17 de Junho de 13

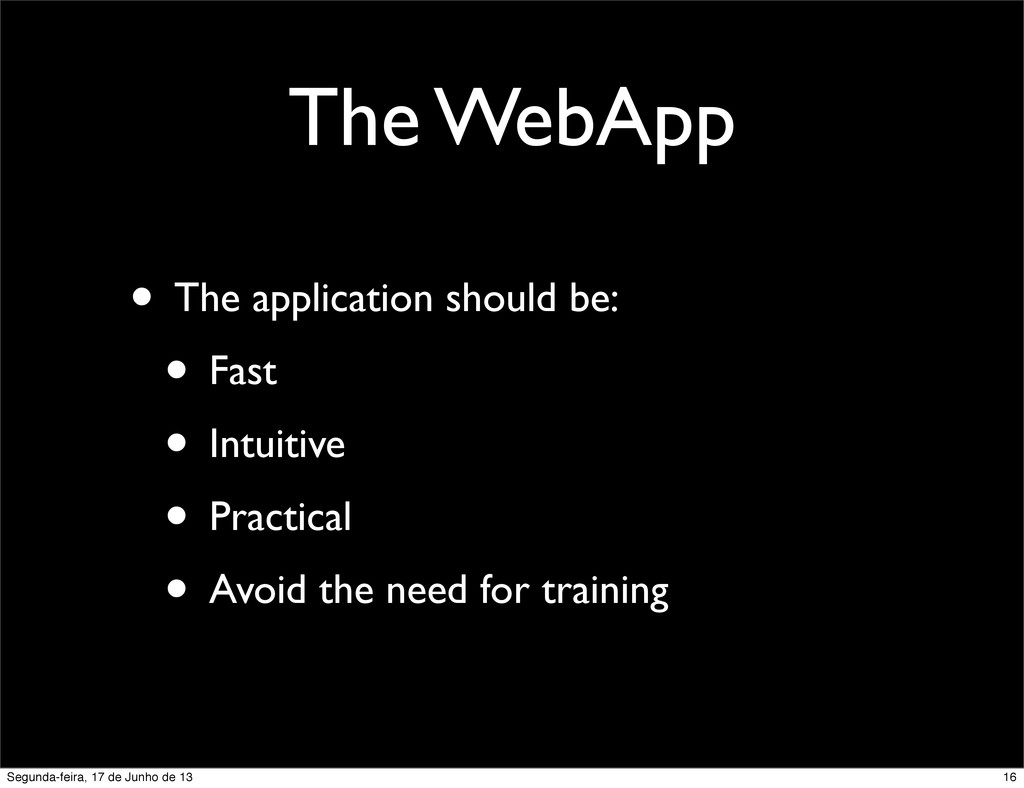

  10. The WebApp • The application should be: • Fast •

    Intuitive • Practical • Avoid the need for training 16 Segunda-feira, 17 de Junho de 13
  11. The WebApp • The application should be: • Scalable and

    Flexible • Contain Access Control • Configurable and customizable • Available anywhere over VPN 17 Segunda-feira, 17 de Junho de 13

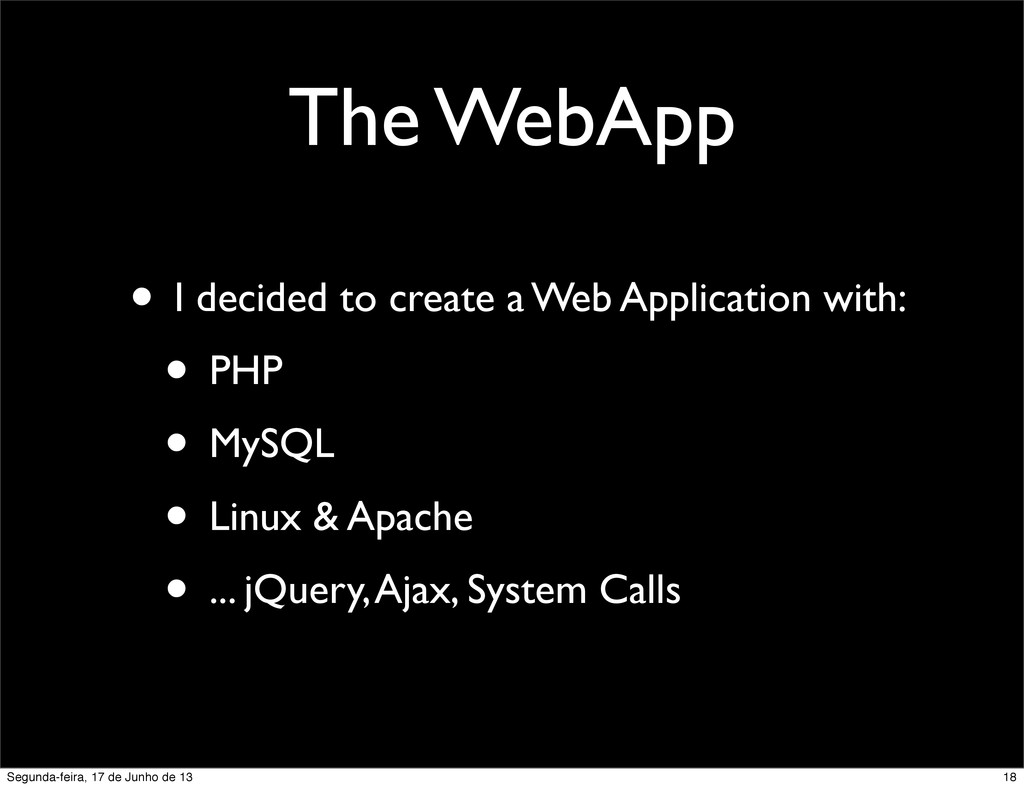

  12. The WebApp • I decided to create a Web Application

    with: • PHP • MySQL • Linux & Apache • ... jQuery, Ajax, System Calls 18 Segunda-feira, 17 de Junho de 13

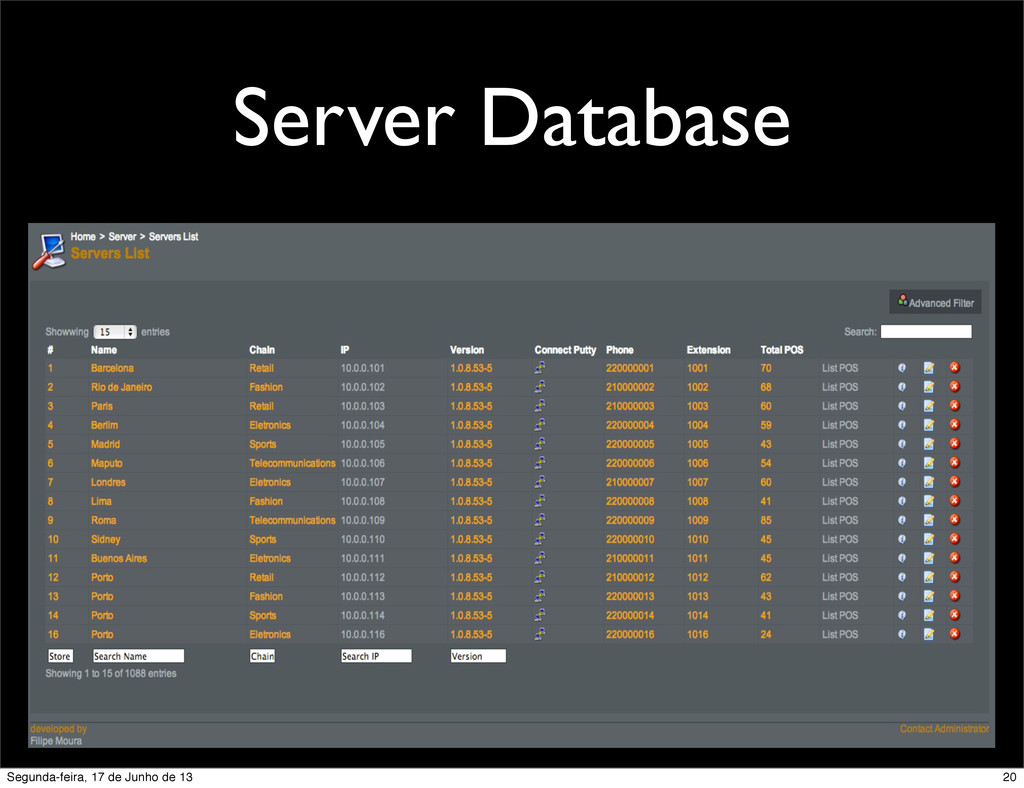

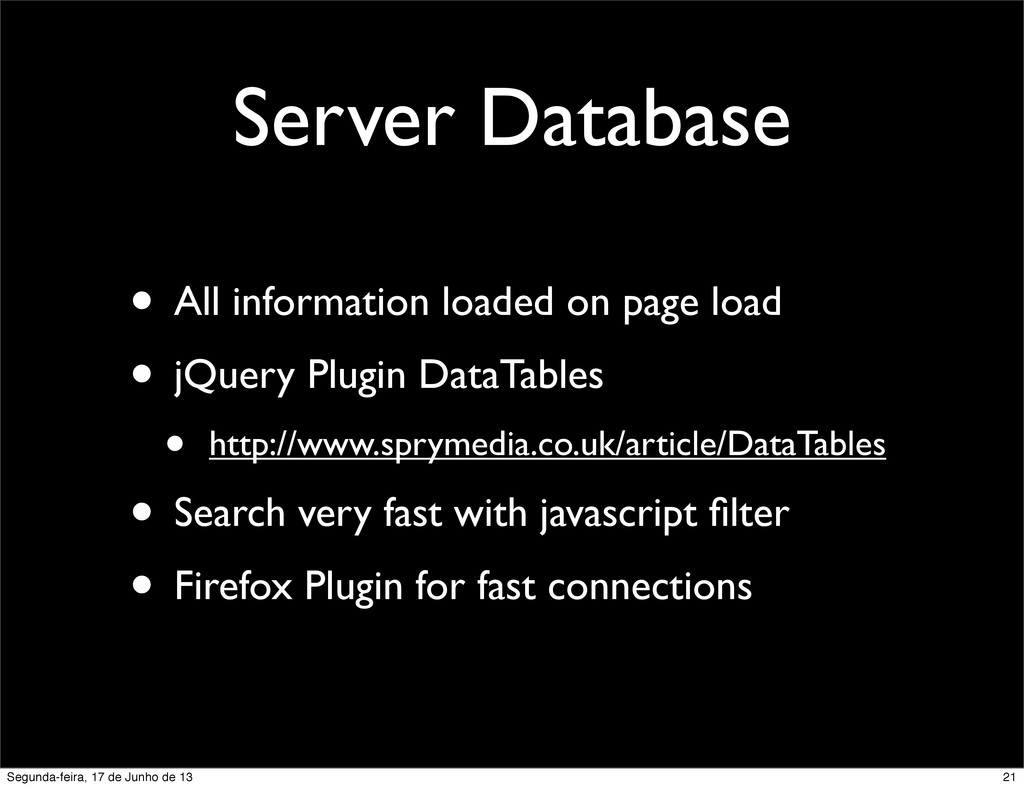

  13. Server Database • All information loaded on page load •

    jQuery Plugin DataTables • http://www.sprymedia.co.uk/article/DataTables • Search very fast with javascript filter • Firefox Plugin for fast connections 21 Segunda-feira, 17 de Junho de 13

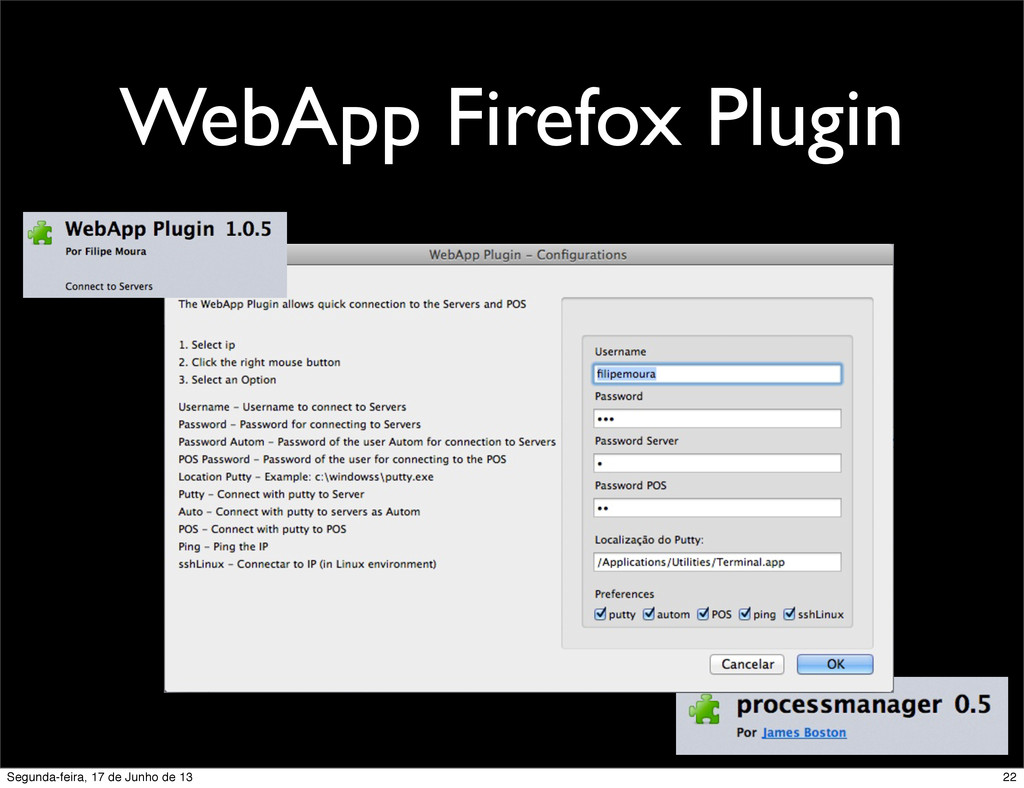

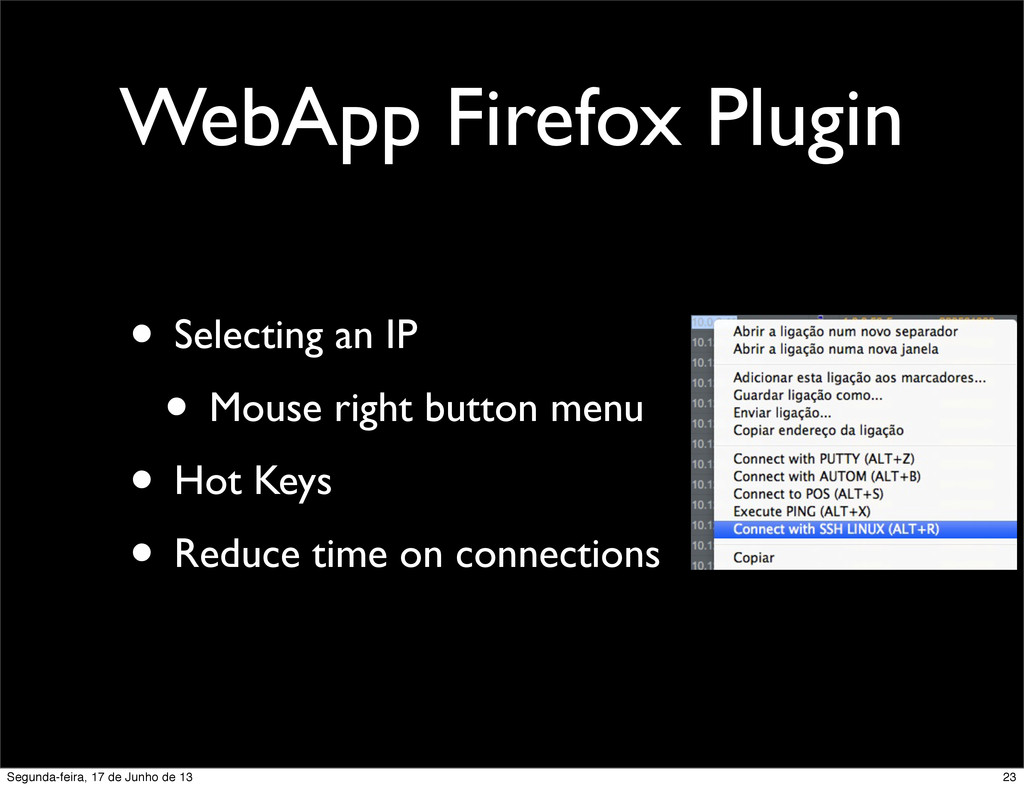

  14. WebApp Firefox Plugin • Selecting an IP • Mouse right

    button menu • Hot Keys • Reduce time on connections 23 Segunda-feira, 17 de Junho de 13

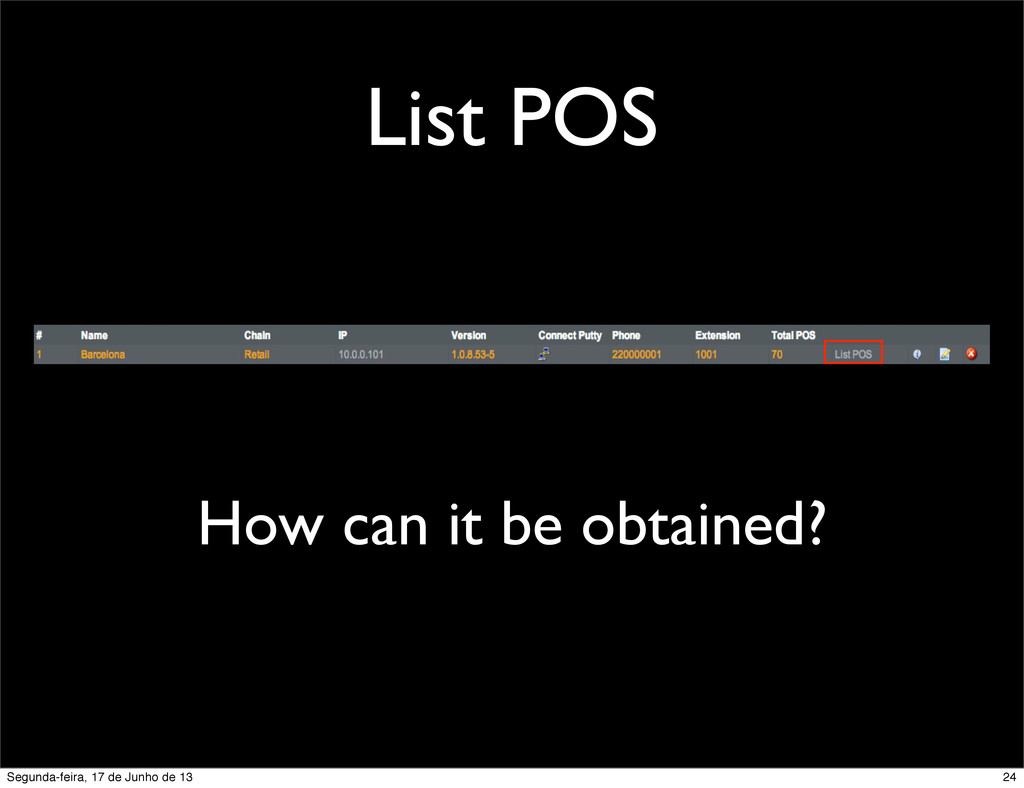

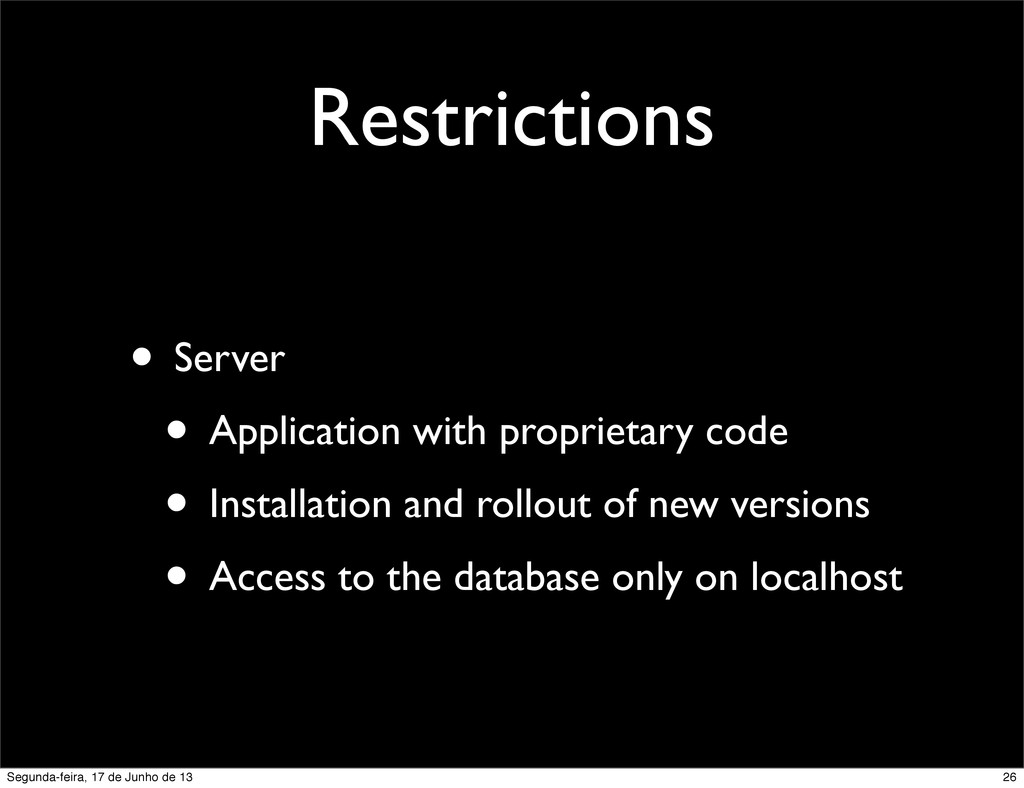

  15. Restrictions • Server • Application with proprietary code • Installation

    and rollout of new versions • Access to the database only on localhost 26 Segunda-feira, 17 de Junho de 13

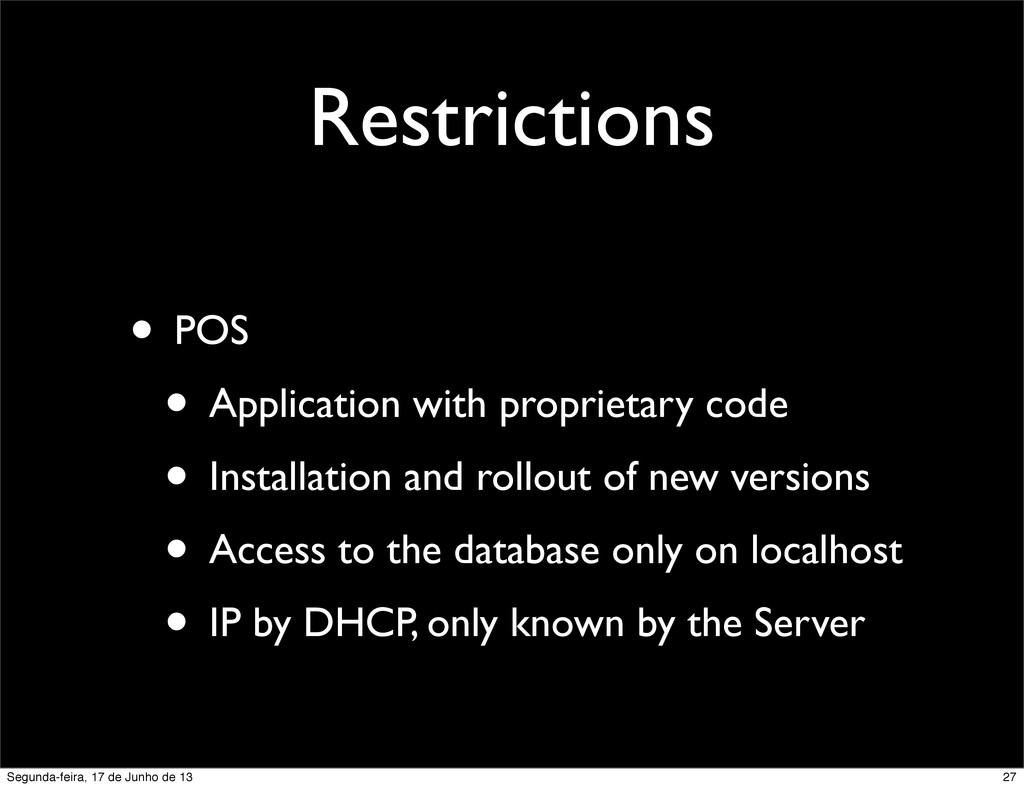

  16. Restrictions • POS • Application with proprietary code • Installation

    and rollout of new versions • Access to the database only on localhost • IP by DHCP, only known by the Server 27 Segunda-feira, 17 de Junho de 13

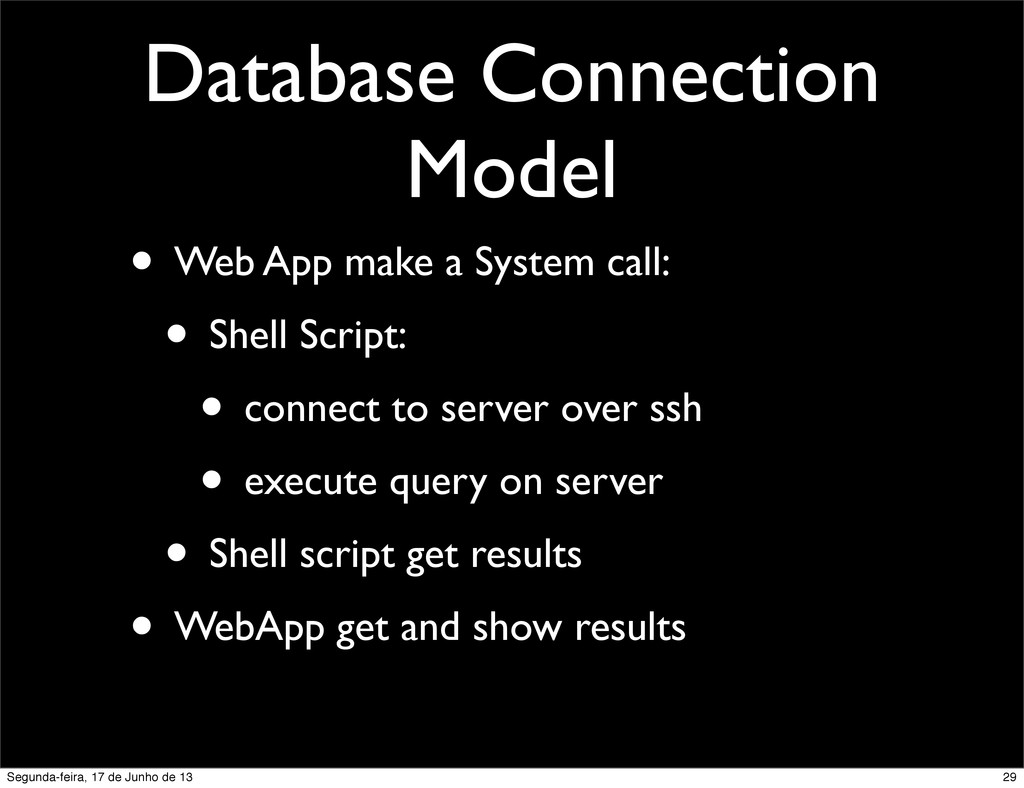

  17. Database Connection Model • Web App make a System call:

    • Shell Script: • connect to server over ssh • execute query on server • Shell script get results • WebApp get and show results 29 Segunda-feira, 17 de Junho de 13

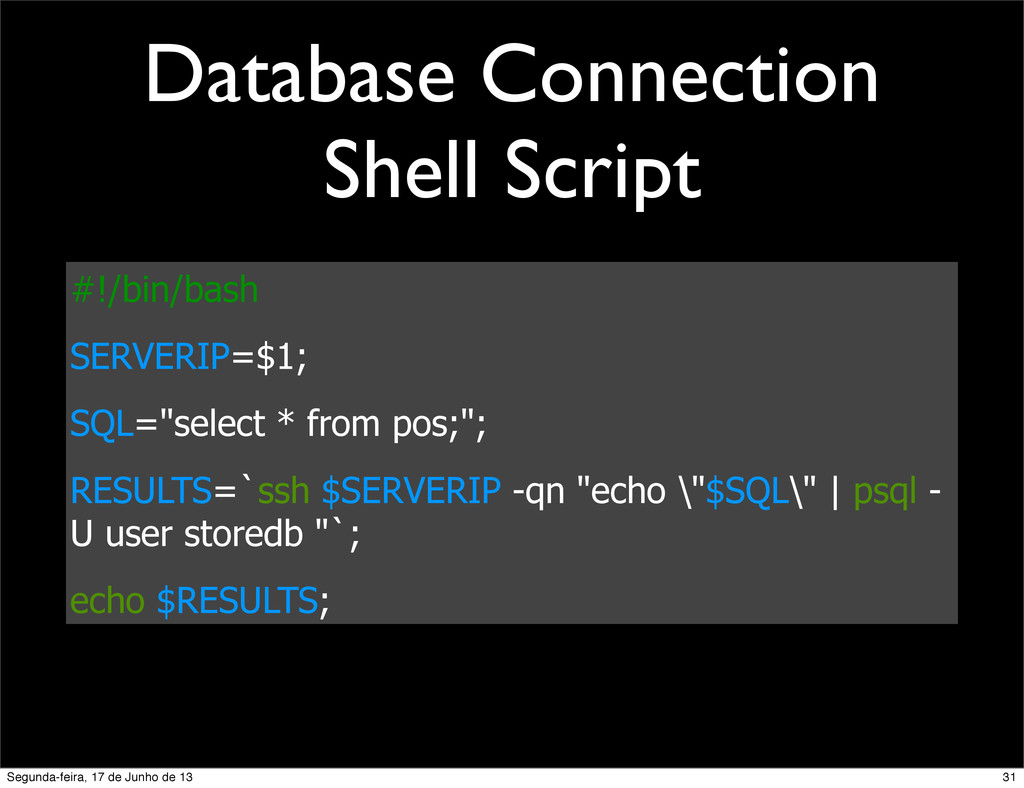

  18. Database Connection Shell Script #!/bin/bash SERVERIP=$1; SQL="select * from pos;";

    RESULTS=`ssh $SERVERIP -qn "echo \"$SQL\" | psql - U user storedb "`; echo $RESULTS; 31 Segunda-feira, 17 de Junho de 13

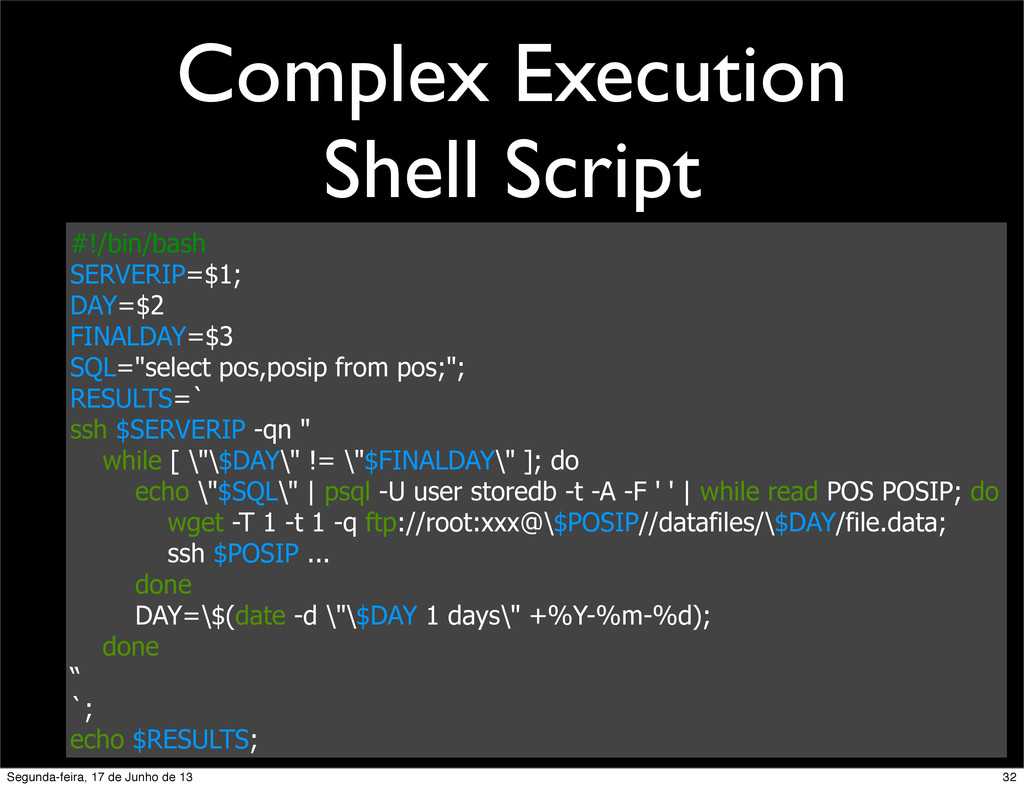

  19. Complex Execution Shell Script #!/bin/bash SERVERIP=$1; DAY=$2 FINALDAY=$3 SQL="select pos,posip

    from pos;"; RESULTS=` ssh $SERVERIP -qn " while [ \"\$DAY\" != \"$FINALDAY\" ]; do echo \"$SQL\" | psql -U user storedb -t -A -F ' ' | while read POS POSIP; do wget -T 1 -t 1 -q ftp://root:xxx@\$POSIP//datafiles/\$DAY/file.data; ssh $POSIP ... done DAY=\$(date -d \"\$DAY 1 days\" +%Y-%m-%d); done “ `; echo $RESULTS; 32 Segunda-feira, 17 de Junho de 13

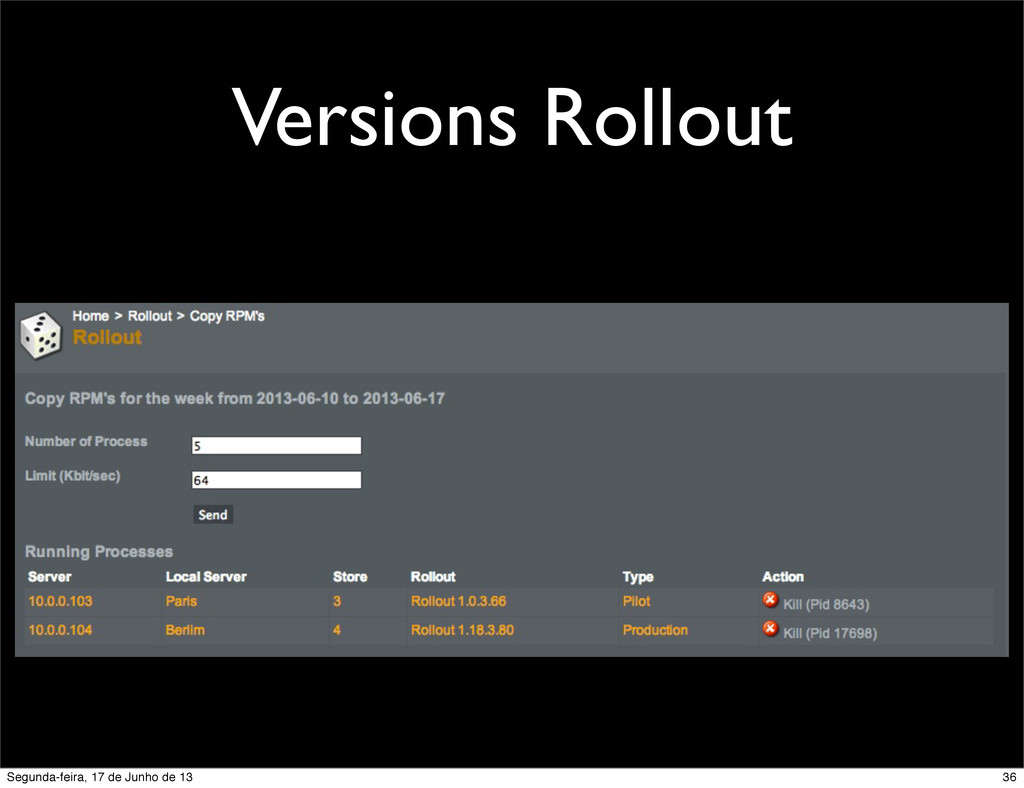

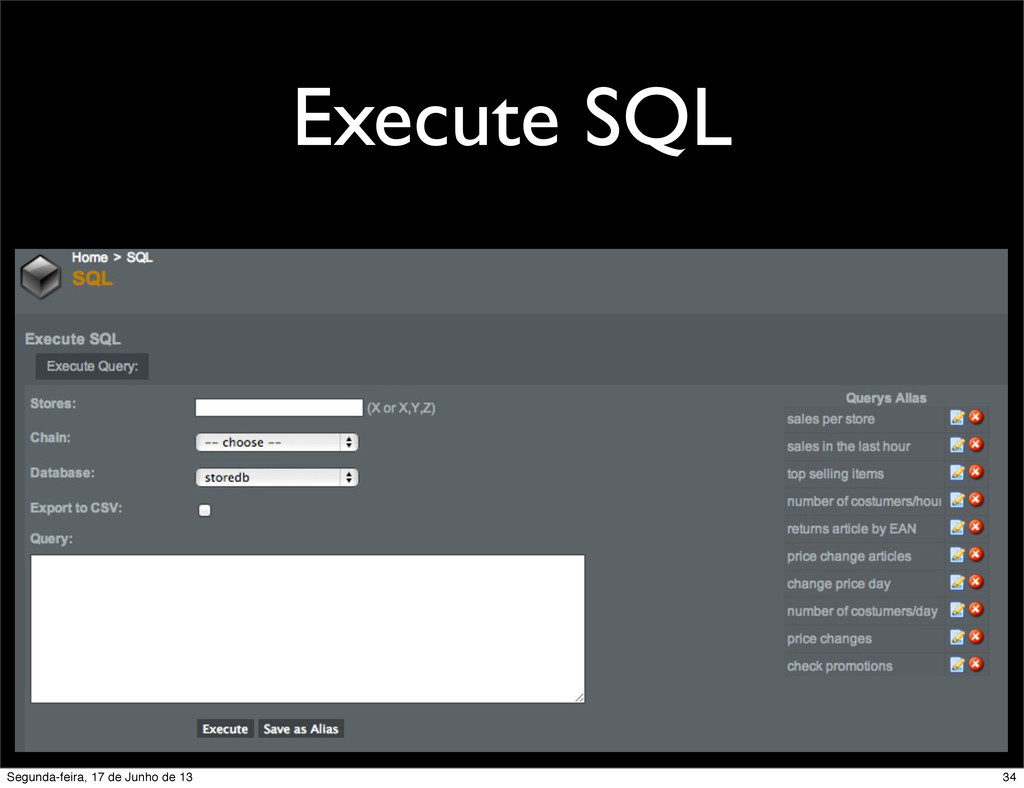

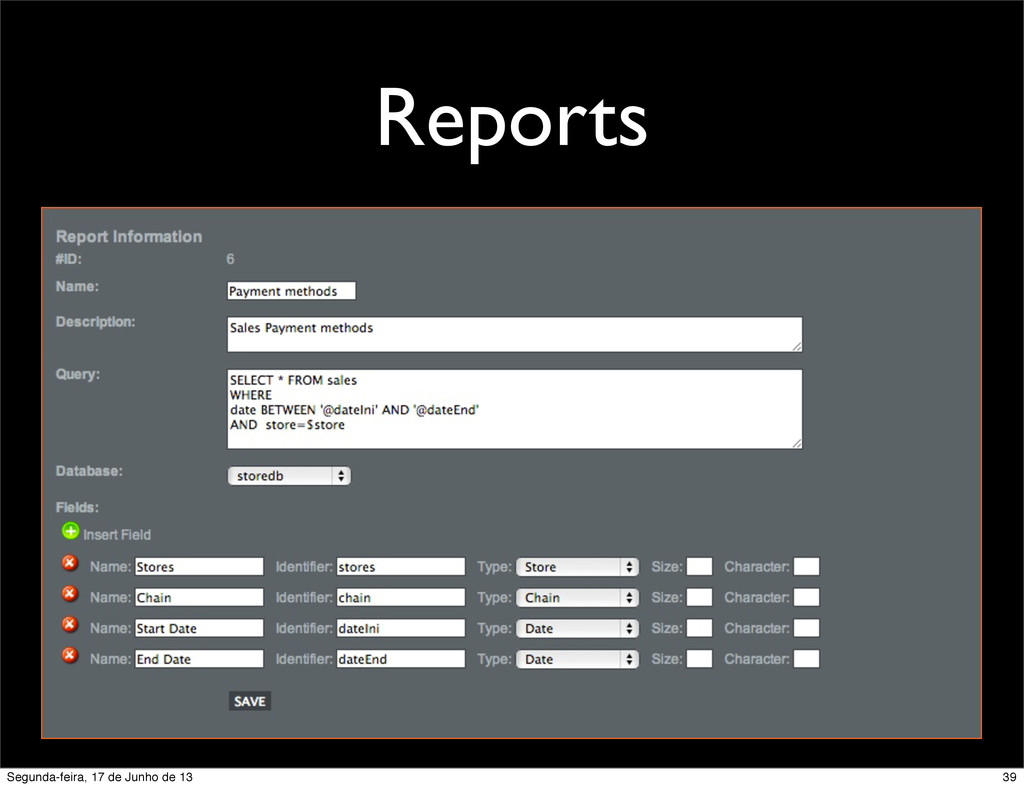

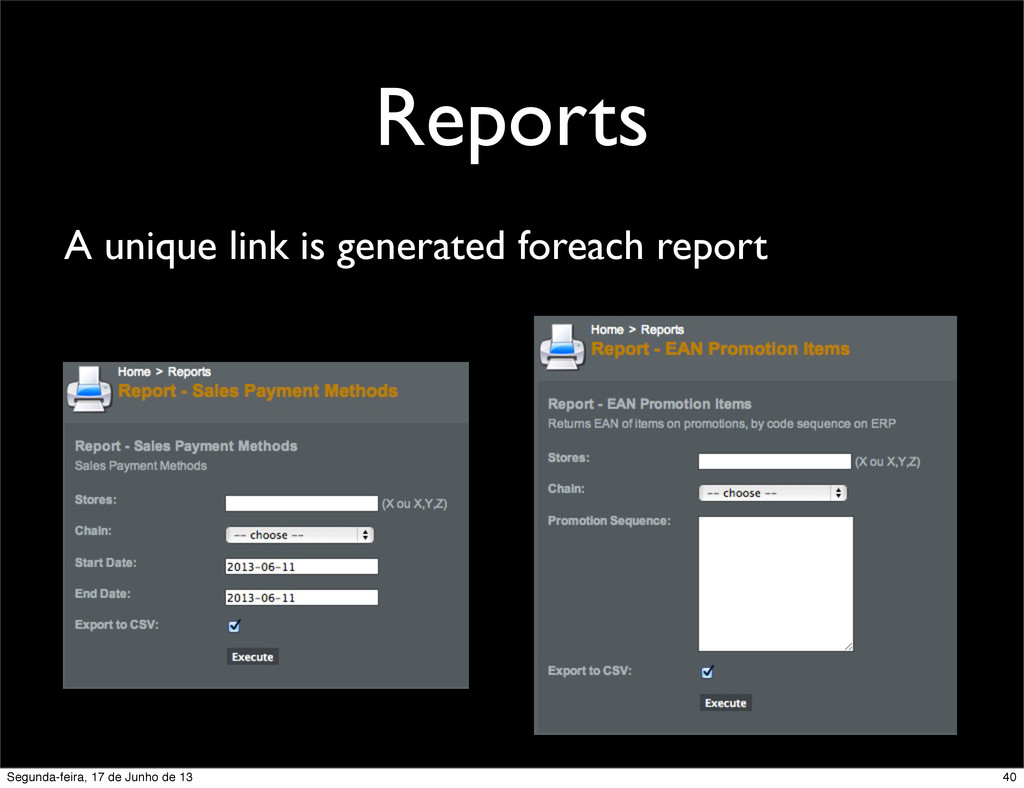

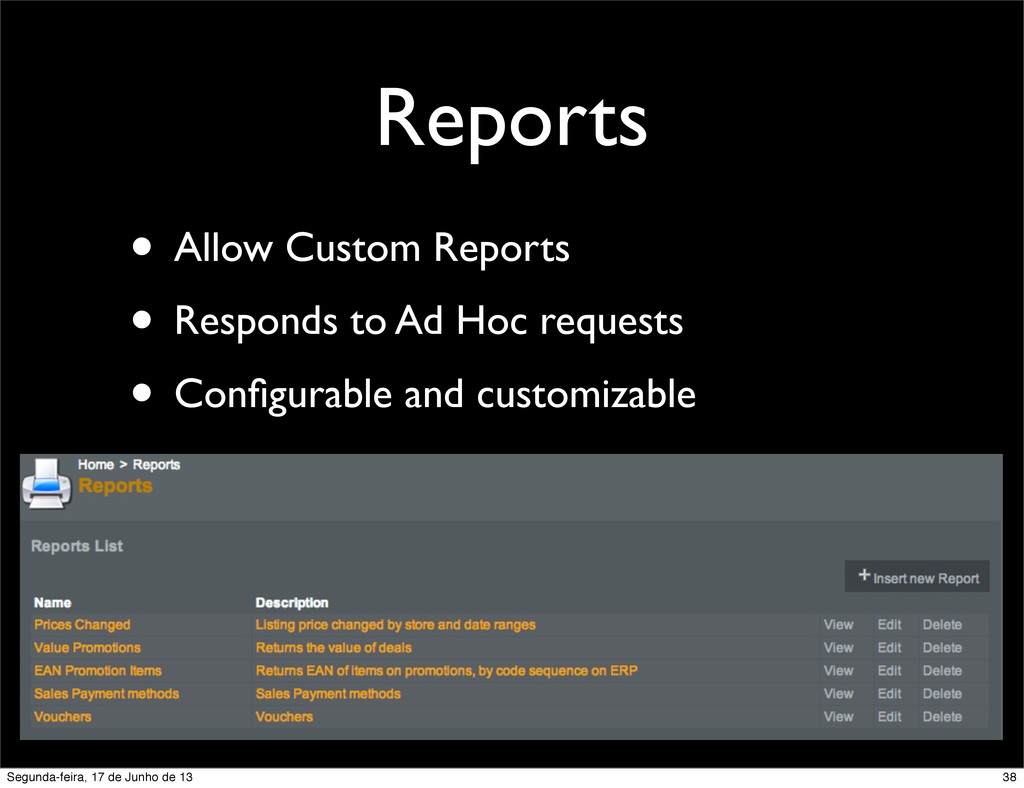

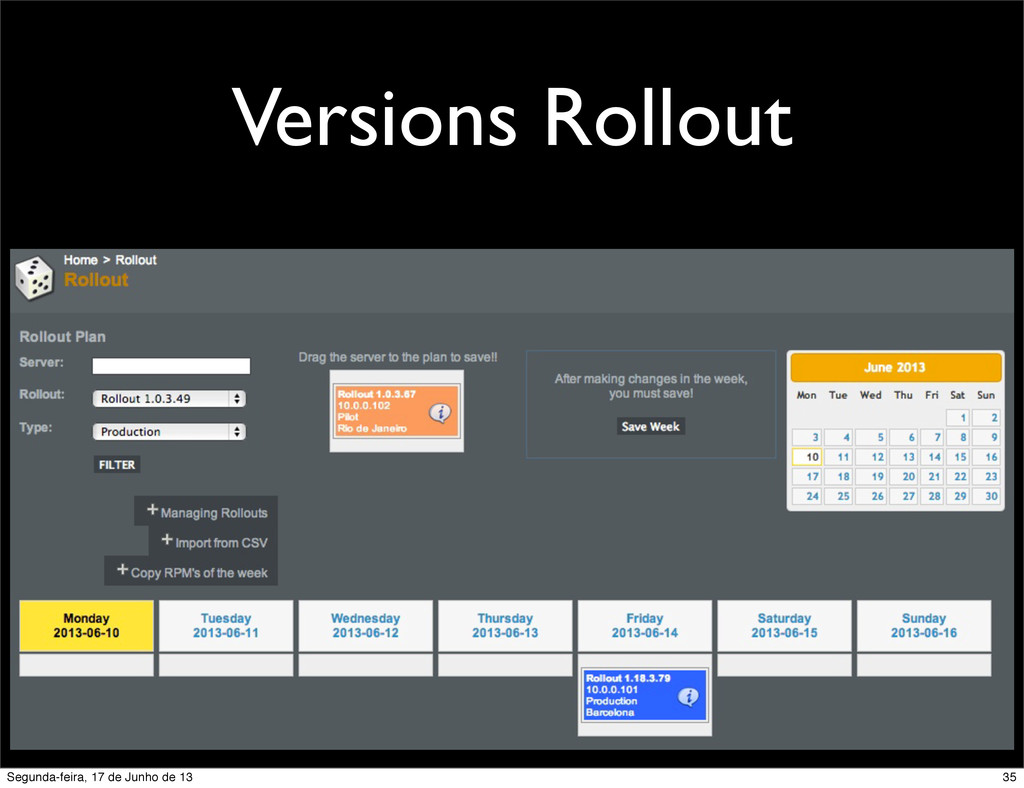

  20. Reports • Allow Custom Reports • Responds to Ad Hoc

    requests • Configurable and customizable 38 Segunda-feira, 17 de Junho de 13

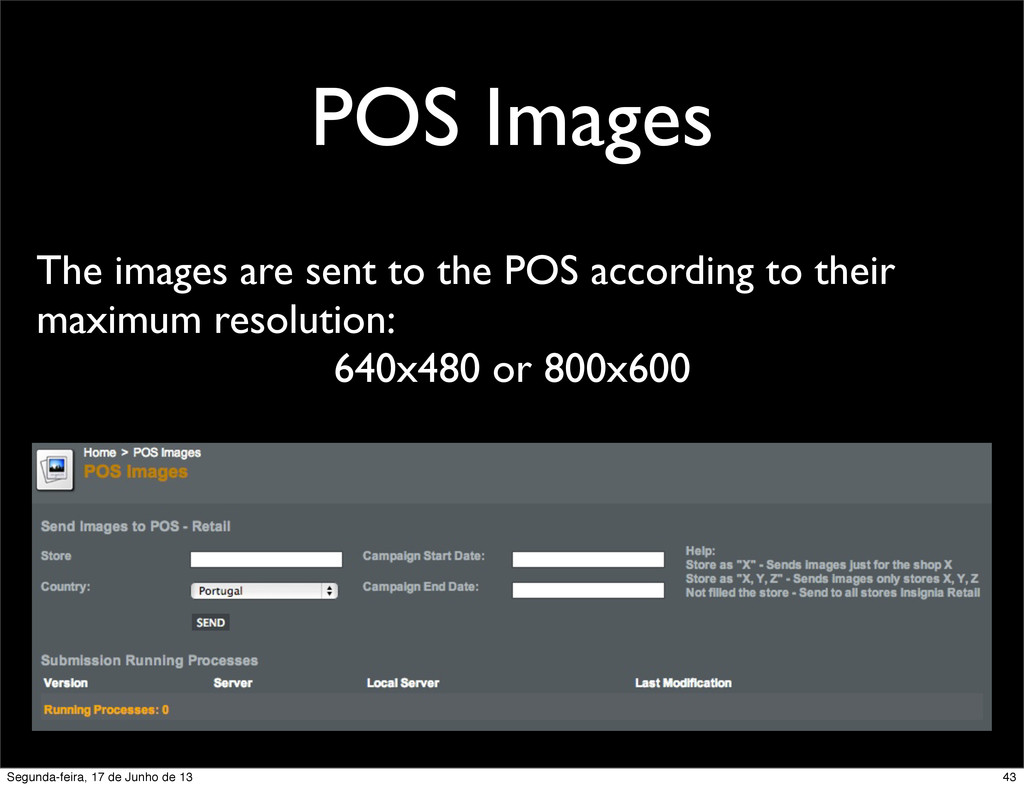

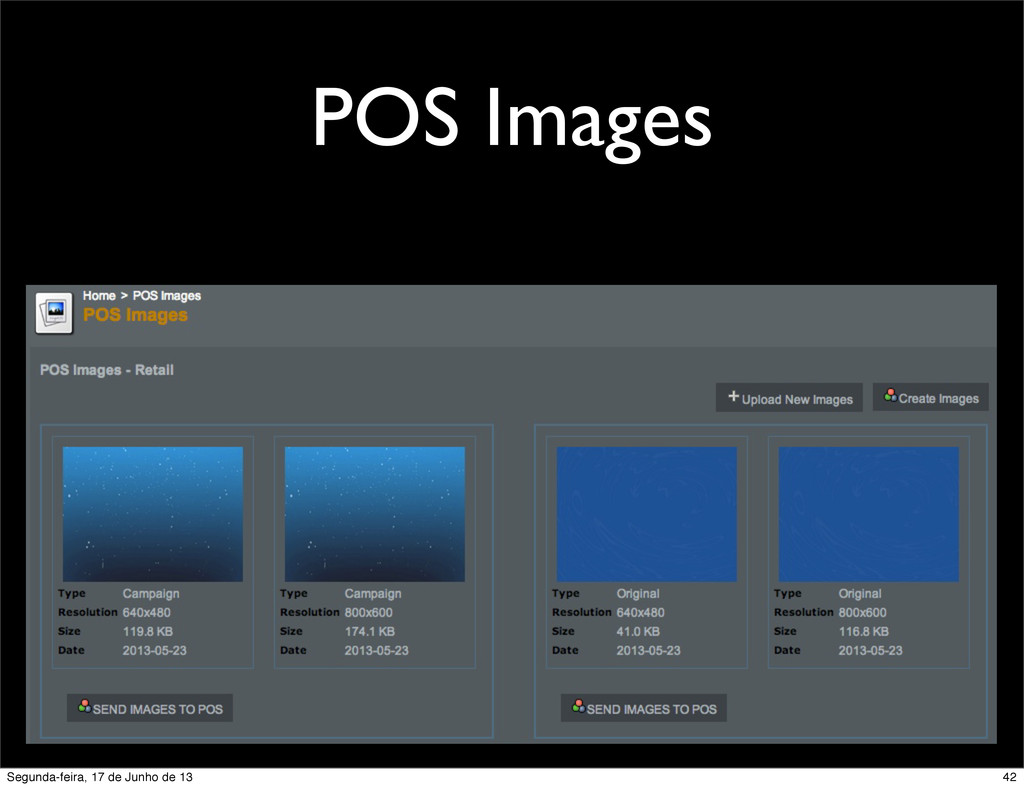

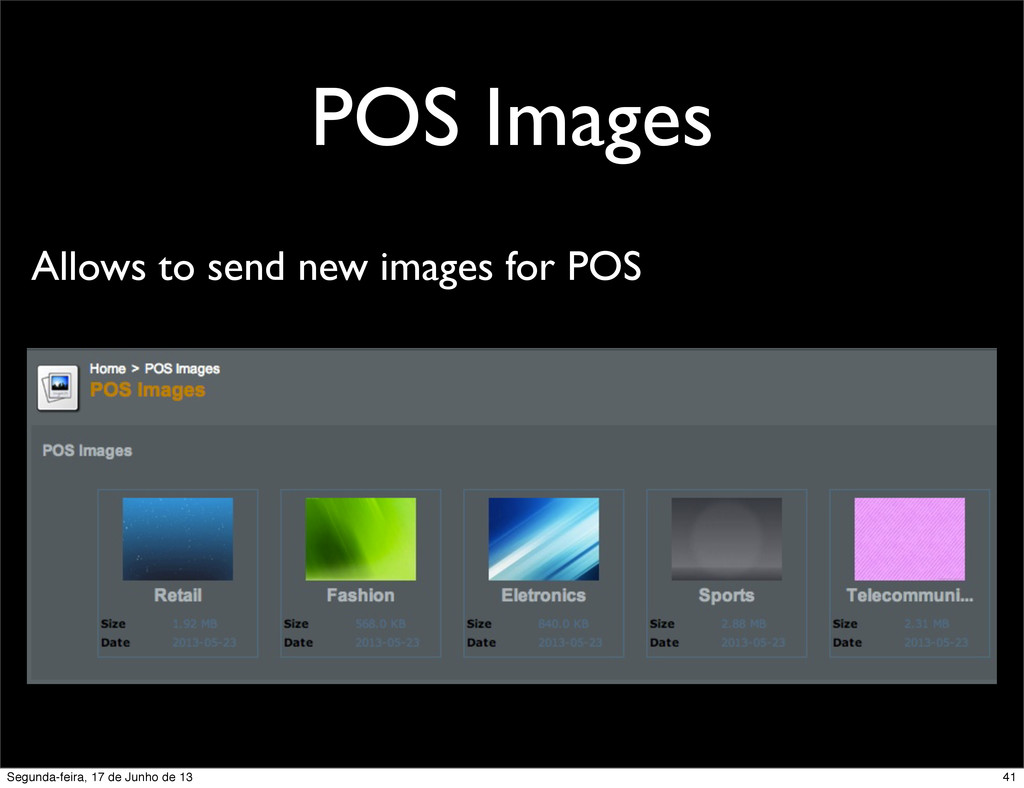

  21. POS Images Allows to send new images for POS 41

    Segunda-feira, 17 de Junho de 13
  22. POS Images The images are sent to the POS according

    to their maximum resolution: 640x480 or 800x600 43 Segunda-feira, 17 de Junho de 13

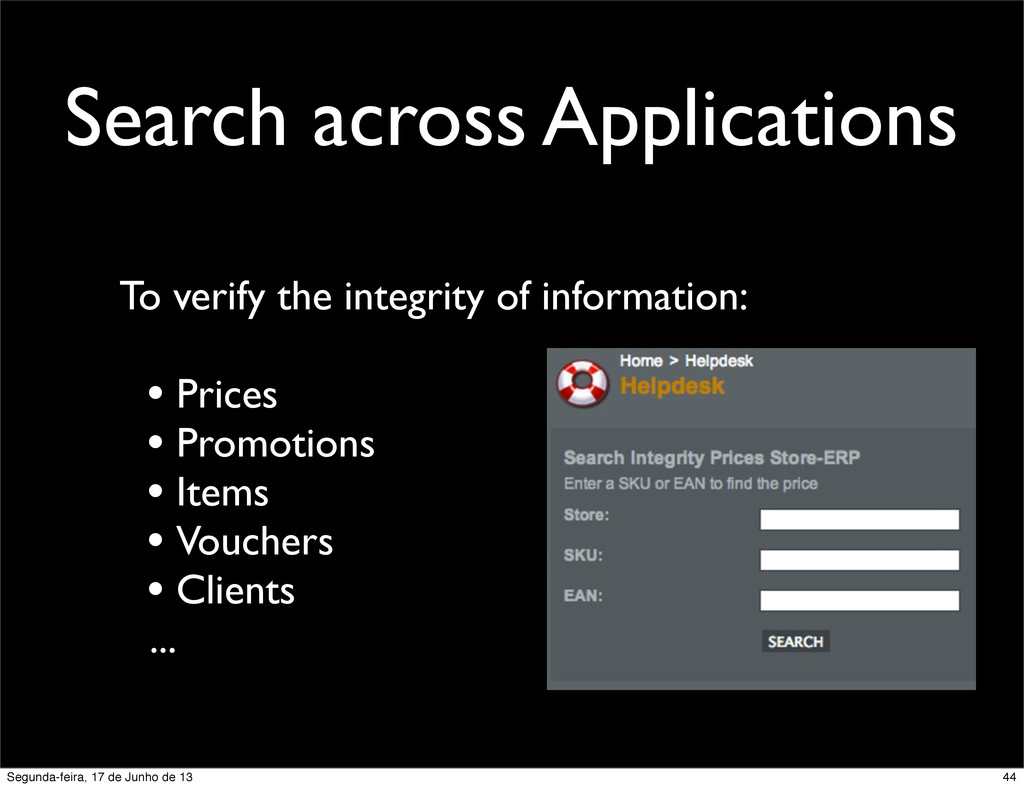

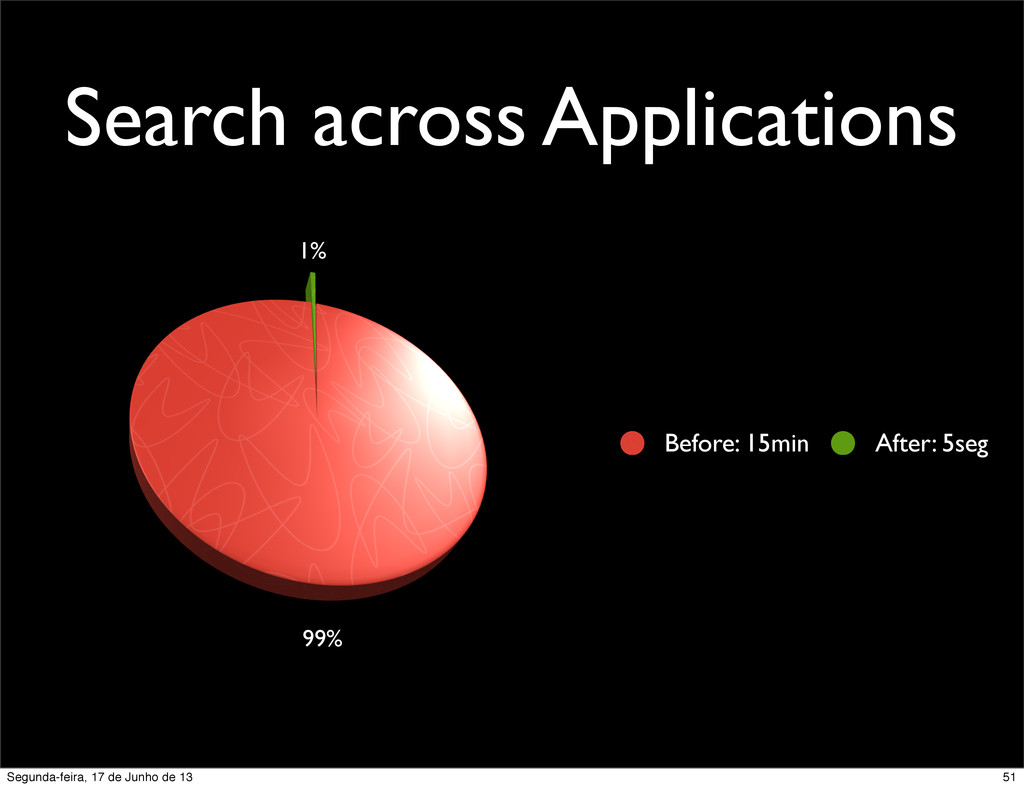

  23. Search across Applications To verify the integrity of information: •

    Prices • Promotions • Items • Vouchers • Clients ... 44 Segunda-feira, 17 de Junho de 13

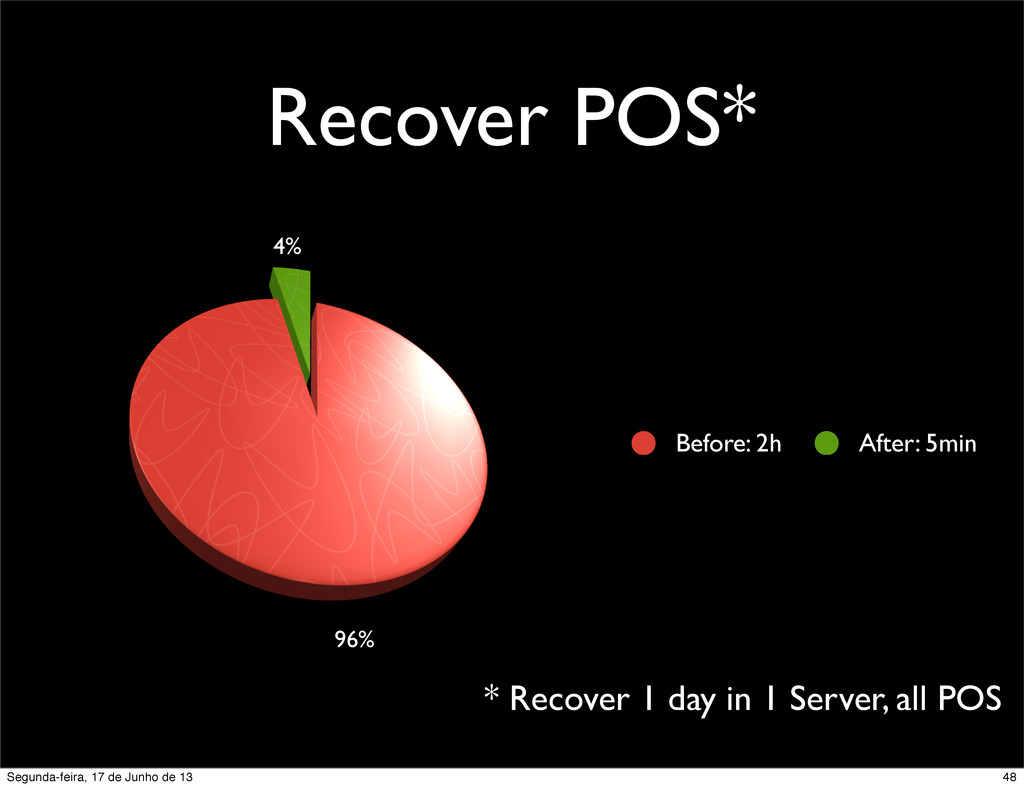

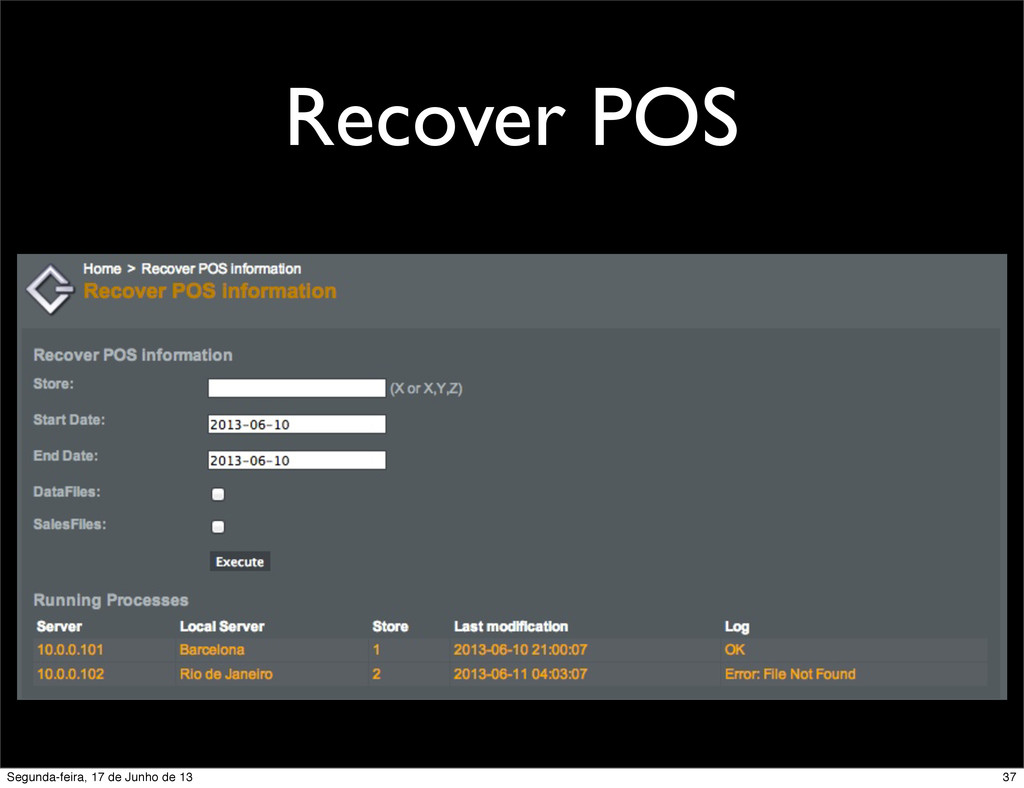

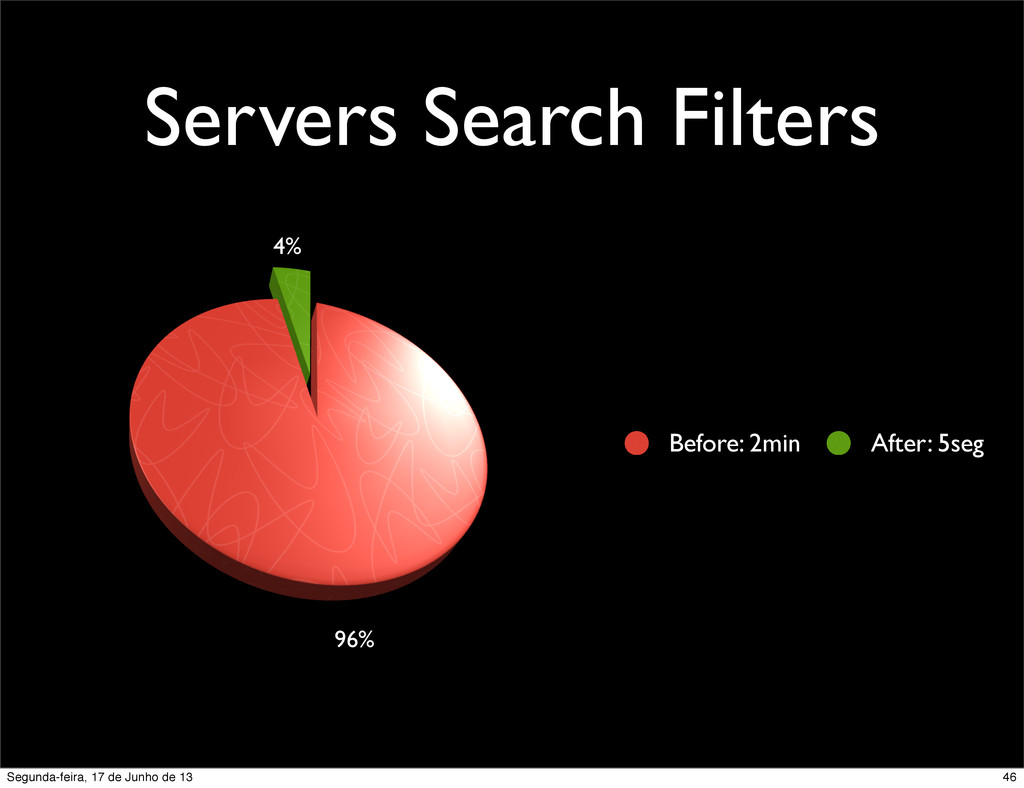

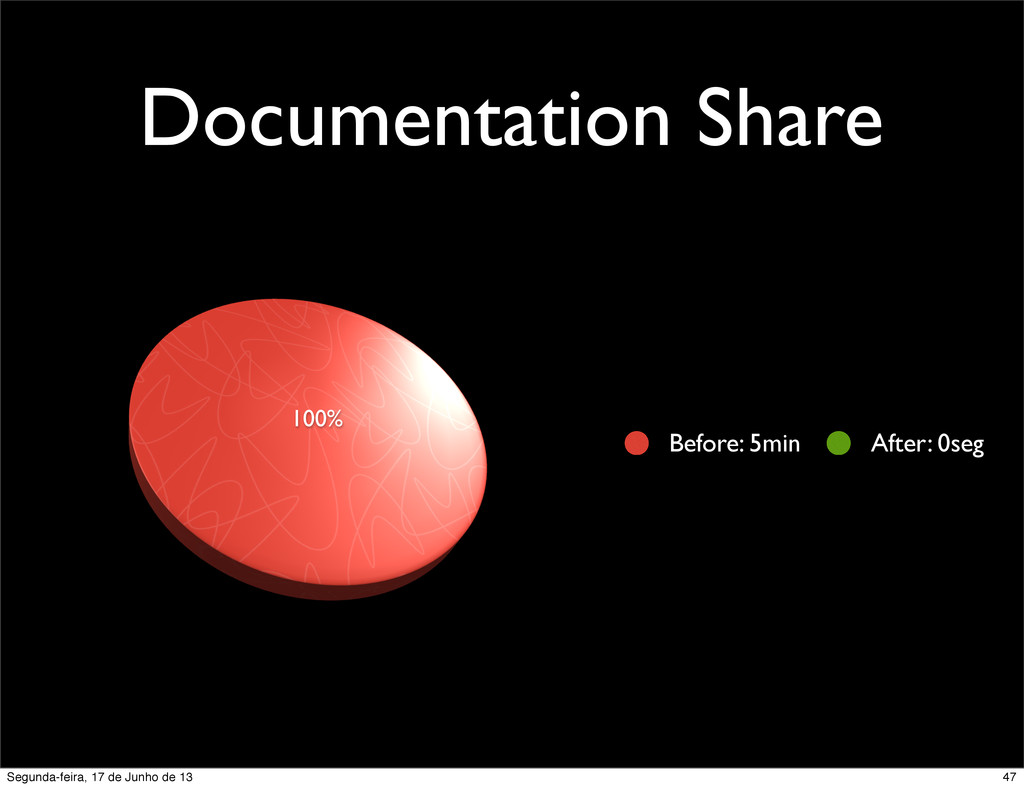

  24. 96% 4% Recover POS* Before: 2h After: 5min * Recover

    1 day in 1 Server, all POS 48 Segunda-feira, 17 de Junho de 13

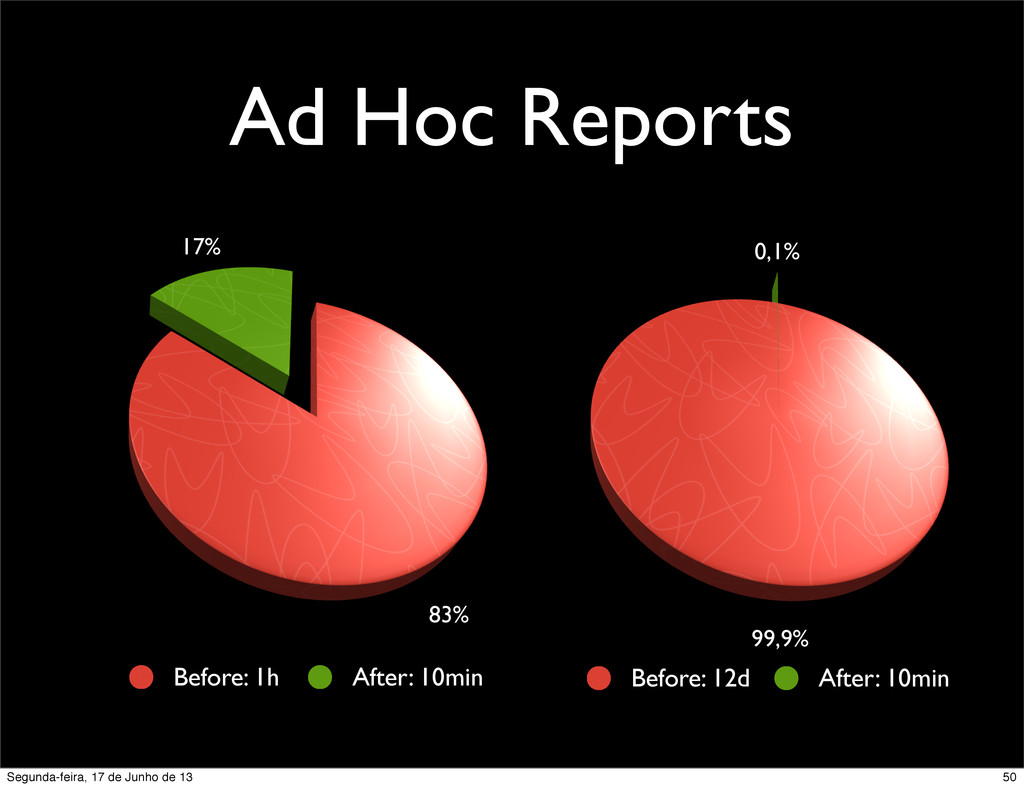

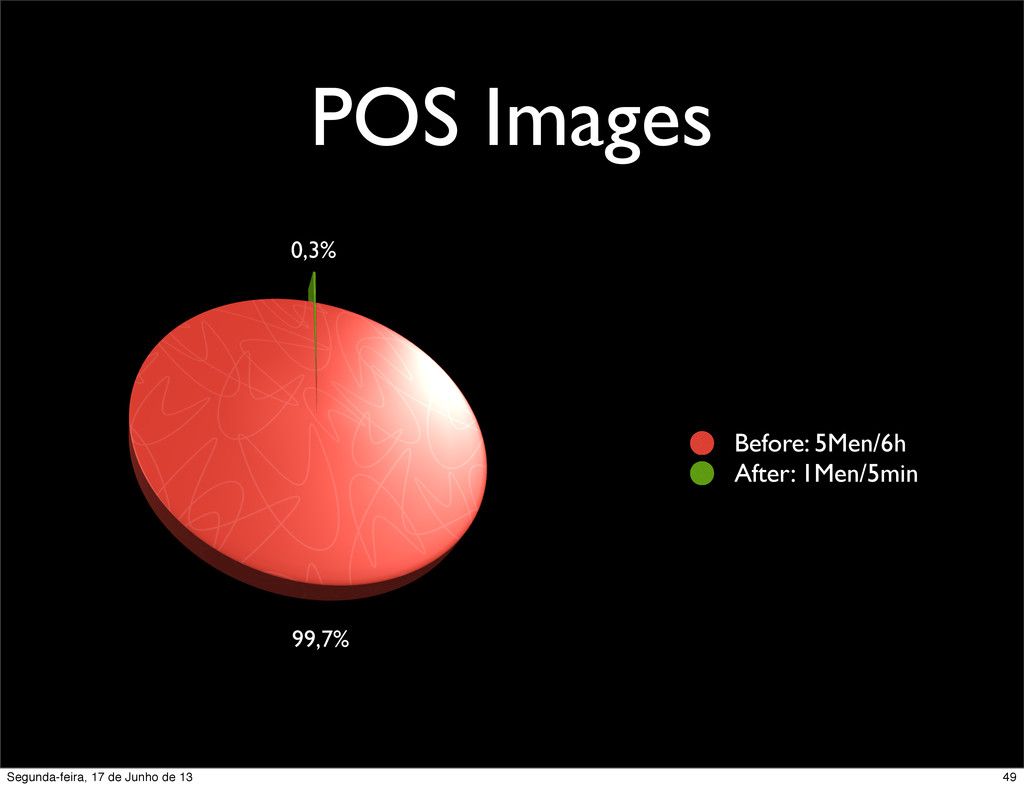

  25. 83% 17% Ad Hoc Reports Before: 1h After: 10min 99,9%

    0,1% Before: 12d After: 10min 50 Segunda-feira, 17 de Junho de 13
