The Backbone Tango: Dancing with geographical data

Using Backbone as the core of our geo app has been a blessing in many ways. But working with large amounts of geographical data also presents some challenges. This session will shine a light on the ways we extended Backbone to solve some of them.

Topics that will be covered:

* Handling large amounts of geographical data
* Spatial indexing for a fast cache
* Lazy loading Collections and Models
* Grouping multiple requests into one
* Keeping track of failed HTTP requests across sessions

Transcript

1. The Backbone Tango Dancing with geographical data
2. WHAT’S MAPKIT?
3. SHOWCASES

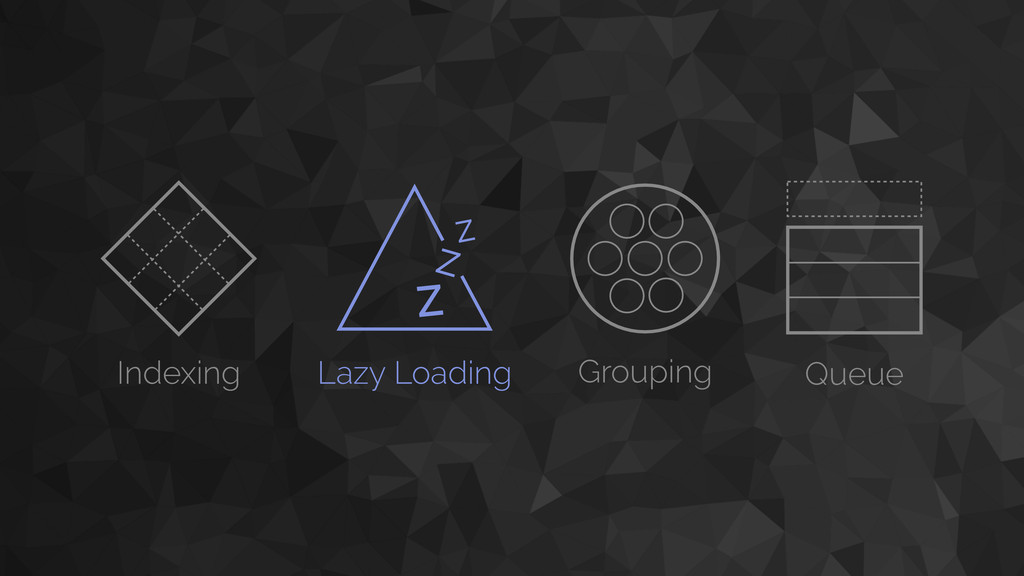

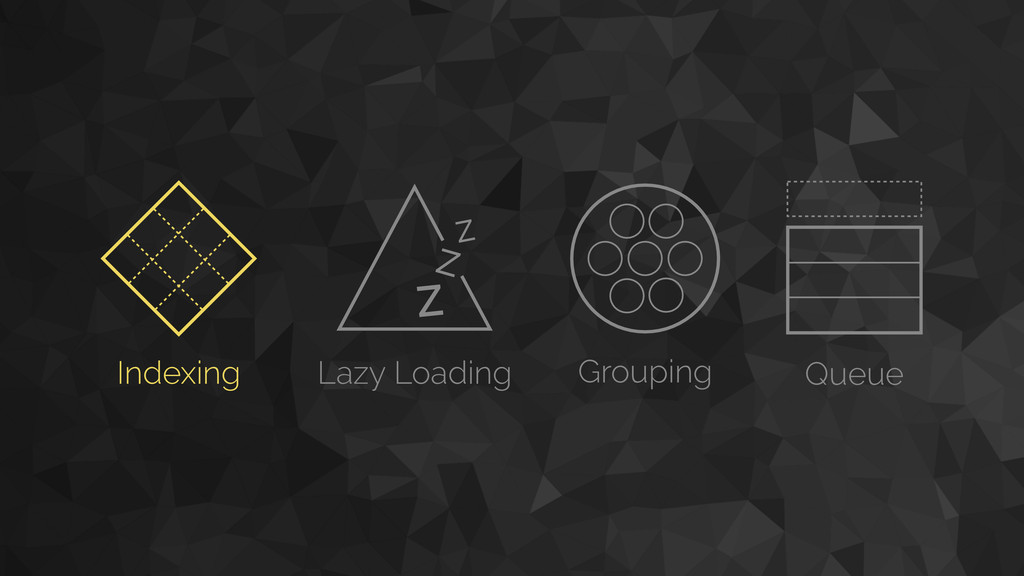

4. Indexing Lazy Loading Z Z Z Grouping Queue

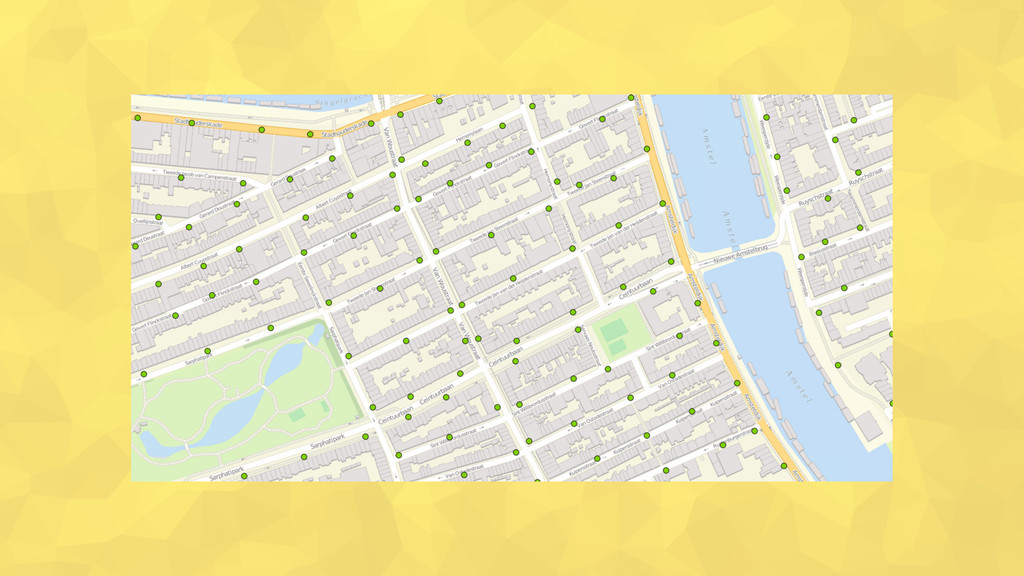

5. Indexing Lazy Loading Z Z Z Grouping Queue

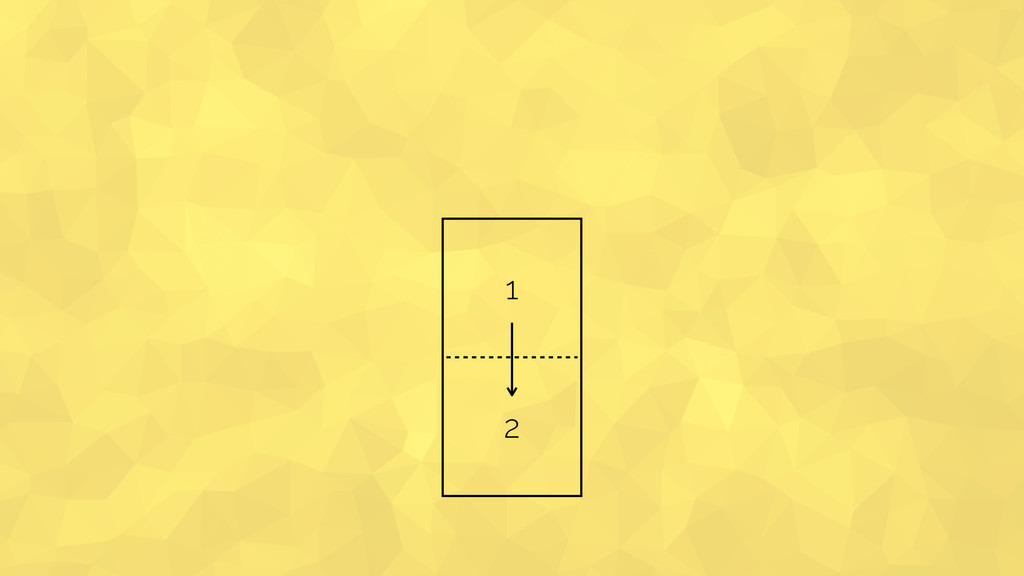

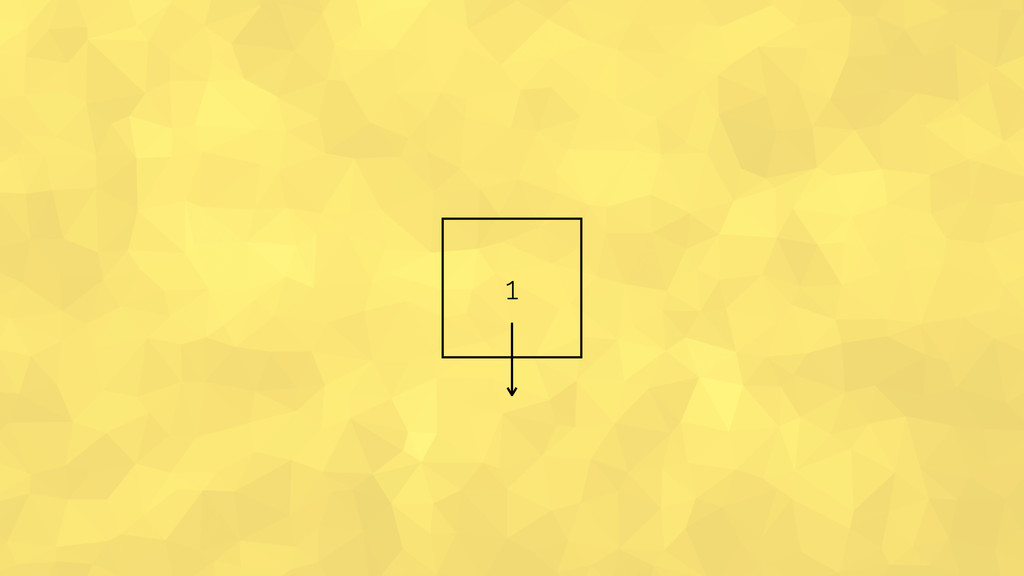

9. 1 2
10. 1 2

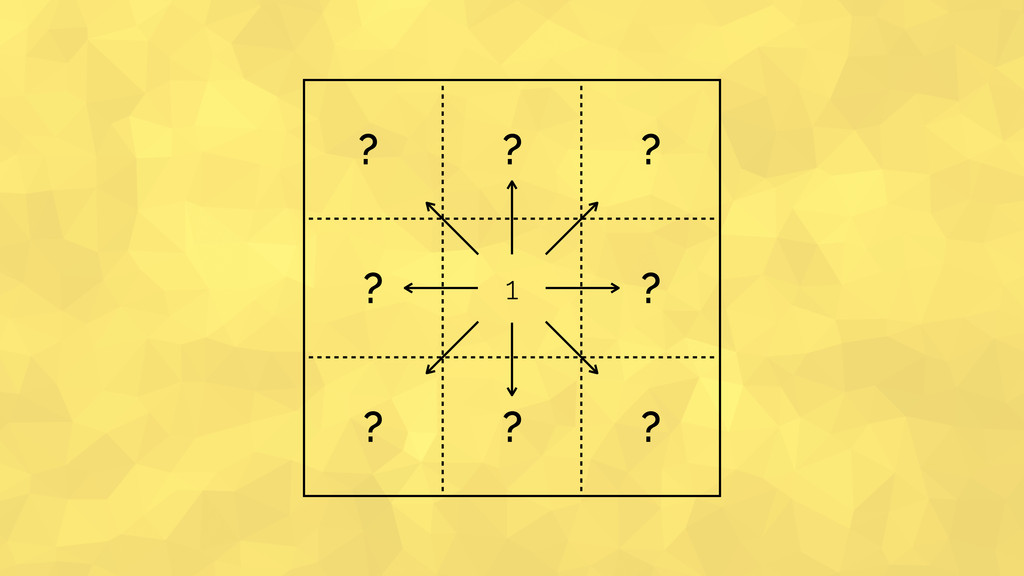

11. 1 ? ? ? ? ? ? ? ?
12. DEMO: Tiles
13. Indexing Lazy Loading Z Z Z Grouping Queue
14. DEMO: Growing Collections

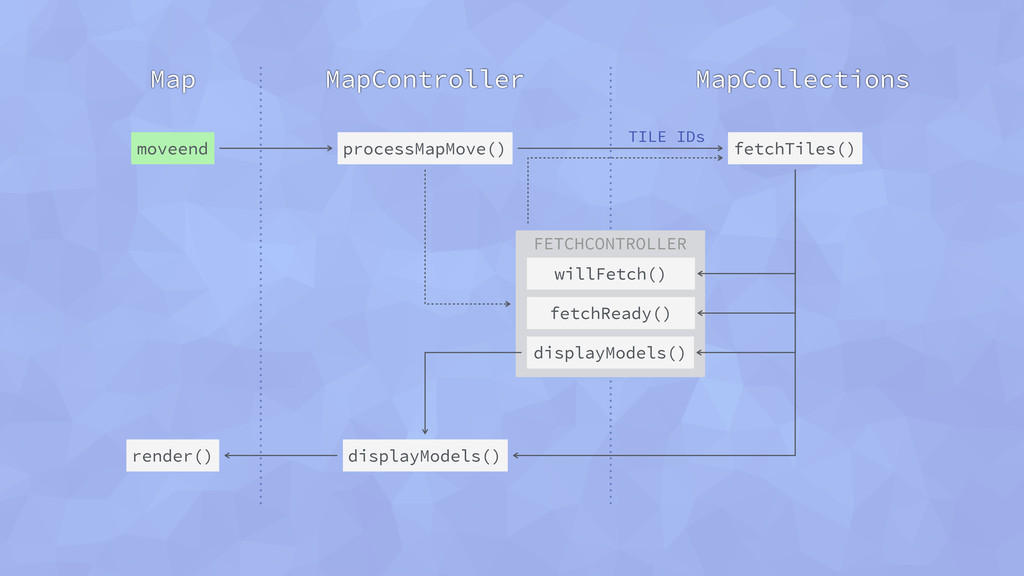

15. Map MapController MapCollections moveend processMapMove() FETCHCONTROLLER fetchReady() displayModels() willFetch() fetchTiles() displayModels() render() TILE IDs

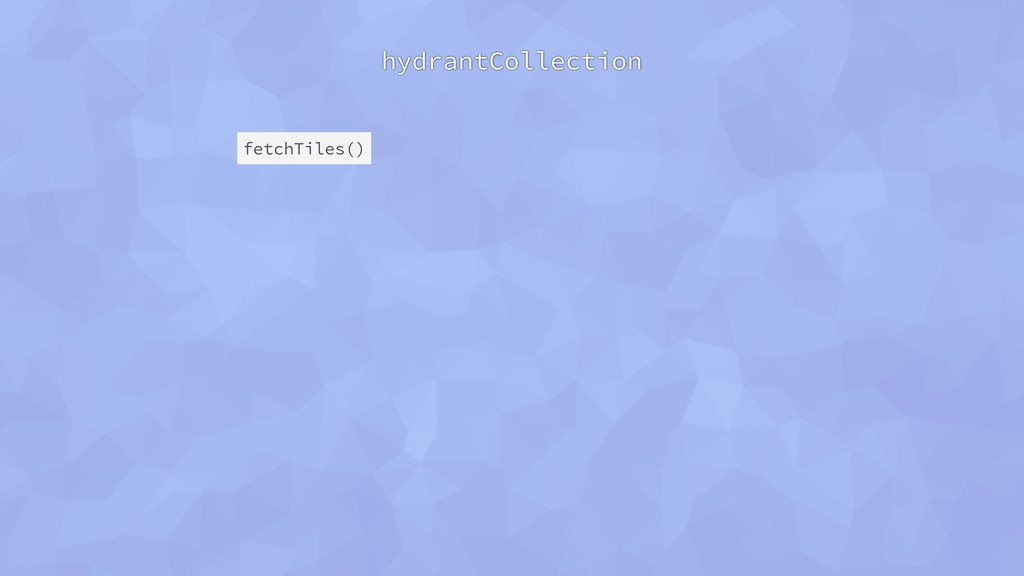

16. hydrantCollection fetchTiles()

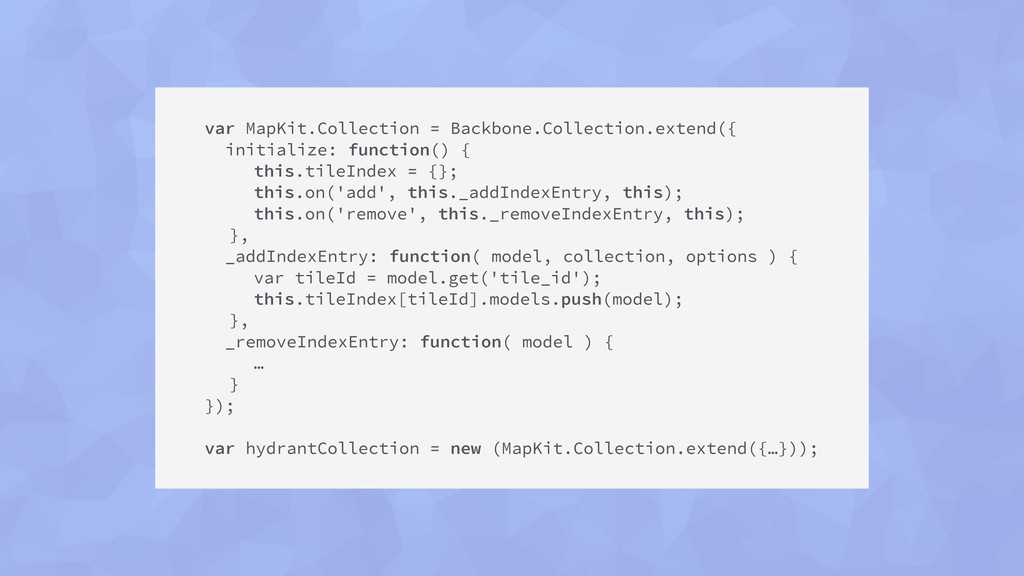

17. var MapKit.Collection = Backbone.Collection.extend({ initialize: function() { this.tileIndex = {}; this.on('add', this._addIndexEntry, this); this.on('remove', this._removeIndexEntry, this); }, _addIndexEntry: function( model, collection, options ) { var tileId = model.get('tile_id'); this.tileIndex[tileId].models.push(model); }, _removeIndexEntry: function( model ) { … } }); var hydrantCollection = new (MapKit.Collection.extend({…}));

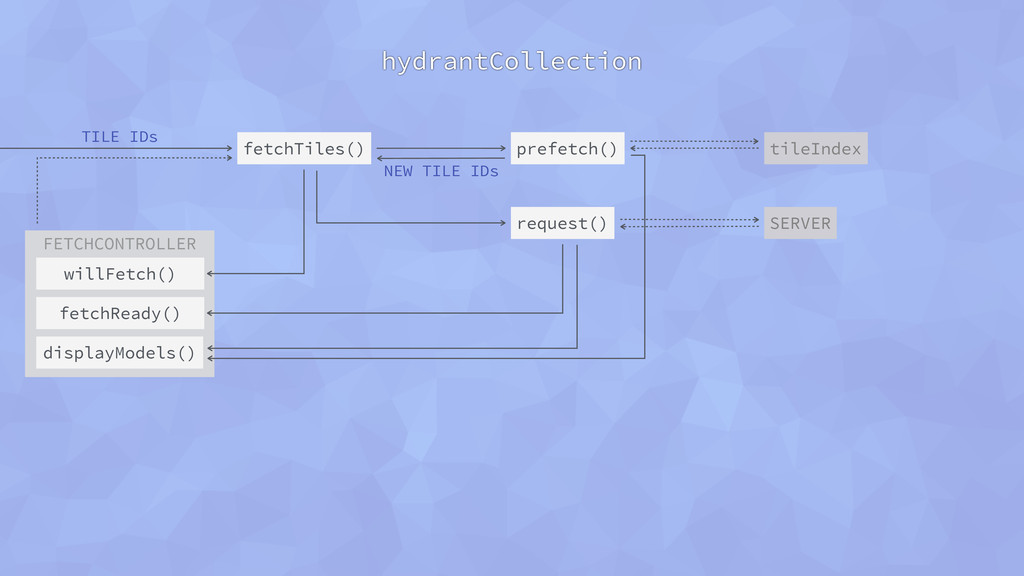

18. hydrantCollection fetchTiles() TILE IDs prefetch() NEW TILE IDs request() tileIndex SERVER FETCHCONTROLLER fetchReady() displayModels() willFetch()

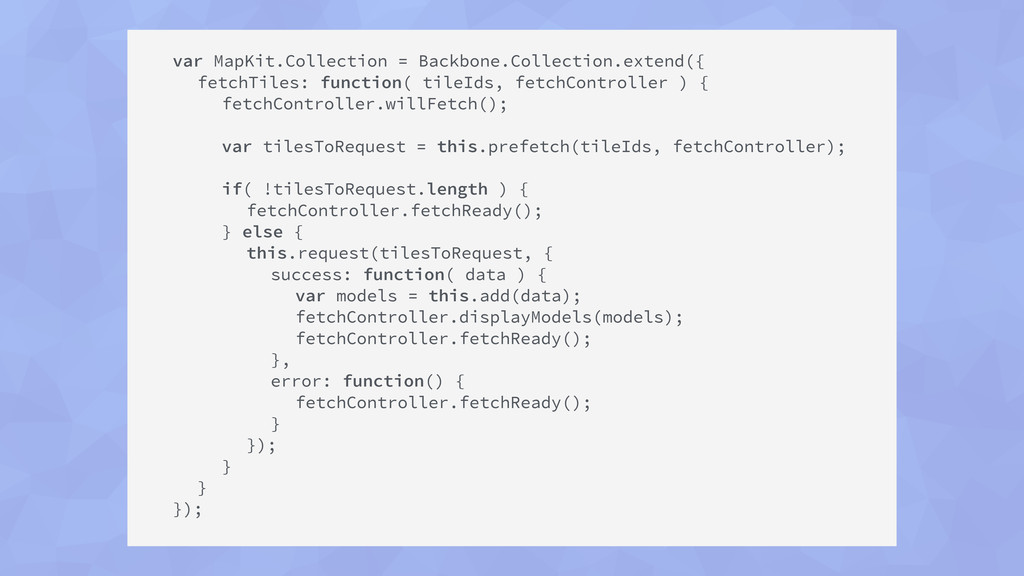

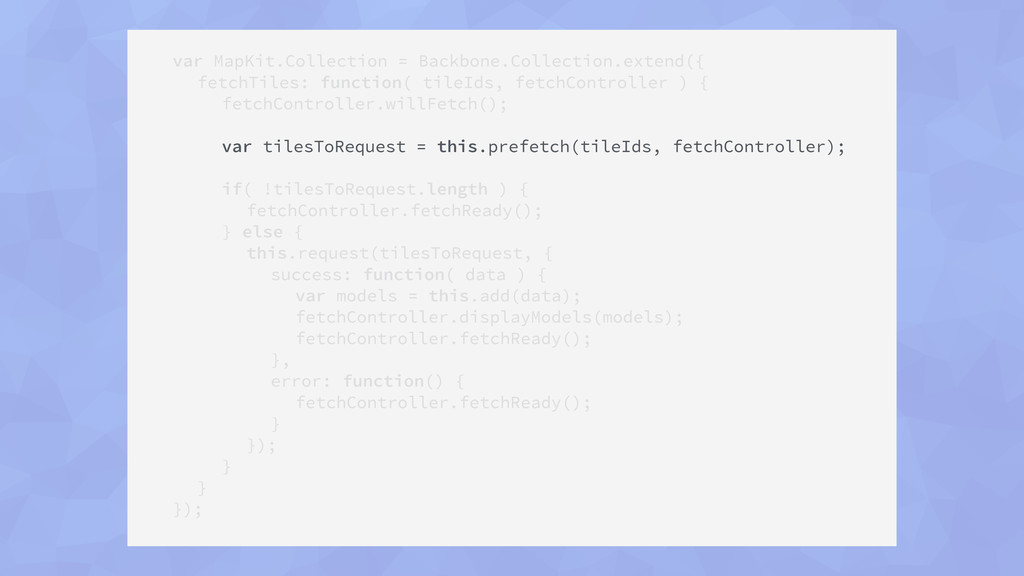

19. var MapKit.Collection = Backbone.Collection.extend({ fetchTiles: function( tileIds, fetchController ) { fetchController.willFetch(); var tilesToRequest = this.prefetch(tileIds, fetchController); if( !tilesToRequest.length ) { fetchController.fetchReady(); } else { this.request(tilesToRequest, { success: function( data ) { var models = this.add(data); fetchController.displayModels(models); fetchController.fetchReady(); }, error: function() { fetchController.fetchReady(); } }); } } });
20. var MapKit.Collection = Backbone.Collection.extend({ fetchTiles: function( tileIds, fetchController ) { fetchController.willFetch(); var tilesToRequest = this.prefetch(tileIds, fetchController); if( !tilesToRequest.length ) { fetchController.fetchReady(); } else { this.request(tilesToRequest, { success: function( data ) { var models = this.add(data); fetchController.displayModels(models); fetchController.fetchReady(); }, error: function() { fetchController.fetchReady(); } }); } } });

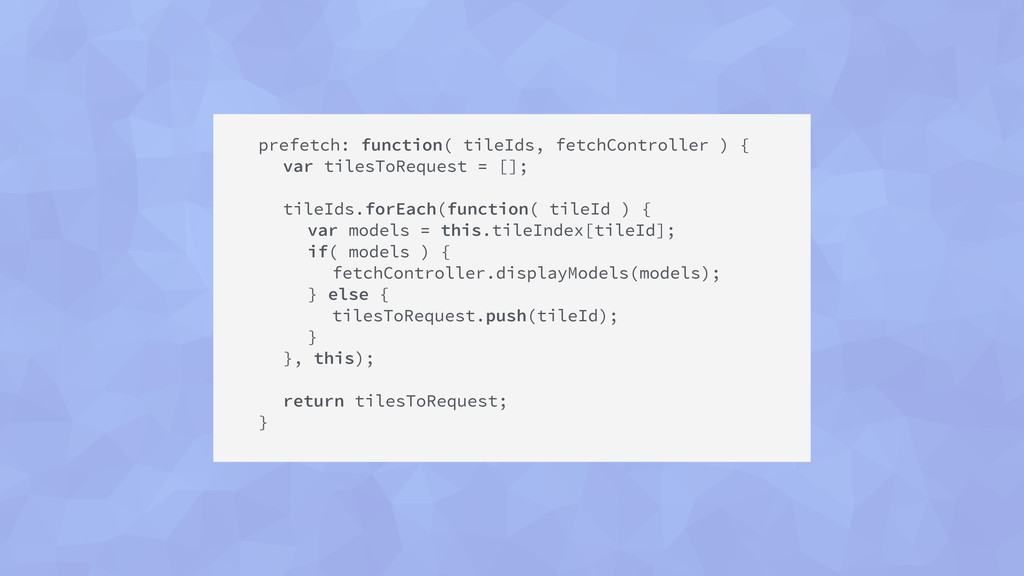

21. prefetch: function( tileIds, fetchController ) { var tilesToRequest = []; tileIds.forEach(function( tileId ) { var models = this.tileIndex[tileId]; if( models ) { fetchController.displayModels(models); } else { tilesToRequest.push(tileId); } }, this); return tilesToRequest; }

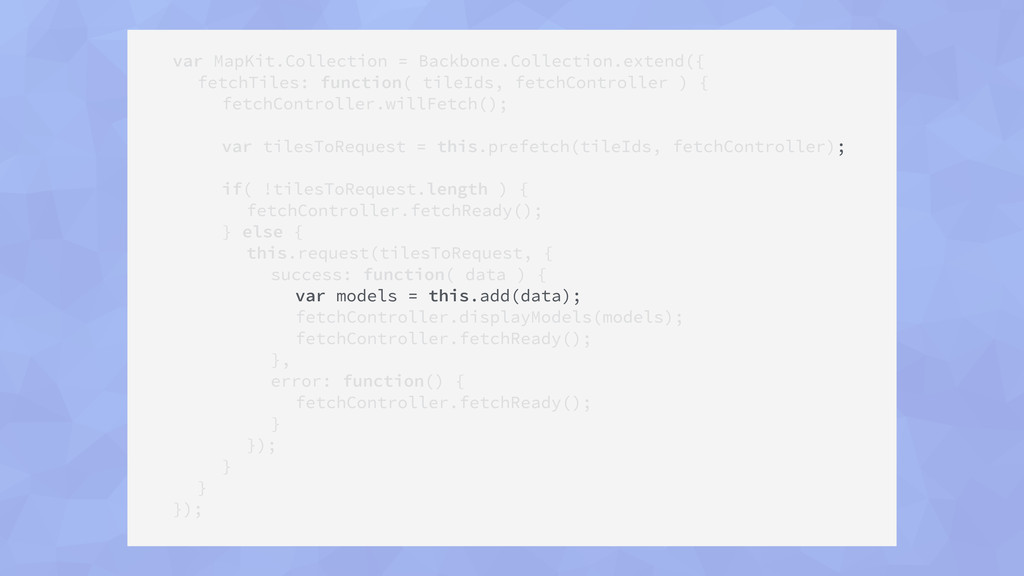

22. var MapKit.Collection = Backbone.Collection.extend({ fetchTiles: function( tileIds, fetchController ) { fetchController.willFetch(); var tilesToRequest = this.prefetch(tileIds, fetchController); if( !tilesToRequest.length ) { fetchController.fetchReady(); } else { this.request(tilesToRequest, { success: function( data ) { var models = this.add(data); fetchController.displayModels(models); fetchController.fetchReady(); }, error: function() { fetchController.fetchReady(); } }); } } });

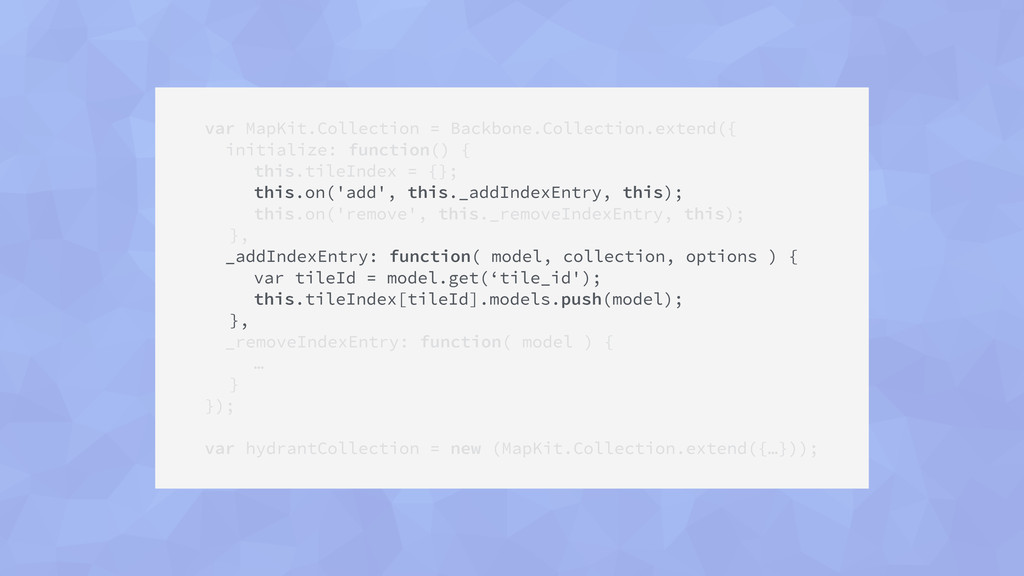

23. var MapKit.Collection = Backbone.Collection.extend({ initialize: function() { this.tileIndex = {}; this.on('add', this._addIndexEntry, this); this.on('remove', this._removeIndexEntry, this); }, _addIndexEntry: function( model, collection, options ) { var tileId = model.get(‘tile_id'); this.tileIndex[tileId].models.push(model); }, _removeIndexEntry: function( model ) { … } }); var hydrantCollection = new (MapKit.Collection.extend({…}));
24. DEMO: Lazy Collections
25. Lazy Models

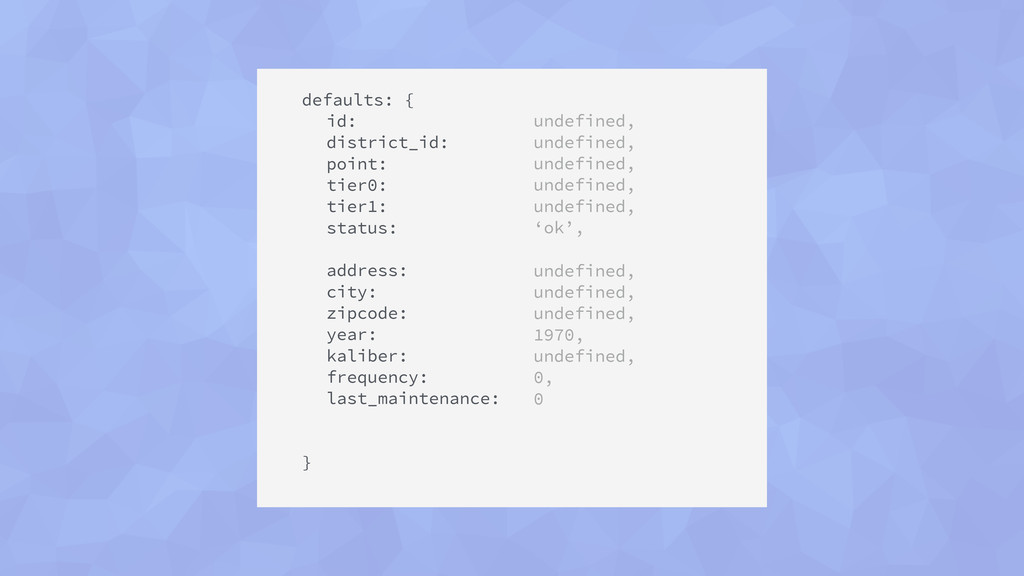

26. defaults: { id: district_id: point: tier0: tier1: status: address: city: zipcode: year: kaliber: frequency: last_maintenance: } undefined, undefined, undefined, undefined, undefined, ‘ok’, undefined, undefined, undefined, 1970, undefined, 0, 0

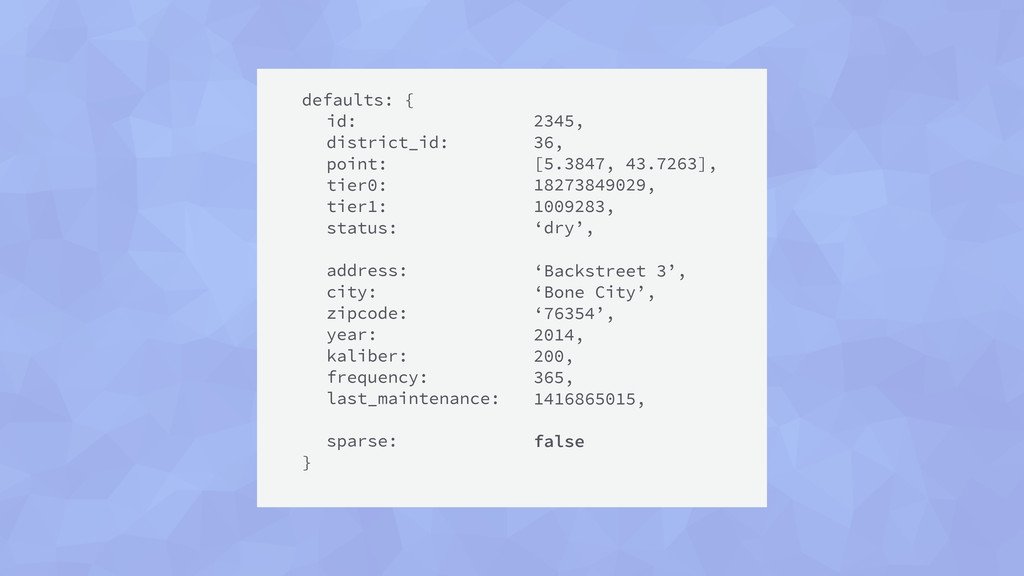

27. defaults: { id: district_id: point: tier0: tier1: status: address: city: zipcode: year: kaliber: frequency: last_maintenance: } 2345, 36, [5.3847, 43.7263], 18273849029, 1009283, ‘dry’, sparse: ‘Backstreet 3’, ‘Bone City’, ‘76354’, 2014, 200, 365, 1416865015, false
28. DEMO: Lazy Models
29. Lazy Collections grow on map move fetchTiles tileIndex Lazy Models `sparse` attribute

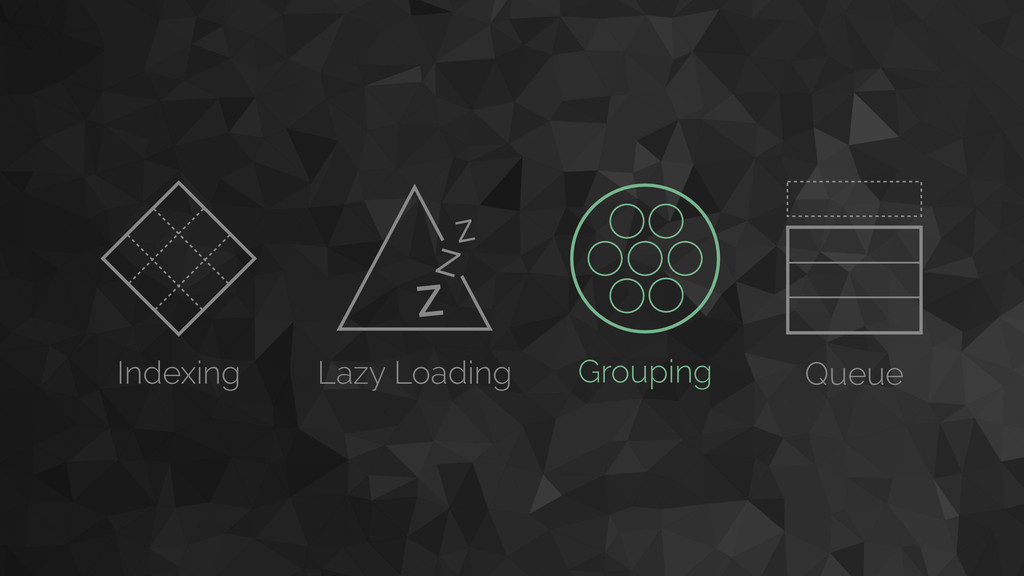

30. Indexing Lazy Loading Z Z Z Grouping Queue
32. DEMO: Selecting Sections

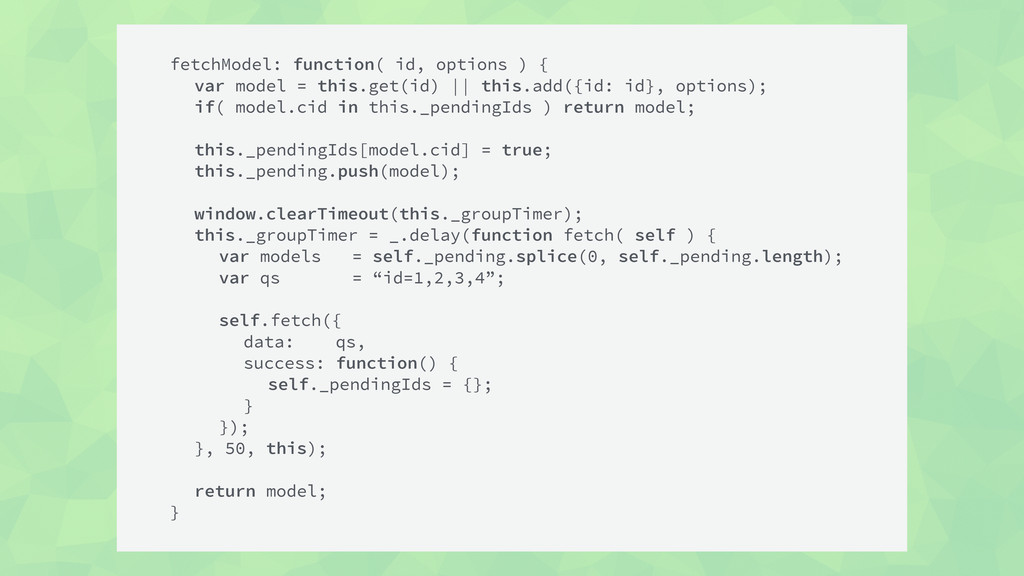

33. fetchModel: function( id, options ) { var model = this.get(id) || this.add({id: id}, options); if( model.cid in this._pendingIds ) return model; this._pendingIds[model.cid] = true; this._pending.push(model); window.clearTimeout(this._groupTimer); this._groupTimer = _.delay(function fetch( self ) { var models = self._pending.splice(0, self._pending.length); var qs = “id=1,2,3,4”; self.fetch({ data: qs, success: function() { self._pendingIds = {}; } }); }, 50, this); return model; }
34. DEMO: Difference
35. Indexing Lazy Loading Z Z Z Grouping Queue

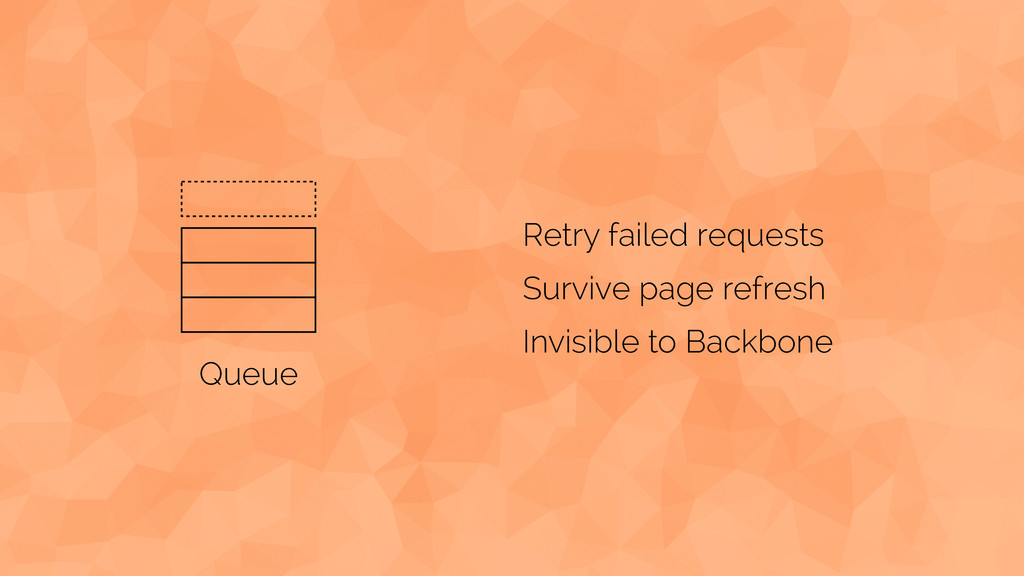

36. Retry failed requests Survive page refresh Invisible to Backbone Queue
37. DEMO: Queue

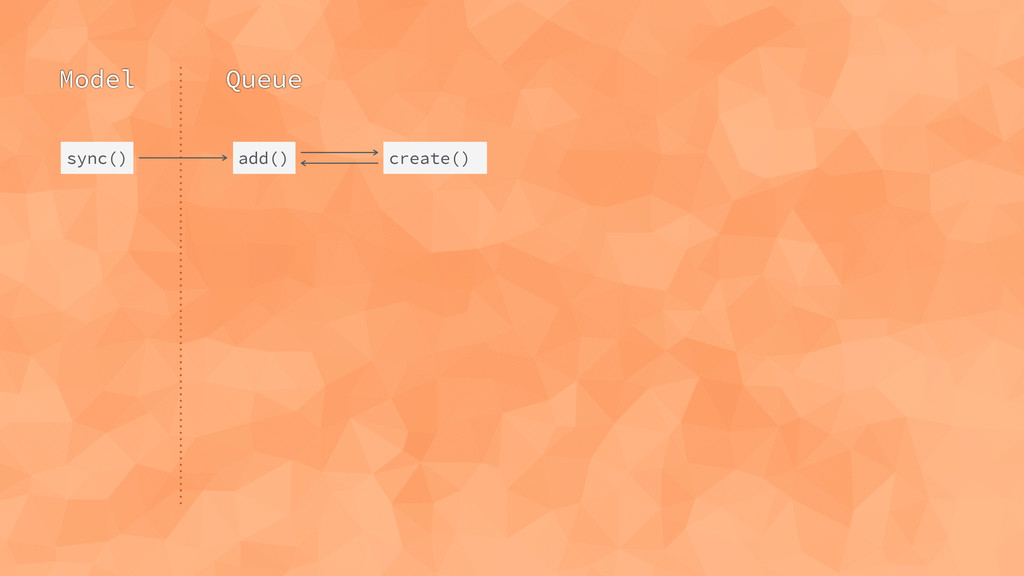

38. Model Queue sync() add() create()

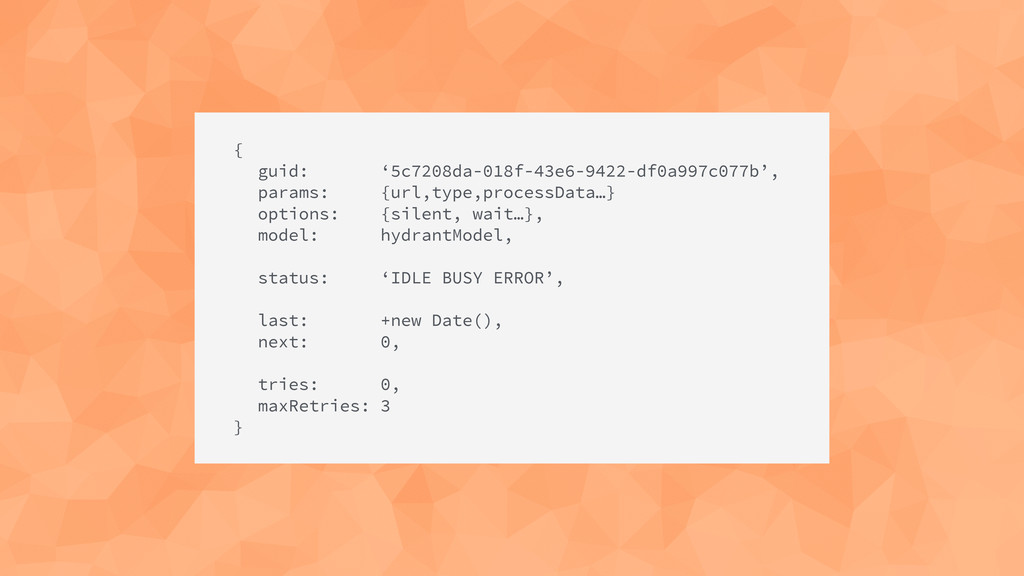

39. { guid: ‘5c7208da-018f-43e6-9422-df0a997c077b’, params: {url,type,processData…} options: {silent, wait…}, model: hydrantModel, status: ‘IDLE BUSY ERROR’, last: +new Date(), next: 0, tries: 0, maxRetries: 3 }

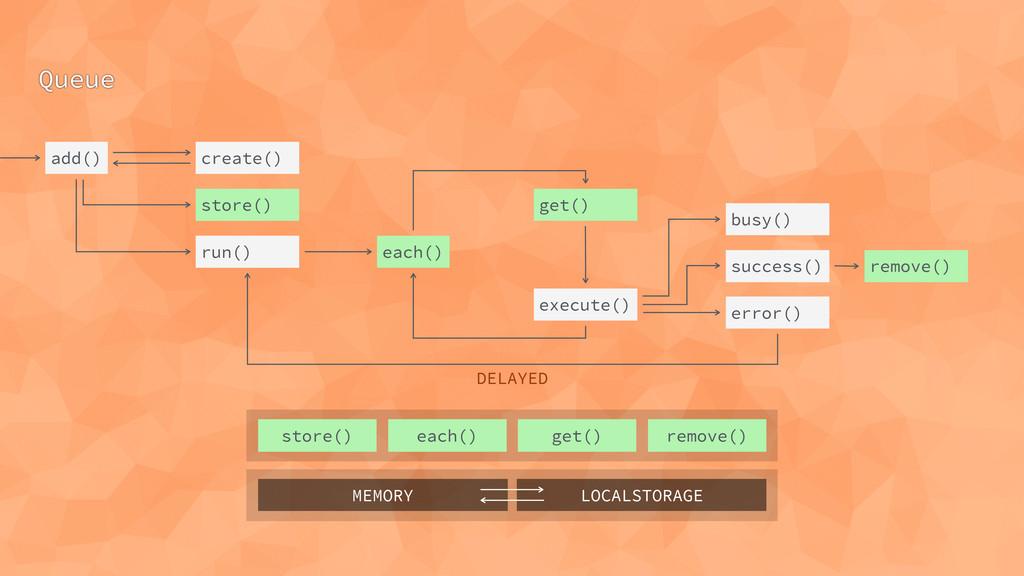

40. Queue add() create() store() get() each() remove() MEMORY LOCALSTORAGE run() store() run() each() execute() get() busy() success() error() remove() DELAYED
41. QueueCumber http://queuecumber.mapkit.nl Work in progress Requires backend code
42. Thanks! @tjoekbezoer
