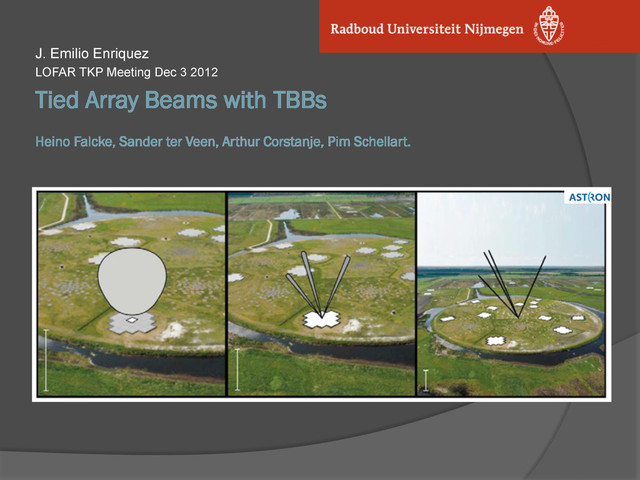

  1. Tied Array Beams with TBBs
    Heino Falcke, Sander ter Veen, Arthur Corstanje, Pim Schellart.
    J. Emilio Enriquez
    LOFAR TKP Meeting Dec 3 2012

    View Slide

  2. FRATS : Fast Radio Transients
    ž  Millisecond pulses originating from:
    —  Pulsars
    —  Flaring stars
    —  Lightning from Saturn
    —  Jupiter aurora radio emission
    —  Exoplanets?
    —  SETI ??

    View Slide

  3. How to detect them?
    LOFAR
    hardware/software
    FRATS Tools
    ž  All Sky
    —  LOFAR
    ž  All the time
    —  Parallel Observations
    (Piggybacking).
    —  Triggering
    ○  Sander’s Talk
    ○  ARTEMIS
    ○  Others…
    ž  Look back in time
    —  TBBs (1-5 sec)
    —  Offline processing.
    ž  Bright events
    —  Coherent addition:
    ○  High SNR
    ž  Accurate position
    —  Multi-station Imaging

    View Slide

  4. One second of data...
    PSR B0329+54

    View Slide

  5. De-dispersed Dynamic Spectrum
    PSR B0329+54

    View Slide

  6. LOFAR Station: CS002
    Sanity check of coherent
    addition

    View Slide

  7. Station beam addition
    SNR ~ 9 SNR ~ 25
    (~√6 better, as expected for
    incoherent addition)

    View Slide

  8. Self Calibration:
    ž  Calibration of
    stations by Cross
    Correlation on the
    brightest pulse.
    ž  Most delay values
    are in the sub-
    sample time scale.

    View Slide

  9. PSR B0329+54
    In-coherent

    View Slide

  10. Coherent
    PSR B0329+54

    View Slide

  11. PSR B0329+54
    4
    5
    1
    2
    3
    6
    7

    View Slide

  12. Current Work :
    Station beam addition
    SNR ~ 25 SNR ~ 50 (expect ~60)

    View Slide

  13. PSR B0329+54
    pol 0 pol 1 pol 0+1
    pol 0 pol 1 pol 0+1

    View Slide

  14. Single Station Imaging
    Jana Koehler
    Arthur Corstanje

    View Slide

  15. Multi-Station Imaging
    156.2 MHz
    Time axis
    At pulse time
    Frequency axis
    PSR B0329+54

    View Slide

  16. Summary Future Work
    ž  Coherent Beams
    ž  Multi-Station Imaging
    ž  Use larger number of
    stations
    ž  FRATS pipeline
    —  RFI mitigation (from CR
    tasks)
    —  Antenna gain
    ž  Imaging:
    —  projected station positions
    —  Store complex beams from
    beamformed LOFAR data

    View Slide



  17. View Slide

  18. Outline
    ž  Method
    —  Dedispersion?
    —  Incoherent Station Addition
    —  Self Calibration
    —  Coherent Station Addition
    —  Imaging (preliminary)
    ○  Jupiter all-sky Image
    ○  Pulsar Image
    ž  Example
    —  Linear polarization (faraday rotation)
    —  Period? DM?

    View Slide

  19. PSR B0329+54
    ž  Pulsar (also PSR J0332+5434).
    ž  Distance: 809.79 pc
    ž  Period: 0.71452 sec
    ž  Exoplanets?
    PSR B0329+54

    View Slide

  20. Some more fun physics…
    ž  DM by measuring
    the time delay.
    ž  RM by measuring
    the bandwidth
    needed for full
    polarization shift.
    ž  We can calculate
    > just by
    calculating the RM
    and DM.

    View Slide

  21. How to detect them?
    ž  All Sky
    —  LOFAR Beamsize:
    LBA: All-sky (30000 sq. deg)
    HBA: 500 sq. deg
    ž  All the time
    —  Parallel observations
    —  Internal and external triggers. (AARTFAAC,
    ARTEMIS, Nancay trigger?, Xray telescopes?)
    ž  Look back in time.

    View Slide

  22. ž  DM = 27.1 pc/cm3 … (26.83 from literature) PSR B0329+54

    View Slide

  23. ž  Dv = 2/3 MHz
    ž  RM ~ 65.8 rad/m2
    (where literature
    shows RM~63.7)

    View Slide

  24. PSR B0329+54
    ž  Distance: 809.79 pc
    ž  Period : 0.71452 sec
    ž  DM = 27.1 pc/cm3
    ž  Polarization
    ž  RM = 65.8 rad/m2
    ž  > ~ 30
    ž  Scattering ?

    View Slide

  25. De-dispersed Dynamic Spectrum
    1
    2
    3
    PSR B0329+54

    View Slide

  26. View Slide

  27. ž  import numpy as np
    ž  RM=63.7
    ž  v1=130e6
    ž  v2=145e6
    ž  c=3e8
    ž  l1=c/v1
    ž  l2=c/v2
    ž  v3=130.667e6
    ž  l3=c/v3
    ž  RM*(l1**2-l3**2)*57
    ž  v4=145.667e6
    ž  l4=c/v4
    ž  RM*(l2**2-l4**2)*57
    ž  (Out[22]+Out[25])/2
    ž  180/(RM*57) = 0.049574485664711225
    ž  v5=160e6
    ž  l5=c/v5
    ž  np.sqrt(l5**2+0.049574485664711225)=1.888173
    ž  c/1.888173/1e6 = 158.88369715755792
    ž  158.88369715755792 -160 = -1.1163 MHz band

    View Slide

  28. The Stationary, Quasi-Monochromatic
    Radio-Frequency Interferometer
    X
    s s
    b
    c
    g
    /
    s
    b⋅
    =
    τ
    )
    (
    cos
    2
    t
    E
    V ω
    =
    ]
    )
    (
    cos[
    1 g
    t
    E
    V τ
    ω −
    =
    ]
    )
    2
    (
    cos
    )
    (
    [cos g
    g
    t
    P ωτ
    ω
    ωτ −
    +
    multiply
    average
    The path lengths
    from sensors
    to multiplier are
    assumed equal!
    Geometric
    Time Delay
    Rapidly varying,
    with zero mean
    Unchanging
    )
    (
    cos g
    C
    P
    R ωτ
    =

    View Slide

  29. LOFAR and TBBs
    ž  Transient Buffer Board (TBBs):
    —  RAM, used as ring buffer, on each LBA/HBA
    ž  Data Storage: ring stopped, dump to
    disk.
    ž  Can reproduce any LOFAR signal.
    ž  1Gb memory ~ 1 sec /antenna element
    —  (5 sec in the future)

    View Slide

  30. Dispersion Measure (DM)
    ž  Dispersive nature of interstellar plasma: radio
    wave interaction with free electrons makes for
    slower group velocities for lower frequencies.
    ž  Time delay is calculated by:
    ž  DM Total column density of free electrons,
    or a distance estimate with ne
    models of the ISM.

    View Slide

  31. Faraday Rotation
    ž  If the ISM has a B,
    then it becomes
    birefringent.
    ž  LCP and RCP
    have different
    refractive index :
    different group
    velocities.
    ž  Rotates linearly
    polarized waves.
    λ

    Pulsar
    B
    A
    β
    Aristeidis Noutsos, Astronomische Gesellschaft 2010
    PSR B0329+54
    d
    β = λ2 * RM
    RM = π*/(λ1
    –λ2
    )2

    View Slide
