File-Based Data Stores: Where's the Magic?

We’ll discuss the planning and development process of Cashbox, a completely managed document store written for .NET that sits within a single process. From the first steps of understanding the problem and discovering how to address it to finally writing a custom storage engine to replace the stop-gap storage solutions used at first. This will discuss most things at a high level, using code merely as a way to point out ways to address problems and discuss approaches used.

Transcript

1. File-Based Data Stores Where’s the magic? @legomasternet
3. Have questions? answers (maybe) Ask away I have...
4. My Needs...

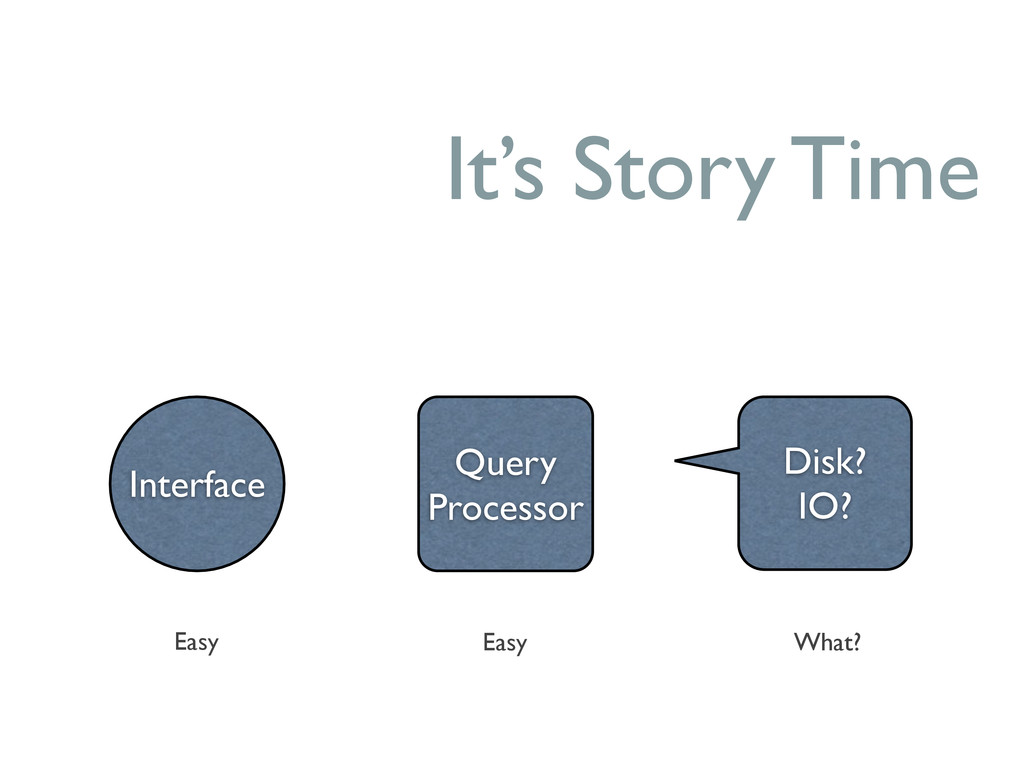

5. It’s Story Time Easy Query Processor Disk? IO? Interface Easy What?

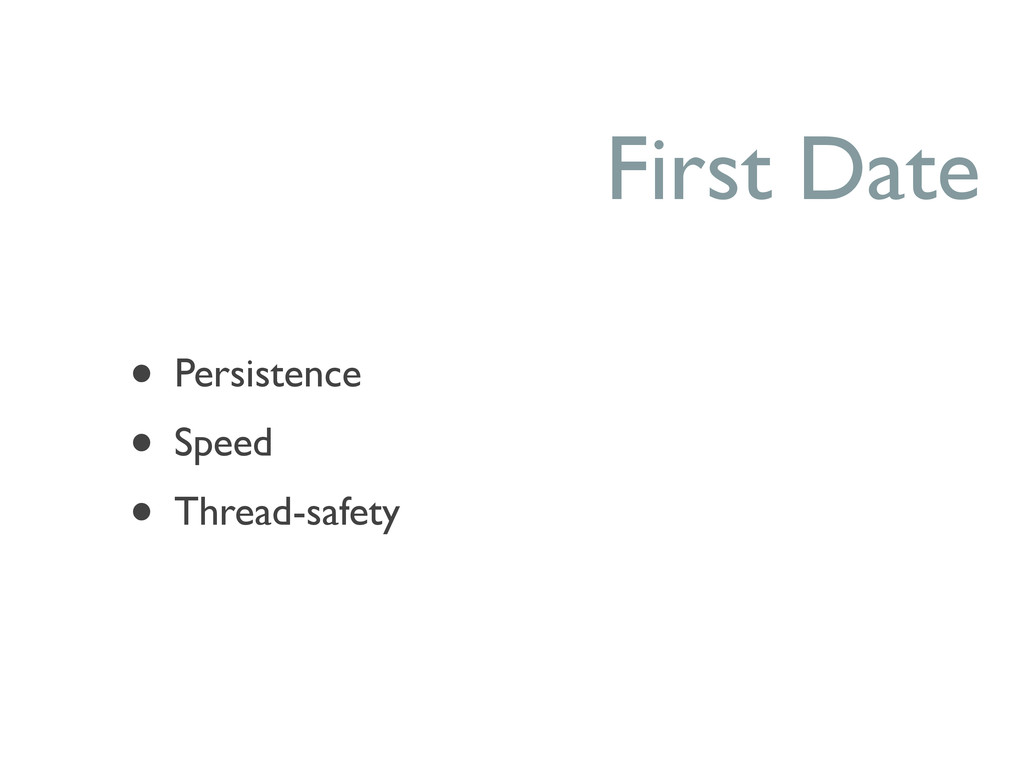

6. First Date • Persistence • Speed • Thread-safety

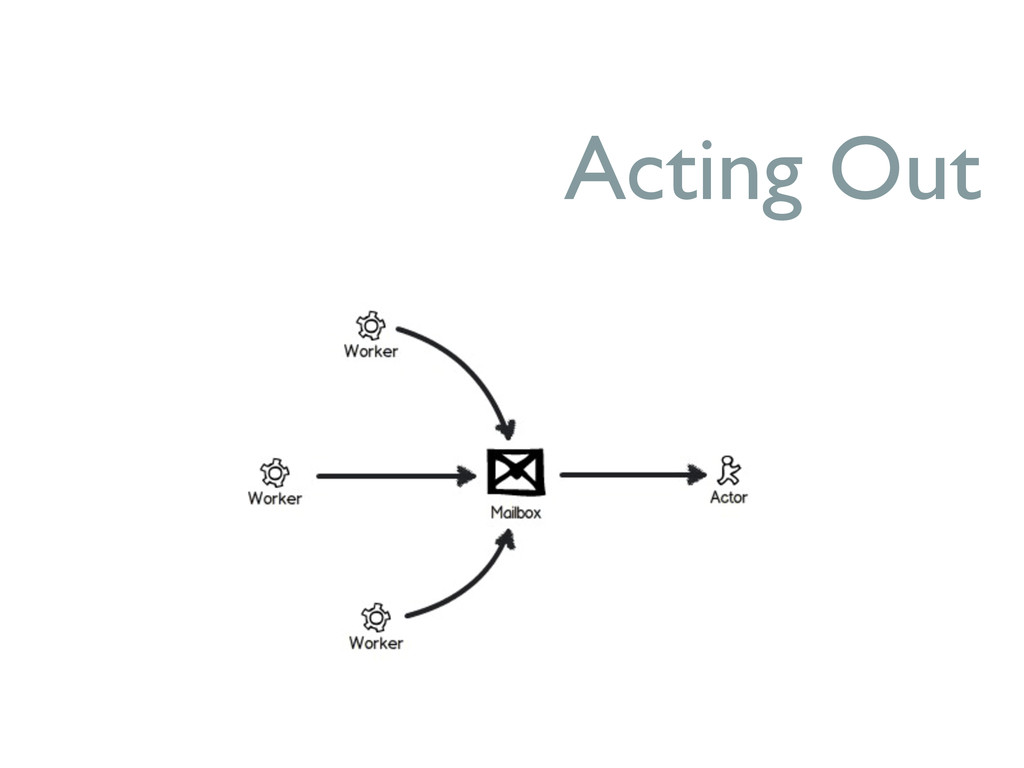

7. Acting Out • Don’t throw a tantrum
8. Acting Out

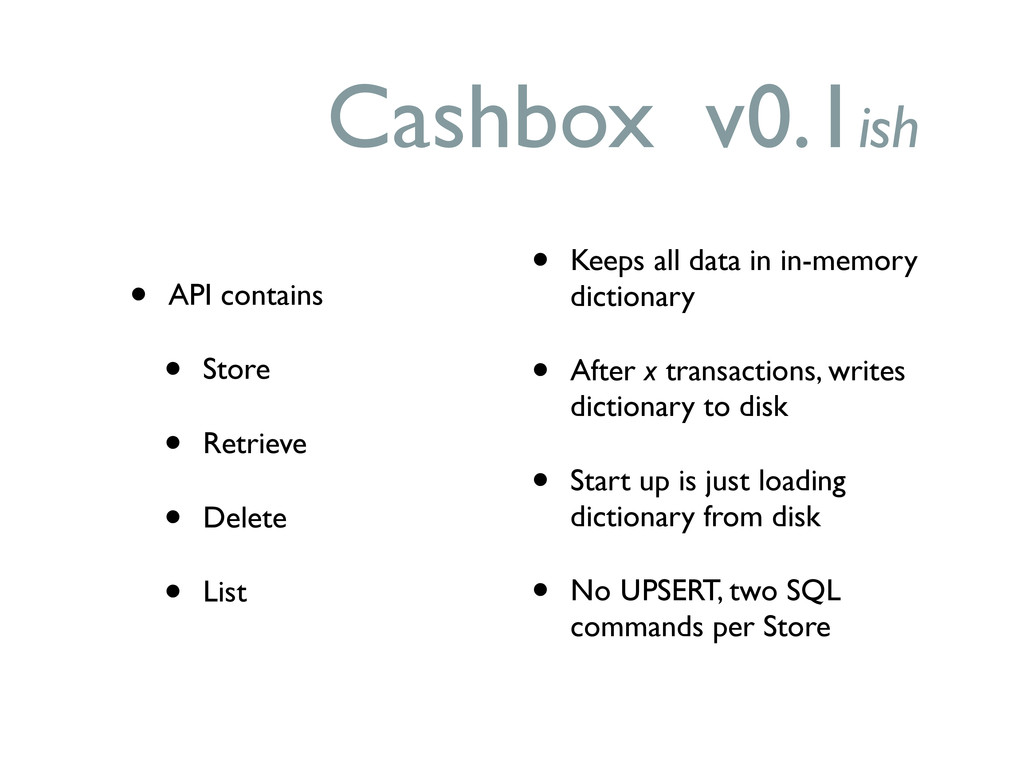

9. Cashbox v0.1ish • API contains • Store • Retrieve • Delete • List • Keeps all data in in-memory dictionary • After x transactions, writes dictionary to disk • Start up is just loading dictionary from disk • No UPSERT, two SQL commands per Store

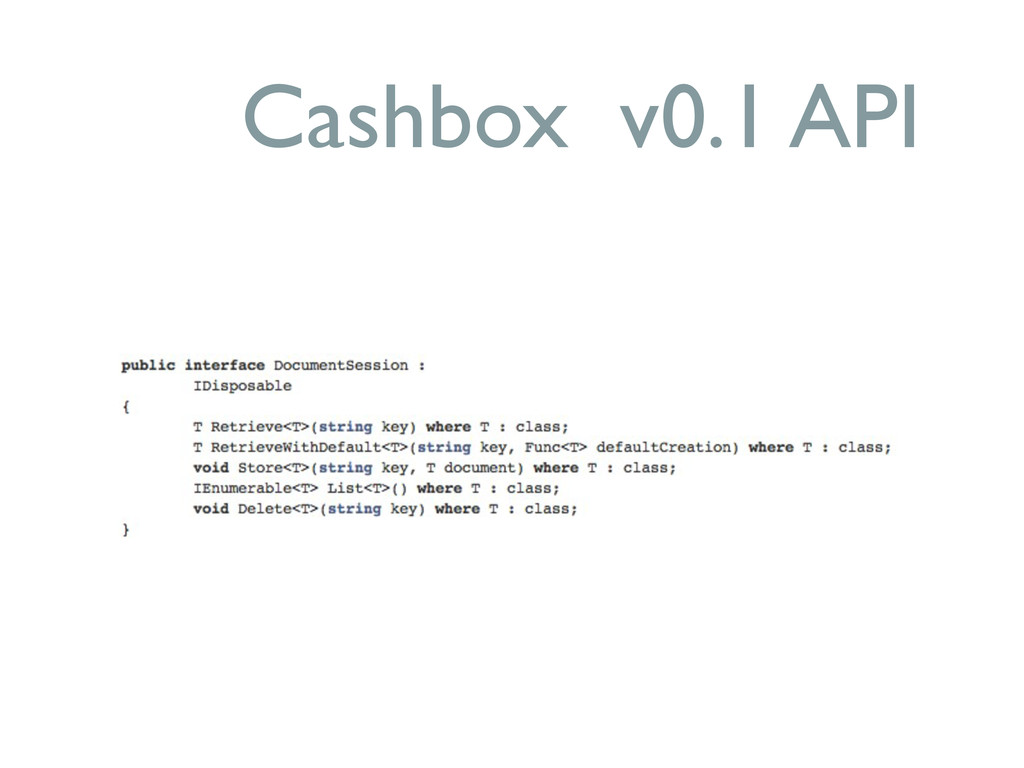

10. Cashbox v0.1 API
11. Look it up, I swear it’s true • Moving on to v0.5 • SQLite for storage • Nothing in memory • No indexing

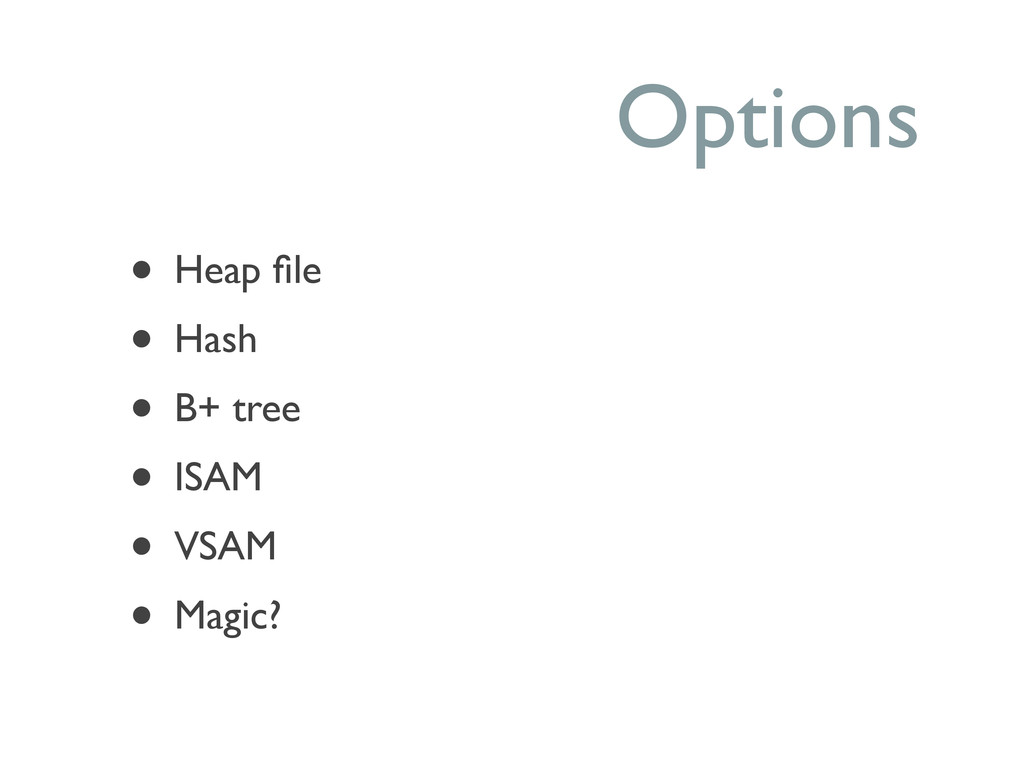

12. Options • Heap file • Hash • B+ tree • ISAM • VSAM • Magic?

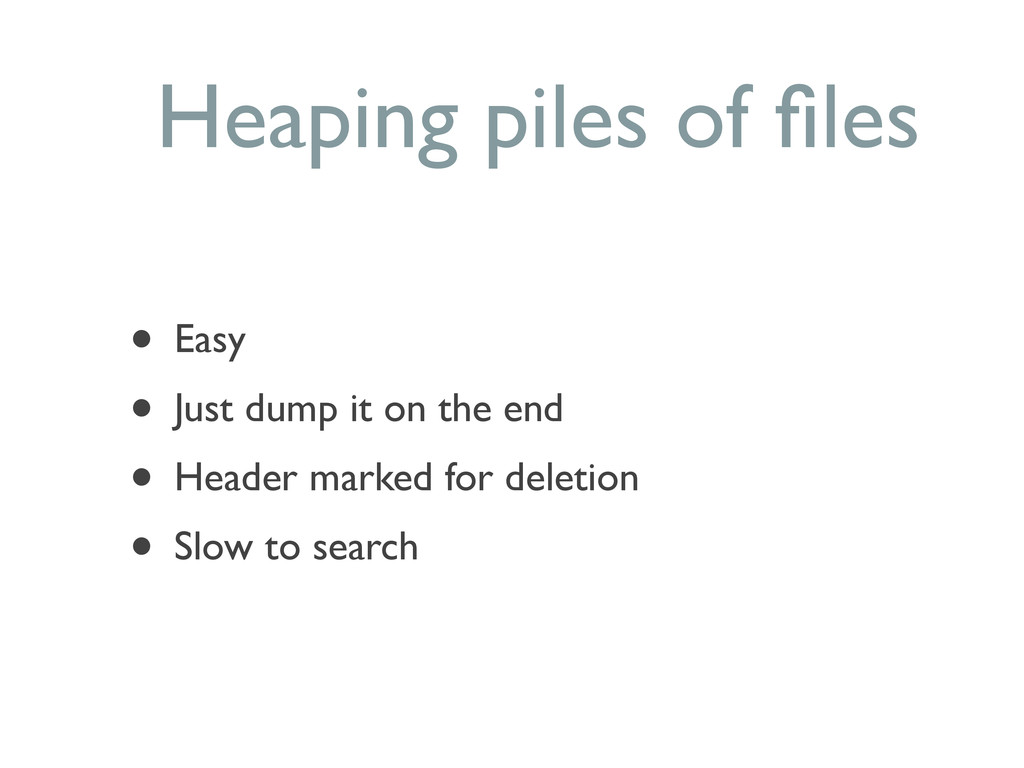

13. Heaping piles of files • Easy • Just dump it on the end • Header marked for deletion • Slow to search

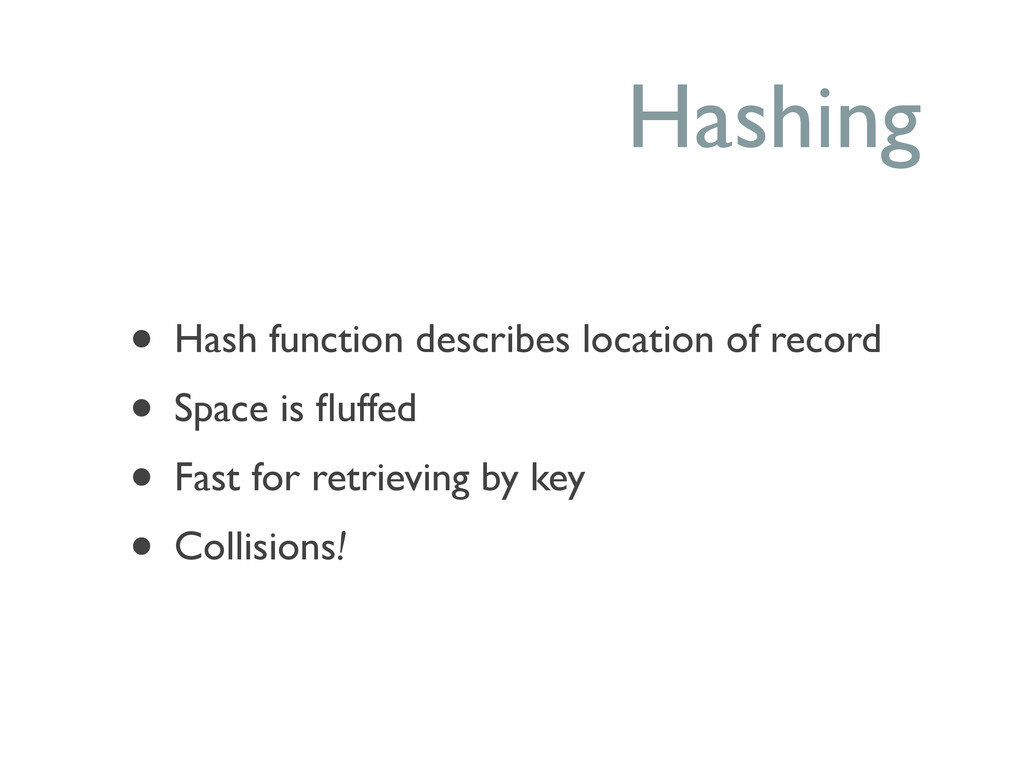

14. Hashing • Hash function describes location of record • Space is fluffed • Fast for retrieving by key • Collisions!

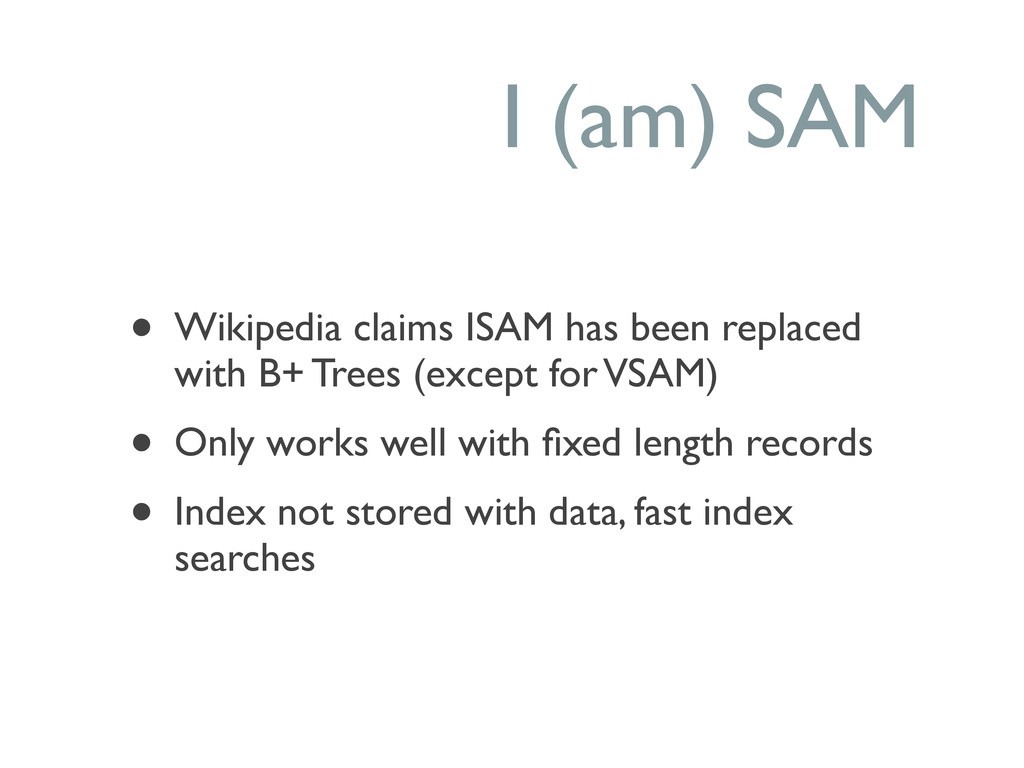

15. I (am) SAM • Wikipedia claims ISAM has been replaced with B+ Trees (except for VSAM) • Only works well with fixed length records • Index not stored with data, fast index searches

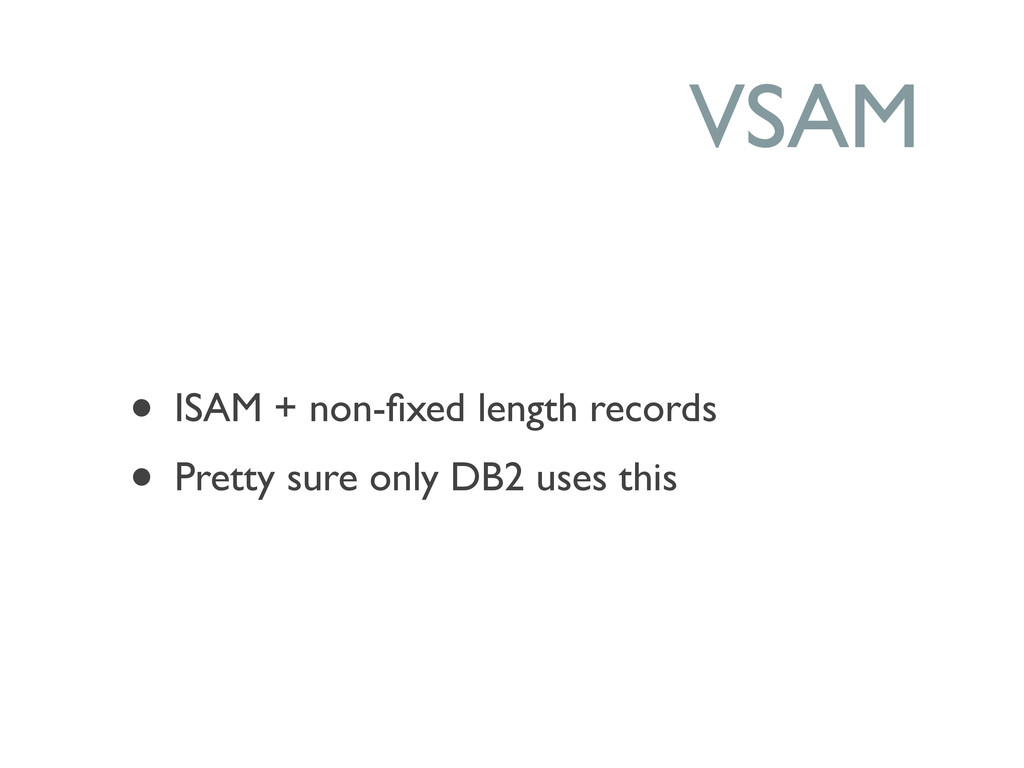

16. VSAM • ISAM + non-fixed length records • Pretty sure only DB2 uses this

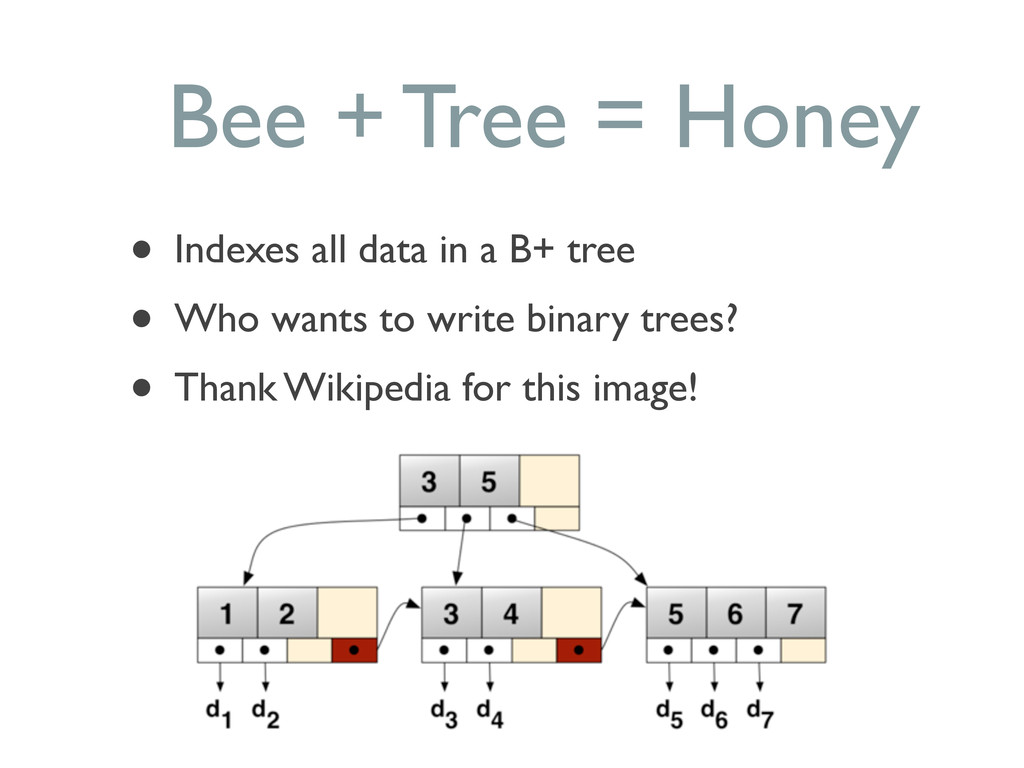

17. Bee + Tree = Honey • Indexes all data in a B+ tree • Who wants to write binary trees? • Thank Wikipedia for this image!

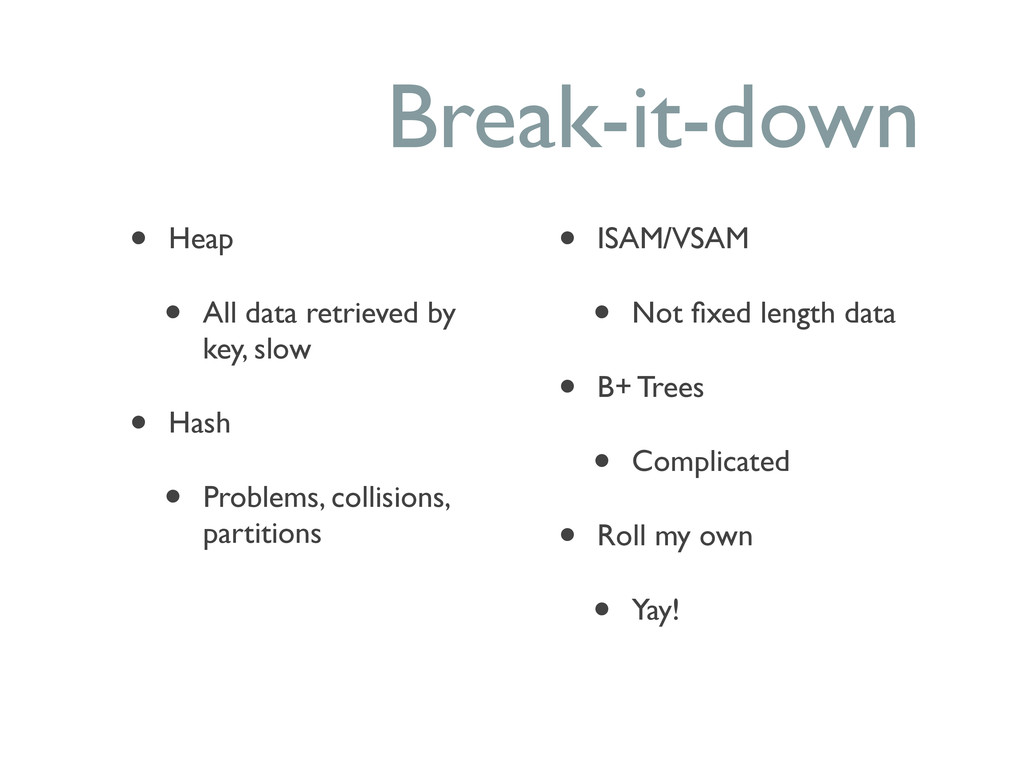

18. Break-it-down • Heap • All data retrieved by key, slow • Hash • Problems, collisions, partitions • ISAM/VSAM • Not fixed length data • B+ Trees • Complicated • Roll my own • Yay!

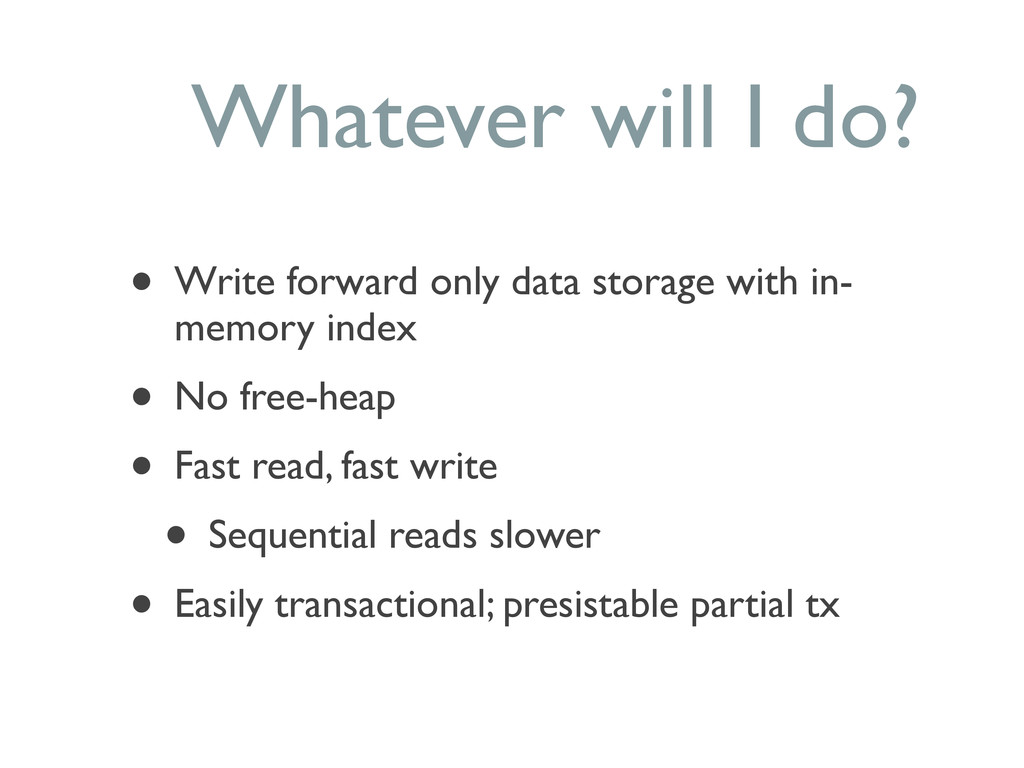

19. Whatever will I do? • Write forward only data storage with in- memory index • No free-heap • Fast read, fast write • Sequential reads slower • Easily transactional; presistable partial tx

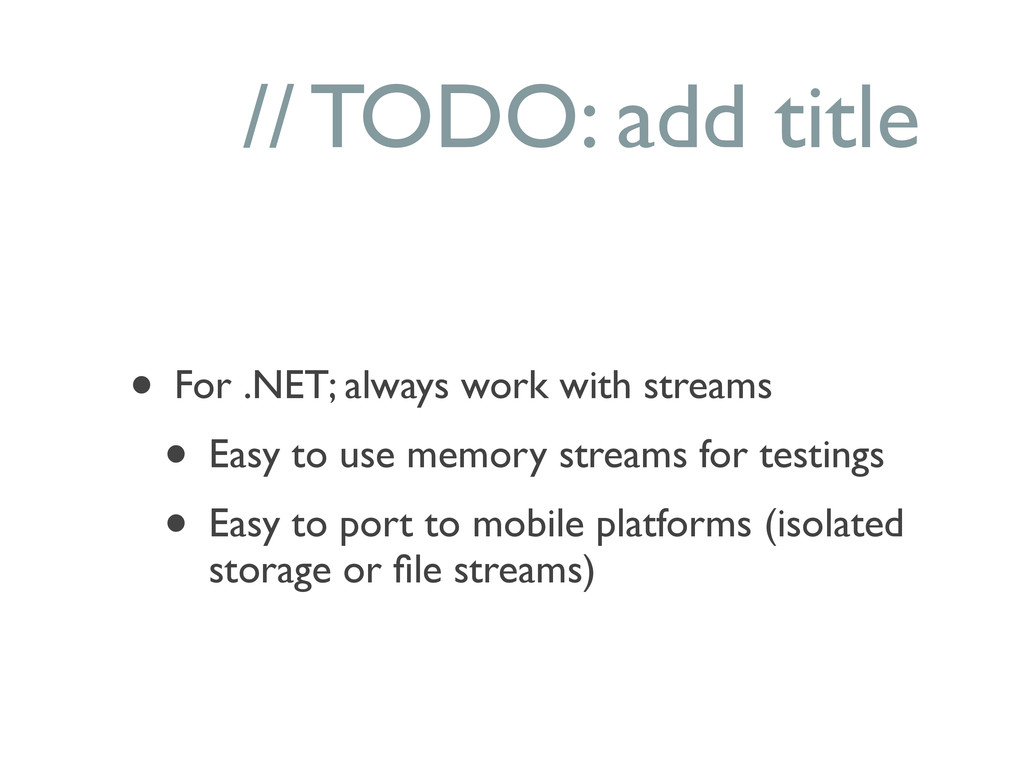

20. // TODO: add title • For .NET; always work with streams • Easy to use memory streams for testings • Easy to port to mobile platforms (isolated storage or file streams)

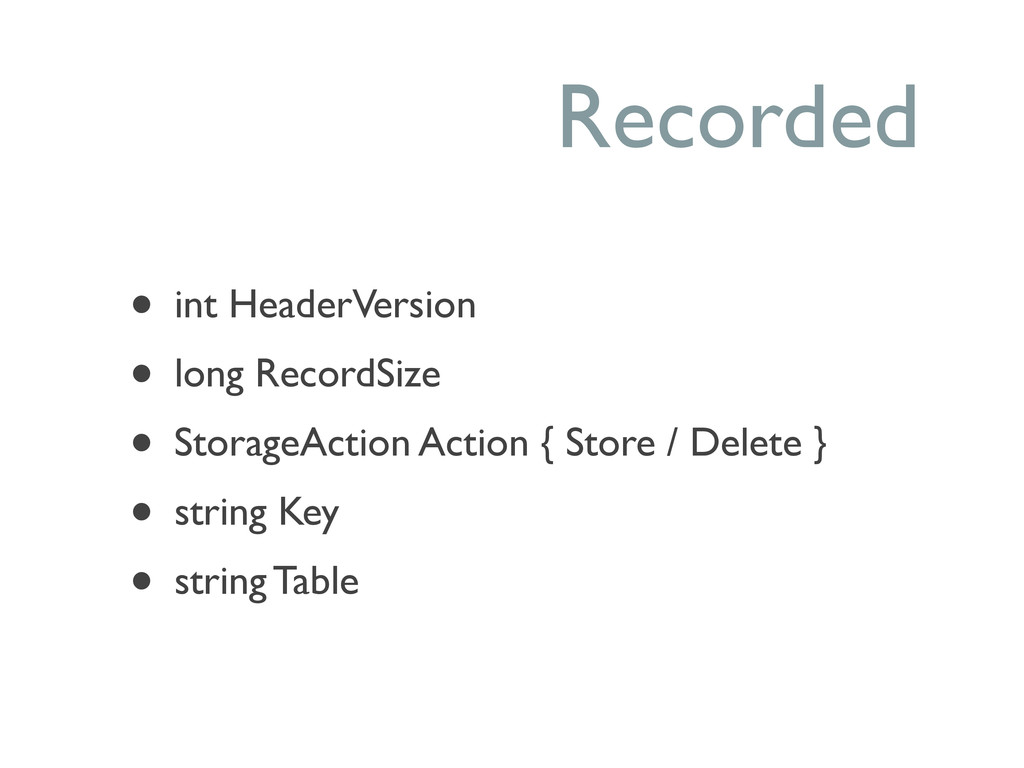

21. Recorded • int HeaderVersion • long RecordSize • StorageAction Action { Store / Delete } • string Key • string Table

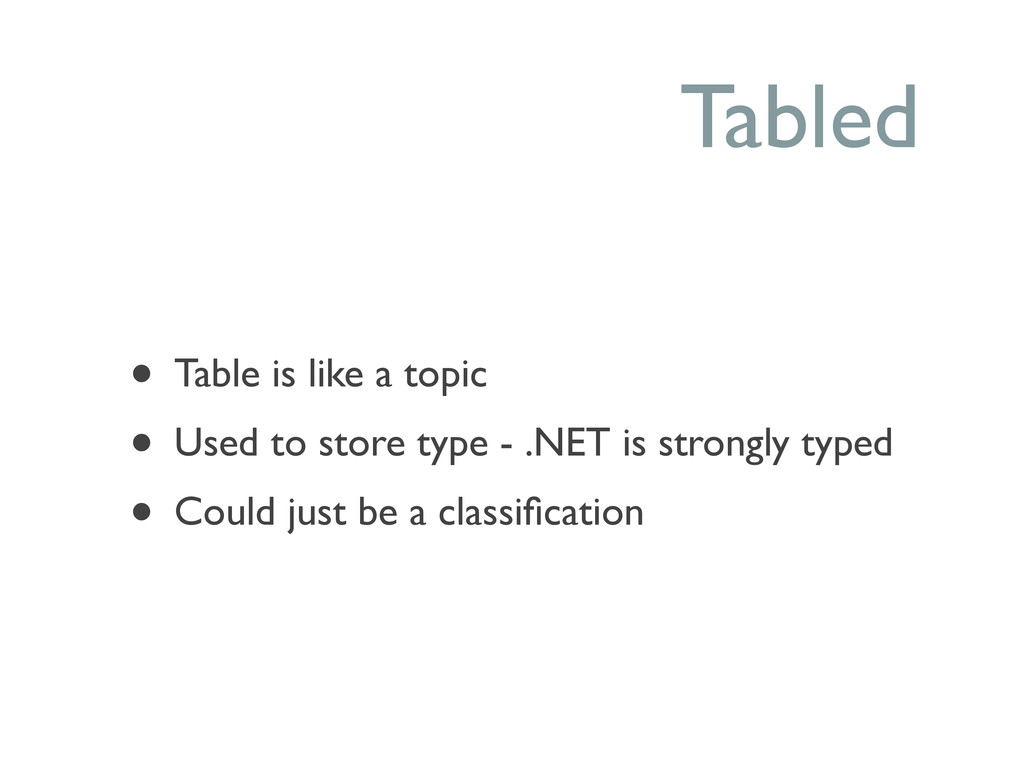

22. Tabled • Table is like a topic • Used to store type - .NET is strongly typed • Could just be a classification
23. Streamed • Content of a stream has a header • Plus n records • Each record is read on start up to build an index Stream Start Stream Header Record Record Record Record Stream End
24. Where did I put that? • Indexes are important • Index is a dictionary of key (as RecordHeader) and stream location of record • Read from the stream at start up • Updated as data changes during runtime
25. How does it work? • Start with empty stream • Insert stream header • Leave pointer at end of stream
26. Inserting • Place a new store record at the pointer location (end of stream) • Update index to point at that location

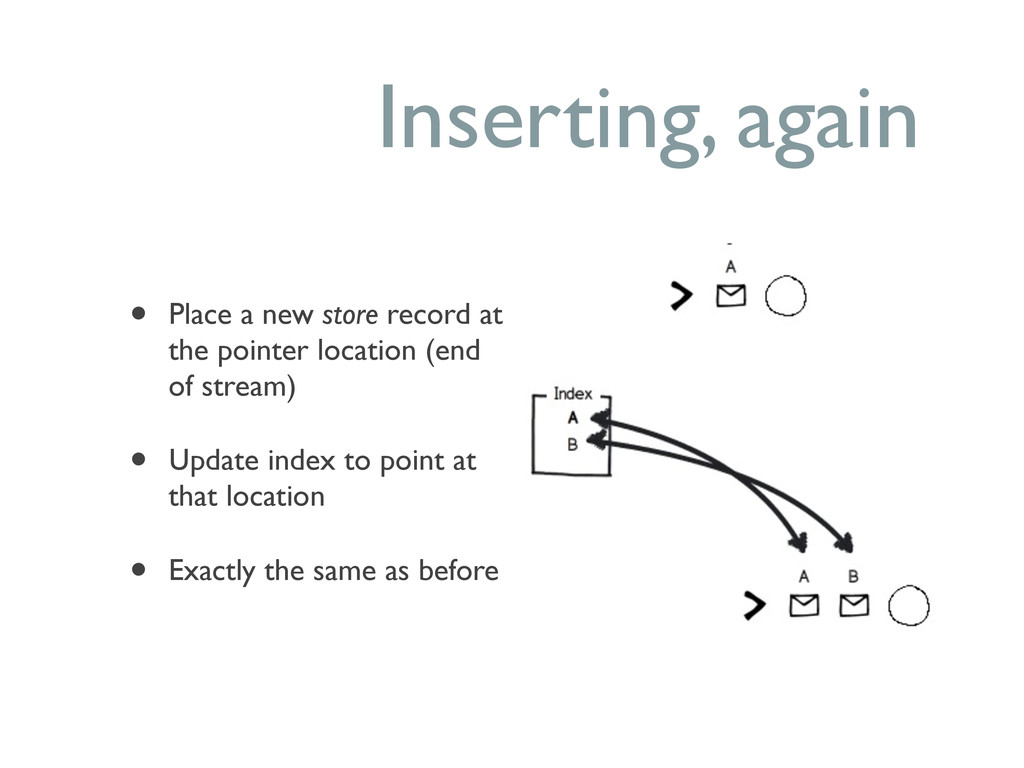

27. Inserting, again • Place a new store record at the pointer location (end of stream) • Update index to point at that location • Exactly the same as before

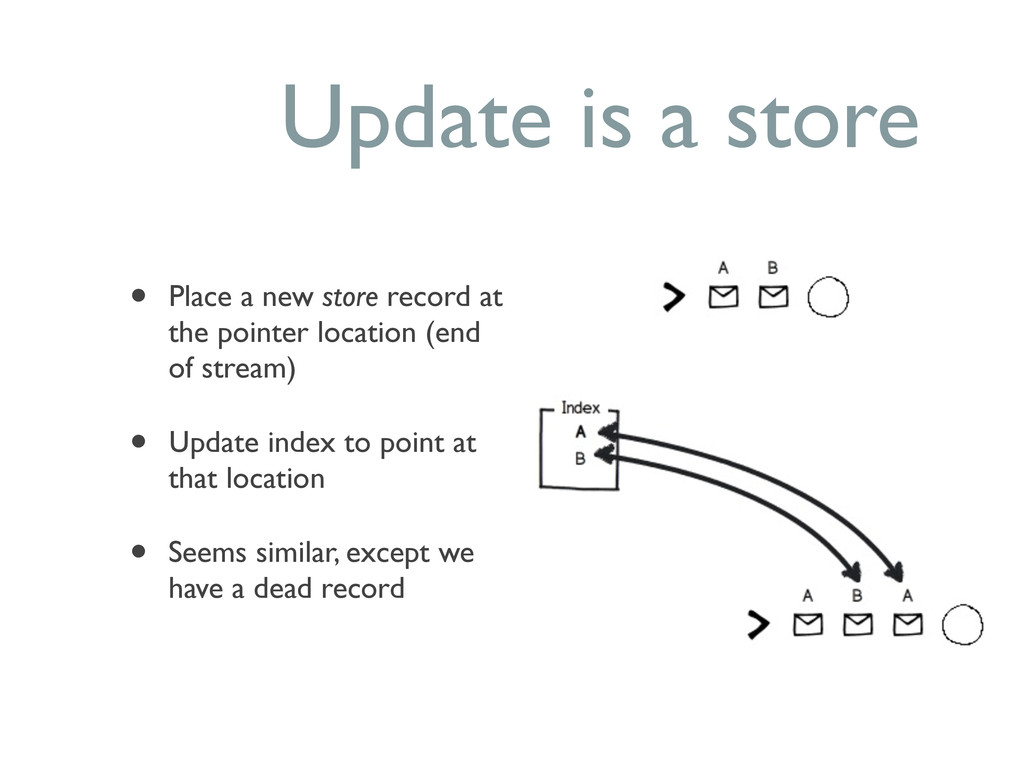

28. Update is a store • Place a new store record at the pointer location (end of stream) • Update index to point at that location • Seems similar, except we have a dead record

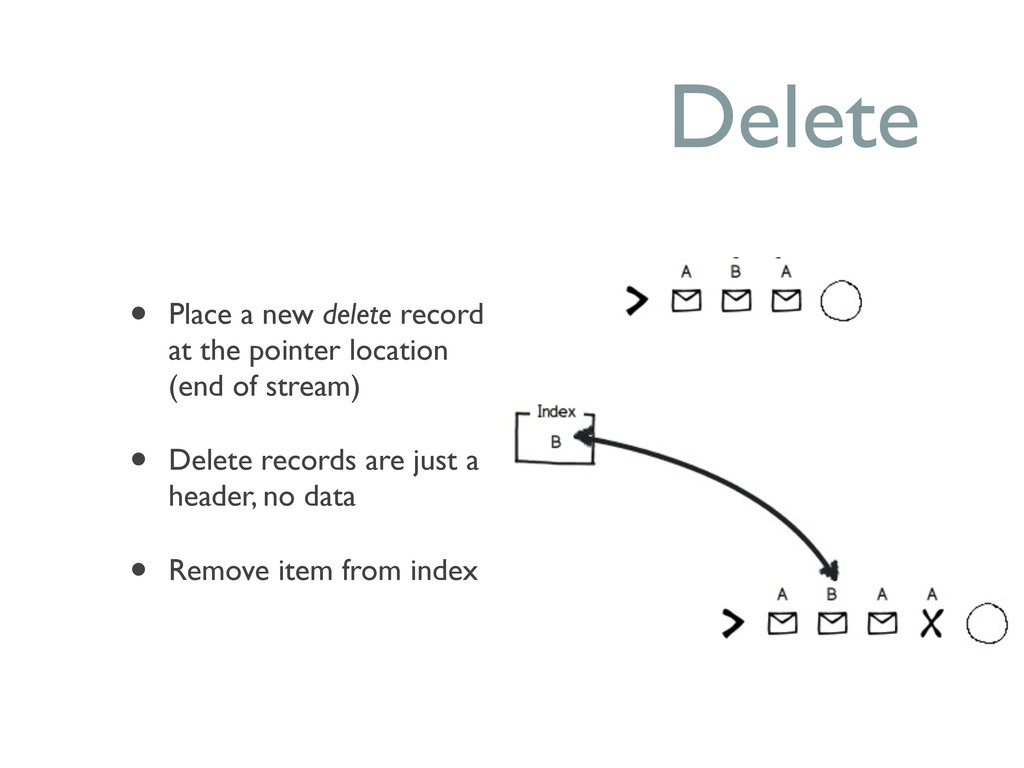

29. Delete • Place a new delete record at the pointer location (end of stream) • Delete records are just a header, no data • Remove item from index

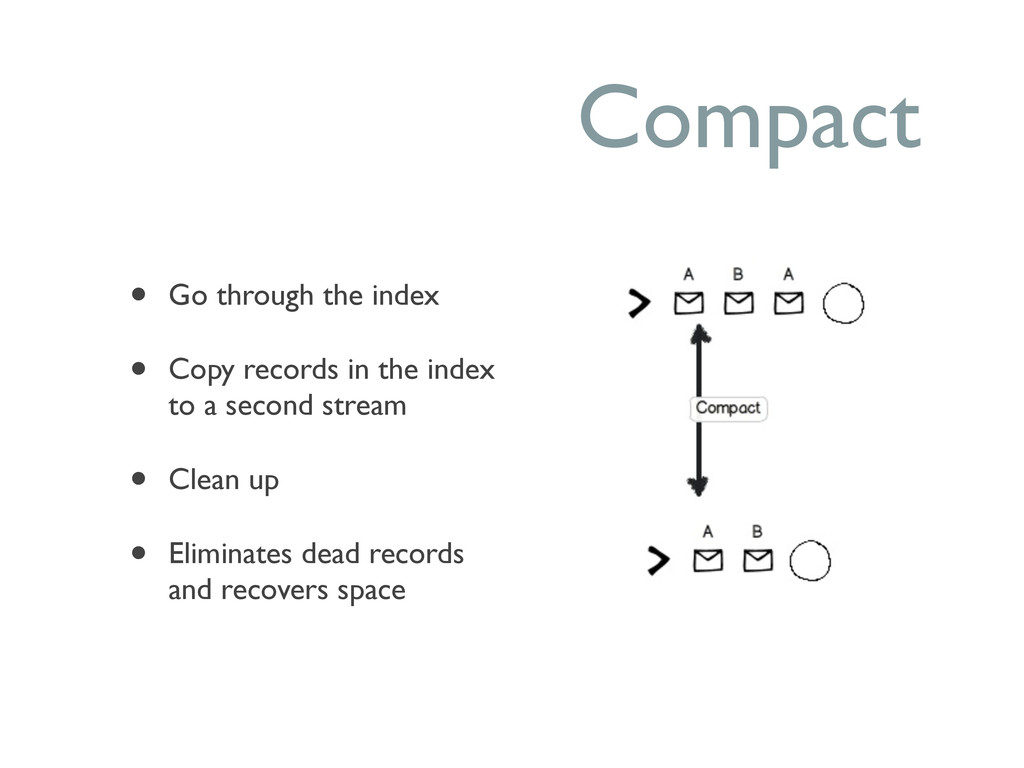

30. Compact • Go through the index • Copy records in the index to a second stream • Clean up • Eliminates dead records and recovers space

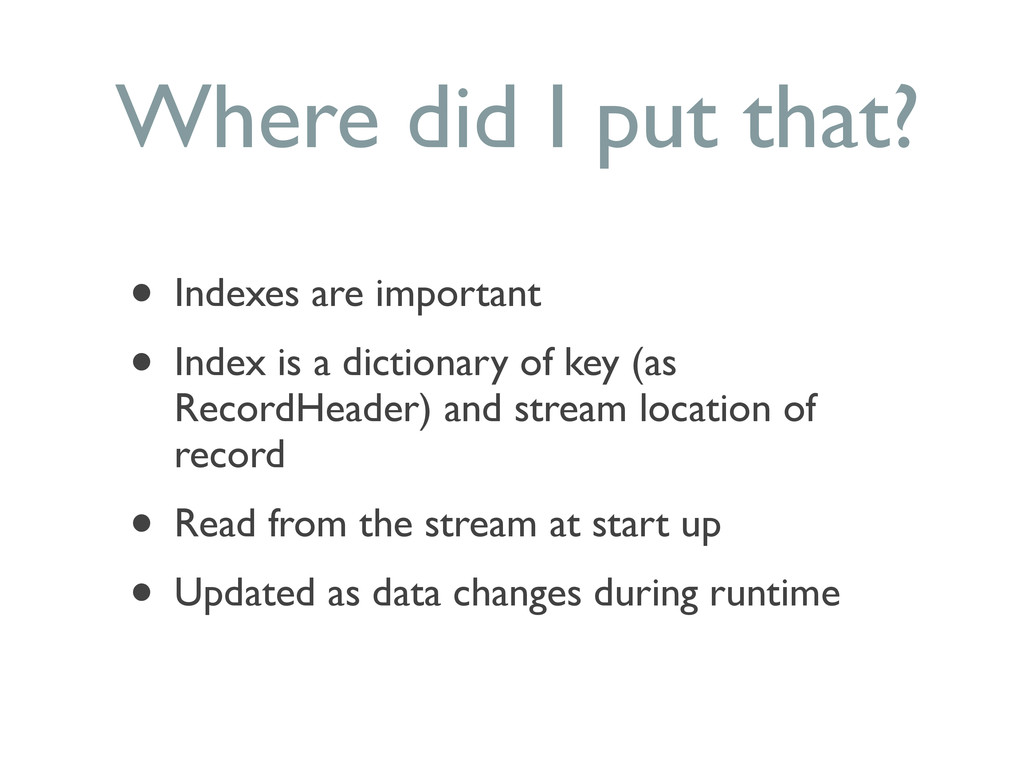

31. Where did I put that? • Indexes are important • Index is a dictionary of key (as RecordHeader) and stream location of record • Read from the stream at start up • Updated as data changes during runtime

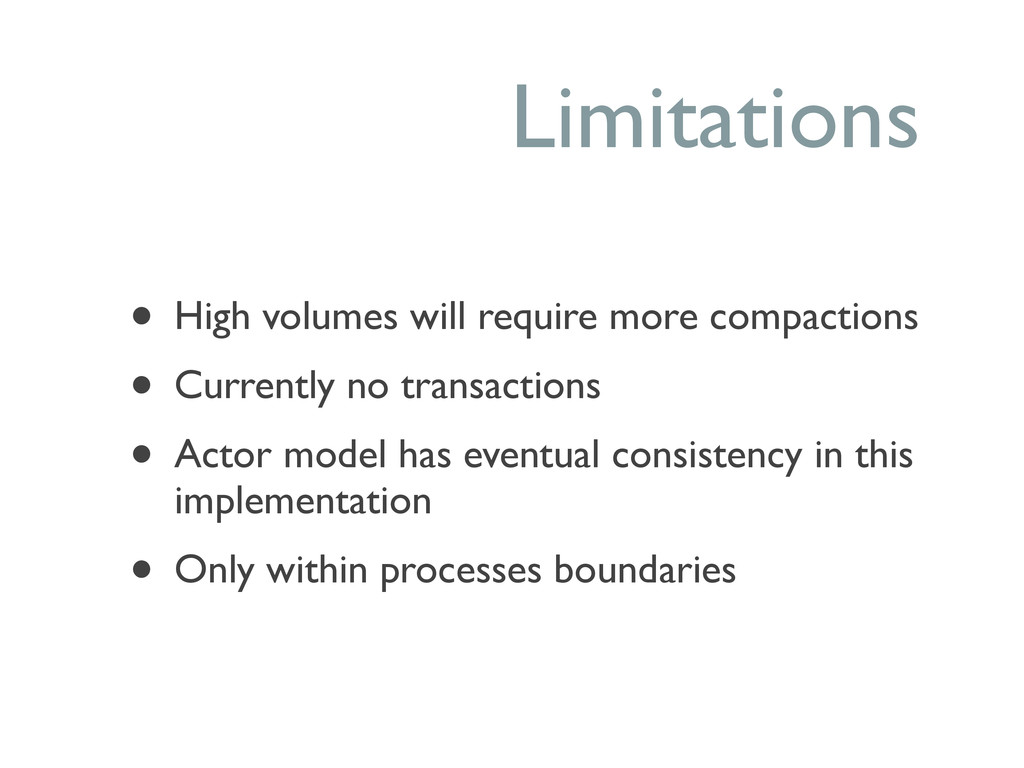

32. Limitations • High volumes will require more compactions • Currently no transactions • Actor model has eventual consistency in this implementation • Only within processes boundaries
33. Have questions?
