1. Level up your Gradle build Devfest Hamburg 14.10.2016 Anton Augsburg – RadioOpt GmbH
2. Anton Augsburg @ungesehn Android Developer since Eclair (2.x) Working @
3. Whats is every Gradle project made of?
4. TASKS!

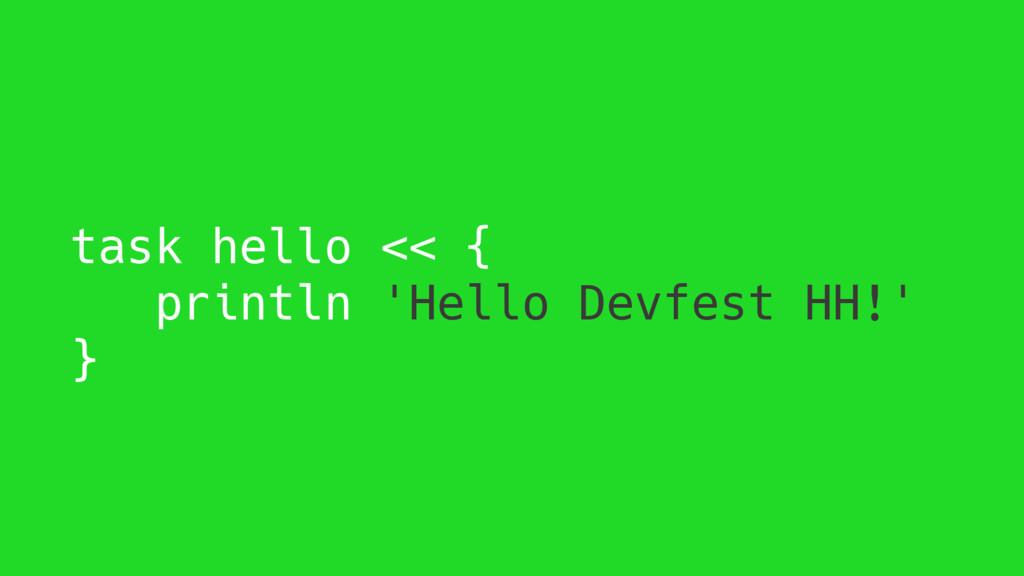

5. task hello << { println 'Hello Devfest HH!' }
6. 2147 tasks in 68 projects -> 32 tasks per project IOSCHED 2015 app Some numbers.. Gradle source -> 42 tasks
7. Tasks > Basic unit of work

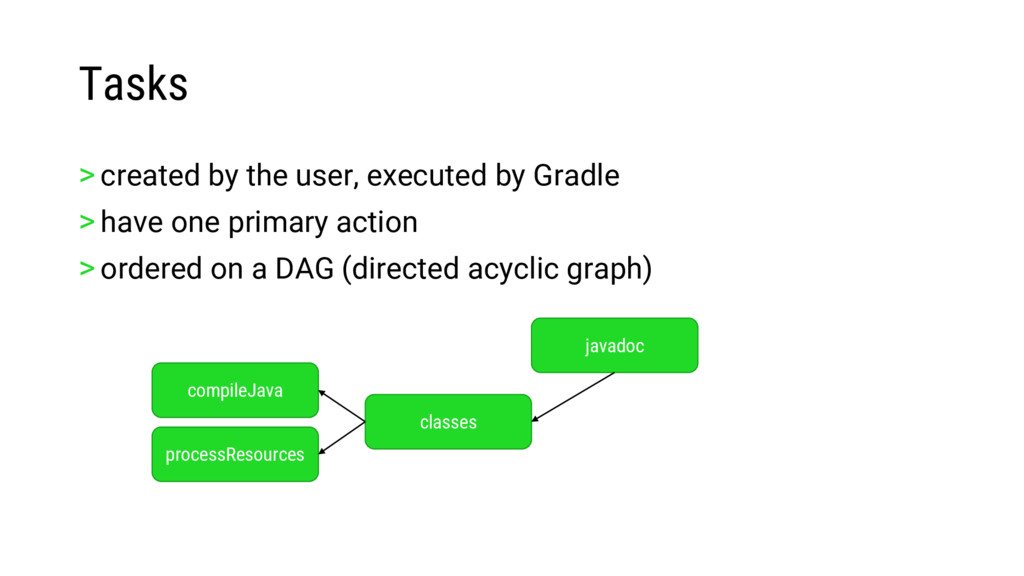

8. > created by the user, executed by Gradle > have one primary action > ordered on a DAG (directed acyclic graph) Tasks compileJava processResources classes javadoc

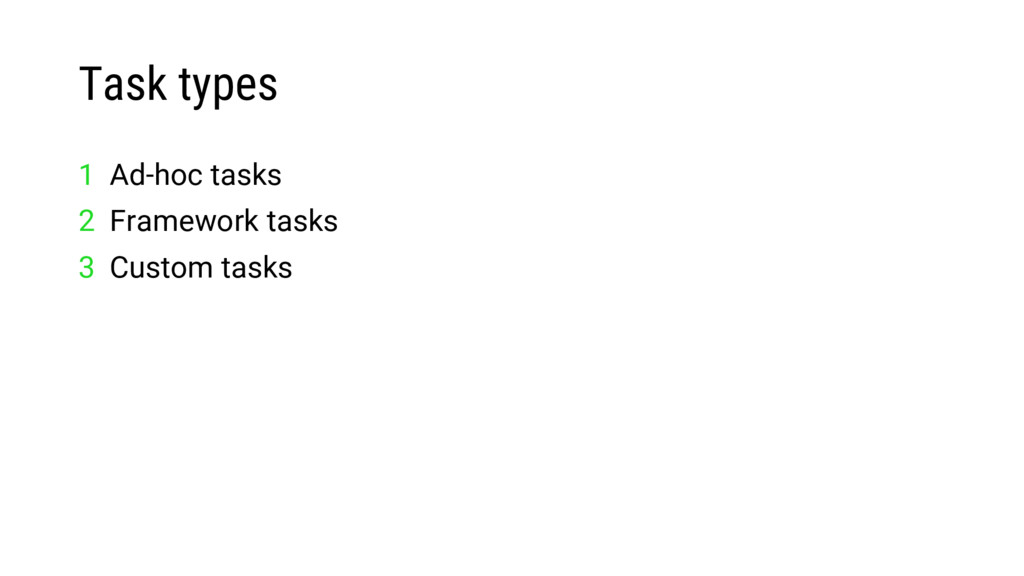

9. 1 Ad-hoc tasks 2 Framework tasks 3 Custom tasks Task types
10. Ad-hoc tasks task hello << { println 'Hello Devfest HH!' }

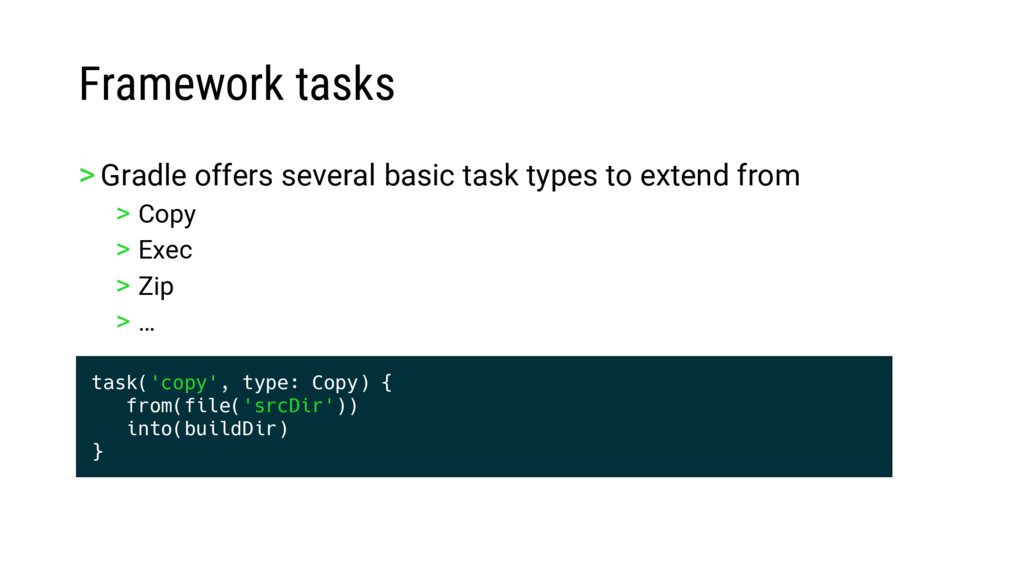

11. > Gradle offers several basic task types to extend from > Copy > Exec > Zip > … Framework tasks task('copy', type: Copy) { from(file('srcDir')) into(buildDir) }

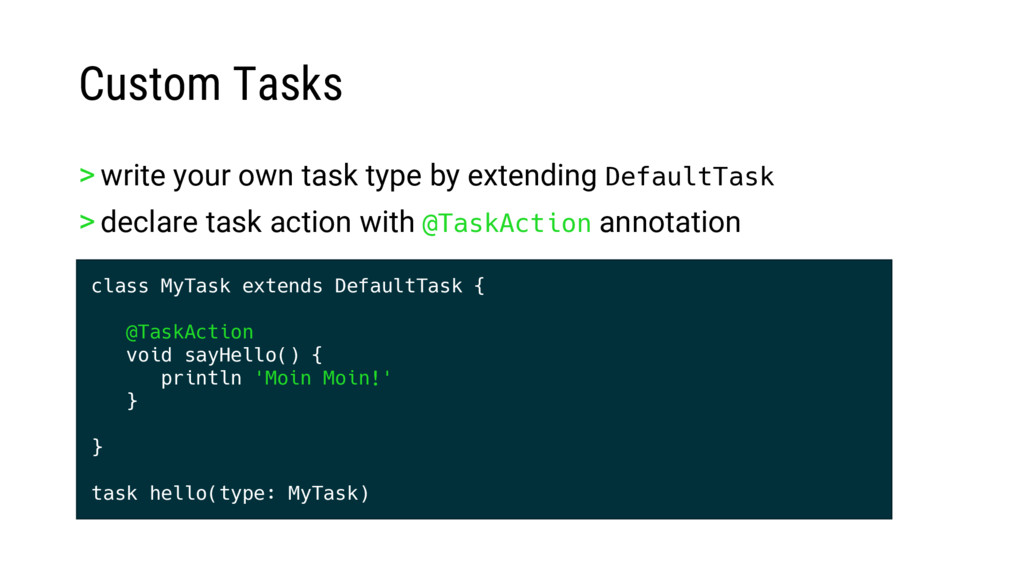

12. > write your own task type by extending DefaultTask > declare task action with @TaskAction annotation Custom Tasks class MyTask extends DefaultTask { @TaskAction void sayHello() { println 'Moin Moin!' } } task hello(type: MyTask)

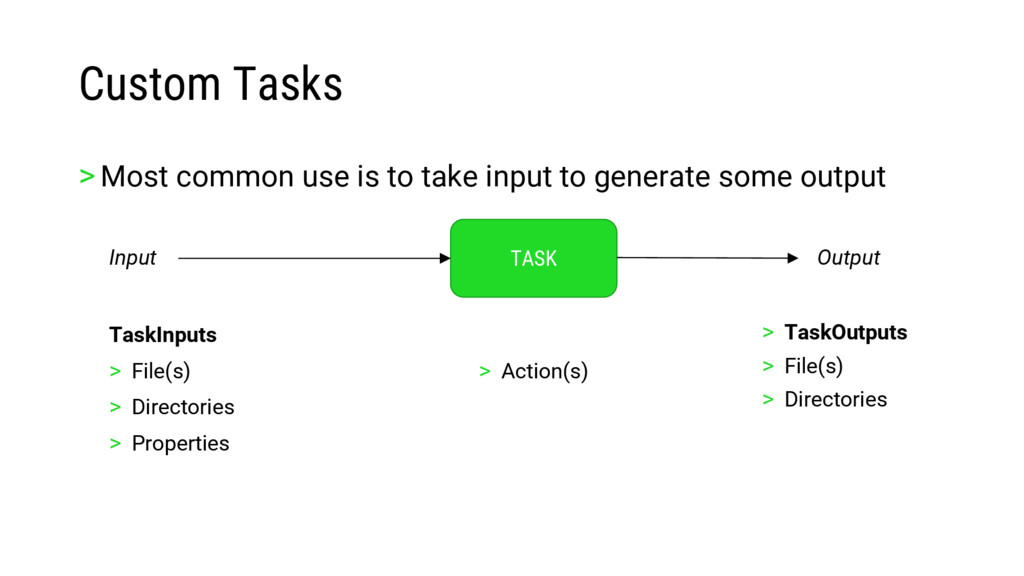

13. > Most common use is to take input to generate some output Custom Tasks TASK Input Output TaskInputs > File(s) > Directories > Properties > TaskOutputs > File(s) > Directories > Action(s)
14. > Compile Java files: Custom Tasks JavaCompile task
15. > Compile Java files: Custom Tasks JavaCompile task Target JDK version Source files fork

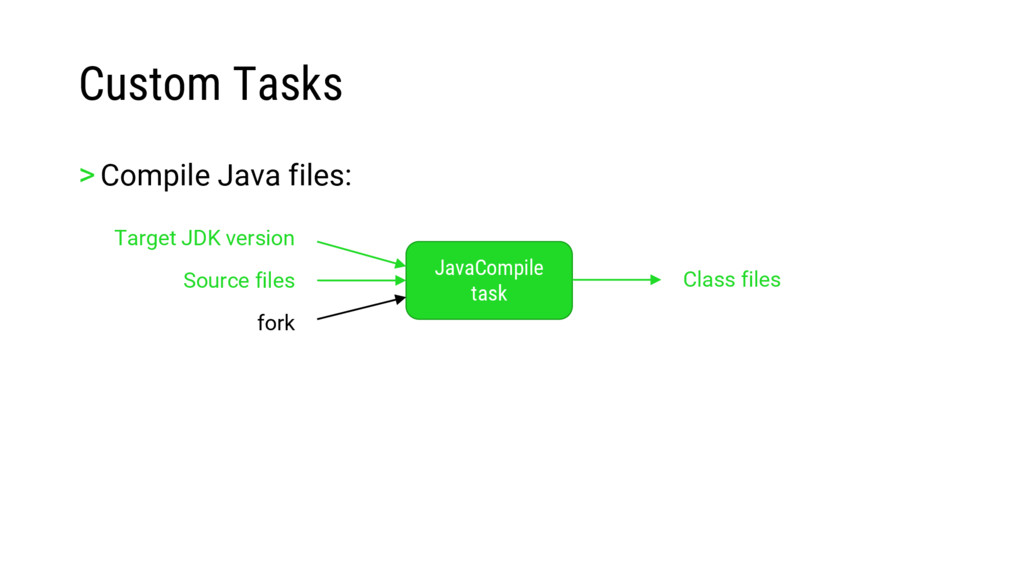

16. > Compile Java files: Custom Tasks JavaCompile task Target JDK version Source files Class files fork
17. PERFORMANCE!
18. Incremental Builds > Builds on steroids
19. > a task can be skipped when: > inputs did not change > outputs are still there and did not change > shown as UP-TO-DATE > change detection via > snapshot of input & output files > hash of contents of each file > snapshots persisted until next execution Incremental Builds
20. > Create typed fields or properties (via getter methods) > Add annotation to each field or getter method Incremental Builds @Input // for binary inputs, only path check @InputFile //checks path and file contents @InputFiles @InputDirectory @OutputFile @OutputFiles @OutputDirectory
21. public class ZipAlign extends DefaultTask { // ----- PUBLIC TASK API ----- @InputFile File inputFile @OutputFile File outputFile // ----- PRIVATE TASK API ----- @InputFile File zipAlignExe @TaskAction void zipAlign() { project.exec { executable = getZipAlignExe() args '-f', '4' args getInputFile() args getOutputFile() } } } ZipAlign inputFile outputFile zipAlignExe

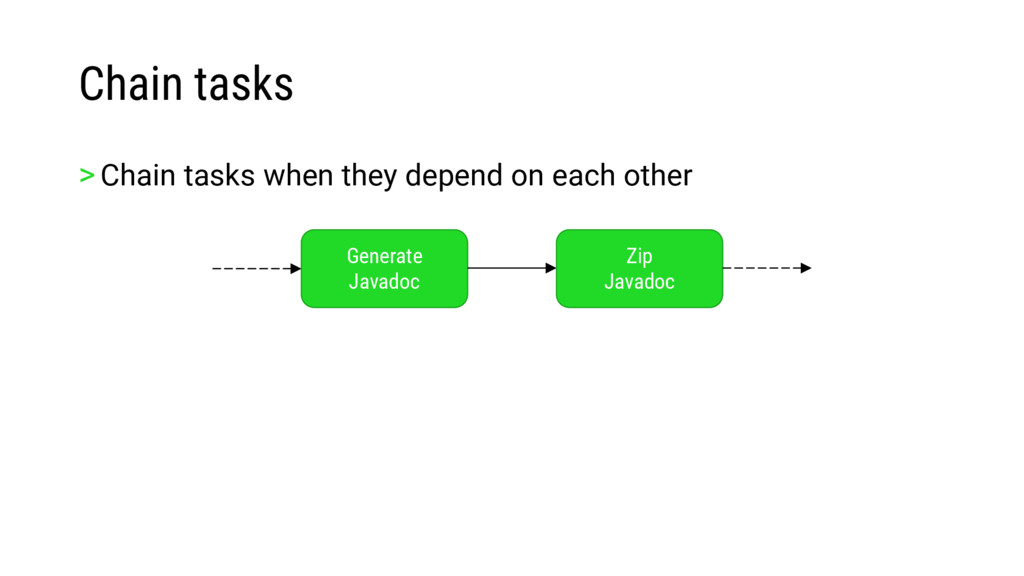

22. > Chain tasks when they depend on each other Generate Javadoc Zip Javadoc Chain tasks
23. > Common solution: use dependsOn task('myJavadoc', type: Javadoc) { source sourceSets.main.allJava destinationDir file("${project.docsDir}/myjavadoc") } task('zipJavadoc', type: Zip){ from "${project.docsDir}/myjavadoc" dependsOn myJavadoc } Chain tasks

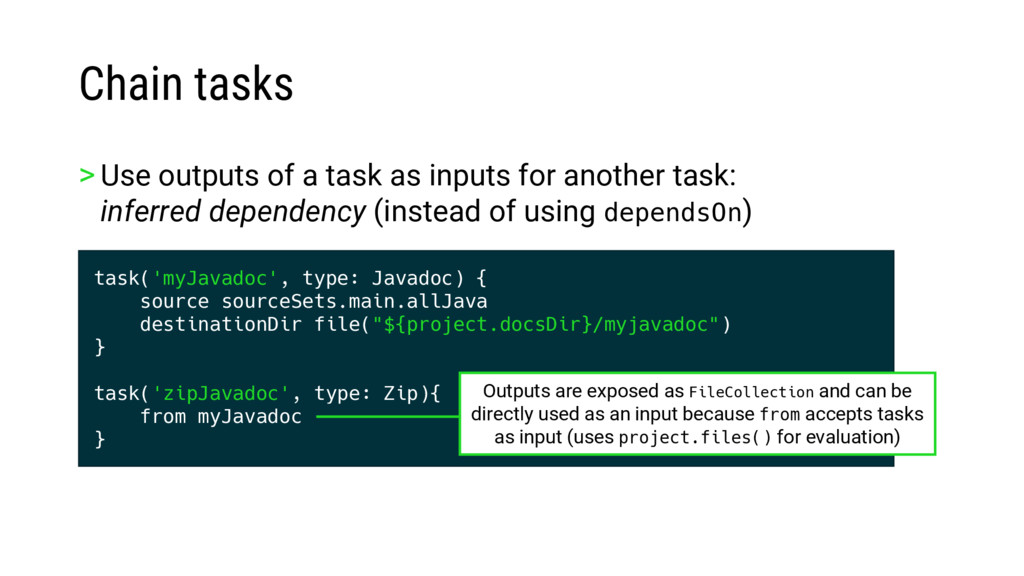

24. > Use outputs of a task as inputs for another task: inferred dependency (instead of using dependsOn) Chain tasks task('myJavadoc', type: Javadoc) { source sourceSets.main.allJava destinationDir file("${project.docsDir}/myjavadoc") } task('zipJavadoc', type: Zip){ from myJavadoc.outputs } Outputs are exposed as FileCollection and can be directly used as an input because from accepts tasks as input (uses project.files() for evaluation)
25. > Problems can arise if you want to connect @OutputDirectory to @InputFiles -> type mismatch > Solution A: use TaskOutputs.files as input Chain custom tasks task('myJavadoc', type: Javadoc) { source sourceSets.main.allJava destinationDir file("${project.docsDir}/myjavadoc") } task('randomTask', type: SomeRandomType ){ inputDir = myJavadoc.outputs.files }
26. > Solution B: let Gradle evaluate the FileCollection from output Chain custom tasks task('myJavadoc', type: Javadoc) { source sourceSets.main.allJava destinationDir file("${project.docsDir}/myjavadoc") } task('randomTask', type: SomeRandomType ){ inputDir = files(myJavadoc) } task('randomTask2', type: SomeRandomType ){ inputDir = files('myJavadoc'){ builtBy 'myJavadoc' } } Reduce amount of files to set generated by distinct task(s)
27. BUT I DON‘T HAVE ANY DATA TO WORK ON..
28. > Enable/disable tasks with enabled property Skipping tasks task('expensiveTests') { ... } expensiveTests.enabled = false expensiveTests.onlyIf { System.getEnv('I_AM_JENKINS') } > Skip tasks with onlyIf method e.g. when on CI/dev > Evaluates the given closure:
29. > Use a StopExecutionException to exit the current task > Build will continue normally and marked as SUCCESSFUL Skipping tasks task('expensiveTests') { doFirst{ if (skipThisTask) { throw new StopExecutionException() } } ... }
30. > upToDateWhen can be used to implement custom up-to-date checks > Force a task to run every time Skipping tasks task('runAlways') { ... outputs.upToDateWhen { false } } task('storeToDB') { ... outputs.upToDateWhen { checkMyDatabase() } }

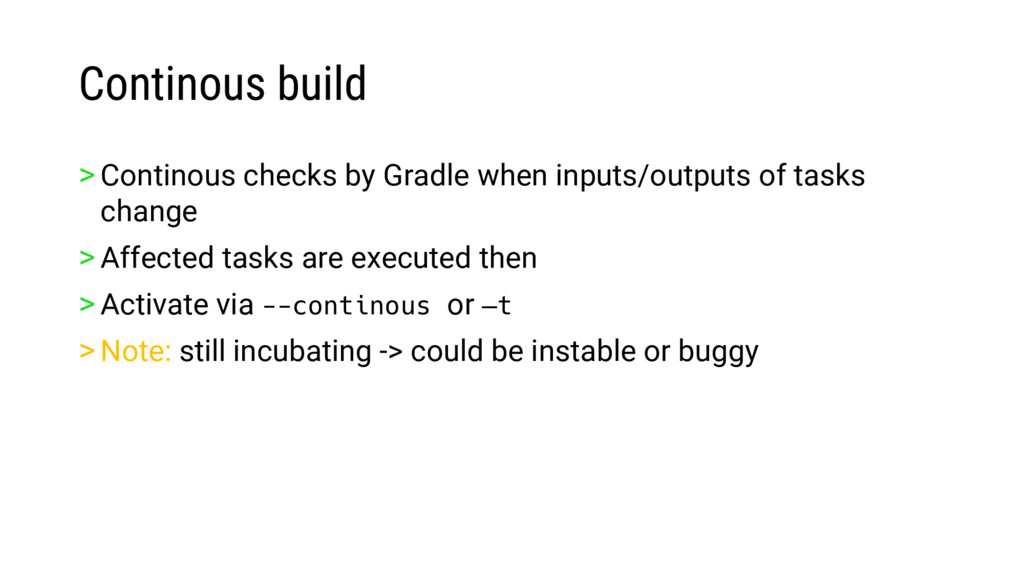

31. > Continous checks by Gradle when inputs/outputs of tasks change > Affected tasks are executed then > Activate via --continous or –t > Note: still incubating -> could be instable or buggy Continous build
32. NOW I HAVE THIS MESS OF 20 CUSTOM TASKS..
33. PLUGINS TO THE RESCUE..!
34. Plugins > Package your build logic
35. Plugins Plugin Reuse Encapsulation Modularity Composition
36. > typical use cases > extend basic Gradle model > add new tasks, extend specific model > configure your project/tasks Plugins
37. > types of Plugins > Script Plugins (local or remote) > Binary Plugins Plugins apply from: "myscriptplugin.gradle" // "http://www.xyz.com/myscriptplugin.gradle" build.gradle task taskFromPlugin() { doLast { println "added by a script plugin!" } } myscriptplugin.gradle

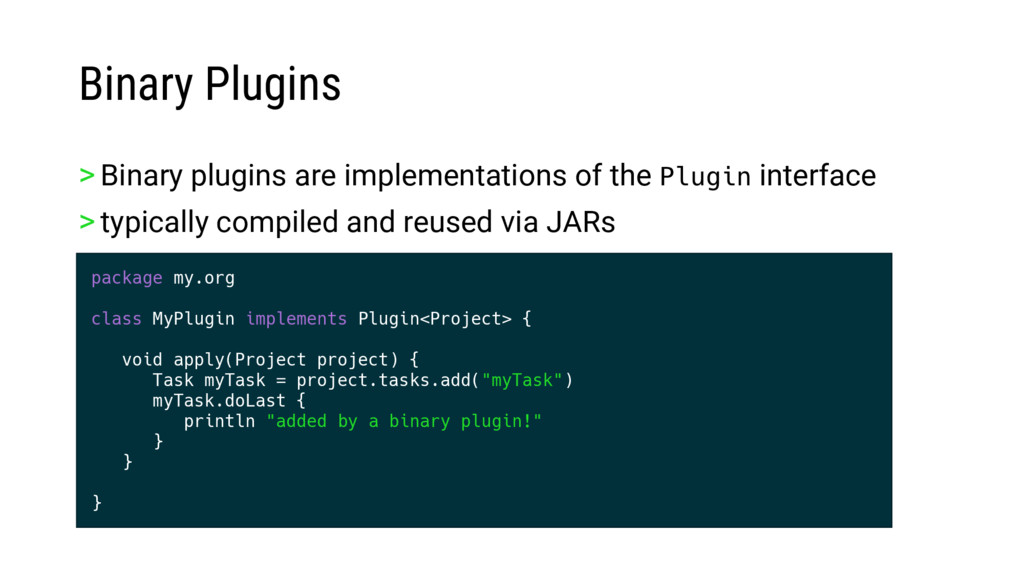

38. > Binary plugins are implementations of the Plugin interface > typically compiled and reused via JARs Binary Plugins package my.org class MyPlugin implements Plugin<Project> { void apply(Project project) { Task myTask = project.tasks.add("myTask") myTask.doLast { println "added by a binary plugin!" } } }
39. > apply via the class object or plugin id > plugin id defined in .properties file Binary Plugins apply plugin: my.org.MyPlugin apply plugin: "my-plugin" implementation-class=my.org.MyPlugin META-INF/gradle-plugins/my-plugin.properties
40. Plugin Extension // Extensions are just plain objects, there is no interface/type class MyExtension { String foo MyExtension(String foo) { this.foo = foo } } // Add new extensions via the extension container project.extensions.create('custom', MyExtension) //apply within project custom { foo "bar" }
41. Thanks! > twitter.com/ungesehn > speakerdeck.com/ungesehn > radioopt.com > Gradle logo © Gradle Inc.
