Writer layout in Collabora Online

Collabora Online Team Time Trainings 2025 (https://collaboraonline.github.io/post/communicate/#tea-time-trainings)
Video record: https://www.youtube.com/watch?v=NuXKgqvc3cc

Transcript

1. Miklos Vajna Software Engineer Writer layout in Collabora Online vmiklos@collabora.com 2025-06-26
2. 2 Beach layout (via reddit.com)
3. Writer: Core and Layout

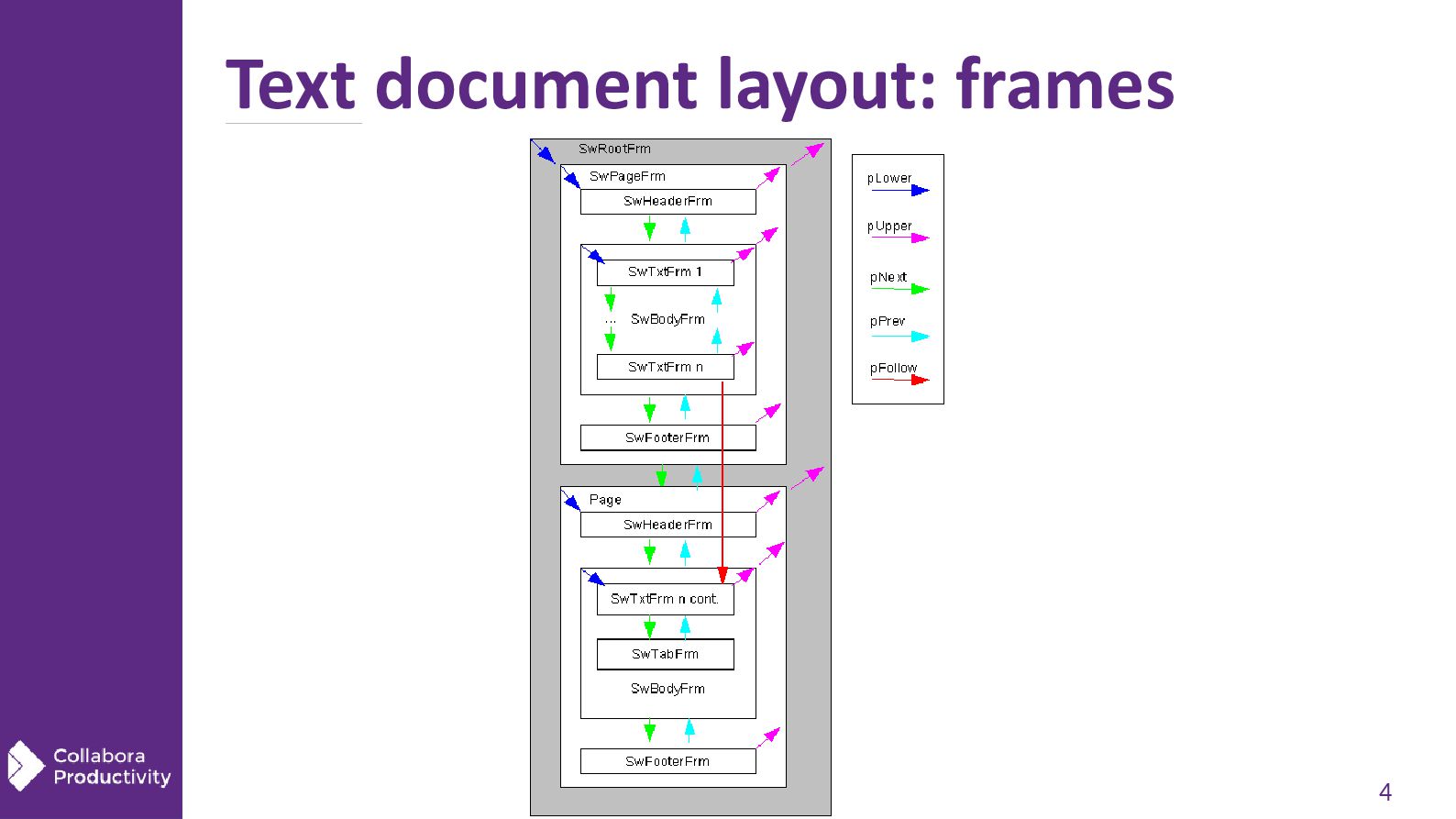

4. 4 Text document layout: frames

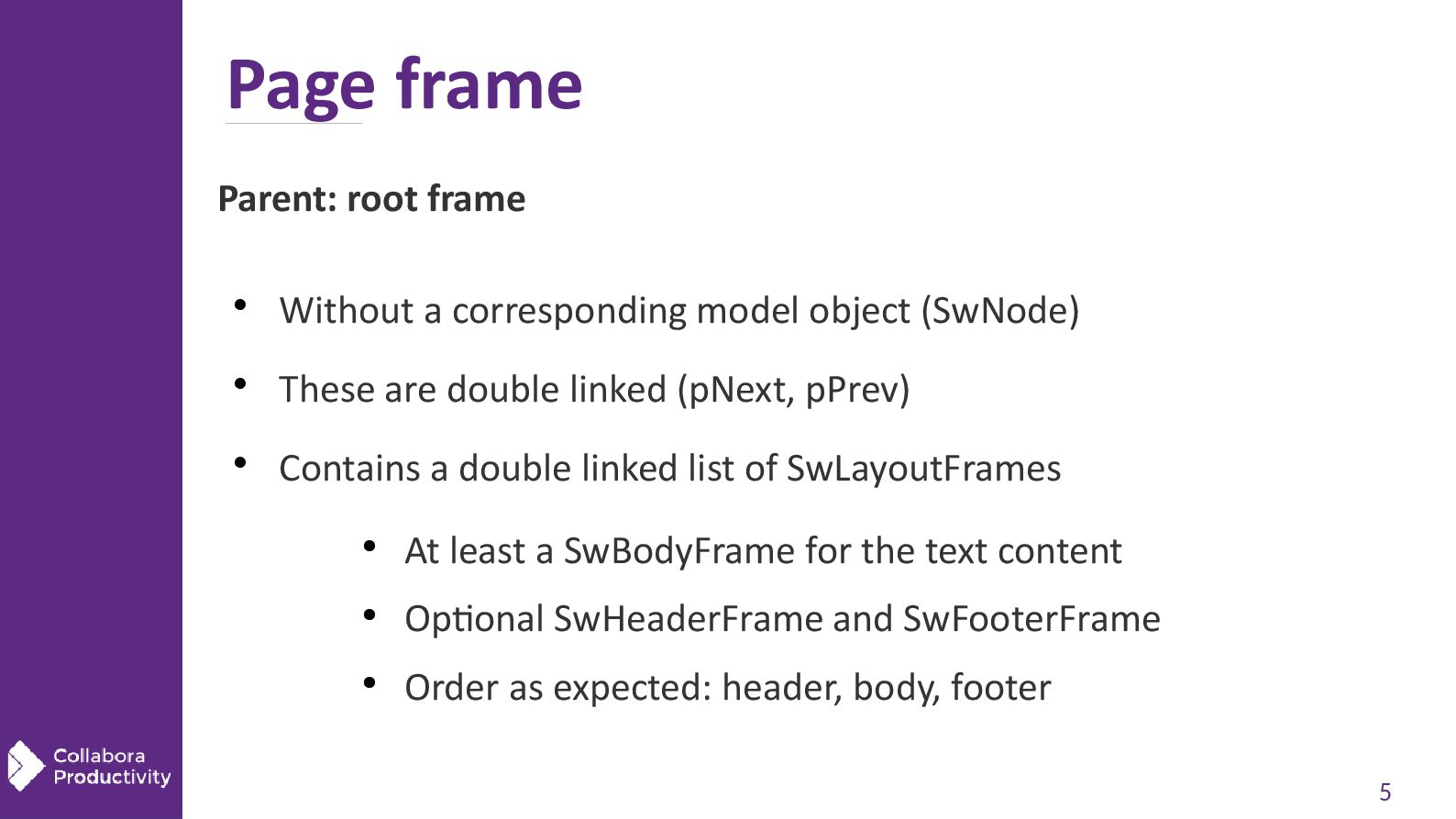

5. 5 Page frame Parent: root frame  Without a corresponding model object (SwNode)  These are double linked (pNext, pPrev)  Contains a double linked list of SwLayoutFrames • At least a SwBodyFrame for the text content • Optional SwHeaderFrame and SwFooterFrame • Order as expected: header, body, footer

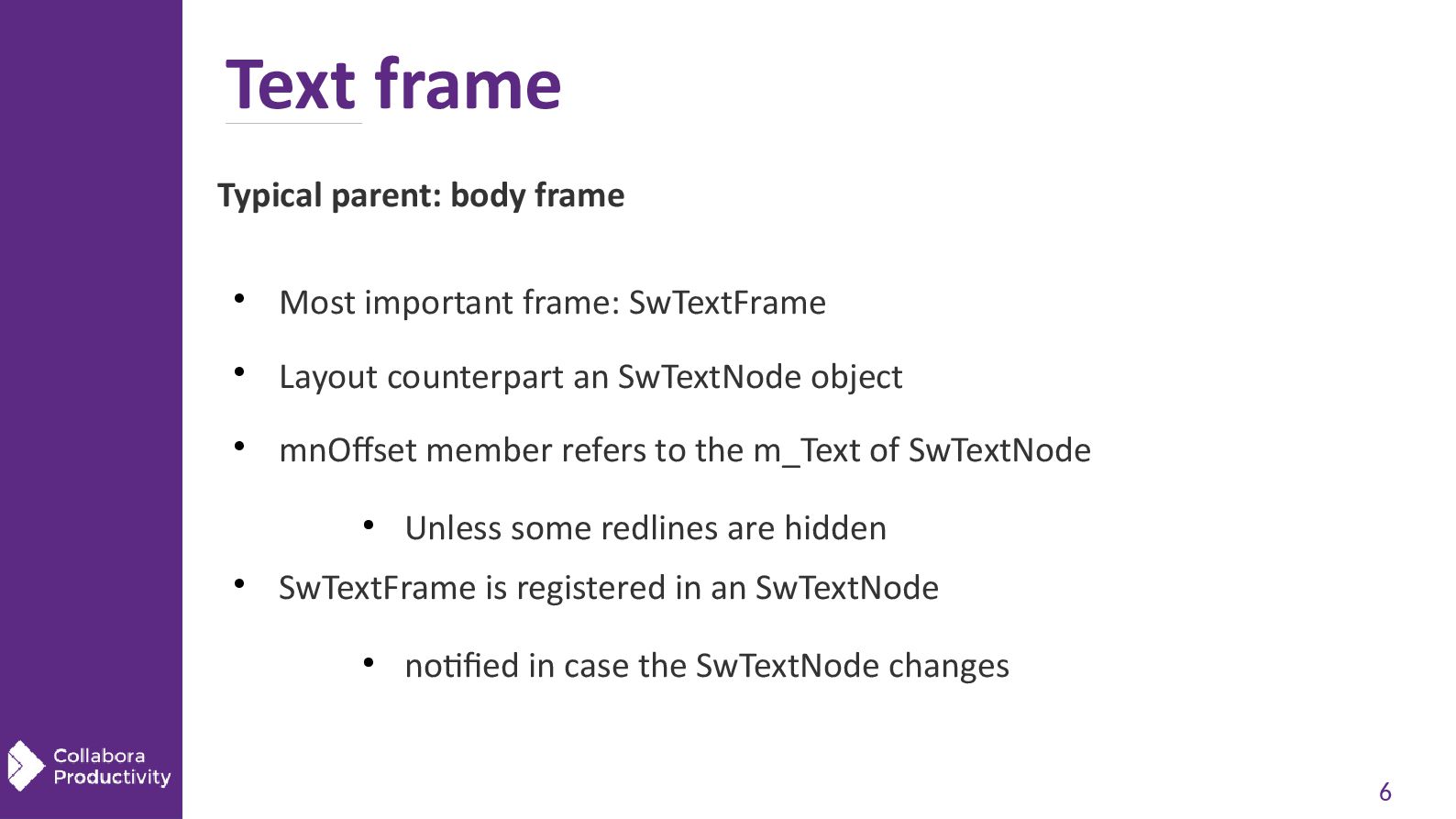

6. 6 Text frame Typical parent: body frame  Most important frame: SwTextFrame  Layout counterpart an SwTextNode object  mnOffset member refers to the m_Text of SwTextNode • Unless some redlines are hidden  SwTextFrame is registered in an SwTextNode • notified in case the SwTextNode changes

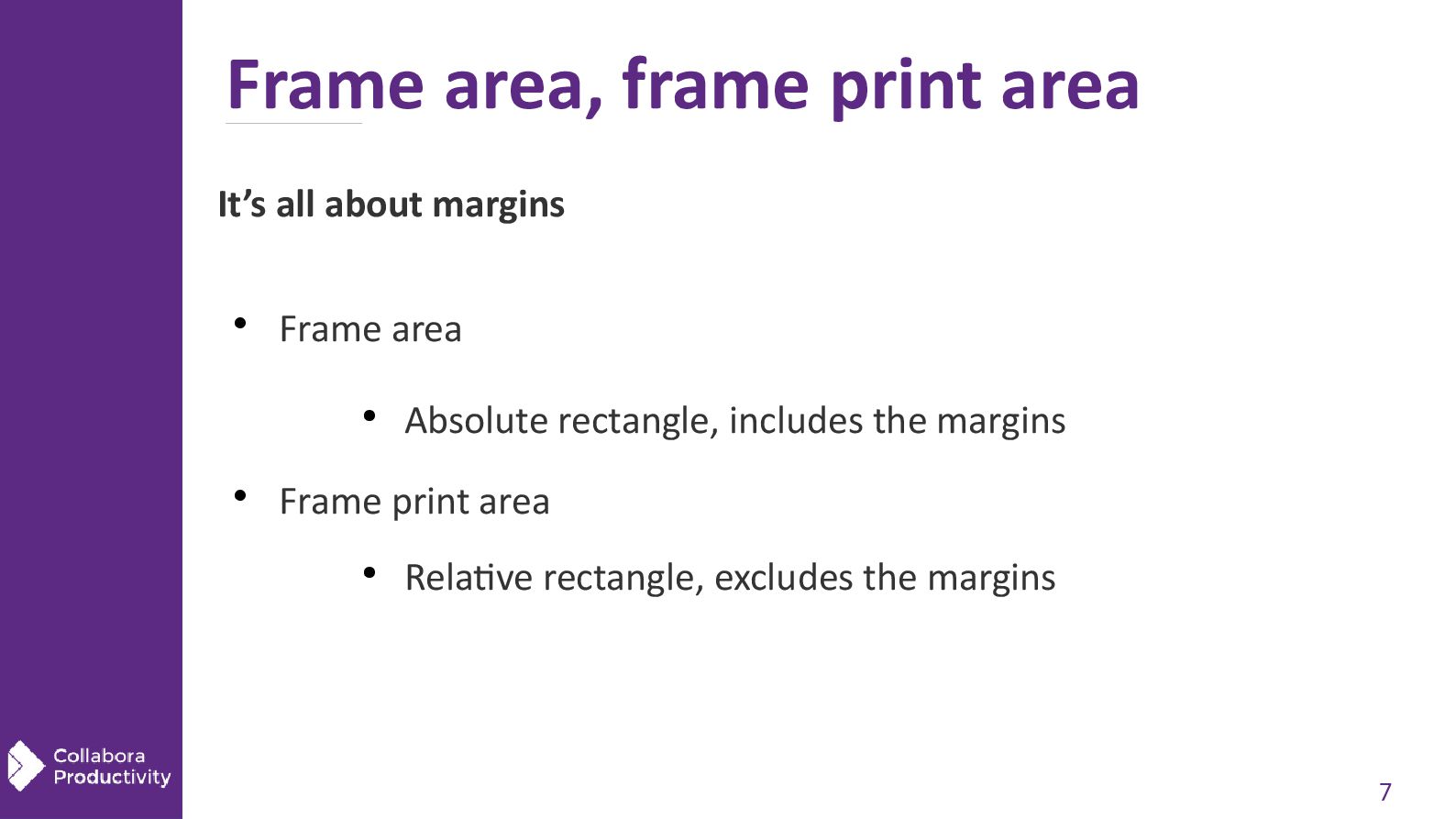

7. 7 Frame area, frame print area It’s all about margins  Frame area • Absolute rectangle, includes the margins  Frame print area • Relative rectangle, excludes the margins

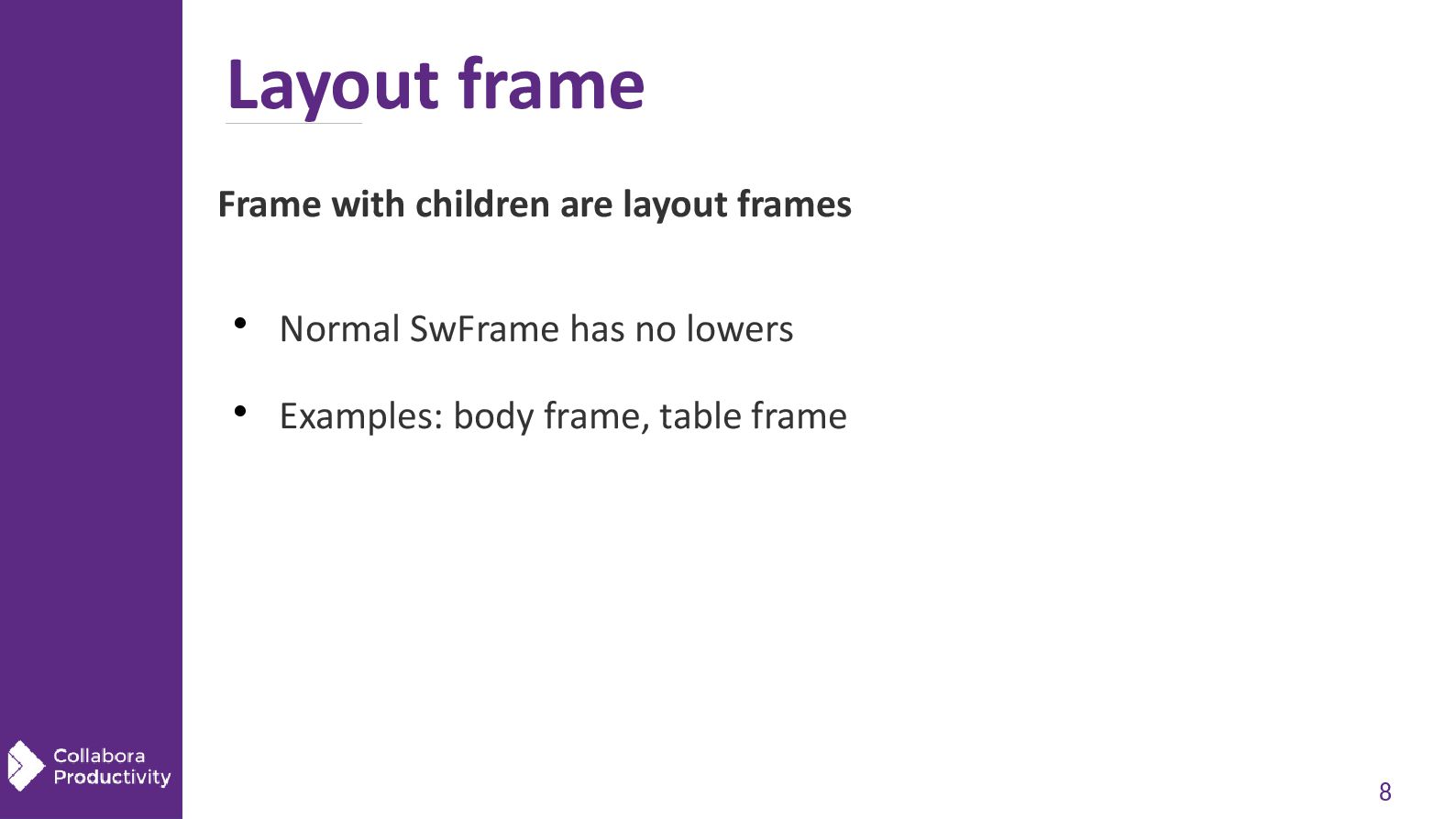

8. 8 Layout frame Frame with children are layout frames  Normal SwFrame has no lowers  Examples: body frame, table frame

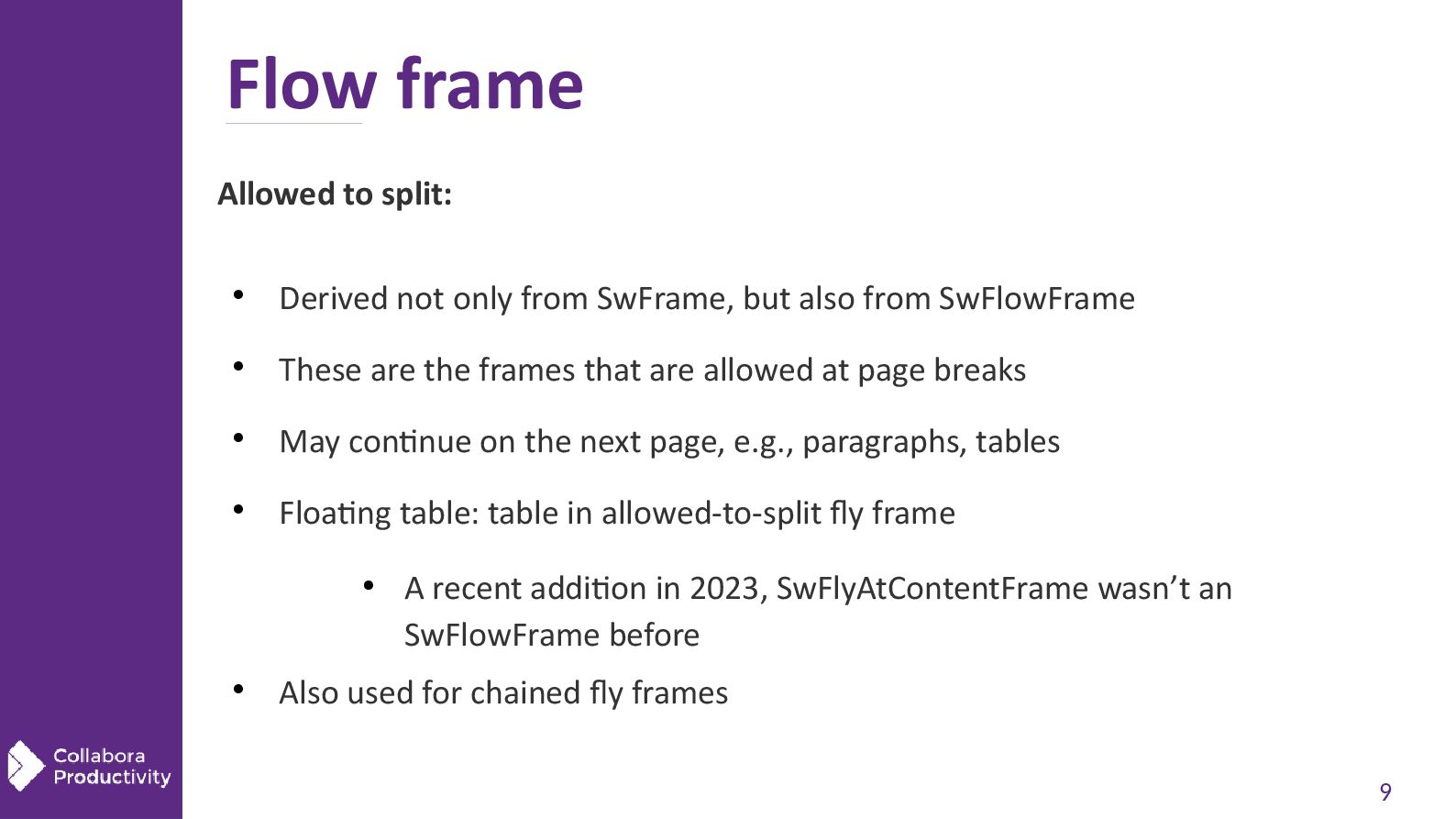

9. 9 Flow frame Allowed to split:  Derived not only from SwFrame, but also from SwFlowFrame  These are the frames that are allowed at page breaks  May continue on the next page, e.g., paragraphs, tables  Floating table: table in allowed-to-split fly frame • A recent addition in 2023, SwFlyAtContentFrame wasn’t an SwFlowFrame before  Also used for chained fly frames

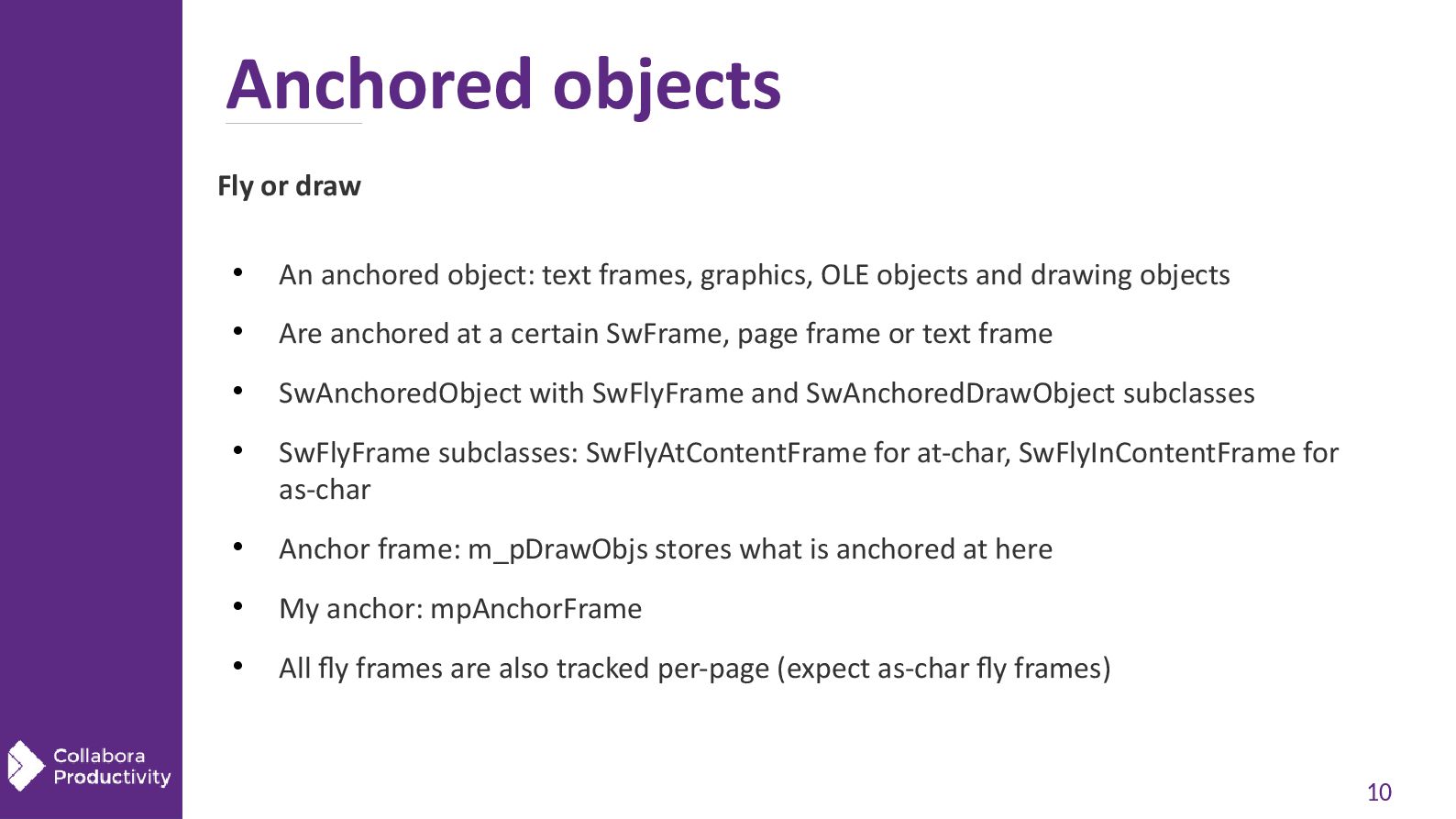

10. 10 Anchored objects Fly or draw  An anchored object: text frames, graphics, OLE objects and drawing objects  Are anchored at a certain SwFrame, page frame or text frame  SwAnchoredObject with SwFlyFrame and SwAnchoredDrawObject subclasses  SwFlyFrame subclasses: SwFlyAtContentFrame for at-char, SwFlyInContentFrame for as-char  Anchor frame: m_pDrawObjs stores what is anchored at here  My anchor: mpAnchorFrame  All fly frames are also tracked per-page (expect as-char fly frames)

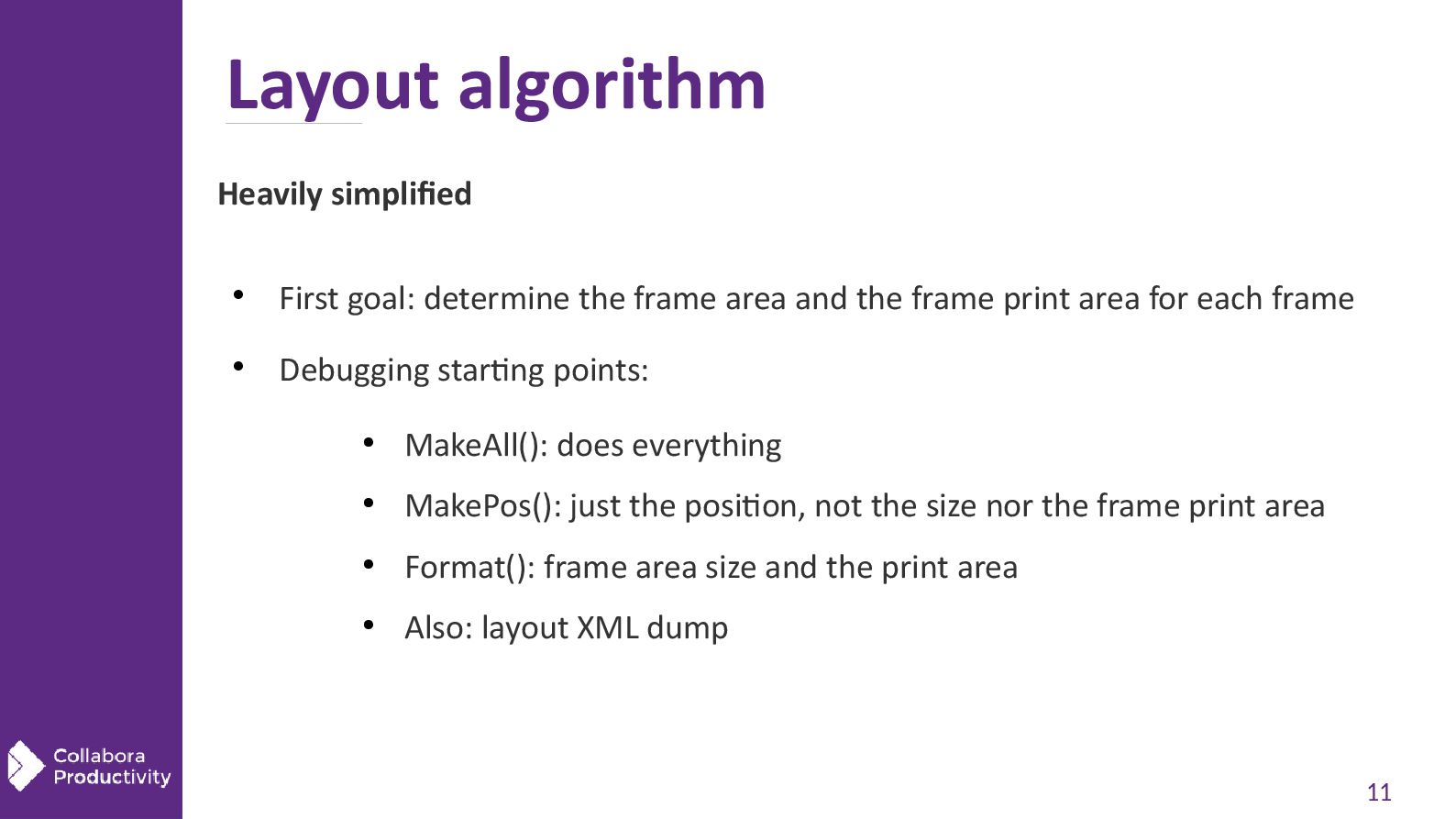

11. 11 Layout algorithm Heavily simplified  First goal: determine the frame area and the frame print area for each frame  Debugging starting points: • MakeAll(): does everything • MakePos(): just the position, not the size nor the frame print area • Format(): frame area size and the print area • Also: layout XML dump

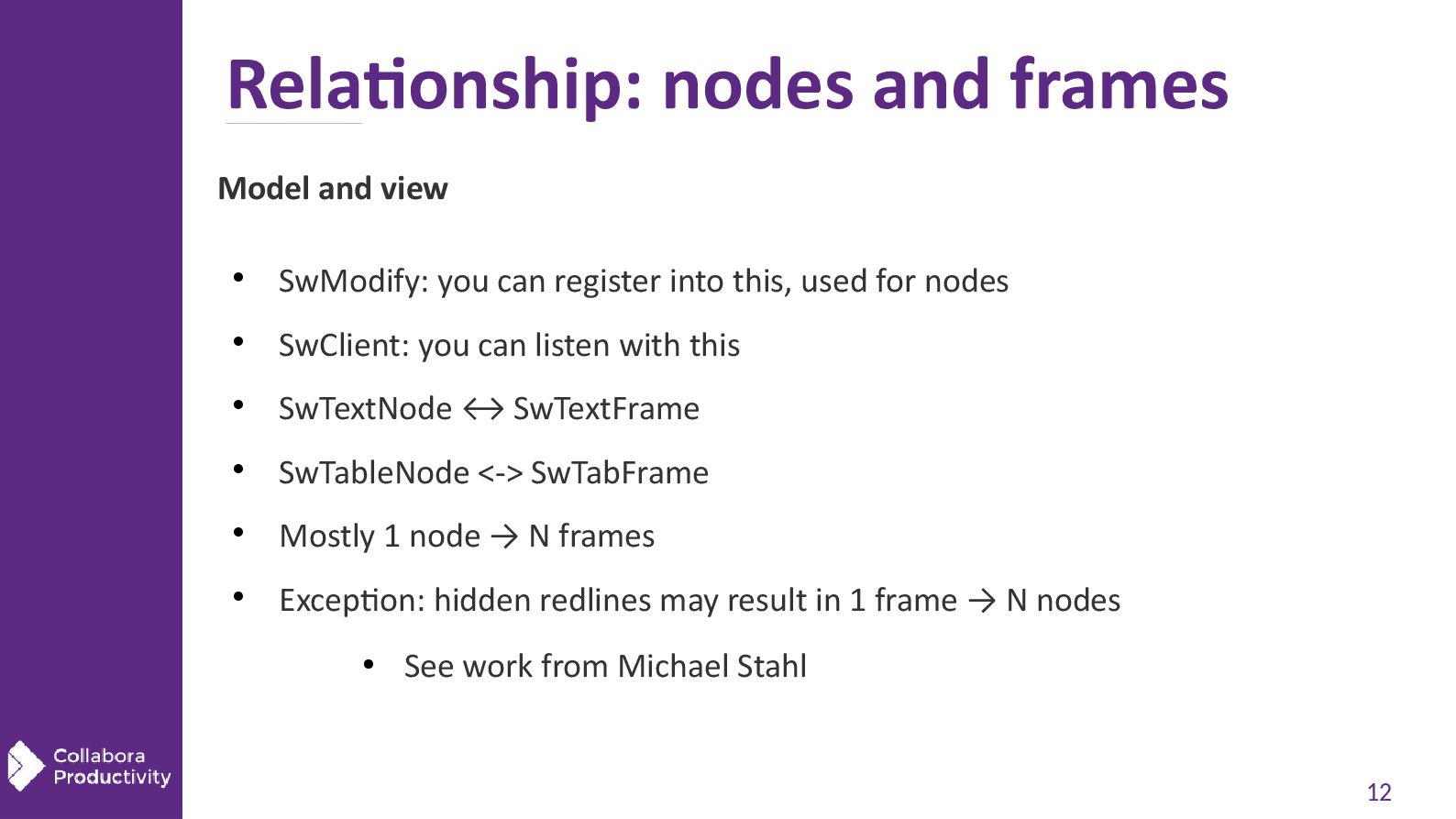

12. 12 Relationship: nodes and frames Model and view  SwModify: you can register into this, used for nodes  SwClient: you can listen with this  SwTextNode ↔ SwTextFrame  SwTableNode <-> SwTabFrame  Mostly 1 node → N frames  Exception: hidden redlines may result in 1 frame → N nodes • See work from Michael Stahl

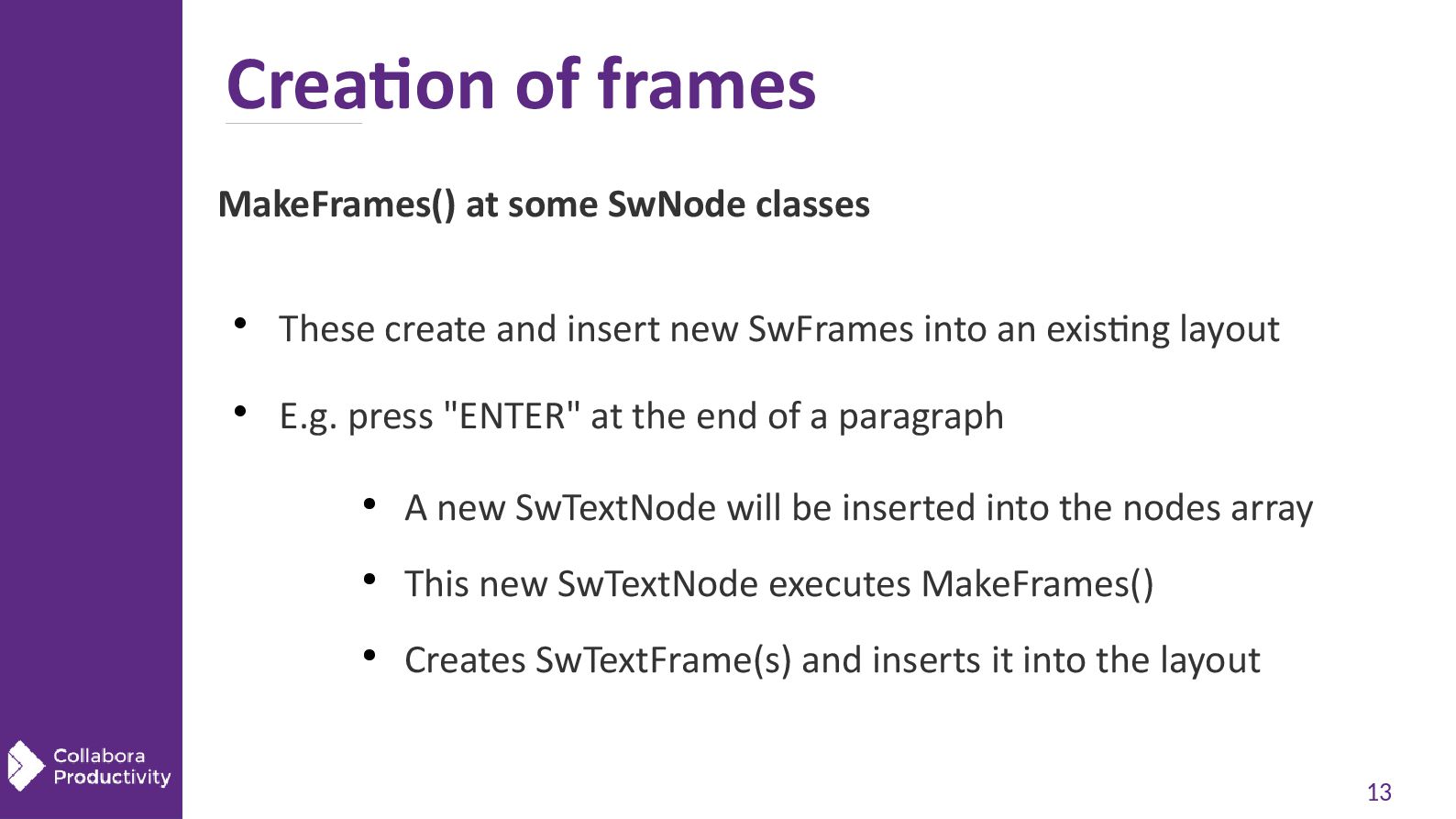

13. 13 Creation of frames MakeFrames() at some SwNode classes  These create and insert new SwFrames into an existing layout  E.g. press "ENTER" at the end of a paragraph • A new SwTextNode will be inserted into the nodes array • This new SwTextNode executes MakeFrames() • Creates SwTextFrame(s) and inserts it into the layout

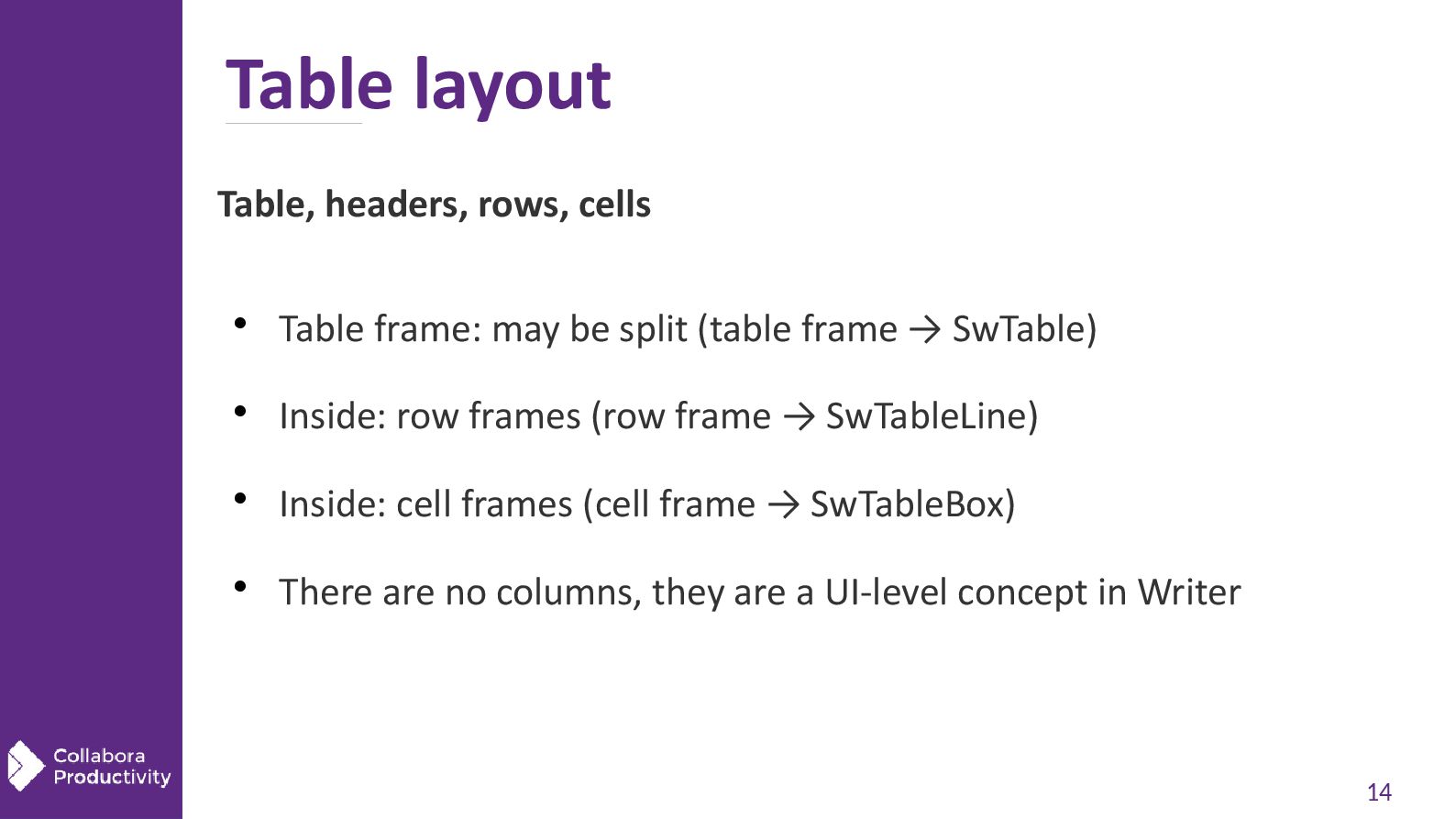

14. 14 Table layout Table, headers, rows, cells  Table frame: may be split (table frame → SwTable)  Inside: row frames (row frame → SwTableLine)  Inside: cell frames (cell frame → SwTableBox)  There are no columns, they are a UI-level concept in Writer

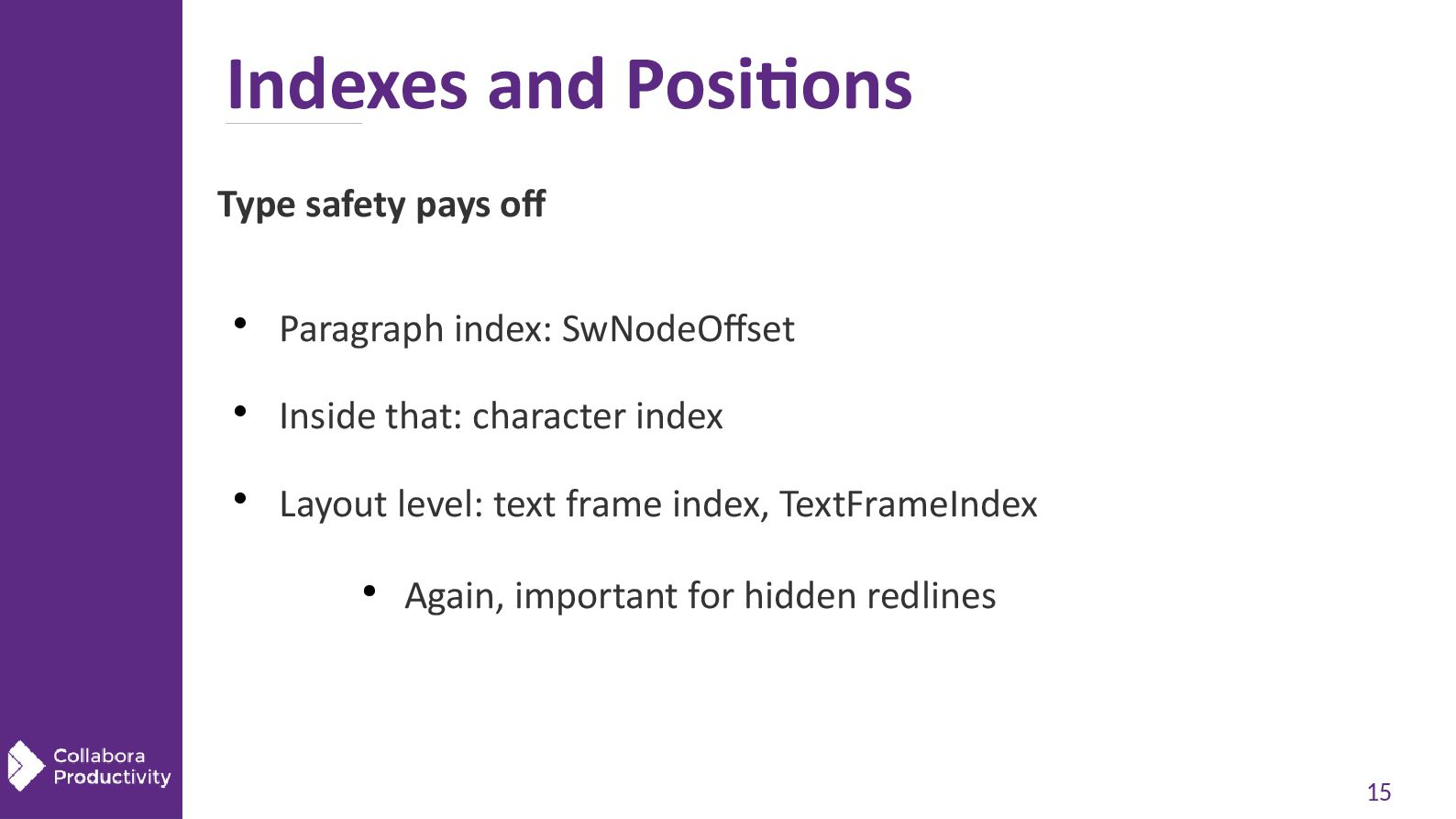

15. 15 Indexes and Positions Type safety pays off  Paragraph index: SwNodeOffset  Inside that: character index  Layout level: text frame index, TextFrameIndex • Again, important for hidden redlines
16. Writer: Text formatting

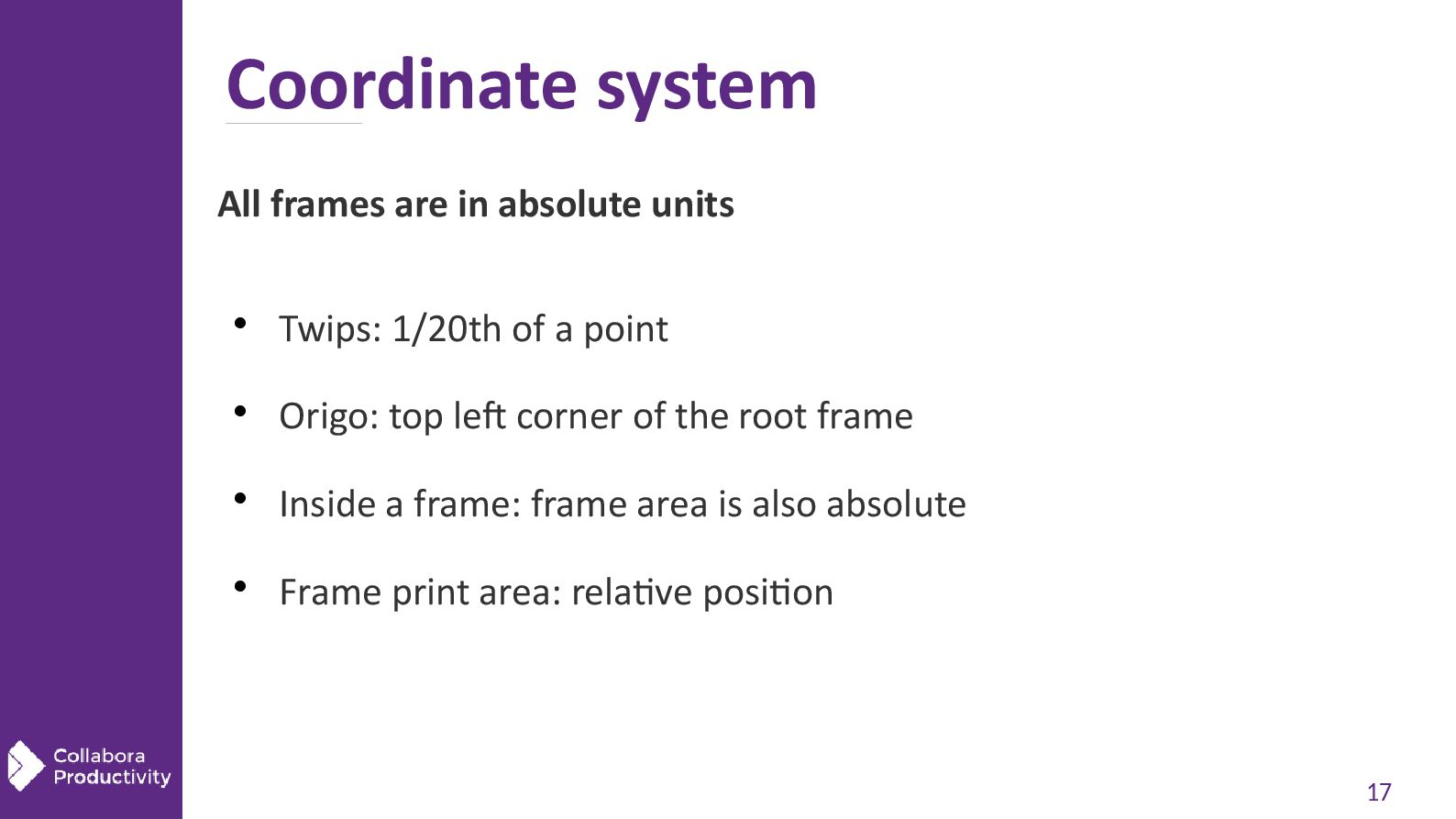

17. 17 Coordinate system All frames are in absolute units  Twips: 1/20th of a point  Origo: top left corner of the root frame  Inside a frame: frame area is also absolute  Frame print area: relative position

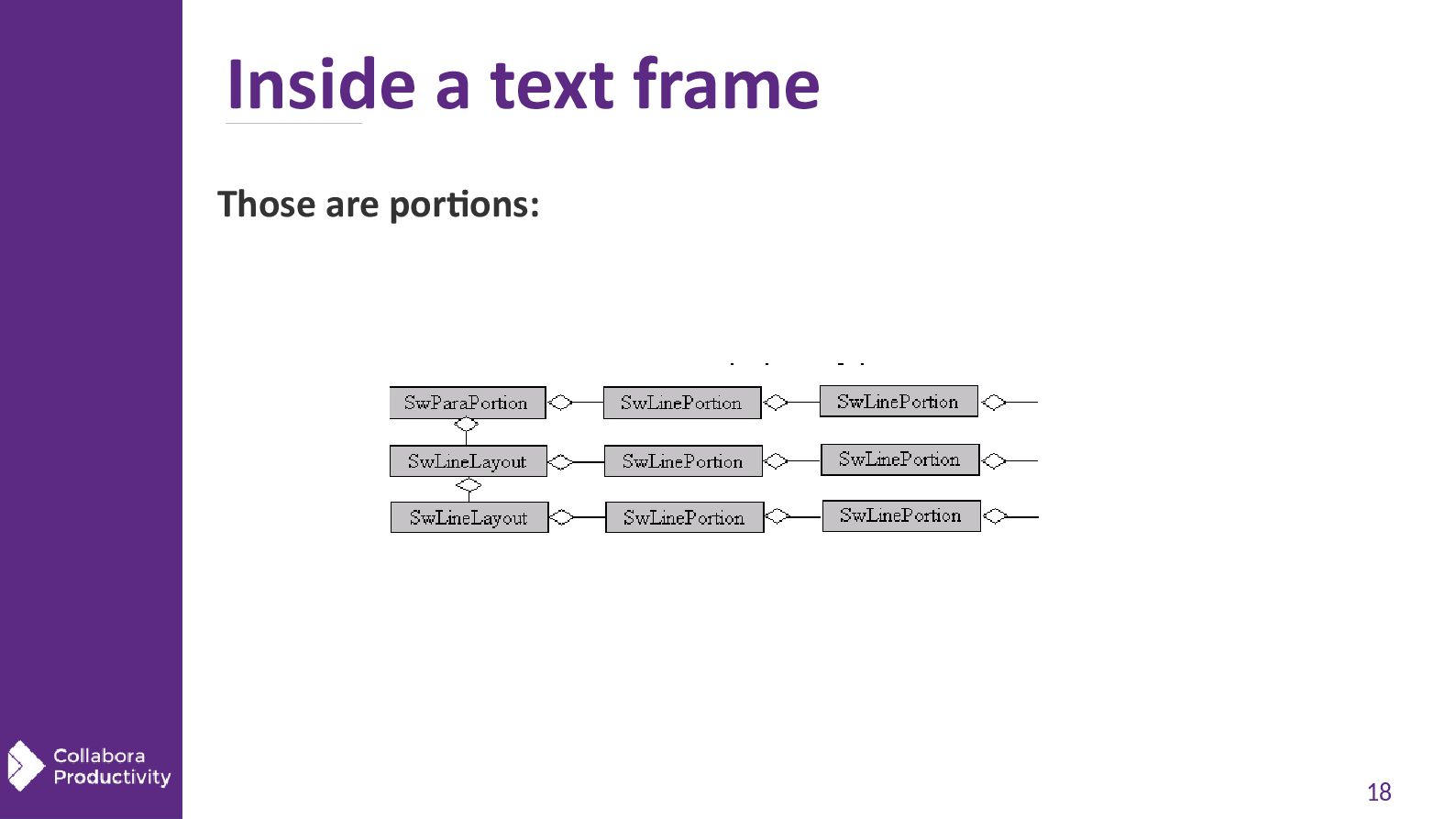

18. 18 Inside a text frame Those are portions:

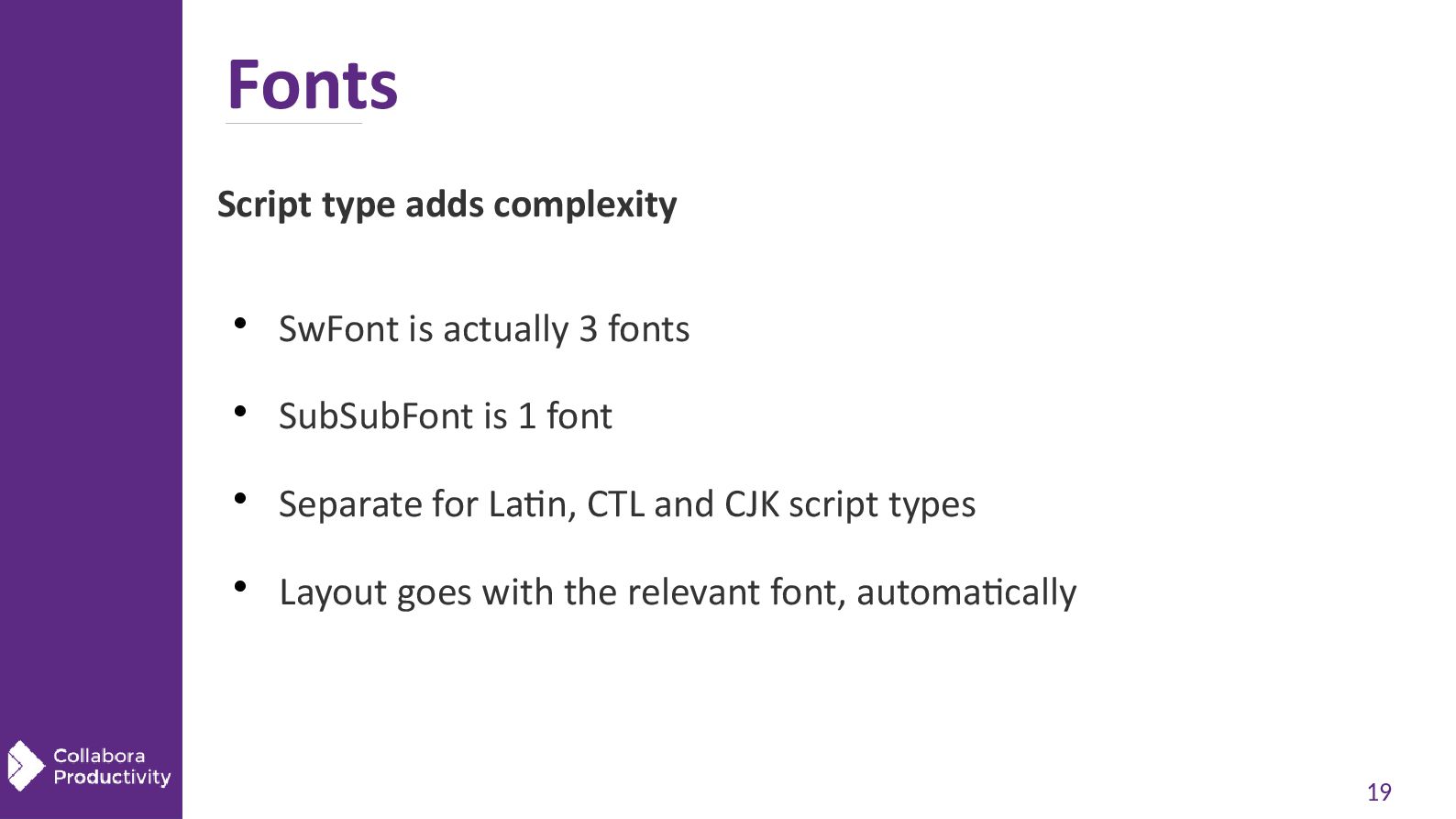

19. 19 Fonts Script type adds complexity  SwFont is actually 3 fonts  SubSubFont is 1 font  Separate for Latin, CTL and CJK script types  Layout goes with the relevant font, automatically

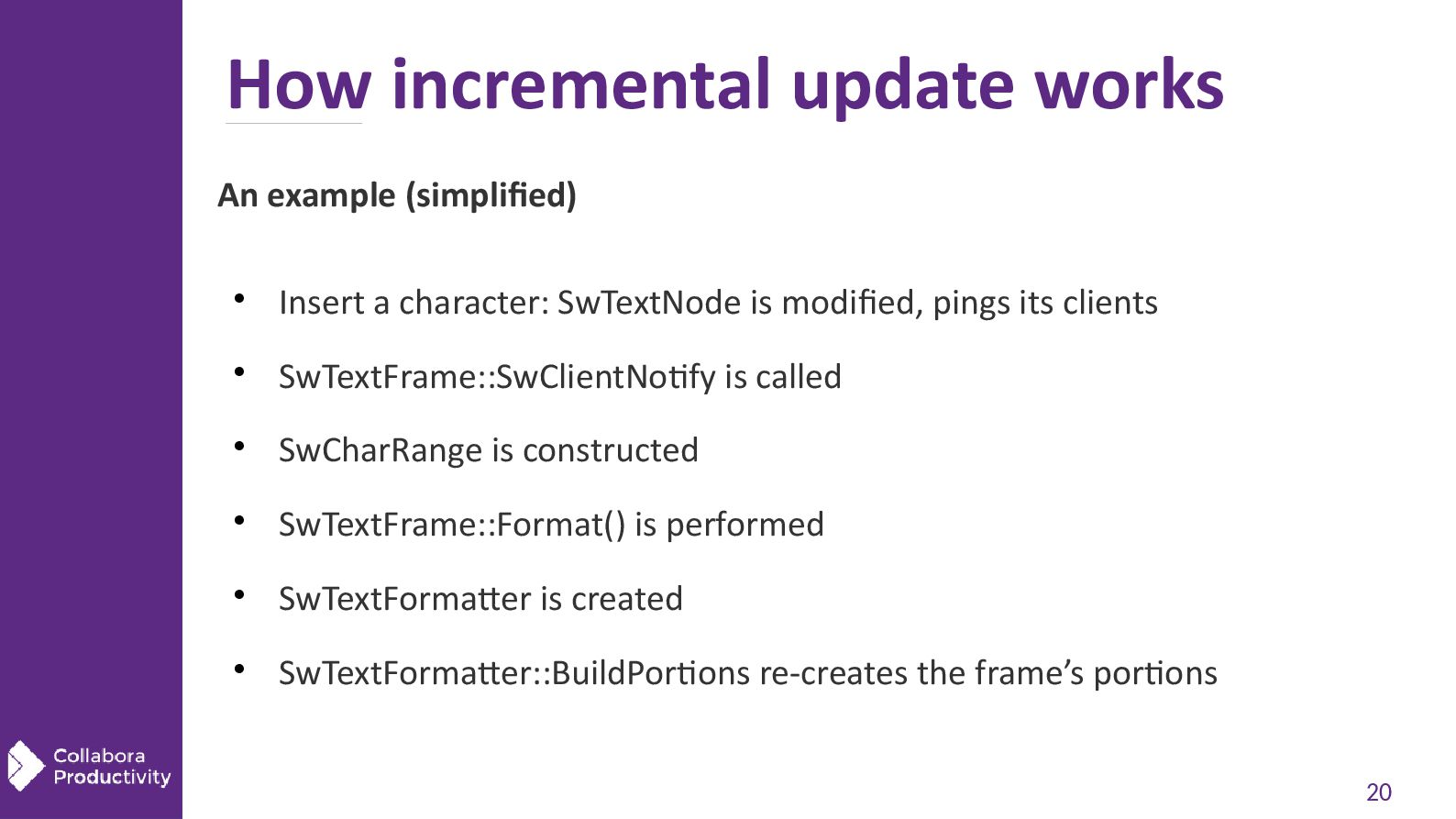

20. 20 How incremental update works An example (simplified)  Insert a character: SwTextNode is modified, pings its clients  SwTextFrame::SwClientNotify is called  SwCharRange is constructed  SwTextFrame::Format() is performed  SwTextFormatter is created  SwTextFormatter::BuildPortions re-creates the frame’s portions

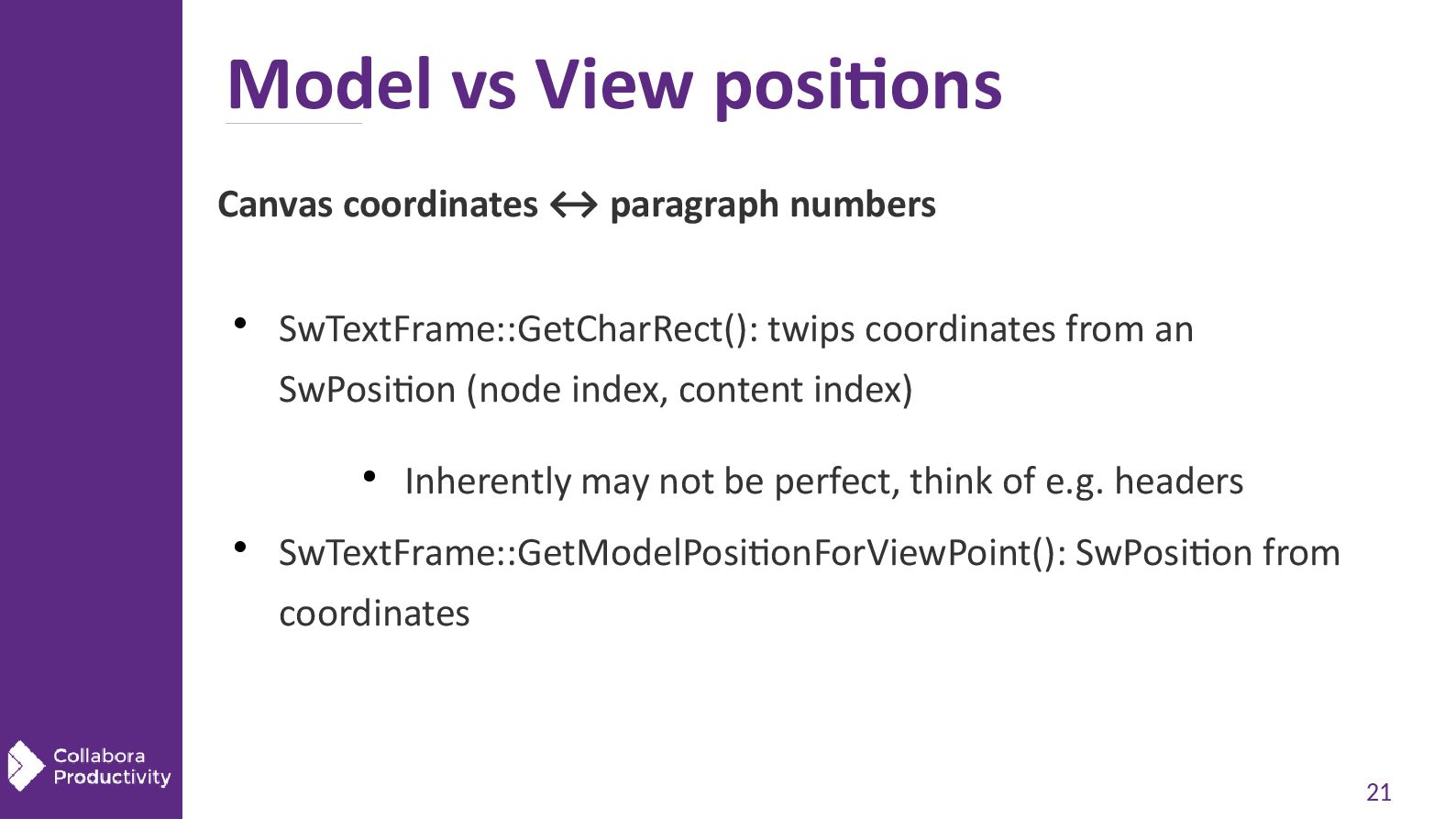

21. 21 Model vs View positions Canvas coordinates ↔ paragraph numbers  SwTextFrame::GetCharRect(): twips coordinates from an SwPosition (node index, content index) • Inherently may not be perfect, think of e.g. headers  SwTextFrame::GetModelPositionForViewPoint(): SwPosition from coordinates

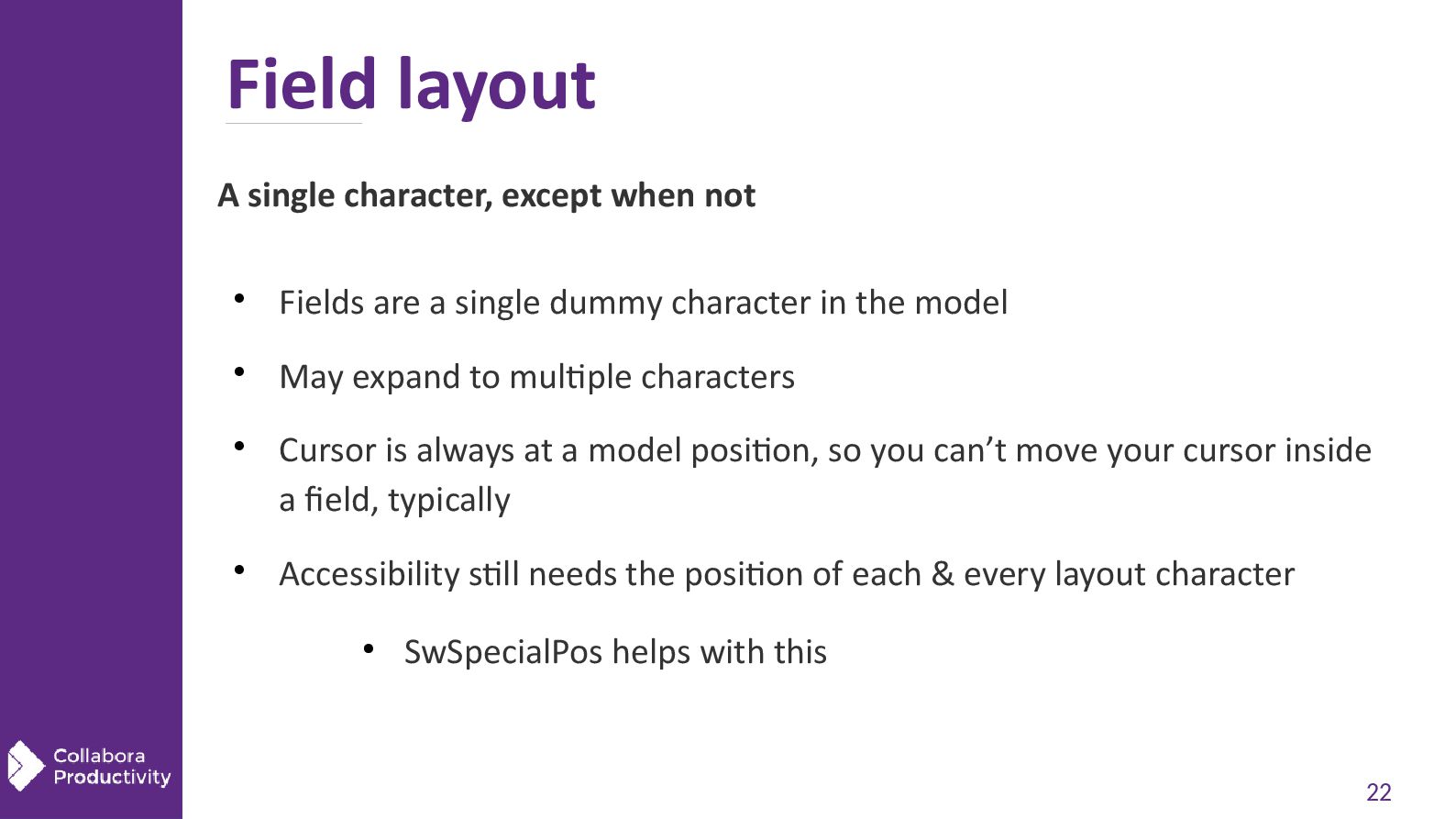

22. 22 Field layout A single character, except when not  Fields are a single dummy character in the model  May expand to multiple characters  Cursor is always at a model position, so you can’t move your cursor inside a field, typically  Accessibility still needs the position of each & every layout character • SwSpecialPos helps with this

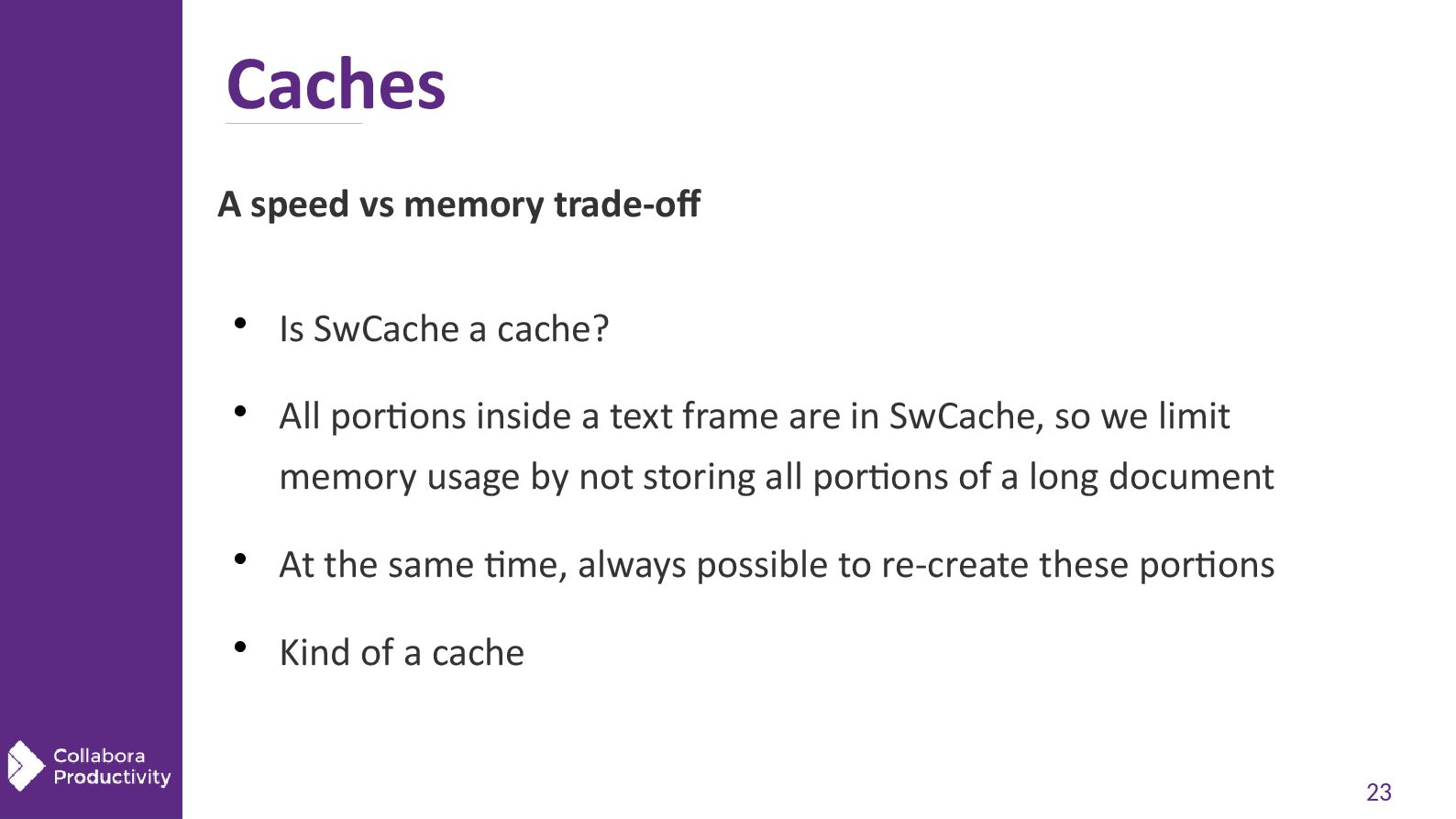

23. 23 Caches A speed vs memory trade-off  Is SwCache a cache?  All portions inside a text frame are in SwCache, so we limit memory usage by not storing all portions of a long document  At the same time, always possible to re-create these portions  Kind of a cache
24. Final thoughts

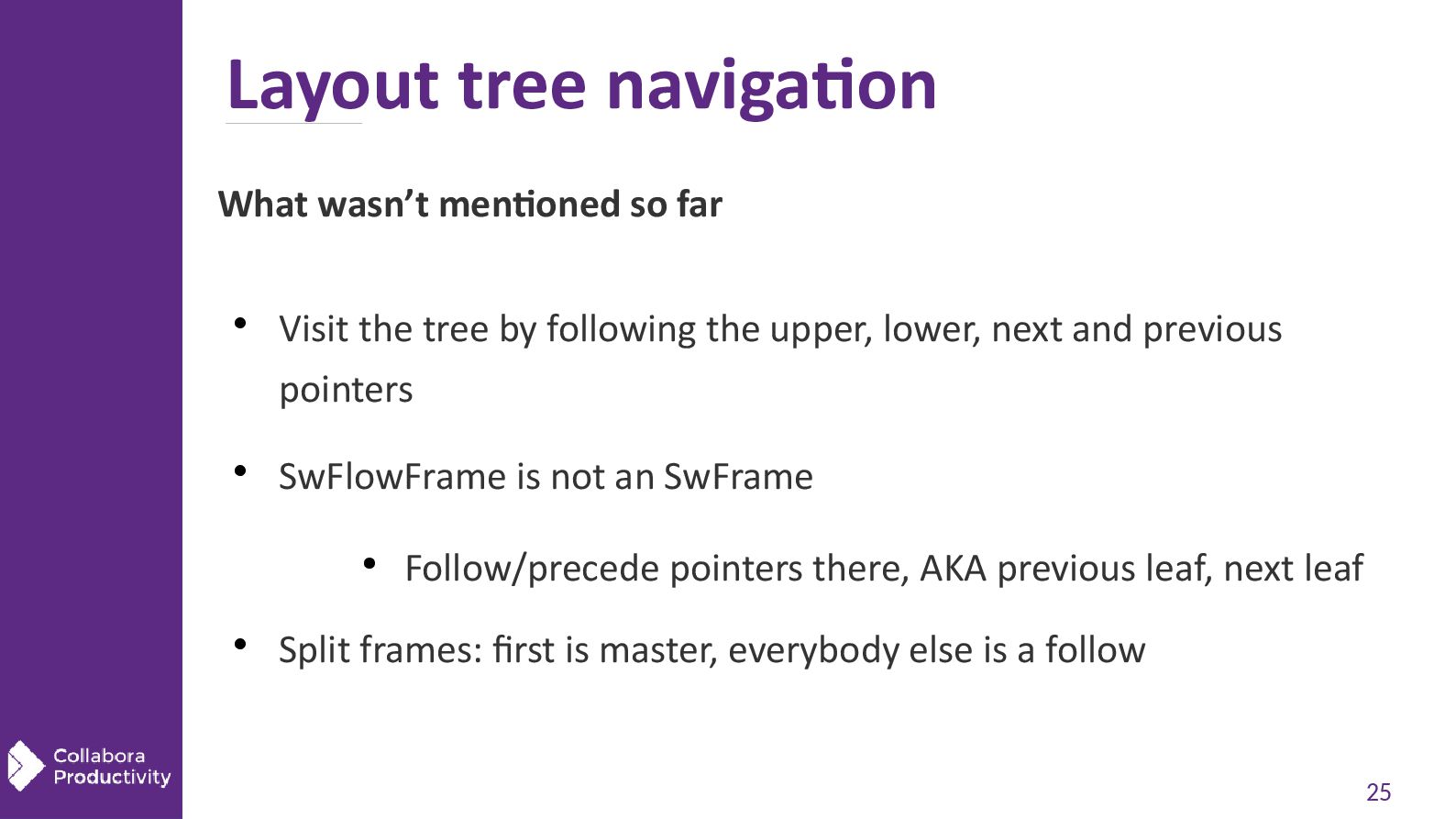

25. 25 Layout tree navigation What wasn’t mentioned so far  Visit the tree by following the upper, lower, next and previous pointers  SwFlowFrame is not an SwFrame • Follow/precede pointers there, AKA previous leaf, next leaf  Split frames: first is master, everybody else is a follow

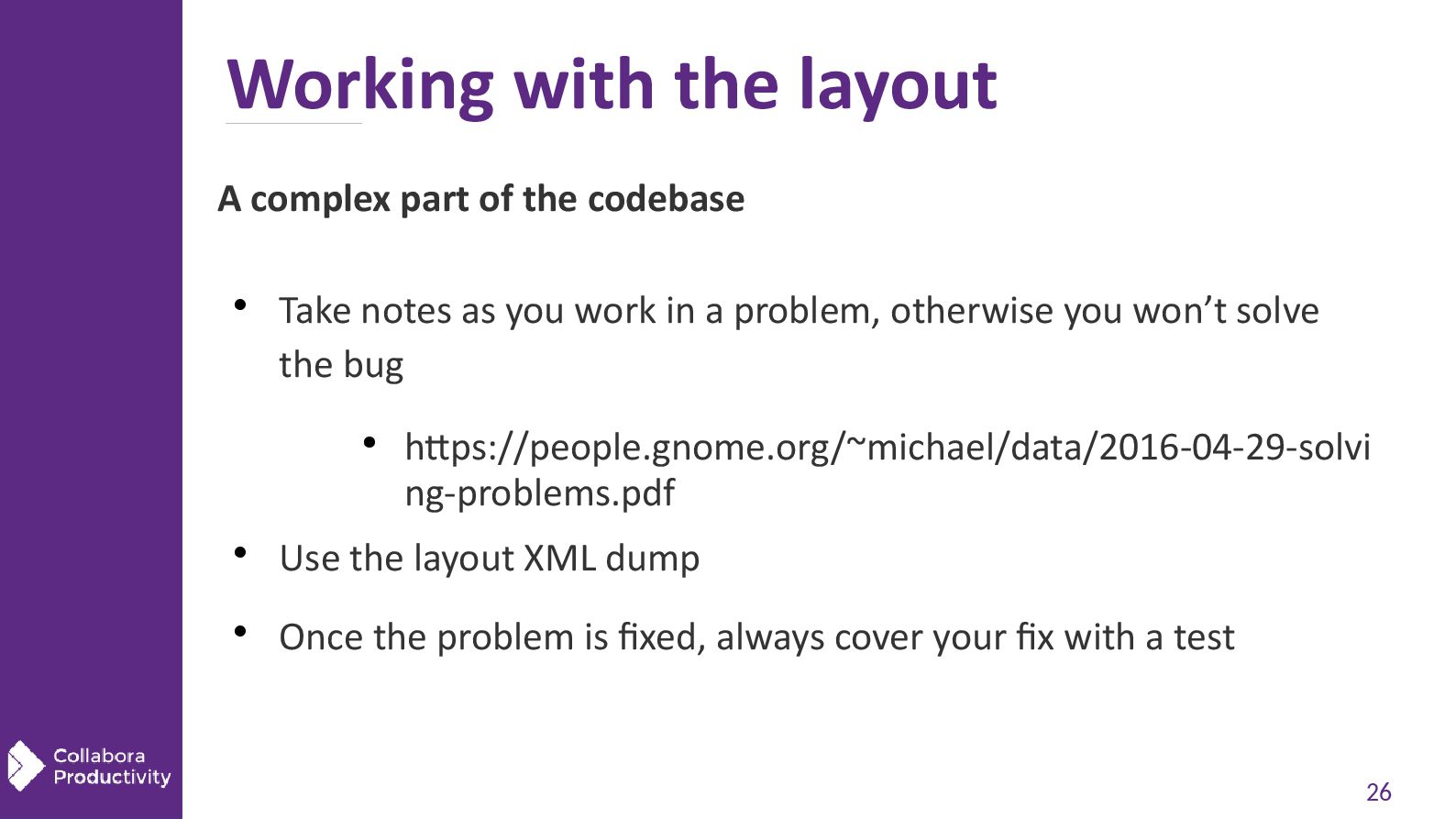

26. 26 Working with the layout A complex part of the codebase  Take notes as you work in a problem, otherwise you won’t solve the bug • https://people.gnome.org/~michael/data/2016-04-29-solvi ng-problems.pdf  Use the layout XML dump  Once the problem is fixed, always cover your fix with a test

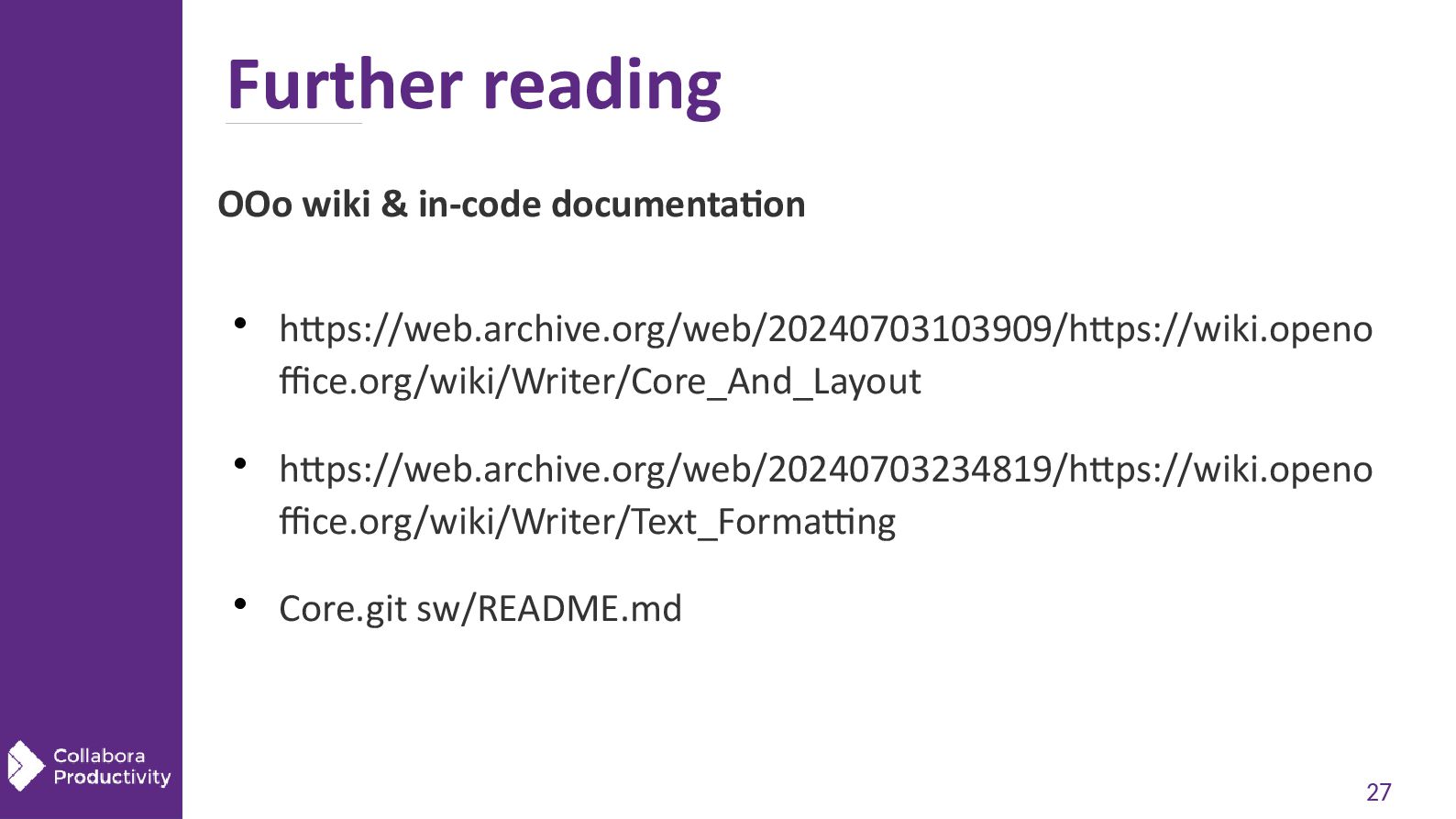

27. 27 Further reading OOo wiki & in-code documentation  https://web.archive.org/web/20240703103909/https://wiki.openo ffice.org/wiki/Writer/Core_And_Layout  https://web.archive.org/web/20240703234819/https://wiki.openo ffice.org/wiki/Writer/Text_Formatting  Core.git sw/README.md
