1. Paging Like A Pro Android Architecture Components: Paging Gabor Varadi @zhuinden

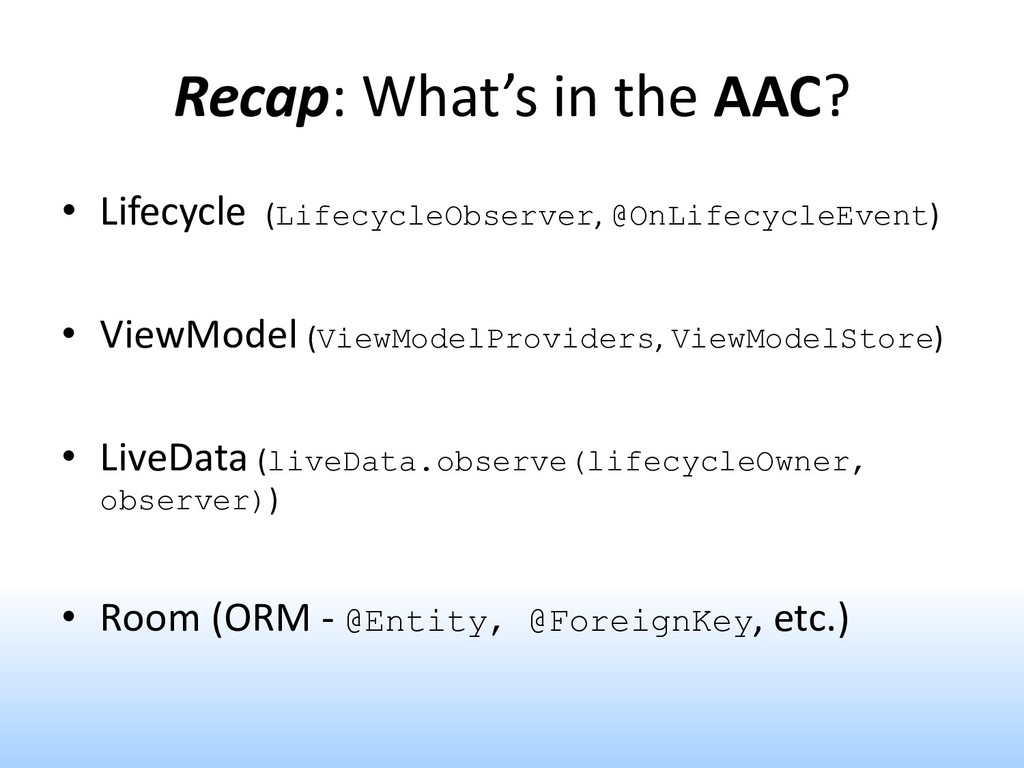

2. Recap: What’s in the AAC? • Lifecycle (LifecycleObserver, @OnLifecycleEvent) • ViewModel (ViewModelProviders, ViewModelStore) • LiveData (liveData.observe(lifecycleOwner, observer)) • Room (ORM - @Entity, @ForeignKey, etc.)

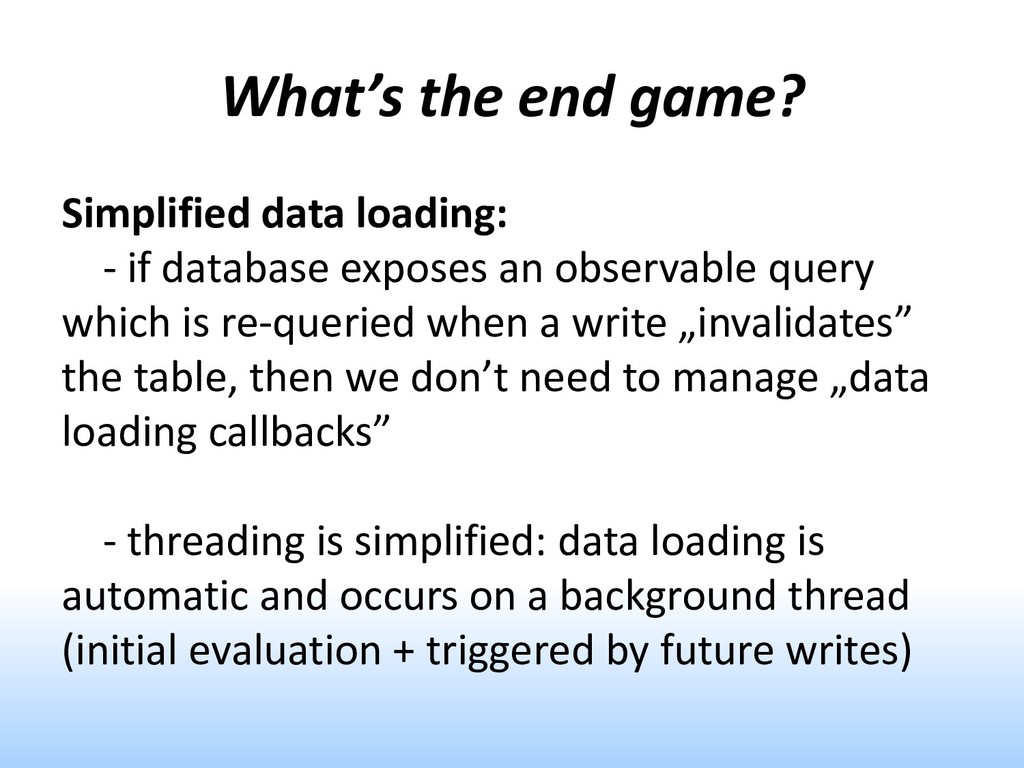

3. What’s the end game? Simplified data loading: - if database exposes an observable query which is re-queried when a write „invalidates” the table, then we don’t need to manage „data loading callbacks” - threading is simplified: data loading is automatic and occurs on a background thread (initial evaluation + triggered by future writes)

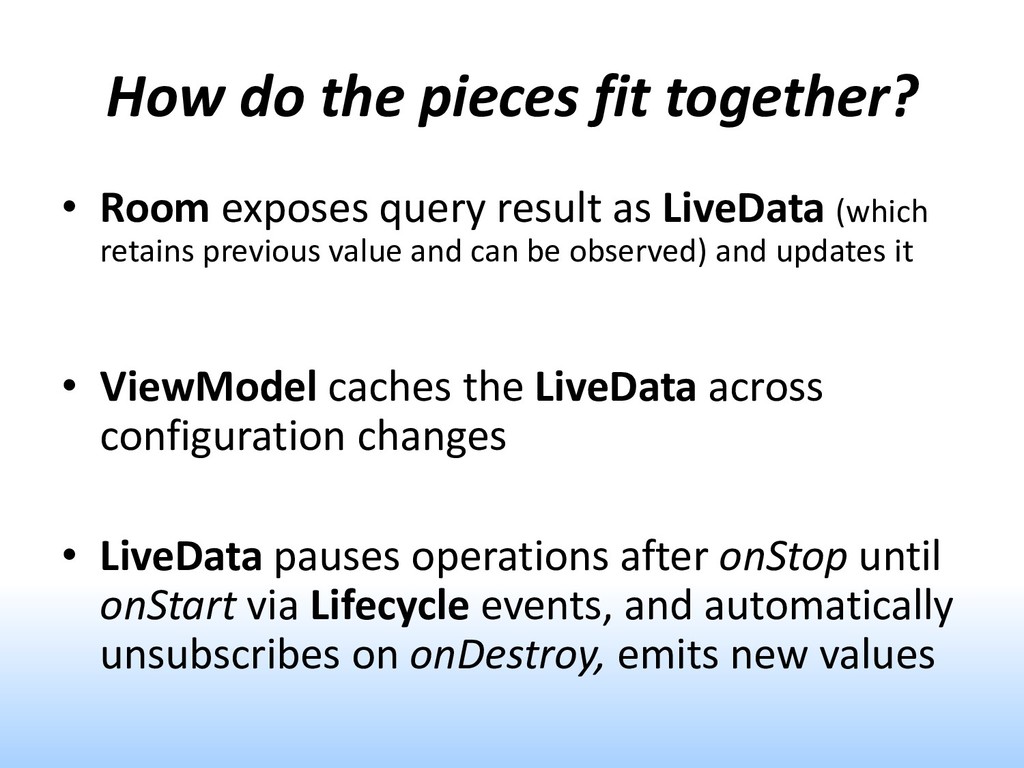

4. How do the pieces fit together? • Room exposes query result as LiveData (which retains previous value and can be observed) and updates it • ViewModel caches the LiveData across configuration changes • LiveData pauses operations after onStop until onStart via Lifecycle events, and automatically unsubscribes on onDestroy, emits new values

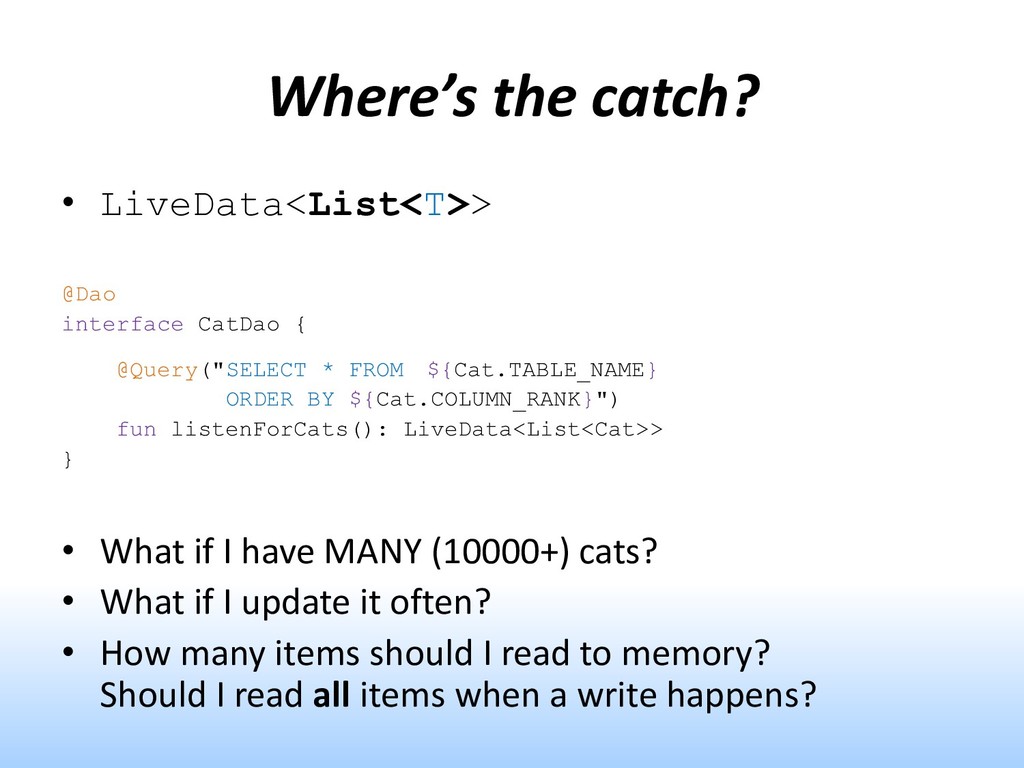

5. Where’s the catch? • LiveData<List<T>> @Dao interface CatDao { @Query("SELECT * FROM ${Cat.TABLE_NAME} ORDER BY ${Cat.COLUMN_RANK}") fun listenForCats(): LiveData<List<Cat>> } • What if I have MANY (10000+) cats? • What if I update it often? • How many items should I read to memory? Should I read all items when a write happens?

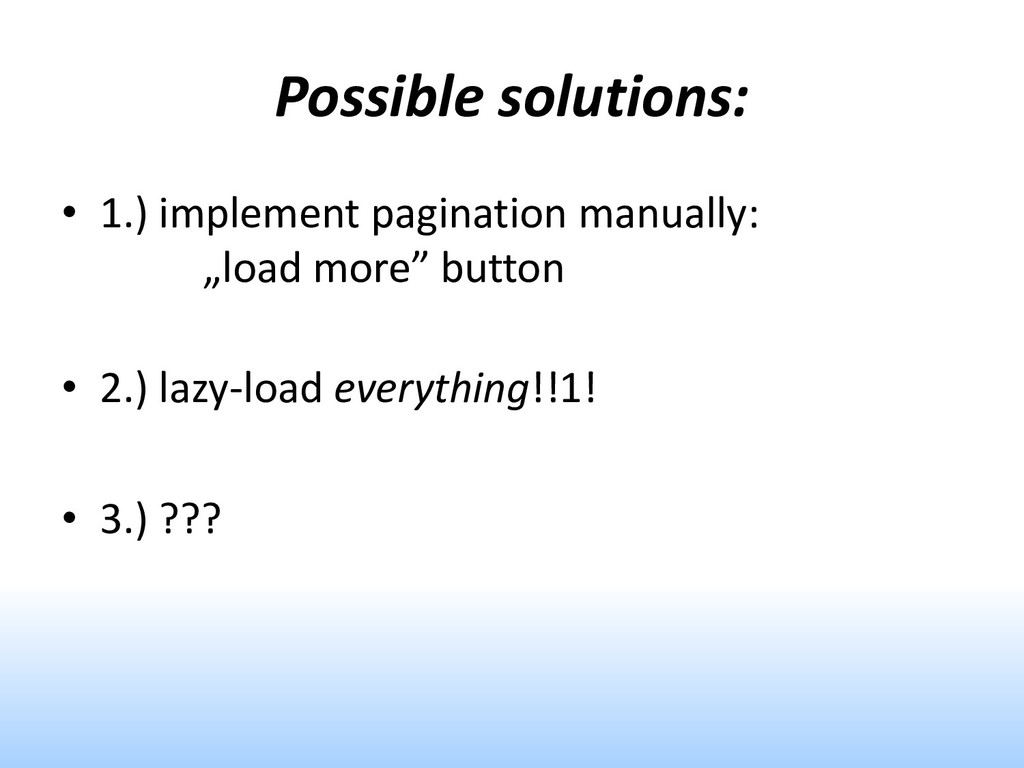

6. Possible solutions: • 1.) implement pagination manually: „load more” button • 2.) lazy-load everything!!1! • 3.) ???

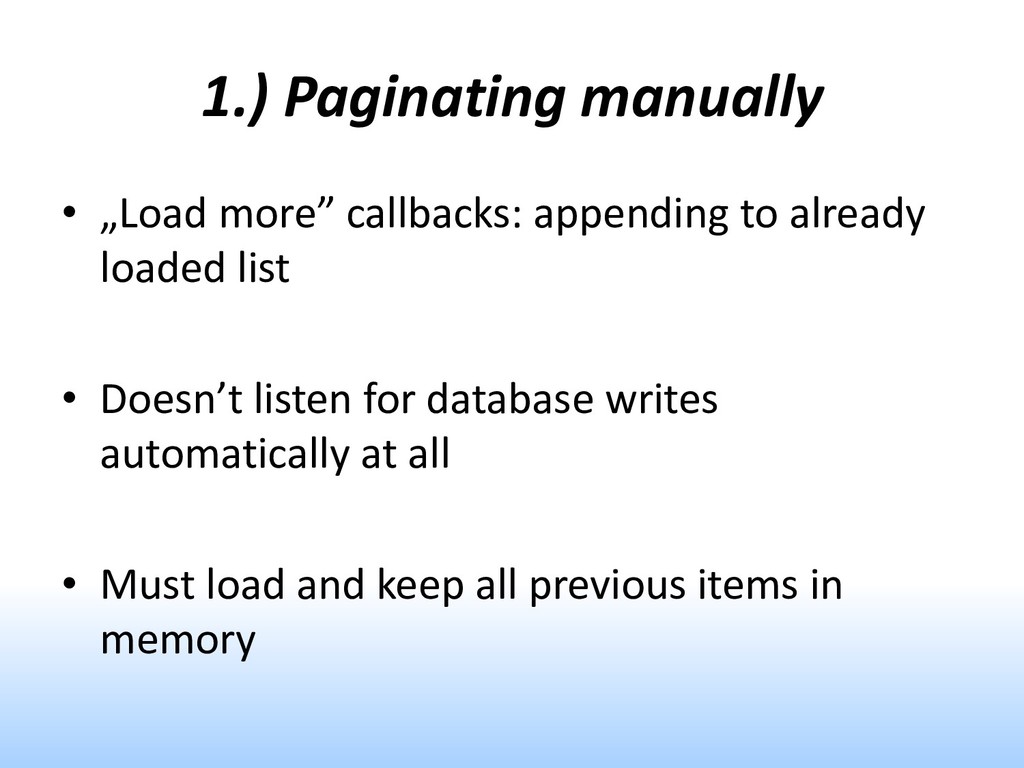

7. 1.) Paginating manually • „Load more” callbacks: appending to already loaded list • Doesn’t listen for database writes automatically at all • Must load and keep all previous items in memory
8. 2.)

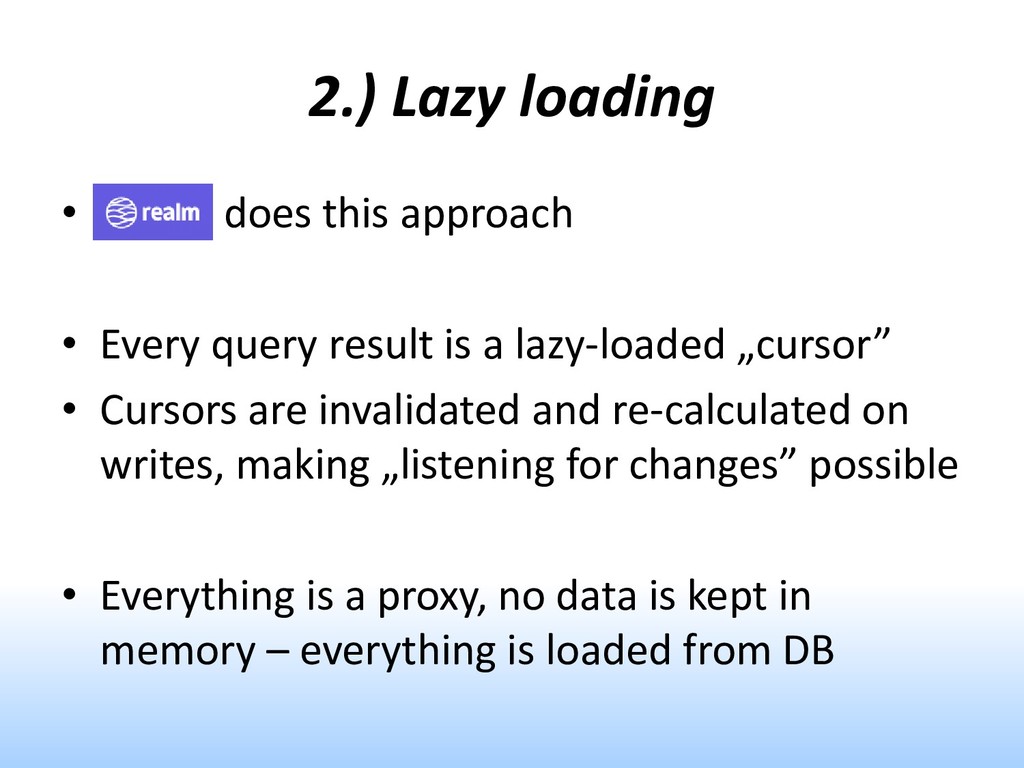

9. 2.) Lazy loading • does this approach • Every query result is a lazy-loaded „cursor” • Cursors are invalidated and re-calculated on writes, making „listening for changes” possible • Everything is a proxy, no data is kept in memory – everything is loaded from DB

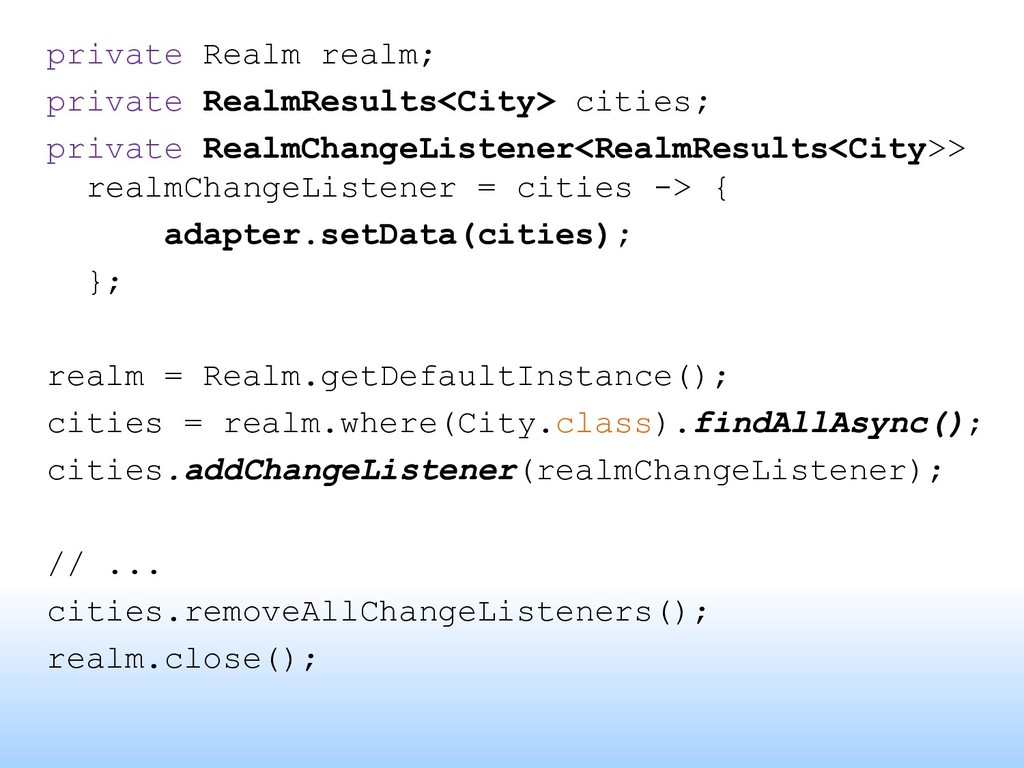

10. private Realm realm; private RealmResults<City> cities; private RealmChangeListener<RealmResults<City>> realmChangeListener = cities -> { adapter.setData(cities); }; realm = Realm.getDefaultInstance(); cities = realm.where(City.class).findAllAsync(); cities.addChangeListener(realmChangeListener); // ... cities.removeAllChangeListeners(); realm.close();

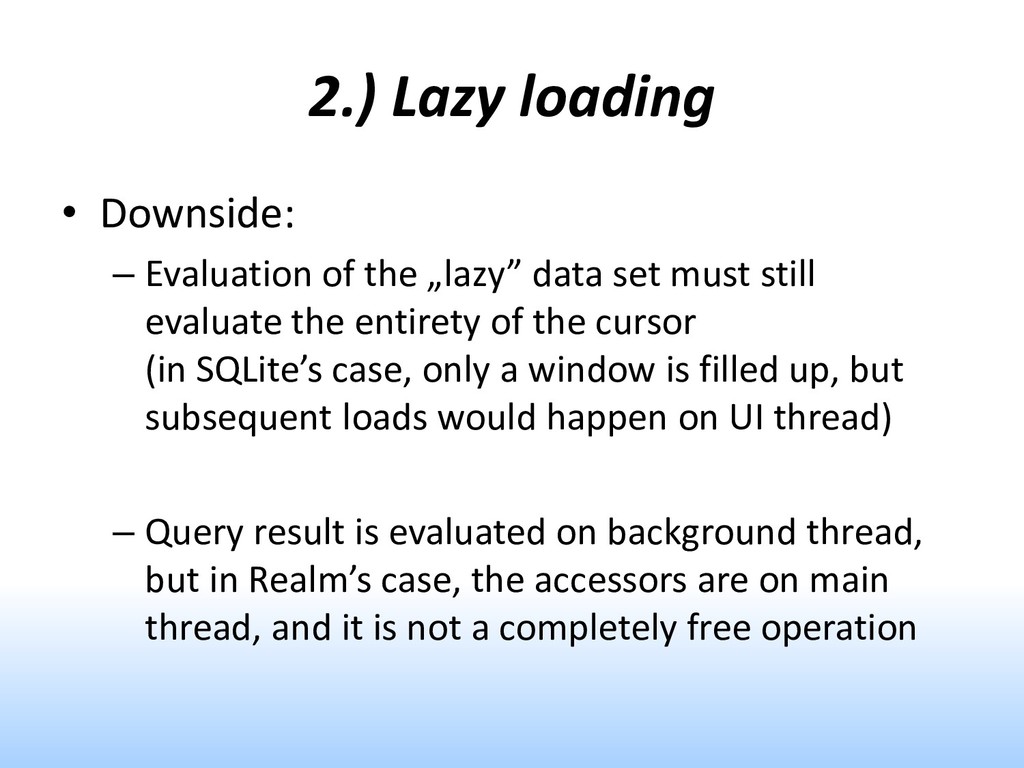

11. 2.) Lazy loading • Downside: – Evaluation of the „lazy” data set must still evaluate the entirety of the cursor (in SQLite’s case, only a window is filled up, but subsequent loads would happen on UI thread) – Query result is evaluated on background thread, but in Realm’s case, the accessors are on main thread, and it is not a completely free operation
12. 3.) ???
13. 3.) Black magic

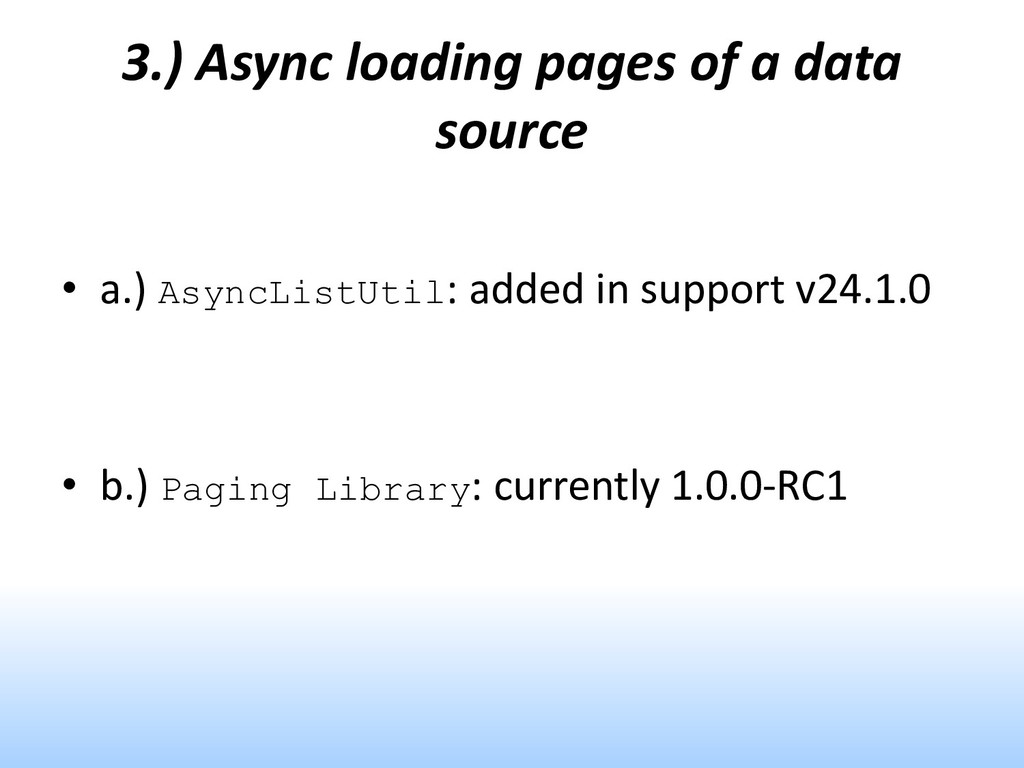

14. 3.) Async loading pages of a data source • a.) AsyncListUtil: added in support v24.1.0 • b.) Paging Library: currently 1.0.0-RC1

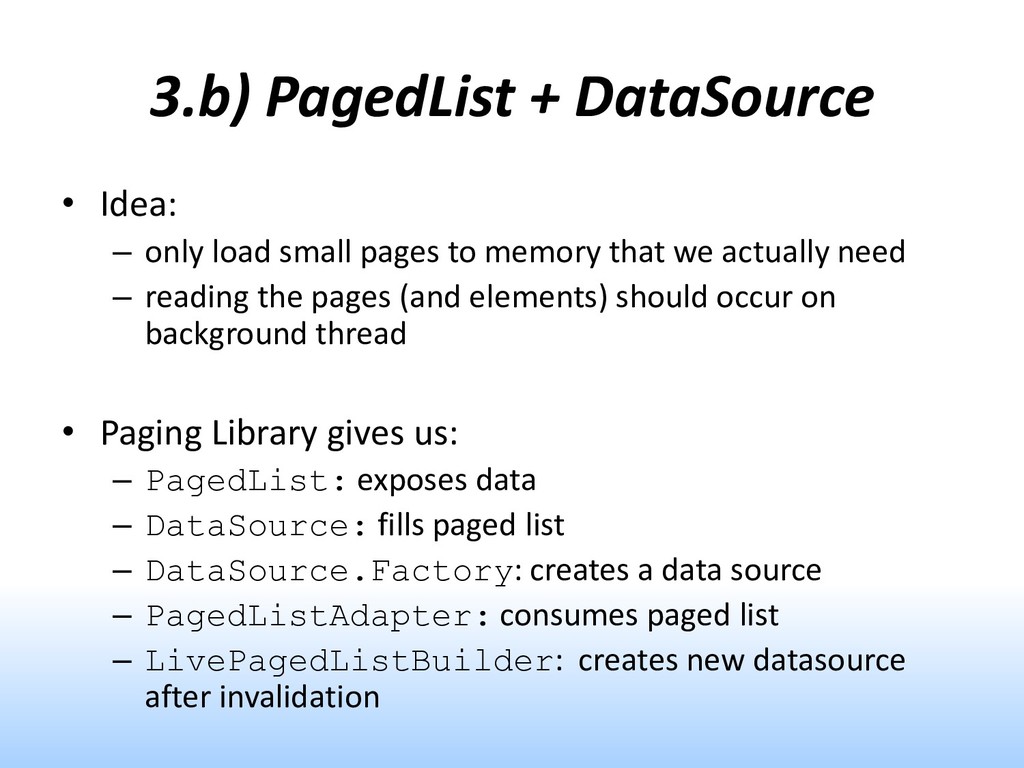

15. 3.b) PagedList + DataSource • Idea: – only load small pages to memory that we actually need – reading the pages (and elements) should occur on background thread • Paging Library gives us: – PagedList: exposes data – DataSource: fills paged list – DataSource.Factory: creates a data source – PagedListAdapter: consumes paged list – LivePagedListBuilder: creates new datasource after invalidation

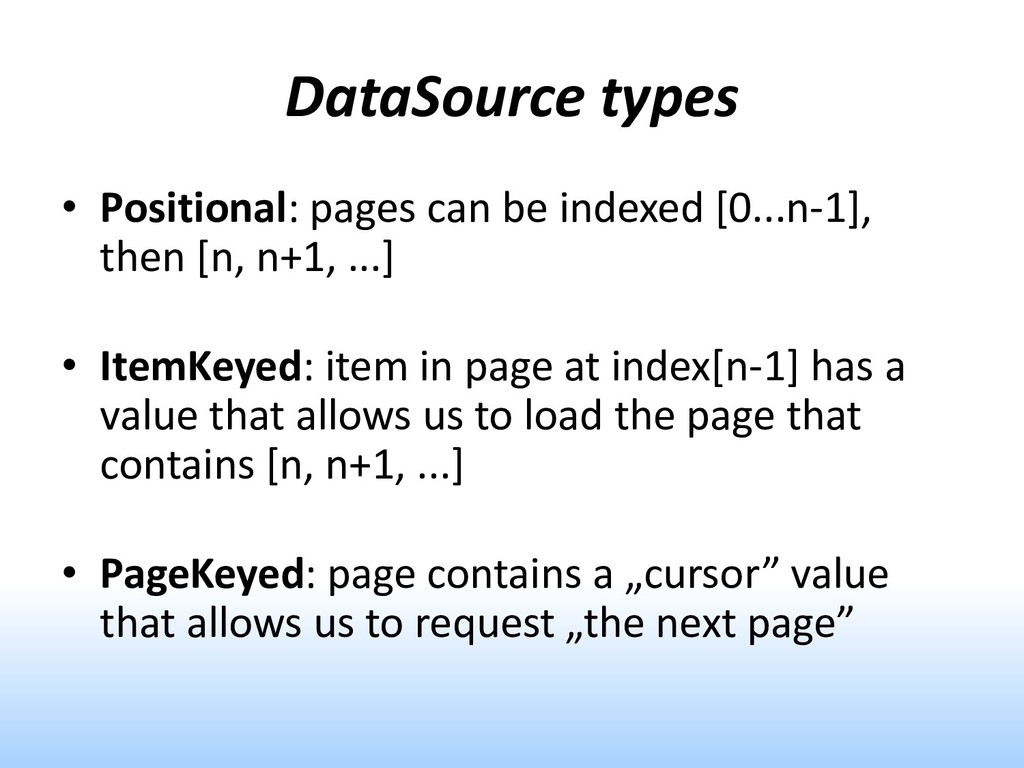

16. DataSource types • Positional: pages can be indexed [0...n-1], then [n, n+1, ...] • ItemKeyed: item in page at index[n-1] has a value that allows us to load the page that contains [n, n+1, ...] • PageKeyed: page contains a „cursor” value that allows us to request „the next page”

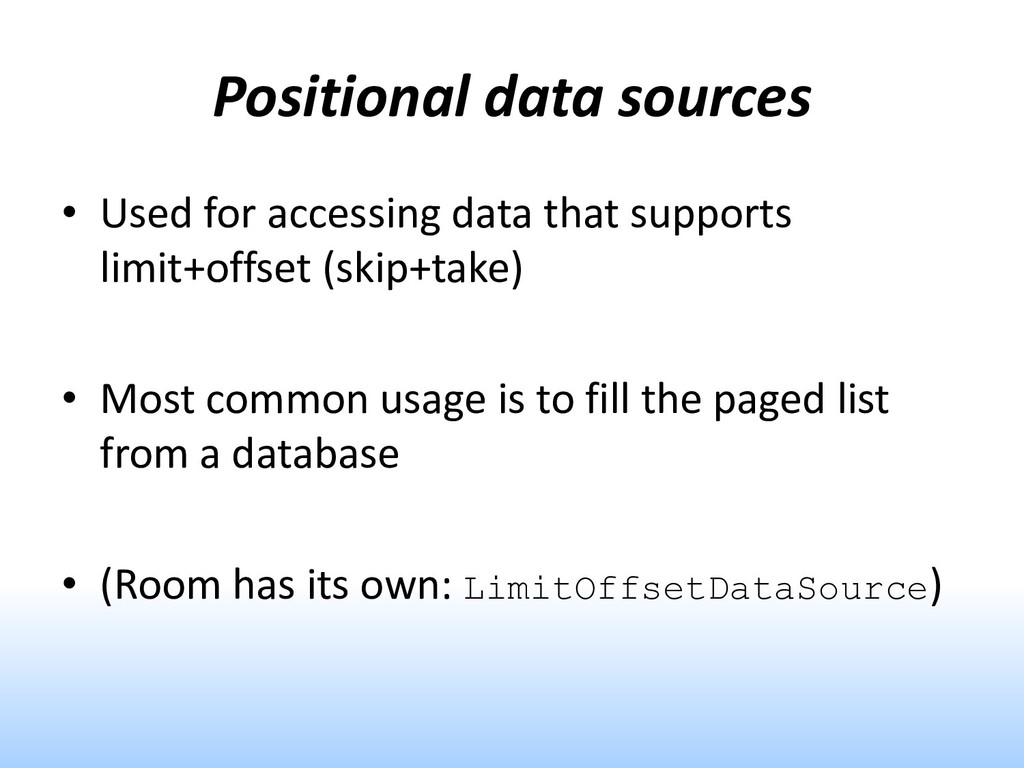

17. Positional data sources • Used for accessing data that supports limit+offset (skip+take) • Most common usage is to fill the paged list from a database • (Room has its own: LimitOffsetDataSource)

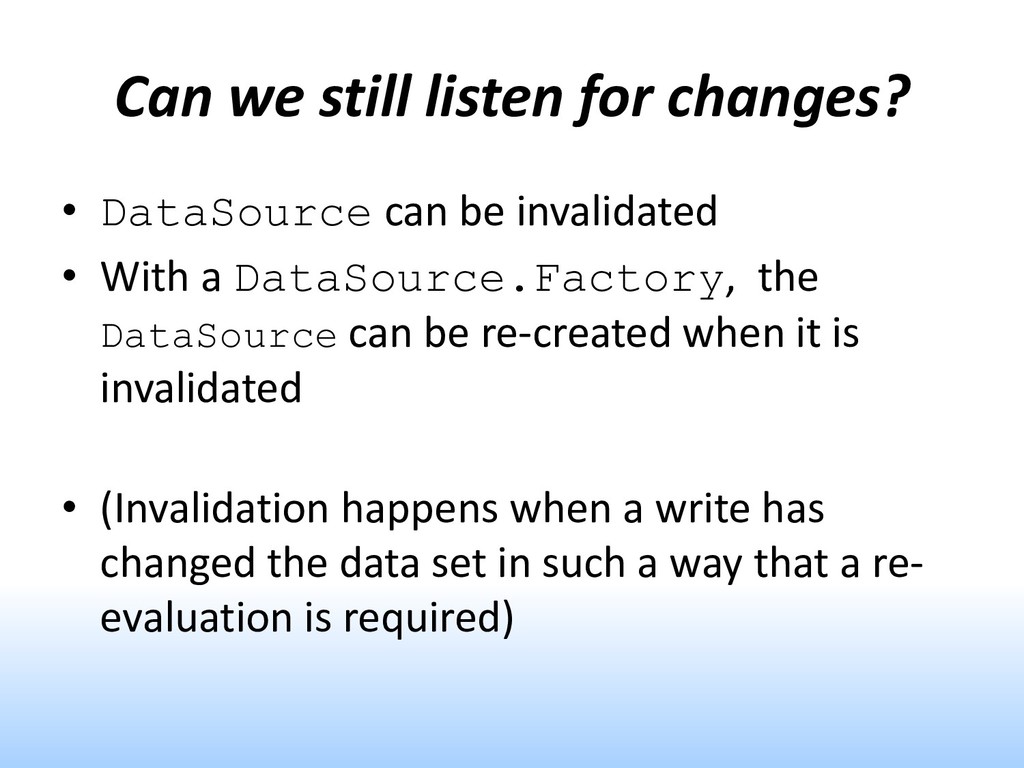

18. Can we still listen for changes? • DataSource can be invalidated • With a DataSource.Factory, the DataSource can be re-created when it is invalidated • (Invalidation happens when a write has changed the data set in such a way that a re- evaluation is required)

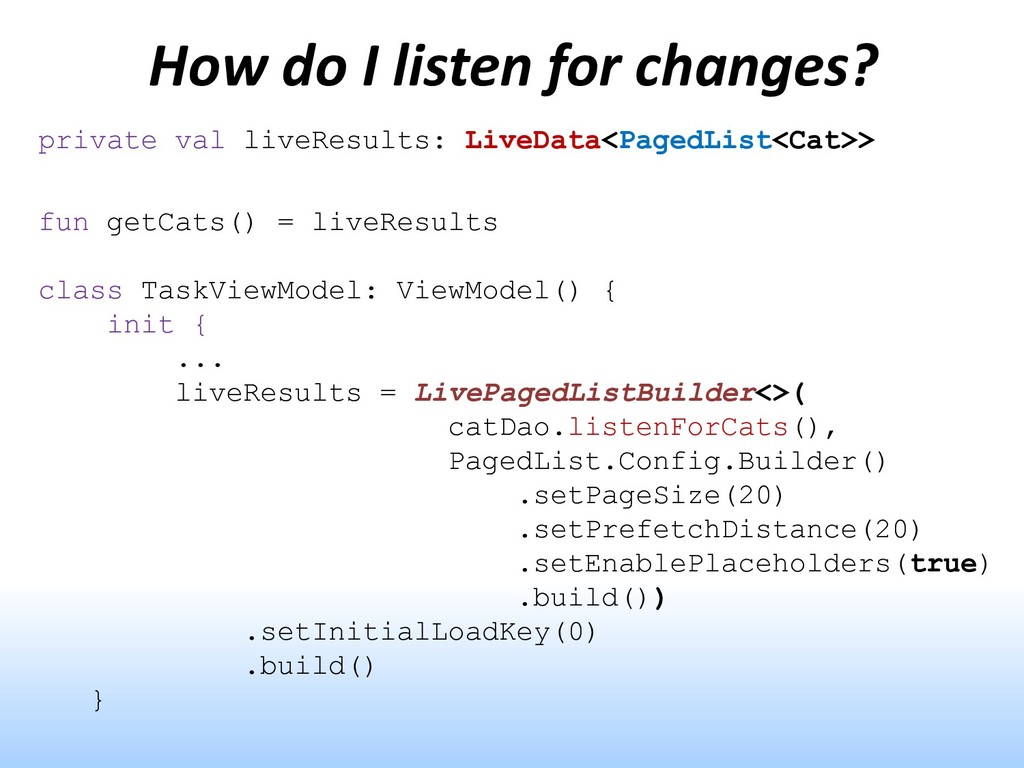

19. How do I listen for changes? private val liveResults: LiveData<PagedList<Cat>> fun getCats() = liveResults class TaskViewModel: ViewModel() { init { ... liveResults = LivePagedListBuilder<>( catDao.listenForCats(), PagedList.Config.Builder() .setPageSize(20) .setPrefetchDistance(20) .setEnablePlaceholders(true) .build()) .setInitialLoadKey(0) .build() }

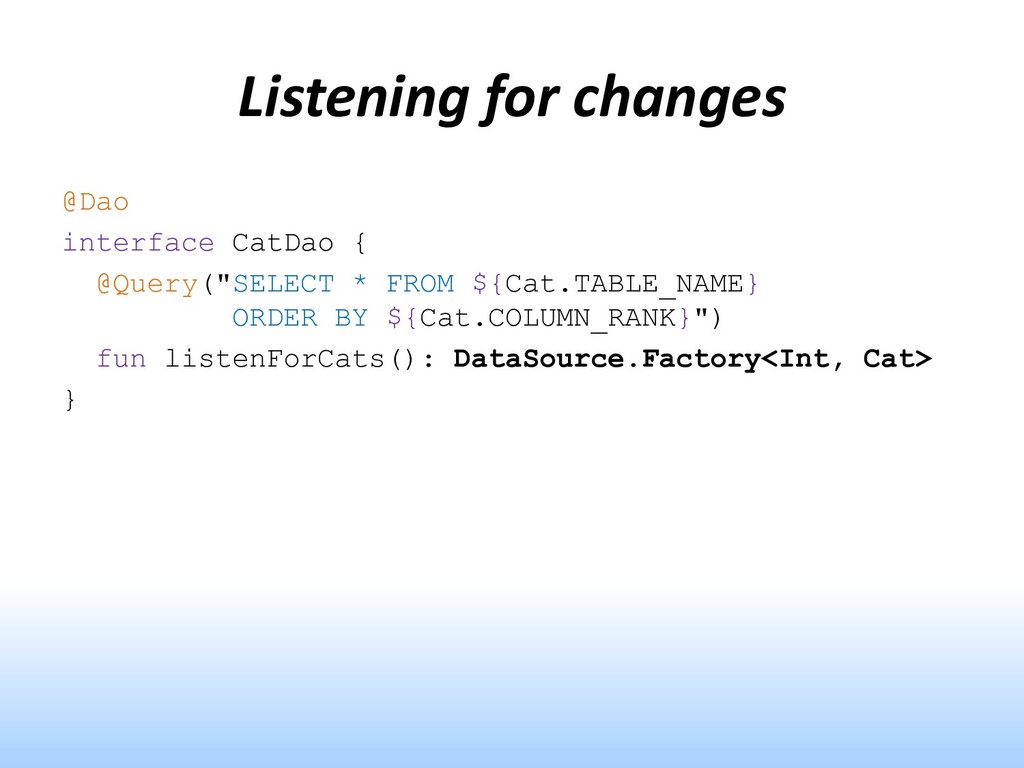

20. Listening for changes @Dao interface CatDao { @Query("SELECT * FROM ${Cat.TABLE_NAME} ORDER BY ${Cat.COLUMN_RANK}") fun listenForCats(): DataSource.Factory<Int, Cat> }
21. class CatFragment: Fragment() { override fun onViewCreated(view: View, icicle: Bundle?) { ... val viewModel = ViewModelProviders.of(this) .get<CatViewModel>(); ... recyclerView.setAdapter(catAdapter); viewModel.getCats().observe(this) { pagedList -> catAdapter.submitList(pagedList) } } } class CatAdapter: PagedListAdapter<Cat, CatAdapter.ViewHolder>(Cat.DIFF_CALLBACK) { override fun onBindViewHolder(holder: ViewHolder, pos: Int) { val cat = getItem(pos); if(cat != null) { // null makes datasource fetch page holder.bind(cat); } } ... }

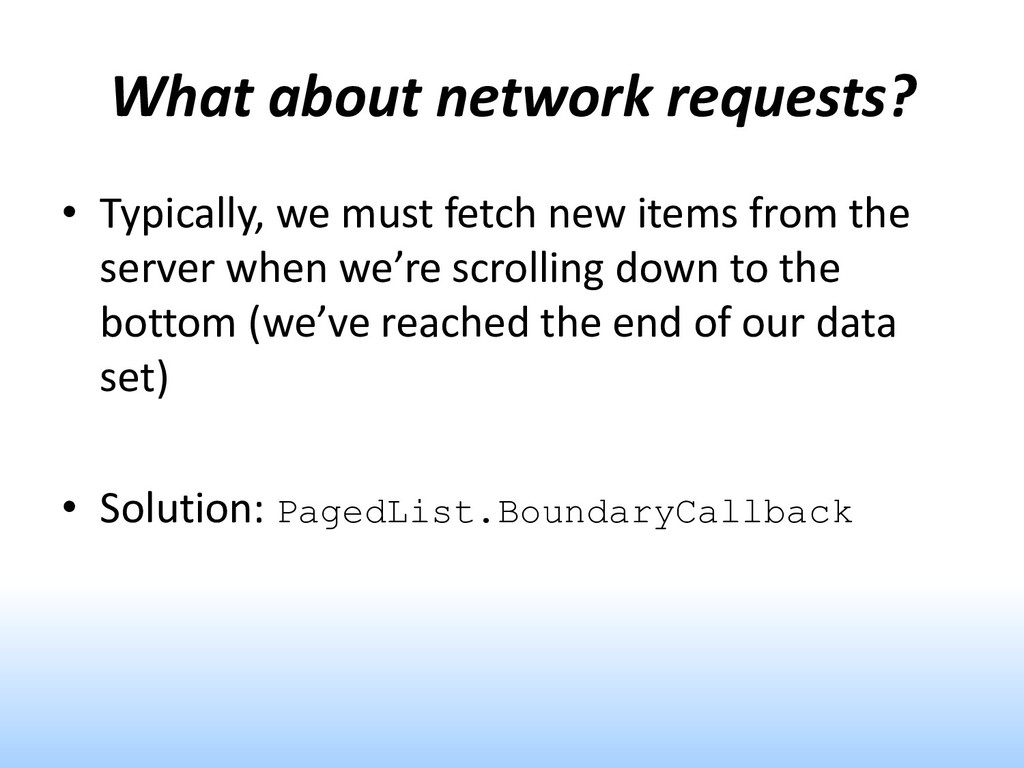

22. What about network requests? • Typically, we must fetch new items from the server when we’re scrolling down to the bottom (we’ve reached the end of our data set) • Solution: PagedList.BoundaryCallback

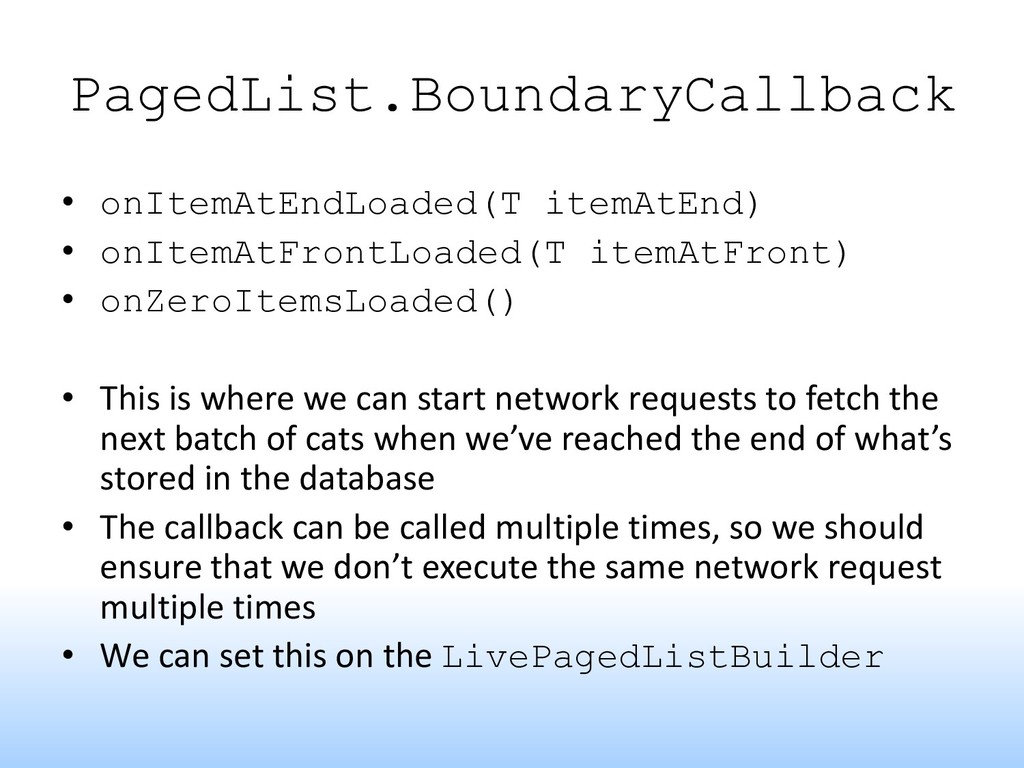

23. PagedList.BoundaryCallback • onItemAtEndLoaded(T itemAtEnd) • onItemAtFrontLoaded(T itemAtFront) • onZeroItemsLoaded() • This is where we can start network requests to fetch the next batch of cats when we’ve reached the end of what’s stored in the database • The callback can be called multiple times, so we should ensure that we don’t execute the same network request multiple times • We can set this on the LivePagedListBuilder

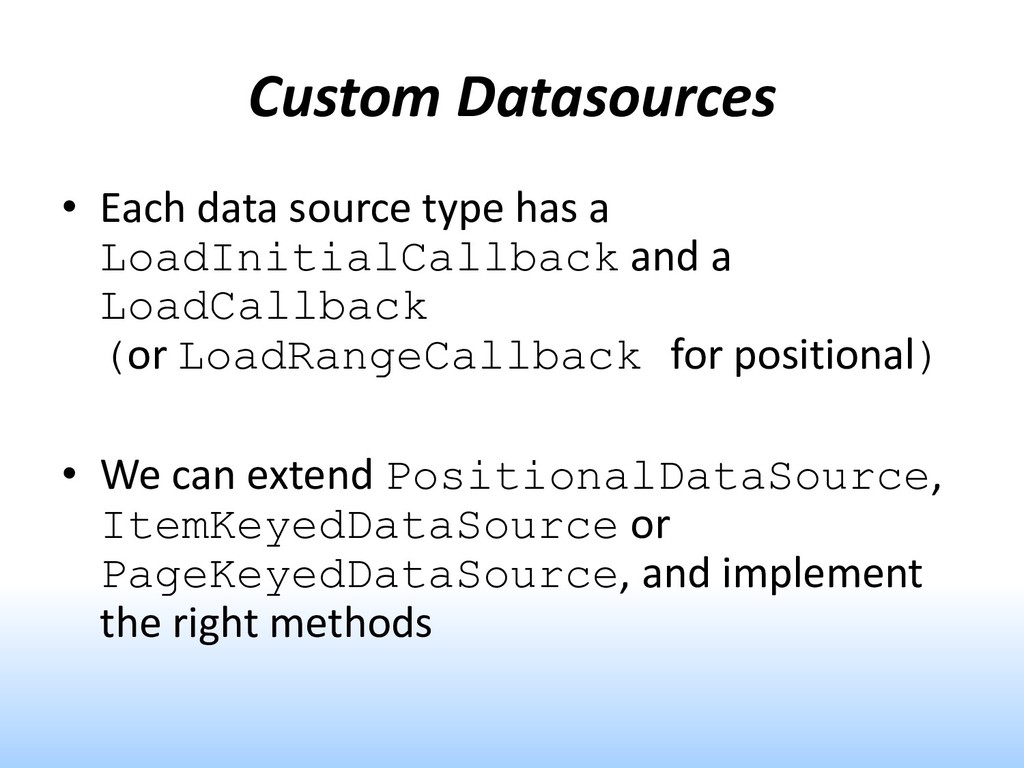

24. Custom Datasources • Each data source type has a LoadInitialCallback and a LoadCallback (or LoadRangeCallback for positional) • We can extend PositionalDataSource, ItemKeyedDataSource or PageKeyedDataSource, and implement the right methods

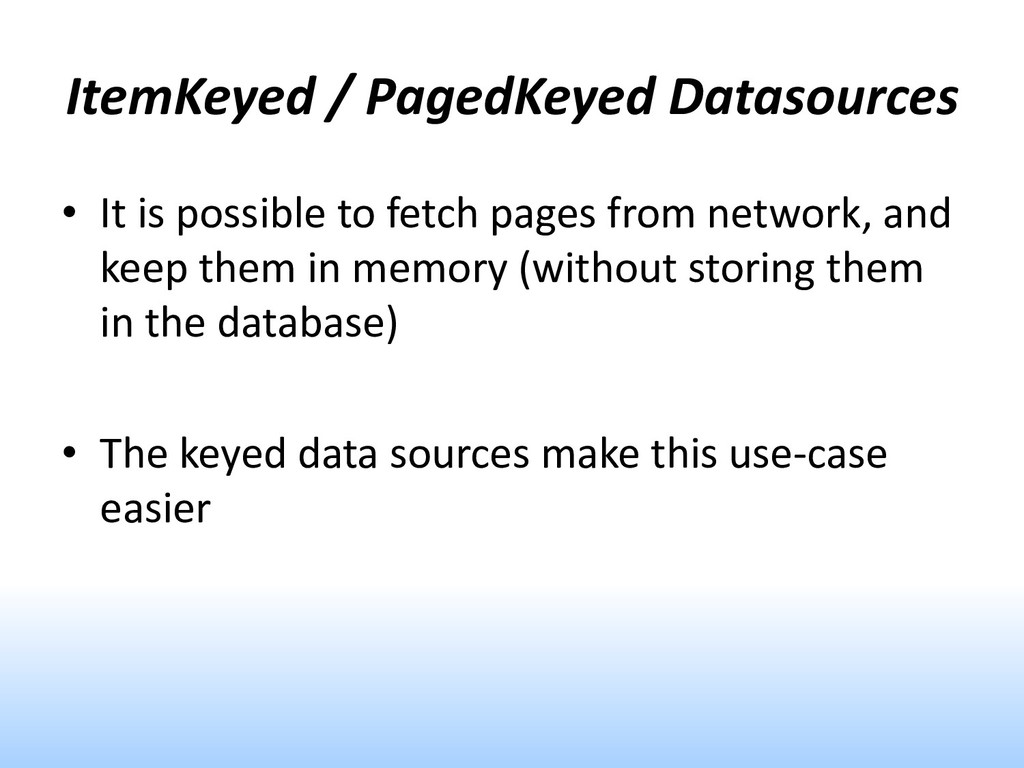

25. ItemKeyed / PagedKeyed Datasources • It is possible to fetch pages from network, and keep them in memory (without storing them in the database) • The keyed data sources make this use-case easier

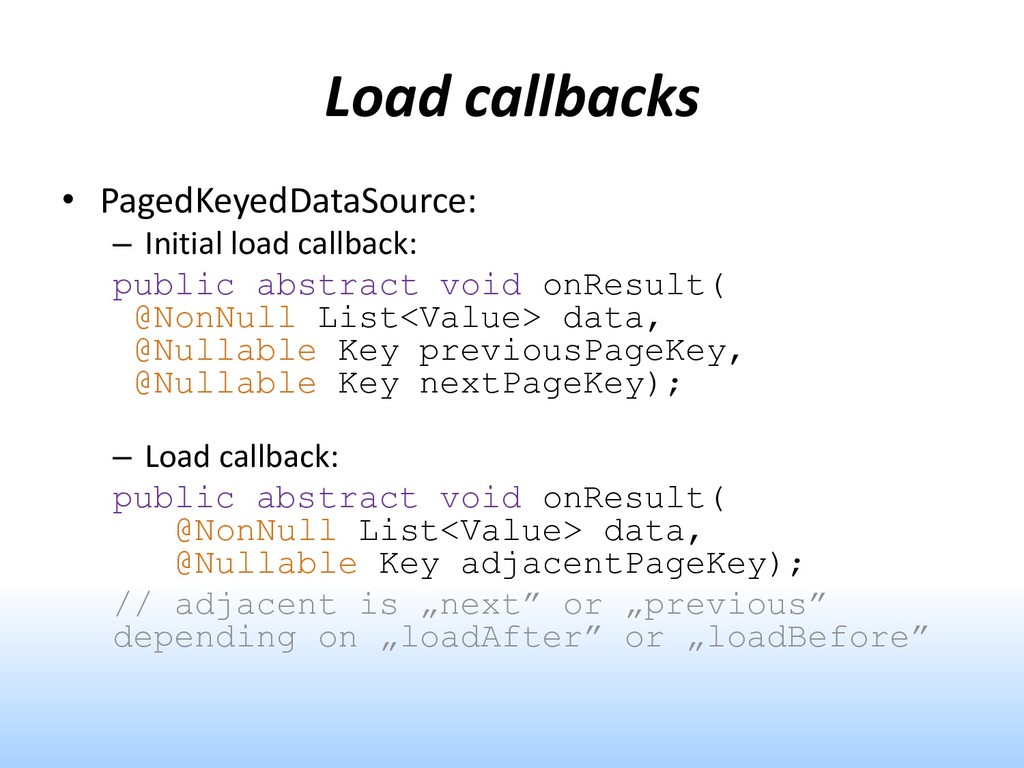

26. Load callbacks • PagedKeyedDataSource: – Initial load callback: public abstract void onResult( @NonNull List<Value> data, @Nullable Key previousPageKey, @Nullable Key nextPageKey); – Load callback: public abstract void onResult( @NonNull List<Value> data, @Nullable Key adjacentPageKey); // adjacent is „next” or „previous” depending on „loadAfter” or „loadBefore”

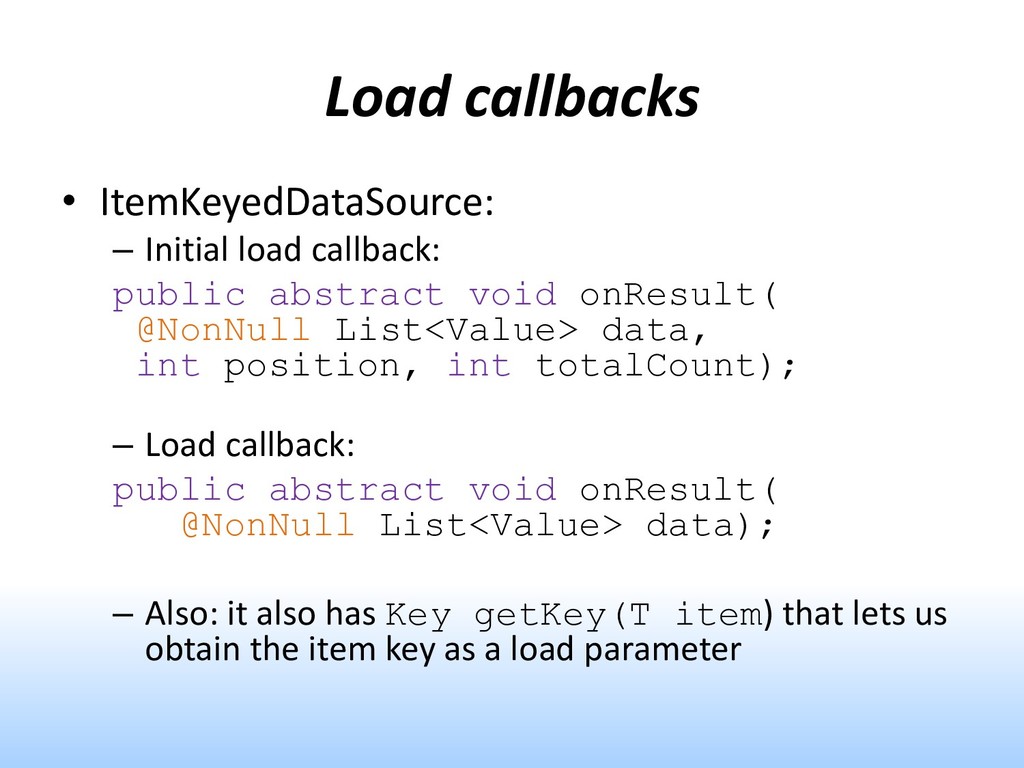

27. Load callbacks • ItemKeyedDataSource: – Initial load callback: public abstract void onResult( @NonNull List<Value> data, int position, int totalCount); – Load callback: public abstract void onResult( @NonNull List<Value> data); – Also: it also has Key getKey(T item) that lets us obtain the item key as a load parameter

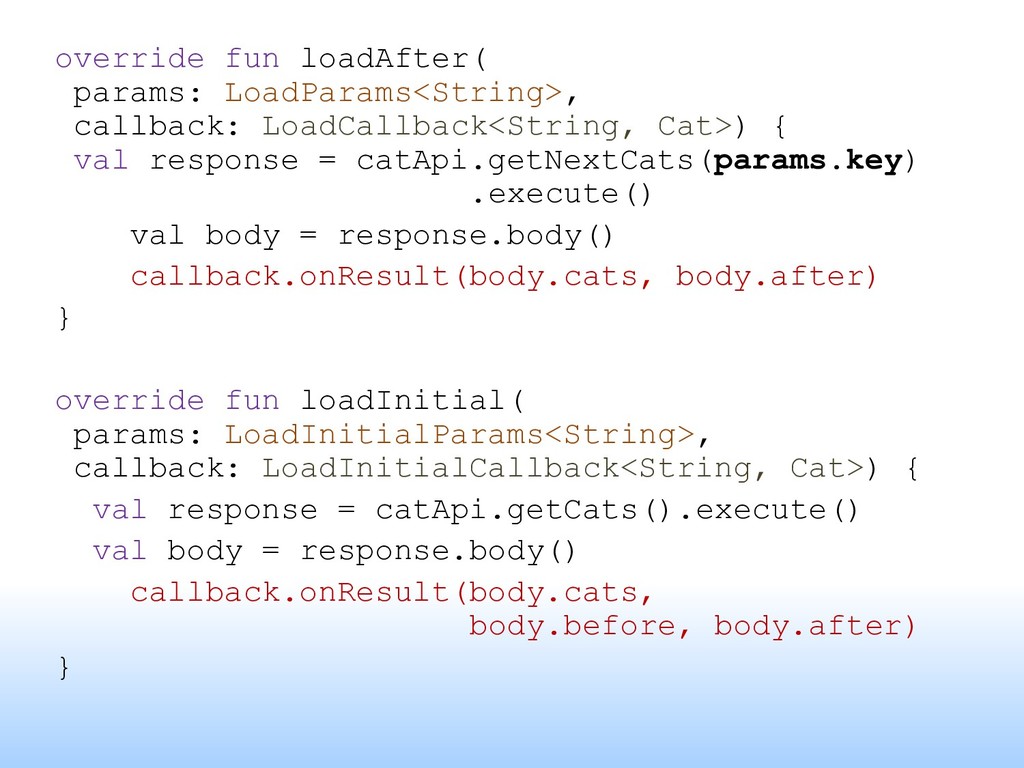

28. override fun loadAfter( params: LoadParams<String>, callback: LoadCallback<String, Cat>) { val response = catApi.getNextCats(params.key) .execute() val body = response.body() callback.onResult(body.cats, body.after) } override fun loadInitial( params: LoadInitialParams<String>, callback: LoadInitialCallback<String, Cat>) { val response = catApi.getCats().execute() val body = response.body() callback.onResult(body.cats, body.before, body.after) }

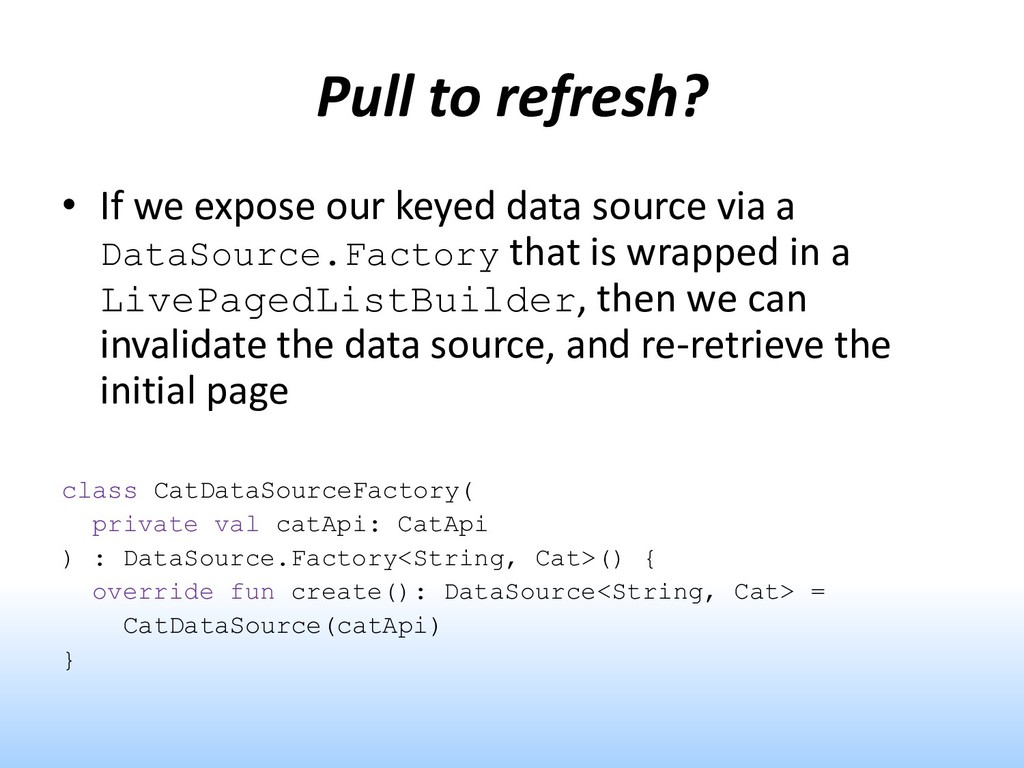

29. Pull to refresh? • If we expose our keyed data source via a DataSource.Factory that is wrapped in a LivePagedListBuilder, then we can invalidate the data source, and re-retrieve the initial page class CatDataSourceFactory( private val catApi: CatApi ) : DataSource.Factory<String, Cat>() { override fun create(): DataSource<String, Cat> = CatDataSource(catApi) }

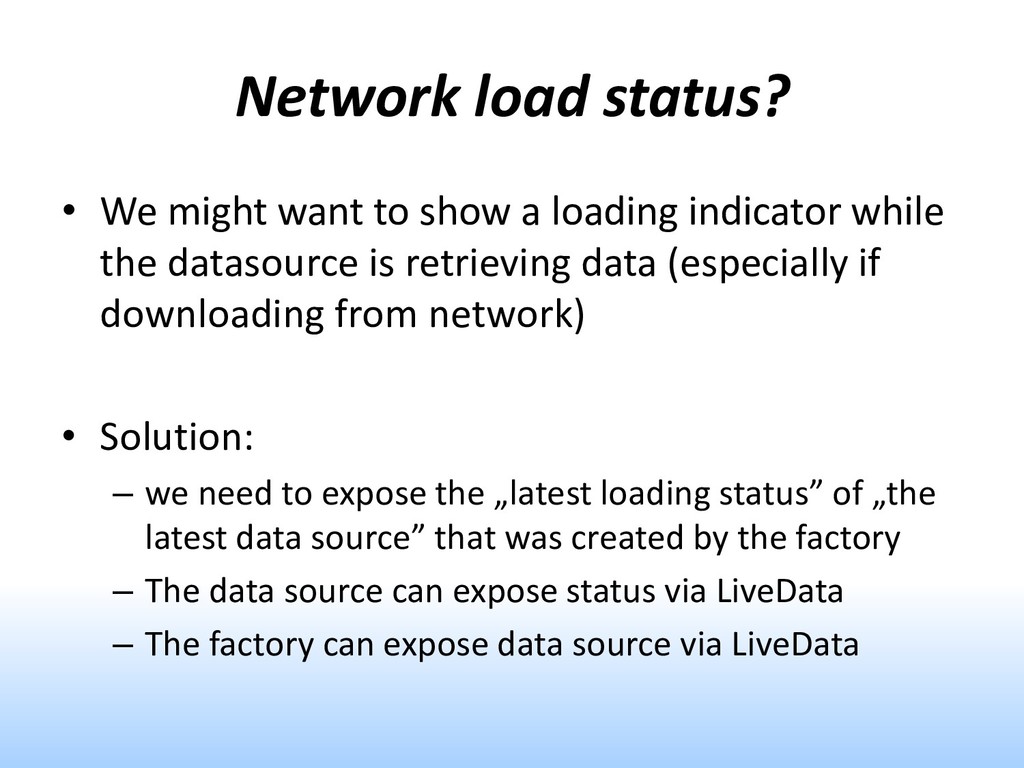

30. Network load status? • We might want to show a loading indicator while the datasource is retrieving data (especially if downloading from network) • Solution: – we need to expose the „latest loading status” of „the latest data source” that was created by the factory – The data source can expose status via LiveData – The factory can expose data source via LiveData

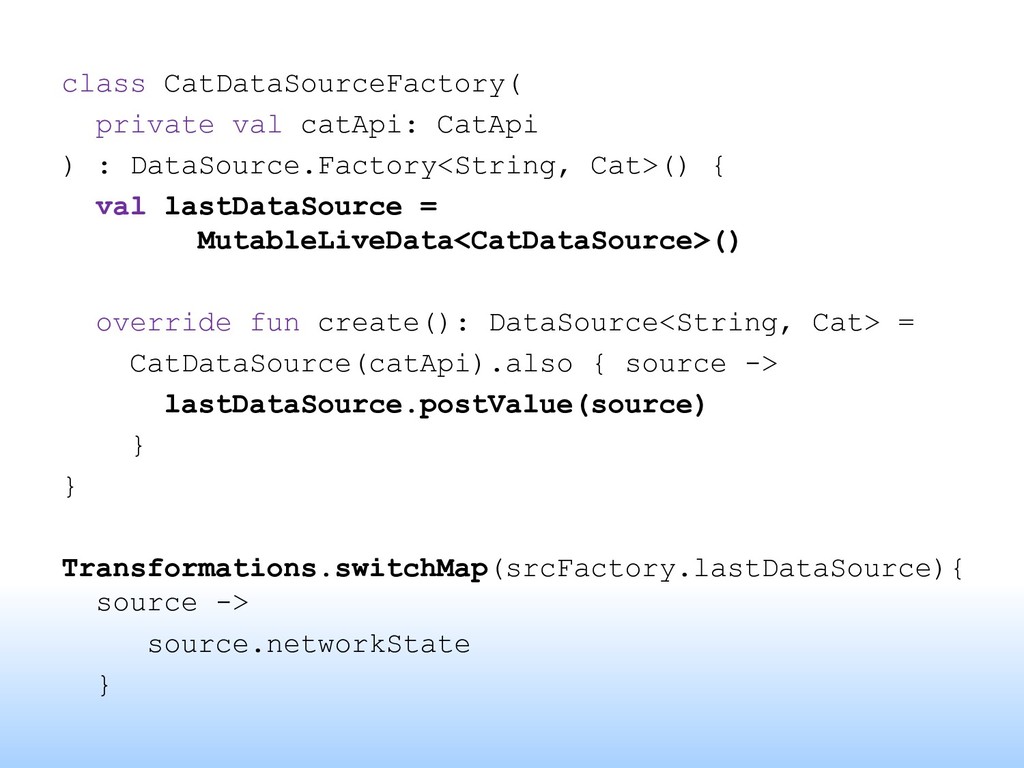

31. class CatDataSourceFactory( private val catApi: CatApi ) : DataSource.Factory<String, Cat>() { val lastDataSource = MutableLiveData<CatDataSource>() override fun create(): DataSource<String, Cat> = CatDataSource(catApi).also { source -> lastDataSource.postValue(source) } } Transformations.switchMap(srcFactory.lastDataSource){ source -> source.networkState }

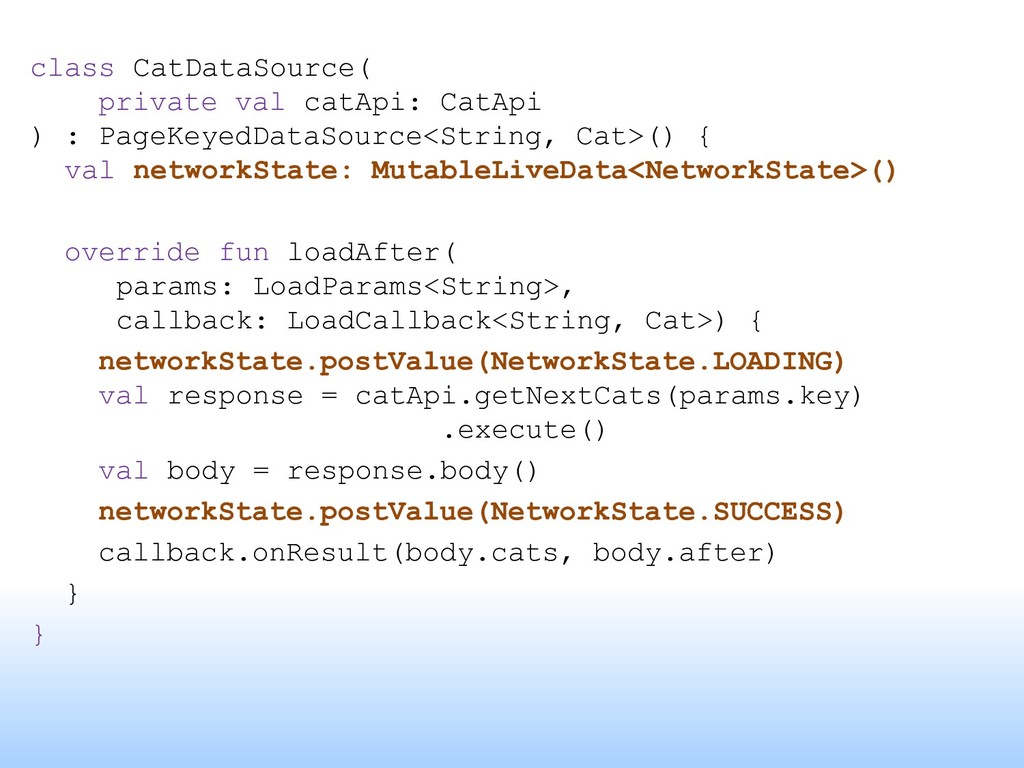

32. class CatDataSource( private val catApi: CatApi ) : PageKeyedDataSource<String, Cat>() { val networkState: MutableLiveData<NetworkState>() override fun loadAfter( params: LoadParams<String>, callback: LoadCallback<String, Cat>) { networkState.postValue(NetworkState.LOADING) val response = catApi.getNextCats(params.key) .execute() val body = response.body() networkState.postValue(NetworkState.SUCCESS) callback.onResult(body.cats, body.after) } }

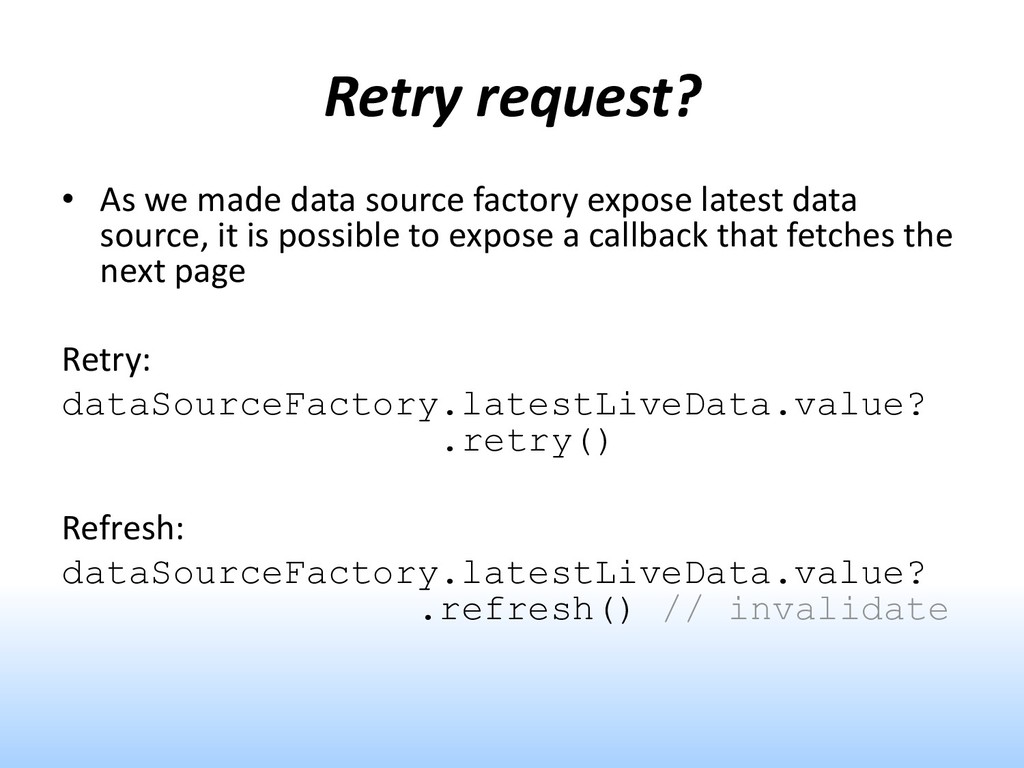

33. Retry request? • As we made data source factory expose latest data source, it is possible to expose a callback that fetches the next page Retry: dataSourceFactory.latestLiveData.value? .retry() Refresh: dataSourceFactory.latestLiveData.value? .refresh() // invalidate

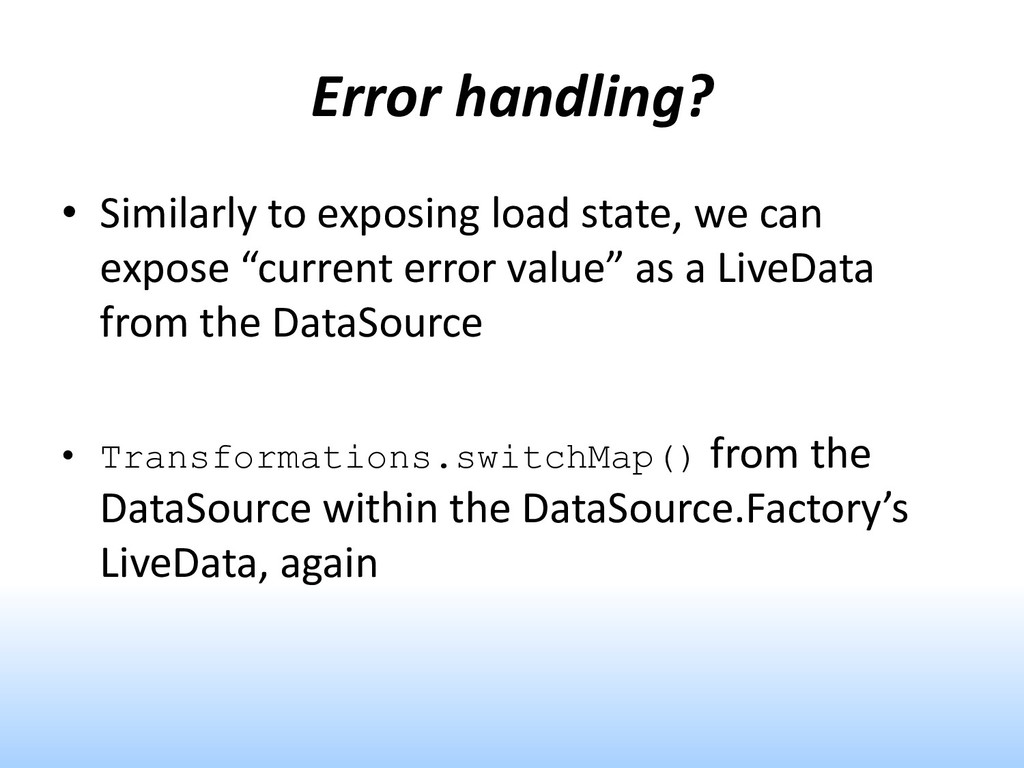

34. Error handling? • Similarly to exposing load state, we can expose “current error value” as a LiveData from the DataSource • Transformations.switchMap() from the DataSource within the DataSource.Factory’s LiveData, again
35. We have everything! 

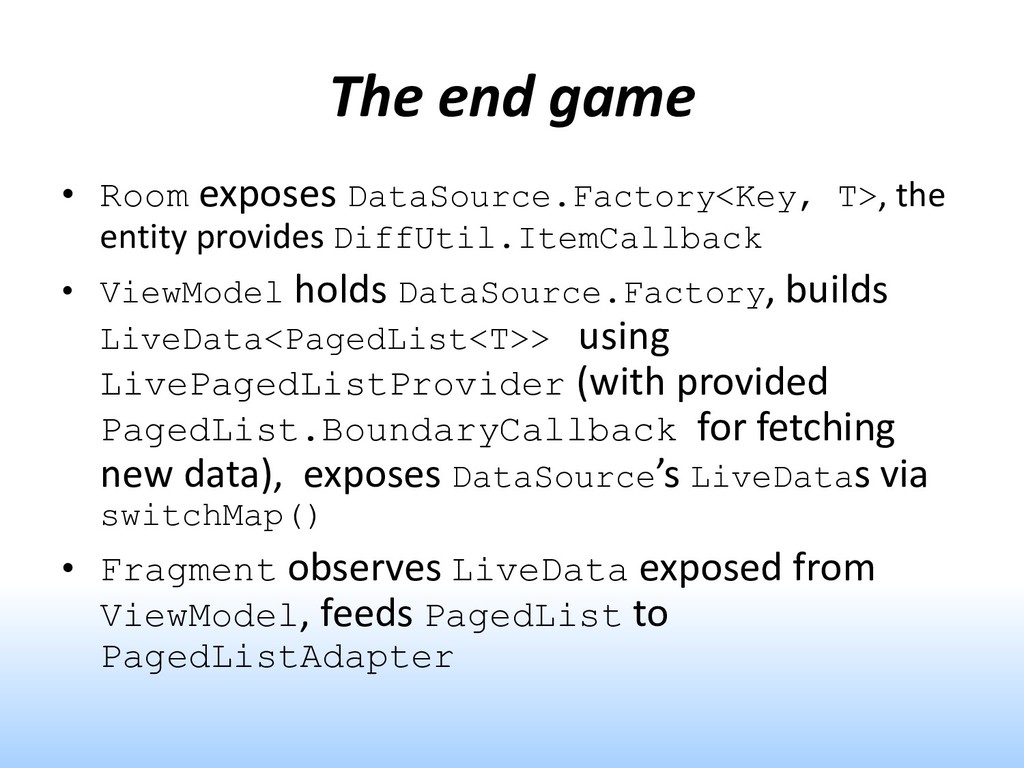

36. The end game • Room exposes DataSource.Factory<Key, T>, the entity provides DiffUtil.ItemCallback • ViewModel holds DataSource.Factory, builds LiveData<PagedList<T>> using LivePagedListProvider (with provided PagedList.BoundaryCallback for fetching new data), exposes DataSource’s LiveDatas via switchMap() • Fragment observes LiveData exposed from ViewModel, feeds PagedList to PagedListAdapter

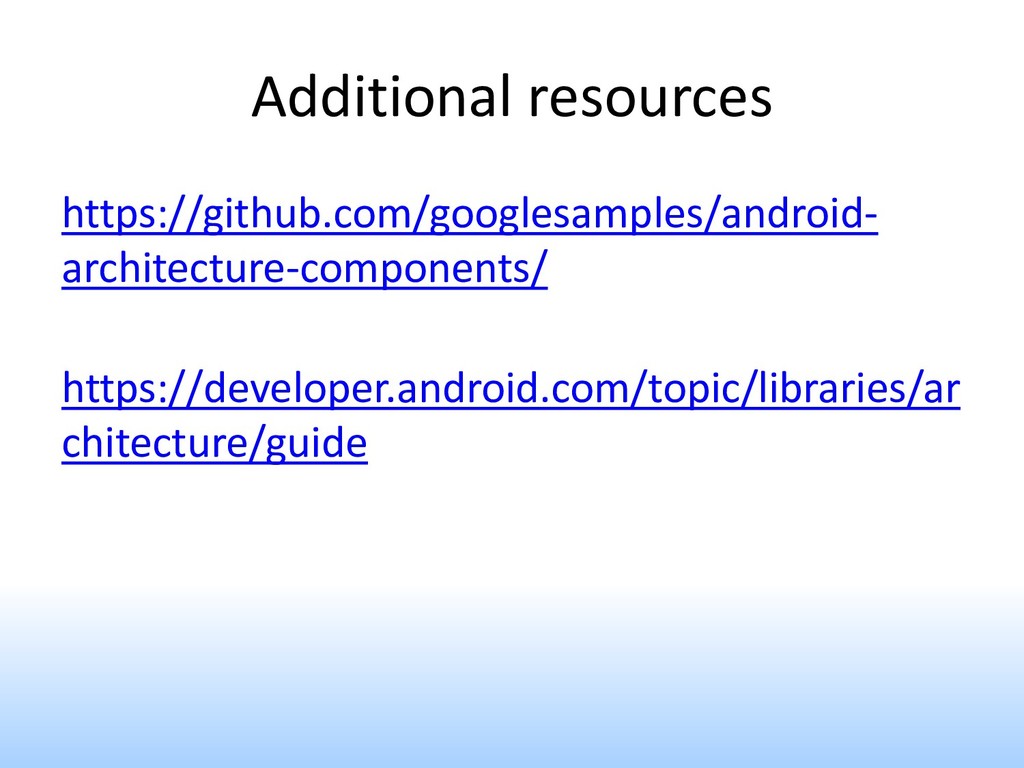

37. Additional resources https://github.com/googlesamples/android- architecture-components/ https://developer.android.com/topic/libraries/ar chitecture/guide
38. Thank you for your attention! Q/A?
