Salt managed network boot

openSUSE Conference 2018 talk about network boot managed by SaltStack Salt configuration management.

Transcript

1. Ondrej Holecek (aaannz) Software Engineer @ SUSE oholecek@suse.com Saltboot Salt managed PXE boot
2. Agenda • Network boot • Salt • Saltboot – client side – server side
3. Network boot
4. Network boot • A method of having computer boot using only its network card • Purpose? – Thin client – Computer provisioning
5. Network boot • A method of having computer boot using only its network card • Purpose? – Thin client – Computer provisioning • How does it work? – BIOS → PXE → DHCP → Download NBP via TFTP → NBP → Boot
6. Preboot eXecution Environment (PXE) • Part of the NIC firmware or UEFI • Client side configuration – enable PXE/Network boot option in BIOS/UEFI • Server side configuration – DHCP – DHCP response must include PXE related information
7. DHCP with network boot support • subnet configuration with location of tftp server and NBP file option domain-name-servers 1.1.1.1, 8.8.8.8; default-lease-time 86400; max-lease-time 604800; authoritative; subnet 192.168.1.0 netmask 255.255.255.0 { range 192.168.1.70 192.168.1.100; filename "pxelinux.0"; next-server 192.168.1.50; option subnet-mask 255.255.255.0; option broadcast-address 192.168.1.255; option routers 192.168.1.1; }
8. TFTP, PXELINUX (NBD) • Trivial FTP for Network Boot Program provisioning – Default configuration is usually fine • PXELINUX (part of syslinux package) – /usr/share/syslinux/pxelinux.0 → /srv/tftpboot/pxelinux.0
9. pxelinux.cfg • /srv/tftpboot/pxelinux.cfg: DEFAULT netboot LABEL netboot kernel linux append initrd=initrd.gz panic=60 ramdisk_size=710000 ramdisk_blocksize=4096 vga=0x314 splash=silent console=tty0 console=ttyS0,115200 ramdisk_size=1310000 IPAPPEND 3 LABEL localboot localboot 0
10. Boot image • netboot image – kernel – netboot initrd • downloaded via tftp
11. Salt
12. SaltStack Salt “The most intelligent, powerful and flexible open source software for remote execution, configuration automation, cloud control and event-driven orchestration”
13. SaltStack Salt “The most intelligent, powerful and flexible open source software for remote execution, configuration automation, cloud control and event-driven orchestration” • Keywords: – event driven – remote execution – configuration automation
14. Architecture • Salt Master – Central node
15. Architecture • Salt Master • Salt Minions – Managed systems
16. Architecture • Salt Master • Salt Minion • Execution Modules – Ad hoc commands
17. Architecture • Salt Master • Salt Minion • Execution Modules • States – Representation of system configuration
18. Architecture • Salt Master • Salt Minion • Execution Modules • States • Pillars – Data stored on the Salt Master – Treated as trusted
19. Architecture • Salt Minion • Execution Modules • States • Pillars • Grains – Variable provided by minions – Not necessarily trustworthy
20. Architecture • Execution Modules • States • Pillars • Grains • Runners – Modules running on Salt Master – Orchestrate runner for coordination across many minions
21. Architecture • States • Pillars • Grains • Runners • Reactor – Predefined and custom events – Trigger states based on events
22. Saltboot
23. Saltboot stack • Client – Initrd – Grains, Events • Server – States, Runners, Execution modules, Reactor handlers – Pillars
24. Saltboot Initrd aka Salt boot control • LinuxRC script ends with system boot – need a way to stop the execution
25. Saltboot Initrd aka Salt boot control • LinuxRC script ends with system boot – need a way to stop the execution → insert start of salt-minion in the process • salt-minion must be started as foreground process
26. Saltboot Initrd aka Salt boot control • salt-minion blocks linuxrc execution until it is told to terminate • control of the machine is now handled to Salt master → Last command to continue boot must be salt-minion termination
27. Salt minion registration • By default minion wait until approved on master • Successful registration ends with generic minion event `salt/minion/*/start` • Salt master reactor configuration: reactor: - 'salt/minion/*/start': - salt://saltboot-reactor/minion_start.sls
28. saltboot-reactor/minion_start.sls • Salt master saltboot entry point disk_partitioned: module.run: - name: partition.mkpartfs - device: /dev/sda - part_type: primary - fs_type: btrfs - start: 2048 - end: 65535 stop_minion: cmd_run: - name: “kill `cat /var/run/salt-minion.pid`” - require: - module: disk_partitioned
29. Jinja for the rescue {% set disks = pillar.get(‘disks’) %} {% set start = 2048 %} {% for d, s in disks.items() %} disk_{{ p }}_partitioned: module.run: - name: partition.mkpartfs - device: {{ p }} - part_type: primary - fs_type: btrfs - start: {{ start }} - end: {{ s }} {% start = start + s %} {% endfor %} …
30. Pythonado • _states/saltboot.py → • saltboot.sls: def check_existing(partitions, device): ok = True existing = __salt__['partition.list'](device) for idx, part_id in enumerate(sorted(partitions)): p['exists'] = False for enum in existing['partitions'].keys(): e = existing['partitions'][enum] if e[‘end’] - e['start'] != p[‘size’]: ok = False if not ok: repartition_disk(partitions, device) ... check_partitions: saltboot.check_existing: - partitions: {{ partitions }} - device: {{ d }} ...

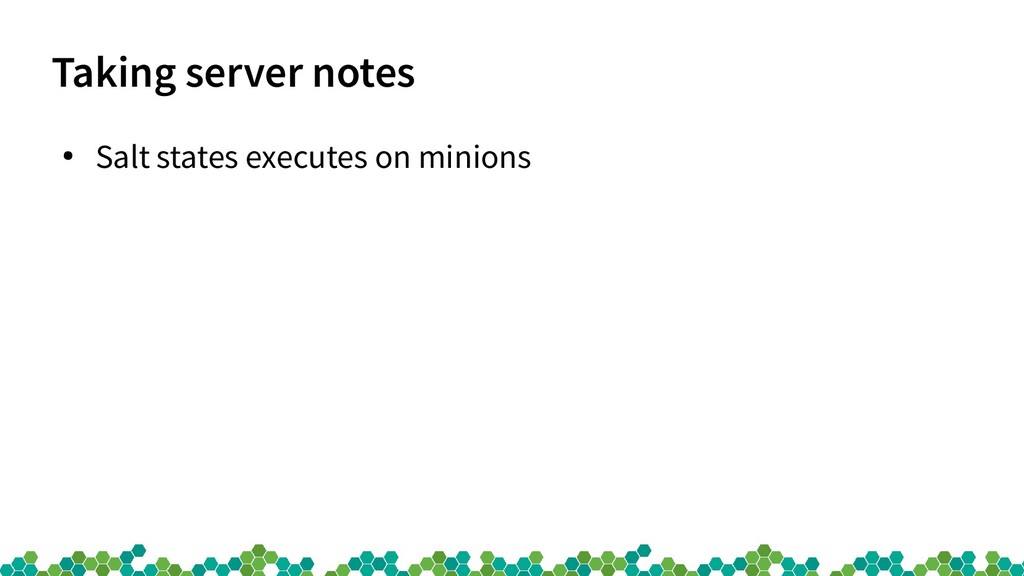

31. Taking server notes • Salt states executes on minions
32. Taking server notes • Salt states executes on minions → send event to start a runner … {% set name = “groot” %} i_am_{{ name }}: module.run: - name: event.send - tag: Home/Machines/Update - with_env: False - with_grains: True ...
33. Taking server notes • Salt states executes on minions → send event to start a runner … {% set name = “groot” %} i_am_{{ name }}: module.run: - name: event.send - tag: Home/Machines/Update - with_env: False - with_grains: True ... reactor: - 'salt/minion/*/start': - salt://saltboot-reactor/minion_start.sls - ‘Home/Machine/Update’: - salt://saltboot-reactor/machinelist.sls machinelist: salt.runner: - name: salt.cmd - fun: file.append - path: “/srv/mymachinelist.list” - args: “minion_id: {{ minion_id }}, {{ grains }}”
34. Sweet result
41. Q&A
