Exploring the power of CDI in 50 minutes

Exploring the power of CDI in 50 minutes

My Session at Java2Days 2016 @ Sofia, Bulgaria

http://2016.java2days.com/agenda/

Bc1014dd893a5888c57be34985c70906?s=128

Ahmad Gohar

November 17, 2016
Tweet

Transcript

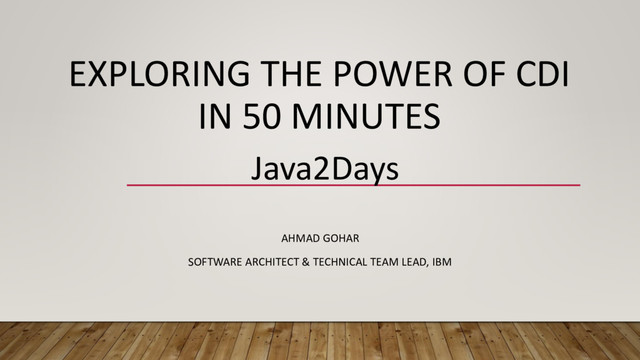

  1. EXPLORING THE POWER OF CDI IN 50 MINUTES AHMAD GOHAR

    SOFTWARE ARCHITECT & TECHNICAL TEAM LEAD, IBM Java2Days
  2. GOHAR , AHMAD NABIL • Software Architect & Technical Team

    Lead (9Y.) | CIC, IBM. • Duke Award Winner 2016. • IBM/Open Group Certified Experienced IT Specialist. • M.Sc. in Information System, FCI, Egypt. • MIBA in Global Management, ESLSCA, France. • OCEJPA | OCPWCD | OCPJP | OCP PL/SQL | MCP(s). • JAVA Community Process (JCP) Member. • Blogger Author and Academic Researcher.
  3. None
  4. None
  5. INTRODUCTION TO CDI JSR 299: Contexts and Dependency Injection for

    the Java EE platform
  6. Q : What is the old name of the CDI

    ?
  7. WHAT IS CDI (JSR 299)? • Java Specification Requests •

    JSR is a document of a proposed specification used in the Java Community Process (JCP). • Classes specify what their dependencies • NOT how to obtain them (container responsibility)
  8. COMMON DEPENDENCY INJECTION FRAMEWORKS • Spring • Guice • Seam

    • EJB 3.X • CDI
  9. CDI IS MORE THAN A FRAMEWORK • It’s a whole,

    rich programming model • The theme of CDI is loosecoupling with strong typing. • A bean specifies only the type and semantics of other beans it depends upon • It need not be aware of the actual lifecycle, concrete implementation, threading model or other clients of any bean it interacts with • Even better, the concrete implementation, lifecycle and threading model of a bean may vary according to the deployment scenario, without affecting any client • This loose-coupling makes your code easier to maintain
  10. GETTING OUR FEET WET CDI First Example

  11. • http://ansgohar.blogspot.com/2016/09/create-first-cdi-application.html

  12. • http://ansgohar.blogspot.com/2016/09/create-first-cdi-application.html

  13. AUTOMATIC BEAN DISCOVERY • • How can container scan bean?

    • By detecting the presence of “beans.xml” in application archive • For WAR file, the “beans.xml” is under WEB-INF directory • For JAR file, the “beans.xml” is under META-INF directory • • “beans.xml” • It is not for declaring beans (like in Spring) • It can be empty • Used for some other purposes (like declaring an alternative)
  14. GETTING OUR FEET WET EJB Simple Example

  15. None
  16. GETTING OUR FEET WET Injecting EJB using CDI

  17. None
  18. CDI BEANS & INJECTION POINT CDI Beans

  19. WHAT IS A BEAN ANYWAY? • Many forms of a

    “bean” already exist. So which bean arewe talking about? • JSF bean • EJB bean • Spring bean • Seam bean • Guice bean • CDI bean • Java EE needs a unified bean definition • Managed Bean 1.0 specification in Java EE 6 provides it
  20. WHAT ABOUT MANAGED, EJB, REST, CDI BEAN? • Managed Beans

    are container-managed POJOs • Lightweight component model • Instances are managed by the container • You could see everything as a Managed Bean with extra services • • An EJB is a Managed Bean with • Transaction support • Security • Thread safety • Persistence • • A REST service is a Managed Bean with • HTTP support • • A CDI bean is a Managed Bean with • CDI services (explained in the next slide)
  21. CDI BEANS & INJECTION POINT Injection Point

  22. MANAGED BEAN  CDI BEAN

  23. Q : How to Inject CDI Beans (Injection Point) ?

  24. CDI INJECTION POINT • Use @Inject <Java-Type> <variable> for field

    injection • <Java-Type> can be Java interface • Bean can be injected at “Injection points” • Field • Method parameter • Method can be • Constructor (useful for created immutable object) • Initializer • Setter method • Producer • Observer
  25. INJECTING INTERFACE

  26. CDI INJECTION POINT

  27. CDI INJECTION POINT

  28. QUALIFIERS, ALTERNATIVES, PROGRAMMATICALLY LOOKUP Qualifiers

  29. Q : What is the result of injecting CDI beans

    that :- 1- have single Implementation ? 2- have no Implementation ? 3- have multiple Implementation ?
  30. WHAT IS A QUALIFIER? • For a given bean type

    (class or interface), there may be multiple beans which implement the type (in the classpath) • For an interface, there could be multiple implementations • For a class, there could be multiple child types • Ambiguity error will result • A qualifier is an annotation that lets a client choose one between multiple candidates of a certain type • Make type more specific • Assigns semantic meaning • Injected type is identified by • Qualifier(s) + Java type
  31. None
  32. None
  33. None
  34. None
  35. QUALIFIER AND TYPE SAFETY (STRONG TYPING) • Qualifier + Java

    type makes a composite type (extended type) • Again, think of a Qualifier as a type • Qualifiers make type safe injection possible • Qualifiers replace “look-up via string-based names” • Qualifier and Type Safety (Strong Typing)
  36. Q : - How to provide a replacement implementation during

    deployment?
  37. QUALIFIERS, ALTERNATIVES, PROGRAMMATICALLY LOOKUP Alternatives

  38. WHAT IS ALTERNATIVE BEAN? • Any bean with @Alternative is

    not considered for injection • Lets you package multiple beans that match injection type without ambiguity errors • In order to be considered for injection, it has to be activated in “beans.xml” • Provide a replacement implementation during deployment • You can apply the @Alternative annotation to two or more beans, then, based on your deployment, specify the bean you want to use in the “beans.xml” configuration file • Useful for providing mock objects for testing – mock objects are annotated with @Alternative
  39. None
  40. Q : - How to provide a replacement implementation during

    runtime?
  41. QUALIFIERS, ALTERNATIVES, PROGRAMMATICALLY LOOKUP Programmatically Lookup

  42. None
  43. SCOPE, & CONTEXT CDI Beans Scope

  44. Q : What the allowed scopes in CDI ?

  45. REQUEST – @REQUESTSCOPED • This scope describes a user’s interaction

    with a web application in a single HTTP request. • The instance of the @RequestScoped annotated bean has an HTTP request lifecycle.
  46. SESSION – @SESSIONSCOPED • This scope describes a user’s interaction

    with a web application across multiple HTTP requests.
  47. APPLICATION – @APPLICATIONSCOPED • In this case the state is

    shared across all users’ interactions with a web application. • The container provides the same instance of the @ApplicationScoped annotated bean to all client requests.
  48. DEPENDENT – @DEPENDENT PSEUDO-SCOPE • This pseudo-scope means that an

    object exists to serve exactly one client (bean) and has the same lifecycle as that client (bean). • This is the default scope for a bean which does not explicitly declare a scope type. • An instance of a dependent bean is never shared between different clients or different injection points. • It is strictly a dependent object of some other object. • It is instantiated when the object it belongs to is created, and destroyed when the object it belongs to is destroyed.
  49. None
  50. None
  51. VIEW – @ VIEWSCOPED • @ViewScoped belongs to JSF specification

    • Retains the scope lifespan for current page view • If the controller navigates away to a different page view the bean is de-scoped • Therefore view-scope is great for form validation and rich AJAX request and response sequences!
  52. CONVERSATION – @CONVERSATIONSCOPED • A lifespan sits between a Http

    Request scope and Http Session scope • Maintains state for the unique interaction • Works for individual tab in web browsers • Better than @ViewScoped bean controllers • Application defined lifespan
  53. None
  54. SESSION & CONVERSATION SCOPED BEAN • A thing to notice

    is that beans must be serializable. • This is because the container passivates the HTTP session from time to time, so when the session is activated again the beans’ state must be retrieved.
  55. SINGLETON – @SINGLETON PSEUDO- SCOPE • This is a pseudo-scope.

    • It defines that a bean is once instantiated. • When a CDI managed bean is injected into another bean, the CDI container makes use of a proxy. • The proxy is the one to handle calls to the bean. • Though, @Singleton annotated beans don’t have a proxy object. • Clients hold a direct reference to the singleton instance.
  56. SINGLETON – @SINGLETON PSEUDO- SCOPE • So, what happens when

    a client is serialized ? • We must ensure that the singleton bean remains a singleton. • To do so there are a fiew ways, such as, have the singleton bean implement writeResolve() and readReplace() (as defined by the Java serialization specification), make sure the client keeps only a transient reference to the singleton bean, or give the client a reference of type Instance<X> where X is the bean type of the singleton bean.
  57. CONTEXTUAL SCOPE

  58. INTERCEPTORS, & DECORATORS Interceptors

  59. INTERCEPTORS • Interceptor functionality is defined in the Java Interceptors

    specification. • The Interceptors specification defines three kinds of interception points: • Business method interception, • Lifecycle callback interception, and • Timeout method interception (EJB only). • A business method interceptor applies to invocations of methods of the bean by clients of the bean • By default, all interceptors are disabled
  60. BUSINESS METHOD INTERCEPTOR • A business method interceptor applies to

    invocations of methods of the bean by clients of the bean
  61. LIFECYCLE CALLBACK INTERCEPTOR • A lifecycle callback interceptor applies to

    invocations of lifecycle callbacks by the container • An interceptor class may intercept both lifecycle callbacks and business methods
  62. TIMEOUT METHOD INTERCEPTOR • A timeout method interceptor applies to

    invocations of EJB timeout methods by the container
  63. None
  64. INTERCEPTORS, & DECORATORS Decorators

  65. WHAT IS A DECORATOR? • Decorators implement the Decorator design

    pattern • Allows implementation of an additional business logic for a bean • A Decorator decorates interfaces they implement • @Delegate is used to inject the original object • Original object business logic can be be invoked within the decorator • Decorators must be activated through “beans.xml”
  66. None
  67. None
  68. Q : What is the deference between Interceptor and Decorators

    in CDI ?
  69. INTERCEPTORS VS DECORATORS • Interceptors and Decorators both geared towards

    cross-cutting logic. • Bypass traditional complexity associated with AOP by avoiding point-cuts. • Interceptors are designed for system-level crosscutting concerns very decoupled from business logic. • Decorators intended for concerns that should be compartmentalized but are still very close to business logic.
  70. EVENTS Events

  71. Q : What is Events ?

  72. CDI EVENT OBSERVER PATTERN • Completely decouple action (event producer)

    and reactions • (event consumers) • Qualifiers tune which event notifications are received • Define Event Class • Event producer fires an event • Event consumer observes event through @Observes
  73. EVENT • Event Producers • An event is fired by

    an injected javax.enterprise.event.Event object • Event Consumer (Event Observer) • The only thing event consumer has to do is to use @Observes <Event-class> annotation
  74. None
  75. CDI AND EJB When you still need EJB?

  76. Q : When you still need EJB ?

  77. WHEN YOU STILL NEED EJB ? … NOT YET ALIGNED!

    • Security • @RolesAllowed • @PermitAll • @DenyAll • Usable by • @Stateless • @Stateful • @Singleton
  78. WHEN YOU STILL NEED EJB ? … NOT YET ALIGNED!

    • Startup • @Startup • Eagerly creates the instance upon startup • Usable by • @Singleton
  79. WHEN YOU STILL NEED EJB ? … NOT YET ALIGNED!

    • Asynchronous • @Asynchronsous • Allows method calls to be asynchronous and return Future objects • Usable by • @Stateless • @Stateful • @Singleton
  80. WHEN YOU STILL NEED EJB ? … NOT YET ALIGNED!

    • Schedule • @Schedule • Effectively Cron -- schedule invocations by minute or date, etc. • Usable by • @Stateless • @Singleton • Not @Stateful
  81. WHEN YOU STILL NEED EJB ? … NOT YET ALIGNED!

    • Locking • @Lock(READ • @Lock(WRITE) • @AccessTimeout • Allows for synchronization of methods without complex code • Usable by • @Singleton • Not @Stateless • Not @Stateful
  82. WHEN YOU STILL NEED EJB ? … NOT YET ALIGNED!

    • MDBs • @MessageDriven • Connector-Driven Beans • Usable by • Not @Singleton • Not @Stateless • Not @Stateful
  83. CDI TAKEOVER • EJB adopts CDI (Java EE 6) •

    JSF adopts CDI (Java EE 7) • MVC adopts CDI (Java EE 8) • JAX-RS considers CDI (Java EE 8) • CDI moves to SE (Java EE 8)
  84. COMMON MISTAKES YOU WILL MAKE • Not putting a beans.xml

    in your app (Java EE 6) • No CDI for you! • Not understanding @Typed • Think @Local from EJB • Bites you when using @Produces • Not understanding what Dependent and NormalScope • Dependent == plain object • NormalScoped == proxied object • Bites you when creating custom scopes
  85. RESULT FOR EJB AFTER CDI ? • Java EE 7

    • Focus on realignment: @Transactional • • Java EE 8 • First spec round with no new EJB JSR • Realignment stalled • Awkward relationship
  86. CDI WRAP-UP Who did this now ! ! !

  87. CDI WRAP-UP • Basic dependency injection • @Inject, @Qualifier, @Alternative,

    • Instance, @All, @Any • Component naming • @Named • Context management • @Dependent, @RequestScoped, @SessionScoped, @ConversationScoped, @ApplicationScoped, @Scope
  88. CDI WRAP-UP • Custom Object Factories • @Produces, @Disposes, InjectionPoint

    • Lightweight Events • @Event, @Observes • Interceptors/Decorators • @Interceptor, @InterceptorBinding, @AroundInvoke, • InvocationContext • @Decorator, @Delegate
  89. BIGGEST BENEFITS OF CDI • Very active and open expert

    group • Fully extendable • Beans can be added at development, deployment, or even runtime • Fully Open Source • Spec is open source • All implementations are open source • Compliance test (TCK) suite is open source
  90. Q & A •https://about.me/ansgohar •http://ansgohar.blogspot.co.uk •https://twitter.com/ansgohar

  91. None
