Writing an interpreter for fun and profit

PyconSG 2015

Transcript

1. Writing interpreters for fun and profit

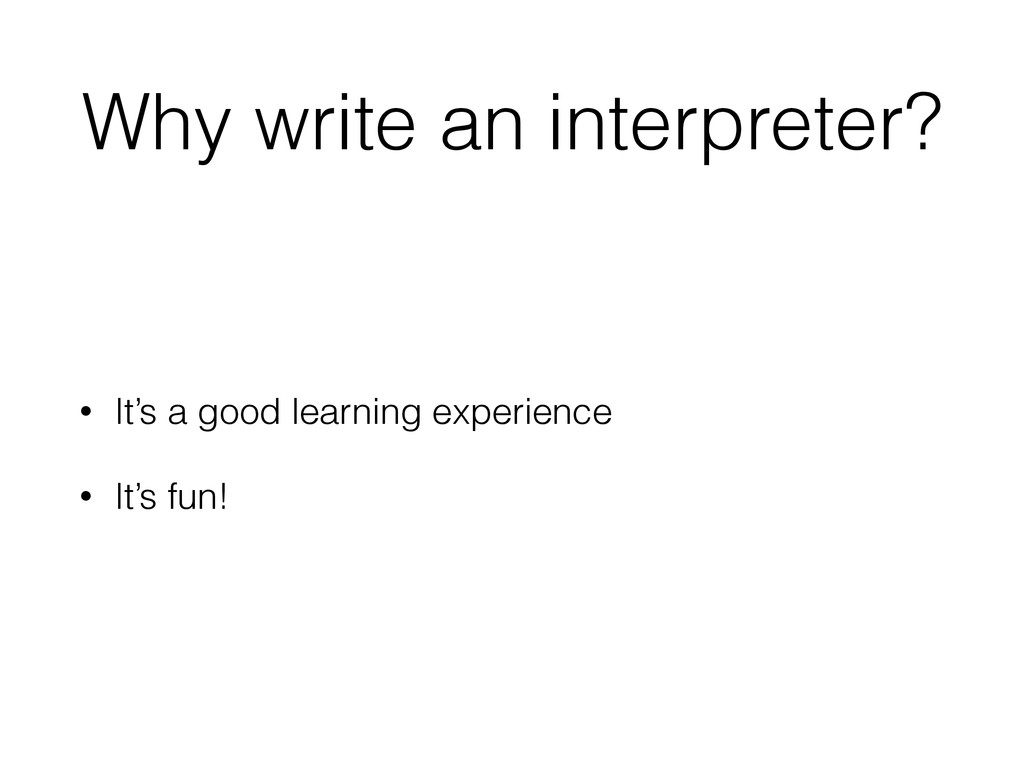

2. Why write an interpreter? • It’s a good learning experience • It’s fun!
3. What do you think of when you think of interpreters? • Black magic • Written in C or C++
4. We want… • To write an interpreter with Python • Without prior knowledge
5. Meet rila print 1 + 1;
6. Our toolbox • RPython • RPly
7. What is RPython? • RPython is a restricted subset of Python amenable to static analysis. • RPython is also a framework for producing implementations of dynamic languages. • RPython was developed for the PyPy project.
8. What is RPly? • RPly is a lexer and parser generator. • That works with RPython.
9. Let’s get started!
10. The 5 pieces of an interpreter • Lexer • Parser • AST • Bytecode compiler • Bytecode interpreter
11. What is lexing?
12. Lexing is converting a sequence of characters into a sequence of tokens.
13. print 1 + 1;
14. [ Token('PRINT', 'print') Token('NUMBER', '1') Token('ADD', '+') Token('NUMBER', '1') Token('SEMICOLON', ';') ]
15. from rply import LexerGenerator ! ! lg = LexerGenerator() lg.ignore(r"\s+") lg.add("NUMBER", r"\d+") lg.add("ADD", r"\+") lg.add("SEMICOLON", r";") lg.add("PRINT", r"print") lexer = lg.build()

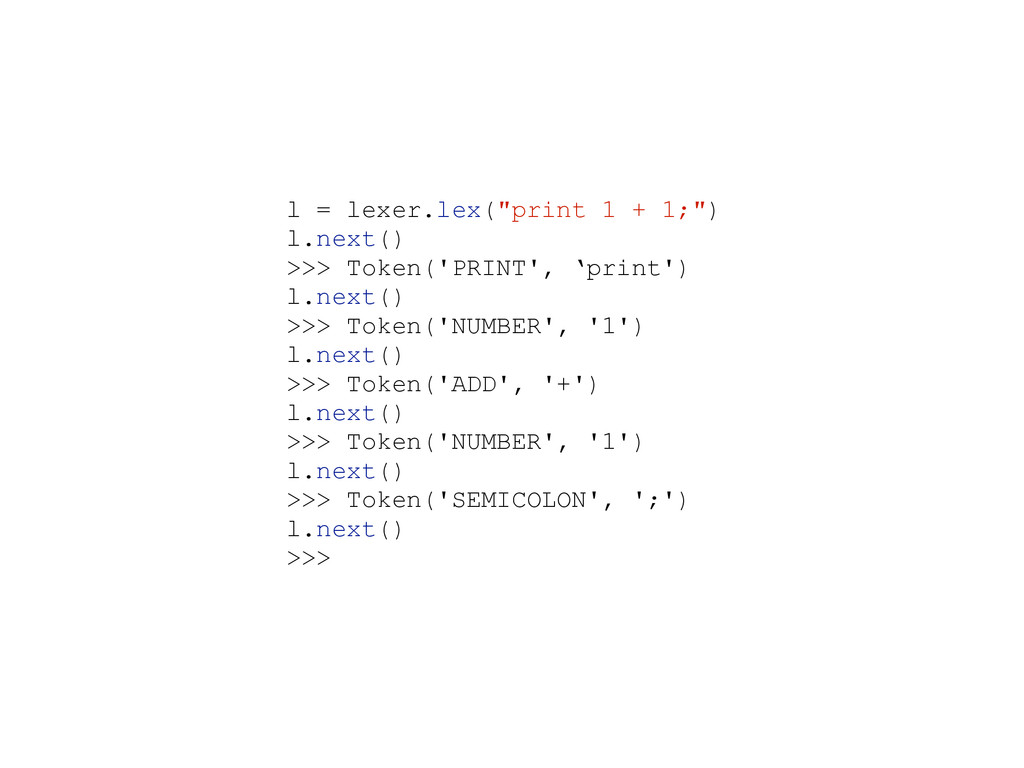

16. l = lexer.lex("print 1 + 1;") l.next() >>> Token('PRINT', ‘print') l.next() >>> Token('NUMBER', '1') l.next() >>> Token('ADD', '+') l.next() >>> Token('NUMBER', '1') l.next() >>> Token('SEMICOLON', ';') l.next() >>>
17. Parsing?
18. [ Token('PRINT', 'print') Token('NUMBER', '1') Token('ADD', '+') Token('NUMBER', '1') Token('SEMICOLON', ';') ]
19. Block([ Print( BinaryOp("+", Number(1), Number(1)) ) ])
20. from rply.token import BaseBox ! class Node(BaseBox): pass ! class Block(Node): def __init__(self, statements): self.statements = statements ! class Statement(Node): def __init__(self, expression): self.expression = expression ! class Number(Node): def __init__(self, value): self.value = value ! class Print(Node): def __init__(self, expression): self.expression = expression ! class BinaryOp(Node): def __init__(self, operator, left, right): self.operator = operator self.left = left self.right = right

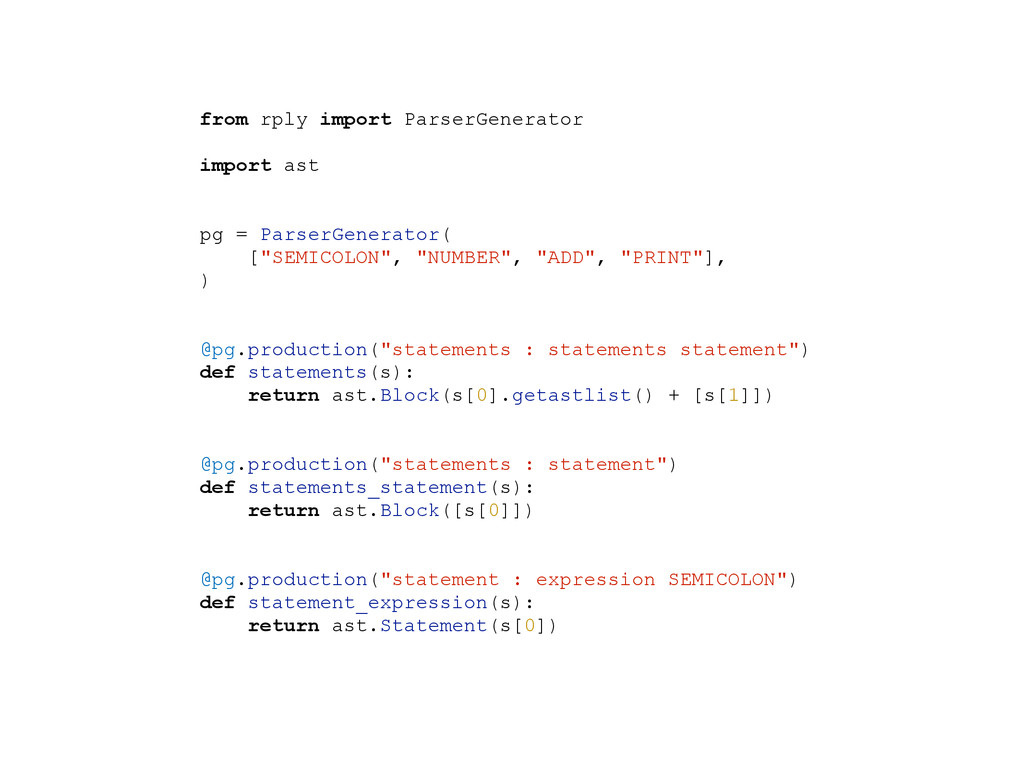

21. from rply import ParserGenerator ! import ast ! ! pg = ParserGenerator( ["SEMICOLON", "NUMBER", "ADD", "PRINT"], ) ! ! @pg.production("statements : statements statement") def statements(s): return ast.Block(s[0].getastlist() + [s[1]]) ! ! @pg.production("statements : statement") def statements_statement(s): return ast.Block([s[0]]) ! ! @pg.production("statement : expression SEMICOLON") def statement_expression(s): return ast.Statement(s[0])
22. @pg.production("statement : PRINT expression SEMICOLON") def statement_print(s): return ast.Print(s[1]) ! ! @pg.production("expression : NUMBER") def expression_number(s): return ast.Number(int(s[0].getstr())) ! ! @pg.production("expression : expression ADD expression") def expression_binop(s): return ast.BinaryOp(s[1].getstr(), s[0], s[2])
23. l = lexer.lex("print 1 + 1;") ! parser = pg.build() parser.parse(l)
24. Bytecode compilation
25. bytecodes = [ "LOAD_CONST", "BINARY_ADD", "POP_TOP", "PRINT", ]
26. class Context(object): def __init__(self): self.data = [] self.constants = [] ! def new_const(self, const): self.constants.append(const) return len(self.constants) - 1 ! def emit(self, bytecode, arg=0): self.data.append(chr(bytecode)) self.data.append(chr(arg)) ! def create_bytecode(self): return ByteCode( "".join(self.data), self.constants[:] )
27. class ByteCode(object): def __init__(self, code, constants): self.code = code self.constants = constants
28. class RilaObject(object): pass ! ! class RilaNumber(RilaObject): def __init__(self, value): self.value = value ! def add(self, other): assert isinstance(other, RilaNumber) return RilaNumber(self.value + other.value) ! def str(self): return str(self.value)
29. class Block(Node): def compile(self, ctx): for i in self.statements: i.compile(ctx) ! class Statement(Node): def compile(self, ctx): self.expression.compile(ctx) ctx.emit(bytecodes.POP_TOP) ! class Number(Node): def compile(self, ctx): ctx.emit( bytecodes.LOAD_CONST, ctx.new_const(RilaNumber(self.value)) ) ! class BinaryOp(BaseBox): def compile(self, ctx): self.left.compile(ctx) self.right.compile(ctx) opname = { "+": bytecodes.BINARY_ADD, } ctx.emit(opname[self.operator]) ! class Print(Node): def compile(self, ctx): self.expression.compile(ctx) ctx.emit(bytecodes.PRINT)
30. Block([ Print( BinaryOp("+", Number(1), Number(1)) ) ])
31. [ "LOAD_CONST, RilaNumber(1)", "LOAD_CONST, RilaNumber(1)", "BINARY_ADD", "PRINT" ]
32. Bytecode interpretation
33. class Frame(object): def __init__(self): self.valuestack = [] ! def push(self, value): self.valuestack.append(value) ! def pop(self): return self.valuestack.pop()
34. class Interpreter(object): ! def interpret(self, bytecode, frame): pc = 0 while pc < len(bytecode.code): opcode = ord(bytecode.code[pc]) for i, name in bytecodes: if i == opcode: pc = self.run_instructions(name, pc, bytecode, frame) break
35. def LOAD_CONST(self, pc, bytecode, frame): arg = ord(bytecode.code[pc + 1]) frame.push(bytecode.constants[arg]) return pc + 2
36. def BINARY_ADD(self, pc, bytecode, frame): right = frame.pop() left = frame.pop() frame.push(left.add(right)) return pc + 2 ! def POP_TOP(self, pc, bytecode, frame): frame.pop() return pc + 2 ! def PRINT(self, pc, bytecode, frame): item = frame.pop() print item.str() return pc + 2
37. [ "LOAD_CONST, RilaNumber(1)", "LOAD_CONST, RilaNumber(1)", "BINARY_ADD", "PRINT" ] RilaNumber(1) Frame
38. [ "LOAD_CONST, RilaNumber(1)", "LOAD_CONST, RilaNumber(1)", "BINARY_ADD", "PRINT" ] RilaNumber(1) RilaNumber(1) Frame
39. [ "LOAD_CONST, RilaNumber(1)", "LOAD_CONST, RilaNumber(1)", "BINARY_ADD", "PRINT" ] RilaNumber(1) RilaNumber(1) Frame
40. [ "LOAD_CONST, RilaNumber(1)", "LOAD_CONST, RilaNumber(1)", "BINARY_ADD", "PRINT" ] RilaNumber(1) RilaNumber(1) Frame
41. [ "LOAD_CONST, RilaNumber(1)", "LOAD_CONST, RilaNumber(1)", "BINARY_ADD", "PRINT" ] RilaNumber(1) RilaNumber(1) Frame +

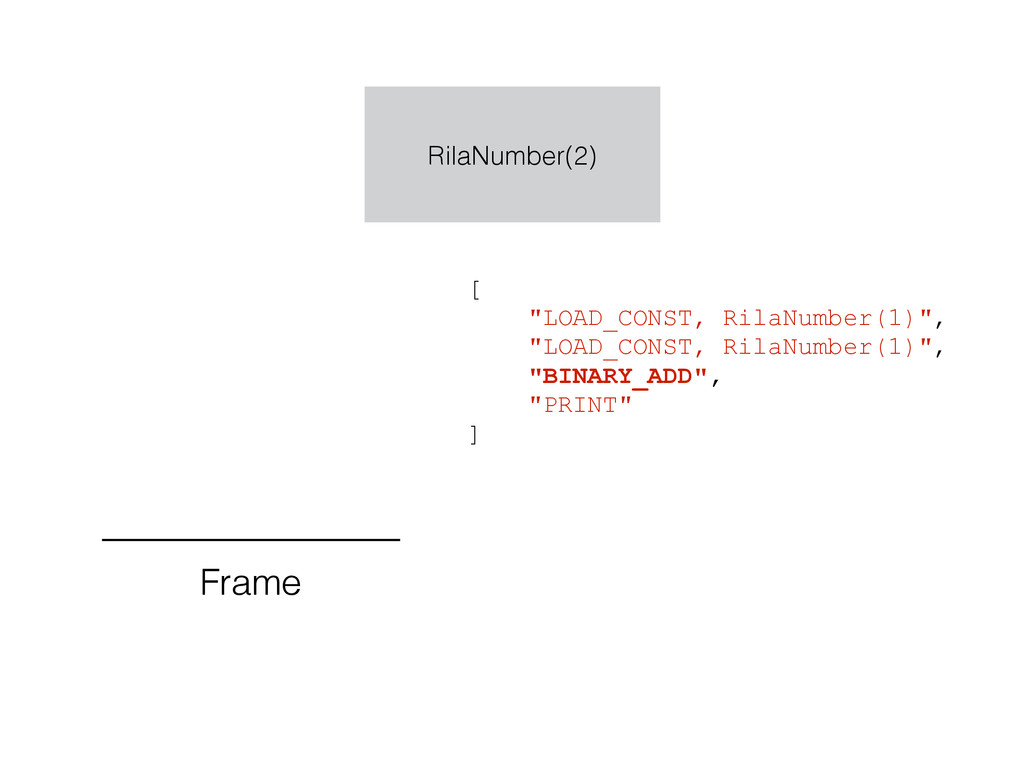

42. [ "LOAD_CONST, RilaNumber(1)", "LOAD_CONST, RilaNumber(1)", "BINARY_ADD", "PRINT" ] RilaNumber(2) Frame
43. [ "LOAD_CONST, RilaNumber(1)", "LOAD_CONST, RilaNumber(1)", "BINARY_ADD", "PRINT" ] RilaNumber(2) Frame
44. [ "LOAD_CONST, RilaNumber(1)", "LOAD_CONST, RilaNumber(1)", "BINARY_ADD", "PRINT" ] RilaNumber(2) Frame
45. Putting it all together
46. def run(fname): with open(fname, "r") as f: source_code = f.read() ! ctx = Context() parser.parse(lexer.lex(source_code)).compile(ctx) ! bytecode = ctx.create_bytecode() frame = Frame(bytecode) interpreter = Interpreter() ! interpreter.interpret(bytecode, frame) ! ! def entry_point(argv): try: filename = argv[1] ! except IndexError: print "Missing argument" return 1 ! run(filename) return 0 ! ! def target(*args): return entry_point, None
47. Demo
48. Optimising our interpreter • JIT • Garbage Collection
49. https://github.com/Ayrx/rila
50. Thank you Questions?
