M3: Semantic API Migrations

Transcript

1. M3: Semantic API Migrations ASE 2020 Bruce Collie, Philip Ginsbach†, Jackson Woodruff, Ajitha Rajan & Michael O’Boyle University of Edinburgh †GitHub Software UK bruce.collie@ed.ac.uk baltoli.github.io

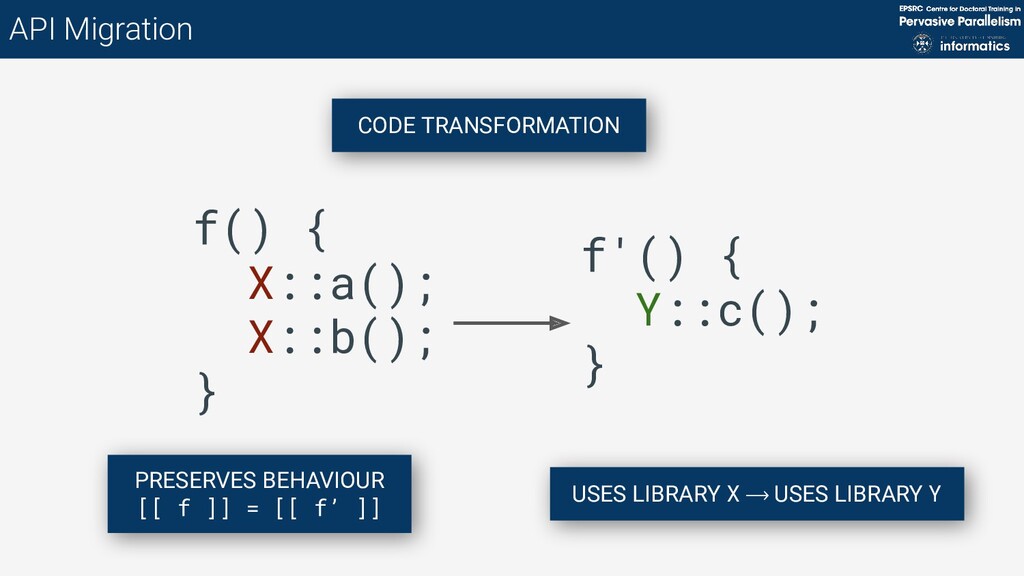

2. API Migration f() { X::a(); X::b(); } f'() { Y::c(); } CODE TRANSFORMATION PRESERVES BEHAVIOUR [[ f ]] = [[ f’ ]] USES LIBRARY X ⟶ USES LIBRARY Y
3. Pattern-Based public class StringIsEmpty { @BeforeTemplate boolean equalsEmptyString(String string) { return string.equals(""); } @BeforeTemplate boolean lengthEquals0(String string) { return string.length() == 0; } @AfterTemplate @AlsoNegation boolean optimizedMethod(String string) { return string.isEmpty(); } } CODE: REFASTER (errorprone.info) • Code as template • Requires expert knowledge • Migrations are trusted
4. • Changes as template • Requires training data • Migrations are approximate Change-Based GITHUB SEARCH (“replace library”)
5. Problem Statement • Perform API migration ◦ … without expert knowledge ◦ … without large training datasets ◦ … without the library source code How? Use library semantics to identify migrations

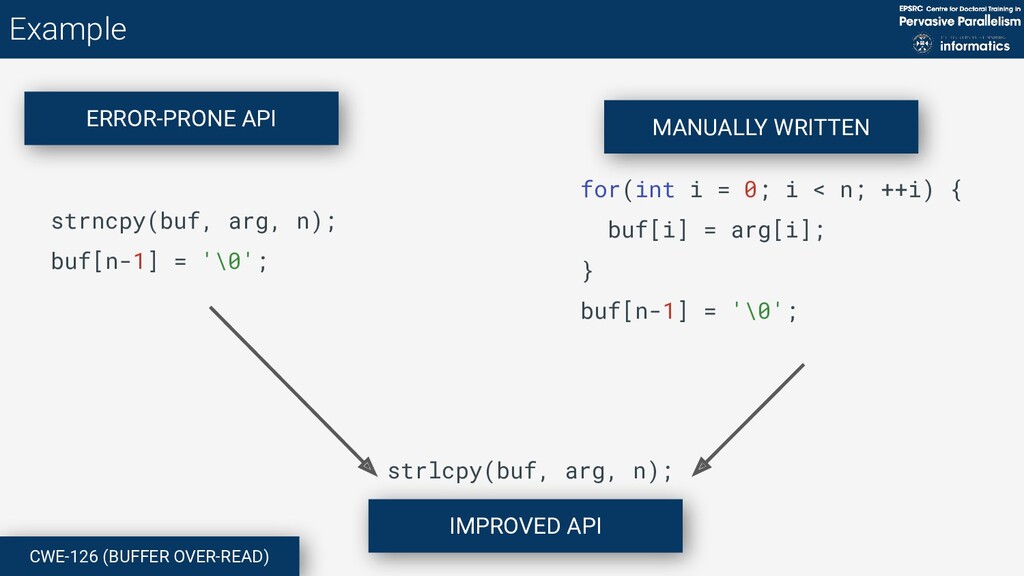

6. Example strncpy(buf, arg, n); buf[n-1] = '\0'; strlcpy(buf, arg, n); for(int i = 0; i < n; ++i) { buf[i] = arg[i]; } buf[n-1] = '\0'; CWE-126 (BUFFER OVER-READ) ERROR-PRONE API MANUALLY WRITTEN IMPROVED API
7. Approach M3 MODEL ⟶ MATCH ⟶ MIGRATE
8. M3: Model f() { X::a(); X::b(); } X::a() { a 1 (); a 2 (); } X::b() { while(b 1 ()) b 2 (); } f() { a 1 (); a 2 (); while(b 1 ()) b 2 (); } ORIGINAL CODE FULLY INLINED RECOVERED CODE MODEL

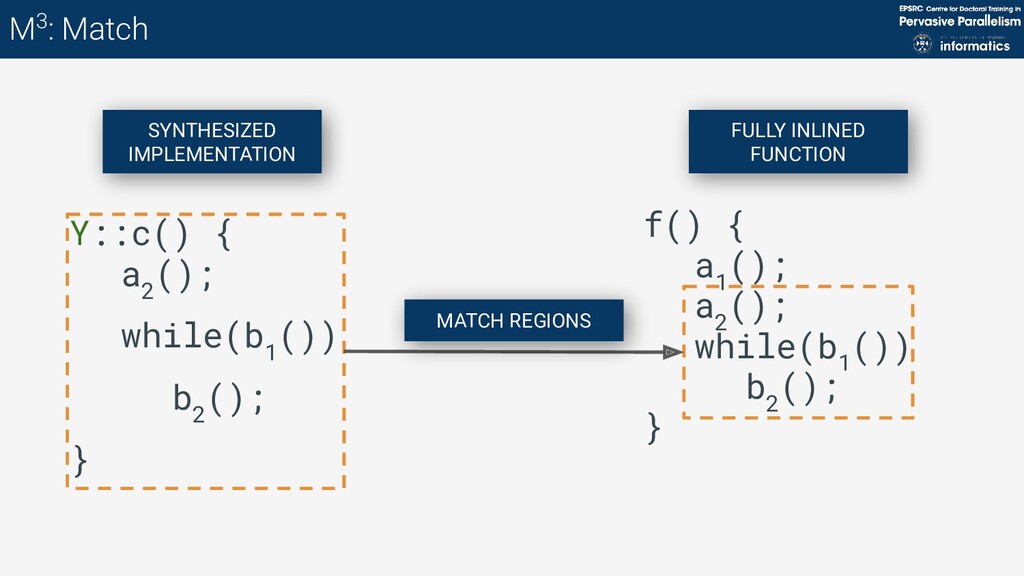

9. M3: Match f() { a 1 (); a 2 (); while(b 1 ()) b 2 (); } SYNTHESIZED IMPLEMENTATION Y::c() { a 2 (); while(b 1 ()) b 2 (); } FULLY INLINED FUNCTION MATCH REGIONS
10. M3: Migrate f() { a 1 (); Y::c(); } SYNTHESIZED IMPLEMENTATION Y::c() { a 2 (); while(b 1 ()) b 2 (); } MIGRATED FUNCTION REPLACE BODY
11. Model: I/O Examples X::a(i 0 , p 0 ) ⟶ r 0 X::a(i 1 , p 1 ) ⟶ r 1 X::a(i n , p n ) ⟶ r n ... float X::a(int p, float *q); COLLECT EXAMPLES LIBRARY FUNCTION + SIGNATURE • I/O examples specify behaviour • Allows for automated testing • Only observed behaviour ◦ Branch coverage experiments
12. Model: Sketching Loop(p,q) { Index(q) Instr() Instr() } float X::a(int p, float *q); LIBRARY FUNCTION + SIGNATURE FRAGMENTS Loop() Index() Seq() If() Instr() COMPOSE SKETCH
13. Model: Synthesis float X::a(int p, float *q); LIBRARY FUNCTION + SIGNATURE SKETCH PROGRAM • Enumerative search for solutions • Constraints on type propagation • Test results using I/O examples define void @gemv(i32 %M, i32 %N, float %alpha, fl float %beta, float* %y) { entry: br label %header exit: ret void header: br label %loop_check body_pre: %0 = getelementptr float, float* %y, i32 %iter %1 = load float, float* %0 %2 = fmul float %beta, %1 %3 = fsub float %alpha, %1 %4 = fmul float %3, %9 br label %header1 body_post: %5 = getelementptr float, float* %y, i32 %iter %6 = fmul float %1, %1 %7 = fsub float %1, %beta %8 = fmul float %3, %20 store float %20, float* %5 br label %loop_check loop_exit: br label %exit loop_check: %body_post %9 = phi float [ %alpha, %header ], [ %2, %body_ %iter = phi i32 [ 0, %header ], [ %next_iter, %b %next_iter = add i32 %iter, 1 %10 = icmp slt i32 %iter, %M br i1 %10, label %body_pre, label %loop_exit header1: br label %loop_check5 body_pre2: %11 = getelementptr float, float* %x, i32 %iter6 %12 = load float, float* %11 %13 = mul i32 %iter, %N %14 = add i32 %iter6, %13 %15 = getelementptr float, float* %A, i32 %14 %16 = load float, float* %15 %17 = fmul float %alpha, %12 %18 = fmul float %17, %16 %19 = fadd float %18, %20 br label %body_post3 body_post3: br label %loop_check5 loop_exit4: br label %body_post
14. Match: CAnDL • Pattern-based search over LLVM code • Existing toolchain • SMT solver for efficient search EXAMPLES CANDL PATTERN GENERALISE
15. Match { "entry": "loop.ph", "loop" : { "iter": "%0", "exit": "%bb.0" }, ... } MATCH RESULT • Key-value mapping IDs to SSA IR values • Function parameter / return values identified specially • Specifies a region that can be migrated
16. Migrate “Insert call to function Y::c with arguments p (line 5), q (line 6)” { "entry": "loop.ph", "loop" : { "iter": "%0", "exit": "%bb.0" }, ... } MATCH RESULT Automated replacement (using a compiler pass)
17. Research Questions • (RQ1) FEASIBILITY OF SYNTHESIS • (RQ2) CORRECTNESS OF SYNTHESIS • (RQ3) ACCURACY OF MATCH • (RQ4) USEFULNESS OF MIGRATE
18. Evaluation / Experiments SYNTHESISE INLINE FUNCTIONS TEST MATCH TEST MIGRATE
19. Evaluation Corpora Library Domain string.h String manipulation StrSafe GLM Graphics / mathematical MathFu BLAS Ti DSP Signal Processing ARM DSP Application Domain Lines ffmpeg Video / media 1,061,655 TeXinfo Typesetting 76,755 XRDP Network 75,921 Coreutils Utility 66,355 GraphicsGems Graphics 46,619 Darknet Deep Learning 21,299 Caffepresso Deep Learning 14,602 Nanvix Operating Sys. 11,226 ETR Game 2,399 Android FS* Operating Sys. 1,840
20. Results: Synthesis • I/O examples adequately test synthesised code • Synthesis performance improves on existing techniques
21. Results: Match f() { X::a(); X::b(); } f() { a 1 (); a 2 (); while(b 1 ()) b 2 (); } ORIGINAL CODE FULLY INLINED 100% • Match recovers inlined code accurately • … as well as 178 instances of user code matching APIs
22. Results: Migrate Application Migrations Category Library ⟶ L’ Code ⟶ L’ L + C ⟶ L’ N 2,247 2,025 178 44 • Original and new libraries differ in all cases • 200+ cases with contextual semantics
23. Results: Summary • (RQ1) STATE-OF-THE ART SYNTHESIS • (RQ2) TESTING STRATEGY VALID • (RQ3) INLINING PROCESS SOUND • (RQ4) 2,000+ MIGRATIONS FOUND
24. Future work • Extended type system & synthesis library • User studies for tool usability • Incomplete migrations as seeds • Integration with other migration tools
