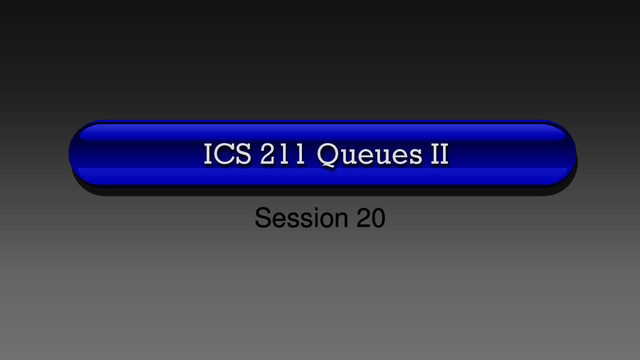

1. Session 20 ICS 211 Queues II

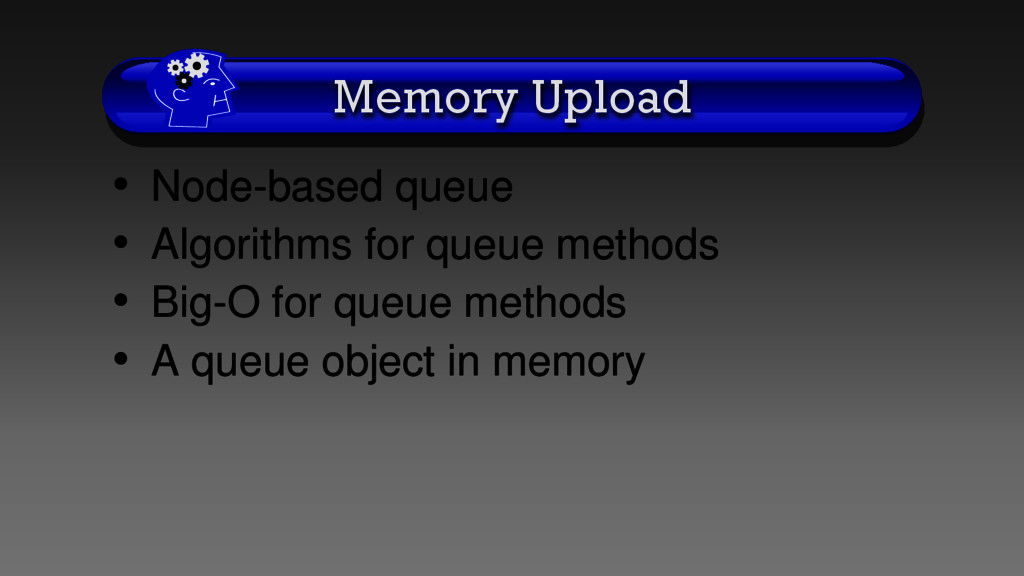

2. Memory Upload • Node-based queue • Algorithms for queue methods • Big-O for queue methods • A queue object in memory

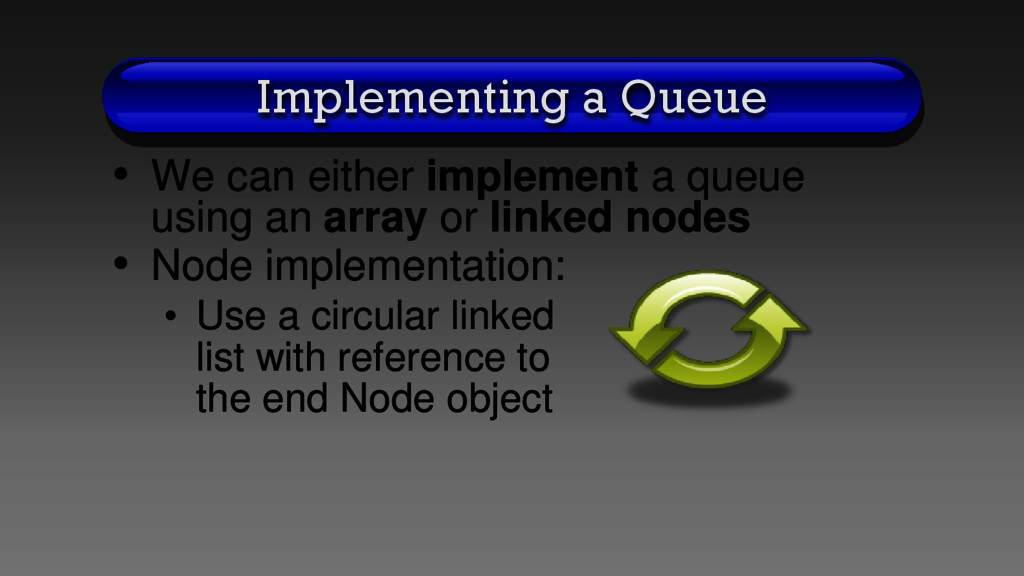

3. Implementing a Queue • We can either implement a queue using an array or linked nodes • Node implementation: • Use a circular linked list with reference to the end Node object

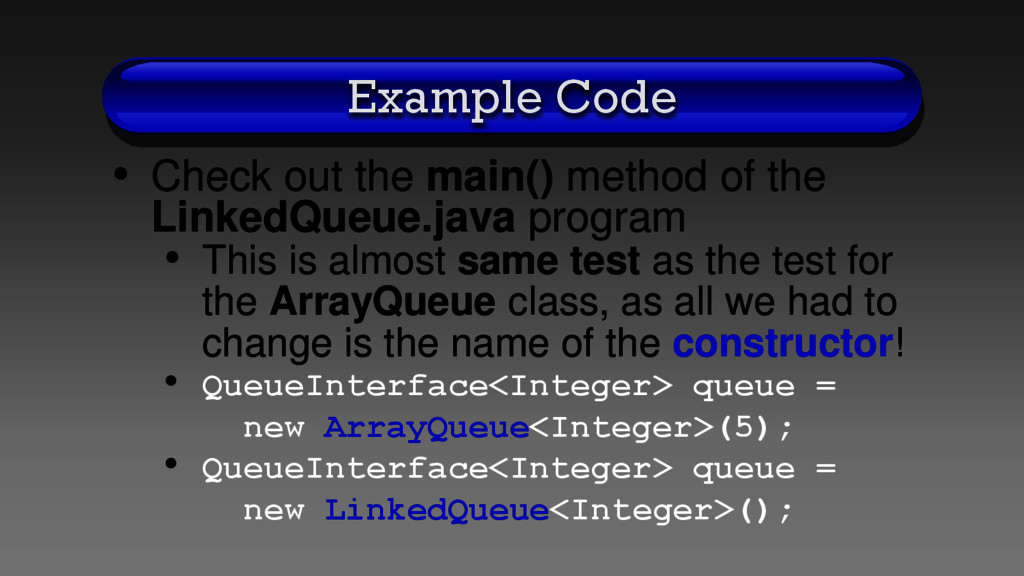

4. Example Code • Check out the main() method of the LinkedQueue.java program • This is almost same test as the test for the ArrayQueue class, as all we had to change is the name of the constructor! • QueueInterface<Integer> queue = new ArrayQueue<Integer>(5); • QueueInterface<Integer> queue = new LinkedQueue<Integer>();

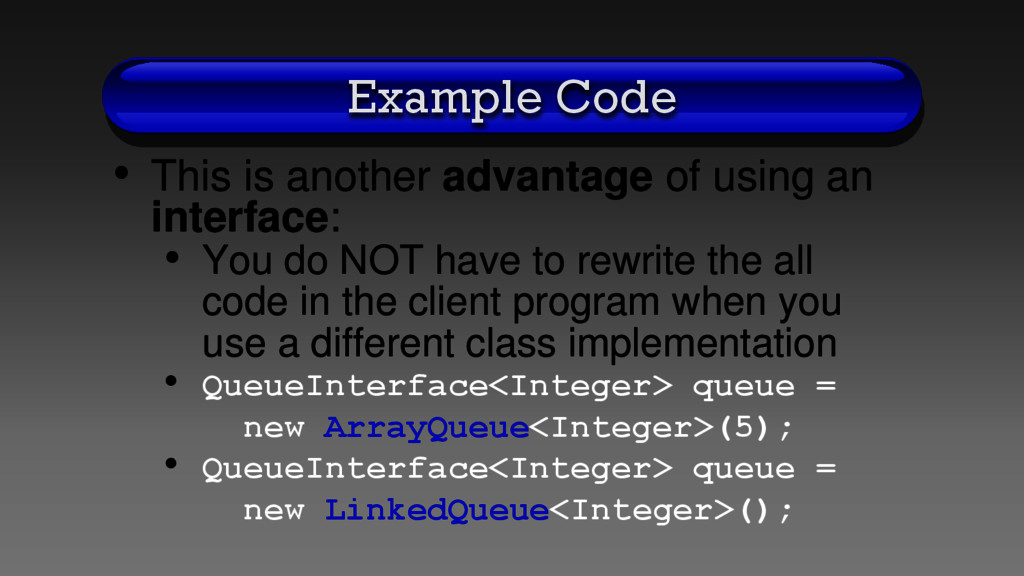

5. Example Code • This is another advantage of using an interface: • You do NOT have to rewrite the all code in the client program when you use a different class implementation • QueueInterface<Integer> queue = new ArrayQueue<Integer>(5); • QueueInterface<Integer> queue = new LinkedQueue<Integer>();

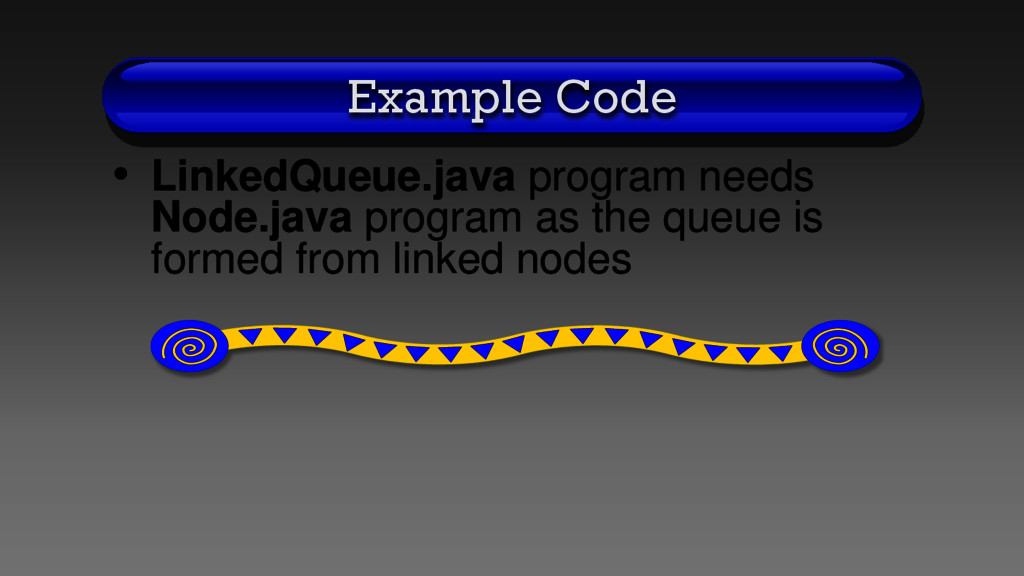

6. Example Code • LinkedQueue.java program needs Node.java program as the queue is formed from linked nodes

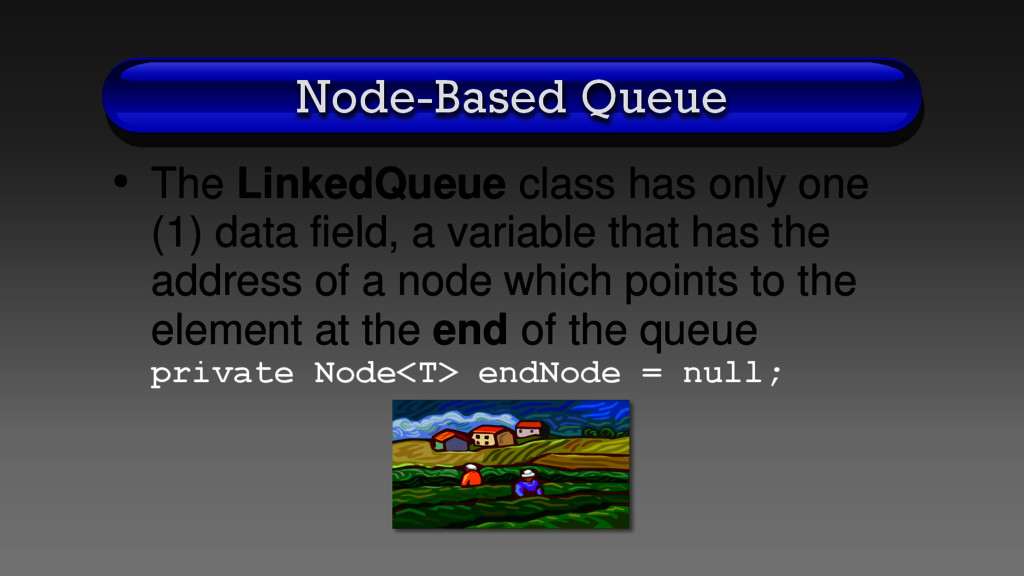

7. Node-Based Queue • The LinkedQueue class has only one (1) data field, a variable that has the address of a node which points to the element at the end of the queue private Node<T> endNode = null;

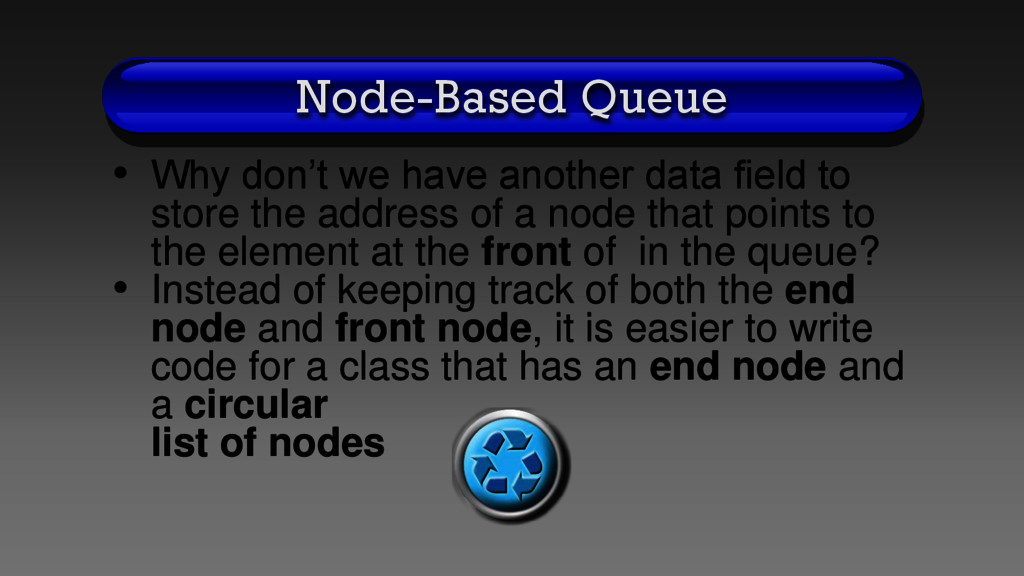

8. Node-Based Queue • Why don’t we have another data field to store the address of a node that points to the element at the front of in the queue? • Instead of keeping track of both the end node and front node, it is easier to write code for a class that has an end node and a circular list of nodes

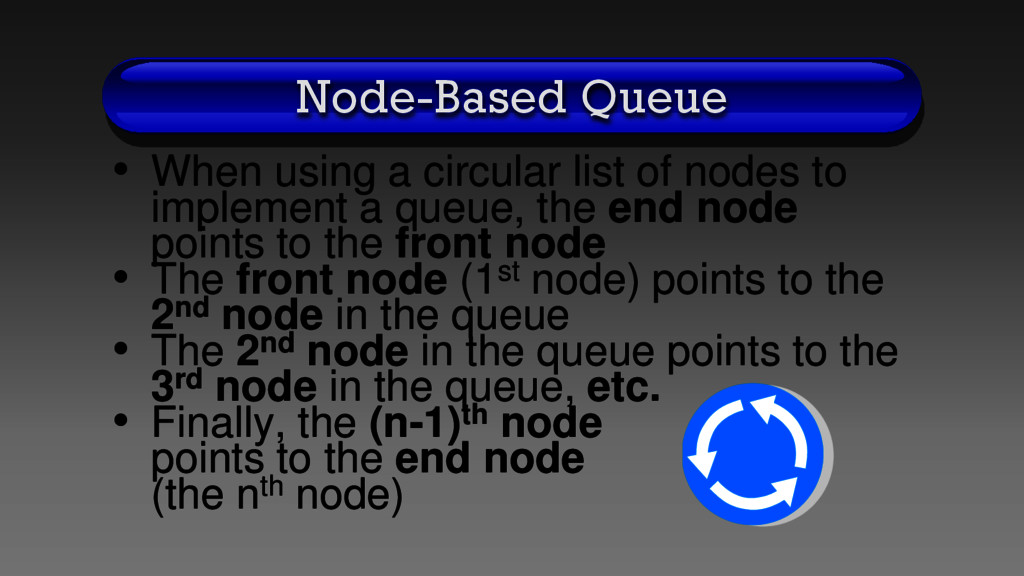

9. Node-Based Queue • When using a circular list of nodes to implement a queue, the end node points to the front node • The front node (1st node) points to the 2nd node in the queue • The 2nd node in the queue points to the 3rd node in the queue, etc. • Finally, the (n-1)th node points to the end node (the nth node)

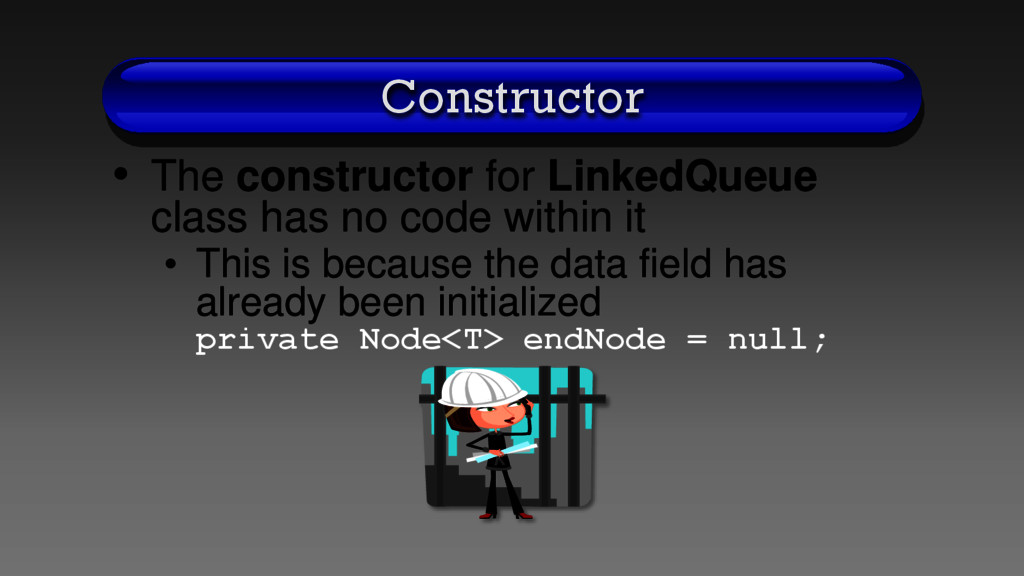

10. Constructor • The constructor for LinkedQueue class has no code within it • This is because the data field has already been initialized private Node<T> endNode = null;

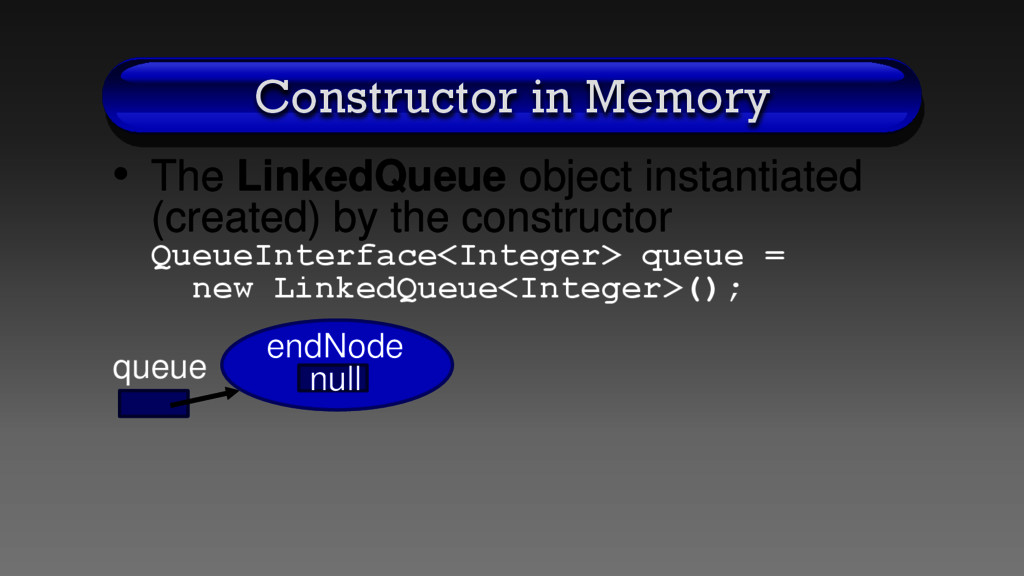

11. Constructor in Memory • The LinkedQueue object instantiated (created) by the constructor QueueInterface<Integer> queue = new LinkedQueue<Integer>(); queue endNode null

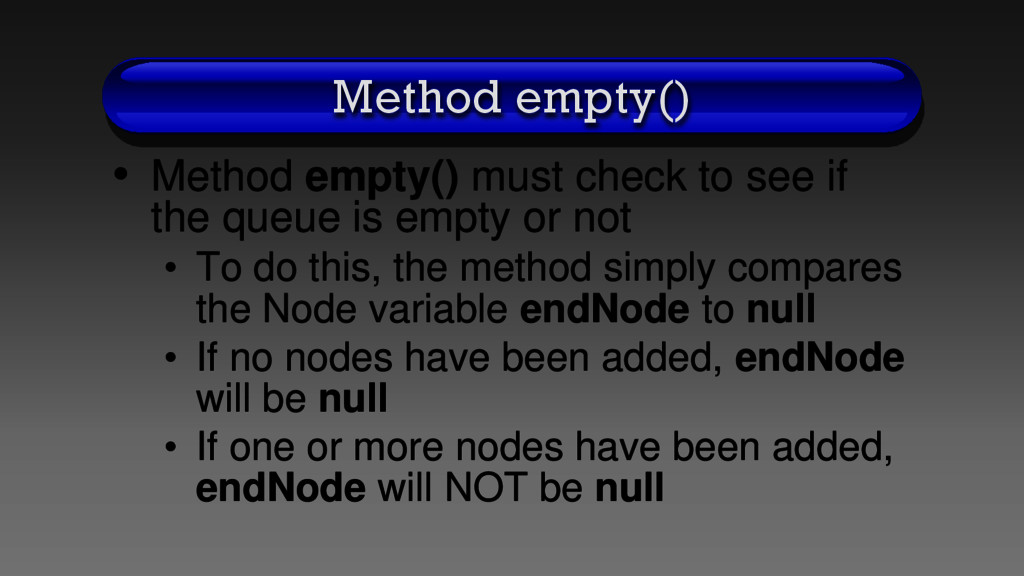

12. Method empty() • Method empty() must check to see if the queue is empty or not • To do this, the method simply compares the Node variable endNode to null • If no nodes have been added, endNode will be null • If one or more nodes have been added, endNode will NOT be null

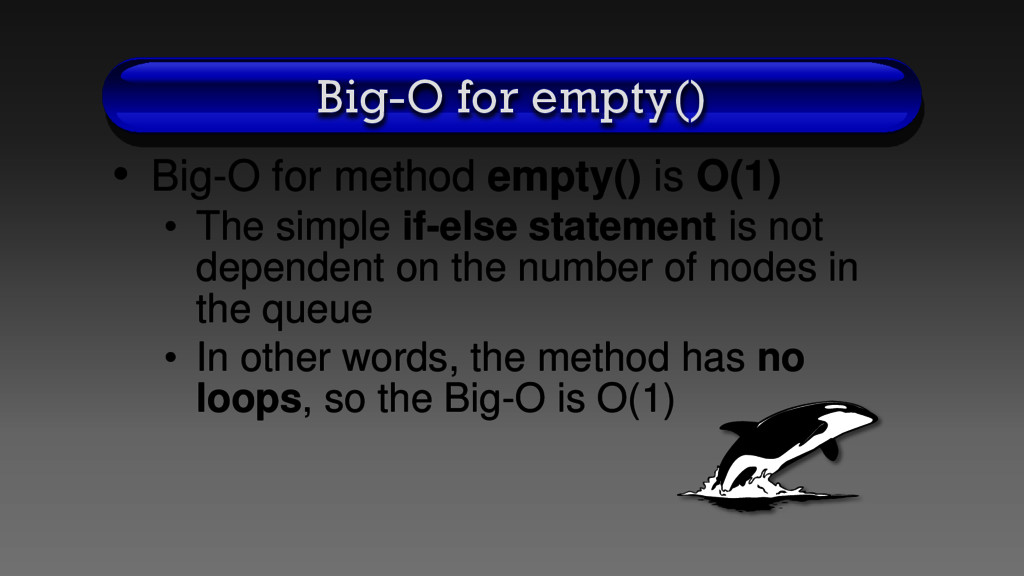

13. Big-O for empty() • Big-O for method empty() is O(1) • The simple if-else statement is not dependent on the number of nodes in the queue • In other words, the method has no loops, so the Big-O is O(1)

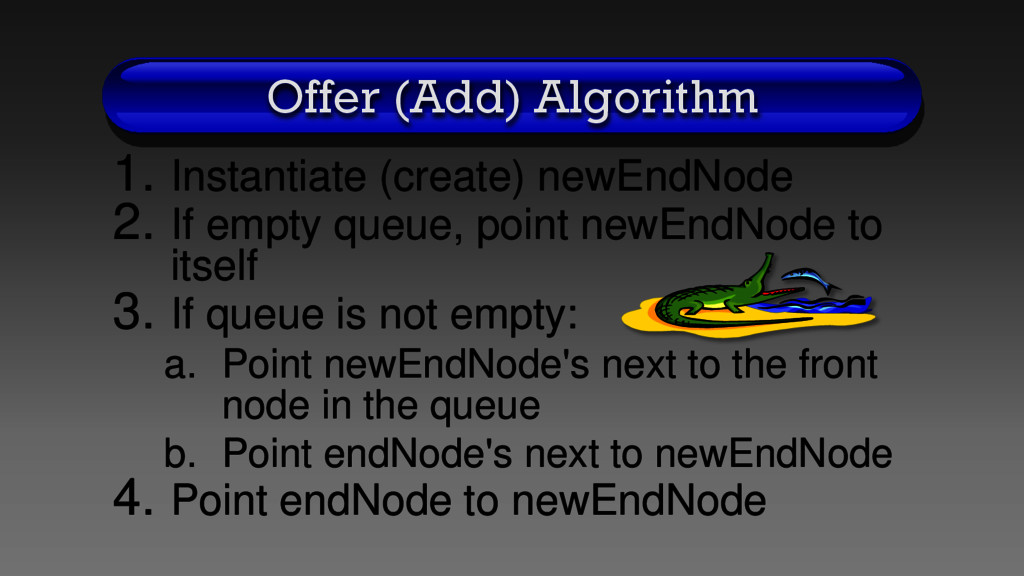

14. Offer (Add) Algorithm 1. Instantiate (create) newEndNode 2. If empty queue, point newEndNode to itself 3. If queue is not empty: a. Point newEndNode's next to the front node in the queue b. Point endNode's next to newEndNode 4. Point endNode to newEndNode

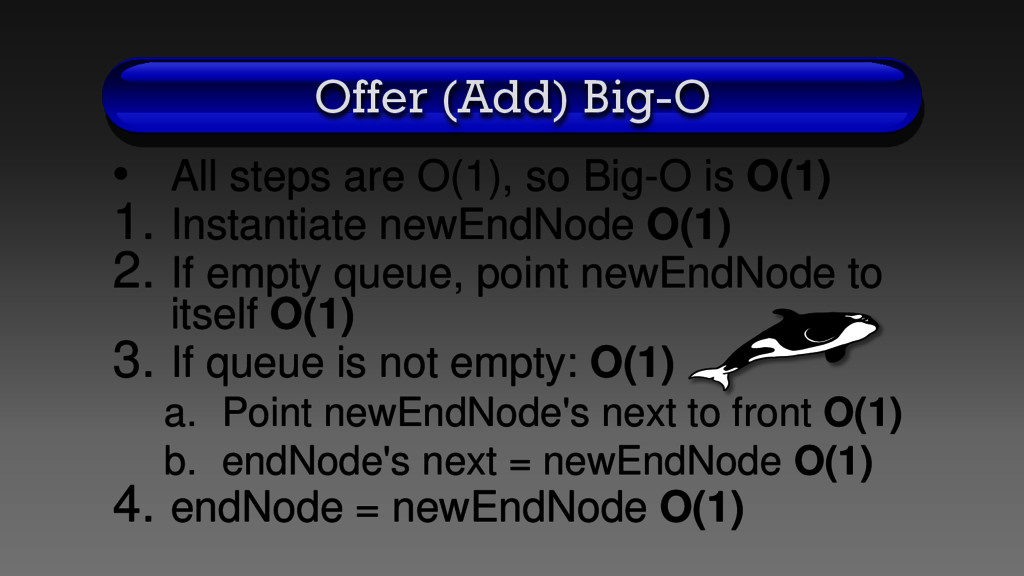

15. Offer (Add) Big-O • All steps are O(1), so Big-O is O(1) 1. Instantiate newEndNode O(1) 2. If empty queue, point newEndNode to itself O(1) 3. If queue is not empty: O(1) a. Point newEndNode's next to front O(1) b. endNode's next = newEndNode O(1) 4. endNode = newEndNode O(1)

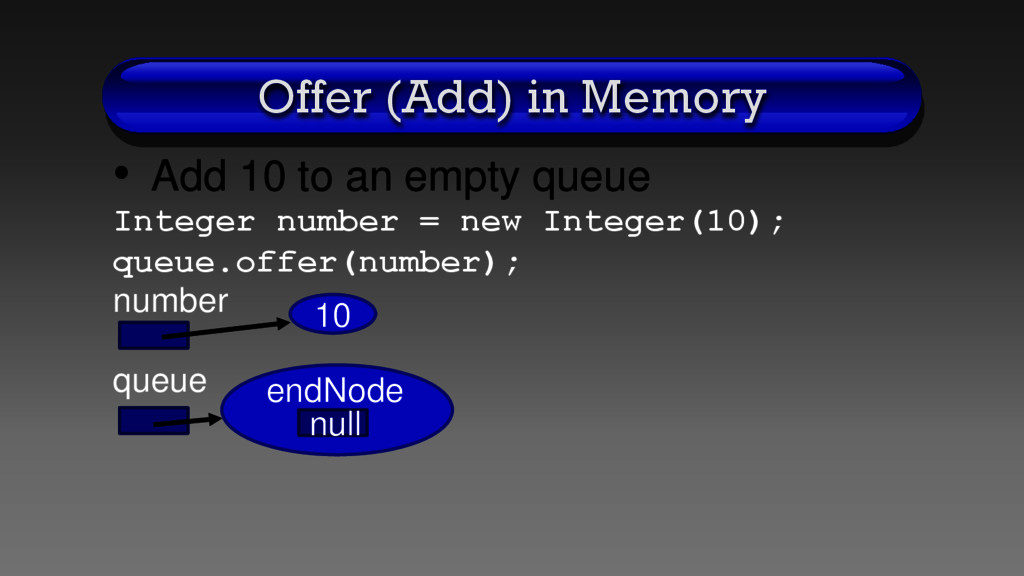

16. Offer (Add) in Memory • Add 10 to an empty queue Integer number = new Integer(10); queue.offer(number); number queue endNode null 10

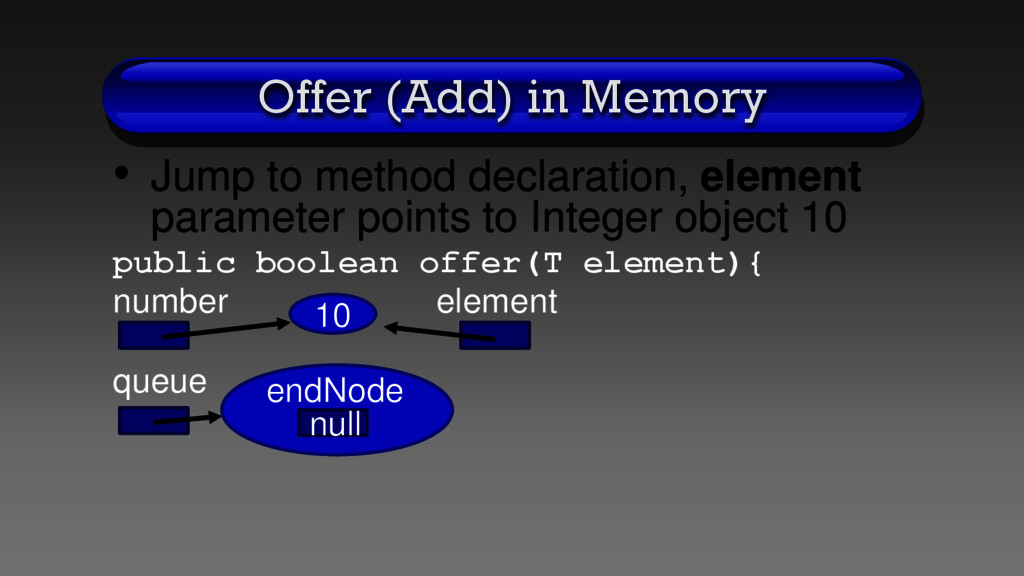

17. Offer (Add) in Memory • Jump to method declaration, element parameter points to Integer object 10 public boolean offer(T element){ number element queue endNode null 10

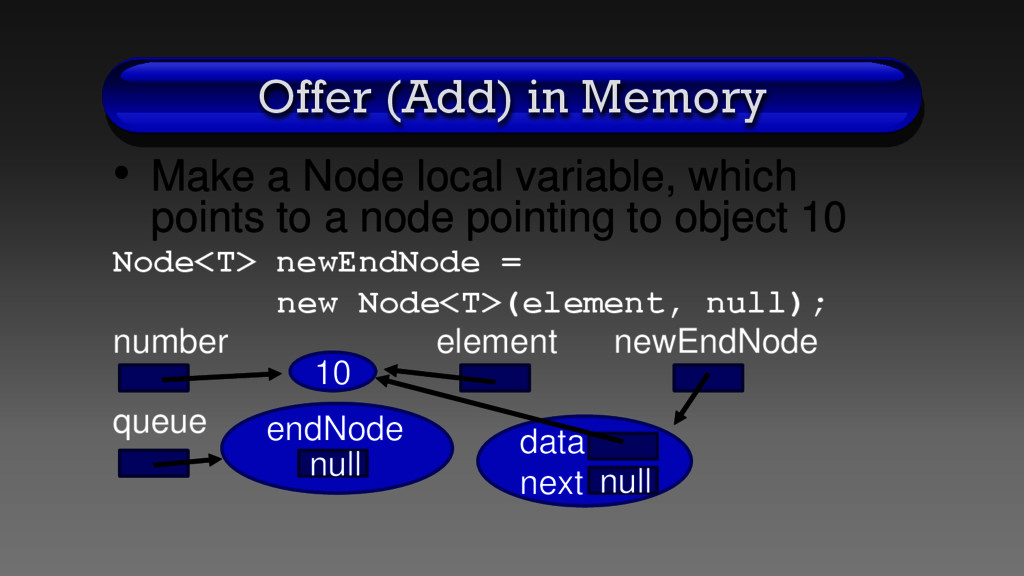

18. Offer (Add) in Memory • Make a Node local variable, which points to a node pointing to object 10 Node<T> newEndNode = new Node<T>(element, null); number element newEndNode queue endNode null 10 data next null

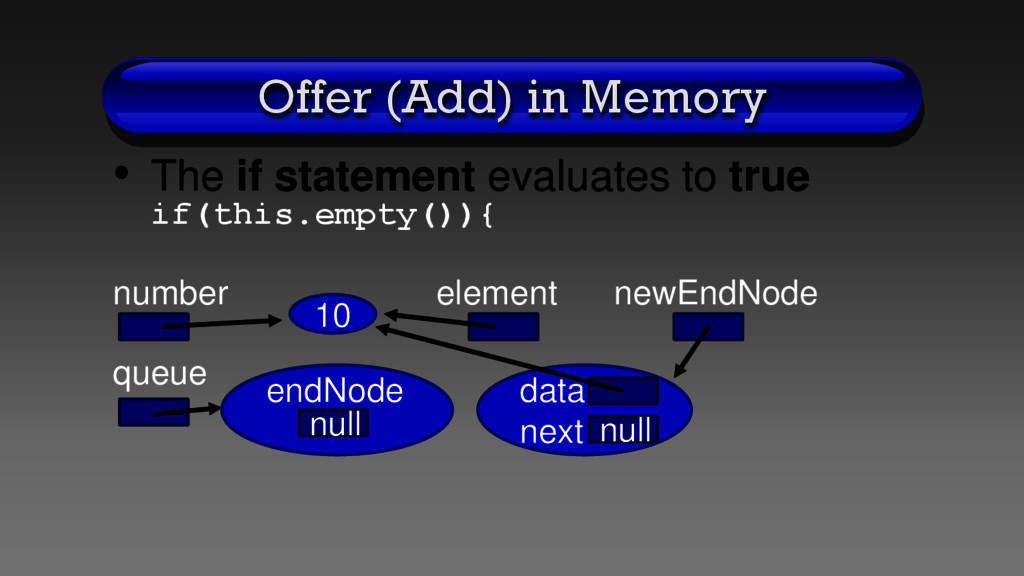

19. Offer (Add) in Memory • The if statement evaluates to true if(this.empty()){ number element newEndNode queue endNode null 10 data next null

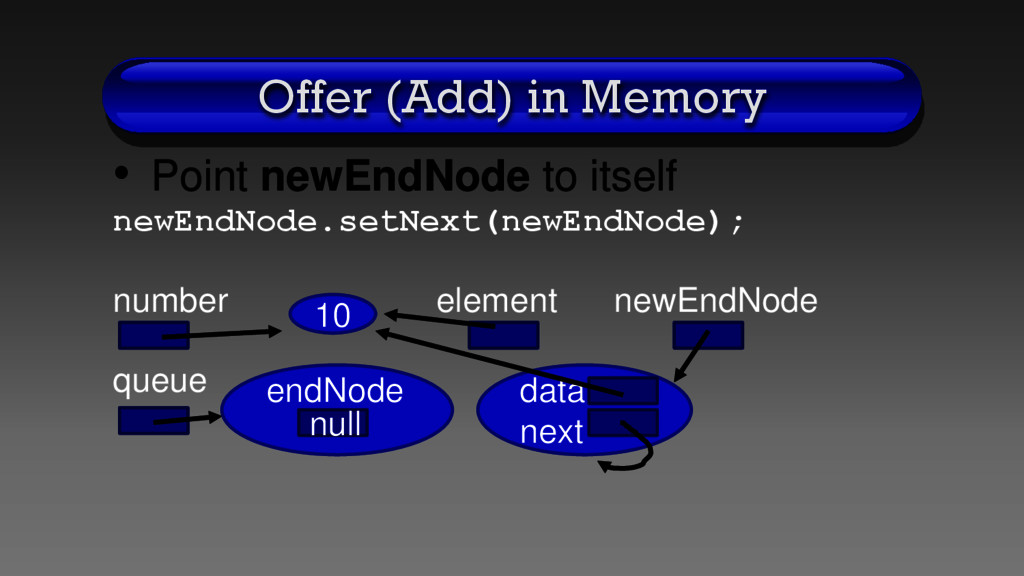

20. Offer (Add) in Memory • Point newEndNode to itself newEndNode.setNext(newEndNode); number element newEndNode queue endNode null 10 data next

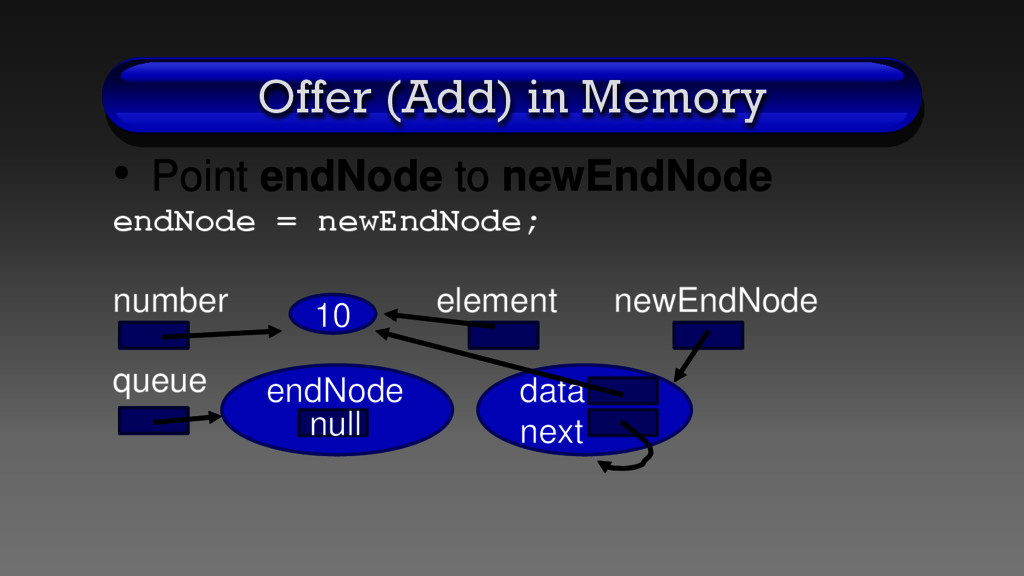

21. Offer (Add) in Memory • Point endNode to newEndNode endNode = newEndNode; number element newEndNode queue endNode null 10 data next

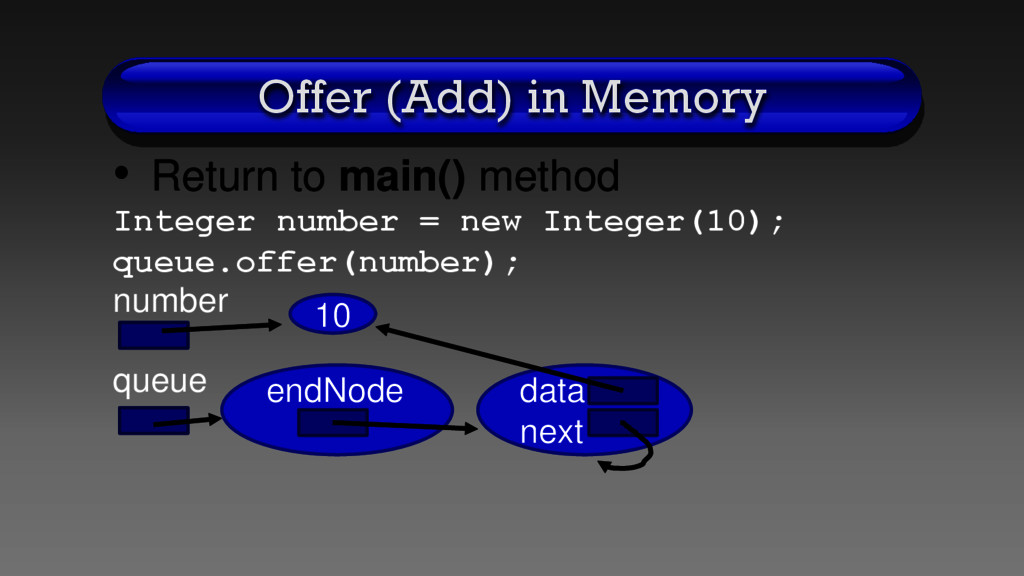

22. Offer (Add) in Memory • Return to main() method Integer number = new Integer(10); queue.offer(number); number queue endNode 10 data next

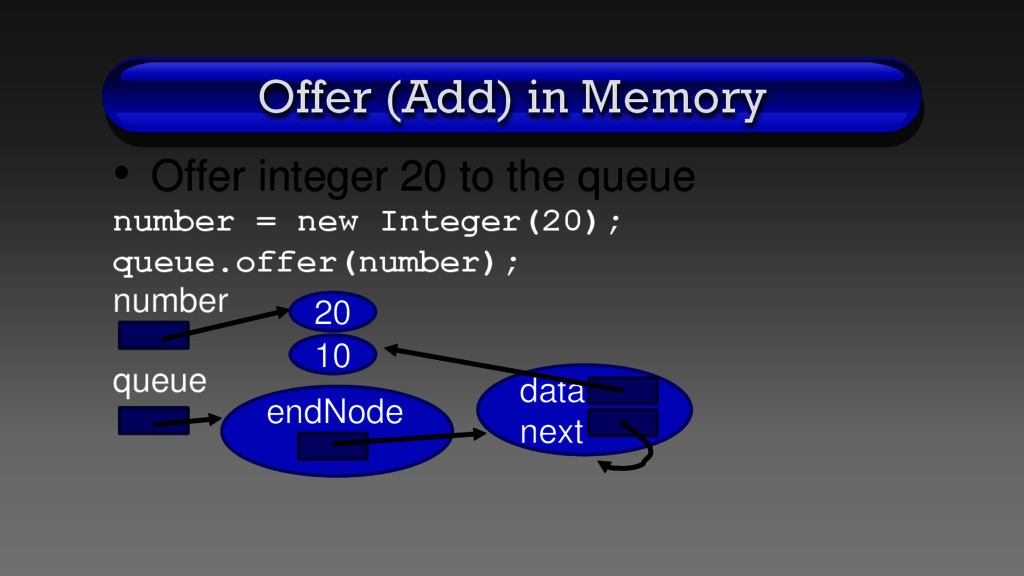

23. Offer (Add) in Memory • Offer integer 20 to the queue number = new Integer(20); queue.offer(number); number queue endNode 10 data next 20

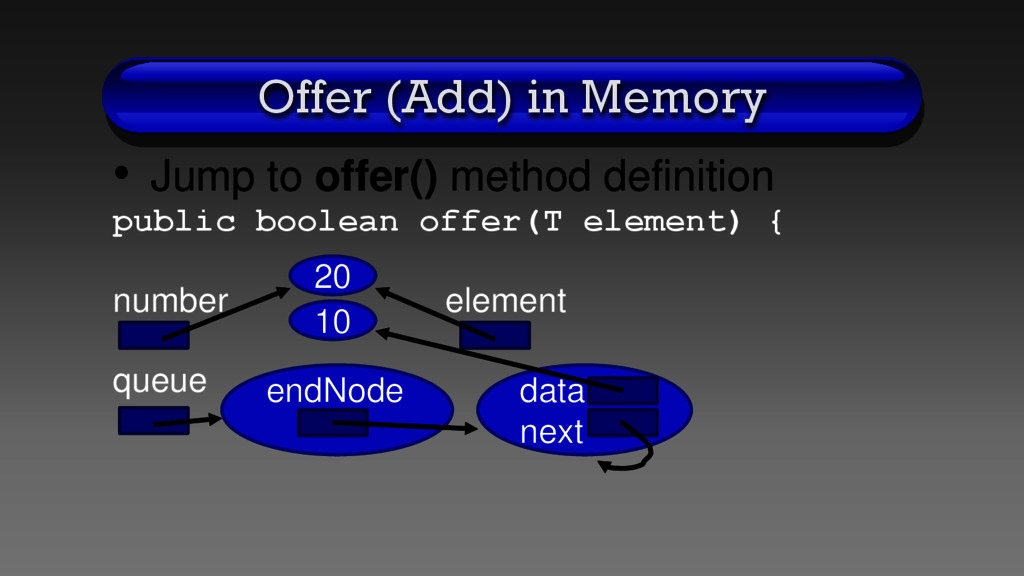

24. Offer (Add) in Memory • Jump to offer() method definition public boolean offer(T element) { number element queue endNode 10 data next 20

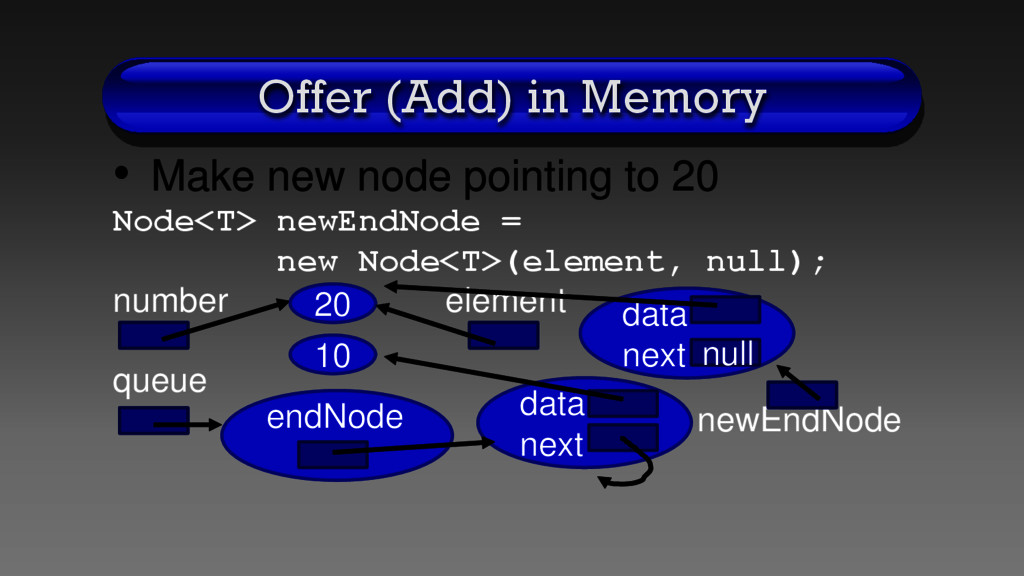

25. Offer (Add) in Memory • Make new node pointing to 20 Node<T> newEndNode = new Node<T>(element, null); number element queue newEndNode endNode 10 data next 20 data next null

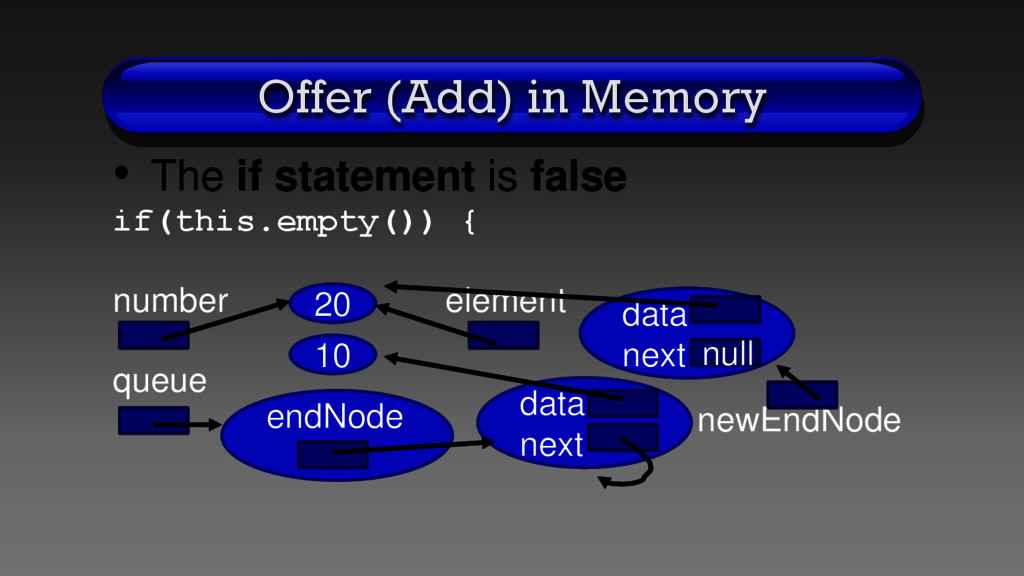

26. Offer (Add) in Memory • The if statement is false if(this.empty()) { number element queue newEndNode endNode 10 data next 20 data next null

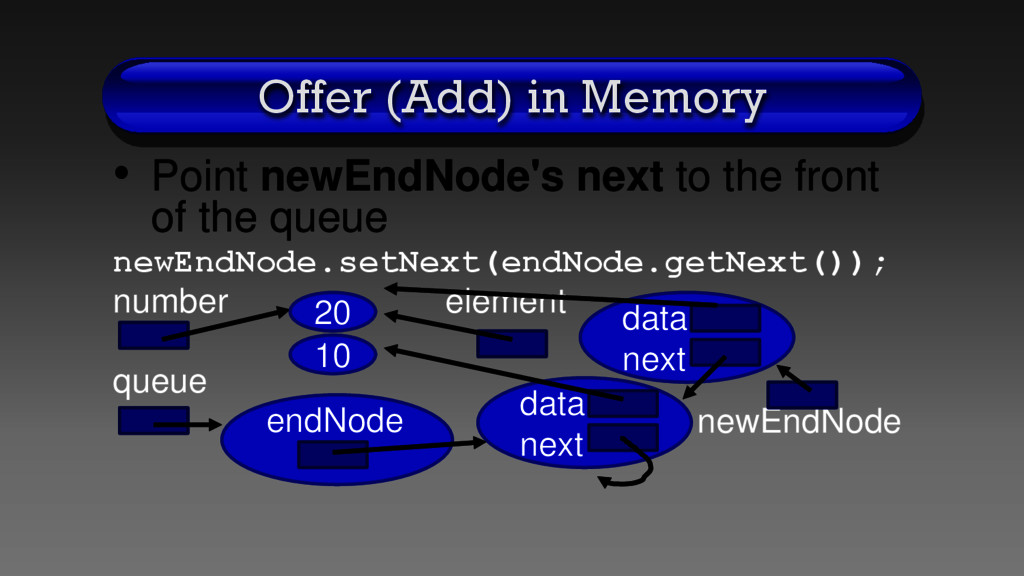

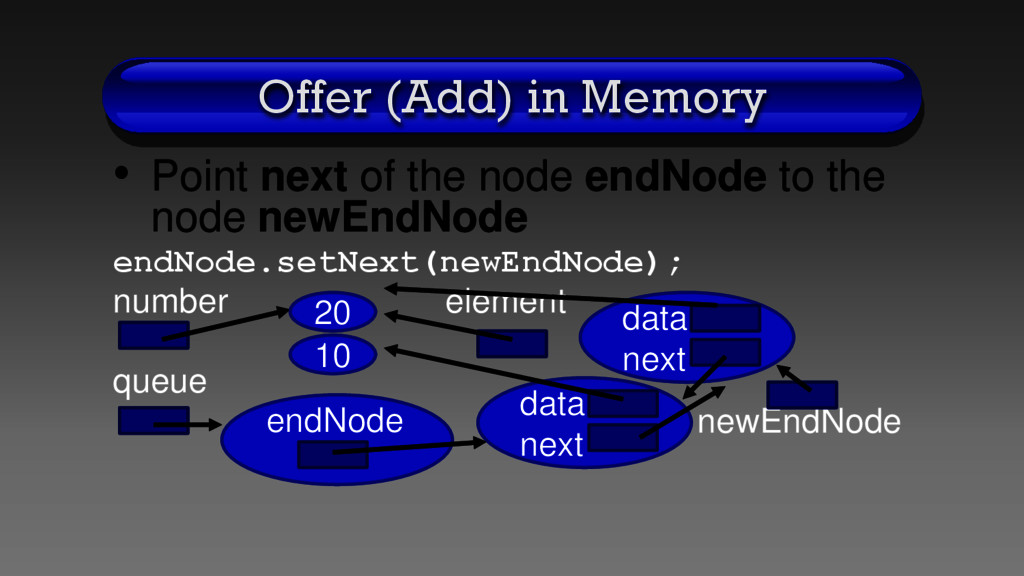

27. Offer (Add) in Memory • Point newEndNode's next to the front of the queue newEndNode.setNext(endNode.getNext()); number element queue newEndNode endNode 10 data next 20 data next
28. Offer (Add) in Memory • Point next of the node endNode to the node newEndNode endNode.setNext(newEndNode); number element queue newEndNode endNode 10 data next 20 data next
29. Offer (Add) in Memory • Point the variable endNode to the node newEndNode endNode = newEndNode; number element queue newEndNode endNode 10 data next 20 data next

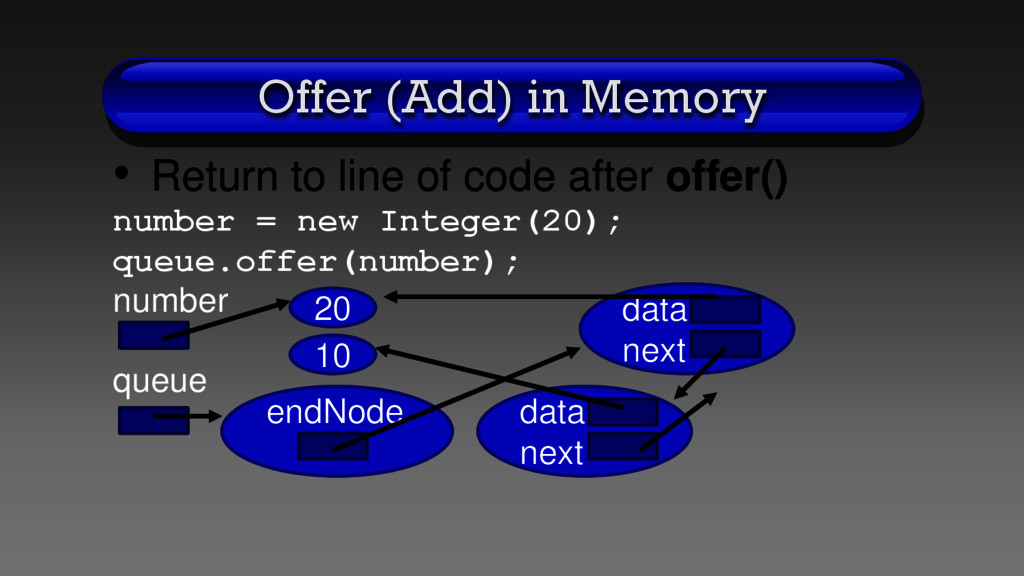

30. Offer (Add) in Memory • Return to line of code after offer() number = new Integer(20); queue.offer(number); number queue endNode 10 data next 20 data next
31. Offer (Add) in Memory • Rearrange queue object so it looks nice and pretty • Variable endNode points to node with end element 20, and then this node points to node with front element 10 number queue endNode 10 data next 20 data next

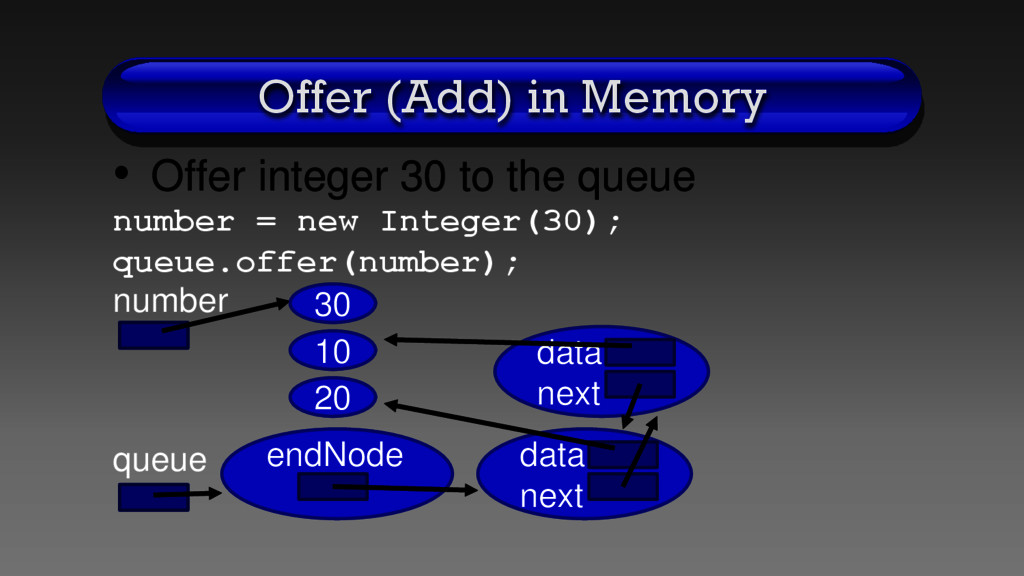

32. Offer (Add) in Memory • Offer integer 30 to the queue number = new Integer(30); queue.offer(number); number queue 30 endNode 10 data next 20 data next

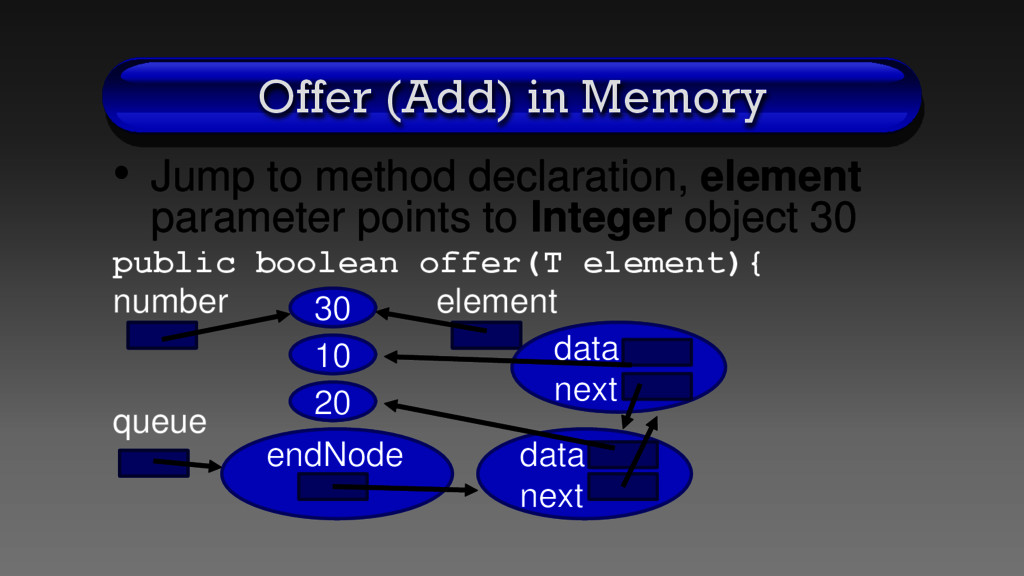

33. Offer (Add) in Memory • Jump to method declaration, element parameter points to Integer object 30 public boolean offer(T element){ number element queue 30 endNode 10 data next 20 data next

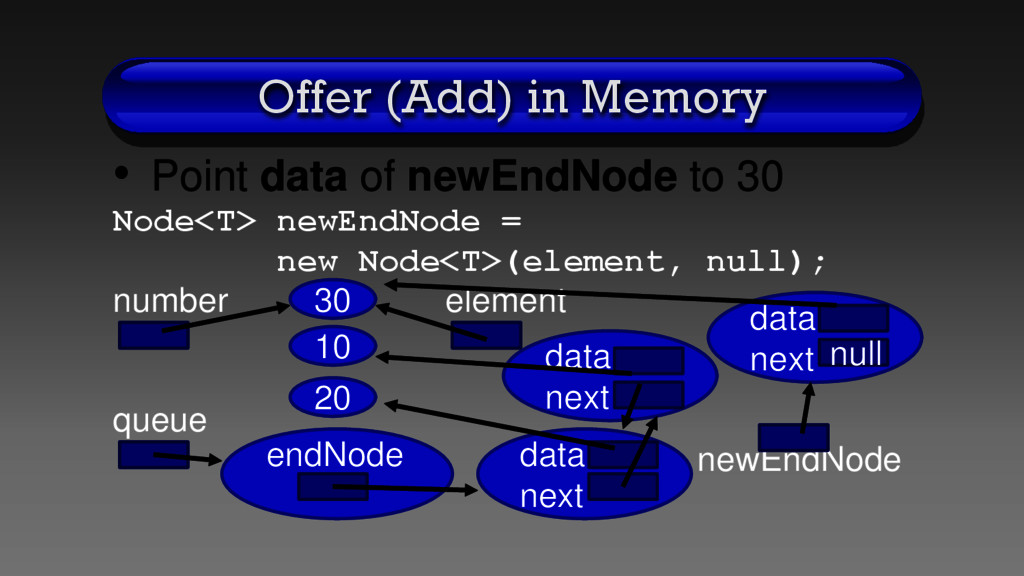

34. Offer (Add) in Memory • Point data of newEndNode to 30 Node<T> newEndNode = new Node<T>(element, null); number element queue newEndNode data next null 30 endNode 10 data next 20 data next

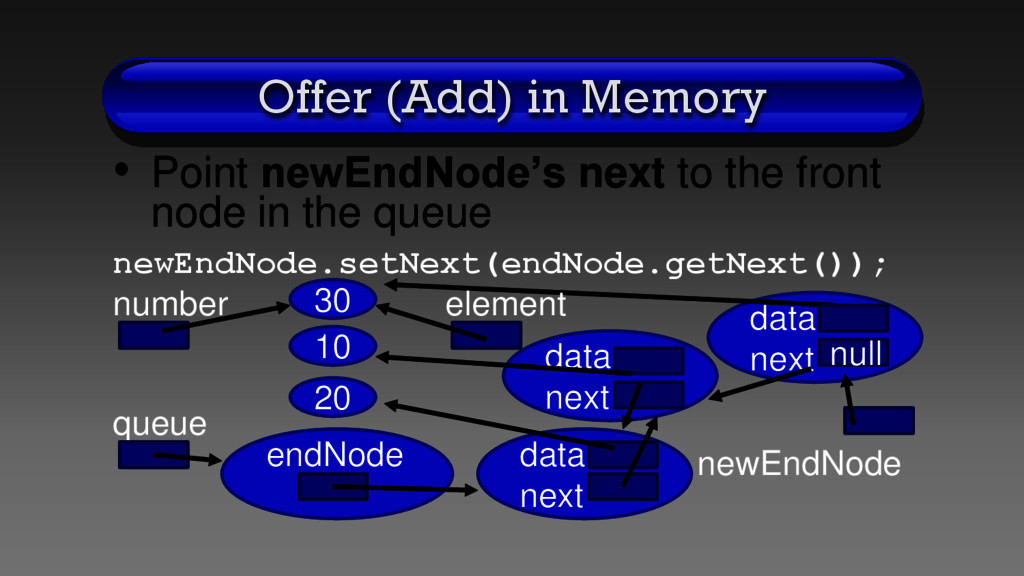

35. data next Offer (Add) in Memory • Point newEndNode’s next to the front node in the queue newEndNode.setNext(endNode.getNext()); number element queue newEndNode null 30 endNode 10 data next 20 data next

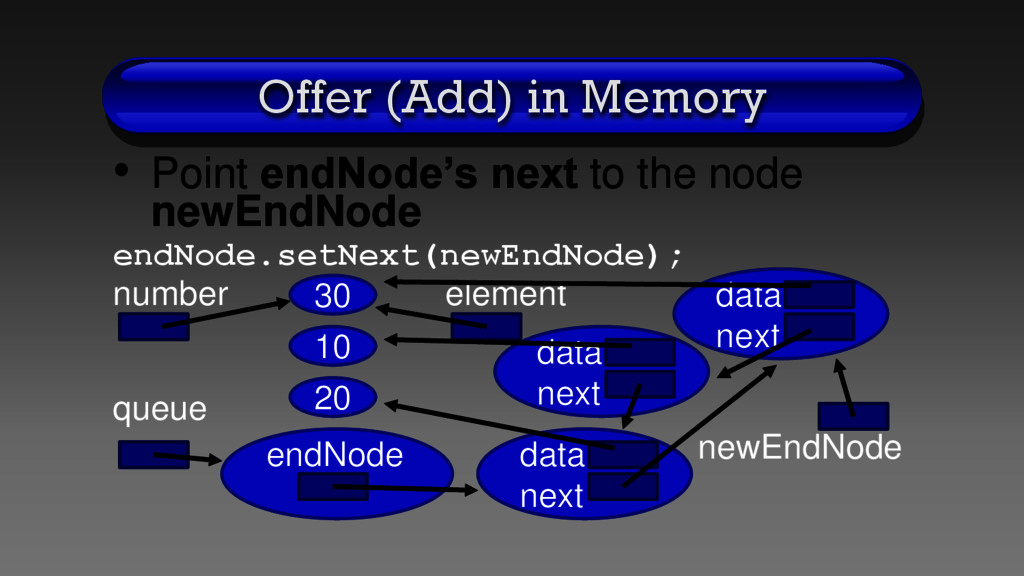

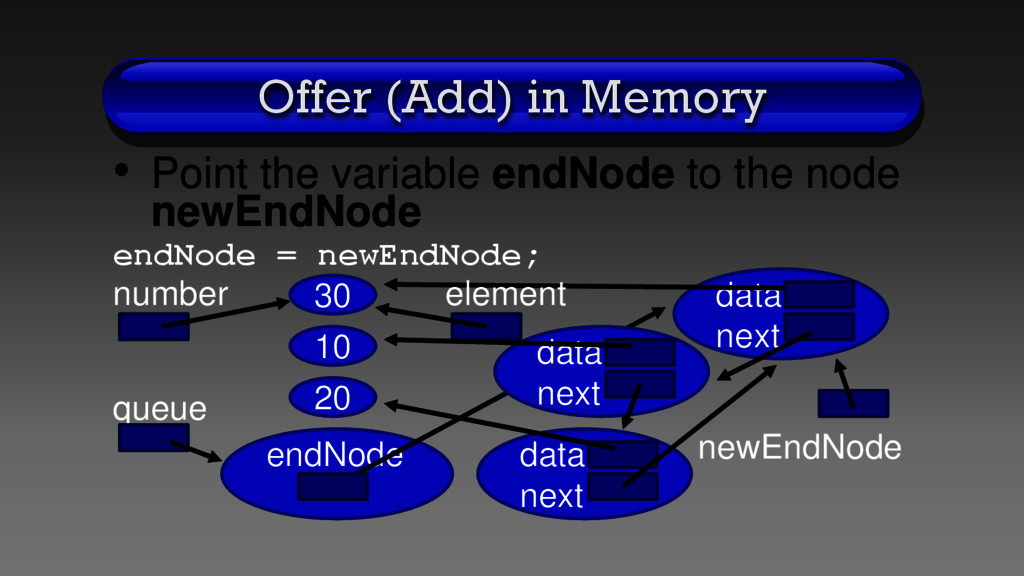

36. Offer (Add) in Memory • Point endNode’s next to the node newEndNode endNode.setNext(newEndNode); number element queue newEndNode data next 30 endNode 10 data next 20 data next
37. data next endNode Offer (Add) in Memory • Point the variable endNode to the node newEndNode endNode = newEndNode; number element queue newEndNode 30 10 data next 20 data next

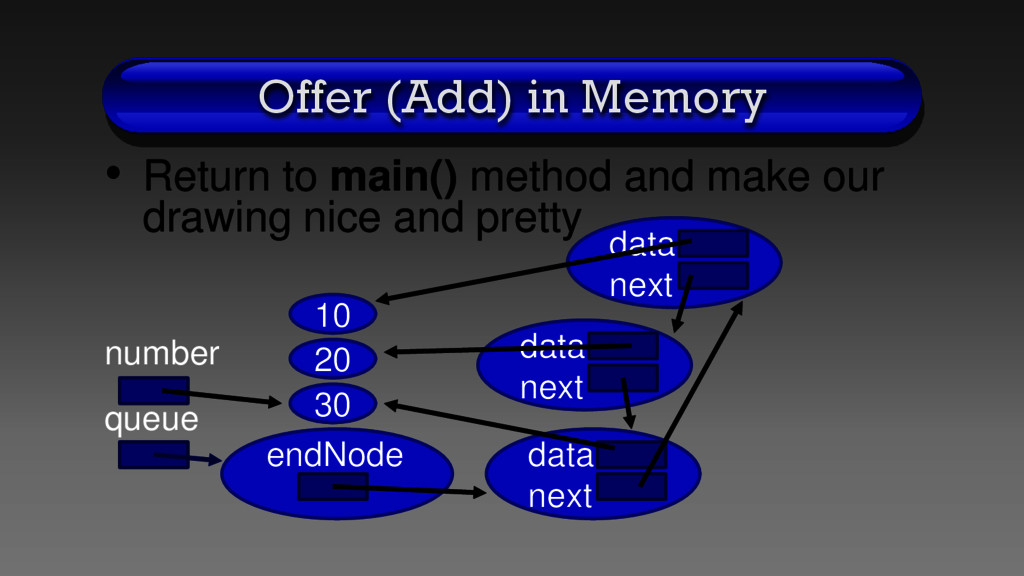

38. Offer (Add) in Memory • Return to main() method and make our drawing nice and pretty number queue data next 30 endNode 10 data next 20 data next

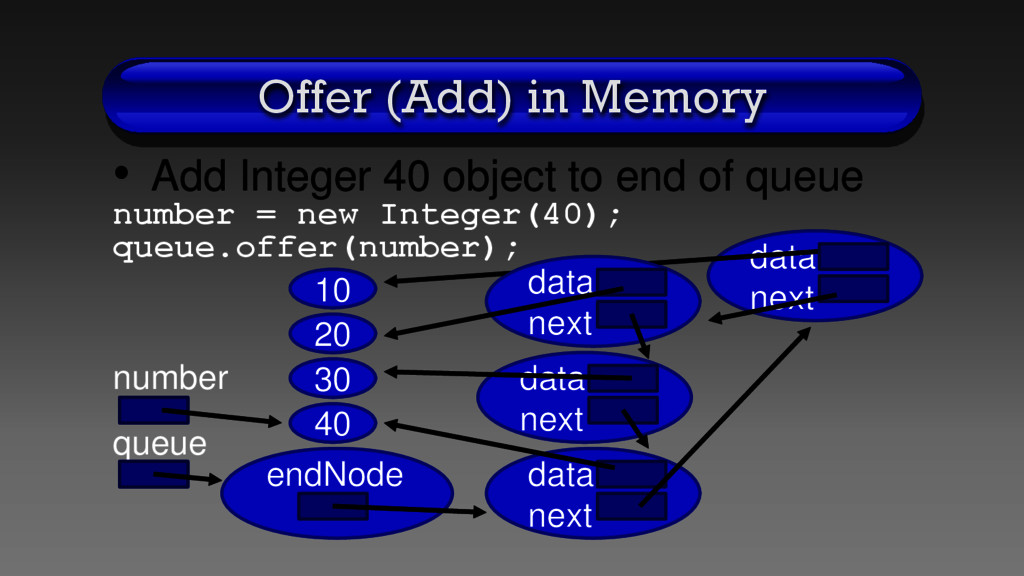

39. Offer (Add) in Memory • Add Integer 40 object to end of queue number = new Integer(40); queue.offer(number); number queue data next data next 30 endNode 10 data next 20 data next 40

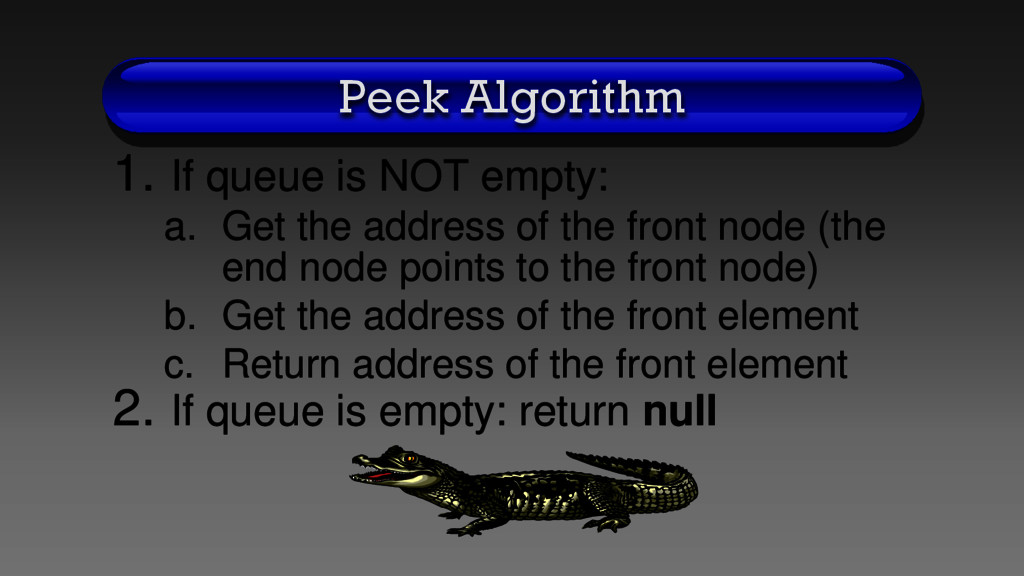

40. Peek Algorithm 1. If queue is NOT empty: a. Get the address of the front node (the end node points to the front node) b. Get the address of the front element c. Return address of the front element 2. If queue is empty: return null
41. Peek Big-O • Add up the Big-O for each step of the algorithm: O(1) + O(1) + O(1) + O(1) + O(1) = O(1) 1. If queue is NOT empty: O(1) a. Get the address of the front node O(1) b. Get address of the front element O(1) c. Return address of front element O(1) 2. If queue is empty: return null O(1)

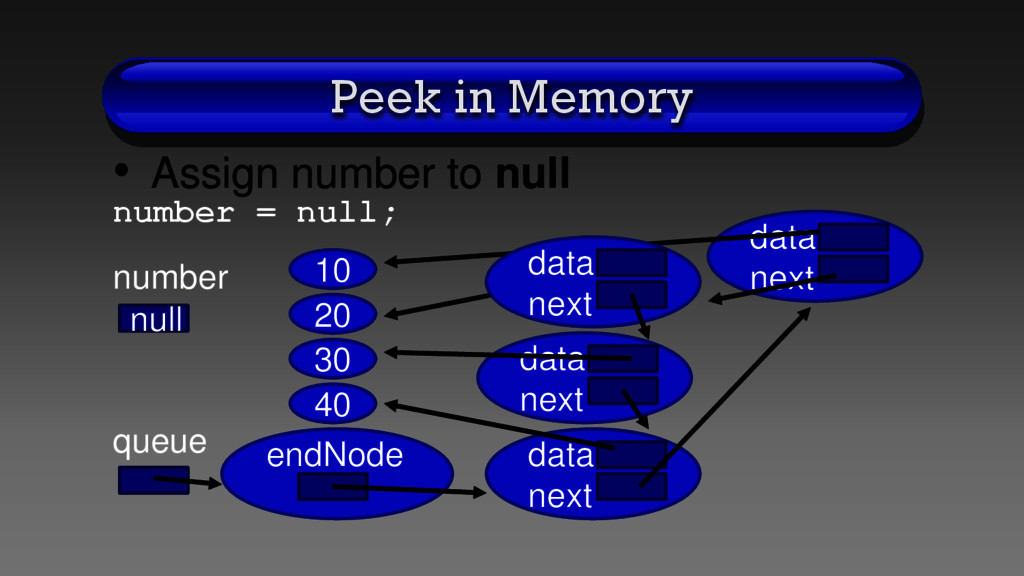

42. • Assign number to null number = null; number queue data next Peek in Memory data next null 30 endNode 10 data next 20 data next 40

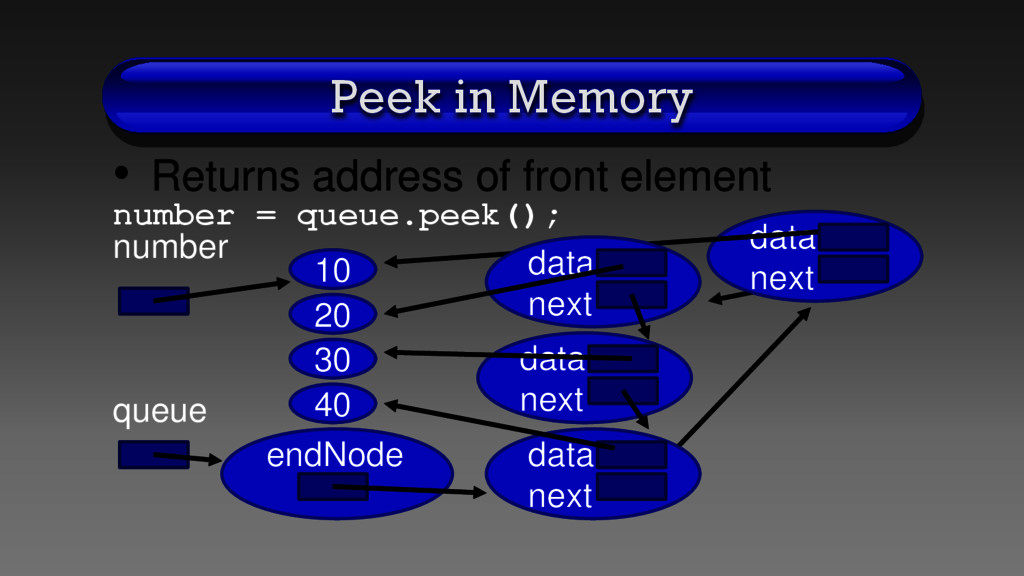

43. • Returns address of front element number = queue.peek(); number queue data next Peek in Memory data next 30 endNode 10 data next 20 data next 40

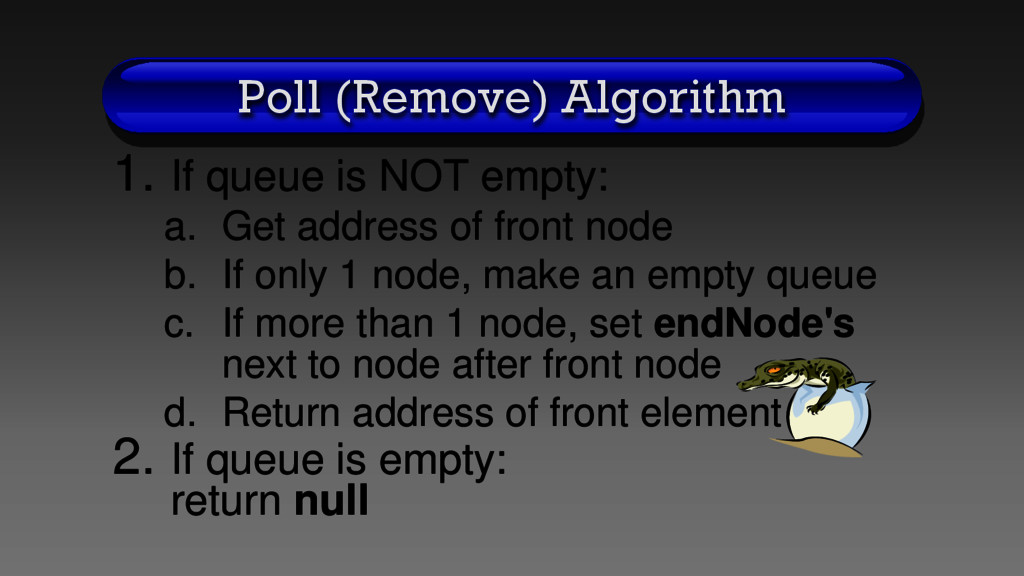

44. Poll (Remove) Algorithm 1. If queue is NOT empty: a. Get address of front node b. If only 1 node, make an empty queue c. If more than 1 node, set endNode's next to node after front node d. Return address of front element 2. If queue is empty: return null

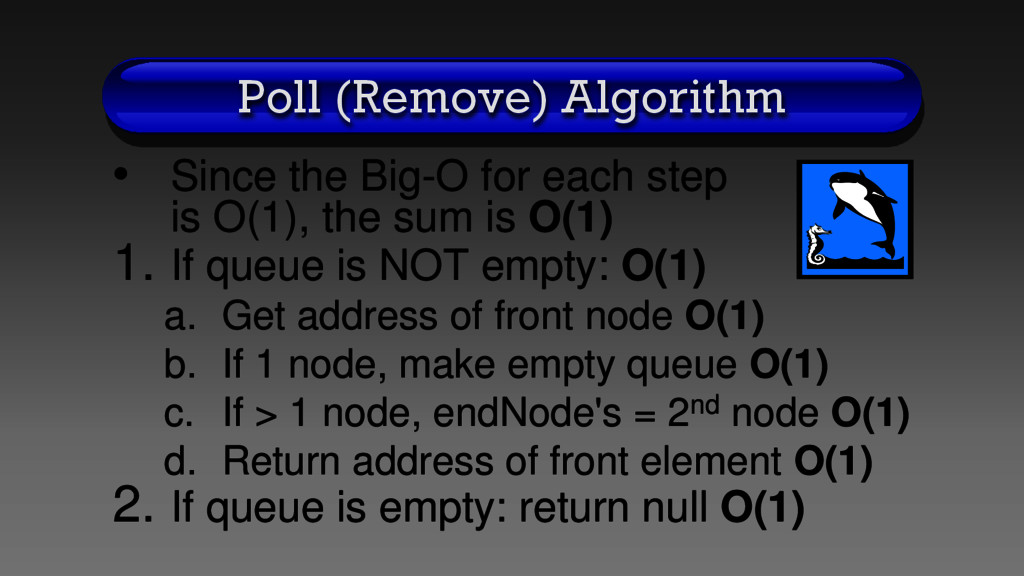

45. Poll (Remove) Algorithm • Since the Big-O for each step is O(1), the sum is O(1) 1. If queue is NOT empty: O(1) a. Get address of front node O(1) b. If 1 node, make empty queue O(1) c. If > 1 node, endNode's = 2nd node O(1) d. Return address of front element O(1) 2. If queue is empty: return null O(1)

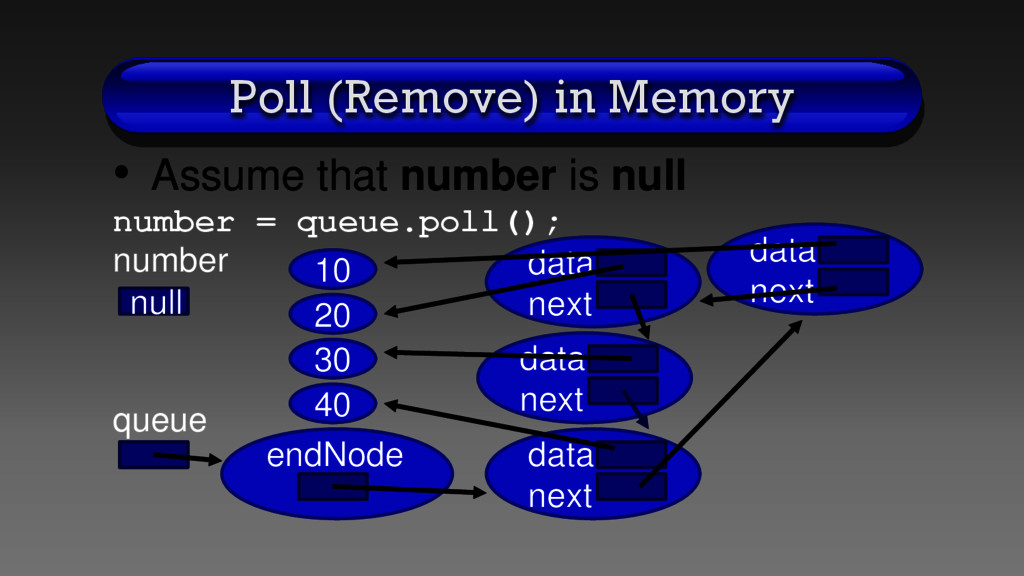

46. Poll (Remove) in Memory • Assume that number is null number = queue.poll(); number queue data next null 30 endNode 10 data next 20 data next 40 data next

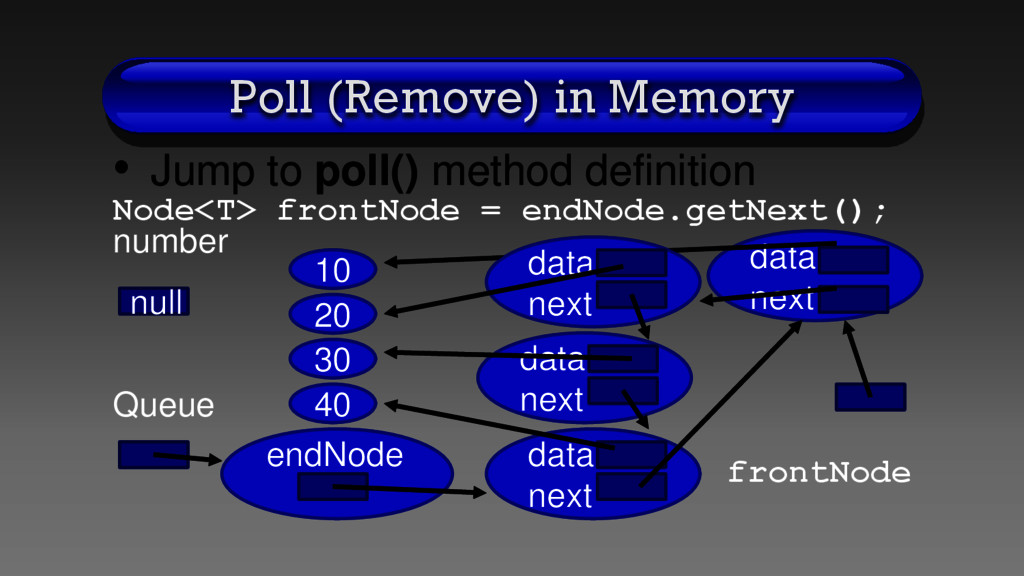

47. • Jump to poll() method definition Node<T> frontNode = endNode.getNext(); number Queue frontNode data next Poll (Remove) in Memory data next null 30 endNode 10 data next 20 data next 40

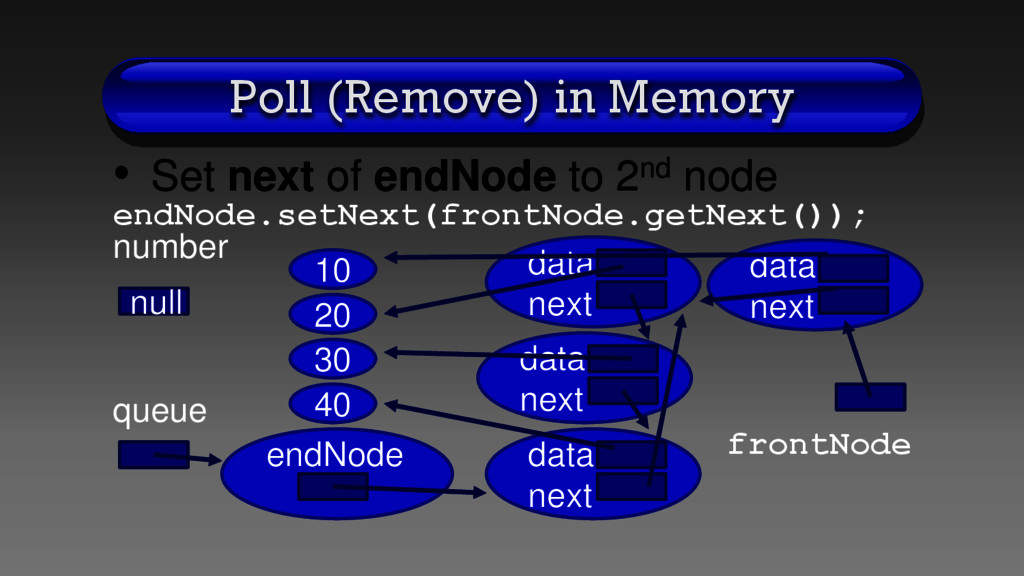

48. • Set next of endNode to 2nd node endNode.setNext(frontNode.getNext()); number queue frontNode Poll (Remove) in Memory data next null 30 endNode 10 data next 20 data next 40 data next

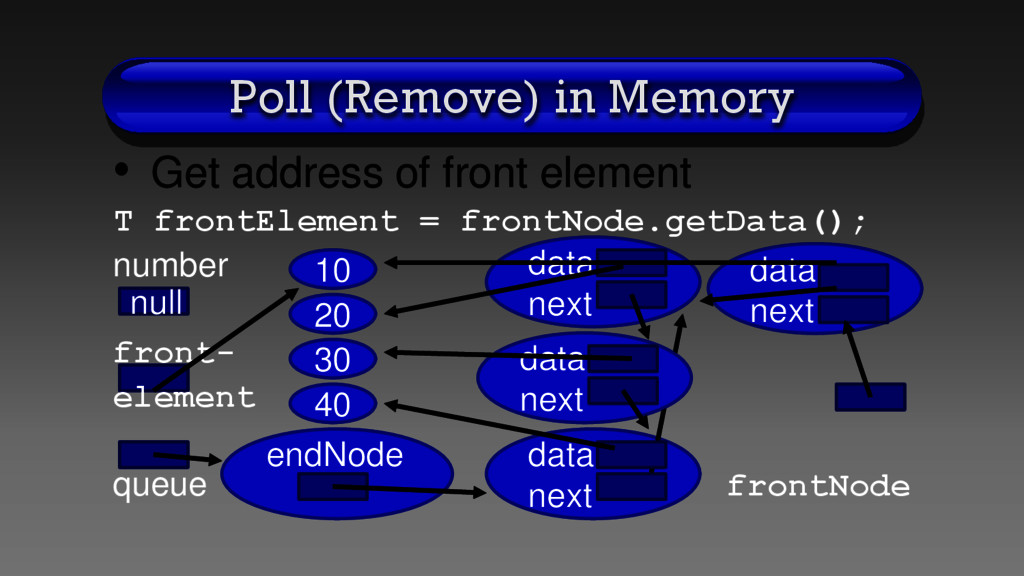

49. • Get address of front element T frontElement = frontNode.getData(); number front- element queue frontNode data next Poll (Remove) in Memory null 30 endNode 10 data next 20 data next 40 data next

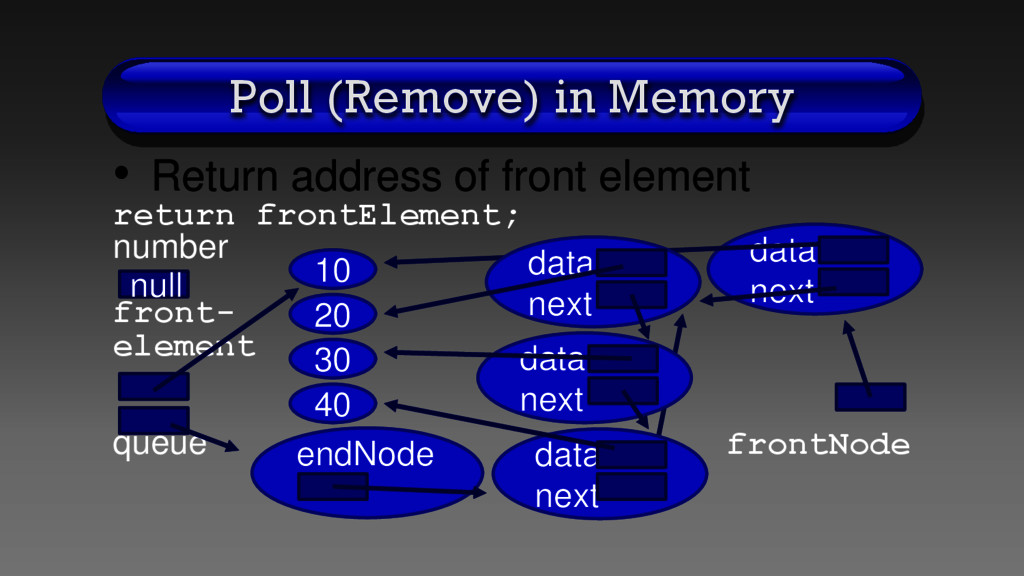

50. data next Poll (Remove) in Memory • Return address of front element return frontElement; number front- element queue frontNode data next null 30 endNode 10 data next 20 data next 40

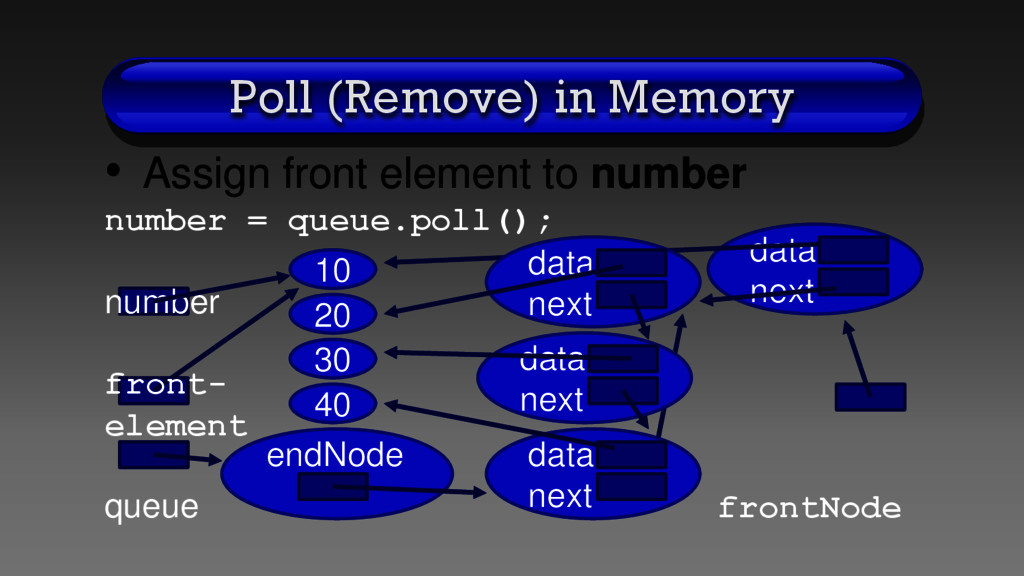

51. data next Poll (Remove) in Memory data next 30 endNode 10 data next 20 data next 40 • Assign front element to number number = queue.poll(); number front- element queue frontNode

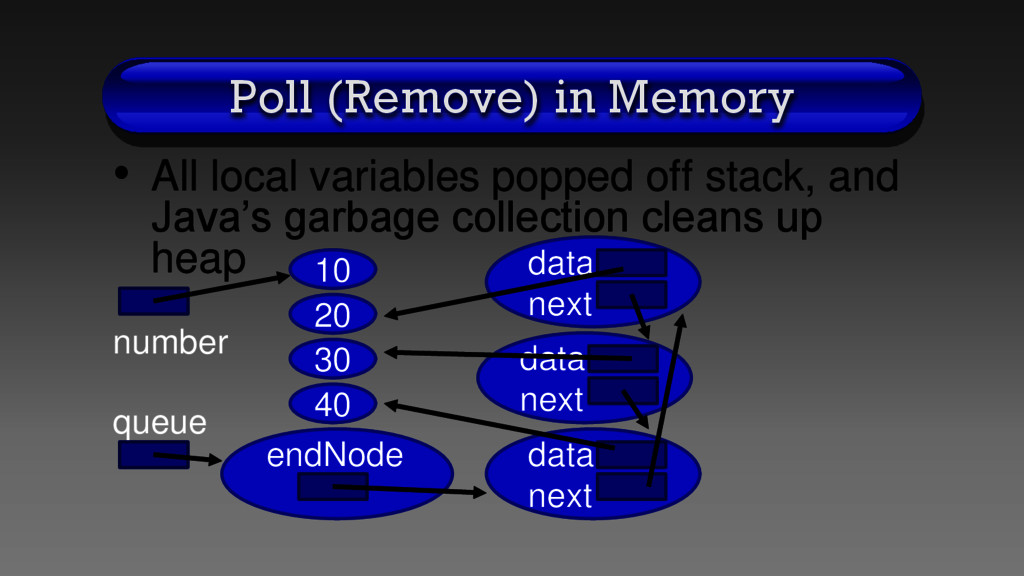

52. Poll (Remove) in Memory • All local variables popped off stack, and Java’s garbage collection cleans up heap number queue data next 30 endNode 10 data next 20 data next 40
53. Memory Defragmenter • Using linked nodes to implement a queue • Algorithms for the methods of class LinkedQueue • Big-O for LinkedQueue methods • Memory for a LinkedQueue object

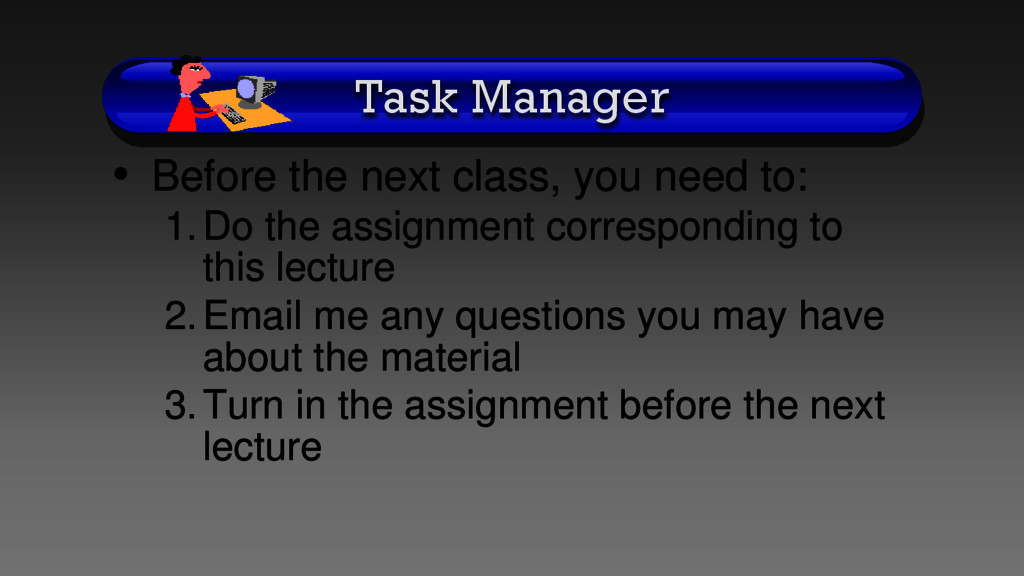

54. Task Manager • Before the next class, you need to: 1.Do the assignment corresponding to this lecture 2.Email me any questions you may have about the material 3.Turn in the assignment before the next lecture
