Mechanism of Fast Air Heating and Infrasound Generation by Sprites

Talk presented at USNC-URSI Meeting, Boulder, CO, January, 2014

Caitano L. da Silva

January 10, 2014
Tweet

More Decks by Caitano L. da Silva

Other Decks in Science

Transcript

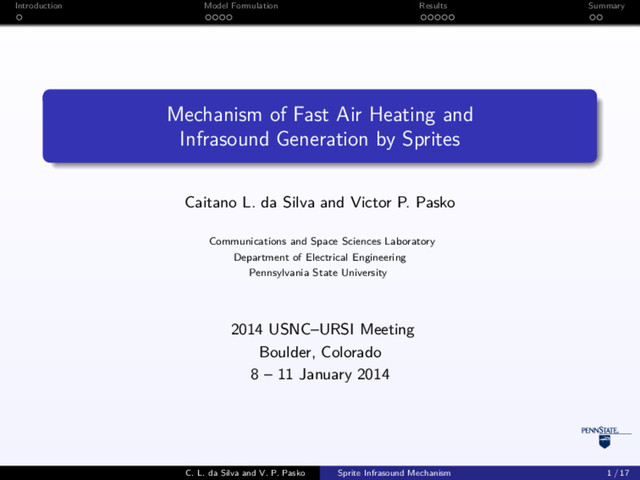

  1. Introduction Model Formulation Results Summary Mechanism of Fast Air Heating

    and Infrasound Generation by Sprites Caitano L. da Silva and Victor P. Pasko Communications and Space Sciences Laboratory Department of Electrical Engineering Pennsylvania State University 2014 USNC–URSI Meeting Boulder, Colorado 8 – 11 January 2014 C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 1 / 17
  2. Introduction Model Formulation Results Summary Outline 1 Introduction 2 Model

    Formulation 3 Results 4 Summary C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 2 / 17
  3. Introduction Model Formulation Results Summary Correlation of Sprite Optical Observations

    With Infrasound Recordings Farges et al. [GRL, 32, L01813, 2005] C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 3 / 17
  4. Introduction Model Formulation Results Summary Outline 1 Introduction 2 Model

    Formulation 3 Results 4 Summary C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 4 / 17
  5. Introduction Model Formulation Results Summary Schematics of Sprite Core 75

    70 65 60 55 50 45 40 35 30 25 ~100 km 20 15 10 5 0 h (km) Ground Core Simulated Region Individual Streamers C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 5 / 17
  6. Introduction Model Formulation Results Summary Electrical Currents Flowing Through Sprite

    Cores Sprites currents are inferred from ELF electromagnetic radiation recordings [Cummer et al., GRL, 25, 8, 1998] and from a moving-capacitor plate model [Pasko et al., GRL, 25, 18, 1998]. Icore = Isprite /Ncore ; Ncore = 10. Ip = 200–2000 A; τp and ∆τI are of the order of a few ms. Initial conditions at 70 km altitude: ne (t = 0) = ne,a e−r2/r2 c ; ne,a = 106 cm−3; rc = 20 m. C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 6 / 17
  7. Introduction Model Formulation Results Summary Coupling of Gas Dynamics and

    Chemistry in The Sprite Plasma 1 Dynamics of neutral gas. 2 Comprehensive plasma chemistry. 3 Energy exchange between charged and neutral particles. 4 Delayed vibrational energy relaxation of nitrogen molecules. [da Silva and Pasko, JGR, 118, 2013, doi:10.1002/2013JD020618] C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 7 / 17
  8. Introduction Model Formulation Results Summary Energy Exchange Between Charged and

    Neutral Particles      ∂ε ∂t ∝ Qeff T = QT + QL + Qi + QVT + QVV + QD ∂εV ∂t ∝ Qeff V = QV − QVT − QVV − 2QD QT = Fast heating from quenching of excited electronic states [Popov, JPD, 44, 285201, 2011]. QL = Elastic collisions including excitation of rotations and vibrations in O2 . QV = Excitation of vibrations in N2 . Qi = Heating from ion current, Qi = σi E2. 1 5 10 15 20 25 30 35 0 20 40 60 80 100 Electronic Power Partitioning (%) BOLSIG+ [Hagelaar and Pitchford, PSST, 14, 722, 2005] C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 8 / 17
  9. Introduction Model Formulation Results Summary Outline 1 Introduction 2 Model

    Formulation 3 Results 4 Summary C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 9 / 17
  10. Introduction Model Formulation Results Summary Fast Air Heating in the

    Sprite Core 0 0.2 0.4 0.6 0.8 1 1.2 (a) 10−5 10−4 10−3 10−2 10−1 100 −0.4 −0.2 0 0.2 0.4 0.6 0.8 1 1.2 (b) 10−5 10−4 10−3 10−2 10−1 100 100 101 102 103 (c) (Fast Heating) (Elastic Collisions) (Total) (Air Heating) Ip = 2000 A; τp = 6 ms; ∆τI = 4 ms. Ncore Lz W = 137 MJ. W eff T /W 16 %. C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 10 / 17
  11. Introduction Model Formulation Results Summary Role of Electron Detachment 104

    105 106 107 108 109 (a) 10−5 10−4 10−3 10−2 10−1 100 10−5 10−4 10−3 10−2 10−1 100 10−2 100 102 104 (b) The electron density increase in the sprite core is resulting from the accumulation of O− ions followed by electron detachment (νdet ), in agreement with conclusions of more detailed kinetic models [Gordillo-Vazquez and Luque, GRL, 37, L16809, 2010]. C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 11 / 17
  12. Introduction Model Formulation Results Summary Optical Emissions 0 1 2

    3 4 5 6 7 8 9 10 −200 −100 0 100 200 6 8 10 10 10 10 Intensity (R) 1PN2 Optical Emission The sustained luminosity associated to rapid current growth is in agreement with the mechanism for the sprite streamer luminous trail proposed by Liu [GRL, 37, L04102, 2010]. C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 12 / 17
  13. Introduction Model Formulation Results Summary Radiation of Infrasonic Acoustic Waves

    0 0.02 0.01 0 −0.01 50 100 150 200 250 300 350 400 0.1 s 0.3 0.5 0.7 0.9 1.1 s ∆pobs = ∆pref N0 Namb rref Lz Lz Robs ; Lz = 10 km; Robs = 100 km. ∆pobs /∆pref 1.72 → ∆pobs = 0.01 Pa. C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 13 / 17
  14. Introduction Model Formulation Results Summary Effects of Different Current Waveform

    Parameters 0 500 1000 1500 2000 0 0.005 0.01 0.015 0.02 0.025 0 5 10 15 20 0 0.005 0.01 0.015 0.02 0.025 (a) (b) 15 MJ 92 MJ 330 MJ 390 MJ 900 MJ 137 MJ 4 ms 440 MJ 4.7 GJ 4 ms 40 ms 40 ms 4 ms 2000 A ∆pobs is directly proportional to Ip and weakly depends on τp and ∆τI . ∆pobs is a better tracer of Ip rather than total energy deposited (Ncore Lz W ). C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 14 / 17
  15. Introduction Model Formulation Results Summary Outline 1 Introduction 2 Model

    Formulation 3 Results 4 Summary C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 15 / 17
  16. Introduction Model Formulation Results Summary Summary 1 Air heating or,

    more precisely, fast air heating, is the physical mechanism responsible for infrasonic acoustic wave radiation from sprites. Typical in situ pressure perturbation amplitudes are ∼10−3–10−2 Pa. 2 Only a fraction of ∼16 % of the total energy deposited by sprites is used for air heating. 3 Pressure perturbations amplitudes of 0.01 Pa, registered on the ground in association with sprites, can only be produced by exceptionally strong currents in sprite cores, exceeding 2 kA. 4 Measured infrasound amplitudes are directly proportional to peak currents flowing through sprite cores, and are not necessarily uniquely related to the total energy deposited in sprites. C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 16 / 17
  17. Introduction Model Formulation Results Summary Thank you for your attention!

    Acknowledgments This research was supported by NSF AGS-0734083 and AGS-1332199 grants to Penn State University. Reference da Silva, C. L., and V. P. Pasko (2014), Infrasonic acoustic waves generated by fast air heating in sprite cores, Geophys. Res. Lett., Submitted for Publication, doi:10.1002/2013GL059164. Contact C. L. da Silva and V. P. Pasko, Communications and Space Sciences Laboratory, Department of Electrical Engineering, Pennsylvania State University, 227 EE East, University Park, PA 16802-2706, USA ([email protected]; [email protected]). C. L. da Silva and V. P. Pasko Sprite Infrasound Mechanism 17 / 17
