Path morphing

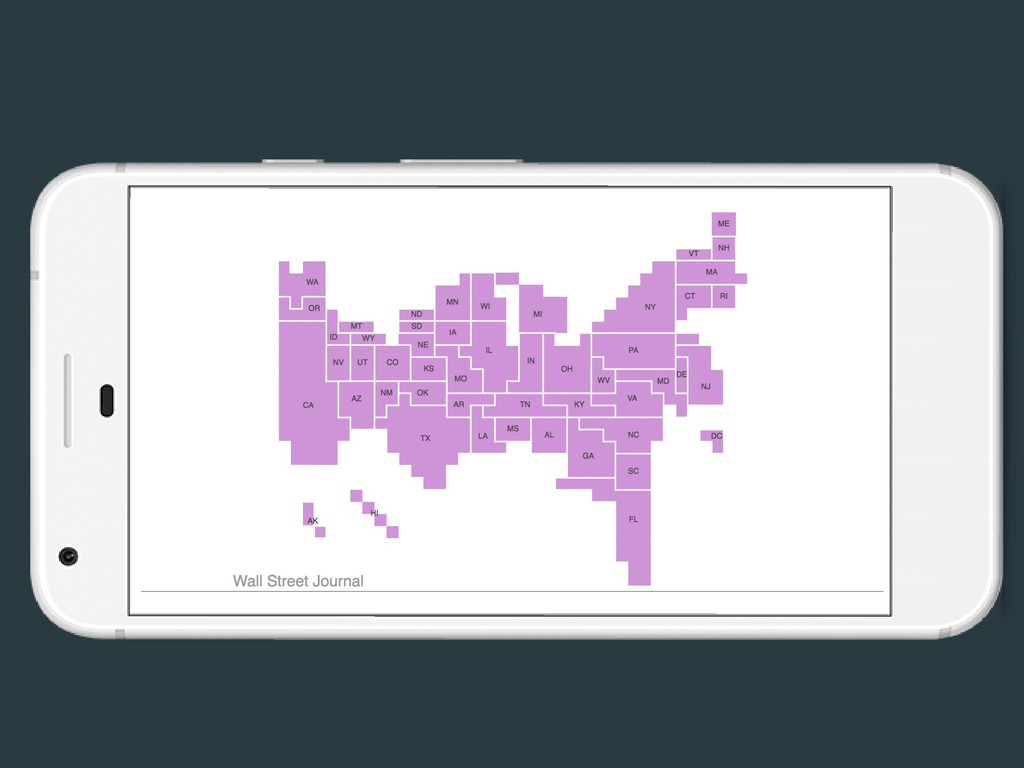

Exploring delightful details on apps using path morphing technique and how we can use biology for our morphing animations.

Transcript

1. PATH MORPHING

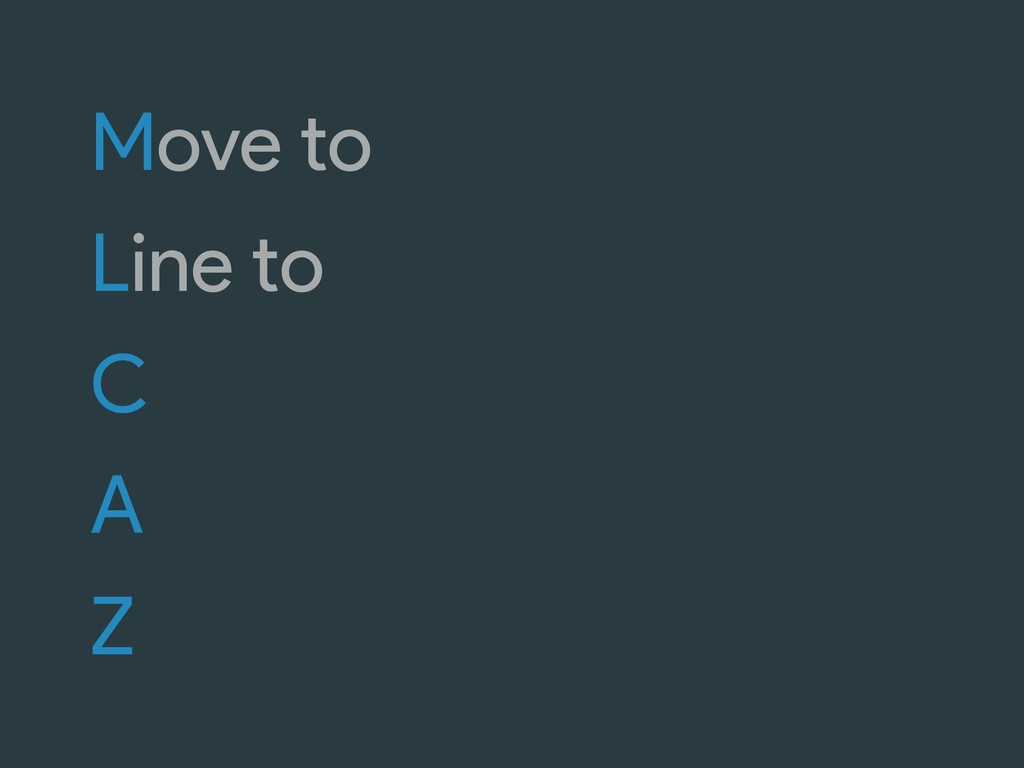

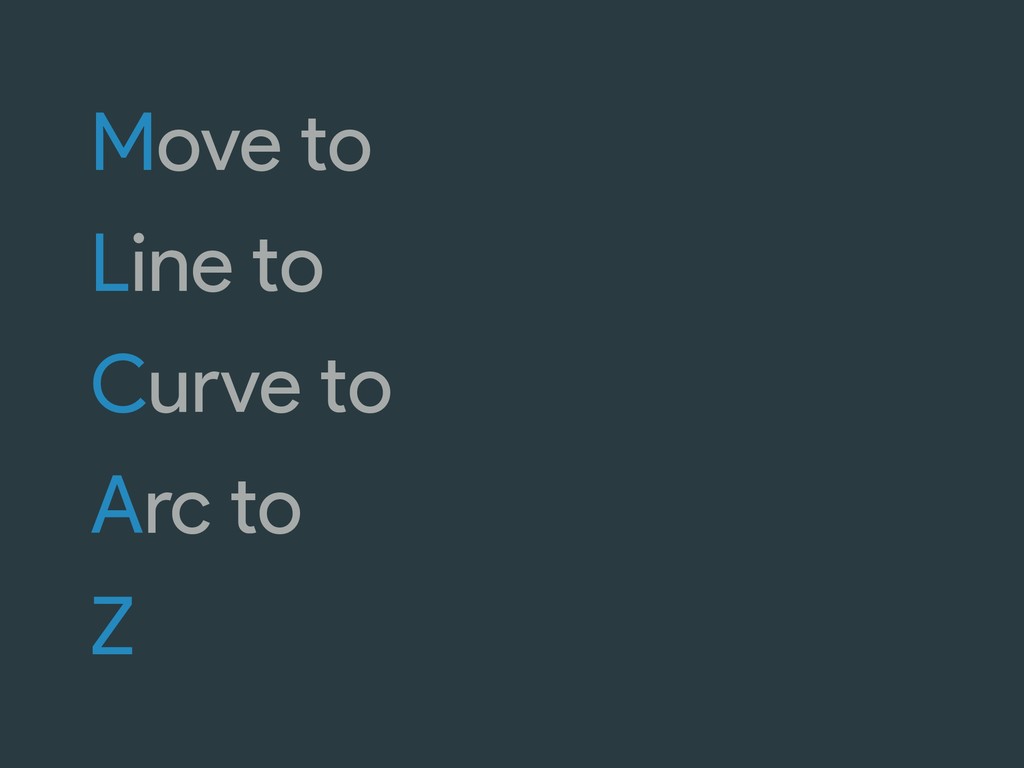

4. M L C A Z
5. Move to L C A Z
6. Move to Line to C A Z
7. Move to Line to Curve to A Z
8. Move to Line to Curve to Arc to Z

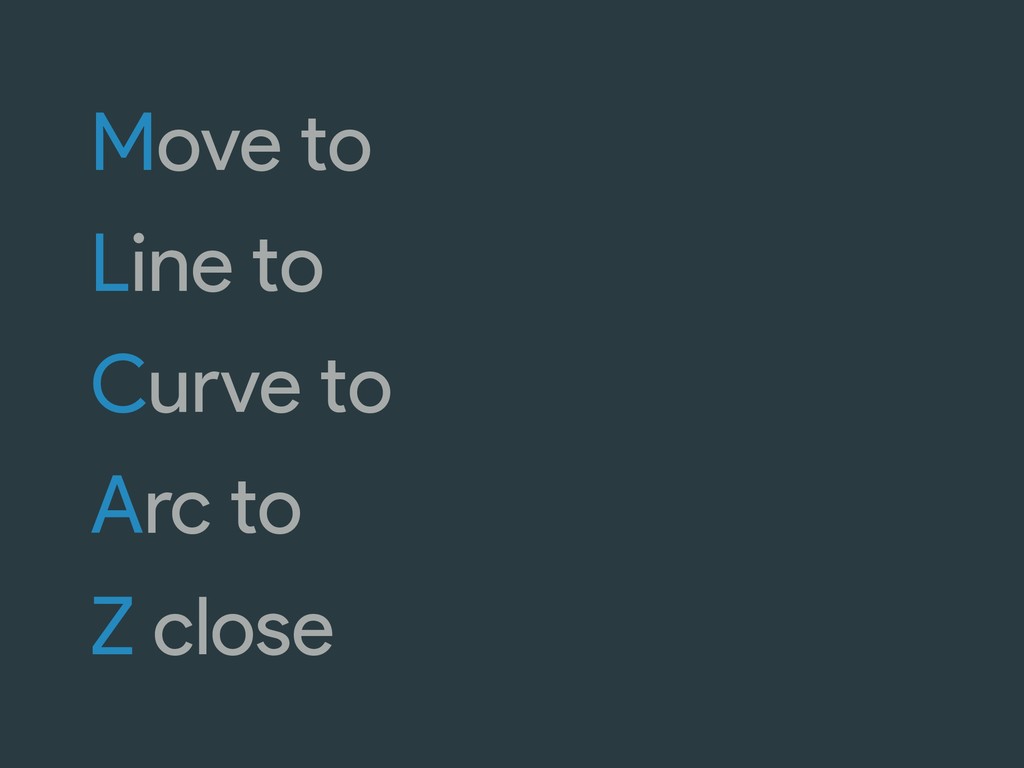

9. Move to Line to Curve to Arc to Z close

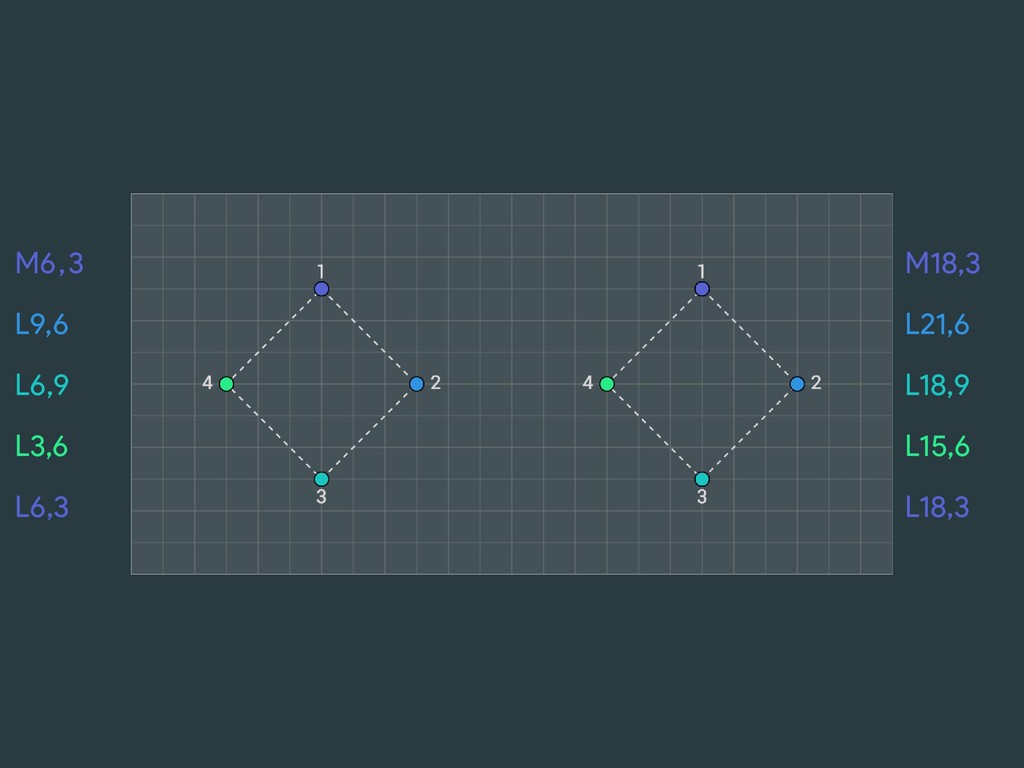

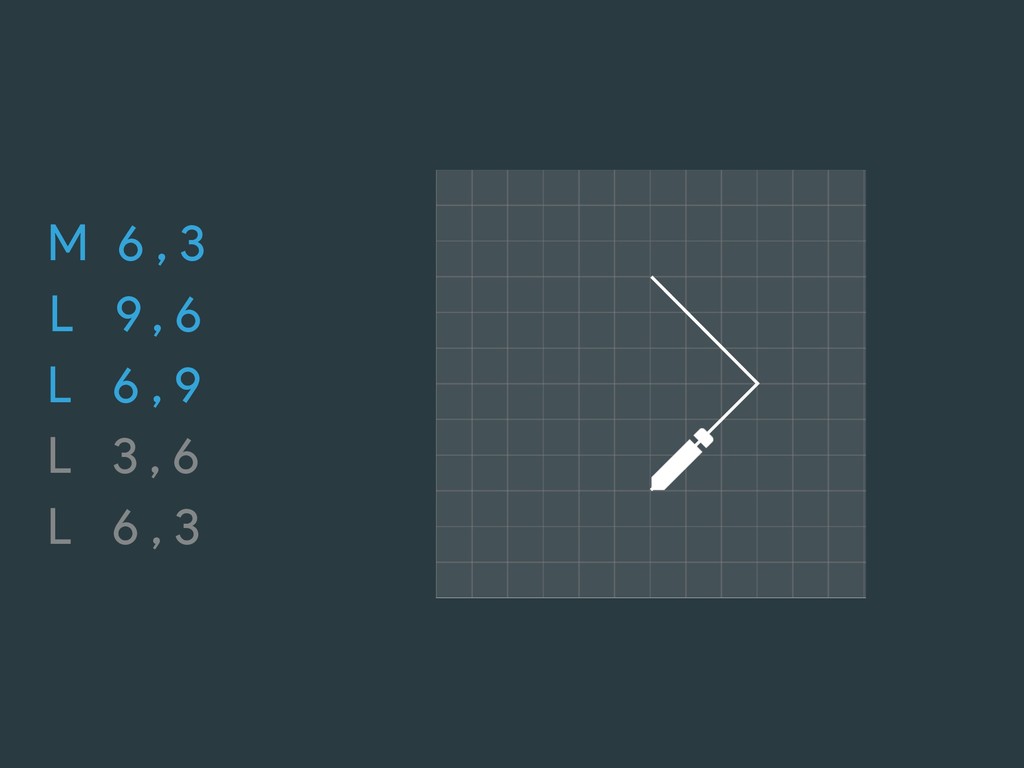

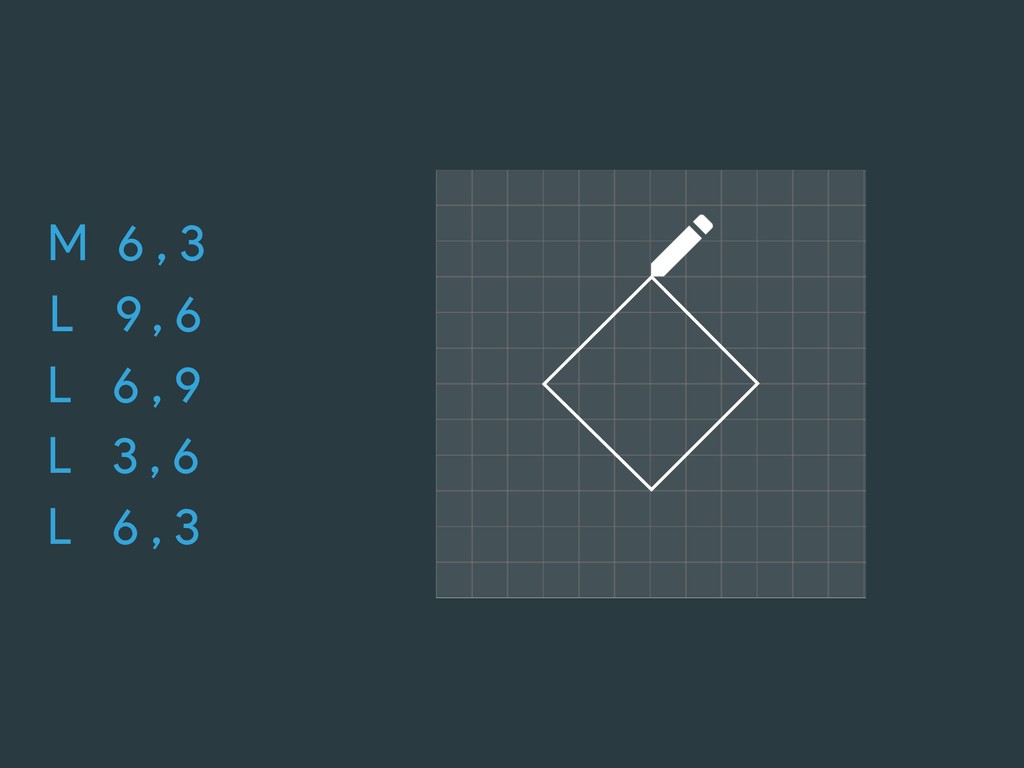

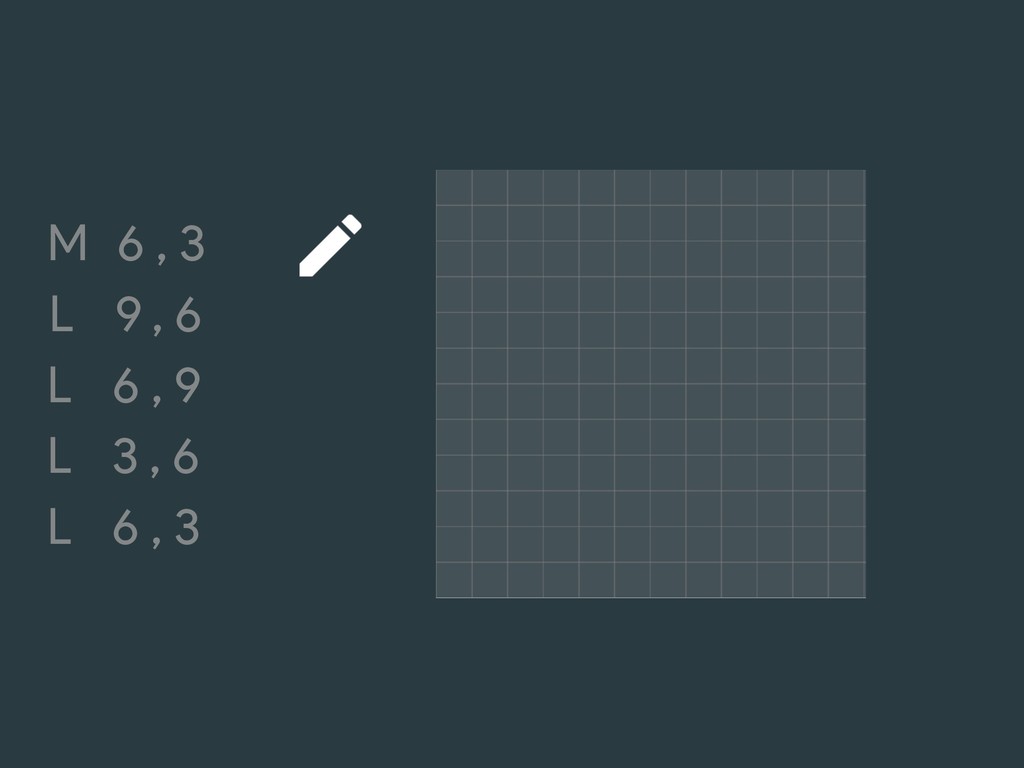

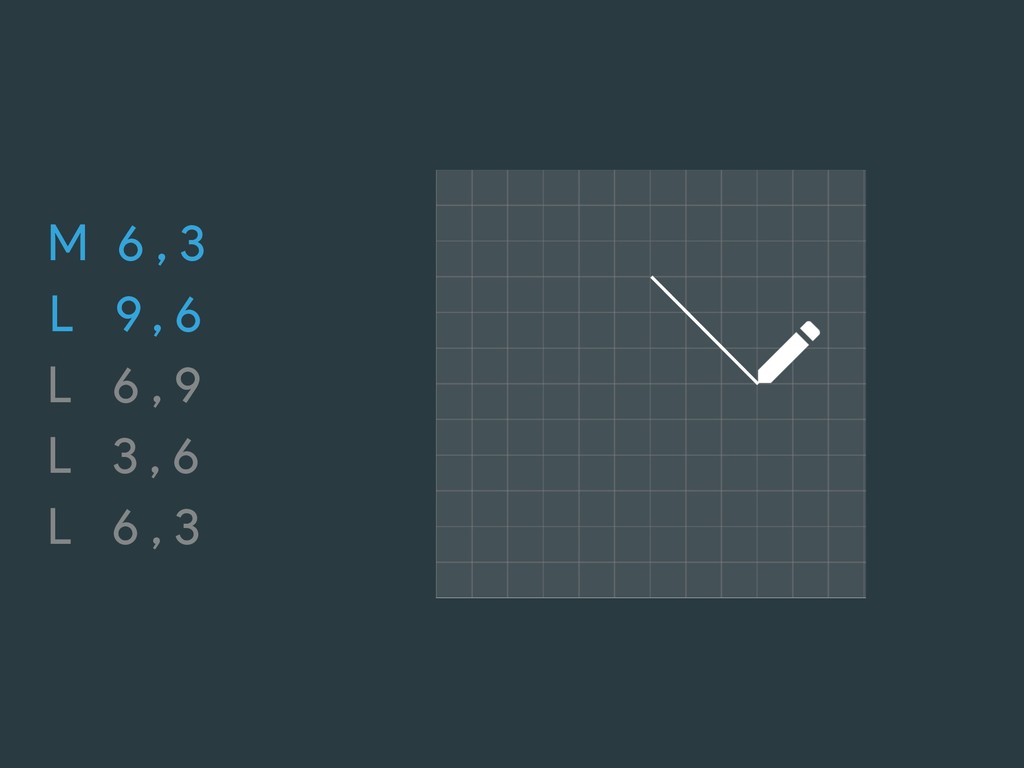

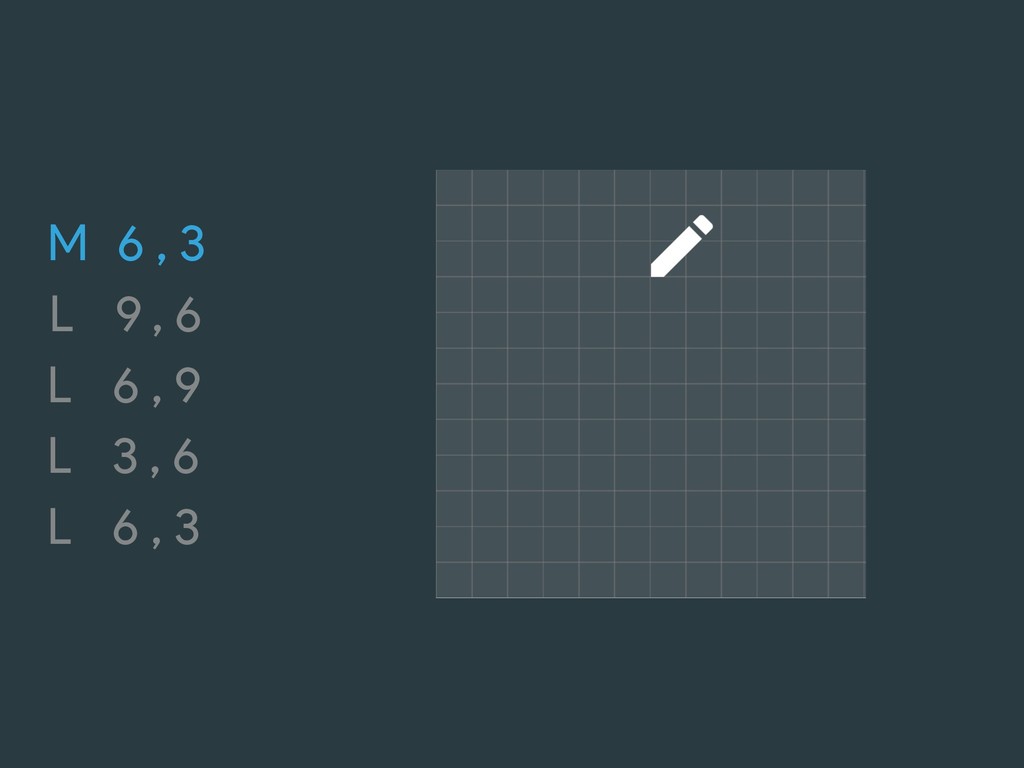

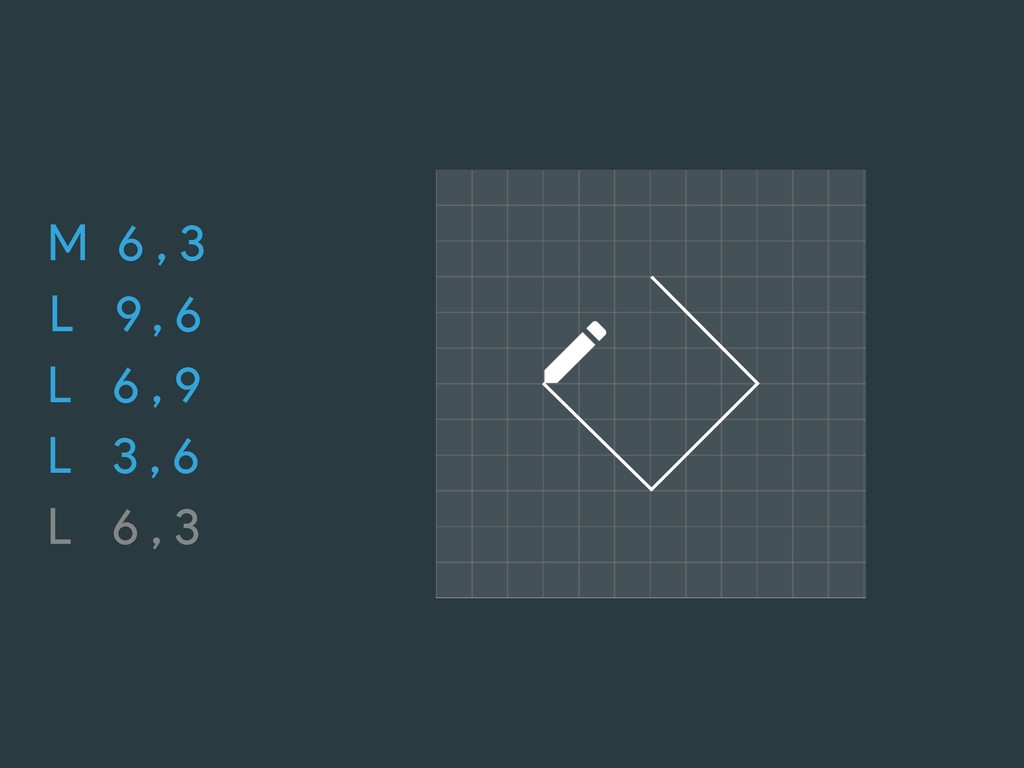

10. M 6 , 3 L 9 , 6 L 6 , 9 L 3 , 6 L 6 , 3
11. M 6 , 3 L 9 , 6 L 6 , 9 L 3 , 6 L 6 , 3
12. M 6 , 3 L 9 , 6 L 6 , 9 L 3 , 6 L 6 , 3
13. M 6 , 3 L 9 , 6 L 6 , 9 L 3 , 6 L 6 , 3
14. M 6 , 3 L 9 , 6 L 6 , 9 L 3 , 6 L 6 , 3
15. M 6 , 3 L 9 , 6 L 6 , 9 L 3 , 6 L 6 , 3

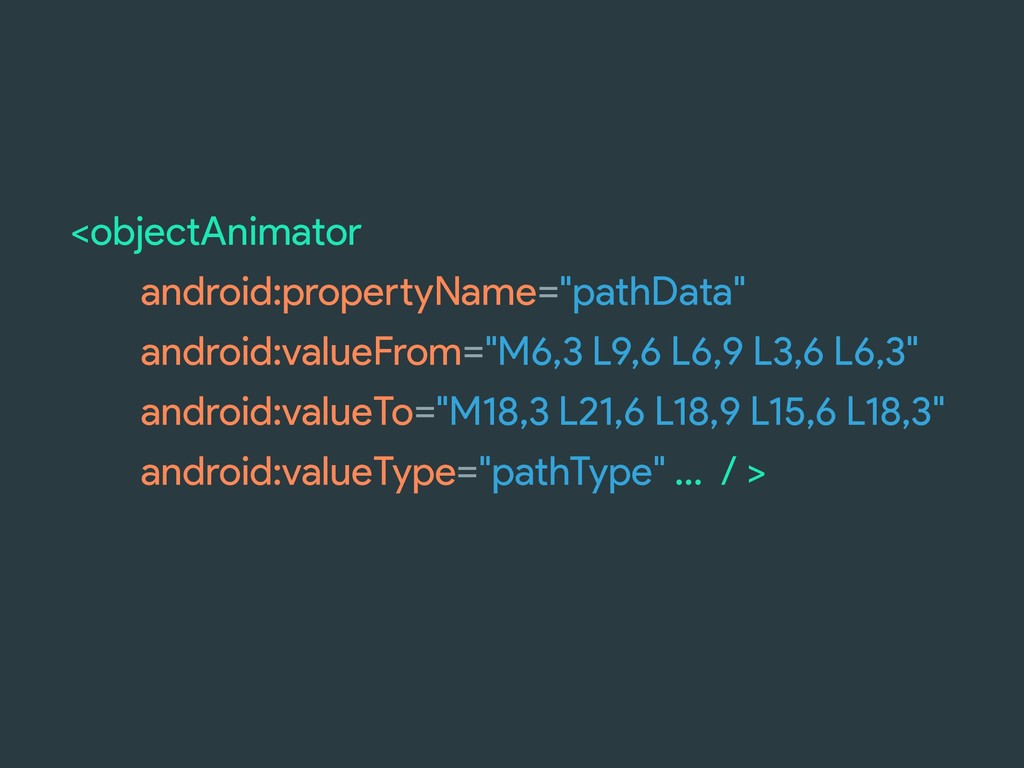

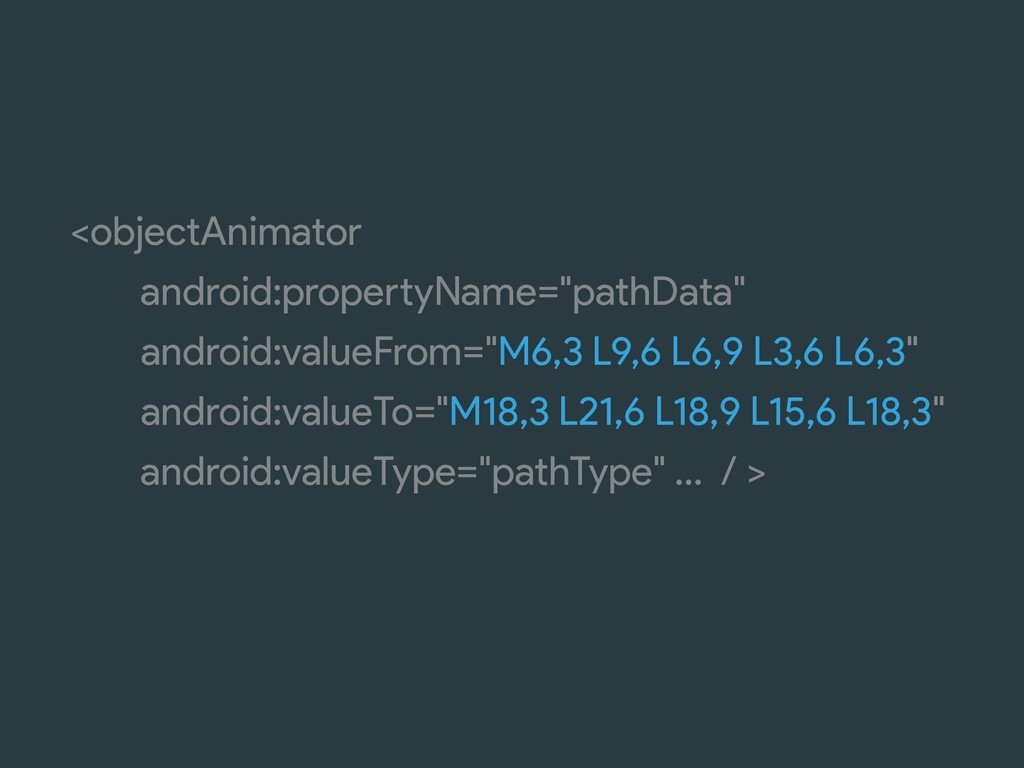

16. <objectAnimator android:propertyName="pathData" android:valueFrom="M6,3 L9,6 L6,9 L3,6 L6,3" android:valueTo="M18,3 L21,6 L18,9 L15,6 L18,3" android:valueType="pathType" … / >
17. <objectAnimator android:propertyName="pathData" android:valueFrom="M6,3 L9,6 L6,9 L3,6 L6,3" android:valueTo="M18,3 L21,6 L18,9 L15,6 L18,3" android:valueType="pathType" … / >

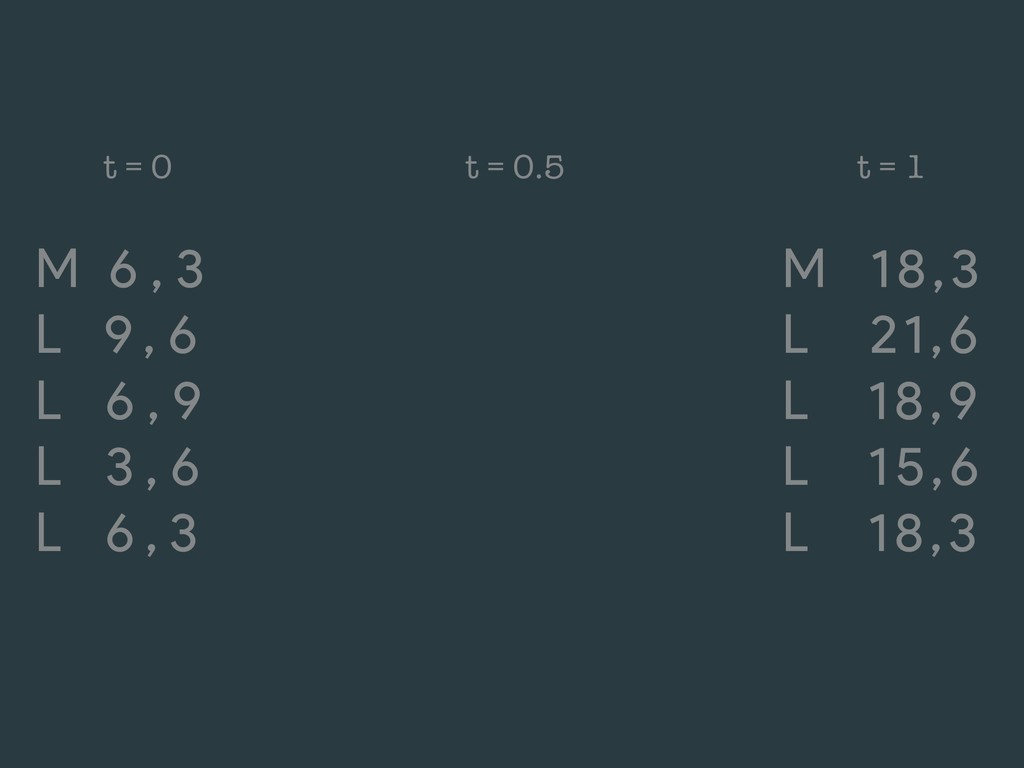

18. InbeTweening

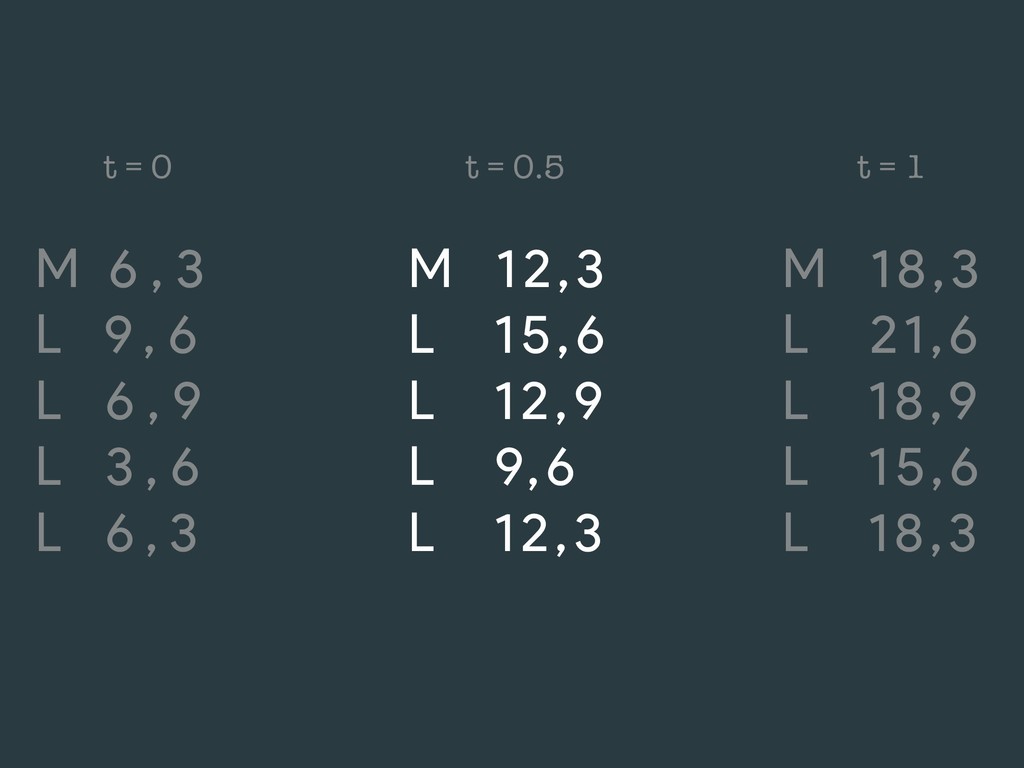

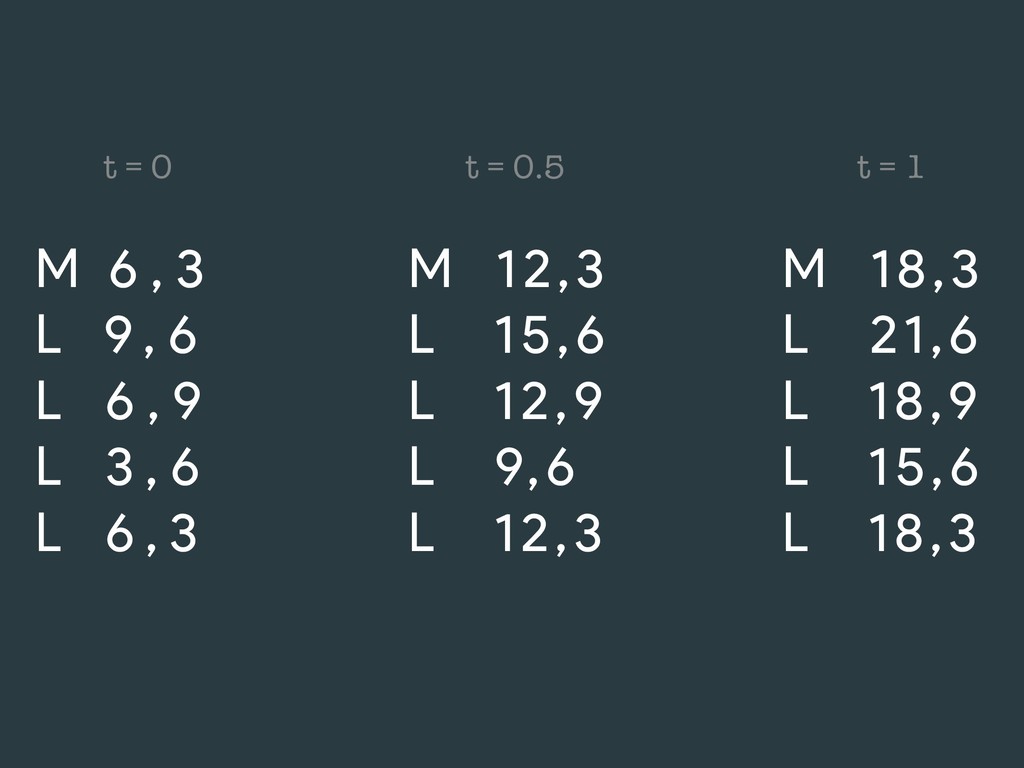

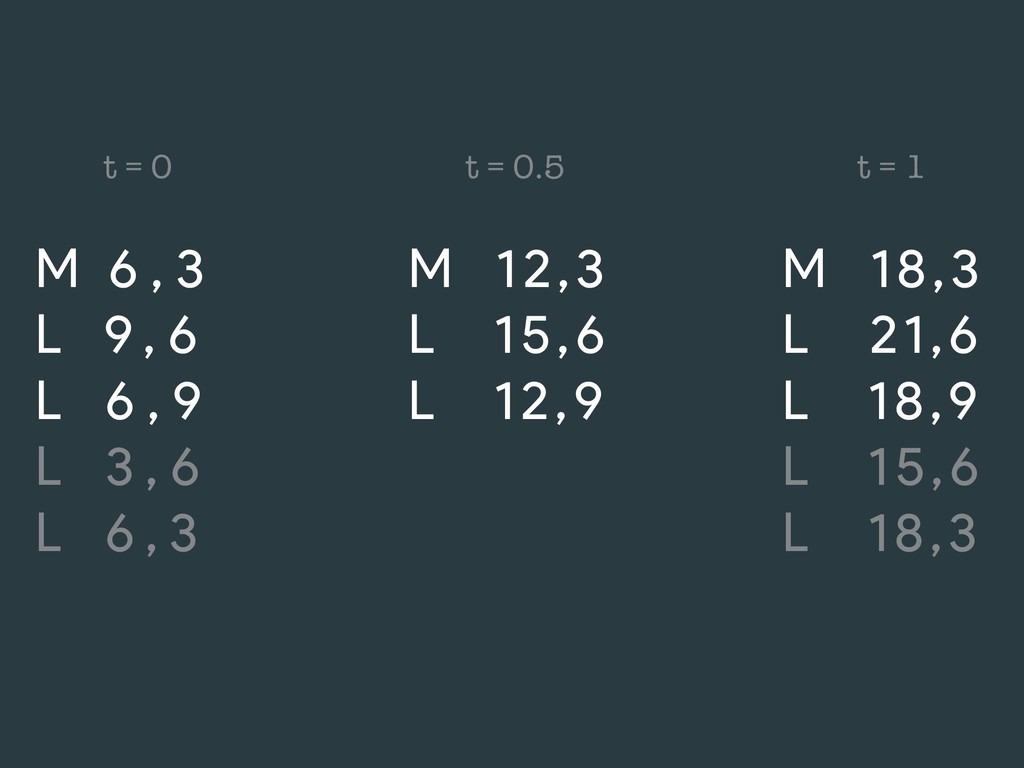

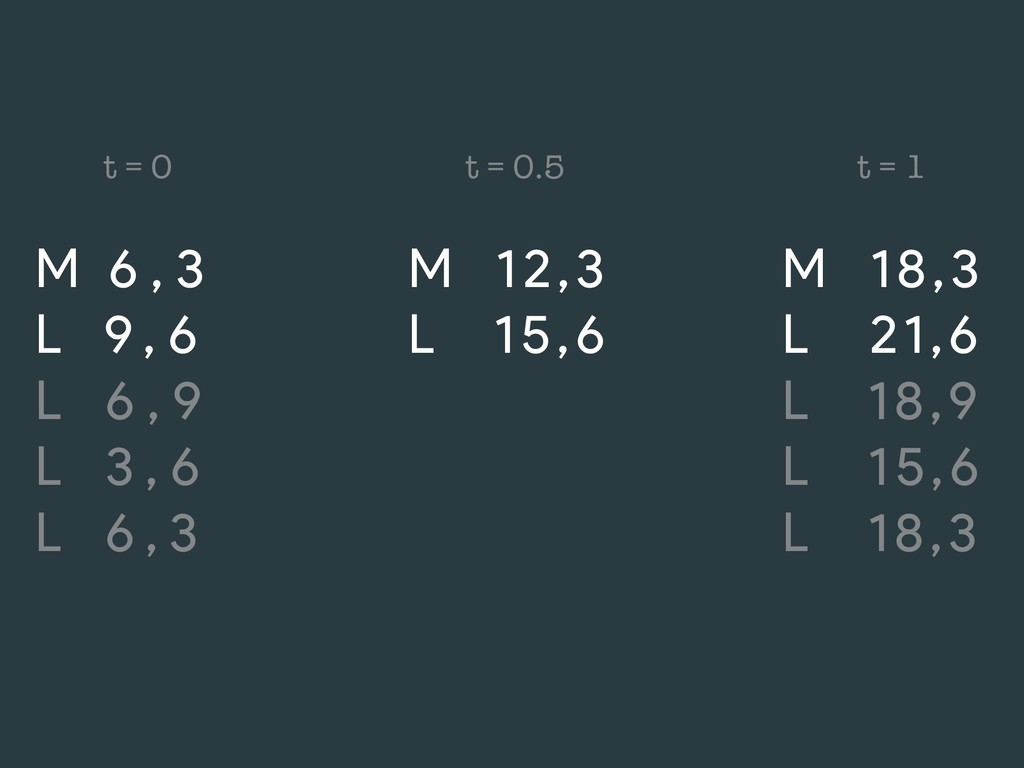

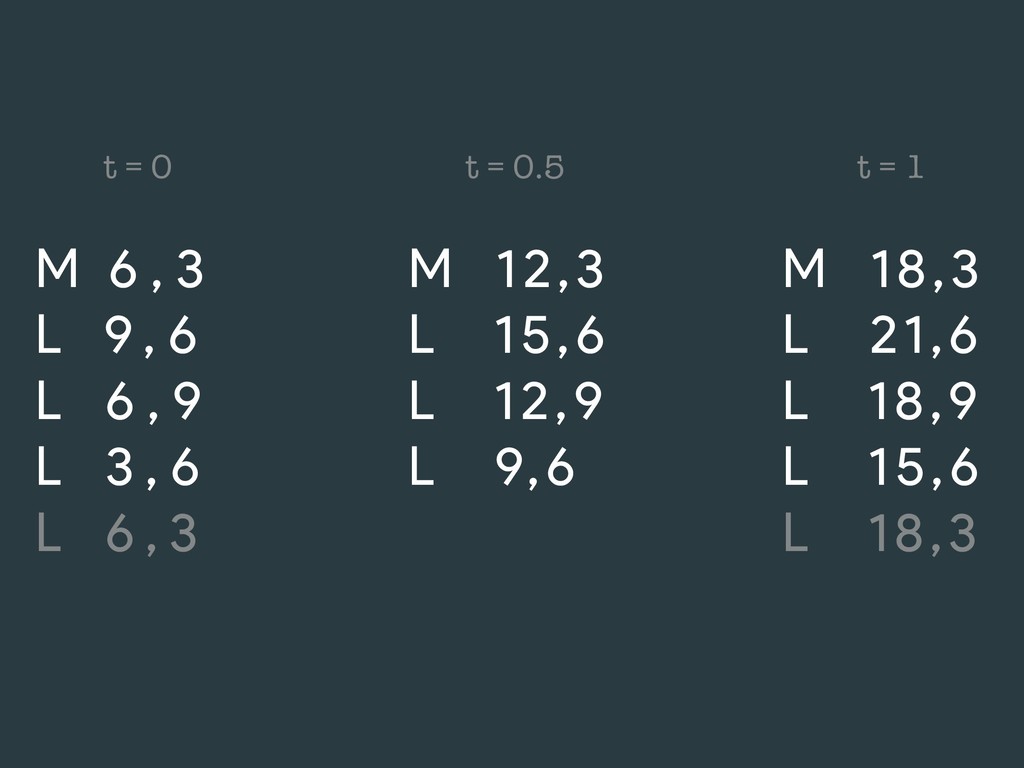

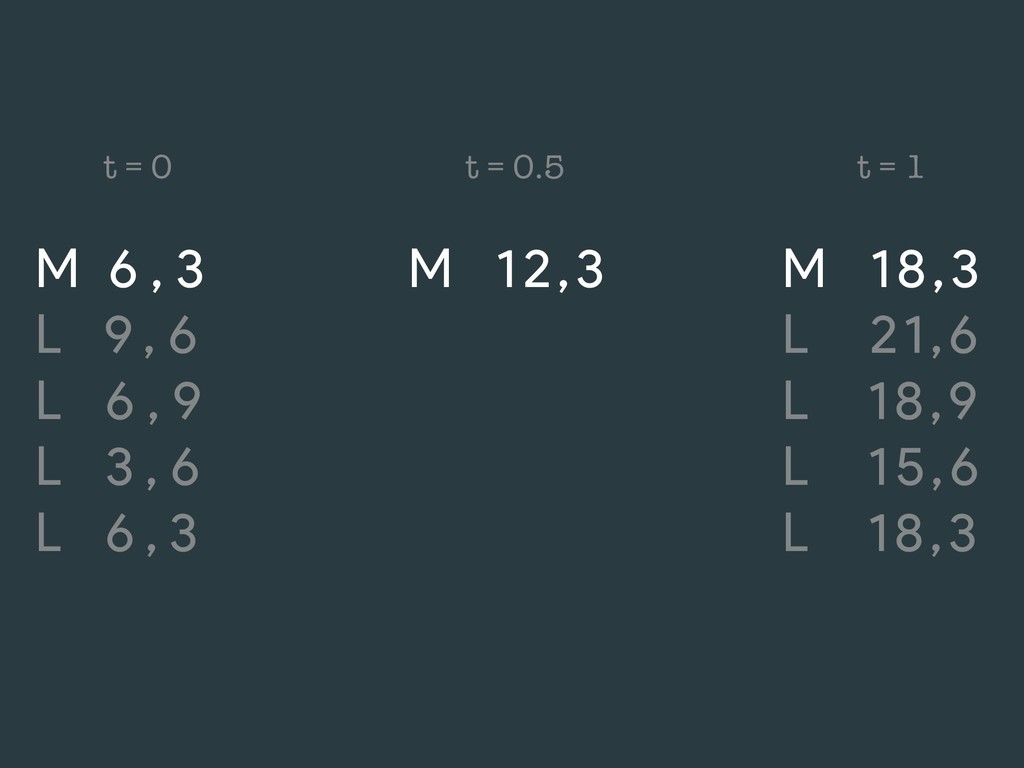

20. M 6 , 3 L 9 , 6 L 6 , 9 L 3 , 6 L 6 , 3 M 18,3 L 21,6 L 18,9 L 15,6 L 18,3 t = 0 t = 1 t = 0.5 M 12,3 L 15,6 L 12,9 L 9,6 L 12,3
21. M 6 , 3 L 9 , 6 L 6 , 9 L 3 , 6 L 6 , 3 M 18,3 L 21,6 L 18,9 L 15,6 L 18,3 t = 0 t = 1 t = 0.5 M 12,3 L 15,6 L 12,9 L 9,6 L 12,3
22. M 6 , 3 L 9 , 6 L 6 , 9 L 3 , 6 L 6 , 3 M 18,3 L 21,6 L 18,9 L 15,6 L 18,3 t = 0 t = 1 t = 0.5 M 12,3 L 15,6 L 12,9 L 9,6 L 12,3
23. M 6 , 3 L 9 , 6 L 6 , 9 L 3 , 6 L 6 , 3 M 18,3 L 21,6 L 18,9 L 15,6 L 18,3 t = 0 t = 1 t = 0.5 M 12,3 L 15,6 L 12,9 L 9,6 L 12,3
24. M 6 , 3 L 9 , 6 L 6 , 9 L 3 , 6 L 6 , 3 M 18,3 L 21,6 L 18,9 L 15,6 L 18,3 t = 0 t = 1 t = 0.5 M 12,3 L 15,6 L 12,9 L 9,6 L 12,3
25. M 6 , 3 L 9 , 6 L 6 , 9 L 3 , 6 L 6 , 3 M 18,3 L 21,6 L 18,9 L 15,6 L 18,3 t = 0 t = 1 t = 0.5 M 12,3 L 15,6 L 12,9 L 9,6 L 12,3
26. M 6 , 3 L 9 , 6 L 6 , 9 L 3 , 6 L 6 , 3 M 18,3 L 21,6 L 18,9 L 15,6 L 18,3 t = 0 t = 1 t = 0.5 M 12,3 L 15,6 L 12,9 L 9,6 L 12,3

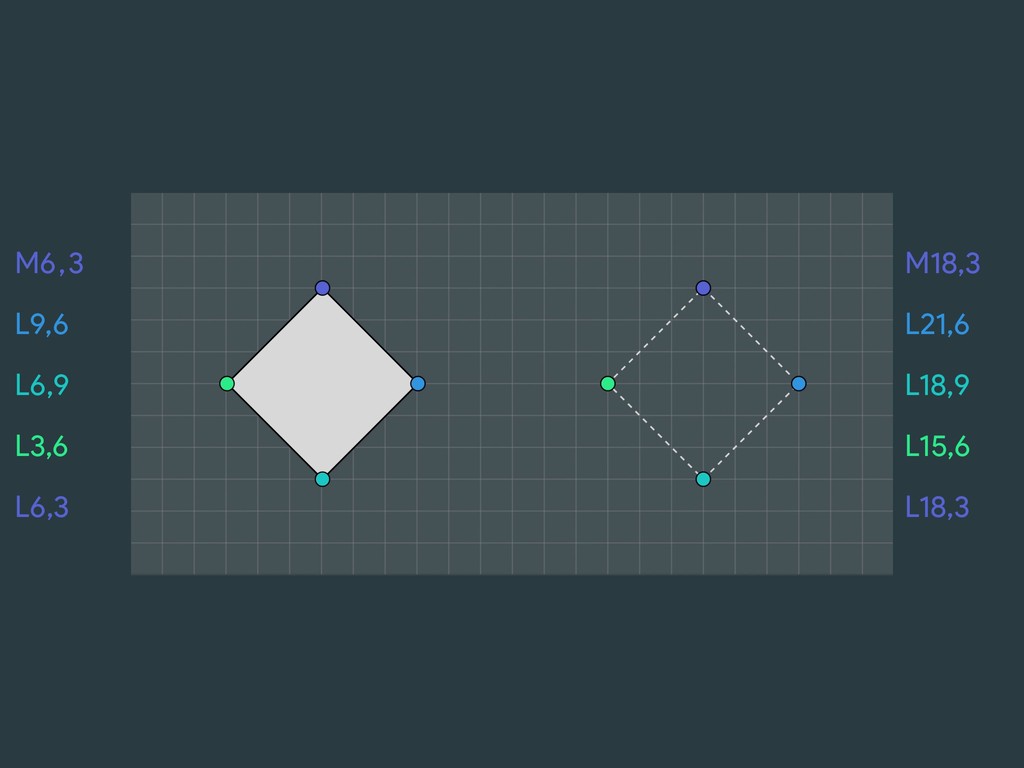

27. M6,3 L9,6 L6,9 L3,6 L6,3 M18,3 L21,6 L18,9 L15,6 L18,3
28. M6,3 L9,6 L6,9 L3,6 L6,3 M18,3 L21,6 L18,9 L15,6 L18,3

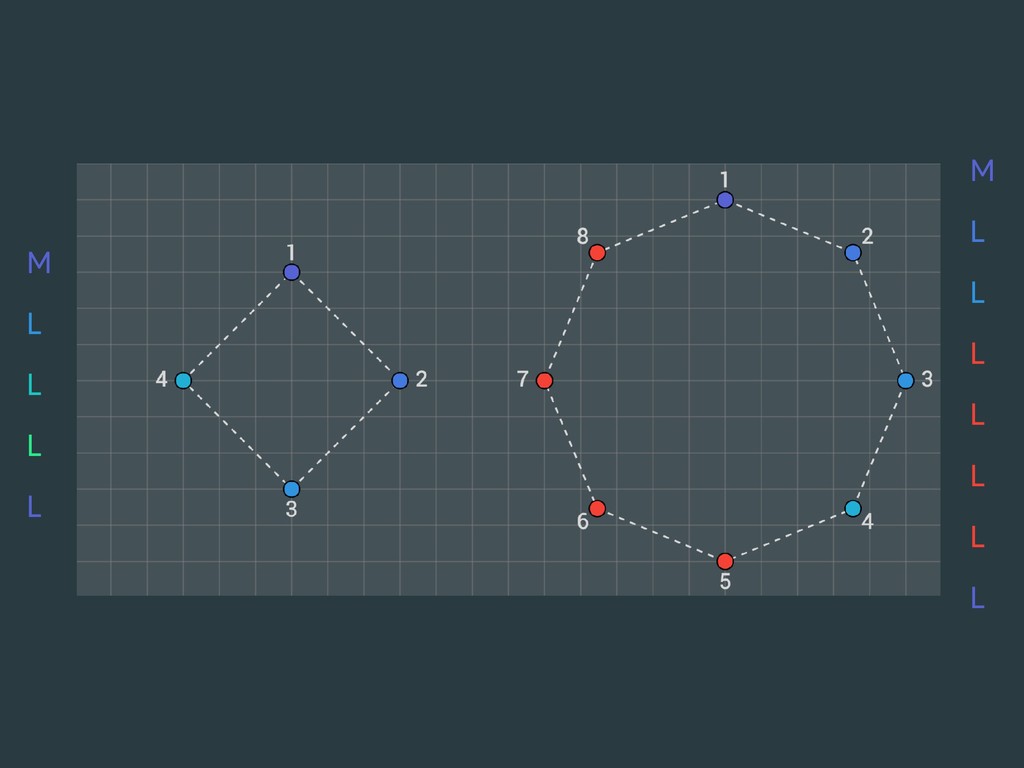

29. M L L L L L L L M L L L L
30. M L L L L L L L M L L L L
31. M L L L L L L L M L L L L

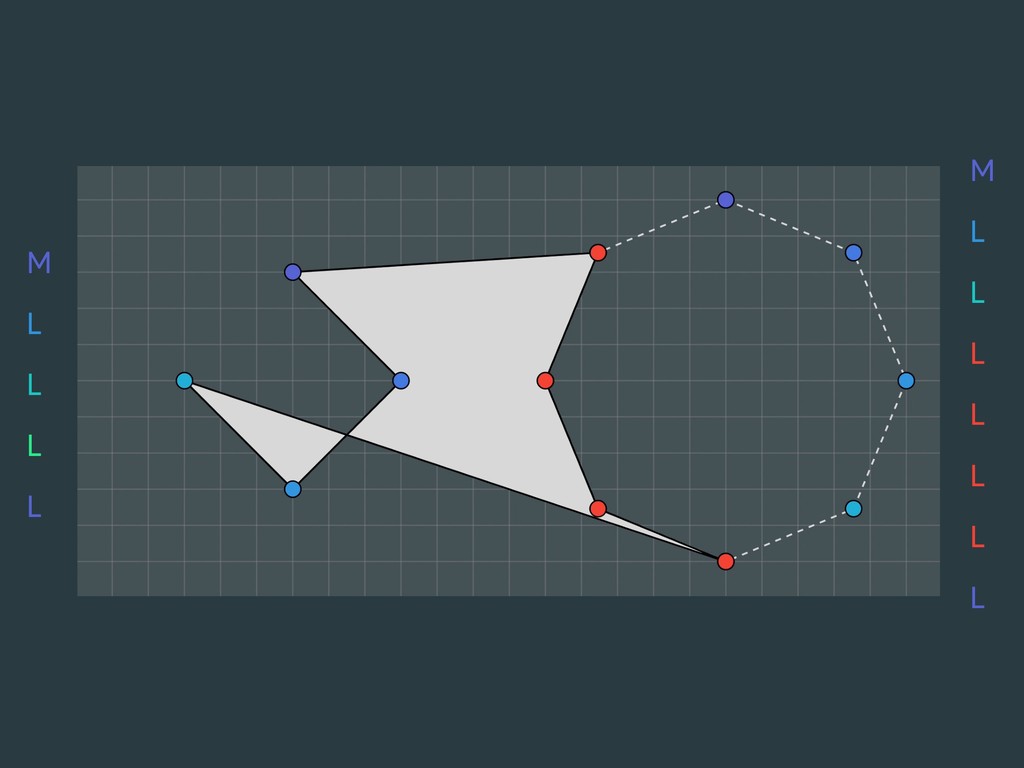

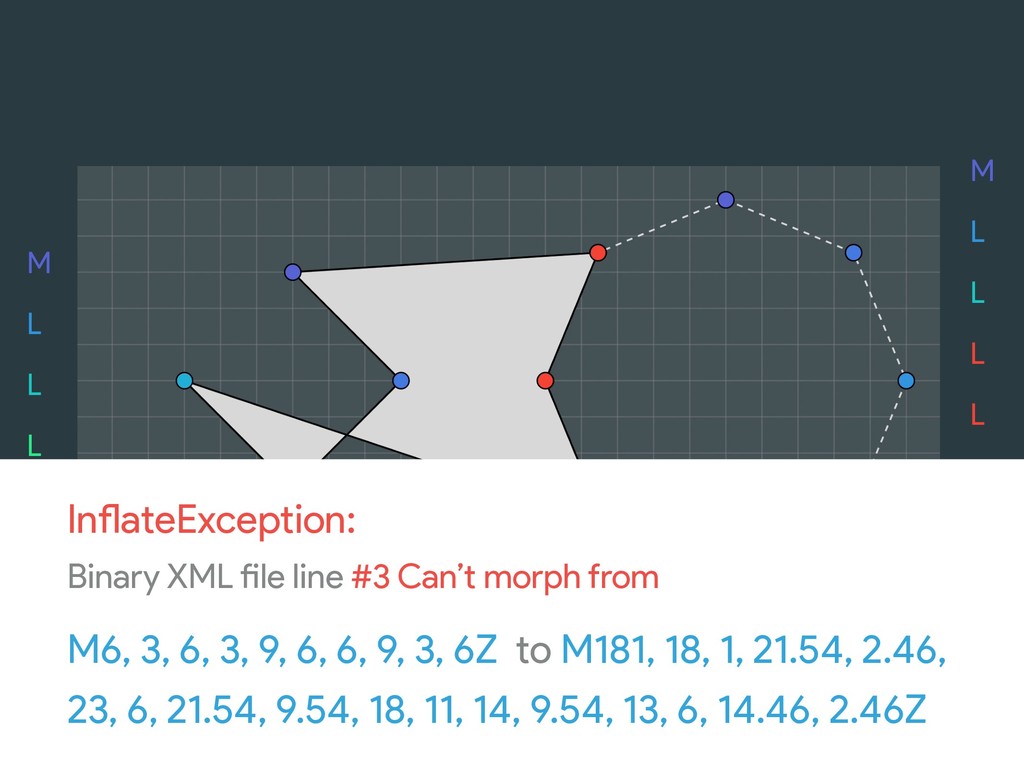

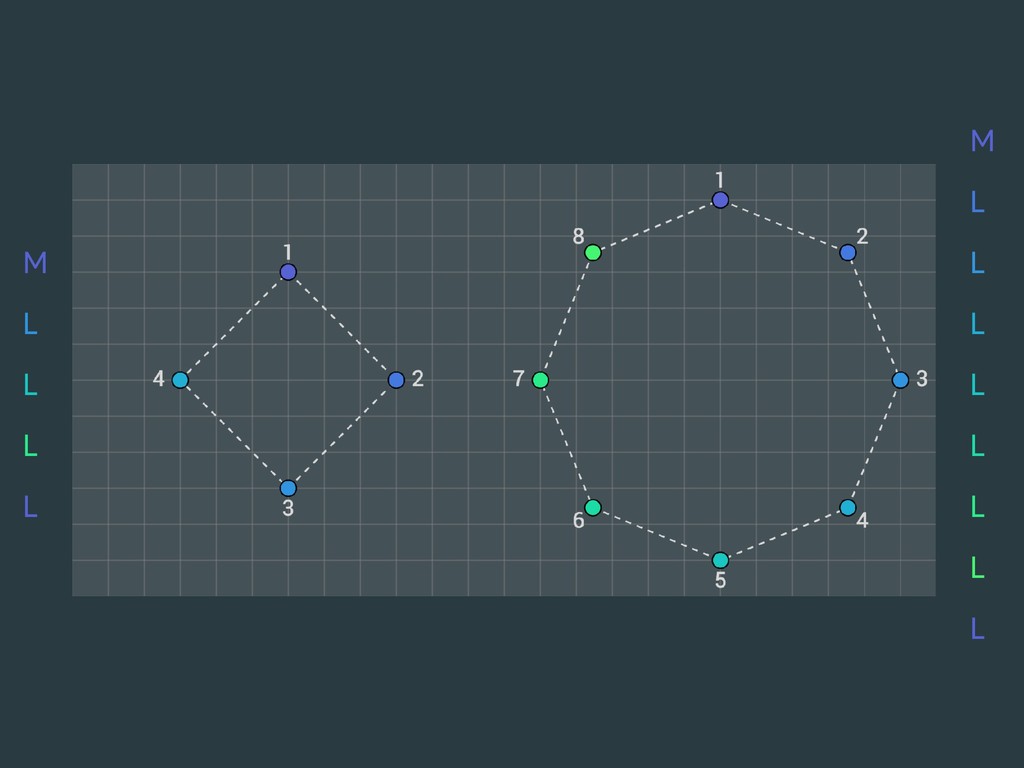

32. M L L L L L L L M L L L L InflateException: Binary XML file line #3 Can’t morph from M6, 3, 6, 3, 9, 6, 6, 9, 3, 6Z to M181, 18, 1, 21.54, 2.46, 23, 6, 21.54, 9.54, 18, 11, 14, 9.54, 13, 6, 14.46, 2.46Z
33. UNDERCOVER
34. M L L L L M L L L L L L L L
35. M L L L L L L L L M L L L L L L L L
36. M L L L L L L L L M L L L L L L L L

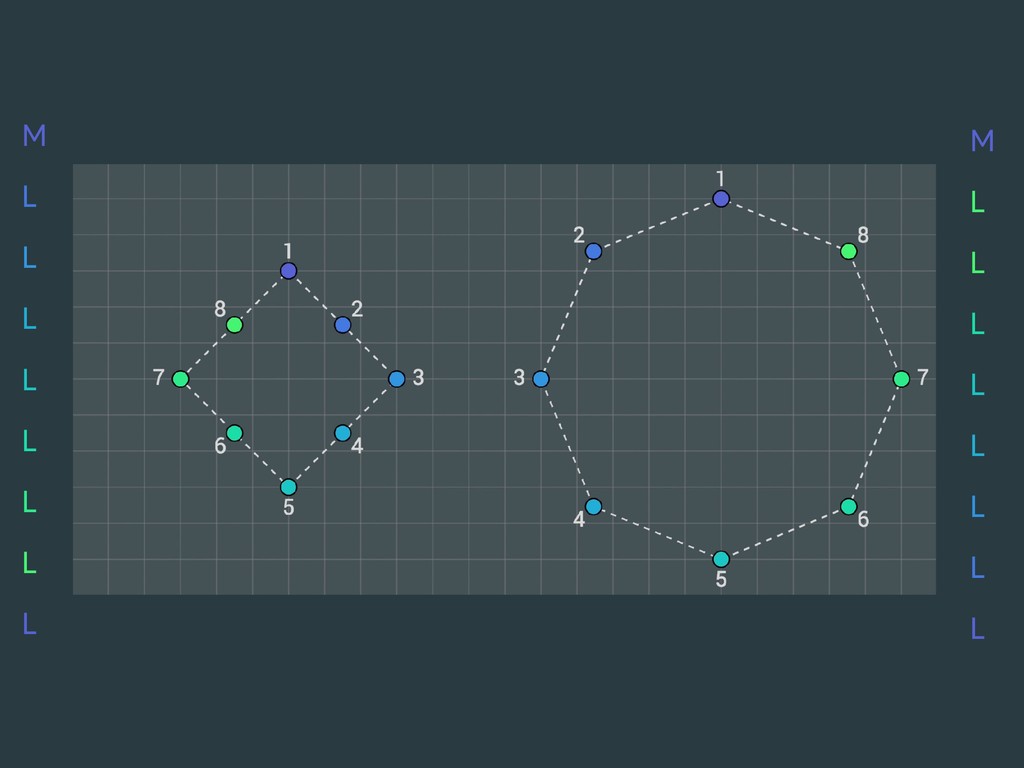

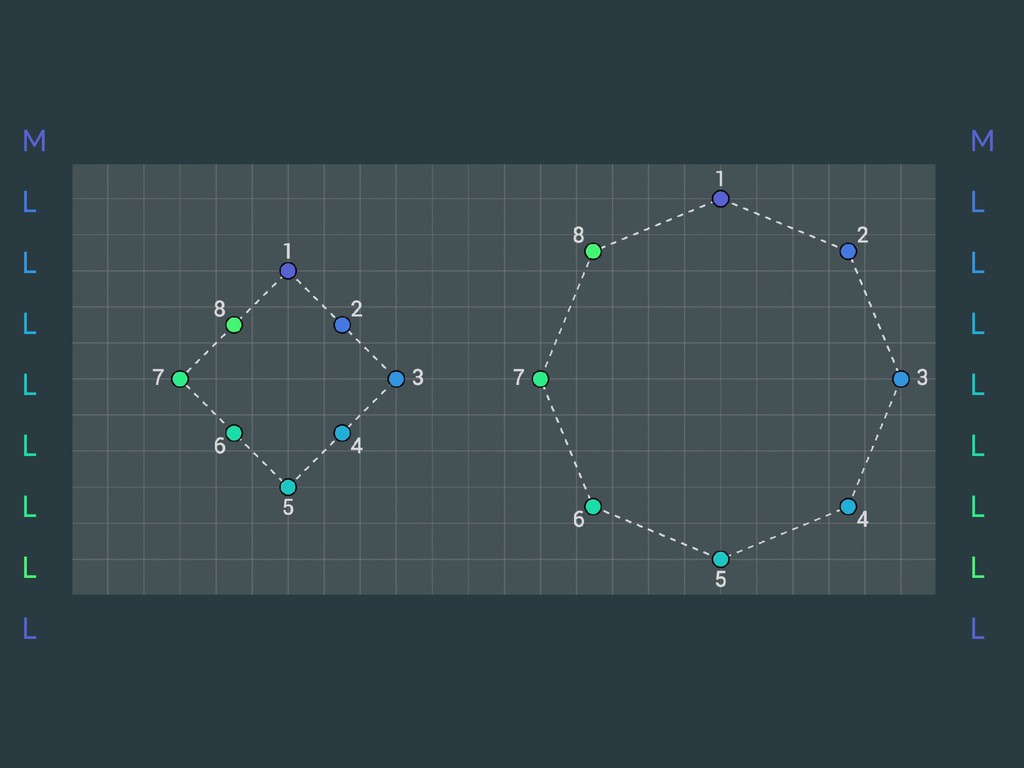

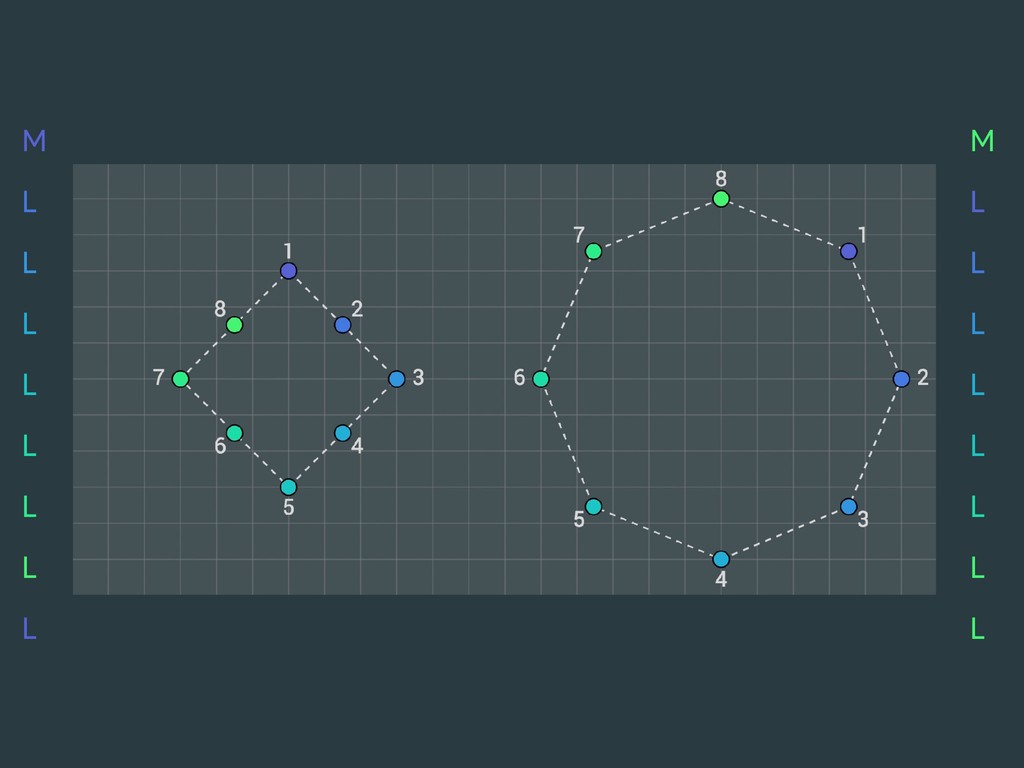

37. POINT ORDER MATTERS

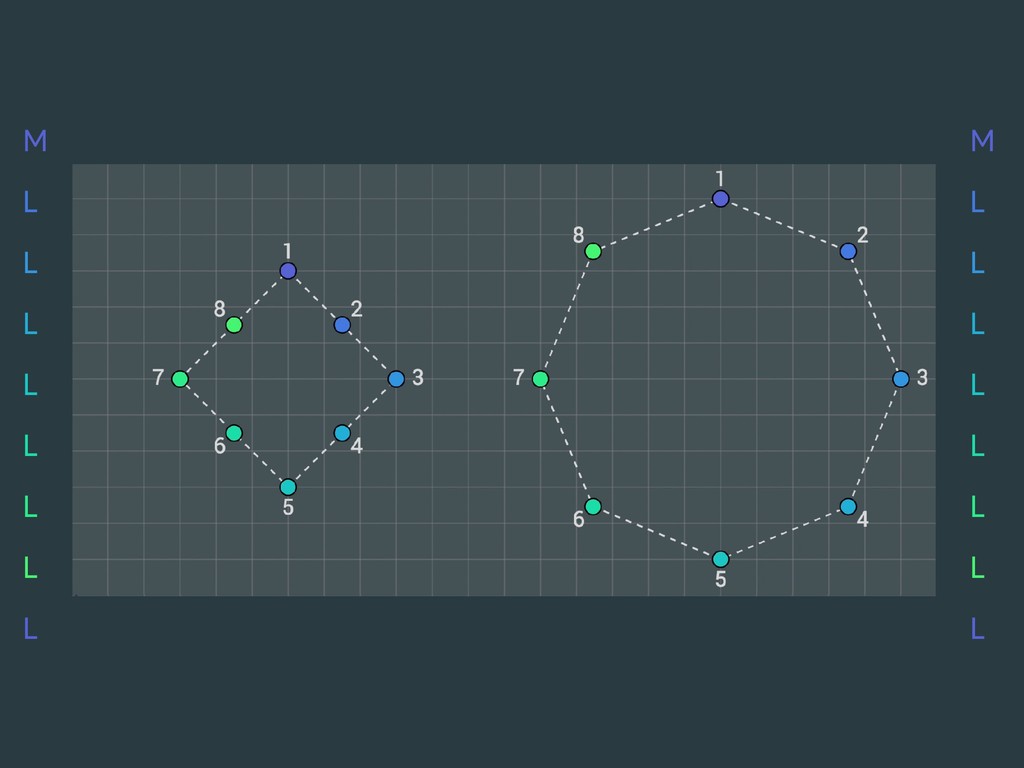

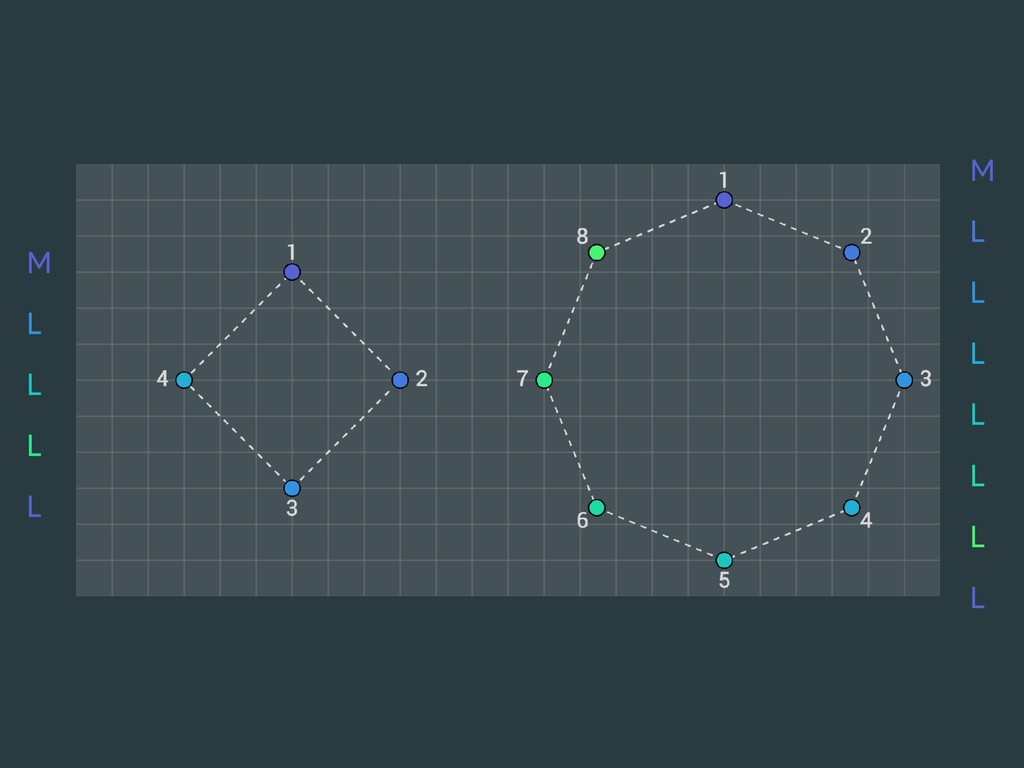

38. M L L L L L L L L M L L L L L L L L
39. M L L L L L L L L M L L L L L L L L
40. M L L L L L L L L M L L L L L L L L
41. M L L L L L L L L M L L L L L L L L
42. M L L L L L L L L M L L L L L L L L

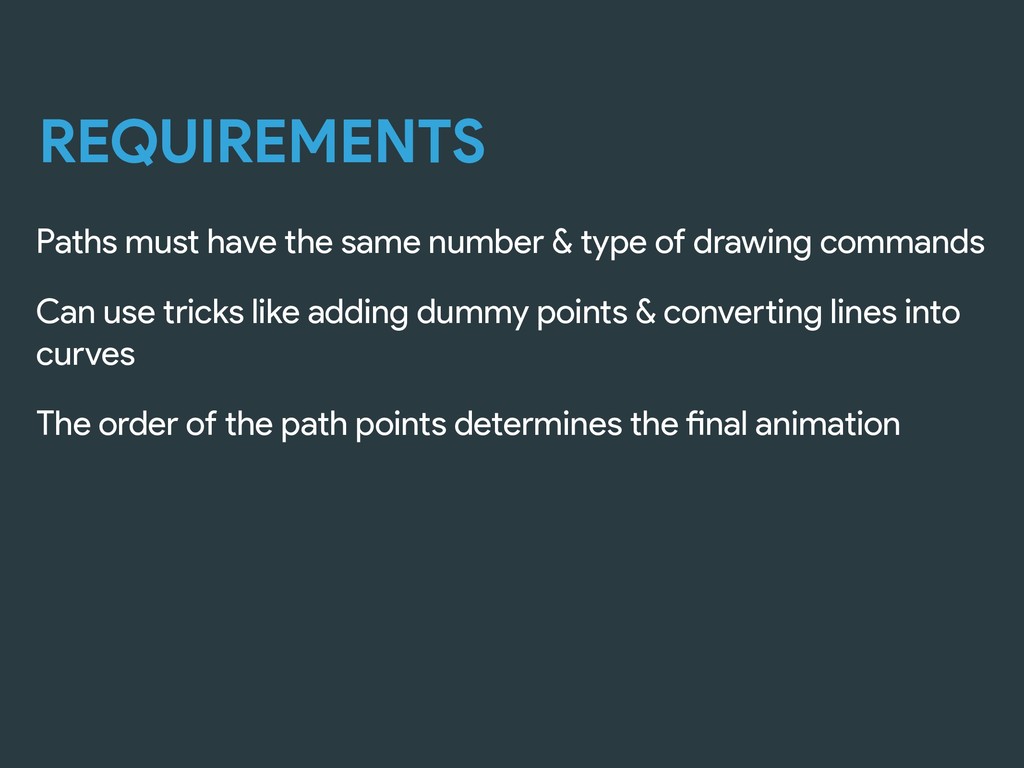

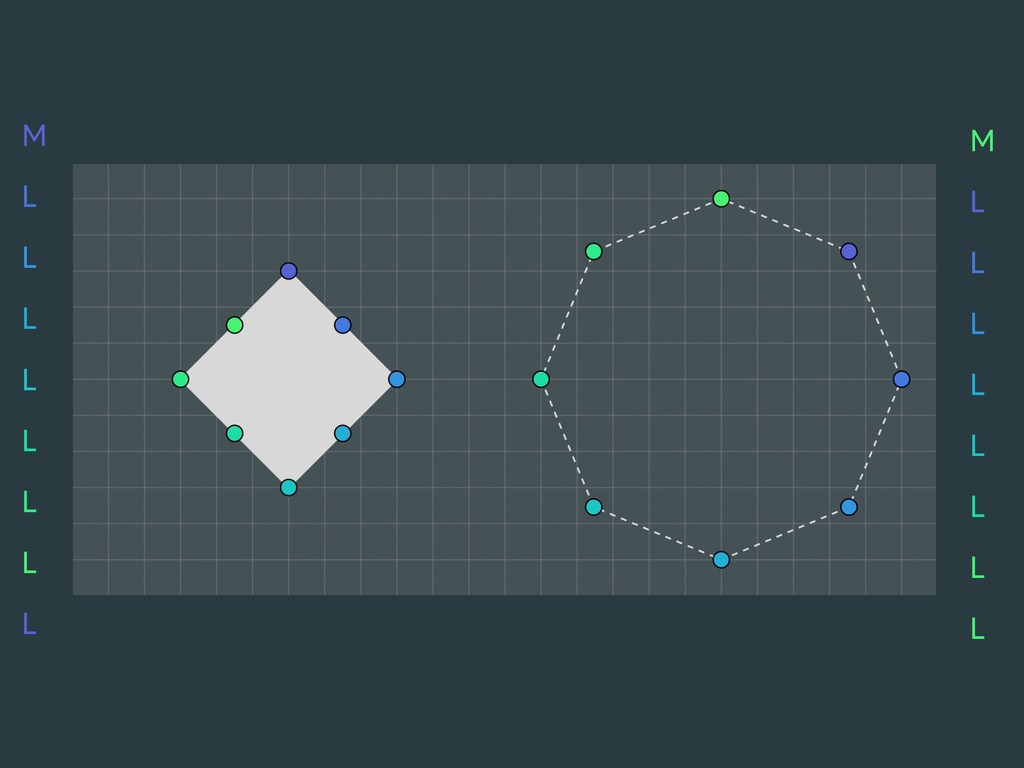

43. Paths must have the same number & type of drawing commands Can use tricks like adding dummy points & converting lines into curves The order of the path points determines the final animation REQUIREMENTS

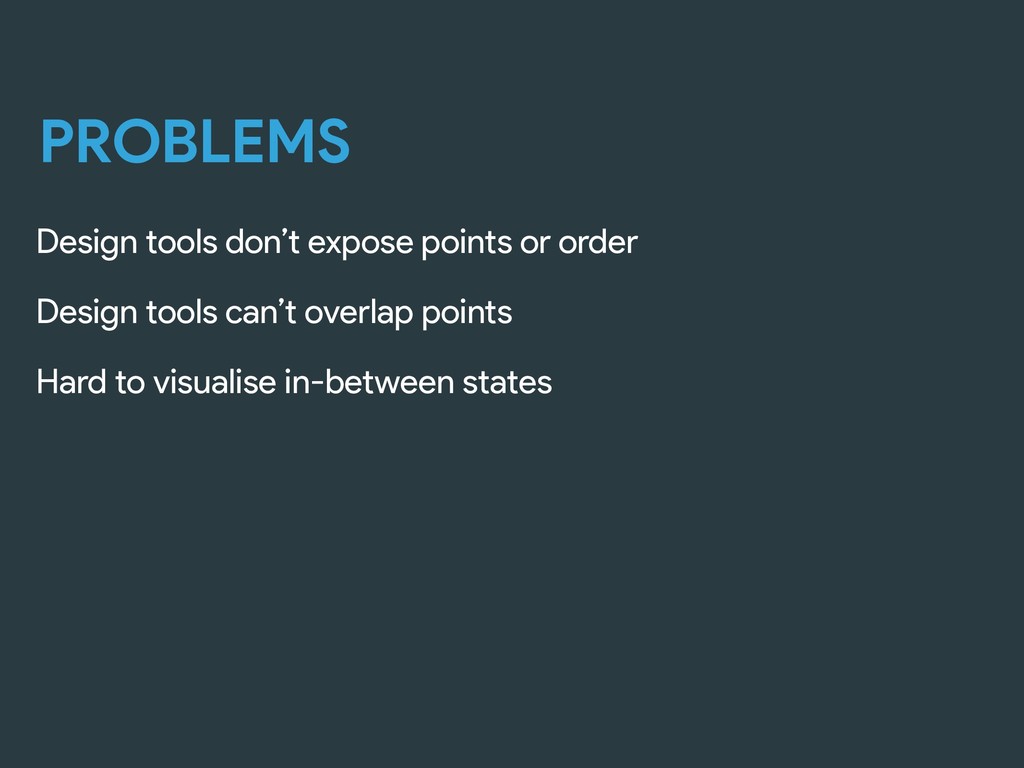

44. Design tools don’t expose points or order Design tools can’t overlap points Hard to visualise in-between states PROBLEMS

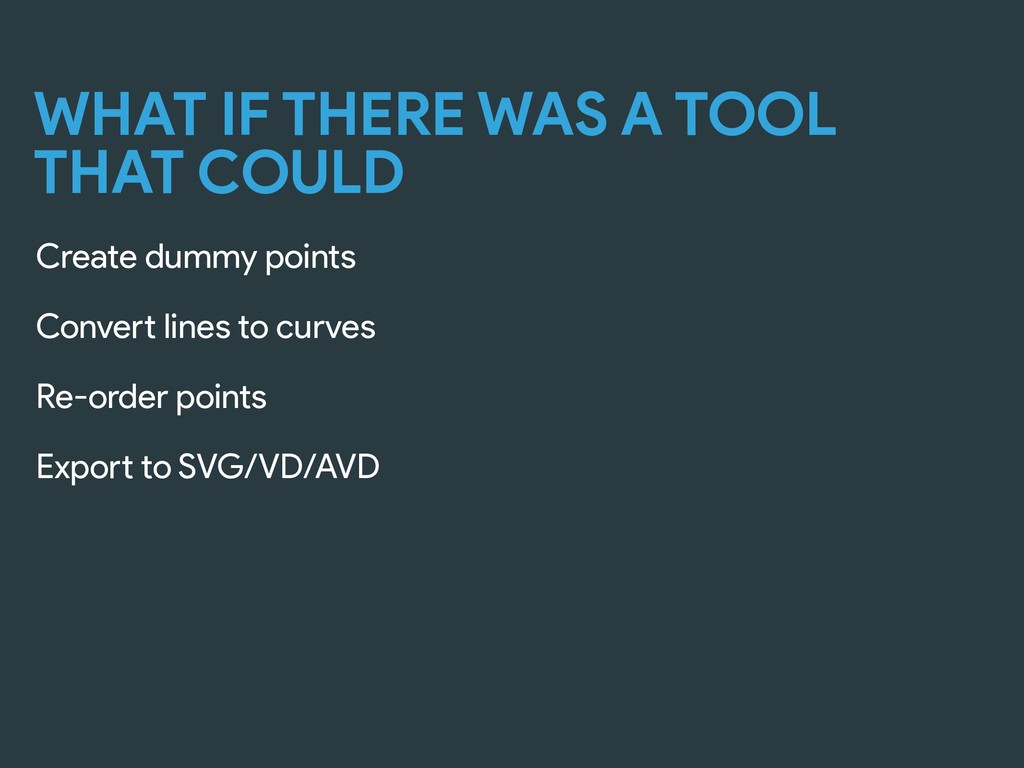

45. WHAT IF THERE WAS A TOOL THAT COULD Create dummy points Convert lines to curves Re-order points Export to SVG/VD/AVD

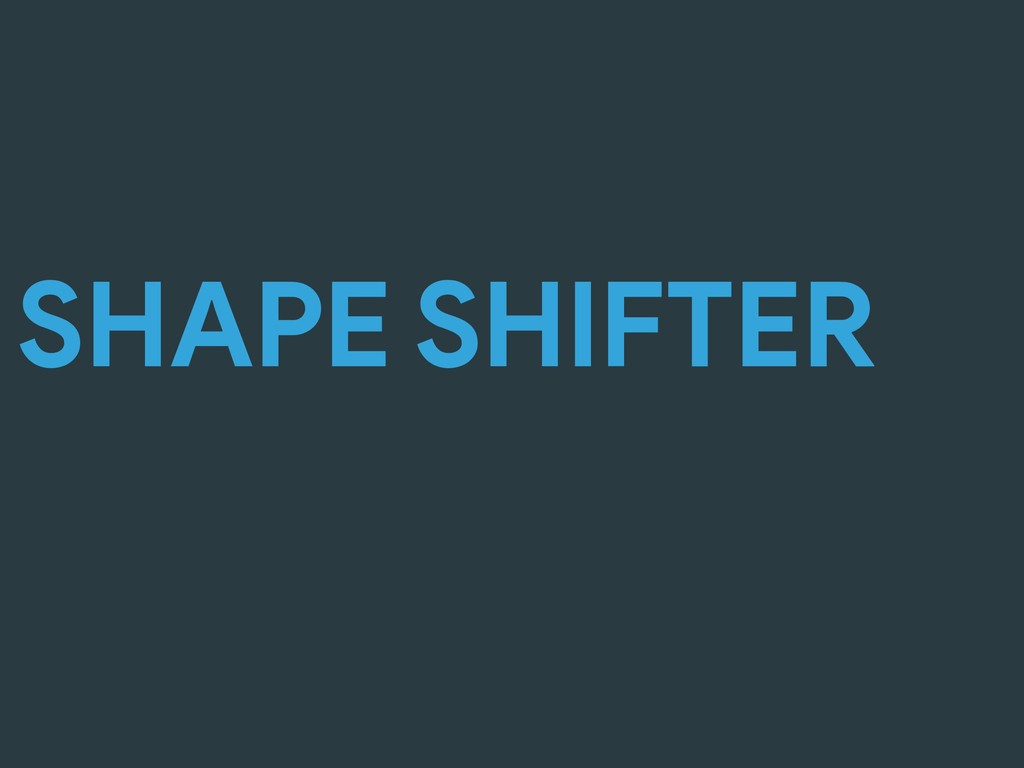

46. SHAPE SHIFTER

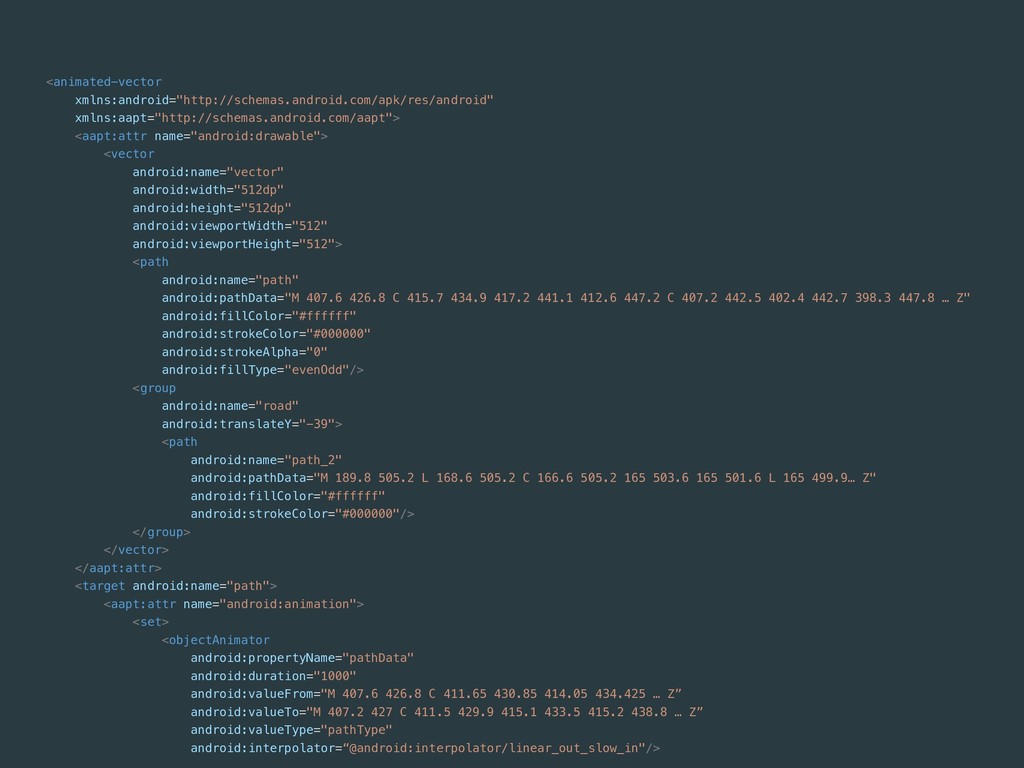

47. <animated-vector xmlns:android="http://schemas.android.com/apk/res/android" xmlns:aapt="http://schemas.android.com/aapt"> <aapt:attr name="android:drawable"> <vector android:name="vector" android:width="512dp" android:height="512dp" android:viewportWidth="512" android:viewportHeight="512"> <path android:name="path" android:pathData="M 407.6 426.8 C 415.7 434.9 417.2 441.1 412.6 447.2 C 407.2 442.5 402.4 442.7 398.3 447.8 … Z" android:fillColor="#ffffff" android:strokeColor="#000000" android:strokeAlpha="0" android:fillType="evenOdd"/> <group android:name="road" android:translateY="-39"> <path android:name="path_2" android:pathData="M 189.8 505.2 L 168.6 505.2 C 166.6 505.2 165 503.6 165 501.6 L 165 499.9… Z" android:fillColor="#ffffff" android:strokeColor="#000000"/> </group> </vector> </aapt:attr> <target android:name="path"> <aapt:attr name="android:animation"> <set> <objectAnimator android:propertyName="pathData" android:duration="1000" android:valueFrom="M 407.6 426.8 C 411.65 430.85 414.05 434.425 … Z” android:valueTo="M 407.2 427 C 411.5 429.9 415.1 433.5 415.2 438.8 … Z” android:valueType="pathType" android:interpolator=“@android:interpolator/linear_out_slow_in"/>

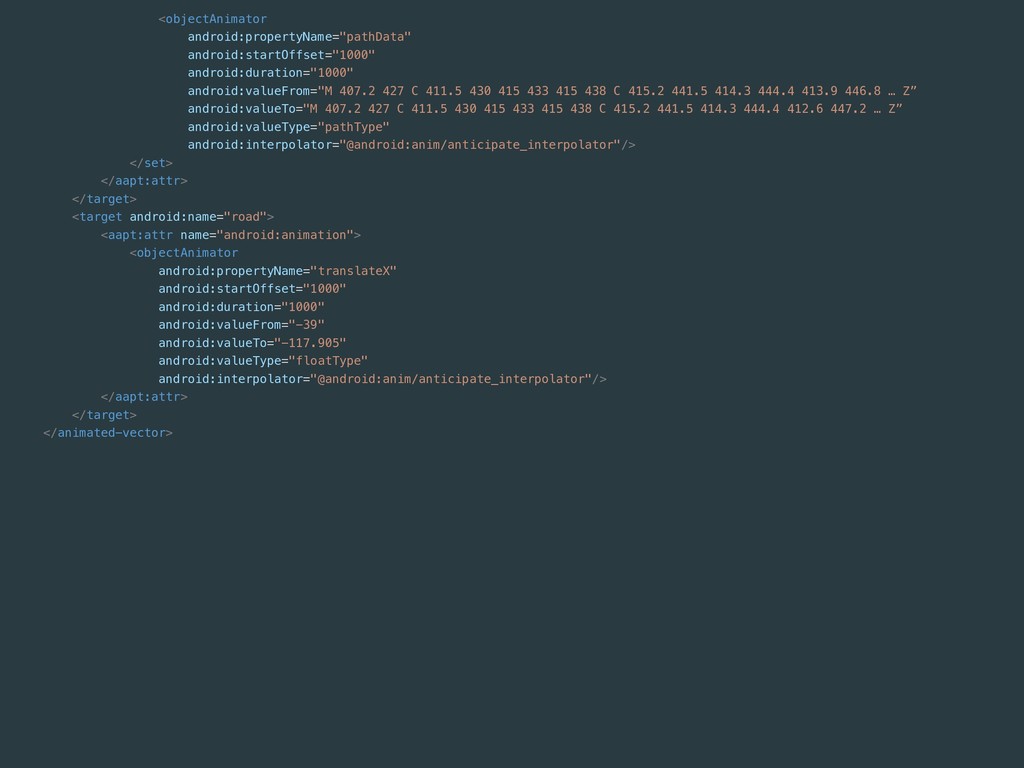

48. <objectAnimator android:propertyName="pathData" android:startOffset="1000" android:duration="1000" android:valueFrom="M 407.2 427 C 411.5 430 415 433 415 438 C 415.2 441.5 414.3 444.4 413.9 446.8 … Z” android:valueTo="M 407.2 427 C 411.5 430 415 433 415 438 C 415.2 441.5 414.3 444.4 412.6 447.2 … Z” android:valueType="pathType" android:interpolator="@android:anim/anticipate_interpolator"/> </set> </aapt:attr> </target> <target android:name="road"> <aapt:attr name="android:animation"> <objectAnimator android:propertyName="translateX" android:startOffset="1000" android:duration="1000" android:valueFrom="-39" android:valueTo="-117.905" android:valueType="floatType" android:interpolator="@android:anim/anticipate_interpolator"/> </aapt:attr> </target> </animated-vector>
49. AUTO FIX

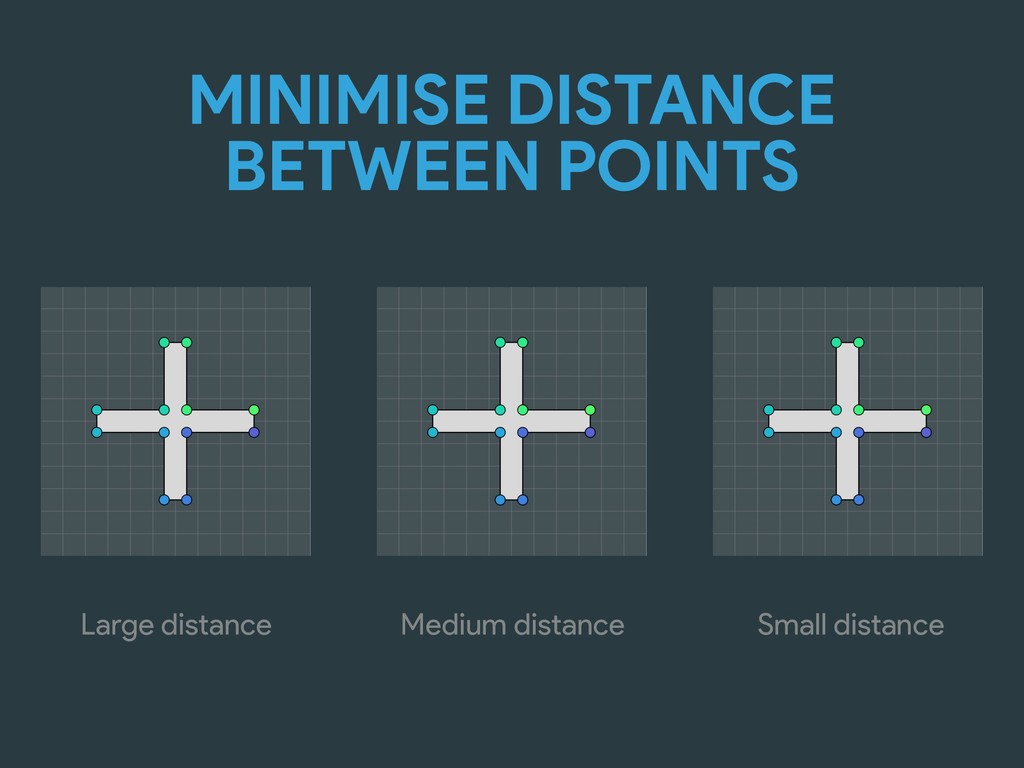

50. MINIMISE DISTANCE BETWEEN POINTS Large distance Medium distance Small distance

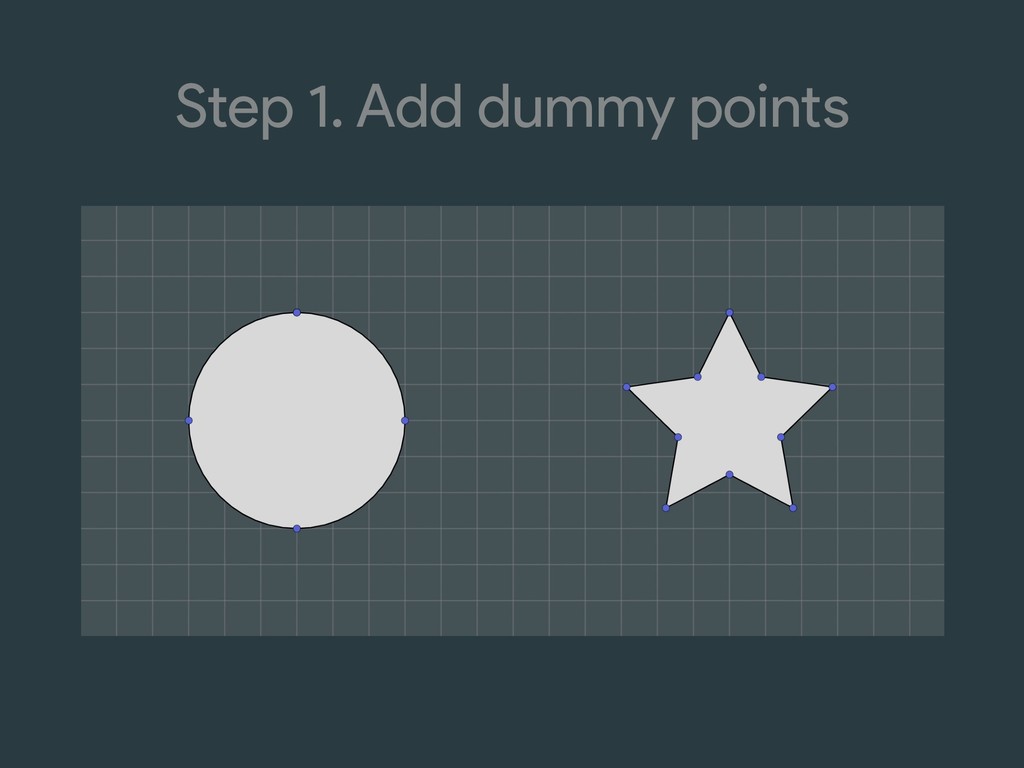

51. Step 1. Add dummy points

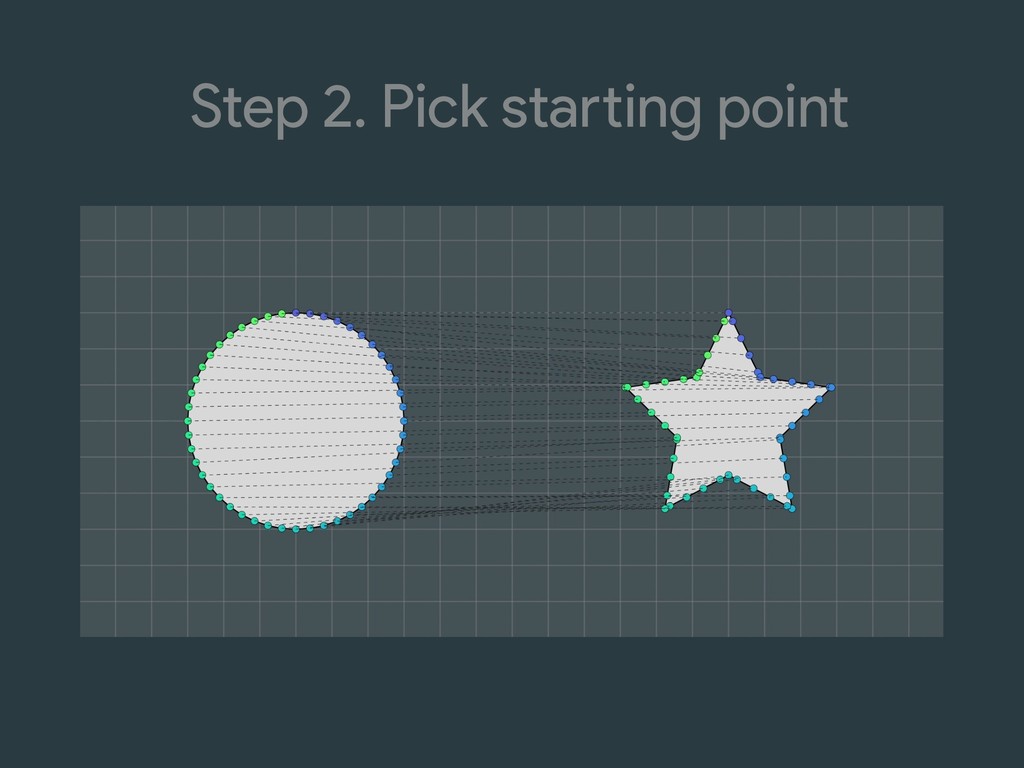

52. Step 2. Pick starting point
53. Step 3. Morph
55. NEEDLEMAN WUNSCH
56. C A C T T A C C G T G A A T T A T C

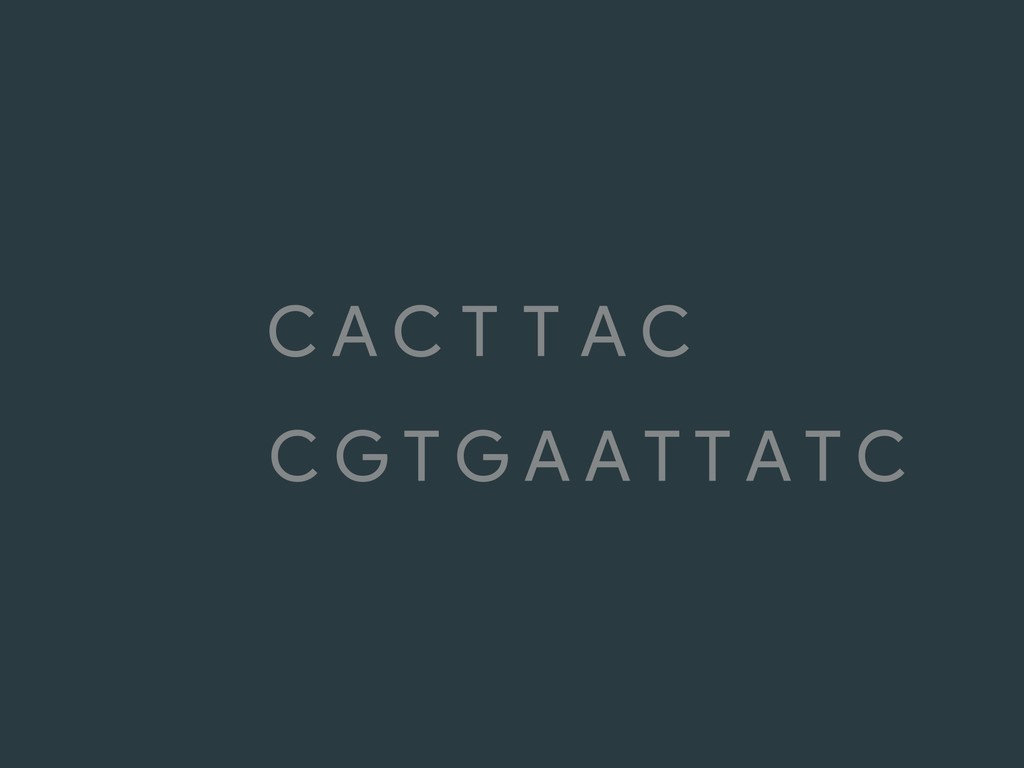

57. C - - - A C T T A - C C G T G A A T T A T C 4 gaps 1 point mutation

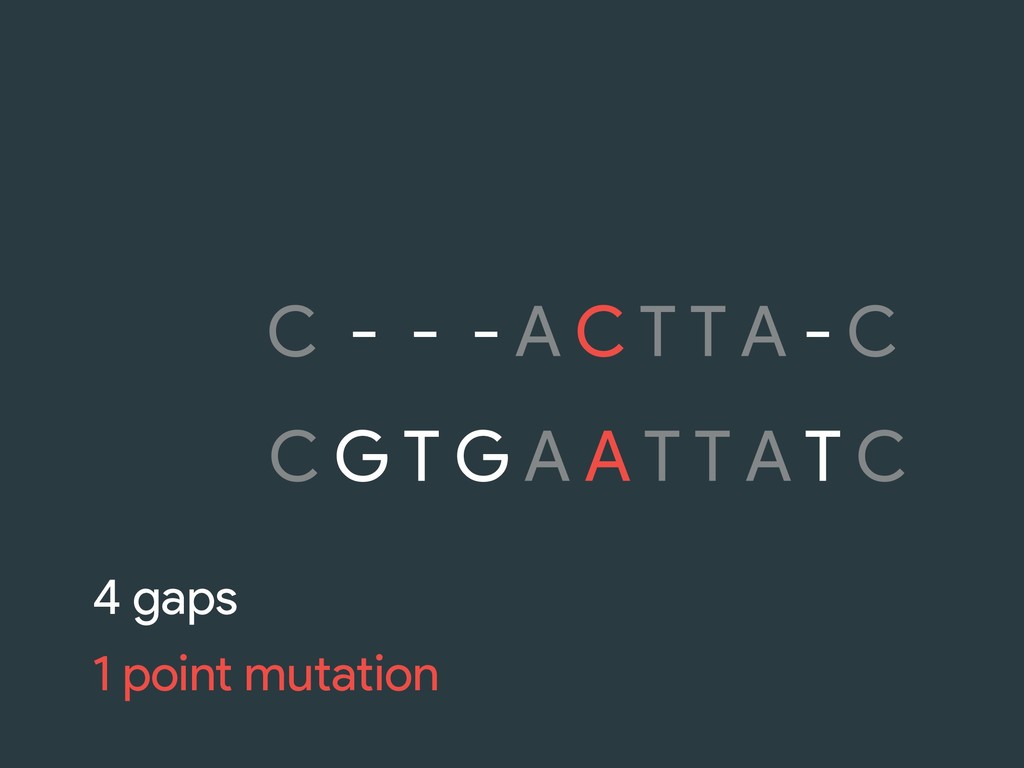

58. M L C L L L C M C C C L L L C L C C

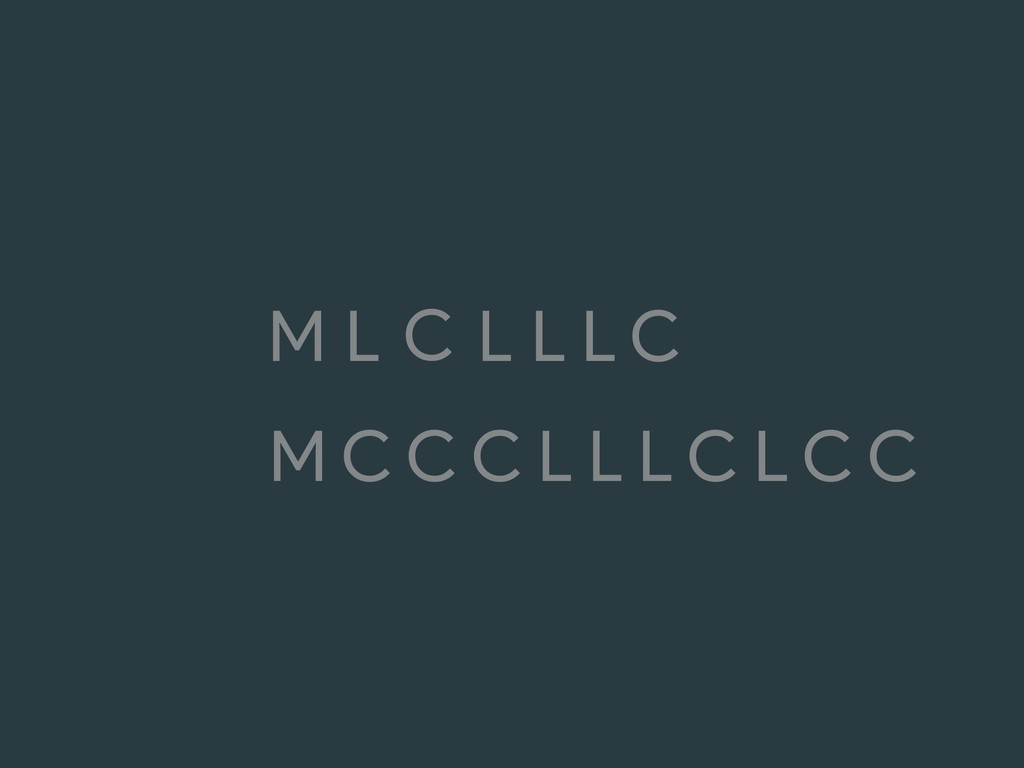

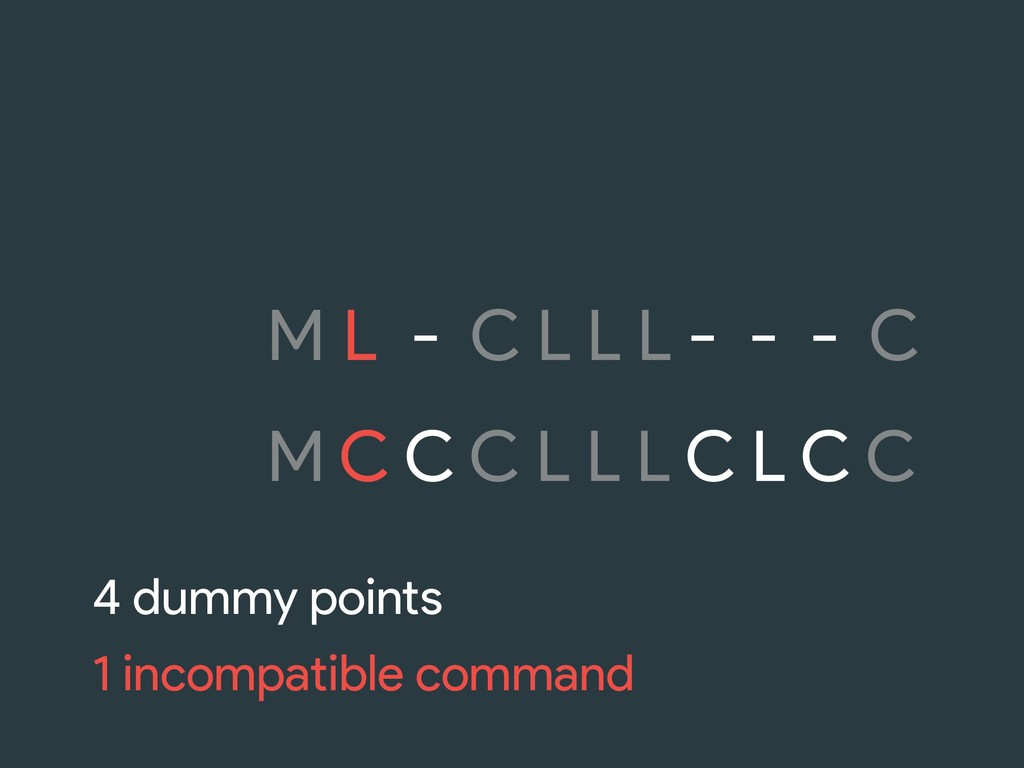

59. M C C C L L L C L C C 4 dummy points 1 incompatible command M L - C L L L - - - C

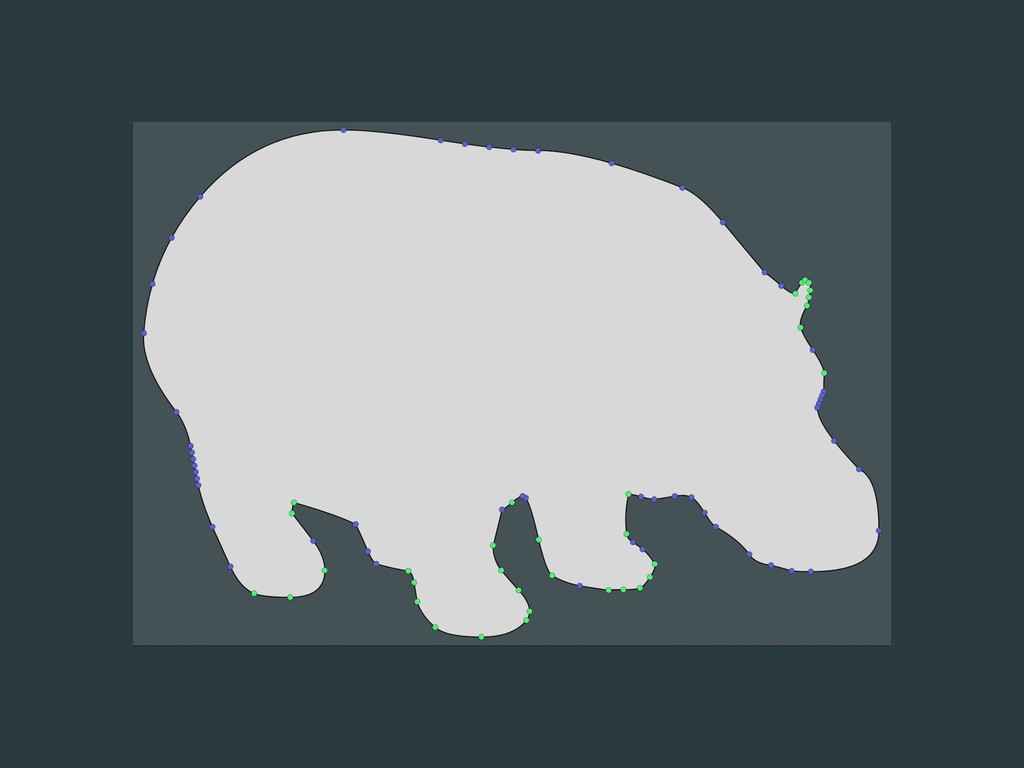

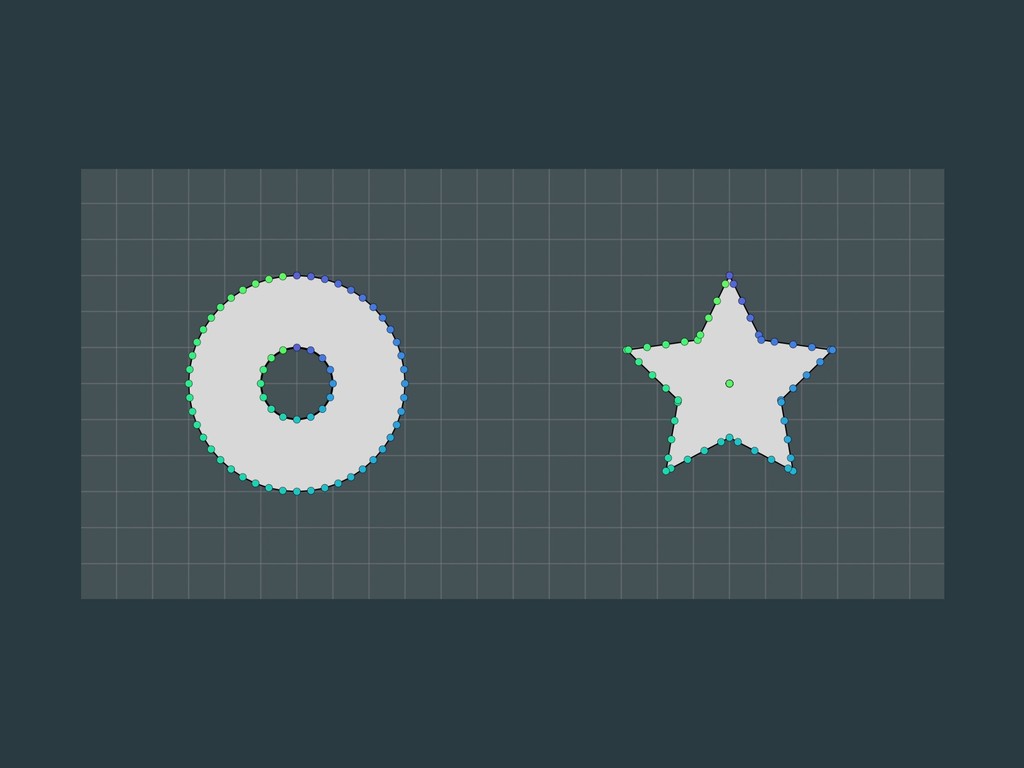

64. TRIANGULATΙΟΝ

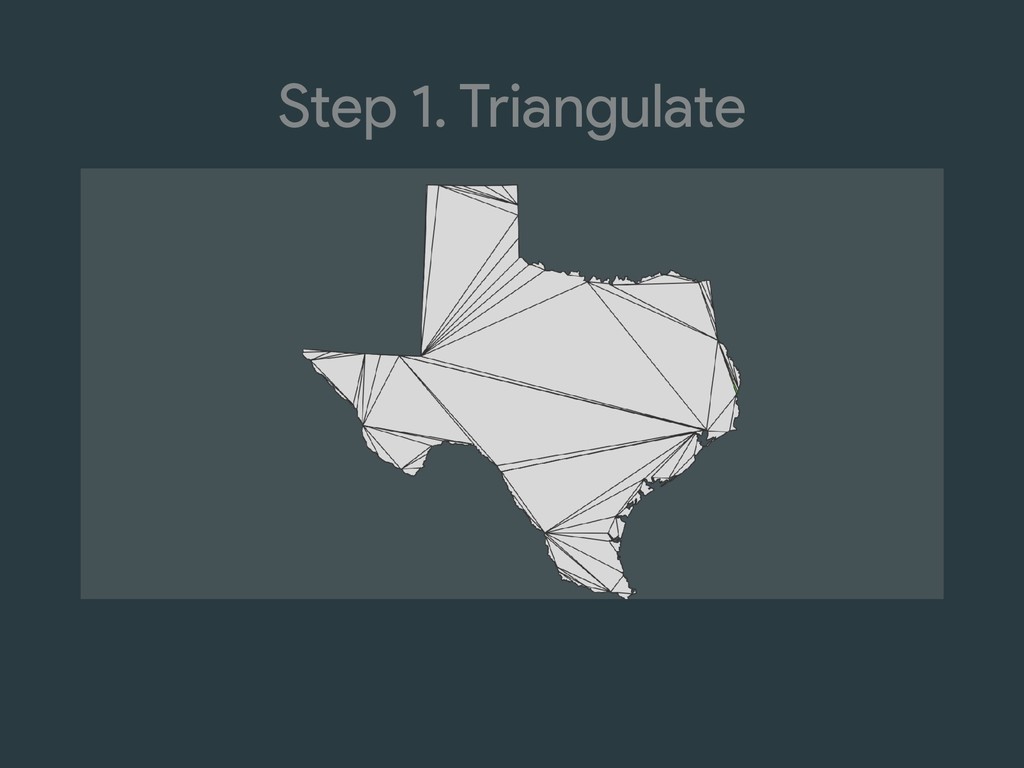

65. Step 1. Triangulate

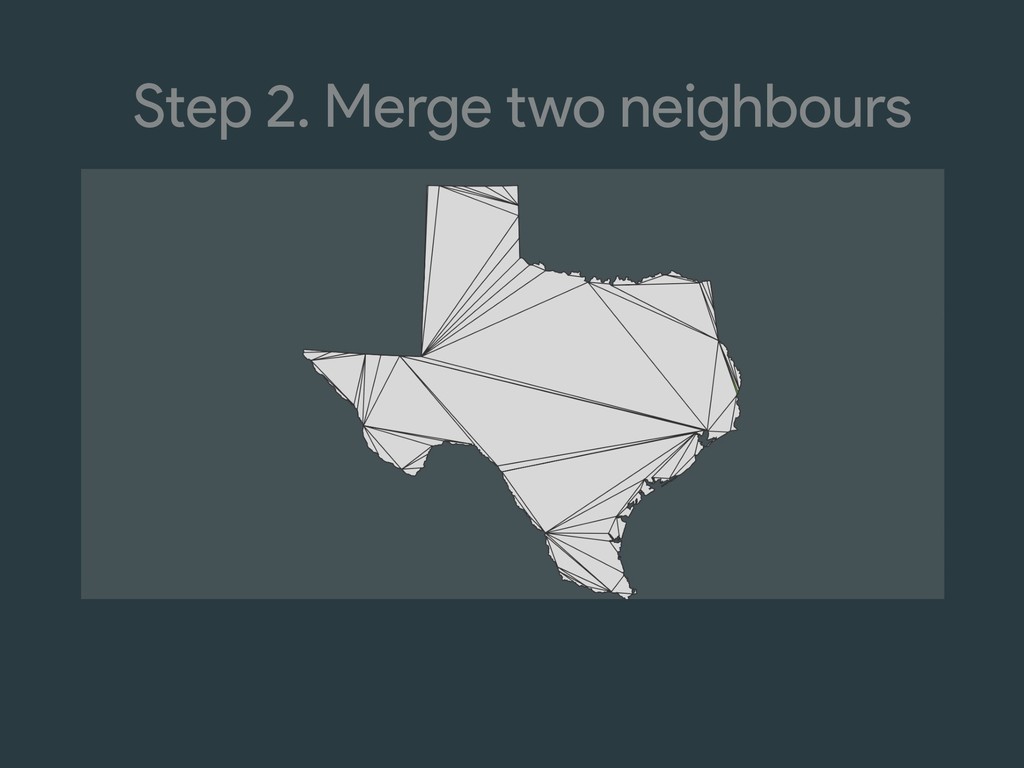

66. Step 2. Merge two neighbours

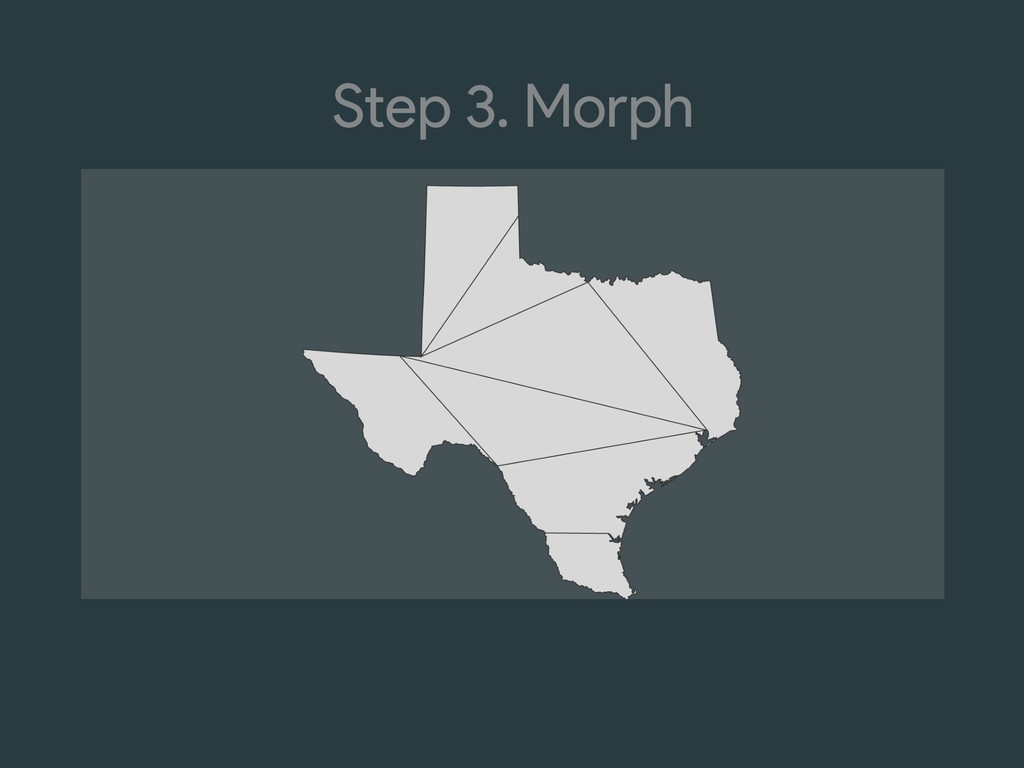

67. Step 3. Morph
69. https://shapeshifter.design
75. THANKS!

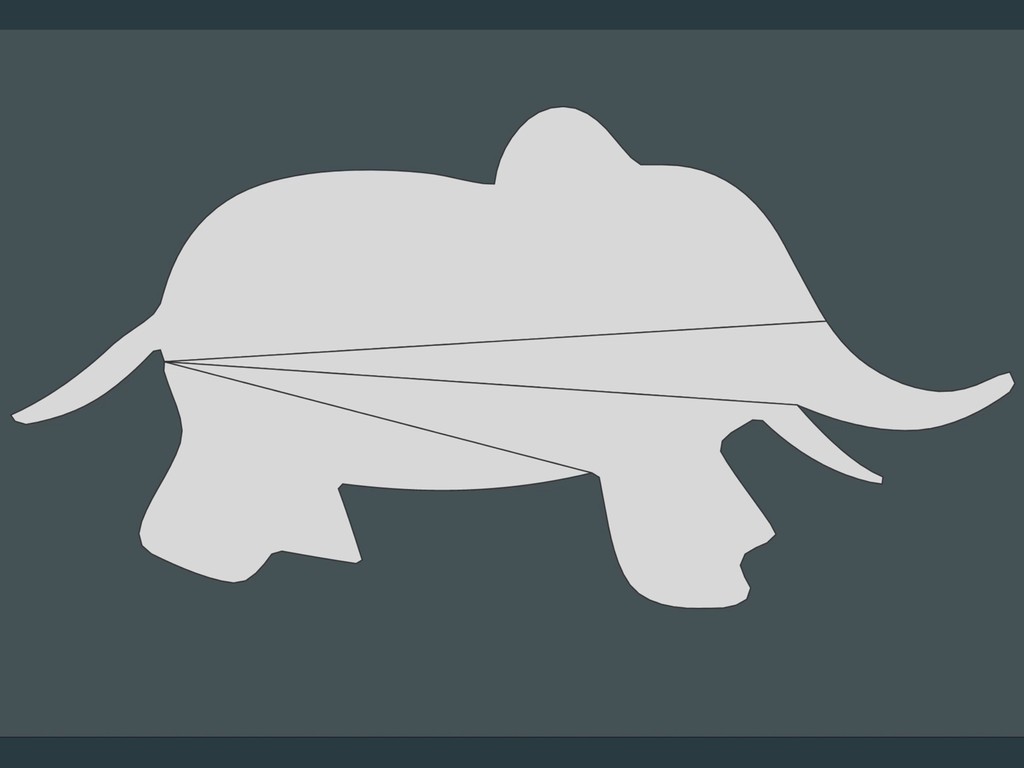

76. THANKS! github.com/charbgr @charbgr
