Ceptre: A Language for Modeling Interactive Worlds

Slides for Future Programming Workshop at Strange Loop

Transcript

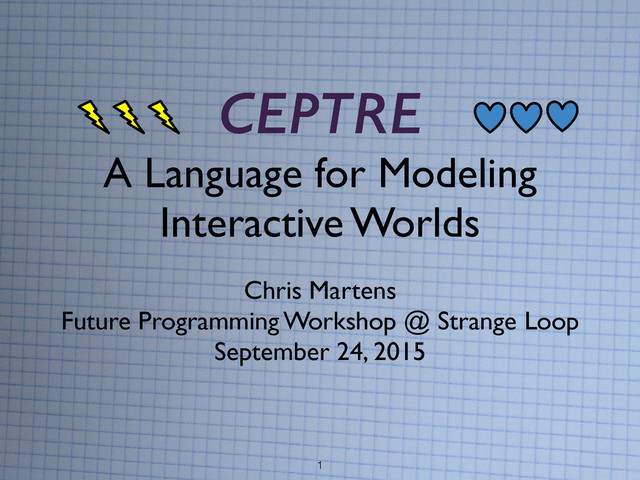

1. 1
   CEPTRE
   A Language for Modeling

   Interactive Worlds
   Chris Martens

   Future Programming Workshop @ Strange Loop

   September 24, 2015


   View Slide

2. 2
   CEPTRE
   A Language for Modeling

   Interactive Worlds
   Chris Martens

   Future Programming Workshop @ Strange Loop

   September 24, 2015


   View Slide

3. 3
   Attack

   (Starts at 1)
   Health

   (Starts at 3)
   Defense Defense


   View Slide

4. 4
   Buff:

   Add 1 to
   attack


   View Slide

5. 5
   Attack: Enemy subtracts
   your attack from

   their health


   View Slide

6. 6
   Buff other:

   Spend your turn to increase
   someone else’s attack


   View Slide

7. 7
   BUFF

   (self or other)
   ATTACK


   View Slide

8. View Slide

9. View Slide

10. View Slide

11. 11
    PROBLEM


    View Slide

12. 12
    Formal Language

    for Game Sketching
    Executable

    Rules First

    Platform-agnostic

    General


    View Slide

13. 13
    Formal Language

    for Game Sketching
    Executable

    Rules First

    Platform-agnostic

    General


    View Slide

14. 14
    Formal Language

    for Game Sketching
    Executable

    Rules First

    Platform-agnostic

    General


    View Slide

15. 15
    Formal Language

    for Game Sketching
    Executable

    Rules First

    Platform-agnostic

    General


    View Slide

16. View Slide

17. View Slide

18. 18
    Interactive Worlds
    An interactive world is

    an initial configuration

    (e.g. players’ stats at the start of the game)

    !
    together with rules for evolving configurations,

    (e.g.: buffing increases player’s attack)

    !
    some of which are mediated by human interaction, randomness,
    or other processes.


    View Slide

19. 19
    CEPTRE

    !
    PAYOFF

    !
    DISCUSSION
    Outline


    View Slide

20. 20
    CEPTRE

    Linear Logic Programming
    Stages & Interaction

    !
    PAYOFF

    !
    DISCUSSION
    Outline


    View Slide

21. 21
    Logic
    Facts about the world are propositions:

    !
    The player is in the foyer

    Juliet loves Romeo

    Roger has 2 health points


    View Slide

22. 22
    Facts about the world are propositions:

    !
    !
    !
    Logic


    View Slide

23. 23
    Action and Change


    View Slide

24. 24
    Action and Change
    [Girard 1987, Girard/LaFont 87, Chang et al. 2003]


    View Slide

25. View Slide

26. View Slide

27. 27
    Movement rule, take 2


    View Slide

28. View Slide

29. View Slide

30. 30
    Movement rule, take 3


    View Slide

31. 31
    Movement rule, take 3’


    View Slide

32. 32
    Program Rules
    move : in player Room * adjacent Room Room’
    —o
    in player Room’.
    !
    adjacent/foyer-kitchen : adjacent foyer kitchen.


    View Slide

33. 33
    Author-defined terms and predicates,

    quantified Variables,

    tensor (*), bang (!), and lolli (—o)

    are all we need

    to specify action & change on a logical level.
    Linear Logic


    View Slide

34. 34
    A * $B —o C
    !
    ==
    !
    A * B —o C * B
    Derived Syntax


    View Slide

35. 35
    LANGUAGE

    (Logic Programming)


    View Slide

36. 36
    Linear Logic Programming
    Configuration (linear context)
    term/predicate declarations,

    permanent facts, and rules
    [Harland et al. 2000; Lopez et al. 2005]
    e.g.
    Signature (permanent rules)


    View Slide

37. 37
    Multiset Rewriting
    [Cervesato & Scevdrov 2009]
    (synonym: forward chaining)


    View Slide

38. 38
    EXAMPLE WORLD:

    Defense Defense


    View Slide

39. 39
    Buffing
    buff :
    turn Player * attack Player Att
    -o attack Player (Att + 1).


    View Slide

40. 40
    Buffing Others
    buff :
    turn Player * attack Player’ Att
    -o attack Player’ (Att + 1).


    View Slide

41. attack :
    turn Player
    * $attack Player A
    * health Enemy H
    -o health Enemy (H - A).
    !
    die : health P 0 -o dead P.
    41
    Attacking


    View Slide

42. 42
    Configurations (Contexts)
    context init =
    { on_team chris blue,
    on_team gwenn yellow,
    health chris 3,
    attack gwenn 2,
    […] }
    Multisets of ground propositions


    View Slide

43. 43
    Traces
    buff : […]
    attack : […]
    die : […]
    !
    !
    context init
    = {…}
    !
    !
    #trace init.
    }
    }
    0


    View Slide

44. 44
    Running a program
    Quiescence: no more rules in can fire
    0 … n


    View Slide

45. 45
    Interactivity?
    #interactive.
    #trace init.


    View Slide

46. 46
    Interactivity?
    1: (buff gwenn chris (s z))
    2: (buff gwenn karl (s z))
    […]
    17: (target chris (s z) gwenn (s (s (s z))) (s (s z)))
    18: (target chris (s z) chris (s (s (s z))) (s (s z)))
    ?-


    View Slide

47. 47
    Interactivity?
    1: (buff gwenn chris (s z))
    2: (buff gwenn karl (s z))
    […]
    17: (target chris (s z) gwenn (s (s (s z))) (s (s z)))
    18: (target chris (s z) chris (s (s (s z))) (s (s z)))
    ?-
    yellow team
    blue team


    View Slide

48. 48
    CEPTRE

    Linear Logic Programming

    Stages & Interaction

    !
    PAYOFF

    !
    DISCUSSION
    Outline


    View Slide

49. 49
    CEPTRE

    Linear Logic Programming

    Stages & Interaction
    !
    PAYOFF

    !
    DISCUSSION
    Outline


    View Slide

50. 50
    heads_wins : heads * tails -o heads.
    tails_wins : heads * tails -o tails.
    !
    overall_heads : heads -o heads_overall.
    overall_tails : tails -o tails_overall.


    View Slide

51. 51
    heads_wins
    : $stage tournament
    * heads * tails -o heads.
    !
    tails_wins
    : $stage tournament
    * heads * tails -o tails.
    !
    !
    !
    overall_heads
    : $stage tally * heads -o heads_overall.
    overall_tails
    : $stage tally * tails -o heads_overall.


    View Slide

52. 52
    heads_wins
    : $stage tournament
    * heads * tails -o heads.
    !
    tails_wins
    : $stage tournament
    * heads * tails -o tails.
    !
    [???] stage tournament -o stage tally.
    !
    overall_heads
    : $stage tally * heads -o heads_overall.
    overall_tails
    : $stage tally * tails -o heads_overall.


    View Slide

53. 53
    heads_wins
    : $stage tournament
    * heads * tails -o heads.
    !
    tails_wins
    : $stage tournament
    * heads * tails -o tails.
    !
    qui * stage tournament -o stage tally.
    !
    overall_heads
    : $stage tally * heads -o heads_overall.
    overall_tails
    : $stage tally * tails -o heads_overall.


    View Slide

54. 54
    stage tournament = {
    heads_wins : heads * tails -o heads.
    tails_wins : heads * tails -o tails.
    }
    !
    qui * stage tournament -o stage tally.
    !
    stage tally = {
    overall_heads : heads -o heads_wins.
    overall_tails : tails -o tails_wins.
    }


    View Slide

55. 55
    stage tournament = {
    heads_wins : heads * tails -o heads.
    tails_wins : heads * tails -o tails.
    } #interactive tournament.
    !
    qui * stage tournament -o stage tally.
    !
    stage tally = {
    overall_heads : heads -o heads_wins.
    overall_tails : tails -o tails_wins.
    }


    View Slide

56. 56
    BUFF

    (self or other)
    ATTACK
    Returning to Defense Defense…


    View Slide

57. 57
    Ceptre
    User-defined terms, predicates

    Multiset rewriting rules

    Prolog-style rules

    Stages, quiescence, and interactivity
    http://www.github.com/chrisamaphone/interactive-lp


    View Slide

58. 58
    Limitations?
    Negation

    Comprehension

    Rule ordering

    etc.


    View Slide

59. 59
    Limitations?
    Programming Tricks (See: Chapter 4 of my thesis)
    Negation

    Comprehension

    Rule ordering

    etc.


    View Slide

60. 60
    Credits

    !
    Prior linear logic programming languages:

    Lygon [1996], LolliMon [2005], Celf [2008]

    !
    Ceptre adds interactivity and stages.


    View Slide

61. CEPTRE

    !
    PAYOFF
    Case Studies

    Experiments

    !
    DISCUSSION
    61
    Outline


    View Slide

62. 62
    Case Studies
    Narrative Generation
    Multi-agent interactive social simulation
    Roguelike-likes (combat & monster gen)
    Board games (Settlers of Catan)


    View Slide

63. 63
    “Fuzzing” player input &

    augmenting rules w/AI strategies
    Ceptre as

    Game Chemistry Lab


    View Slide

64. buff :
    turn Player
    * $on_team Player T
    * $on_Team Player’ T
    * attack Player’ Att
    -o attack Player’ (s Att).
    64
    Augmenting rules with strategies:

    Buffing Only Friends


    View Slide

65. attack :
    turn Player
    * $on_team Player Team
    * opp Team Team’
    * $on_team Enemy Team’
    * $attack Player Att * health Enemy H
    -o subtract Enemy H Att.
    65
    Augmenting rules with strategies:

    Attacking Only Enemies


    View Slide

66. 66
    Evaluating for Balance


    View Slide

67. 67
    Evaluating for Balance
    (c.f. LUDI system for game synthesis & evaluation)


    View Slide

68. 68
    CEPTRE

    !
    PAYOFF

    !
    DISCUSSION
    Invariants

    Future Work

    Lessons
    Outline


    View Slide

69. 69
    (Actual) Limitations
    buff :
    turn Player
    * attack Player A
    -o attack Player (A+1).
    Invariants:

    each player should only
    ever have 1 turn active

    !
    a character should either
    be dead or have a team

    !
    a character should always
    have an attack value

    !
    …


    View Slide

70. 70
    Program Invariants
    INV holds of all initial configurations;

    !
    and for all rules and all contexts ,

    !
    whenever INV holds of sdfa

    !
    !
    INV holds of j
    Invariant INV holds for a specification iff:


    View Slide

71. 71
    Generative invariants (Simmons ’12)
    Program Invariants
    =
    =


    View Slide

72. 72
    Decidability Result
    Whether or not a given (propositional Ceptre)
    program satisfies an invariant is decidable.
    n.b.: O(2^(2^n))

    Not a tractable checking algorithm!

    Future work: automation & integration into the PL.


    View Slide

73. 73
    Future Work
    Accessible game design frameworks
    Ceptre

    Program
    Hypertext

    front-end
    2D tile

    front-end
    Twine

    output
    PuzzleScript

    output


    View Slide

74. 74
    Lessons for

    !
    PL Design


    View Slide

75. 75
    Lessons for

    Domain-Specific?

    PL Design


    View Slide

76. 76
    Lessons for

    Domain-Oriented

    PL Design


    View Slide

77. The Curry-Howard homeomorphism
    LC'90
    77
    Logical Basis


    View Slide

78. 78
    Minimalism


    View Slide

79. 79
    Revisionism


    View Slide

80. Thanks!
    Ceptre: github.com/chrisamaphone/interactive-lp

    !
    Me: Chris Martens

    Web: http://www.cs.cmu.edu/~cmartens

    Thesis: [Web]/thesis

    Twitter: @chrisamaphone

    Research Blog: lambdamaphone.blogspot.com
    80


    View Slide

81. Bonus Slides
    81


    View Slide

82. Backward chaining

    (goal directed)

    !
    vs

    !
    Forward chaining

    (context-directed)
    82


    View Slide

83. Backward Chaining
    83


    View Slide

84. Backward Chaining
    84


    View Slide

85. Backward Chaining
    85


    View Slide

86. Forward Chaining
    86


    View Slide

87. Forward Chaining
    87


    View Slide

88. Forward Chaining
    88


    View Slide

89. Forward Chaining
    89


    View Slide

90. } Prove with goal-directed

    rules
    } Find in linear context
    attack :
    turn Player
    * $on_team Player Team
    * $on_team Enemy Team’
    * $attack W Att
    * health Enemy H
    * opp Team Team’
    * nat_minus H Att H’
    -o health Enemy H’.
    90


    View Slide

91. attack :
    turn Player
    * $attack W Att * health Enemy H
    -o subtract Enemy H Att.
    Attacking
    91


    View Slide

92. subtract/s :
    subtract P (s Health) (s Att)
    -o subtract P Health Att.
    !
    subtract/done :
    subtract P H z -o health P H.
    !
    subtract/die :
    subtract P z Att -o dead P.
    Forward-Chaining Subtraction
    92


    View Slide

93. nat_minus nat nat nat : bwd.
    minus/z- : nat_minus z N z.
    minus/-z : nat_minus N z N.
    minus/s : nat_minus (s N) (s M) P
    <- nat_minus N M P.
    Backward-Chaining Subtraction
    93


    View Slide

94. opp team team : bwd.
    opp blue yellow.
    opp yellow blue.
    Persistent Predicates
    94


    View Slide

95. Types and Predicates
    team : type.
    blue : team.
    yellow : team.
    !
    player : type.
    !
    on_team player team : pred.
    health player nat : pred.
    attack player nat : pred.
    95


    View Slide

96. Types and Predicates
    nat : type.
    z : nat.
    s nat : nat.
    (Operators on numbers can be defined in the language via backward
    chaining, or by accessing built-in functions.)
    96


    View Slide

97. 97
    stage yellow_team = {
    attack : …
    buff : …
    }
    !
    stage blue_team = {
    attack : …
    buff : …
    }
    Returning to Defense Defense…


    View Slide

98. 98
    stage play = {
    attack : …
    buff : …
    }
    !
    stage generate_turns = {
    …
    }


    View Slide

99. 99
    stage play = {
    attack : turn P * …
    buff : turn P * …
    }
    !
    qui * stage play * team_turn T * opp T T’
    -o stage generate_turns * team_turn T’.
    !
    stage generate_turns = {
    …
    }
    !
    qui * stage generate_turns
    -o stage play.


    View Slide

100. 100
     stage play = {
     attack : …
     buff : …
     } #interactive play.
     !
     !
     !
     stage generate_turns = {
     …
     }


     View Slide

101. Causal Analysis
     101


     View Slide

102. 102
     Proof Construction
     102


     View Slide

103. View Slide

104. View Slide

105. View Slide

106. View Slide

107. View Slide

108. Concurrent Structure
     let b = r1 a1 let c = r2 a2
     a1 a2
     =
     b c
     let b = r1 a1
     let c = r2 a2
     108


     View Slide

109. Concurrent Structure
     r1
     c
     r2
     b
     a1 a2
     109


     View Slide

110. Causal Structure
     attack
     buff
     die
     buff
     110


     View Slide

111. do/genturns
     attack
     gwenn blue yellow chris (s (s z)) (s z) z
     buff_other
     chris yellow roger (s (s z)) x176
     buff
     frank (s (s (s z)))
     do/gen_turn
     blue frank
     do/gen_turn
     blue gwenn
     x191
     do/genturns
     another_round
     x192
     x194
     do/play
     x193
     buff
     roger (s (s (s z)))
     x202
     do/gen_gen_turns
     x201
     x203
     do/gen_turn
     yellow karl
     x208
     x207
     x206
     x209
     x211
     switch_team_turn
     blue yellow
     x210
     x214
     x213
     x212
     do/gen_turn
     frank
     x217 x216
     x215
     do/restore_team
     gwenn blue
     do/gen_turn
     gwenn
     x221
     x220
     x219
     x218
     x223
     x222
     x224
     x226
     x227
     x228
     x233 x232
     x231
     die
     chris yellow
     x234
     x238 x237
     111


     View Slide

112. Concurrent structure in proofs

     yields causal structure among actions
     112


     View Slide

113. View Slide
