Cassandra at NASA

Near real time event monitoring project with Cassandra as the data store.

Transcript

1. REAL WORLD CASSANDRA
   AT
   NASA Christopher Keller December 13th, 2012

2. THANKS! I failed to copy this to iCloud after the DC presentation

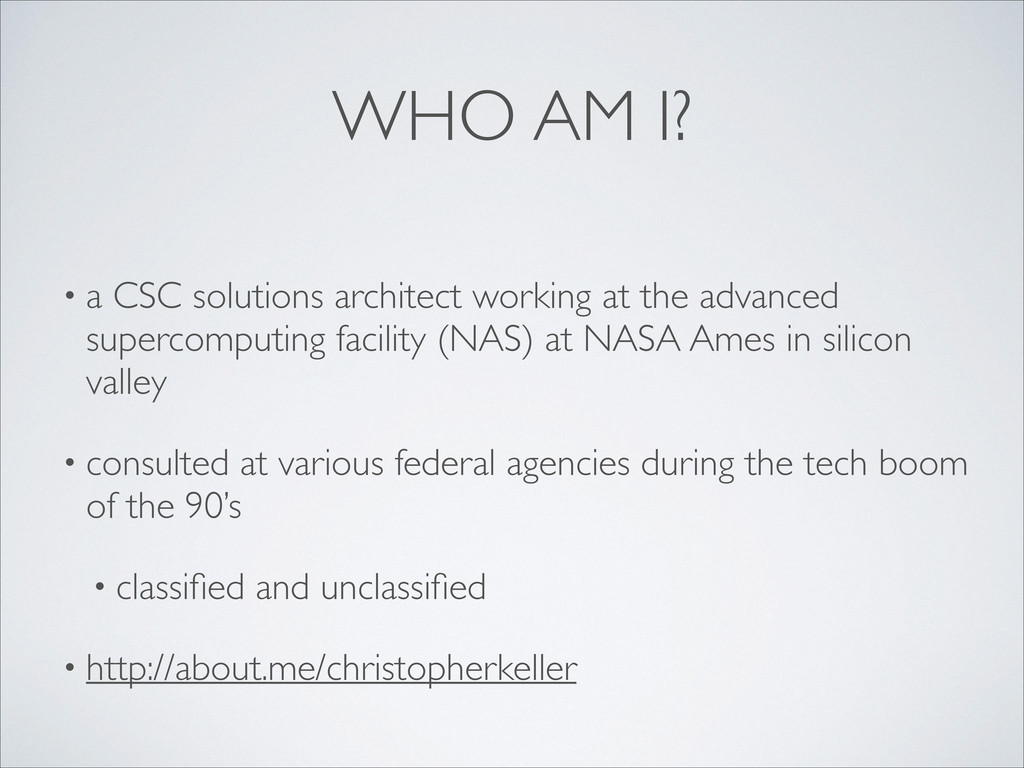

3. WHO AM I? • a CSC solutions architect working at the advanced supercomputing facility (NAS) at NASA Ames in silicon valley • consulted at various federal agencies during the tech boom of the 90’s • classified and unclassified • http://about.me/christopherkeller

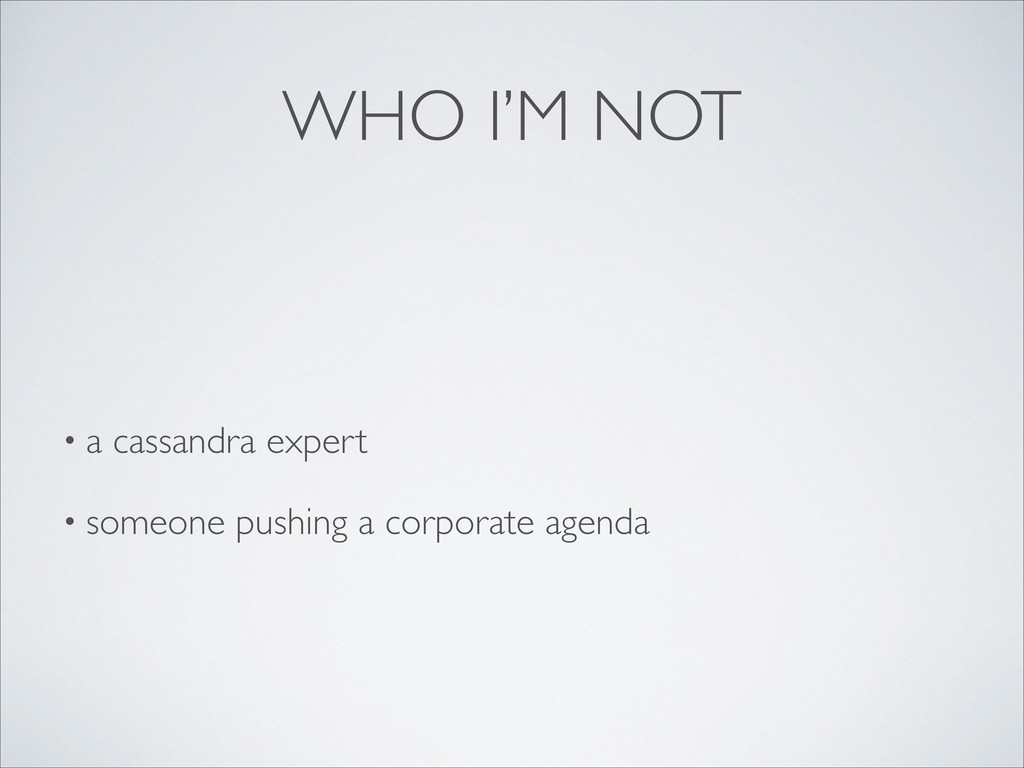

4. WHO I’M NOT • a cassandra expert • someone pushing a corporate agenda

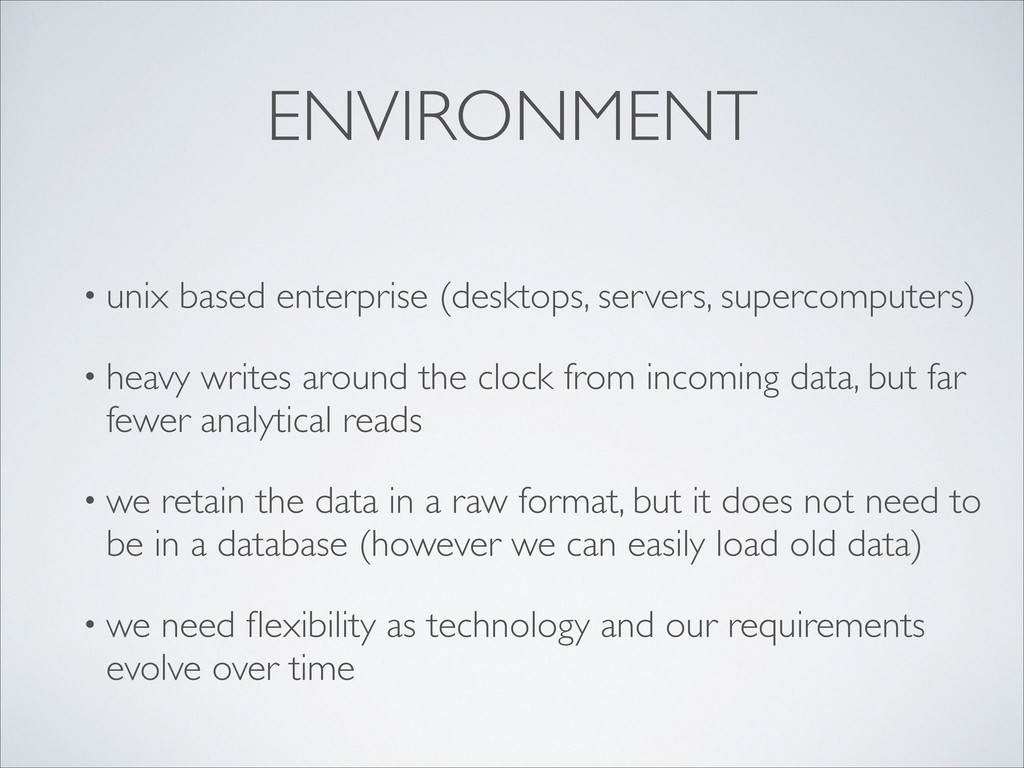

5. ENVIRONMENT • unix based enterprise (desktops, servers, supercomputers) • heavy writes around the clock from incoming data, but far fewer analytical reads • we retain the data in a raw format, but it does not need to be in a database (however we can easily load old data) • we need flexibility as technology and our requirements evolve over time

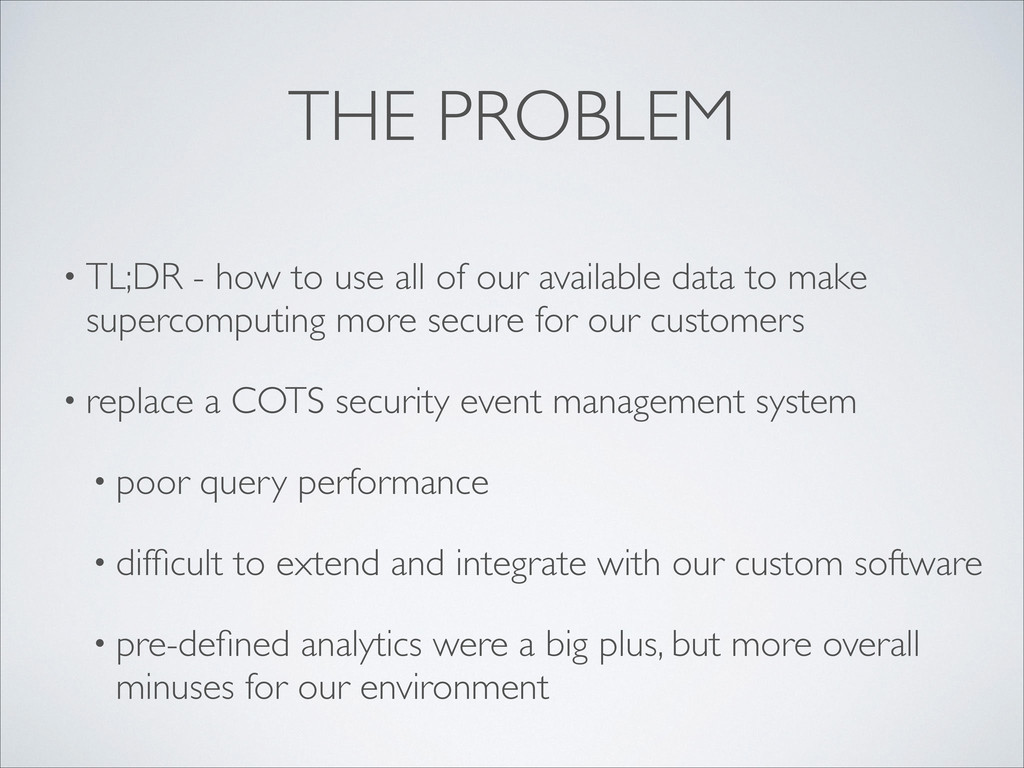

6. THE PROBLEM • TL;DR - how to use all of our available data to make supercomputing more secure for our customers • replace a COTS security event management system • poor query performance • difficult to extend and integrate with our custom software • pre-defined analytics were a big plus, but more overall minuses for our environment

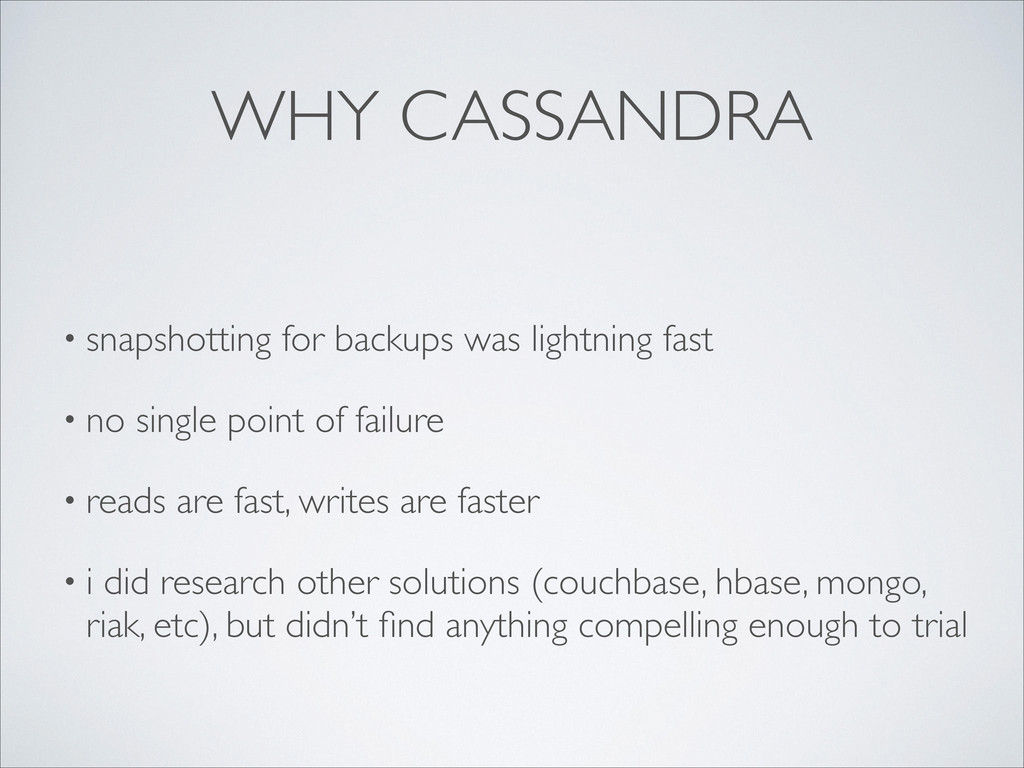

8. WHY CASSANDRA • snapshotting for backups was lightning fast • no single point of failure • reads are fast, writes are faster • i did research other solutions (couchbase, hbase, mongo, riak, etc), but didn’t find anything compelling enough to trial

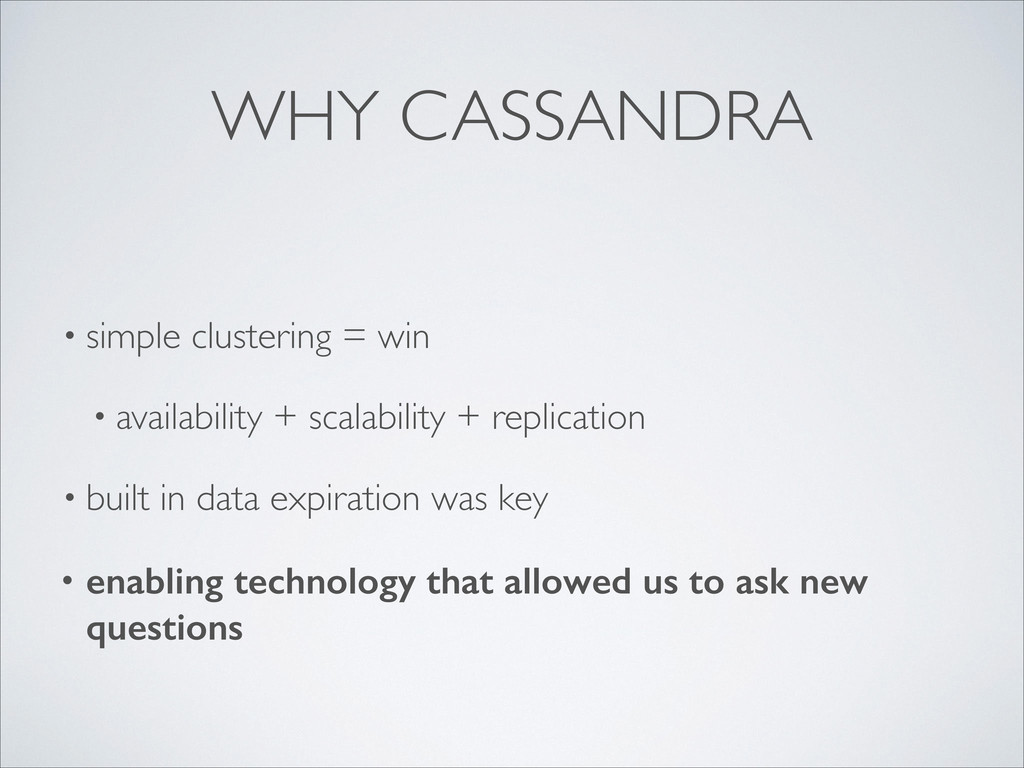

9. WHY CASSANDRA • simple clustering = win • availability + scalability + replication • built in data expiration was key • enabling technology that allowed us to ask new questions

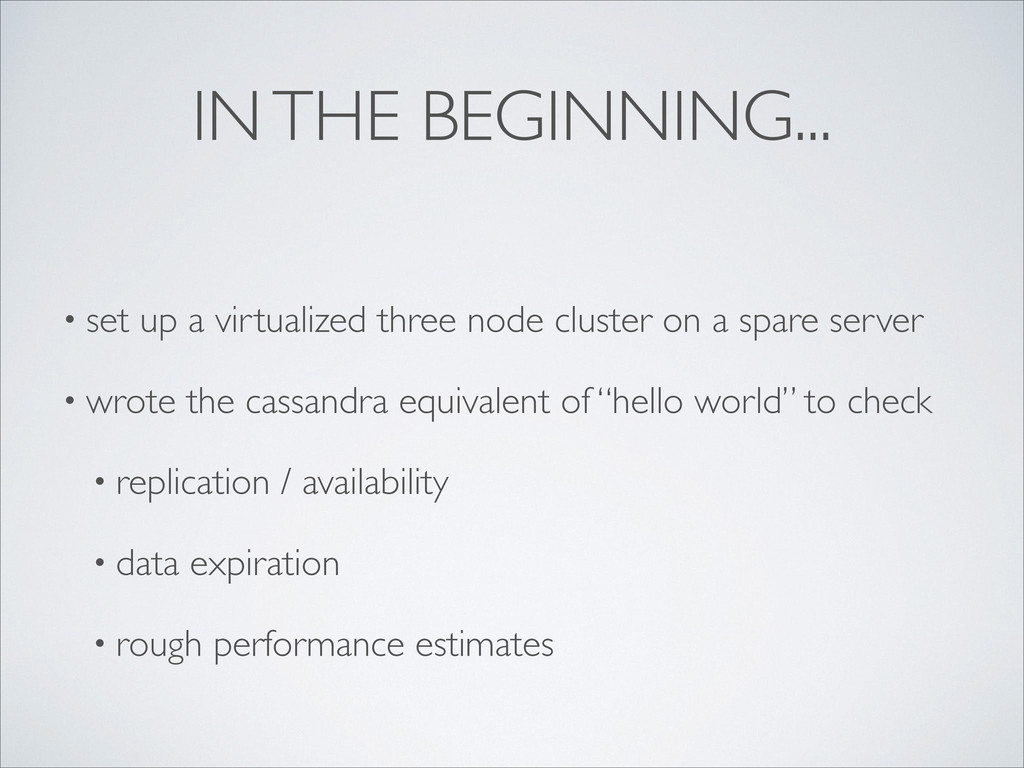

10. IN THE BEGINNING... • set up a virtualized three node cluster on a spare server • wrote the cassandra equivalent of “hello world” to check • replication / availability • data expiration • rough performance estimates

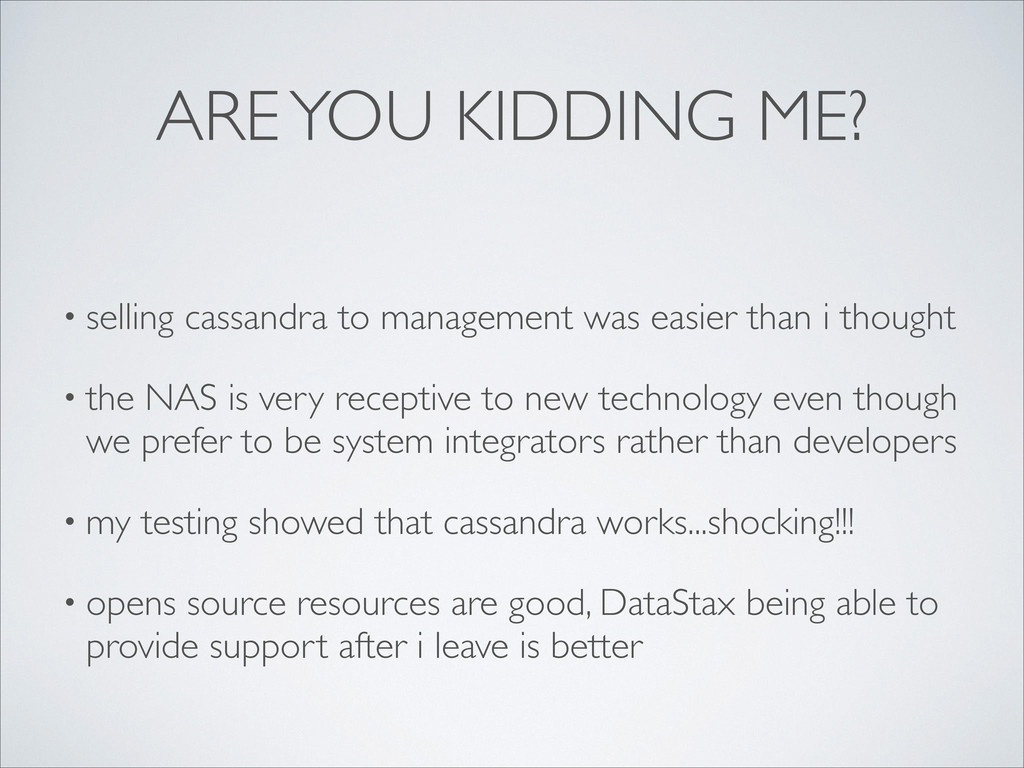

11. ARE YOU KIDDING ME? • selling cassandra to management was easier than i thought • the NAS is very receptive to new technology even though we prefer to be system integrators rather than developers • my testing showed that cassandra works...shocking!!! • opens source resources are good, DataStax being able to provide support after i leave is better

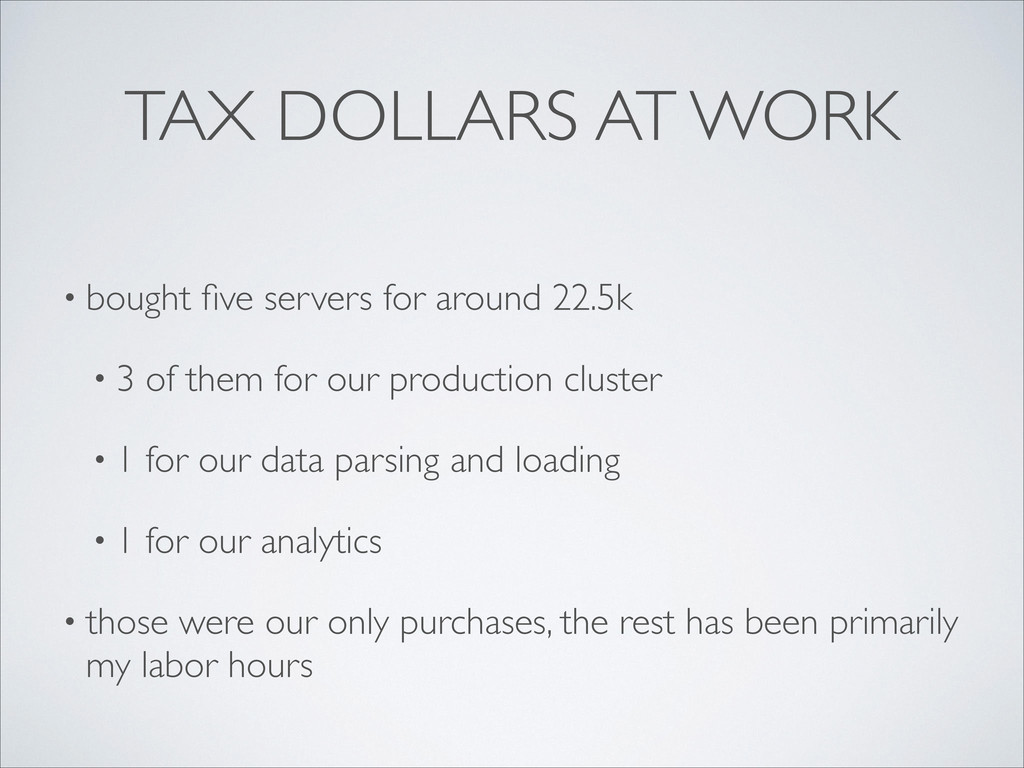

12. TAX DOLLARS AT WORK • bought five servers for around 22.5k • 3 of them for our production cluster • 1 for our data parsing and loading • 1 for our analytics • those were our only purchases, the rest has been primarily my labor hours

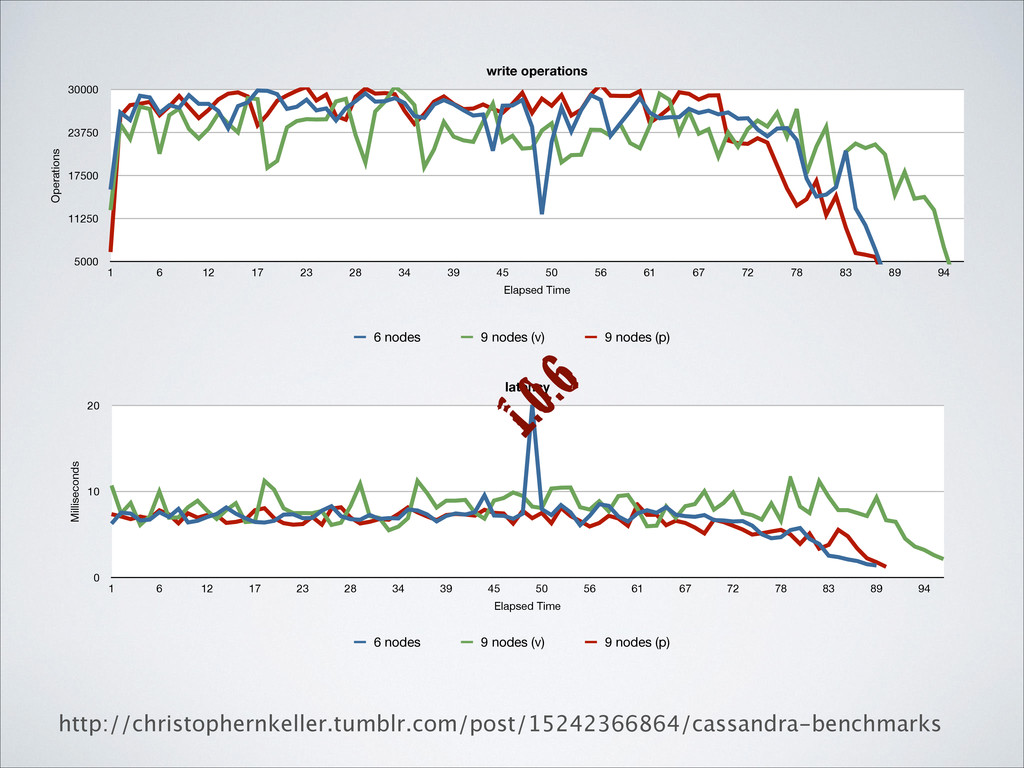

13. write operations Operations 5000 11250 17500 23750 30000 Elapsed Time 1 6 12 17 23 28 34 39 45 50 56 61 67 72 78 83 89 94 6 nodes 9 nodes (v) 9 nodes (p) latency Milliseconds 0 10 20 Elapsed Time 1 6 12 17 23 28 34 39 45 50 56 61 67 72 78 83 89 94 6 nodes 9 nodes (v) 9 nodes (p) http://christophernkeller.tumblr.com/post/15242366864/cassandra-benchmarks 1.0.6

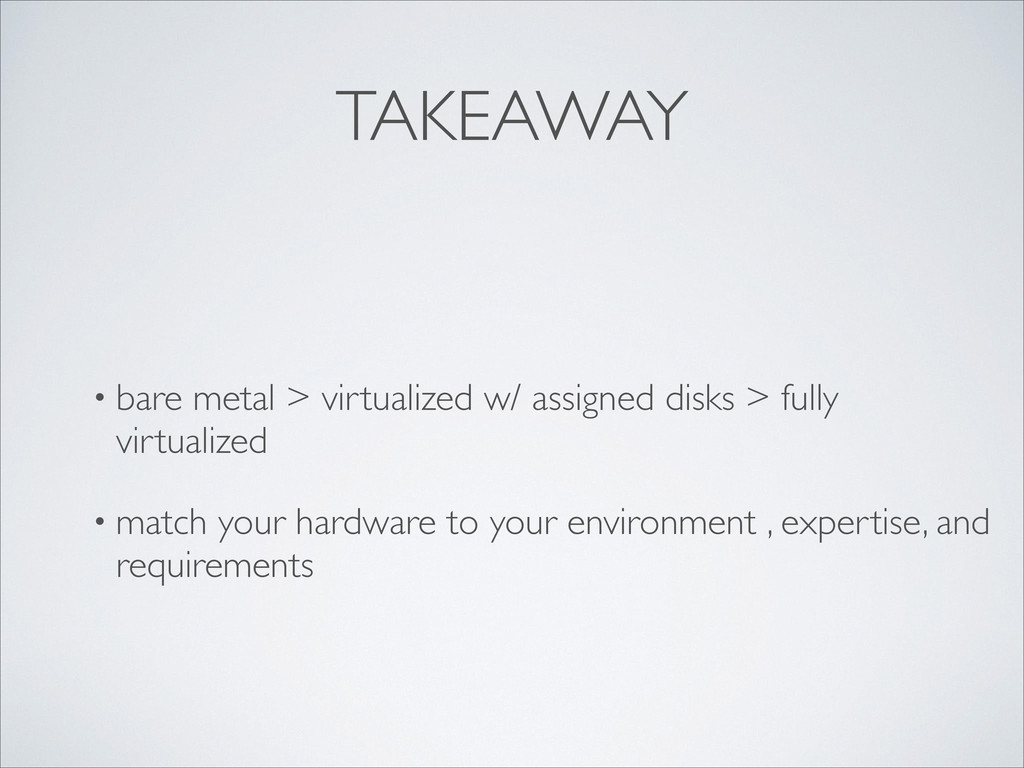

14. TAKEAWAY • bare metal > virtualized w/ assigned disks > fully virtualized • match your hardware to your environment , expertise, and requirements

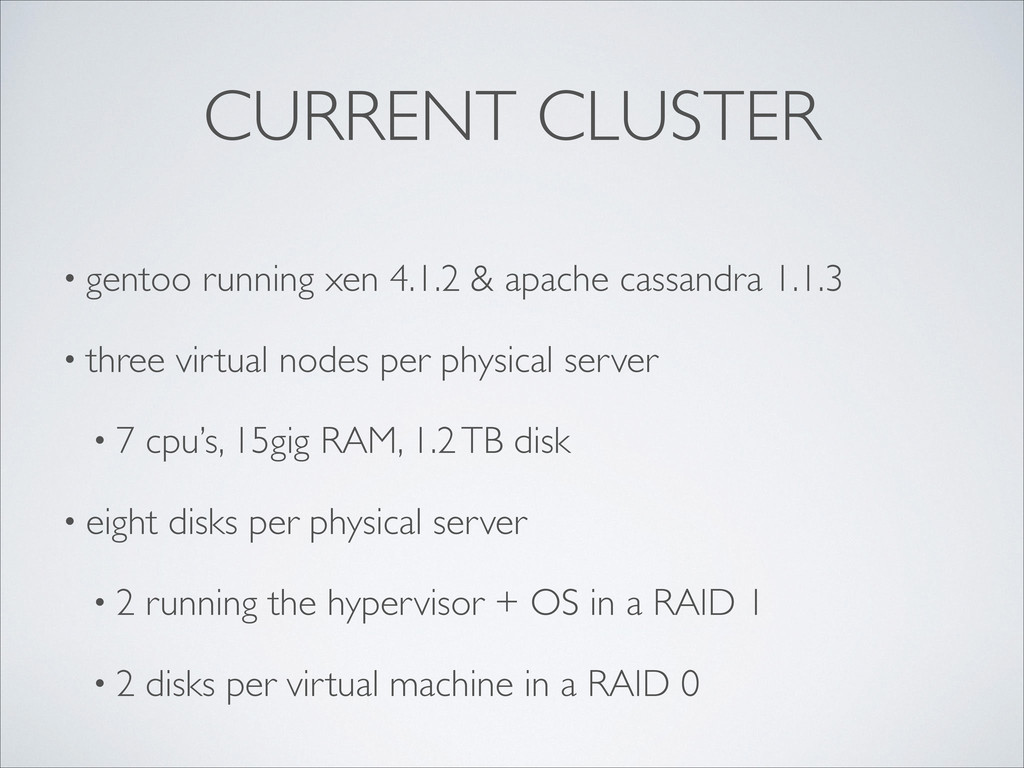

15. CURRENT CLUSTER • gentoo running xen 4.1.2 & apache cassandra 1.1.3 • three virtual nodes per physical server • 7 cpu’s, 15gig RAM, 1.2 TB disk • eight disks per physical server • 2 running the hypervisor + OS in a RAID 1 • 2 disks per virtual machine in a RAID 0

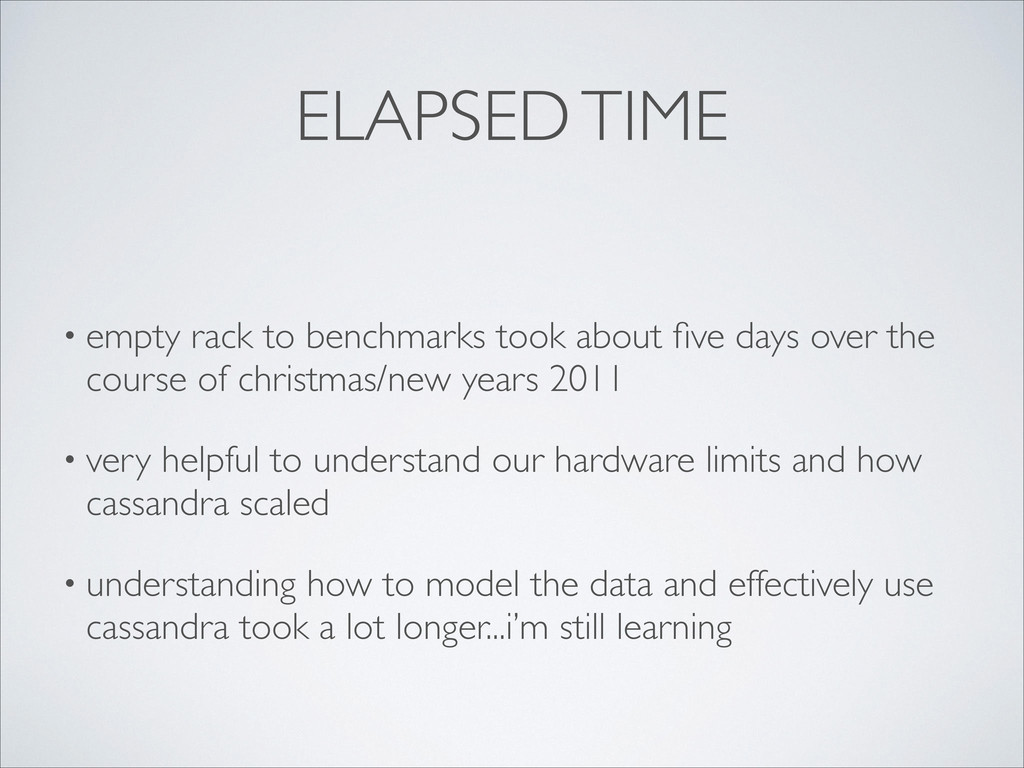

16. ELAPSED TIME • empty rack to benchmarks took about five days over the course of christmas/new years 2011 • very helpful to understand our hardware limits and how cassandra scaled • understanding how to model the data and effectively use cassandra took a lot longer...i’m still learning

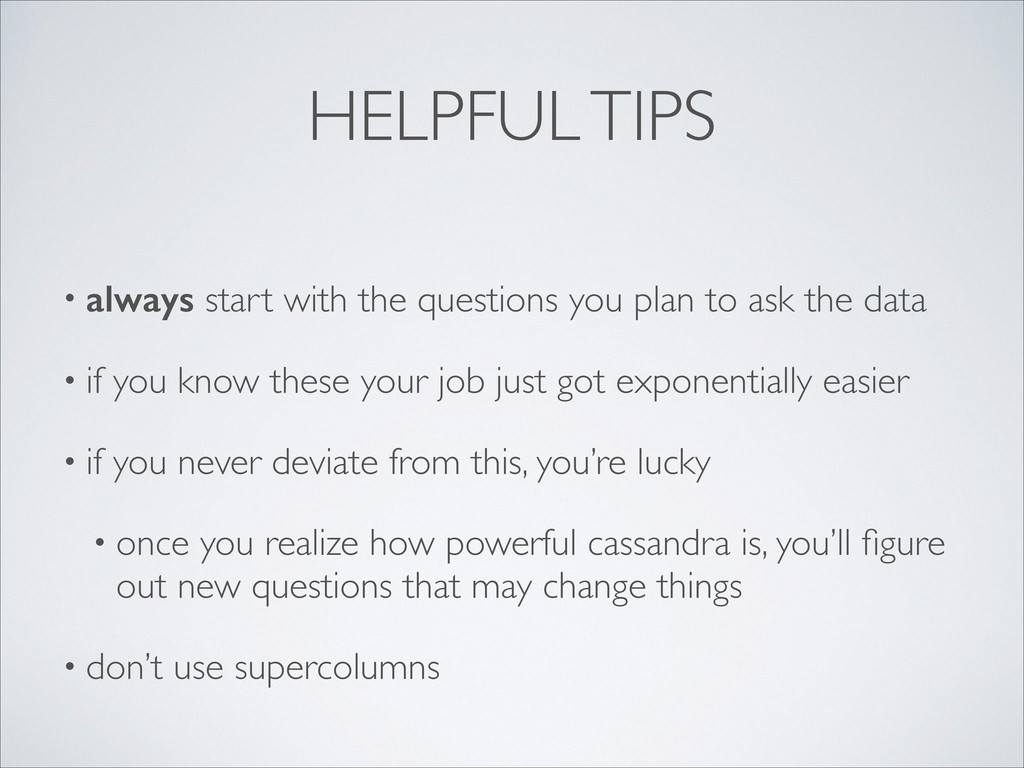

17. HELPFUL TIPS • always start with the questions you plan to ask the data • if you know these your job just got exponentially easier • if you never deviate from this, you’re lucky • once you realize how powerful cassandra is, you’ll figure out new questions that may change things • don’t use supercolumns

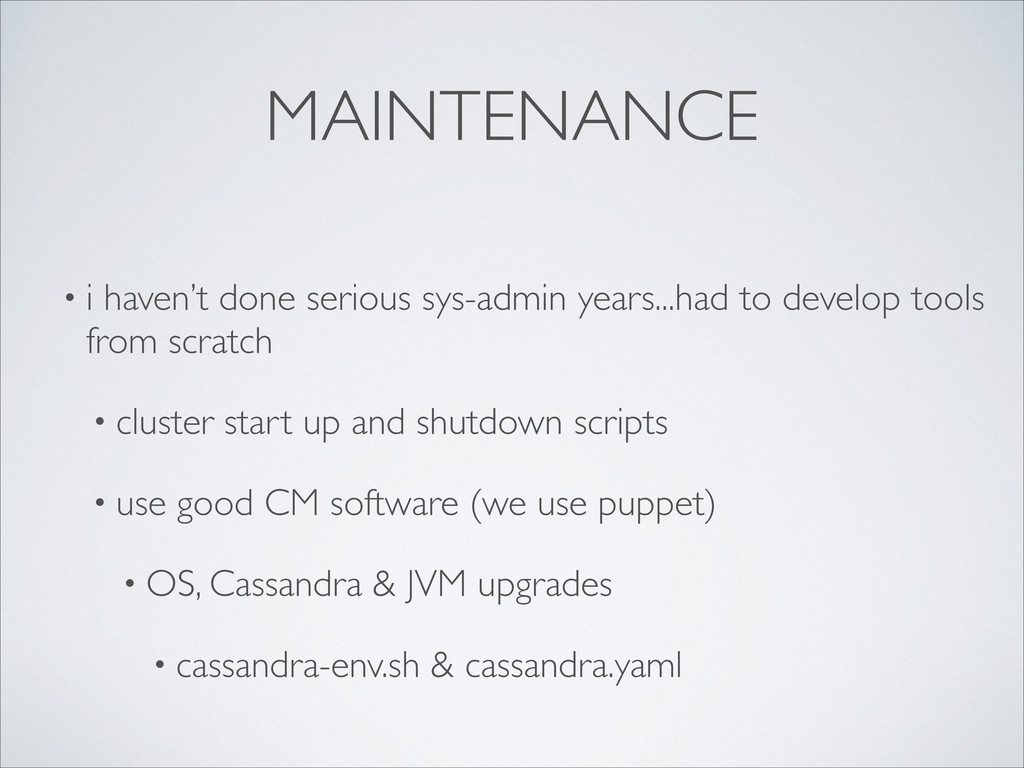

18. MAINTENANCE • i haven’t done serious sys-admin years...had to develop tools from scratch • cluster start up and shutdown scripts • use good CM software (we use puppet) • OS, Cassandra & JVM upgrades • cassandra-env.sh & cassandra.yaml

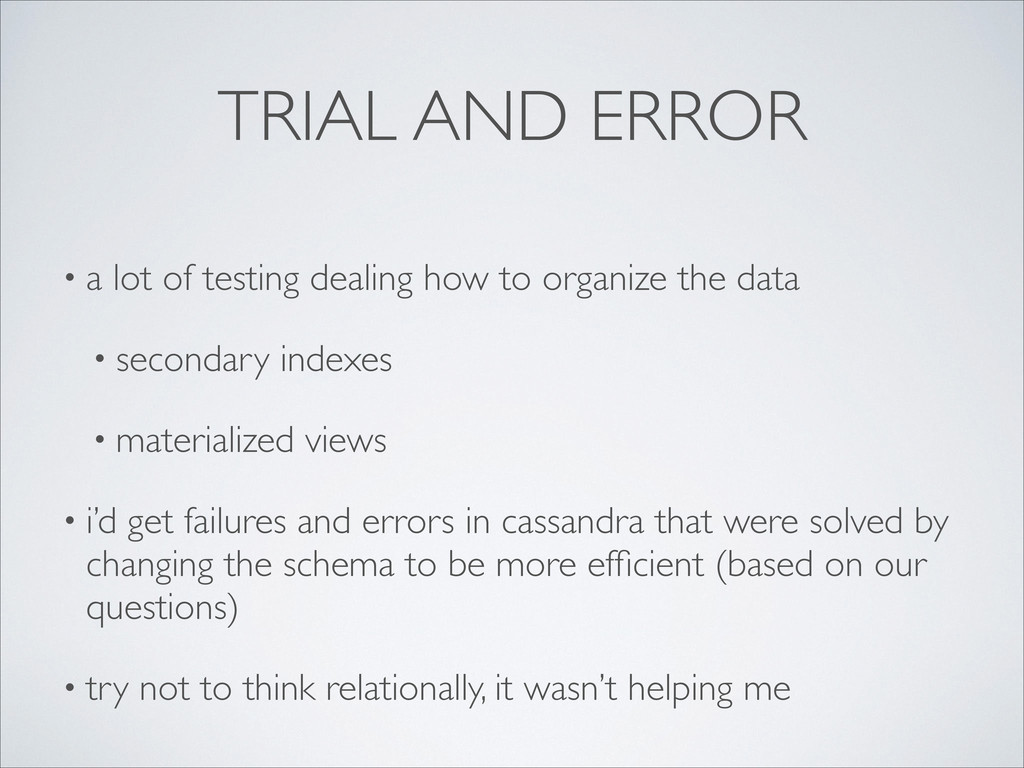

19. TRIAL AND ERROR • a lot of testing dealing how to organize the data • secondary indexes • materialized views • i’d get failures and errors in cassandra that were solved by changing the schema to be more efficient (based on our questions) • try not to think relationally, it wasn’t helping me

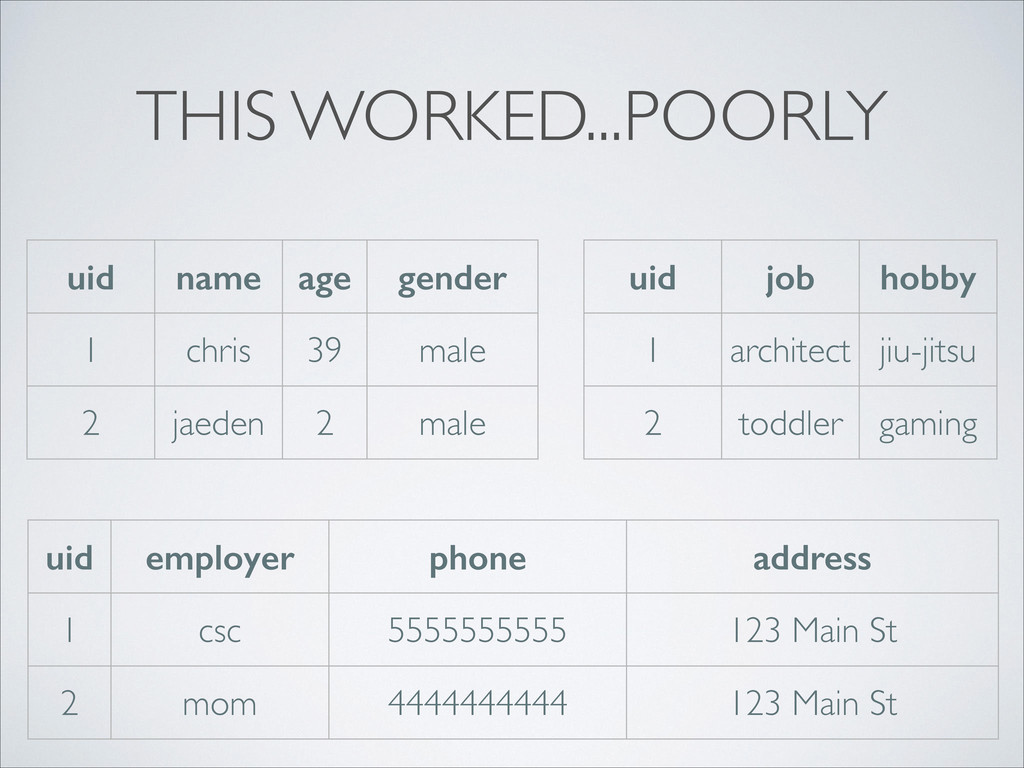

20. THIS WORKED...POORLY uid job hobby 1 architect jiu-jitsu 2 toddler gaming uid name age gender 1 chris 39 male 2 jaeden 2 male uid employer phone address 1 csc 5555555555 123 Main St 2 mom 4444444444 123 Main St

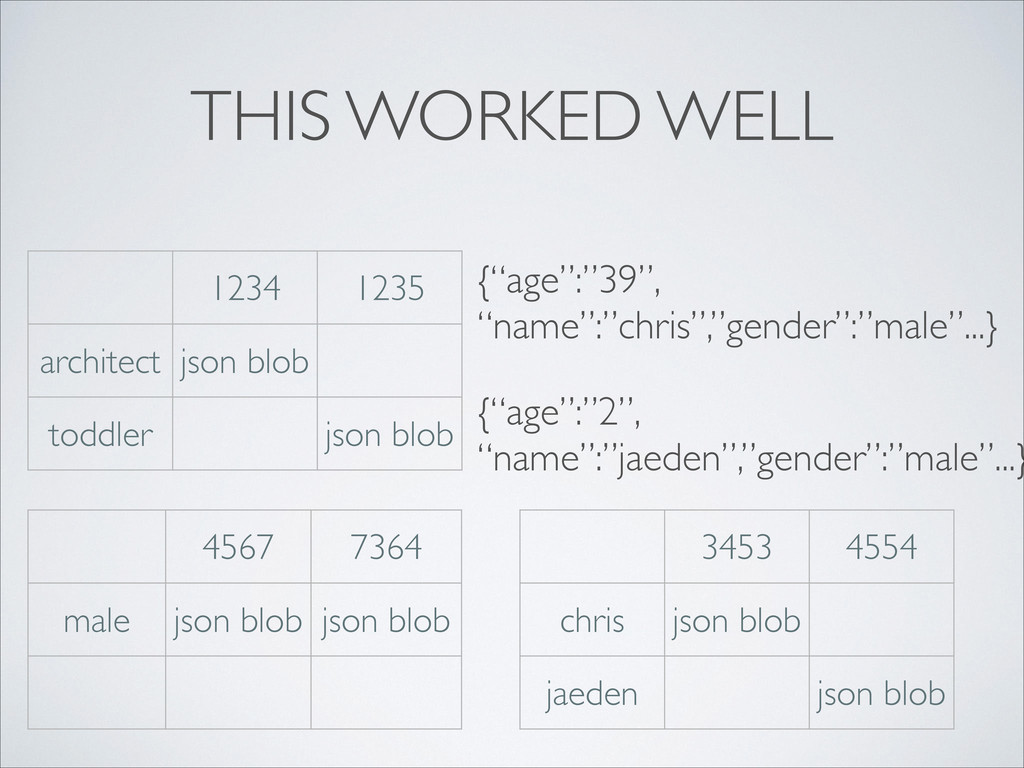

21. THIS WORKED WELL 1234 1235 architect json blob toddler json blob 4567 7364 male json blob json blob {“age”:”39”, “name”:”chris”,”gender”:”male”...} {“age”:”2”, “name”:”jaeden”,”gender”:”male”...} 3453 4554 chris json blob jaeden json blob

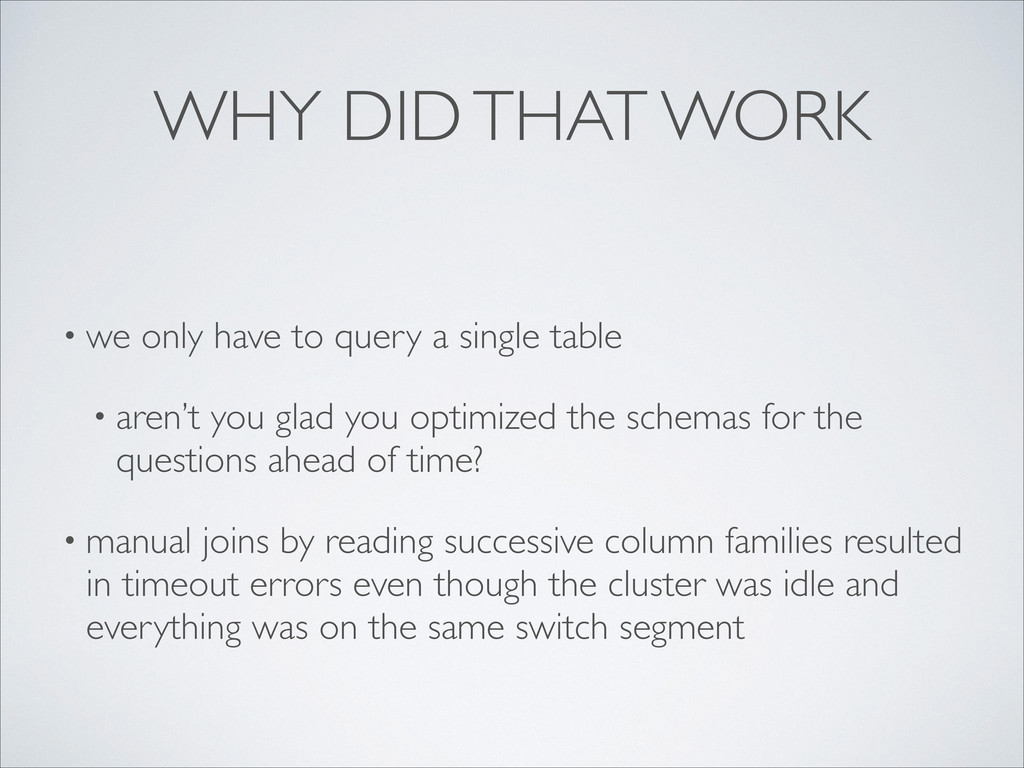

22. WHY DID THAT WORK • we only have to query a single table • aren’t you glad you optimized the schemas for the questions ahead of time? • manual joins by reading successive column families resulted in timeout errors even though the cluster was idle and everything was on the same switch segment

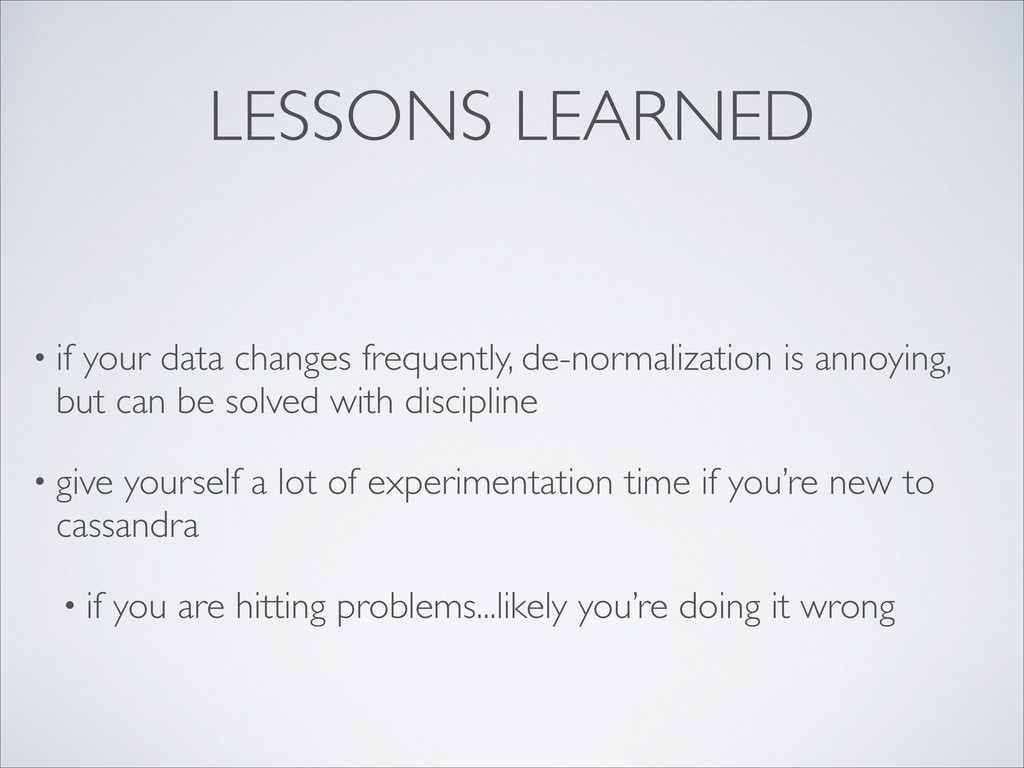

23. LESSONS LEARNED • if your data changes frequently, de-normalization is annoying, but can be solved with discipline • give yourself a lot of experimentation time if you’re new to cassandra • if you are hitting problems...likely you’re doing it wrong

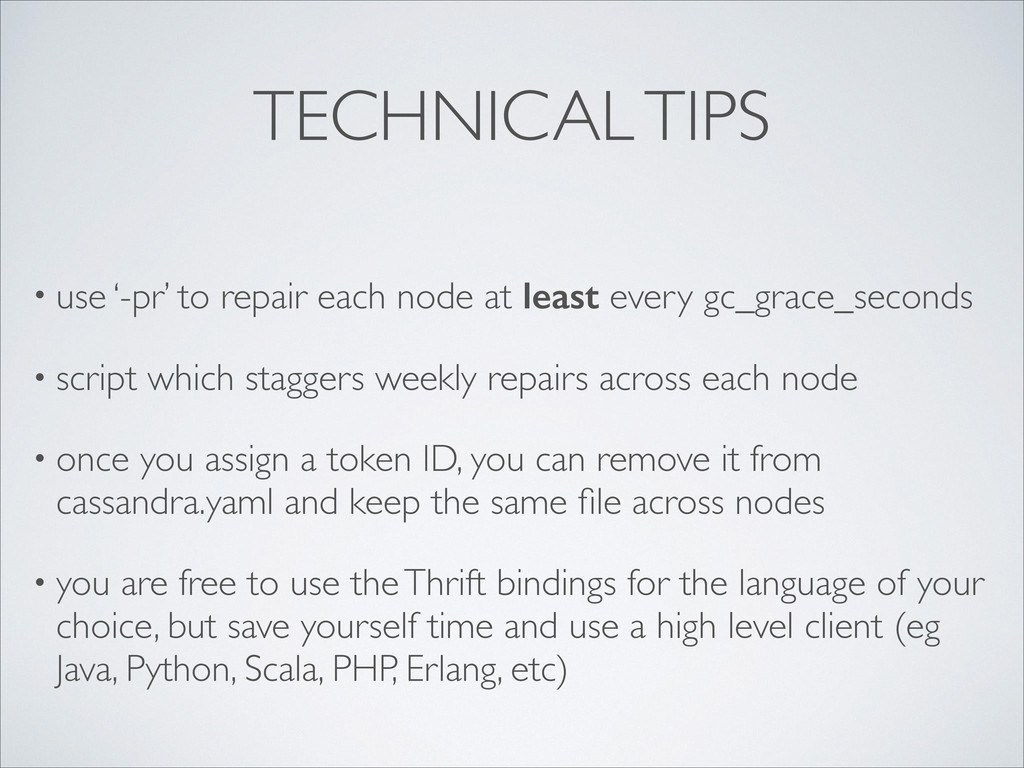

24. TECHNICAL TIPS • use ‘-pr’ to repair each node at least every gc_grace_seconds • script which staggers weekly repairs across each node • once you assign a token ID, you can remove it from cassandra.yaml and keep the same file across nodes • you are free to use the Thrift bindings for the language of your choice, but save yourself time and use a high level client (eg Java, Python, Scala, PHP, Erlang, etc)

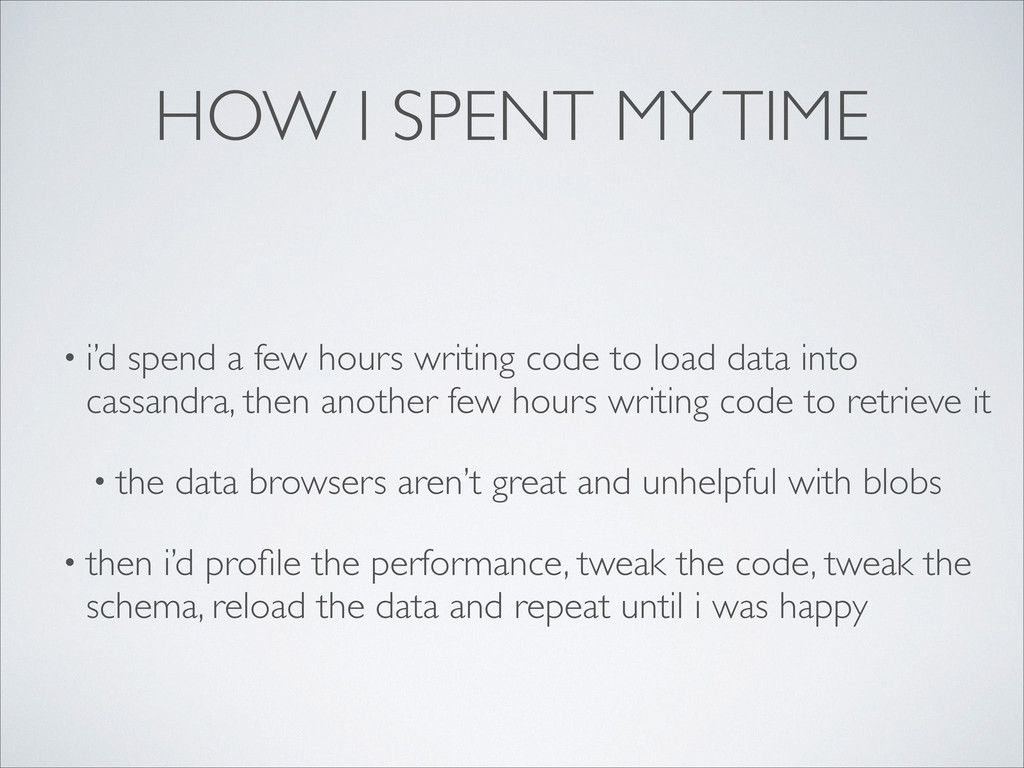

25. HOW I SPENT MY TIME • i’d spend a few hours writing code to load data into cassandra, then another few hours writing code to retrieve it • the data browsers aren’t great and unhelpful with blobs • then i’d profile the performance, tweak the code, tweak the schema, reload the data and repeat until i was happy

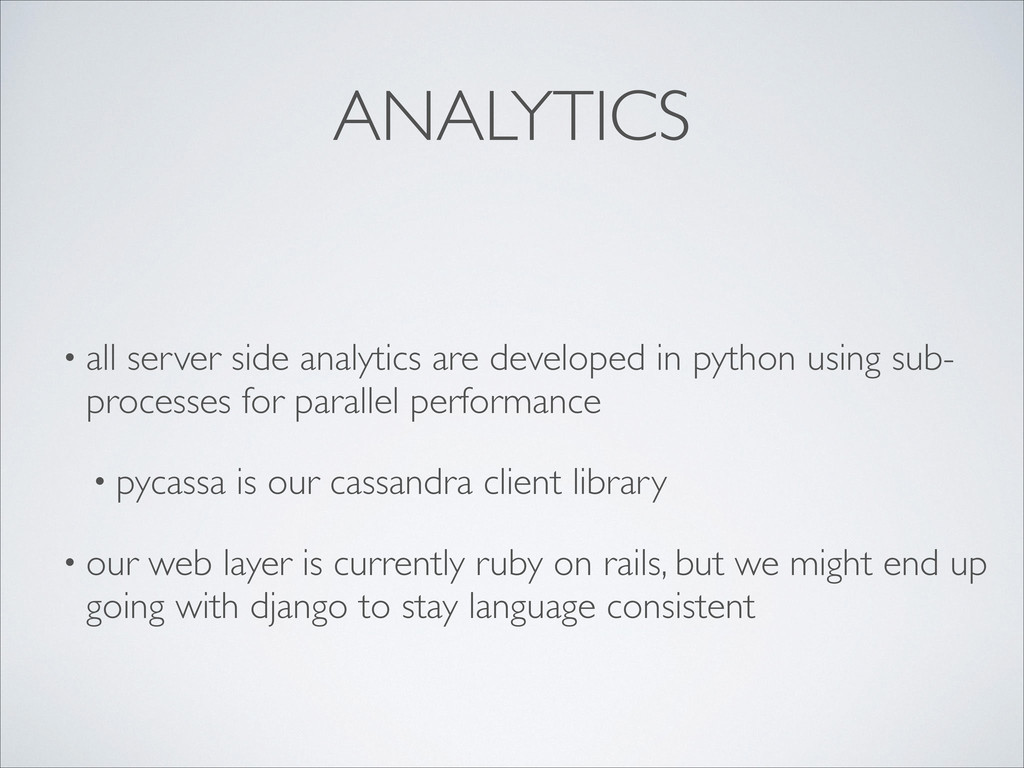

26. ANALYTICS • all server side analytics are developed in python using sub- processes for parallel performance • pycassa is our cassandra client library • our web layer is currently ruby on rails, but we might end up going with django to stay language consistent

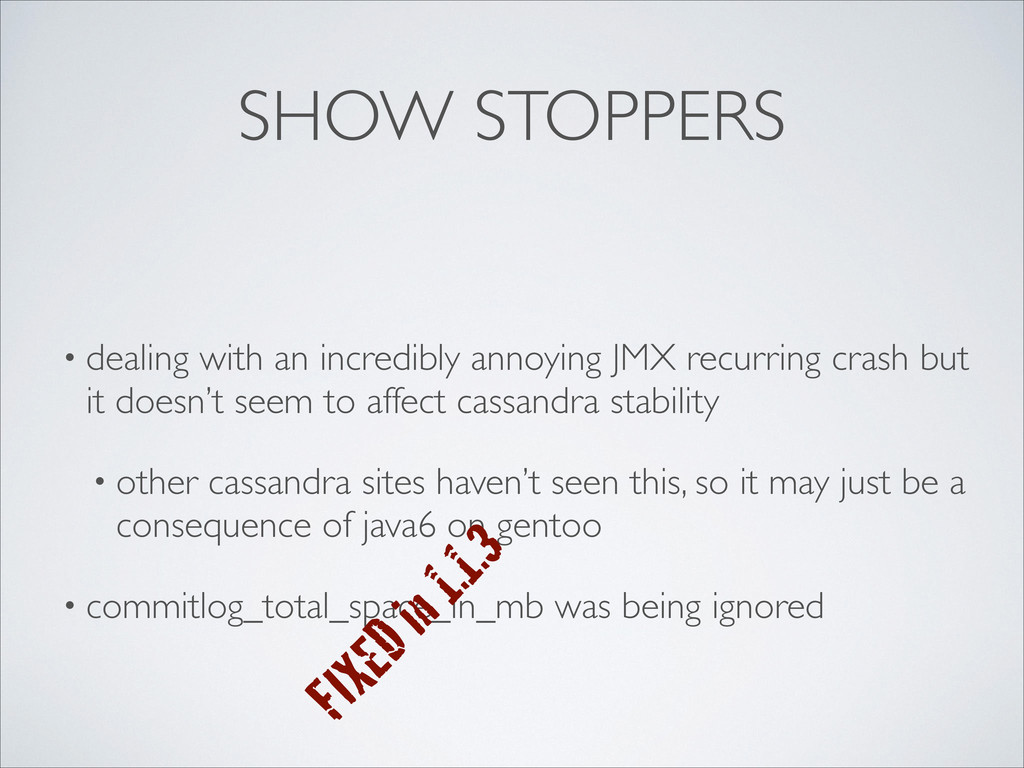

27. SHOW STOPPERS • dealing with an incredibly annoying JMX recurring crash but it doesn’t seem to affect cassandra stability • other cassandra sites haven’t seen this, so it may just be a consequence of java6 on gentoo • commitlog_total_space_in_mb was being ignored FIXED in 1.1.3

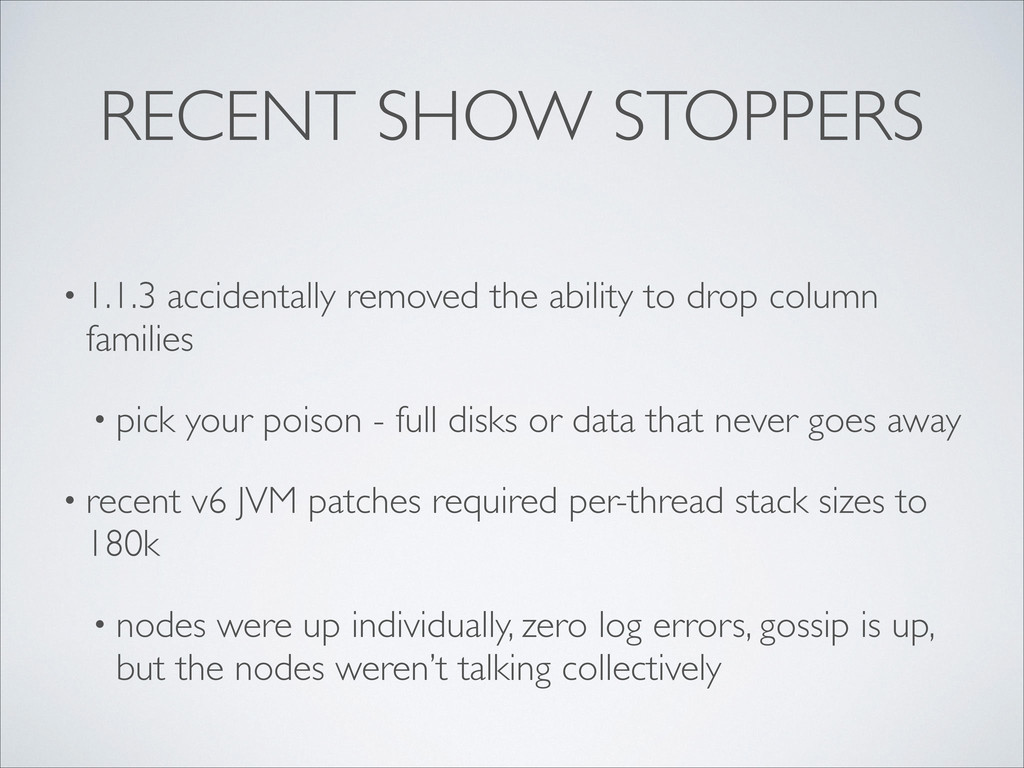

28. RECENT SHOW STOPPERS • 1.1.3 accidentally removed the ability to drop column families • pick your poison - full disks or data that never goes away • recent v6 JVM patches required per-thread stack sizes to 180k • nodes were up individually, zero log errors, gossip is up, but the nodes weren’t talking collectively
29. ROAD AHEAD cql map/reduce solr ops center

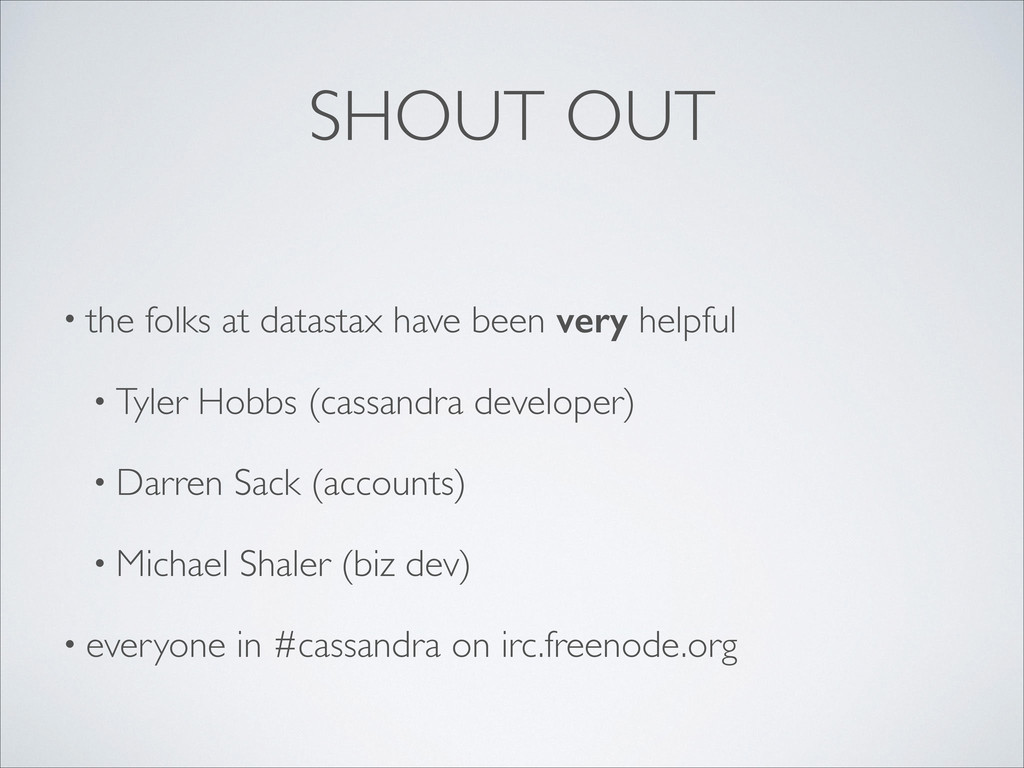

30. SHOUT OUT • the folks at datastax have been very helpful • Tyler Hobbs (cassandra developer) • Darren Sack (accounts) • Michael Shaler (biz dev) • everyone in #cassandra on irc.freenode.org

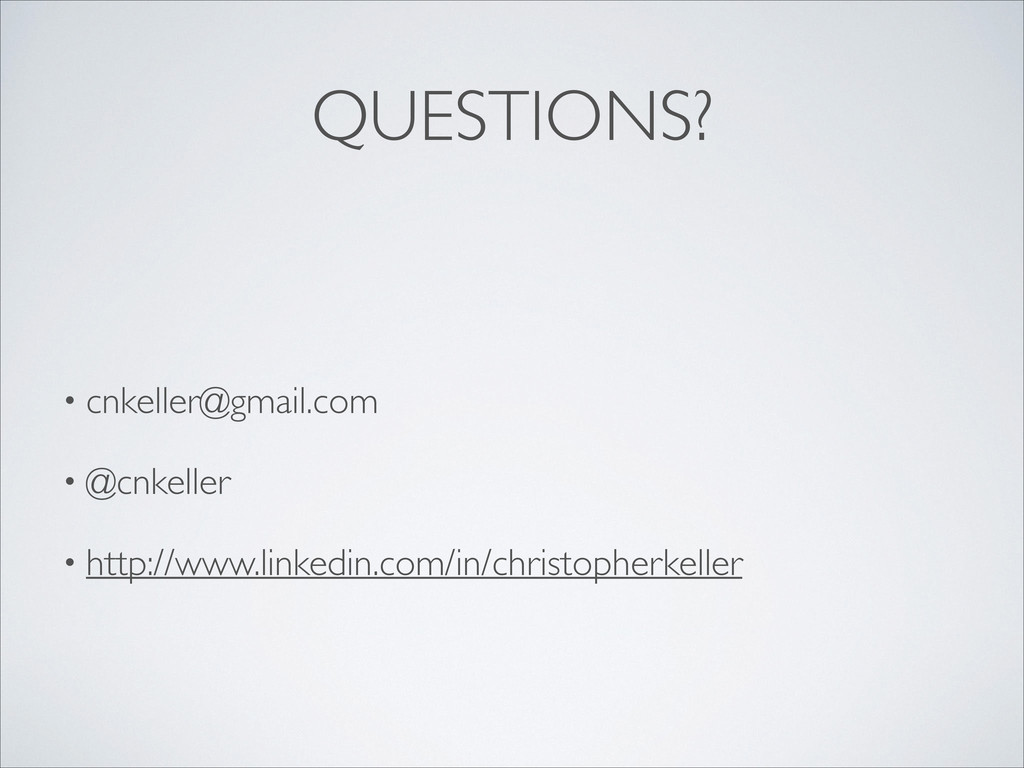

31. QUESTIONS? • cnkeller@gmail.com • @cnkeller • http://www.linkedin.com/in/christopherkeller
