Data driven view controllers

Originally posted here: https://speakerdeck.com/vmalakhovskiy/data-driven-view-controllers

Github link: https://github.com/vmalakhovskiy/data-driven-vc

Vitaly about his workshop:
"I will show how to unify/simplify view-presenter communication, using data-driven approauch. Of cource a bit about functional programming, code generation, comparison with other architectures and more."

This workshop was made for CocoaHeads Kyiv #14 which took place Oct 6 2018.

Transcript

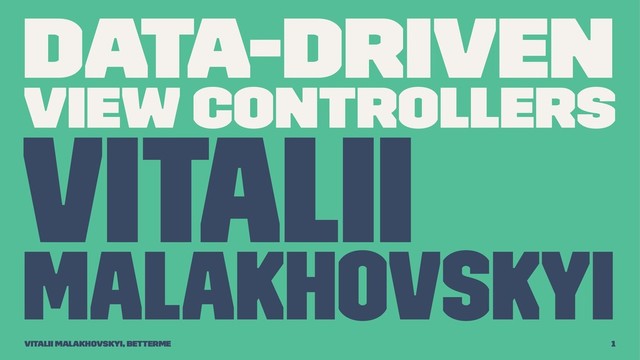

1. data-driven
   view controllers
   Vitalii
   Malakhovskyi
   Vitalii Malakhovskyi, BetterMe 1


   View Slide

2. Vitalii Malakhovskyi, BetterMe 2


   View Slide

3. Plan
   » what is data driven view controllers?
   » basic examples
   » code
   » home work: github
   Vitalii Malakhovskyi, BetterMe 3


   View Slide

4. what is that,
   data-driven view controllers?
   Vitalii Malakhovskyi, BetterMe 4


   View Slide

5. simplest view data representation as
   possible
   Vitalii Malakhovskyi, BetterMe 5


   View Slide

6. struct/enum
   immutable!
   Vitalii Malakhovskyi, BetterMe 6


   View Slide

7. struct ViewData {
   let title: String
   let message: String
   }
   Vitalii Malakhovskyi, BetterMe 7


   View Slide

8. Doesn't know about
   » entities
   » managed objects
   » models
   » services
   » etc
   Vitalii Malakhovskyi, BetterMe 8


   View Slide

9. it's only about view
   Vitalii Malakhovskyi, BetterMe 9


   View Slide

10. May contain:
    » string, number, bool
    » struct, enum, array
    » nested
    » closure <- for output
    Vitalii Malakhovskyi, BetterMe 10


    View Slide

11. ()->()
    Vitalii Malakhovskyi, BetterMe 11


    View Slide

12. (Input)->()
    Vitalii Malakhovskyi, BetterMe 12


    View Slide

13. ((Input)->())?
    Vitalii Malakhovskyi, BetterMe 13


    View Slide

14. (Input)->(Output)
    Vitalii Malakhovskyi, BetterMe 14


    View Slide

15. (Input)-> throws ()
    Vitalii Malakhovskyi, BetterMe 15


    View Slide

16. struct Props {
    let title: String
    let journeys: [ViewData.Journey]
    struct Journey {
    let name: String
    let description: String
    let image: UIImage
    let progress: String
    let isLocked: Bool
    let onSelect: () -> ()
    }
    }
    Vitalii Malakhovskyi, BetterMe 16


    View Slide

17. struct Props {
    let title: String
    let journeys: [ViewData.Journey]
    struct Journey {
    let name: String
    let description: String
    let image: UIImage
    let progress: String
    let isLocked: Bool
    let onSelect: () -> ()
    }
    }
    Vitalii Malakhovskyi, BetterMe 17


    View Slide

18. unidirectional
    Vitalii Malakhovskyi, BetterMe 18


    View Slide

19. once somthing changed
    everything gets updated
    Vitalii Malakhovskyi, BetterMe 19


    View Slide

20. main idea
    only valid
    state
    Vitalii Malakhovskyi, BetterMe 20


    View Slide

21. wrong
    struct Interface {
    let programs: [Program]
    let temperatures: [Temperature]
    let RPMs: [RPM]
    enum Program {}
    enum Temperature {}
    enum RPM {}
    }
    Vitalii Malakhovskyi, BetterMe 21


    View Slide

22. correct
    enum Interface {
    case handWash90Degree
    case wool30Degree
    case off
    }
    Vitalii Malakhovskyi, BetterMe 22


    View Slide

23. Vitalii Malakhovskyi, BetterMe 23


    View Slide

24. enum Props {
    case loading([Loading])
    case error(title: String, message: String, onReload: () -> ())
    case data([Data])
    struct Data {}
    struct Loading {}
    }
    Vitalii Malakhovskyi, BetterMe 24


    View Slide

25. should not relay
    on previous data
    Vitalii Malakhovskyi, BetterMe 25


    View Slide

26. single source
    of update
    Vitalii Malakhovskyi, BetterMe 26


    View Slide

27. UIView/UIViewController
    Vitalii Malakhovskyi, BetterMe 27


    View Slide

28. func render(props: Props) {
    self.props = props
    view.setNeedsLayout()
    }
    func viewWillLayoutSubviews() {
    super.viewWillLayoutSubviews()
    /// redraw view state
    }
    Vitalii Malakhovskyi, BetterMe 28


    View Slide

29. EXAMPLE
    Vitalii Malakhovskyi, BetterMe 29


    View Slide

30. 1
    Vitalii Malakhovskyi, BetterMe 30


    View Slide

31. Presenter <- View
    Vitalii Malakhovskyi, BetterMe 31


    View Slide

32. ViewData should be observable
    Vitalii Malakhovskyi, BetterMe 32


    View Slide

33. protocol ViewModel {
    var viewData: Property { get }
    }
    Vitalii Malakhovskyi, BetterMe 33


    View Slide

34. class ViewController: UIViewController {
    func viewDidLoad() {
    viewModel.viewData.producer.startWithValues { _ in
    view.setNeedsLayout()
    }
    }
    func viewWillLayoutSubviews() {
    switch viewModel.viewData.value {
    ...
    }
    }
    }
    Vitalii Malakhovskyi, BetterMe 34


    View Slide

35. how to achieve this?
    » reactive cocoa
    » rxswift
    » handmade observations
    » KVO
    Vitalii Malakhovskyi, BetterMe 35


    View Slide

36. 2
    Vitalii Malakhovskyi, BetterMe 36


    View Slide

37. Presenter <-> View
    Vitalii Malakhovskyi, BetterMe 37


    View Slide

38. VIPER
    Vitalii Malakhovskyi, BetterMe 38


    View Slide

39. /// View -> Presenter
    protocol ViewOutput {
    func viewIsReady()
    }
    /// Presenter -> View
    protocol PresenterOutput: {
    func receiveUpdate(with data: ViewData)
    }
    Vitalii Malakhovskyi, BetterMe 39


    View Slide

40. space
    for bugs
    Vitalii Malakhovskyi, BetterMe 40


    View Slide

41. 3
    Vitalii Malakhovskyi, BetterMe 41


    View Slide

42. Presenter -> View
    Vitalii Malakhovskyi, BetterMe 42


    View Slide

43. class ViewController: UIViewController {
    struct ViewData {}
    func render(viewData: ViewData) {
    self.viewData = viewData
    view.setNeedsLayout()
    }
    }
    struct Presenter {
    let render: (ViewData) -> ()
    func handleNewAppState(...) // calls render
    }
    Vitalii Malakhovskyi, BetterMe 43


    View Slide

44. View has
    no dependencies
    Vitalii Malakhovskyi, BetterMe 44


    View Slide

45. UIKit owns UIViewController
    store owns presenter
    Vitalii Malakhovskyi, BetterMe 45


    View Slide

46. CODE!
    Vitalii Malakhovskyi, BetterMe 46


    View Slide

47. * simple input
    * input + validation
    * multistate screen
    * animation
    * MVVM vc DD MVVM
    * VIPER vc DD VIPER
    * MVC vc DD MVC
    Vitalii Malakhovskyi, BetterMe 47


    View Slide

48. GITHUB
    github.com/vmalakhovskiy/data-driven-vc
    Vitalii Malakhovskyi, BetterMe 48


    View Slide

49. THANKS!
    Vitalii Malakhovskyi, BetterMe 49


    View Slide

50. * Data-Driven View
    Controllers. Tips
    and Tricks
    * github
    * Redux
    Vitalii Malakhovskyi, BetterMe 50


    View Slide

51. Questions?
    Vitalii Malakhovskyi, BetterMe 51


    View Slide

52. purpleshirted
    Vitalii Malakhovskyi
    VitaliyMal
    vmalakhovskiy
    Vitalii Malakhovskyi, BetterMe 52


    View Slide
