Deep Learning for Compilers (DL4Compilers), CGO 2022 Tutorial

This is the slideset of the tutorial conducted at CGO 2022, organized by Chris Cummins (Meta), Sandya Mannarswamy(Intel) and Dibyendu Das(Intel) on April 2, 2022. If you want to listen to the full tutorial (~3hrs) you can use the following link: https://www.youtube.com/watch?v=xab8YAzLjtI

Transcript

1. DL4Compilers CGO Tutorial Sandya Mannarswamy Dibyendu Das Chris Cummins
2. 1. Learning over Programs (Chris) 2. Applications of DL to Compilers (Dibyendu) 3. Challenges & Research Directions (Sandya) overview 3 sections, 45 min each, 10 min Q&A, 5 min break
3. 1. Learning over Programs (Chris) 2. Applications of DL to Compilers (Dibyendu) 3. Challenges & Research Directions (Sandya) overview 3 sections, 45 min each, 10 min Q&A, 5 min break 3 2
4. • Bad heuristics • Wasted energy • Widening performance gap Building compilers... a job for life • 100s of variables • NP-hard or worse • Compiler / HW keeps changing

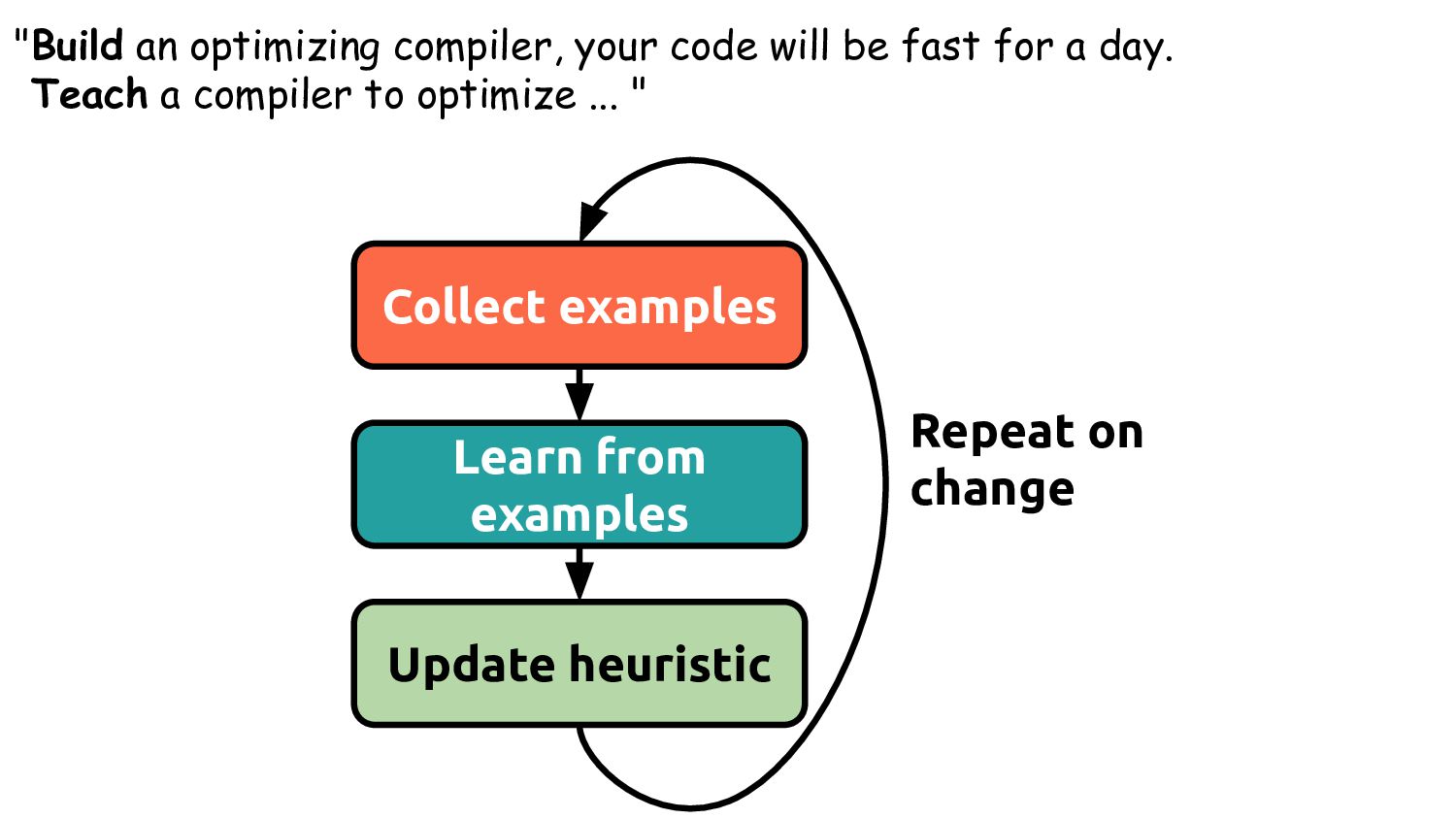

5. Collect examples Learn from examples Update heuristic Repeat on change "Build an optimizing compiler, your code will be fast for a day. Teach a compiler to optimize ... "

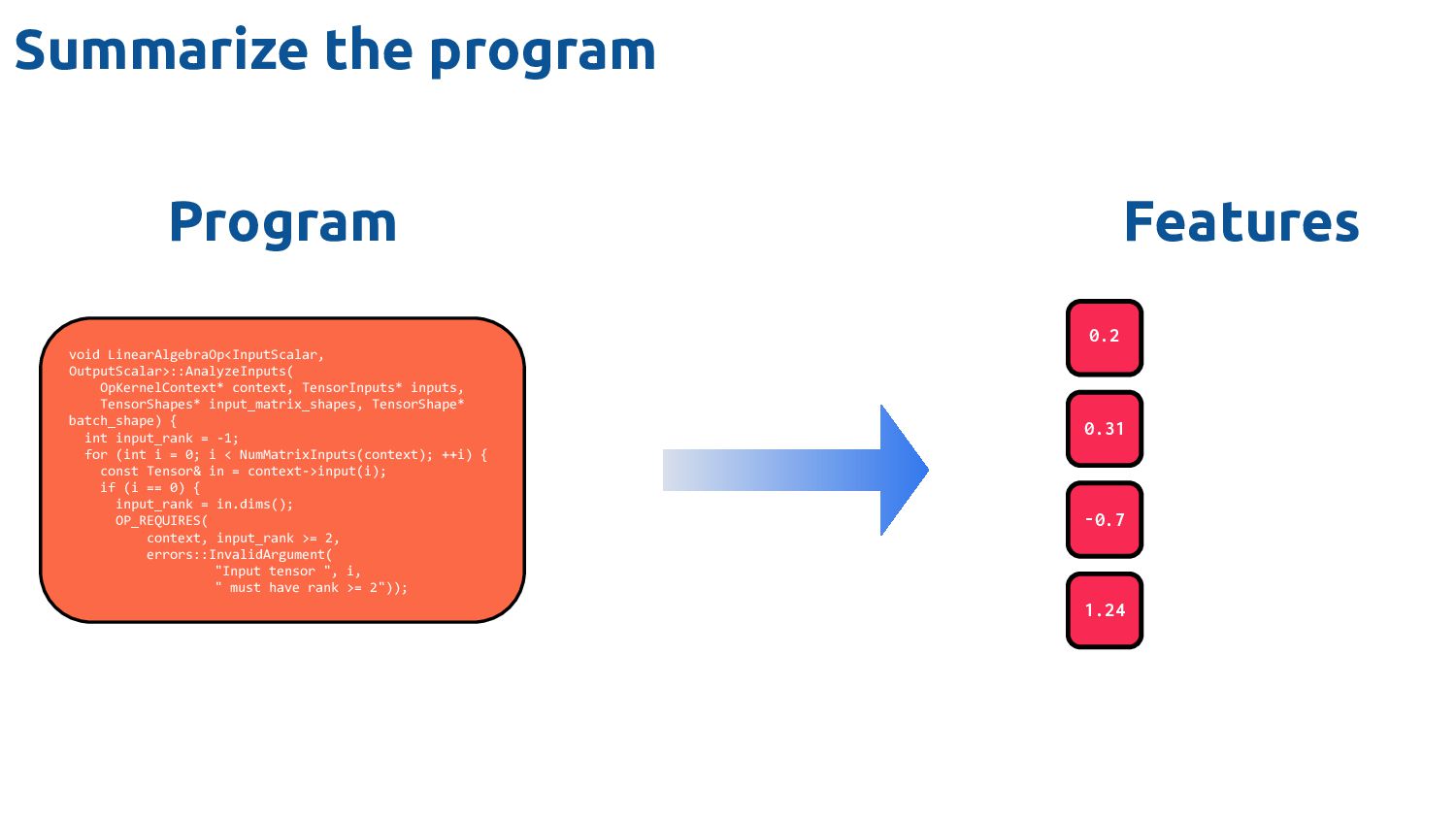

6. Summarize the program Program Features void LinearAlgebraOp<InputScalar, OutputScalar>::AnalyzeInputs( OpKernelContext* context, TensorInputs* inputs, TensorShapes* input_matrix_shapes, TensorShape* batch_shape) { int input_rank = -1; for (int i = 0; i < NumMatrixInputs(context); ++i) { const Tensor& in = context->input(i); if (i == 0) { input_rank = in.dims(); OP_REQUIRES( context, input_rank >= 2, errors::InvalidArgument( "Input tensor ", i, " must have rank >= 2")); 0.2 0.31 -0.7 1.24

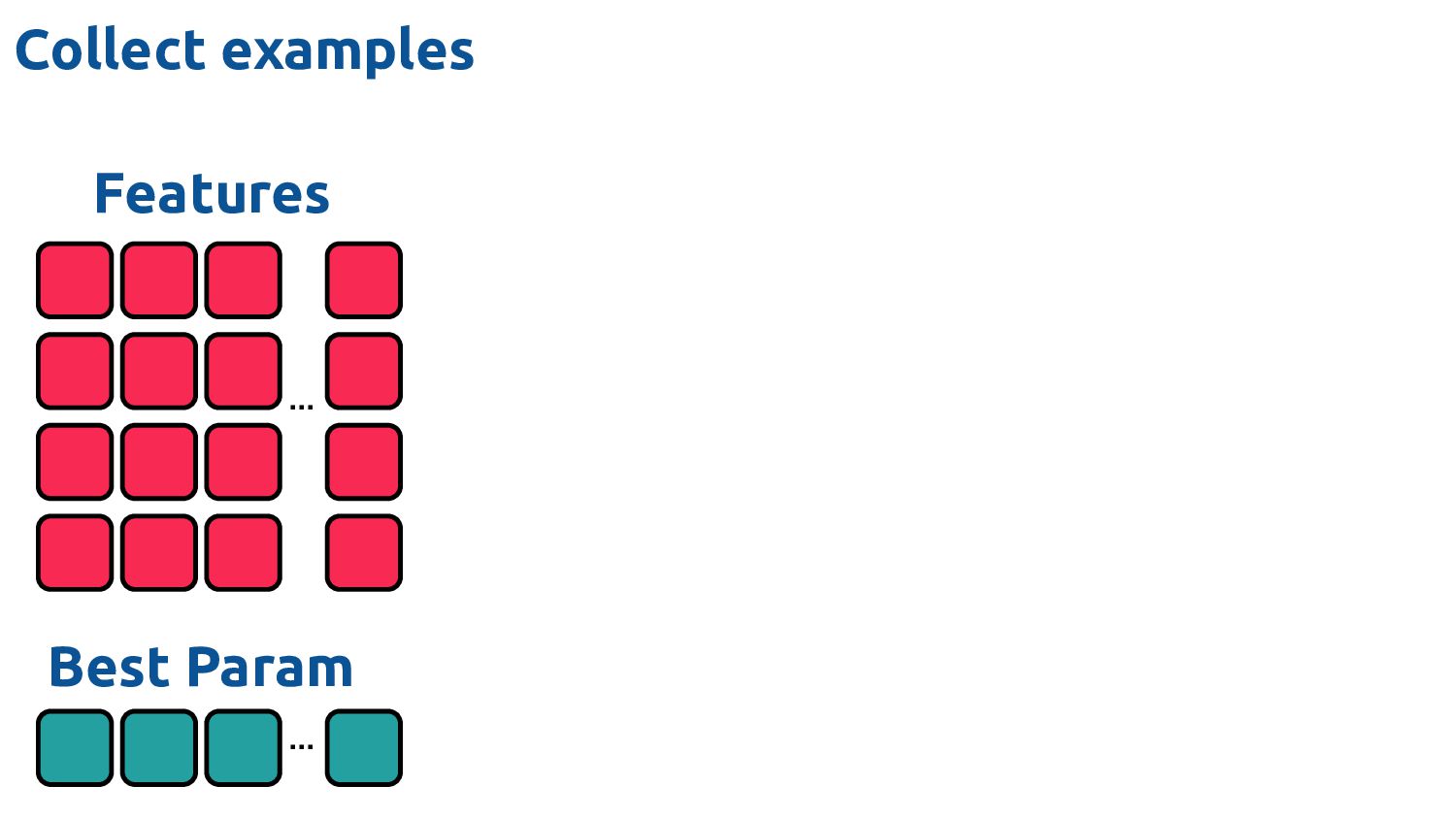

7. Collect examples Features Best Param ... ...

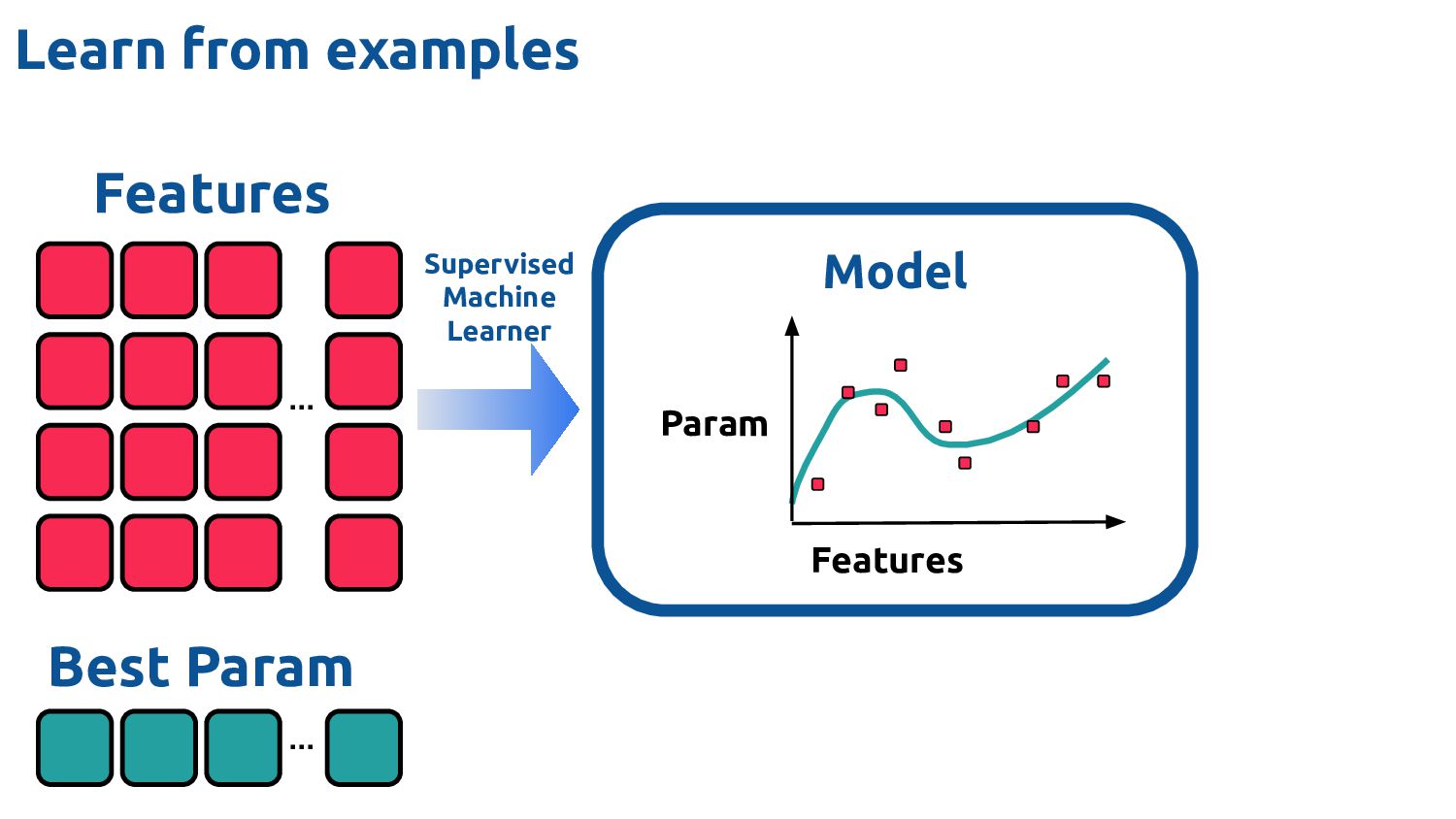

8. Supervised Machine Learner Model Learn from examples Features Param Features Best Param ... ...

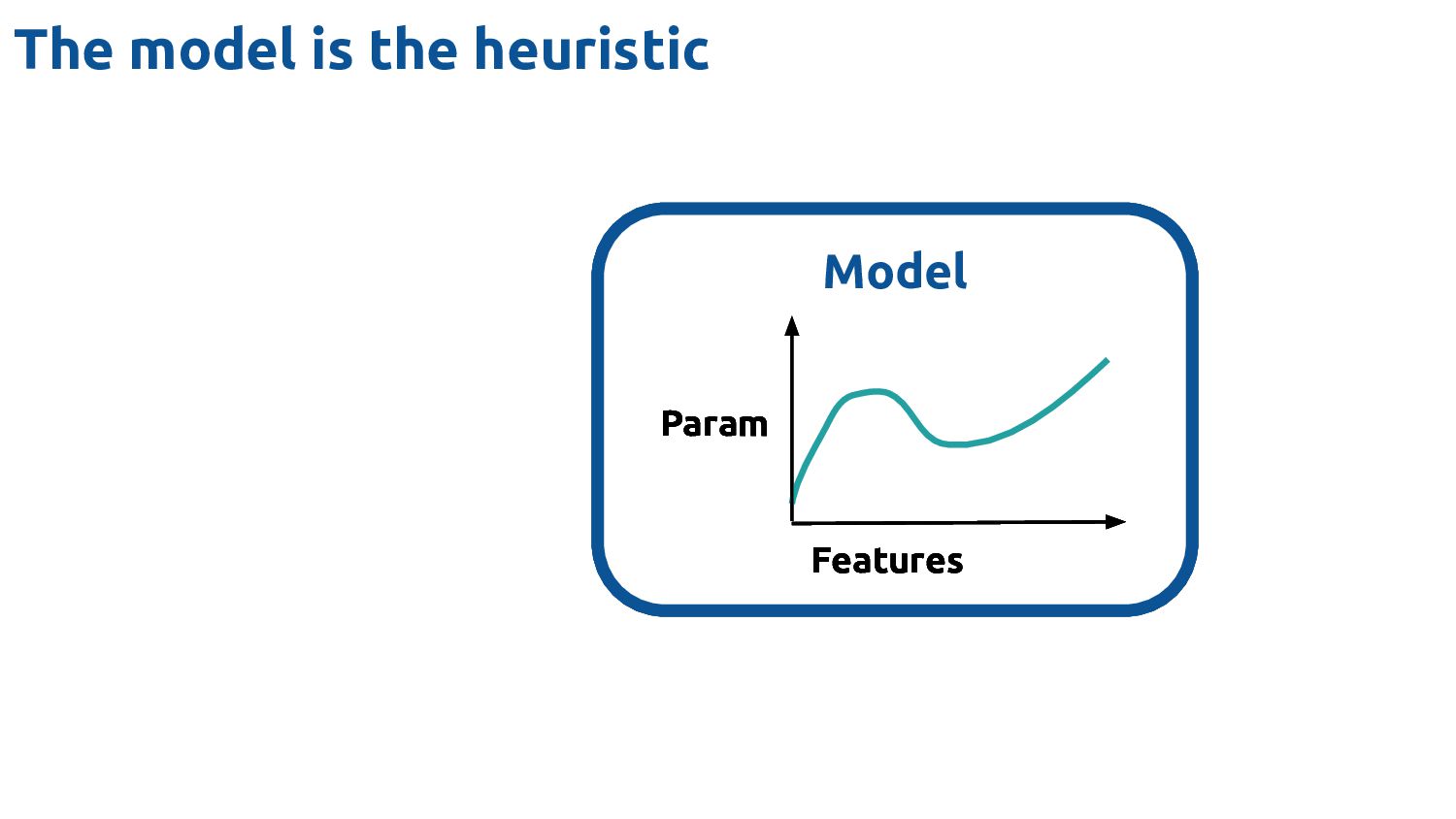

9. Model The model is the heuristic Model Model Features Param Features Param Features Param

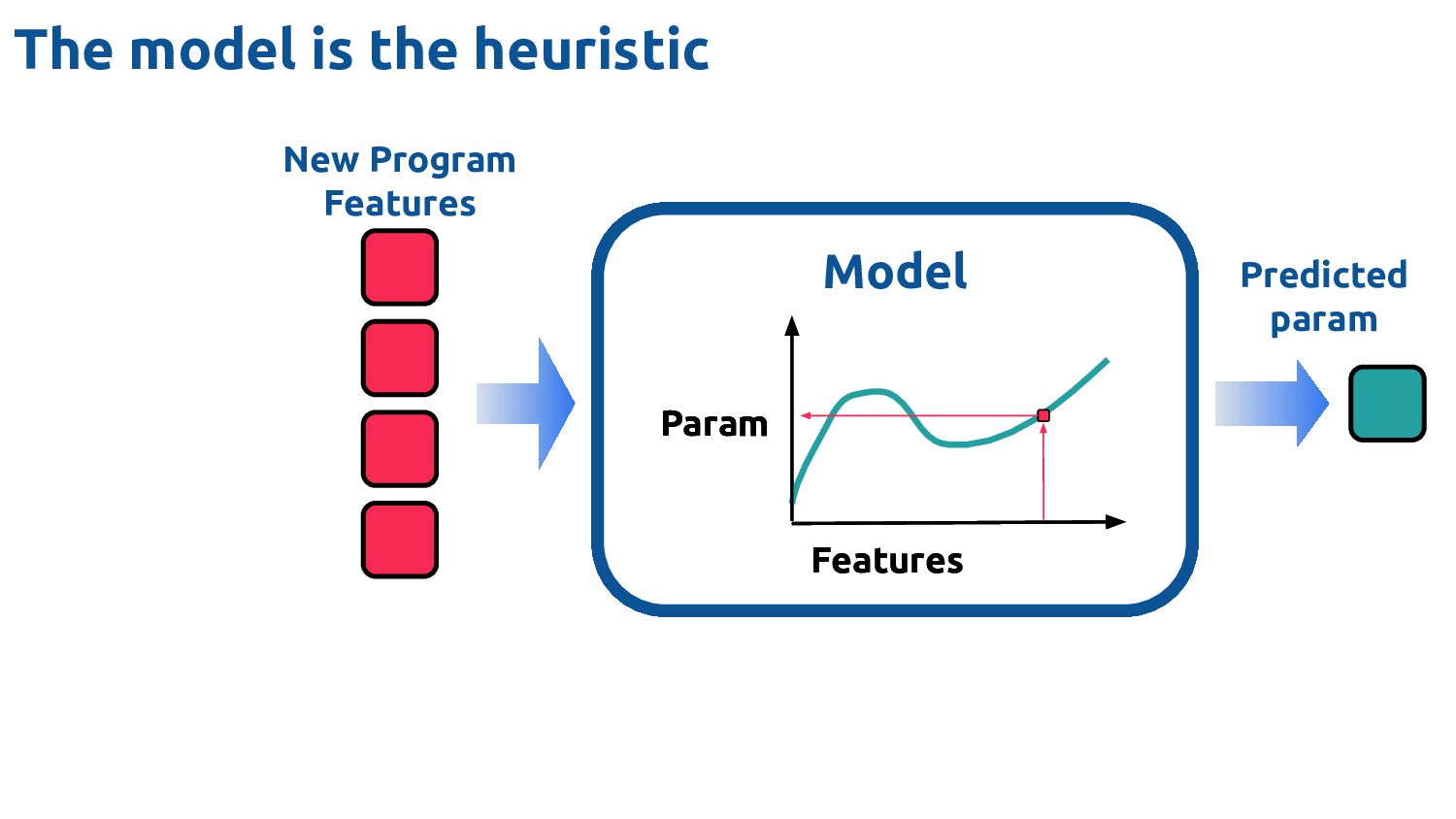

10. Model The model is the heuristic Model Model Features Param Model Model Features Param Model Features Param Model Model Features Param Model Features Param Features Param New Program Features Predicted param

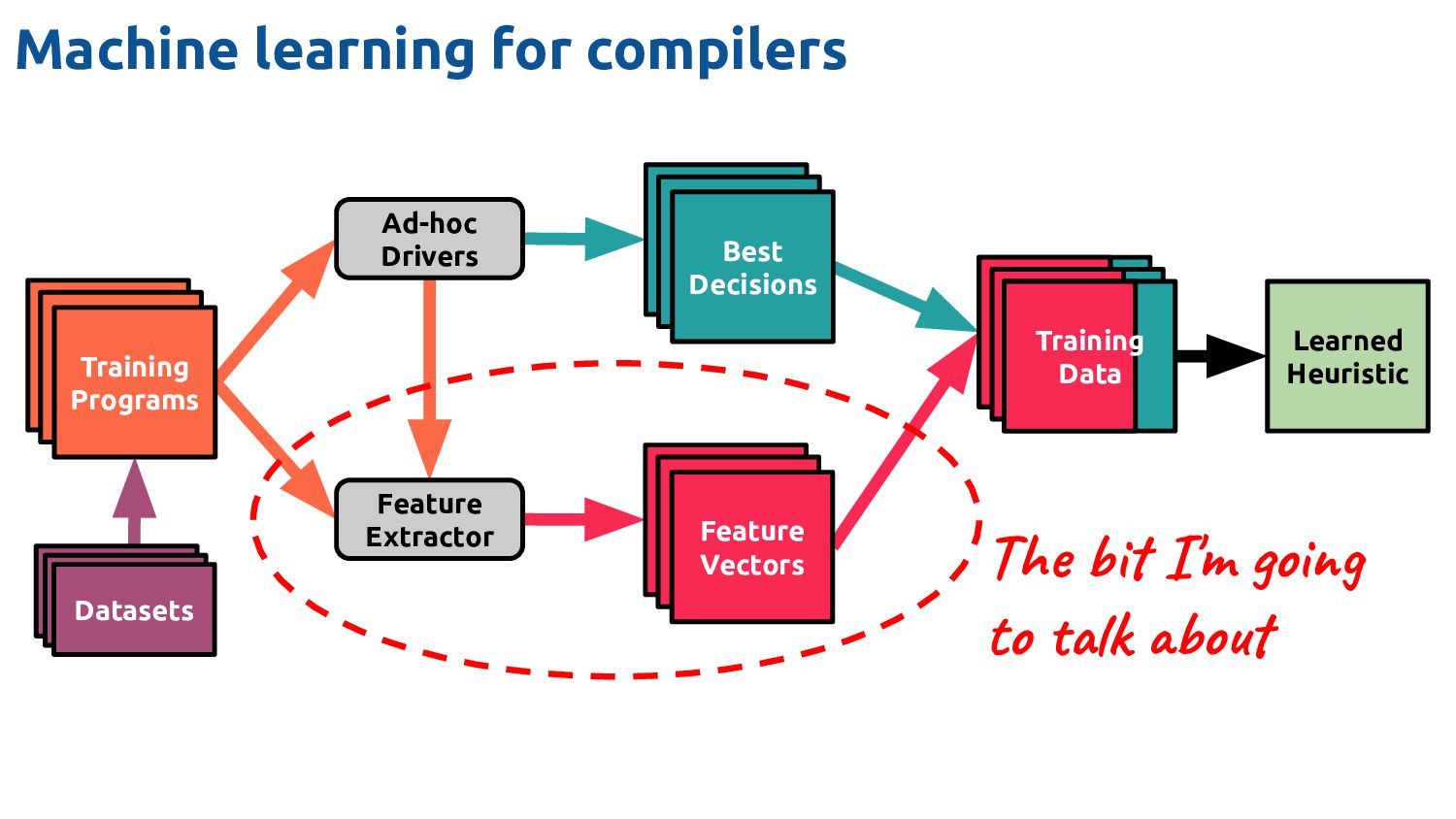

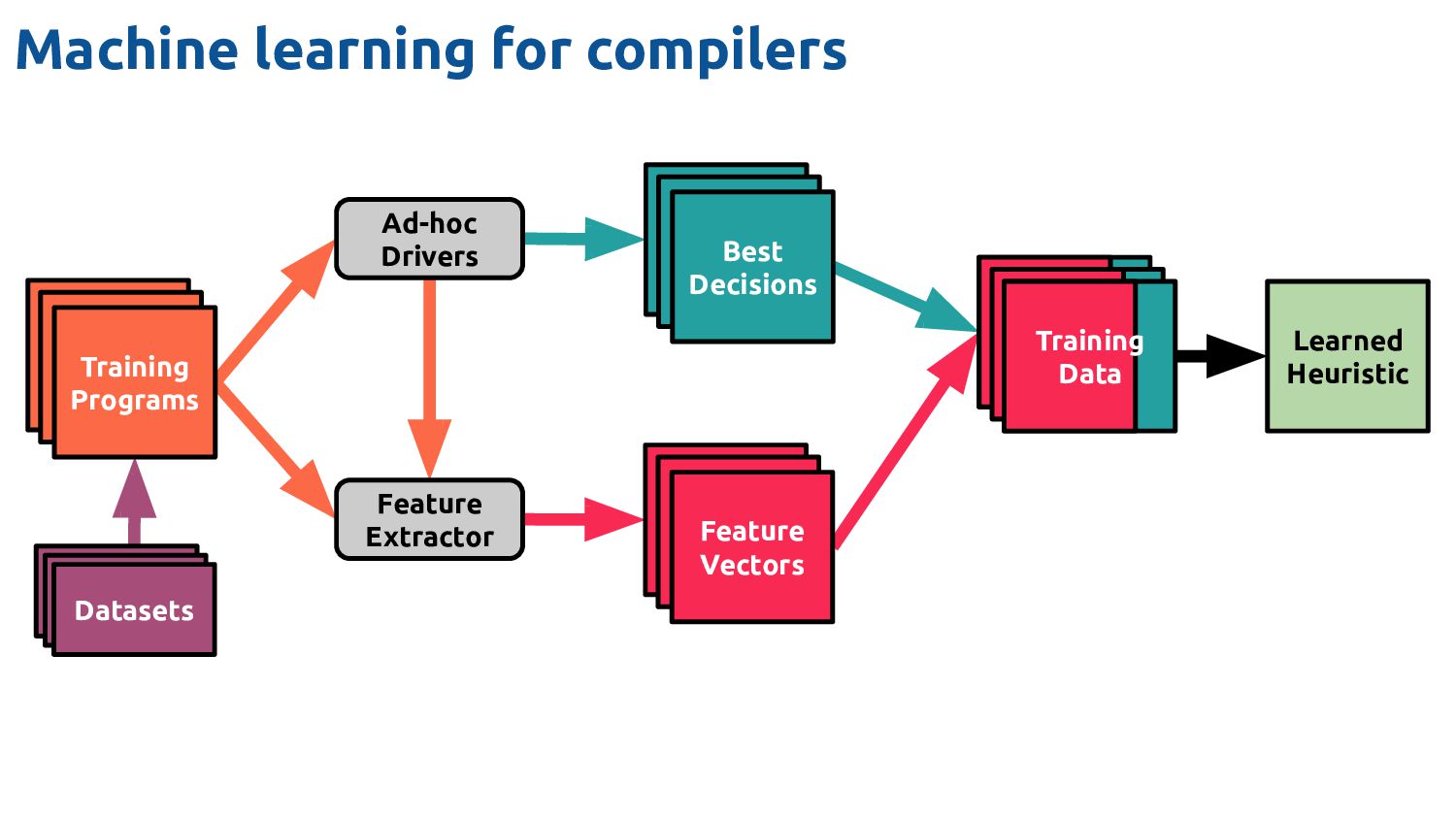

11. Feature Vectors Feature Vectors Best Decisions Feature Vectors Feature Vectors Feature Vectors Feature Vectors Feature Vectors Training Programs Feature Vectors Feature Vectors Datasets Ad-hoc Drivers Training Data Feature Extractor Learned Heuristic Machine learning for compilers
12. Feature Vectors Feature Vectors Training Programs Feature Vectors Feature Vectors Datasets Feature Vectors Feature Vectors Best Decisions Feature Vectors Feature Vectors Feature Vectors Ad-hoc Drivers Training Data Feature Extractor Learned Heuristic Machine learning for compilers The bit I'm going to talk about

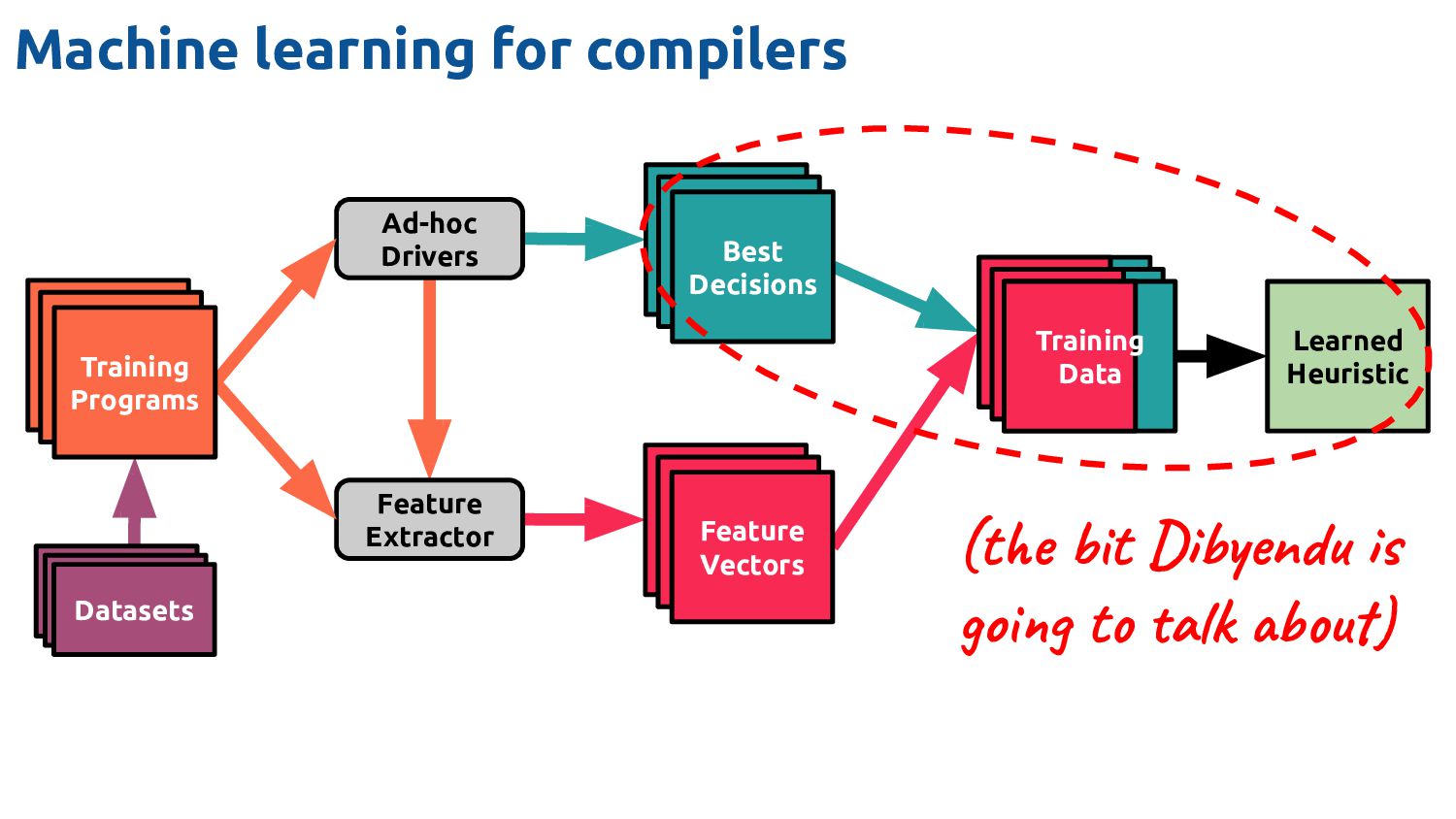

13. Feature Vectors Feature Vectors Best Decisions Feature Vectors Feature Vectors Feature Vectors Ad-hoc Drivers Training Data Feature Extractor Learned Heuristic Machine learning for compilers (the bit Dibyendu is going to talk about) Feature Vectors Feature Vectors Training Programs Feature Vectors Feature Vectors Datasets

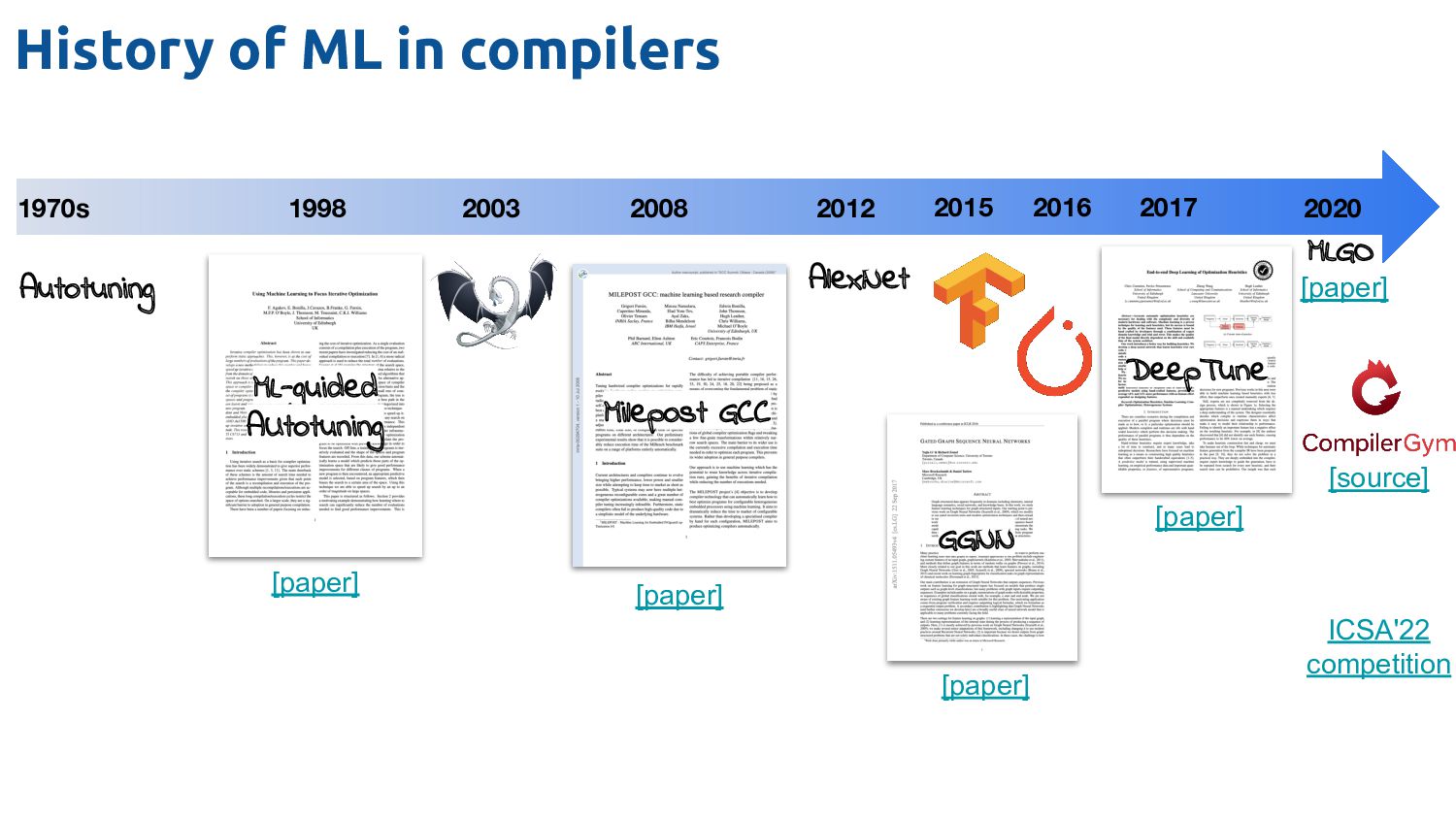

14. History of ML in compilers Autotuning 1970s 1998 2008 2015 2012 2020 Milepost GCC AlexNet 2016 GGNN 2017 [paper] [paper] ML-guided AUtotuning [paper] MLGO 2003 [paper] [source] DeepTune [paper] ICSA'22 competition
15. 1. Learning over Programs

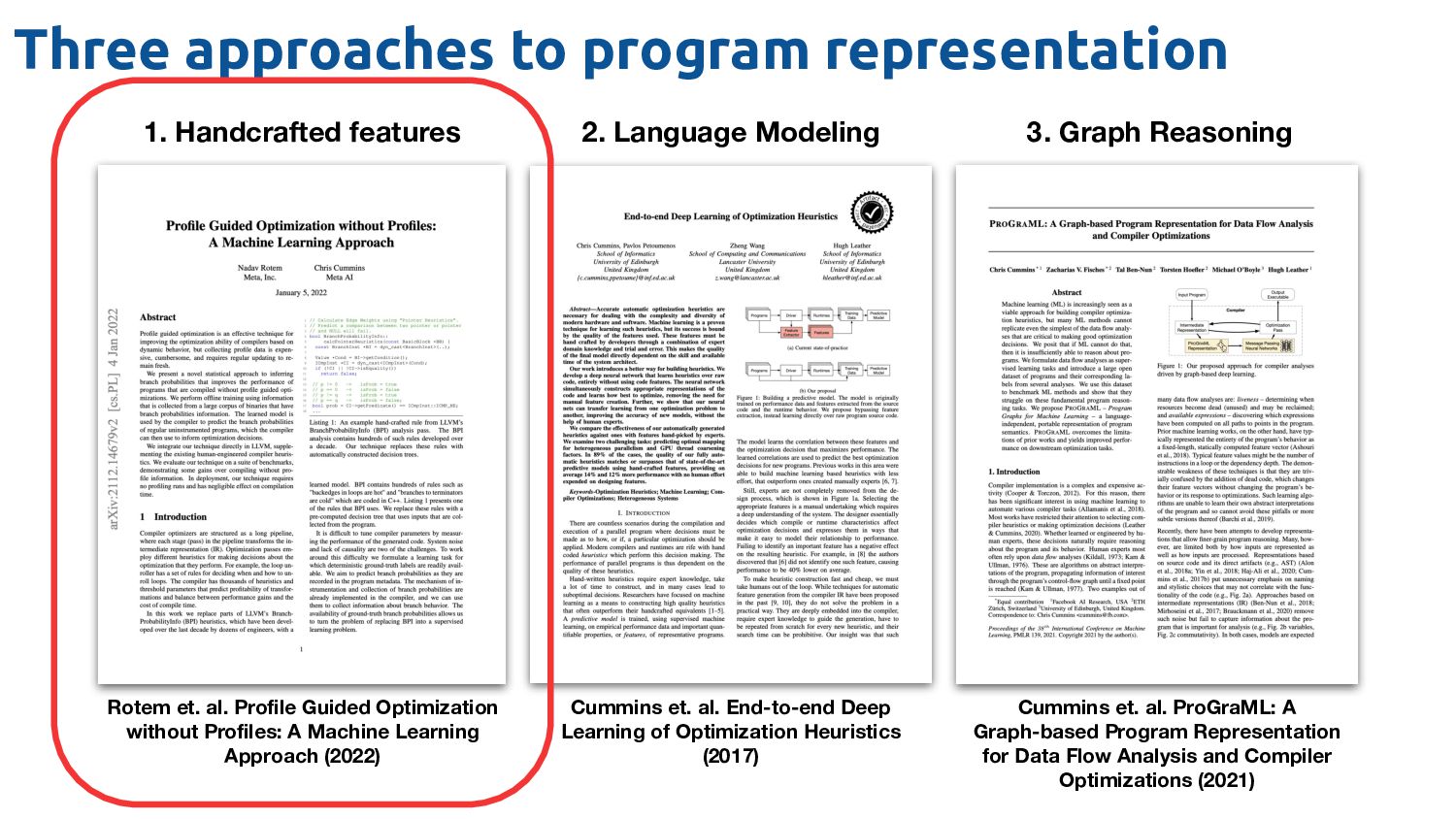

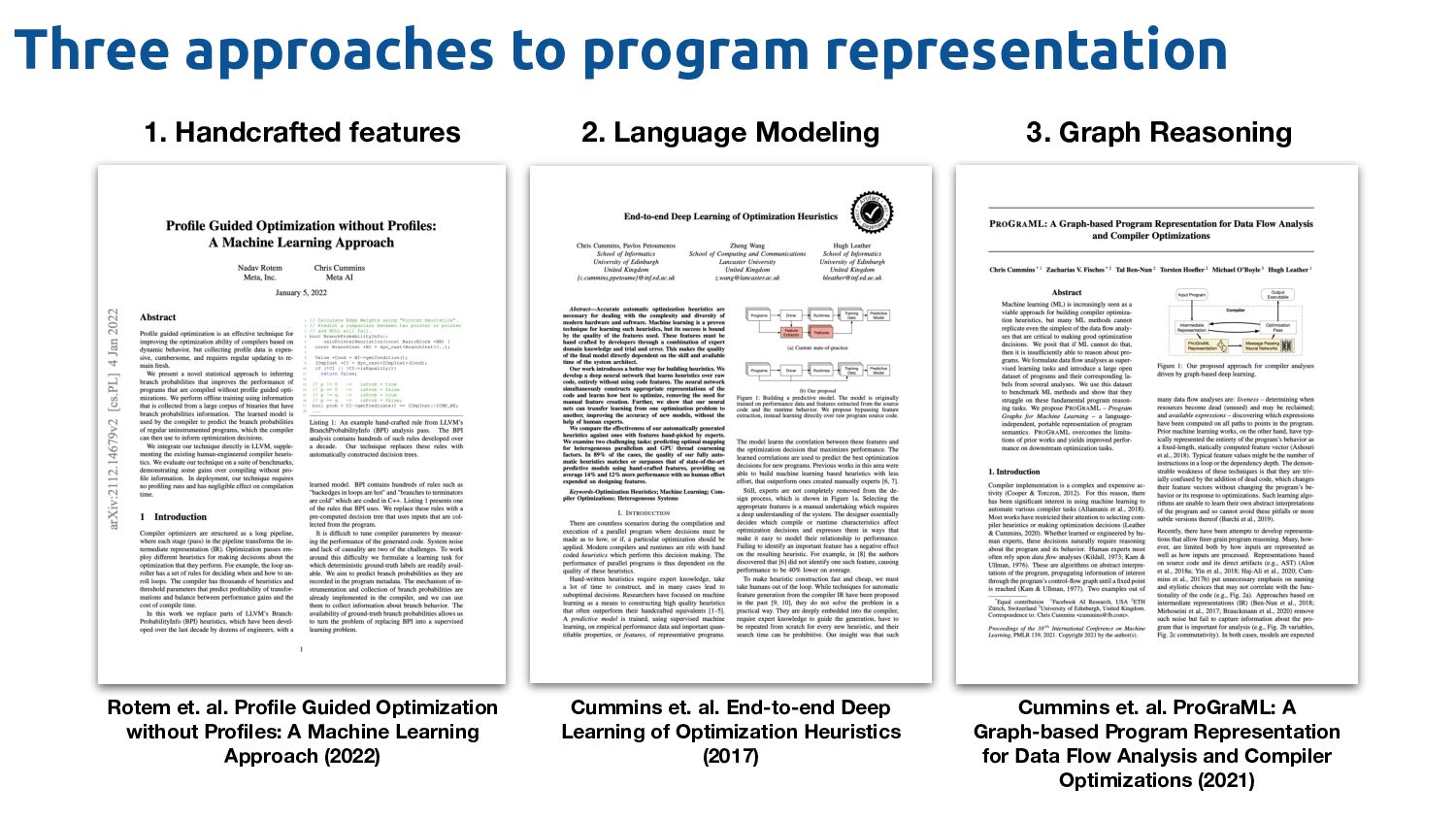

16. Rotem et. al. Profile Guided Optimization without Profiles: A Machine Learning Approach (2022) Cummins et. al. End-to-end Deep Learning of Optimization Heuristics (2017) Cummins et. al. ProGraML: A Graph-based Program Representation for Data Flow Analysis and Compiler Optimizations (2021) Three approaches to program representation 1. Handcrafted features 2. Language Modeling 3. Graph Reasoning
17. Rotem et. al. Profile Guided Optimization without Profiles: A Machine Learning Approach (2022) Cummins et. al. End-to-end Deep Learning of Optimization Heuristics (2017) Cummins et. al. ProGraML: A Graph-based Program Representation for Data Flow Analysis and Compiler Optimizations (2021) Three approaches to program representation 1. Handcrafted features 2. Language Modeling 3. Graph Reasoning

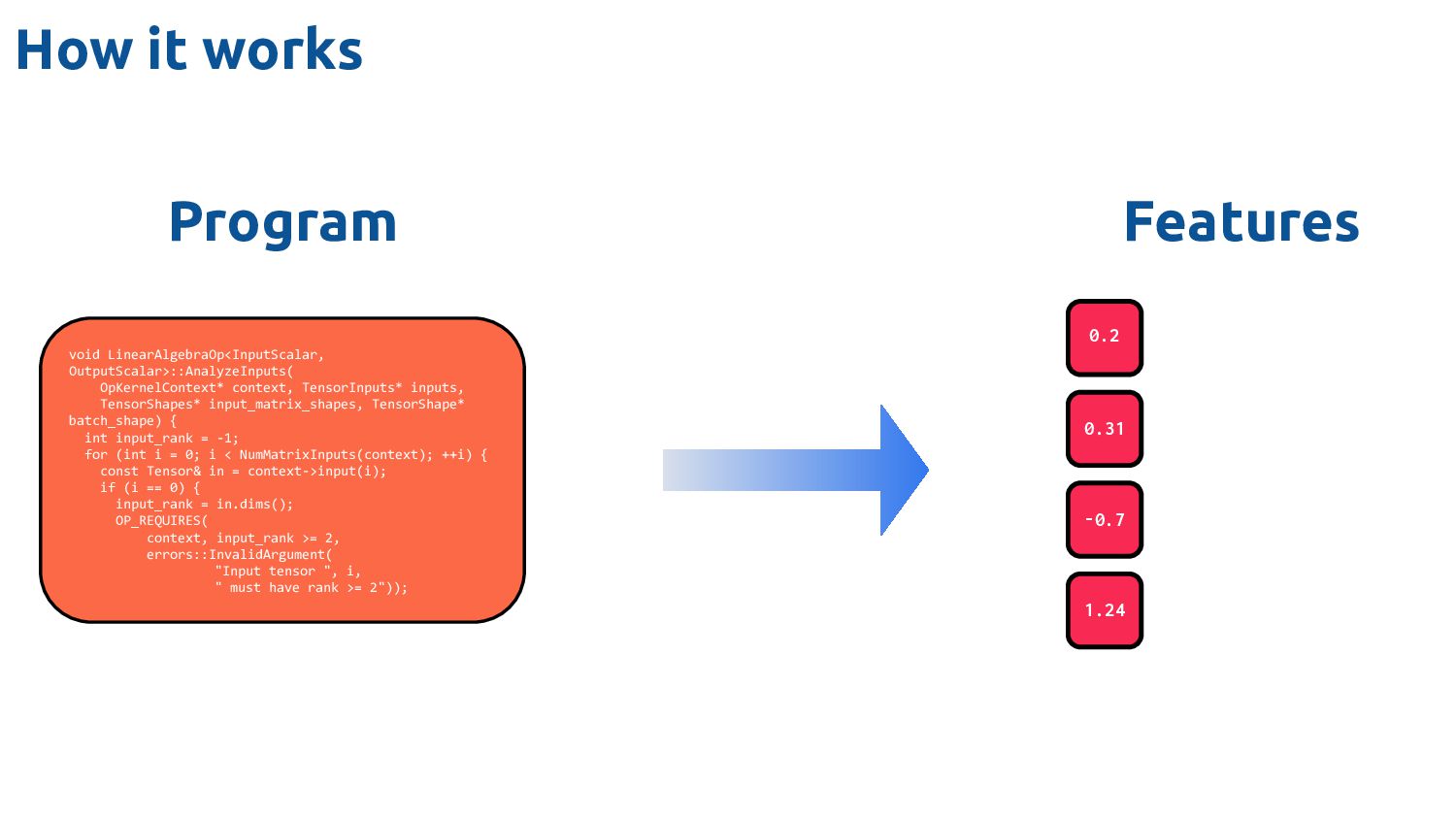

18. How it works Program Features void LinearAlgebraOp<InputScalar, OutputScalar>::AnalyzeInputs( OpKernelContext* context, TensorInputs* inputs, TensorShapes* input_matrix_shapes, TensorShape* batch_shape) { int input_rank = -1; for (int i = 0; i < NumMatrixInputs(context); ++i) { const Tensor& in = context->input(i); if (i == 0) { input_rank = in.dims(); OP_REQUIRES( context, input_rank >= 2, errors::InvalidArgument( "Input tensor ", i, " must have rank >= 2")); 0.2 0.31 -0.7 1.24

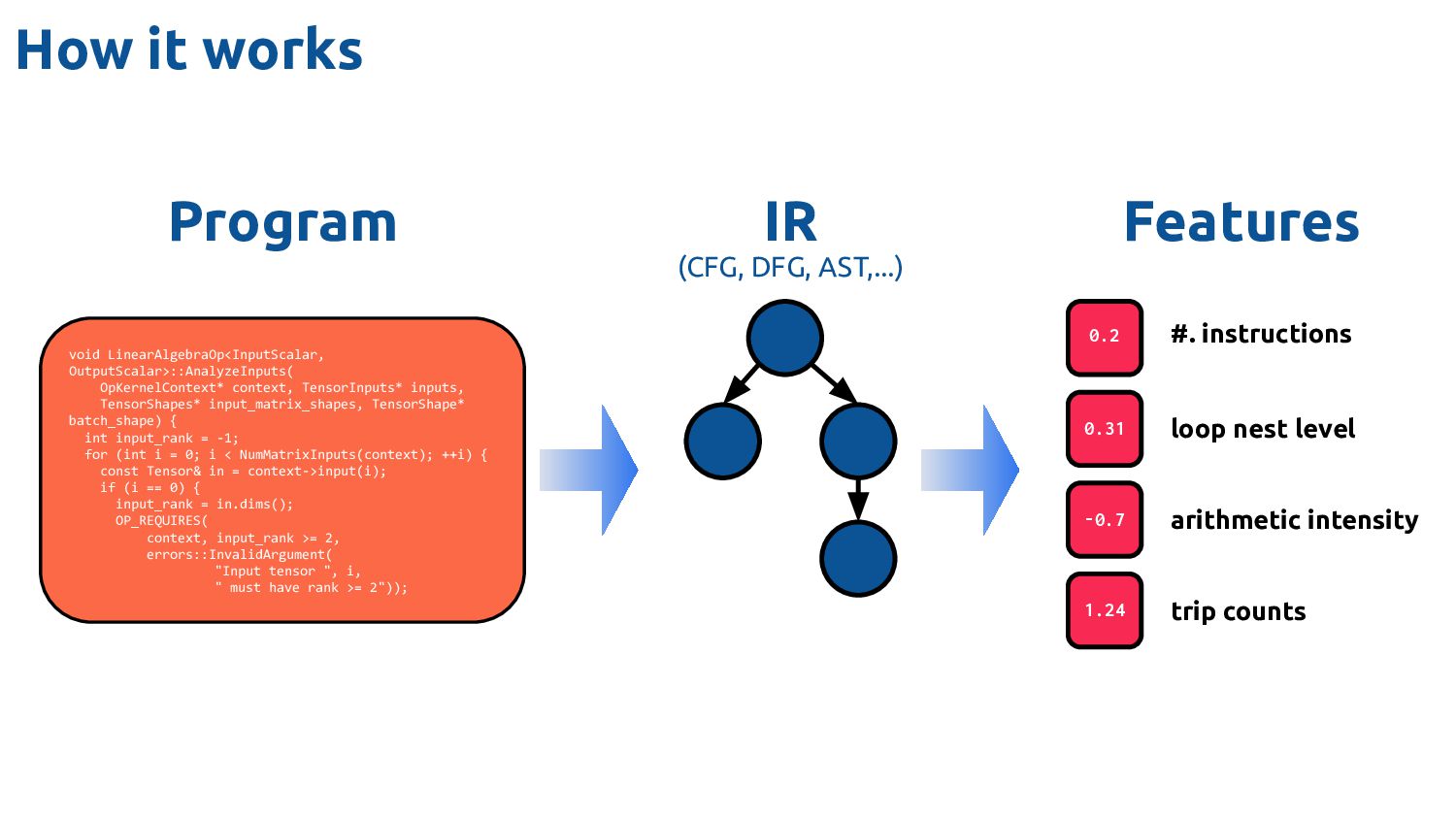

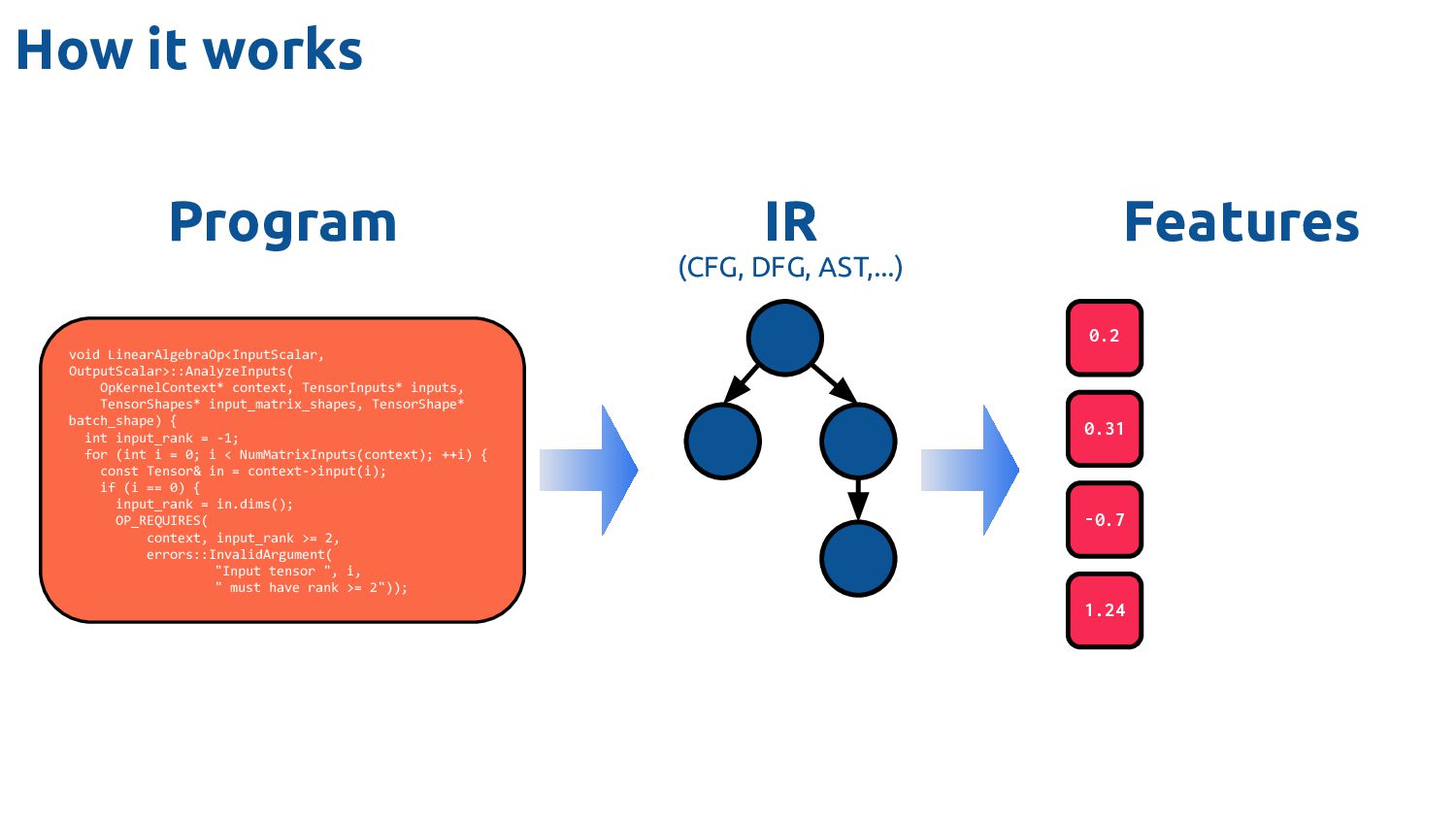

19. How it works Program IR Features void LinearAlgebraOp<InputScalar, OutputScalar>::AnalyzeInputs( OpKernelContext* context, TensorInputs* inputs, TensorShapes* input_matrix_shapes, TensorShape* batch_shape) { int input_rank = -1; for (int i = 0; i < NumMatrixInputs(context); ++i) { const Tensor& in = context->input(i); if (i == 0) { input_rank = in.dims(); OP_REQUIRES( context, input_rank >= 2, errors::InvalidArgument( "Input tensor ", i, " must have rank >= 2")); (CFG, DFG, AST,...) 0.2 0.31 -0.7 1.24
20. How it works Program IR Features void LinearAlgebraOp<InputScalar, OutputScalar>::AnalyzeInputs( OpKernelContext* context, TensorInputs* inputs, TensorShapes* input_matrix_shapes, TensorShape* batch_shape) { int input_rank = -1; for (int i = 0; i < NumMatrixInputs(context); ++i) { const Tensor& in = context->input(i); if (i == 0) { input_rank = in.dims(); OP_REQUIRES( context, input_rank >= 2, errors::InvalidArgument( "Input tensor ", i, " must have rank >= 2")); (CFG, DFG, AST,...) 0.2 0.31 -0.7 1.24 #. instructions loop nest level arithmetic intensity trip counts
21. • PGO is difficult to deploy because it requires multiple steps • LLVM has a set of hard coded rules that predict things • Developed by dozens of engineers, using thousands of lines of code, over a decade Case Study: PGO

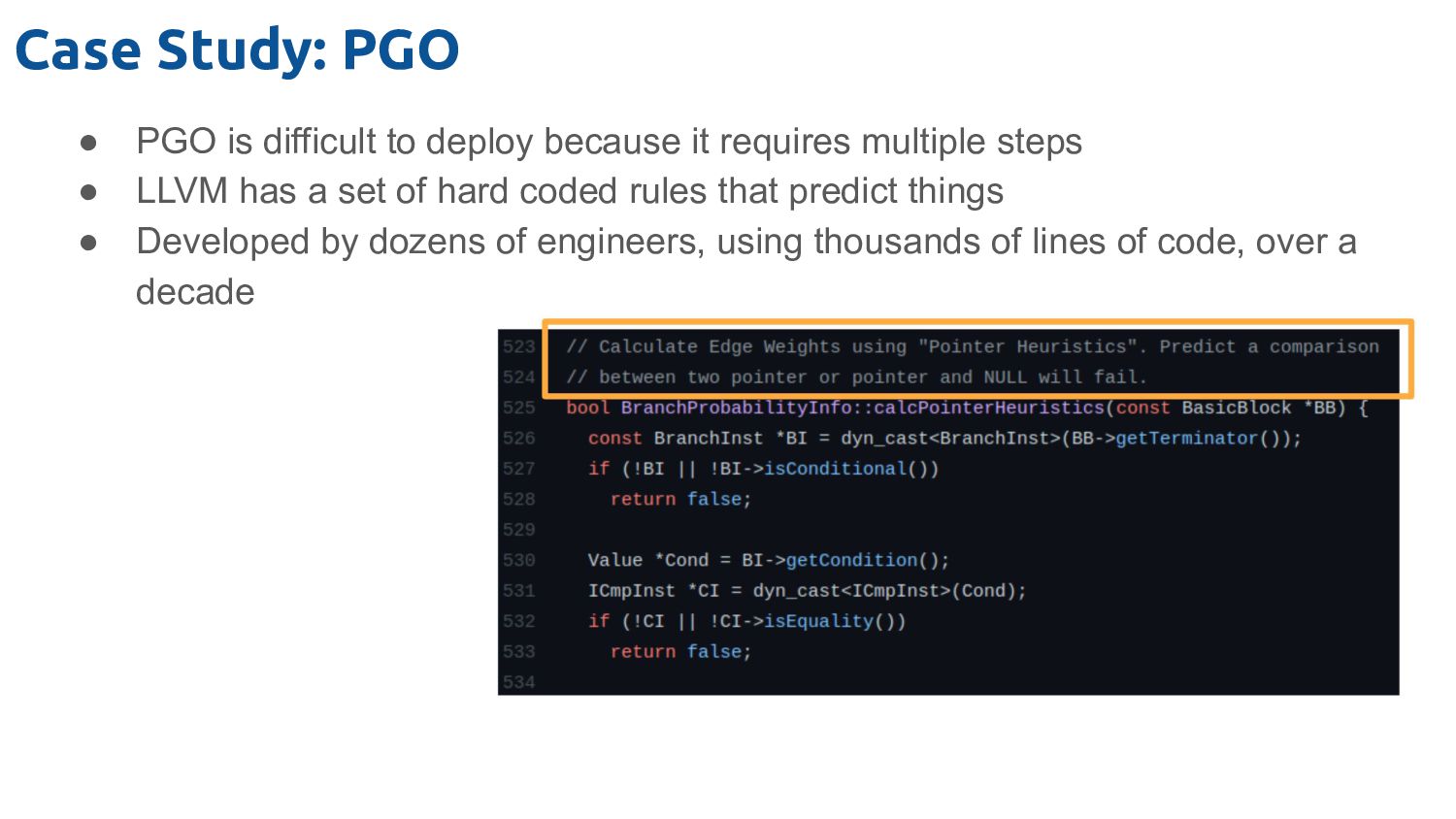

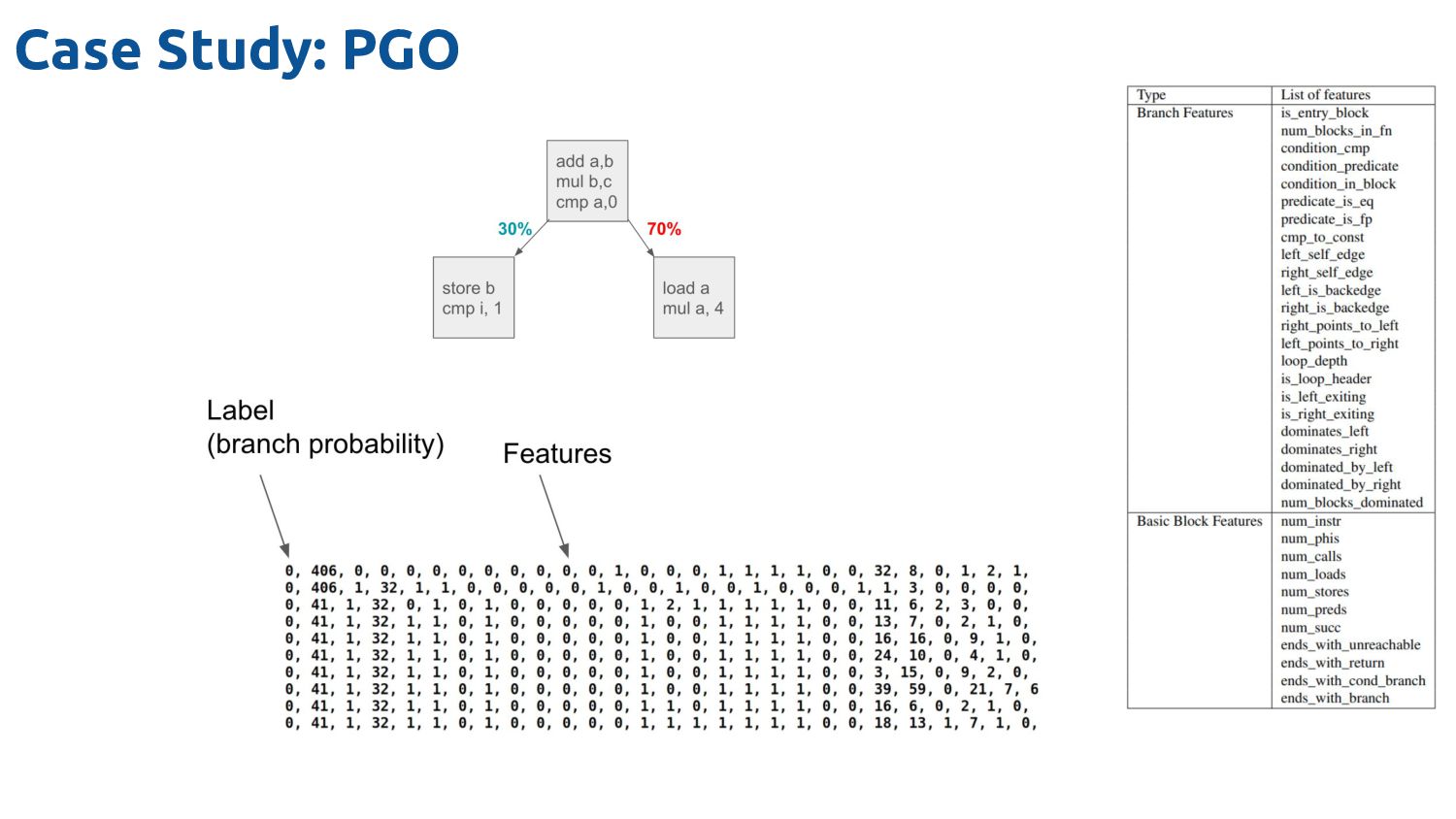

22. Case Study: PGO

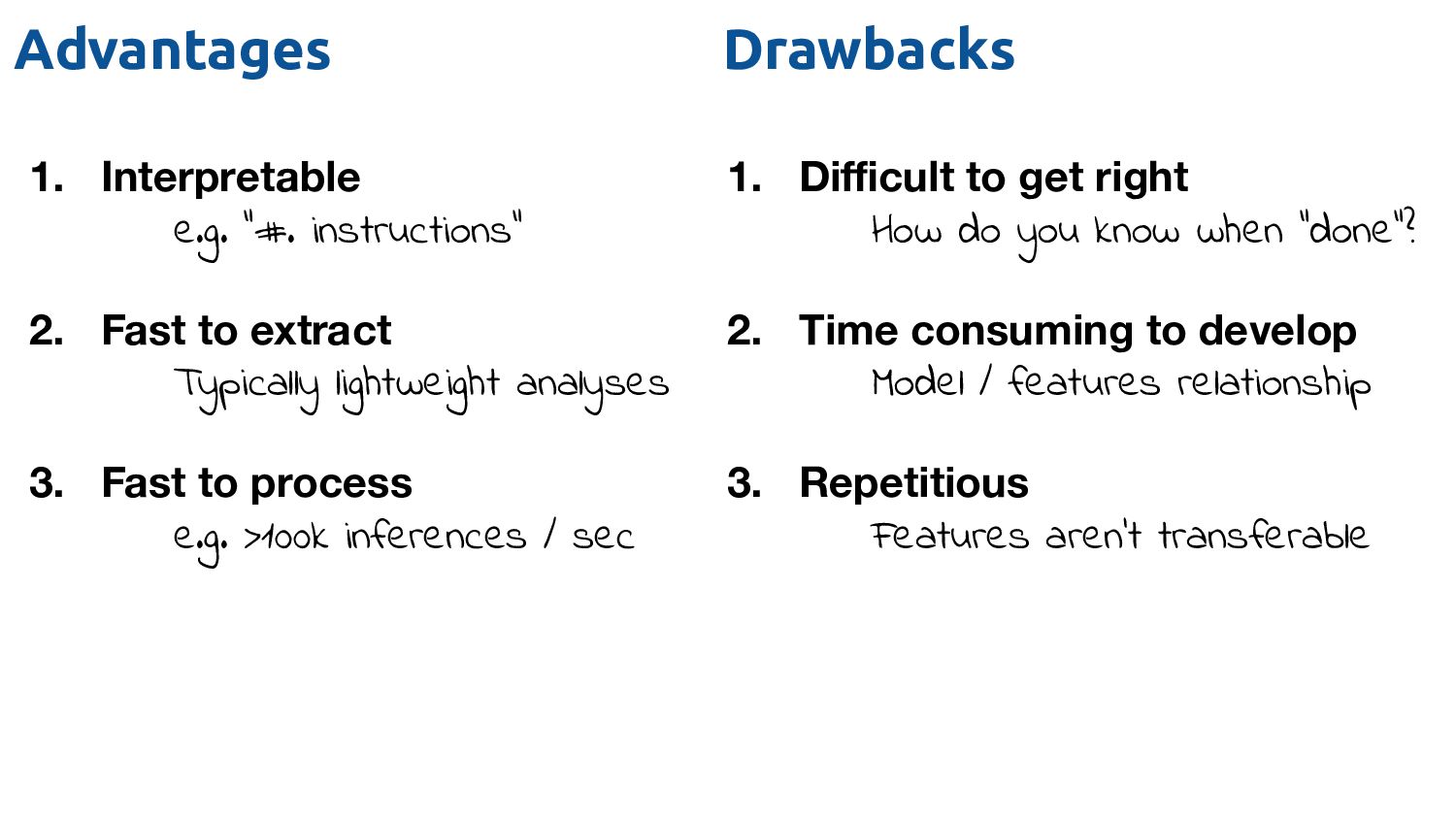

23. Advantages Drawbacks 1. Interpretable e.g. "#. instructions" 2. Fast to extract Typically lightweight analyses 3. Fast to process e.g. >100k inferences / sec 1. Difficult to get right How do you know when "done"? 2. Time consuming to develop Model / features relationship 3. Repetitious Features aren't transferable

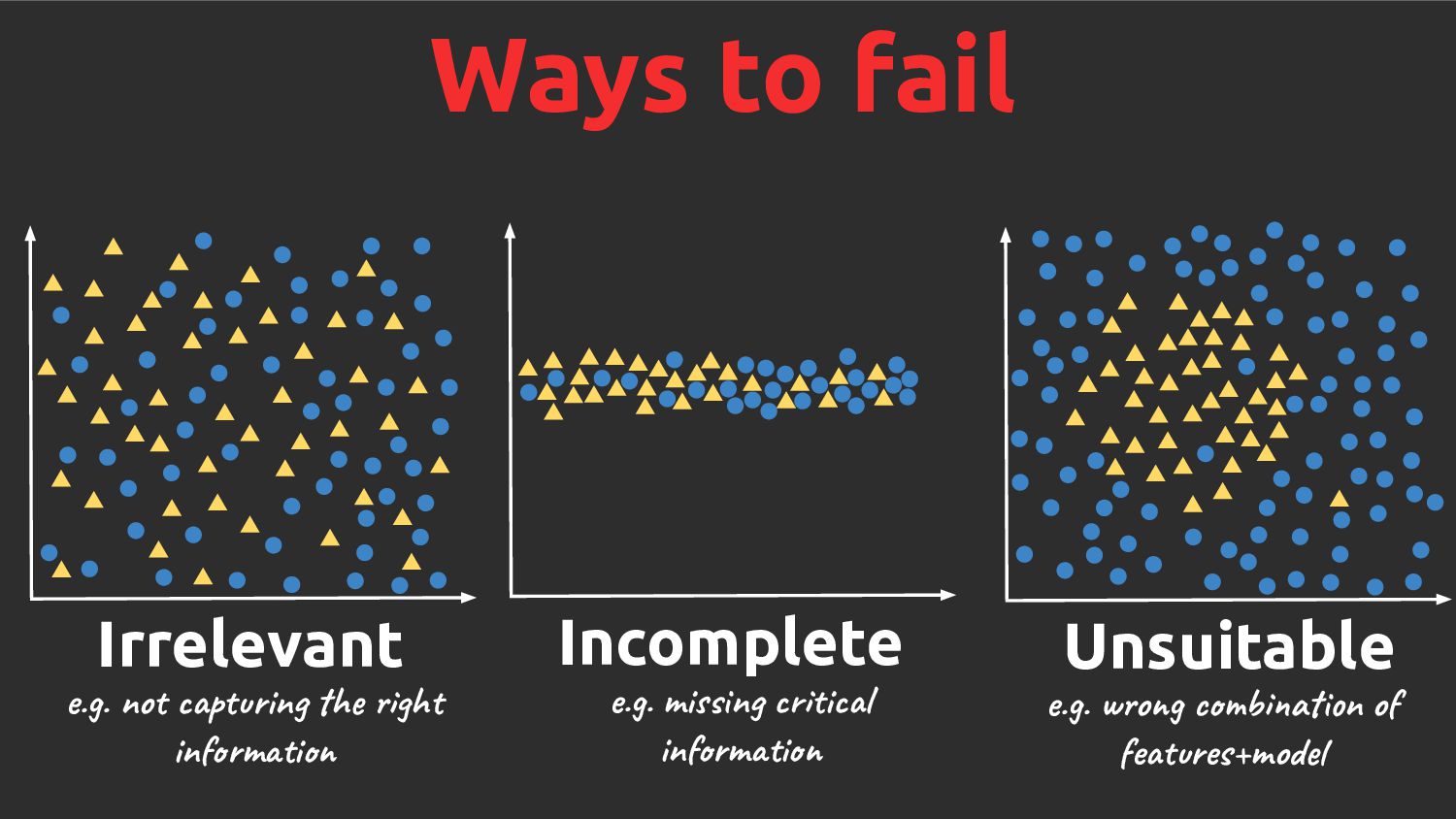

24. Ways to fail Irrelevant Incomplete Unsuitable e.g. not capturing the right information e.g. missing critical information e.g. wrong combination of features+model

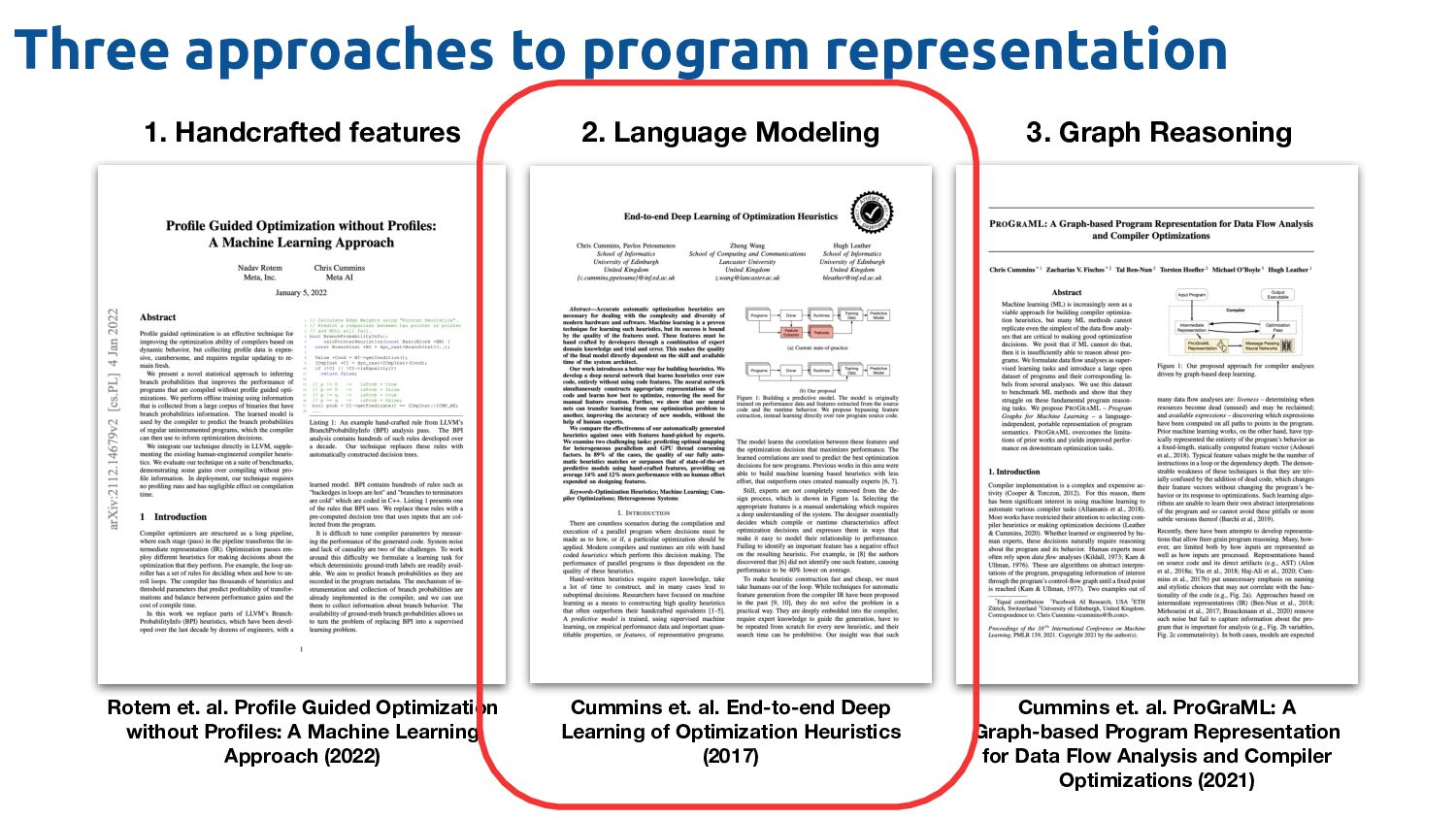

25. Rotem et. al. Profile Guided Optimization without Profiles: A Machine Learning Approach (2022) Cummins et. al. End-to-end Deep Learning of Optimization Heuristics (2017) Cummins et. al. ProGraML: A Graph-based Program Representation for Data Flow Analysis and Compiler Optimizations (2021) Three approaches to program representation 1. Handcrafted features 2. Language Modeling 3. Graph Reasoning

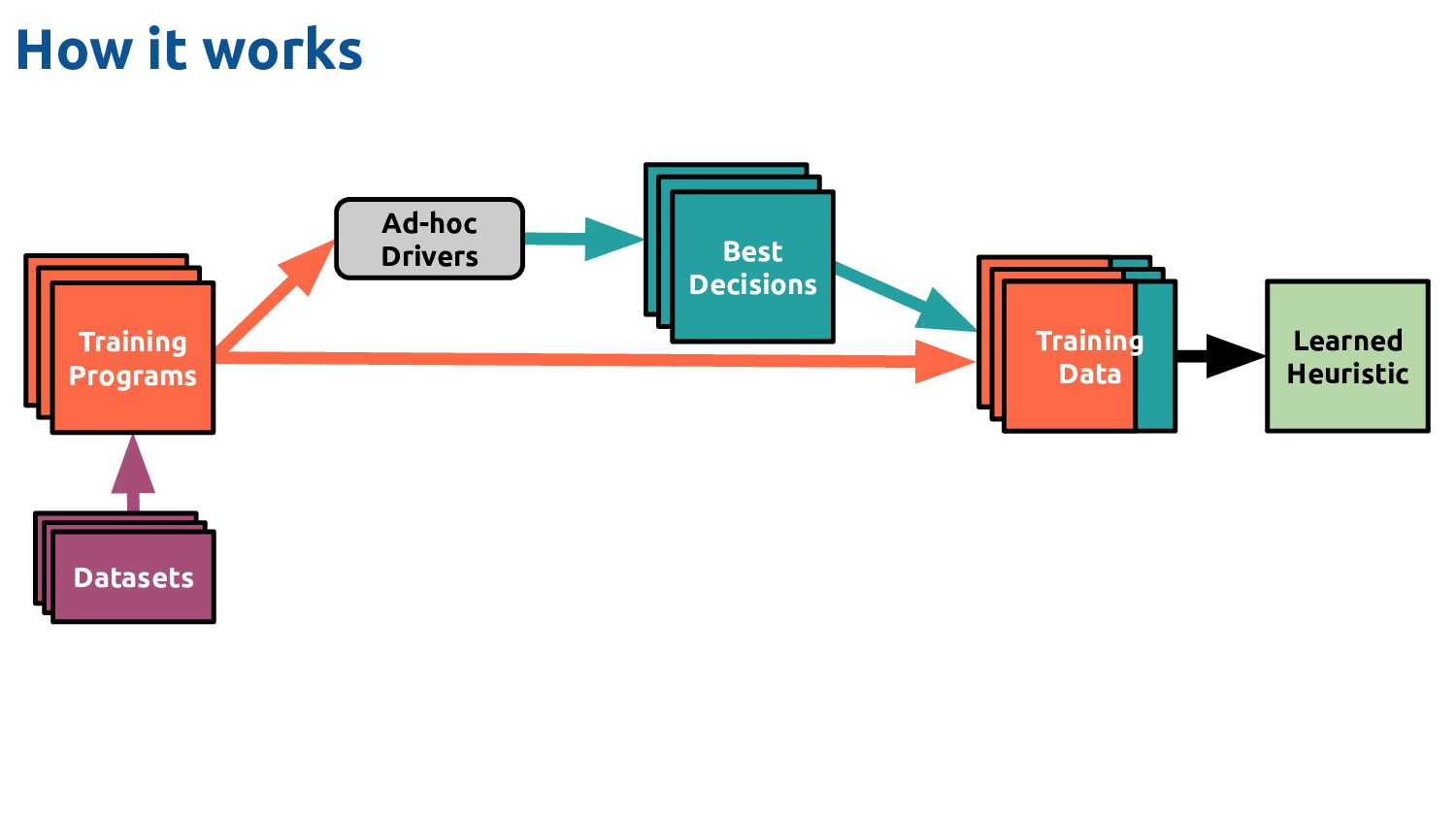

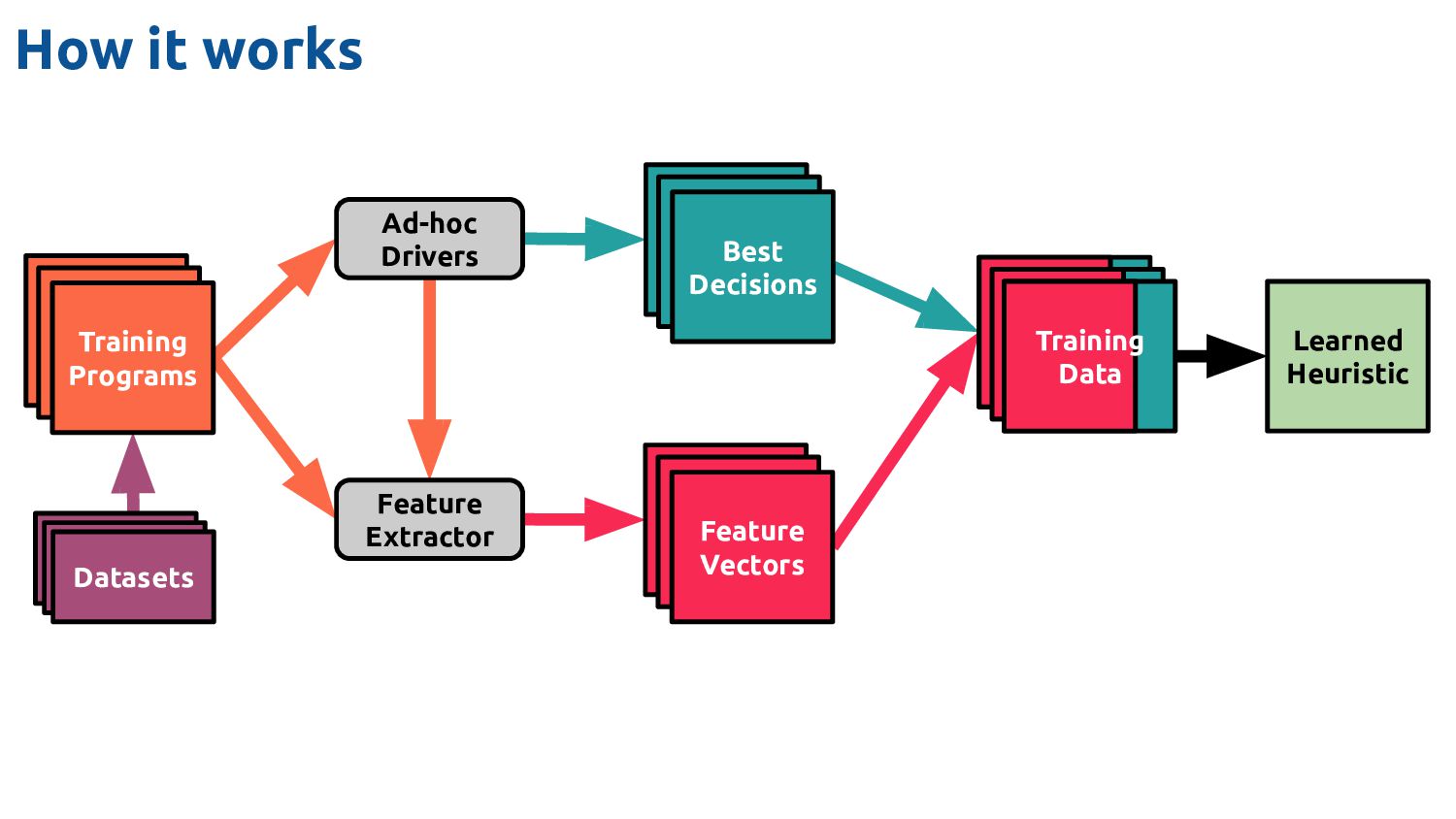

26. Feature Vectors Feature Vectors Best Decisions Feature Vectors Feature Vectors Feature Vectors Feature Vectors Feature Vectors Training Programs Feature Vectors Feature Vectors Datasets Ad-hoc Drivers Training Data Feature Extractor Learned Heuristic How it works
27. Feature Vectors Feature Vectors Training Programs Feature Vectors Feature Vectors Datasets Feature Vectors Feature Vectors Best Decisions Ad-hoc Drivers Learned Heuristic How it works Training Data

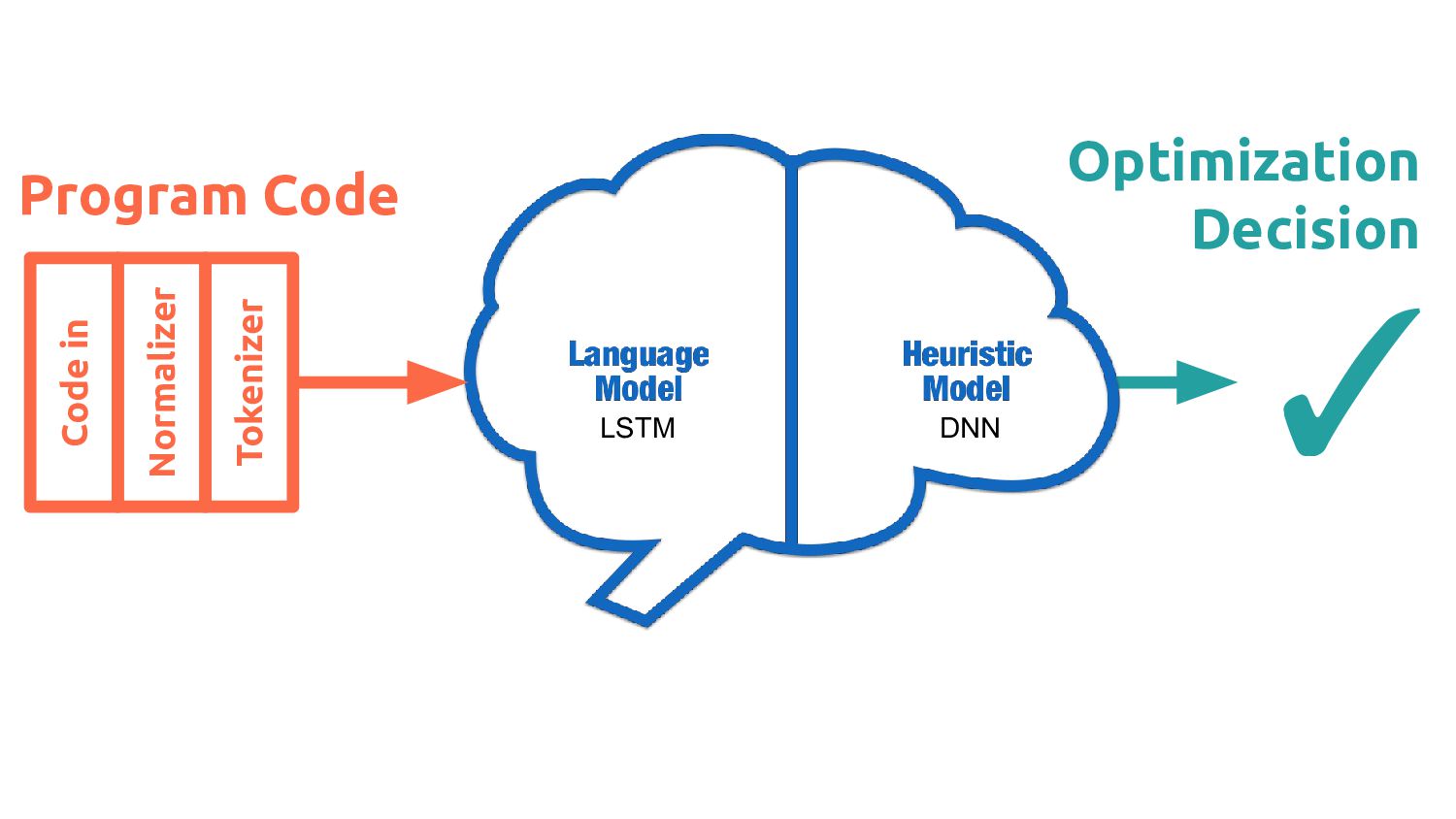

28. Program Code Code in Normalizer Tokenizer Optimization Decision ✓ LSTM DNN

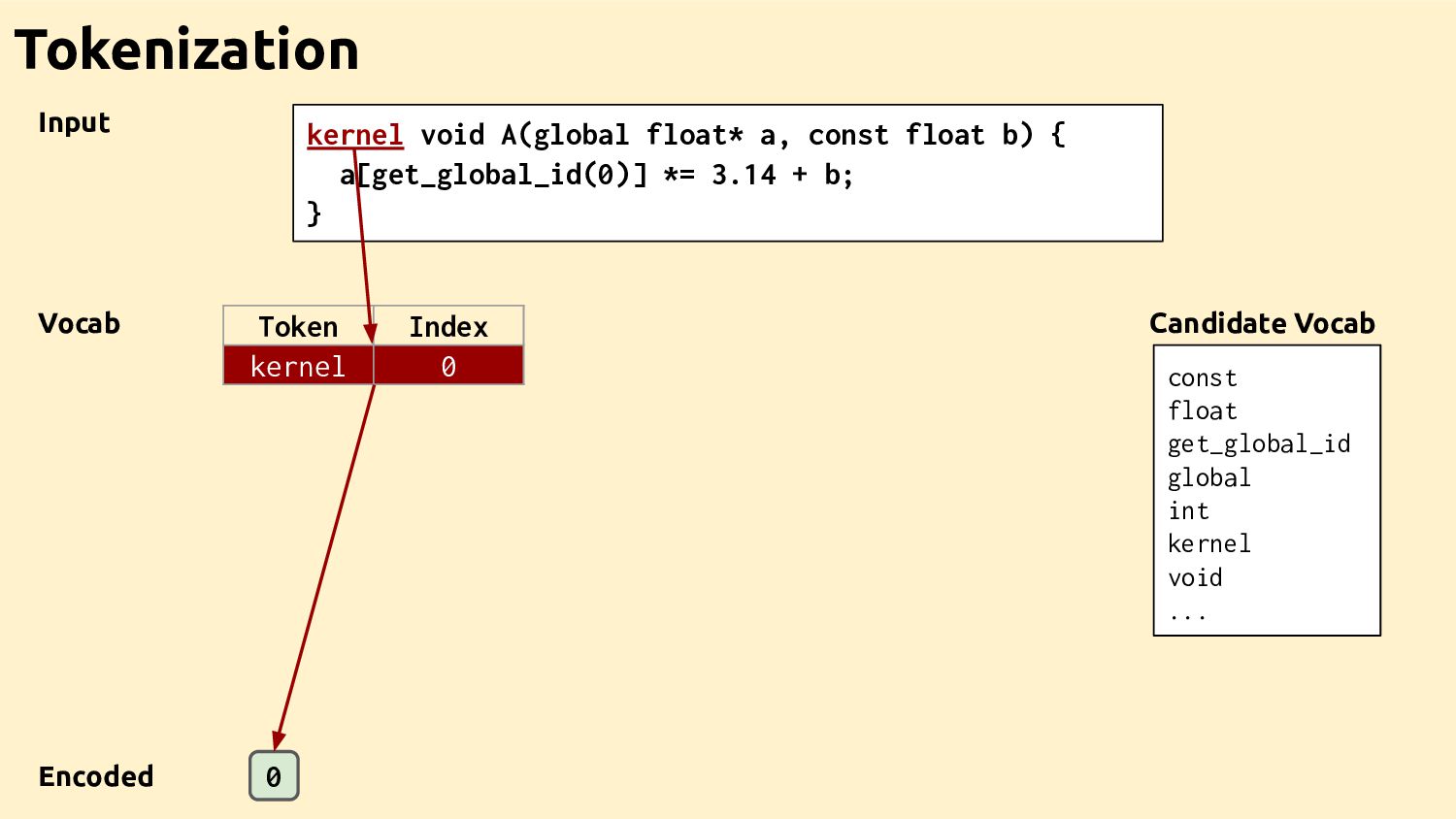

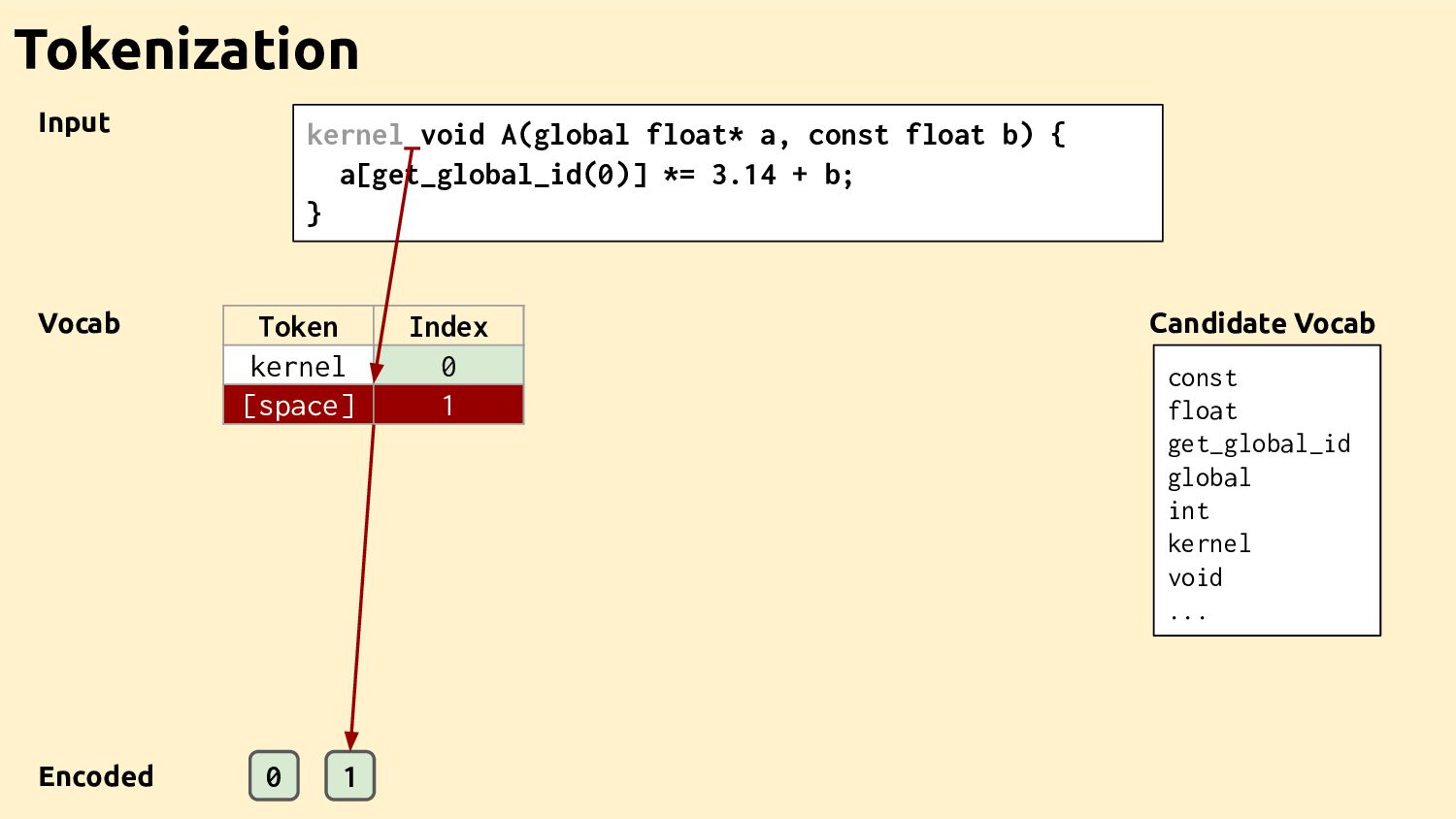

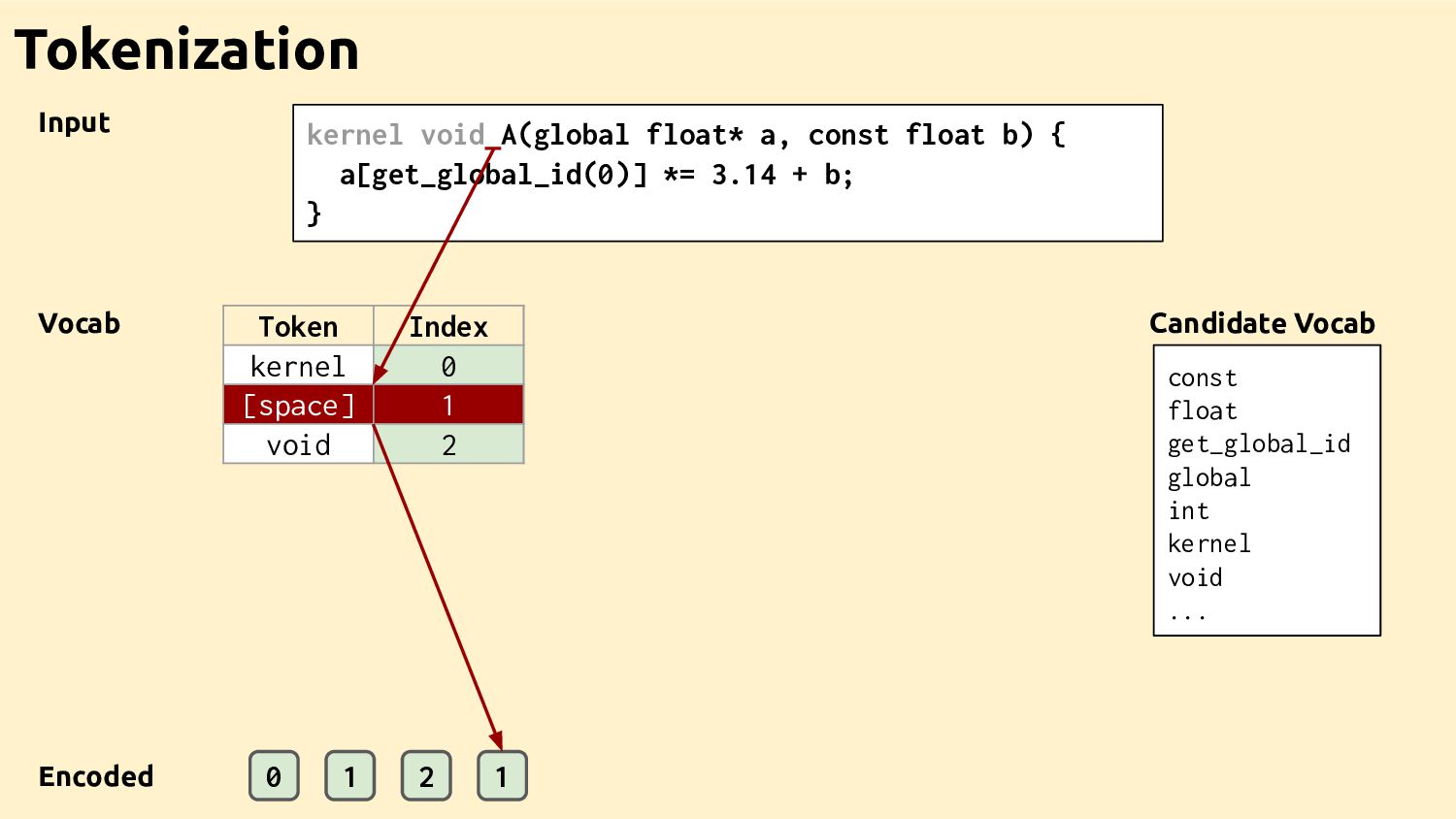

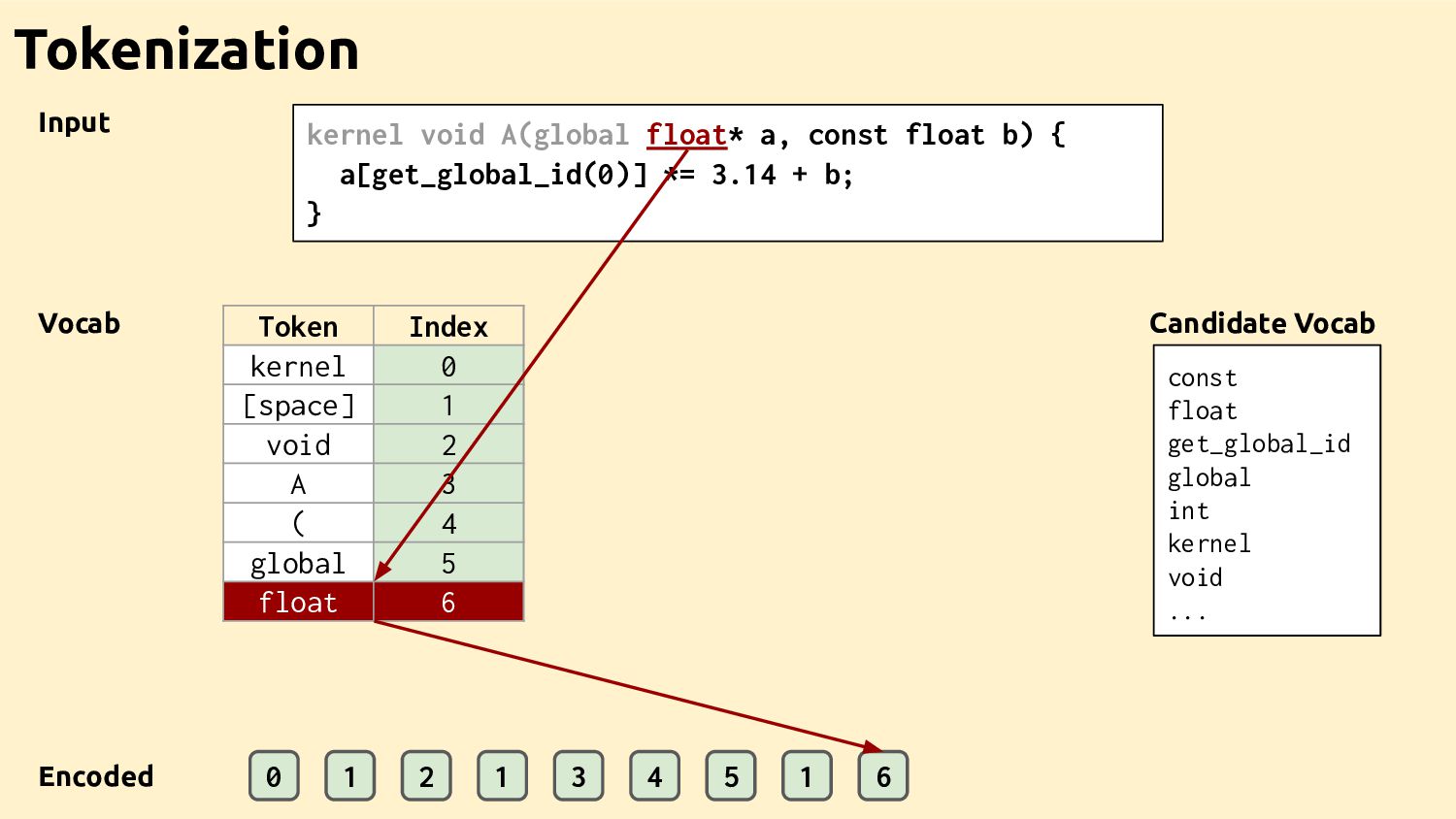

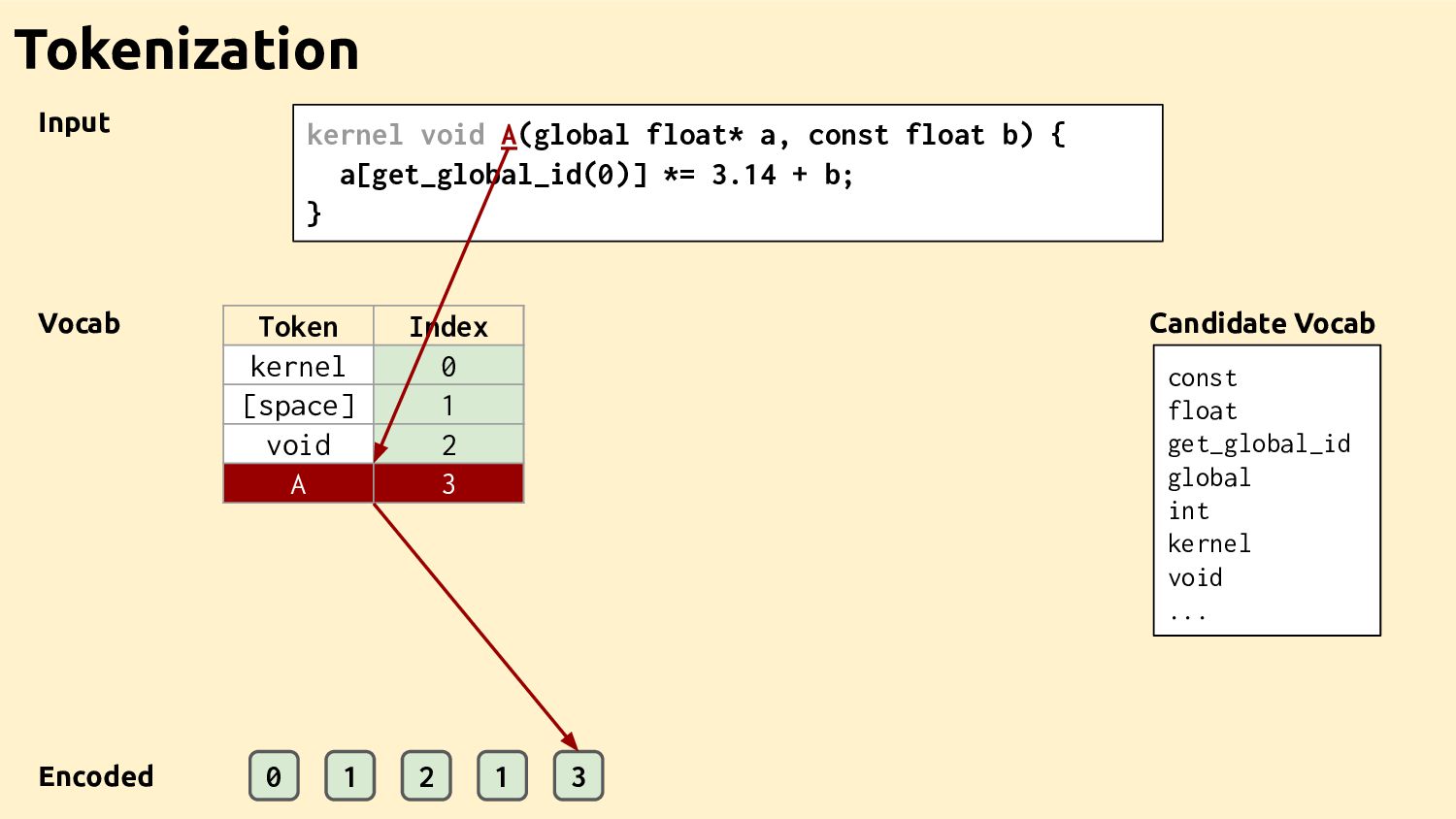

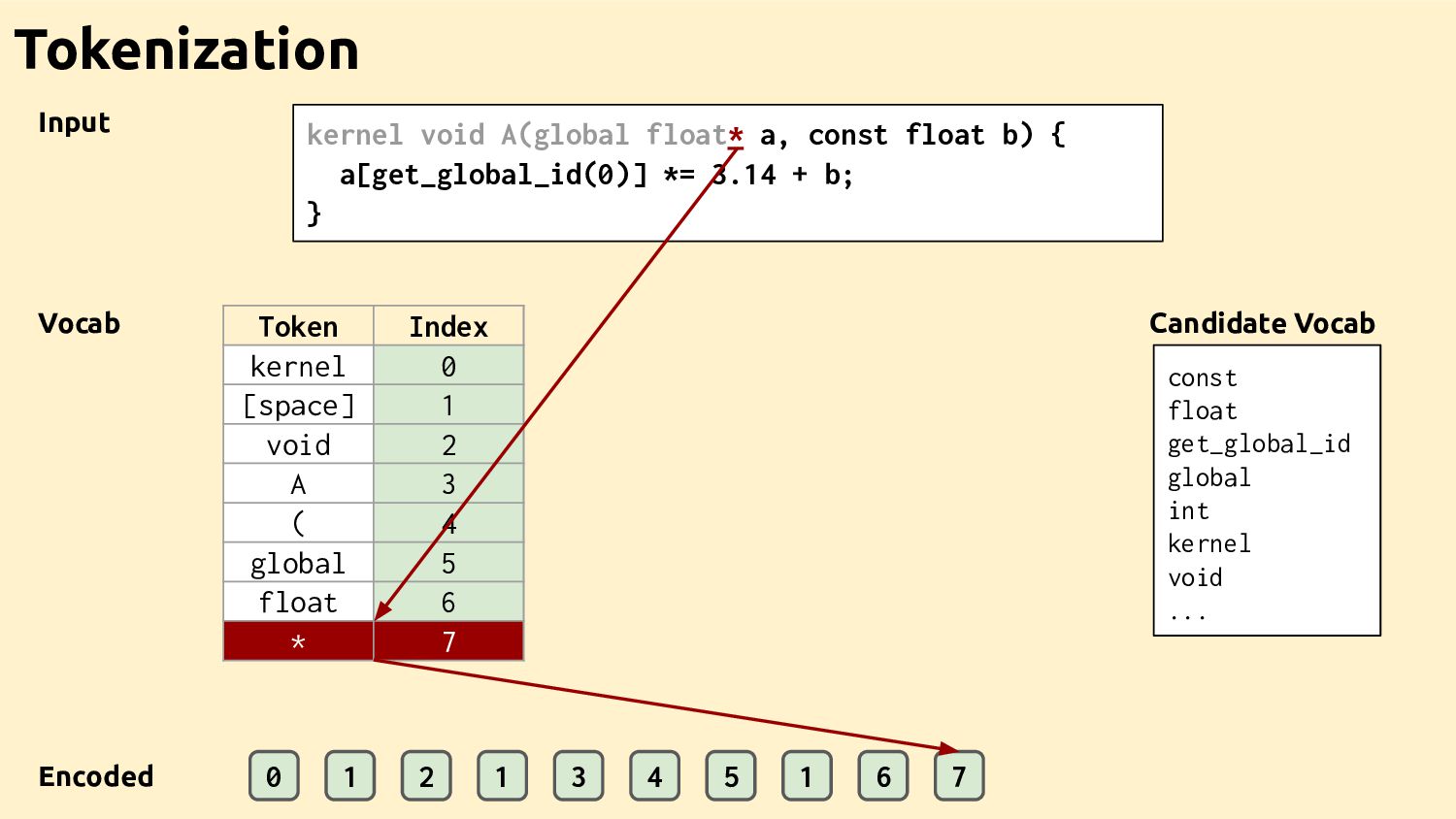

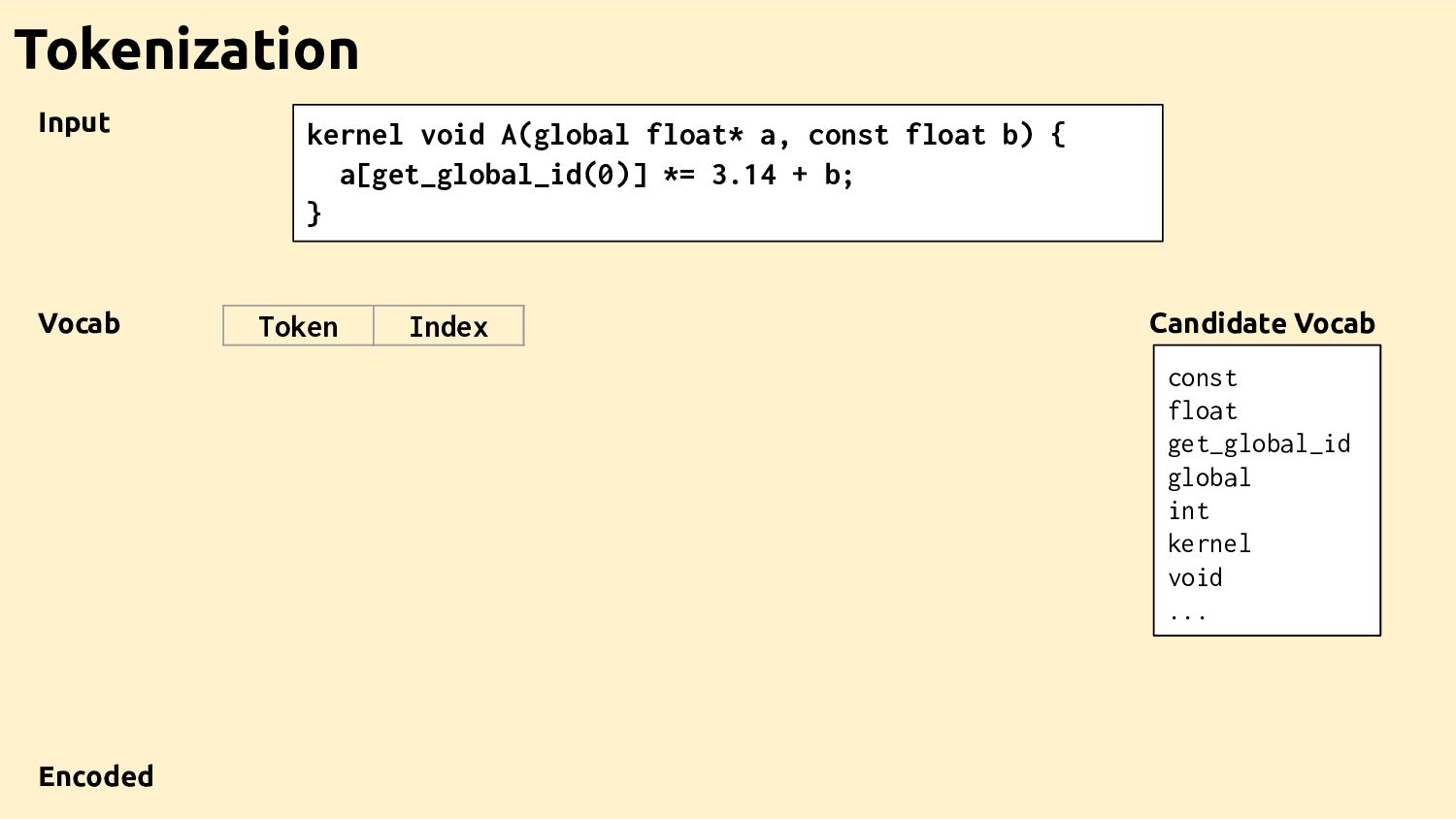

29. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index Candidate Vocab const float get_global_id global int kernel void ... Input
30. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index kernel 0 0 Candidate Vocab const float get_global_id global int kernel void ... Input
31. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index kernel 0 [space] 1 0 1 Candidate Vocab const float get_global_id global int kernel void ... Input
32. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index kernel 0 [space] 1 void 2 0 1 2 Candidate Vocab const float get_global_id global int kernel void ... Input
33. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index kernel 0 [space] 1 void 2 0 1 2 1 Candidate Vocab const float get_global_id global int kernel void ... Input
34. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index kernel 0 [space] 1 void 2 A 3 0 1 2 1 3 Candidate Vocab const float get_global_id global int kernel void ... Input
35. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index kernel 0 [space] 1 void 2 A 3 ( 4 0 1 2 1 3 4 Candidate Vocab const float get_global_id global int kernel void ... Input
36. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index kernel 0 [space] 1 void 2 A 3 ( 4 global 5 0 1 2 1 3 4 5 Candidate Vocab const float get_global_id global int kernel void ... Input

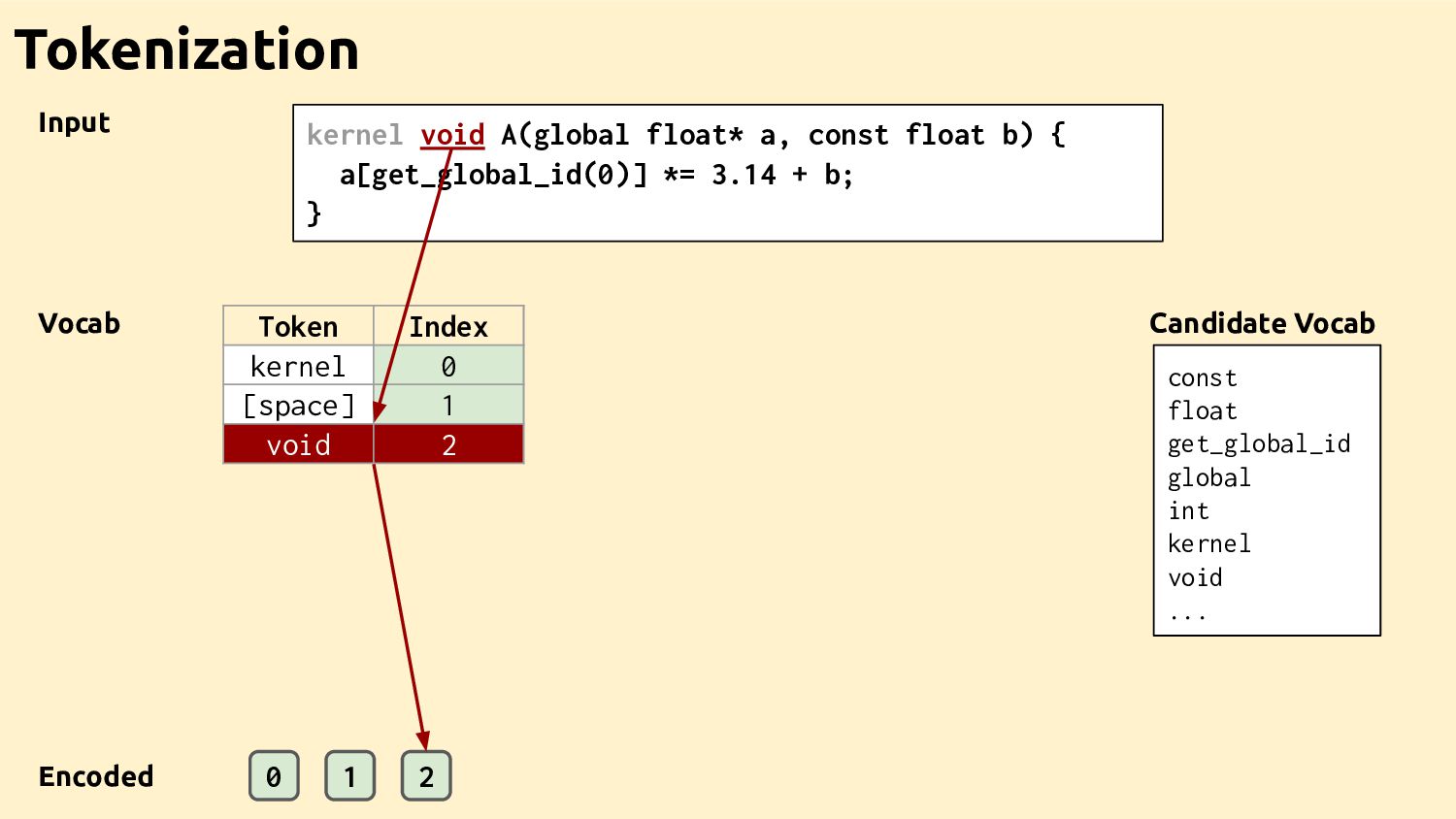

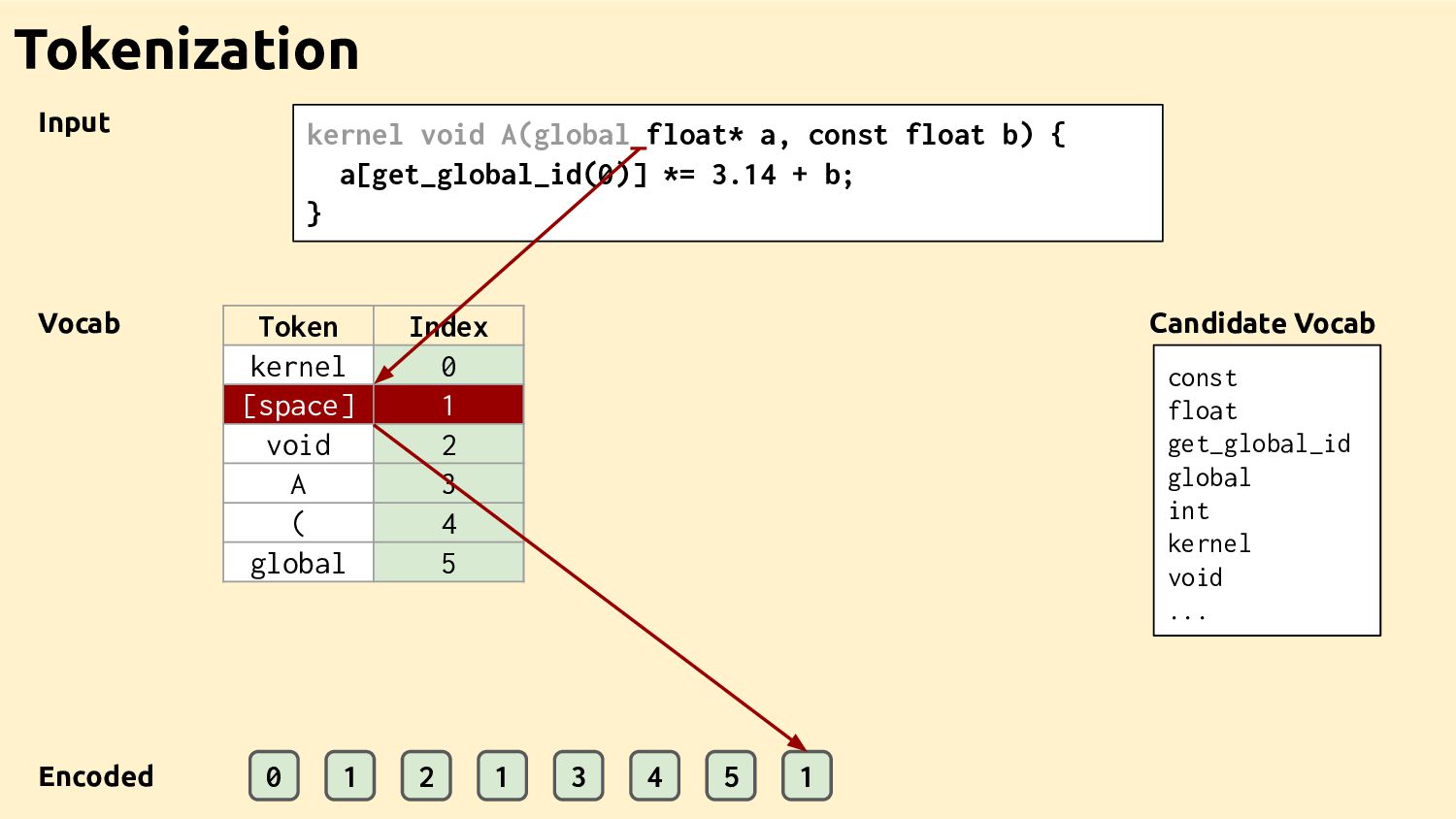

37. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index kernel 0 [space] 1 void 2 A 3 ( 4 global 5 0 1 2 1 3 4 5 1 Candidate Vocab const float get_global_id global int kernel void ... Input
38. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index kernel 0 [space] 1 void 2 A 3 ( 4 global 5 float 6 0 1 2 1 3 4 5 1 6 Candidate Vocab const float get_global_id global int kernel void ... Input

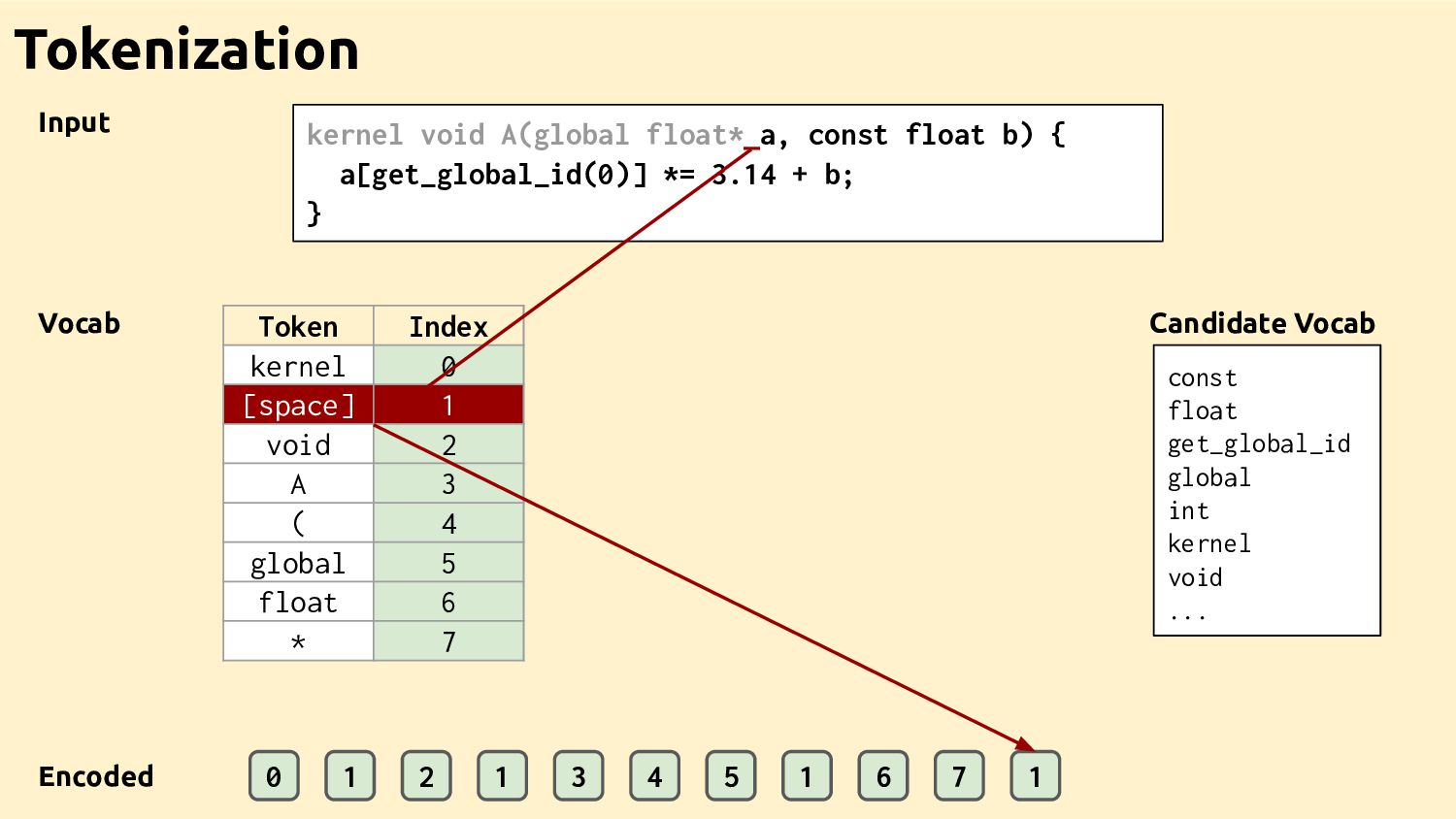

39. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index kernel 0 [space] 1 void 2 A 3 ( 4 global 5 float 6 * 7 0 1 2 1 3 4 5 1 6 7 Candidate Vocab const float get_global_id global int kernel void ... Input
40. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index kernel 0 [space] 1 void 2 A 3 ( 4 global 5 float 6 * 7 0 1 2 1 3 4 5 1 6 7 1 Candidate Vocab const float get_global_id global int kernel void ... Input

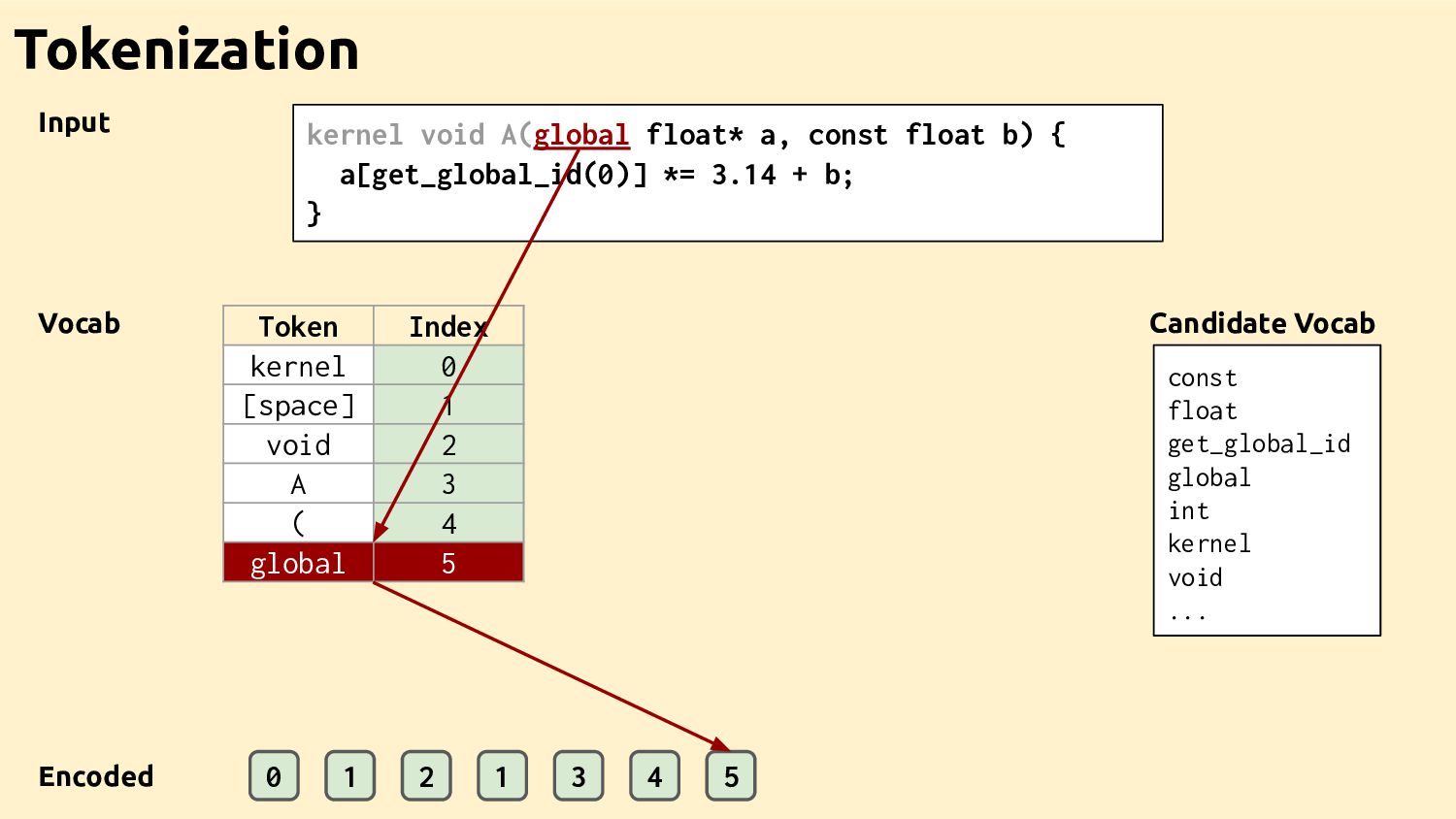

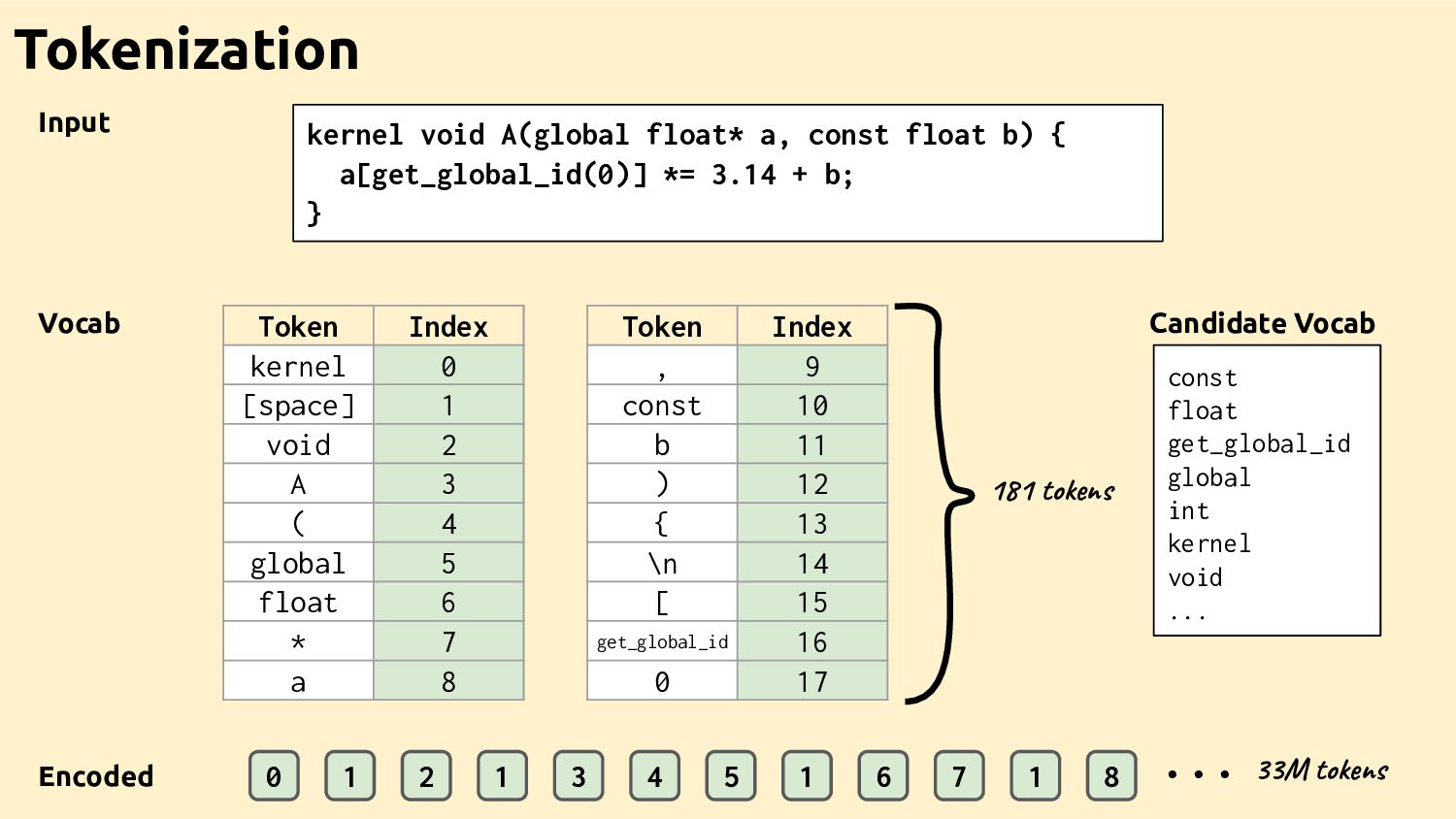

41. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index kernel 0 [space] 1 void 2 A 3 ( 4 global 5 float 6 * 7 a 8 0 1 2 1 3 4 5 1 6 7 1 8 Candidate Vocab const float get_global_id global int kernel void ... Input

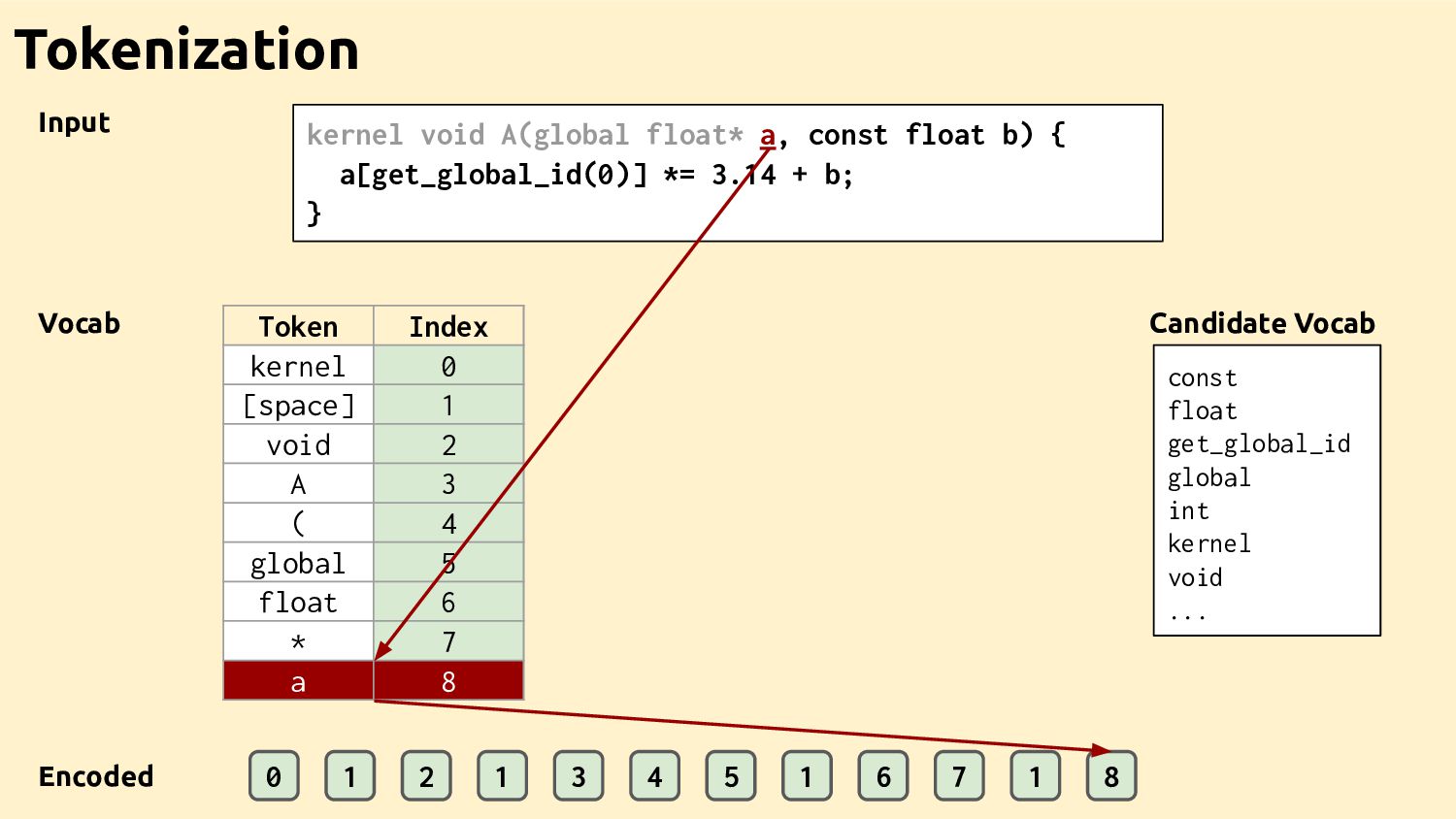

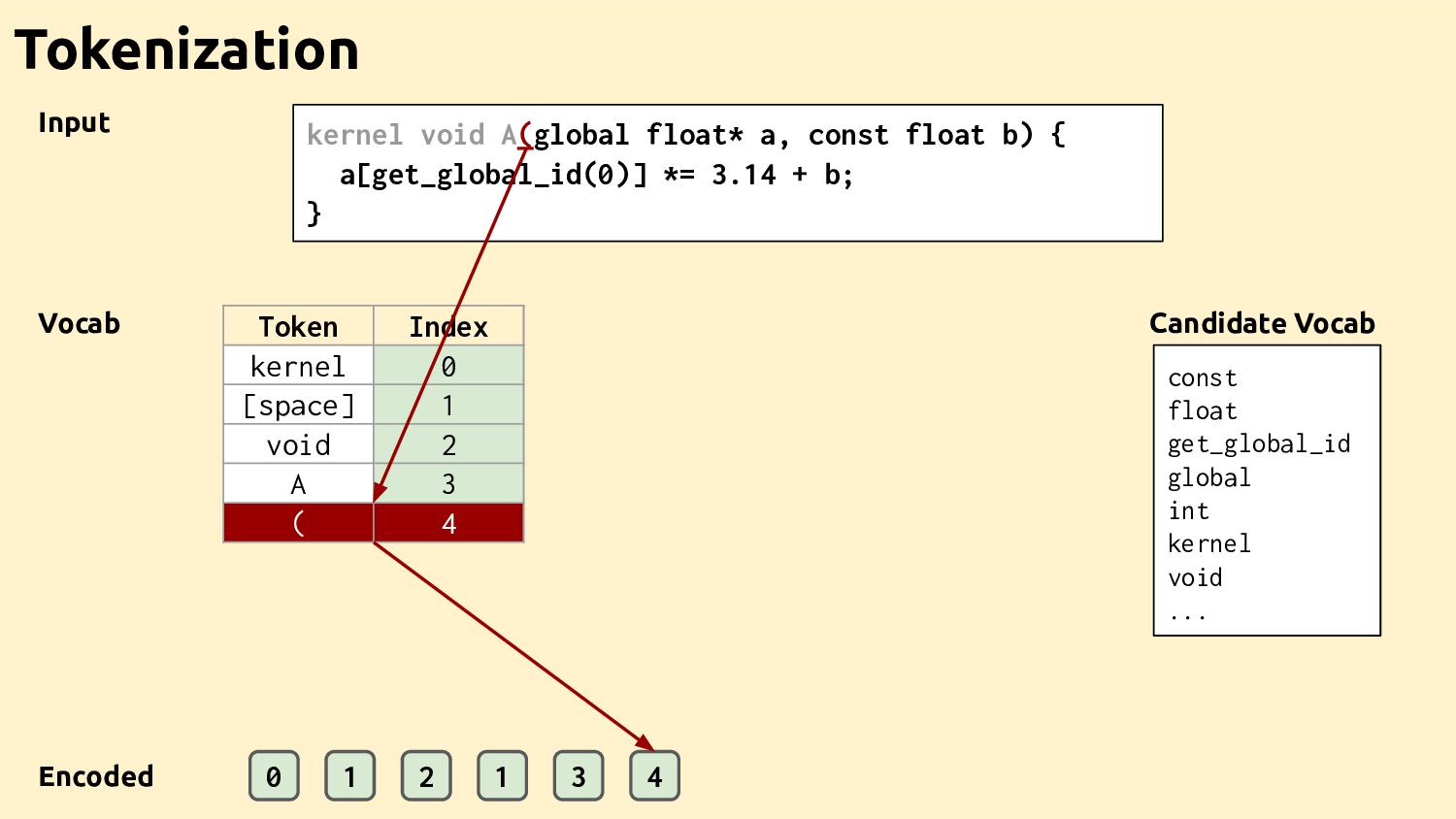

42. Tokenization kernel void A(global float* a, const float b) { a[get_global_id(0)] *= 3.14 + b; } Vocab Encoded Token Index kernel 0 [space] 1 void 2 A 3 ( 4 global 5 float 6 * 7 a 8 Token Index , 9 const 10 b 11 ) 12 { 13 \n 14 [ 15 get_global_id 16 0 17 0 1 2 1 3 4 5 1 6 7 1 8 ... Candidate Vocab const float get_global_id global int kernel void ... Input 181 tokens 33M tokens

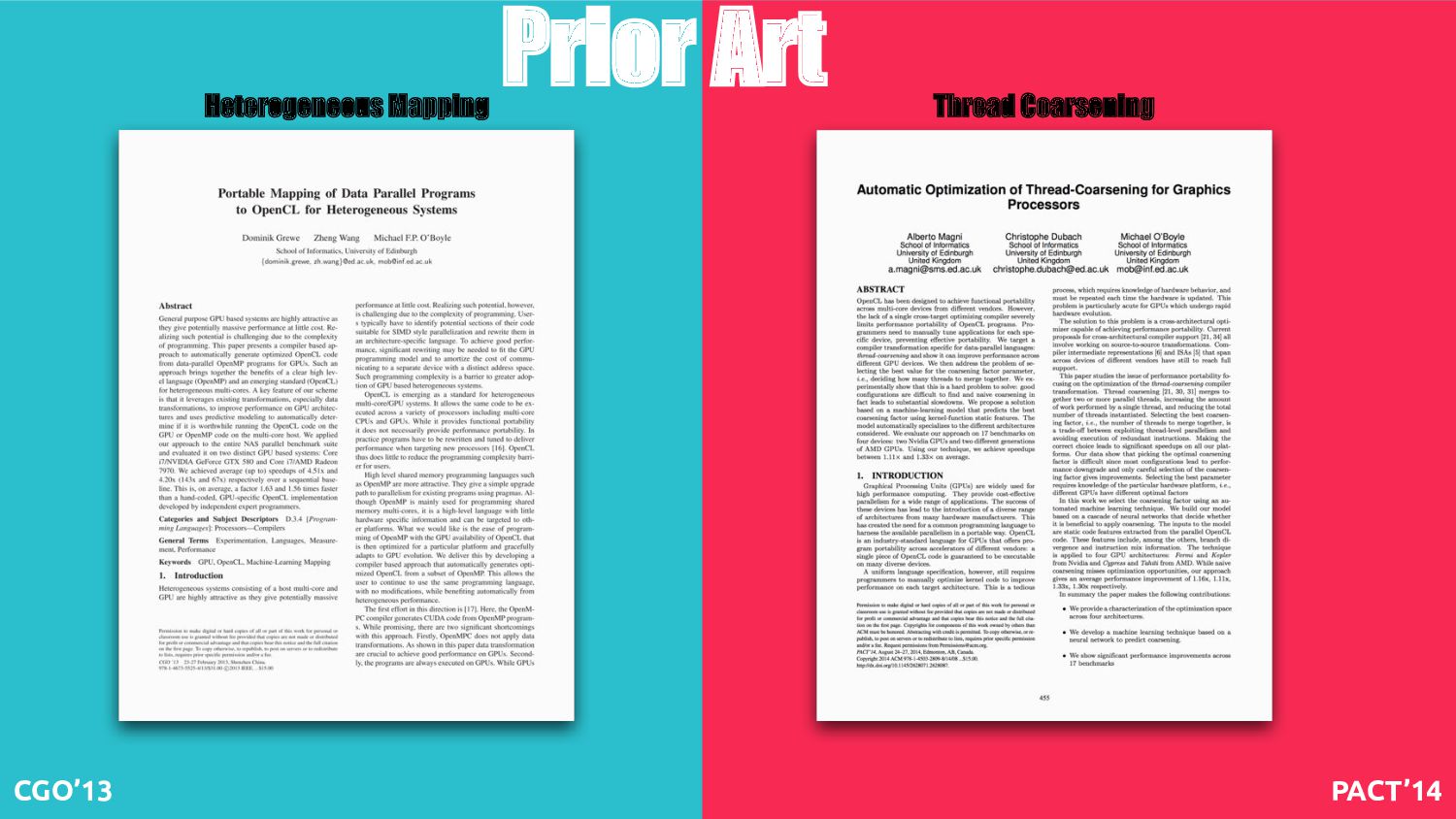

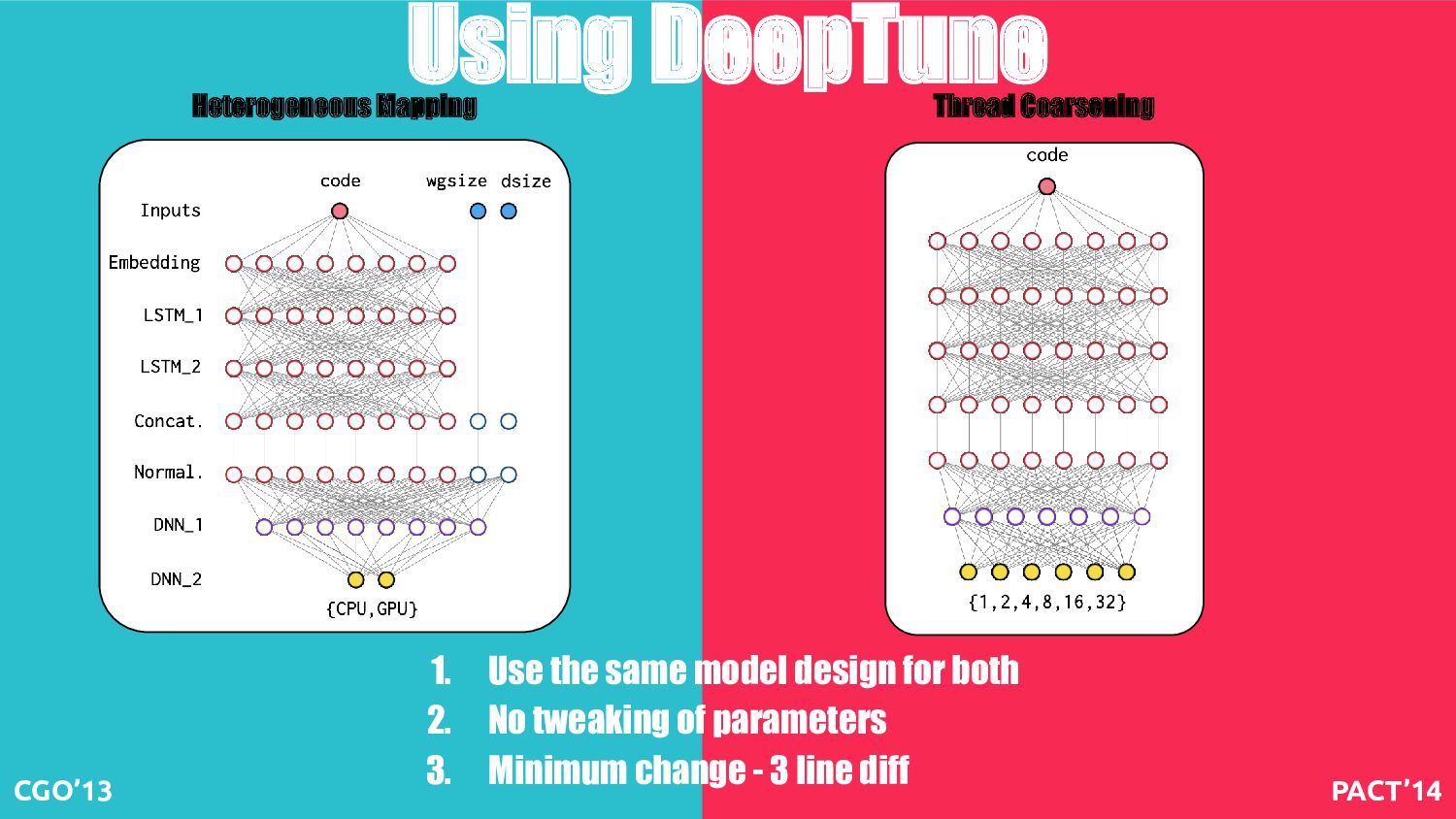

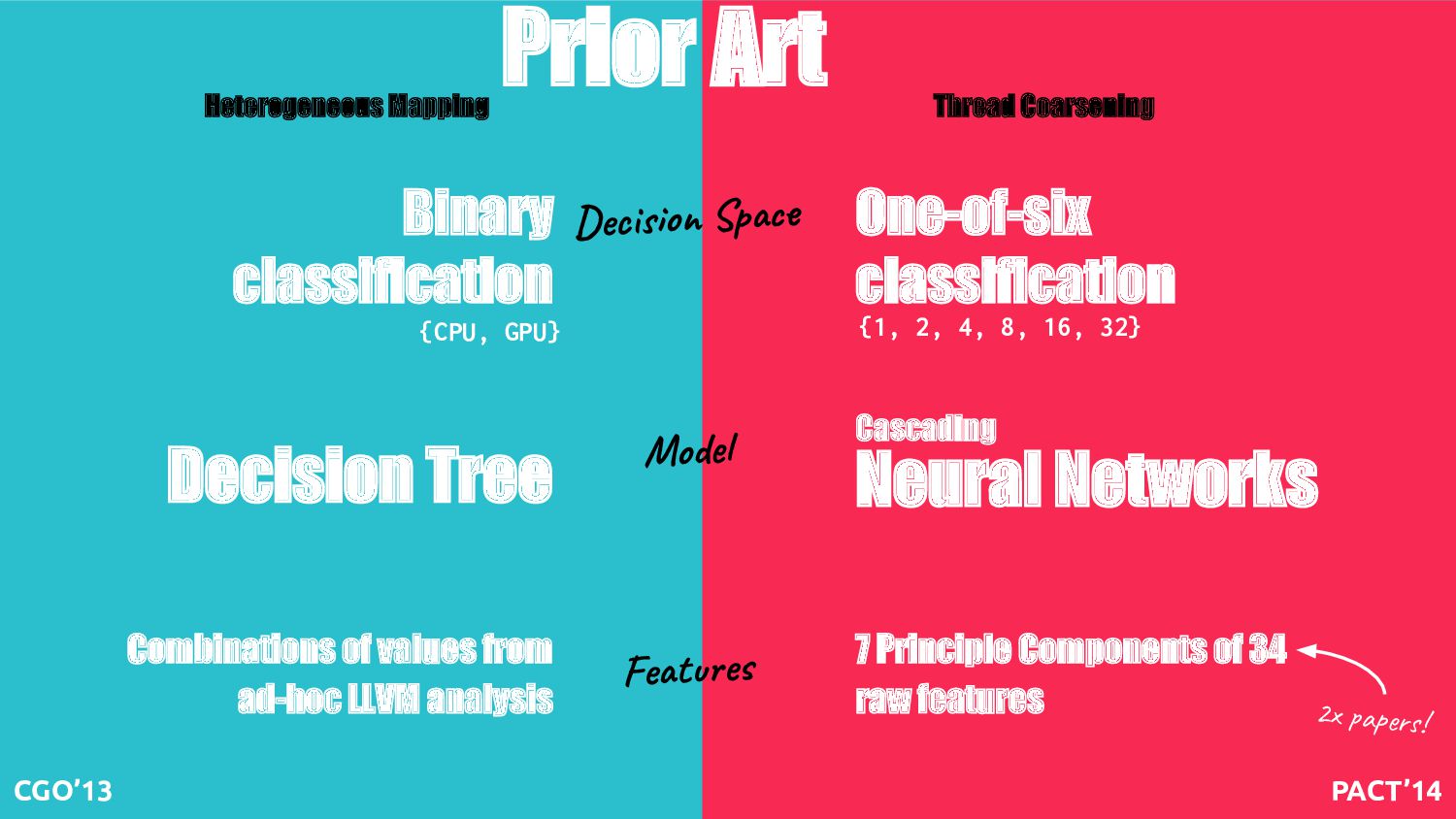

43. CGO’13 PACT’14 Prior Art Heterogeneous Mapping Thread Coarsening
44. Prior Art Heterogeneous Mapping Thread Coarsening Decision Space Model Binary classification One-of-six classification Neural Networks Decision Tree Cascading {CPU, GPU} {1, 2, 4, 8, 16, 32} Features 7 Principle Components of 34 raw features Combinations of values from ad-hoc LLVM analysis CGO’13 PACT’14 2x papers!
45. CGO’13 PACT’14 Heterogeneous Mapping Thread Coarsening Using DeepTune 1. Use the same model design for both 2. No tweaking of parameters 3. Minimum change - 3 line diff

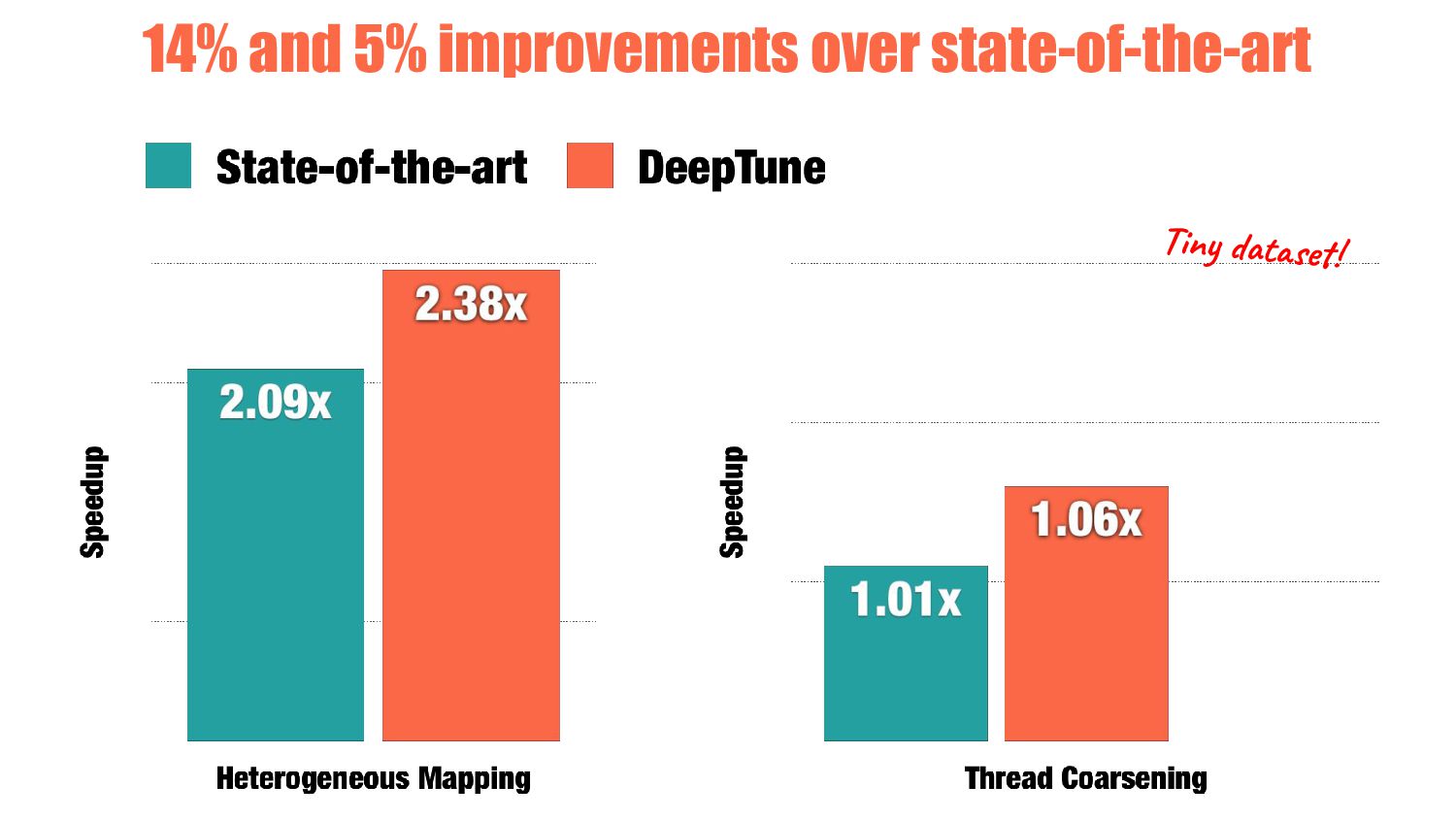

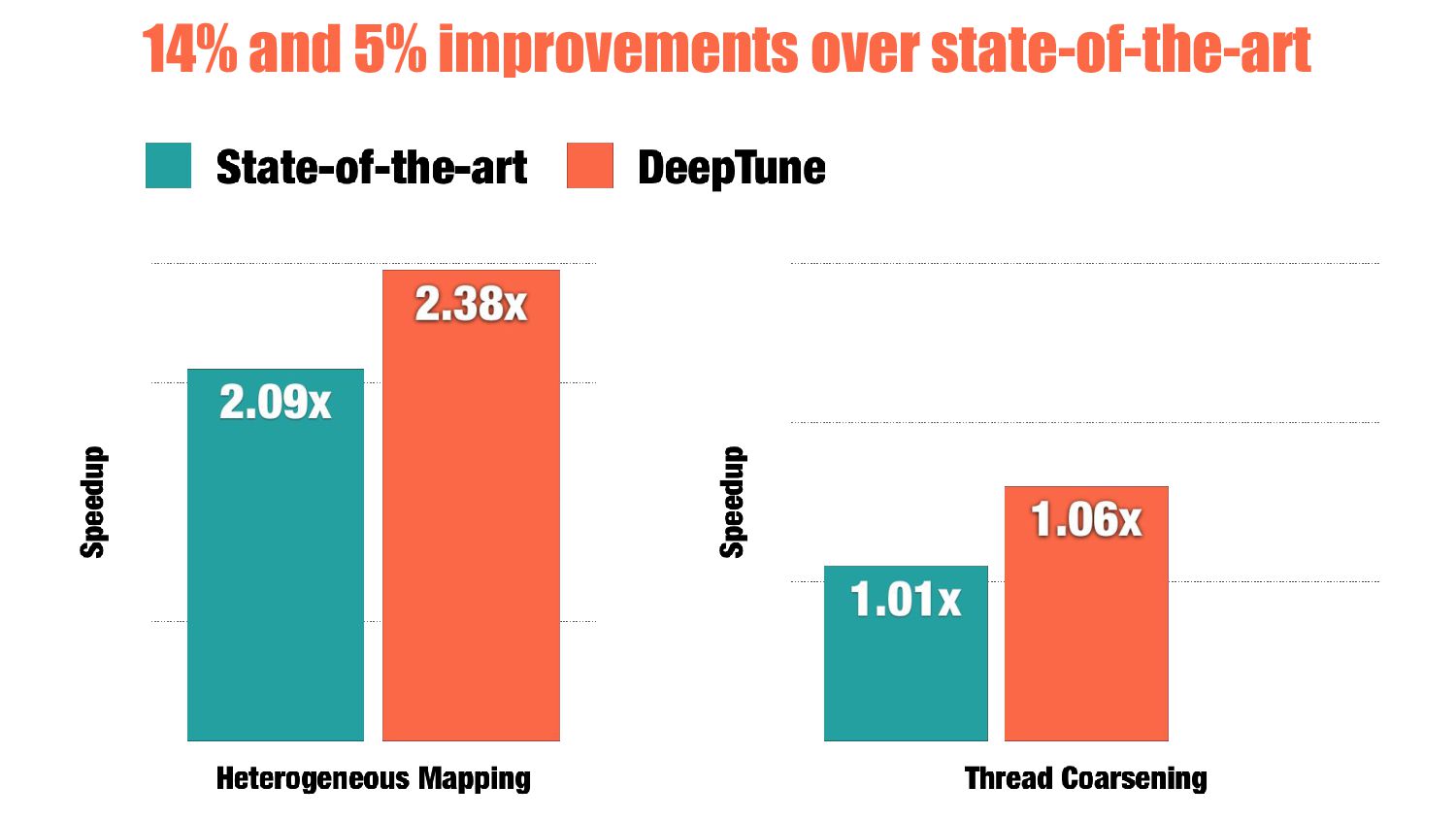

46. 14% and 5% improvements over state-of-the-art Tiny dataset!

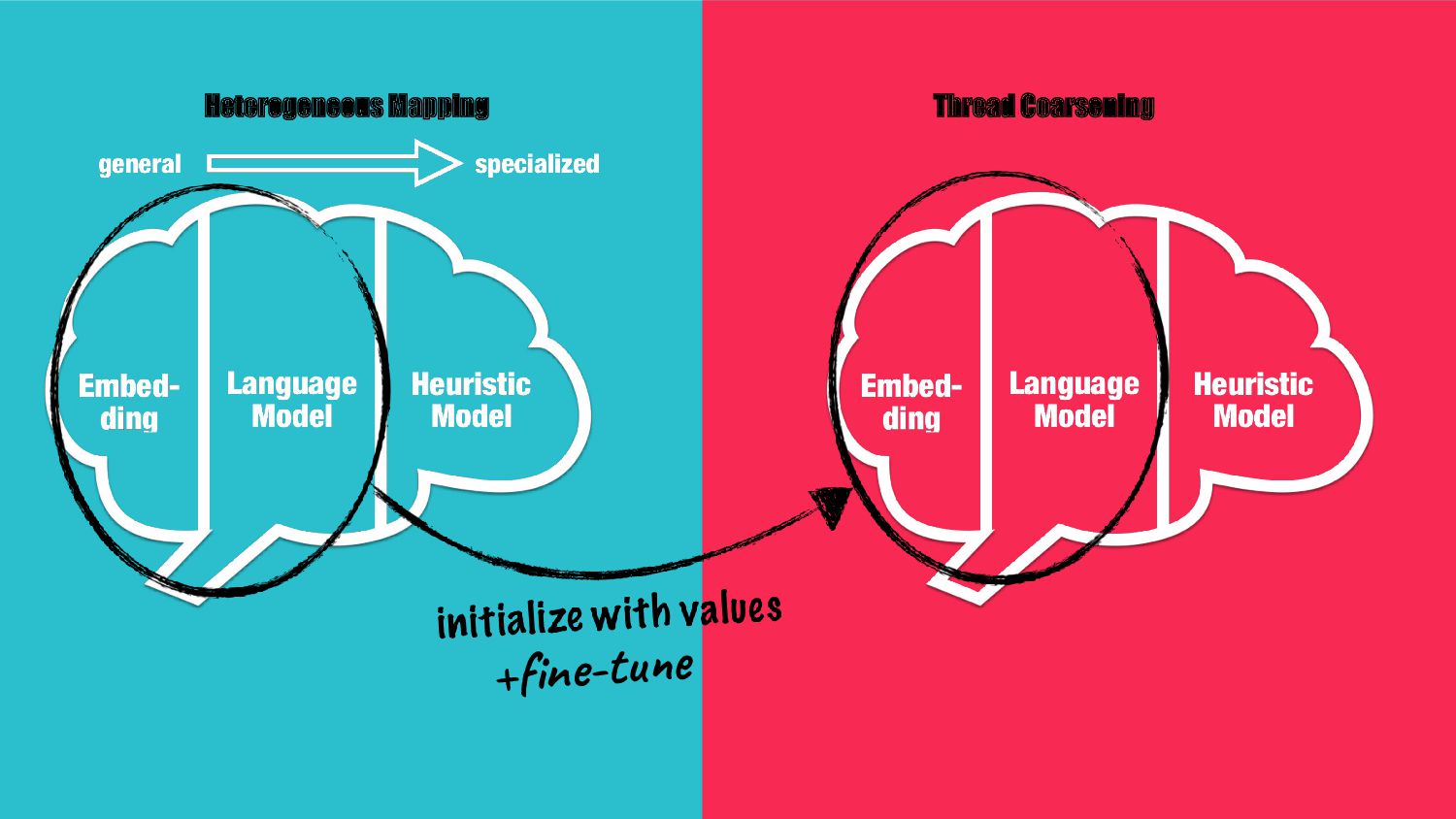

47. Heterogeneous Mapping Thread Coarsening +fine-tune
48. 14% and 5% improvements over state-of-the-art

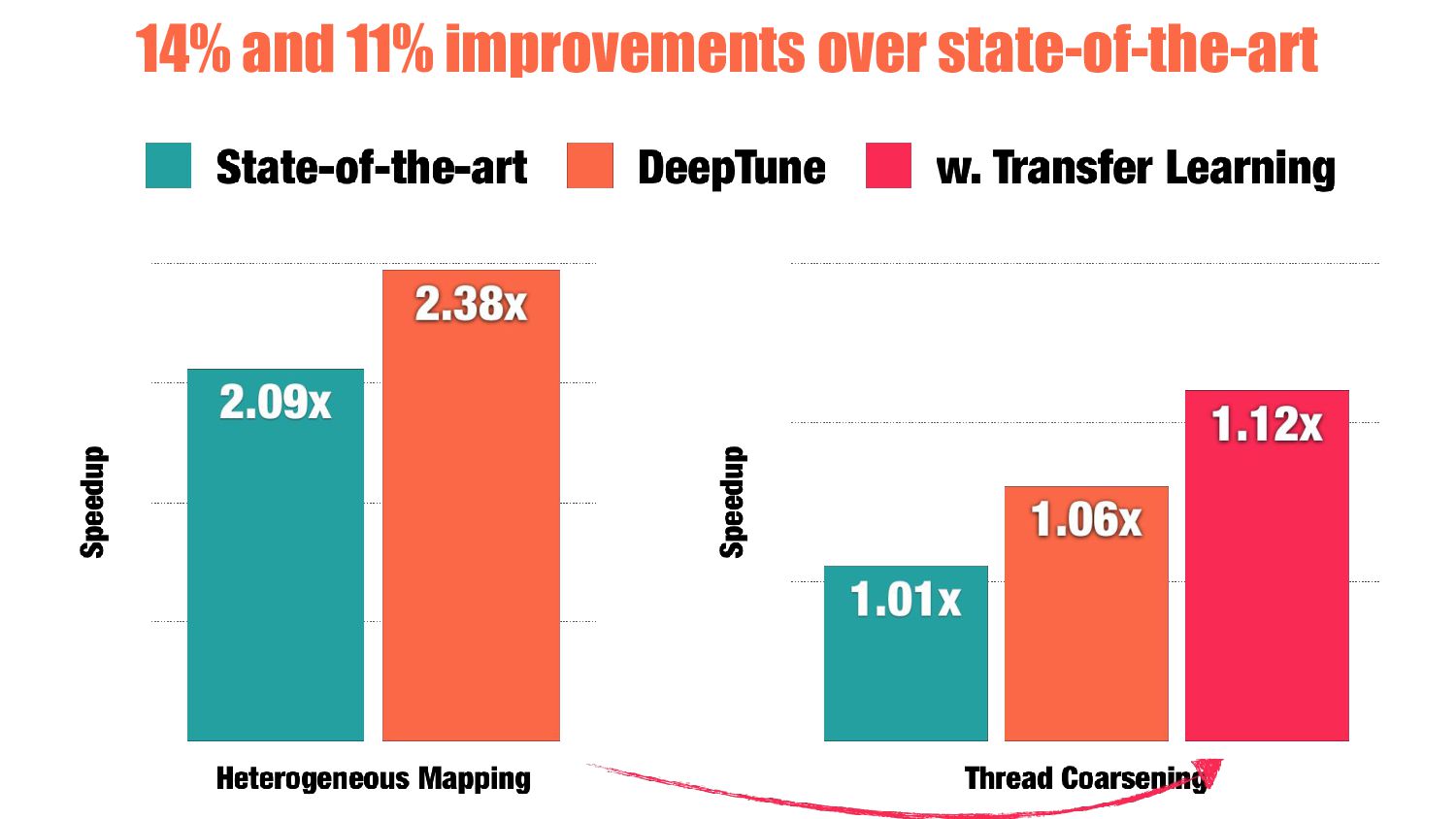

49. 14% and 11% improvements over state-of-the-art

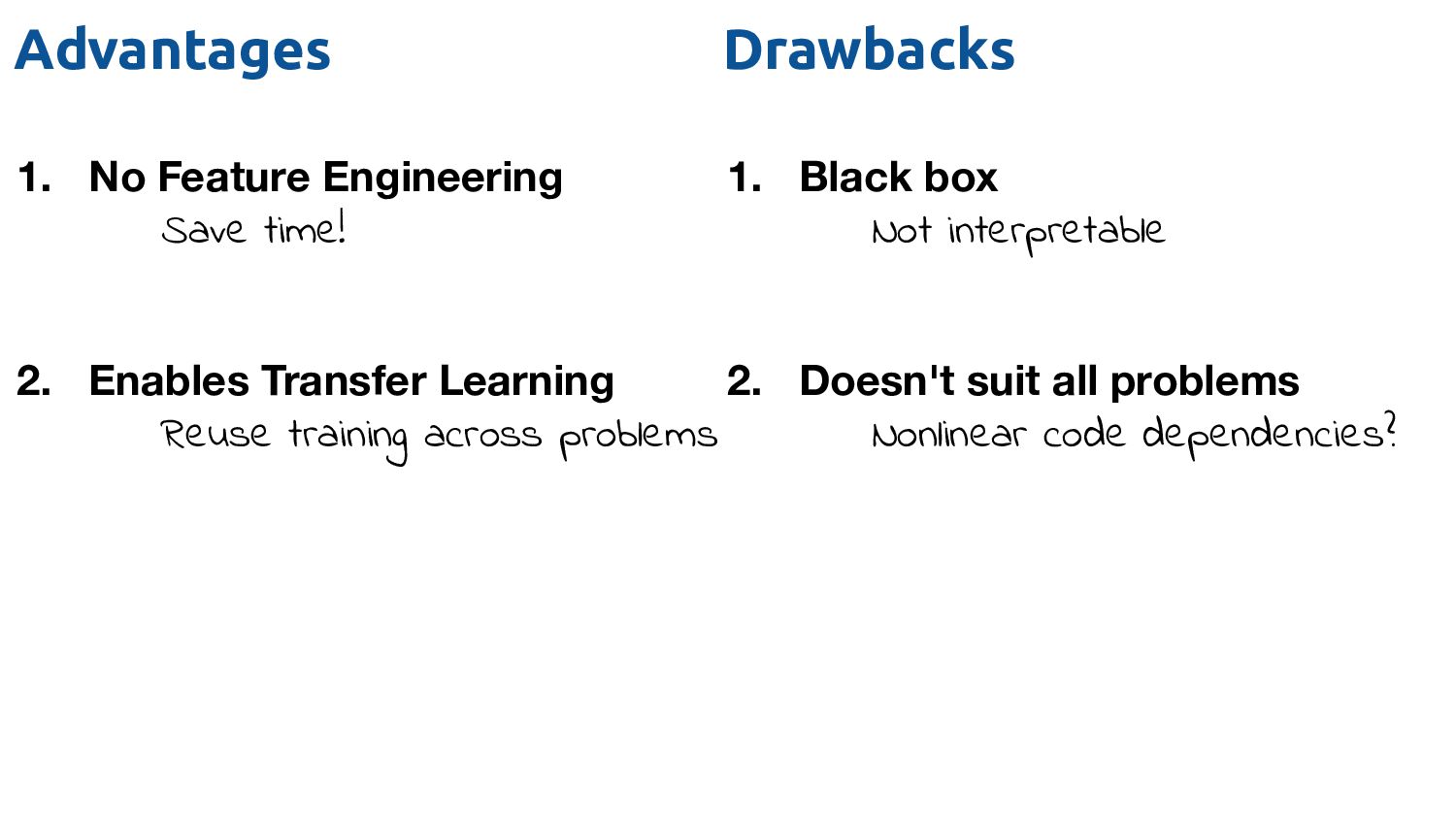

50. Advantages Drawbacks 1. No Feature Engineering Save time! 2. Enables Transfer Learning Reuse training across problems 1. Black box Not interpretable 2. Doesn't suit all problems Nonlinear code dependencies?

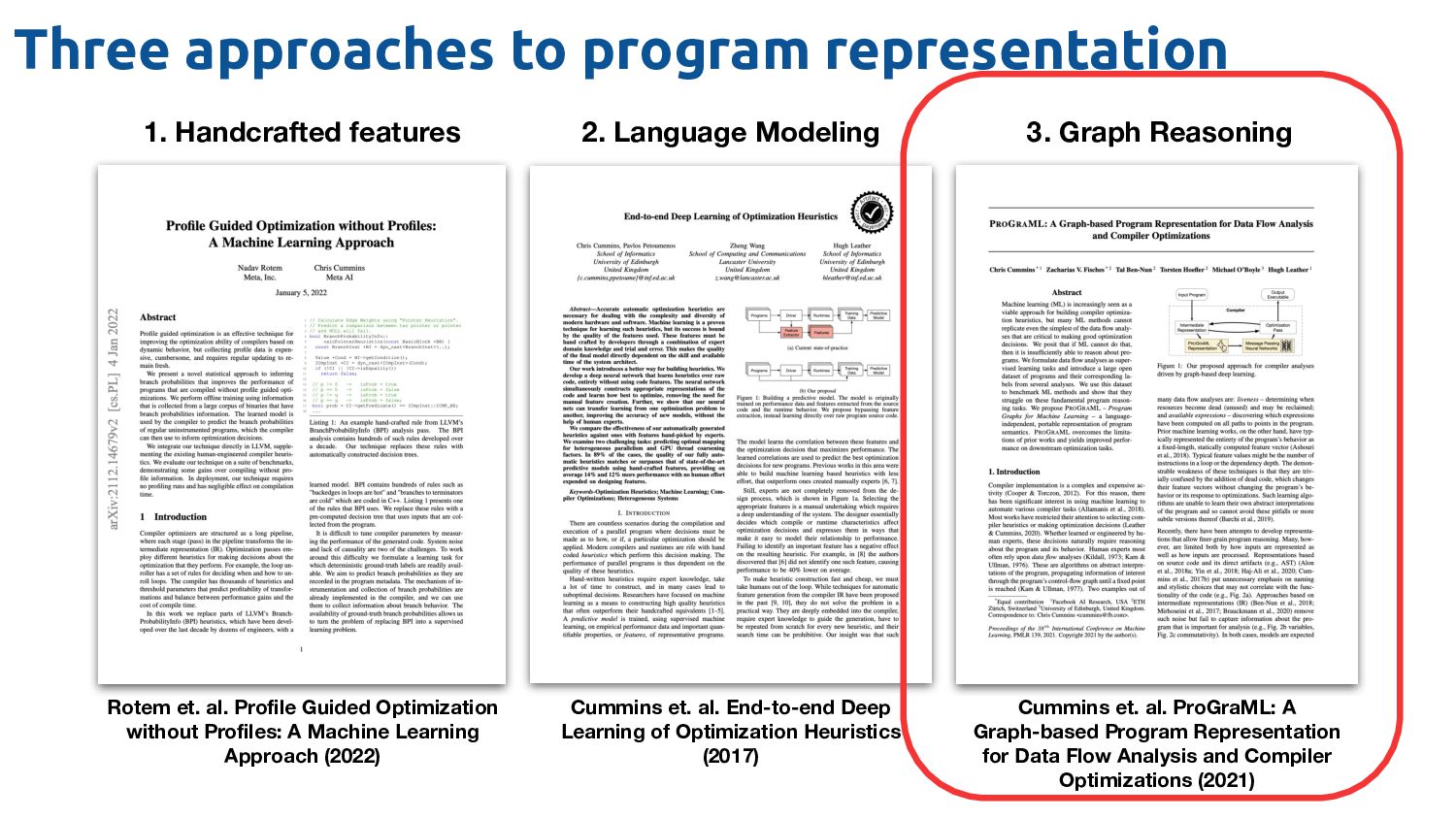

51. Rotem et. al. Profile Guided Optimization without Profiles: A Machine Learning Approach (2022) Cummins et. al. End-to-end Deep Learning of Optimization Heuristics (2017) Cummins et. al. ProGraML: A Graph-based Program Representation for Data Flow Analysis and Compiler Optimizations (2021) Three approaches to program representation 1. Handcrafted features 2. Language Modeling 3. Graph Reasoning

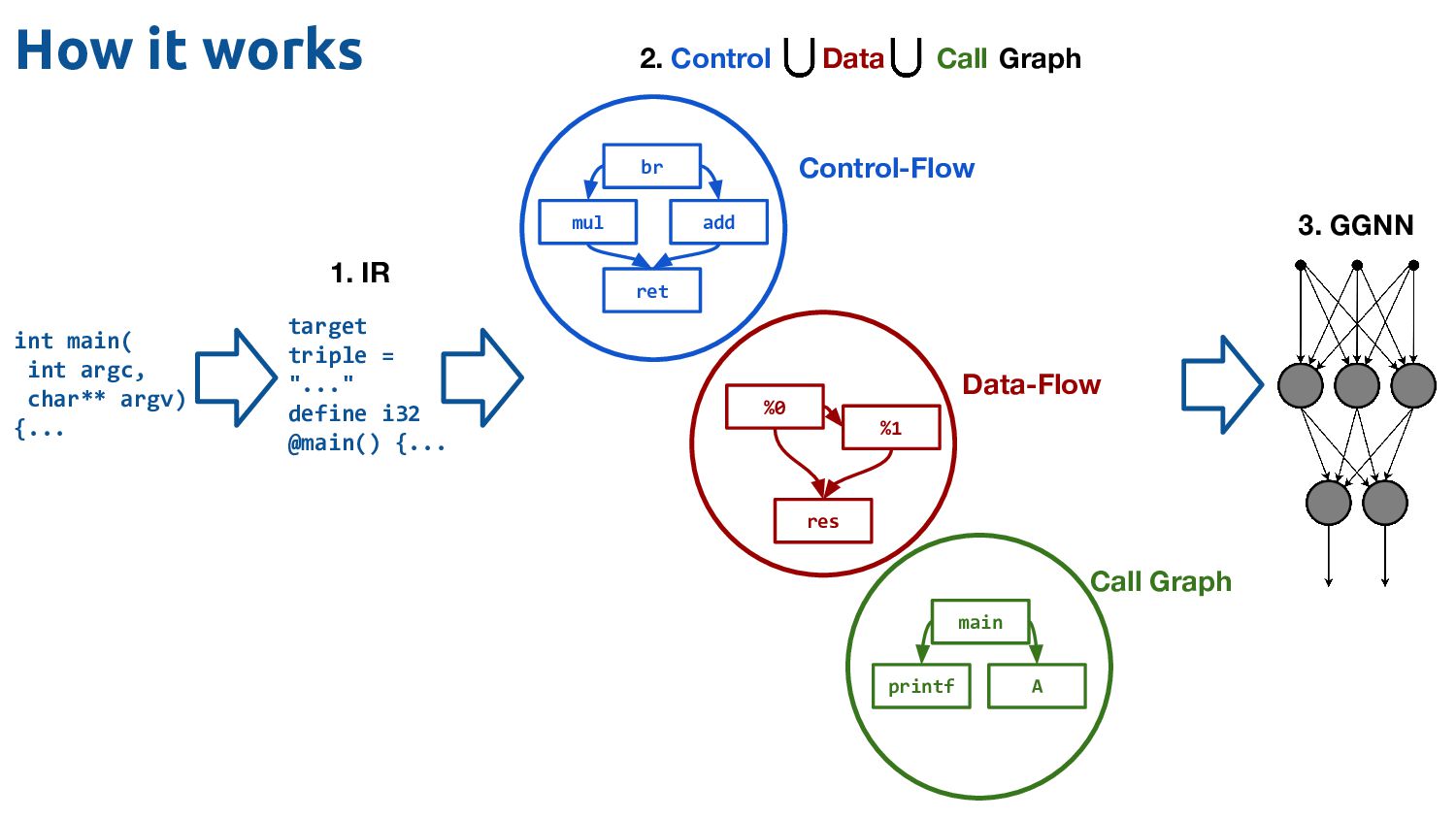

52. int main( int argc, char** argv) {... target triple = "..." define i32 @main() {... 1. IR 3. GGNN %0 res %1 main printf A br ret add mul Control-Flow Data-Flow Call Graph Control Data Call 2. Graph How it works

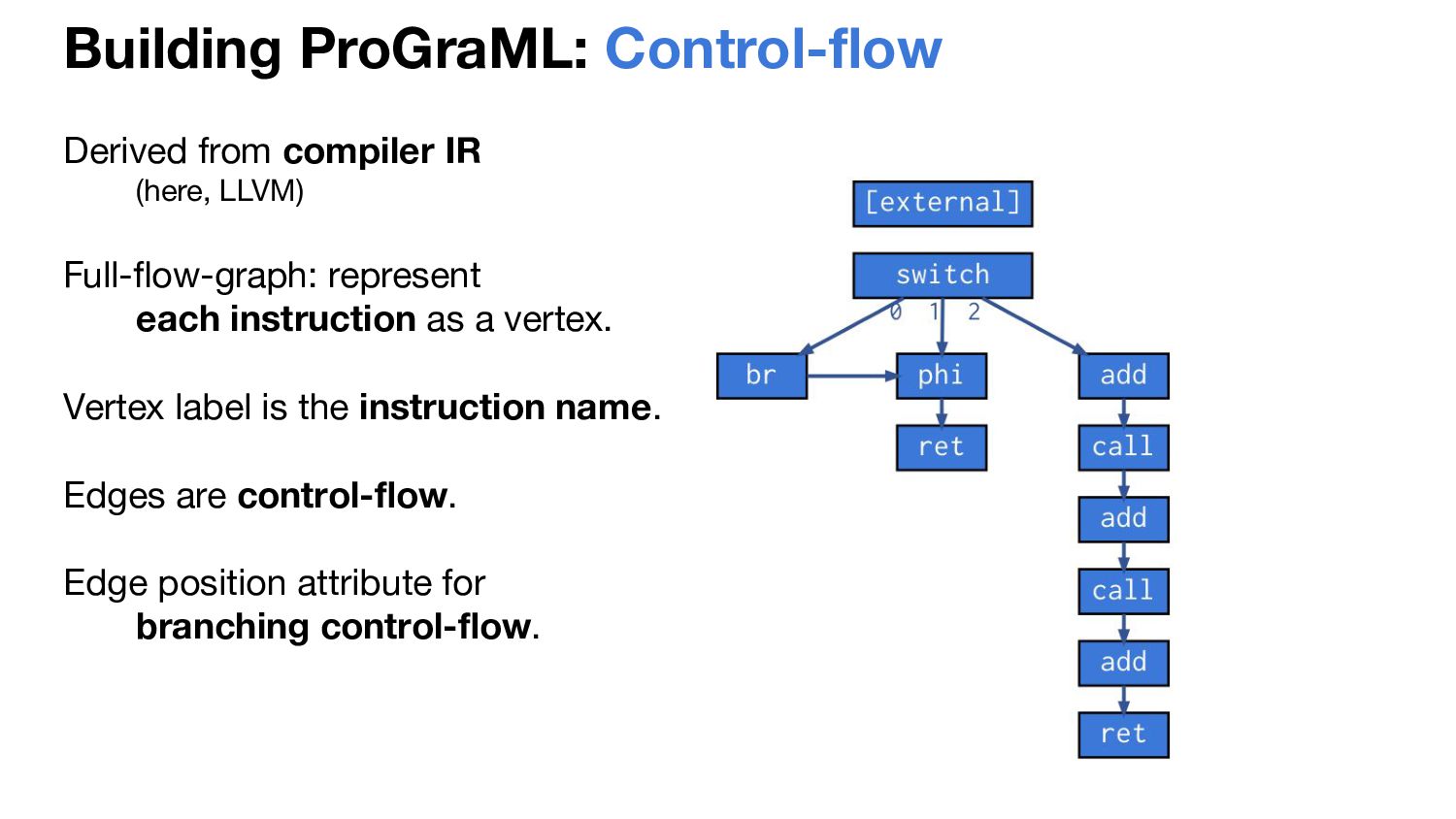

53. Building ProGraML: Control-flow Derived from compiler IR (here, LLVM) Full-flow-graph: represent each instruction as a vertex. Vertex label is the instruction name. Edges are control-flow. Edge position attribute for branching control-flow.

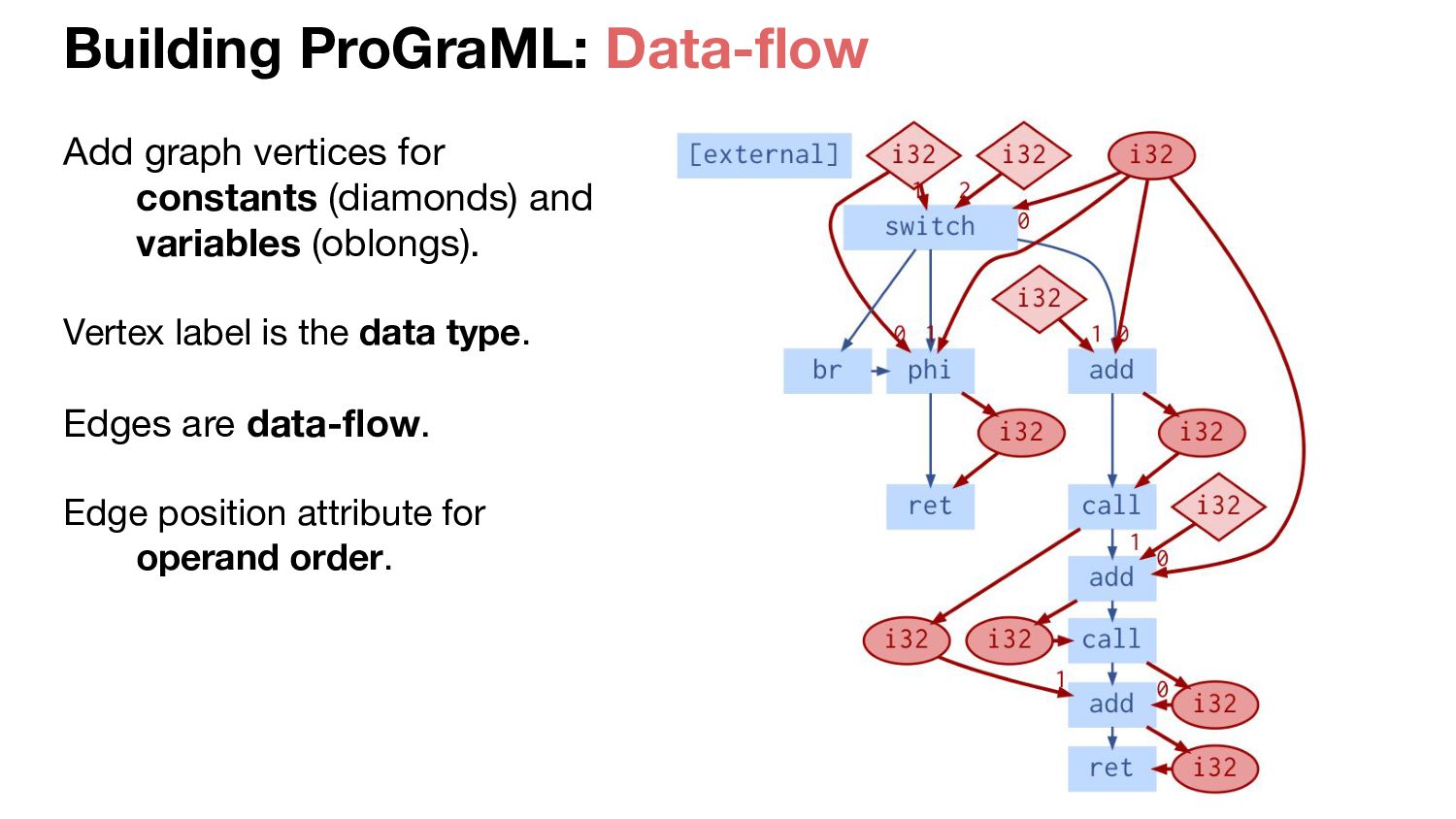

54. Building ProGraML: Data-flow Add graph vertices for constants (diamonds) and variables (oblongs). Vertex label is the data type. Edges are data-flow. Edge position attribute for operand order.

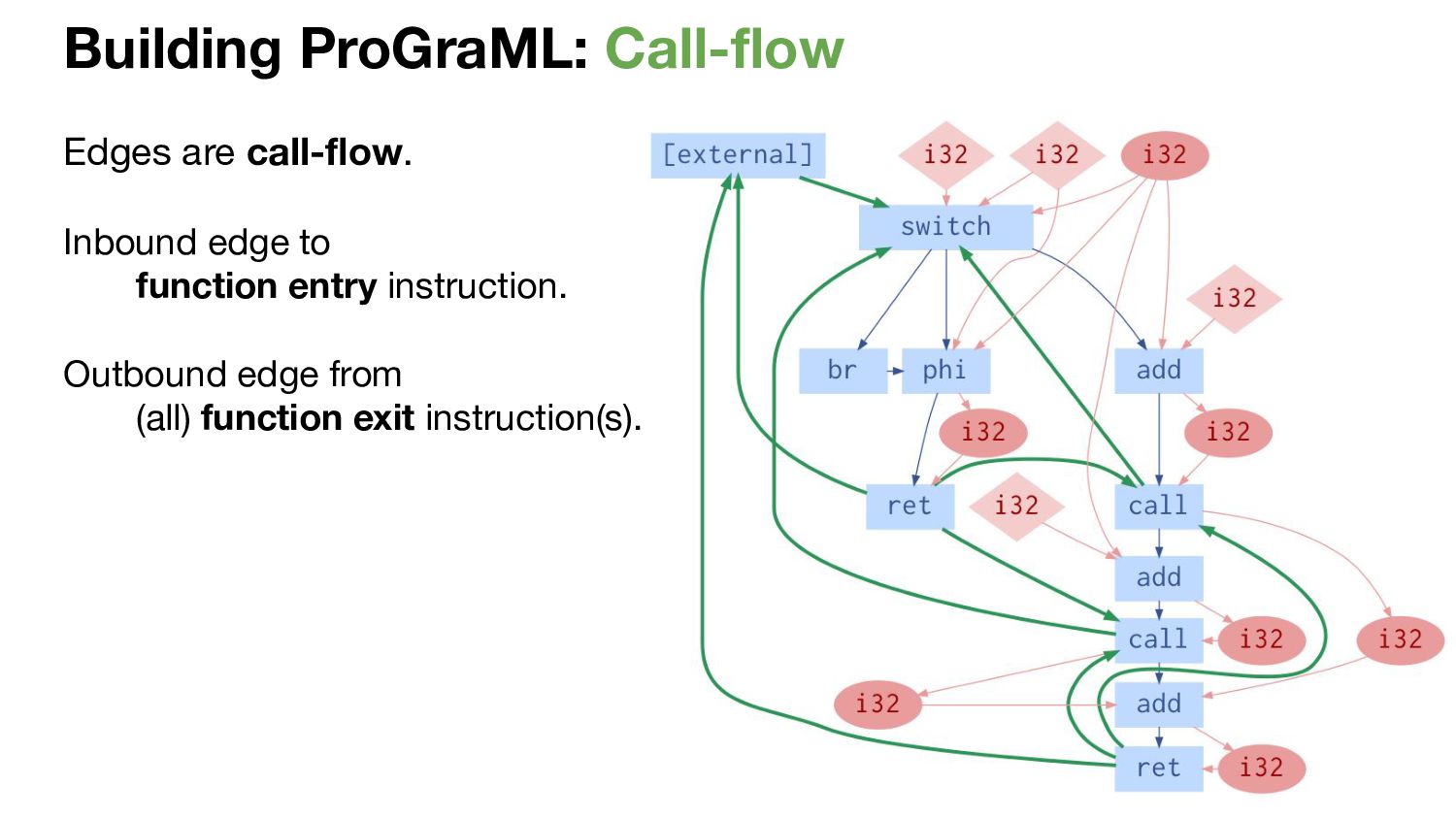

55. Building ProGraML: Call-flow Edges are call-flow. Inbound edge to function entry instruction. Outbound edge from (all) function exit instruction(s).

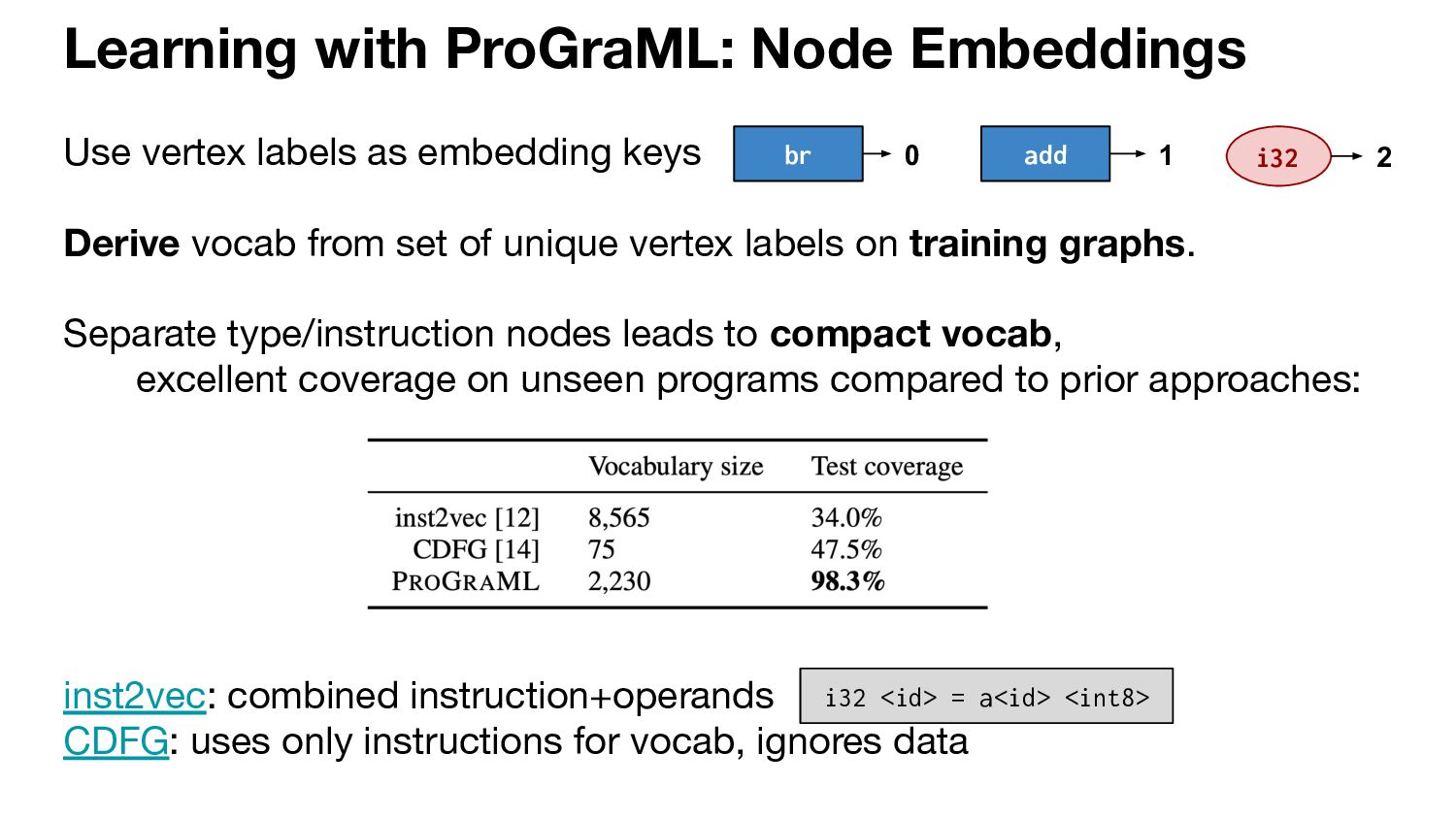

56. Learning with ProGraML: Node Embeddings Use vertex labels as embedding keys Derive vocab from set of unique vertex labels on training graphs. Separate type/instruction nodes leads to compact vocab, excellent coverage on unseen programs compared to prior approaches: inst2vec: combined instruction+operands CDFG: uses only instructions for vocab, ignores data br add i32 0 1 2 i32 <id> = a<id> <int8>

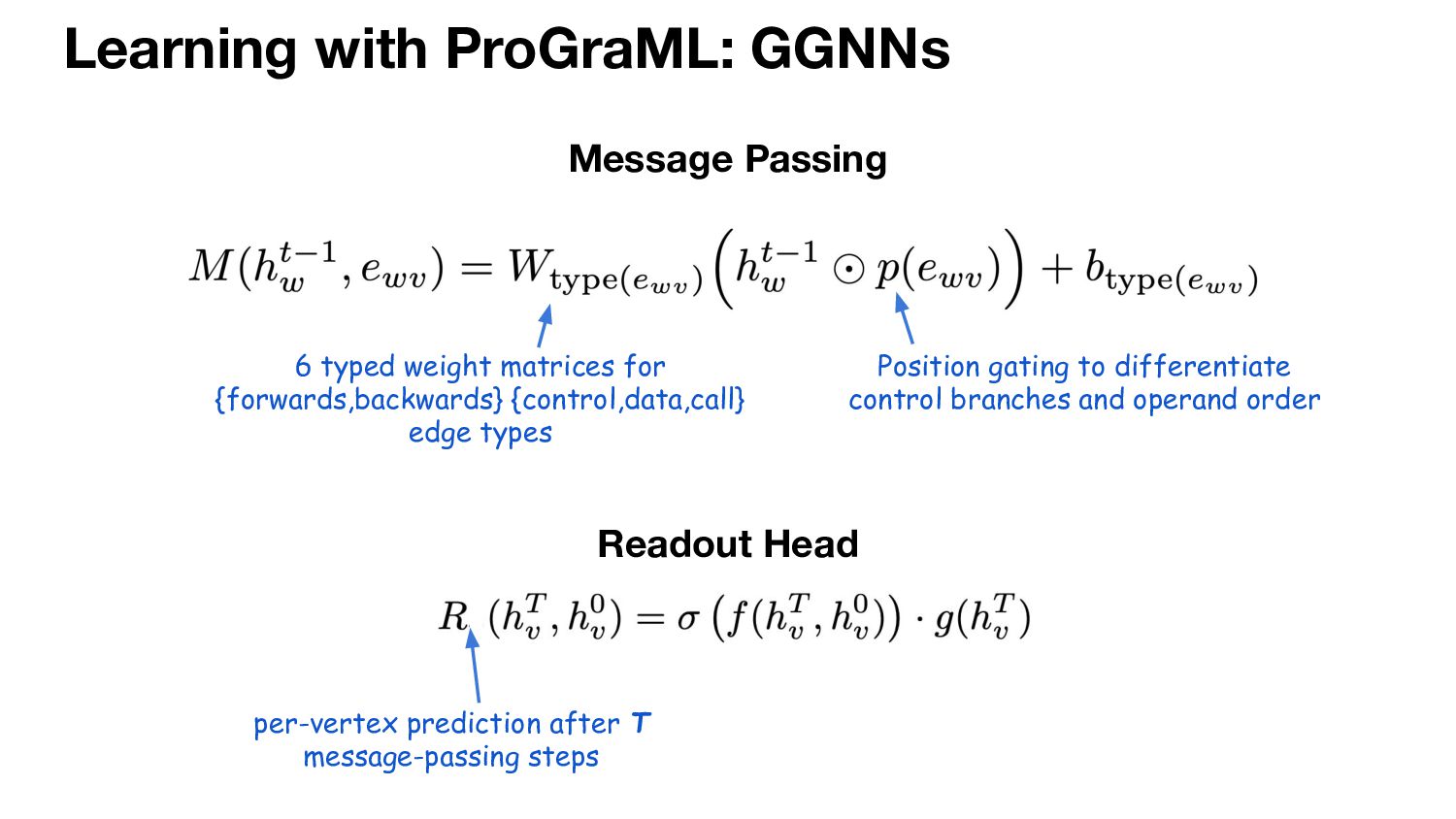

57. Learning with ProGraML: GGNNs Position gating to differentiate control branches and operand order 6 typed weight matrices for {forwards,backwards} {control,data,call} edge types Message Passing Readout Head per-vertex prediction after T message-passing steps

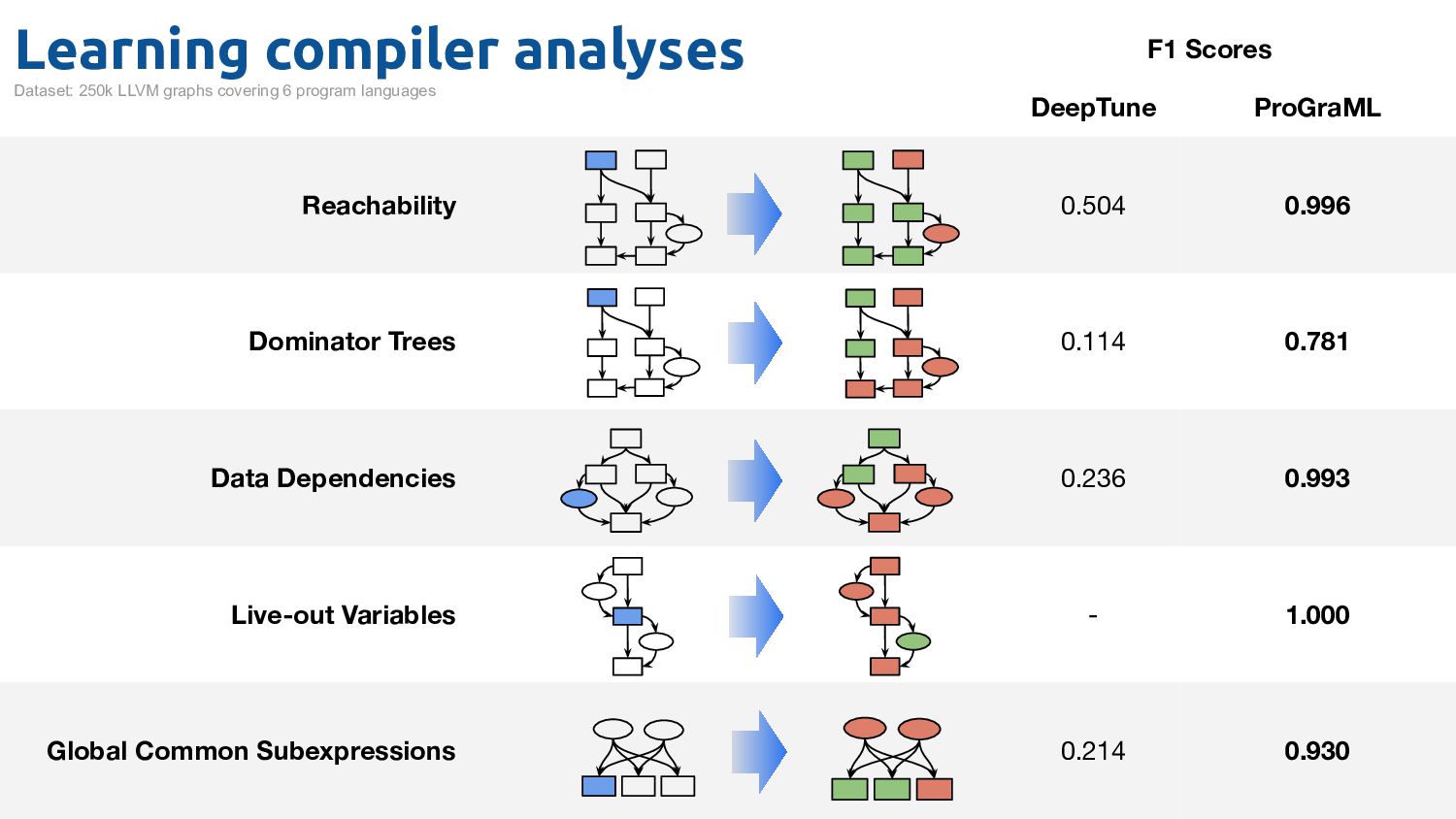

58. DeepTune ProGraML Reachability 0.504 0.996 Dominator Trees 0.114 0.781 Data Dependencies 0.236 0.993 Live-out Variables - 1.000 Global Common Subexpressions 0.214 0.930 Learning compiler analyses F1 Scores Dataset: 250k LLVM graphs covering 6 program languages

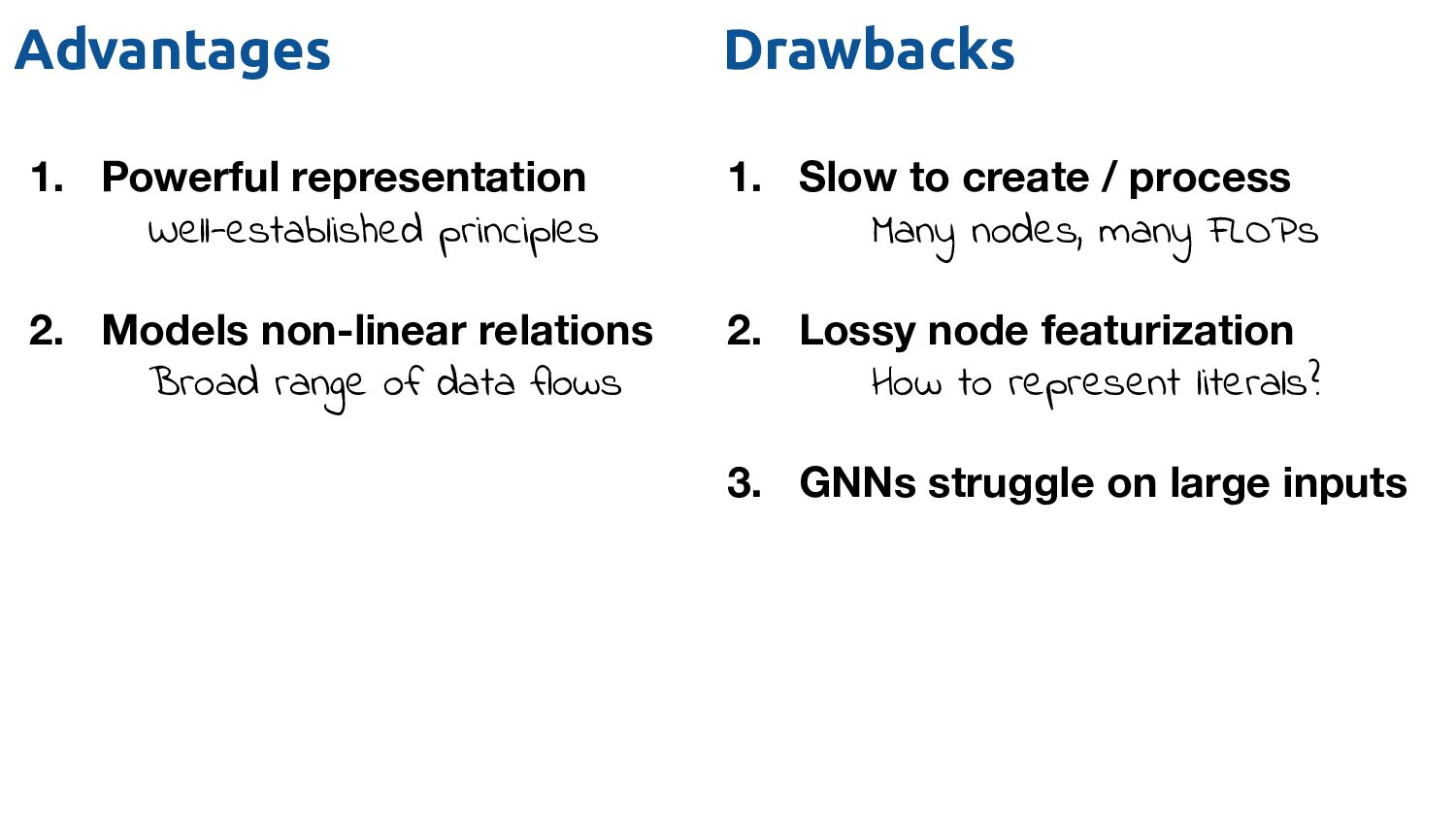

59. Advantages Drawbacks 1. Powerful representation Well-established principles 2. Models non-linear relations Broad range of data flows 1. Slow to create / process Many nodes, many FLOPs 2. Lossy node featurization How to represent literals? 3. GNNs struggle on large inputs

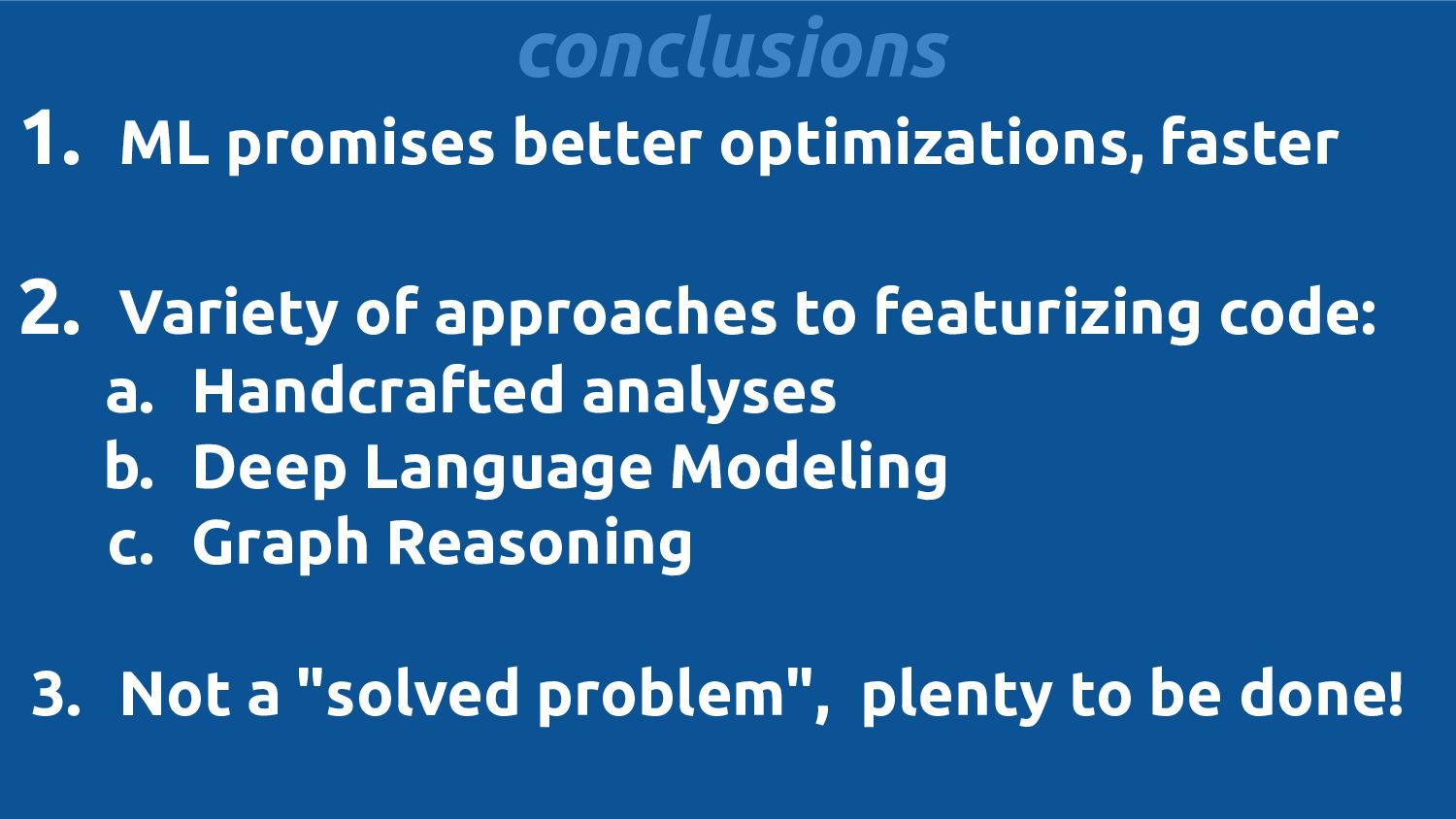

60. 1. ML promises better optimizations, faster 2. Variety of approaches to featurizing code: a. Handcrafted analyses b. Deep Language Modeling c. Graph Reasoning 3. Not a "solved problem", plenty to be done! conclusions
61. 5 min break
62. 2. Challenges and Research Directions
63. Presenter

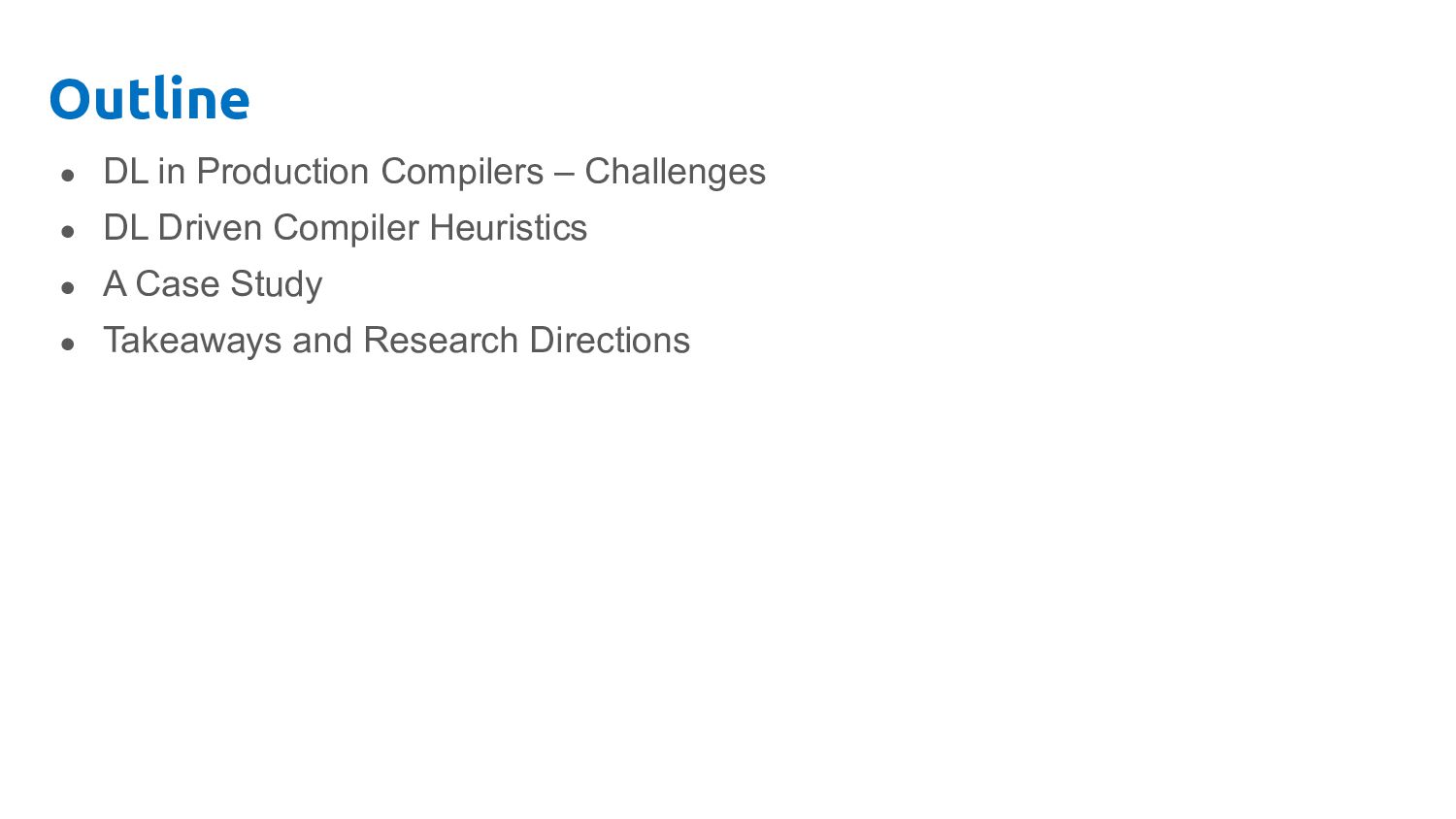

64. Outline • DL in Production Compilers – Challenges • DL Driven Compiler Heuristics • A Case Study • Takeaways and Research Directions

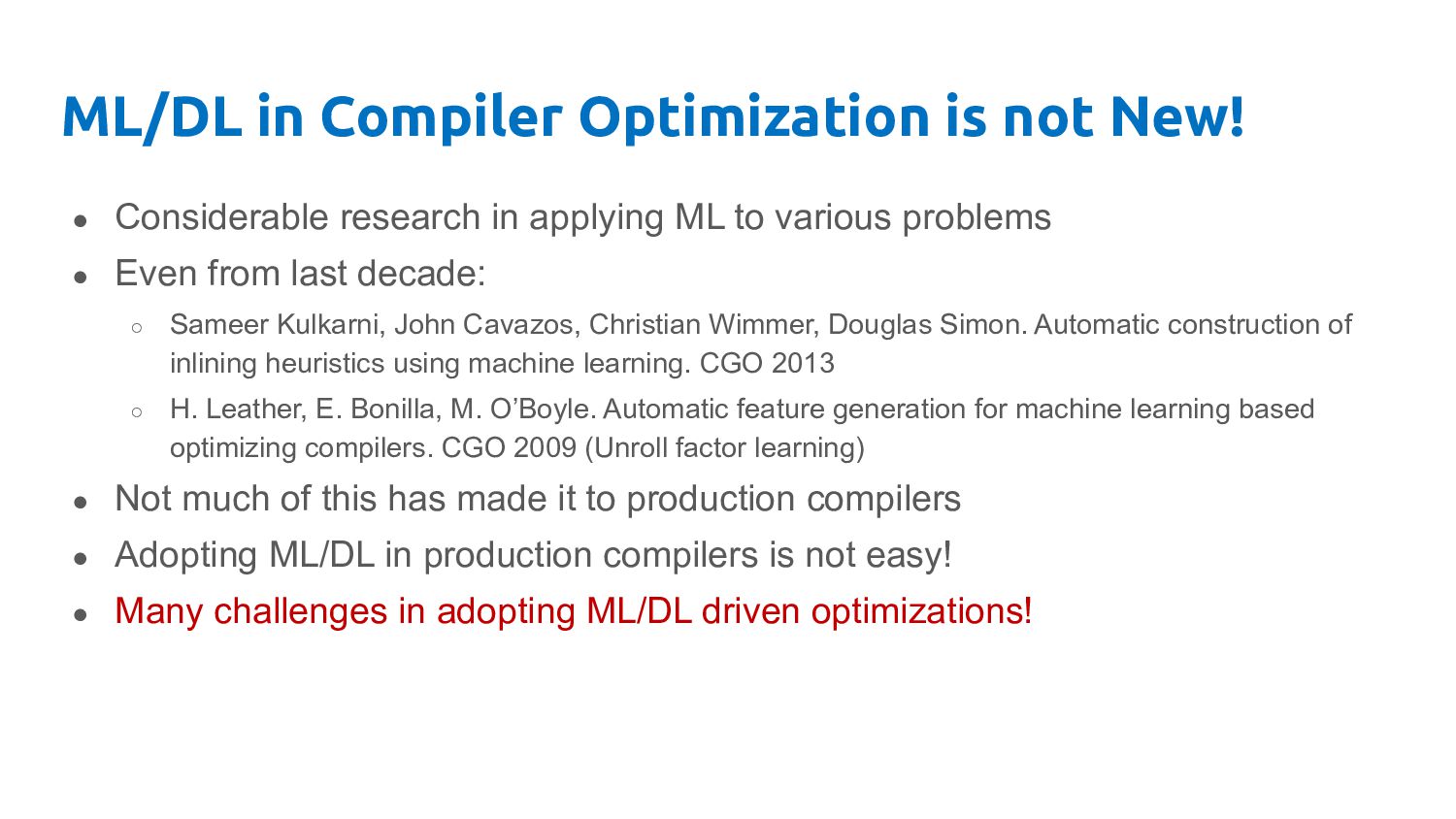

65. ML/DL in Compiler Optimization is not New! • Considerable research in applying ML to various problems • Even from last decade: ◦ Sameer Kulkarni, John Cavazos, Christian Wimmer, Douglas Simon. Automatic construction of inlining heuristics using machine learning. CGO 2013 ◦ H. Leather, E. Bonilla, M. O’Boyle. Automatic feature generation for machine learning based optimizing compilers. CGO 2009 (Unroll factor learning) • Not much of this has made it to production compilers • Adopting ML/DL in production compilers is not easy! • Many challenges in adopting ML/DL driven optimizations!
66. ML/DL in Production Compilers - Challenges • “One of the challenges is that the existing compilers, LLVM included, were never designed for machine learning integration. • And so there’s a lot of work that could be done to integrate machine learning techniques … into our compiler frameworks. • But because the abstractions were wrong, it’s really hard to do that outside of a one-off research paper…”
67. With great challenges, comes opportunities for research ☺
68. Learning Compiler Heuristics

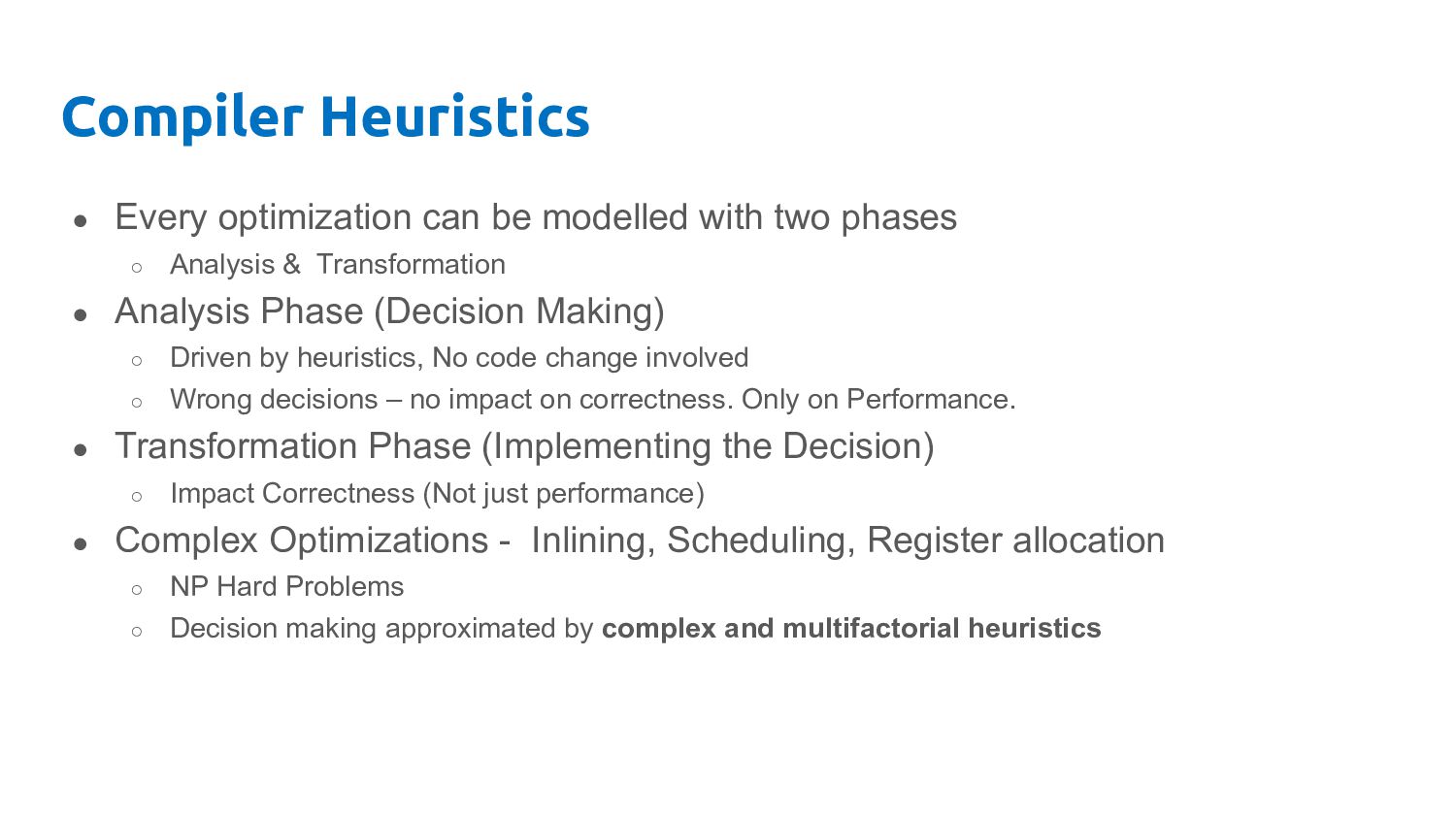

69. Compiler Heuristics • Every optimization can be modelled with two phases ◦ Analysis & Transformation • Analysis Phase (Decision Making) ◦ Driven by heuristics, No code change involved ◦ Wrong decisions – no impact on correctness. Only on Performance. • Transformation Phase (Implementing the Decision) ◦ Impact Correctness (Not just performance) • Complex Optimizations - Inlining, Scheduling, Register allocation ◦ NP Hard Problems ◦ Decision making approximated by complex and multifactorial heuristics

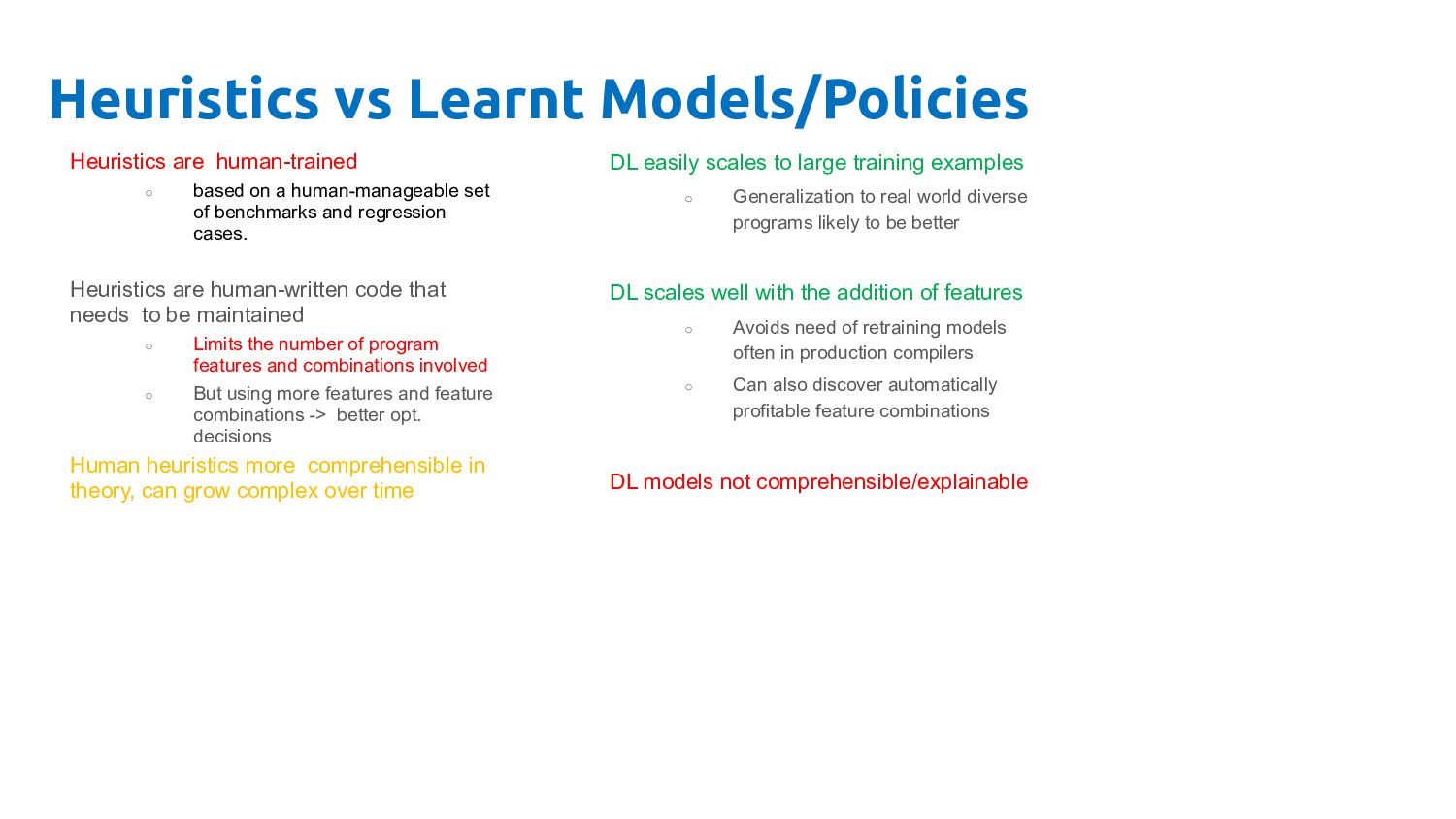

70. Heuristics vs Learnt Models/Policies Heuristics are human-trained ◦ based on a human-manageable set of benchmarks and regression cases. Heuristics are human-written code that needs to be maintained ◦ Limits the number of program features and combinations involved ◦ But using more features and feature combinations -> better opt. decisions Human heuristics more comprehensible in theory, can grow complex over time DL easily scales to large training examples ◦ Generalization to real world diverse programs likely to be better DL scales well with the addition of features ◦ Avoids need of retraining models often in production compilers ◦ Can also discover automatically profitable feature combinations DL models not comprehensible/explainable

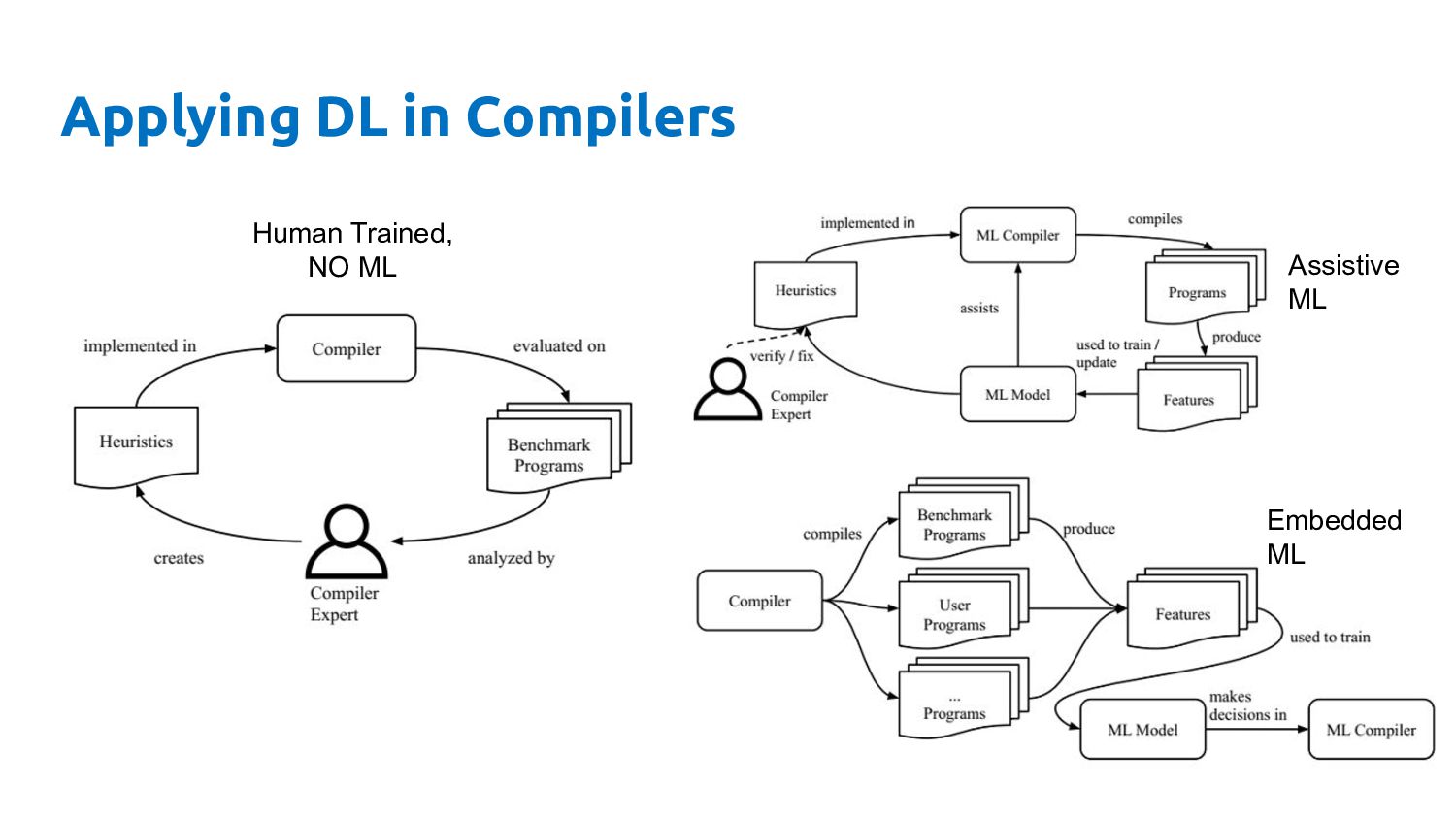

71. Applying DL in Compilers Human Trained, NO ML Assistive ML Embedded ML

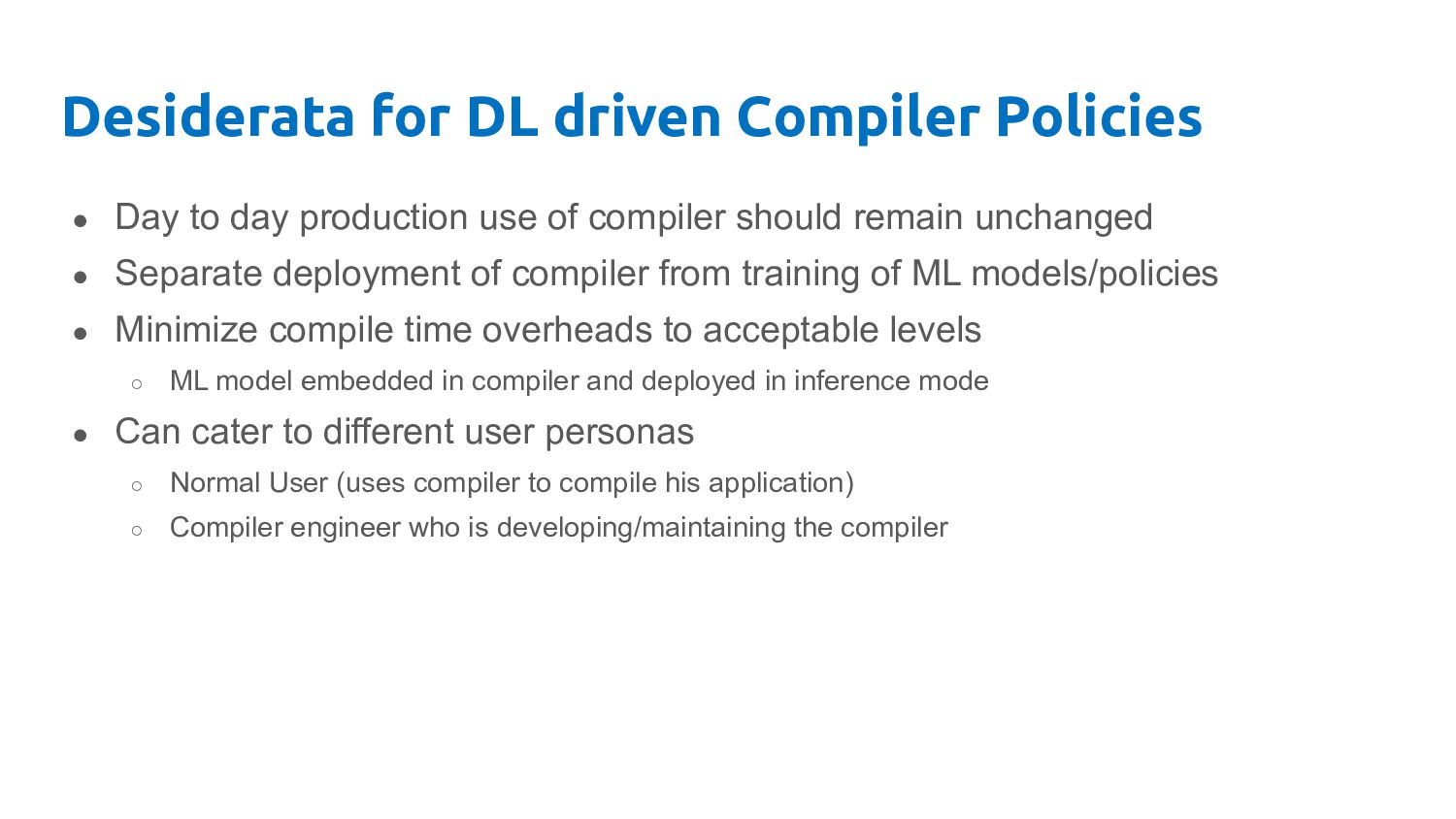

72. Desiderata for DL driven Compiler Policies • Day to day production use of compiler should remain unchanged • Separate deployment of compiler from training of ML models/policies • Minimize compile time overheads to acceptable levels ◦ ML model embedded in compiler and deployed in inference mode • Can cater to different user personas ◦ Normal User (uses compiler to compile his application) ◦ Compiler engineer who is developing/maintaining the compiler

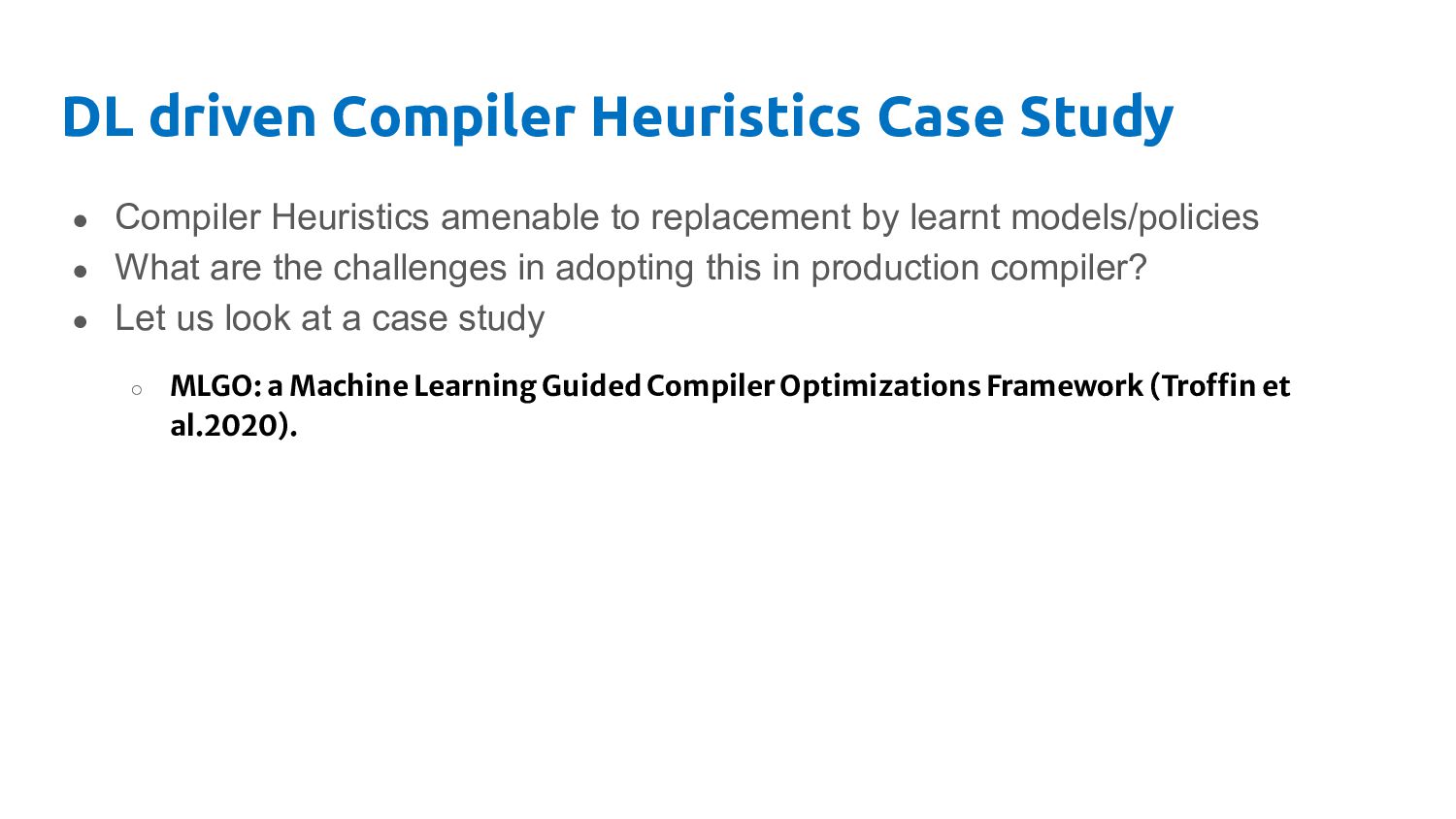

73. DL driven Compiler Heuristics Case Study • Compiler Heuristics amenable to replacement by learnt models/policies • What are the challenges in adopting this in production compiler? • Let us look at a case study ◦ MLGO: a Machine Learning Guided Compiler Optimizations Framework (Troffin et al.2020).

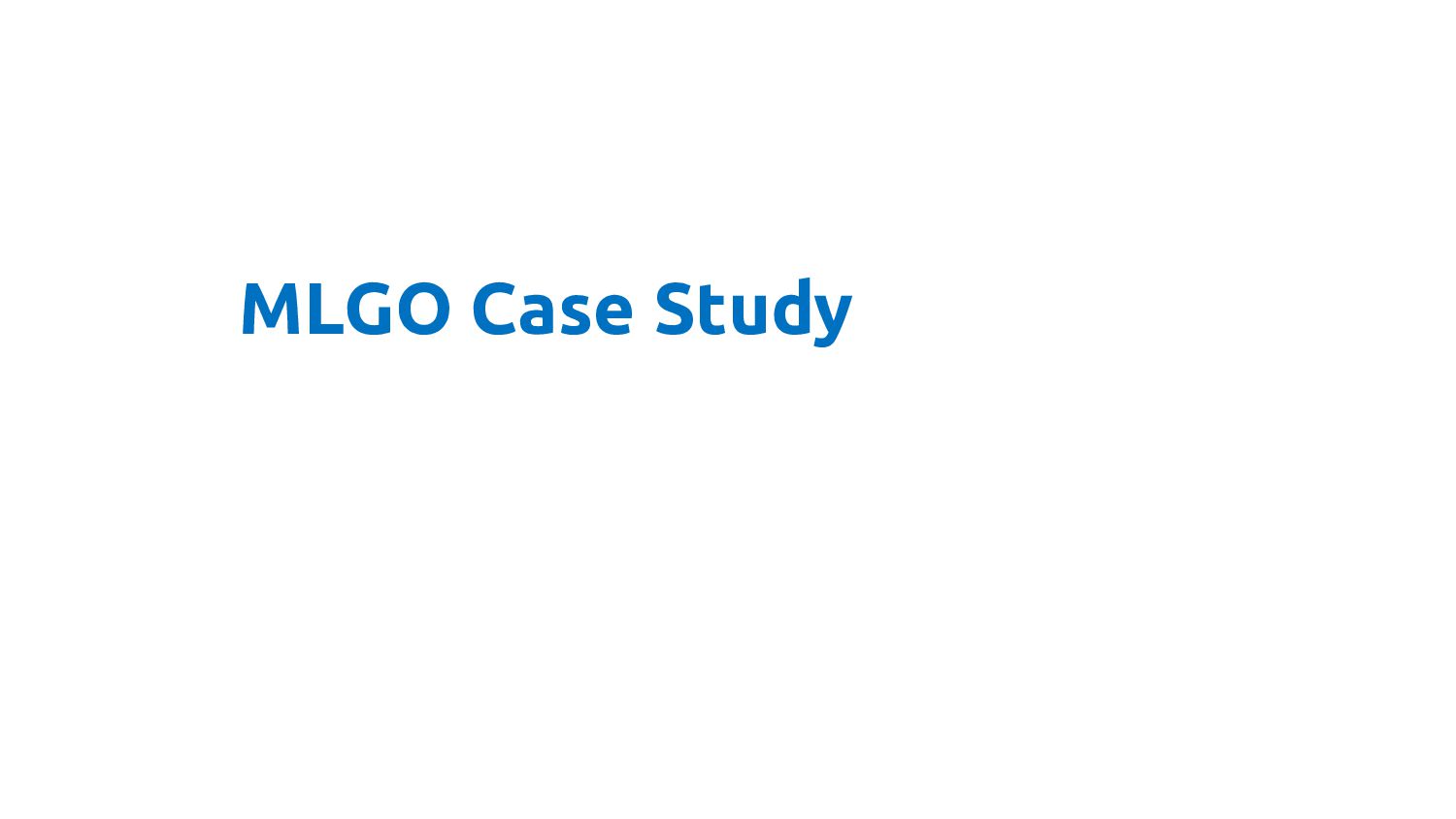

74. MLGO Case Study

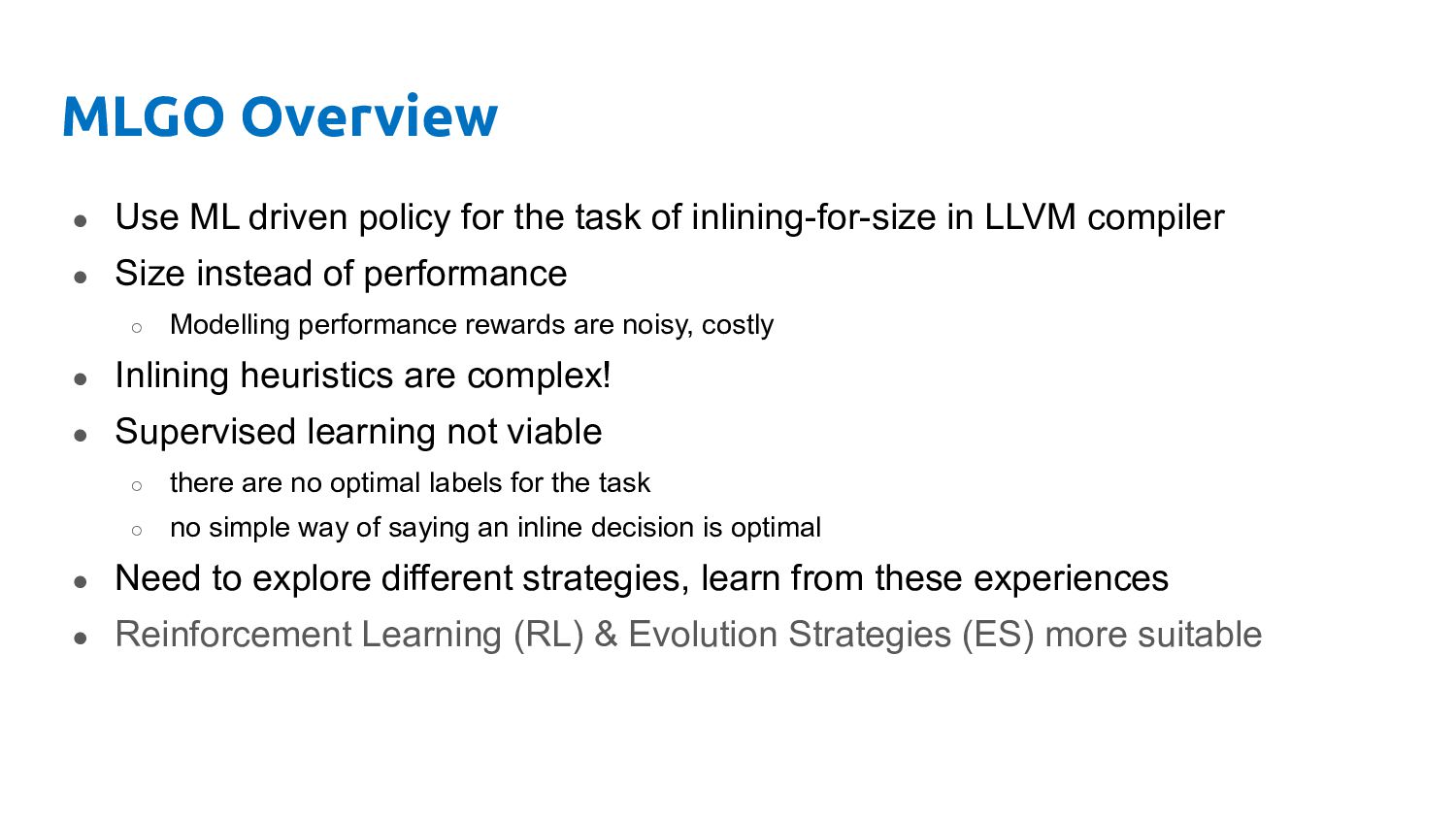

75. MLGO Overview • Use ML driven policy for the task of inlining-for-size in LLVM compiler • Size instead of performance ◦ Modelling performance rewards are noisy, costly • Inlining heuristics are complex! • Supervised learning not viable ◦ there are no optimal labels for the task ◦ no simple way of saying an inline decision is optimal • Need to explore different strategies, learn from these experiences • Reinforcement Learning (RL) & Evolution Strategies (ES) more suitable

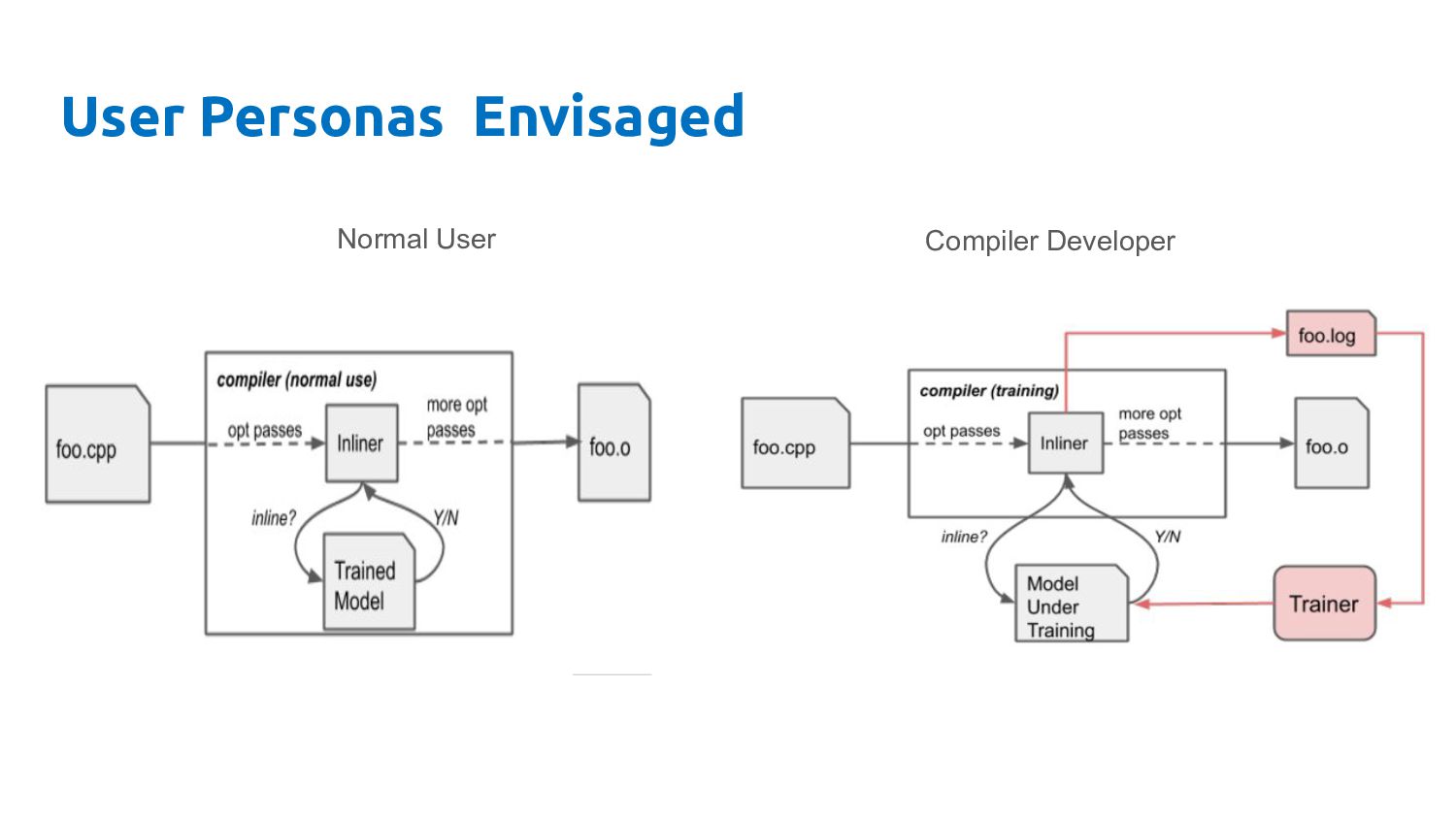

76. User Personas Envisaged Normal User Compiler Developer

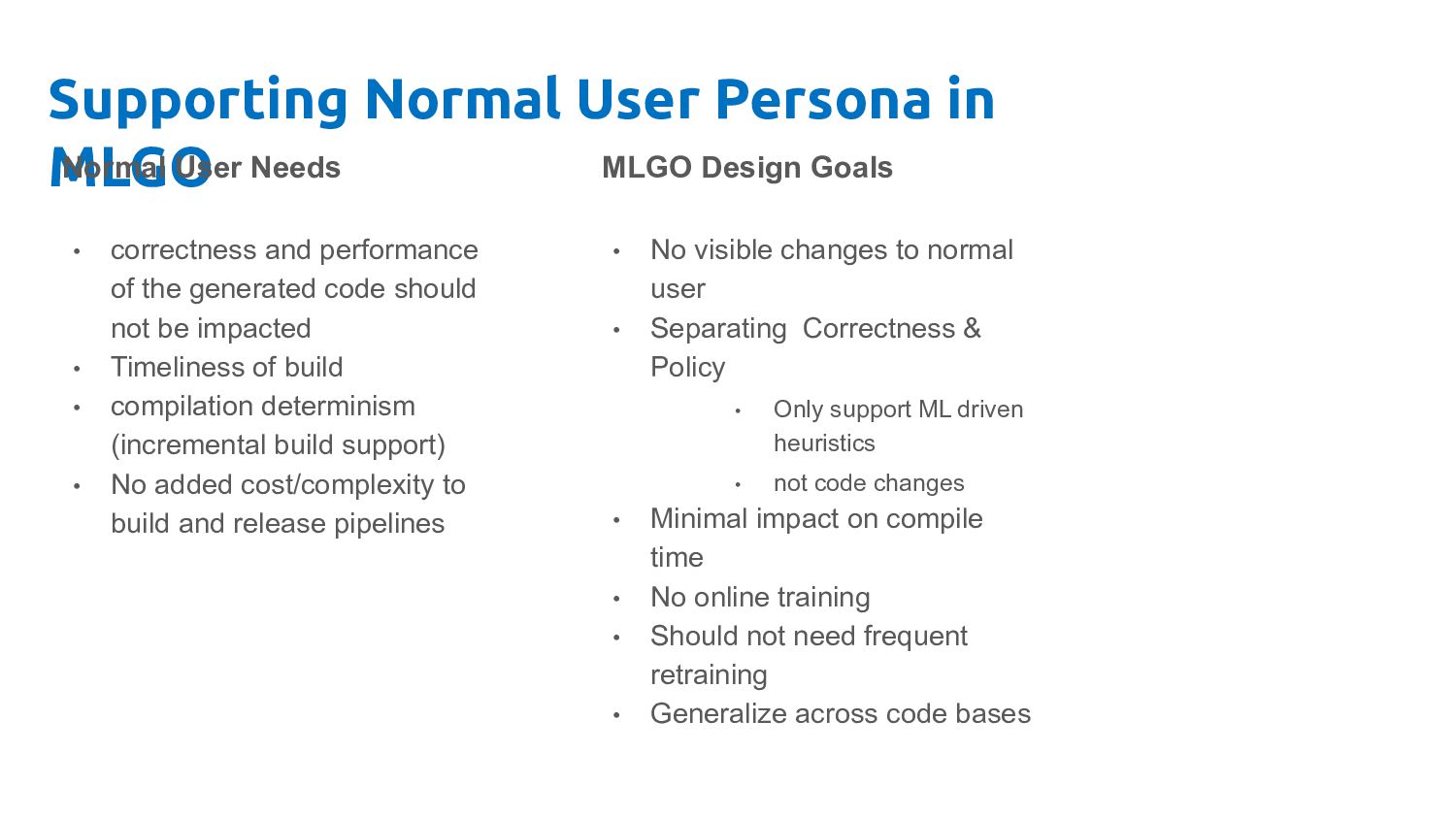

77. Supporting Normal User Persona in MLGO Normal User Needs • correctness and performance of the generated code should not be impacted • Timeliness of build • compilation determinism (incremental build support) • No added cost/complexity to build and release pipelines MLGO Design Goals • No visible changes to normal user • Separating Correctness & Policy • Only support ML driven heuristics • not code changes • Minimal impact on compile time • No online training • Should not need frequent retraining • Generalize across code bases

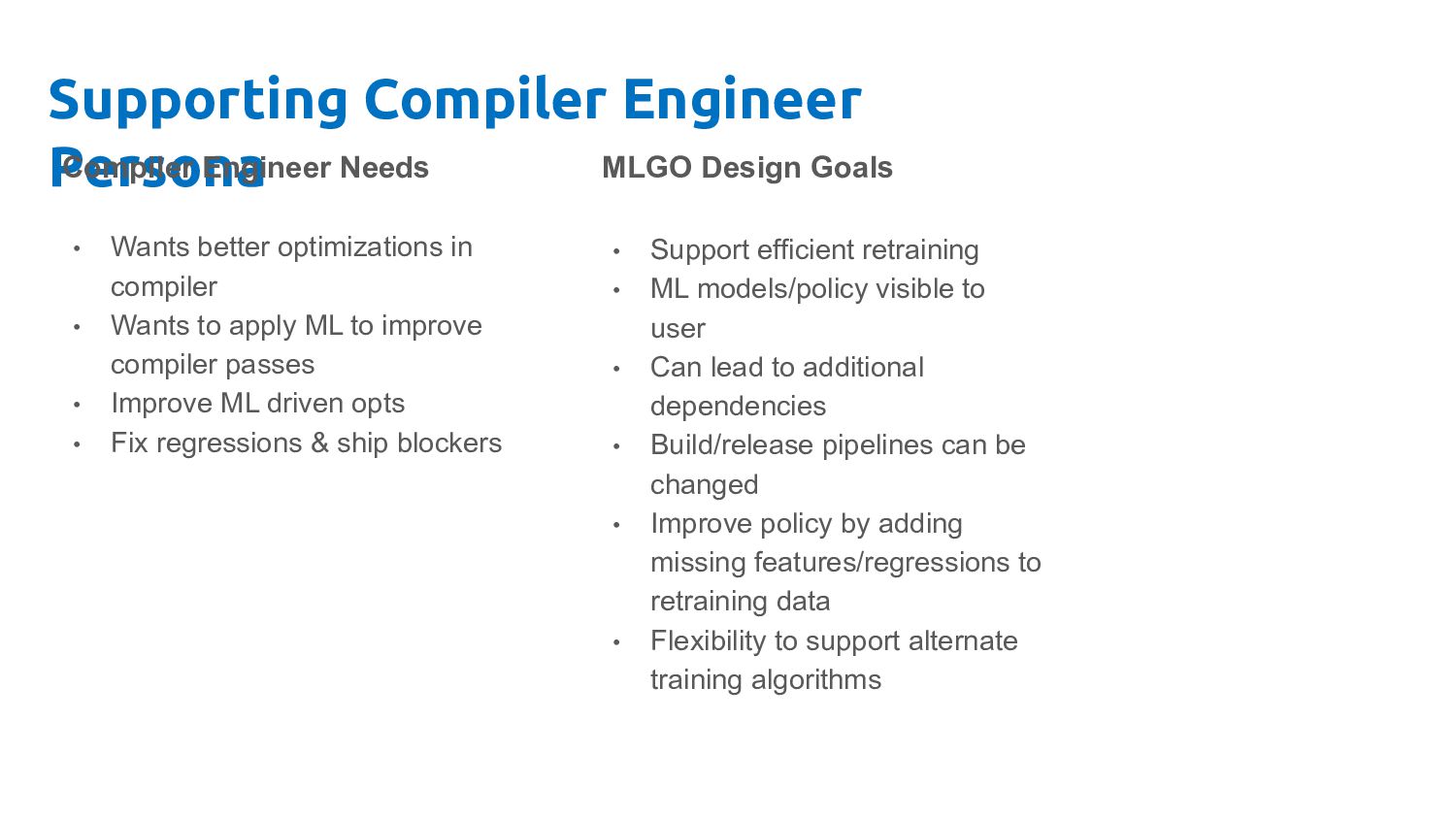

78. Supporting Compiler Engineer Persona Compiler Engineer Needs • Wants better optimizations in compiler • Wants to apply ML to improve compiler passes • Improve ML driven opts • Fix regressions & ship blockers MLGO Design Goals • Support efficient retraining • ML models/policy visible to user • Can lead to additional dependencies • Build/release pipelines can be changed • Improve policy by adding missing features/regressions to retraining data • Flexibility to support alternate training algorithms

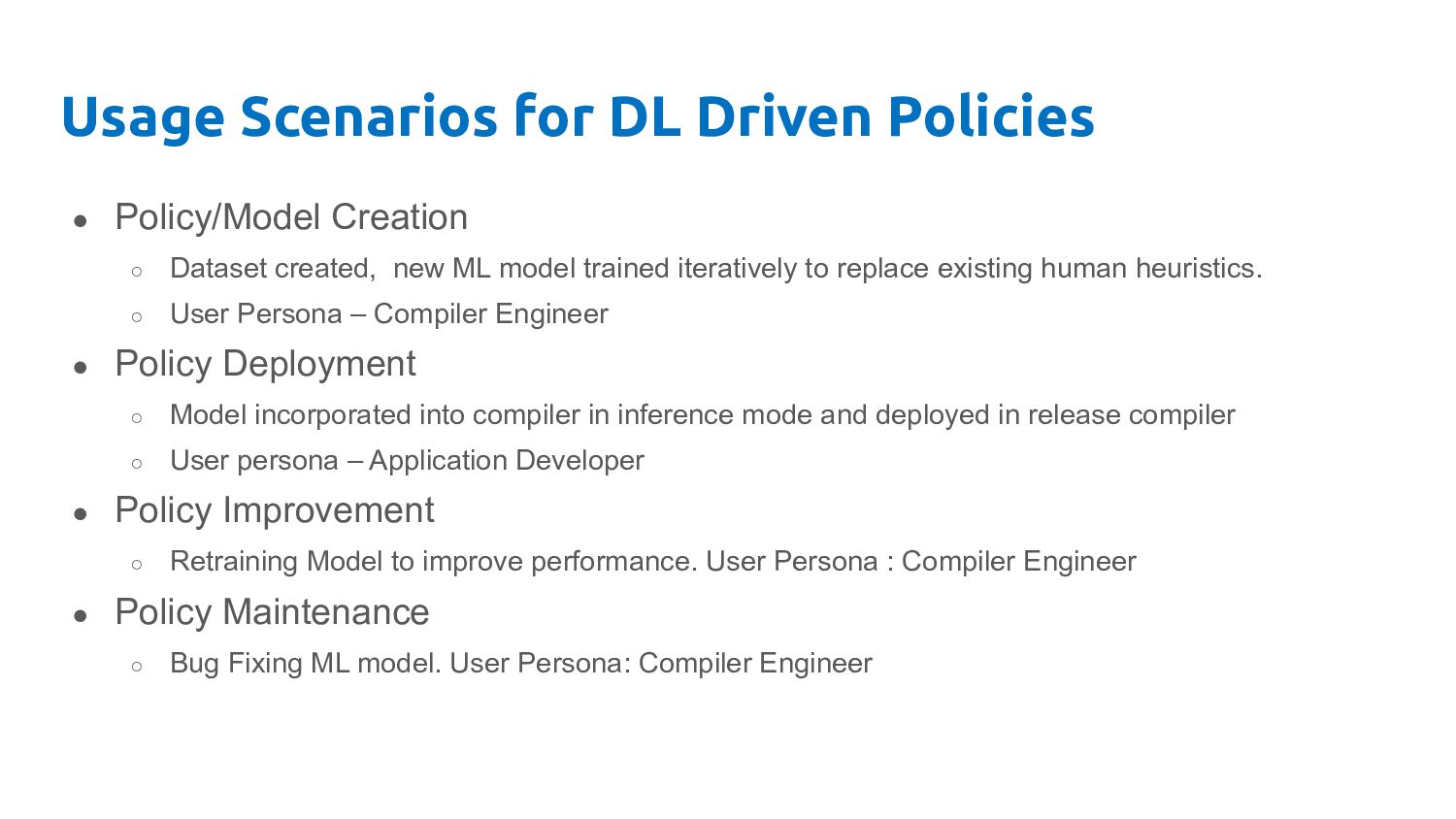

79. Usage Scenarios for DL Driven Policies • Policy/Model Creation ◦ Dataset created, new ML model trained iteratively to replace existing human heuristics. ◦ User Persona – Compiler Engineer • Policy Deployment ◦ Model incorporated into compiler in inference mode and deployed in release compiler ◦ User persona – Application Developer • Policy Improvement ◦ Retraining Model to improve performance. User Persona : Compiler Engineer • Policy Maintenance ◦ Bug Fixing ML model. User Persona: Compiler Engineer

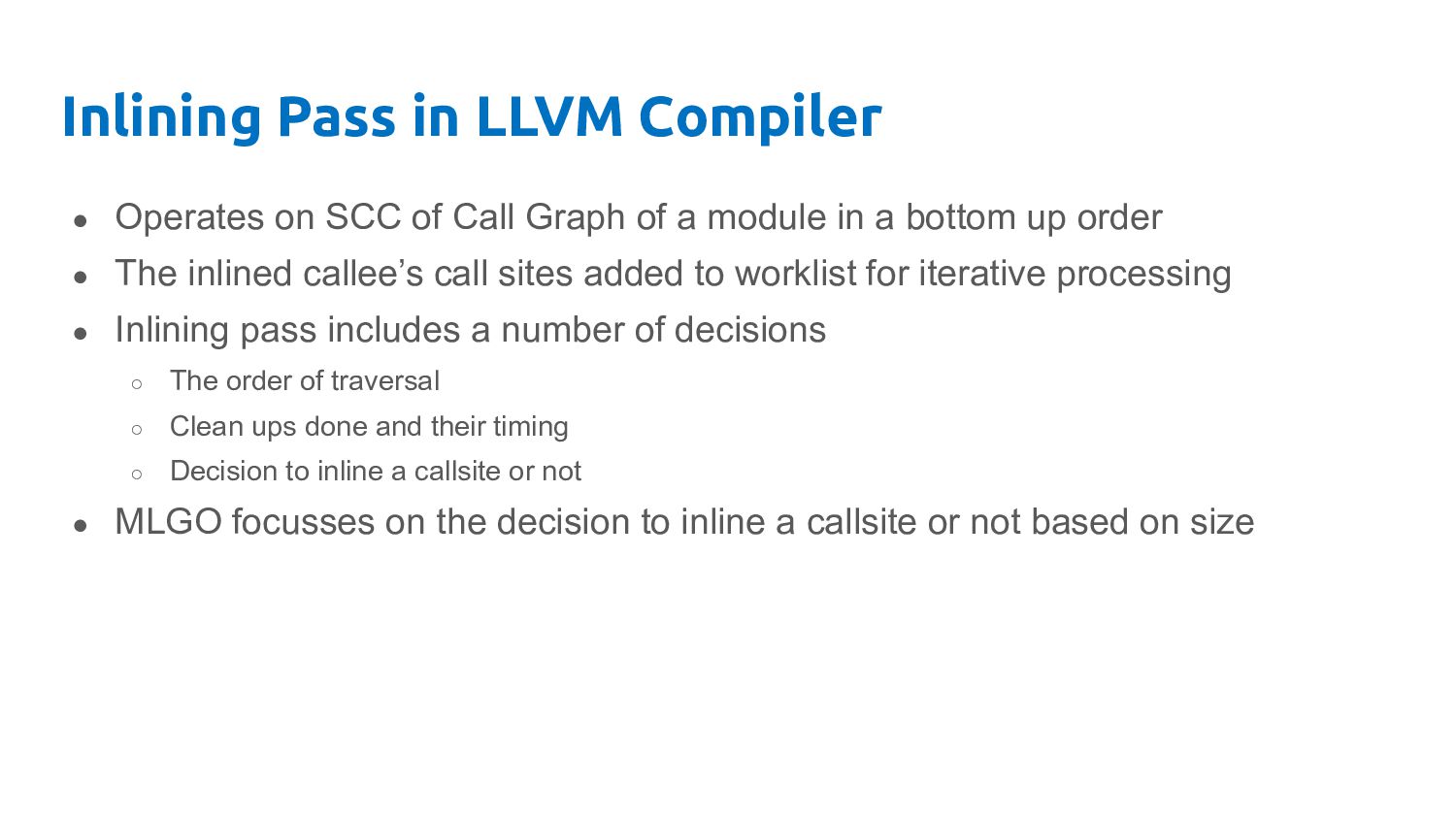

80. Inlining Pass in LLVM Compiler • Operates on SCC of Call Graph of a module in a bottom up order • The inlined callee’s call sites added to worklist for iterative processing • Inlining pass includes a number of decisions ◦ The order of traversal ◦ Clean ups done and their timing ◦ Decision to inline a callsite or not • MLGO focusses on the decision to inline a callsite or not based on size

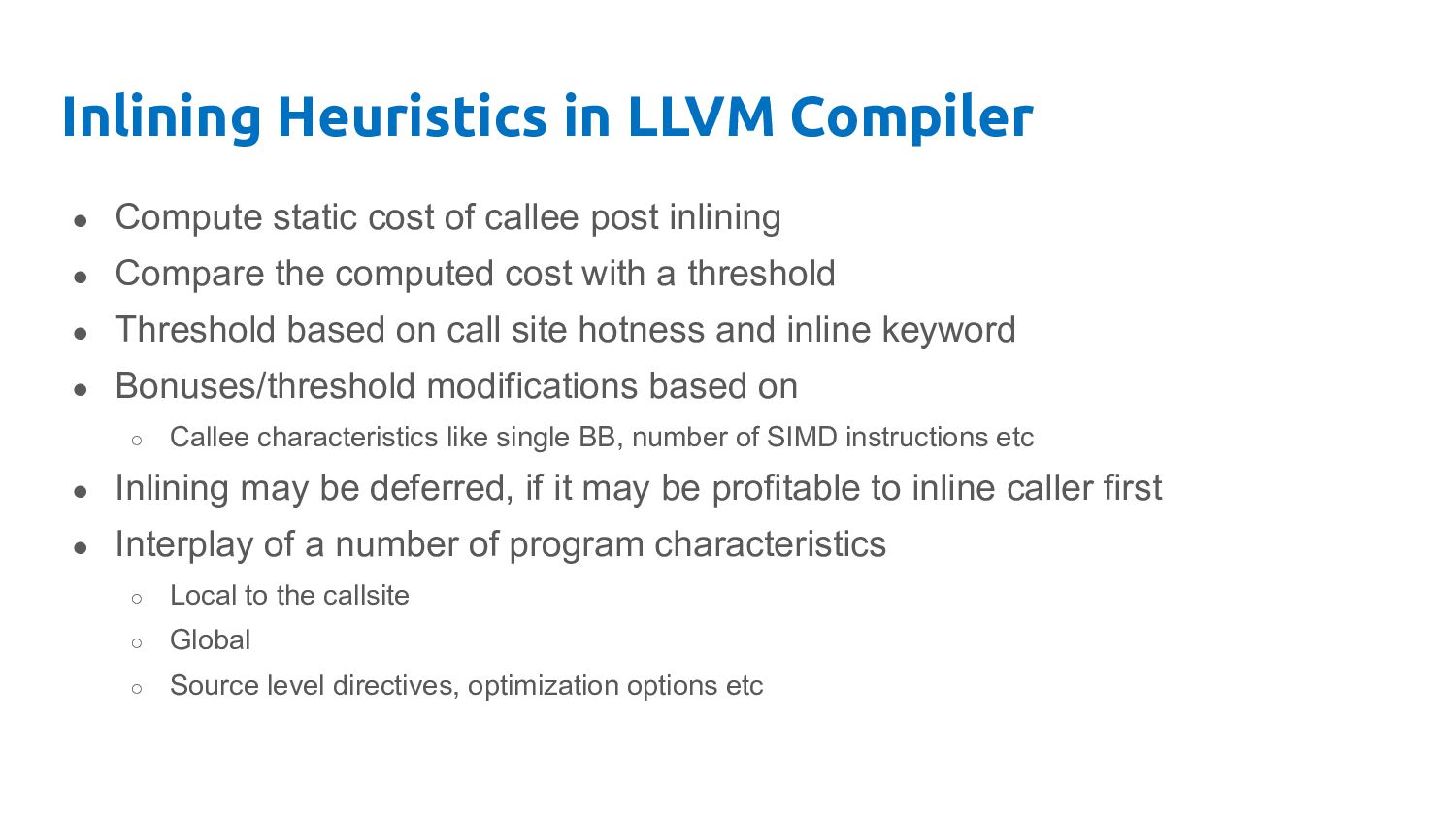

81. Inlining Heuristics in LLVM Compiler • Compute static cost of callee post inlining • Compare the computed cost with a threshold • Threshold based on call site hotness and inline keyword • Bonuses/threshold modifications based on ◦ Callee characteristics like single BB, number of SIMD instructions etc • Inlining may be deferred, if it may be profitable to inline caller first • Interplay of a number of program characteristics ◦ Local to the callsite ◦ Global ◦ Source level directives, optimization options etc

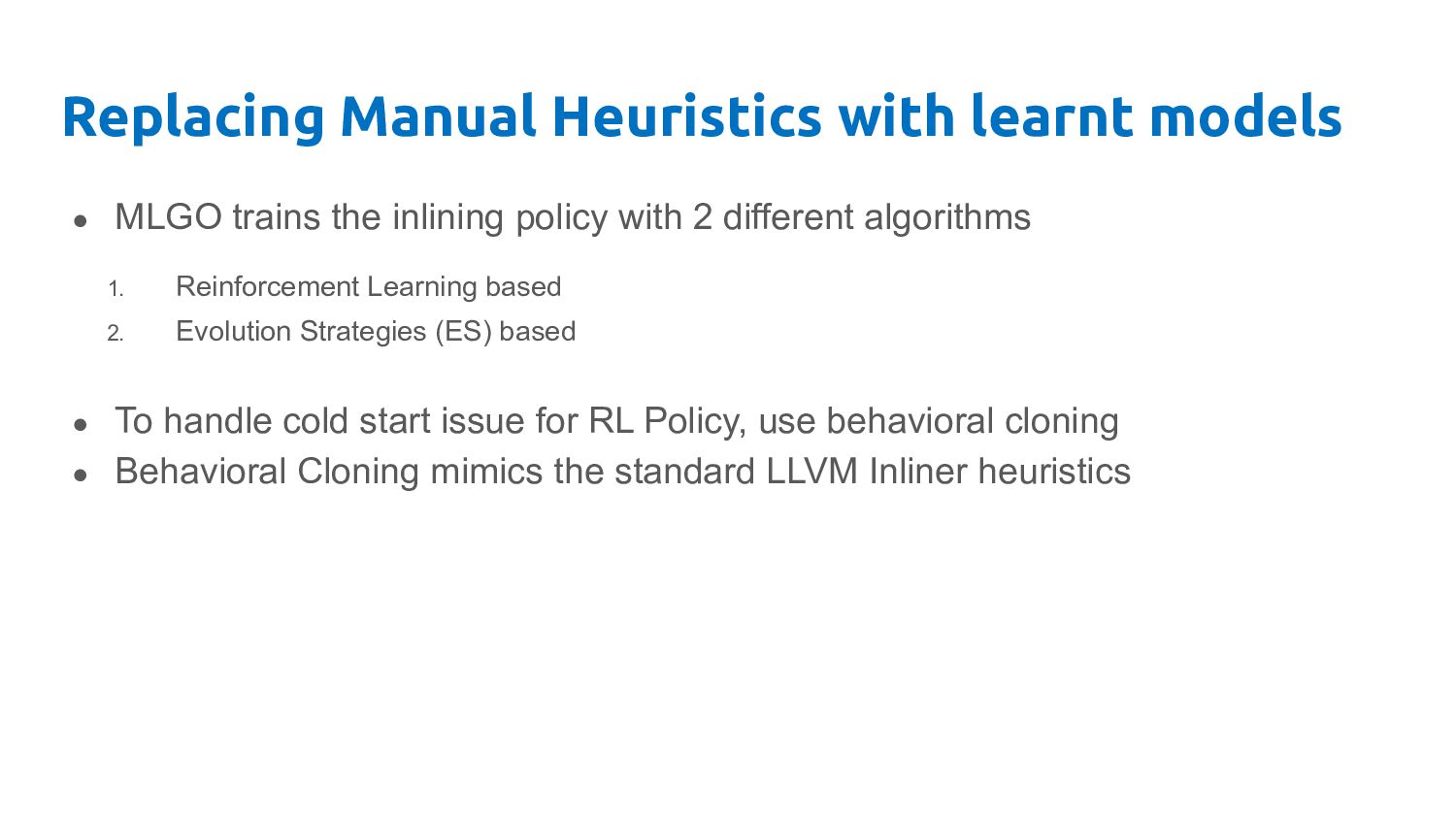

82. Replacing Manual Heuristics with learnt models • MLGO trains the inlining policy with 2 different algorithms 1. Reinforcement Learning based 2. Evolution Strategies (ES) based • To handle cold start issue for RL Policy, use behavioral cloning • Behavioral Cloning mimics the standard LLVM Inliner heuristics

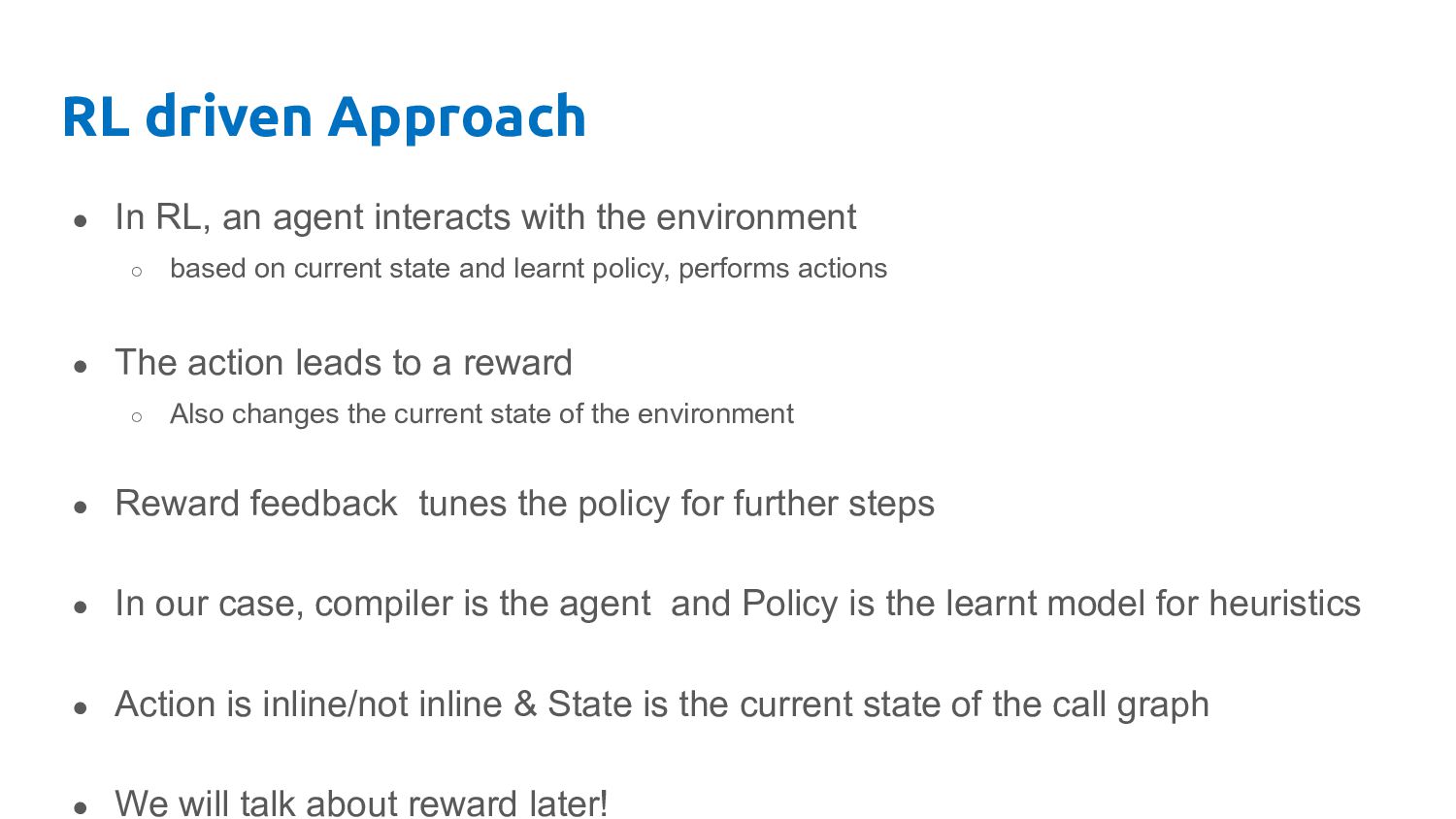

83. RL driven Approach • In RL, an agent interacts with the environment ◦ based on current state and learnt policy, performs actions • The action leads to a reward ◦ Also changes the current state of the environment • Reward feedback tunes the policy for further steps • In our case, compiler is the agent and Policy is the learnt model for heuristics • Action is inline/not inline & State is the current state of the call graph • We will talk about reward later!

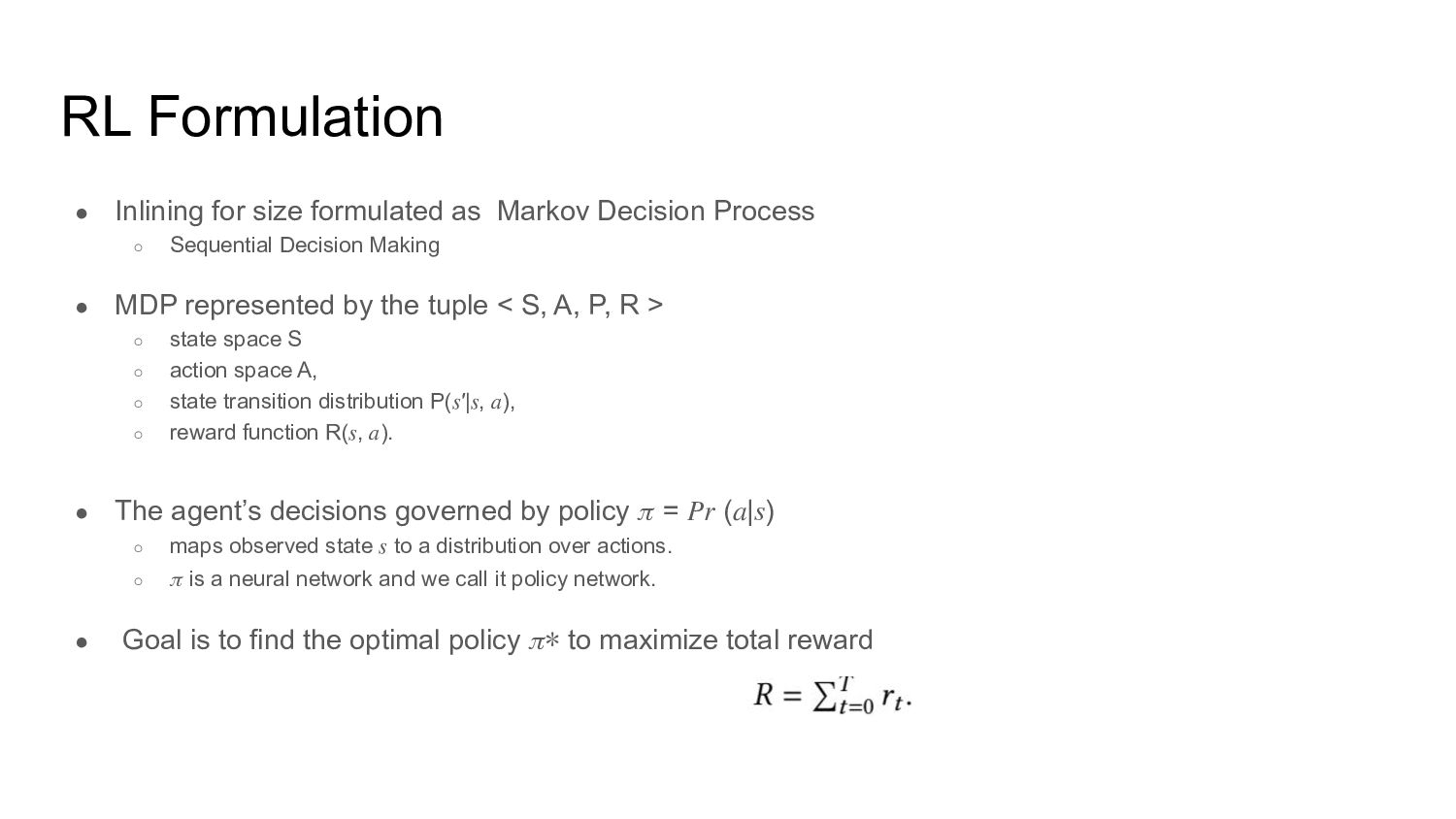

84. RL Formulation • Inlining for size formulated as Markov Decision Process ◦ Sequential Decision Making • MDP represented by the tuple < S, A, P, R > ◦ state space S ◦ action space A, ◦ state transition distribution P(𝑠′|𝑠, 𝑎), ◦ reward function R(𝑠, 𝑎). • The agent’s decisions governed by policy 𝜋 = 𝑃𝑟 (𝑎|𝑠) ◦ maps observed state 𝑠 to a distribution over actions. ◦ 𝜋 is a neural network and we call it policy network. • Goal is to find the optimal policy 𝜋∗ to maximize total reward

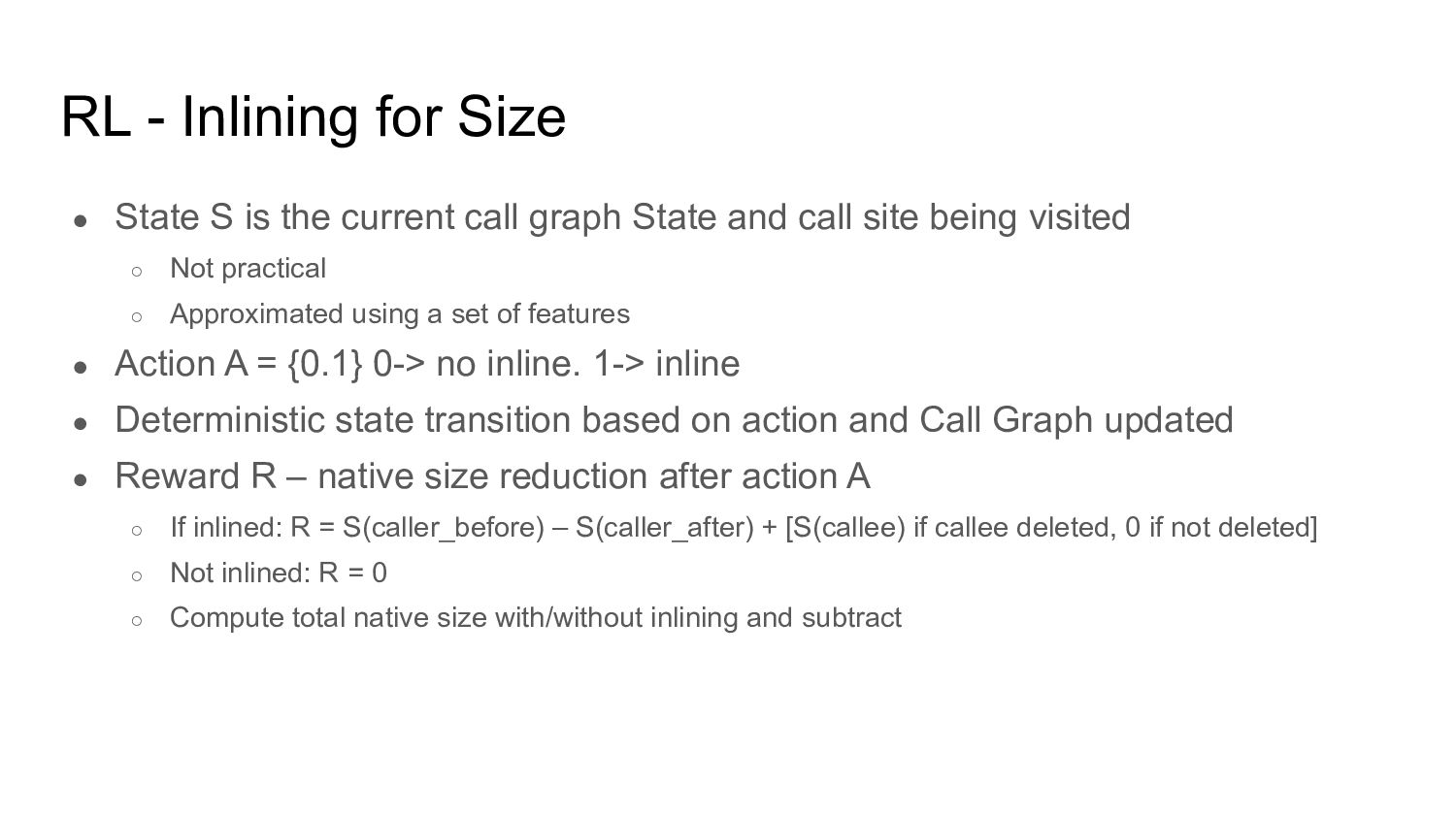

85. RL - Inlining for Size • State S is the current call graph State and call site being visited ◦ Not practical ◦ Approximated using a set of features • Action A = {0.1} 0-> no inline. 1-> inline • Deterministic state transition based on action and Call Graph updated • Reward R – native size reduction after action A ◦ If inlined: R = S(caller_before) – S(caller_after) + [S(callee) if callee deleted, 0 if not deleted] ◦ Not inlined: R = 0 ◦ Compute total native size with/without inlining and subtract
86. Representing RL State Space • RL State representation is Call Graph and call site • Encoding CG state at each point is computationally expensive • MLGO approximates the state space ◦ by handful of numerical features ◦ Local call site related features and global CG features

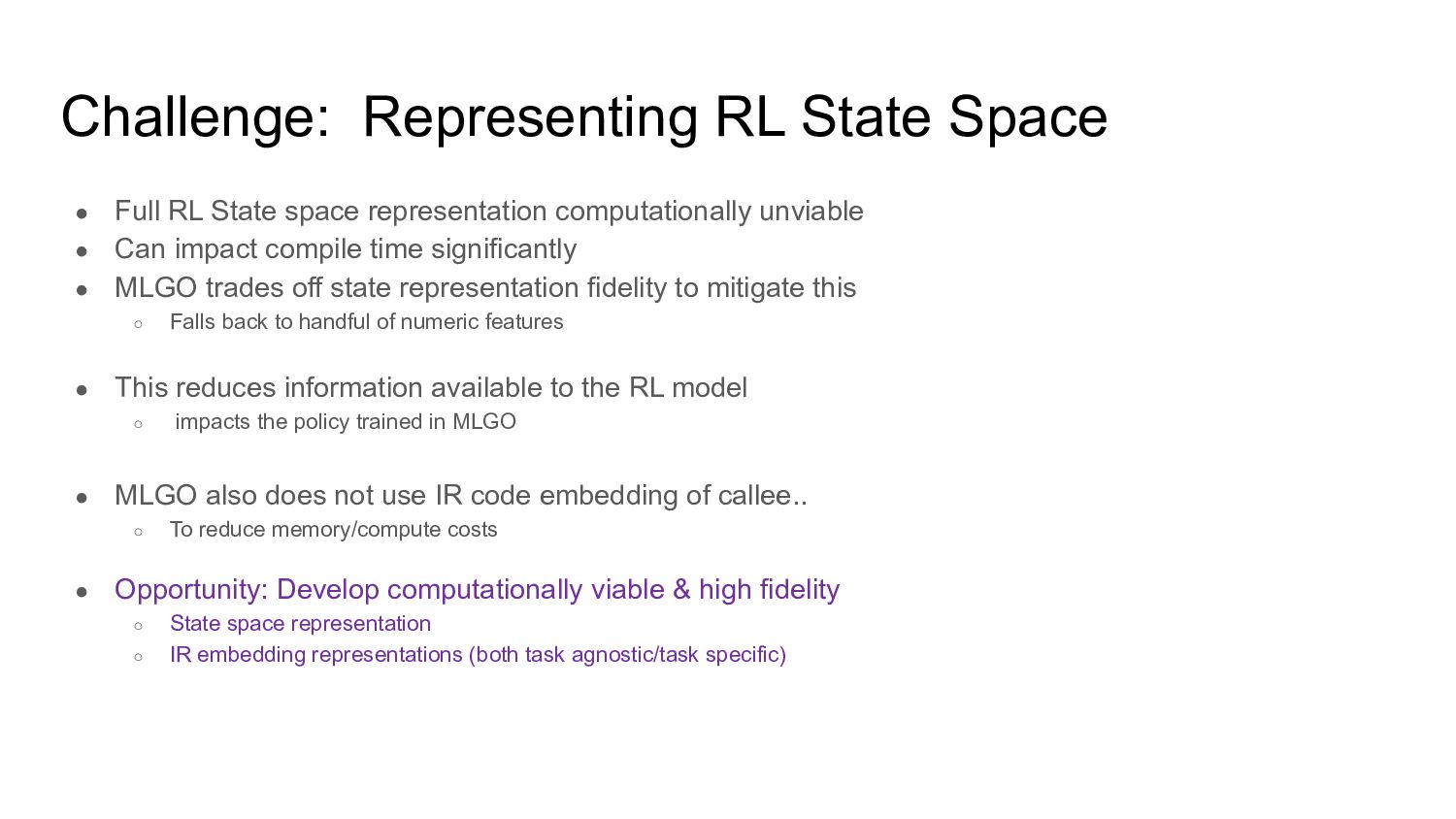

87. Challenge: Representing RL State Space • Full RL State space representation computationally unviable • Can impact compile time significantly • MLGO trades off state representation fidelity to mitigate this ◦ Falls back to handful of numeric features • This reduces information available to the RL model ◦ impacts the policy trained in MLGO • MLGO also does not use IR code embedding of callee.. ◦ To reduce memory/compute costs • Opportunity: Develop computationally viable & high fidelity ◦ State space representation ◦ IR embedding representations (both task agnostic/task specific)

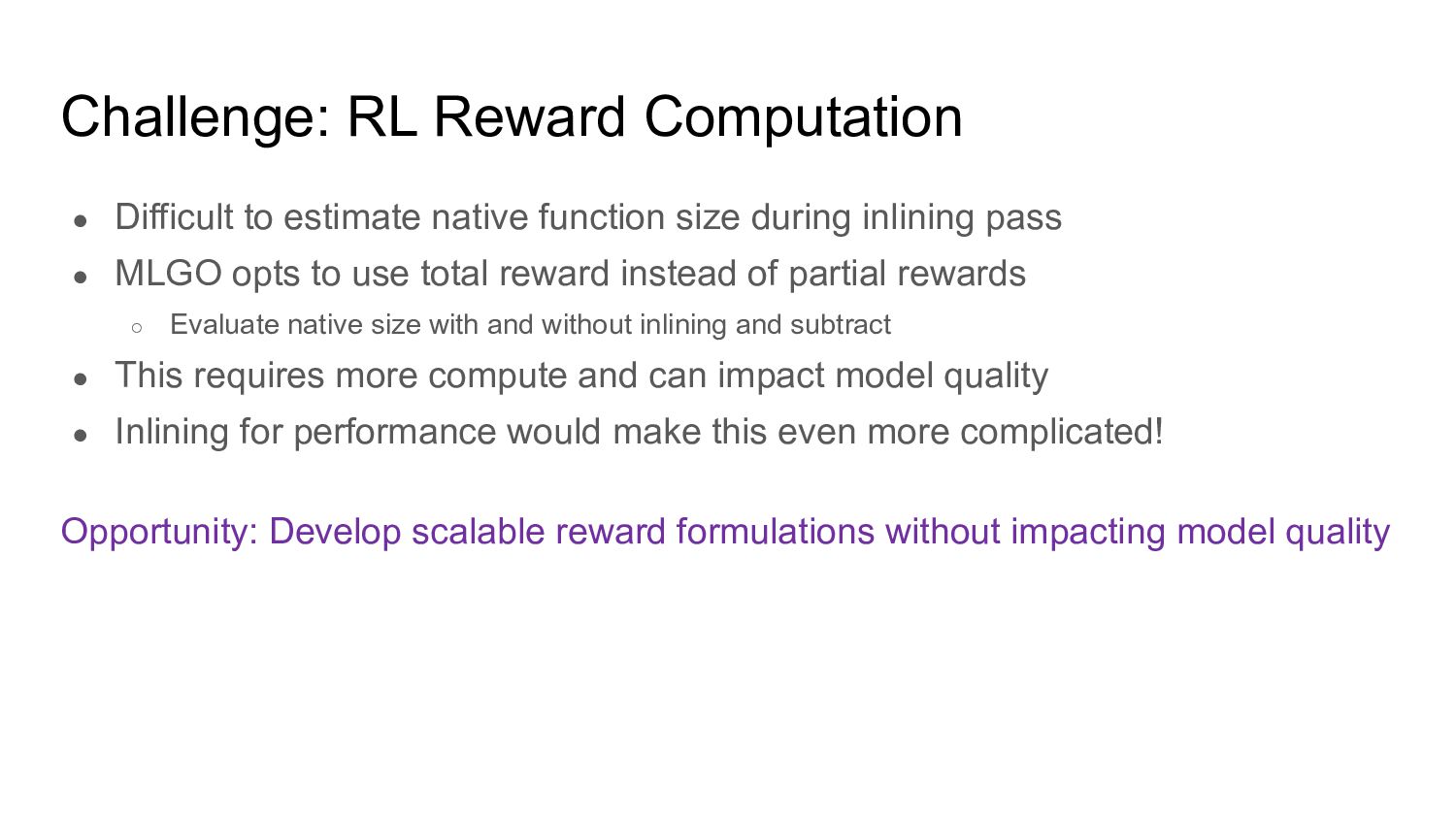

88. Challenge: RL Reward Computation • Difficult to estimate native function size during inlining pass • MLGO opts to use total reward instead of partial rewards ◦ Evaluate native size with and without inlining and subtract • This requires more compute and can impact model quality • Inlining for performance would make this even more complicated! Opportunity: Develop scalable reward formulations without impacting model quality

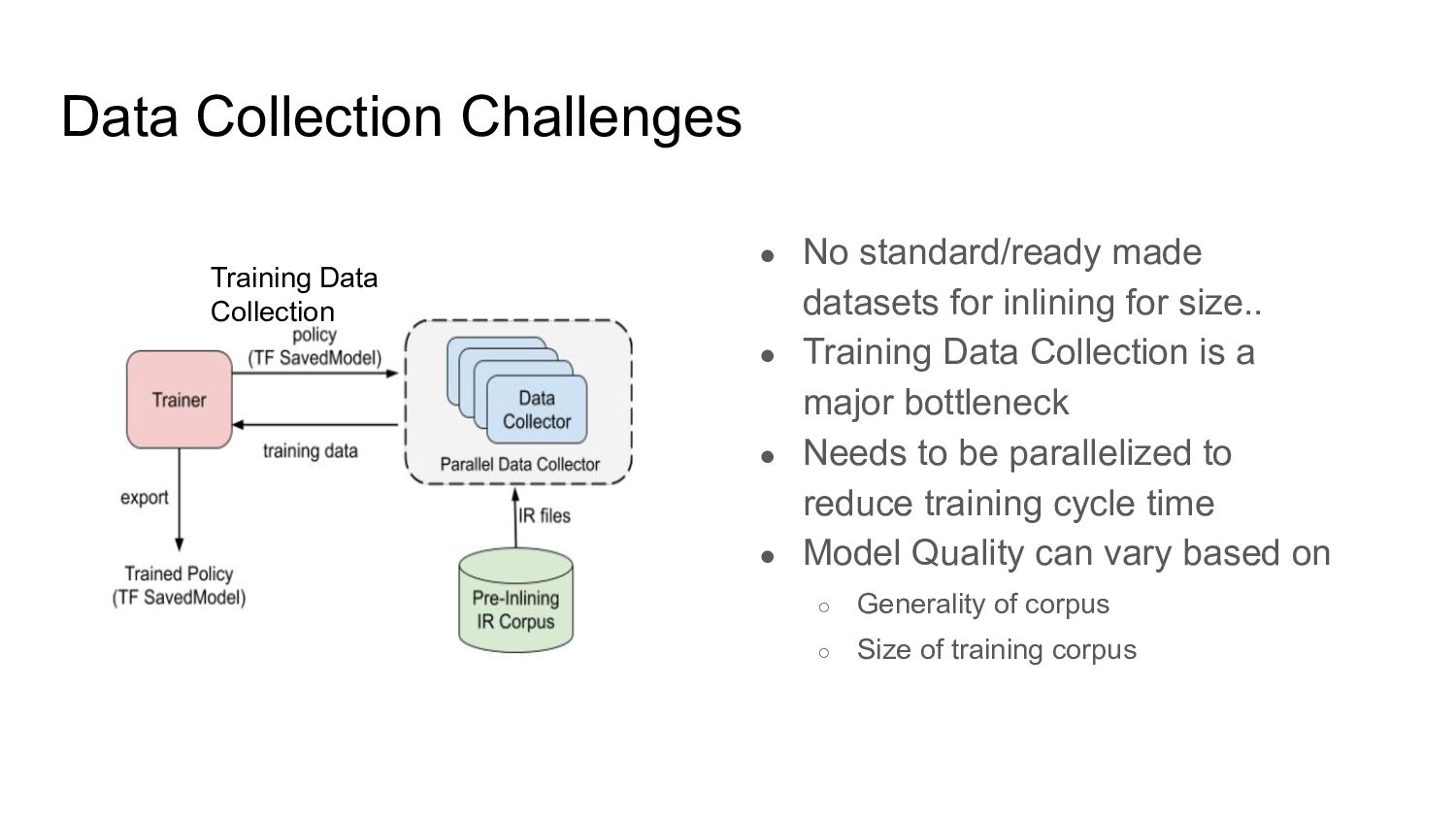

89. Data Collection Challenges • No standard/ready made datasets for inlining for size.. • Training Data Collection is a major bottleneck • Needs to be parallelized to reduce training cycle time • Model Quality can vary based on ◦ Generality of corpus ◦ Size of training corpus Training Data Collection

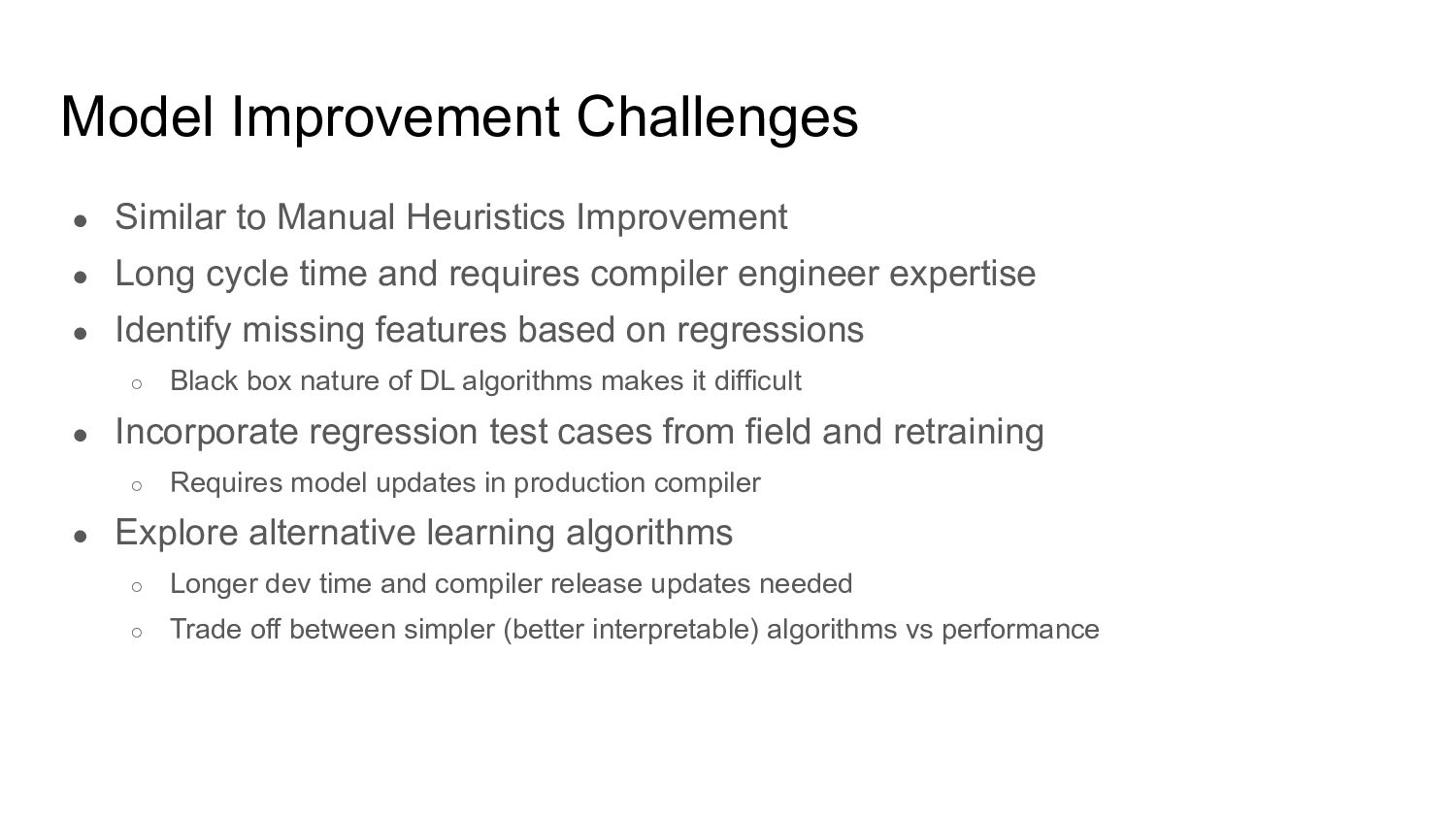

90. Model Improvement Challenges • Similar to Manual Heuristics Improvement • Long cycle time and requires compiler engineer expertise • Identify missing features based on regressions ◦ Black box nature of DL algorithms makes it difficult • Incorporate regression test cases from field and retraining ◦ Requires model updates in production compiler • Explore alternative learning algorithms ◦ Longer dev time and compiler release updates needed ◦ Trade off between simpler (better interpretable) algorithms vs performance

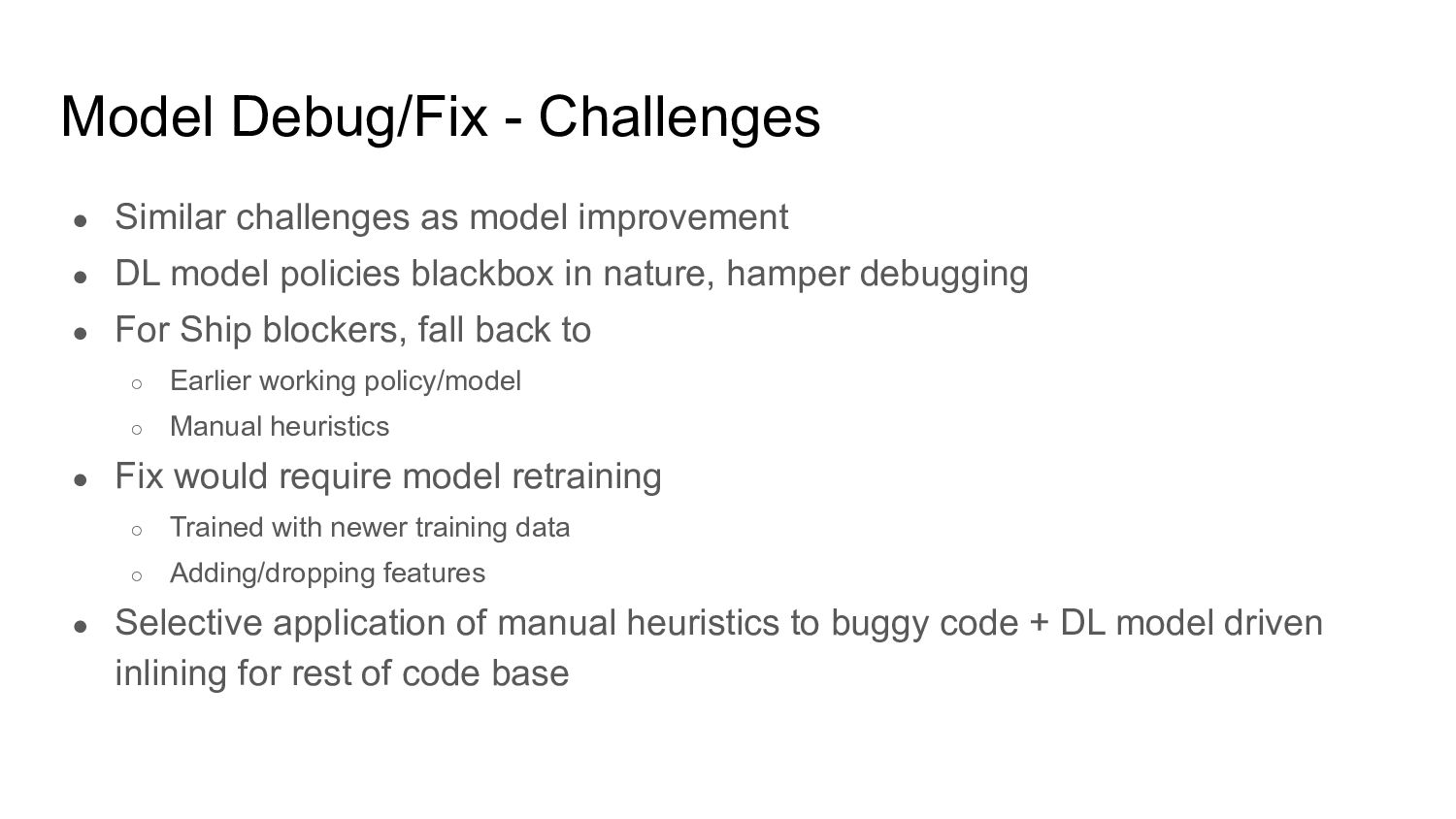

91. Model Debug/Fix - Challenges • Similar challenges as model improvement • DL model policies blackbox in nature, hamper debugging • For Ship blockers, fall back to ◦ Earlier working policy/model ◦ Manual heuristics • Fix would require model retraining ◦ Trained with newer training data ◦ Adding/dropping features • Selective application of manual heuristics to buggy code + DL model driven inlining for rest of code base

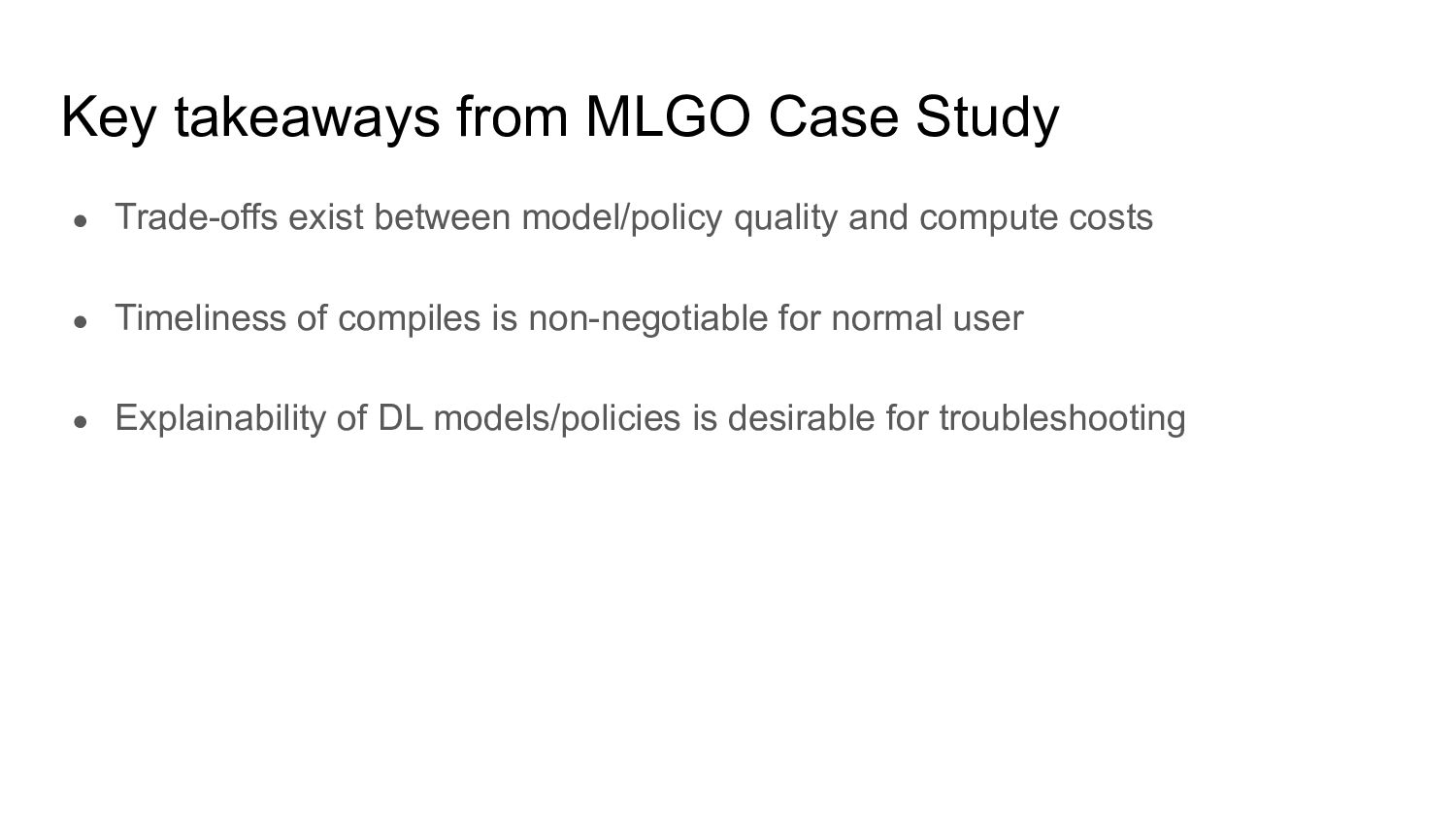

92. Key takeaways from MLGO Case Study • Trade-offs exist between model/policy quality and compute costs • Timeliness of compiles is non-negotiable for normal user • Explainability of DL models/policies is desirable for troubleshooting

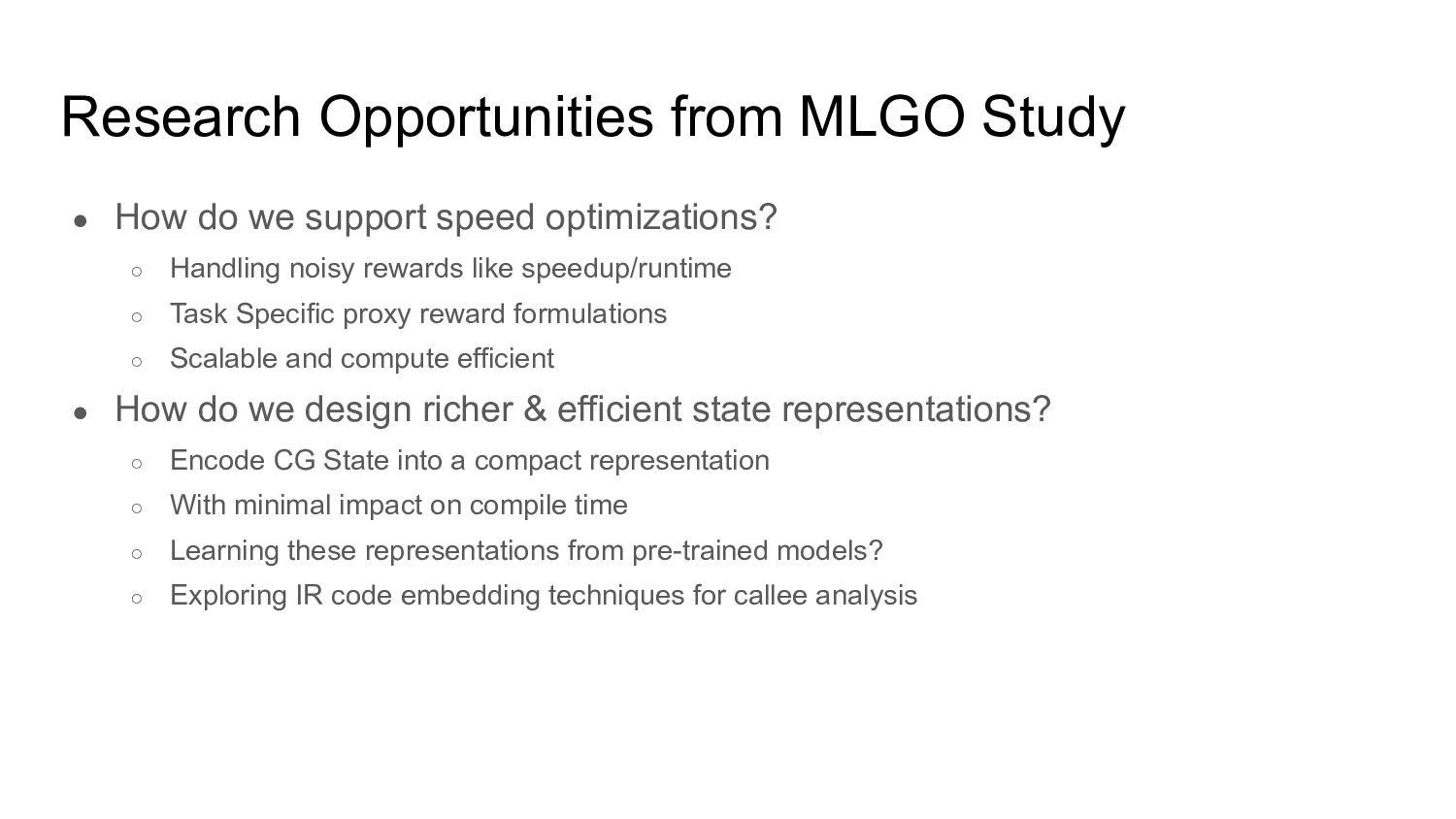

93. Research Opportunities from MLGO Study • How do we support speed optimizations? ◦ Handling noisy rewards like speedup/runtime ◦ Task Specific proxy reward formulations ◦ Scalable and compute efficient • How do we design richer & efficient state representations? ◦ Encode CG State into a compact representation ◦ With minimal impact on compile time ◦ Learning these representations from pre-trained models? ◦ Exploring IR code embedding techniques for callee analysis

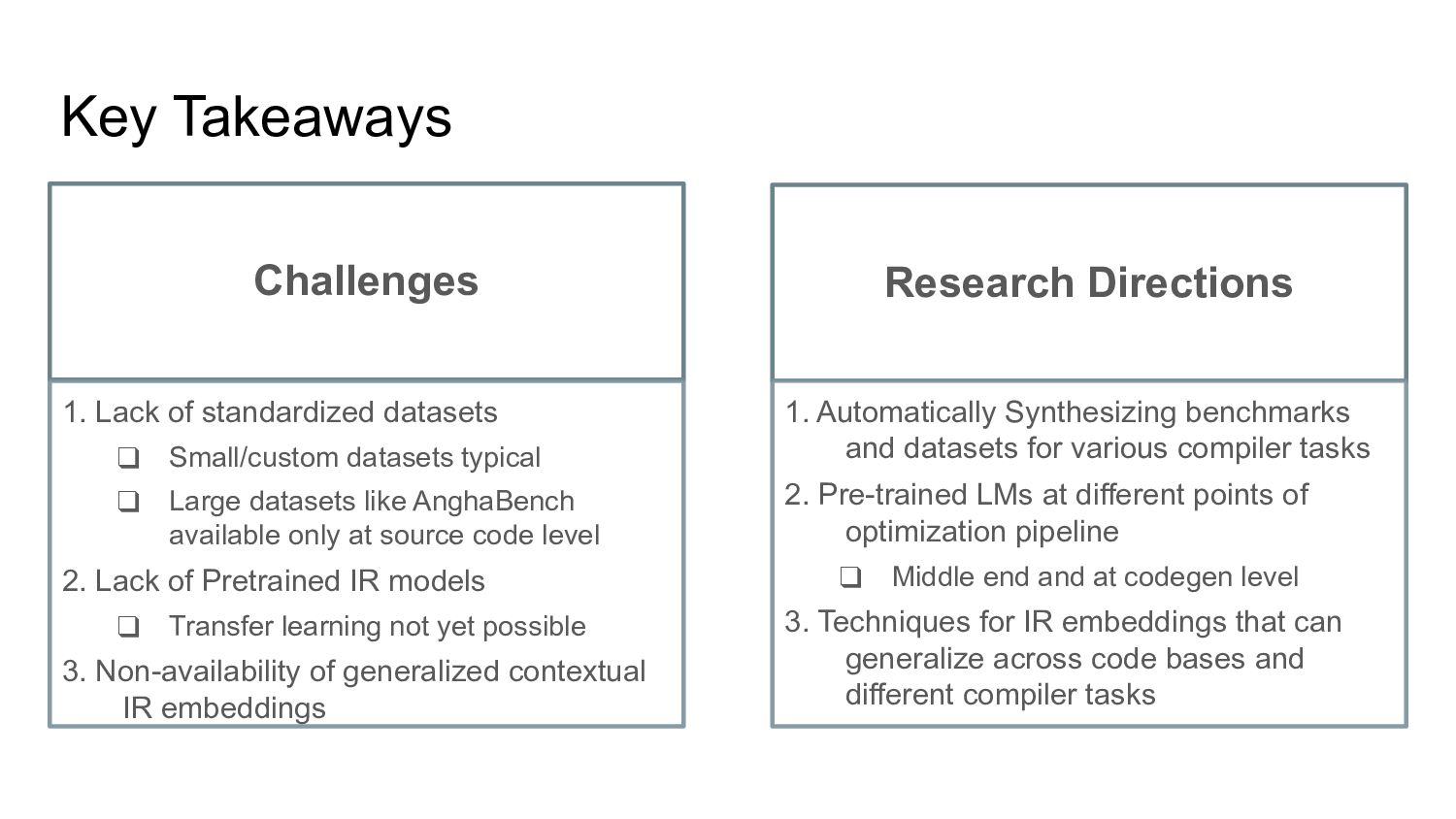

94. Key Takeaways Challenges 1. Lack of standardized datasets ❑ Small/custom datasets typical ❑ Large datasets like AnghaBench available only at source code level 2. Lack of Pretrained IR models ❑ Transfer learning not yet possible 3. Non-availability of generalized contextual IR embeddings Research Directions 1. Automatically Synthesizing benchmarks and datasets for various compiler tasks 2. Pre-trained LMs at different points of optimization pipeline ❑ Middle end and at codegen level 3. Techniques for IR embeddings that can generalize across code bases and different compiler tasks
95. Thank you!

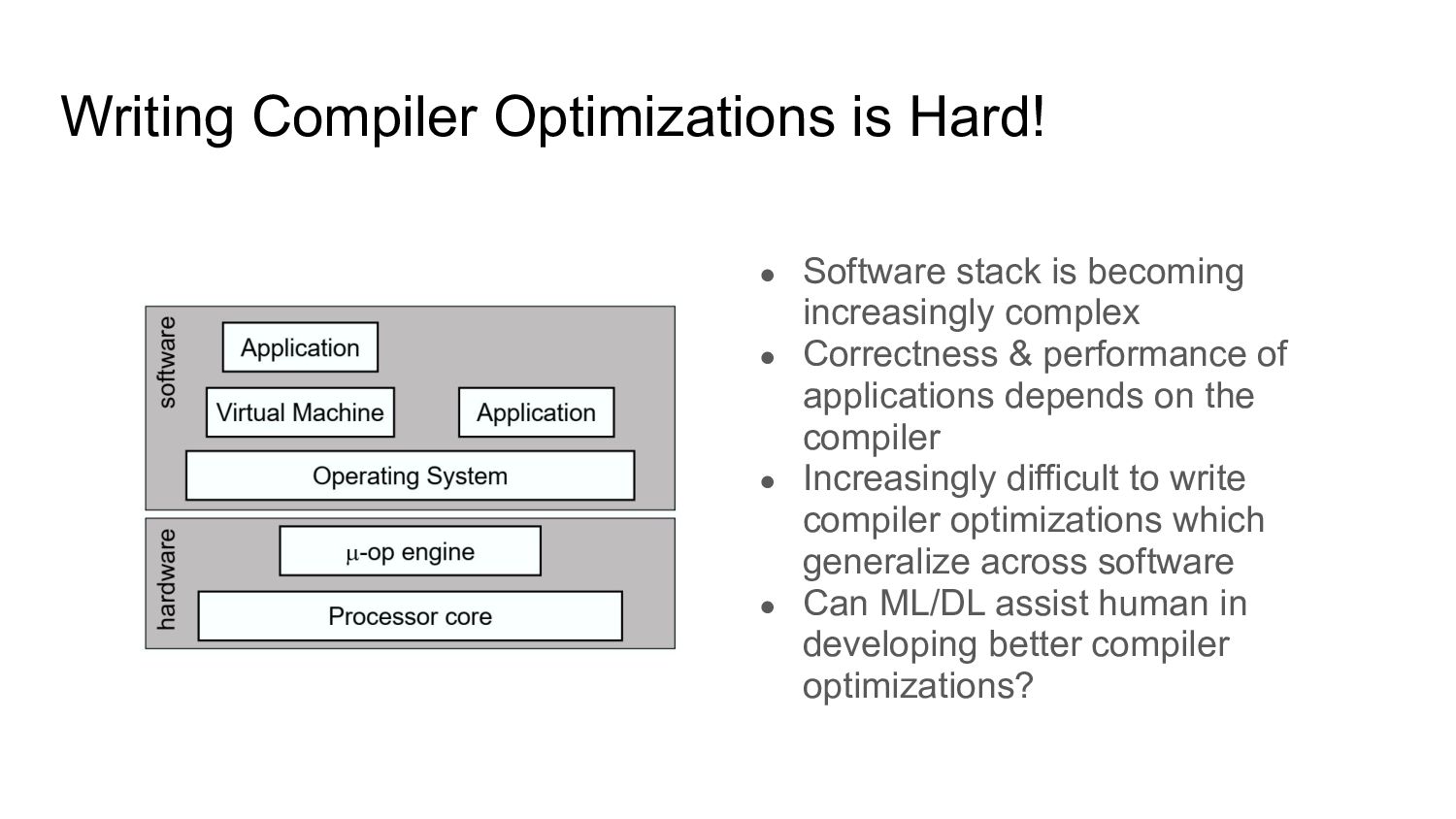

96. Writing Compiler Optimizations is Hard! • Software stack is becoming increasingly complex • Correctness & performance of applications depends on the compiler • Increasingly difficult to write compiler optimizations which generalize across software • Can ML/DL assist human in developing better compiler optimizations?

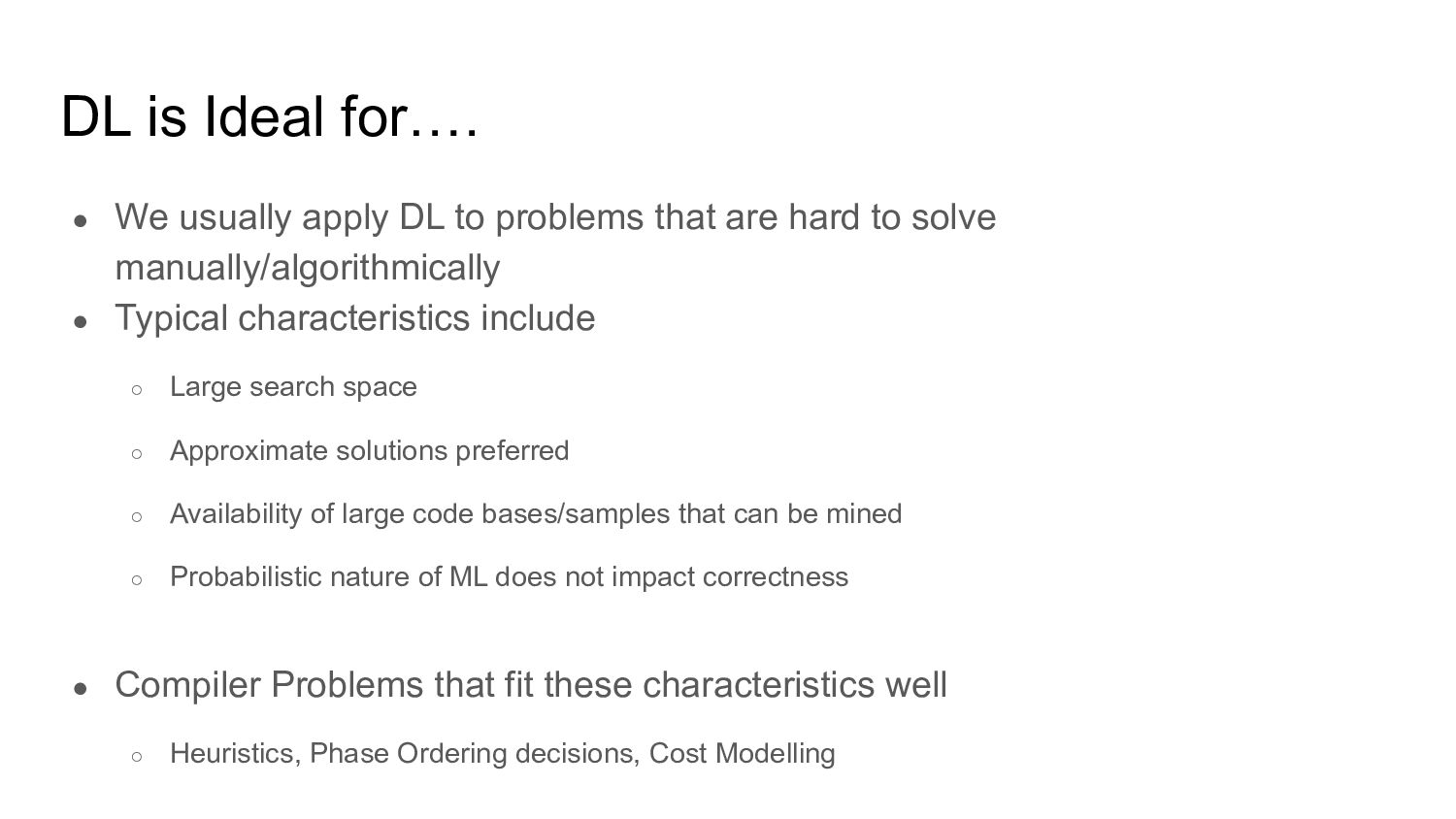

97. DL is Ideal for…. • We usually apply DL to problems that are hard to solve manually/algorithmically • Typical characteristics include ◦ Large search space ◦ Approximate solutions preferred ◦ Availability of large code bases/samples that can be mined ◦ Probabilistic nature of ML does not impact correctness • Compiler Problems that fit these characteristics well ◦ Heuristics, Phase Ordering decisions, Cost Modelling
98. 5 min break
99. 3. Applications of DL to Compilers

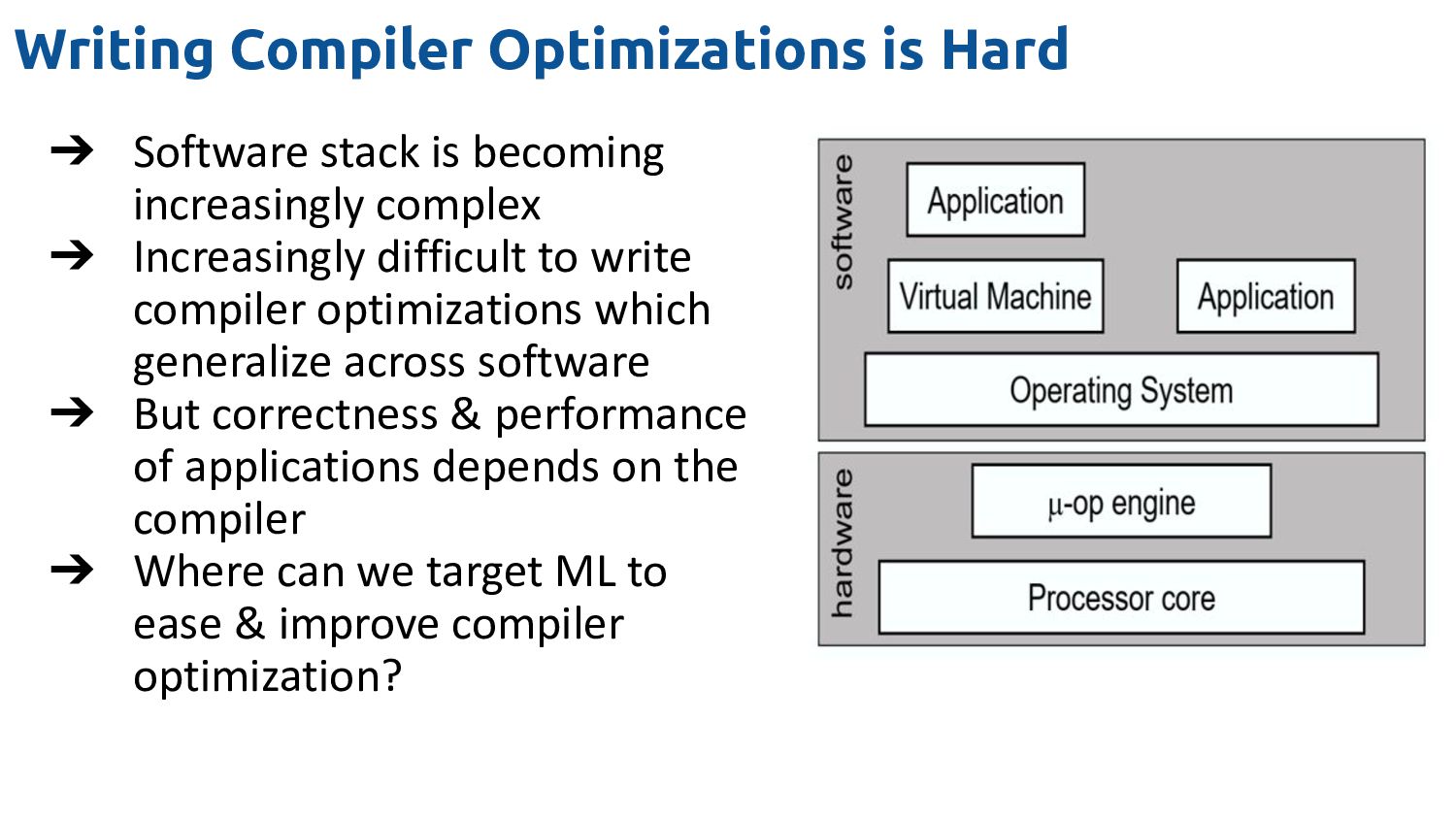

100. Writing Compiler Optimizations is Hard ➔ Software stack is becoming increasingly complex ➔ Increasingly difficult to write compiler optimizations which generalize across software ➔ But correctness & performance of applications depends on the compiler ➔ Where can we target ML to ease & improve compiler optimization?

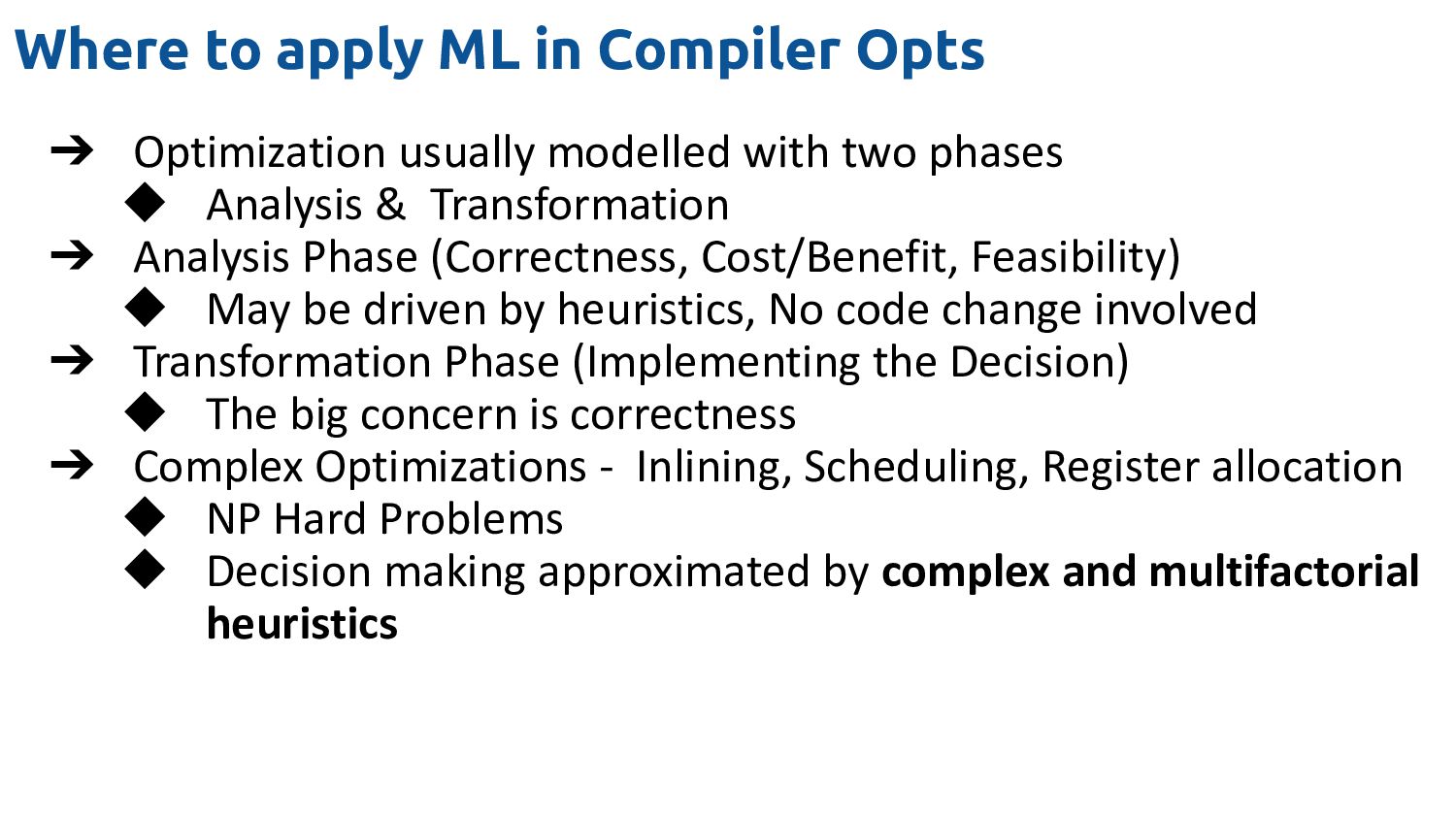

101. Where to apply ML in Compiler Opts ➔ Optimization usually modelled with two phases ◆ Analysis & Transformation ➔ Analysis Phase (Correctness, Cost/Benefit, Feasibility) ◆ May be driven by heuristics, No code change involved ➔ Transformation Phase (Implementing the Decision) ◆ The big concern is correctness ➔ Complex Optimizations - Inlining, Scheduling, Register allocation ◆ NP Hard Problems ◆ Decision making approximated by complex and multifactorial heuristics

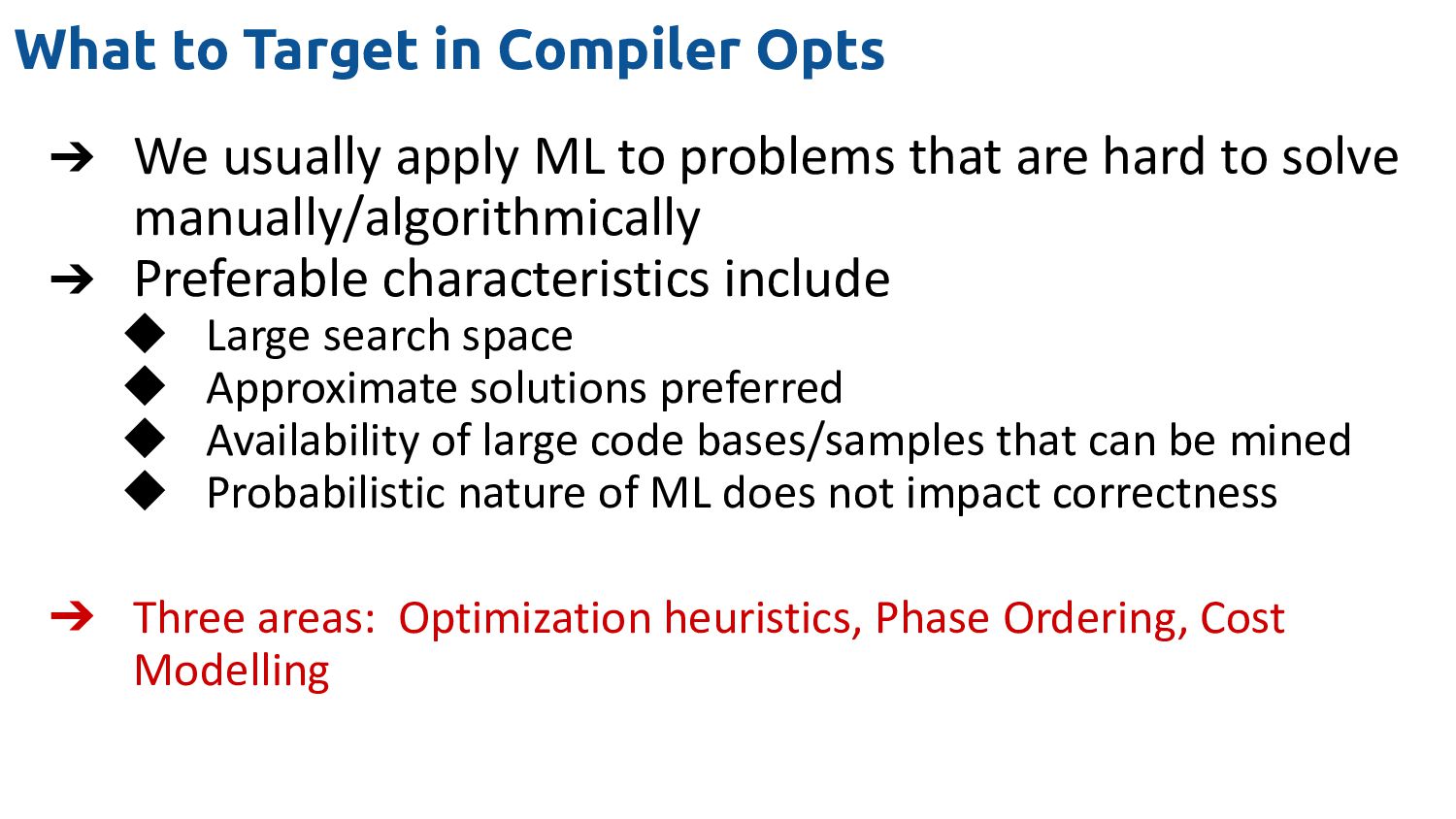

102. What to Target in Compiler Opts ➔ We usually apply ML to problems that are hard to solve manually/algorithmically ➔ Preferable characteristics include ◆ Large search space ◆ Approximate solutions preferred ◆ Availability of large code bases/samples that can be mined ◆ Probabilistic nature of ML does not impact correctness ➔ Three areas: Optimization heuristics, Phase Ordering, Cost Modelling

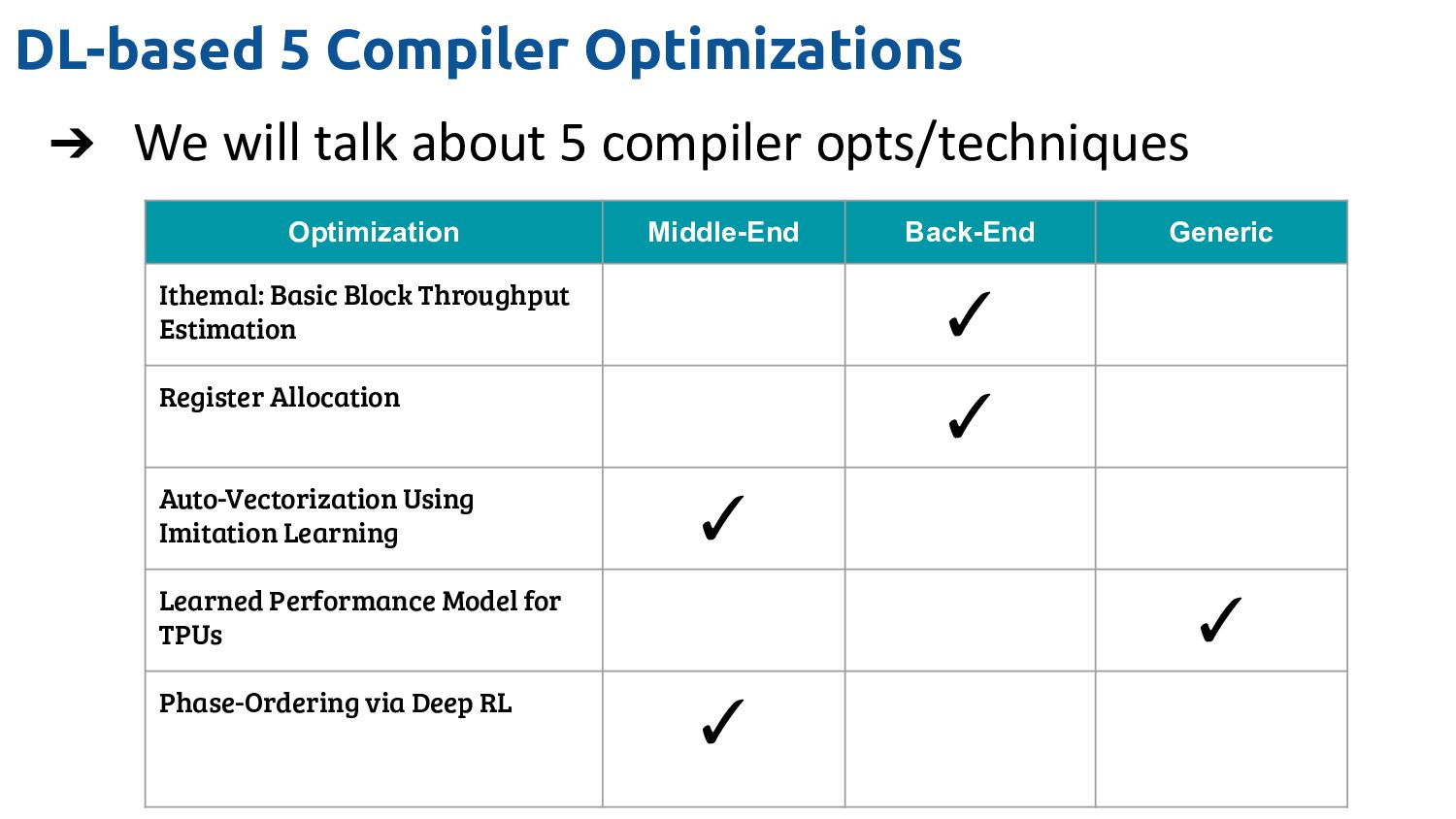

103. DL-based 5 Compiler Optimizations ➔ We will talk about 5 compiler opts/techniques Optimization Middle-End Back-End Generic Ithemal: Basic Block Throughput Estimation ✓ Register Allocation ✓ Auto-Vectorization Using Imitation Learning ✓ Learned Performance Model for TPUs ✓ Phase-Ordering via Deep RL ✓
104. Ithemal : Basic Block Throughput Prediction

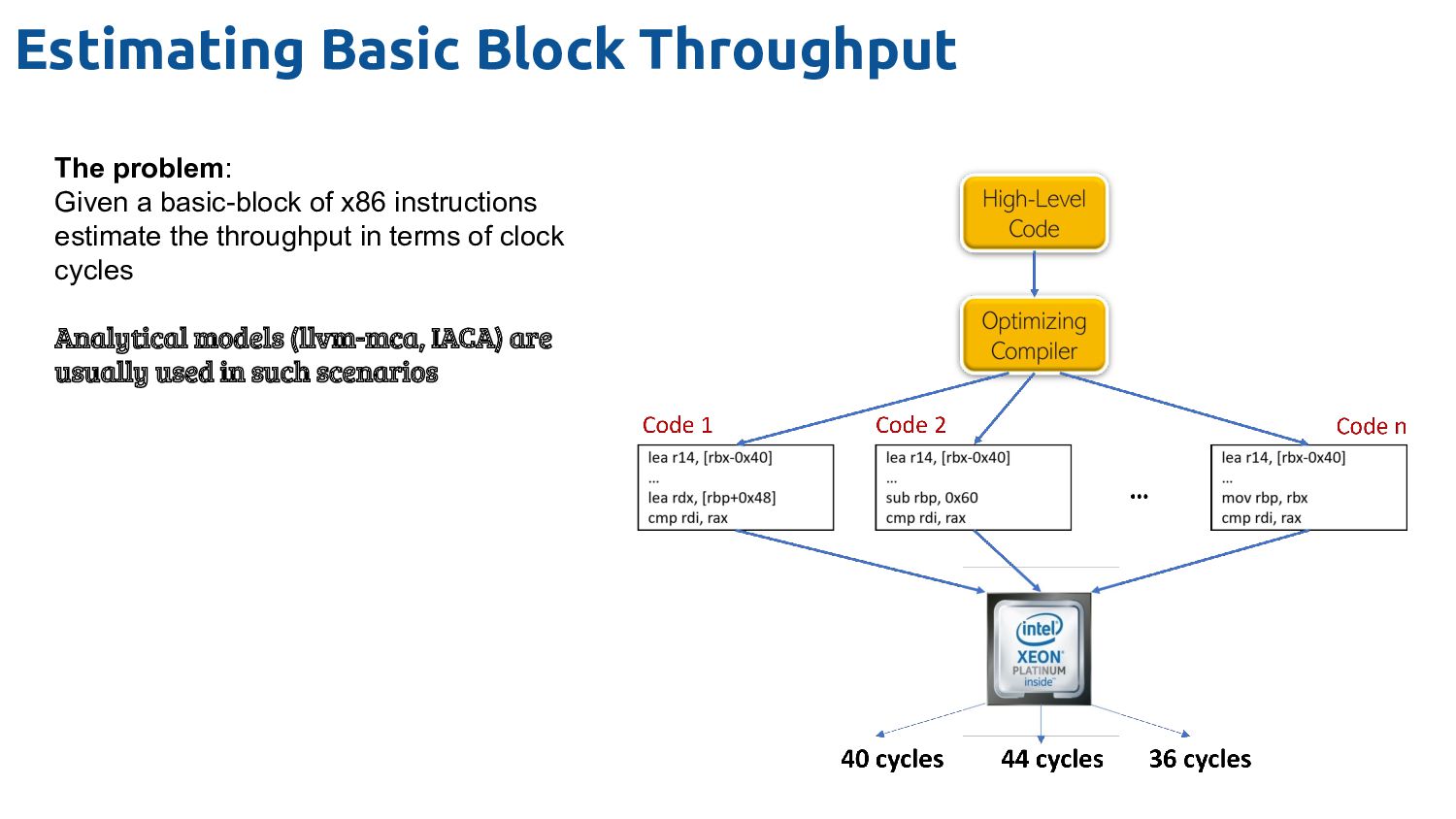

105. Estimating Basic Block Throughput The problem: Given a basic-block of x86 instructions estimate the throughput in terms of clock cycles Analytical models (llvm-mca, IACA) are usually used in such scenarios

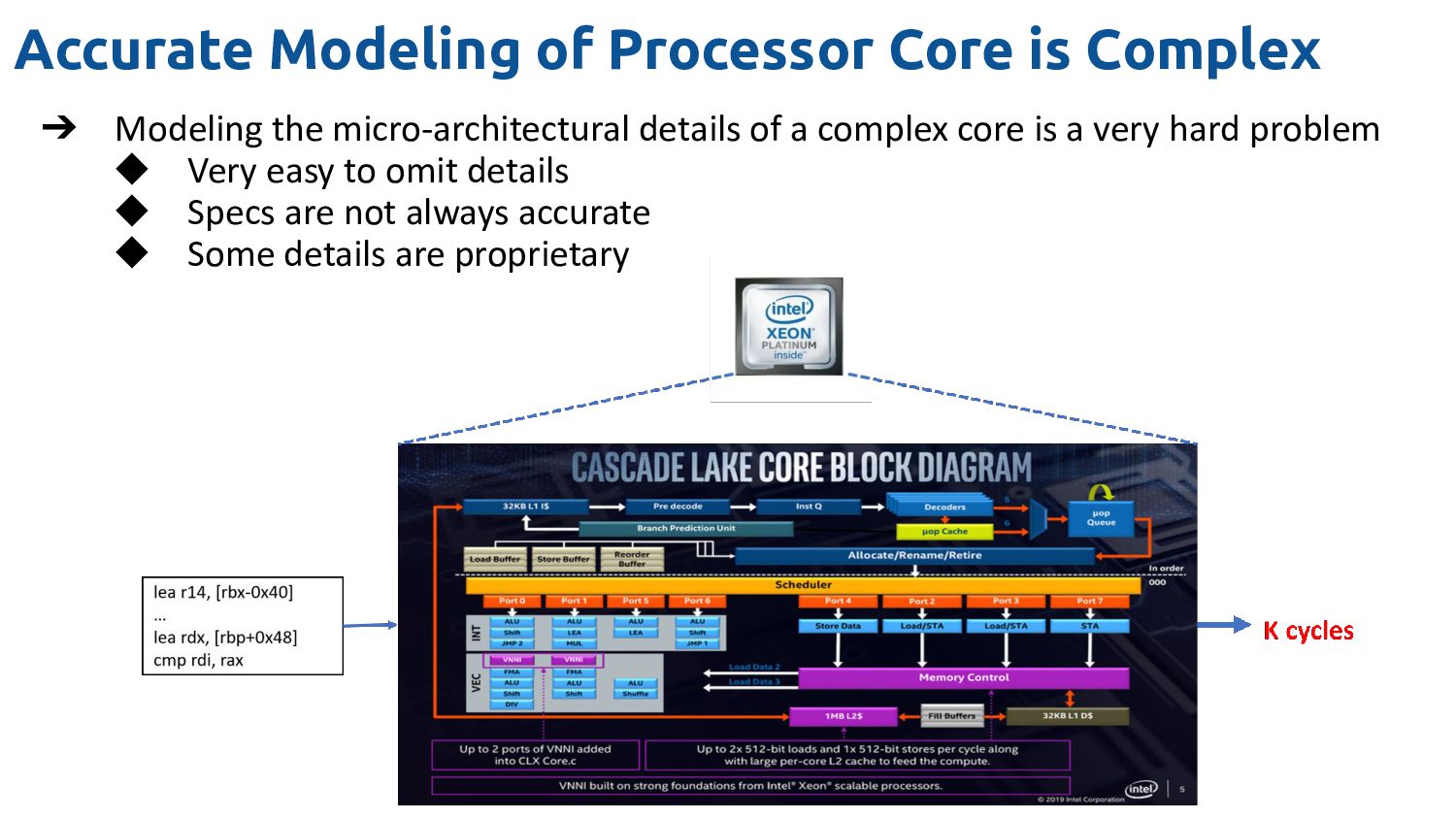

106. Accurate Modeling of Processor Core is Complex ➔ Modeling the micro-architectural details of a complex core is a very hard problem ◆ Very easy to omit details ◆ Specs are not always accurate ◆ Some details are proprietary

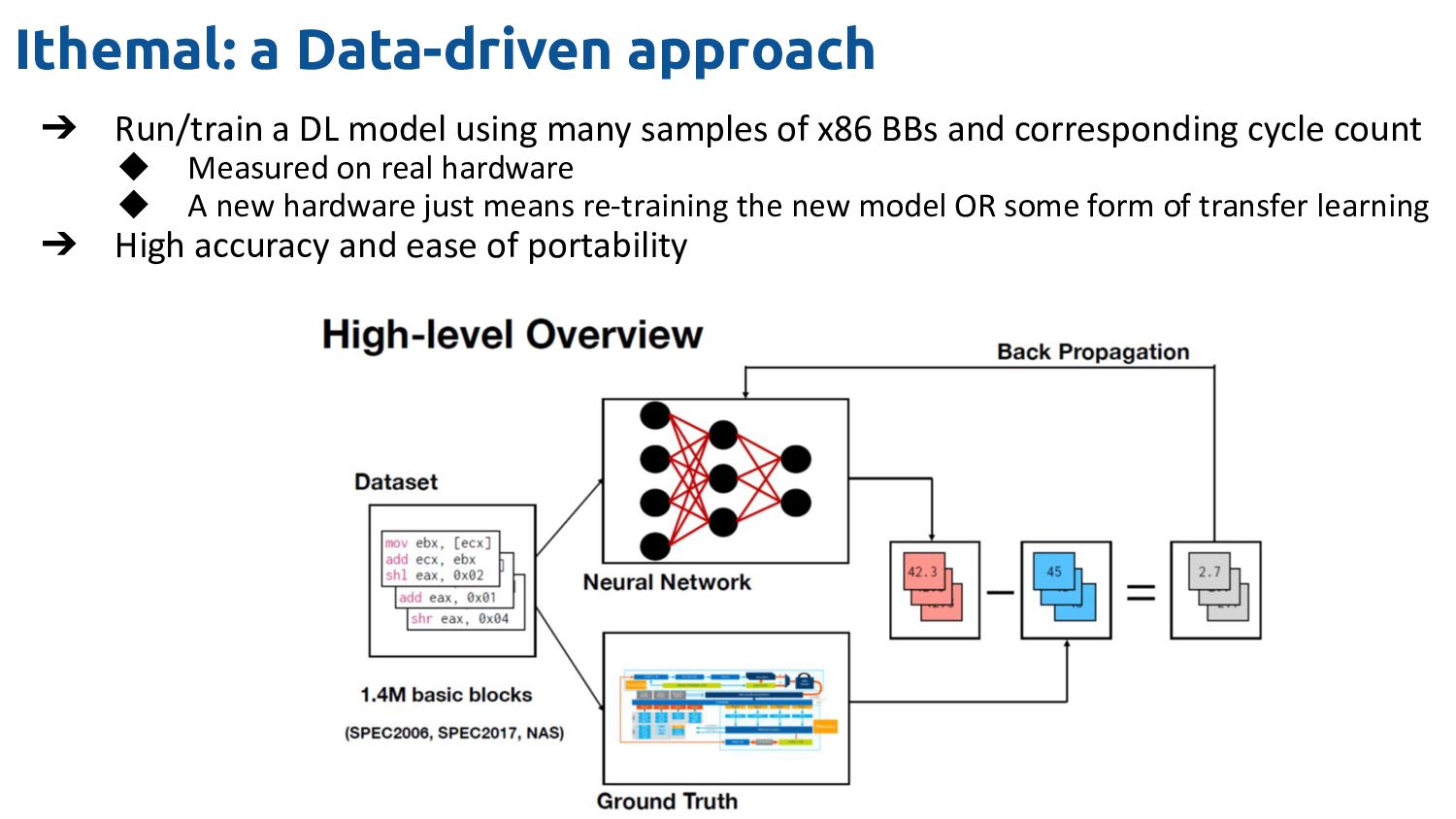

107. Ithemal: a Data-driven approach ➔ Run/train a DL model using many samples of x86 BBs and corresponding cycle count ◆ Measured on real hardware ◆ A new hardware just means re-training the new model OR some form of transfer learning ➔ High accuracy and ease of portability

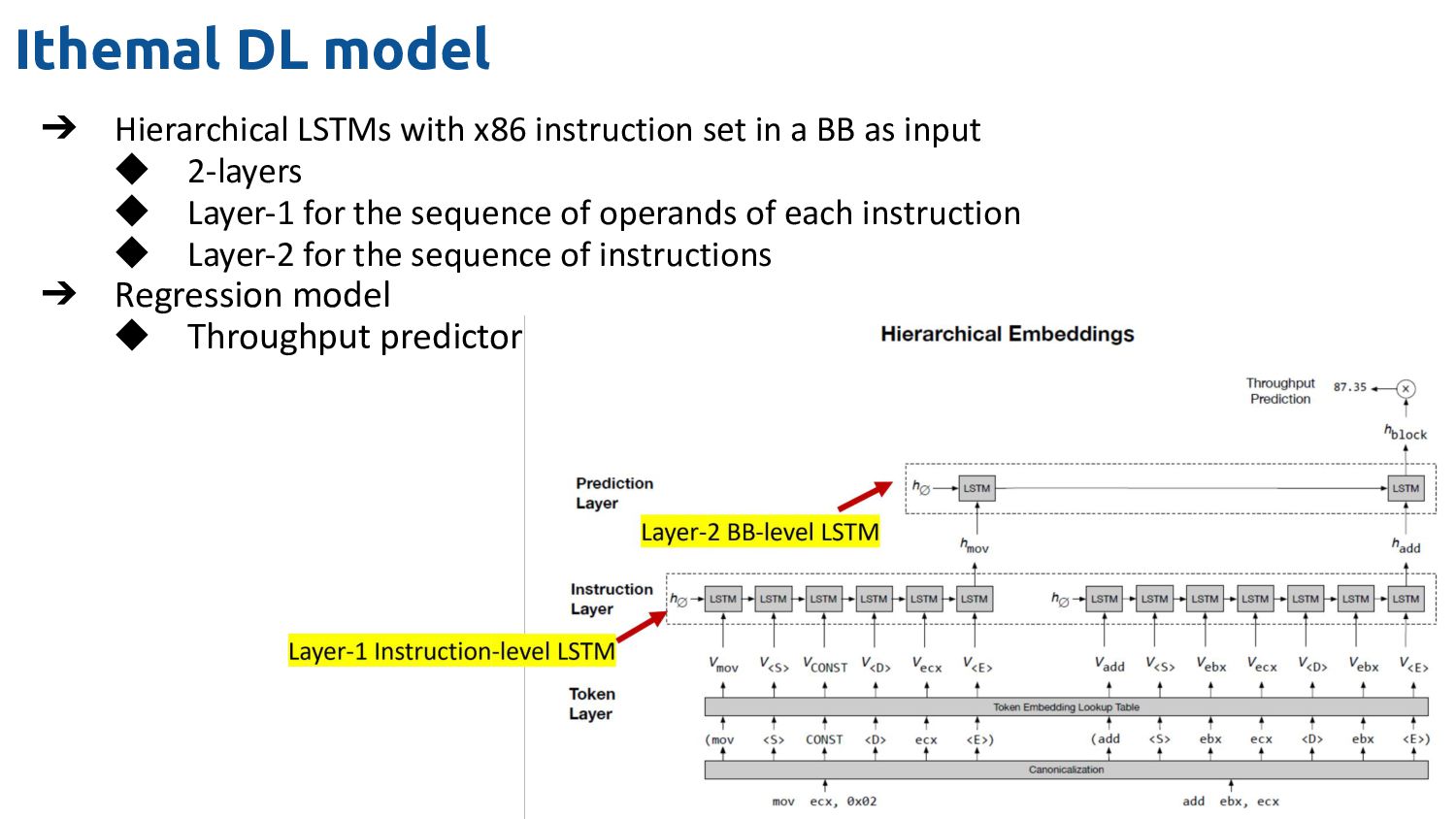

108. Ithemal DL model ➔ Hierarchical LSTMs with x86 instruction set in a BB as input ◆ 2-layers ◆ Layer-1 for the sequence of operands of each instruction ◆ Layer-2 for the sequence of instructions ➔ Regression model ◆ Throughput predictor

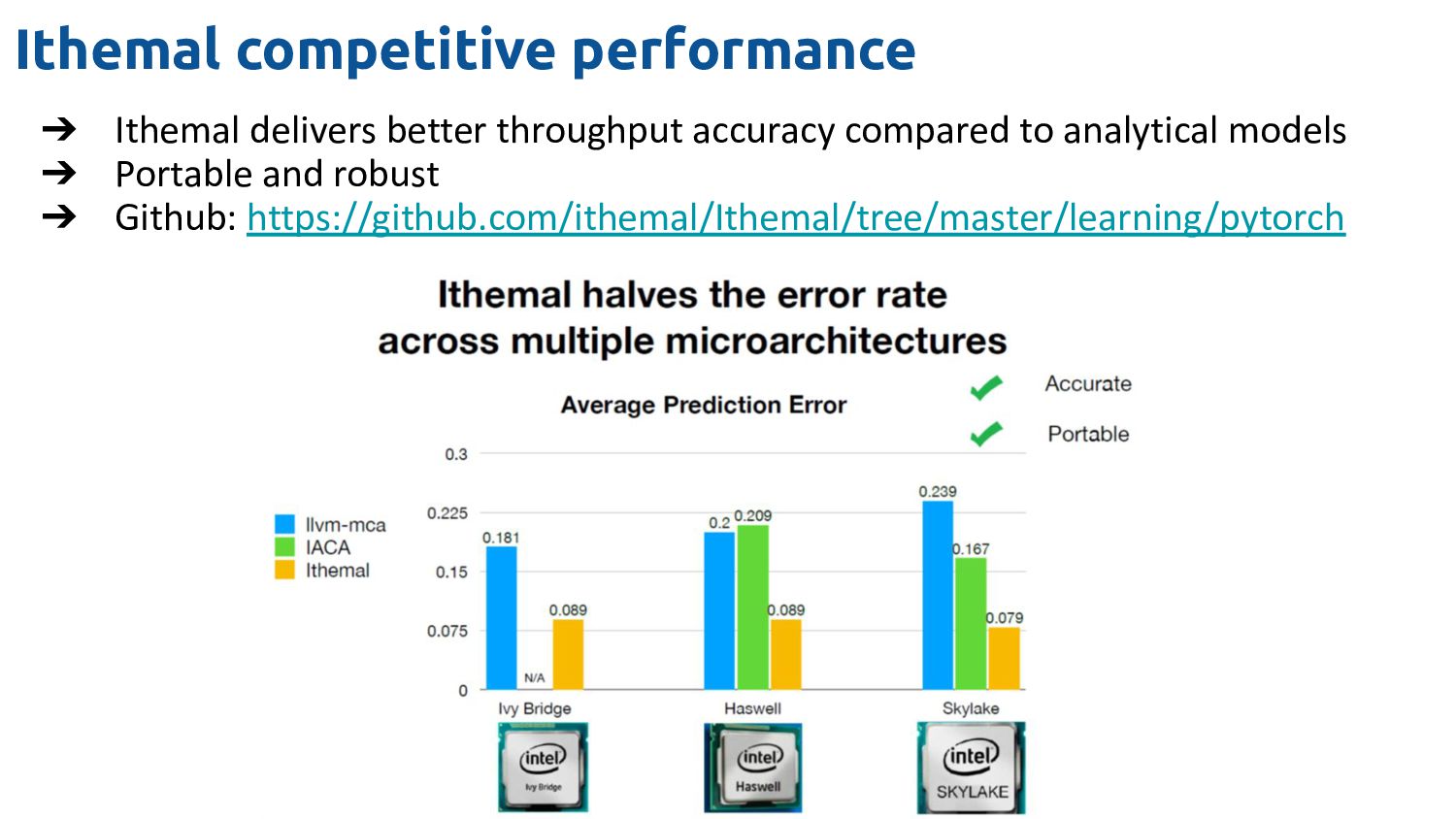

109. Ithemal competitive performance ➔ Ithemal delivers better throughput accuracy compared to analytical models ➔ Portable and robust ➔ Github: https://github.com/ithemal/Ithemal/tree/master/learning/pytorch
110. DL-based Graph Coloring Register Allocation
111. Register Allocation as a Graph-Coloring Problem ➔ Register Allocation- an important problem in code generation ➔ The number of registers available may be < number of variables ➔ Create *interference graph* which models registers which need to be *live* at the same time

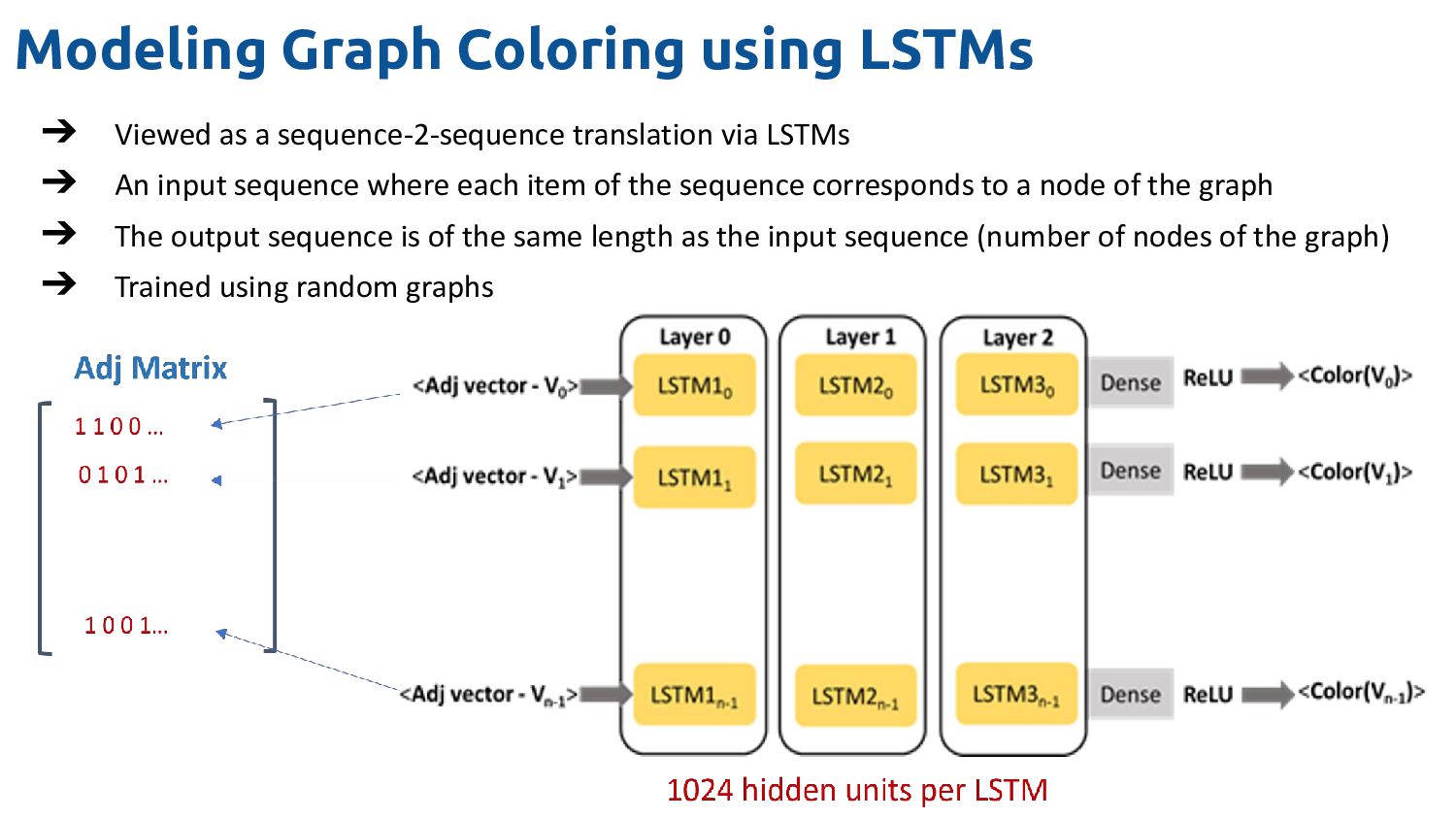

112. Modeling Graph Coloring using LSTMs ➔ Viewed as a sequence-2-sequence translation via LSTMs ➔ An input sequence where each item of the sequence corresponds to a node of the graph ➔ The output sequence is of the same length as the input sequence (number of nodes of the graph) ➔ Trained using random graphs

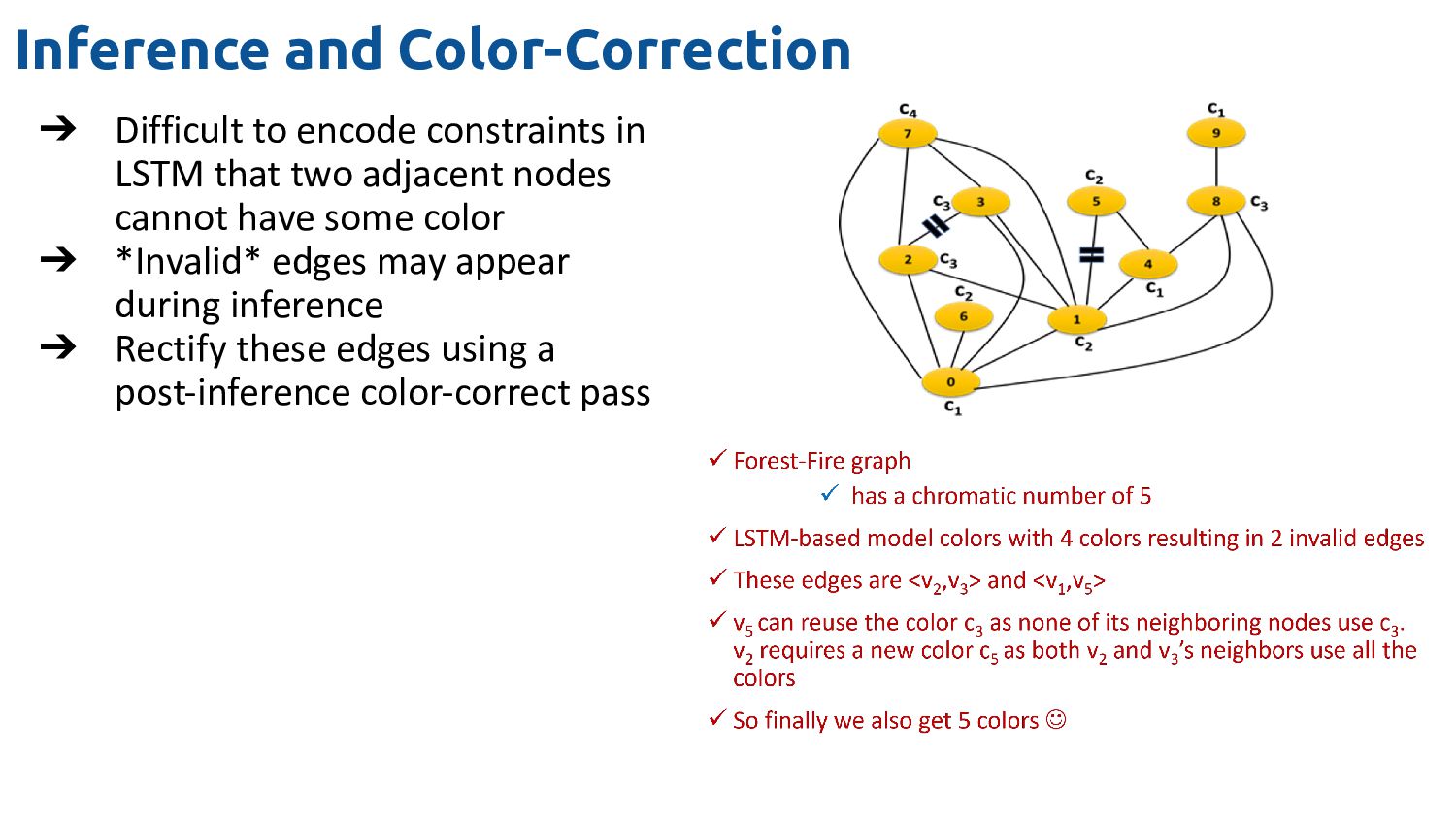

113. Inference and Color-Correction ➔ Difficult to encode constraints in LSTM that two adjacent nodes cannot have some color ➔ *Invalid* edges may appear during inference ➔ Rectify these edges using a post-inference color-correct pass

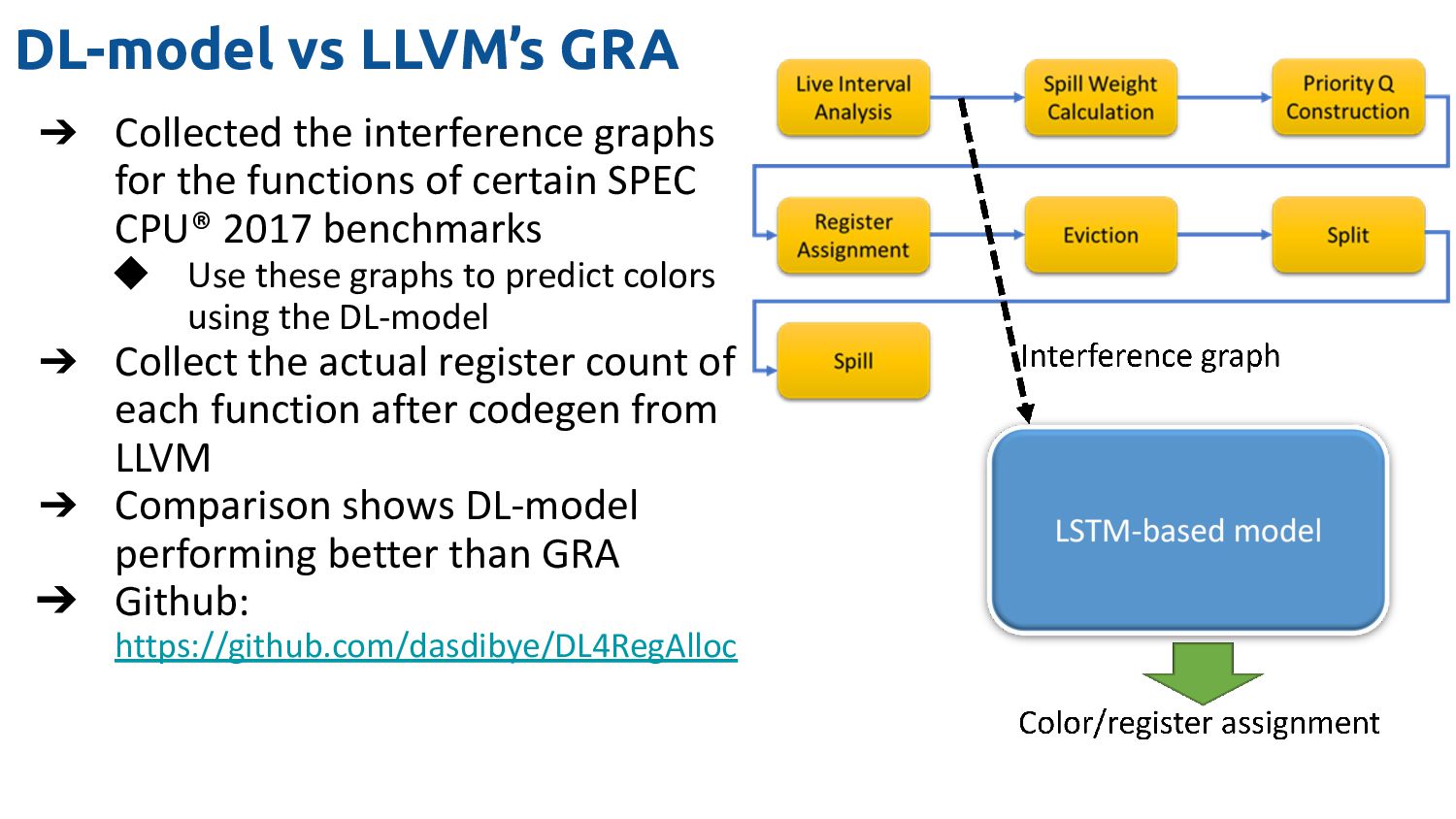

114. DL-model vs LLVM’s GRA ➔ Collected the interference graphs for the functions of certain SPEC CPU® 2017 benchmarks ◆ Use these graphs to predict colors using the DL-model ➔ Collect the actual register count of each function after codegen from LLVM ➔ Comparison shows DL-model performing better than GRA ➔ Github: https://github.com/dasdibye/DL4RegAlloc
115. Compiler Auto-vectorization using Imitation Learning

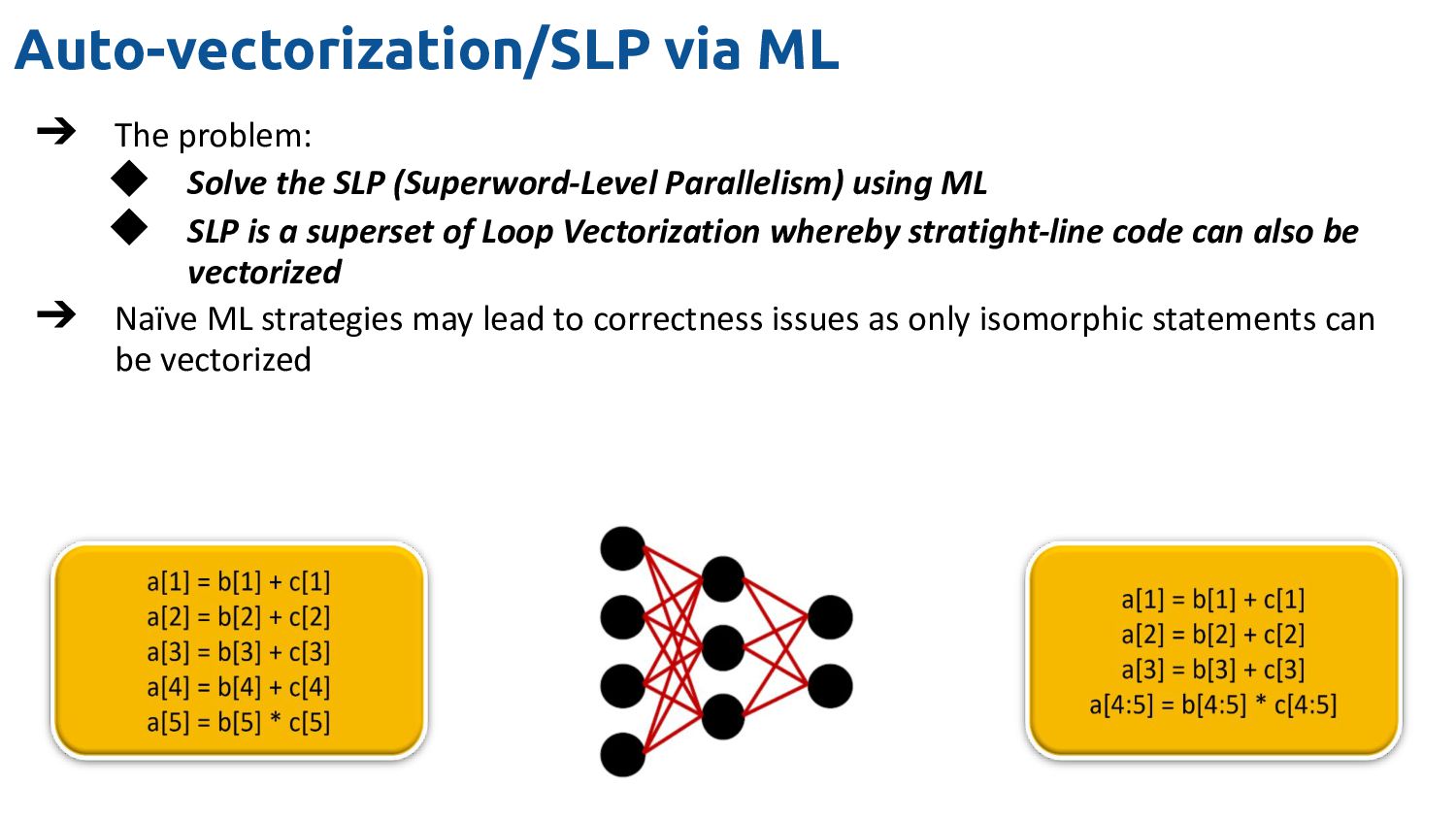

116. Auto-vectorization/SLP via ML ➔ The problem: ◆ Solve the SLP (Superword-Level Parallelism) using ML ◆ SLP is a superset of Loop Vectorization whereby stratight-line code can also be vectorized ➔ Naïve ML strategies may lead to correctness issues as only isomorphic statements can be vectorized

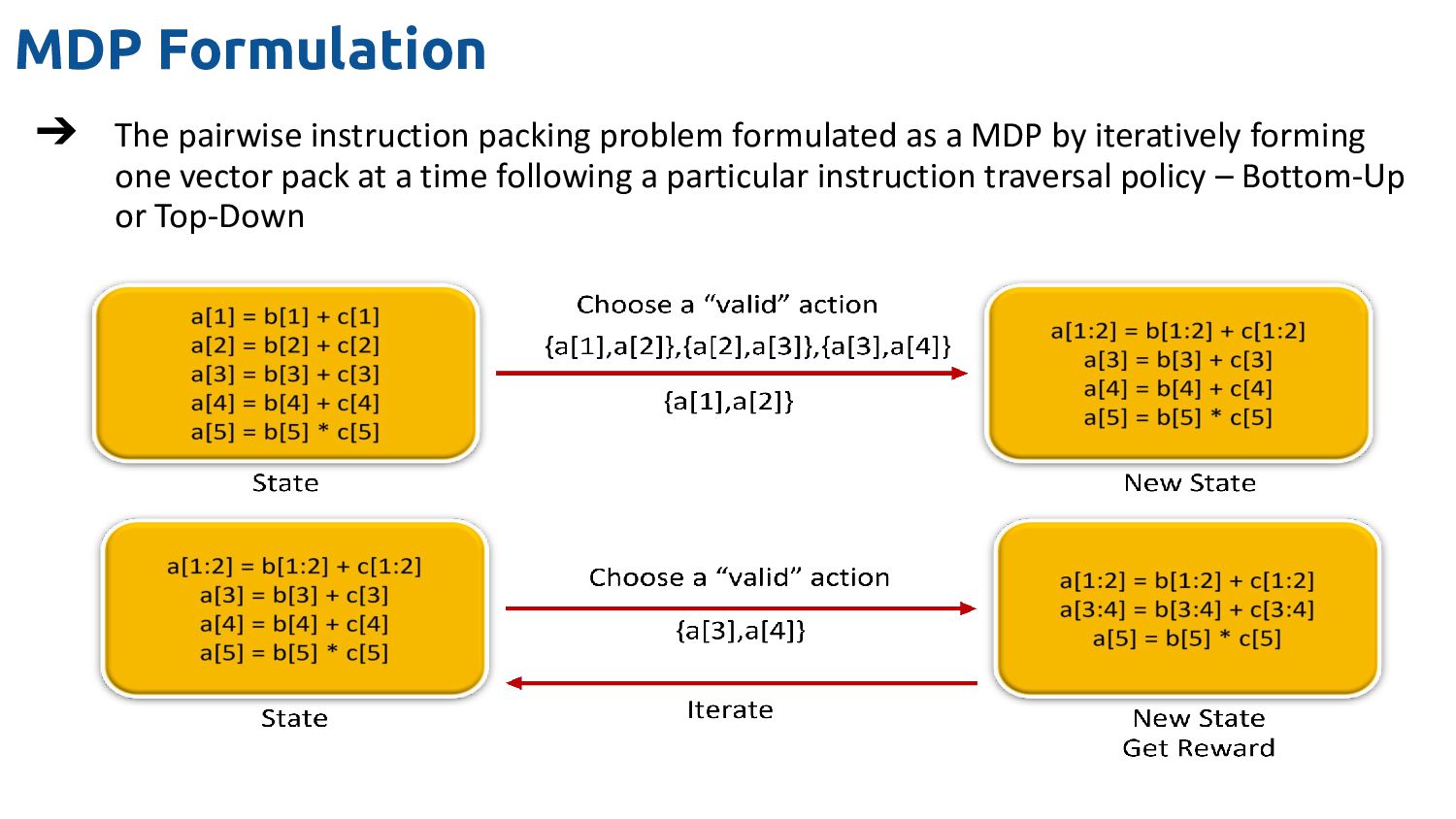

117. MDP Formulation ➔ The pairwise instruction packing problem formulated as a MDP by iteratively forming one vector pack at a time following a particular instruction traversal policy – Bottom-Up or Top-Down

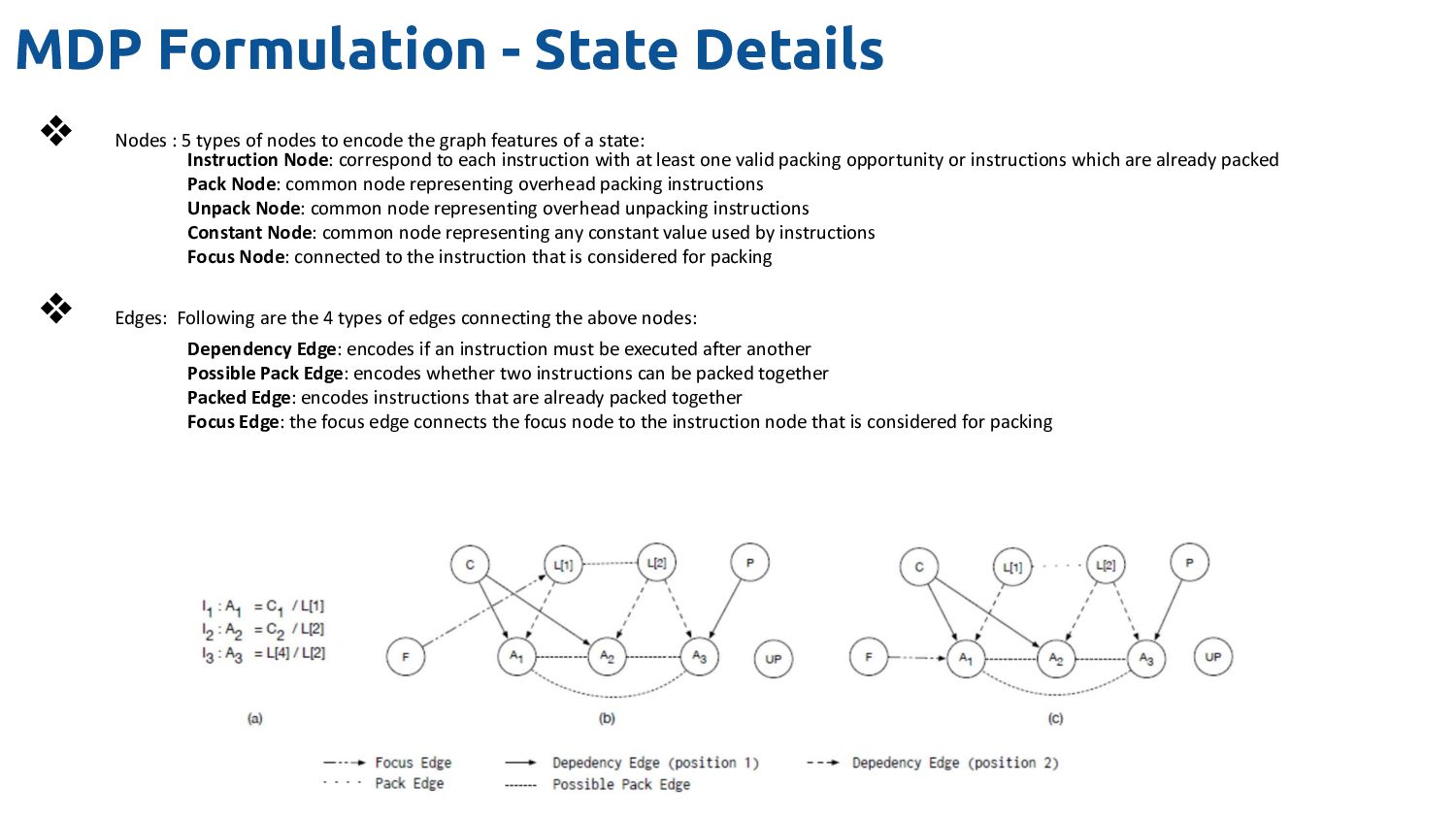

118. MDP Formulation - State Details ❖ Nodes : 5 types of nodes to encode the graph features of a state: Instruction Node: correspond to each instruction with at least one valid packing opportunity or instructions which are already packed Pack Node: common node representing overhead packing instructions Unpack Node: common node representing overhead unpacking instructions Constant Node: common node representing any constant value used by instructions Focus Node: connected to the instruction that is considered for packing ❖ Edges: Following are the 4 types of edges connecting the above nodes: Dependency Edge: encodes if an instruction must be executed after another Possible Pack Edge: encodes whether two instructions can be packed together Packed Edge: encodes instructions that are already packed together Focus Edge: the focus edge connects the focus node to the instruction node that is considered for packing

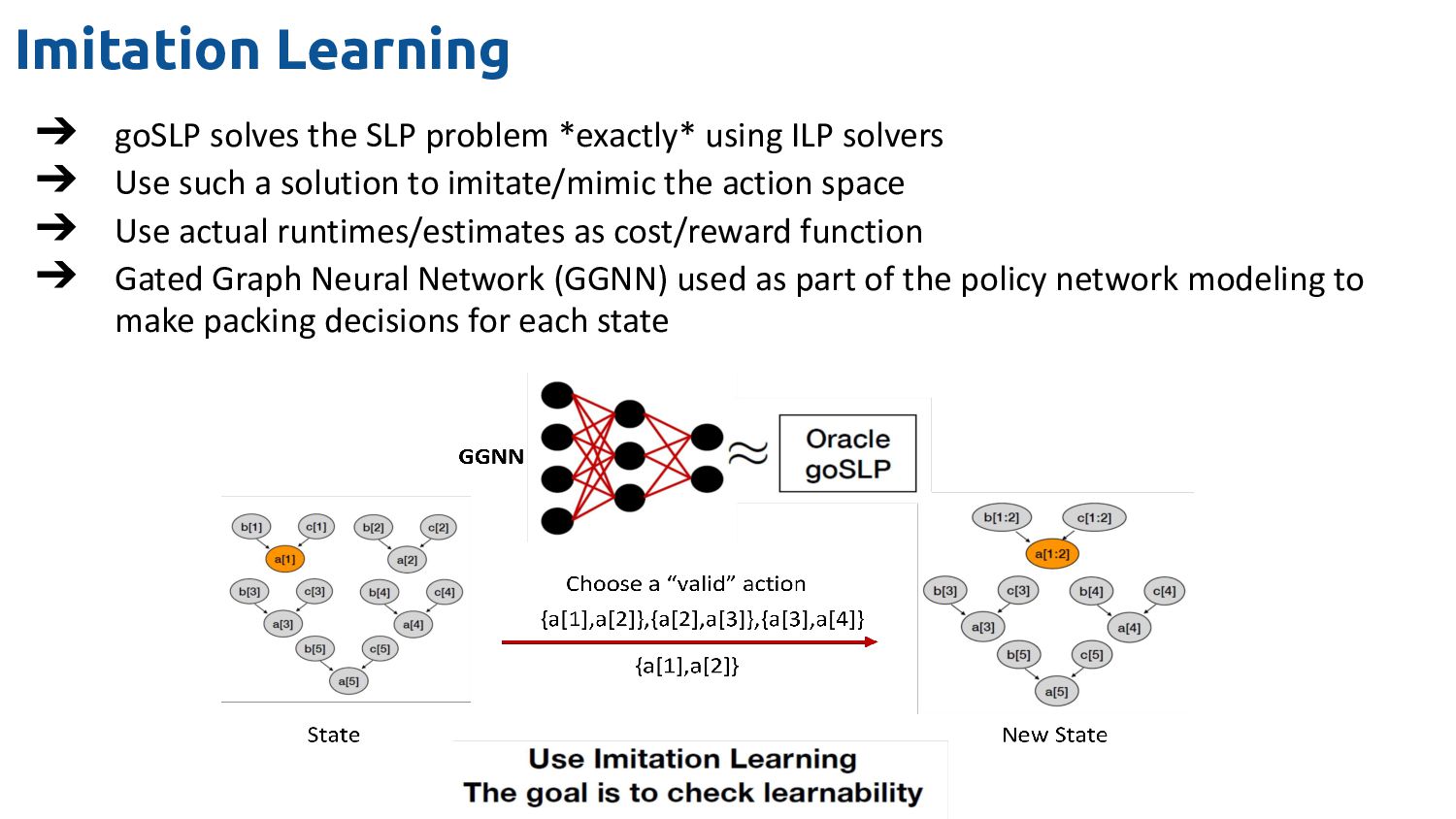

119. Imitation Learning ➔ goSLP solves the SLP problem *exactly* using ILP solvers ➔ Use such a solution to imitate/mimic the action space ➔ Use actual runtimes/estimates as cost/reward function ➔ Gated Graph Neural Network (GGNN) used as part of the policy network modeling to make packing decisions for each state
120. A Learned Performance Model for TPUs

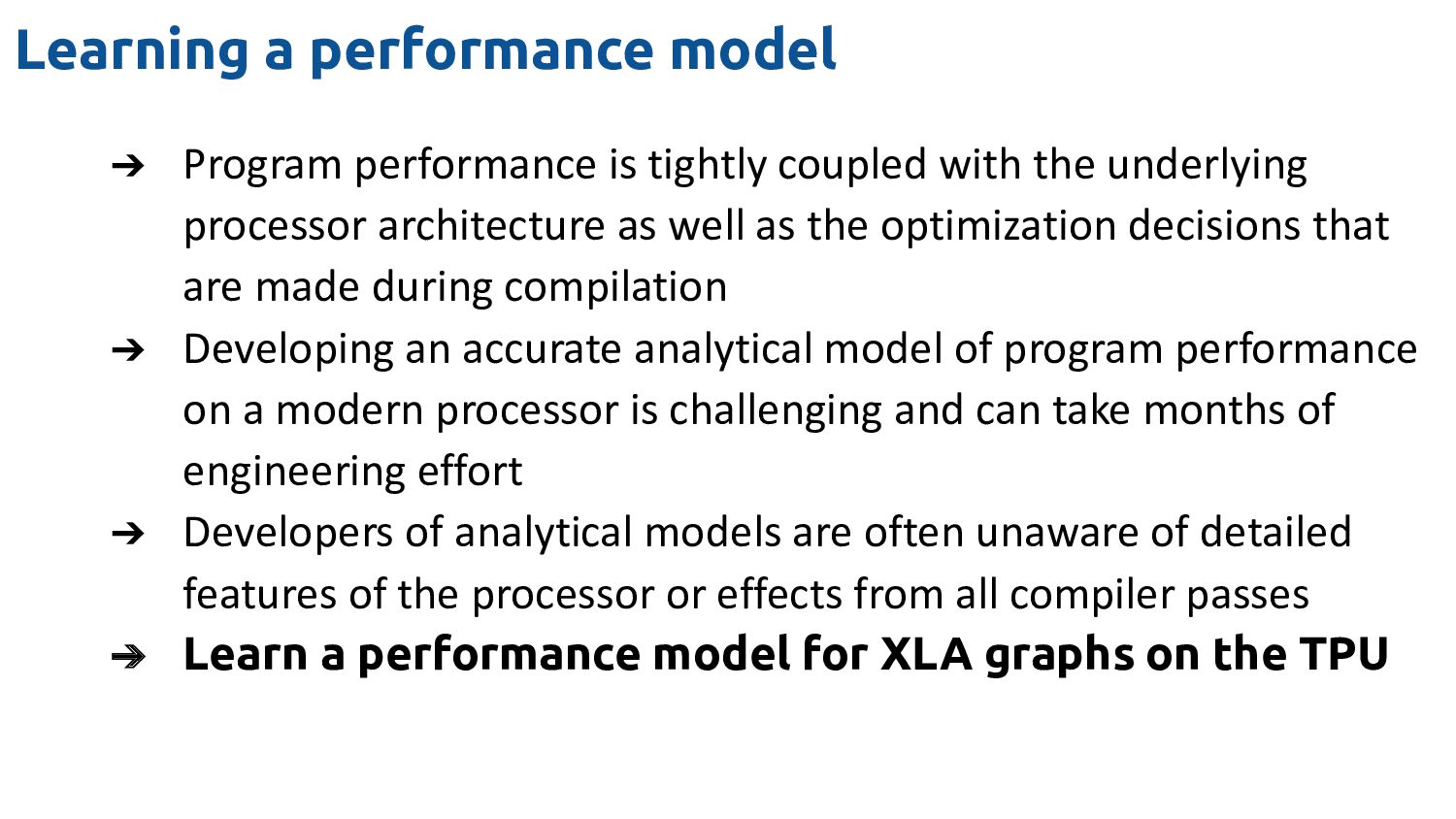

121. Learning a performance model ➔ Program performance is tightly coupled with the underlying processor architecture as well as the optimization decisions that are made during compilation ➔ Developing an accurate analytical model of program performance on a modern processor is challenging and can take months of engineering effort ➔ Developers of analytical models are often unaware of detailed features of the processor or effects from all compiler passes ➔ Learn a performance model for XLA graphs on the TPU

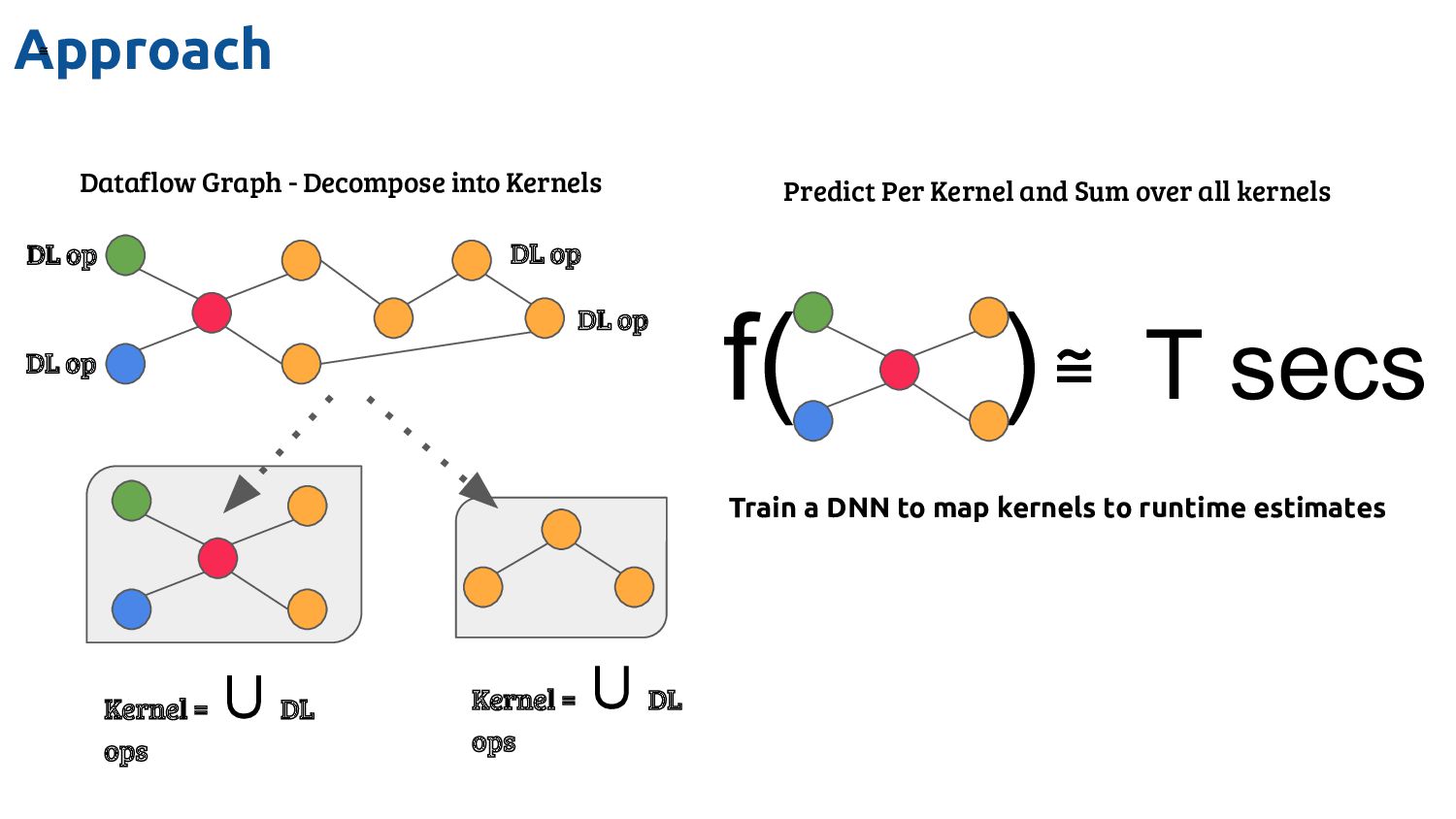

122. Approach Dataflow Graph - Decompose into Kernels Predict Per Kernel and Sum over all kernels f( ) Τ secs ≅ ≅ Train a DNN to map kernels to runtime estimates DL op DL op Kernel = ∪ DL ops Kernel = ∪ DL ops DL op DL op

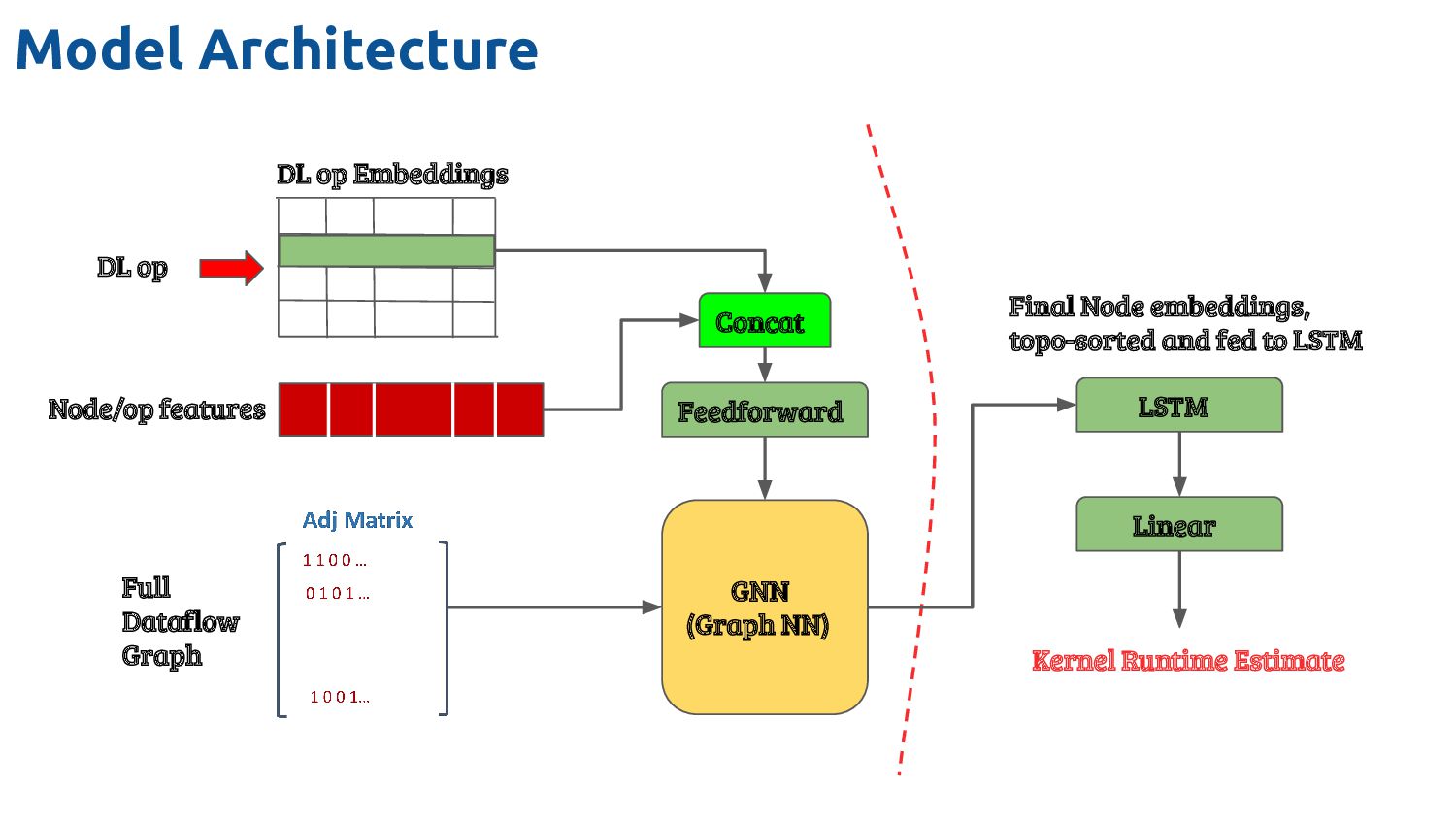

123. Model Architecture DL op Node/op features Concat Feedforward GNN (Graph NN) DL op Embeddings Full Dataflow Graph LSTM Linear Kernel Runtime Estimate Final Node embeddings, topo-sorted and fed to LSTM

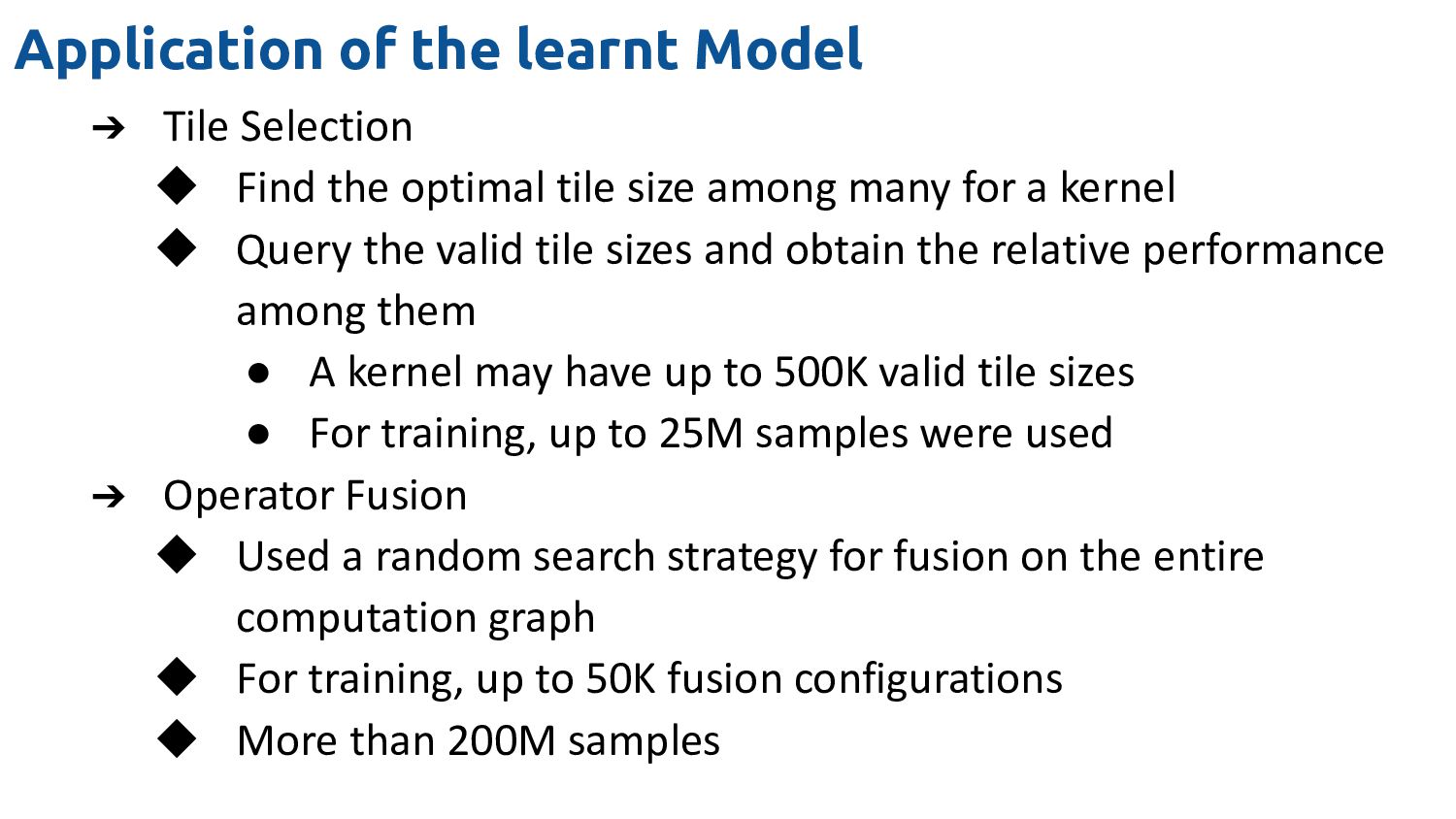

124. Application of the learnt Model ➔ Tile Selection ◆ Find the optimal tile size among many for a kernel ◆ Query the valid tile sizes and obtain the relative performance among them • A kernel may have up to 500K valid tile sizes • For training, up to 25M samples were used ➔ Operator Fusion ◆ Used a random search strategy for fusion on the entire computation graph ◆ For training, up to 50K fusion configurations ◆ More than 200M samples
125. Static Neural Compiler Optimization via Deep Reinforcement Learning

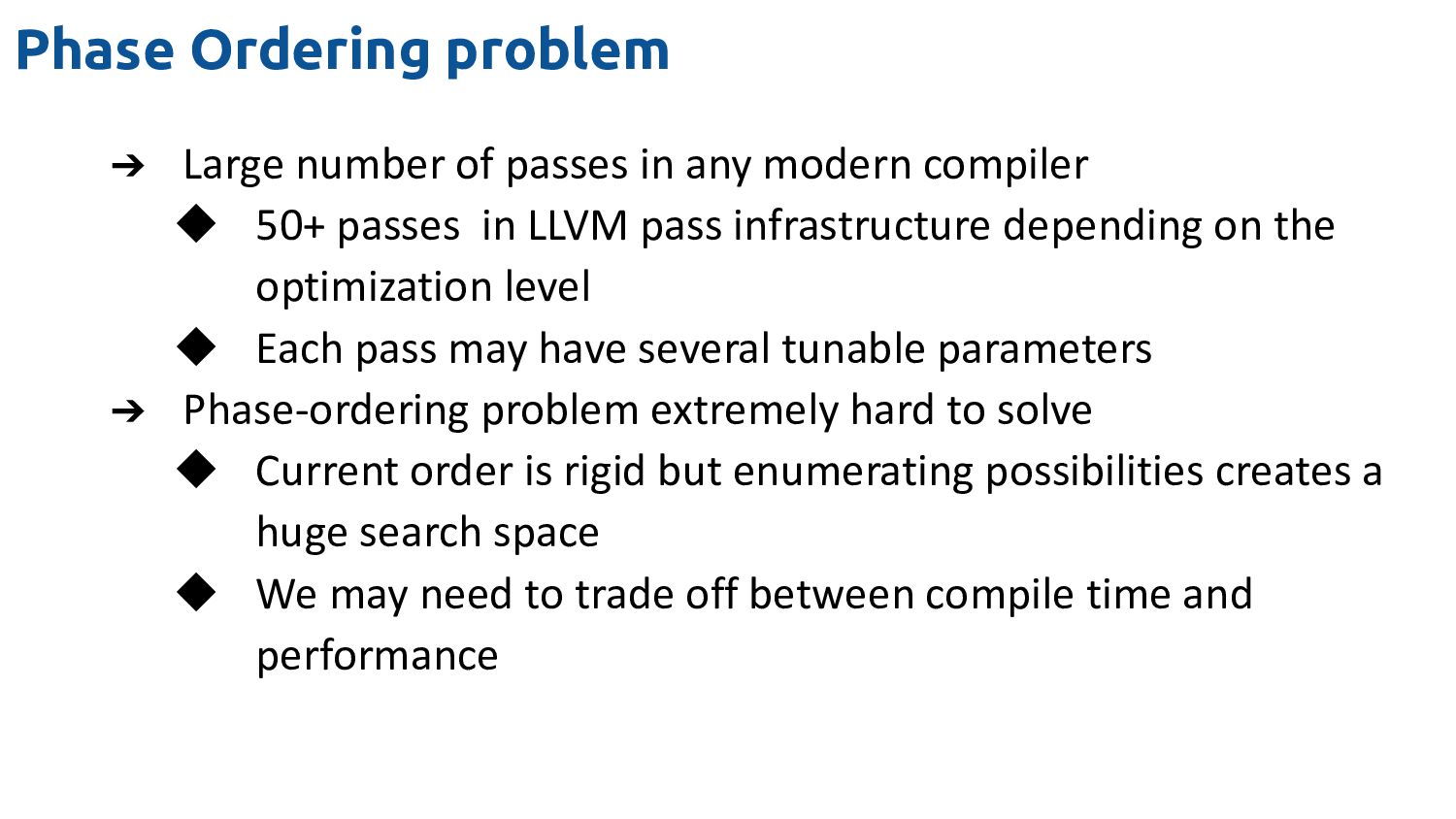

126. Phase Ordering problem ➔ Large number of passes in any modern compiler ◆ 50+ passes in LLVM pass infrastructure depending on the optimization level ◆ Each pass may have several tunable parameters ➔ Phase-ordering problem extremely hard to solve ◆ Current order is rigid but enumerating possibilities creates a huge search space ◆ We may need to trade off between compile time and performance

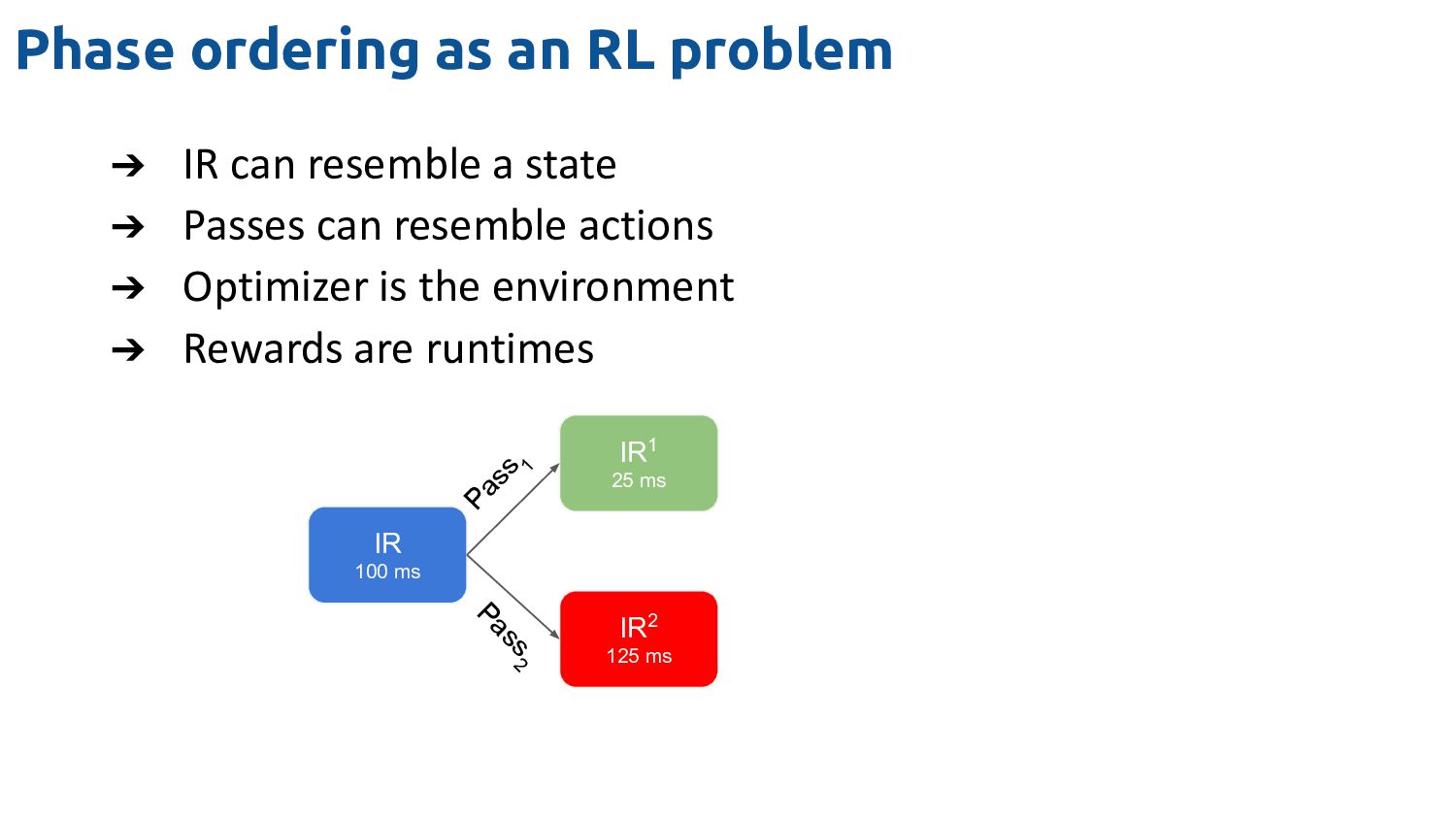

127. Phase ordering as an RL problem ➔ IR can resemble a state ➔ Passes can resemble actions ➔ Optimizer is the environment ➔ Rewards are runtimes IR 100 ms IR2 125 ms IR1 25 ms Pass 1 Pass 2

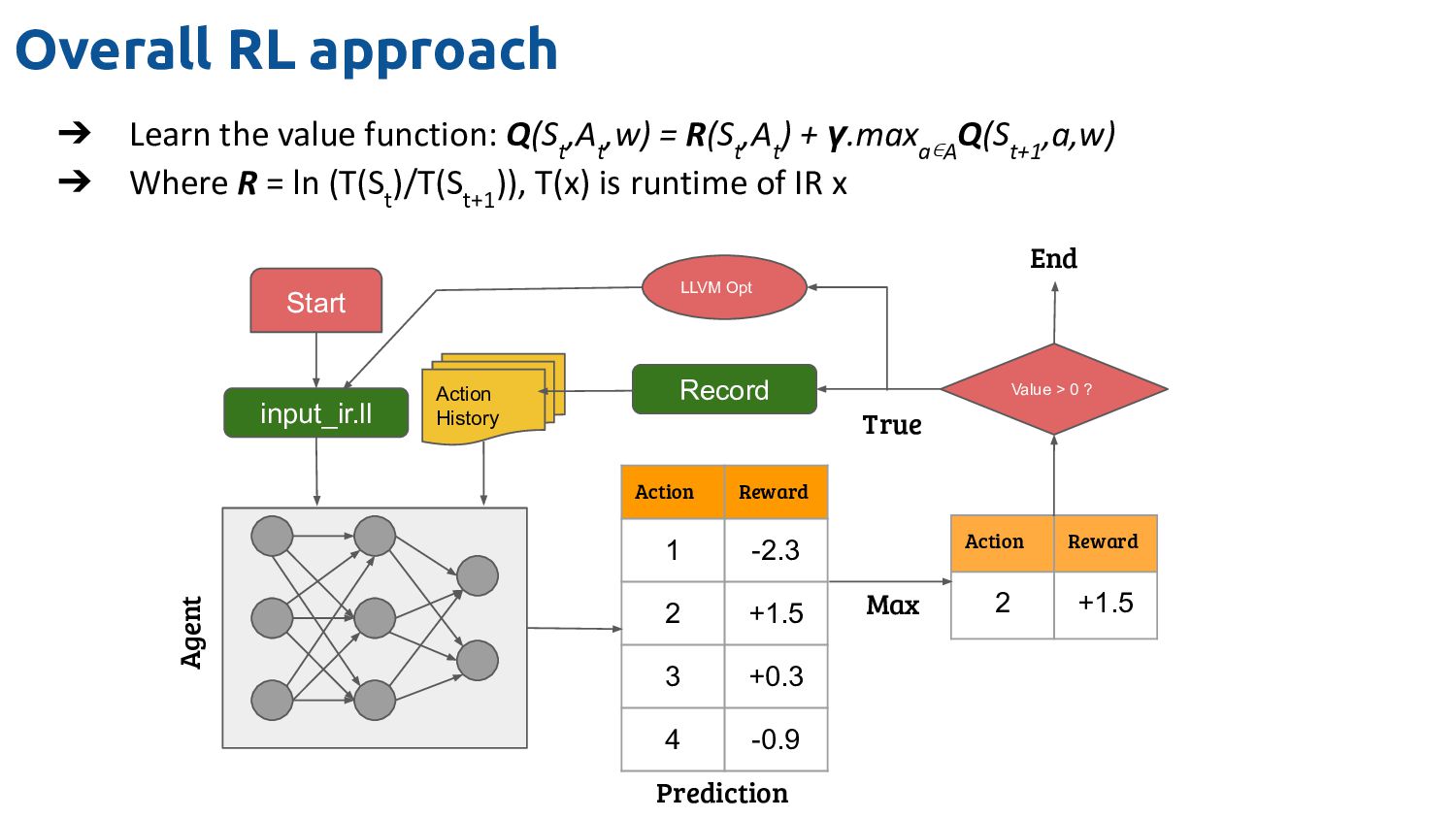

128. Overall RL approach ➔ Learn the value function: Q(S t ,A t ,w) = R(S t ,A t ) + γ.max a∊A Q(S t+1 ,a,w) ➔ Where R = ln (T(S t )/T(S t+1 )), T(x) is runtime of IR x Start input_ir.ll Action Reward 1 -2.3 2 +1.5 3 +0.3 4 -0.9 Action Reward 2 +1.5 Value > 0 ? Record LLVM Opt Action History Agent Prediction Max End True

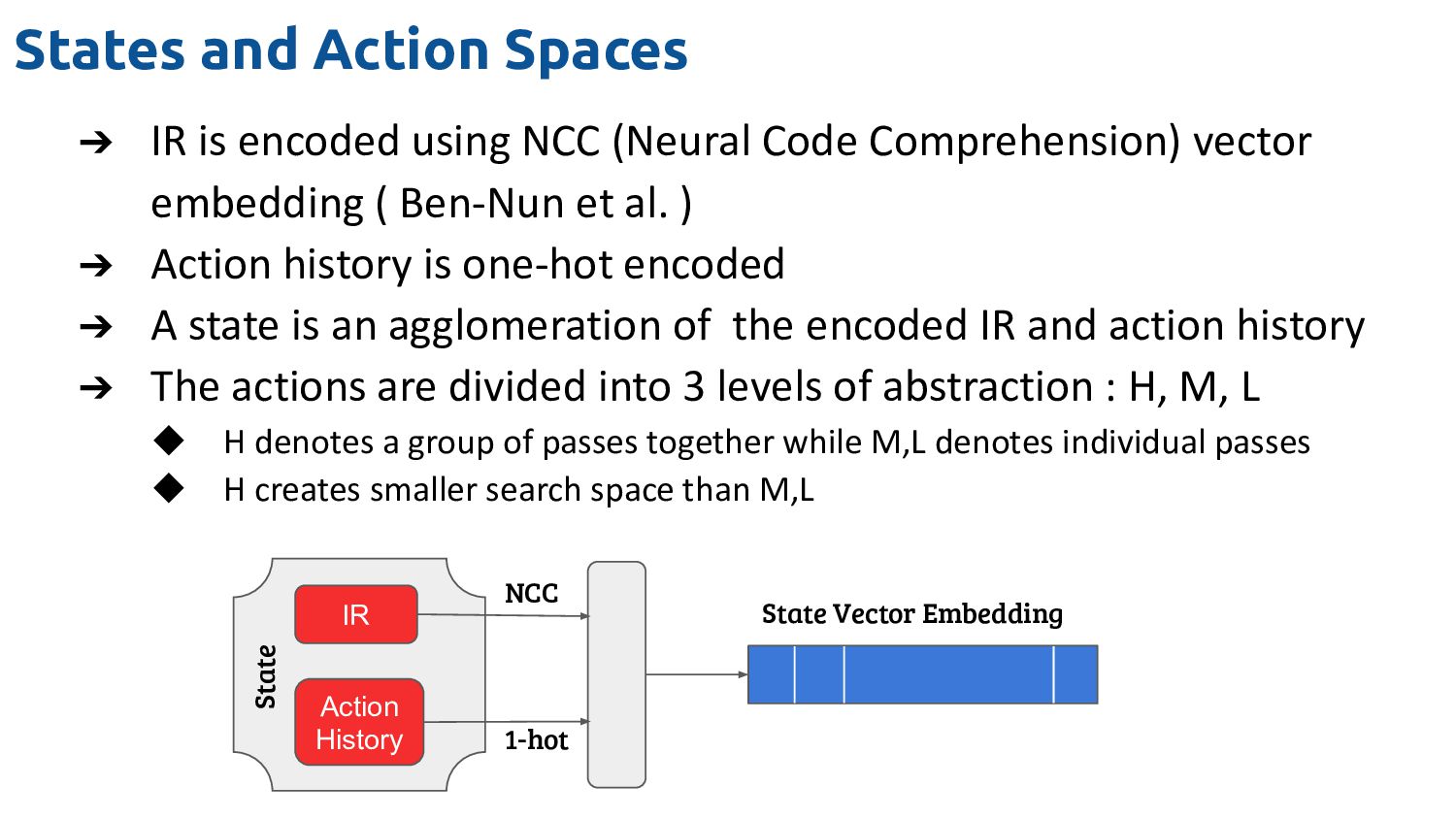

129. States and Action Spaces ➔ IR is encoded using NCC (Neural Code Comprehension) vector embedding ( Ben-Nun et al. ) ➔ Action history is one-hot encoded ➔ A state is an agglomeration of the encoded IR and action history ➔ The actions are divided into 3 levels of abstraction : H, M, L ◆ H denotes a group of passes together while M,L denotes individual passes ◆ H creates smaller search space than M,L IR Action History State NCC 1-hot State Vector Embedding

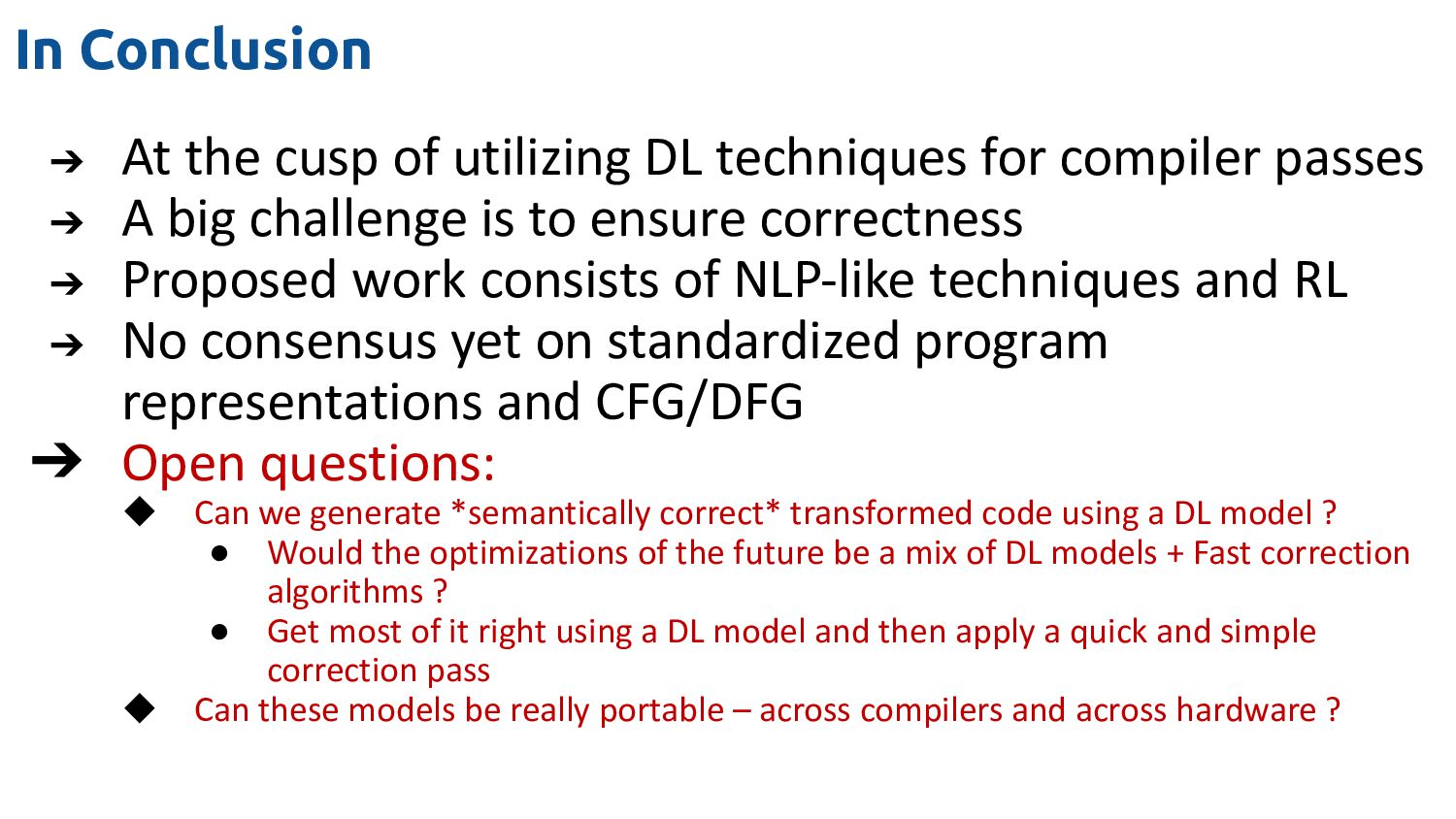

130. In Conclusion ➔ At the cusp of utilizing DL techniques for compiler passes ➔ A big challenge is to ensure correctness ➔ Proposed work consists of NLP-like techniques and RL ➔ No consensus yet on standardized program representations and CFG/DFG ➔ Open questions: ◆ Can we generate *semantically correct* transformed code using a DL model ? • Would the optimizations of the future be a mix of DL models + Fast correction algorithms ? • Get most of it right using a DL model and then apply a quick and simple correction pass ◆ Can these models be really portable – across compilers and across hardware ?
