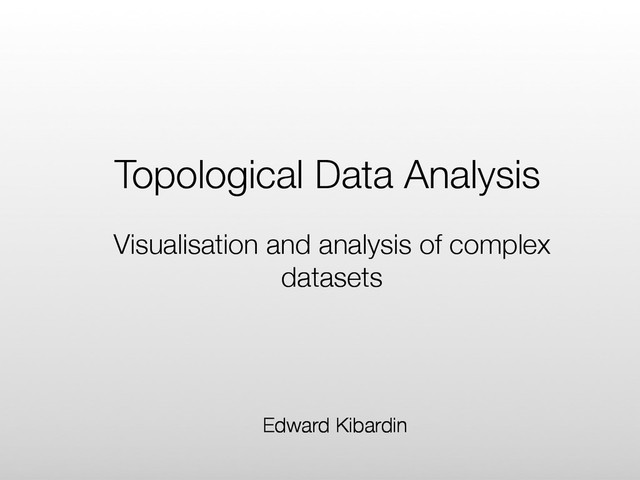

1. Topological Data Analysis Visualisation and analysis of complex datasets Edward Kibardin
2. Data Map
3. + Instead of asking data specific questions we can use traditional tools to join different data sources and prepare a holistic dataset This dataset can be automatically processed using topological data analysis and presented as map of dependencies and correlations The motivation = Get answers to questions you didn’t ask yet
4. A topological invariant is a map f that assigns the same object to homeomorphic spaces, that is: Homology: is a machine that converts local data about a space into global algebraic structure Reference: Wikipedia, 2010. Topological invariants
5. a   b   a.  Compute a combinatorial model approximating the structure of the underlying space b.  Then compute topological invariants of this structure c.  Represent these topological invariants in 2d space Topology Data Analysis Pipeline c
6. The Čech Complex Combinatorial Representations
7. Barcodes Reference: Robert Adler, TOPOS: Applied topologists do it with persistence
8. Theorem: Suppose  h  :  X  g          is a discrete Morse function.   Then X is homotopy equivalent to a CW-complex with exactly one cell of dimension p for each critical simplex of dimension p. Reference:  Teng  Ma  ;  Zhuangzhi  Wu  ;  Pei  Luo  ;  Lu  Feng.  Reeb  graph  computa1on  through  spectral  clustering,  2011.   Morse Theory and Reeb Graph
9. Case study: 20 Newsgroups The 20 Newsgroups data set is a collection of approximately 20,000 newsgroup documents, partitioned (nearly) evenly across 20 different newsgroups. •  18,820 documents •  From 6 to 5000 words each •  20 newsgroups (classes) 20  Newsgroups     academic  dataset   (unsupervised)
10. Case study: 20 Newsgroups Data Transformation re albert sabin in article apr nntpd cxo dec com sharpe nmesis enet dec com system privileged account writes in article c ftjt sunfish usd edu rfox charlie usd edu rich fox univ of south dakota writes in article apr rambo atlanta albert sabin articl apr nntpd cxo dec sharp nmesi enet dec system privileg account write articl ftjt sunfish usd edu rfox charli usd edu rich fox univ south dakota write articl apr rambo atlanta … account albert articl apr atlanta cxo dec edu … 564 3 0 5 1 0 0 0 0 565 0 1 2 0 1 0 0 0 566 0 0 0 2 0 0 1 2 567 1 0 0 0 0 0 0 0 568 0 0 2 0 0 2 0 0 569 2 2 1 4 5 2 3 4 570 0 2 0 2 2 0 0 2 571 0 0 0 2 2 0 1 0 572 1 0 1 0 0 2 0 0 573 0 2 0 0 0 1 0 2 574 0 1 0 2 2 0 0 1 575 3 0 3 1 0 0 5 1 576 0 0 0 0 0 3 3 2 577 1 1 1 0 5 3 4 0 578 0 0 0 3 7 3 5 7 Source text Data format for TDA 20000 words 18820 documents Stemming and stop words removal Text vectorisation
11. Topology for different epsilon parameter Case study: 20 Newsgroups
12. General topology Case study: 20 Newsgroups rec.motorcycles   misc.forsale   comp.sys.ibm.   pc.hardware   monitor   computer   not   drive   intern   low   talk.poli:cs.misc   sci.space   fire   :i   hour   sci.crypt   sci.electronics   rec.sport.hockey   rec.sport.basketball
13. Highly detailed topology Case study: 20 Newsgroups
14. Case study: Netflix competition A dataset from Netflix open competition best collaborative filtering algorithm to predict user ratings for films: •  100,480,507 ratings •  480,189 users •  17,770 movies •  2.1 GB of CSV file
15. Case study: Netflix competition Data Transformation Source data users movies Data format for TDA [100,480,507:3] 300 millions of elements [17,770:480,189] 8.5 billions of elements
16. Challenges: •  During pivoting we’re transforming 300 millions of data items into 8.5 billions of data items, which require more than 200 GB of ram •  Current TDA algorithm implementation has O( n log(n) ) computational and memory complexity, which makes it even more complicated to compute as is Case study: Netflix competition Data Transformation
17. Case study: Netflix competition
18. Case study: Netflix competition
19. Case study: Netflix competition Horror Movies
20. Case study: Netflix competition Science Fiction / Fantasy Series
21. Case study: Netflix competition Concerts
22. Case study: Netflix competition Result comparison Locally Linear Embedding PCA Local Tangent Space Alignment Hessian LLE Topological Data Analysis Spectral Embedding
23. Case study: Badoo A subset of user activity in the United States. Aggregated activity metrics over two weeks in August 2014. •  88,567 users •  867 metrics
24. Case study: Badoo Data Transformation Used aggregated representations of user activities per day: •  Number of likes •  Number of dislikes •  Number of matches •  Profiles visited •  Photos uploaded •  Number of messages sent (no content analysed) •  Number of message replies •  Interactions with different app features
25. Case study: Badoo Messages sent / received
26. Case study: Badoo Results •  Genders can be very well identified pure by activity •  Found a group of male users, who acting very similar to female, need to analyse more •  Performed the segmentation of users for future analysis with product team •  Blocked users were separated very well can be very well distinguished by TDA •  Found several interesting correlations between user actions and success on the app
27. Case study: Badoo DataRefiner tool
28. Links Topology And Data (Gunnar Carlsson): http://www.ams.org/journals/bull/2009-46-02/S0273-0979-09-01249-X/ S0273-0979-09-01249-X.pdf Discrete Morse Theory and Persistent Homology (Kevin P. Knudson): http://www.math.fsu.edu/~hironaka/FSUUF/knudson.pdf Topological Persistence and Simplification (Herbert Edelsbrunner, David Letscher, Afra Zomorodian): http://math.uchicago.edu/~shmuel/AAT-readings/Data%20Analysis%20/PersTop.pdf Netflix Diagram (3200x3200): http://datarefiner.com/netflix17770movies.png Netflix Diagram with movie titles (17000x17000, 86MB): http://datarefiner.com/netflix17770movies_annotation.png
