How Workday Search Built their Metrics Pipeline with the Elastic Stack

After struggling to find a traditional database that could ingest large volumes of application metrics at an acceptable rate, Workday Search noticed that each of their already existing Elastic Stack deployments were able to process over 1 billion log events a week without issues. This talk will share how Workday Search expanded their deployment by implementing a robust, easy-to-use metrics processing pipeline.

Bo and Thomas will provide details on how they architected their pipeline, the scripts and frontend tools they use to visualize their data and proactively alert them to issues in production, as well as the metrics they look at to provide insight into usage patterns and facilitate intelligent product decisions.

Bodecker DellaMaria l Software Engineer l Workday
Thomas Kim l Principal Engineer l Workday

Transcript

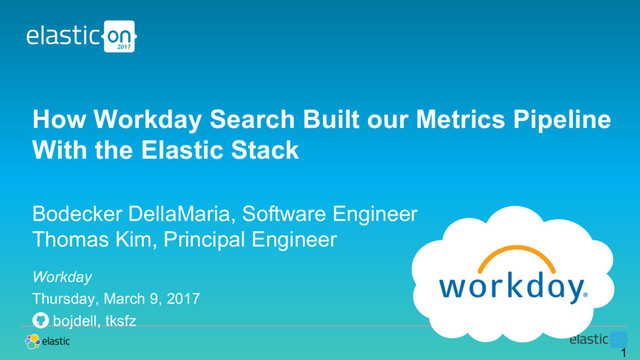

1. Workday Thursday, March 9, 2017 bojdell, tksfz Bodecker DellaMaria, Software Engineer Thomas Kim, Principal Engineer How Workday Search Built our Metrics Pipeline With the Elastic Stack 1
2. I'll begin with a shockingly controversial statement: programming languages vary in power. - Paul Graham Source: http://paulgraham.com/avg.html 2
3. 1. About Workday Search 2. Our Metrics 3. Metrics Pipeline: Elastic Stack 4. Metrics in Action Outline 3
4. This talk is about what works for us Maybe it’ll work for your team, maybe it won’t You should do what works for you :) Disclaimer 4
5. An Overview of Workday Search What We’re Building 5
7. Global Search 7
9. Search Report 9
10. Monolithic architecture → Microservices Enhanced scale Improved relevance Workday Search: The Goal 10
11. Workday Search: By the Numbers 11
12. escalar: Open-Source Scala ES Client https://github.com/Workday/escalar Giving Back to the Community + = + 12
13. What We are Not 13
14. What We are Not METRICS METRICS METRICS METRICS METRICS! METRICS!!! 14
15. Enterprise Search → Indexing Pipeline, Query Service → Multi-tenant architecture → Per-tenant encryption How we use Elasticsearch Indexing Pipeline Query Service 15 ES
16. Quantifying Application Health and Performance What We’re Measuring 16
17. Types of Metrics Metric Type Examples System Health Elasticsearch cluster health Process status (running, stopped) Correctness Incremental indexing coverage Query error rate Performance Full reindex times Query speed 17
18. Types of Metrics Metric Type Examples System Health Elasticsearch cluster health Process status (running, stopped) Correctness Incremental indexing coverage Query error rate Performance Full reindex times Query speed 18
19. Metric Type Examples System Health Elasticsearch cluster health Process status (running, stopped) Correctness Incremental indexing coverage Query error rate Performance Full reindex times Query speed Types of Metrics 19
23. Full Reindex Times 23
24. Full Reindex Times 24 94% of tenants indexed in less than 12 minutes!
25. Full Reindex Times 25 100% of tenants indexed in less than 3 hours!
26. Full Reindex Times 26
27. Incremental Indexing Speed 27
28. Incremental Indexing Coverage 28
29. Incremental Indexing Coverage 29
30. Query Success Rate 30
31. A Low-Maintenance, Scalable Approach to Metrics Processing Metrics Pipeline: Elastic Stack 31
32. = statsd agent Metrics Pipeline: Old ES Indexing Pipeline Query Service InfluxDB Grafana 32
33. ES Query Service Metrics Pipeline: Old ES Indexing Pipeline Query Pipeline InfluxDB Grafana ES Indexing Pipeline Query Service ES (Logs) = Logstash 33
34. ES Query Pipeline Metrics Pipeline: Old ES Indexing Pipeline Query Pipeline InfluxDB Grafana ES Indexing Pipeline Query Service ES (Logs) = Logstash 34
35. Realization: We’re storing lots of log data in ES… 35
36. Realization: We’re storing lots of log data in ES… And it’s doing just fine. 36
37. ES Query Pipeline Metrics Pipeline: Old ES Indexing Pipeline Query Pipeline InfluxDB Grafana ES Indexing Pipeline Query Service ES (Logs) = Logstash 37
38. ES Query Pipeline Metrics Pipeline: Old ES Indexing Pipeline Query Pipeline InfluxDB Grafana ES Indexing Pipeline Query Service ES (Logs) = Logstash 38
39. ES Query Pipeline Metrics Pipeline: New ES Indexing Pipeline Query Pipeline ES Indexing Pipeline Query Service ES (???) 39 = ???
40. ES Query Pipeline Metrics Pipeline: New ES Indexing Pipeline Query Pipeline ES Indexing Pipeline Query Service ES (Metrics) 40 = Logstash, Marvel
41. ES Query Pipeline Metrics Pipeline: New ES Indexing Pipeline Query Pipeline ES Indexing Pipeline Query Service ES (Metrics) 41 = Logstash, Marvel → Logs → Marvel Metrics → App Metrics
42. ES Query Pipeline Metrics Pipeline: New ES Indexing Pipeline Query Pipeline ES Indexing Pipeline Query Service ES (Metrics) 42 = Logstash, Marvel → Logs → Marvel Metrics → App Metrics
43. ES Query Pipeline Metrics Pipeline: New ES Indexing Pipeline Query Pipeline ES Indexing Pipeline Query Service ES (Metrics) 43 = Logstash, Marvel → Logs → Marvel Metrics → App Metrics
44. Vanilla ES Node x12 ES (Metrics) HAProxy (x2) searcher (microservice) x8 Query Service Logstash app.log metrics.log ES Masters, Clients, Data x32 Marvel ES Logstash elasticsearch.log 44
45. ES Query Pipeline Metrics Pipeline: New ES Indexing Pipeline Query Pipeline ES Indexing Pipeline Query Service ES (Metrics) 45 = Logstash, Marvel
46. Metrics Pipeline: New Grafana Kibana Nagios 46 ES Query Pipeline ES Indexing Pipeline Query Pipeline ES Indexing Pipeline Query Service ES (Metrics) ...
47. Grafana Kibana Nagios ES Query Pipeline ES Indexing Pipeline Query Pipeline ES Indexing Pipeline Query Service ES (Metrics) ... 47
48. Daily index, store 2 weeks of data Use Elastic curator to rotate indices Index Maintenance 48
49. Data Breakdown - Last 2 Weeks 49 Data Type # of Data Points Logs 15,513,194,303 Metrics 9,371,706,585 Marvel 191,023,311
50. Data Breakdown - Last 2 Weeks 50 Data Type # of Data Points Logs 12,825 Metrics 7,747 Marvel 157
51. Data Breakdown - Last 2 Weeks 51 Data Type # of Data Points Logs ~11 TB Metrics ~3 TB Marvel ~1 TB
52. Data Breakdown - Last 2 Weeks Usage of Metrics Cluster by Data Type (# of data points) 52
53. ### Metrics Parsing Pipeline if [path] =~ /metrics.log/ { grok { match => { "message" => [ "\[%{TIMESTAMP_ISO8601:timestamp}\]%{SPACE} %{WORD:type}:%{SPACE}%{GREEDYDATA:metrics_json}" ] } } if [metrics_json] { json { source => 'metrics_json' target => 'metrics' } ruby { code => " event['metrics']['values'].each do |k, v| event['value_' + k.to_s] = v end event['metrics']['tags'].each do |k, v| event['tag_' + k.to_s] = v end " } mutate { remove_field => [ "metrics", "metrics_json" ] } } } 53 Logstash Conf
54. ### Metrics Parsing Pipeline if [path] =~ /metrics.log/ { grok { match => { "message" => [ "\[%{TIMESTAMP_ISO8601:timestamp}\]%{SPACE} %{WORD:type}:%{SPACE}%{GREEDYDATA:metrics_json}" ] } } Logstash Conf 54
55. ### Metrics Parsing Pipeline if [path] =~ /metrics.log/ { grok { match => { "message" => [ "\[%{TIMESTAMP_ISO8601:timestamp}\]%{SPACE} %{WORD:type}:%{SPACE}%{GREEDYDATA:metrics_json}" ] } } Logstash Conf 55
56. ### Metrics Parsing Pipeline if [path] =~ /metrics.log/ { grok { match => { "message" => [ "\[%{TIMESTAMP_ISO8601:timestamp}\]%{SPACE} %{WORD:type}:%{SPACE}%{GREEDYDATA:metrics_json}" ] } } Logstash Conf 56
57. Regex: "\[%{TIMESTAMP_ISO8601:timestamp}\]%{SPACE} %{WORD:type}:%{SPACE}%{GREEDYDATA:metrics_json}"
58. Regex: "\[%{TIMESTAMP_ISO8601:timestamp}\]%{SPACE} %{WORD:type}:%{SPACE}%{GREEDYDATA:metrics_json}" Real Log Line: [2017-02-18 00:01:30,054] searcher_metrics: {"values":{ "oms_request_deser_time":3,"es_time":291,"num_filter_iids": 122,"sel_aggs_dimensions_count":0,"obj_es_query_length":688 1,"es_response_deser_time":0,"query_generation_time":17,"es _response_post_proc_time":0,"cluster_index":0,"obj_total":8 5,"check_security_time":6,"obj_num_results":85,"query_lengt h":7,"keywords_fields_count":15,"sel_aggregations_count":0, "es_request_ser_time":0,"searcher_time":366,"aggs_fields_co unt":0},"tags":{"request_id":"F5S|3CB29DF8|58A78ED9","sid": "15609$34","environment":"tsprod","tenant":"super"}}
59. Regex: "\[%{TIMESTAMP_ISO8601:timestamp}\]%{SPACE} %{WORD:type}:%{SPACE}%{GREEDYDATA:metrics_json}" Real Log Line: [2017-02-18 00:01:30,054] searcher_metrics: {"values":{ "oms_request_deser_time":3,"es_time":291,"num_filter_iids": 122,"sel_aggs_dimensions_count":0,"obj_es_query_length":688 1,"es_response_deser_time":0,"query_generation_time":17,"es _response_post_proc_time":0,"cluster_index":0,"obj_total":8 5,"check_security_time":6,"obj_num_results":85,"query_lengt h":7,"keywords_fields_count":15,"sel_aggregations_count":0, "es_request_ser_time":0,"searcher_time":366,"aggs_fields_co unt":0},"tags":{"request_id":"F5S|3CB29DF8|58A78ED9","sid": "15609$34","environment":"tsprod","tenant":"super"}}
60. Regex: "\[%{TIMESTAMP_ISO8601:timestamp}\]%{SPACE} %{WORD:type}:%{SPACE}%{GREEDYDATA:metrics_json}" Real Log Line: [2017-02-18 00:01:30,054] searcher_metrics: {"values":{ "oms_request_deser_time":3,"es_time":291,"num_filter_iids": 122,"sel_aggs_dimensions_count":0,"obj_es_query_length":688 1,"es_response_deser_time":0,"query_generation_time":17,"es _response_post_proc_time":0,"cluster_index":0,"obj_total":8 5,"check_security_time":6,"obj_num_results":85,"query_lengt h":7,"keywords_fields_count":15,"sel_aggregations_count":0, "es_request_ser_time":0,"searcher_time":366,"aggs_fields_co unt":0},"tags":{"request_id":"F5S|3CB29DF8|58A78ED9","sid": "15609$34","environment":"tsprod","tenant":"super"}}
61. Regex: "\[%{TIMESTAMP_ISO8601:timestamp}\]%{SPACE} %{WORD:type}:%{SPACE}%{GREEDYDATA:metrics_json}" Real Log Line: [2017-02-18 00:01:30,054] searcher_metrics: {"values":{ "oms_request_deser_time":3,"es_time":291,"num_filter_iids": 122,"sel_aggs_dimensions_count":0,"obj_es_query_length":688 1,"es_response_deser_time":0,"query_generation_time":17,"es _response_post_proc_time":0,"cluster_index":0,"obj_total":8 5,"check_security_time":6,"obj_num_results":85,"query_lengt h":7,"keywords_fields_count":15,"sel_aggregations_count":0, "es_request_ser_time":0,"searcher_time":366,"aggs_fields_co unt":0},"tags":{"request_id":"F5S|3CB29DF8|58A78ED9","sid": "15609$34","environment":"tsprod","tenant":"super"}}
62. if [metrics_json] { json { source => 'metrics_json' target => 'metrics' } ruby { code => " event['metrics']['values'].each do |k, v| event['value_' + k.to_s] = v end event['metrics']['tags'].each do |k, v| event['tag_' + k.to_s] = v end " }
63. mutate { remove_field => [ "metrics", "metrics_json" ] }
64. { "_index": "metrics-searcher-server-2017.02.18", "_type": "searcher_metrics", "_id": "AVpOhgbsmrDvR7Q0C5wY", "_score": 1, "_source": { "message": "[2017-02-18 00:01:30,054] searcher_metrics: {\"values\":{\"oms_request_deser_time\":3,\"es_time\":291,\"num_filter_iids\":122,\"se l_aggs_dimensions_count\":0,\"obj_es_query_length\":6881,\"es_response_deser_time\":0, \"query_generation_time\":17,\"es_response_post_proc_time\":0,\"cluster_index\":0,\"ob j_total\":85,\"check_security_time\":6,\"obj_num_results\":85,\"query_length\":7,\"key words_fields_count\":15,\"sel_aggregations_count\":0,\"es_request_ser_time\":0,\"searc her_time\":366,\"aggs_fields_count\":0},\"tags\":{\"request_id\":\"F5S|3CB29DF8|58A78E D9\",\"sid\":\"15609$34\",\"environment\":\"tsprod\",\"tenant\":\"super\"}}", "@version": "1", "@timestamp": "2017-02-18T00:01:30.054Z", "host": "shr-pdxeng-04.smn.eng.pdx.wd", "path": "/var/log/searcher-server/metrics.log", "type": "searcher_metrics", "value_oms_request_deser_time": 3, "value_es_time": 291, "value_num_filter_iids": 122, "value_sel_aggs_dimensions_count": 0, "value_obj_es_query_length": 6881, "value_es_response_deser_time": 0, "value_query_generation_time": 17,
65. "host": "shr-pdxeng-04.smn.eng.pdx.wd", "path": "/var/log/searcher-server/metrics.log", "type": "searcher_metrics", "value_oms_request_deser_time": 3, "value_es_time": 291, "value_num_filter_iids": 122, "value_sel_aggs_dimensions_count": 0, "value_obj_es_query_length": 6881, "value_es_response_deser_time": 0, "value_query_generation_time": 17, "value_es_response_post_proc_time": 0, "value_cluster_index": 0, "value_obj_total": 85, "value_check_security_time": 6, "value_obj_num_results": 85, "value_query_length": 7, "value_keywords_fields_count": 15, "value_sel_aggregations_count": 0, "value_es_request_ser_time": 0, "value_searcher_time": 366, "value_aggs_fields_count": 0, "tag_request_id": "F5S|3CB29DF8|58A78ED9", "tag_sid": "15609$34", "tag_environment": "tsprod", "tag_tenant": "super", "loglevel": "INFO" }
66. // singleton object StatsLogger { val DEFAULT_METRICS_FILE = "metrics.log" ... val RequestIdTag = "request_id" val ClusterIndexTag = "cluster_index" } trait StatsLogger { lazy val logger: Logger = ... def logFile: String // actually log a data point def writePoint(name: String, values: Map[String, AnyVal], tags: Map[String, String]): Unit = logger.info(s"$name: ${JsonUtils.toJson(Map("values" -> values, "tags" -> tags))}") ... } Scala API
67. // singleton object StatsLogger { val DEFAULT_METRICS_FILE = "metrics.log" ... val RequestIdTag = "request_id" val ClusterIndexTag = "cluster_index" } trait StatsLogger { lazy val logger: Logger = ... def logFile: String // actually log a data point def writePoint(name: String, values: Map[String, AnyVal], tags: Map[String, String]): Unit = logger.info(s"$name: ${JsonUtils.toJson(Map("values" -> values, "tags" -> tags))}") ... } Scala API
68. Pipeline is abstracted from application Metrics persisted to disk As a Search team, we know ES High degree of skill overlap More Benefits 68
69. A Tale of How our Metrics Helped Us Metrics in Action
70. The Challenge: All customer data written to disk Must be encrypted with a per-tenant key. 70
71. 1. Store all customer data unencrypted in-memory 2. Implement on-disk encryption in Elasticsearch Two Options: 71
72. Pre-ES 2.0 → store.type: memory Wrote custom in-memory translog (We know, it was a bad idea) The Easy Way: Memory Store 72
73. → Lucene Directory-level encryption (LUCENE-2228) → Translog encryption → Per-tenant keys → Implemented as a store plugin The Right Way: Encryption at Rest 73
74. Validation: Encryption is tricky... How do you know it works? 74
75. Metrics-Driven Validation 75 ES Query Pipeline ES Indexing Pipeline Query Pipeline ES (In-memory) Indexing Pipeline Query Service
76. Metrics-Driven Validation 76 ES1 (In-memory) ES2 (Encrypted, On-disk) Query Pipeline Indexing Pipeline Query Pipeline Indexing Pipeline Query Service Foreground Background
77. Metrics-Driven Validation 77 ES1 (In-memory) ES2 (Encrypted, On-disk) Query Pipeline Indexing Pipeline Query Pipeline Indexing Pipeline Query Service Foreground Background Compare metrics by cluster_id → Full reindex times → Query speed → Query relevance
78. New correctness metrics → Set difference → Kendall tau distance Metrics-Driven Validation 78 ES1 (In-memory) ES2 (Encrypted, On-disk) Query Pipeline Indexing Pipeline Query Pipeline Indexing Pipeline Query Service Foreground Background Compare metrics by cluster_id → Full reindex times → Query speed → Query relevance
79. [A, B, C, D] vs. [B, A, D, C] Result Pair (item1, item2) L1[item1] < L1[item2] ? L2[item1] < L2[item2] ? Diff. order? (A, B) 0 < 1 1 > 0 1 (A, C) 0 < 1 1 < 3 0 (A, D) 0 < 3 1 < 2 0 (B, C) 1 < 2 0 < 3 0 (B, D) 1 < 3 0 < 2 0 (C, D) 2 < 3 3 > 2 1 Kendall tau distance 2 L1 L2
80. Metrics-Driven Validation 80 ES1 (In-memory) ES2 (Encrypted, On-disk) Query Pipeline Indexing Pipeline Query Pipeline Indexing Pipeline Query Service Foreground Background Identical data → Identical scoring → Identical order → KT Distance = 0?
81. Metrics-Driven Validation 81 ES1 (In-memory) ES2 (Encrypted, On-disk) Query Pipeline Indexing Pipeline Query Pipeline Indexing Pipeline Query Service Foreground Background Identical data → Identical scoring → Identical order → KT Distance = 0? KTD > 0.5 for 30% of queries → Something is seriously wrong...
82. Virtually all major discrepancies traced to multi-shard tenants For single-shard tenants: KTD > 0 for ~3.8% of queries KTD > 0.05 for ~0.3% Metrics-Driven Validation 82
83. Virtually all major discrepancies traced to multi-shard tenants For single-shard tenants: KTD > 0 for ~3.8% of queries KTD > 0.05 for ~0.3% Metrics-Driven Validation 83
84. Wrap Up
85. 1. About Workday Search 2. Our Metrics 3. Metrics Pipeline: Elastic Stack 4. Metrics in Action Outline 85
86. Monolithic architecture → Microservices Enhanced scale Improved relevance Workday Search: The Goal 86
87. Monolithic architecture → Microservices Enhanced scale Improved relevance Workday Search: The Goal 87
88. Metrics Pipeline 3.0 ES 1.7 → ES 5.2 Logstash → Filebeat Grafana → Kibana What’s Next for Our Metrics? 88
89. Thank You to Everyone! 89 Attendees Elastic{ON} Pius Fung And most importantly...
90. Thank You to Everyone! 90
91. Thank You to Everyone! 91
92. Thank You to Everyone! 92 SEARCH TEAM
93. Thank You to Everyone! 93 SEARCH TEAM
