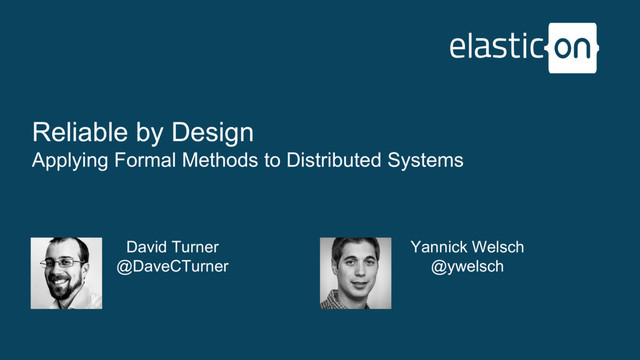

1. Reliable by Design
   Applying Formal Methods to Distributed Systems
   David Turner
   @DaveCTurner
   Yannick Welsch
   @ywelsch


   View Slide

2. Design is thinking
   2


   View Slide

3. Design is documentation
   3


   View Slide

4. Richard Guindon
   { }
   Writing is nature’s way of
   letting you know how sloppy your
   thinking is.


   View Slide

5. Leslie Lamport
   { }
   Mathematics is nature’s way of
   letting you know how sloppy your
   writing is.


   View Slide

6. Mathematical tools
   6


   View Slide

7. Millions of states
   7


   View Slide

8. 8
   Model
   Checking
   Interactive
   Theorem
   Proving
   • Exhaustive search
   • Finite state space
   • Accessible
   • Detailed argument
   • Arbitrary state space
   • More specialised
   Flavours


   View Slide

9. CONSENSUS


   View Slide

10. Asynchronous system
    10


    View Slide

11. 11
    Safety Liveness
    Nothing bad happens Something good eventually
    happens
    Properties


    View Slide

12. Majorities
    12


    View Slide

13. 13
    TLA+
    Node1
    Node2
    Node3
    • combines temporal logic and set theory
    • specification defines initial state and next-state relation
    • states represented by assigning values to variables


    View Slide

14. 14
    Next-state relation
    Node n
    firstUncommittedSlot: s
    currentTerm: t
    ...
    PublishResponse{ ... }
    Node n
    firstUncommittedSlot: s
    currentTerm: t
    lastAcceptedTerm: t
    lastAcceptedValue: v
    ...
    PublishRequest
    - dest: n
    - slot: s
    - term: t
    - value: v
    PublishResponse
    - slot: s
    - term: t


    View Slide

15. \* next-state relation
    Next ==
    \/ HandlePublishRequest
    \/ HandlePublishResponse
    \/ HandleClientRequest
    \/ SomeNodeCrashes
    \/ ...
    \* main safety property
    StateMachineSafety ==
    \A n1, n2 \in Nodes :
    firstUncommittedSlot[n1] = firstUncommittedSlot[n2] =>
    /\ currentClusterState[n1] = currentClusterState[n2]
    /\ currentConfiguration[n1] = currentConfiguration[n2]
    15
    Full specification
    • network behavior
    • node failures
    • client submitting values
    • next-state relation
    • safety property


    View Slide

16. TLC
    • model checker
    • integrated into IDE
    • exhaustive state exploration
    • breadth-first
    • bounded state space
    • bugs even for small models
    • good at finding edge cases


    View Slide

17. Isabelle/HOL
    • interactive proof assistant
    • needs guidance
    • tracks proof goals
    • fully automatically verifies proof


    View Slide

18. Experiences
    TLA+ Isabelle/HOL
    ● executable specs
    ● rapid prototyping
    ● high confidence
    ● rising in popularity
    ● no state-space limitations
    ● deep insights
    ● even higher confidence


    View Slide

19. Where can I learn more about this?
    More Questions? Visit us at the AMA
    ● TLA+ Home Page: http://lamport.azurewebsites.net/tla/tla.html
    ● TLA+ Video Course: http://lamport.azurewebsites.net/video/videos.html
    ● Introduction to TLA+: https://learntla.com
    ● Tutorial on Isabelle/HOL: http://isabelle.in.tum.de/doc/tutorial.pdf
    ● Use of Formal Methods at AWS: http://lamport.azurewebsites.net/tla/formal-methods-amazon.pdf
    ● Formal models of core Elasticsearch algorithms: https://github.com/elastic/elasticsearch-formal-models
    ● Related talk at 3:30pm (Salon 1-7): Elasticsearch Consensus: The Past, the Present, and the Future


    View Slide
