Introduction to RxJava for Android

Transcript

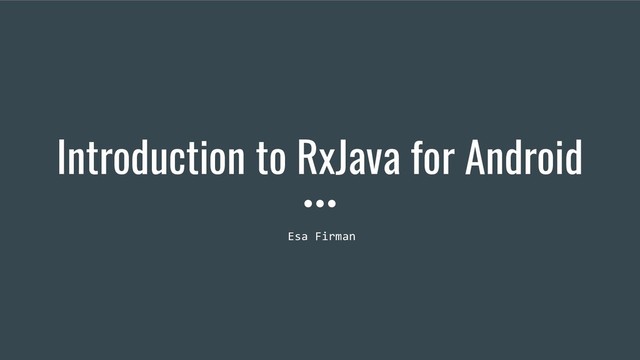

1. Introduction to RxJava for Android
   Esa Firman


   View Slide

2. What is RxJava?
   RxJava is a Java VM implementation of ReactiveX (Reactive
   Extensions): a library for composing asynchronous and
   event-based programs by using observable sequences
   See also: 2 minutes introduction to Rx
   https://medium.com/@andrestaltz/2-minute-introduction-to-rx-24c8ca793877#.rwup8ee0s


   View Slide

3. The Problem
   How to deal with execution context ?


   View Slide

4. Threads
   Handler handler = new Handler(Looper.getMainLooper());
   new Thread(){
   @Override
   public void run() {
   final String result = doHeavyTask();
   handler.post(new Runnable() { // or runUIThread on Activity
   @Override
   public void run() {
   showResult(result);
   }
   });
   }
   }.start();


   View Slide

5. Threads
   Pros:
   - Simple
   Cons:
   - Hard way to deliver results in UI thread
   - Pyramid of Doom


   View Slide

6. AsyncTask
   new AsyncTask(){
   @Override
   protected String doInBackground(Void... params) {
   return doHeavyTask();
   }
   @Override
   protected void onPostExecute(String s) {
   showResult(s);
   }
   }.execute();


   View Slide

7. AsyncTask
   Pros:
   - Deal with main thread
   Cons:
   - Hard way to handling error
   - Not bound to activity/fragment lifecycle
   - Not composable
   - Nested AsyncTask
   - “Antek Async”


   View Slide

8. Why Rx?
   - Because multithreading is hard
   - Execution context
   - Powerful operators
   - Composable
   - No Callback Hell
   - Etc ...


   View Slide

9. The Basic
   The basic building blocks of reactive code are Observables
   and Subscribers. An Observable emits items; a Subscriber
   consumes those items.
   The smallest building block is actually an Observer, but in practice you are most often using Subscriber because that's how
   you hook up to Observables.


   View Slide

10. The Basic
    Observables often don't start emitting items until someone
    explicitly subscribes to them


    View Slide

11. Enough talk, let’s see some code ...


    View Slide

12. Hello World
    public Observable getStrings() {
    return Observable.create(new Observable.OnSubscribe() {
    @Override
    public void call(Subscriber super String> subscriber) {
    try {
    subscriber.onNext("Hello, World");
    subscriber.onCompleted();
    } catch (Exception ex) {
    subscriber.onError(ex);
    }
    }
    });
    }


    View Slide

13. Hello World
    getStrings().subscribe(new Subscriber(){
    @Override
    public void onCompleted() {
    // no - op
    }
    @Override
    public void onError(Throwable e) {
    e.printStackTrace();
    }
    @Override
    public void onNext(String s) {
    System.out.println(s);
    }
    };


    View Slide

14. Observable myObservable = Observable.just("Hello, world!");
    Action1 onNextAction = new Action1<>() {
    @Override
    public void call(String s) {
    System.out.println(s);
    }
    };
    myObservable.subscribe(onNextAction);
    // Outputs "Hello, world!"
    Simpler Code


    View Slide

15. Simplest* Code - Using Lambda
    Observable.just("Hello, World").subscribe(System.out::println);
    *AFAIK


    View Slide

16. Observable Creation
    Observable.create(Observable.onSubscribe)
    from( ) — convert an Iterable or a Future or single value into an Observable
    repeat( ) — create an Observable that emits a particular item or sequence of items repeatedly
    timer( ) — create an Observable that emits a single item after a given delay
    empty( ) — create an Observable that emits nothing and then completes
    error( ) — create an Observable that emits nothing and then signals an error
    never( ) — create an Observable that emits nothing at all


    View Slide

17. Operators


    View Slide

18. Filtering Operators
    - filter( ) — filter items emitted by an Observable
    - takeLast( ) — only emit the last n items emitted by an Observable
    - takeLastBuffer( ) — emit the last n items emitted by an Observable, as a single list item
    - skip( ) — ignore the first n items emitted by an Observable
    - take( ) — emit only the first n items emitted by an Observable
    - first( ) — emit only the first item emitted by an Observable, or the first item that meets some condition
    - elementAt( ) — emit item n emitted by the source Observable
    - timeout( ) — emit items from a source Observable, but issue an exception if no item is emitted in a
    specified timespan
    - distinct( ) — suppress duplicate items emitted by the source Observable


    View Slide

19. View Slide

20. Filter
    Observable.just("Esa", "Ganteng", "Jelek")
    .filter(s -> !s.equalsIgnoreCase("jelek"))
    .buffer(2)
    .subscribe(strings -> {
    print(strings.get(0) + “ “ + strings.get(1));
    });
    // print Esa Ganteng


    View Slide

21. Transformation Operators
    - map( ) — transform the items emitted by an Observable by applying a function to each of them
    - flatMap( ) — transform the items emitted by an Observable into Observables, then flatten this into a
    single Observable
    - scan( ) — apply a function to each item emitted by an Observable, sequentially, and emit each
    successive value
    - groupBy( ) and groupByUntil( ) — divide an Observable into a set of Observables that emit groups of
    items from the original Observable, organized by key
    - buffer( ) — periodically gather items from an Observable into bundles and emit these bundles rather
    than emitting the items one at a time
    - window( ) — periodically subdivide items from an Observable into Observable windows and emit these
    windows rather than emitting the items one at a time


    View Slide

22. View Slide

23. Map
    Observable.from(Arrays.asList("Esa", "Esa", "Esa"))
    .map(s -> s + " ganteng")
    .subscribe(System.out::println);
    // print Esa ganteng 3 times


    View Slide

24. View Slide

25. FlatMap
    Observable.just( Arrays.asList("Tiramisu", "Black Forest", "Black Mamba"))
    .flatMap(Observable::from)
    .map(String::length)
    .subscribe(System.out::print);
    // print 8,11,12


    View Slide

26. Confused?
    Getting map/flatMap/compose mixed up? Think types:
    map : T -> R
    flatMap : T -> Observable
    compose : Observable -> Observable
    #ProTips


    View Slide

27. Retrofit Integration
    @GET("mobile_detail_calc_halte_trans.php")
    Observable>
    getHalteDetails(@Query("coridor") String coridor);
    mApiService.getHalteDetails(halte.getCoridor())
    .observeOn(AndroidSchedulers.mainThread())
    .doOnTerminate(this::resetUILoading)
    .subscribe(halteDetails -> {
    if (halteDetails != null) {
    setMarker(halteDetails);
    }
    });


    View Slide

28. More Examples
    mApiService.getCommentList()
    .compose(bindToLifecycle())
    .compose(applyApiCall())
    .doOnTerminate(this::stopLoading)
    .subscribe(comments -> {
    if (comments != null)
    mCommentAdapter.pushData(comments);
    });


    View Slide

29. More Samples
    Observable imageObservable = Observable.create(observer -> {
    Bitmap bm = downloadBitmap();
    return bm;
    });
    imageObservable.subscribe(image -> loadToImageView(image));
    // blocking the UI thread
    imageObservable
    .subscribeOn(Schedulers.newThread())
    .observeOn(AndroidSchedulers.mainThread())
    .subscribe(image -> loadToImageView(image));
    // non blocking but also execute loadToImageView on UI Thread


    View Slide

30. More Examples
    public Observable> getAreas() {
    Observable> network = mApiService.getArea()
    .observeOn(AndroidSchedulers.mainThread())
    .doOnNext(areas -> saveAreas(areas));
    Observable> cache = getAreasFromLocal();
    return Observable.concat(cache, network).first(areas -> areas != null);
    }


    View Slide

31. More Examples (Again)
    public void onLocationChanged(Location location) {
    onLocationChanged.onNext(location);
    }
    mGmsLocationManager.onLocationChanged
    .throttleLast(10, TimeUnit.SECONDS)
    .observeOn(AndroidSchedulers.mainThread())
    .subscribe(location -> {
    mPrensenter.updateMyLocation(location);
    });


    View Slide

32. FAQ
    1. Should we still use Thread and AsyncTask?
    2. Where to start?


    View Slide

33. Third Party Implementation
    - Android ReactiveLocation
    https://github.com/mcharmas/Android-ReactiveLocation
    -
    RxPermissions
    https://github.com/tbruyelle/RxPermissions
    - RxBinding
    https://github.com/JakeWharton/RxBinding
    - SQLBrite
    https://github.com/square/sqlbrite
    - RxLifeCycle
    https://github.com/trello/RxLifecycle


    View Slide

34. Links
    - http://slides.com/yaroslavheriatovych/frponandroid
    - https://github.com/Netflix/RxJava/
    - https://github.com/orfjackal/retrolambda
    - https://github.com/evant/gradle-retrolambda
    - http://cr.openjdk.java.net/~briangoetz/lambda/lambda-translation.html
    - https://github.com/Netflix/RxJava/wiki


    View Slide

35. Questions?


    View Slide
