Mobile Sync with Couchbase mobile

Code is available at : https://github.com/EmmanuelVinas/talk-couchbase

Transcript

1. Mobile Sync Using Couchbase
2. Android & Web Developer co founder of MonkeyPatch @EmmanuelVinas emmanuel@monkeypatch.io About me

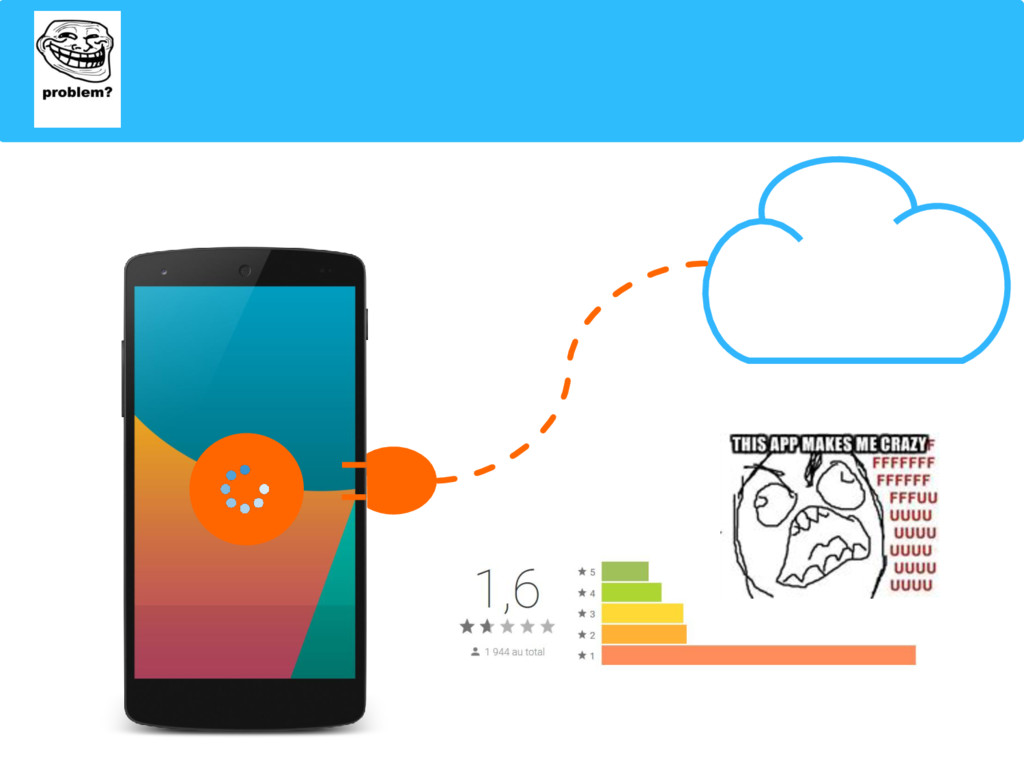

3. Network Reliability A frustrating User Experience

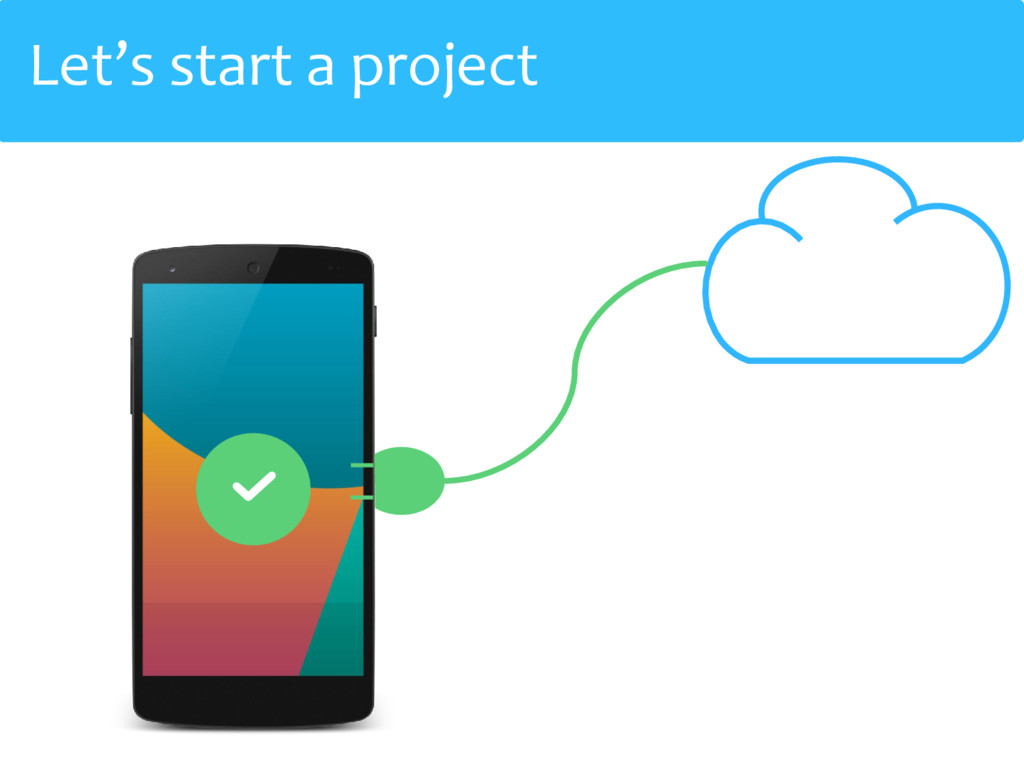

4. Let’s start a project

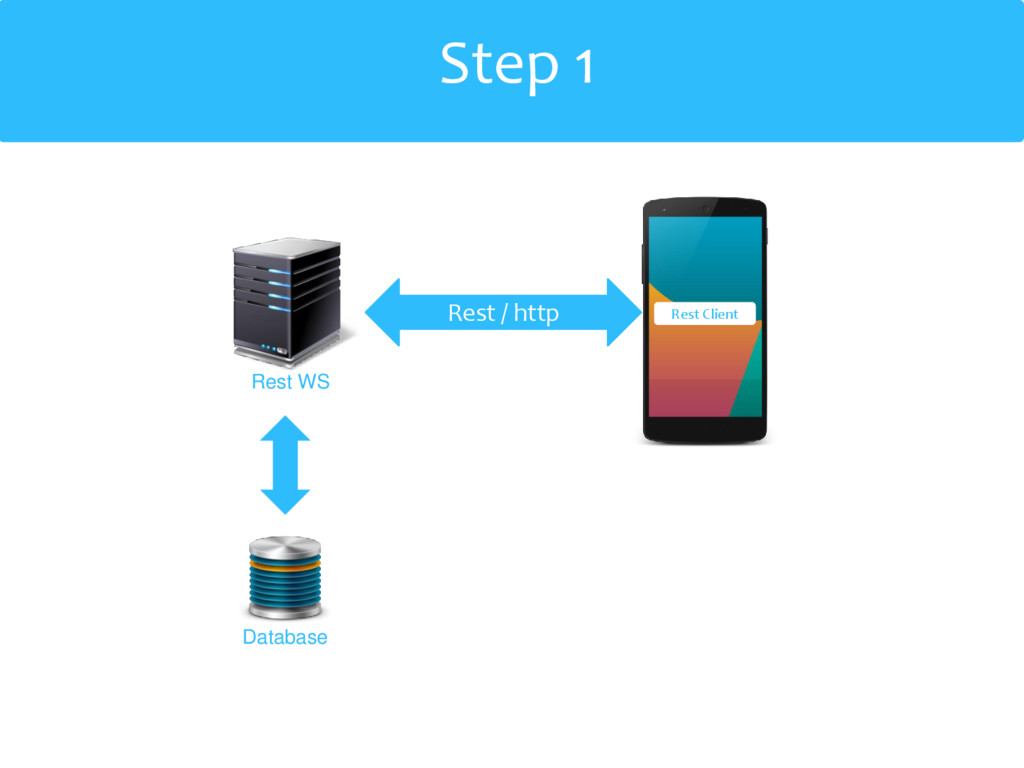

5. Step 1 Rest WS Database Rest / http Rest Client

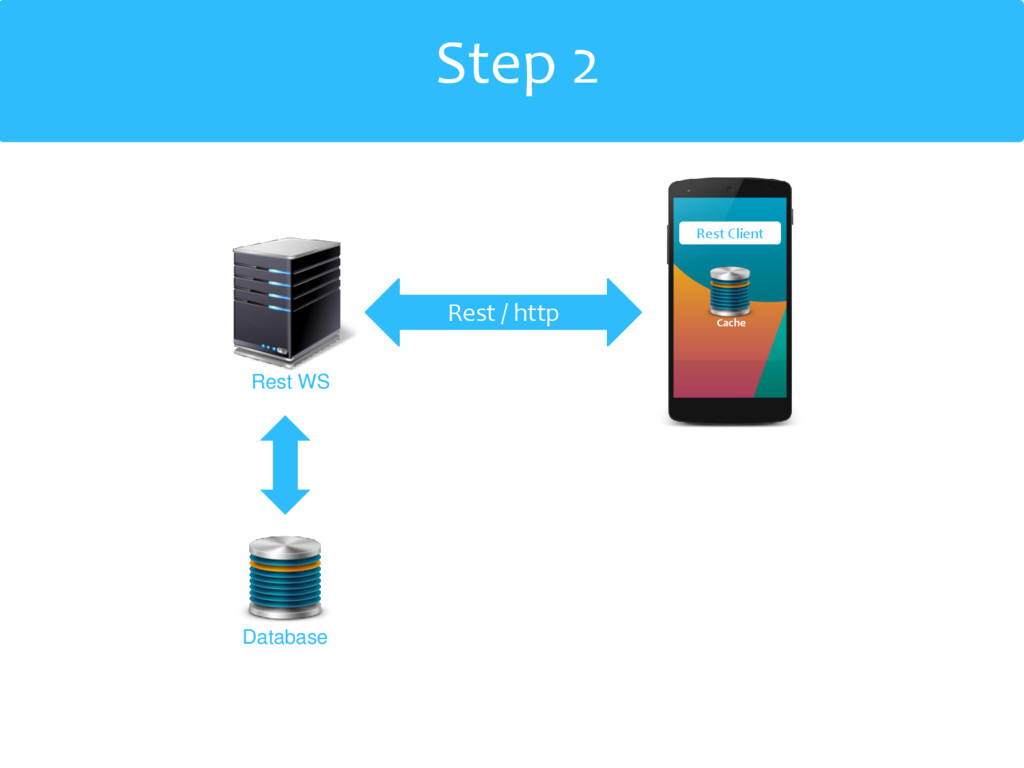

7. Step 2 Rest WS Database Rest / http Cache Rest Client

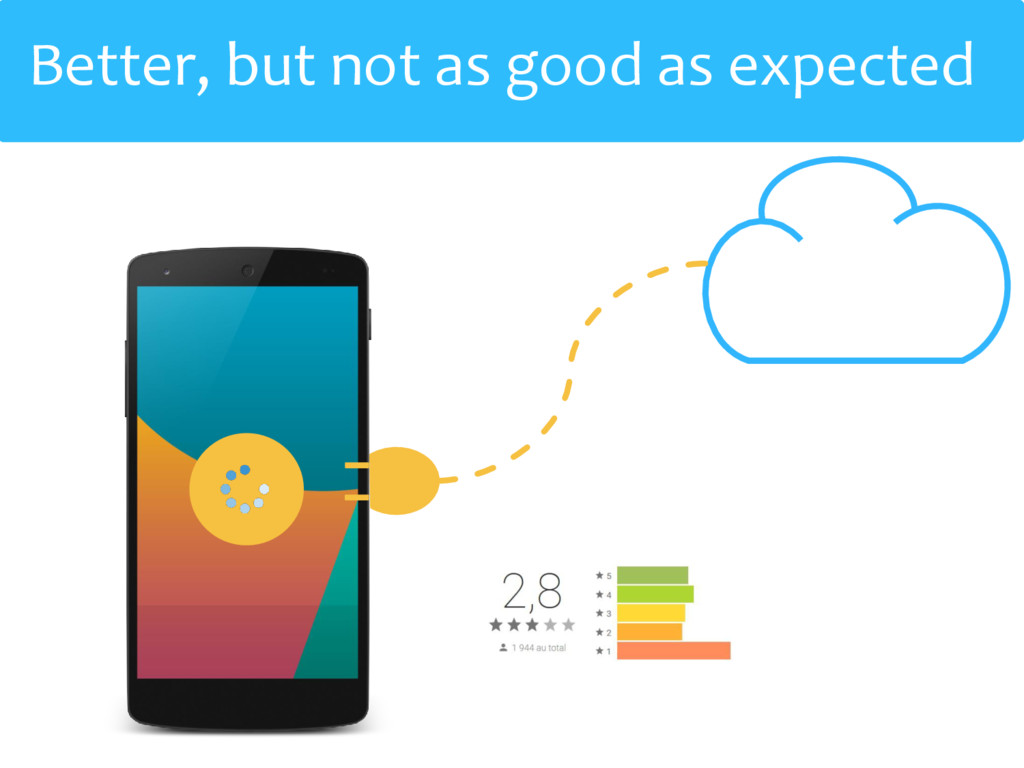

8. Better, but not as good as expected

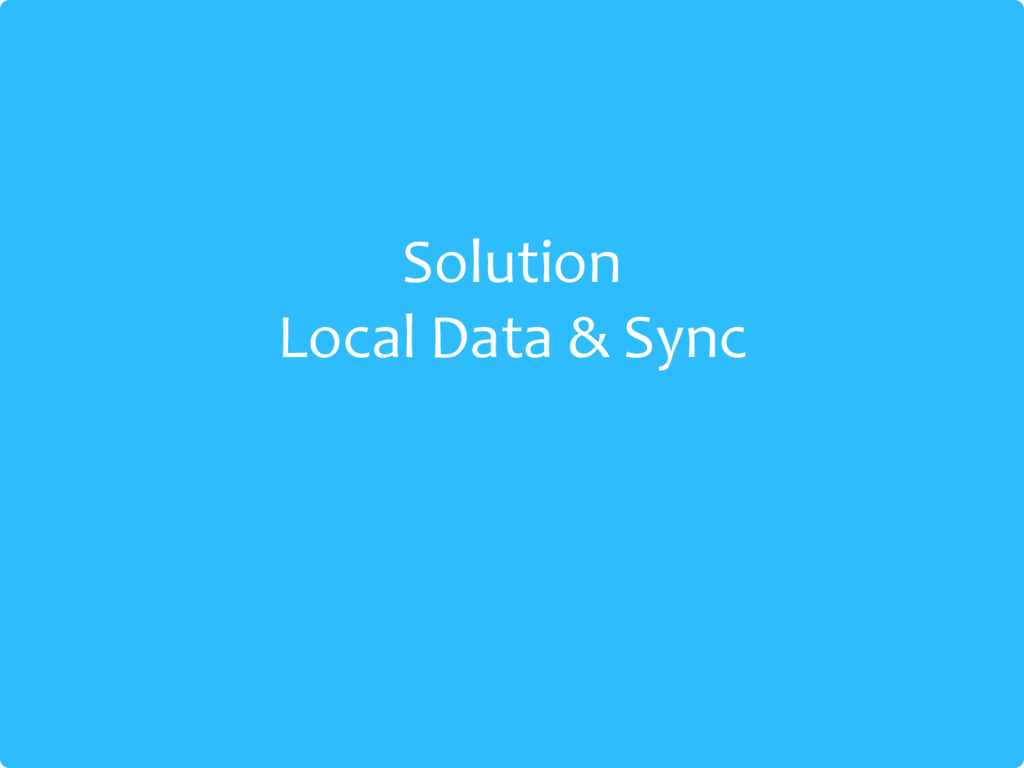

9. Solution Local Data & Sync

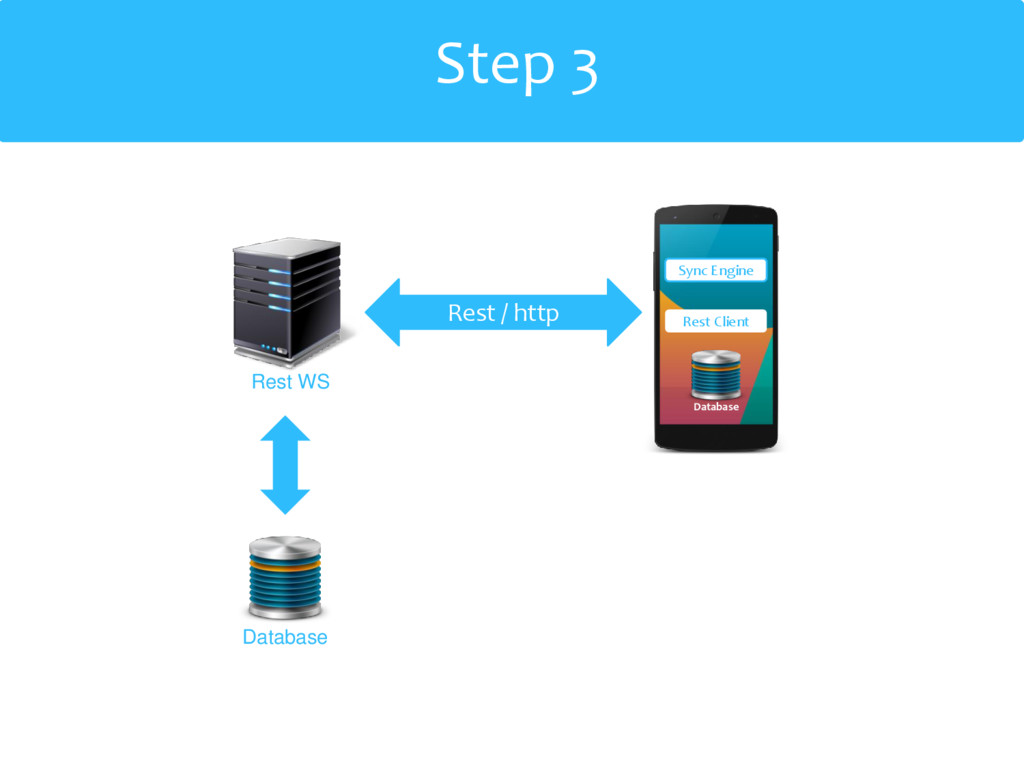

10. Step 3 Rest WS Database Rest / http Database Rest Client Sync Engine
11. Job Done
12. Sync, multi platforms Solutions

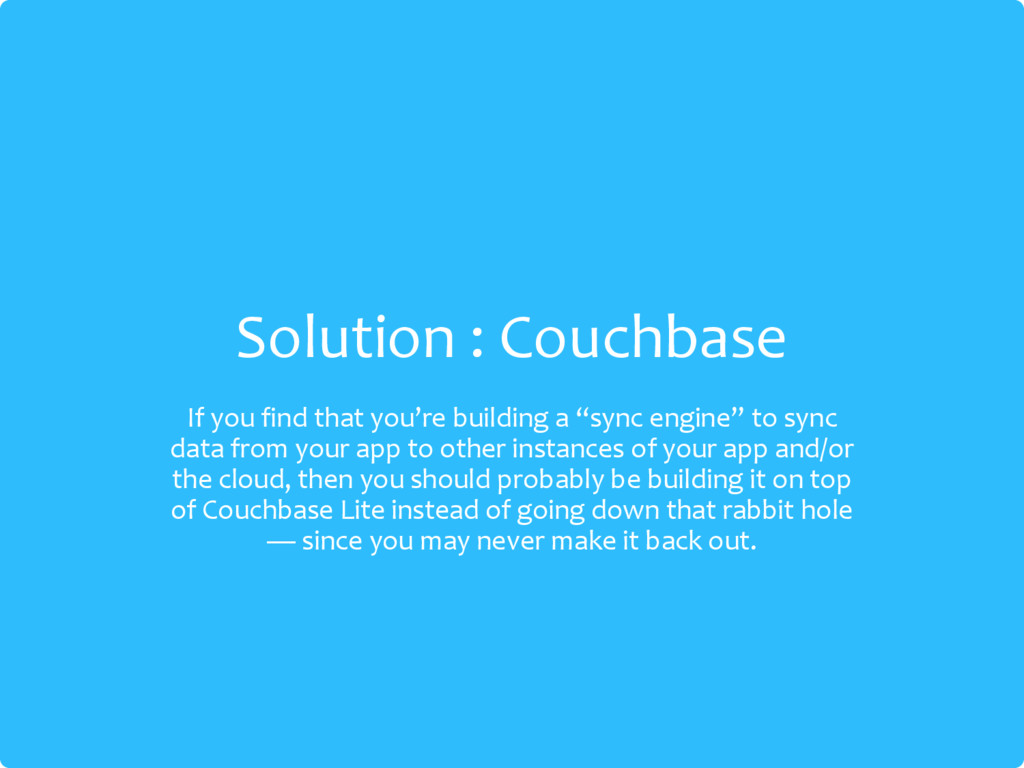

13. Solution : Couchbase If you find that you’re building a “sync engine” to sync data from your app to other instances of your app and/or the cloud, then you should probably be building it on top of Couchbase Lite instead of going down that rabbit hole — since you may never make it back out.

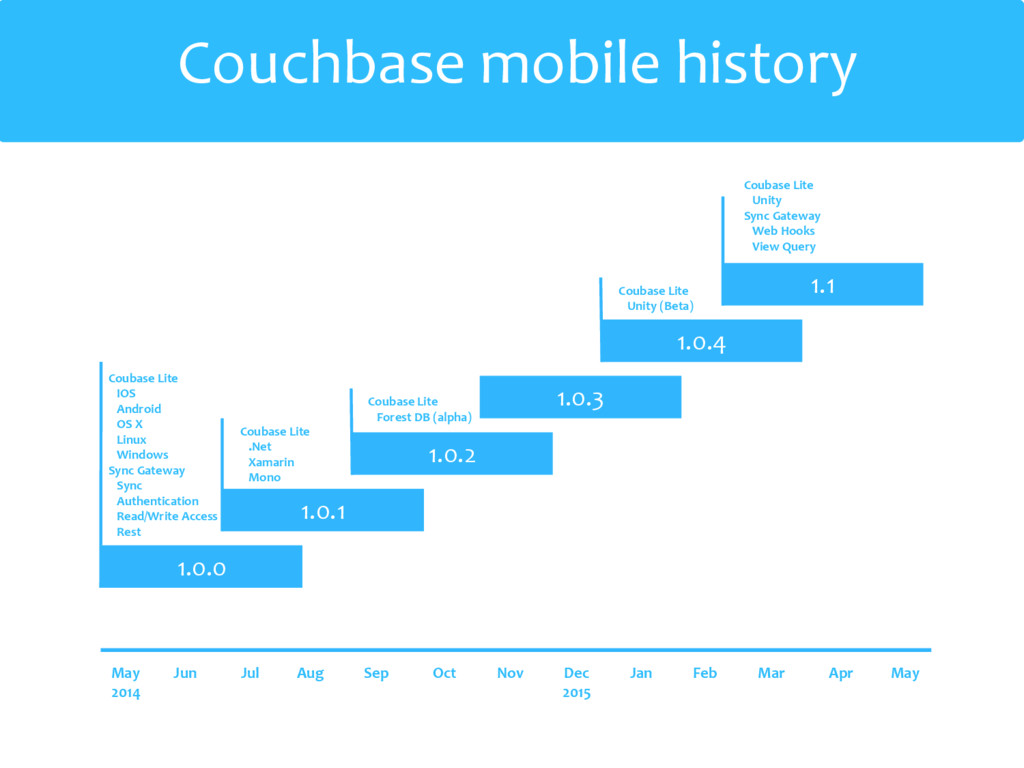

14. Couchbase mobile history 1.0.0 1.0.1 1.0.2 1.0.3 1.0.4 1.1 May Jun Jul Aug Sep Oct Nov Dec Jan Feb Mar Apr May 2014 2015 Coubase Lite IOS Android OS X Linux Windows Sync Gateway Sync Authentication Read/Write Access Rest Coubase Lite .Net Xamarin Mono Coubase Lite Forest DB (alpha) Coubase Lite Unity (Beta) Coubase Lite Unity Sync Gateway Web Hooks View Query

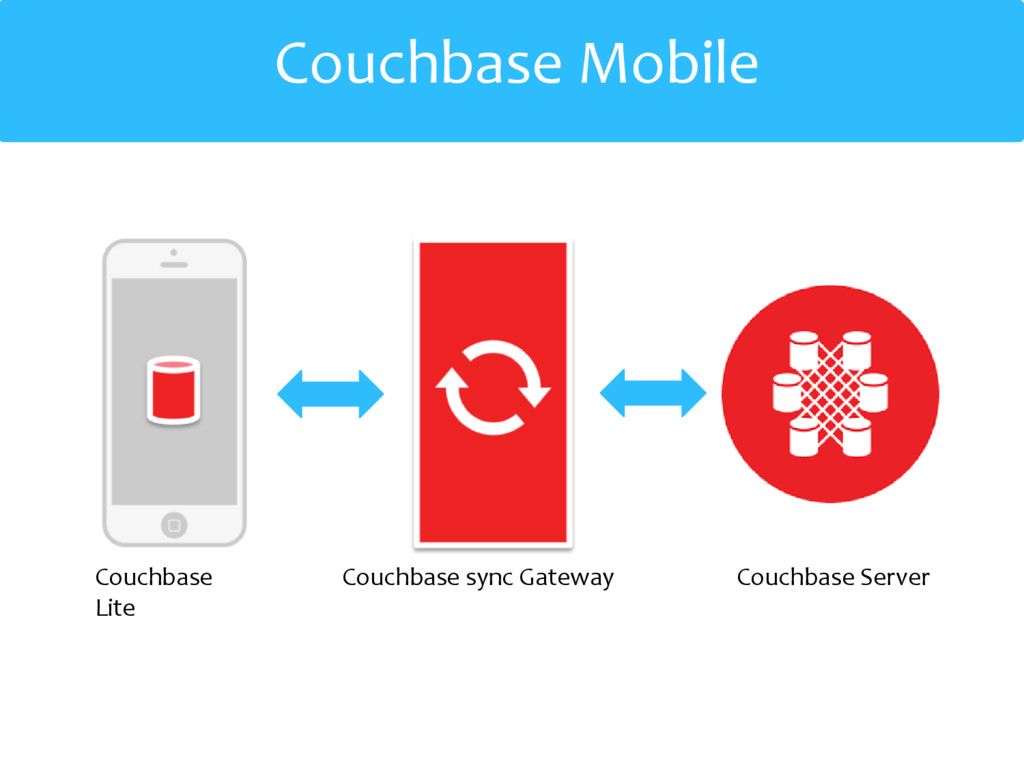

15. Couchbase Mobile Couchbase Lite Couchbase sync Gateway Couchbase Server

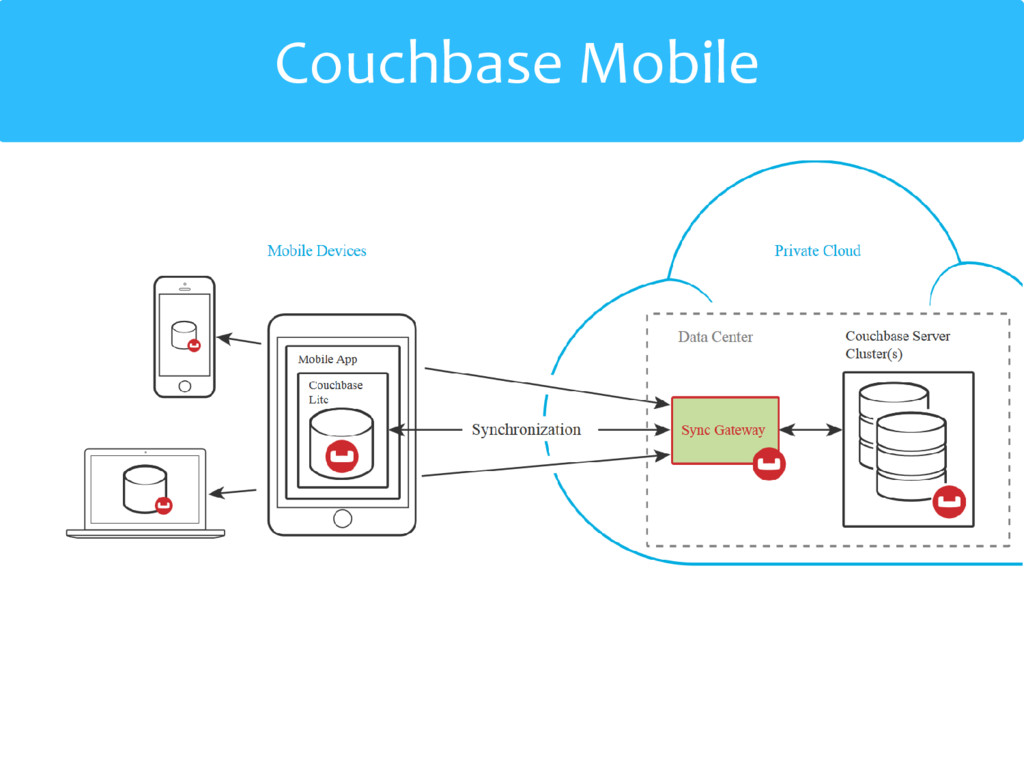

16. Couchbase Mobile

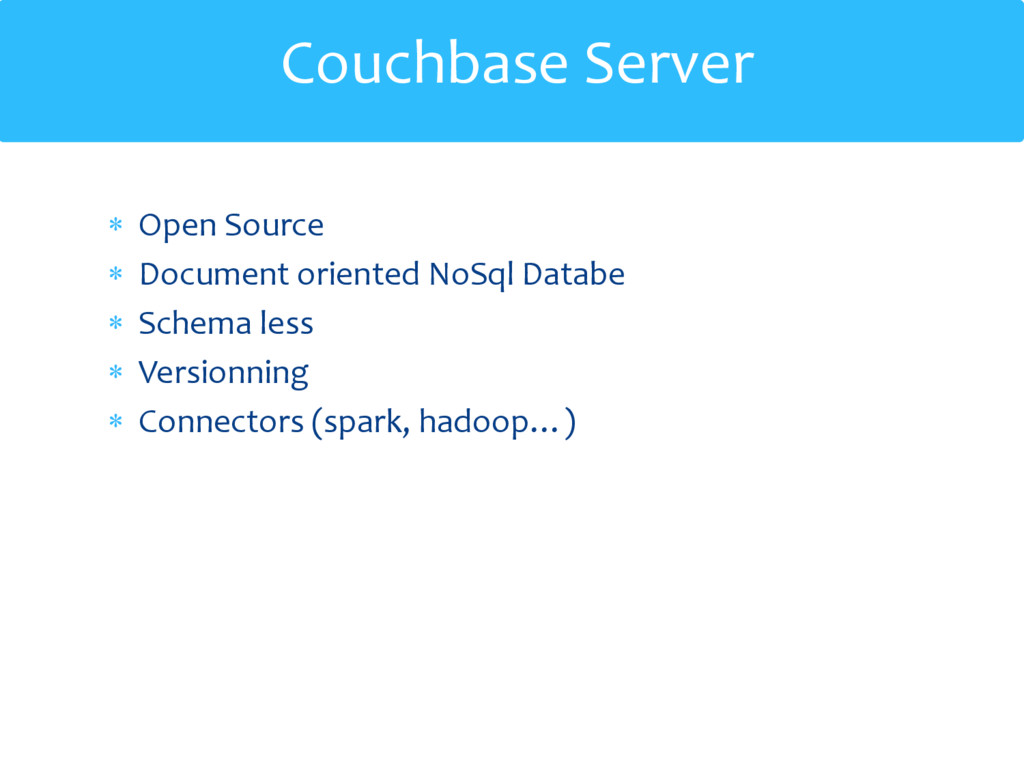

17.  Open Source  Document oriented NoSql Databe  Schema less  Versionning  Connectors (spark, hadoop…) Couchbase Server

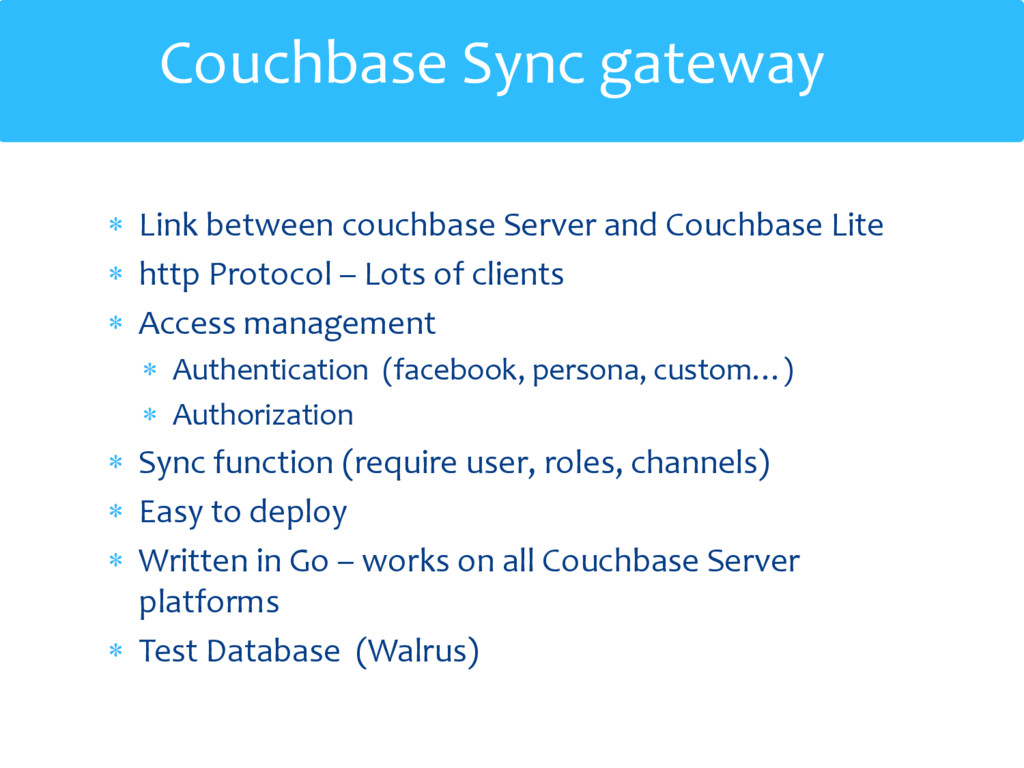

18.  Link between couchbase Server and Couchbase Lite  http Protocol – Lots of clients  Access management  Authentication (facebook, persona, custom…)  Authorization  Sync function (require user, roles, channels)  Easy to deploy  Written in Go – works on all Couchbase Server platforms  Test Database (Walrus) Couchbase Sync gateway

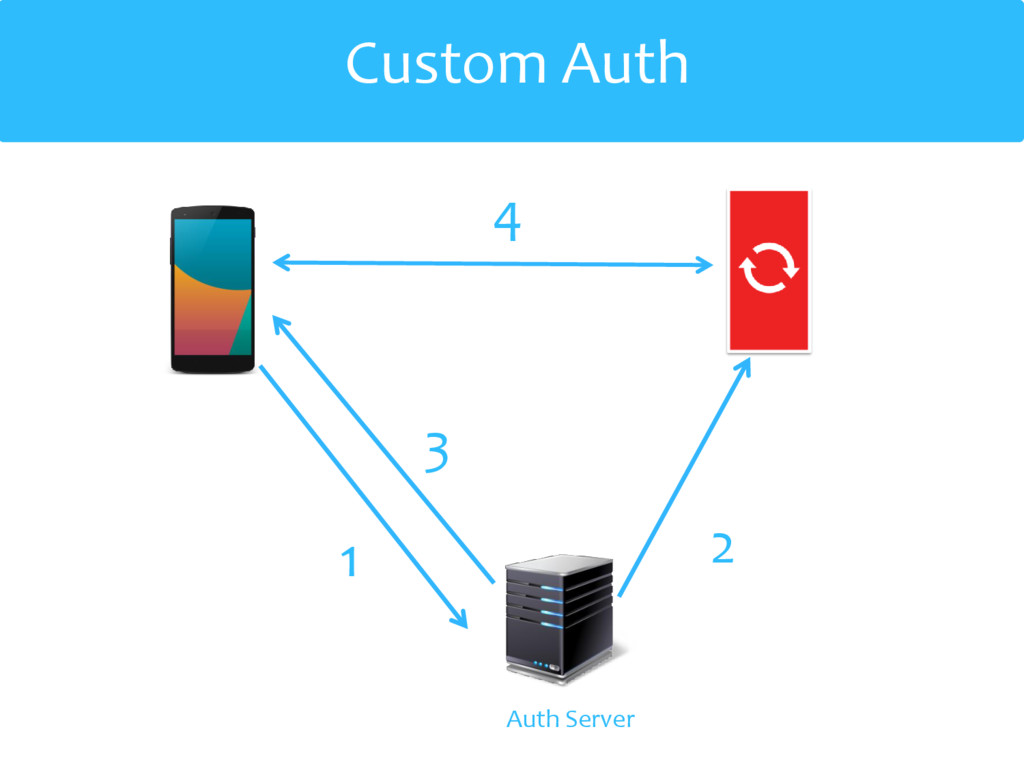

19. Custom Auth 1 3 2 4 Auth Server

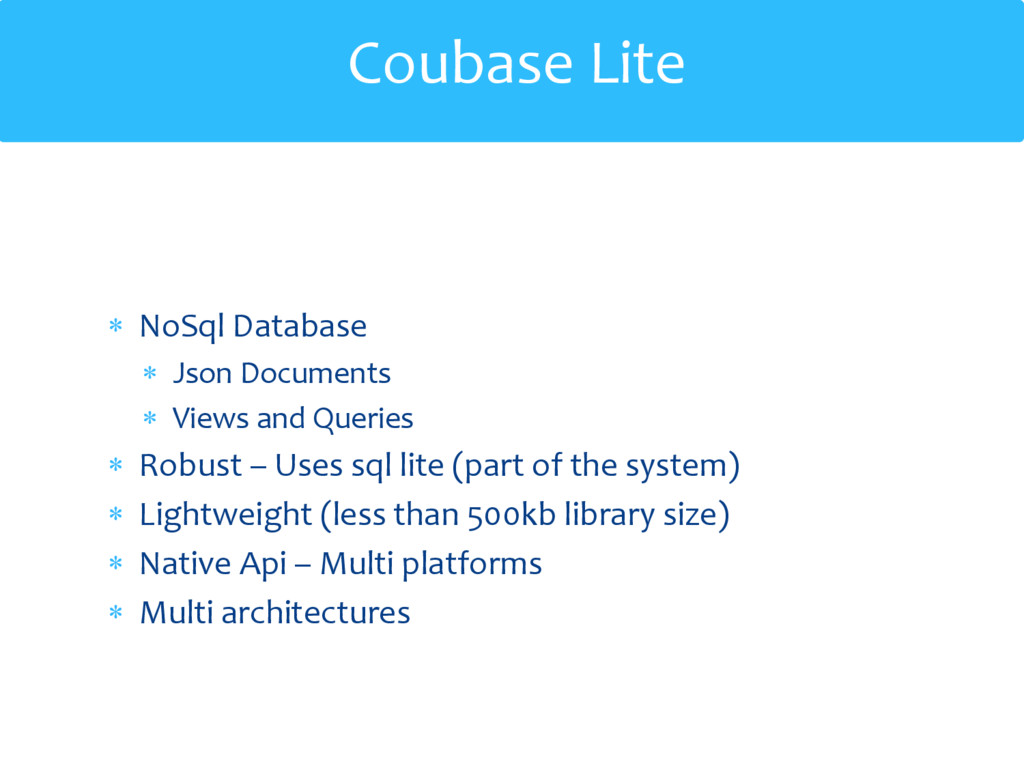

20.  NoSql Database  Json Documents  Views and Queries  Robust – Uses sql lite (part of the system)  Lightweight (less than 500kb library size)  Native Api – Multi platforms  Multi architectures Coubase Lite

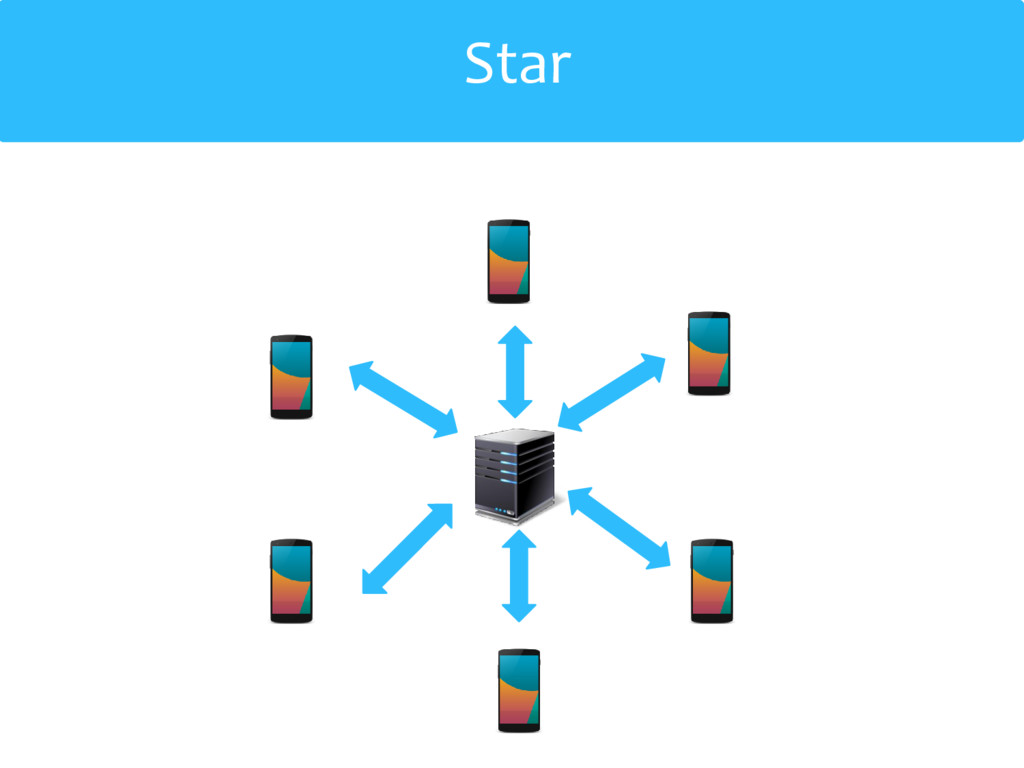

21. Star

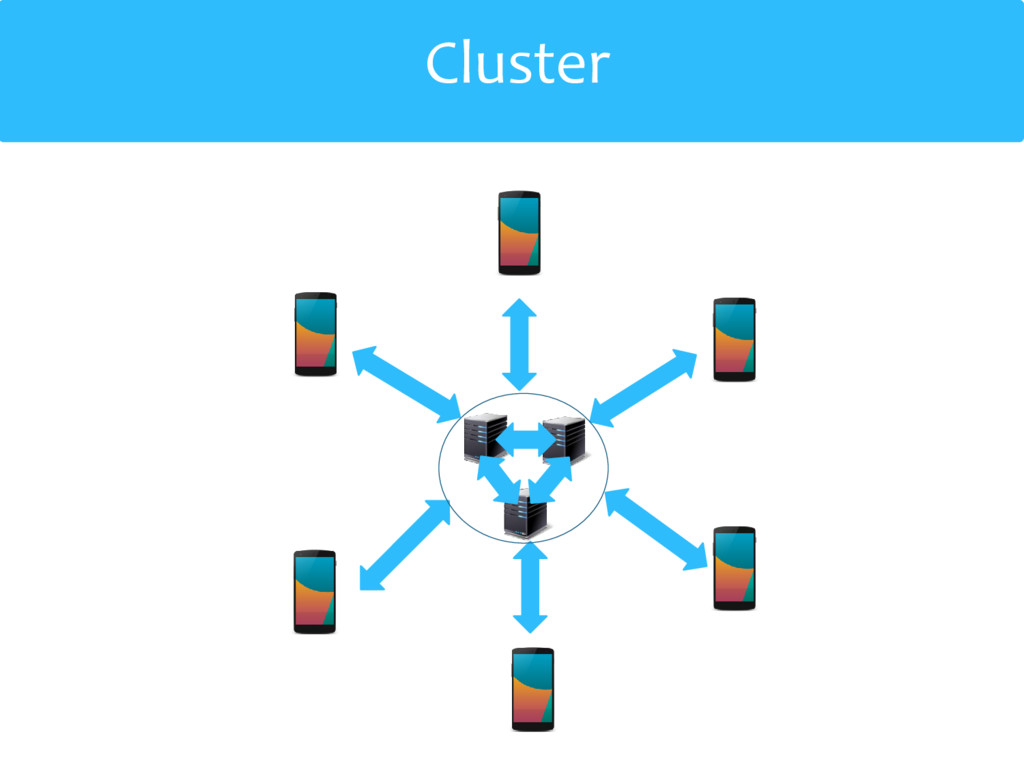

22. Cluster
23. Peer 2 Peer

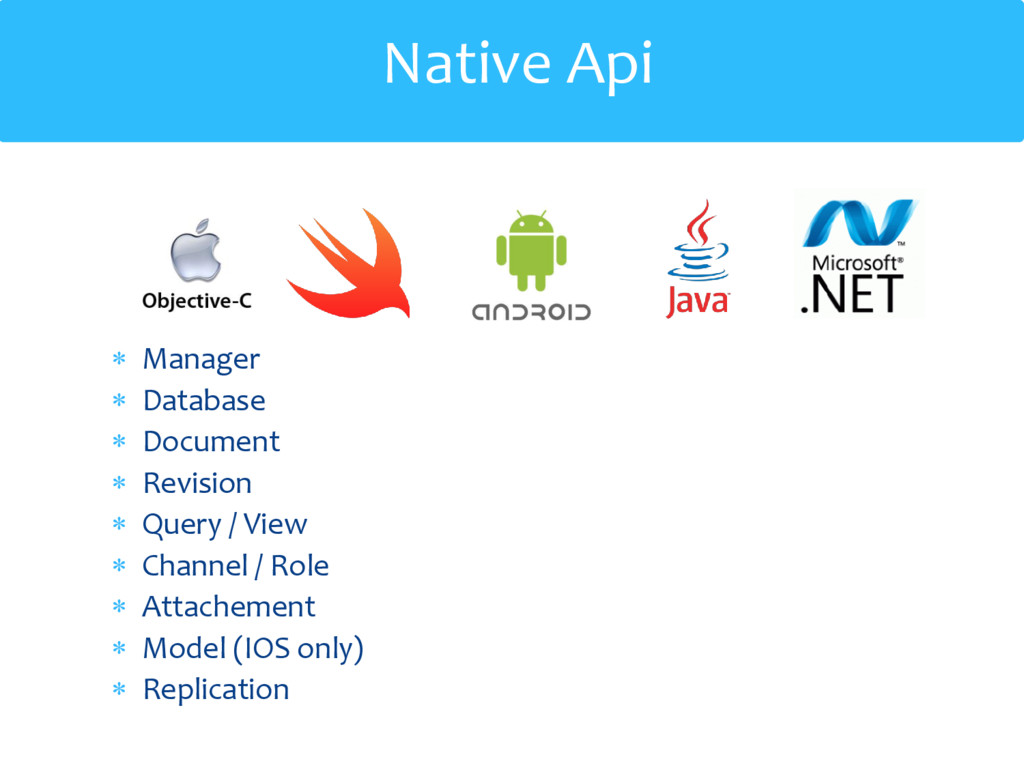

24. Native Api  Manager  Database  Document  Revision  Query / View  Channel / Role  Attachement  Model (IOS only)  Replication

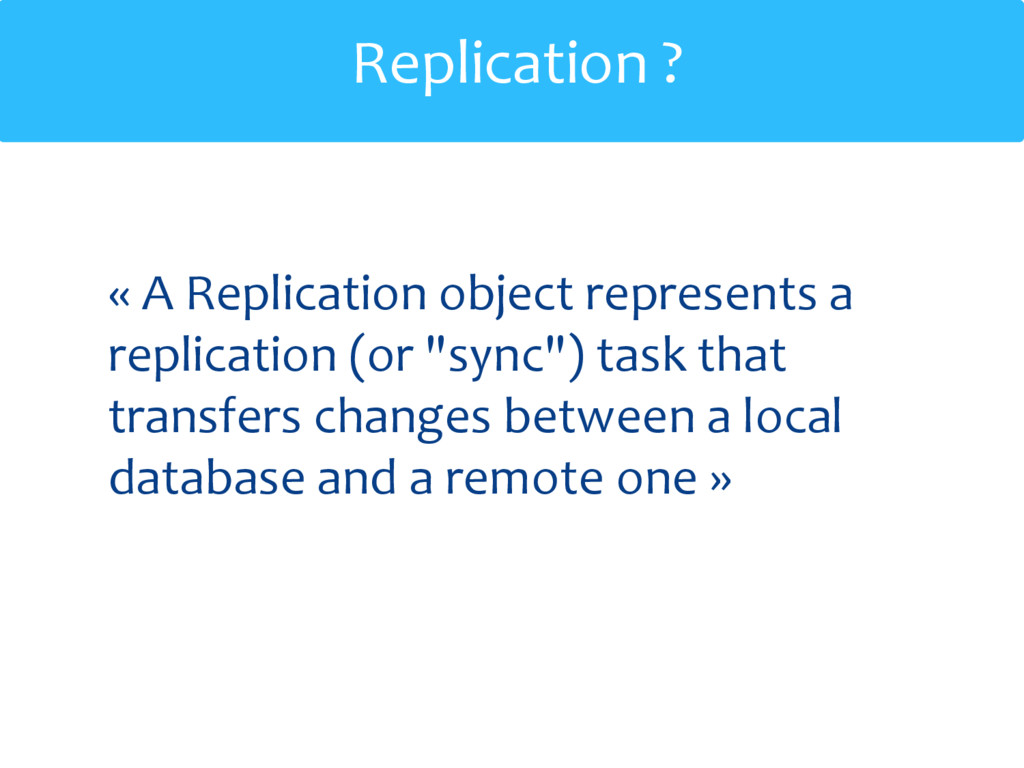

25. « A Replication object represents a replication (or "sync") task that transfers changes between a local database and a remote one » Replication ?

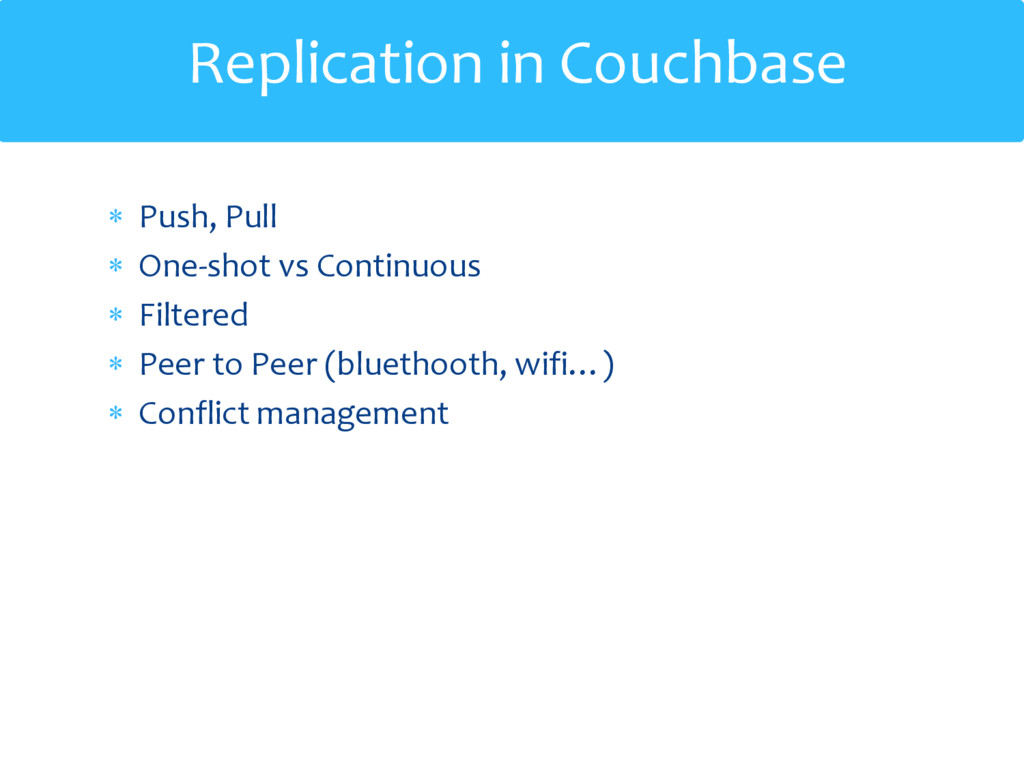

26.  Push, Pull  One-shot vs Continuous  Filtered  Peer to Peer (bluethooth, wifi…)  Conflict management Replication in Couchbase

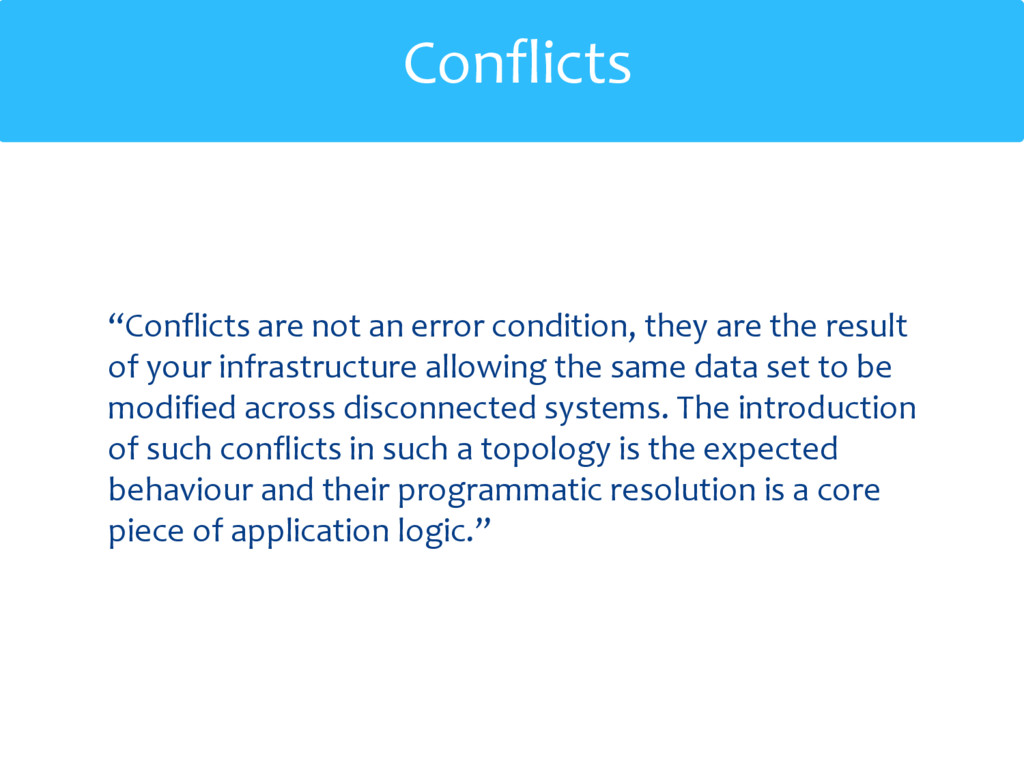

27. “Conflicts are not an error condition, they are the result of your infrastructure allowing the same data set to be modified across disconnected systems. The introduction of such conflicts in such a topology is the expected behaviour and their programmatic resolution is a core piece of application logic.” Conflicts

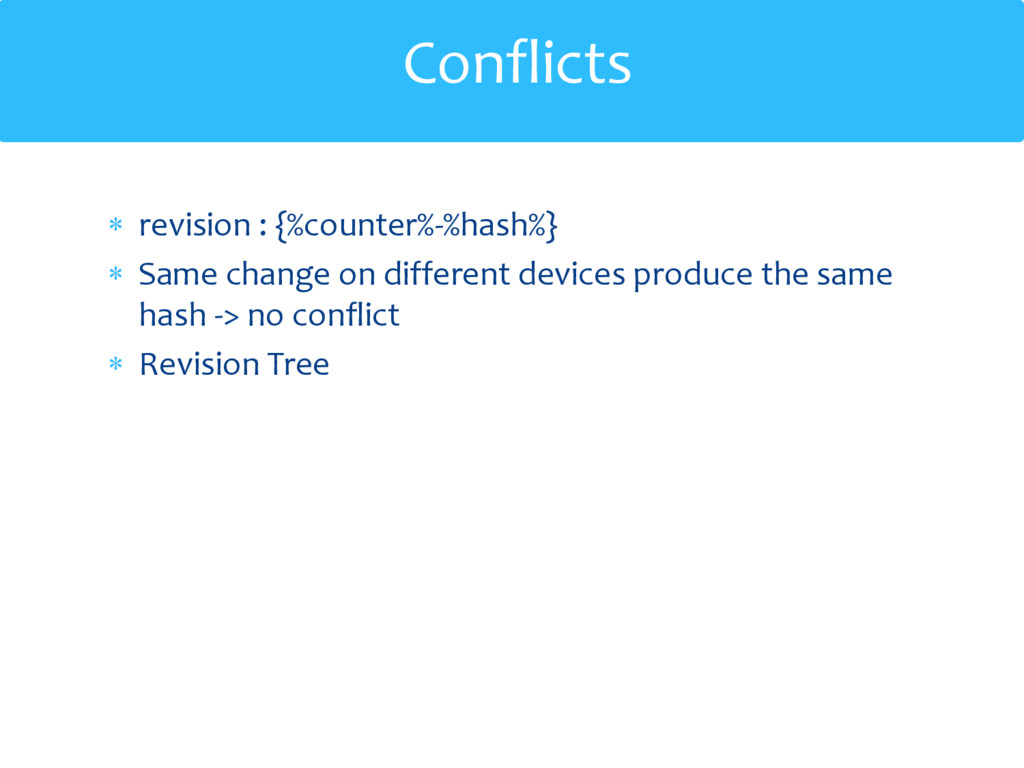

28.  revision : {%counter%-%hash%}  Same change on different devices produce the same hash -> no conflict  Revision Tree Conflicts

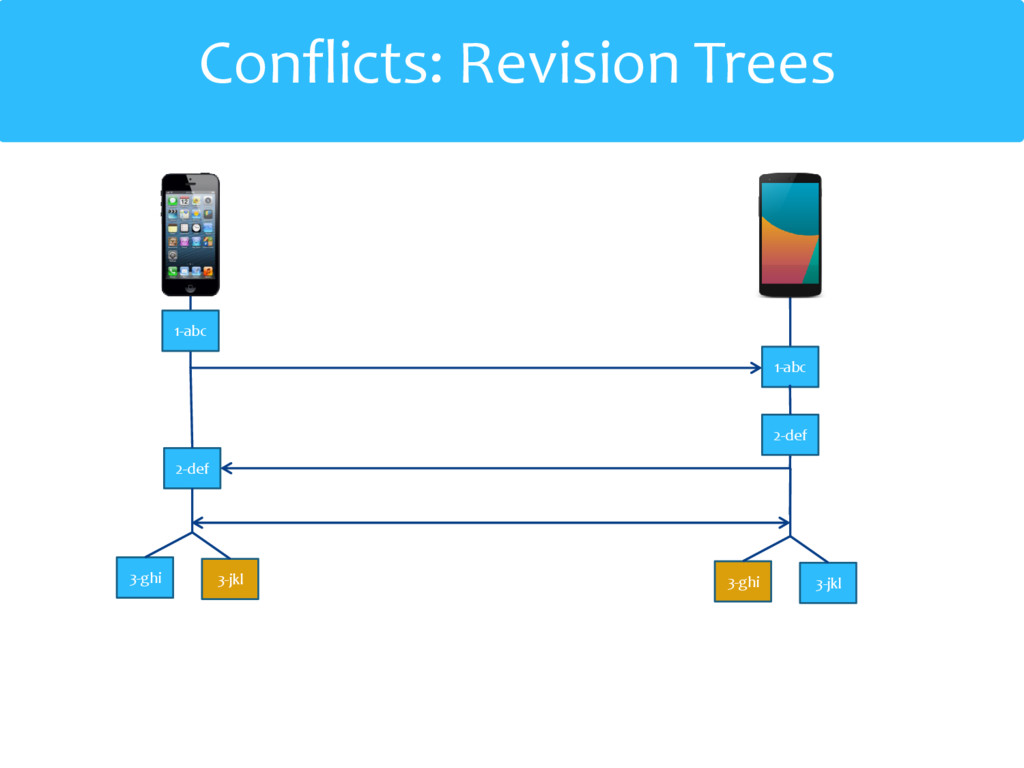

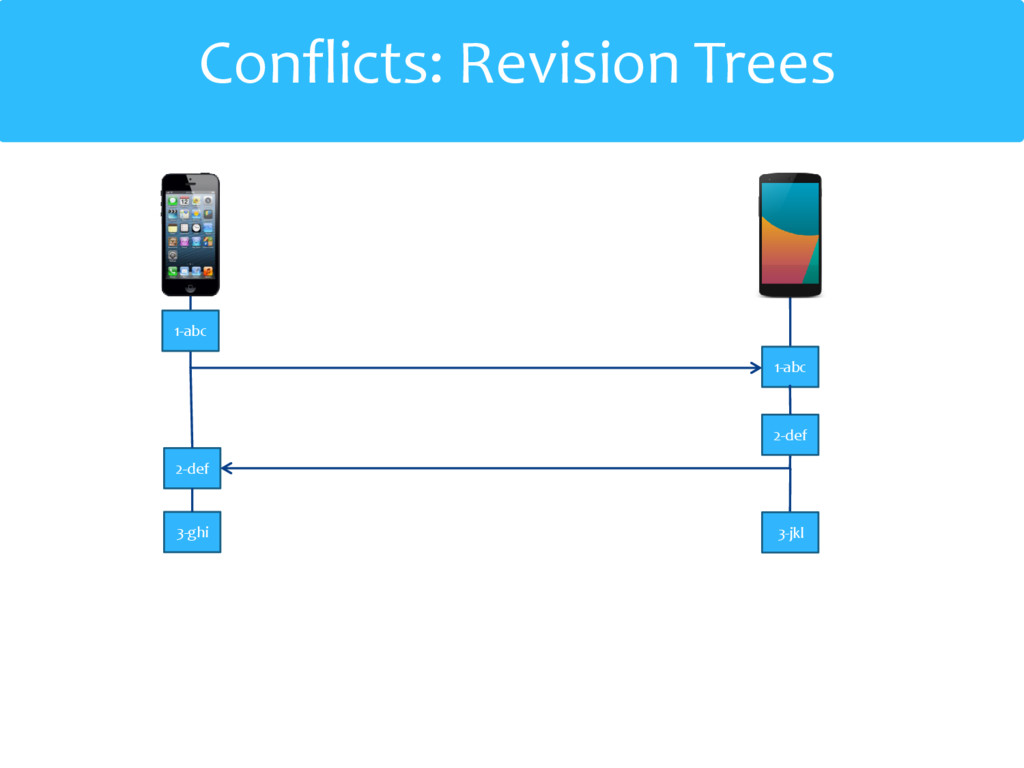

29. Conflicts: Revision Trees 2-def 1-abc 1-abc 2-def 3-ghi 3-jkl
30. Conflicts: Revision Trees 2-def 1-abc 1-abc 2-def 3-ghi 3-jkl 3-ghi 3-jkl

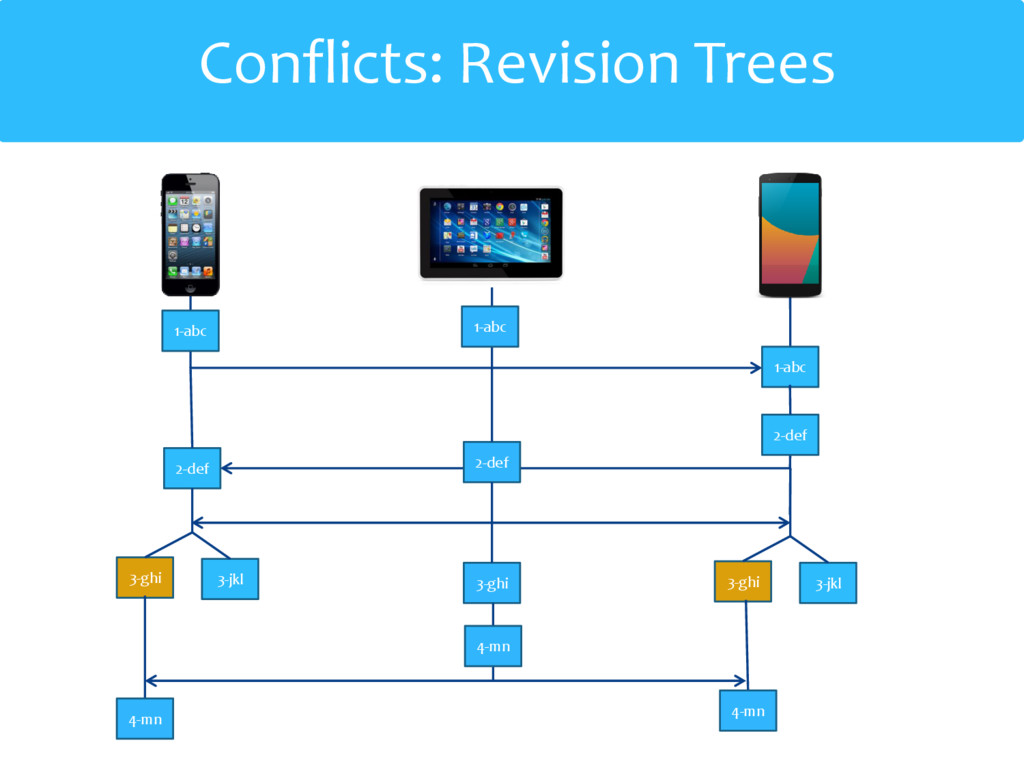

31. Conflicts: Revision Trees 2-def 1-abc 1-abc 2-def 3-ghi 3-jkl 3-ghi 3-jkl
32. Conflicts: Revision Trees 2-def 1-abc 1-abc 2-def 3-ghi 3-jkl 3-ghi 3-jkl 2-def 3-ghi 1-abc 4-mn 4-mn 4-mn
33. Conflicts: Revision Trees 2-def 1-abc 1-abc 2-def 3-ghi 3-jkl 3-ghi 3-jkl 2-def 3-ghi 1-abc 4-mn 4-mn 4-mn
34. Live Coding & Demo
35. Questions We are Hiring job@monkeypatch.io

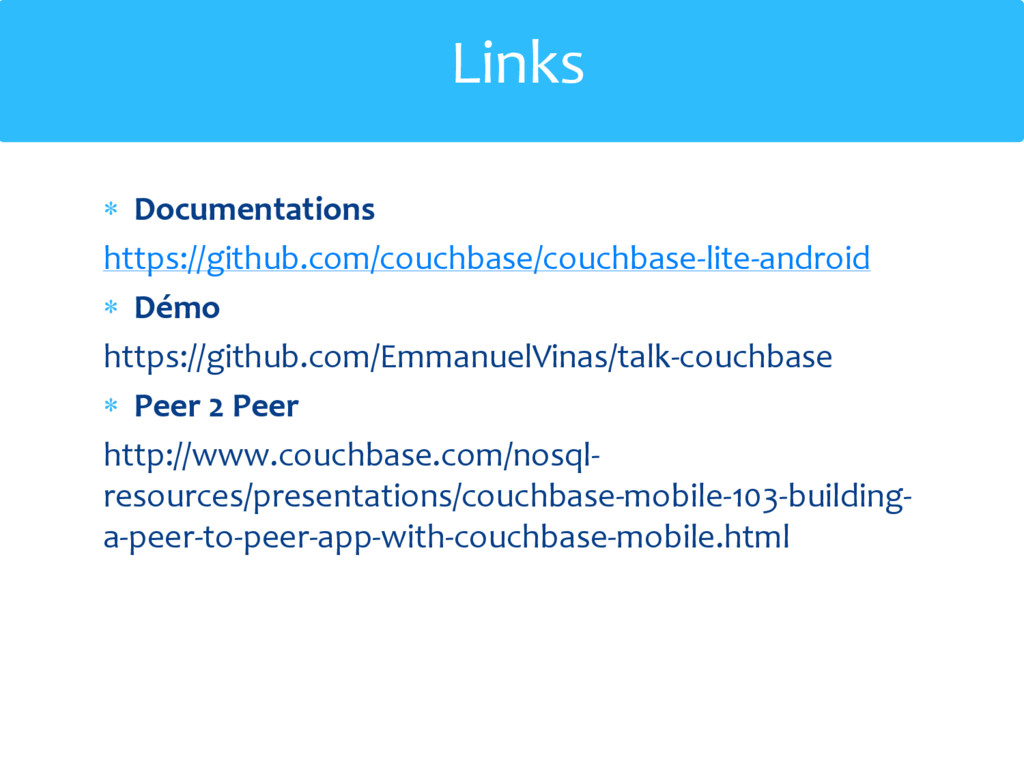

36.  Documentations https://github.com/couchbase/couchbase-lite-android  Démo https://github.com/EmmanuelVinas/talk-couchbase  Peer 2 Peer http://www.couchbase.com/nosql- resources/presentations/couchbase-mobile-103-building- a-peer-to-peer-app-with-couchbase-mobile.html Links
