The Truth Behind Serverless DockerConEU'17

Lets take AWS Lambda apart, see how it works, and put it back together! Includes some gentle introduction to Lambda and serverless, and gets deep into the HOW of serverless.

Transcript

1. @ewindisch @IOpipes The Truth Behind Serverless CTO & Co-founder, IOpipe Erica Windisch
2. @ewindisch @IOpipes What-a-less?
9. @ewindisch @IOpipes
10. Serverless
 Culture Don’t build, when you can buy. Build as little as necessary. Build with the minimum operational complexity. Maybe all you need are some circles

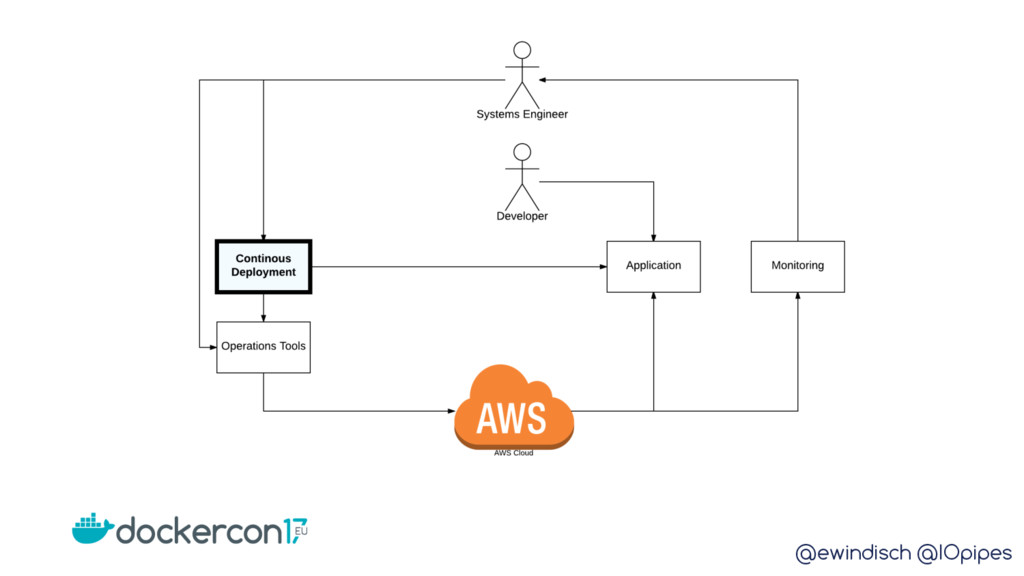

11. @ewindisch @IOpipes
12. @ewindisch @IOpipes
13. @ewindisch @IOpipes
14. @ewindisch @IOpipes

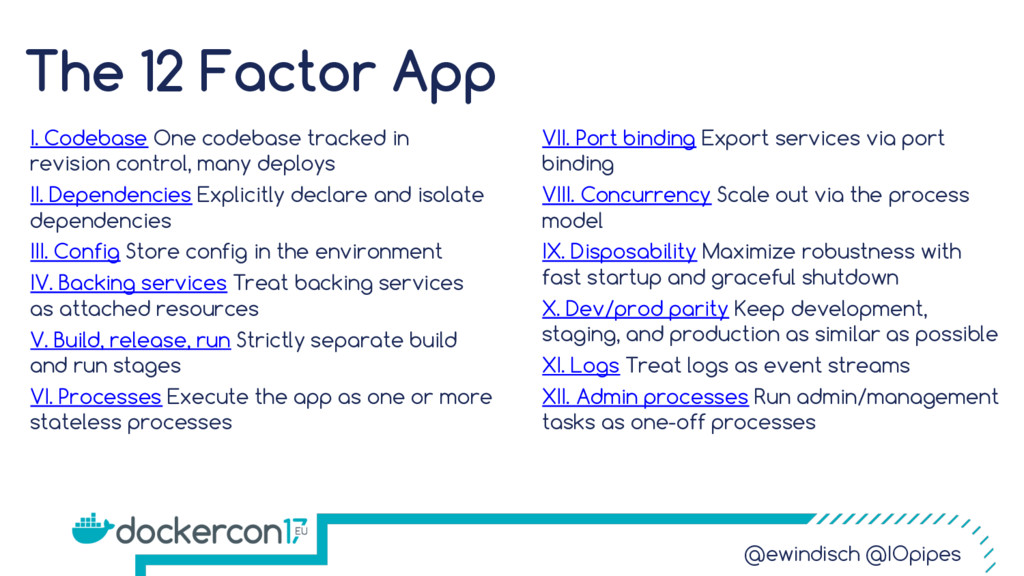

15. @ewindisch @IOpipes The 12 Factor App I. Codebase One codebase tracked in revision control, many deploys II. Dependencies Explicitly declare and isolate dependencies III. Config Store config in the environment IV. Backing services Treat backing services as attached resources V. Build, release, run Strictly separate build and run stages VI. Processes Execute the app as one or more stateless processes VII. Port binding Export services via port binding VIII. Concurrency Scale out via the process model IX. Disposability Maximize robustness with fast startup and graceful shutdown X. Dev/prod parity Keep development, staging, and production as similar as possible XI. Logs Treat logs as event streams XII. Admin processes Run admin/management tasks as one-off processes
16. @ewindisch @IOpipes Amazon’s “Serverless (functions) Manifesto” ✤ Function are the unit of deployment and scaling. ✤ No machines, VMs, or containers visible in the programming model. ✤ Permanent storage lives elsewhere. ✤ Scales per request; Users cannot over- or under-provision capacity. ✤ Never pay for idle (no cold servers/containers or their costs). ✤ Implicitly fault-tolerant because functions can run anywhere. ✤ BYOC - Bring Your Own Code. ✤ Metrics and logging are a universal right.
17. @ewindisch @IOpipes

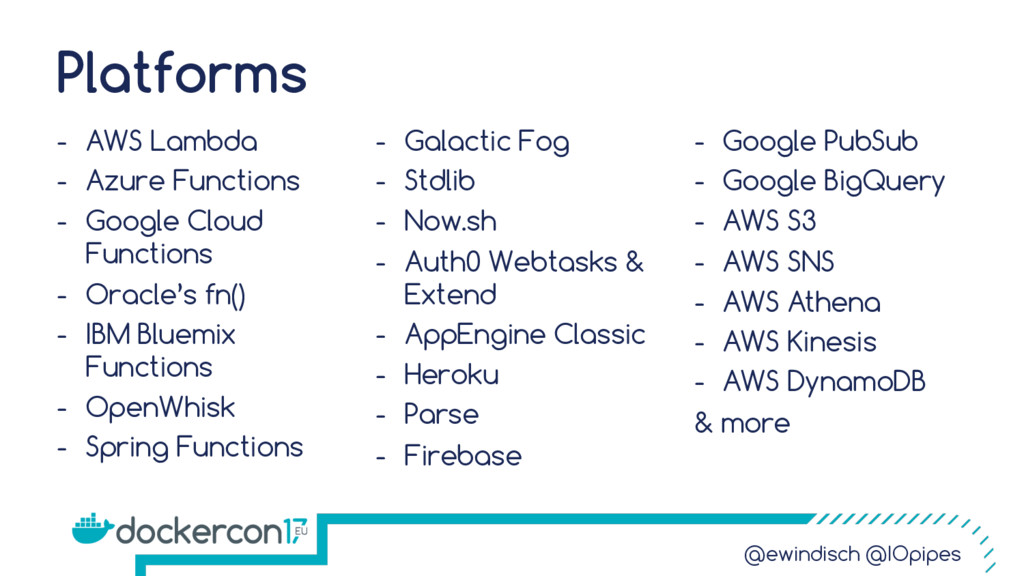

18. @ewindisch @IOpipes Platforms - AWS Lambda - Azure Functions - Google Cloud Functions - Oracle’s fn() - IBM Bluemix Functions - OpenWhisk - Spring Functions - Galactic Fog - Stdlib - Now.sh - Auth0 Webtasks & Extend - AppEngine Classic - Heroku - Parse - Firebase - Google PubSub - Google BigQuery - AWS S3 - AWS SNS - AWS Athena - AWS Kinesis - AWS DynamoDB & more

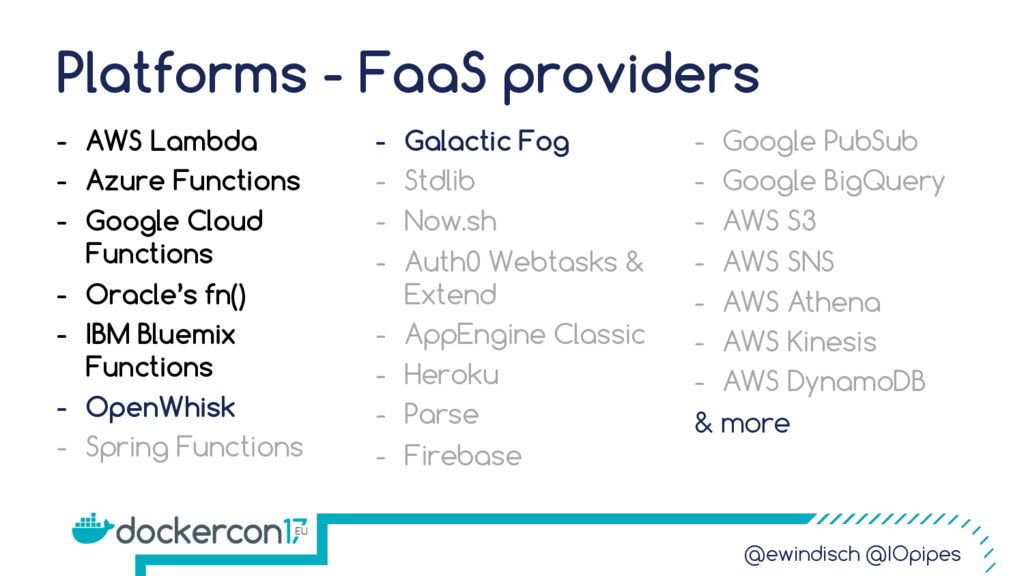

19. @ewindisch @IOpipes Platforms - FaaS providers - AWS Lambda - Azure Functions - Google Cloud Functions - Oracle’s fn() - IBM Bluemix Functions - OpenWhisk - Spring Functions - Galactic Fog - Stdlib - Now.sh - Auth0 Webtasks & Extend - AppEngine Classic - Heroku - Parse - Firebase - Google PubSub - Google BigQuery - AWS S3 - AWS SNS - AWS Athena - AWS Kinesis - AWS DynamoDB & more

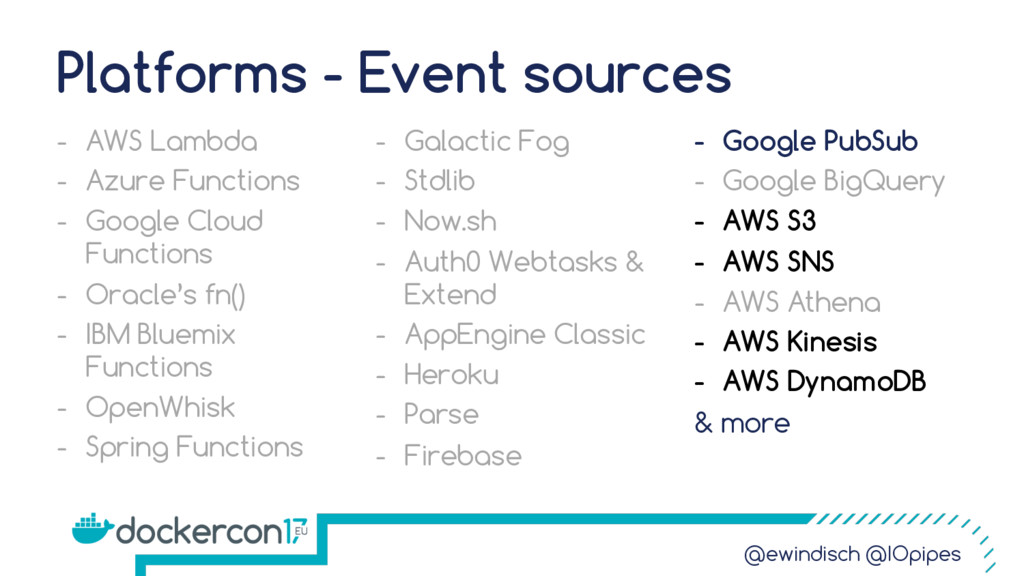

20. @ewindisch @IOpipes Platforms - Event sources - AWS Lambda - Azure Functions - Google Cloud Functions - Oracle’s fn() - IBM Bluemix Functions - OpenWhisk - Spring Functions - Galactic Fog - Stdlib - Now.sh - Auth0 Webtasks & Extend - AppEngine Classic - Heroku - Parse - Firebase - Google PubSub - Google BigQuery - AWS S3 - AWS SNS - AWS Athena - AWS Kinesis - AWS DynamoDB & more
21. Lambda Demo console.aws.com
22. @ewindisch @IOpipes 75 GB storage limit for all functions

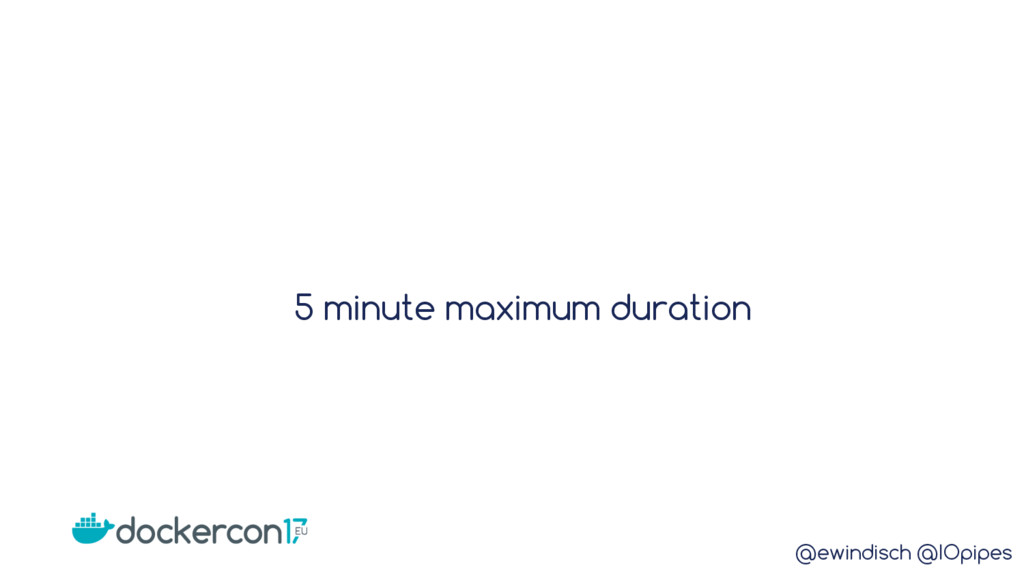

23. @ewindisch @IOpipes 5 minute maximum duration
24. @ewindisch @IOpipes ~20ms for “hello world”

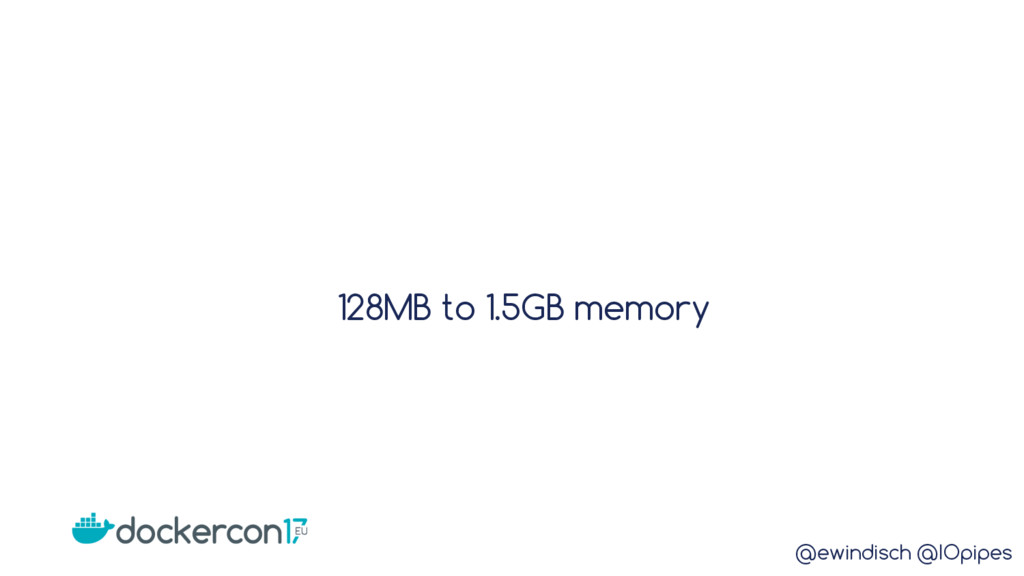

25. @ewindisch @IOpipes 128MB to 1.5GB memory
26. @ewindisch @IOpipes 1000 containers max (by default)

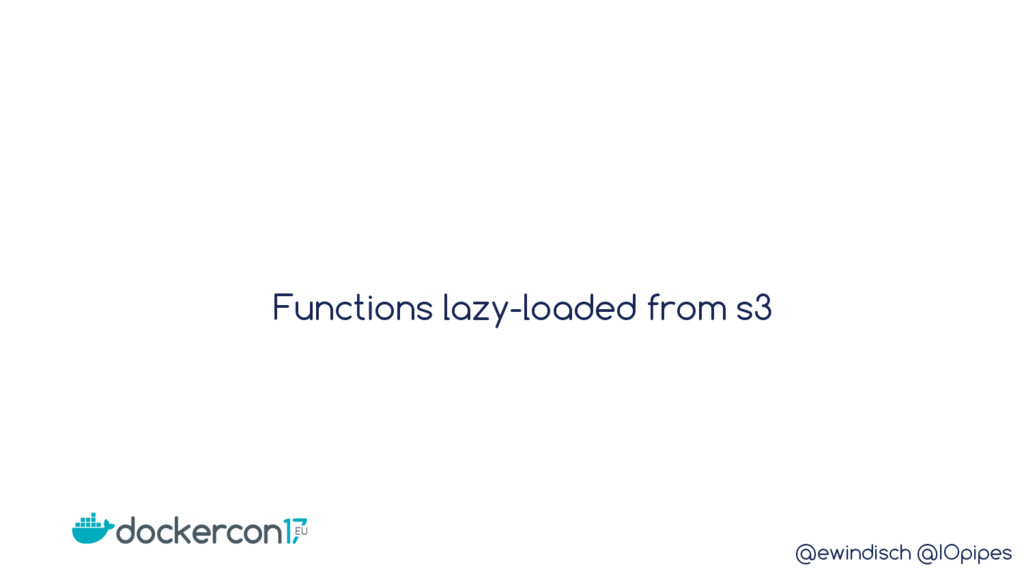

27. @ewindisch @IOpipes Functions lazy-loaded from s3

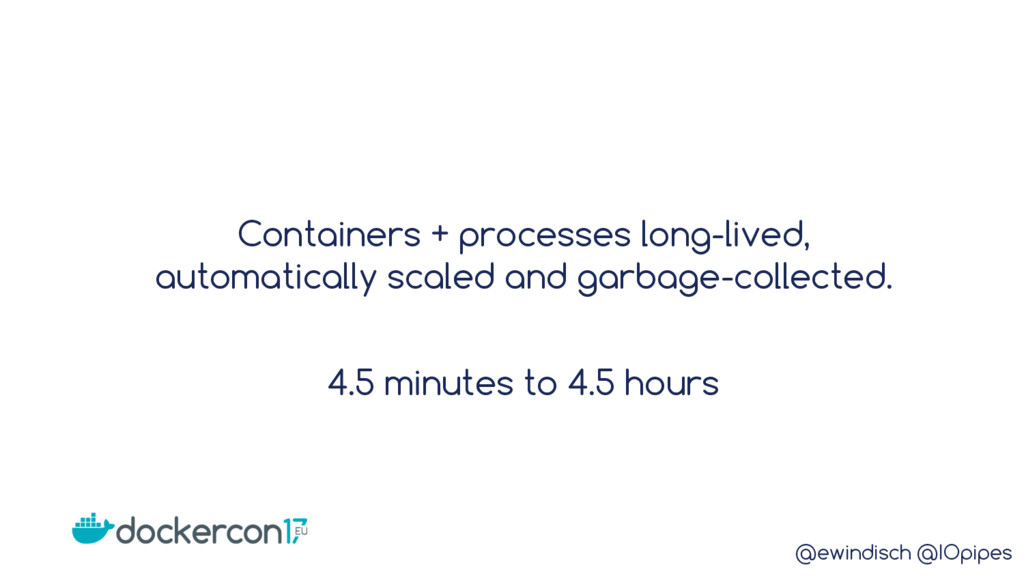

28. @ewindisch @IOpipes Containers + processes long-lived,
 automatically scaled and garbage-collected. 4.5 minutes to 4.5 hours

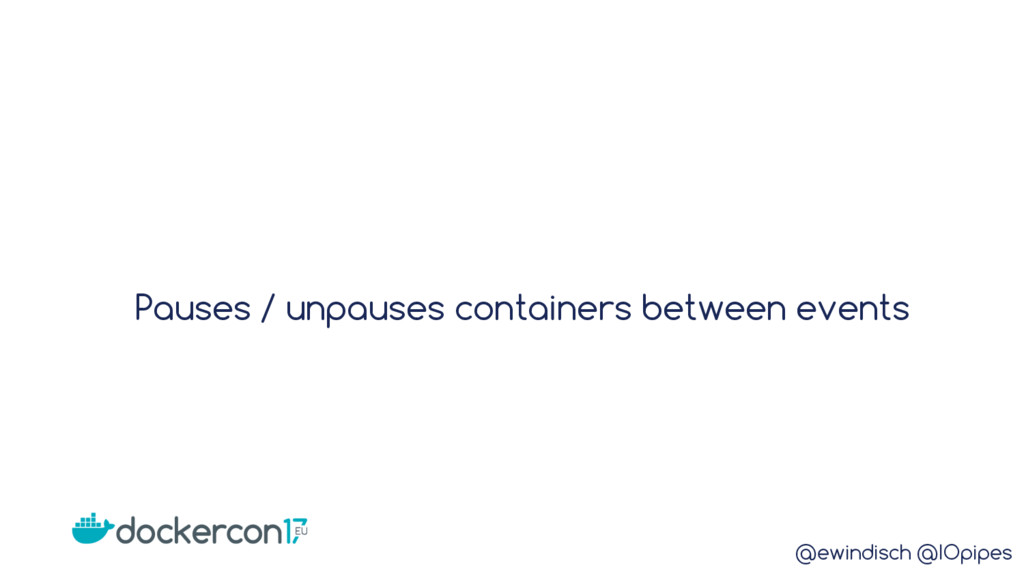

29. @ewindisch @IOpipes Pauses / unpauses containers between events

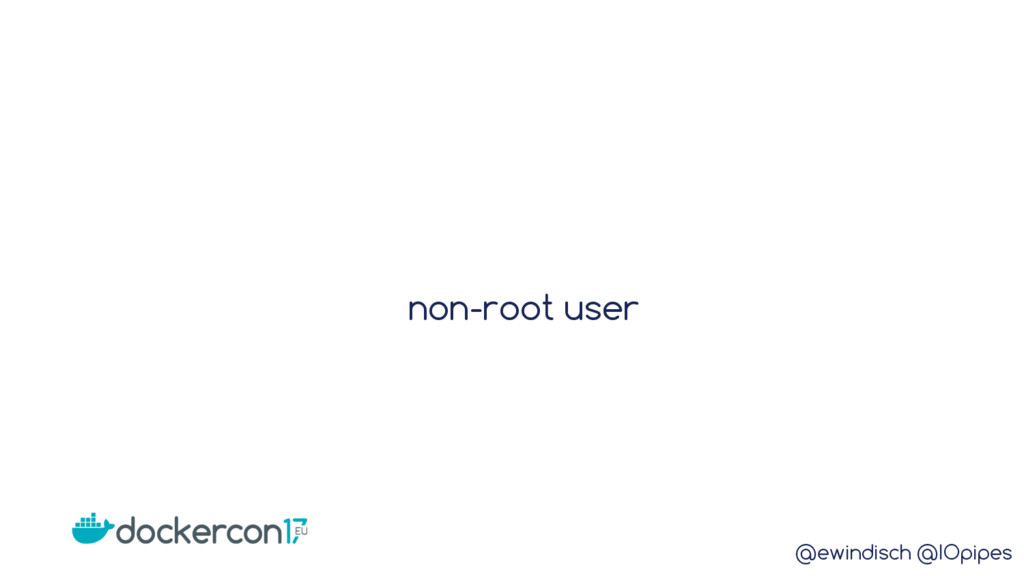

30. @ewindisch @IOpipes non-root user

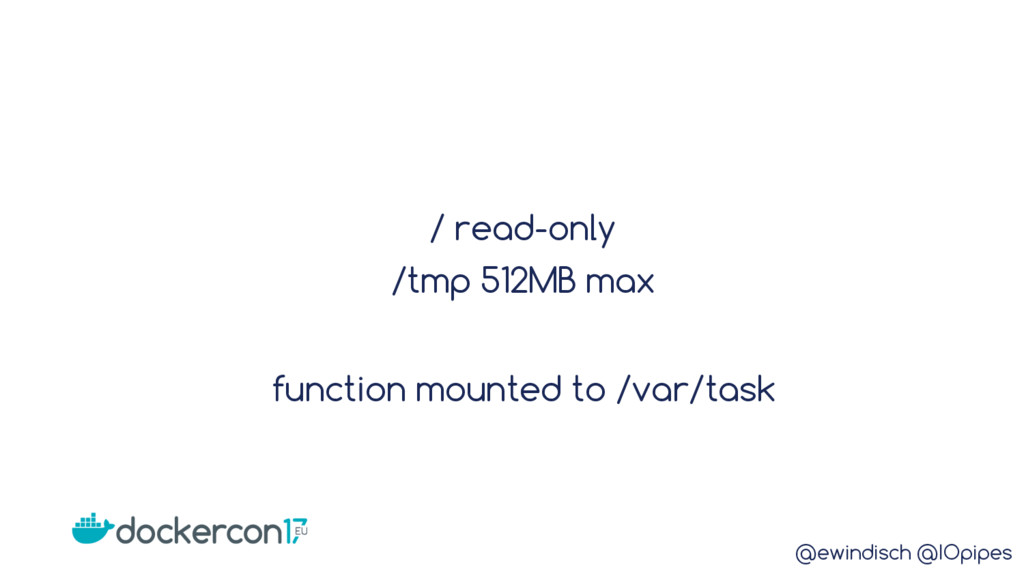

31. @ewindisch @IOpipes / read-only /tmp 512MB max function mounted to /var/task

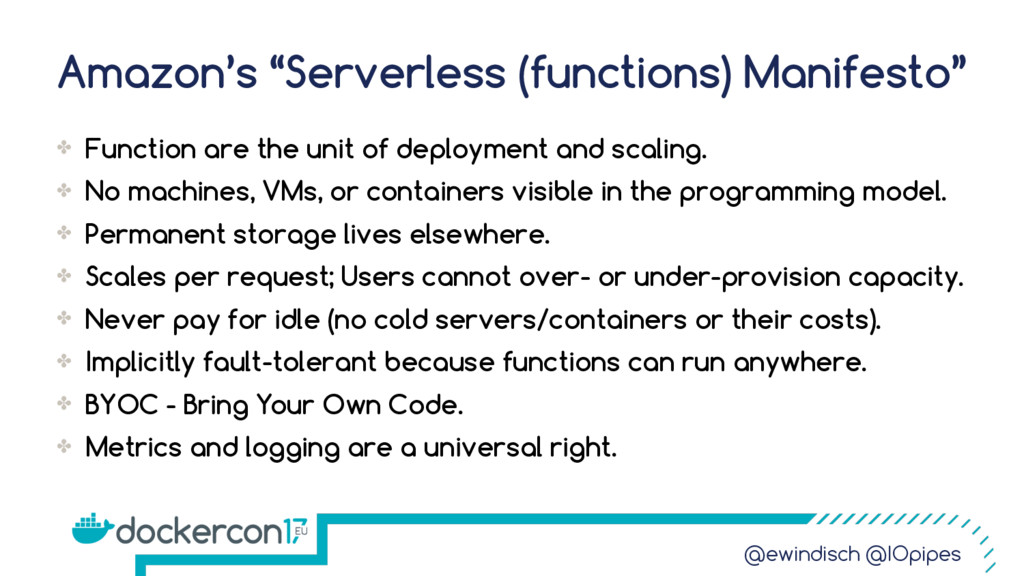

32. @ewindisch @IOpipes Amazon’s “Serverless (functions) Manifesto” ✤ Function are the unit of deployment and scaling. ✤ No machines, VMs, or containers visible in the programming model. ✤ Permanent storage lives elsewhere. ✤ Scales per request; Users cannot over- or under-provision capacity. ✤ Never pay for idle (no cold servers/containers or their costs). ✤ Implicitly fault-tolerant because functions can run anywhere. ✤ BYOC - Bring Your Own Code. ✤ Metrics and logging are a universal right.
33. @ewindisch @IOpipes Demo Slide Click to add text

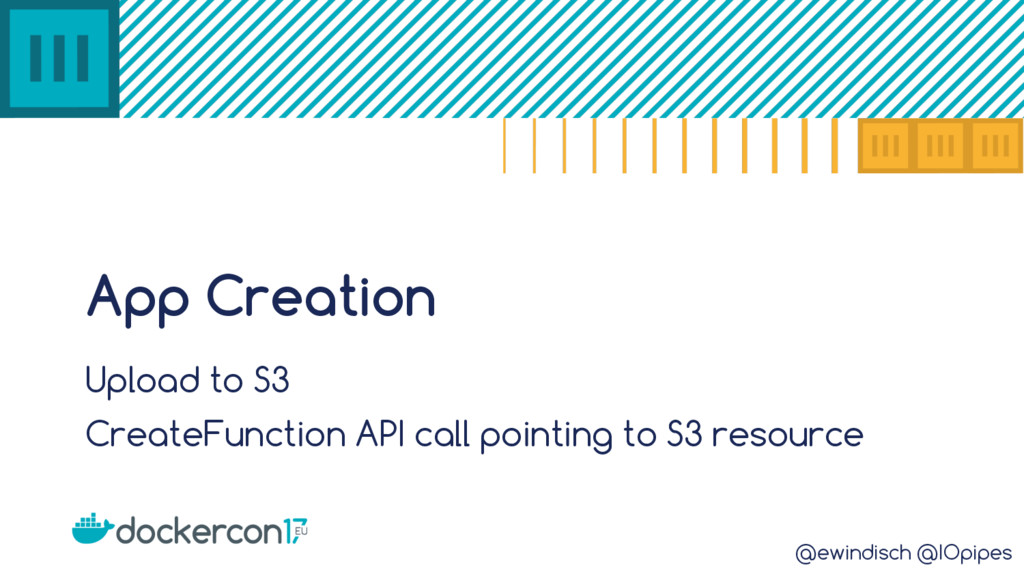

35. @ewindisch @IOpipes App Creation Upload to S3 CreateFunction API call pointing to S3 resource

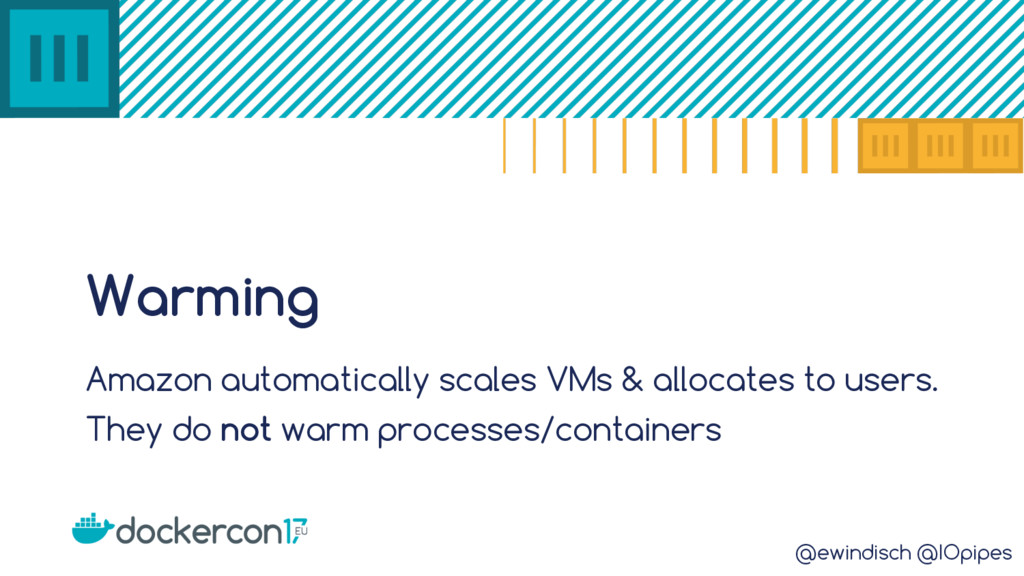

36. @ewindisch @IOpipes Warming Amazon automatically scales VMs & allocates to users. They do not warm processes/containers

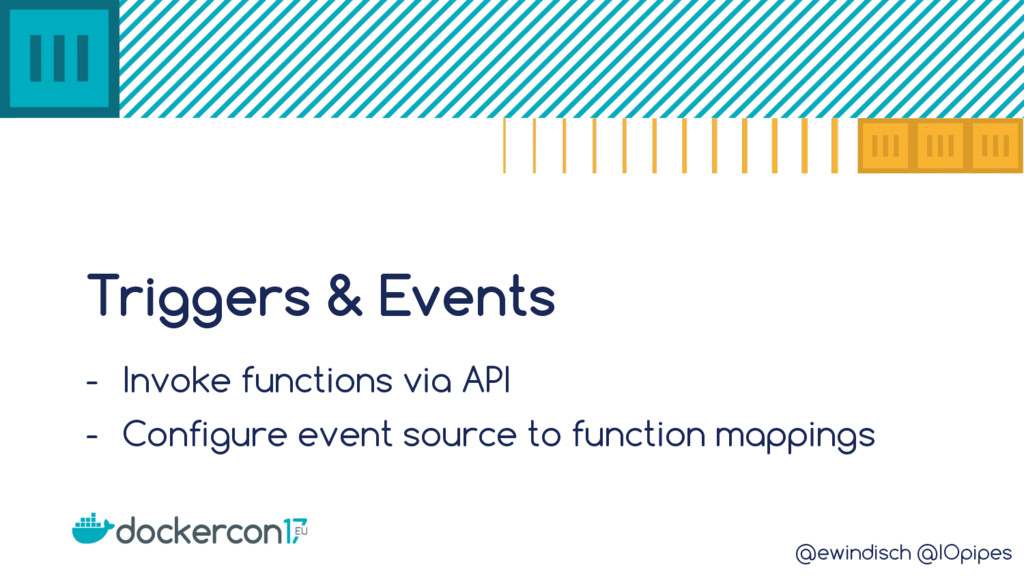

37. @ewindisch @IOpipes Triggers & Events - Invoke functions via API - Configure event source to function mappings
38. @ewindisch @IOpipes Schedule Events are mapped to running containers first, Or new containers are spawned to process events.

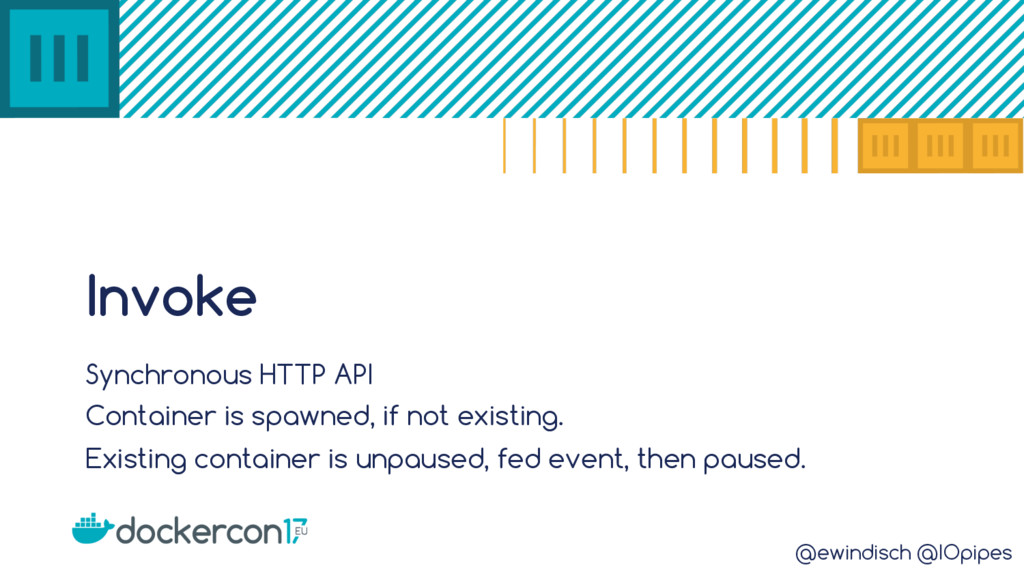

39. @ewindisch @IOpipes Invoke Synchronous HTTP API Container is spawned, if not existing. Existing container is unpaused, fed event, then paused.

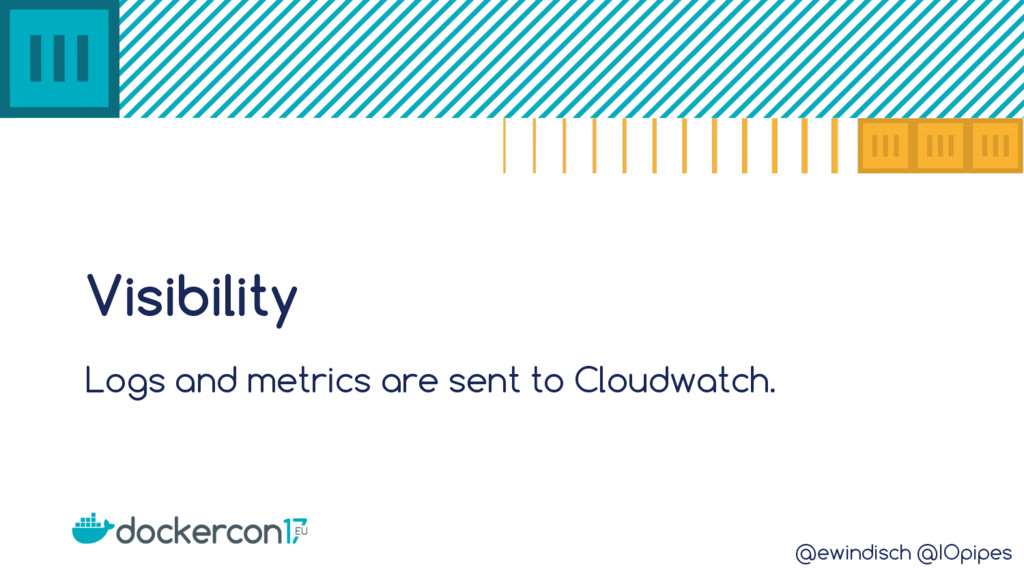

40. @ewindisch @IOpipes Visibility Logs and metrics are sent to Cloudwatch.

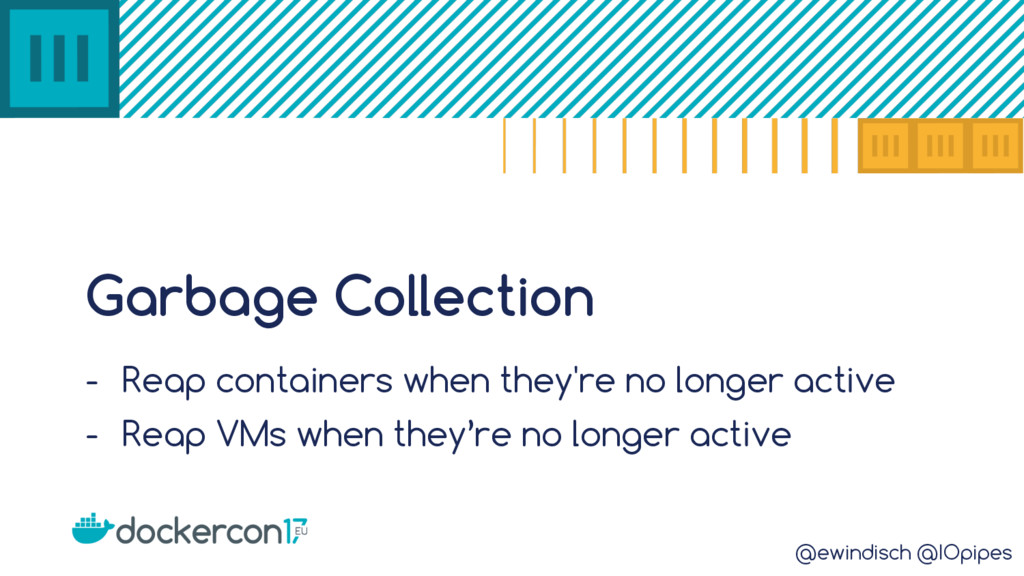

41. @ewindisch @IOpipes Garbage Collection - Reap containers when they're no longer active - Reap VMs when they’re no longer active

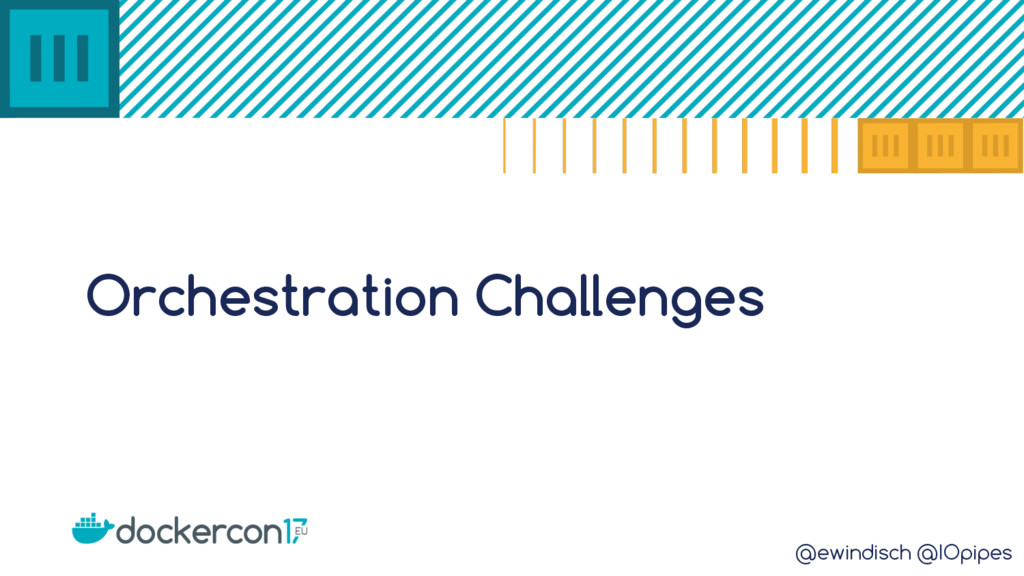

42. @ewindisch @IOpipes Orchestration Challenges

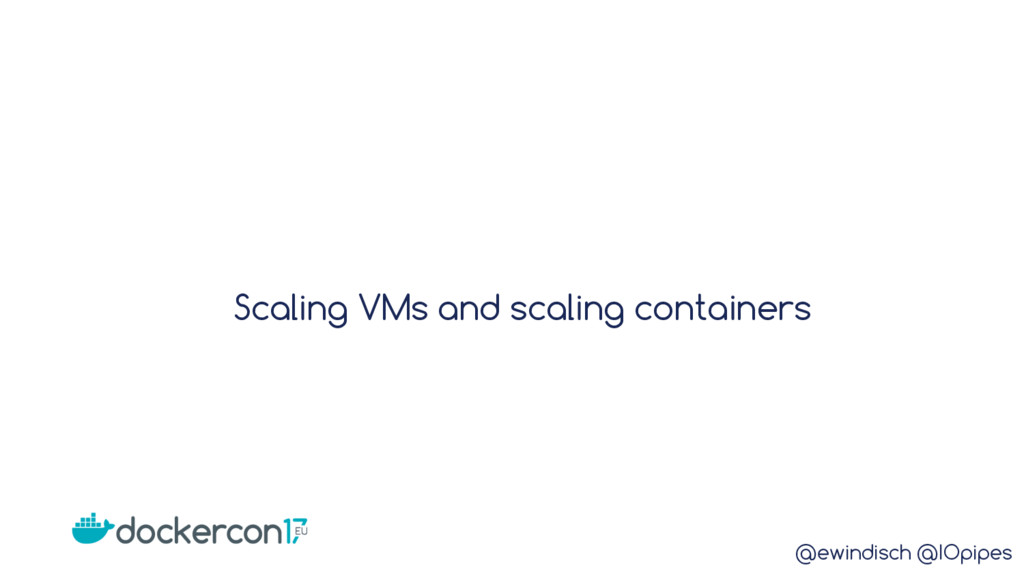

43. @ewindisch @IOpipes Scaling VMs and scaling containers
44. @ewindisch @IOpipes Each tenant needs a container cluster?
45. @ewindisch @IOpipes Are Kubernetes or Swarm fast enough?
46. @ewindisch @IOpipes HTTP + serialization/deserialization
 for series of events are SLOW
47. @ewindisch @IOpipes Implementation Details
48. @ewindisch @IOpipes How to minimize latency of API
 processing & response?
49. @ewindisch @IOpipes how do we do messaging / communication?

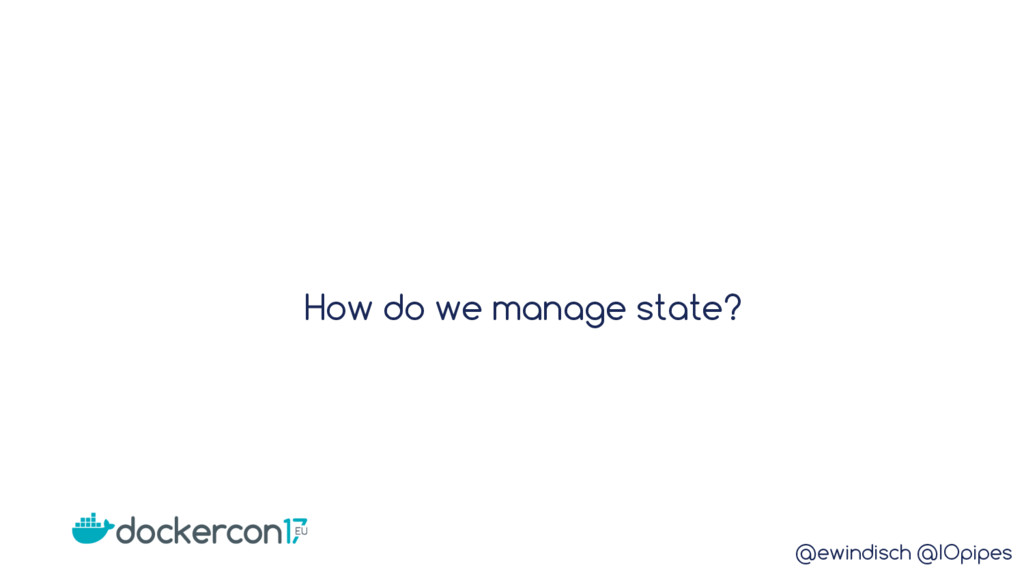

50. @ewindisch @IOpipes How do we manage state?
51. @ewindisch @IOpipes How do we orchestrate containers?
52. @ewindisch @IOpipes Which language?

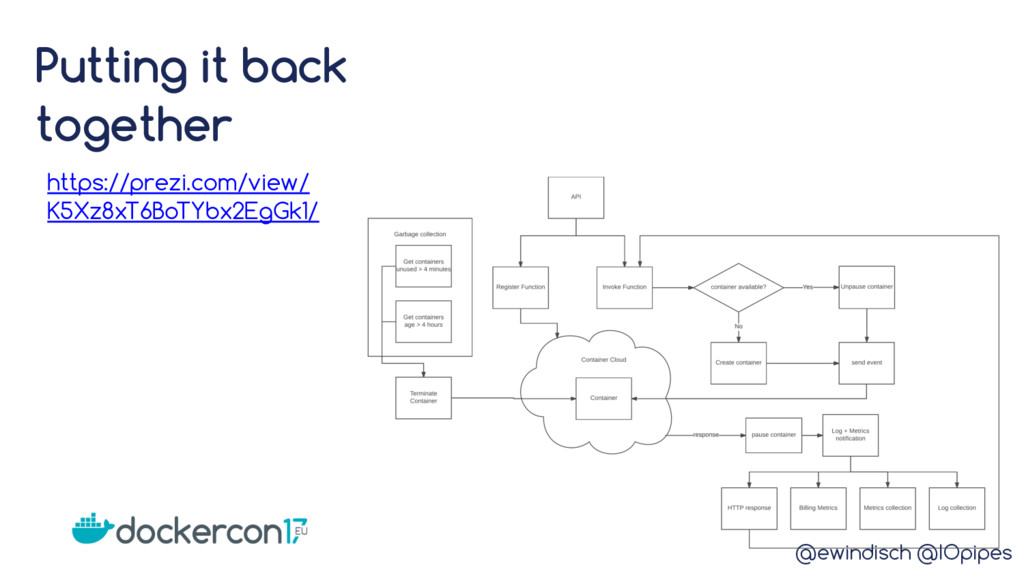

53. @ewindisch @IOpipes Putting it back together https://prezi.com/view/ K5Xz8xT6BoTYbx2EgGk1/
54. @ewindisch @IOpipes Finally…

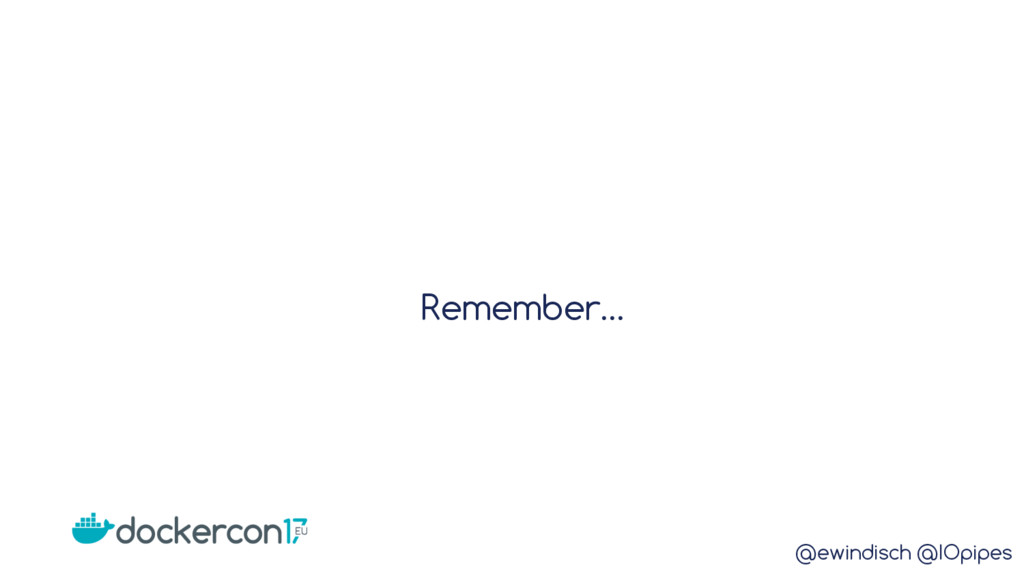

55. @ewindisch @IOpipes Remember…
56. @ewindisch @IOpipes It’s all about the events.

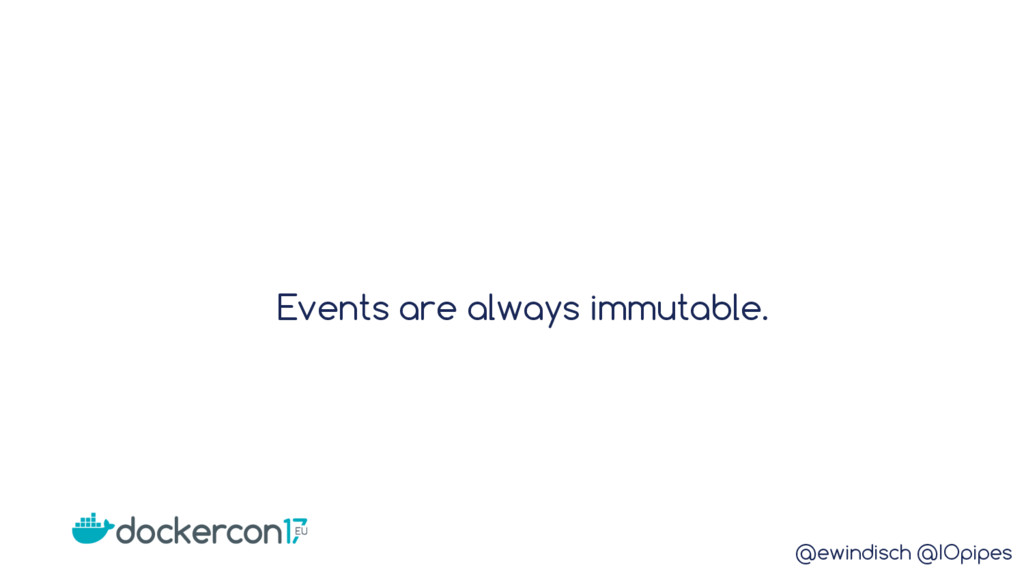

57. @ewindisch @IOpipes Events are always immutable.
58. @ewindisch @IOpipes Event processing can and should be immutable.
59. @ewindisch @IOpipes Event processing should be fast & low-latency.

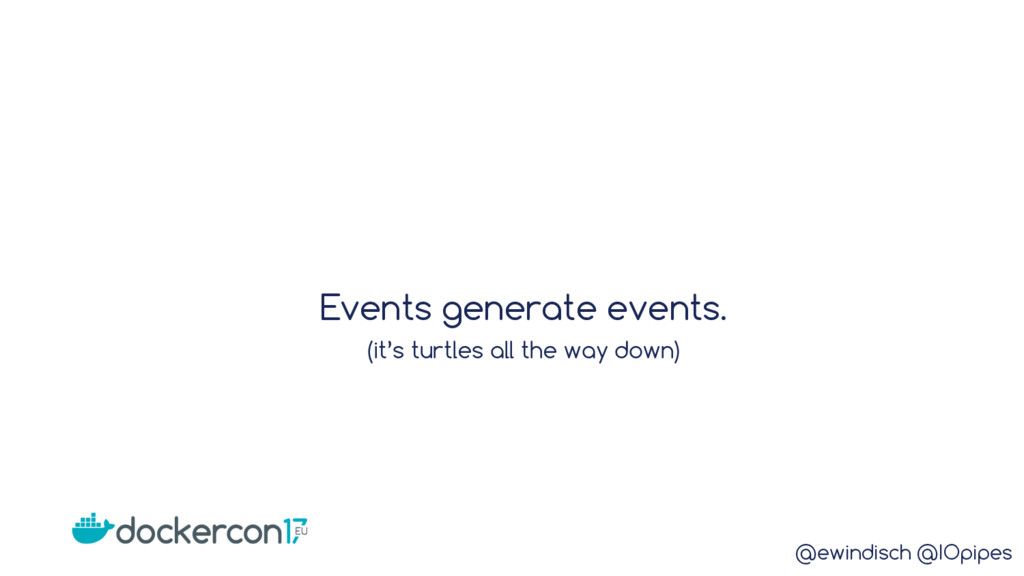

60. @ewindisch @IOpipes Events generate events. (it’s turtles all the way down)

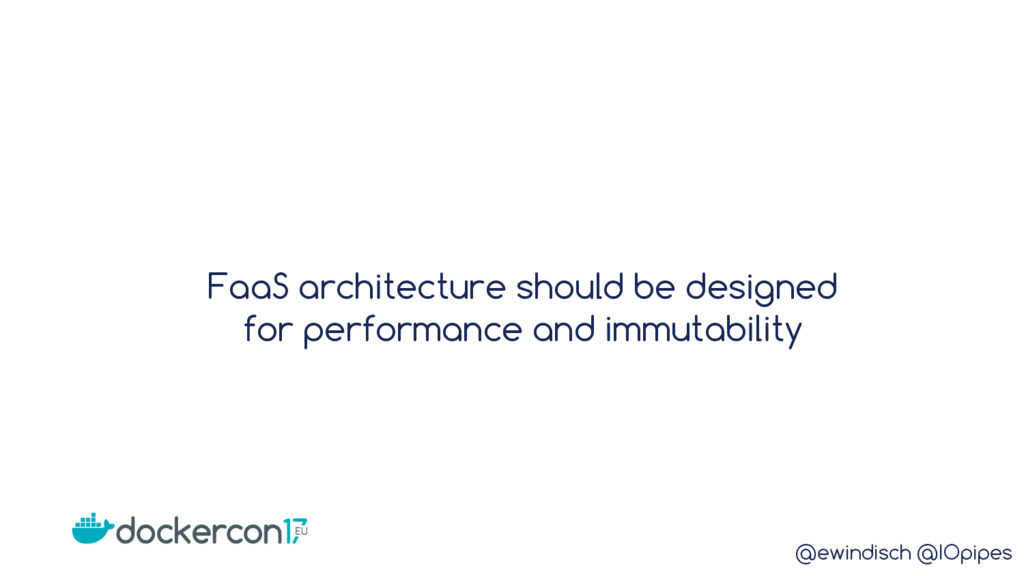

61. @ewindisch @IOpipes FaaS architecture should be designed
 for performance and immutability
62. @ewindisch @IOpipes Don’t build when you can buy (you probably shouldn’t build anything I just showed you!)
63. Erica Windisch CTO & Founder IOpipe, Inc. @ewindisch www.iopipe.com
