Reactive Design in Enterprise Applications #JEEConf2017

Transcript

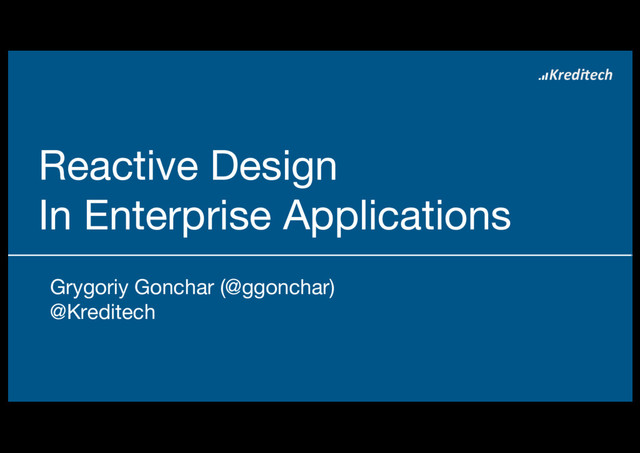

1. Reactive Design In Enterprise Applications Grygoriy Gonchar (@ggonchar) @Kreditech
2. The Reactive Manifesto
3. Reactive Programming Abstractions
4. Enterprise Application “Data intensive software systems on which so many businesses run” - Martin Fowler, 2002
5. Enterprise Application Has some business logic Integrates with others Persists data Data intensive Uses blocking implementations Resilient Well-tested
6. Entity public class Person { private String id; private String firstname; private String lastname; private String ip; private IpInfo ipInfo; private List<Person> friends; // ... }
7. Business Logic public Person addPerson(Person person) { String ipInfo = ipService.getIpInfo(person.getIp()); person.setIpInfo(ipInfo); return repository.save(person); }
8. http://ip-api.com/json/8.8.8.8 { "city":"Mountain View", "country":"United States", "countryCode":"US", "org":"Google", … }
9. Get IP Information with Spring 5 Reactive WebClient public Mono<IpInfo> getIpInfo(String ip) { return WebClient.create("http://ip-api.com/") .get().uri("/json/{ip}", ip).exchange() .then(ipInfo -> ipInfo.bodyToMono(IpInfo.class)); }
10. Save Person with Reactive Spring Data (MongoDB) public interface PersonRepository extends ReactiveCrudRepository<Person, String> { // <S> Mono<S> save(S var1); }
11. Business Logic (Composition of Monadic Types) private Mono<Person> addPerson(Mono<Person> mono) { return mono .flatMap(this::addIpInfo) .flatMap(repository::save); }
12. Monads in plain English interface Monad { <B> Monad<B> unit(arg B); <B> Monad<B> flatMap(Function<?, Monad<B>> f); }
13. Business Logic (Nested Monadic Composition) public Mono<Person> addPerson(Mono<Person> mono) { return mono .flatMap(this::addIpInfo) .flatMap(repository::save); } private Mono<Person> addIpInfo(Person person) { return ipService.getIpInfo(person.getIp()) .map(ipInfo -> person.copyWithIpInfo(ipInfo)); }
14. Local Variable Capture and Mutability public Mono<Person> addPerson(Mono<Person> mono) { return mono .flatMap(this::addIpInfo) .flatMap(repository::save); } private Mono<Person> addIpInfo(Person person) { return ipService.getIpInfo(person.getIp()) .map(ipInfo -> person.copyWithIpInfo(ipInfo)); }
15. Mutability Evil “Mutable state is the new spaghetti code” - Rich Hickey, Clojure's inventor
16. Pure Functions Referential Transparency (f(x) = x +1 and not global x++)
17. Pure Functions Referential Transparency (f(x) = x +1 and not global x++) No side effects (such as state change and IO)
18. Pure Functions in Practice Patterns not common for Java developers (Reader, Kleisli, Free Monads)
19. Pure Functions in Practice Patterns not common for Java developers (Reader, Kleisli, Free Monads) No pure functional ecosystem in Java (such as scalaz, http4s, doobie in Scala)
20. Immutability public class Person { private final String id; private final String firstname; private final String lastname; private final String ip; private final IpInfo ipInfo; // immutable inside private final javaslang.collection.List<Person> friends; // immutable // init constructor and only getters }
21. Immutability in Practice Problems with reflection libraries: No default constructor for entity No interoperable immutable collections: Javaslang, Guava, JDK9 If done right another challenges come: builders, aggregates, lenses Has better support in Scala, Clojure, Kotlin
22. Reactive REST API with Spring 5 WebFlux return RouterFunctions.route(POST("/person") .and(contentType(APPLICATION_JSON)), request -> { final Mono<Person> p = addPerson(request.bodyToMono(Person.class)); return ServerResponse.ok().body(p, Person.class); } );
23. Enterprise Application Has some business logic Integrates with others Persists data Uses blocking implementations Data intensive Resilient Well-tested
24. Data Intensive Processing LocalDateTime dateTime = LocalDateTime.now().minusDays(90); return repository.findByUpdatedAtLessThan(dateTime) .flatMap(this::updateIpInfo);
25. Reactive Streams
26. Data Intensive Processing with Backpressure LocalDateTime dateTime = LocalDateTime.now().minusDays(90); return repository.findByUpdatedAtLessThan(dateTime) .flatMap(this::updateIpInfo);
27. Data Intensive Processing with Backpressure LocalDateTime dateTime = LocalDateTime.now().minusDays(90); return repository.findByUpdatedAtLessThan(dateTime) .buffer(300) // communicating demand .flatMap(this::updateIpInfo);
28. Data Intensive Processing with Backpressure LocalDateTime dateTime = LocalDateTime.now().minusDays(90); return repository.findByUpdatedAtLessThan(dateTime) .buffer(300) // communicating demand .parallel(2) // speed-up execution .runOn(Schedulers.newParallel("updateIpInfoScheduler", 2)) .flatMap(this::updateIpInfo);
29. Backpressure Async message consumption or big datasets bring backpressure need On backpressure stop demanding (pull-based backpressure) Otherwise drop messages or signal an error in controlled manner
30. Enterprise Application Has some business logic Integrates with others Persists data Data intensive Uses blocking implementations Resilient Well-tested
31. Non-Blocking SQL Drivers != JDBC Vert.x mysql-postgresql-client Mauricio postgresql-async Alaisi postgres-async-driver Outworkers Morpheus Finagle ROC Non-blocking JDBC in Java 10?
32. Isolated Asynchronous JDBC (Scala SQL Library)
33. Threads Distribution Example
34. Resilience
35. Service with External Dependencies
36. External Dependencies Fail
37. Cascading Failures Occur
38. Thread Pools as Bulkheads
39. Circuit Breaker
40. Circuit Breaker Useful to provide your clients fail response fast (better UX) Useful when fallback available (such as fallback service provider) Useful to let your dependencies recover
41. Example Scenario return getIpInfo(ip).map(this::parse);
42. Circuit Breaker Example with resilience4j return Try.of(CircuitBreaker.decorateCheckedSupplier(circuitBreaker, () -> getIpInfo(ip) )).getOrElse(() -> getFallbackIpInfo(ip)) .map(this::parse) .onErrorReturn(EMPTY_IP_INFO);
43. Circuit Breaker Example with resilience4j return Try.of(CircuitBreaker.decorateCheckedSupplier(circuitBreaker, () -> getIpInfo(ip).onErrorResume(t -> { circuitBreaker.onError(Duration.ZERO, t); return getFallbackIpInfo(ip); }) )).getOrElse(() -> getFallbackIpInfo(ip)) .map(this::parse) .onErrorReturn(EMPTY_IP_INFO);
44. Circuit Breaker Configuration Example return CircuitBreakerConfig.custom() .failureRateThreshold(10) .build();
45. Circuit Breaker Configuration Example return CircuitBreakerConfig.custom() .failureRateThreshold(10) .waitDurationInOpenState(Duration.ofMinutes(5)) .build();
46. Circuit Breaker Configuration Example return CircuitBreakerConfig.custom() .failureRateThreshold(10) .waitDurationInOpenState(Duration.ofMinutes(5)) .ringBufferSizeInClosedState(100) .build();
47. Circuit Breaker Configuration Example return CircuitBreakerConfig.custom() .failureRateThreshold(10) .waitDurationInOpenState(Duration.ofMinutes(5)) .ringBufferSizeInClosedState(100) .ringBufferSizeInHalfOpenState(30) .build();
48. Testing Reactive Application You can block() in tests Use testing features of your reactive library (like reactor-test) Test your resilience (with or without tools like Netflix's Chaos Monkey) Load test with expected throughput
49. Conclusions
50. Conclusions Never block to stay Reactive (flatMap them all) Using Blocking IO libraries (such as JDBC) still possible Non-blocking functional programming might give mental overhead Not every application has high enough throughput Blocking can still be resilient, responsive and fast Use Resilience Patterns (such as Bulkheads, Circuit Breaker)
51. Recommended Books
52. Questions Slides https://twitter.com/ggonchar #JEEConf Code https://github.com/ggonchar/reactive-spring5-example
