1. Becoming the Mario Bros of Git Understand how to work the plumbing layer 1 By Guilherme Paixão
2. Layers !2

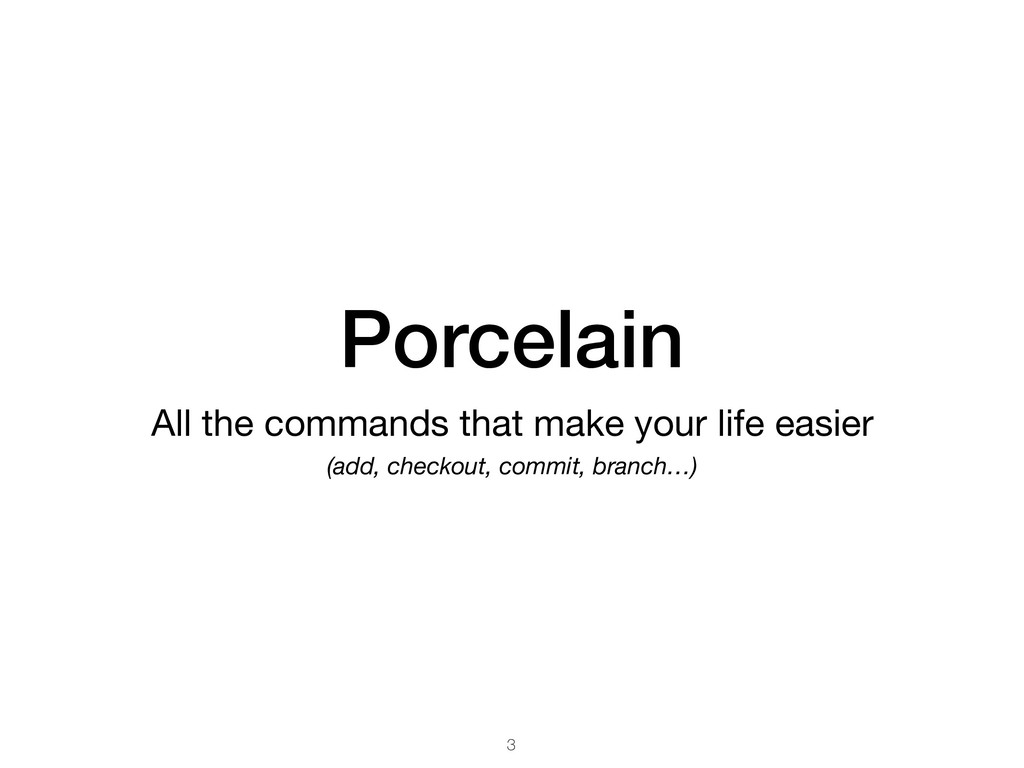

3. Porcelain All the commands that make your life easier (add, checkout, commit, branch…) 3

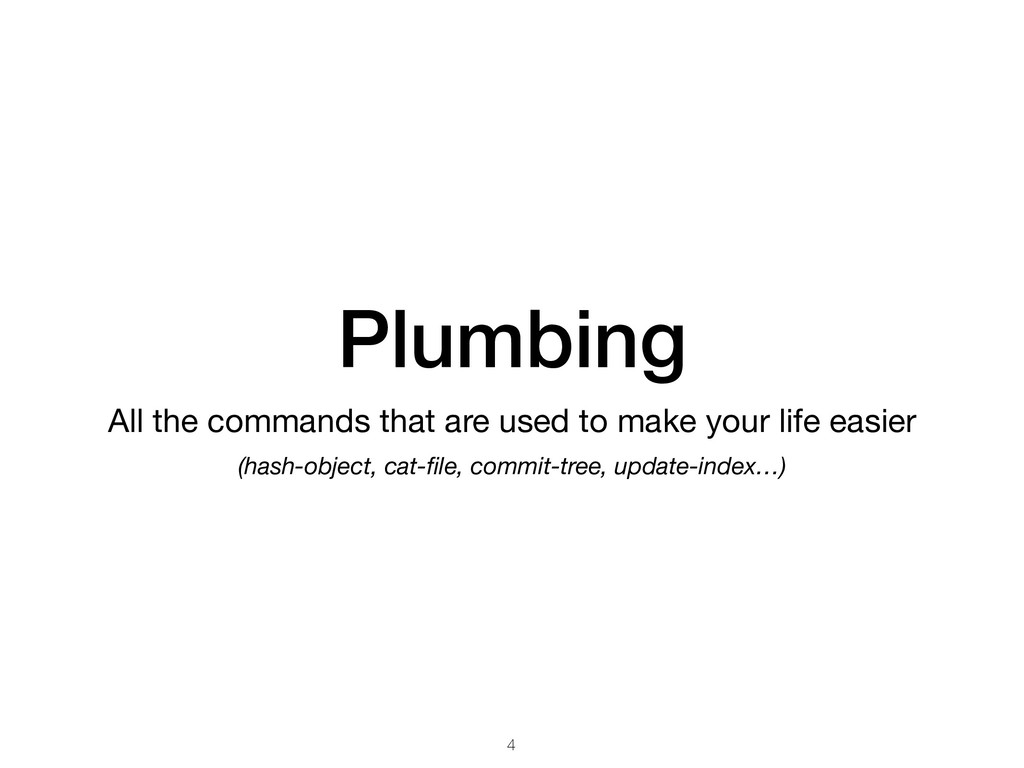

4. Plumbing All the commands that are used to make your life easier (hash-object, cat-file, commit-tree, update-index…) 4

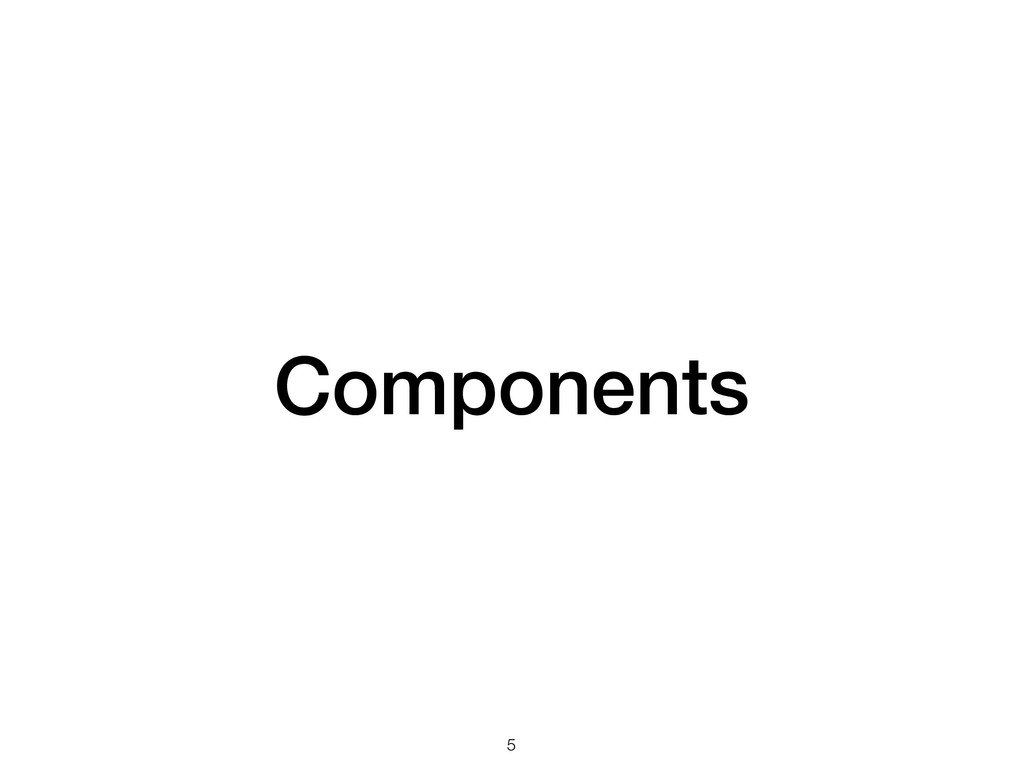

5. Components !5

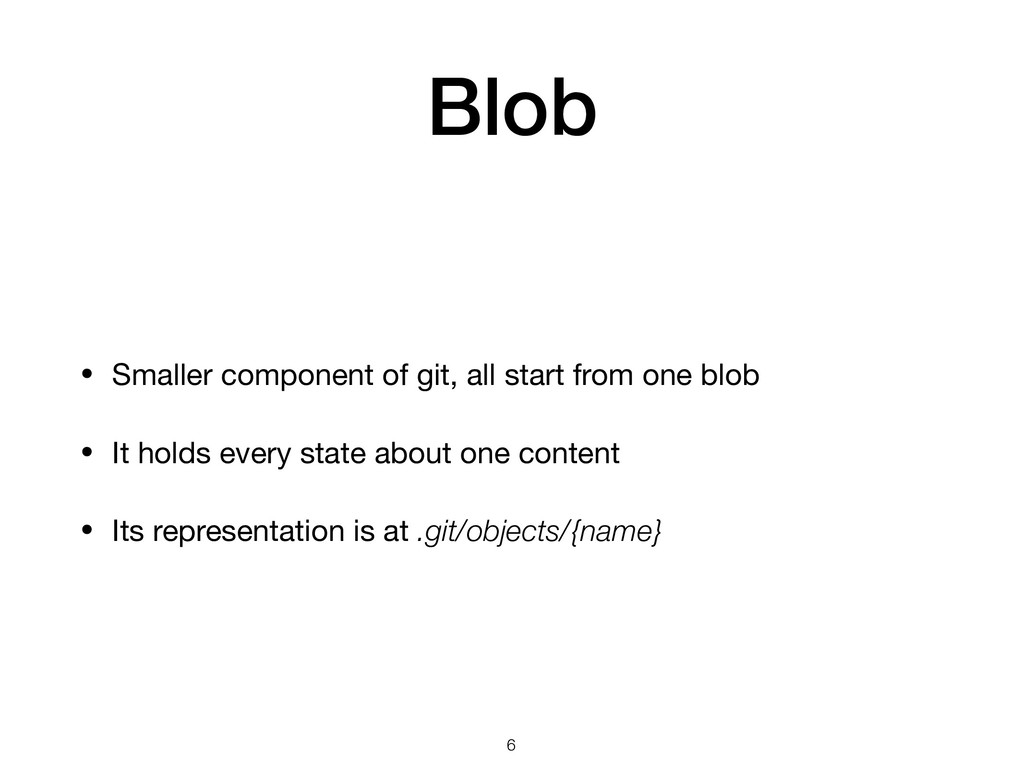

6. Blob • Smaller component of git, all start from one blob • It holds every state about one content • Its representation is at .git/objects/{name} !6

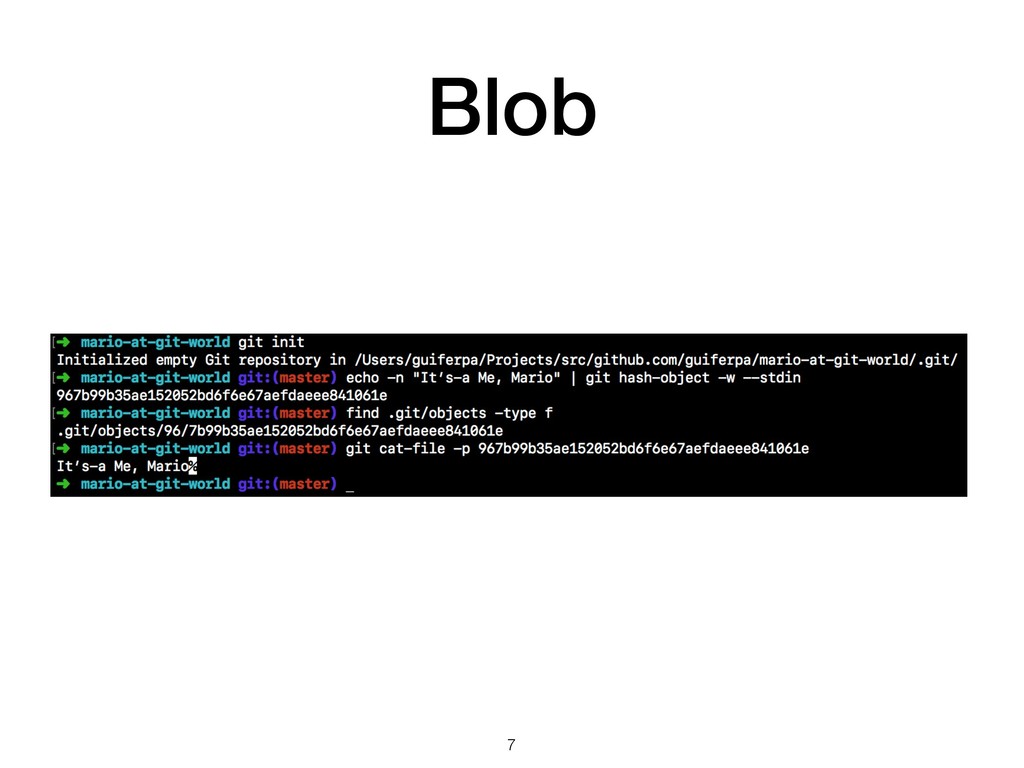

7. Blob !7

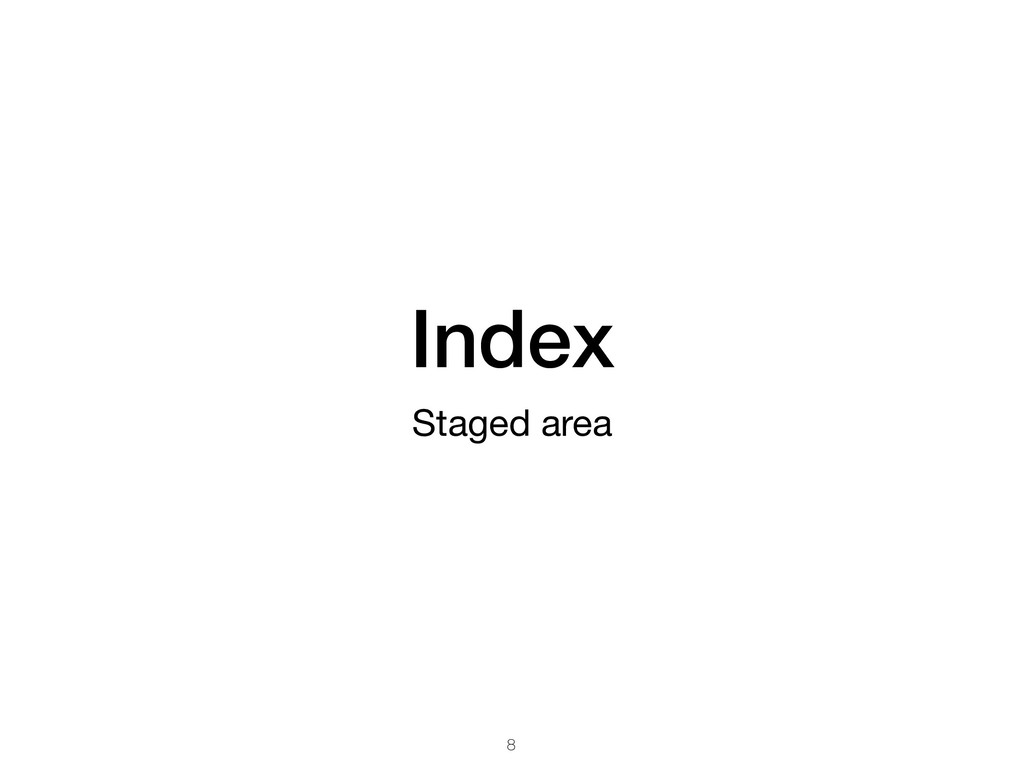

8. Index Staged area 8

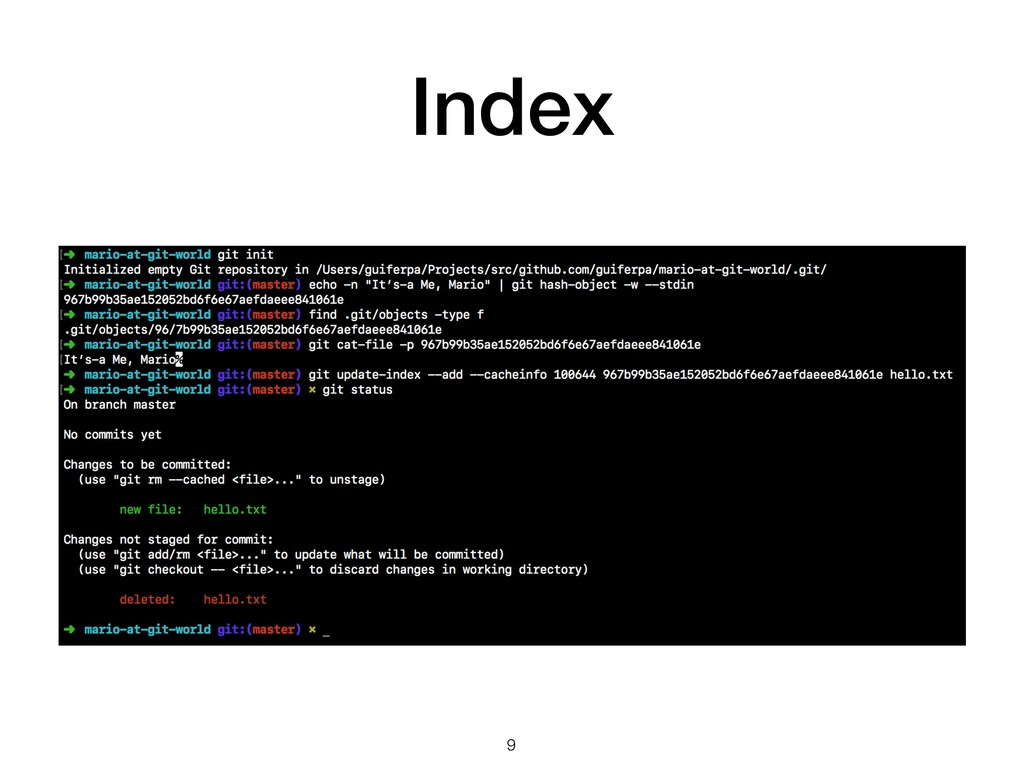

9. Index !9

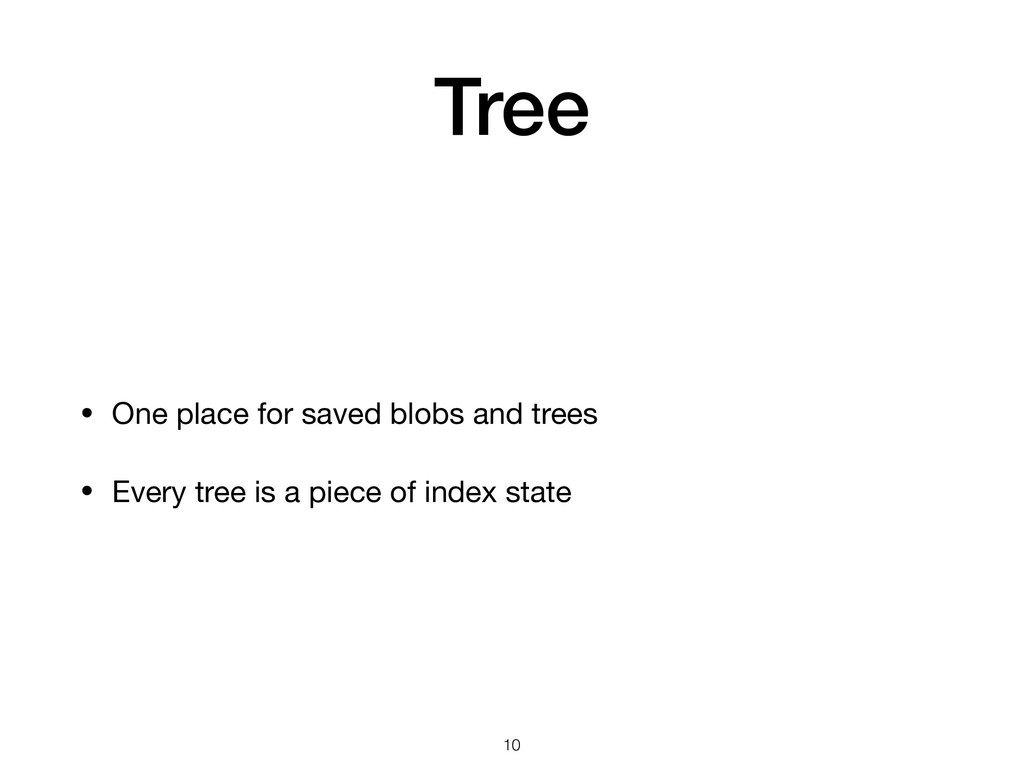

10. Tree • One place for saved blobs and trees • Every tree is a piece of index state !10

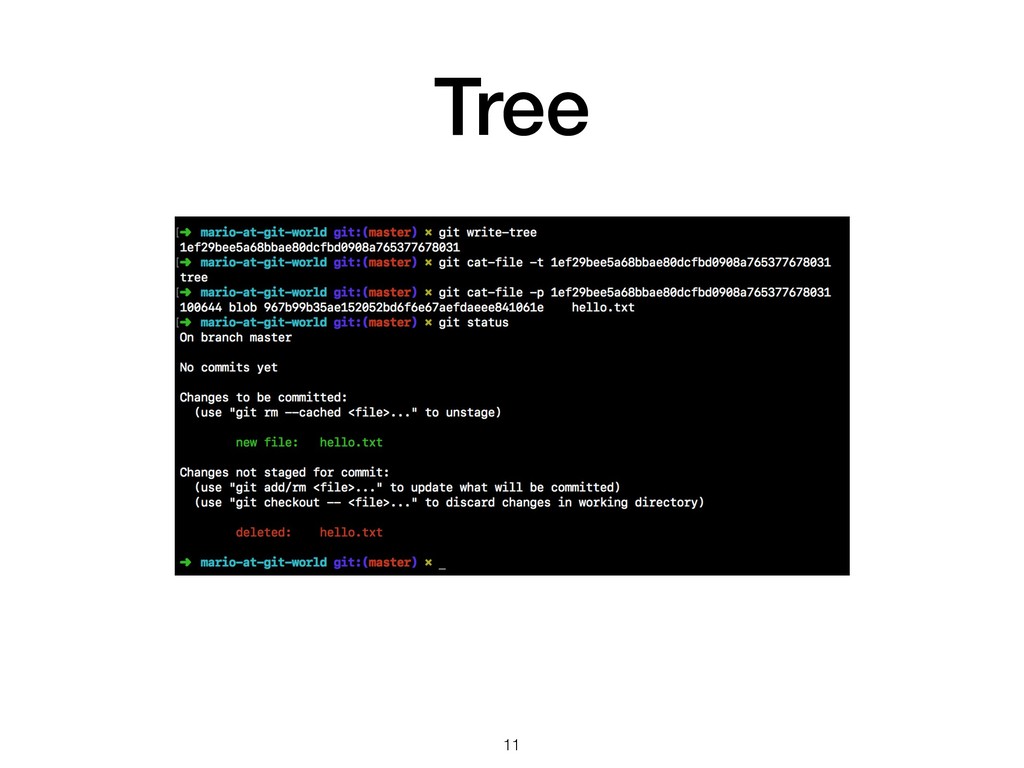

11. Tree !11

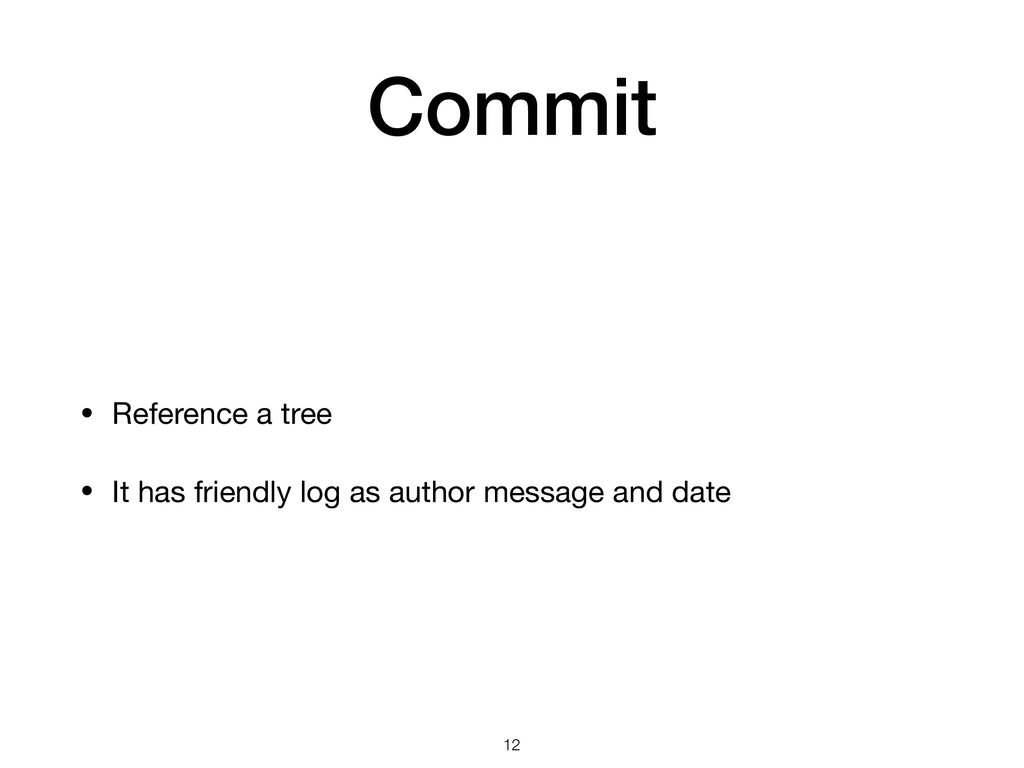

12. Commit • Reference a tree • It has friendly log as author message and date !12

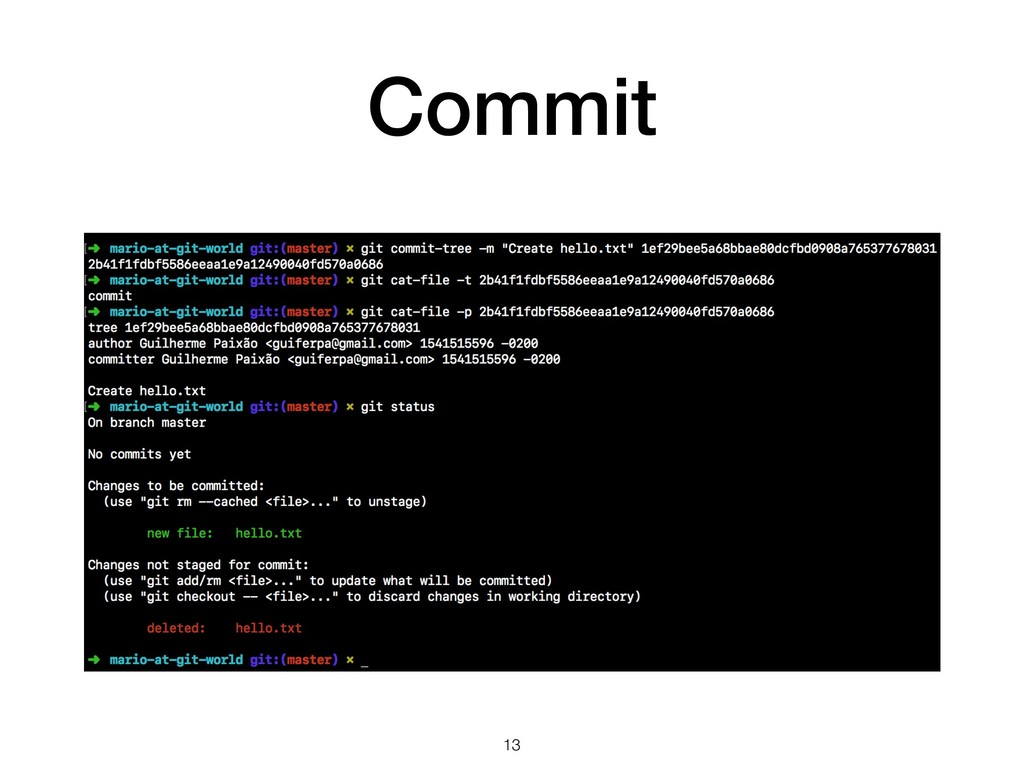

13. Commit !13
14. Branches 14
15. !15
16. BranchesRefs !16

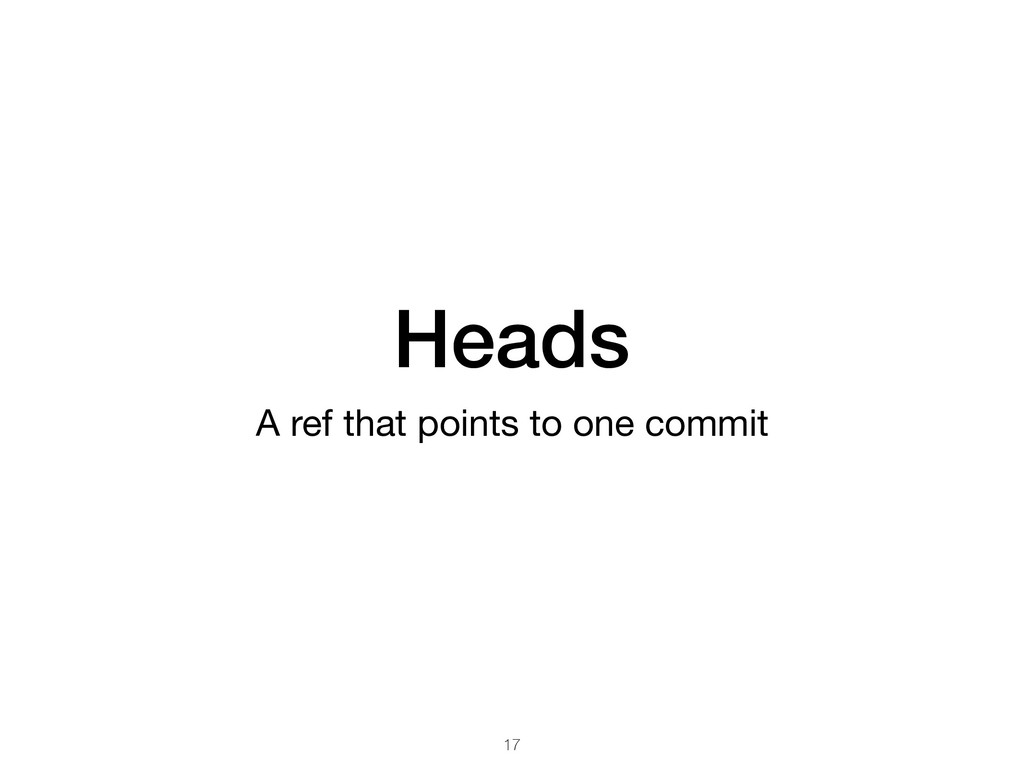

17. Heads A ref that points to one commit 17

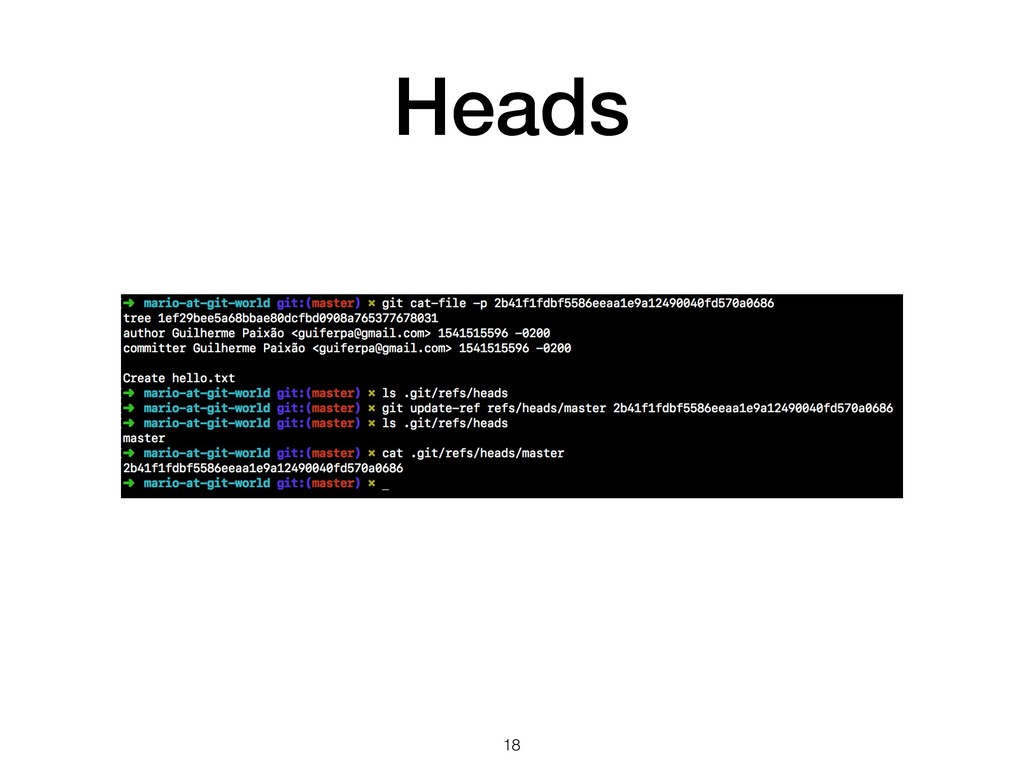

18. Heads !18

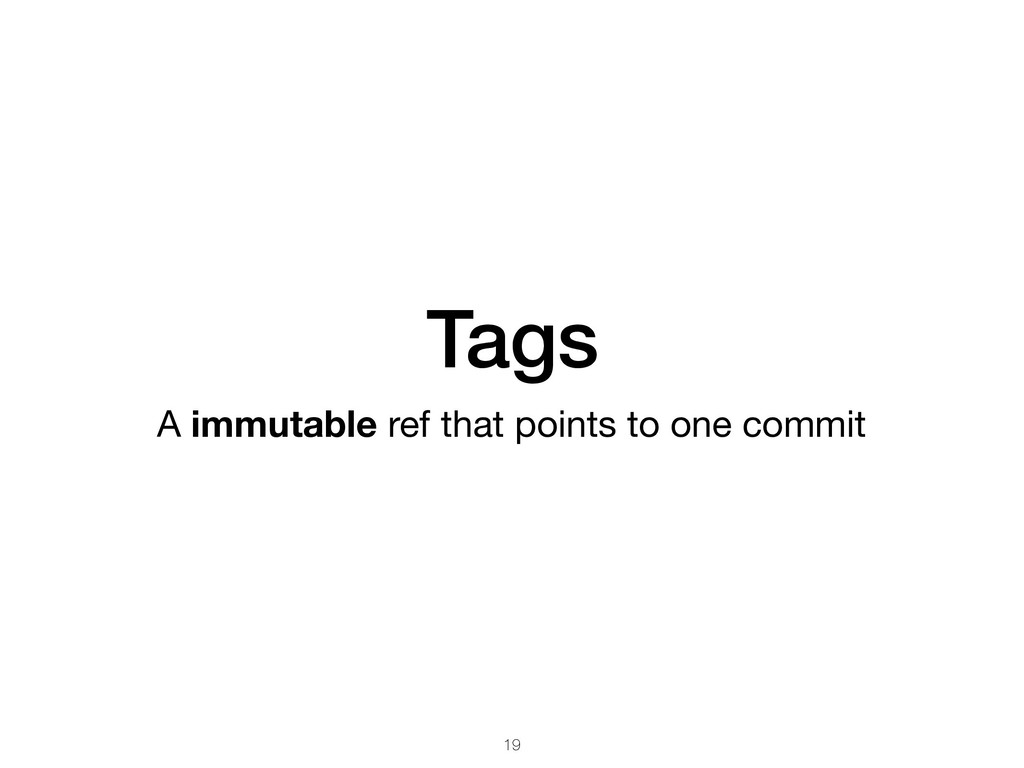

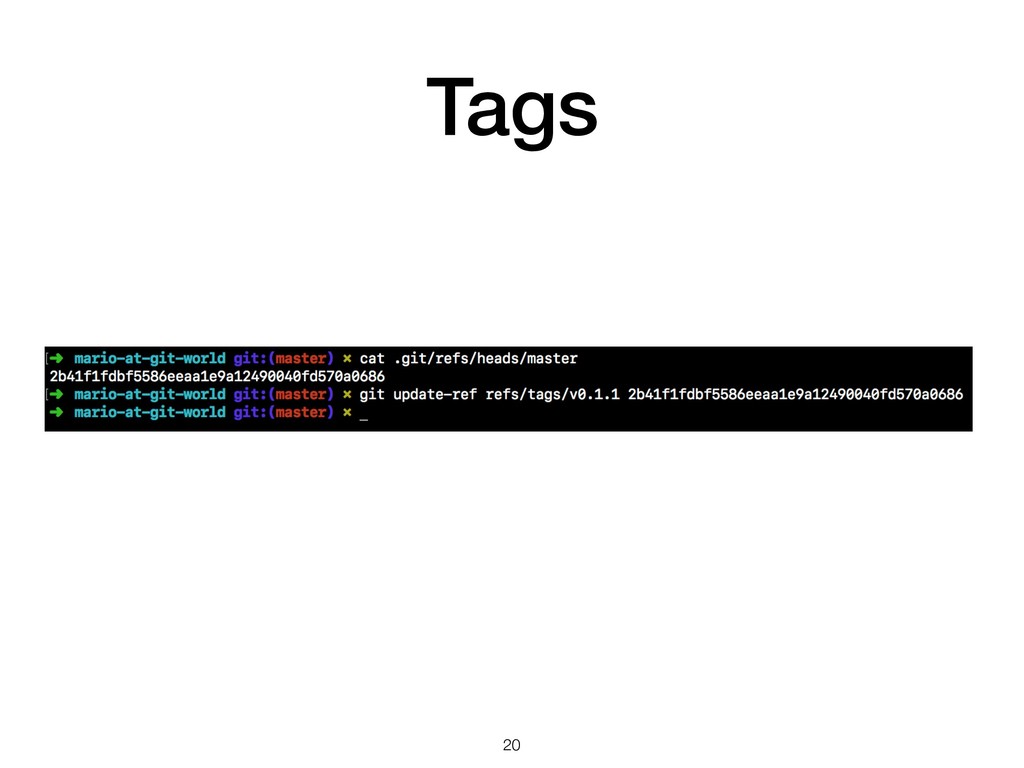

19. Tags A immutable ref that points to one commit 19
20. Tags !20

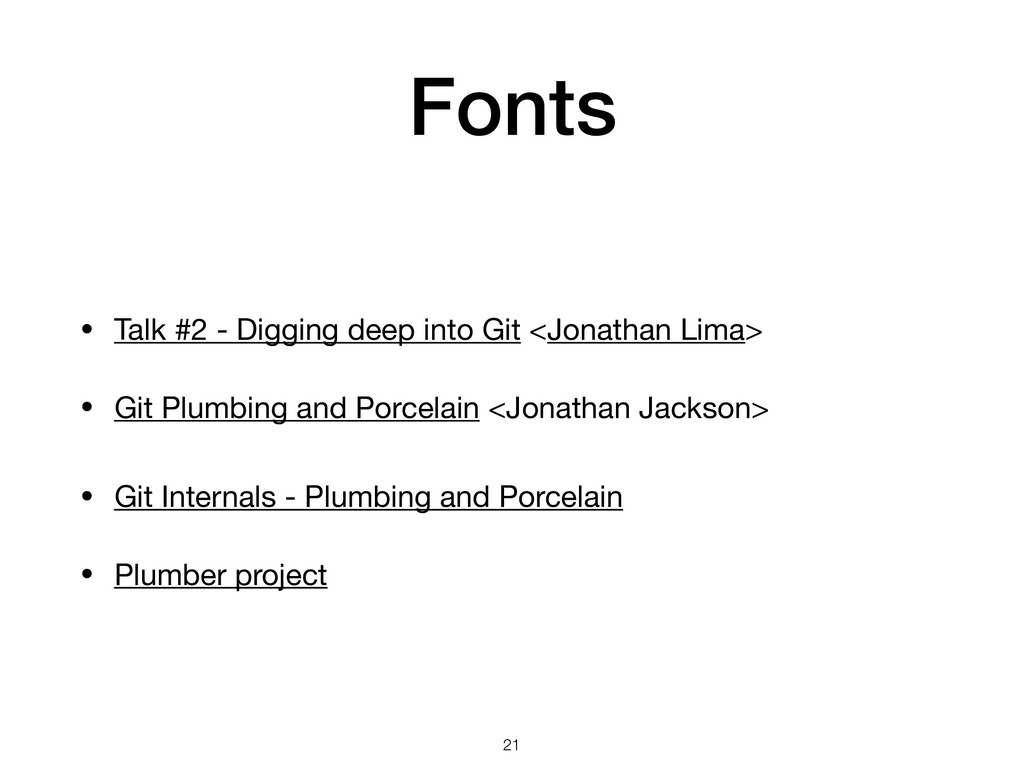

21. Fonts • Talk #2 - Digging deep into Git <Jonathan Lima> • Git Plumbing and Porcelain <Jonathan Jackson> • Git Internals - Plumbing and Porcelain • Plumber project !21
