Attacking Android Applications

In this talk we aim at showing how easy it is to reverse engineer an Android application. We show how to perform static analysis on an application. Secondly, we illustrate how applications are attacked dynamically in orde to investigate or alter the program flow of the application. Attendees walk away with tools and information to perform basic pentesting techniques on their own applications.

Transcript

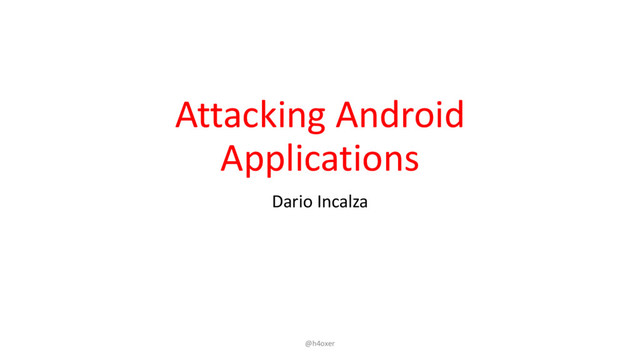

1. Attacking Android Applications Dario Incalza @h4oxer
2. $ whoami @h4oxer • Mobile Security Expert @ ZIONSECURITY • Pentesting of mobile applications • Bug bounty hunting • www.darioincalza.be • Tweets @h4oxer
3. ZIONSECURITY • Experts in web, mobile, IoT and infrastructure security • Pentesting – architectural and implementation • Secure Software Development • Security Consultancy • HQ in Rotselaar, Belgium • www.zionsecurity.com @h4oxer
4. Outline • Android Applications 101 • Attack Surfaces • Attacking Applications Statically • Attacking Applications Dynamically • Countermeasures @h4oxer
5. Android Applications 101 @h4oxer
6. Android Platform Stack @h4oxer Linux Kernel Hardware Abstraction Layer (HAL) Native C/C++ Libraries Android Runtime (ART) Core libraries Java API Framework Applications
7. Android Application • .apk - Android Package • Uploaded to Play Store or sideloaded • Can be dumped from the device • A regular .zip file • Always signed @h4oxer
8. APK Content @h4oxer AndroidManifest.xml resources.arsc classes.dex res assets Native C/C++ - .so files
9. Build Process @h4oxer Source Code Resource Files Jar Libraries AAR Libraries Compilers DEX Files Compiled Res
10. DEX Bytecode • Register-based bytecode • Executed by Dalvik / ART Runtime • Compiled to native code - dex2oat • Can be reversed to Java source • Smali bytecode – intermediate bytecode @h4oxer
11. Smali Bytecode @h4oxer
12. Attack Surfaces @h4oxer
13. Attack Models • Reverse engineering offline & online • App on device – without root • App on device – with root • Man-in-the-Middle • Physical access to device @h4oxer
14. Research Questions • How does the app handle authentication? • Access tokens, storage credentials, proper session management • How does the app store user data? • Cryptography, storage location, API keys, exposed content providers • How does the app communicate? • HTTP, HTTPS, Certificate pinning • How does the app protect itself? • Obfuscation, dynamic checks @h4oxer
15. @h4oxer
16. Attacking Applications Statically @h4oxer
17. Reverse Engineering Process @h4oxer APK .so libraries Classes.de x Resources Xml resources unzip AAPT Java Source Smali bytecode dex2jar Baksmali/smal i X86/ARM/x86- 64 Radare2/Hopper/IDAPro
18. $ aapt d xmltree file.apk AndroidManifest.xml @h4oxer
19. $ aapt d xmltree file.apk AndroidManifest.xml @h4oxer
20. $ apktool d file.apk @h4oxer
21. Bytecodeviewer @h4oxer
22. DroidGraph @h4oxer https://github.com/DarioI/droidgraph
23. Cryptography 101 • Symmetric Crypto = one key for encryption/decryption • AES, 3DES, Blowfish, … • Public-key Crypto = private and public key • Encrypt with private key and decrypt with public key = digital signature • Encrypt with public key and decrypt with private key = confidentiality @h4oxer
24. Locate Cryptography • Which crypto library is used? • Android, BouncyCastle, SpongyCastle, etc. • Does it use a hardcoded crypto key? • Does it use broken crypto? • MD5, RC4, AES in EBC, etc. • Where does it store cryptography keys? @h4oxer
25. Locate Cryptography • In Smali bytecode • Ljavax/crypto/Cipher; • Ljavax/crypto/spec/PBEKeySpec; • Ljavax/crypto/SecretKey; @h4oxer
26. Locate Cryptography grep -r "Ljavax/crypto/Cipher" <smali> @h4oxer
27. Locate Cryptography @h4oxer
28. @h4oxer
29. Attacking Applications Dynamically @h4oxer
30. Motivation • App might protect itself • Need runtime information • Trigger other code execution paths @h4oxer
31. Tools • Hooking Frameworks • LD_PRELOAD, Frida, xPosed,… • Emulators • Android SDK, Genymotion, Nathan Emulator • Debuggers • Radare2, IDA Pro, GDB, JDB, … • MiTM Proxies • Mitmproxy, Burp, Charles, … @h4oxer
32. Frida • Dynamic instrumentation toolkit • Debug a live process • Loads JavaScript (JS) Engine • Write, inject and execute JS script to interact • Server (on phone) and client (on pc) code @h4oxer
33. Frida – frida_client.py @h4oxer scriptname = sys.argv[1] # get script fd = open(scriptname, "r") # open script procname = sys.argv[2] # get process # define callback function def on_message(message, data): print(message) print(data) #Connect to Frida on the phone session = frida.get_usb_device().attach(procname) #Create script script = session.create_script(fd.read()) fd.close() script.on('message', on_message) script.load()
34. Frida – hooks.js @h4oxer Dalvik.perform(function () { var WebView = Dalvik.use("android.webkit.WebView"); WebView.loadUrl.overload("java.lang.String").implementation = function (s) { send(s.toString()); this.loadUrl.overload("java.lang.String").call(this, s); }; }); $ python frida_client.py hooks.js com.example.webview
35. xPosed Framework • Framework for hooking method calls • Implemented as hooking modules • Separate APK file that hooks into other running applications • Disadvantage: need to build APK for hooking • xPosed bridge jar is injected in every application @h4oxer
36. xPosed Framework @h4oxer public class Example implements IXposedHookLoadPackage { public void handleLoadPackage(final LoadPackageParam lpparam) { if (!lpparam.packageName.equals("com.example.webview")) return; findAndHookMethod("android.webkit.WebView”, lpparam.classLoader, "loadUrl","java.lang.String", new XC_MethodHook() { @Override protected void beforeHookedMethod(MethodHookParam param){ String url = (String) param.args[0]; XposedBridge.log("URL:"+ url); } @Override protected void afterHookedMethod(MethodHookParam param) { // this will be called after } }); } }
37. SSL 101 • SSL Certificate = cryptographically secured piece of information • Certificates are issued by CAs • Android device trusts a set of root Cas • SSL Validation = check if certificate from server is trusted @h4oxer
38. Problem @h4oxer Applicatio n MiTM Server Identify? Identify? Returns Cert Returns MiTM Cert
39. MiTM Attack • Allows you to test/discover/fuzz APIs • Install trusted user certificate • Trusted by all applications on < Android 6.0 • Install trusted system certificate • User certificates are not trusted by all apps on Android 6.0+ • Requires root @h4oxer
40. MiTM Attack @h4oxer $ emulator –avd mitm_device –http-proxy http://localhost:3030 $ mitmproxy –p 3030
41. MiTM Attack @h4oxer
42. Countermeasures @h4oxer
43. Countermeasures • Static Protection • Obfuscators • Packers @h4oxer • Dynamic Protection • Root Detectors • Emulator Detectors • Integrity Checkers • SSL Pinning
44. SafetyNet API • Google’s opinion on device • Result - JWT – JSON Web Token • Result: compatible or not • Can be cryptographically verified • Good protection against dynamic attacks @h4oxer
45. Key Take Aways • Think about a secure design • Apply a layered approach to security • Make sure you hack you application first @h4oxer
46. QA? Thank you! @h4oxer
